Effects of inclination angle and confining pressure on triaxial unloading-induced slip behaviors of shale fractures

To explore the effects of fracture inclination angle θ and confining pressure σ_3t on the slip behaviors and friction properties of fractures, the triaxial unloading-induced slip experiments were performed on the shale fractures. The results show that the σ_3t controls the slip modes of fractures, while the θ affects the occurrence of the stick-slip events during the quasi-static slip stage. With the increase in σ_3t, the main slip modes of fracture transform from the stable-slip to stick-slip, and eventually to the creep-slip. The increase in θ facilitated the occurrence of stick-slip events. As the θ increased from 30° to 50°, the number of stick-slip events increased from 0 to 3 and from 2 to 4 for σ_3t = 10 MPa and 20 MPa, respectively. For σ_3t = 40 MPa, no stick-slip event occurred in the slipping process. The θ and σ_3t have great effects on interaction modes between asperities, which directly affected the friction properties of fractures. With increasing σ_3t, the void spaces between the asperities were further compacted, resulting in the transition of asperity interaction from overriding mode to shear-off mode. The transition of asperity interaction model therefore brought about the weakening of friction coefficient at the activation point and the onset of dynamic slip stage. There is a competitive relationship between the θ and σ_3t for the evolution of the friction properties of fractures. As the θ increase from 30° to 50°, for σ_3t = 10 MPa, the mean sheared-off thickness decreased from 0.502 mm to 0.433 mm, while for σ_3t = 40 MPa, the mean sheared-off thickness decreased from 0.505 mm to 0.319 mm. With the increment of θ, the anisotropy of joint roughness coefficient was weakened. We suggested that by adjusting the fracturing angle of hydro-fracturing, the earthquakes with large seismic moments may be effectively mitigated.

1 Introduction

The shale gas has been a good alternative to traditional fossil energy due to its high thermal efficiency and low carbon emissions (Ma et al., 2017; Zhang et al., 2022; Sun et al., 2023). The large-scale exploitation of shale gas is expected to play a key role in alleviating energy crisis and environment pollution (Yuan et al., 2015; Gao et al., 2021; Jia et al., 2022; Liu et al., 2023). However, the natural shale gas reservoirs are typically tight with a low porosity, and the hydro-fracturing technology is often employed to improve the permeability of reservoirs for efficient exploitation (Yasuhara et al., 2005; Zhang et al., 2016; Chen et al., 2021a; Yu et al., 2023). During the process of hydro-fracturing, massive fluid is injected into the reservoirs at high pressure to manufacture the tensile fractures (Zhang et al., 2016; Proctor et al., 2020). The increasing pore pressure due to fluid injection may perturb the in situ stress state of natural fractures and decrease the effective normal stress. The fault may be activated, and thereby leading to the occurrence of seismic activities (Guglielmi et al., 2015; Bao and Eaton, 2016; Elsworth et al., 2016; Ye and Ghassemi, 2020; Shi et al., 2022). Many countries have banned the hydro-fracturing related projects due to the dramatically increased frequency of earthquakes, for instance, the Germany, UK, and the France (Lee et al., 2016; Li et al., 2019; Evensen et al., 2022; Zhu et al., 2024). Despite of this, hydro-fracturing is still one of the most efficient and cleanest way to extract shale gas (Ferguson et al., 2021; Wu et al., 2021; Wang et al., 2022). The generated fracture networks due to hydro-fracturing leads to the dramatical increase in the permeability of shale formation by serval orders of magnitudes, which has significantly improved the efficiency of shale gas recovery (Liu et al., 2021; Zhang et al., 2021). Thus, there is a great need to unravel the mechanism of fracture activation related to the hydro-fracturing, so as to identify and mitigate the induced seismicity.

Many studies have been conducted to investigate the activation and frictional behaviors of fractures (Guglielmi et al., 2015; Scuderi and Colletttini, 2018; An et al., 2020a; An et al., 2020b; Zhang et al., 2022). An et al. (2020a), An et al. (2020b) performed the frictional experiments on the shale fractures using the triaxial shearing apparatus, and the effects of temperature, pore pressure as well as the mineral composition were considered. They found that increasing the pore pressure may favor the fractures slipping in a stable state, and the slip modes of fractures were mainly controlled by proportion of the phyllosilicate and total organic carbon. Ji et al. (2019) carried out the triaxial unloading-induced shear tests on the smooth and rough granite fractures, and their results showed that the stability of fracture was dominated by the ratio of system stiffness to fracture weakening rate. Mei and Wu (2021) conducted the direct-shear experiments on the fractures with simulated polycarbonate layer, and the influence of normal stress on the slip behaviors and asperity evolution was investigated. They found that with the decrease in normal stress, there was a transition of slip behavior from stick-slip to stable sliding. Liu et al. (2023) explored the effect of simultaneous unloading of normal stress and shear stress on the activation of sandstone fractures with using direct shear apparatus. They proposed that the slip modes of fractures were controlled by the ratio of the unloading rate of shear stress to that of normal stress, and decrease in the ratio may weaken the stability of fracture. However, most of these studies focus on the fractures at shallow depth. With increasing the depth, the confining pressure that the fracture suffers increases nearly linearly. The buried depth of shale gas reservoir detected in Sichuan, China, reaches up to 4 km, where the confining pressure is as high as 40 MPa (Sun et al., 2021; Zeng et al., 2022). Previous studies showed that the increment of confining pressure may strengthen the compaction effect between mineral particles and prolong the damage phase, thus leading to the variation in shear properties of fracture (Liu et al., 2023; Huang et al., 2023). Zhang et al. (2023) found that with increasing confining pressure, the process of strain softening was facilitated while the failure strain was strongly restricted. Therefore, it is necessary to study the effect of confining pressure on activation and subsequent slip behaviors of fractures.

The natural fractures or faults show anisotropic properties, which can be determined by two parameters, i.e., the strike and dip angle (Huang et al., 2021). In different shale gas reservoirs, the dip angles of natural fractures are variable due to tectonic movements (Chattopadhyay et al., 2020). The in situ stress state of these fractures and the disturbance stress acting on the fracture surfaces during hydro-fracturing are different. The dip angle of natural fracture can be directly reflected as the inclination angle in the laboratory test (see Figure 1). Most of the inclination angles used in the experiments are between 20 and 55°, so as to prevent the generation of new cracks in rock matrix (Brady and Brown, 2006; Zhang et al., 2022; Ji et al., 2022b). Some scholars have investigated the effect of inclination angle on the shear properties of fractures (Giorgetti et al., 2019; Chen et al., 2021b; Yue et al., 2022). Yue et al. (2022) explored the effect of inclination angle on the shear behavior and damage mode of fractures, and found that the damage degree and shear strength were strongly correlated with the relative position between the inclination angle and the shear direction. Chen et al. (2021)conducted shear tests on sandstone specimens with variable joint inclination angles. Their results demonstrated that with the increase in inclination angle, the number of shearing cracks gradually decreased, while some tensile cracks were formed due to the local stress rotation (Giorgetti et al., 2019). However, there are rare studies to explore the influence of fracture inclination angle on slip characteristics of fractures. Previous studies have shown that there were competing effects between these factors on fracture activation as well as slip behavior (An et al., 2020b; Ji et al., 2022; Zhang et al., 2022). It is imperative to conduct thorough investigation on the combined effects of inclination angle and confining pressure on the slip behaviors of fractures.

Figure 1

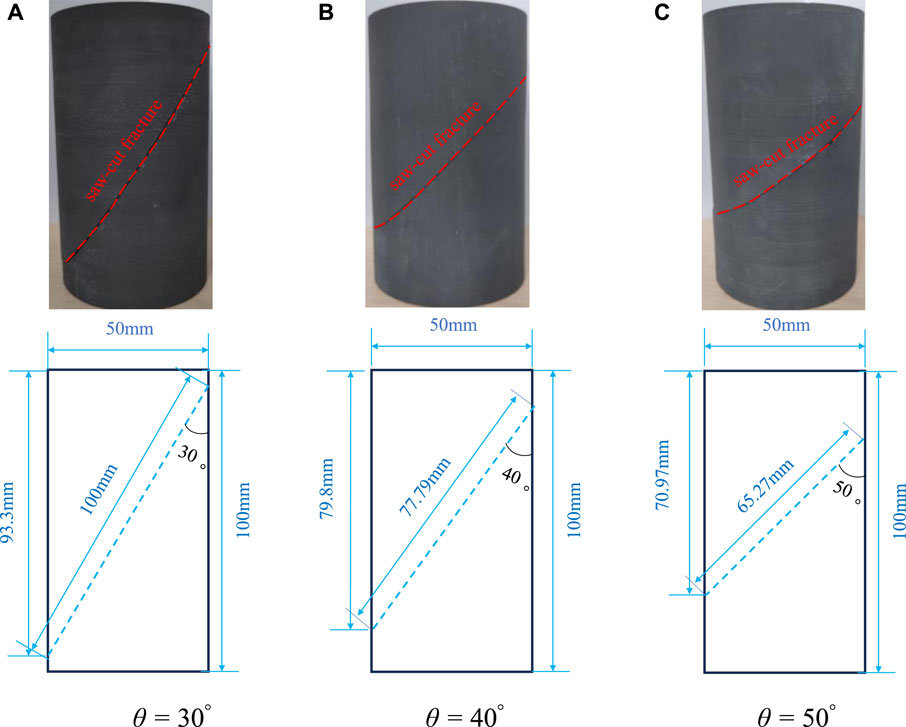

Figure 1. The geometrical size of the saw-cut shale fractures with different inclination angles θ: (A) θ = 30^°, (B) θ = 40^°, and (C) θ = 50^°.

In this study, shale fractures with different inclination angles were employed to perform the triaxial unloading-induced slip experiments under different confining pressures. The normal stress applied on the fracture surfaces was stepwise unloaded as perturbed stress to activate the fractures. The effects of confining pressure and inclination angles on the fracture activation, slip modes, and friction characteristics were investigated in detail. The damage modes of fractures and the evolution of joint roughness coefficient (JRC) tensors were explored. Finally, the mechanism of fracture activation and implication for shale gas exploitation were discussed.

2 Materials and methods

2.1 Sample preparation and experimental setup

The shale was cored from Longmaxi shale formation in Sichuan, China, and consists of 43% quartz, 18.3% calcite, 14.8% illite, 13.4% chlorite, and 10.5% albite according to the X-ray diffraction (XRD). Nine cylindrical shale specimens with a height of 100 mm and a diameter of 50 mm were made to manufacture the saw-cut fracture samples with different inclination angles θ (see Figure 1). The samples were then divided into three groups according to the θ, and each group contains three saw-cut fracture samples with the same θ. The θ was set to be 30°, 40°, and 50° for three groups, respectively. To minimize the influence of roughness on the activation and slip process of fractures, all the fracture surfaces were polished with fine-grained sandpaper (Ji et al., 2022).

As shown in Figure 2, the triaxial unloading-induced fracture slip experiments were performing on the MTS 815.02 rock mechanics testing system, which has been widely adopted to investigate the fracture activation due to its high performance in servo controlling (Ishibashi et al., 2018; Wang et al., 2020; Bijay and Ghazanfari, 2021; Ji et al., 2023; Zhu et al., 2023). The servo controlling system enables the real-time adjustment of shear stress τ and normal stress σ_n applied on the fracture surface. Figure 3 depicts the stress state of the sample in the triaxial pressure chamber, and the τ and σ_n can be calculated as:

$\tau =\left({\sigma }_1-{\sigma }_3\right)\sin \theta \cos \theta (1)$

${\sigma }_n={\sigma }_3+\left({\sigma }_1-{\sigma }_3\right){\sin }^2\theta (2)$

where σ₁ is the axial stress, σ₃ is the confining pressure. According to Coulomb failure criterion and Terzaghi effective stress principle (Nur and Byerlee, 1971; Lade and De Boer, 1997; Wang et al., 2020), with the increase in pore pressure P_p or decrease in ${\sigma }_n$, the fracture may be activated to slip once the τ resolved along the fracture plane exceeds the shear strength τ_s. This can be described as (Passelègue et al., 2018):

$\tau >{\tau }_s=\mu \left({\sigma }_n-P_p\right)(3)$

where μ is the friction coefficient. In our study, the scheme of fluid injection was not employed (i.e., P_p = 0). Thus, Eq. 3 can be demonstrated as (Ji et al., 2019):

$\tau >{\tau }_s=\mu {\sigma }_n(4)$

Figure 2

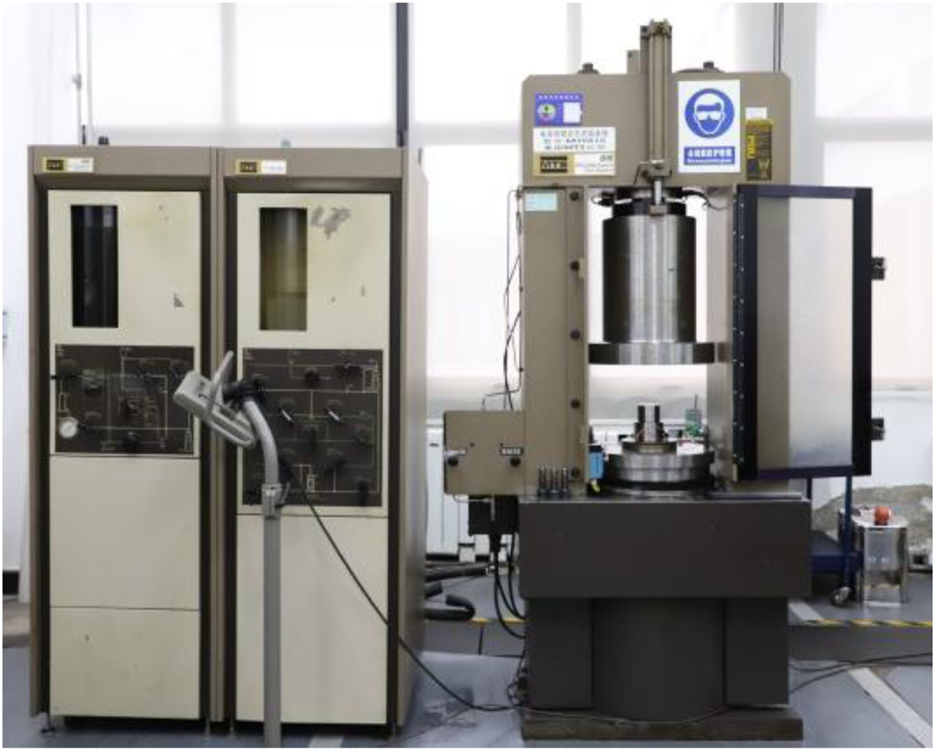

Figure 2. The MTS 815.02 rock mechanics testing system.

Figure 3

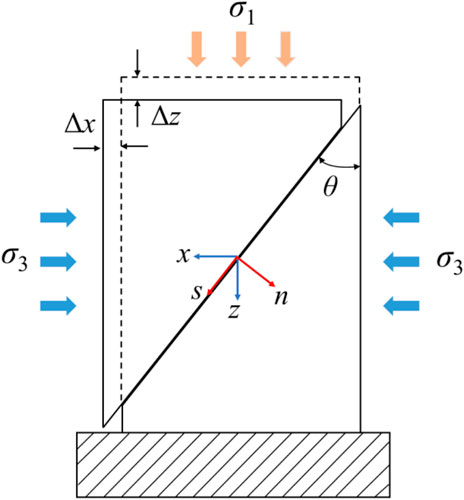

Figure 3. The schematic view of sample deformation during the slip process (after Ye and Ghassemi, 2018).

Thus, when the deviator stress σ₁ - σ₃ is held constant, the decrease in σ₃ can lead to the decrease in σ_n. In our study, the driving mode of unloading σ₃ was chosen as an alternative to increasing P_p to induce the slip of fracture.

The displacements of fracture in both parallel d_s and normal d_n to the shear direction can be calculated based on the axial deformation Δz and radial deformation Δx of the sawcut sample (Ye and Ghassemi, 2018):

$d_n=\Delta z\sin \theta -\Delta x\cos \theta (5)$

$d_s=\Delta z\cos \theta +\Delta x\sin \theta (6)$

The Δz and Δx can be monitored by the sensors embedded in the piston and the circumferential extensometer, respectively. Both Δz and Δx were recorded at a sampling interval Δt of 1 s. The increment of d_s within Δt was defined as Δd_s. The shear slip velocity v_s can be calculated as:

$v_{\mathrm{s}}=\Delta d_{\mathrm{s}}/\Delta t(7)$

The acceleration a_s of fracture can be obtained as:

$a_{\mathrm{s}}={\Delta d_{\mathrm{s}}/\Delta t}^2(8)$

In order to obtain the variation in the morphology of fracture surfaces after the fractures were activated and experienced shear slipping, the three-dimensional scanning system 3DSS was utilized. This scanning system has a resolution of ±1 μm in the z direction and ±20 μm in the x and y directions, respectively.

2.2 Experimental procedures

Figure 4 depicts the typical evolutions of the confining pressure σ₃, axial stress σ₁, deviator stress σ₁ - σ₃, shear stress τ and normal stress σ_n in the unloading-induced slip experiments. And the loading paths of stresses throughout the triaxial unloading-induced fracture slip experiment can be divided into three stages. The stages Ⅰ and Ⅱ constitute the displacement-driven process, and stage Ⅲ is the unloading-driven slip process. In the stage Ⅰ, the σ₃ was loaded to the target value σ_3t at a constant rate U_c for 2 min, while the σ₁ - σ₃ was loaded at a smaller loading rate of U_ca than σ₁ to avoid the occurrence of fracture activation. Here, the maximum of σ₃ was set to 40 MPa to explore the slip characteristics of fracture under large buried depth. And σ_3t was set to be 10 MPa, 20 MPa, and 40 MPa to investigate the effect of confining pressure (or buried depth) on the fracture activation. In the stage Ⅱ, the σ₃ was held constant at σ_3t, and the σ₁ - σ₃ was gradually loaded by moving the piston downward at a constant rate of 0.001 mm/s to make the τ applied on the fracture reach the peak shear strength τ_p. After that, the τ was reduced to 0.85τ_p through moving the piston upward at a speed of 0.001 mm/s, where the fracture is viewed as being in a critical stress state. In the stage Ⅲ, σ₁ - σ₃ was maintained constant, and the σ₃ was unloaded in steps at a fixed rate of 0.5 MPa/min for 5 min, followed by being held for another 5 min. This unloading-holding-unloading process was repeated until the fracture is destabilized. The experimental conditions for each sample can be found in detail in Table 1.

Figure 4

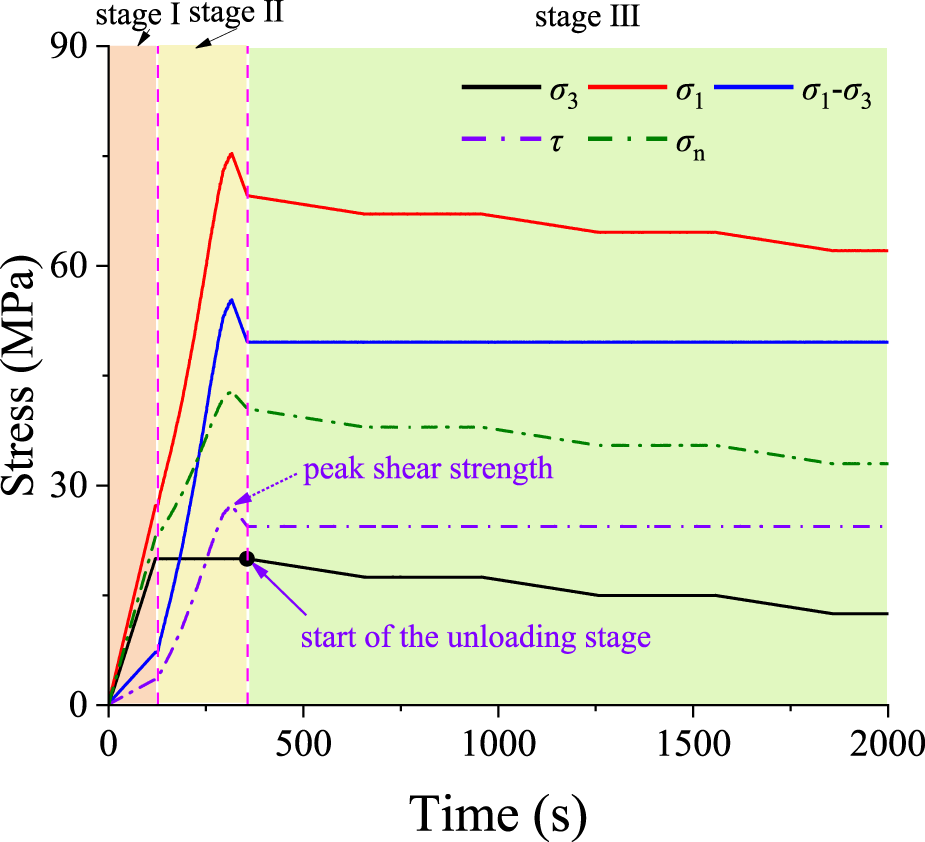

Figure 4. Evolutions of the confining pressure σ₃, axial stress σ₁, deviator stress σ₁ - σ₃, shear stress τ and normal stress σ_n in the unloading-induced slip experiments.

Table 1

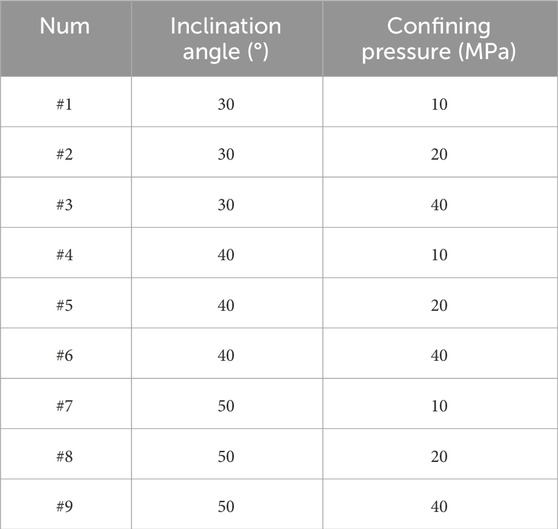

Table 1. The experimental conditions for nine saw-cut shale samples.

3 Results and analysis

3.1 Slip behaviors of fractures

The variations in the mechanical parameters and kinematic parameters during the slip process of the fractures were shown in Figures 5–7. In the displacement-driven processes, all the fractures were loaded to the τ_p in a stable state. The τ_p was significantly enhanced by the increasing σ_3t (see Figure 8). As σ_3t increases from 10 MPa to 40 MPa, the τ_p of fractures with θ = 30° and 40° increased from 11.06 MPa to 38.43 MPa, 15.77 MPa–53.42 MPa, with increments of 27.37 MPa and 37.65 MPa, respectively. For the fracture with θ = 50°, the strengthening effect on τ_p was further amplified, and the τ_p increased from 30.12 MPa to 105.19 MPa, with an increment of 75.07 MPa. Under the same σ_3t, the fracture with θ = 50° had the largest shear strength, followed by θ = 40° and 30°.

Figure 5

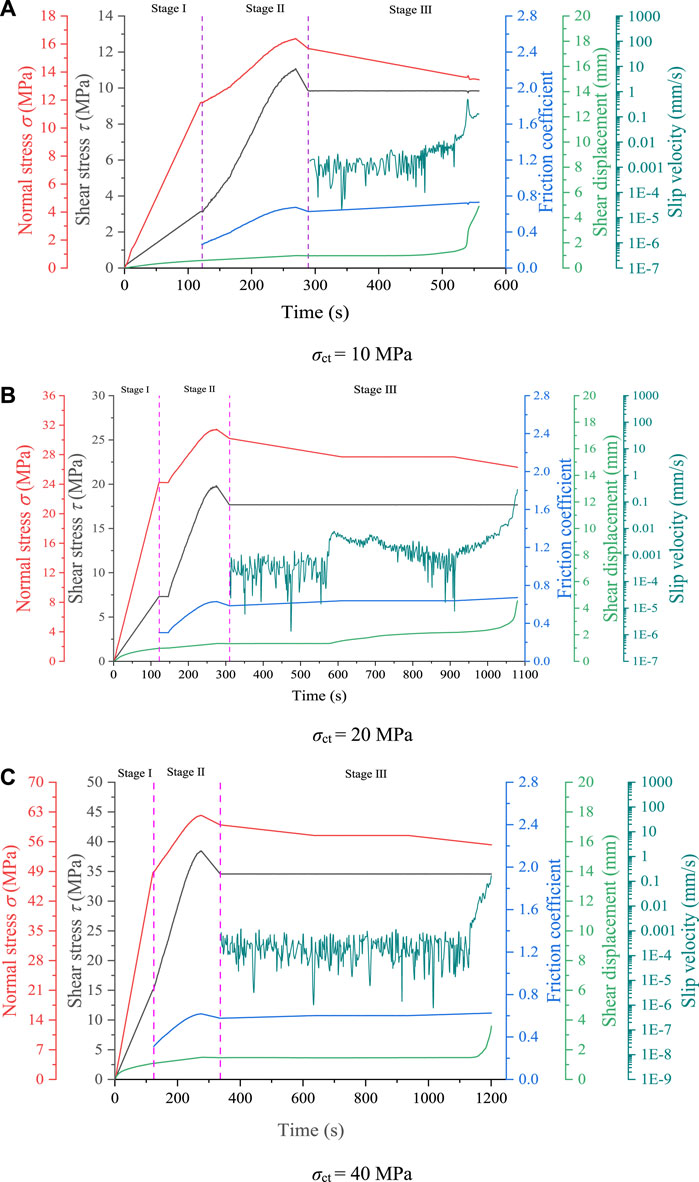

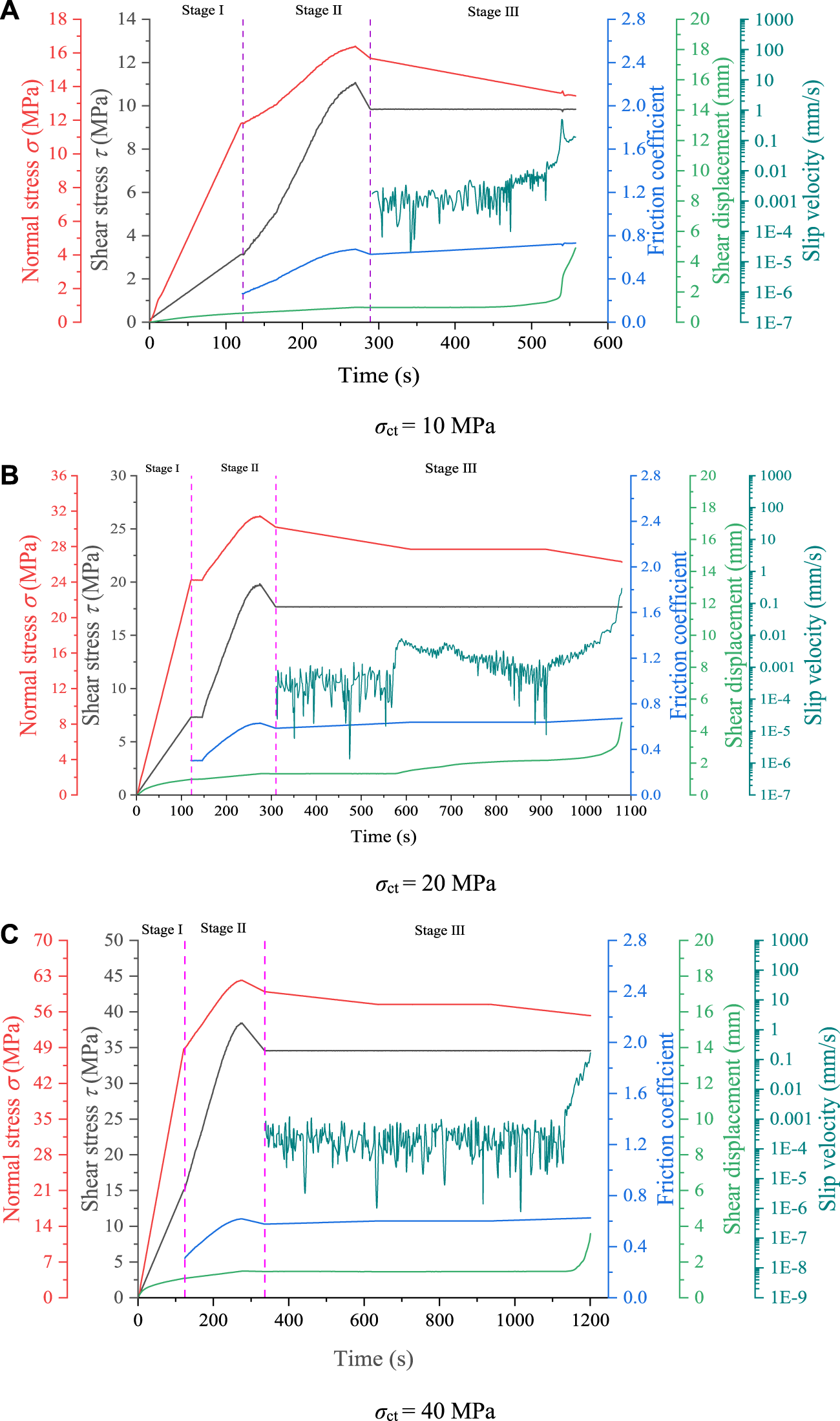

Figure 5. Evolutions of mechanical and kinematic parameters during the slip process under different confining pressures σ_ct for the fractures with θ = 30°: (A) σ_ct = 10 MPa; (B) σ_ct = 20 MPa; (C) σ_ct = 40 MPa.

Figure 6

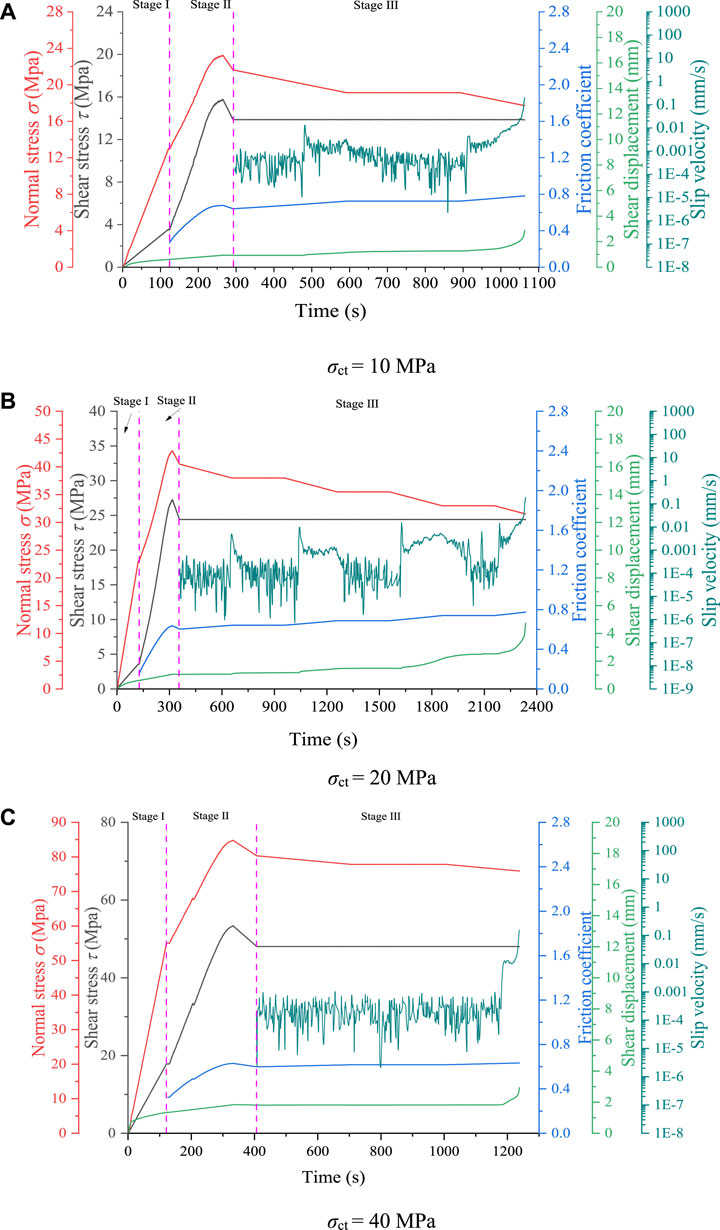

Figure 6. Evolutions of mechanical and kinematic parameters during the slip process under different σ_ct for the fractures with θ = 40°: (A) σ_ct = 10 MPa; (B) σ_ct = 20 MPa; (C) σ_ct = 40 MPa.

Figure 7

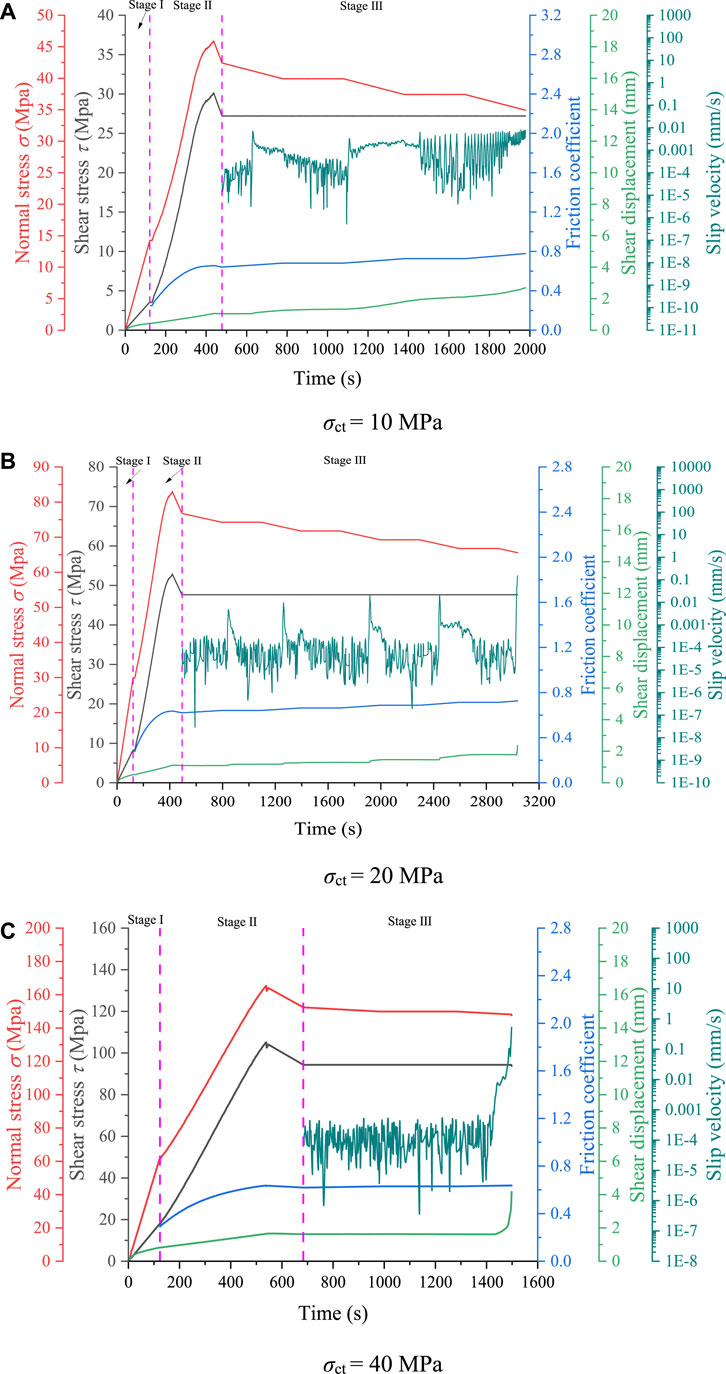

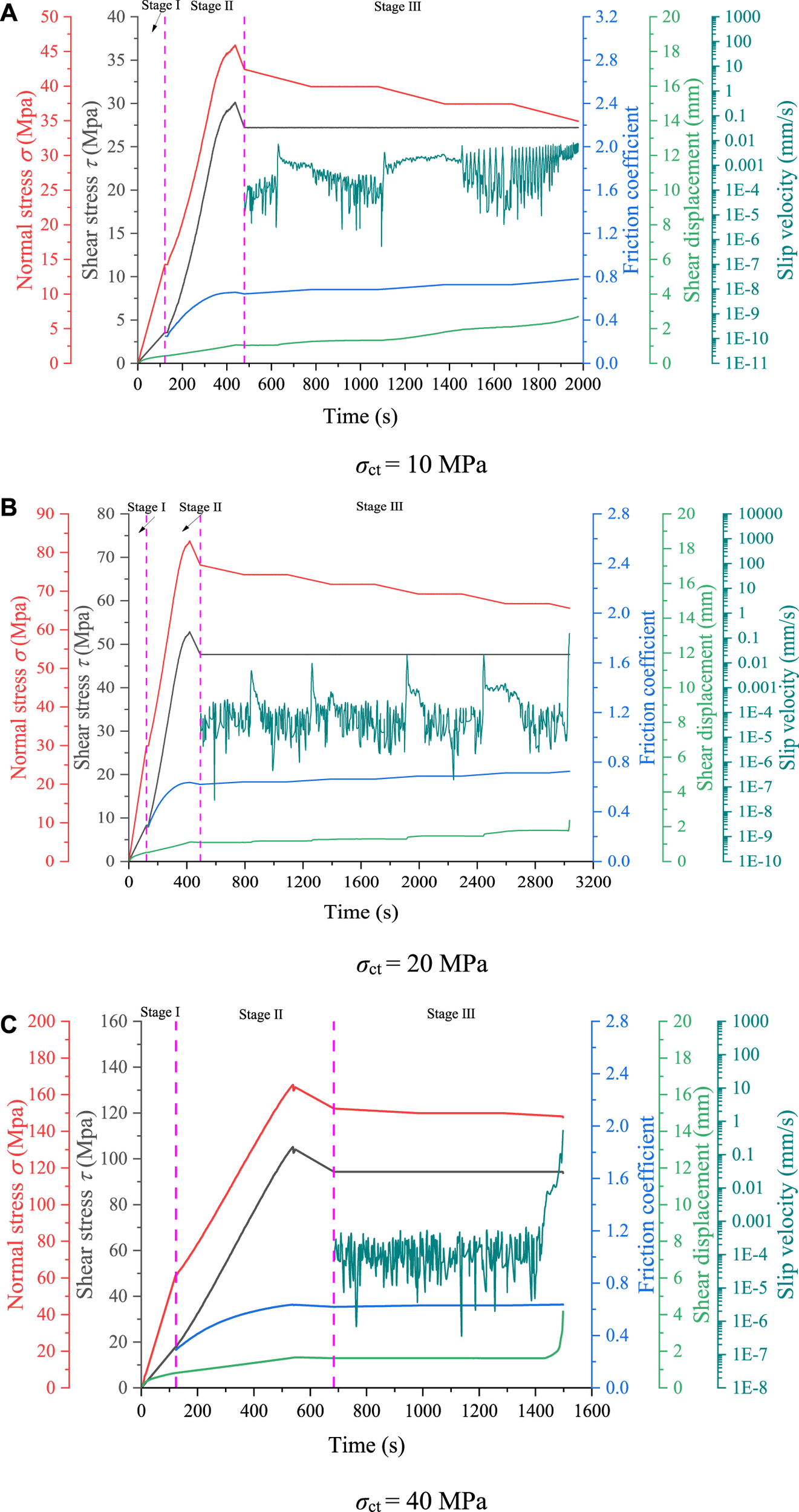

Figure 7. Evolutions of mechanical and kinematic parameters during the slip process under different σ_ct for the fractures with θ = 50°: (A) σ_ct = 10 MPa; (B) σ_ct = 20 MPa; (C) σ_ct = 40 MPa.

Figure 8

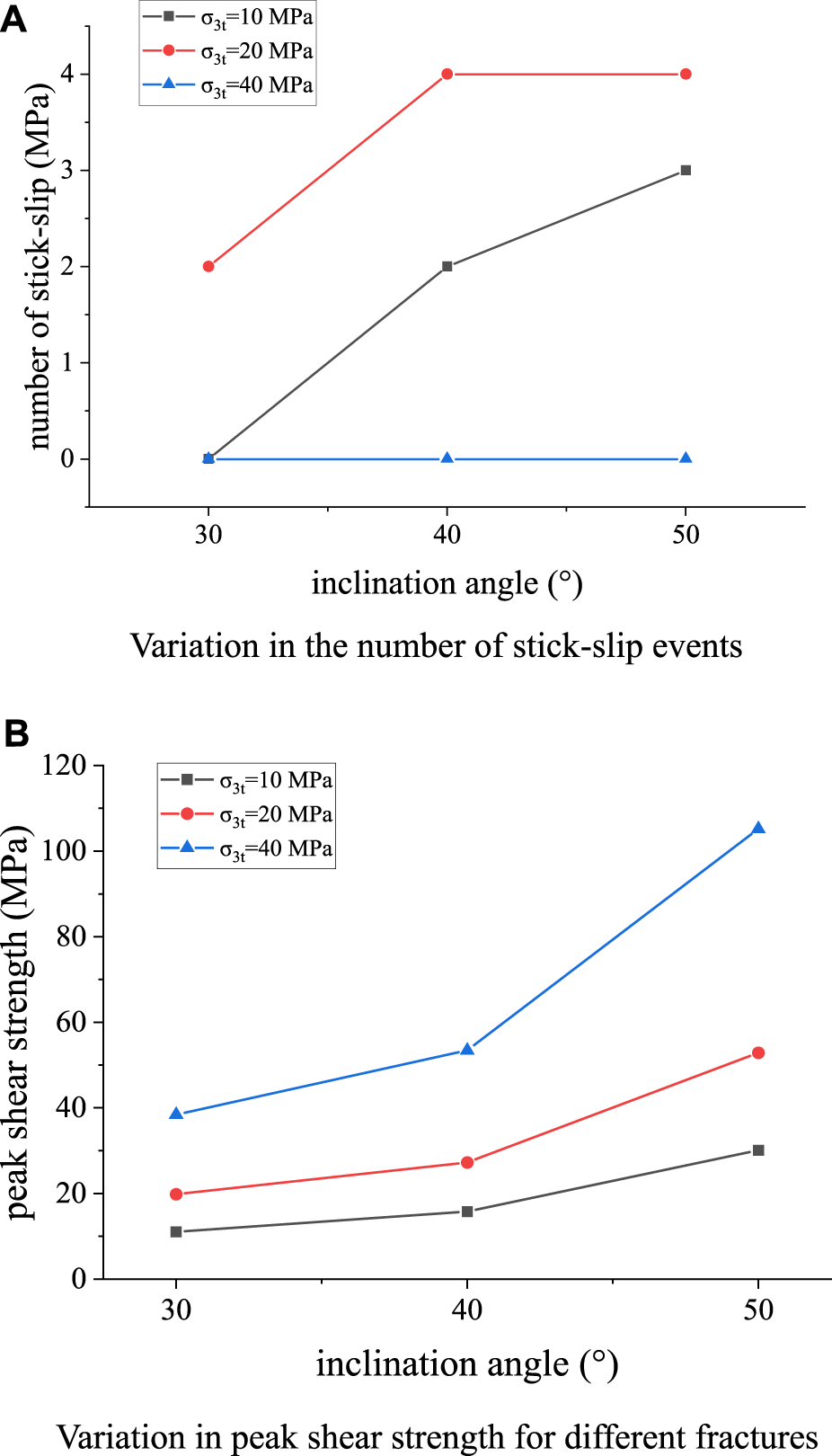

Figure 8. Number of stick-slip events in the quasi-static slip stage and the peak shear strength of fractures with different θ: (A) Variation in the number of stick-slip events; (B) Variation in peak shear strength for different fractures.

After entering the unloading-driven process, the decrease of σ₃ perturbed the initially stable stress state of fractures and the fractures may be activated. Eventually, the imbalanced stress applied on the fractures forced the fractures to enter the dynamic slip stage. Taking the sample #5 as an example, in the stage Ⅲ, the fracture was activated to slip at t = 652.54 s and subsequently entered the quasi-static slip stage. During the quasi-static slip stage, four stick-slip events occurred. Finally, the fracture slipped unstably and entered the dynamic slip stage at t = 2331.66 s. Here, the activation point was defined as the time point when the slip velocity of fracture is larger than 0.003 mm/s, while the start of dynamic slip stage is defined as the time point when the slip velocity of fracture is larger than 0.1 mm/s (Wang et al., 2019; Liu B. et al., 2023). The duration from the activation point to the start of dynamic slip stage was characterized as the quasi-static slip stage. During the quasi-static slip stage, the slip velocity of fracture may increase suddenly and then decrease slowly, accompanied by large acceleration (see Figures 9–11). This event is defined as a stick-slip event (Ji et al., 2023).

Figure 9

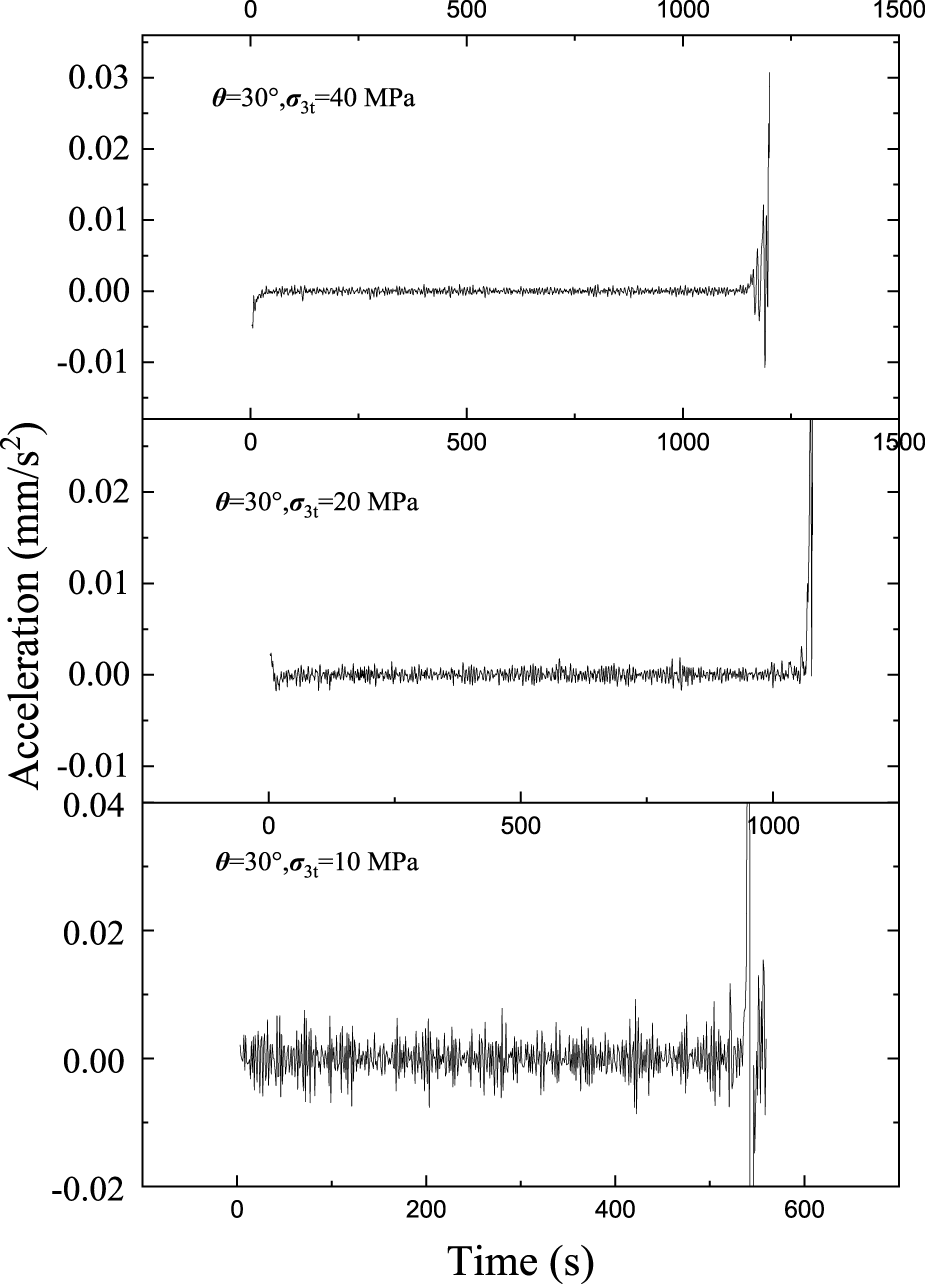

Figure 9. Variation in acceleration during the slip process for the fractures with θ = 30^°.

Figure 10

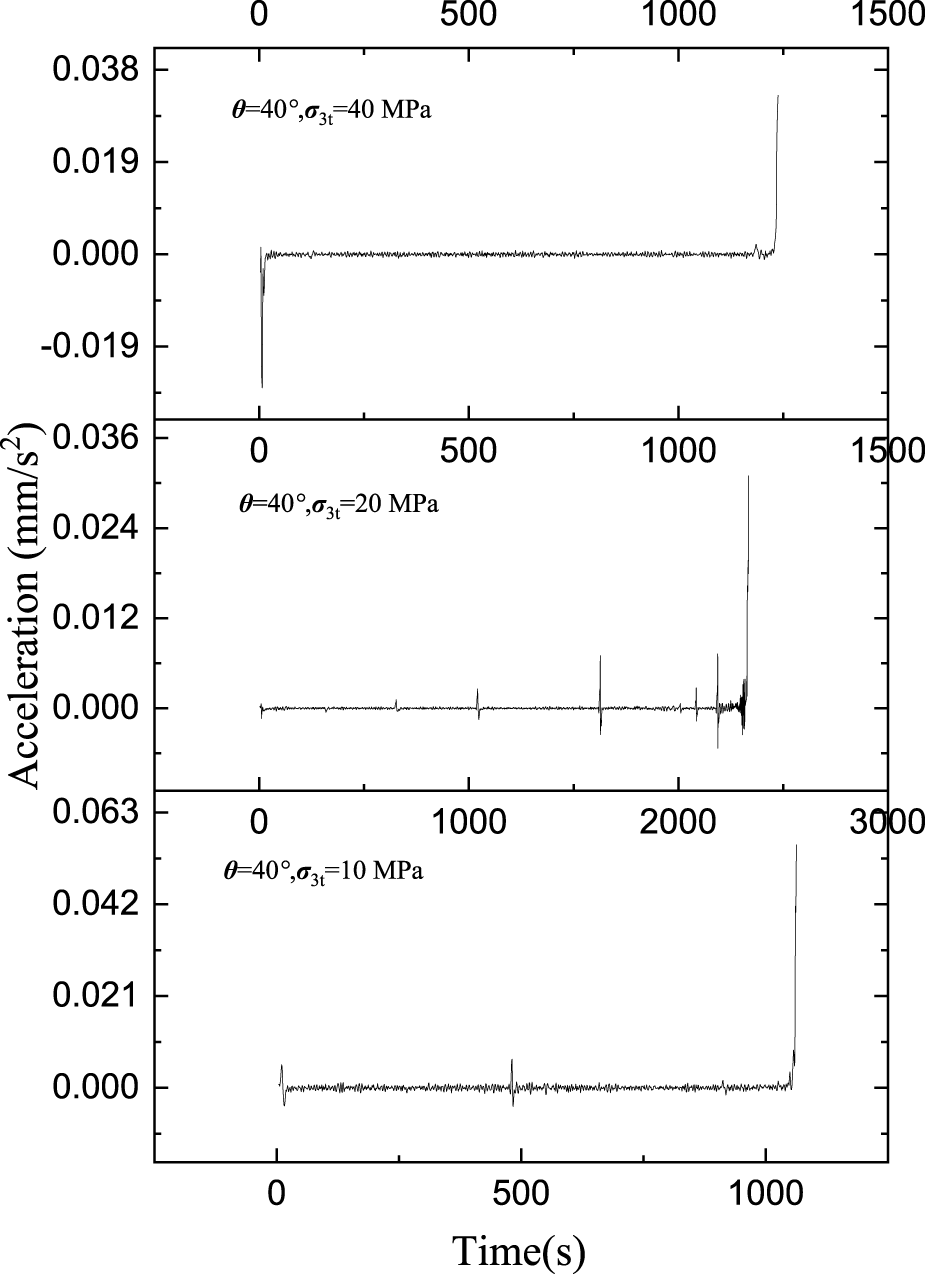

Figure 10. Variation in acceleration during the slip process for the fractures with θ = 40^°.

Figure 11

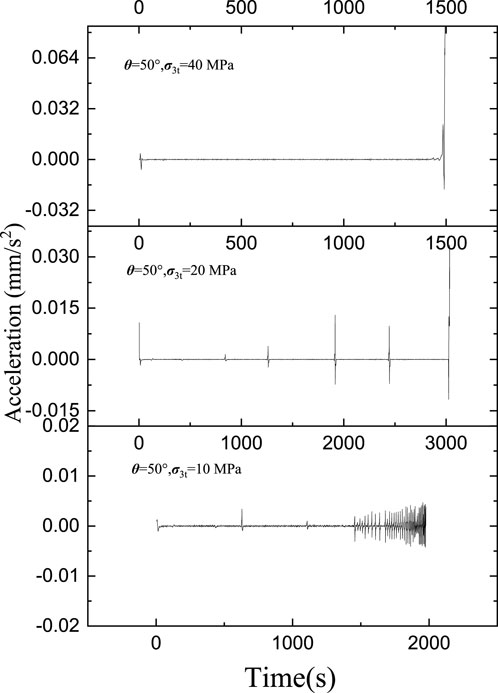

Figure 11. Variation in acceleration during the slip process for the fractures with θ = 50^°.

There were significant differences in the slip behaviors between fractures under the influence of σ₃ and θ. For the cases of θ = 30°, when σ_3t = 10 MPa, the fracture steadily slipped and no stick-slip event occurred during the quasi-static slip stage. When σ_3t = 20 MPa, the fracture was activated at t = 577.51 s and then experienced the first stick-slip event subsequently. A total of two stick-slip events occurred during the quasi-static slip stage. The d_s showed a dramatical increase in each stick-slip event, and at the rest of the duration, the fractures remained almost motionless (see Figure 6B). When σ_3t = 40 MPa, the fracture was activated at t = 1145.73 s and entered the dynamic slip stage at t = 1198.75 s. There was no stick-slip event during the quasi-static slip stage, and this stage only lasted for 53.02 s. The large σ_3t led to the tight engaging of the asperities between the upper and lower fracture surfaces. Therefore, the fracture was in a nearly static state before the activation point. Then, the slip velocity of the fracture increased rapidly to release the accumulated strain energy.

With the increase of θ, the slip modes of fractures did not change greatly, but the number of stick-slip events gradually increased for σ_3t = 10 MPa and 20 MPa (see Figure 8). For σ_3t = 10 MPa, the stick-slip events occurred 0, 2, and 3 times for the fractures with θ = 30°, 40°, and 50°, respectively. As shown in Figure 12, as the θ increased from 30° to 50°, the duration of quasi-static slip stage increased from 4.00 s to 1378.67 s, and the generated shear displacement d_s during this stage increased 0.37 mm–1.64 mm. While for σ_3t = 20 MPa, with increasing θ, the number of stick-slip events slightly increased. As the θ increased from 30° to 40°, the duration of quasi-static slip stage and the generated d_s increased from 495.30 s to 1679.12 s and from 2.13 mm to 3.06 mm, respectively. When the θ = 50°, 4 stick-slip events occurred during the quasi-static slip stage, and the stage reached the longest duration of 2192.13 s among the nine fractures. The duration of quasi-static slip stage for the fracture with θ = 30° was 4.4 times larger than that of θ = 50°. The reasons may be that the increase in θ results in the increase in σ_n applied on the fracture surface, so it is difficult for the asperities to override each other, and instead the asperities were sheared-off to release the strain energy. For σ_3t = 40 MPa, the stick-slip event was severely suppressed. With increasing the θ from 30° to 50°, the duration of quasi-static slip stage only slightly increased from 53.02 s to 58.03 s, and the generated d_s decreased from 1.78 mm to 1.48 mm. Figure 13 shows the τ and σ_n applied on the fracture at the activation point and the onset of dynamic slip stage, respectively. As the θ increases from 30° to 50°, the τ increased 17.37 MPa and 59.77 MPa at the initiation point for σ_3t = 10 MPa and 40 MPa, respectively. At the onset of the dynamic slip stage, with increasing θ, both of τ and σ_n greatly increased.

Figure 12

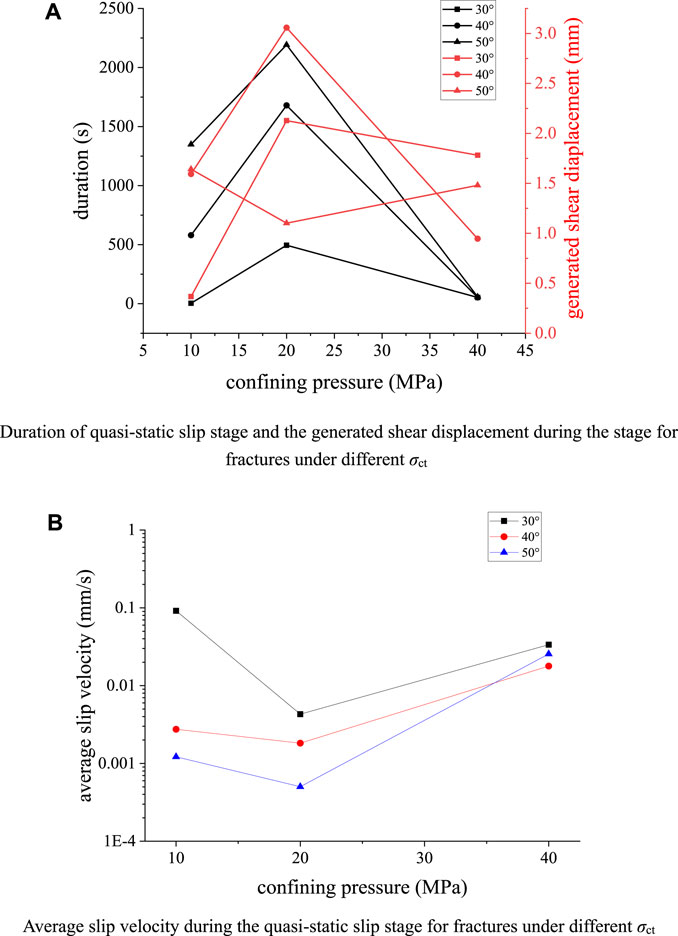

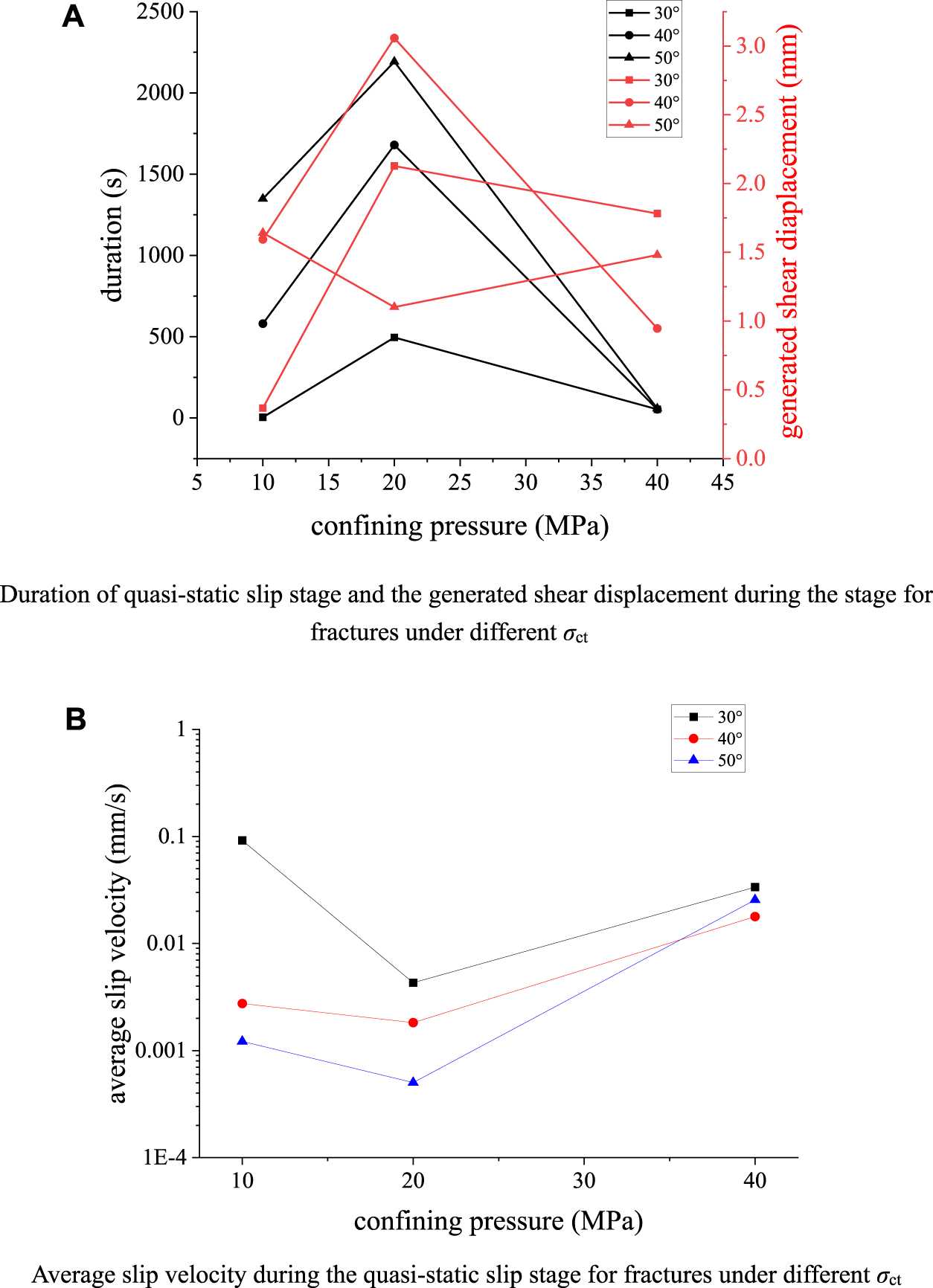

Figure 12. Duration, generated shear displacement and average slip velocity during the quasi-static slip stage for fractures under different σ_ct: (A) Duration of quasi-static slip stage and the generated shear displacement during the stage for fractures under different σ_ct; (B) Average slip velocity during the quasi-static slip stage for fractures under different σ_ct.

Figure 13

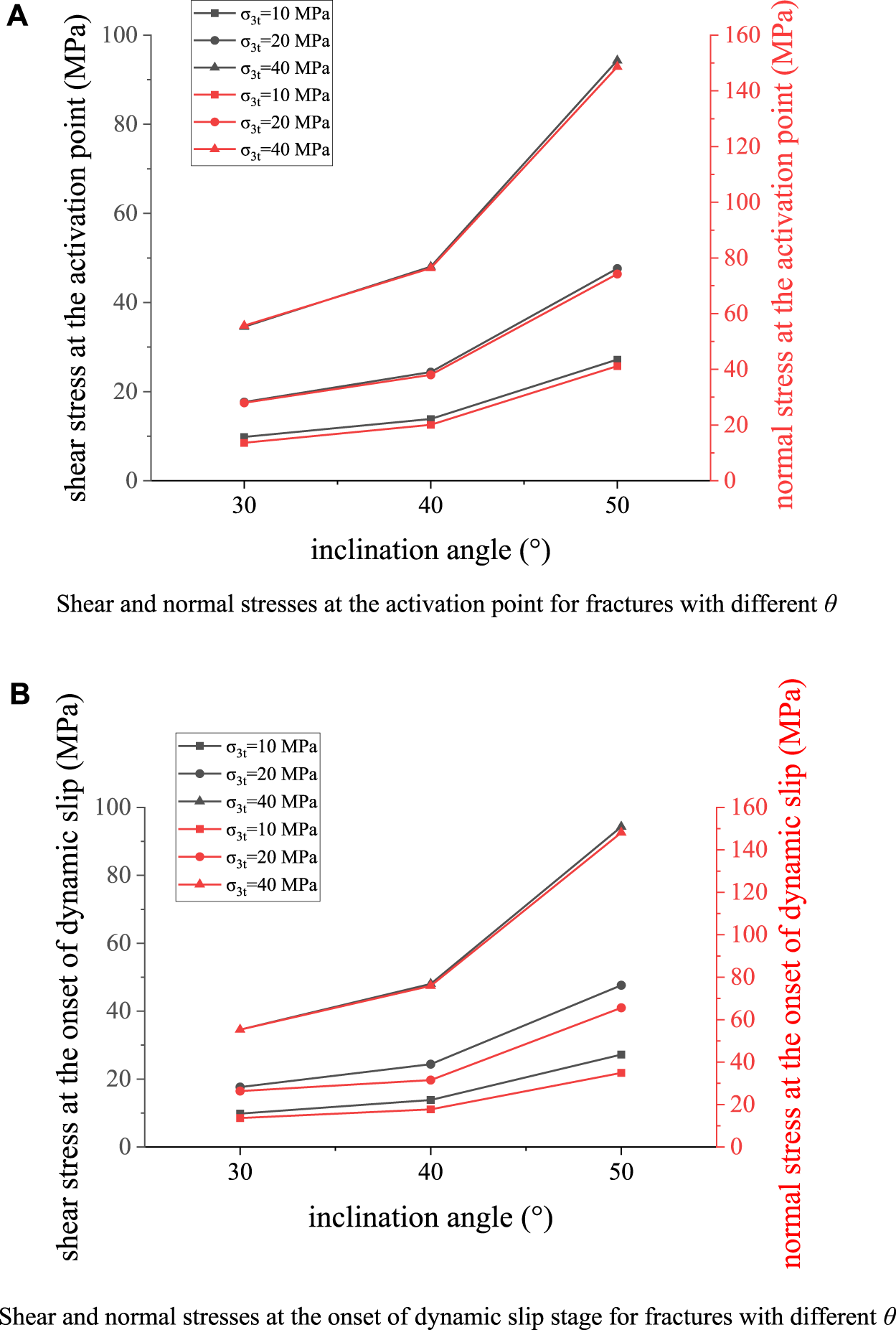

Figure 13. Shear and normal stresses at the activation point and the onset of dynamic slip stage for fractures with different θ: (A) Shear and normal stresses at the activation point for fractures with different θ; (B) Shear and normal stresses at the onset of dynamic slip stage for fractures with different θ.

3.2 Frictional characteristics of fractures

According to the Mohr-Coulomb failure principle, with the continuous unloading of σ₃, the Mohr circle representing the stress state of fracture will move to the left. The fracture may be activated when the Mohr circle encounters the Coulomb failure envelope. Therefore, the μ is an important indicator of fracture instability. Figure 14 shows the evolution of μ with d_s under different θ and σ_3t. In the displacement-driven process (stages Ⅰ and Ⅱ), the μ rapidly decreased due to the higher loading rate of σ₃ compared to σ₁. Then peak friction coefficient μ_p was reached simultaneously with τ_p under the sustained loading of σ₁. When the τ decreased from τ_p to 0.85τ_p, the μ experienced a slow decrease. As the shale samples were pressed continuously, it rebounded as the σ₁ decreased, resulting in the reduced d_s. Thus, many hysteresis loops can be found in Figure 14.

Figure 14

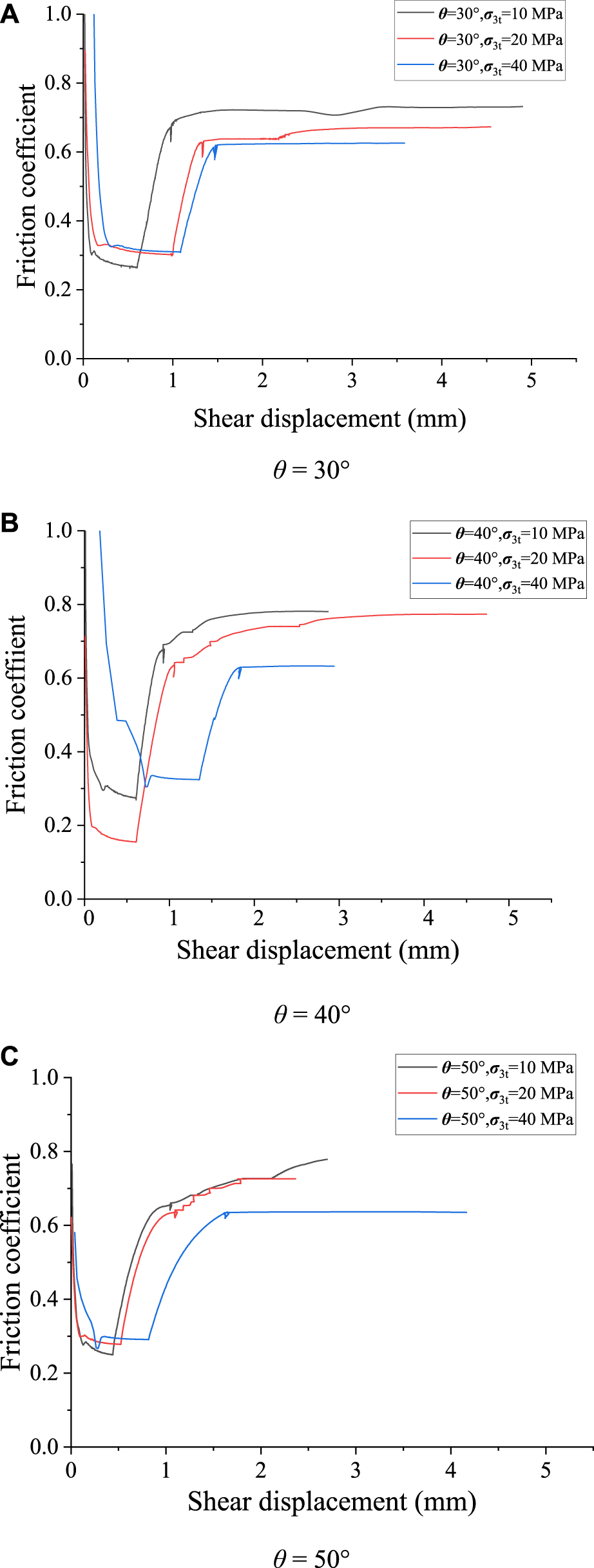

Figure 14. Friction coefficient versus shear displacement for the fractures with different θ: (A) θ = 30°; (B) θ = 40°; (C) θ = 50°.

In the unloading-driven process (stage Ⅲ), the stepwise unloading of σ₃ led to the increment of μ. Here, we defined the μ at the activation point and the onset of dynamic slip stage as μ_a and μ_d, respectively. The variations in μ_a and μ_d with varying σ_3t for the fractures with different θ were presented in Figure 15. As the σ_3t increased from 10 MPa to 40 MPa, both μ_a and μ_d decreased significantly. For the fractures with θ = 30° and 50°, as the σ_3t increased from 10 MPa to 40 MPa, the μ_a decreased from 0.72 to 0.62, and from 0.66 to 0.63, respectively, with weakening rates of 13.99% and 3.98%, respectively. It means that the increasing θ weakened the weakening effect of the σ_3t on the μ at the activation point. While for the case of μ_d, an opposite variation trend to that of μ_a was observed. As the θ increased from 30° to 40° and then to 50°, the weakening rate of μ caused by the increase of σ_3t increased from 13.32% to 19.02%, and then slightly decreased to 18.25%. The increase in θ strengthened the weakening effect of the σ_3t on the μ_d. This implies that there is a competitive relationship between the θ and σ_3t for the evolution of the frictional behavior of fractures.

Figure 15

Figure 15. Variations in the friction coefficient at the activation point and the onset of dynamic slip stage versus σ_ct for fractures with different θ.

3.3 Variations in JRC tensor

The 3D morphology information of the fracture surfaces before and after experiments were shown in Figures 16, 17, respectively. After experiments, the asperities on the fracture surfaces were damaged to a certain extent, which led to the reduction in the elevation of fracture surfaces. The damage degree of the fracture surfaces at the ending of the fractures was significantly severer than that of other regions. Figure 18 depicted the sheared-off thickness of the fracture surfaces in the rectangular region in Figure 16. With increasing θ, the mean value of the sheared-off thickness gradually decreased. As the θ increase from 30° to 50°, for σ_3t = 10 MPa, the mean sheared-off thickness decreased from 0.502 mm to 0.433 mm, while for σ_3t = 40 MPa, the mean sheared-off thickness decreased from 0.505 mm to 0.319 mm.

Figure 16

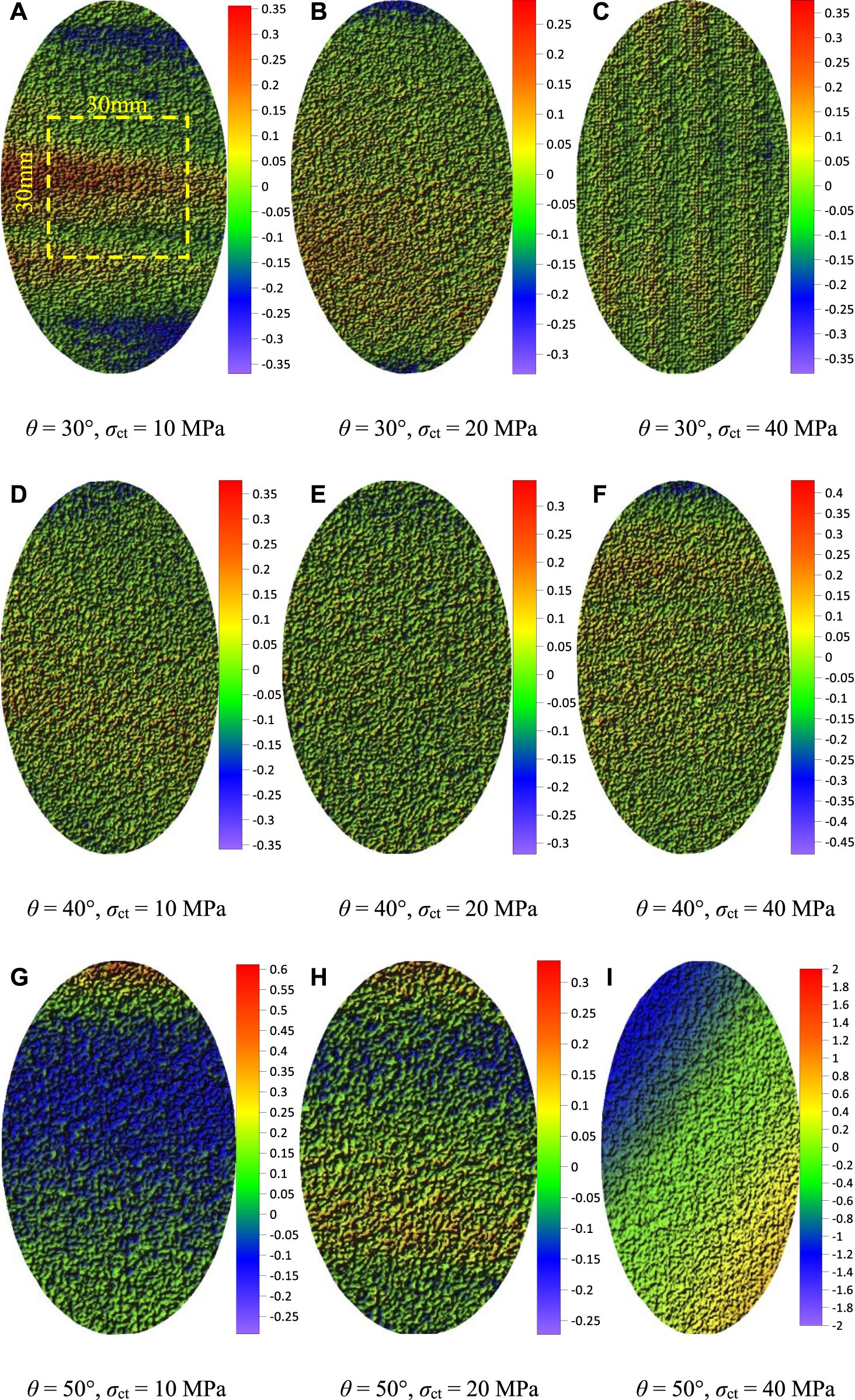

Figure 16. Morphology of fracture surfaces before experiments: (A) θ = 30°, σ_ct = 10 MPa; (B) θ = 30°, σ_ct = 20 MPa; (C) θ = 30°, σ_ct = 40 MPa; (D) θ = 40°, σ_ct = 10 MPa; (E) θ = 40°, σ_ct = 20 MPa; (F) θ = 40°, σ_ct = 40 MPa; (G) θ = 50°, σ_ct = 10 MPa; (H) θ = 50°, σ_ct = 20 MPa; (I) θ = 50°, σ_ct = 40 MPa.

Figure 17

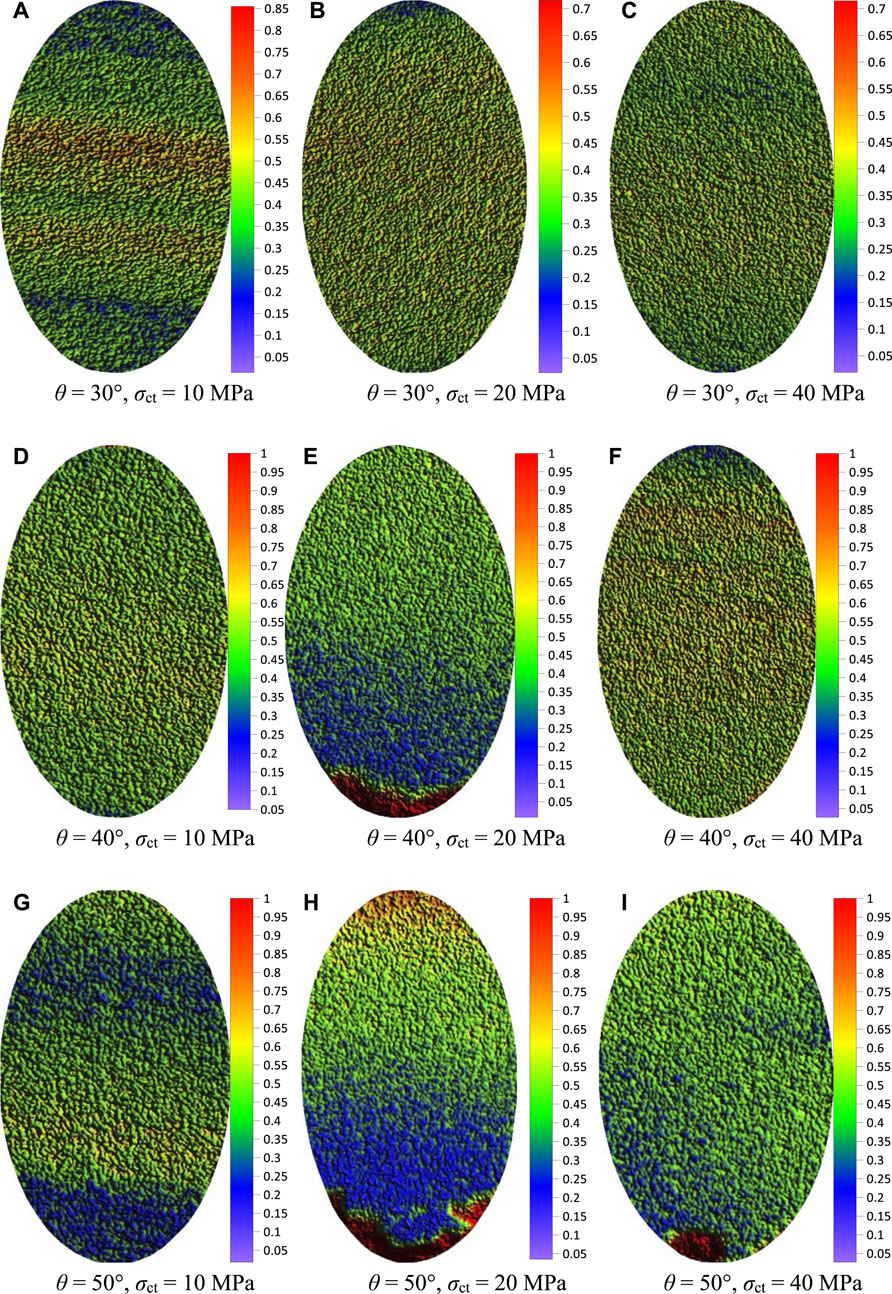

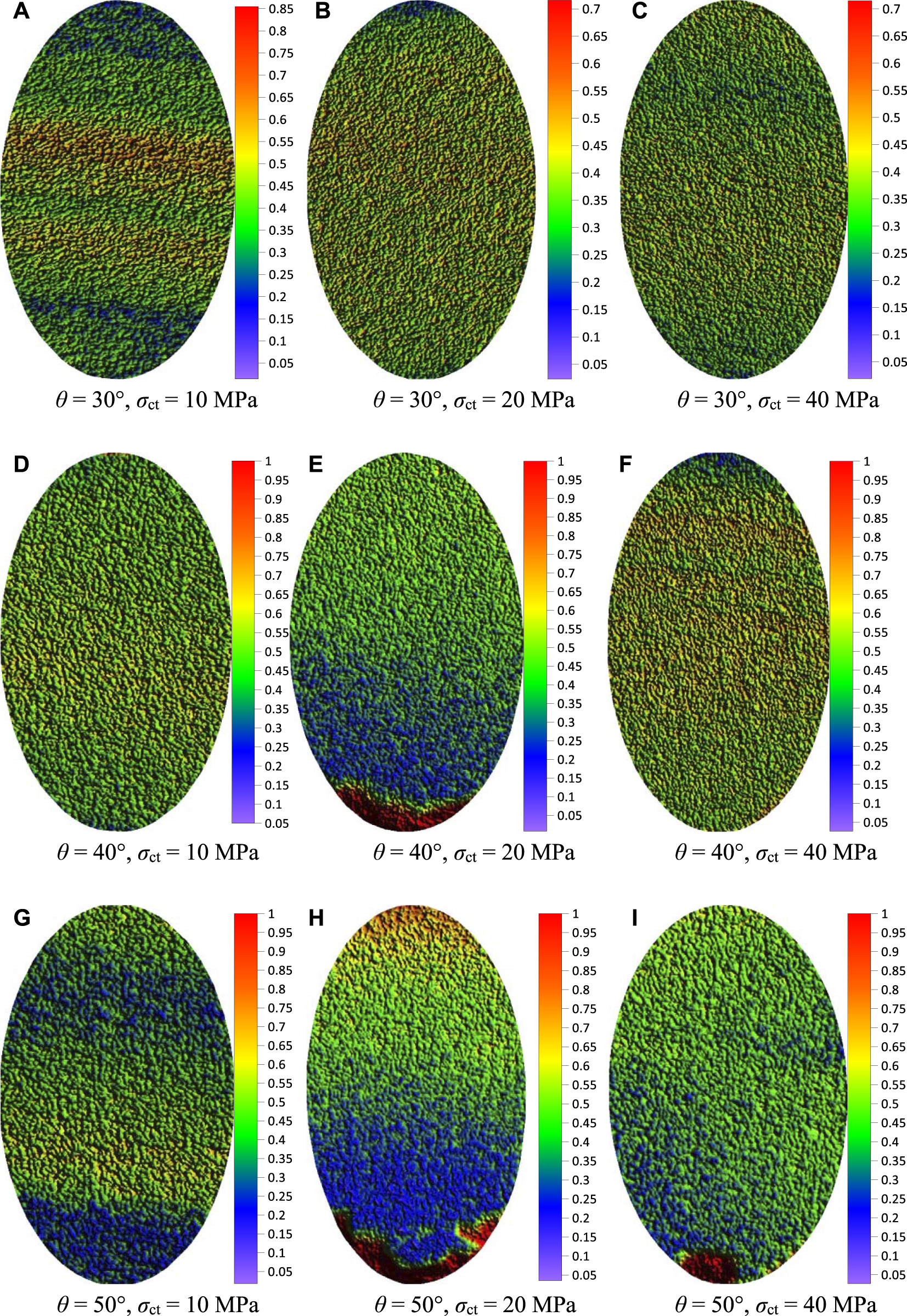

Figure 17. Morphology of fracture surfaces after experiments: (A) θ = 30°, σ_ct = 10 MPa; (B) θ = 30°, σ_ct = 20 MPa; (C) θ = 30°, σ_ct = 40 MPa; (D) θ = 40°, σ_ct = 10 MPa; (E) θ = 40°, σ_ct = 20 MPa; (F) θ = 40°, σ_ct = 40 MPa; (G) θ = 50°, σ_ct = 10 MPa; (H) θ = 50°, σ_ct = 20 MPa; (I) θ = 50°, σ_ct = 40 MPa.

Figure 18

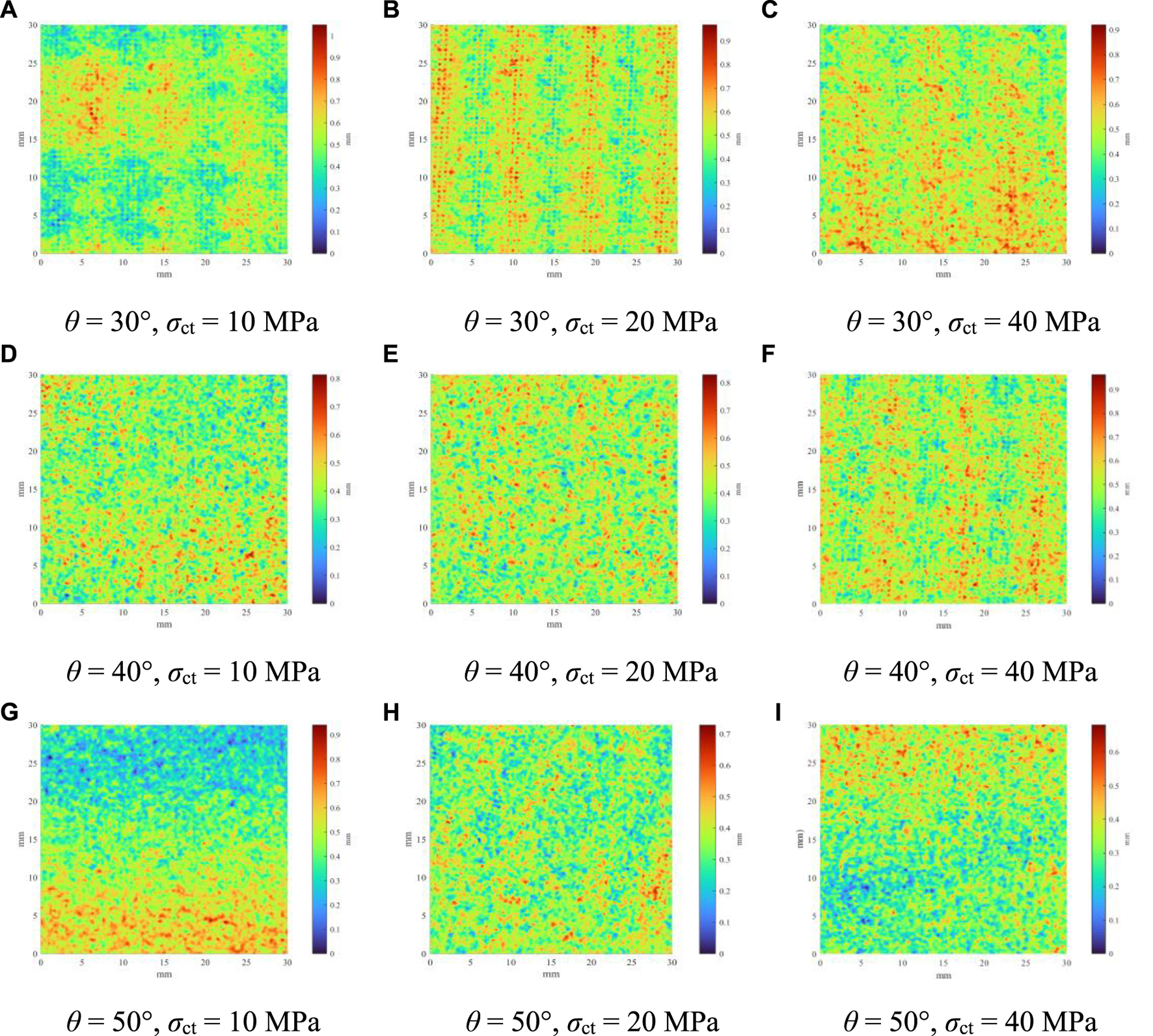

Figure 18. Thickness of sheared-off layer of fracture surfaces in the rectangular region (in Figure 16) after experiments: (A) θ = 30°, σ_ct = 10 MPa; (B) θ = 30°, σ_ct = 20 MPa; (C) θ = 30°, σ_ct = 40 MPa; (D) θ = 40°, σ_ct = 10 MPa; (E) θ = 40°, σ_ct = 20 MPa; (F) θ = 40°, σ_ct = 40 MPa; (G) θ = 50°, σ_ct = 10 MPa; (H) θ = 50°, σ_ct = 20 MPa; (I) θ = 50°, σ_ct = 40 MPa.

In order to realize the quantification of the roughness of fracture surface, the widely accepted joint roughness coefficient (JRC) was used, which can be calculated as (Ji et al., 2023; Zhu et al., 2023):

$\text{JRC}=32.2+32.47{\text{logZ}}_2(9)$

$Z_2={\left[\frac{1}{N}\sum {\left(\frac{z_{i-1}-z_i}{y_{i-1}-y_i}\right)}^2\right]}^{1/2}(10)$

where N is the quantity of the sample points along the y direction in the 2D cutting line, z_i and y_i are the coordinate in the Cartesian coordinate system. Previous studies have shown that the JRC is anisotropic, nonuniform, and inhomogeneous (Du et al., 2009; Chen et al., 2017; Yong et al., 2019). Since the JRC is calculated as the relative undulation between two adjacent points on the cutting lines of the fracture surfaces, the JRC is equal along two opposite directions. Here, the JRC of the fracture surfaces was calculated along 6 different directions. Assuming that the angle along the positive direction of the y-axis is 0° and along the counterclockwise direction is positive, the directions in 0°, 30°, 60°, 90°, 120° and 150° were selected, and eventually the JRC tensors of the nine fracture surfaces were obtained.

As shown in Figures 19, 20, the directional JRC contours with varying directions were plotted. For most of the fracture surfaces, the JRC along the x direction was greater than that along the y direction after the experiments. This may be due to the fact that the many scratches were generated on the fracture surfaces along the y direction or the shearing direction. Under the constant σ_3t, the variation in the directional JRC contours can be observed with the increase of θ. When σ_3t = 10 MPa, for the fractures with θ = 30°, 40°, 50°, the JRC along the directions of 0° and 90° were 6.47 and 5.96, 5.73 and 5.48, and 5.84 and 6.16, respectively. As the θ increased from 30° to 50°, the ratio of the calculated JRC along the 0° and 90° is reduced from 1.08 to 0.95 for σ_3t = 10 MPa, and decreased from 1.04 to 0.99 for σ_3t = 40 MPa. Figure 21 shows the ratio (JRC_max/JRC_min) of the maximum of the directional JRC to the minimum of the directional JRC with varying the θ, and this ratio can well reflect the anisotropy of JRC. The JRC_max/JRC_min of most fractures showed a slight decrease after experiencing the slipping process. It may be caused by the shearing and crushing processes between asperities. Additionally, the increase in θ may worsen the anisotropy of JRC. For the fracture surfaces after experiments, as the θ increased from 30° to 50°, for σ_3t = 10 MPa, 20 MPa, and 40 MPa, the JRC_max/JRC_min decreased from 1.084 to 1.048, increased from 1.049 to 1.077, and decreased from 1.073 to 1.058, respectively.

Figure 19

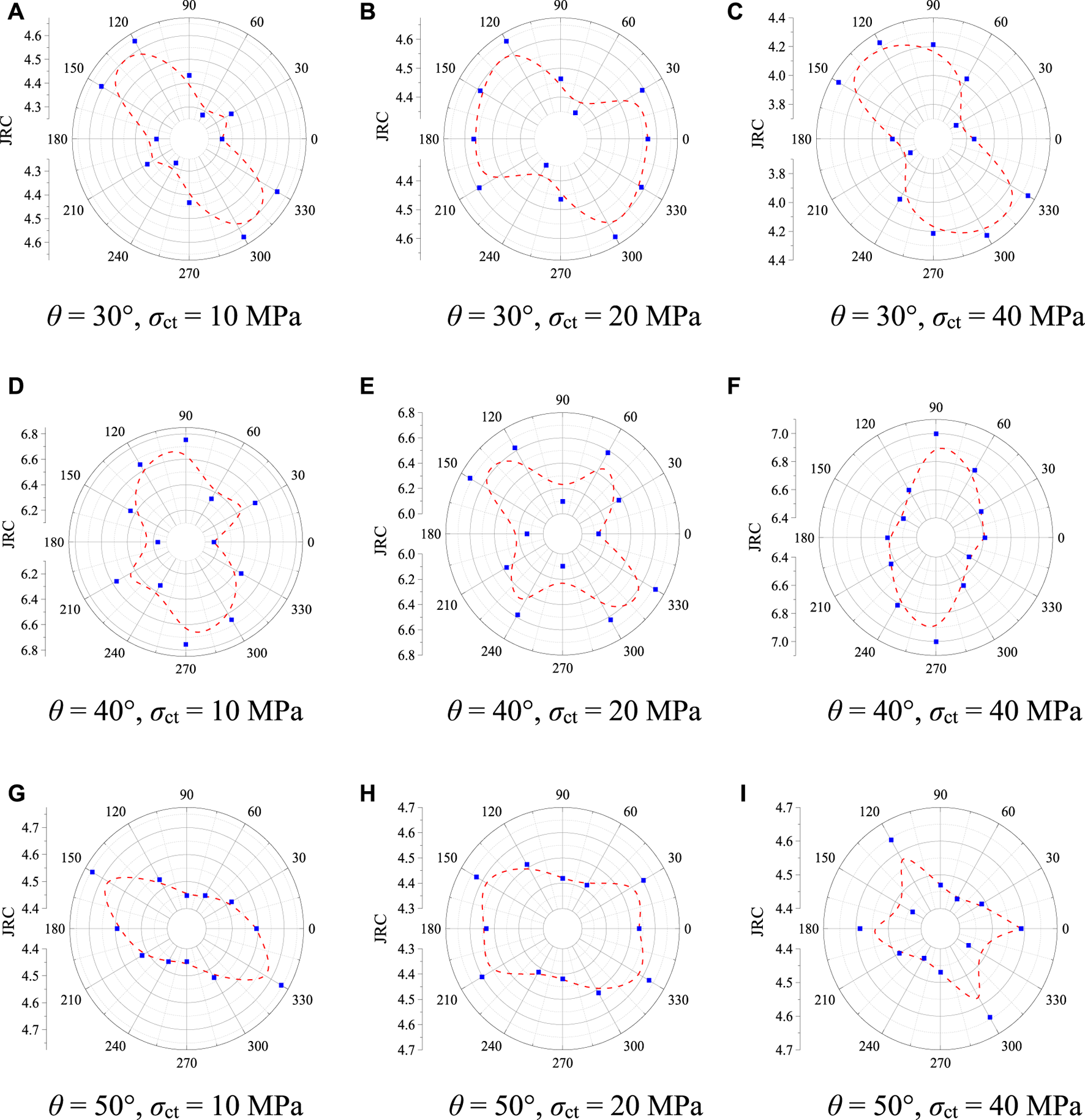

Figure 19. Directional JRC contours of fracture surfaces before experiments: (A) θ = 30°, σ_ct = 10 MPa; (B) θ = 30°, σ_ct = 20 MPa; (C) θ = 30°, σ_ct = 40 MPa; (D) θ = 40°, σ_ct = 10 MPa; (E) θ = 40°, σ_ct = 20 MPa; (F) θ = 40°, σ_ct = 40 MPa; (G) θ = 50°, σ_ct = 10 MPa; (H) θ = 50°, σ_ct = 20 MPa; (I) θ = 50°, σ_ct = 40 MPa.

Figure 20

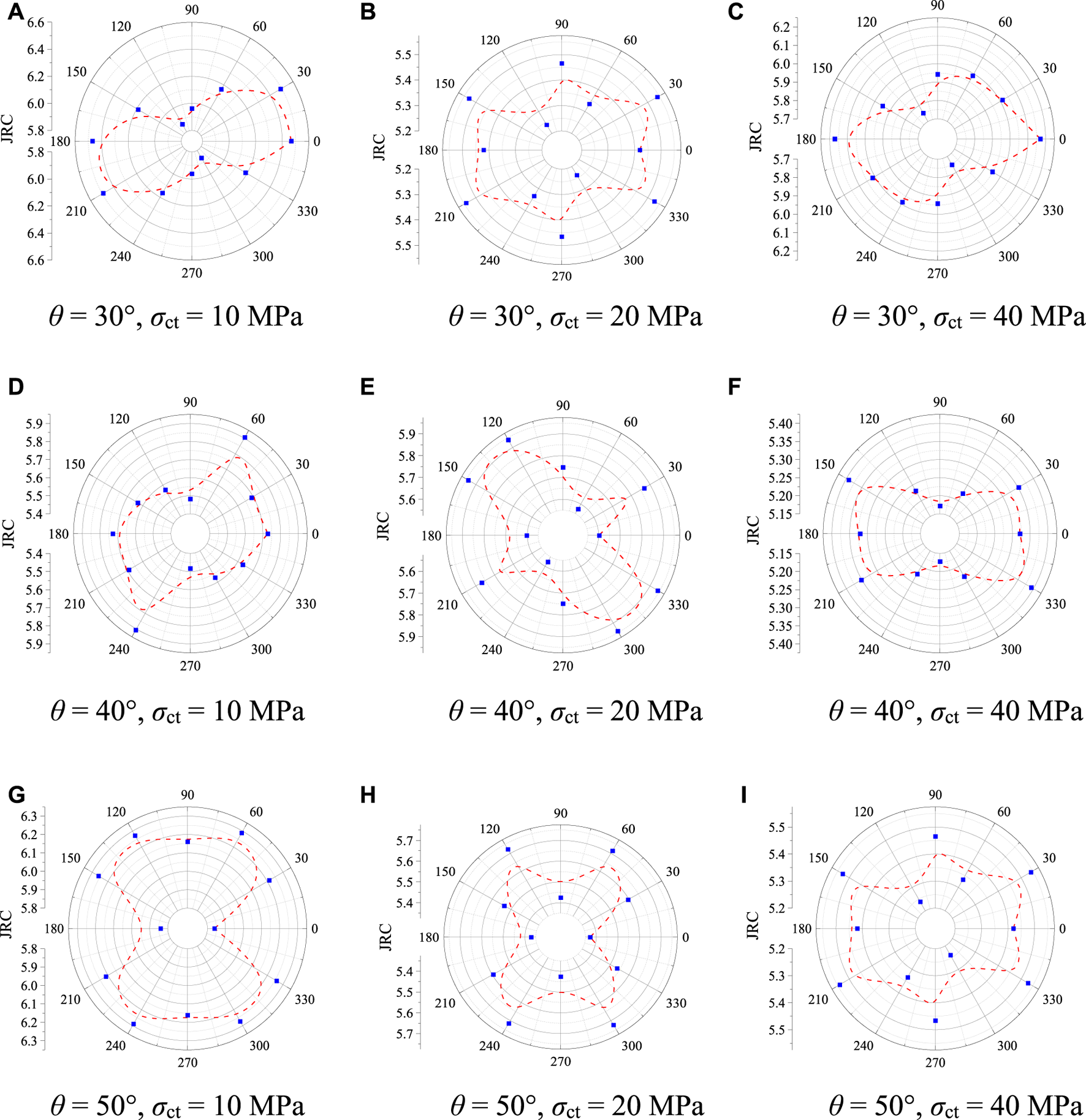

Figure 20. Directional JRC contours of fracture surfaces after experiments: (A) θ = 30°, σ_ct = 10 MPa; (B) θ = 30°, σ_ct = 20 MPa; (C) θ = 30°, σ_ct = 40 MPa; (D) θ = 40°, σ_ct = 10 MPa; (E) θ = 40°, σ_ct = 20 MPa; (F) θ = 40°, σ_ct = 40 MPa; (G) θ = 50°, σ_ct = 10 MPa; (H) θ = 50°, σ_ct = 20 MPa; (I) θ = 50°, σ_ct = 40 MPa.

Figure 21

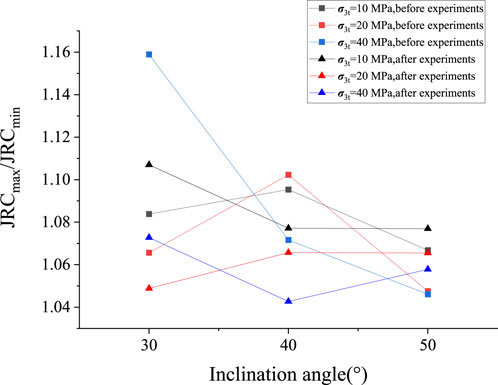

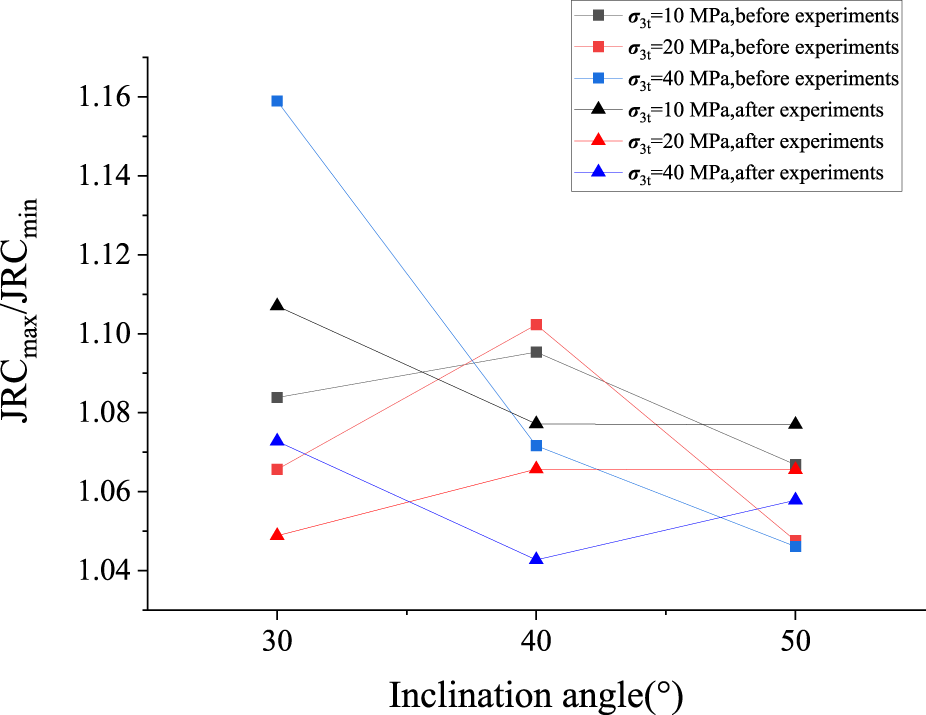

Figure 21. Effects of θ and σ_ct on the evolutions of JRC_max/JRC_min before and after the experiments.

3.4 Mechanism of fracture slip and implication for shale gas exploitation

The σ_3t and θ have significant effects on the slip and frictional behaviors of fractures. The σ_3t controls the slip modes of fractures, and the θ affects the occurrence of the stick-slip events during the quasi-static slip stage. With increasing σ_3t, the σ_n applied on fractures increased accordingly, which results in the change in the interaction modes between asperities during the slip process. With the increment of σ_3t, the void spaces between the upper and lower asperities were further compacted, resulting in the transition of asperities interaction from overriding mode to sheared-off mode. For σ_3t = 10 MPa, the small σ_n corresponds to the asperities that cannot be interlocked and a few of asperities were sheared-off. A large number of intact asperities are still able to act as the obstacles to prevent the slip of the fractures, thus resulting in a large μ_a or μ_d. For σ_3t = 20 MPa, amounts of asperities were sheared-off or destroyed due to the large σ_n. Only a few of broken asperities were used to bear the τ, thus leading to great reductions in μ_a and μ_d. When the asperities were sharply sheared off, the sudden release of fracture energy promoted the occurrence of stick-slip events. For σ_3t = 40 MPa, most of the asperities were sheared-off when the fractures were activated to slip. Therefore, once the fractures were activated, the fractures would slip at a fast velocity. The sheared-off rock particles produced a lot of fault gouges after crushing. The fault gouges acted as the lubricant in the slipping process, and the presence of fault gouges results in that the μ tended to be stable after a large d_s was generated. Therefore, the μ_a and μ_d were further weakened.

In shale gas production projects, shallow fractures or faults are more likely to be activated due to the small confining pressure. The shear displacement generated after fault activation brings about the release of the accumulated strain energy. However, for fractures under high confining pressure, fractures will not be activated easily and always remain in a stable state. However, once the fractures are activated, a very large amount of strain energy is released. The fractures may slip with a large velocity, and thus leading to a large shear displacement. The duration of this process is shorter than that under small confining pressures. Earthquakes may be induced due to the release of huge amounts of energy in a short period of time. At the same time, before hydro-fracturing, geological exploration should be carried out to determine the strike and dip angle of the main faults. By adjusting the strategy of hydro-fracturing, the appropriate fracturing angle should be adopted to promote the occurrence of stick-slip events. In this way, the earthquakes with large seismic moments may be effectively mitigated.

4 Conclusion

In the study, the triaxial unloading-induced fracture slip experiments were performed to investigate the influences of inclination angle θ and confining pressure σ_3t on the slip behavior, friction property and the JRC variation. The slip mechanism of fracture was revealed and the implications were proposed for the safe exploitation of shale gas.

The results show that the slipping process of fractures can be divided into activation stage, quasi-static slip stage and dynamic slip stage. The σ_3t controls the slip modes of fractures, while the θ affects the occurrence of the stick-slip events during the quasi-static slip stage. With the increase in σ_3t, the main slip modes of fracture transform from the stable-slip to stick-slip, and eventually to the creep-slip. As the θ increased from 30° to 50°, the number of stick-slip events increased from 0 to 3 and from 2 to 4 for σ_3t = 10 MPa and 20 MPa, respectively. For σ_3t = 40 MPa, all of the three fractures were in a creep-slip state before the activation point and then slipped with a large velocity until it becomes unstable. Thus, no stick-slip event occurred in the slipping process. The increment of θ led to the increase in the duration of quasi-stick slip stage. For σ_3t = 10 MPa, the duration of quasi-static slip stage increased from 4.00 s to 1378.67 s as the θ increased from 30° to 50°. The θ and σ_3t have great effects on interaction modes between asperities, which directly affected the friction properties of fractures. With increasing σ_3t, the void spaces between the asperities were further compacted, resulting in the transition of asperity interaction from overriding mode to shear-off mode. The transition of asperity interaction model therefore brought about the weakening of friction coefficient at the activation point and the onset of dynamic slip stage. For the fractures with θ = 30° and 50°, as the σ_3t increased from 10 MPa to 40 MPa, the μ_a decreased from 0.72 to 0.62, and from 0.66 to 0.63, respectively, with weakening rates of 13.99% and 3.98%, respectively. While for the case of μ_d, an opposite variation trend to that of μ_a was observed. As the θ increased from 30° to 40° and then to 50°, the weakening rate of μ caused by the increase of σ_3t increased from 13.32% to 19.02%, and then slightly decreased to 18.25%. The increase in θ strengthened the weakening effect of the σ_3t on the μ_d. This implies that there is a competitive relationship between the θ and σ_3t for the evolution of the frictional behavior of fractures. As the θ increase from 30° to 50°, for σ_3t = 10 MPa, the mean sheared-off thickness decreased from 0.502 mm to 0.433 mm, while for σ_3t = 40 MPa, the mean sheared-off thickness decreased from 0.505 mm to 0.319 mm. The increase in θ may worsen the anisotropy of JRC. By adjusting the fracturing angle of hydro-fracturing, the earthquakes with large seismic moments may be effectively mitigated.

In the future, our studies will focus on the slip characteristics of shale fractures through injecting the pressurized fluid. The thermal effect due to the increment of buried depth will also be incorporated.
