Fan Yang
Chengbiao Leng
Xiaoming Shen
Leon Bagas
Liang Zhang
Gilby Jepson- 1Key Laboratory of Mineral Resources in Western China (Gansu Province), School of Earth Sciences, Lanzhou University, Lanzhou, China
- 2State Key Laboratory of Nuclear Resources and Environment, East China University of Technology, Nanchang, China
- 3National Institute of Natural Hazards, Ministry of Emergency Management of China, Beijing, China
- 4Xi’an Center of Geological and Mineral Resources, China Geological Survey, Xi’an, China
- 5State Key Laboratory of Geological Processes and Mineral Resources, China University of Geosciences, Beijing, China
- 6School of Geosciences, University of Oklahoma, Norman, OK, United States
Editorial on the Research Topic
Evolution of tectonic structures and mineralisation in orogens and their margins
1 Introduction
Orogens have complex tectonic histories that include plate subduction, collision, and orogenesis (Bagas, 2004; Cawood et al., 2009; Jamieson and Beaumont, 2013). The formation processes of orogens not only shapes new topography following multiple tectonics events, but also accompanies climatic changes, weathering, and erosion (Whipple and Meade, 2006; Armijo et al., 2015; Jepson et al., 2021; Wolf et al., 2022). Additionally, orogens also host abundant mineral resources, particularily precious metals, such as Au, Ag, and Pt (Groves et al., 1998; Zhou et al., 1998; Chen et al., 2004; Chen, 2006; Hou and Cook, 2009; Deng and Wang, 2016). For example, China includes, from north to south, Central Asian, Central China (Tongbai-Dabie-Qinling-Qilian-Kunlun), Jiannan, and Tibetan-Himalayan orogens (Windley et al., 2007; Leng et al., 2013; Li et al., 2015; Yang et al., 2019; Yao et al., 2019; Dong et al., 2021), which have influenced the North China, South China, and Tarim blocks during different periods (Lu et al., 2008; Zhao et al., 2012; Cawood et al., 2018; Yang et al., 2018). The topography of China has been changed by climatic fluctuations and orogenic events (Dong et al., 2011; Shen et al., 2022; Yu et al., 2022). It is during these events that Au was deposited along orogens and their nearby margins (Zhou et al., 2002; Deng and Wang, 2016; Zhang et al., 2020). However, several Research Topic related to the structurally controlled magmatism, mineralisation and exhumation, tectono-thermal evolution, climatic changes, and surface processes in orogens remain unsolved. Systematic studies of orogens and their nearby margins are necessary, which would improve the understanding of orogens and help the exploration of new mineral resources. We, thus, propose the Research Topic of the “Evolution of Tectonic Structures and Mineralisation in Orogens and their Margins” in Frontiers in Earth Science.
In this Research Topic, a total of five papers related to magmism, mineralisation and tectonic evolution in orogens and their margins were published (Figure 1). Of these, two papers are on the Late Mesozoic magmatism and associated Au mineralisation, and tectonic evolution of the Jiaodong Peninsula in the eastern North China Block. Two papers are related to the cooling and exhumation history of the Tibetan Plateau. One paper reports the orogenic Au-As and relatively shallow Au-Sb mineralisation in the orogenic belts to the east of the Siberian Craton. The brief introductions of the five papers are summarized in this Research Topic below.

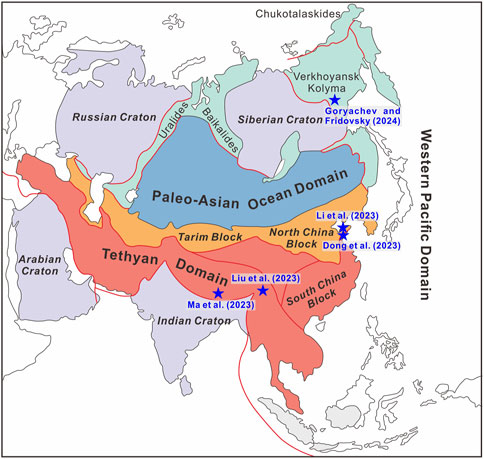

FIGURE 1. Simplified tectonic map of Asia (modified after Şengör et al., 1993; Xiao et al., 2010) showing the distribution of papers in this Research Topic.
2 Summary of papers
Dong et al. conducted zircon trace element studies on the Late Mesozoic magmatic rocks in the Jiaodong Peninsula, eastern North China. These data have been integrated with published zircon U-Pb ages to trace the change of crustal thickness and reveal the decratonization (craton destruction) processes of the Jiaodong Peninsual during the Mesozoic. The crustal thickness of the Jiaodong Peninsula underwent a change from ∼70 km in the Late Jurassic (ca. 170–150 Ma) to ∼89 km (peak) at ca. 130 Ma, and subsequently decreased to 30–40 km at ca. 110 Ma. The crustal thickening (70–89 km) during the Late Jurassic to Early Cretaceous was probably induced by the westward subduction of the Paleo-Pacific slab. Chemical erosion led to decratonization beneath the Jiaodong Peninsula. This study also highlights that the zircon Eu/Eu* proxy is suitable for estimating the crustal thickness, whereas whole-rock La/Yb proxy could not be used as a result of amphibole fractionation.
Goryachev and Fridovsky performed an overview of the geological and genetic features of the Early Cretaceous Au mineralisation from the Verkhoyansk-Kolyma Au province within the eastern margin of the Siberian Craton, Russia, aiming to clarify their common features, differences and genetic nature of orogenic Au-As and relatively shallow Au-Sb deposits. This study argues that the formation of Au-related mineralisation is correlated with the dehydration of slab and local upwelling in the mantle. The fertility of the pre-collision lithospheric mantle was crucial for the formation of the Late Jurassic to Early Cretaceous collision-related оrogenic Au deposits. The fluids and components of the Early Cretaceous subduction-related оrogenic Au deposits were formed during slab devolatilization related to oceanic subduction. Additionally, an ore-forming model is also proposed for polychronous orogenic Au-As and relatively shallow Au-Sb deposits in orogens globally.
Li et al. carried out whole-rock geochemistry, and zircon U-Pb dating and trace element analyses on the Linglong, Yashan, and Nansu granitic plutons in the Jiaodong Peninsula of the eastern North China, in order to address the origin and petrogenesis of the Mesozoic magmatism and provide insights into related Au mineralisation. Zircon U-Pb dating results constrain the emplacement ages of the plutons at ca. 161–118 Ma. The plutons have adakitic geochemical affinities and were formed during partial melting of the thickened lower crust associated with the subduction of the Paleo-Pacific Plate. The physicochemical conditions of the pre-mineralisation magma source may be favorable for Au-bearing sulfide accumulation. This study also suggests that the upwelling adakitic crust-mantle mixed oxidized magma promote the migration and Au-bearing sulfide mineralisation during the Early Cretaceous.
Liu et al. compiled 1,202 low-temperature thermochronological data based on joint kernel density estimation and linear inversion approaches to address the spatio-temporal exhumation pattern of the entire southeastern Tibetan Plateau. The compiled ages are grouped into the six episodes of rapid cooling at ca. 61–58, 38–35, 32–23, 18–13, 11–6, and 4–3 Ma, which suggest that the SE Tibetan Plateau underwent inhomogeneous exhumation throughout the Cenozoic. The cooling episodes may be derived by the lateral extrusion and continuous India-Eurasia convergence. The climate changes including intensified Asian summer monsoon and glacial processes play a non-negligible role in shaping the landscape since the Miocene within the SE Tibetan Plateau.
Ma et al. carried out geological mapping, elevation transect sampling, low-temperature thermochronological studies, and 3D modeling of the Kangmar Dome in southern Tibet, with the major aim to reveal the cooling histories between the southern and northern portions of the dome. The study proposes that the core-cover contact fault of the Kangmar Dome was part of the South Tibetan Detachment Structure, and the doming event at ca. 12.2 Ma was dominated by thrust stacking of the southward mid-crustal channel flow. Two phases of rapid cooling in the Miocene and the Pleistocene are suggested at the dome, which are derived by regional structural extension and enhanced glacial activity, respectively. The present landscape was shaped by the incision of the Nianchu River, with concomitant increased glacial activity during the Pleistocene.
Author contributions
FY: Conceptualization, Funding acquisition, Visualization, Writing–original draft, Writing–review and editing. CL: Writing–review and editing. XS: Writing–review and editing. LB: Writing–review and editing. LZ: Writing–review and editing. GJ: Writing–review and editing.
Funding
The author(s) declare financial support was received for the research, authorship, and/or publication of this article. This Research Topic was jointly sponsored by the National Natural Science Foundation of China (42202077), the Natural Science Foundation of Gansu Province (22JR5RA440), the Fundamental Research Funds for the Central Universities (LZUJBKY-2022-42), and the Guiding Special Funds of “Double First-Class (First-Class University and First-Class Disciplines)” (561119201) of Lanzhou University, China.
Acknowledgments
The Editor-in-Chief Prof. Valerio Acocella is acknowledged for his support to this Research Topic. The Associate Editor Prof. Derek Keir is thanked for handling and providing valuable comments to improve this Research Topic editorial. All the authors who contributed valuable papers and the referees who provided insightful reviews are also appreciated.
Conflict of interest
The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
The author(s) declared that they were an editorial board member of Frontiers, at the time of submission. This had no impact on the peer review process and the final decision.
Publisher’s note
All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.
References
Armijo, R., Lacassin, R., Coudurier-Curveur, A., and Carrizo, D. (2015). Coupled tectonic evolution of Andean orogeny and global climate. Earth-Science Rev. 143, 1–35. doi:10.1016/j.earscirev.2015.01.005
Bagas, L. (2004). Proterozoic evolution and tectonic setting of the northwest Paterson Orogen, Western Australia. Precambrian Res. 128, 475–496. doi:10.1016/j.precamres.2003.09.011
Cawood, P. A., Kröner, A., Collins, W. J., Kusky, T. M., Mooney, W. D., and Windley, B. F. (2009). Accretionary orogens through Earth history. Geol. Soc. Lond. Spec. Publ. 318, 1–36. doi:10.1144/SP318.1
Cawood, P. A., Zhao, G., Yao, J., Wang, W., Xu, Y., and Wang, Y. (2018). Reconstructing South China in phanerozoic and precambrian supercontinents. Earth-Science Rev. 186, 173–194. doi:10.1016/j.earscirev.2017.06.001
Chen, Y. J. (2006). Orogenic-type deposits and their metallogenic model and exploration potential. Geol. China 33, 1181–1196. (in Chinese with English abstract).
Chen, Y. J., Pirajno, F., and Sui, Y. H. (2004). Isotope geochemistry of the Tieluping silver-lead deposit, Henan, China: a case study of orogenic silver-dominated deposits and related tectonic setting. Miner. Deposita 39, 560–575. doi:10.1007/s00126-004-0429-9
Deng, J., and Wang, Q. (2016). Gold mineralization in China: metallogenic provinces, deposit types and tectonic framework. Gondwana Res. 36, 219–274. doi:10.1016/j.gr.2015.10.003
Dong, Y., Sun, S., Santosh, M., Zhao, J., Sun, J., He, D., et al. (2021). Central China orogenic belt and amalgamation of East Asian continents. Gondwana Res. 100, 131–194. doi:10.1016/j.gr.2021.03.006
Dong, Y., Zhang, G., Neubauer, F., Liu, X., Genser, J., and Hauzenberger, C. (2011). Tectonic evolution of the Qinling orogen, China: review and synthesis. J. Asian Earth Sci. 41, 213–237. doi:10.1016/j.jseaes.2011.03.002
Groves, D. I., Goldfarb, R. J., Gebre-Mariam, M., Hagemann, S. G., and Robert, F. (1998). Orogenic gold deposits: a proposed classification in the context of their crustal distribution and relationship to other gold deposit types. Ore Geol. Rev. 13, 7–27. doi:10.1016/s0169-1368(97)00012-7
Hou, Z., and Cook, N. J. (2009). Metallogenesis of the Tibetan collisional orogen: a review and introduction to the special issue. Ore Geol. Rev. 36, 2–24. doi:10.1016/j.oregeorev.2009.05.001
Jamieson, R. A., and Beaumont, C. (2013). On the origin of orogens. Geol. Soc. Am. Bull. 125, 1671–1702. doi:10.1130/b30855.1
Jepson, G., Carrapa, B., Gillespie, J., Feng, R., DeCelles, P. G., Kapp, P., et al. (2021). Climate as the great equalizer of continental-scale erosion. Geophys. Res. Lett. 48, e2021GL095008. doi:10.1029/2021gl095008
Leng, C. B., Zhang, X. C., Zhong, H., Hu, R. Z., Zhou, W. D., and Li, C. (2013). Re-Os molybdenite ages and zircon Hf isotopes of the Gangjiang porphyry Cu-Mo deposit in the Tibetan Orogen. Miner. Deposita 48, 585–602. doi:10.1007/s00126-012-0448-x
Li, Y., Wang, C., Dai, J., Xu, G., Hou, Y., and Li, X. (2015). Propagation of the deformation and growth of the Tibetan–Himalayan orogen: a review. Earth-Science Rev. 143, 36–61. doi:10.1016/j.earscirev.2015.01.001
Lu, S., Li, H., Zhang, C., and Niu, G. (2008). Geological and geochronological evidence for the Precambrian evolution of the Tarim Craton and surrounding continental fragments. Precambrian Res. 160, 94–107. doi:10.1016/j.precamres.2007.04.025
Şengör, A. M. C., Natal'in, B., and Burtman, V. S. (1993). Evolution of the Altaid tectonic collage and Palaeozoic crustal growth in Eurasia. Nature 364, 299–307. doi:10.1038/364299a0
Shen, X., Braun, J., and Yuan, X. (2022). Southeastern margin of the Tibetan Plateau stopped expanding in the late Miocene. Earth Planet. Sci. Lett. 583, 117446. doi:10.1016/j.epsl.2022.117446
Whipple, K. X., and Meade, B. J. (2006). Orogen response to changes in climatic and tectonic forcing. Earth Planet. Sci. Lett. 243, 218–228. doi:10.1016/j.epsl.2005.12.022
Windley, B. F., Alexeiev, D., Xiao, W., Kroner, A., and Badarch, G. (2007). Tectonic models for accretion of the central asian orogenic belt. J. Geol. Soc. 164, 31–47. doi:10.1144/0016-76492006-022
Wolf, S. G., Huismans, R. S., Braun, J., and Yuan, X. (2022). Topography of mountain belts controlled by rheology and surface processes. Nature 606, 516–521. doi:10.1038/s41586-022-04700-6
Xiao, W., Huang, B., Han, C., Sun, S., and Li, J. (2010). A review of the western part of the Altaids: a key to understanding the architecture of accretionary orogens. Gondwana Res. 18, 253–273. doi:10.1016/j.gr.2010.01.007
Yang, F., Santosh, M., and Kim, S. W. (2018). Mesozoic magmatism in the eastern North China Craton: insights on tectonic cycles associated with progressive craton destruction. Gondwana Res. 60, 153–178. doi:10.1016/j.gr.2018.04.003
Yang, F., Xue, F., Santosh, M., Wang, G., Kim, S. W., Shen, Z., et al. (2019). Late mesozoic magmatism in the east qinling orogen, China and its tectonic implications. Geosci. Front. 10, 1803–1821. doi:10.1016/j.gsf.2019.03.003
Yao, J., Cawood, P. A., Shu, L., and Zhao, G. (2019). Jiangnan orogen, South China: a∼ 970–820 Ma Rodinia margin accretionary belt. Earth-Science Rev. 196, 102872. doi:10.1016/j.earscirev.2019.05.016
Yu, J., Zheng, D., Pang, J., Li, C., Wang, Y., Wang, Y., et al. (2022). Cenozoic mountain building in eastern China and its correlation with reorganization of the Asian climate regime. Geology 50, 859–863. doi:10.1130/g49917.1
Zhang, L., Weinberg, R. F., Yang, L. Q., Groves, D. I., Sai, S. X., Matchan, E., et al. (2020). Mesozoic orogenic gold mineralization in the Jiaodong Peninsula, China: a focused event at 120 ± 2 Ma during cooling of pregold granite intrusions. Econ. Geol. 115, 415–441. doi:10.5382/econgeo.4716
Zhao, G., Cawood, P. A., Li, S., Wilde, S. A., Sun, M., Zhang, J., et al. (2012). Amalgamation of the North China Craton: key issues and discussion. Precambrian Res. 222, 55–76. doi:10.1016/j.precamres.2012.09.016
Zhou, M. F., Sun, M., Keays, R. R., and Kerrich, R. W. (1998). Controls on platinum-group elemental distributions of podiform chromitites: a case study of high-Cr and high-Al chromitites from Chinese orogenic belts. Geochimica Cosmochimica Acta 62, 677–688. doi:10.1016/s0016-7037(97)00382-7
