Chaokun Zhang
Wei Tian1,2*- 1School of Earth and Space Sciences, Peking University, Beijing, China
- 2MOE Key Laboratory of Orogenic Belts and Crustal Evolution, School of Earth and Space Sciences, Peking University, Beijing, China
- 3Sinopec Petroleum Exploration and Development Research Institute, Beijing, China
- 4School of Information Science and Technology, Fudan University, Shanghai, China
Magmatic activity is one of the important pathways for the delivery of deep Earth carbon to the surface. The massive carbon release in this process can have significant impacts on atmospheric-oceanic environment. Previous studies have done a lot of work on the relationship between Phanerozoic magmatic activity and carbon release, but there is relatively limited attention has been given to investigating the association between Precambrian magmatic activity and carbon release. The Yanliao Large Igneous Province at 1.32 Ga exhibits extensive development of sills, and the reaction between sills and surrounding rocks triggers the release of carbon. Simultaneously, the magmatic activity during this period is considered as the final response to the breakup of the Columbia supercontinent, coinciding with the occurrence of the Mesoproterozoic Oxygenation Event To explore the connection between this magmatic activity and global carbon cycling, environmental changes and planetary evolution, nine representative stratigraphic columns are selected from the Yanliao area. We use the SILLi 1.0 1D model by utilizing the one-dimensional finite element method (FEM) to simulate and estimate the amount of carbon release triggered by sill emplacement. The simulation results indicate that the emplacement of sills increased the surrounding rock temperature and vitrinite reflectance, leading to a decrease in the total organic carbon (TOC) content. A large amount of organic carbon and inorganic carbon was released, which was initiated by the reaction between sills and surrounding rocks, with a total carbon release up to 1.24 × 1013 tons. The estimated CO2 equivalent released during this magma activity episode is expected to be greater than 4.58 × 1013. In Mesoproterozoic strata, the emplacement of sills activates carbon within the lithosphere could have implications for the global environment. Further work needs to be done in other ancient cratons that possess Lower Riphean strata to find additional evidence of the impact of this magmatic event on the Earth system. From this study, it is evident that magmatic activity during the Precambrian period could promote the activation of carbon in crustal sediments and influence global environment, which can a reference for people to understand the planetary evolution process.
1 Introduction
In geological history, frequent magmatic activities have occurred, affecting the evolution of the Earth’s system. Large Igneous Provinces (LIPs) are large-scale (> 105 km3) mantle-derived magmatic activities dominated by intraplate mafic rocks that occur in a relatively short period of time (<10 Myr) (Ernst, 2014), driving global environmental changes (Wignall, 2001; 2005; Kerr, 2005; Kerr, 2014; Ernst and Youbi, 2017). Large-scale sills are an important component of LIPs. They intrude into the strata and reacts physically and chemically with the surrounding rock, resulting in the release of gases (such as CO2, CH4). This leads to significant carbon release and notable environmental effects (Svensen et al., 2004; 2015; Ganino and Arndt, 2009; Svensen et al., 2018a; Heimdal et al., 2018; 2019). Previous researches has extensively reported the relationship between sill emplacement and carbon release during the Phanerozoic eon (Wignall, 2001; 2005; Kerr, 2005; Ernst, 2014; Kerr, 2014; Ernst and Youbi, 2017). Nevertheless, the geological records of the Precambrian period have often been transformed by post-geological processes, which has resulted in poor preservation. As a result, the correlation between sill emplacement and carbon release, as well as planetary environmental changes during Precambrian periods, remains unclear.
With the growing use of numerical simulation methods for both qualitative and quantitative analysis of geological processes, an increasing number of researchers are utilizing these techniques to simulate the intrusion and gas release of sills. This allows for the analysis of the carbon release process and environmental effects that result from sill emplacement (Aarnes et al., 2010; 2011; 2015; Svensen et al., 2015). Such method provides valuable insights into the relationship between Precambrian periods magmatic activities and carbon release, as well as planetary environment.
Located on the northern margin of the North China Craton, a set of large-scale sill has been developed (Ernst, 2014). Building upon a comparative analysis of the geochronology and geochemical characteristics of this set of sill, Zhang et al. (2017a) proposed the concept of the “Yanliao Large Igneous Province” (Yanliao LIP). Evidences from petrology, geochronology, geochemistry, and paleomagnetism suggest the Yanliao LIP exhibits striking similarities to the Derim sills in the McArthur Basin of northern Australia, which is considered to be an unified global LIP (Zhang et al., 2017a). This LIP’s peak age is 1,323 Ma and is considered the final response of the craton to the Columbia supercontinent’s fragmentation (Zhang et al., 2017b; Cawood, 2020; Zhang et al., 2022b). Mesoproterozoic Oxygenation Event (MOE) is a proposed period of oxygenation during which the global atmosphere-ocean system experienced fluctuations in redox conditions. This hypothesis is supported by the studies of redox-sensitive trace metal (e.g., Mo, U) enrichments and biomarkers preserved in the Xiamaling Formation of North China (Zhang et al., 2016; Diamond et al., 2018; Xu et al., 2024). Taking into account the nearly simultaneous occurrence of the MOE (1.59–1.36 Ga) and the Yanliao LIP (Zhang et al., 2022a). The estimation of the amount of carbon release triggered by this set of sill provides valuable insights into the interplay between magmatic activities, the global carbon cycle and environmental changes of our planet during the Mesoproterozoic era. It contributes to a better understanding of the intricate connections among these factors, shedding light on the Earth’s “middle age” phase’s planetary evolution.
This study is based on the analysis of nine stratigraphic columns that contain extensive records of large-scale sills from the Yanliao LIP. Using the SILLi 1.0 1D model by utilizing the one-dimensional finite element method, the cooling state of magma and the temperature field of surrounding rocks, as well as the variations in vitrinite reflectance (%Ro) and total organic carbon content (TOC), are finely characterized after the emplacement of the sill. Besides, we inversely estimated the carbon release rate and total release amount associated with the sill emplacement. The accuracy of the model simulations was validated by consistency test with the equivalent vitrinite reflectance (%EqVRo) and total organic carbon content (TOC) measured value of the shales from the sills’ intrusion rocks. Our aim was to estimate the carbon release triggered by 1.32 Ga sill emplacement and explore the potential environmental implications of this magmatic activity.
2 Geological setting
Multistage magmatic activity records are found in the Proterozoic strata in Yanliao area, northern margin of North China Craton (Ernst, 2014). Among them, the record of Yanliao LIP is characterized by large-scale (> 1.4×105 km2), short-duration (−1,323 Ma), and have the geochemical characteristics of intraplate magmatic rocks (Zhang et al., 2017a) (Figure 1). Considering the similarities in lithological composition, emplacement age, geochemical characteristics and spatial-temporal distribution indicated by paleomagnetic evidence between the Yanliao Large Igneous Province and the Derim sills (Derim Derim-Galiwinku LIP) in northern Australia (Whelan et al., 2016; Zhang et al., 2017b), it is possible that the scale of this episode of magmatic activity may be even larger (Figure 1B).

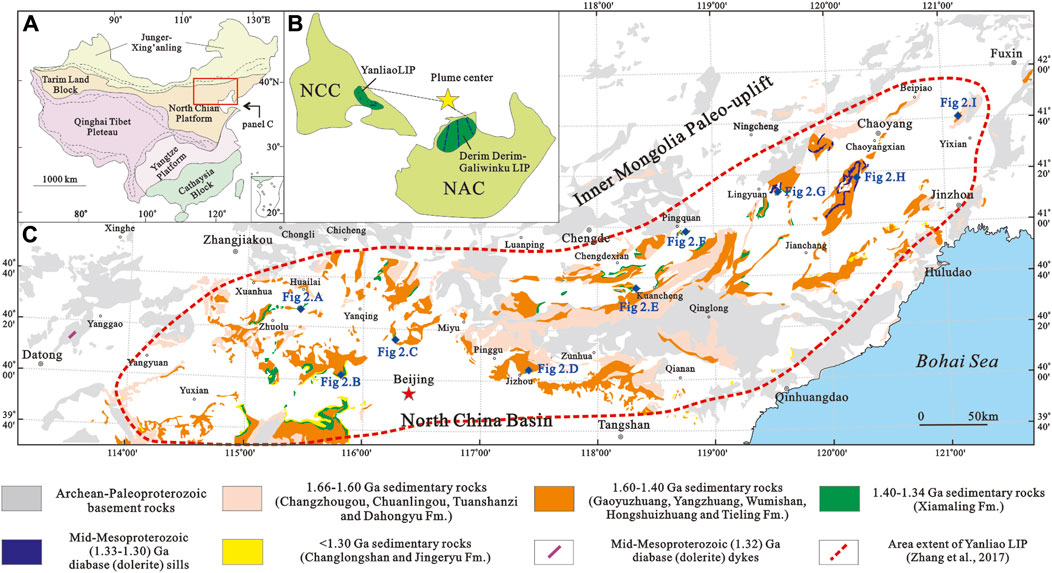

Figure 1. The location and areal extent of the 1.32 Ga sills. (A) Major tectonic subdivisions of China; (B) The reconstruction map of North China-North Australia Craton in 1.32 Ga (modified after Zhang et al., 2017a); (C) The sketch map of the Yanliao LIP (modified after Zhang et al., 2017b). Small labeled rhombuses locate the relevant stratigraphic columns in Figure 3.
The magmatic activity during this period is primarily recorded and preserved in the form of sills. The rocks of this set of sill are mainly diabase (Zhang et al., 2016). The main emplacement is observed within the Xiamaling Formation, while records of this set of sill are also found in the Tieling Formation, Wumishan Formation, and Gaoyuzhuang Formation. The sills primarily intruded into organic-rich shale layers, while others also penetrated into limestone or calcareous graywacke (Shui et al., 2020) (Figure 2). The cumulative thickness of the sills within the formation ranges from 50 m to 1800 m, exhibiting a gradual decrease from the northeast to the southwest. The contact zone between the sill and the surrounding rocks exhibits obvious thermal aureoles. This caused significant hornfelsing and decarbonization of the organic-rich shale (Figures 2A–C) and lead to intense marbleization of the limestone or calcareous graywacke (Figures 2D,E).

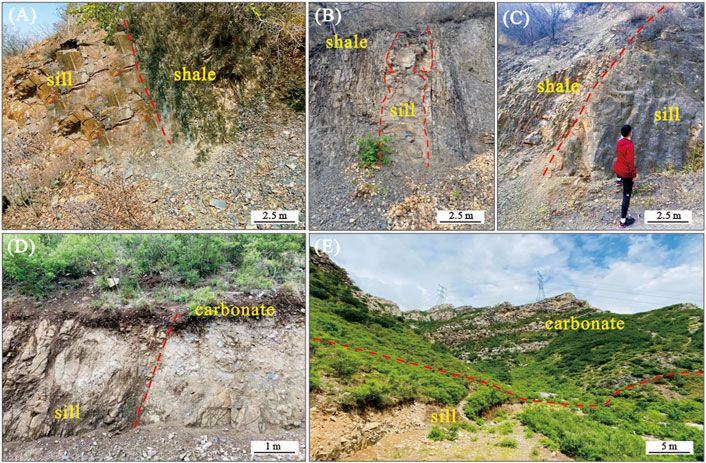

Figure 2. Representative outcrop photos of the 1.32 Ga sills. (A) Sills emplaced into the Xiamaling Formation in Huailai, Zhangjiakou (N 40°28.7´; E 115°23.4′); (B) and (C) Sills emplaced into the Xiamaling Formation in Huangtugui, Beijing (N 40°34.5´; E 118°33.3′); (D) and (E) Sills emplaced into the Wumishan Formation in Chaoyangxian, Chaoyang (N 40°55.7´; E 120°23.6′).
3 Samples and methodology
This study was conducted by using the SILLi 1.0 1D model based on nine representative stratigraphic columns containing extensive records of sills from the Yanliao LIP (Figure 3). The distribution characteristics of these stratigraphic columns and sill emplacement were referenced from previous research (Zhang et al., 2017a; Deng et al., 2021; Lyu, 2021; Zhang et al., 2022b) and field measurements.

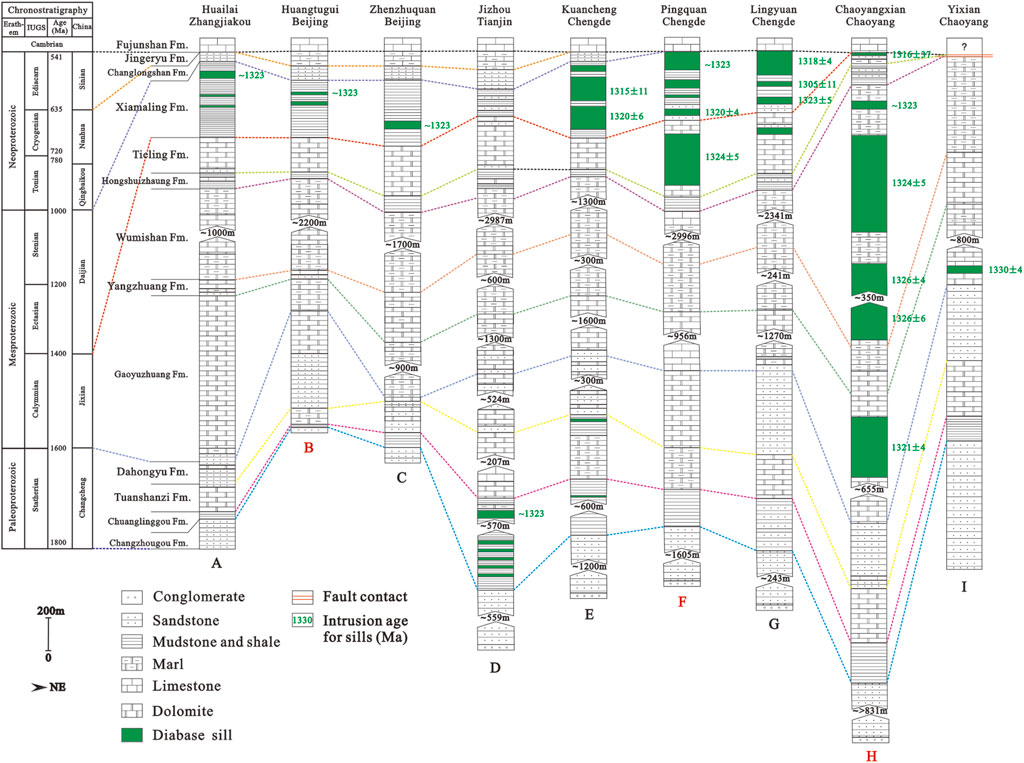

Figure 3. Representative stratigraphic columns containing records of sills from the Yanliao LIP (modified after Zhang et al., 2017a). Locations of columns are marked in Figure 1C. Red marks are the stratigraphic column analyzed in Section 4.2.
3.1 Samples
The sill samples were collected from the Huailai section (N 40°28.7´; E 115°23.4′), Huangtugui section (N 40°34.5´; E 118°33.3′), Zhenzhuquan section (N 40°33.3´; E 116°21.3′), and Chaoyangxian section (N 40°55.7´; E 120°23.6′). Additionally, nineteen diabase samples were collected for mineralogical analysis from Huailai, Huangtugui, Zhenzhuquan and Chaoyangxian section. Twenty shale samples were collected for equivalent vitrinite reflectance testing and ten samples for TOC analysis from the Huailai section; nineteen shale samples were collected for equivalent vitrinite reflectance testing and ten samples for TOC analysis from the Huangtugui section; and eleven shale samples were collected for equivalent vitrinite reflectance testing and five samples were collected for TOC analysis from the Zhenzhuquan section. The distance of the shale samples to their surrounding rocks can be seem in the Supplementary Tables S1, S2. The weathered surfaces of all samples were cut to ensure that the samples are fresh and free of contamination, then the shale samples were ground to 100 mesh. All the experiments were conducted at the MOE Key Laboratory of Orogenic Belts and Crustal Evolution, School of Earth and Space Sciences, Peking University.
3.2 Petrology analysis
The detailed petrographic analysis of rock thin sections was conducted by the polarizing microscope (Nikon Eclipse LV100NPOL) and the scanning electron microscope (SEM, FEI Quanta 650 FEG) equipped with energy-dispersive X-ray spectroscopy (EDS, Oxford INCA X-Max 50).
To analyze the total organic carbon (TOC) content of shales, the inorganic carbon from 100 mg powdered sediments was removed by treatment with dilute HCl. The resulting residue was then repeatedly washed with deionized water and dried. Analysis of TOC was performed using a Leco CS-230 analyzer. Then, the samples were sectioned either perpendicular or parallel to the bedding and subsequently processed following the guidelines outlined in ISO 7404-2 (2009). Reflectance measurements, in accordance with ISO 7404-5 (2009) and ASTM D7708-14 (2014), were conducted using either the Leica 4500 P microscope with CRAIC microscope photometer or the Leica DM4 M microscope with the Hilgers Technisches Büero Fossil system, equipped with both white and ultraviolet light sources. The equivalent vitrinite reflectance (EqVRo) values were determined using vitrinite-like reflectance (Rv) data, applying the formula established by Luo et al. (2021).
3.3 Carbon release simulation
In this study, we simulated the carbon release from sills by using the SILLi 1.0 1D model established by Iyer et al. (2018) with the help of the one-dimensional finite element method (FEM). The reliability of this method has been thoroughly validated by previous researchers (Svensen et al., 2018b; Iyer et al., 2018). In this model, each sedimentary layer, including eroded layers, is deposited sequentially in time based on the depositional age. The sedimentation rate of each layer is calculated based on the layer’s thickness and the time difference between its top age and the deposition age of the preceding layer (Svensen et al., 2018a). Deposition of an erosional layer occurs in the same way as the layers in the present-day sedimentary column. Sills are emplaced instantaneously at a given time. Based on the geothermal and energy diffusion equations, the temperature changes of each sedimentary layer in the stratigraphic column are calculated under specific boundary temperature conditions. The effective thermal capacity of the rock incorporates the latent heat of fusion associated with the crystallization process occurring within the sill (Aarnes et al., 2010; Iyer et al., 2013). The thermal diffusion equation is modified to incorporate dehydration reactions occurring in the surrounding rocks (Galushkin, 1997; Wang, 2012). The thermal maturity of each sedimentary layer is determined using the EASY%Ro algorithm, which simulates the complex process of kerogen decomposition with increasing temperature based on the Arrhenius equation (Sweeney and Burnham, 1990). Through the aforementioned process, we can obtain the thermal maturity for each stratigraphic horizon. Considering that the studied stratum belongs to the Precambrian period when higher plants had not yet appeared, it is not possible to obtain the vitrinite reflectance (Ro) of organic matter in the formation directly. The simulated vitrinite reflectance values (Ro) represent the equivalent vitrinite reflectance values (EqVRo) of organic matter in the studied strata. The equivalent vitrinite reflectance (EqVRo) values were calculated from vitrinite-like reflectance (Rv) based on the formula reported by Luo et al. (2021): EqVRo=1.07 × Rv-0.18. The release of organic CO2 is estimated by assessing the TOC variation in the surrounding rocks based on the EASY%Ro method, with its maximum conversion value capped at 85% (Iyer et al., 2018). The release of inorganic CO2 is estimated by using temperature and pressure curves of carbonate rocks over time, which are pre-calculated using Perplex_X (Connolly and Petrini, 2002). Note that the carbon gas release is calculated as CO2-equivalents.
4 Results
4.1 Sills petrography
The sill sample have blocky structure, with some parts showing spheroidal weathering (Figure 4A). Under microscopic observation, the sample is identified as diabase with distinct diabasic texture and mineral particles in semi-automorphic granular structure. The main minerals include plagioclase (55–50 vol%), clinopyroxene (30–35 vol%), and amphibole (10–15 vol%). Plagioclase crystallizes earlier than clinopyroxene and exhibits a higher degree of self-shaping. The plagioclase shows slight epidotization alteration along its edges, while the clinopyroxene displays residual structures due to local amphibolization (Figures 4B,C).
Figure 4. The petrography of 1.32Ga sills. (A) Field characteristics of sill sample; (B) Characteristics of rock thin sections under a polarizing microscope and cross-polarized light microscope; (C) Characteristics of rock thin sections under scanning electron microscopy. Pl-plagioclase, Cpx-clinopyroxene, Hbl-hornblende.
4.2 Organic petrology of sill contact zone
At the Huailai section, within a 5.5 m range of the sill contact zone, as the distance increases, the colour of the surrounding rocks transitions from light green to dark gray-black, with an increase in chromaticity; the vitrinite reflectance values of the surrounding rocks decrease from 2.56 to 0.83, with a decrease rate of 67.58%; TOC values increase from 0.20 to 2.00, with an increase rate of 9 (Figure 5A). At the Huangtugui section, within a 3.0 m range of the sill contact zone, as the distance increases, the colour of the surrounding rocks transitions from light yellow to dark gray-black, with an increase in chromaticity; the vitrinite reflectance values of the surrounding rocks decrease from 2.86 to 0.87, with a decrease rate of 69.58%; TOC values increase from 0.03 to 2.45, with an increase rate of 80.67 (Figure 5B). At the Zhenzhuquan section, within a 2.5 m range of the sill contact zone, as the distance increases, the colour of the surrounding rocks transitions from light yellow to dark gray-blue, with an increase in chromaticity; the vitrinite reflectance values of the surrounding rocks decrease from 1.90 to 0.57, with a decrease rate of 70%; TOC values increase from 0.23 to 1.50, with an increase rate of 5.52 (Figure 5C).

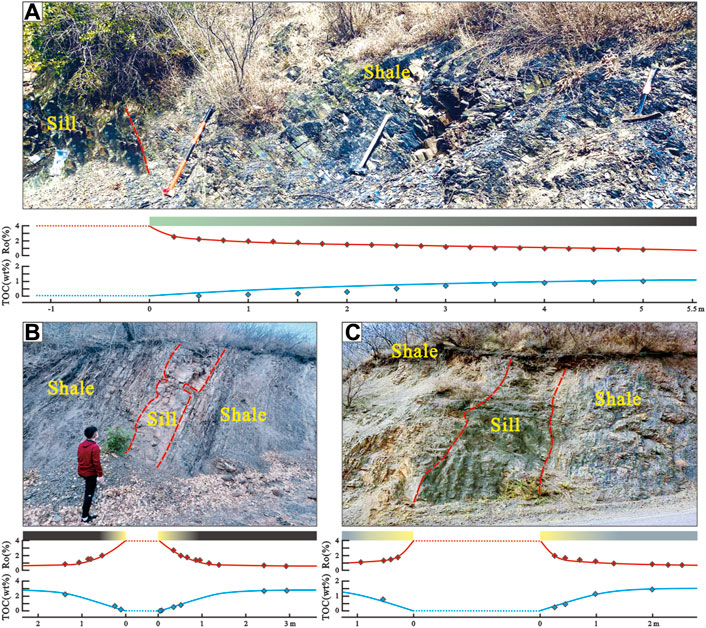

Figure 5. The organic petrological characteristics of the surrounding rocks in sill contact zone (Diamond represent measured results, solid lines represent thermal simulation results; (A), Huailai Section; (B), Huangtugui Section; (C), Zhenzhuquan Section).
4.3 Thermal modelling of carbon release triggered by sills
Input data (Supplementary Tables S3–S11) for the numerical thermal sill model are based on nine stratigraphic columns from the Yanliao LIP (Figure 3). In order to obtain a more conservative estimation, the model utilized an emplacement scenario where individual sills were placed every 10,000 years. If the sills are placed close together, choosing to emplace them simultaneously in the model would cause the aureoles to experience a higher maximum temperature. This could potentially result in an overestimation of the CO2 production. Pure limestone, despite containing large amounts of CO2, has a thermal decomposition temperature that surpasses 950°C, exceeding that of impure carbonates (Ganino and Arndt, 2009; Heimdal et al., 2018; Iyer et al., 2018). Given that contact aureoles often cannot attain such high temperatures (Ganino and Arndt, 2009; Supplementary Figure S1), impure carbonates, such as marls, are more inclined to produce substantial volumes of CO2 during sill emplacement.
Overall, the thermal simulation results indicate that sill emplacement increases the temperature (To ∼234°C in average) and vitrinite reflectance (%Ro) (From ∼0.50% to ∼2.37% in average) of the surrounding rocks, while significantly decreasing its total organic carbon content (TOC) (From ∼1.10% to ∼0.23% in average) (Supplementary Table S12). By comparing the simulation results with field measured results, at the Huailai section, a 3.0 m thick sill emplacement resulted in a decrease in vitrinite reflectance values of the surrounding rocks from 4.00 to 0.75 within a 5.5 m range, showing a consistency (R2) of 0.89 with the field measurements; the TOC values within the 5.5 m range of the surrounding rocks increased from 0.00 to 1.11, showing a consistency (R2) of 0.82 with the field measurements (Figure 5A). At the Huangtugui section, a 0.5 m thick sill emplacement resulted in a decrease in vitrinite reflectance values of the surrounding rocks from 4.00 to 0.70 within a 3.5 m range, showing a consistency (R2) of 0.85 with the field measurements; the TOC values within the 3.5 m range of the surrounding rocks increased from 0.00 to 2.50, showing a consistency (R2) of 0.91 with the field measurements (Figure 5B). At the Zhenzhuquan section, a 2.5 m thick sill emplacement resulted in a decrease in vitrinite reflectance values of the surrounding rocks from 4.00 to 0.80 within a 2.5 m range, showing a consistency (R2) of 0.87 with the field measurements; the TOC values within the 2.5 m range of the surrounding rocks increased from 0.00 to 1.50, showing a consistency (R2) of 0.77 with the field measurements (Figure 5C).
Besides, The peak organic CO2 flux of this set of sill vary from 4.12 kg/m2/yr (1,321 Ma) in Chaoyangxian to 4027.78 kg/m2/yr (1,323 Ma) in Huailai, with an average value of 757.00 kg/m2/yr. The peak inorganic CO2 flux of this set of sill vary from 63.70 kg/m2/yr (1,324 Ma) in Chaoyangxian section to 1,334.46 kg/m2/yr (1,316 Ma) in the same section, with an average value of 21.64 kg/m2/yr. The CO2 production is calculated by subtracting the CO2 value from background maturation from the peak CO2 value after sill emplacement (Heimdal et al., 2018). The cumulative organic CO2 production of this set of sill vary from 0.34 ton/m2 in Zhenzhuquan section to 1,177.14 ton/m2 in Chaoyangxian section, with an average value of 143.73 ton/m2. The cumulative inorganic CO2 production of this set of sill vary from 1.03 ton/m2 in Lingyuan section to 58.35 ton/m2 in Chaoyangxian section, with an average value of 21.64 ton/m2. The cumulative total CO2 production of this set of sill vary from 0.34 ton/m2 in Zhenzhuquan section to 1,235.49 ton/m2 in Chaoyangxian section, with an average value of 150.94 ton/m2 (Table 1).

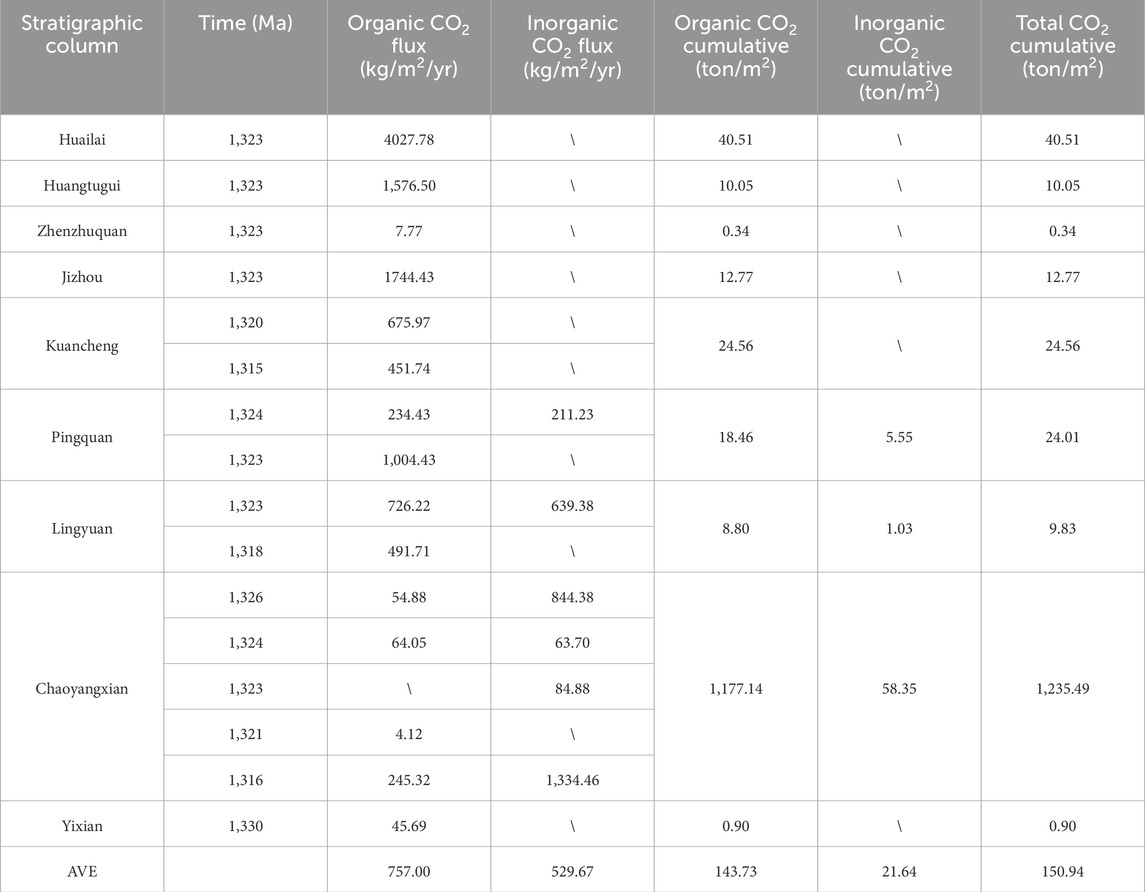

Table 1. The carbon release triggered by sill emplacement.
Next, we will analyze the thermal effects and cabon release of sill emplacement based on three stratigraphic columns located in the southwest (Huangtugui section), central (Pingquan section), and northeast (Chaoyangxian section) regions of the Yanliao LIP.
4.3.1 Huangtugui section
Stratigraphic column in Huangtugui section comprises 3572.5 m of 13 sedimentary layers and three individual sills (Figure 3). The sill emplacement occurred approximately 1,323 Ma, with intrusion thicknesses of 50 m, 35 m, and 25 m for the three individual sills from bottom to top. The sills are restricted to the Xiamaling Formation, dominated by organic-rich shale.
The modeled thermal effects of each individual sill in stratigraphic column are shown in Figure 5. The temperature rises from background values and reaches a maximum (577°C) at the innermost aureole around each sill. The vitrinite reflectance values (%Ro) increase to a maximum of 4.69%, and correspondingly, the TOC decreases towards each sill to minimum of 01.7%. Only organic CO2 is generated in aureoles around all of the three sills (Figure 6).

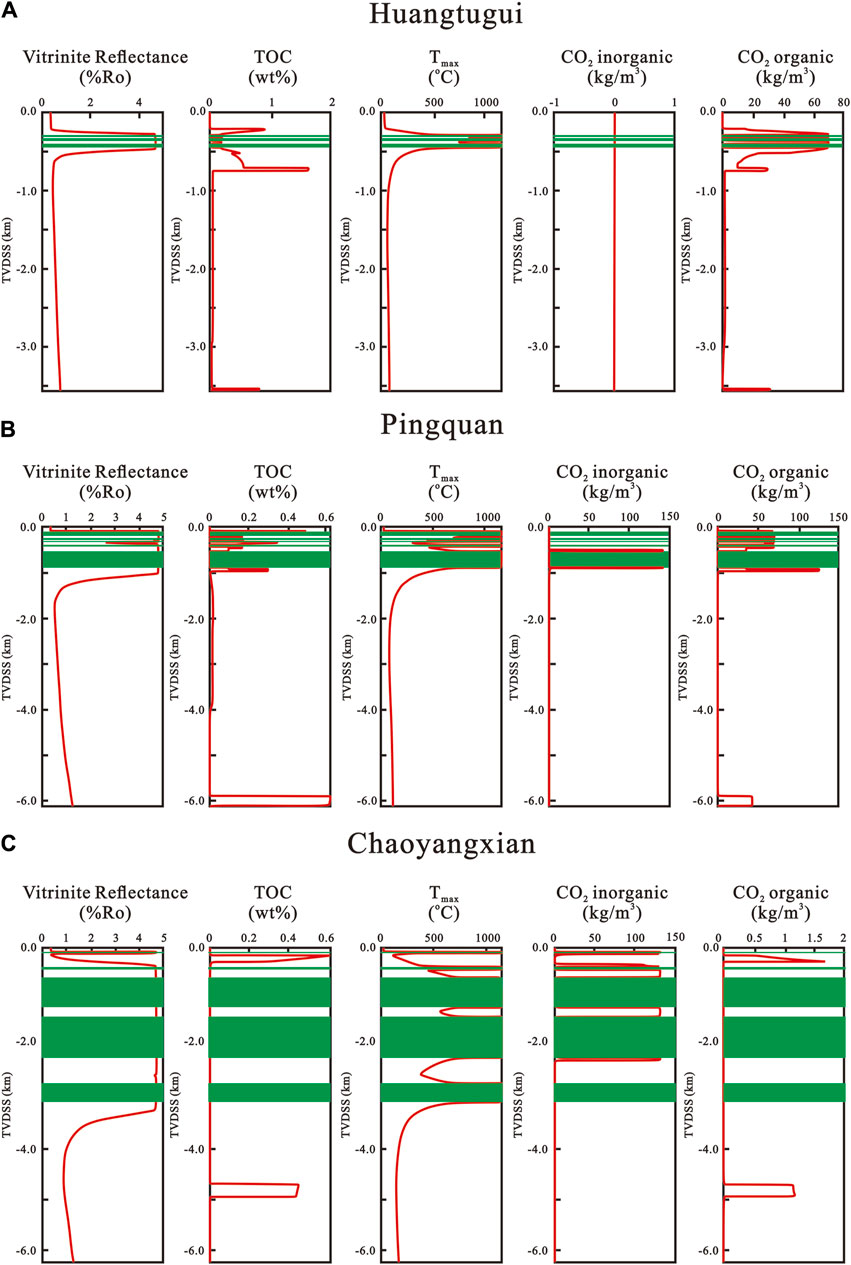

Figure 6. Modeled thermal effects of sills emplaced of Yanliao LIP in intervals of 10,000 years, based on the stratigraphic columns of Huangtugui (A), Pingquan (B), Chaoyangxian section (C).
The peak organic CO2 flux is 1,576.50 kg/m2/yr in 1,323 Ma. The cumulative CO2 production for stratigraphic column is 10.05 ton/m2, which are all organic CO2 (Figures 7A,B).

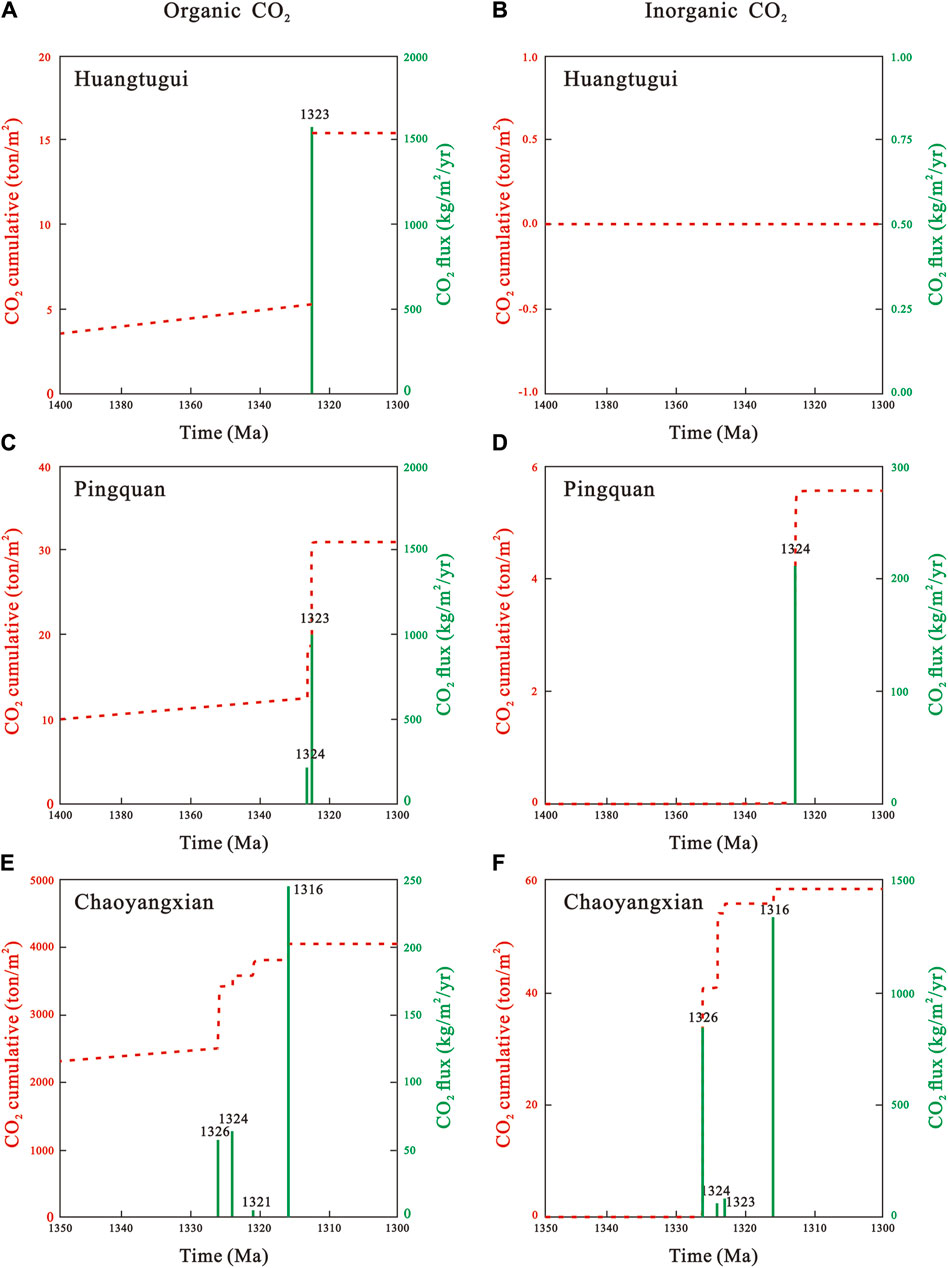

Figure 7. Modeled cumulative CO2 production (red lines) and peak fluxes (green lines) per sill base on the stratigraphic columns of Huangtugui section (A): organic, (B): inorganic, Pingquan section (C): organic, (D): inorganic and Chaoyangxian section (E): organic, (F): inorganic.
4.3.2 Pingquan section
Stratigraphic column Pingquan section comprises 7731 m of 11 sedimentary layers and five individual sills (Figure 3). The sill emplacement occurred in 1,324, 1,323 and 1,320 Ma, with intrusion thicknesses of 360 m, 40 m, 10 m, 40 m and 100 m for the five individual sills from bottom to top. The sills are restricted to the Tieling Formation and Xiamaling Formation, dominated by organic-rich shale and dolomite. The sill emplacement into the sandstone layer at 1,320 Ma, which did not result in carbon release.
The modeled thermal effects of each individual sill in stratigraphic column are shown in Figure 5. The modeled temperature, TOC and vitrinite reflectance values follow the same trend as for stratigraphic column Huangtugui section. The temperature value increase to 792°C, the vitrinite reflectance value (%Ro) increase to 4.68% and the TOC decrease to 0.07%. Both organic CO2 and organic CO2 is generated in aureoles around all of the five sills (Figure 6).
The peak organic CO2 flux is 234.43 kg/m2/yr in 1,324 Ma and 1,004.43 kg/m2/yr in 1,323 Ma. The peak inorganic CO2 flux is 211.23 kg/m2/yr in 1,324 Ma. The cumulative CO2 production for stratigraphic column in 1,324 Ma is 19.88 ton/m2. The cumulative CO2 production for stratigraphic column in 1,323 Ma is 4.13 ton/m2. The total cumulative CO2 production for stratigraphic column is 24.01 ton/m2, including 18.46 ton/m2 organic CO2 and 5.55 ton/m2 inorganic CO2 (Figures 7C,D).
4.3.3 Chaoyangxian section
Stratigraphic column Chaoyangxian section comprises 5769.5 m of 10 sedimentary layers and five individual sills (Figure 3). The sill emplacement occurred in 1,326, 1,324, 1,323, 1,321 and 1,316 Ma, with intrusion thicknesses of 366 m, 814 m, 594 m, 54 m and 21 m for the five individual sills from bottom to top. The sills are restricted to the Gaoyuzhuang Formation, Wumishan Formation and Tieling Formation, dominated by marl and dolomite.
The modeled thermal effects of each individual sill in stratigraphic column are shown in Figure 5. The modeled temperature, TOC and vitrinite reflectance values follow the same trend as for stratigraphic column Huangtugui and Pingquan section. The temperature value increase to 987°C, the vitrinite reflectance value (%Ro) increase to 4.61% and the TOC decrease to 0.10%. Both organic CO2 and organic CO2 is generated in aureoles around all of the five sills (Figure 6).
The peak organic CO2 flux is 54.88 kg/m2/yr in 1,326 Ma, 64.05 kg/m2/yr in 1,324 Ma, 4.12 kg/m2/yr in 1,321 Ma and 245.32 kg/m2/yr in 1,316 Ma. The peak inorganic CO2 flux is 844.38 kg/m2/yr in 1,326 Ma, 63.70 kg/m2/yr in 1,324 Ma, 84.88 kg/m2/yr in 1,323 Ma and 1,334.46 kg/m2/yr in 1,316 Ma. The cumulative CO2 production for stratigraphic column Chaoyangxian in 1,326 Ma is 929.18 ton/m2. The cumulative CO2 production for stratigraphic column in 1,324 Ma is 80.69 ton/m2. The cumulative CO2 production for stratigraphic column in 1,323 Ma is 1.23 ton/m2. The cumulative CO2 production for stratigraphic column in 1,321 Ma is 157.38 ton/m2. The cumulative CO2 production for stratigraphic column in 1,316 Ma is 67.82 ton/m2. The total cumulative CO2 production for stratigraphic column is 1,235.49 ton/m2, including 1,177.14 ton/m2 organic CO2 and 58.35 ton/m2 inorganic CO2 (Figure 7E,F).
5 Discussion
5.1 Model error analysis
Considering the early formation age of the sill emplacement layers and their subsequent experiences of multiple tectonic transformation, it is challenging to reconstruct the outcrop’s exposure and burial history. Taking into account the measured shale in the surrounding rock, which was not affected by the emplacement, with low thermal maturity (EqVRo≤ 0.7%) (Liu et al., 2022), it indicates that the formation emplaced by sills in this area has been in a state of prolonged uplift or shallow burial, thus its burial history after Cambrian period has not been reconstructed. Figure 5 has demonstrated the reliability of the SILLi 1.0D model in simulating the thermal effects of the single-set sill. In order to validate the accuracy of our simulation results of multi-set sills emplacement in study area, we collected equivalent vitrinite reflectance data from 85 sets of sill emplacement surrounding rock samples from Huailai, Huangtugui, Zhenzhuquan and Pingquan section (Liu et al., 2011; Liu et al., 2022 and this study) and TOC data from 38 sets of sill emplacement surrounding rock samples from Huailai, Huangtugui, Zhenzhuquan and Kuancheng section (Shui et al., 2020 and this study) (Supplementary Tables S1 and S2). We analyzed the consistency between the simulated results of our model and the measured results of the samples. The results indicate a high consistency (R2= 0.94) between the measured equivalent vitrinite reflectance and the simulated vitrinite reflectance (Figure 8A) and a high consistency (R2= 0.97) between the measured TOC and the simulated TOC (Figure 8B). Prior researches has confirmed the precision of the SILLi 1.0 1D model (Svensen et al., 2018b; Iyer et al., 2018), and its simulated outcomes exhibit a strong consistent with the measured values of relevant indicators. This indicates that the lack of reconstructed burial history after the Cambrian period in this area does not affect the match between model predictions and actual conditions.

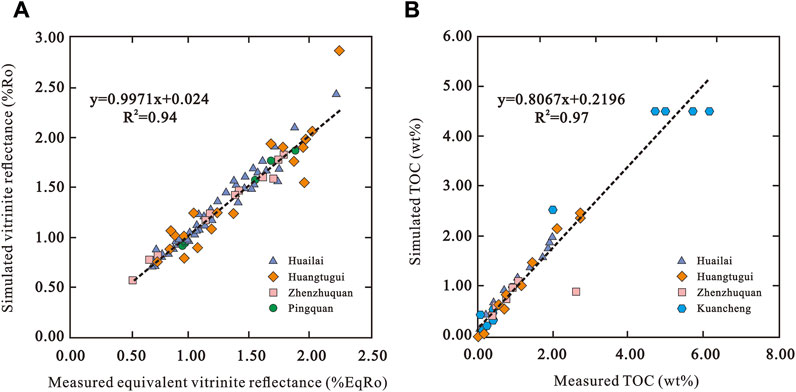

Figure 8. Fitting effect of the measured data and simulated results. (A) The relationship of measured equivalent vitrinite reflectance and simulated vitrinite reflectance; (B) The relationship of measured TOC and simulated TOC.
5.2 Carbon release and potential environmental effects triggered by sill emplacement
Based on the estimation of SILLi 1.0 1D model on nine typical stratigraphic columns (Figure 9), it was shown that the total cumulative of CO2 production by sill emplacement into the surrounding rocks was 150.94 ton/m2. Considering the distribution area of the Derim sill in Northern Australia Craton can reach up to 1.6 × 105 km2 (Kirscher et al., 2021; Mitchell et al., 2021), the total area of this set of sill could reach 3.0×105 km2. The sill emplacement resulted in an equivalent CO2 release of approximately 4.53 × 1013 tons, equivalent to a carbon release of 1.24×1013 tons.

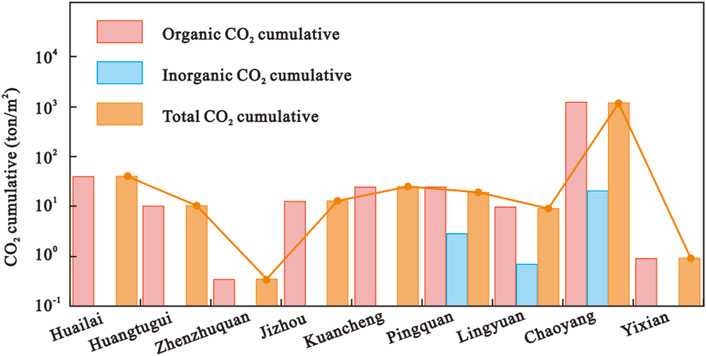

Figure 9. The amount of carbon release triggered by ∼1.32 Ga sill emplacement in each section.
When using the 1.8 × 106 tons/km3 CO2 value for basaltic magma degassing from McCartney et al. (1990), the estimated gas release from volcanic eruptions in this LIP is 5.94 × 1011 tons of CO2 equivalents. The total gas release from this set of magma activity is estimated to be 4.58 × 1013 tons of CO2 equivalents. This is equivalent to 1.53 times (3 × 1013 tons) of the CO2 released by the Siberian Large Igneous Province (Grasby and Bond, 2023), 2.97 times (1.54 × 1013 tons) of the CO2 released by the Central Atlantic Magmatic Province (Schaller et al., 2012), and 21.2 times (2.16 × 1012 tons) of the current atmospheric concentration of CO2 (IPCC, 2013; Jones et al., 2016). It is evident that the carbon release triggered by this set of magma activity is enormous.
In addition to the enormous release of carbon, sill emplacement into the formation can also generate toxic gases such as SO2 and CH3Cl through reactions with sulfur-rich, chlorine-rich, and other accessory minerals (such as pyrite) (Shui et al., 2020). The actual gas release during the magma activity period is expected to be greater than our estimated value.
In recent years, there has been considerable debate regarding the ∼1.4 Ga oxygenation event (Mesoproterozoic Oxygenation Event, MOE). Nonetheless, mounting evidence now suggests the occurrence of an oxygenation event in both the seawater and atmosphere around 1.4 Ga: (1) Widespread distribution of black shales around 1.4 Ga in North China, North Australia, and potentially in other cratons (Zhang et al., 2018; Diamond et al., 2021), suggesting significant organic matter burial and the subsequent accumulation of high oxygen in the Earth’s surface system; (2) The high Mo isotopic values (reaching up to ∼1.7‰) found in the shales of the middle Xiamaling Formation are comparable to those of modern seawater (∼2.3‰; Diamond et al., 2018), suggesting a more oxygen-rich ocean (Diamond et al., 2018; Diamond and Lyons, 2018; Zhang et al., 2019); (3) Isotope mass balance modeling of U from the northern Australia Craton during the same period suggests that over 75% of the seafloor was probably oxygenated around 1.4 Ga (Yang et al., 2017); (4) The significant negative shift in δ34Spy in the upper Xiamaling Formation is understood as indicating higher seawater sulfate concentration (Wang et al., 2020; Zhang et al., 2022b), potentially attributed to increased chemical weathering on the continent due to elevated atmospheric O2 levels (Daines et al., 2017); (5) The Fe speciation and concentrations of redox-sensitive metals in the green shales of the upper Xiamaling Formation similarly indicate oxygenated conditions in the bottom waters, suggesting a rise in marine oxygenation (Zhang et al., 2017b); (6) Elevated I/(Ca + Mg) values in the upper Xiamaling Formation (reaching up to 1.59 μmol/mol), suggesting oxygenated conditions in the surface seawaters. All this evidence suggests that while the oxygenation event ∼1.4 Ga may not have been global in scale, it likely represented at least a localized oxygenation event across the Yanliao Area (Xu et al., 2024), which lasting for 230 million years from 1.59 to 1.36 Ga (Zhang et al., 2022a; Figure 10).

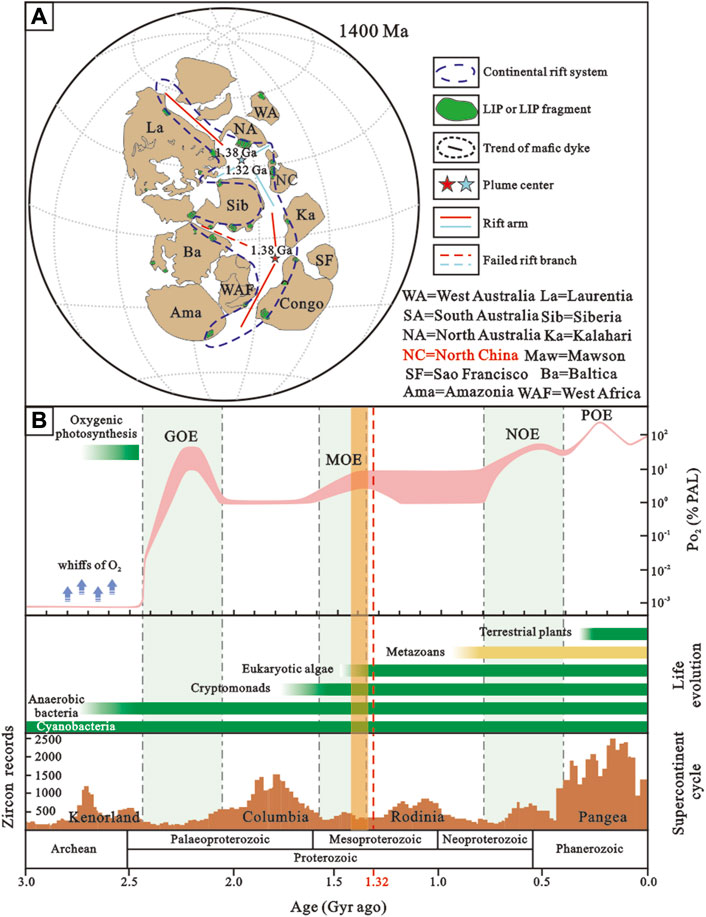

Figure 10. The correlation of the oxygenation of Earth’s atmosphere, life evolution, supercontinent cycle and the temporal range of sill emplacement (Mesoproterozoic) (modified after Lyons et al., 2014; Canwood, 2020; Zhang et al., 2022b). (A) Simplified paleogeographic map of ∼1.4 Ga; (B) The relationship between Supercontinent Cycles and Planetary Evolution in geological history, the light blue area represents the duration of the oxygenation event; the light orange area represents the dating range of ∼1.4–1.35 Ga LIPs; the red dash line represents the average dating of Yanliao LIP (1,323 Ma).
The effects of Large Igneous Province (LIP) activity on Earth’s surface environment may have been largely consistent across both the Phanerozoic and Precambrian (Ernst and Youbi, 2017). The eruptions of LIPs would release substantial carbon gases into the atmosphere. The magmatism generate volcanic materials (fresh silicate material with high initial reactivity) and expand the surface area accessible for weathering (Jones et al., 2016; Ernst and Youbi, 2017), thereby providing substantial nutrients to the ocean, enhancing primary productivity (Horton, 2015; Diamond et al., 2021; Xu et al., 2024). Based on the positive Hg/TOC excursion, elevated nutrient levels (particularly P) and increased TOC in the middle Xiamaling Formation, Xu et al. (2024) suggested that the weathering of ∼1.4–1.35 Ga emplaced LIPs (with a maximum peak at ∼1.38 Ga, Zhang et al., 2022b) may have amplified the input of nutrients to the ocean, bolstering higher primary productivity, the burial of organic matter, and ultimately contributing to an oxygenation event (MOE) around 1.4 Ga.
It is worth noting that the ∼1.32 Ga sill (Yanliao LIP) and the ∼1.4–1.35 Ga LIPs are both attributed to Columbia continental rift system. The Yanliao LIP is specifically identified as the rift zone branch between North Australia and North China, which reached the drifting stage, ultimately leading to the fragmentation and final breakup of Columbia (Zhang et al., 2017a; Wang et al., 2019; Kirscher et al., 2021). Besides, the ∼1.32 Ga Yanliao LIP occurred closer in proximity to the North China Craton, which contains records of the MOE event, compared to the occurrence sites of ∼1.4–1.35 Ga LIPs (Figure 10A). Considering the calculated release of carbon gas content triggered by the ∼1.32 Ga sill emplacement above, it appears that this period of magmatic activity promote the activation of carbon in crustal sediments and may have also impacted the global environment. However, results from previous studies at that time indicate that atmospheric oxygen levels were nearly stable (Zhang et al., 2022a). Therefore, we believe that further discussion is needed on the global climate conditions during the emplacement of the ∼1.32 Ga sill. Unfortunately, due to the absence of co-depositional records in the North China Craton and the North Australian Craton during the pre-magmatic period, we lack further evidence to indicate the impact of the ∼1.32 Ga sill emplacement on the global ecosystem. Given the occurrence of Lower Riphean sedimentary formations linked to sill emplacement periods in various ancient cratons worldwide (eg. Siberian Craton), it is possible that future exploration of the geological records in these ancient cratons could reveal more information about the environmental impact of the ∼1.32 Ga sill emplacement.
5.3 The limitations of simulation results
The application of the SILLi 1.0 1D model to simulate the thermal consequences of sill emplacement offers additional understanding regarding the release of carbon and environmental ramifications linked to magmatic events (such as Yanliao LIP). However, the thermal simulation results still possess certain limitations: (1) The thermal simulation model is established based on one-dimensional finite element method and cannot simulate the temporal variation of the thermal effects generated by rock intrusion on a three-dimensional level; (2) The model only takes into account the influence of sill emplacement on the vitrinite reflectance (%Ro), total organic carbon content (TOC) and temperature of the surrounding rocks, and does not consider the relationship between other indicators in the formation (such as mineralogical and biomarker indicators) and sill emplacement; (3) The thermal simulation model assumes an approximate maximum conversion rate of 85% for TOC in sedimentary layers, but it does not take into account the complete loss of organic carbon in the contact zone, resulting in an underestimation of released gases. Additionally, the model does not consider the presence of inert kerogens in organic-rich layers, which reduces the amount of organic matter that can be converted into hydrocarbons (Iyer et al., 2017) and affects the transformation rate of TOC; (4) Due to the pre-magmatic activity, the co-depositional records in the North China Craton and the North Australian Craton absent during the sill emplacement. We are currently unable to estimate the amount of released CO2 that is sequestered in reservoirs as oil and gas, or transformed into calcium carbonate cement in sedimentary rocks without being discharged into the atmosphere. How to overcome the limitations of the SILLi 1.0 1D model and obtain more precise constraints on carbon release estimation and environmental effects assessment caused by sill emplacement is an area worth exploring in future research for us.
6 Conclusion
This study utilizes nine representative stratigraphic columns with records of sill emplacement in the Yanliao LIP in 1.32 Ga. Applying the SILLi 1.0 1D model by one-dimensional finite element method, it conducts simulations and analysis on carbon release and environmental effects triggered by this set of sill emplacement. The model simulation results are subjected to error verification and shortcomings’ discussion, leading to the following main conclusions.
(1) The emplacement of the sills results in increase in both the temperature (To 234°C in average) and vitrinite reflectance (To 2.37% in average) of the surrounding rocks, accompanied by a decrease in the total organic carbon content (To 0.23% in average) of the surrounding rocks.
(2) The emplacement of the sill can induce reactions with the surrounding rocks, leading to the release of both organic and inorganic carbon. The estimated total amount of carbon released is approximately 1.24 × 1013 tons. Besides, it is estimated that the CO2 equivalent released during this period of magma activity will exceed 4.58 × 1013 tons.
(3) The substantial release of gases during the sill emplacement period promote the activation of carbon in crustal sediments and may impact the global environment. Further work need to be done in the sedimentary strata of the Lower Riphean in various ancient cratons globally during the time of the ∼1.32 Ga sill emplacement to find evidence of potential environmental impacts caused by this magmatic activity.
