Geochemical characteristics of Anak Krakatau’s (Indonesia) lava in the past half-century

1 Introduction

Anak Krakatau Volcano is located in the Sunda Strait, between Sumatra and Java islands, and surrounded by three islands (i.e., Panjang, Rakata, and Sertung), which are the remnants of ancient Krakatau. After the last caldera-forming eruption in 1883, the activity of the volcano resumed in 1927 with Surtseyan eruptions (Camus et al., 1987; Schipper and White, 2016), which later formed Anak Krakatau (AK). Since then, AK has erupted frequently, every 1 to 3 years, with a Volcanic Explosivity Index (VEI) of 1–2, except for the 2018 eruption, whose VEI of 3 (Global Volcanism Program, 2023) led to the flank collapse event that caused tsunamis. Since that event, the volcano has produced episodic eruptions until the present (end of 2023) (Global Volcanism Program, 2023).

Previous petrological and geochemical studies at AK predominantly involved products from the early eruptive history of AK (see Supplementary Table S1). The post-1996 products consisting of lava flow, ballistic blocks, and scoria from pyroclastic deposits are basaltic andesite in composition (Ardian et al., 2022). A few studies have been reported on the chemical compositions of recent eruptive materials. Fiantis et al. (2021) analyzed the 2018 volcanic deposits, i.e., ash and lapilli, resulting in two group compositions with a low SiO₂ content (mean 39.01 wt%) and basaltic andesite (mean 54.93 wt%). Cutler et al. (2022) also reported the groundmass glass compositions of 2018 ash samples, which are andesitic. The latest lava product analyzed was from the 2020 eruption and has a basaltic composition, as reported by Pratama et al. (2023). They also analyzed older products of Krakatau even prior to the 1883 caldera-forming eruption, which were more evolved in composition, i.e., andesitic to rhyolitic.

Meanwhile, it can be proposed that the Anak Krakatau plumbing system consists of multiple magma storage regions, with depths ranging from intermediate to up to 26 km (Dahren et al., 2012; Agangi and Reddy, 2016; Pratama et al., 2023). Gardner et al. (2012) also revealed a complex plumbing system consisting of many small but shallow magma pockets beneath Anak Krakatau. Madden-Nadeau et al. (2021) suggested that different melt-rich regions in the shallow system coalesced and mixed over certain periods, leading to the 1883 climactic eruption. Continuous integrated multi-discipline studies are crucial to monitoring the evolution of the Anak Krakatau volcanic activity. Recent visual, seismicity, and deformation data analyses infer the potential hazards from the current activity with lava flows, ballistics, and volcanic ash resulting from Vulcanian and/or Strombolian eruptions (Kristianto et al., 2021).

Not many of these studies measured the matrix–glass compositions, which are commonly used for inferring magma differentiation and/or the evolution of magma compositions through time, combined with both (1) whole-rock and (2) mineral (titanomagnetite) compositions (de Maisonneuve et al., 2021; Keller et al., 2023). Our study provides a compilation of petrological and geochemical data on the lava products of 1973—2017, including the major element compositions of whole-rock, matrix-glass, and minerals. The aim of this study is to investigate the temporal evolution of magma composition at Anak Krakatau. We first performed petrography analysis to determine mineral assemblages and their proportions. The analysis of the chemistry and proportion of minerals in samples produced from different eruptions would infer whether or not there are any changes in the magma storage conditions. The matrix–glass compositions are also used to track magma differentiation in the past half-century. In addition, we applied crystal size distribution (CSD) (Cashman and Marsh, 1988) to obtain the (plagioclase) crystal residence times. The crystals formed in magma storage reflect the crystal growth rate and duration the magma remained stalled at a certain depth (Marsh, 1988; Higgins, 2000; Morgan and Jerram, 2006). Therefore, the plagioclase crystal residence time could indicate magma residence times in the reservoir.

This study provides valuable data as sampling older lava products can no longer be done since they have vanished along with the collapse of the west sector of the Krakatau volcanic edifice during the 2018 eruption (Grilli et al., 2019; Williams et al., 2019; Omira and Ramalho, 2020; Perttu et al., 2020; Zengaffinen et al., 2020). According to Pratama et al. (2023), AK is currently in the incubation phase in terms of a caldera cycle concept. De Maisonneuve et al. (2021) defined the incubation or “preheating” phase as the thermal maturation of the crust when mafic magmas migrate through the pre-existing crust. The characteristics of this phase are indicated by mafic products from frequent and small eruptions (VEI 1–2), as shown by the recent Anak Krakatau activity. Therefore, this study could offer basic information regarding the AK eruptive products over time, which can contribute to monitoring the possible temporal changes in a caldera cycle.

2 Samples

We used 13 lava samples obtained from the volcano-stratigraphy study of Ismail et al. (2020), where the sampling location sites are shown in Supplementary Figure S1. All the samples of Ismail et al. (2020), which are mostly from Anak Krakatau eruptive products, were stored in a workshop room at the Department of Geology, Indonesia, College of Mineral Technology. Following up on the volcano-stratigraphy study, we recently analyzed all the Anak Krakatau lava samples spanning from 1973 until 2017. The lava flow deposits are characterized as auto-breccia and aa lava, where the latter dominates the most. In general, the samples have a porphyritic texture and are mostly grayish in color, except for a few samples showing a reddish color, i.e., the 2014/ST73 product (Supplementary Figure S2). Hand sample observations show that the lava products of 1981, 1992, 1997, 1999, 2007, 2012, and 2017 are crystal-rich, while the rest have a relatively low crystal content.

3 Methods

The loss on ignition (LOI) measurement was done on dry powder samples using a Carbolite HTF High-Temperature Chamber Furnace (Carbolite Gero, United Kingdom) at the Advanced Characterization Laboratory, National Research and Innovation Agency of Republic Indonesia (Badan Riset dan Inovasi Nasional—BRIN). The LOI measurements were carried out twice on each sample and averaged. Approximately 1 g of the sample was heated to 105°C–110°C and then placed in a porcelain bowl whose weight was already known. It was heated to 400°C for 30 min before the temperature was increased to 1,000°C and left for 20 min. Afterward, the sample was cooled in a desiccator vacuum for 20 min and then weighed.

The whole-rock compositions of all samples were measured on pressed pellets using a Bruker S2 Puma XY X-Ray Fluorescence (XRF) spectrometer with a power of 50 W, a current of 2 mA, and an accelerating voltage of 50 kV at the Advanced Characterization Laboratories Serpong, National Research and Innovation Agency (Badan Riset dan Inovasi Nasional, BRIN). The spectrometer was calibrated using the FluXana FLX-K04/BAXS-S2 glass disc that was also used for drift monitoring. All samples were thin-sectioned for further analyses. The thin sections (0.03-mm-thick) were examined under an optical microscope to determine mineral assemblages and abundances. We determined the mineral percentage through visual semi-quantitative estimation, relying on a mineralogical chart for reference. Observations were conducted on five sections of the thin section, specifically in the upper right, upper left, middle, lower right, and lower left regions. Each section included a circular region with a diameter of 2 mm. The mineral percentage values for each section were then averaged to obtain modal mineral composition data that represented the respective thin section. This visual approach aids us in quickly estimating mineral percentages. The potential for errors exists, predominantly in the form of overestimating small percentages. To mitigate such errors, we employ the visual chart proposed by Reid (1985) for percentages below 1% and refer to the methodology outlined by Terry and Chilingar (1955) for percentages exceeding 1%.

The surface of thin sections was polished using a series of successive diamond pastes (6, 3, 1, and ¼ µm) and then examined using a scanning electron microscope (FEI Quanta 650 FEG) equipped with an energy dispersive X-ray spectroscopy (EDS) detector at Badan Penyelidikan dan Pengembangan Teknologi Kebencanaan Geologi (BPPTKG Yogyakarta)—Center for Volcanology and Geological Hazard Mitigation (CVGHM) to measure the compositions of minerals, matrix–glass, and/or melt inclusions. The backscattered electron images were taken with an accelerating voltage range of 10–20 kV and a spot size varying between 4 and 5. Meanwhile, EDS data were acquired using the point analysis method and measured for 5 s. Data acquisition uses AZtec (Oxford Instruments NanoAnalysis-OINA MicroAnalysis System), and the data were qualitatively calibrated. The results of the measurements were then normalized to 100%. For control, the laboratory carried out a backtest with the MPI-DING reference glasses (Supplementary Table S1). The compositions are reported in atomic percentage elements of O, Si, Al, Ca, Mg, Na, K, Fe, Mn, Ti, P, and Cr and then converted to oxides (weight %) via stoichiometry.

Furthermore, we applied crystal size distribution (CSD) analysis to infer the duration of the residing magma in the storage. Determining the crystal size distribution was done through several steps: 1) approximately 10–20 thin-section images were taken for each sample using an optical microscope, 2) the taken images were digitized for each mineral present using image analysis software ImageJ (Rasband, 1997), and 3) the digitized images, with at least 400 crystals digitized for each sample, were then analyzed using crystal size distribution (CSD) corrections (Higgins, 2000). We only digitized for phenocrysts (>0.5 mm) and microphenocrysts (0.05–0.5 mm). The data obtained from CSD are parameters in 2D (Morgan and Jerram, 2006), while the data required for analysis are 3D parameters (Mock and Jerram, 2005). The 3D parameters were estimated through conversion using a CSD-Slice worksheet created by Klein et al. (2017). The CSD results relate the population density to the crystal size. The population density (n) is defined as a total of measured crystals (N) for every crystal size (L) (Marsh, 1988).

$n=\frac{dN}{dL},$

$N={\displaystyle {\int }_0^L}ndL,$

$T=\frac{\frac{-1}{G\times slope}}{31536000}.$

The log-normal distribution diagram shows the values of the slope and intercept. Those values are used to estimate the duration of residing magma (T). The magma residence time is categorized into two crystal formations: microphenocryst and phenocryst. G is a constant of the crystal growth rate, and its value for the formation of plagioclase micro- and phenocrysts is 10^–10 mm/s, as obtained by Cashman (1993), from studying the changes in the crystal size as the basaltic melt temperature decreased. This value was also used by Innocenti et al. (2013) and Nugroho et al. (2019) to calculate the residence time of lava from Mount Lasem and Merapi (Indonesia), respectively.

4 Results

4.1 Whole-rock and matrix–glass compositions

The whole-rock compositions of all samples are mostly basaltic (Figure 1A, Supplementary Table S2); however, other previous studies reported that older lavas are basaltic andesite. The most mafic lava in our samples with the lowest SiO₂ (48.63 wt%) and total alkali (3.58 wt%) contents is the 1993 lava, while the highest SiO₂ (52.35 wt%) and total alkali (4.26 wt%) contents are owned by the 1997 lava. All lava samples are characterized by medium-K calc-alkaline, but iron enrichment with 8.5–12 wt% FeO (total) shifted to an arc tholeiitic series (Supplementary Figure S3). In addition, all the samples can be categorized as high-alumina basalt due to their high Al₂O₃ content (21–22 wt%) (Supplementary Table S2; Supplementary Figure S4). Other major elements, i.e., FeO (total) and CaO, appear to have a negative trend, while MgO seems to show a positive trend in the variation diagrams against the silica content (Supplementary Figure S4).

FIGURE 1

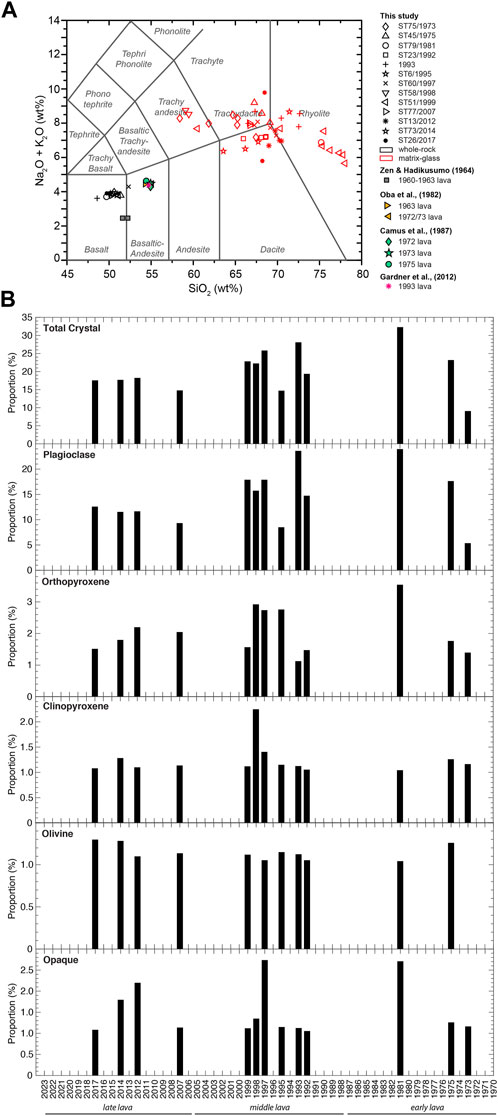

FIGURE 1. (A) Total alkali silica diagram for whole-rock and matrix–glass compositions following the plot of Bas et al. (1986). Lava samples before 1994 are provided and obtained from the studies of Zen and Hadikusumo (1964), Oba et al. (1982), Camus et al. (1987), and Gardner et al. (2012). (B) Mineral assemblage and proportion for all lava samples (vesicle-free basis).

Although the whole-rock compositions are basaltic, their matrix–glass compositions are more evolved, and most of them are dacitic–rhyolitic (Figure 1A; Supplementary Table S3). Even the earlier 1973 lava has andesitic–dacitic matrix–glass compositions. Figure 1A shows that the matrix–glass compositions have a dominant SiO₂ content of ∼60–70 wt%. However, the 1999 lava has the most evolved matrix–glass composition, reaching ∼78 wt% of the SiO₂ content. Representative BSE images of matrix–glass are shown in Supplementary Figure S5. Meanwhile, the melt inclusions are generally present in orthopyroxene/clinopyroxene and plagioclase hosts. However, the melt inclusions affected by post-entrapment processes (e.g., containing daughter minerals) are quite dominant (Supplementary Figure S6); hence, we do not report the melt inclusion composition data in Supplementary Table S1.

4.2 Mineralogy and mineral compositions

The crystal content in all samples varies from ∼9 to 32% (Figure 1B), with the ST75 (1973) and ST79 (1981) samples having the lowest and highest crystal content, respectively. Each sample contains plagioclase, orthopyroxene, clinopyroxene, olivine, and oxide minerals (magnetite). There is no significant difference in the occurrence of minerals in each sample. Representative thin section images are shown in Supplementary Figure S7.

4.2.1 Plagioclase

Plagioclase makes up the most abundant mineral in each sample (∼5–24%), which governs the proportion of the total crystal content (Figure 1B). The crystals are generally anhedral to euhedral and are 0.08–1.54 mm on average. Plagioclase minerals appear to have a low abundance in younger products (late lava). It can be seen in Figure 1B that the plagioclase content in middle and early lava is dominantly >10% (except 1973 and 1995 lavas), while the latest four samples (2007, 2012, 2014, and 2017 lava) contain approximately 10% plagioclase minerals.

The members of plagioclase in all samples are mostly andesine, labradorite, and bytownite (Supplementary Figure S8). Both micro- and phenocrysts of plagioclase have a wide range of compositions with An_40-90 (Figure 2), where calcic plagioclase is dominant. For plagioclase phenocrysts, all samples contain a high An core (>An₈₀); however, the samples with a high An rim (>An₈₀) are the 1975, 1999, and 2017 lavas. For plagioclase microphenocrysts, a similar high An core is also observed in all samples, while no microphenocryst rims have a high An-content of >An₈₀, except for the 1998 and 2014 samples that are close to An-rim₈₀. The wide range of the An-content is reflected by various plagioclase textures found, such as sieve, skeletal, and normal zoning (Supplementary Figure S9).

FIGURE 2

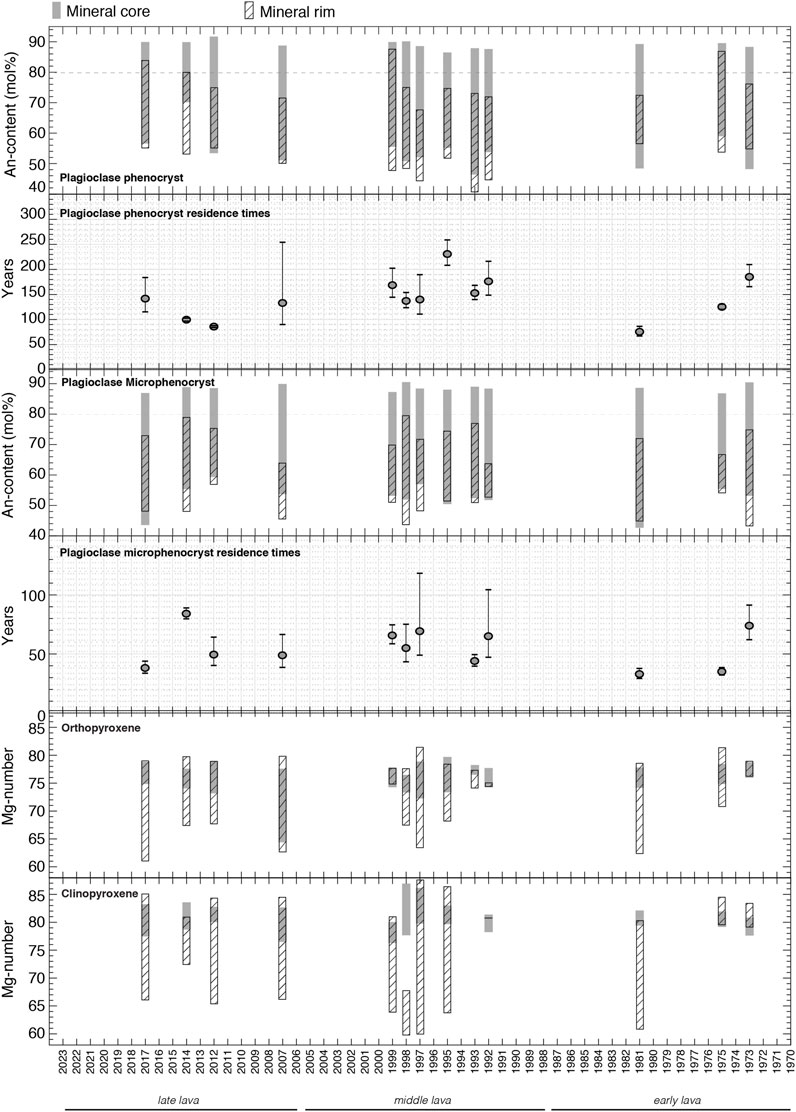

FIGURE 2. Temporal evolution of the An content of plagioclase and Mg number of pyroxene, as well as the estimates of residence times.

4.2.2 Pyroxene

Pyroxene in all samples consists of clinopyroxene (augite and pigeonite) and orthopyroxene (enstatite) (Supplementary Figure S8), where their proportions at each sample do not exceed 5% (Figure 1B). Orthopyroxene has a size of 0.07–0.46 mm and has subhedral to euhedral shapes, while clinopyroxene has a size of 0.01–0.37 mm with subhedral to euhedral crystal shapes. The proportion of pyroxene does not significantly vary with time, particularly for clinopyroxene.

The core and rim compositions of orthopyroxene have Mg numbers within the 60–80 range, with the core having a narrower range of Mg numbers (Mg_70-80) than the rim (Figure 2). The Mg core of 2007 lava extends lower to Mg₆₅ than that of other lavas. As an exception, the 1973, 1992, 1993, and 1999 lavas have both narrow ranges of Mg core and Mg rim. Meanwhile, most of the clinopyroxene (core and/or rim) contains an Mg number higher than that of orthopyroxene (i.e., >Mg₈₀). Similar to orthopyroxene, clinopyroxene is generally characterized by narrow ranges of Mg core (Mg_76-87) and wide ranges of Mg rim (Mg_60-88). The dominant texture found in pyroxene is unzoned (Supplementary Figure S9).

4.2.3 Olivine

Olivine only takes up approximately 1% of all samples and is present as microphenocrysts with sizes of 0.02–0.12 mm. We did not observe olivine in the 1973 and 1998 lavas. Their compositions are distributed into forsterite end-members (Supplementary Figure S8).

4.2.4 Oxide minerals

The proportion of oxide minerals does not exceed 3%, and they are generally present as microphenocrysts with a size of 0.04–0.13 mm on average. The oxide minerals exist both as individual crystals and within plagioclase or pyroxene crystals.

4.3 CSD

Figure 2 also shows the magma residence time estimated from plagioclase micro- and phenocrysts. For the phenocrysts, the magmas producing all lava samples were stored for ∼100–230 years, except for the samples from 1981 and 2012, which were stored for ∼75 and 85 years, respectively. On average, they were typically stored for approximately 142 years. Meanwhile, the residence times of plagioclase microphenocrysts are between 33 and 84 years, with an average of ∼55 years. The supporting data for the residence time calculation can be found in Supplementary Table S1.

5 Conclusion

Overall, this dataset provides fundamental geochemical data and residence times of Anak Krakatau lavas prior to the 2018 collapse event. The petrography and geochemical analyses indicate the following:

1) The compositions of all AK lava products are predominantly basaltic, implying there are no changes toward more evolved magma compositions. However, the matrix–glass compositions of all samples indicate a more evolved, mostly dacitic–rhyolitic composition.

2) All samples dominantly consist of similar mineral assemblages of plagioclase, two-pyroxene, and oxide minerals, with fewer proportions of olivine. No hydrous minerals are observed.

3) All lavas contain plagioclase micro- and phenocrysts that have a high An core (>An₈₀). Meanwhile, plagioclase phenocrysts that contain both a high An core and rim (>An₈₀) were observed in the 1975, 1999, and 2017 lavas.

4) Both ortho- and clinopyroxene contain a narrower range of Mg-number core than the rim. In each pyroxene, some samples have a Mg-number rim slightly higher than the core.

5) On average, plagioclase phenocrysts and microphenocrysts were stored for approximately 142 years and 55 years, respectively.
