Sulphur isotope stratigraphy of drill cuttings and stratigraphic correlation of Permian-Triassic evaporites

The stratigraphy of the European late Permian-Triassic commonly lacks chronostratigraphic constraint due to the scarcity of diagnostic fossils for biostratigraphy. This is particularly true for the United Kingdom, and as a result, stratigraphic correlation within and between sedimentary basins is primarily reliant on lithostratigraphy. Evaporitic sulphate can be used to develop time series of δ³⁴S_evap data that can be utilised for stratigraphic correlation. However, the availability of continuous drillcore is limited, whilst drill cuttings are commonly acquired but are widely overlooked for stable isotope stratigraphy. We derive a δ³⁴S_evap record from drill cuttings from the southern North Sea Basin, and successfully correlate it with an equivalent published δ³⁴S_evap record from a continuous drillcore in the Cleveland Basin, Yorkshire, United Kingdom. We have chosen seven points in the δ³⁴S_evap records for stratigraphic correlation, defining eight packages of isotopically distinct coeval strata. This is significant, as the ubiquity of drill cuttings presents the opportunity to derive δ³⁴S_evap curves with high geospatial resolution. Equivalent gamma ray logs were used for correlation and compared with the δ³⁴S_evap curves. The correlations agree relatively well, however, the δ³⁴S_evap correlation permits the development of more robust chronostratigraphic constraints. Specifically, the δ³⁴S_evap records constrain the age of the Bunter Shale and Bunter Sandstone in the western Southern North Sea to the latest Permian. This has significant implications for understanding the stratigraphy and palaeogeographic evolution of United Kingdom Permian-Triassic sedimentary basins, and may have economic implications, since the Bunter Sandstone is being considered as a potential reservoir for CO₂ storage in the United Kingdom sector.

1 Introduction

The late Permian and Triassic time intervals have received a great deal of interest over the past 50 years, due to numerous events of geological significance, most notably the End Permian Mass Extinction (EPME) and the End Triassic Extinction (ETE) — two of the ‘Big Five’ extinction events (Raup and Sepkoski, 1982; Sepkoski, 1996). Both the Permian–Triassic boundary (PTB) interval and the ETE are associated with major biogeochemical perturbations. In particular, the sulphur cycle exhibits significant shifts in the sulphur isotopic composition (δ³⁴S) of seawater sulphate (Newton et al., 2004; Horacek et al., 2010; Bernasconi et al., 2017; He et al., 2020). Despite this knowledge, high-resolution δ³⁴S records remain sparse between these major extinction events, with many studies focusing primarily on specific, short intervals of time, such as the PTB (Newton et al., 2004; Schobben et al., 2015) and the Early Triassic (Lyu et al., 2019; Song et al., 2019). The sedimentary environment for much of the European Permo-Triassic was arid and continental (with episodic marine influence) (Kutzbach and Gallimore, 1989; Parrish, 1993), characterised by abundant evaporite-bearing sediments (McKie, 2017). Thus, these evaporitic sedimentary sequences may provide an ideal opportunity to generate marine δ³⁴S_evap records for correlation.

Stable isotope stratigraphy has been successful in deriving chronostratigraphic correlations at high resolution (e.g., Jenkyns et al., 2002; Korte and Kozur, 2010; Yao, et al., 2019; Paytan et al., 2020). Specifically, carbon isotope stratigraphy has been applied using marine and terrestrial organic matter and carbonate (see Gröcke, 2020). In addition, sulphur isotope stratigraphy has also proved successful for correlation using marine evaporites, barite and carbonate-associated sulphate (CAS) (δ³⁴S_evap, δ³⁴S_barite, δ³⁴S_CAS, respectively: see review by Paytan et al., 2020). Despite the high-resolution achieved with δ³⁴S_barite records (Paytan et al., 1998; 2004; 2012; Markovic et al., 2015; Yao et al., 2018; 2020), barite is predominantly acquired from pelagic sediments, and thus only provides insight into the previous 130 million years (Yao et al., 2019). Although δ³⁴S_CAS records have been widely employed to understand the ancient sulphur cycle (e.g., Newton et al., 2004; Luo et al., 2010; Song et al., 2014; Crockford et al., 2019; He et al., 2019; 2020), their suitability as a stratigraphic and palaeoenvironmental tool is under scrutiny due to issues of diagenesis (Rennie and Turchyn, 2014; Present et al., 2015; 2019; Richardson et al., 2019; 2021; Murray et al., 2021; Bryant et al., 2022). Accordingly, much of the variability in δ³⁴S_CAS across the PTB and Early Triassic has been attributed to post-depositional alteration (Bernasconi et al., 2017; Johnson et al., 2021). Therefore, it would conclude that evaporites are the most reliable proxy to generate pre-Cretaceous global marine δ³⁴S curves.

The δ³⁴S of marine sedimentary sulphates (e.g., evaporites) is assumed to be indicative of coeval seawater sulphate. The respective contributions and isotopic composition of sulphur fluxes entering and leaving the ocean reservoir act to control the δ³⁴S of seawater sulphate (δ³⁴S_sulphate) over geologic time (Paytan et al., 2012; 2020; Bernasconi et al., 2017; Crockford et al., 2019). It is generally assumed that for much of the Phanerozoic, oceanic sulphate has largely remained well-mixed and isotopically homogenous (Paytan et al., 2012; Present et al., 2020). Therefore, coeval sedimentary sulphates will exhibit comparable absolute δ³⁴S_sulphate values, providing high-resolution stratigraphic correlation across sedimentary basins, especially over periods of significant isotopic change (Yao et al., 2019; Paytan et al., 2020): for example, over the PTB interval (e.g., Claypool et al., 1980; Bernasconi et al., 2017).

The late Permian–Early Triassic time interval is associated with a major perturbation in the sulphur cycle, that is characterised by a rapid increase in the δ³⁴S of seawater sulphate (recorded in δ³⁴S_CAS and δ³⁴S_evap) from ∼+12‰ in the late Permian to >+30‰ in the earliest Triassic (Newton et al., 2004; Insalaco et al., 2006; Horacek et al., 2010; Luo et al., 2010; Song et al., 2014; Schobben et al., 2015; Bernasconi et al., 2017). This major positive δ³⁴S excursion has been interpreted as a result of an enhanced pyrite burial flux, related to the expansion of ocean anoxia after the emplacement of the Siberian Traps large igneous province in the late Permian (Newton et al., 2004; Bernasconi et al., 2017; Salisbury et al., 2022). Bernasconi et al. (2017) compiled and produced a δ³⁴S_evap record from the latest Permian to the Middle/Late Triassic from multiple sedimentary basins. The resultant δ³⁴S_evap curve showed that the record was not erratic in nature, but changed systematically through time, and hence could be used for stratigraphic correlation: as previously indicated for δ³⁴S_barite (Paytan et al., 1998; 2004; 2012; 2020). Salisbury et al. (2022) produced a high-resolution δ³⁴S_evap curve for the Middle and Late Triassic using evaporitic minerals (e.g., gypsum, anhydrite, halite) from a continuous drillcore, Staithes S-20 borehole, in Yorkshire, England. This updated δ³⁴S_evap record revealed a new, prominent negative excursion of ∼10‰ at the Olenekian/Anisian boundary (Salisbury et al., 2022). Although the mechanism for this excursion is currently unclear, one possibility is a weathering pulse, interrupting the pyrite burial event with an influx of isotopically light sulphur (Salisbury et al., 2022). The δ³⁴S_evap curve quickly recovers in the earliest Anisian to pre-excursion values after which it exhibits a gradual decline for the remainder of the Triassic to the Norian/Rhaetian boundary (Salisbury et al., 2022). The global δ³⁴S_evap curve produced in Salisbury et al. (2022) will provide a basis from which to correlate other sedimentary sequences and basins for the Triassic.

In the Triassic strata of the United Kingdom, laterally extensive evaporite beds are used to correlate within and between sedimentary basins based primarily upon the principles of lithostratigraphy (Warrington et al., 1980). The validity of this approach, in some cases, is questionable, especially when correlating between a chain of halite-bearing basins, as a hydrologically restricted basin cannot, by definition, export brines to an adjacent basin in the chain (Warren, 2006). This, and the diachroneity of lithostratigraphic boundaries, limits the validity of lithostratigraphic correlations in deriving a robust chronostratigraphic framework for the Permian–Triassic in the United Kingdom.

Boreholes offer a continuous, unweathered stratigraphic interval and are thus preferable to outcrop (e.g., Staithes S-20). However, only partial cores are usually taken, primarily due to limited time and costs, and the perceived lack of value of information collected outside the economic target interval. In contrast, drill cuttings, depending on the drilling technique used, are commonly collected and retained. If one could analyse drill cuttings and create a similar long-term δ³⁴S_evap curve, then it would offer the potential to produce more stratigraphic records geo-spatially and thus, generate a more robust temporal record for stratigraphic correlation. Ultimately, this approach could be developed in conjunction with biostratigraphy, chemostratigraphy (Metzger et al., 2014; Eldrett et al., 2021) and magnetostratigraphy when possible.

Although promising, drill cuttings present other issues that require consideration, including sampling density, caving, and contamination. Cuttings are collected in batches that reflect an average depth interval, which will vary in resolution depending on drilling and sampling rates. In addition, the integrity of samples from a specific depth may prove questionable, due to the mixing of fragments during the extraction process. Mixing can occur via caving, whereby cuttings from higher stratigraphic levels combine with those at a deeper level where the drill bit is located, or through mixing within the drilling fluid as it is returned to the surface. Drilling fluids may also contaminate samples for specific types of chemical analyses (Kubo et al., 2016). However, recent studies have demonstrated the validity of drill cuttings for carbon isotope stratigraphy, in part through comparison with δ¹³C records from cored intervals and outcrop (Metzger et al., 2014; Eldrett et al., 2021). Sanei et al. (2020) demonstrated that with sufficient cleaning of drill cuttings, total organic carbon (TOC) values are comparable to those directly obtained from cored intervals. To our knowledge, only a single study has demonstrated the suitability of borehole cuttings for sulphur isotope stratigraphy (Cao et al., 2016), however, the authors did not demonstrate the validity of drill cuttings for evaporitic lithologies.

In this study, we targeted drill cuttings from an offshore southern North Sea Basin borehole (42/28-2) that spans the late Permian to Late Triassic time interval (Figure 1). This borehole was chosen primarily because lithostratigraphic correlation suggests it spans a stratigraphic interval equivalent to that of the Staithes S-20 borehole (Salisbury et al., 2022). The primary aim of this study was to determine if drill cuttings through an evaporite-bearing sedimentary sequence can be used for sulphur isotope stratigraphy. We successfully correlate the δ³⁴S_evap curve generated from drill cuttings at site 42/28-2 to the Staithes S-20 curve, demonstrating the validity of drill cuttings for correlation between sedimentary basins. Thus, although we advise that future studies should always consider the impact of drilling fluids and post-drilling washing techniques, the excellent correlation between 42/28/-2 and Staithes S-20 suggests they had little effect on δ³⁴S_evap values (in this study).

FIGURE 1

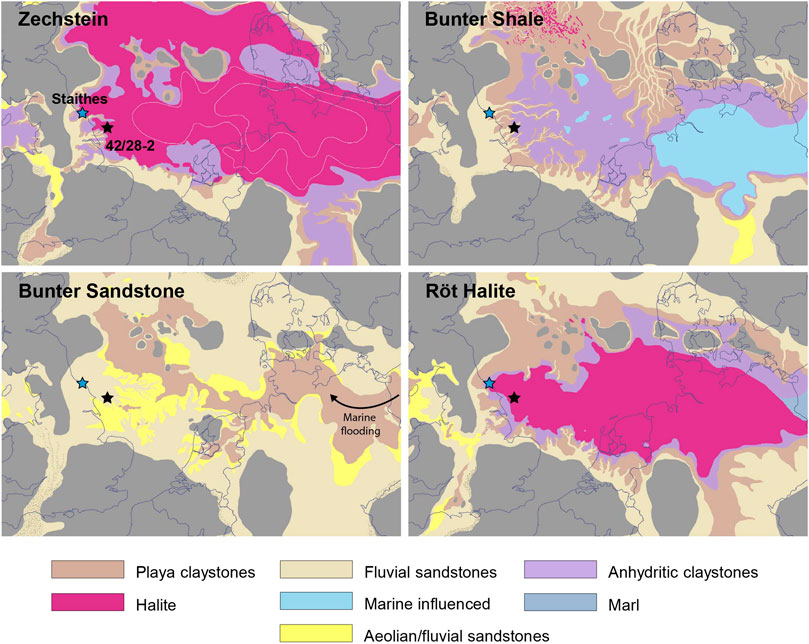

FIGURE 1. Palaeogeographic context of the stratigraphic units discussed in the text. The location of each borehole is marked with a star. See top left figure for labels.

2 Geological setting

During the late Permian and Triassic, Britain was located at a palaeolatitude of ∼20 °N (Newell, 2018), and deposition occurred under a largely arid to semi-arid climate (McKie and Williams, 2009) conducive to evaporite deposition (Figure 1). Late Permian rifting provided the Boreal ocean with restricted access to the subsiding southern Permian Basin (Smith, 1989; McKie, 2017), facilitating the deposition of the Zechstein carbonate-evaporite cycles. Ongoing rifting during the Triassic subsequently opened access routes to the south, allowing ingress of Tethyan seawater into the southern Permian Basin (McKie, 2017). In this study, we focused on the time interval that spans from the uppermost Zechstein (Changhsingian–latest Permian) through to the offshore equivalent of the Keuper Marl of the Mercia Mudstone Group (MMG), the Triton and Dudgeon formations (Norian, Late Triassic) (Figure 2).

FIGURE 2

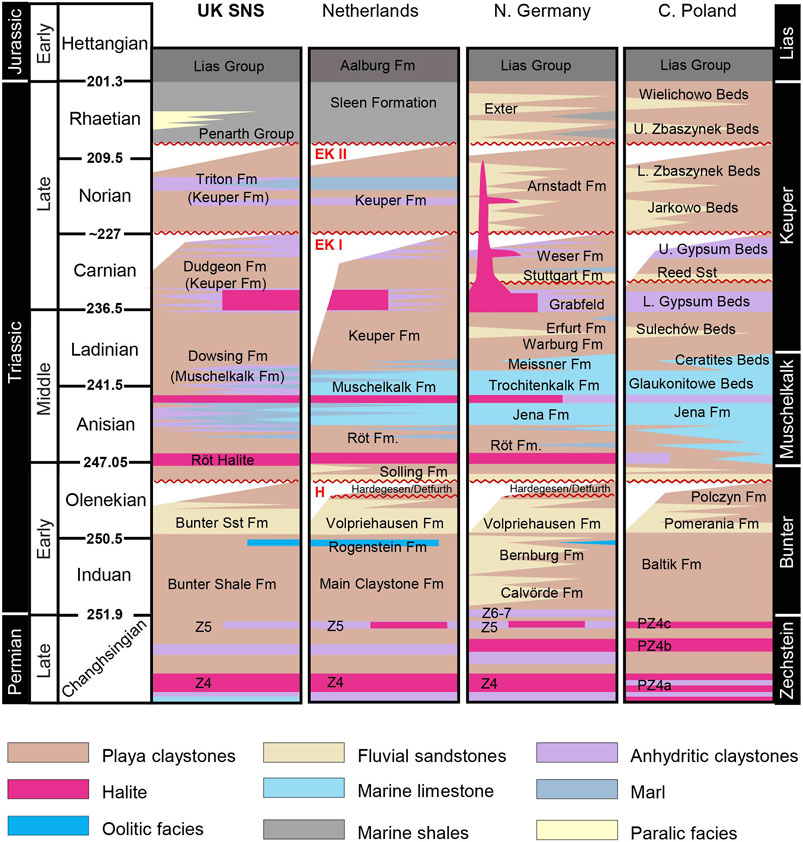

FIGURE 2. The established lithostratigraphic framework for the UK Southern North Sea (SNS), and neighbouring regions with equivalent strata, including the Netherlands, northern Germany, and Poland. The major lithostratigraphic units are provided, along with the regional names and stratigraphic position of rock formations. H marks the base of the Solling (Hardegsen) Unconformity. EK I and II denote the early Kimmerian unconformities. Chronology follows Salisbury et al. (2022).

In total, the Zechstein is composed of seven carbonate-evaporite cycles (Tucker, 1991). In this study, the uppermost Zechstein is represented in both boreholes as thick-bedded halite. Overlying the Zechstein evaporites are the terminal splay/playa deposits of the Bunter Shale, followed by the Bunter Sandstone—the offshore equivalent of the Sherwood Sandstone Group (SSG) of eastern England (Noy et al., 2012). The latter is predominantly composed of arenaceous sandstones, largely representing a fluvial-aeolian depositional regime (Ambrose et al., 2014; McKie, 2017). Monsoonal rainfall on the Variscan mountains and smaller basement massifs fed extensive braided river systems (Geluk et al., 2018) that flowed towards basin centre playa and sabkha (Figure 1). However, intermittent periods of aridity suppressed fluvial deposition rates and facilitated aeolian reworking (McKie, 2017). Biostratigraphic age constraints suggest a Middle Triassic (Anisian) age for the Otter Sandstone (Sherwood Sandstone Group) in Devon (Holloway et al., 1989; Spencer and Storrs, 2002) and an Early Triassic age for the Buntsandstein and its’ equivalents in continental Europe (Scholze et al., 2016; 2017). However, such constraints are lacking for the Bunter Sandstone in the Cleveland and SNS basins (Warrington et al., 1980).

The SSG is overlain by the MMG (and offshore equivalents), with the boundary being marked by the transition from sandstones to mudstones (Howard et al., 2008; Newell et al., 2018). The MMG is composed of green/grey mudstones interbedded with siltstone, and bedded halite is interspersed with nodular gypsum and anhydrite throughout the succession. In the United Kingdom sector, deposition coincided with the southerly retreat of the SSG beginning in the Middle Triassic, with fluvial systems replaced by a hypersaline playa lake and coastal sabkha environment (Howard, 2008) (Figure 1). This environmental shift facilitated the deposition of evaporites, including bedded halites (i.e., the Röt) and nodular sulphates. Episodic marine flooding during the Anisian and Ladinian is evidenced by acritarchs and lingula in various locations (Warrington, 1974; Wilson, 1993; Ambrose and Wakefield, 2015; Warrington and Pollard, 2021). Evaporite formation and deposition continued intermittently until the latest Triassic. During the latest Triassic, a major marine transgression occurred (Peacock, 2004) leading to the deposition of the Penarth Group (Lott and Warrington, 1988; Warrington and Ivimey-Cook, 1992; Gallois, 2009), that is biostratigraphically constrained to the Rhaetian (Lott and Warrington, 1988; Warrington, 1997; Hounslow and Ruffell, 2006). This interval represents the transition from marginal marine to fully marine deposition, which became well established during the Hettangian with the deposition of the Lias Group (Wignall and Bond, 2008; Gallois, 2009).

Despite intensive study, the units of the SSG and MMG commonly lack any age-diagnostic fossils for biostratigraphic constraint and hence, dominantly rely on lithostratigraphy. Although, the marine Triassic stratigraphy of continental Europe (i.e., Muschelkalk) is aided by biostratigraphic constraints (Narkiewicz, 1999; Márquez-Aliaga et al., 2000; Bachman and Kozur, 2004; Franz et al., 2013; Chen et al., 2019), the United Kingdom sector facies are particularly impoverished in age-diagnostic fossils, in part due to the lack of marine carbonates when compared with continental Europe (e.g., Horacek et al., 2010; Boschetti et al., 2011). As a result, it is common for this region to lack sufficient chronostratigraphic calibration for the Triassic interval (McKie and Williams, 2009). Therefore, alternative techniques are required to constrain and corroborate the Triassic lithostratigraphic framework of northwest Europe (especially the United Kingdom) with continental Europe. Due to the presence of evaporite minerals throughout the MMG, sulphur isotope stratigraphic correlation is an ideal candidate to address this issue.

3 Methods

Gamma ray data were obtained for boreholes Staithes S-20 (NZ71NE/14; grid reference, NZ 476034E 518000N) and 42/28-2 (54.078556, 0.454889). The onshore Staithes S-20 borehole is located in the Cleveland Basin, England, whereas borehole 42/28-2 is located offshore in the southern North Sea (Figure 1). The sulphur isotope record of Staithes S-20 is presented in Salisbury et al. (2022). Borehole drill cuttings from 42/28-2 were sampled at the British Geological Survey, Keyworth, Nottingham. The washed drill cuttings were collected at variable depth intervals, providing a total of 50 samples for sulphur isotope analysis. The sampling resolution varies throughout the borehole, depending on the abundance of evaporite minerals suitable for sampling. Each sample represents a depth range and is thus viewed as a lithological average over that depth interval.

Each drill cutting sample was inspected under an optical microscope and individual random chips of gypsum, anhydrite and/or halite were picked and transferred into 1.5 mL micro-centrifuge tubes. Approximately 1–3 g of evaporite samples were placed into a 15 mL centrifuge tube with 10% NaCl solution. Blanks of NaCl produced no visible barium sulphate (BaSO₄). The evaporites were left to sit in the solution for between 24–48 h and agitated every few hours during the working day. Upon dissolution, the samples underwent centrifugation for 5 min at 3,000 rpm, before the supernatant was poured into 50 mL centrifuge tubes for subsequent BaSO₄ precipitation. Between 15–20 mL of 10% barium chloride (BaCl₂) was added to the evaporite-dissolved solution. This solution often turned cloudy immediately indicating that BaSO₄ was being precipitated, according to the following equation:

${\mathrm{B}\mathrm{a}\mathrm{C}\mathrm{l}}_2+{\mathrm{S}\mathrm{O}}_4^{2-}\to {\mathrm{B}\mathrm{a}\mathrm{S}\mathrm{O}}_4+2{\mathrm{C}\mathrm{l}}^{2-}(1)$

The pH of the solution was reduced to ∼1–2 with the addition of 3M HCl to prevent the precipitation of barium carbonate (BaCO₃). The samples were left for at least 24 h for BaSO₄ precipitation, after which they were centrifuged at 3,000 rpm for 5 min. The BaCl₂/HCl supernatant was discarded according to safety regulations for appropriate waste disposal. The resultant pellet of BaSO₄ was rinsed with ∼30–40 mL of deionised water to neutralise the sample. Neutrality was often achieved after three rinses. The centrifuge tube containing the BaSO₄ was placed in a drying oven set at 80°C for between 24 and 48 h. The BaSO₄ was then crushed into a fine powder using an agate pestle and mortar and archived in a 1.5 mL micro-centrifuge tube.

For sulphur isotope analysis, each sample was weighed out (0.2–0.4 mg) into 6×4 tin capsules. Stable sulphur isotope analysis was performed in the Stable Isotope Biogeochemistry Laboratory (SIBL) at Durham University using a Thermo Scientific EA IsoLink™ coupled to a Thermo Scientific Delta V Plus isotope-ratio mass-spectrometer. Evaporite sulphur isotope ratios are expressed in standard delta (δ) notation in per mil (‰) relative to Vienna Canyon Diablo Triolite (VCDT) according to the following equation:

${\mathrm{\delta }}^{34}\mathrm{S}=\left[\frac{(({}^{34}\mathrm{S}/{}^{32}\mathrm{S}{)}_{\mathrm{s}\mathrm{a}\mathrm{m}\mathrm{p}\mathrm{l}\mathrm{e}}-({}^{34}\mathrm{S}/{}^{32}\left.\mathrm{S}{)}_{\mathrm{V}\mathrm{C}\mathrm{D}\mathrm{T}}\right)}{\left({}^{34}\mathrm{S}/{}^{32}\mathrm{S}{)}_{\mathrm{V}\mathrm{C}\mathrm{D}\mathrm{T}}\right.}\right]*1000(2)$

The δ³⁴S data were normalised through calibration against four international standards (IAEA-S-1, IAEA-S-2, IAEA-S-3, NBS 127), providing a linear range in δ³⁴S between −32.5‰ and +22.6‰. An internal barium sulphate (Acros Organics silver sulphate, Catalogue number: 194070100, lot: A0384698) was analysed throughout the analytical period and produced an average δ³⁴S value of −18.1‰ ± 0.25 (1σ) (n = 14). Analytical uncertainty of δ³⁴S was ±0.15‰ (1 σ) for replicate analyses of the international standards during the production of this dataset. Reproducibility of sample δ³⁴S_evap was the same or better. Total sulphur of the sample is calculated as part of the isotopic analysis using an internal standard, sulphanilamide (S = 18.619%).

4 Results/discussion

4.1 Gamma ray correlation

Gamma ray profiles for the Staithes S-20 and 42/28-2 boreholes are presented in Figure 3. The correlation used the diagnostic log motifs of lithological units that are known to be persistent over greater distances than the spacing between the two study wells (Bachman et al., 2010). These log motifs are calibrated against core in other wells within the basin. In the Permian Zechstein at the base of 42/28-2, gamma ray values are generally low (∼50 API), punctuated by brief peaks to ∼200 API. After a final low, gamma ray values increase to ∼150 API at the boundary with the Bunter Shale. Only the top of the Zechstein was cored in Staithes S-20. Gamma ray values fall to around ∼0 API at ∼3,500 ft, corresponding to an interval of bedded halite, before increasing to ∼130 API at the base of the Bunter Shale (similar to borehole 42/28-2), enabling correlation between the two boreholes.

FIGURE 3

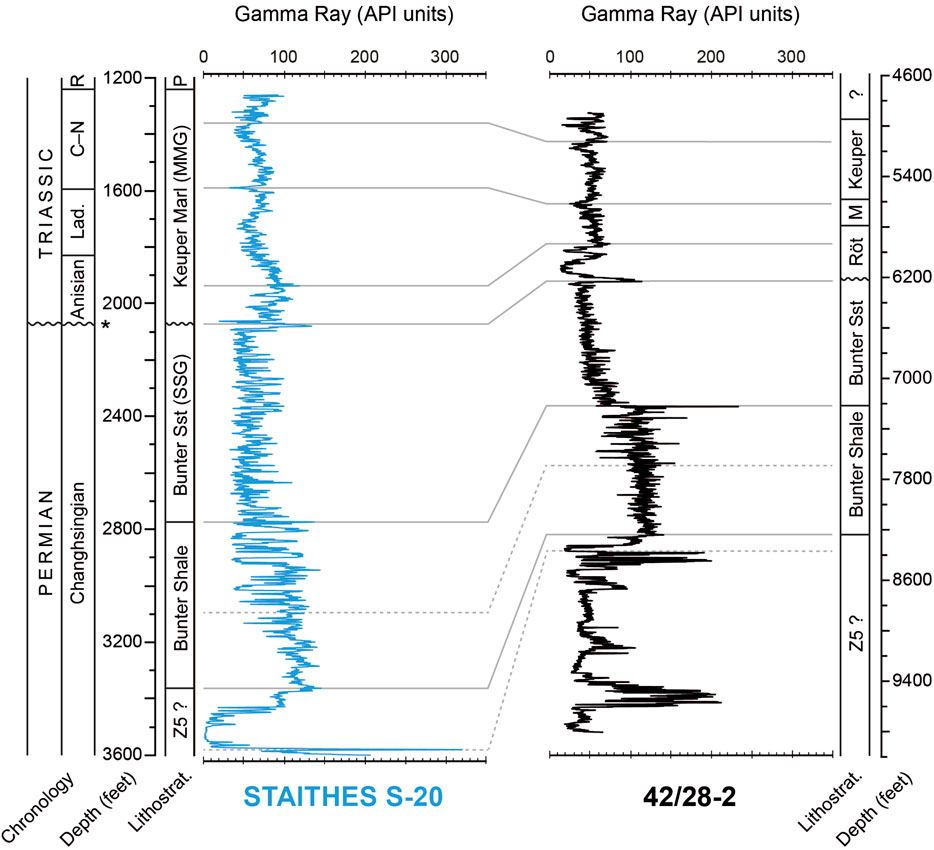

FIGURE 3. Stratigraphic correlation of the Staithes S-20 and 42/28-2 boreholes based upon gamma ray logs. The wells are vertical, and depths are measured along hole. The Hardegsen Unconformity is marked by the irregular line. A star (*) denotes a palynological age constraint (see Salisbury et al., 2022). Lad–Ladinian, C-N–Carnian-Norian, R–Rhaetian, SSG–Sherwood Sandstone Group, MMG–Mercia Mudstone Group, M–Muschelkalk. Chronology follows Salisbury et al. (2022).

Both the Staithes S-20 and 42/28-2 boreholes show relatively stable gamma ray profiles during the lower Bunter Shale (around ∼110 API). Gamma ray profiles exhibit a more erratic response during the upper Bunter Shale, beginning at 3,100 ft in Staithes S-20 and ∼7,700 ft in borehole 42/28-2. This marks the base of the Rogenstein Member, which includes interbedded sandstones that contribute to the erratic behaviour in gamma ray data. In both records, the boundary between the Bunter Shale and Bunter Sandstone is marked by a sharp upwards decrease in gamma. The Bunter Sandstone exhibits relatively stable but low gamma ray values, around ∼60 API, and is particularly distinct in the 42/28-2 borehole record. The Bunter Sandstone terminates with a sharp increase in gamma ray, corresponding to an unconformity at ∼2080 ft in Staithes S-20 and ∼6,200 ft in 42/28-2. Evidence for a hiatus in sedimentation is observed directly in the core of Staithes S-20 but is only inferred in borehole 42/28-2 based on gamma ray records and regional correlation (Bachman et al., 2010). Throughout the overlying MMG, the gamma ray record is slightly elevated in Staithes S-20. This offset may be a product of different tools or calibration and both records remain relatively stable. Brief lower gamma Mercia Mudstone packages likely mark the position of greater evaporite proportion, as the low potassium content of the rock reduces the background gamma API values.

4.2 Preservation of primary δ³⁴S_evap signals

The precipitation of gypsum is associated with a minor fractionation factor (Δ³⁴S_{precipitate-brine}), with experimental studies reporting a range between +1.6 and +2‰ (Thode and Monster, 1965; Holser and Kaplan, 1966; Nielsen, 1978; Raab and Spiro, 1991; Van Driessche et al., 2016). Although the δ³⁴S of both the brine and precipitate decrease progressively with continued evaporation, the results of Raab and Spiro (1991) suggest relatively similar Δ³⁴S_{precipitate-brine} values are maintained until the middle of the halite stability field. Thus, it is generally assumed that the δ³⁴S of a marine Ca-sulphate is indicative of the isotopic composition of the brine from which it precipitated (Schreiber and Tabakh, 2000). Considering that we exclusively sampled calcium-sulphates and halite, it is unlikely that changes in mineralogy and/or sulphur isotope reservoir effects associated with prolonged restriction had a major impact on the δ³⁴S_evap records from boreholes 42/28-2 and Staithes S-20.

The δ³⁴S_evap correlation presented in this study is surprising in that the 42/28-2 sediments have been exposed and saturated with drilling fluids: unfortunately, there is no record of what drilling fluids were used when coring. Samples can be fully covered in fluids during the drilling process and washing them away entirely is difficult (Kubo et al., 2016), thus potentially impacting the integrity of sample geochemistry (e.g., Stuckman et al., 2019; Sanei et al., 2020). δ³⁴S_evap values in drill cuttings are vulnerable to contamination by drilling fluids, which can be characterised by a range of different chemical compositions (Ball et al., 2012). However, the similarity between both the Staithes S-20 and 42/28-2 δ³⁴S_evap records in this study would suggest that the drilling fluids used had little to no effect on the sedimentary sulphate. Despite this, future studies should always be aware that the type of drilling fluid used may impact the sulphur isotope record.

Evaporites form in hydrographically isolated marginal marine basins with restricted circulation (Warren, 2010). Local depositional and diagenetic (i.e., post-depositional) processes can alter a global marine δ³⁴S_evap signal recorded in evaporites (Lu et al., 2001; Crockford et al., 2019), potentially limiting the use of δ³⁴S_evap data for stratigraphic correlation. Local effects include riverine inputs of continental sulphate from weathered pyrite and/or evaporites (Lu et al., 2001; Bottrell and Newton, 2006), reservoir effects associated with evaporite precipitation during periods of prolonged restriction (Raab and Spiro, 1991), and microbial sulphur cycling (e.g., microbial sulphate reduction) and subsequent pyrite burial (Bernasconi et al., 2017). Diagenetic effects include syn-sedimentary dissolution/precipitation of halite, the replacement of halite with gypsum (and vice versa) soon after burial (Schreiber and Tabakh, 2000), microbial sulphate reduction below the sediment-water interface (Jorgensen et al., 2019) and a cycle of diagenesis during burial and uplift (Ortí et al., 2022). The latter involves the formation of anhydrite from the dehydration of primary gypsum at moderate to deep burial depths, followed by the rehydration of anhydrite to form secondary gypsum during uplift (Ortí et al., 2022). The sulphur isotopic effect of the dehydration/rehydration of Ca-sulphates associated with burial and uplift is not well understood. Current evidence suggests it is associated with only minor sulphur isotope fractionation (see Ortí et al., 2022 for details), and is unlikely to have imparted any major effect on our δ³⁴S_evap records. During burial to temperatures exceeding 120°C, thermochemical sulphate reduction can occur, involving the chemical reduction of sulphate to sulphide, and the sulphurisation of organic matter (see review by Cai et al., 2022). This process has been associated with significant sulphur isotope fractionations in metal sulphide deposits (Cai et al., 2022). However, only a minor degree of sulphur isotope fractionation occurs between sulphate and sulphide in most petroleum-related sour gas settings (Worden et al., 1997; Cai et al., 2022), likely due to the complete reduction of any anhydrite that dissolves, with sulphate dissolution being rate limiting (Meshoulum et al., 2016; Cai et al., 2022).

It is understood that diagenetic fluids exhibit a high degree of spatial isotopic heterogeneity and will produce more scattered δ³⁴S values in rocks that have interacted with diagenetic fluids, limiting the stratigraphic reproducibility of δ³⁴S_evap records between different basins (Metzger et al., 2014). Thus, a high degree of stratigraphic reproducibility in δ³⁴S is generally considered to be evidence of a global isotopic signal (Metzger et al., 2014). The δ³⁴S_evap curve from Staithes S-20 has been shown to represent a global record of marine sulphate (Salisbury et al., 2022). The small degree of scatter and/or minor offsets between the δ³⁴S_evap curves of Staithes S-20 and 42/28-2 may reflect local depositional and minor diagenetic effects, but the robust correlation between them (Figure 4), as well as their agreement with the global δ³⁴S_evap record (Salisbury et al., 2022), suggest that the long-term trends in the δ³⁴S_evap data represent a global marine sulphur isotope signal.

FIGURE 4

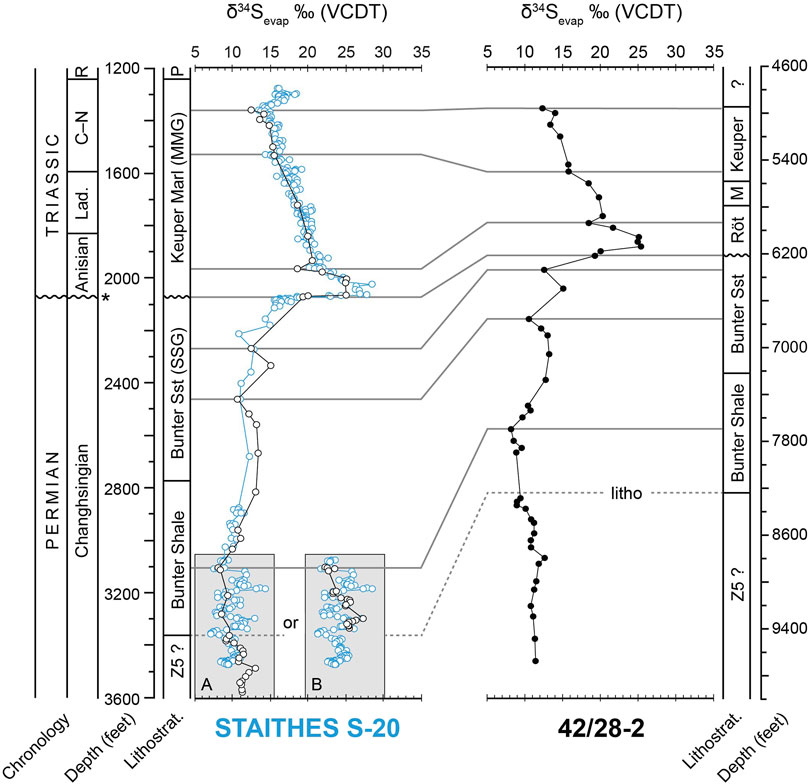

FIGURE 4. Sulphur isotope stratigraphy of borehole 42/28-2 compared and correlated to Staithes S-20 (Salisbury et al., 2022). Seven correlation lines were determined, based primarily upon trends and inflection points within the sulphur isotope records. One correlation based upon lithostratigraphic relationships is marked by the dashed line. (left) The δ³⁴S_evap record of 42/28-2 (black and white dots) stretched and compressed within the correlation lines and overlain onto the equivalent record of Staithes S-20 (blue and white dots). (right) the raw δ³⁴S_evap record of 42/28-2 (black filled dots) without being stretched and/or compressed.

4.3 Sulphur isotope correlation

The δ³⁴S_evap record from borehole 42/28-2 is presented alongside Staithes S-20 (Salisbury et al., 2022) in Figure 4. Clear stratigraphic trends are apparent in both δ³⁴S_evap records even at different sample resolutions. The principles of sulphur isotope stratigraphy and isotope correlation are based on; (1) the assumption that the sulphur isotope composition of the ocean is isotopically homogenous at any given time, and hence, the absolute δ³⁴S_evap value; (2) the trend in the δ³⁴S_evap is directly comparable (i.e., positive versus negative); and (3) inflection points in δ³⁴S_evap represent a shift from one slope to another. It would be appealing to correlate all the trends and inflections points in Figure 4, however, caution needs to be exercised due to the different sampling resolution between the boreholes. Thus, in Figure 4 we have only chosen to correlate seven points through the latest Permian to Late Triassic time interval. In addition, we have chosen to use one lithostratigraphic correlation which will be discussed below.

During the correlation process between borehole 42/28-2 and Staithes S-20, the stratigraphy is assumed to be proportionally equivalent and each stratigraphic element (apart from truncation by the unconformity) is assumed to expand or contract at a similar rate (see left-hand side Figure 4). If a comparable sample resolution was obtained for borehole 42/28-2, then the correlation between the boreholes (core versus cuttings) would have been stronger. However, this was not possible due to the stratigraphic resolution of the drill cuttings collected and the fact that many cutting samples did not contain any evaporitic minerals for isotopic analysis. Similar concerns (e.g., stratigraphic thickness and time, as well as sample resolution) were highlighted by Gröcke (2020) when performing carbon isotope stratigraphy for correlation. The same issues apply for all types of correlation using isotope stratigraphy.

Cyclic variability in δ³⁴S_evap is observed through the Zechstein and lower Bunter Shale intervals in Staithes S-20 (3,100–3,500 ft: Figure 4). This apparent cyclicity is not observed in the equivalent interval of borehole 42/28-2 (7,700–9,680 ft), although this may be in part due to lower sample resolution (Figures 4A,B). If the cyclicity observed in Staithes S-20 reflects global changes in the sulphate isotopic reservoir, then the cycles may prove very useful in high-resolution correlation of the Zechstein throughout Europe. Future sulphur isotope studies of the Zechstein should be performed at high resolution to assess reproducibility of the apparent cyclicity observed in Staithes S-20. After this period of cyclicity, δ³⁴S_evap gradually increases throughout the Bunter Shale and Bunter Sandstone from approximately +8‰ to +15‰ in both boreholes. This range in δ³⁴S_evap constrains the age of these stratigraphic units to the latest Permian (Claypool et al., 1980; Crockford et al., 2019; Present et al., 2020; Salisbury et al., 2022), suggesting the placement of the PTB in this part of the Southern Permian Basin should be shifted from the upper boundary of the Zechstein evaporites to a point within the Bunter Sandstone (Figure 5). This is significant, due to its’ apparent conflict with biostratigraphic constraints for an Early to Middle Triassic age for Bunter Sandstone equivalents in southern England and Germany (see above). Although, this part of the record is more difficult to accurately correlate based on principles (2) and (3) described above, a late Permian age for the lower Bunter in the SNS Basin suggests that towards the basin margins, the Bunter stratigraphic motif is aliased by an older continental clastic system. By extension, it is also possible that the lower parts of the onshore Sherwood Sandstone Group in northern England also extend into the late Permian.

FIGURE 5

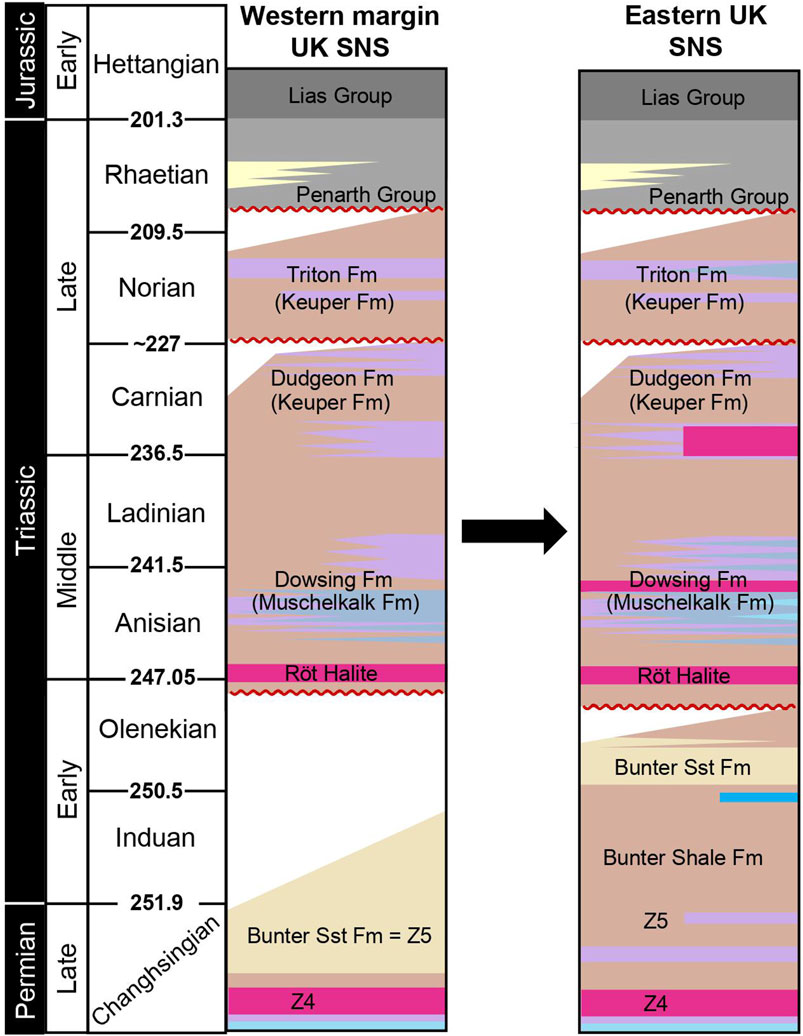

FIGURE 5. Revised lithostratigraphic framework for the western margin UK Southern North Sea (SNS) compared with the established lithostratigraphy of the eastern UK SNS. Unconformities are marked with red irregular lines.

Due to erosion associated with the Hardegsen unconformity in the Early Triassic (Bachman et al., 2010), the δ³⁴S_evap curves of Staithes S-20 and 42/28-2 fail to record the large positive δ³⁴S_evap excursion characteristic of the Early Triassic. The entire evaporite-based stratigraphic interval of the Staithes S-20 borehole hinges on the constraint of a single palynological age (earliest Anisian), which is obtained from immediately above the unconformity (see Salisbury et al., 2022). δ³⁴S_evap values of > +15‰ above the unconformity in Staithes S-20 also support an Anisian age when compared with the global composite record as discussed in Salisbury et al. (2022). Based on absolute δ³⁴S_evap values at this point it is evident that borehole 42/28-2 records the Anisian recovery to pre-excursion δ³⁴S_evap values in the Olenekian that persisted prior to the negative excursion (Figure 4). δ³⁴S_evap values in borehole 42/28-2 show a declining trend, similar to that which is recorded in Staithes S-20, for the remainder of the Triassic—ending with δ³⁴S_evap values of ∼ +12‰ in the Norian.

As shown in Figure 4 the correlation is somewhat more uncertain when there are larger gaps in the δ³⁴S_evap record (e.g., Bunter Sandstone) from borehole 42/28-2. This is to be expected, as lower resolution records will fail to capture the full extent of isotopic variability (especially short-term changes), creating the false impression of greater isotopic heterogeneity between sedimentary basins (Metzger et al., 2014). It is thus unclear whether the lack of cyclicity at the base of 42/28-2 (discussed above) reflects a difference in the evolution of the sulphur cycle between the Cleveland and southern North Sea basins during this time interval. We present two potential correlations (see Figures 4A,B) between Staithes S-20 and borehole 42/28-2 during the latest Permian. Figure 4A assumes that the lithostratigraphic boundary between Z5 and the Bunter Shale is age equivalent in both boreholes (dashed correlation line). In contrast, Figure 4B displays a correlation scheme based entirely upon the δ³⁴S_evap data, thus suggesting a different age for the boundary between Z5 and the Bunter Shale in each borehole, taking account of the possible diachroneity of lithostratigraphic boundaries. Each of these correlations are plausible but highlight the issue when performing sulphur isotope correlation during time intervals with little isotopic variability (akin to strontium isotope stratigraphy). Additional techniques such as evaporite palynology (Gibson & Wellman, 2021) may help to constrain age and sulphur isotope correlation during the late Permian Zechstein. Despite this, the correlation between 42/28-2 and Staithes S-20 looks exceptionally good, even with different sampling resolutions.

It should be noted that data resolution is not the only factor to consider when attempting to derive robust, high-resolution isotope stratigraphic correlations. As briefly discussed above, the rate and magnitude of sulphur isotope variability are of crucial importance (see Yao et al., 2019). Between the depths of 6,760 ft and 5,940 ft in the borehole 42/28-2 dataset, robust correlations can be achieved with the Staithes S-20 record, despite the relatively low sample resolution of 42/28-2. This is due to the abrupt and significant shift in the δ³⁴S_evap record during this depth interval (see Figure 4), which is also reflected in the global δ³⁴S_evap curve (see Salisbury et al., 2022). Therefore, if the time-interval studied exhibits high sulphur isotopic variability, a sample resolution comparable to our Staithes S-20 record may not be essential. This study has thus demonstrated that drill cuttings can be confidently used for δ³⁴S_evap stratigraphic correlation of sedimentary sequences between sedimentary basins.

4.4 Wireline log-based lithostratigraphy versus δ³⁴S_evap correlation

To compare the gamma ray and sulphur isotope correlations, we used the gamma ray correlation lines shown in Figure 3 to correlate the δ³⁴S_evap curves from Staithes S-20 and borehole 42/28-2 (Figure 6). Seven confident gamma ray motifs were correlated based on their visual similarity. An additional gamma ray correlation was tentatively assigned in the middle Bunter Shale (see Figure 3, dashed line) at the shift from moderate scatter to high scatter in the record. Based on these correlation lines, the δ³⁴S_evap curves are also strikingly similar, however, there are some key differences. For example, based on gamma ray correlation, borehole 42/28-2 extends further back in time in Zechstein cycle Z5. Thus, using gamma ray stratigraphy only the top 4 samples in Z5 from borehole 42/48-2 correlate with the Staithes S-20 δ³⁴S_evap record (Figure 6).

FIGURE 6

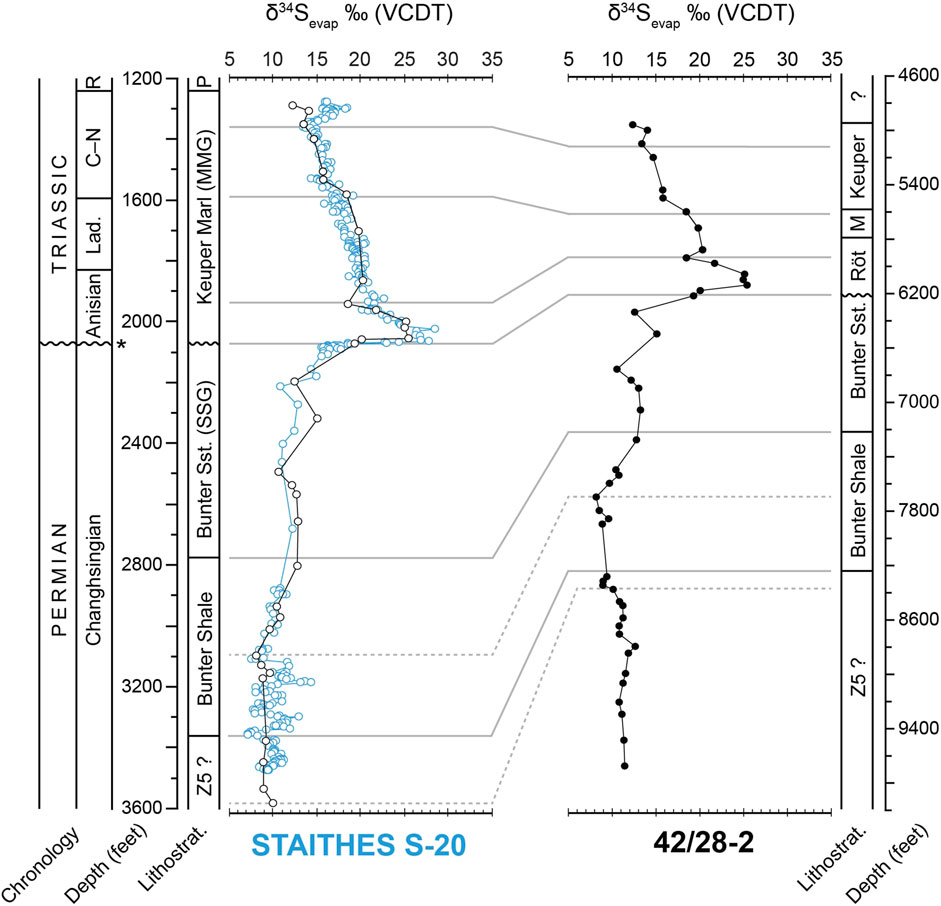

FIGURE 6. Sulphur isotope stratigraphy of 42/28-2 compared and correlated with the equivalent record of Staithes S-20 (Salisbury et al., 2022). Nine correlation lines were drawn according to the correlation scheme based on gamma ray logs (see Figure 3). (left) The δ³⁴S_evap record of 42/28-2 (black and white dots) stretched and compressed within the correlation lines and overlain onto the equivalent record of Staithes S-20 (blue and white dots). (right) the raw δ³⁴S_evap record of 42/28-2 (black filled dots) without being stretched and compressed.

Another key difference is in the correlation of the Röt Halite Member (Triassic). Gamma ray correlation would erroneously imply that the Röt Halite Member extends into the Ladinian, whilst the sulphur isotope correlation constrains it to the Anisian (Figure 7). It is plausible this may reflect errors in the application of lithostratigraphy during the original logging process. In the case of the Staithes S-20 borehole, the lack of clear halite intervals defining both the Röt and Muschelkalk halites, and the facies transition from the limestone-prone Muschelkalk into clastic basin margin facies, has made the log motifs ambiguous. This demonstrates how δ³⁴S_evap records provide a critical constraint on the validity of lithostratigraphy for stratigraphic correlation, particularly where the lithostratigraphic data exhibit greater ambiguity, such as basin margin settings.

FIGURE 7

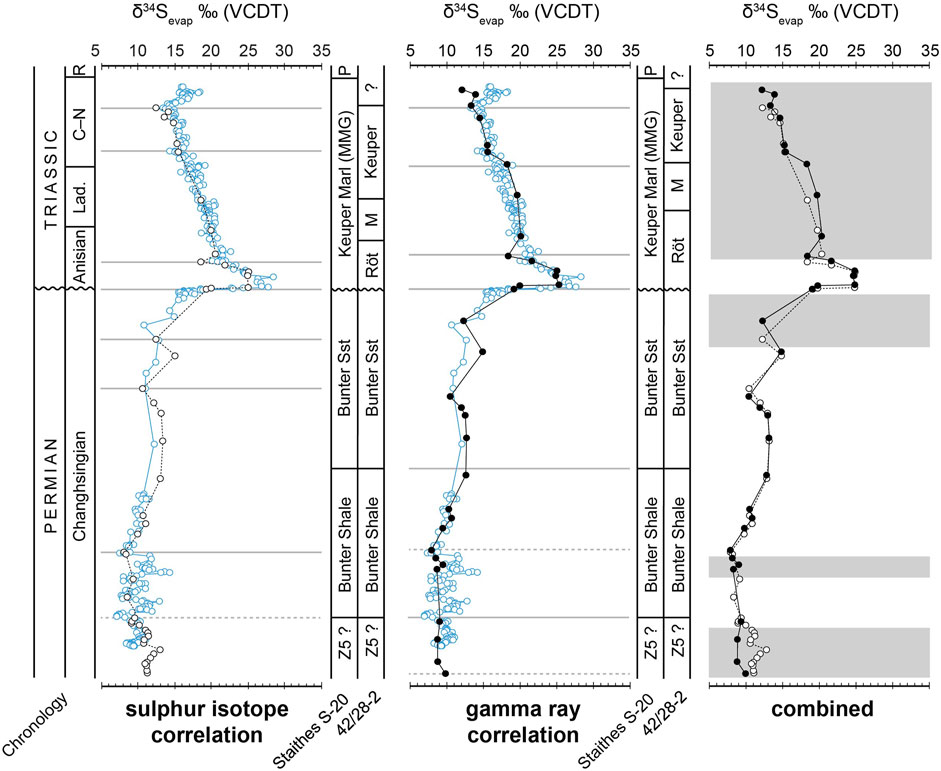

FIGURE 7. Comparison between the sulphur isotope and gamma ray correlation schemes. (left) Stratigraphic correlation based upon the sulphur isotope records, as presented in Figure 4. The lithostratigraphic boundaries for Staithes S-20 are based on the original log, while those for 42/28-2 are adjusted based upon the correlation schemes with Staithes S-20. (middle) The correlation scheme based upon the gamma ray logs. (right) The δ³⁴S_evap record of Staithes S-20 and 42/28-2 based on the sulphur isotope and gamma ray correlation schemes. Stratigraphic intervals within which the correlation schemes are in relative agreement are marked with the white shading, while the grey shading represents stratigraphic intervals within which the correlation schemes disagree.

Published data provide further contrasting age estimates. Previous lithostratigraphic correlations suggest an Olenekian age for the Röt Halite Member (Warrington et al., 1980), while more recent work suggests an early Anisian age, in broad agreement with our δ³⁴S_evap record (Bachmann et al., 2010). Isotopic analysis of fluid inclusions suggests a late Early Triassic age for the Röt in the Netherlands, Germany and Poland, reporting δ³⁴S values between +27.1‰ and +32‰ (Kovalevych et al., 2002). In contrast, we only record δ³⁴S_evap values between +18.5‰ and +25.4‰ (Figure 4). The reason for this difference is currently unclear, however, it should be noted that Kovalevych et al. (2002) used a different analytical method for sulphur isotope analysis (e.g., offline SO₂ generation versus online continuous flow IRMS at SIBL). Furthermore, the Röt may have formed earlier to the east of the UK and SNS. Additional sulphur isotope analyses of the Röt Halite Member are required to constrain its’ age and determine if this lithostratigraphic unit is diachronous or synchronous across basins.

Correlations using gamma ray and δ³⁴S_evap data suggest that the successions in each well are broadly comparable across the Cleveland and SNS basins (Figure 7). This can be clearly seen in the Anisian interval (Figure 7). The position of the Hardegsen unconformity can be located using the gamma ray logs (Figure 3) and the Anisian exhibits a high rate and magnitude of sulphur isotopic variability (Figure 4), enabling a robust correlation to be made. Interestingly, the correlation schemes exhibit greatest disagreement during the Ladinian, Carnian and Norian (Figure 7). In particular, the sulphur isotope correlation suggests the top of the Mercia Mudstone in borehole 42/28-2 extends into the Carnian–Norian, while the gamma ray correlation suggests it extends until just below the Norian–Rhaetian boundary, possibly reflecting issues with depth averaging between the gamma ray and δ³⁴S_evap records. In this case the sulphur isotope correlation scheme would be favoured, demonstrating the capacity for sulphur isotope stratigraphy to capture lithofacies diachroneity.

The δ³⁴S_evap correlation based on gamma ray is quite robust but has limitations when compared to the sulphur isotope correlation, which is independent of lithostratigraphy (Figure 7). Due to the ‘layer cake’ appearance of the Triassic southern North Sea, lithostratigraphy assumes that the deposition of one facies is “time-equivalent” to the same facies in another basin. When using gamma ray to correlate δ³⁴S_evap one is forcing it to fit in line with the principles of lithostratigraphy. The deposition of an evaporite in one basin may not be time equivalent to the deposition of an evaporite in a nearby basin, and hence, wireline log correlations of apparently similar log motifs could cross time boundaries. The stability and residence time of sulphur in the ocean precludes crossing time boundaries as at any given time the ocean will have a homogenous δ³⁴S_evap signature (Paytan et al., 2012). Therefore, as time changes, so will the δ³⁴S_evap signature of the ocean. In Figure 6 it is assumed that the gamma ray correlation is a timeline and hence, only four δ³⁴S_evap data from borehole 42/28-2 are correlatable to the Staithes S-20 record for the Z5 lithology (see Figure 4A). However, if we consider that the Z5 evaporite sequence in borehole 42/28-2 is “time-equivalent” to the base of the Bunter Shale in the Staithes S-20 core/basin, then this would create a very different correlation curve (see Figure 4B). Thus, a significant strength of sulphur isotope stratigraphy is that it provides independent validation on whether straight lithostratigraphic correlations are accurate, differentiating between log motifs that appear similar but represent strata of distinct ages.

The above discussion reflects the importance of sample resolution and isotopic variability in deriving robust stratigraphic correlations (see Yao et al., 2019 for further discussion). The δ³⁴S_evap data from the Zechstein and the base of the Bunter Shale lack the sample resolution and isotopic variability to facilitate high-resolution correlations. In contrast, although the sample resolution is comparable in the Mercia Mudstone Group, the greater isotopic variability enables high-resolution correlations to be made using δ³⁴S_evap alone (Figures 4, 7). For intervals where high sampling resolution cannot be achieved, or where the δ³⁴S record exhibits relative stability through time, we suggest a multidisciplinary approach, integrated with wireline log stratigraphy, to produce a global δ³⁴S evaporite curve for correlation. With further research, it is anticipated that the δ³⁴S curve from evaporites may become comparable to how strontium isotope stratigraphy is used for global correlation of marine sediments. More importantly, placing evaporite-bearing strata into more constrained stratigraphic timelines will increase our knowledge of these extreme environments in Earth’s history.

4.5 Implications for carbon capture and storage

As discussed, our δ³⁴S_evap records from the Staithes S-20 and 42/28-2 boreholes provide further chronostratigraphic constraint for the late Permian–Triassic strata of the Cleveland and UK SNS basins. In particular, the base of the Bunter Sandstone has been assigned to the latest Permian, suggesting the PTB may occur within the Bunter Sandstone at these locations (Figure 5). This enables the degree of Hardegsen erosion to be better constrained stratigraphically (i.e., when it initiated and stopped in a basin). This will help to develop more accurate palaeogeographic maps for the latest Permian and Triassic of the United Kingdom. This is of particular significance due to the interest in the Bunter Sandstone as a potential reservoir for carbon capture and storage (CCS) (Holloway et al., 2006; Newell and Shariatipour, 2016; Alshakri et al., 2023, in press).

The use of geological reservoirs for the storage of sequestered carbon dioxide (CO₂) as a super-critical fluid is thought to be a key technology for addressing anthropogenic climate change (Bickle, 2009). The Bunter Sandstone and other equivalents within the Sherwood Sandstone Group are considered suitable candidates for CO₂ storage (Brook et al., 2003; Holloway et al., 2006). This is due to the Bunter Sandstone’s favourable reservoir properties (Chadwick et al., 2008; Dobbs et al., 2018), with fair to good porosity and permeability (Noy et al., 2012), and suitable stratigraphic position, whereby it is sealed by a durable caprock, the overlying saliferous Mercia Mudstone Group (Armitage et al., 2013). In addition, its supposed sheet-like geometry is predicted to be conducive to effective pressure dissipation and reliable injectivity.

It should be noted, however, that an accurate understanding of the regional stratigraphic framework is essential for reliably estimating the suitability of a reservoir for CO₂ storage. For example, the spatial variability in properties (Ringrose, 2020) such as sand:shale ratios, porosity, and permeability within the Bunter Sandstone can be mapped for assessing its’ suitability for CO₂ storage. These assessments are likely erroneous if our revised stratigraphic framework for the western margin SNS is correct, as authors of previous research will have contoured the properties from sandstones of different ages. In addition, although drillcore can provide useful insights, it is common for analogous facies to be studied at outcrop to provide a broader view of the heterogeneities present within reservoir zones (e.g., Newell and Shariatipour, 2016). However, such studies commonly focus on the onshore Sherwood Sandstone outcrops, which were deposited by large river systems during the Early Triassic, a time interval characterised by a warmer and wetter climate than the late Permian (Trotter et al., 2015). Thus, if the base of the Bunter Sandstone in the western margin SNS is truly latest Permian in age then the depositing rivers would have experienced lower volume discharges leading to different reservoir architectures and heterogeneities (Issautier et al., 2014). As a result, alternative analogue facies may need to be found from more ephemeral fluvial systems. These issues will impact the reliability of dynamic models used to predict the outcome of different scenarios, such as injection rates, well counts and locations (e.g., Noy et al., 2012; Williams et al., 2013; Tucker, 2018; Ringrose, 2020). This could lead to suboptimal developments, financial implications and a potential to fail contractual obligations.

5 Conclusion

Sulphur isotope stratigraphy using evaporites has the potential to enhance chronostratigraphic constraints for Permian–Triassic strata of the United Kingdom and continental Europe. Unfortunately, complete drill cores are uncommon and thus, determining whether drill cuttings are suitable for constructing δ³⁴S_evap records is essential. A δ³⁴S_evap record was produced from drill cuttings of borehole 42/28-2 in the southern North Sea basin. This δ³⁴S_evap record was compared to the onshore Staithes S-20 borehole. Our findings show that δ³⁴S_evap records derived from drill cuttings can be used for stratigraphic correlation, although we advise that during periods of relative stability in δ³⁴S_evap a multidisciplinary approach is adopted (i.e., coupled with gamma ray stratigraphy). Based on our δ³⁴S_evap records between the Cleveland Basin and southern North Sea Basin in this study, the deposition of the Bunter Shale and Bunter Sandstone is determined to have initiated in the latest Permian, while the youngest age of the MMG is Anisian (Middle Triassic). Neither δ³⁴S_evap curves record the Early Triassic due to erosion associated with the Hardegsen unconformity. Our findings thus suggest that the PTB should be defined somewhere within the Bunter Sandstone, and not at the upper boundary of the Zechstein evaporites in the Cleveland and Southern North Sea basins. This implies that our current understanding of the regional lithostratigraphy is likely overly simplistic and fails to capture the full extent of facies diachroneity, particularly on the basin margins. This is especially noteworthy for the Bunter Sandstone, due to interest in its’ possible suitability as a reservoir for CO₂ storage in the United Kingdom.

Data availability statement

The original contributions presented in the study are included in the article/Supplementary Material, further inquiries can be directed to the corresponding authors.

Author contributions

DRG and JS conceptualized the study. JS carried out the chemical sample preparation, as well as the isotopic analyses under the supervision of DRG. JS wrote the manuscript with contributions from DRG and TM. All authors contributed to the article and approved the submitted version.

Funding

The Centre for Doctoral Training in Geoscience and the Low Carbon Energy Transition and is fully funded by NeoEnergy whose support is gratefully acknowledged. JS wishes to thank the Yorkshire Geological Society for funding this project on the use of cuttings for sulphur isotope stratigraphy. Additional funding was provided by the Stable Isotope Biogeochemistry Laboratory (SIBL), Durham University. DRG also gratefully acknowledges a Natural Environmental Research Council (NERC) Strategic Environmental Science Capital Call grant (#CC018) that provided funding for the purchase of a dedicated sulphur isotope ratio mass spectrometer in SIBL.

Conflict of interest

The author TM was employed by Shell UK Exploration and Production.

The remaining authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest

Publisher’s note

All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.

Supplementary material

The Supplementary Material for this article can be found online at: https://www.frontiersin.org/articles/10.3389/feart.2023.1216365/full#supplementary-material
