Looking for natural hydrogen in Albania and Kosova

A regional geochemistry field study was conducted in Albania and Kosova to spot natural H₂ occurrences related to ophiolite massifs. A total of 21 sites, mainly consisting of natural springs, were studied, and nine were sampled for analyzing associated free gas and C and H isotopes of CH₄ and H₂ when possible. Four springs showed gas with H₂ occurrence, one particularly reaching 16% of H₂ in the north of Kosova in a location named Vuçe, which makes it the fifth gas seep most enriched in H₂ in the Dinarides, after H₂-rich gas seeps in Serbia and Bosnia and Herzegovina. This gas seep is associated with hyperalkaline water having a pH of about 10.7. This would favor the assumption that H₂ is derived from the serpentinization of peridotites, a process which is likely still ongoing. H₂ is associated mainly with N₂ and CH₄, like the other H₂-rich gas springs in the Dinarides. Based on C and H isotopes, CH₄ is abiotic or microbial. H isotopes suggest a formation of H₂ at about a 2-km depth. Another hyperalkaline spring was found in the south of Albania, at the border of the Korça Basin, with less than 200 ppm of H₂. No relation between H₂ and He was identified at the scale of Albania and Kosova, nor at the scale of the whole Dinarides. This work provides a completed map of the H₂ occurrences in the Dinarides and allows to highlight some hot spots for H₂ exploration, mainly located inside the ophiolite massifs like in other ophiolites (such as Oman, New Caledonia, and The Philippines), and not on major faults like in the Pyrenees.

1 Introduction

Natural H₂, also known as white hydrogen in hydrogen’s type classification, is a low impact and a potential low-cost energy (Moretti, 2019; Gaucher, 2020; Lapi et al., 2022) which could be present in large quantities in the subsurface (Zgonnik, 2020). From a couple of years, this resource is being increasingly studied in some countries such as Brazil (Prinzhofer et al., 2019) and Australia (Frery et al., 2021) and more recently in Europe, in Spain, and in France (Lefeuvre et al., 2022). Analogous with the oil and gas, natural hydrogen exploration can be approached through a “system” invoking source, migration, reservoir, trap, and seal to eventually lead to an accumulation in the subsurface. Hydrogen “source rock” is a rock able, by natural physicochemical processes, to generate hydrogen gas. Natural H₂ can be generated by different processes where the five major ones are 1) reduction of water via rock alteration, 2) radiolysis, 3) degassing of magmas, 4) via a reaction with surface radicals in fault environment (Zgonnik, 2020; Moretti et al., 2021), or 5) maturation of the organic matter (Horsfield et al., 2022; Mahlstedt et al., 2022). Serpentinization is the most well-known process in the literature, in particular the alteration of peridotites taking place on the mid-ocean ridge (MOR) (Charlou et al., 2002; Proskurowski et al., 2006; Andreani et al., 2014; Worman et al., 2020). However, apart from exceptions such as Iceland (Combaudon et al., 2022) or Ethiopia (Pasquet et al., 2022), MOR is particularly difficult to study and explore as it is located in deep water environment. On the contrary, the ophiolites, remains of an obducted oceanic lithosphere, are accessible targets. Their H₂ potential is, thus, far easier to apprehend.

Some ophiolites have been the subject of intense studies these last years, such as those in Oman and in New Caledonia, using direct and indirect techniques to constrain the H₂ origin (Neal and Stanger, 1983; Neal and Stanger, 1985; Deville and Prinzhofer, 2016; Vacquand et al., 2018). The indirect techniques consist in using proxy like the presence of hyperalkaline springs which is often related to the serpentinization:

$\mathbf{F}{\mathbf{e}}^{\mathbf{2}+}+{\mathbf{H}}_{\mathbf{2}}\mathbf{O}\to \mathbf{F}{\mathbf{e}}^{\mathbf{3}+}+½1/2{\mathbf{H}}_{\mathbf{2}}+\mathbf{O}{\mathbf{H}}^{-}(1)$

The closure of the Tethys Ocean leads to multiple ophiolite developments in Europe, especially in its southeastern part. We studied the Dinarides–Albanides which are a 1000-km long mountain range mainly made of ophiolites and covering Croatia, Bosnia and Herzegovina, Serbia, Kosova, Albania, and extending southward with Hellenides in Greece. In Serbia, a large amount of gas seeps or free gas bubbling in natural springs have been studied, and some sites contain up to 85% of H₂ (Randazzo et al., 2021). However, no systematic study has been performed so far to inventory and characterize such gases in Albania and Kosova in the frame of H₂ generation. The first step of the study consisted in listing and thoroughly locating all referenced gas occurrences at surface. Then, field acquisitions were realized (free gas, dissolved gas, and water sampling) to complete the existing dataset and provide a first overview of natural hydrogen potential associated with the Dinarides ophiolites.

2 Geological setting

The ophiolites from the Dinarides come from the suture of (i) one ocean or (ii) several ones, even if a consensus seems to appear in favor of the (i) model (Schmid et al., 2020). The ophiolitic oceanic crust and metamorphic soil were formed during the Middle Jurassic. This corresponds to the beginning of the closure of the Neo-Tethys Ocean initiated by the north east dipping subduction of the Adria plate under the Eurasian plate. Some rocks that are present in the ophiolite mélange trace the beginning of the obduction to the Late Jurassic. It lasted until the complete closure of the ocean forming the Sava Suture Zone which happened between the Late Cretaceous and Paleogene (Schmid et al., 2008; Maffione and van Hinsbergen, 2018; Schmid et al., 2020). During the shortening, the ophiolitic nappes have been thrusted onto about 200 km. The Tertiary slab roll back and possible break off resulted in Tertiary volcanism and intracontinental basins, mainly associated with normal faulting, filled with Miocene sediments (Schefer et al., 2011).

Studies conducted at surface in other areas suggest that hydrogen can be created by the interaction of water with mantle peridotites and migrate to the surface via major thrusts, like in the Pyrenees (Lefeuvre et al., 2022). Gas seeps or free gas bubbling in natural springs can also be found on the ophiolite massif itself, often associated with hyperalkaline waters (Vacquand et al., 2018). Some plutons can also act as a source of H₂ via their alteration of radiolysis (Truche et al., 2020). In the Dinarides, the major structure of interest is the ophiolite of the West Vardar where some H₂ has been measured in Bosnia and Herzegovina and Serbia with high content (Etiope et al., 2017; Randazzo et al., 2021) in free gas sampled in natural springs in ophiolite massifs. Therefore, the study will focus on the West Vardar zone in Albania and Kosova.

In Albania, the West Vardar ophiolite is represented by the Mirdita ophiolite, located in the Albanides mountain belt, a segment of the Dinarides–Albanides–Hellenides orogen (Figure 1). It is delimited on the east by the Pelagonian block and on the west by the Krasta, Cukali, and Kruja zone, considered as Adria-derived allochtons (Meshi et al., 2010; van Unen et al., 2019; Schmid et al., 2020). The Kruja zone is well-known for its geothermal potential because of deep thrust faults that allow hot fluids to reach the surface (Frasheri et al., 2009). The western massifs of the Mirdita ophiolite are mantle domes of a fossil oceanic core complex (OCC) (Nicolas et al., 2017) exhumed by a detachment rooted in the Moho transition zone under a slow-spreading MOR. The mantle is harzburgite, which is capped by mylonitic plagioclase-amphibole peridotite about 400 m thick. The eastern massifs of the Mirdita ophiolite are mainly harzburgite interpreted as derived from a supra-subduction zone [SSZ (Dilek et al., 2008)]. The thickness of the ophiolite can reach 14 km in its northeastern part, whereas on the west and southeast, it goes down to 2 km (Frasheri and Bushati, 2008). Some depressions in the ophiolite massifs have been filled with Tertiary deposits, leading to the formation of the basins of Korça and of Burrel. We can note that the ophiolite was little affected by alpine tectonics (Meshi et al., 2010).

FIGURE 1

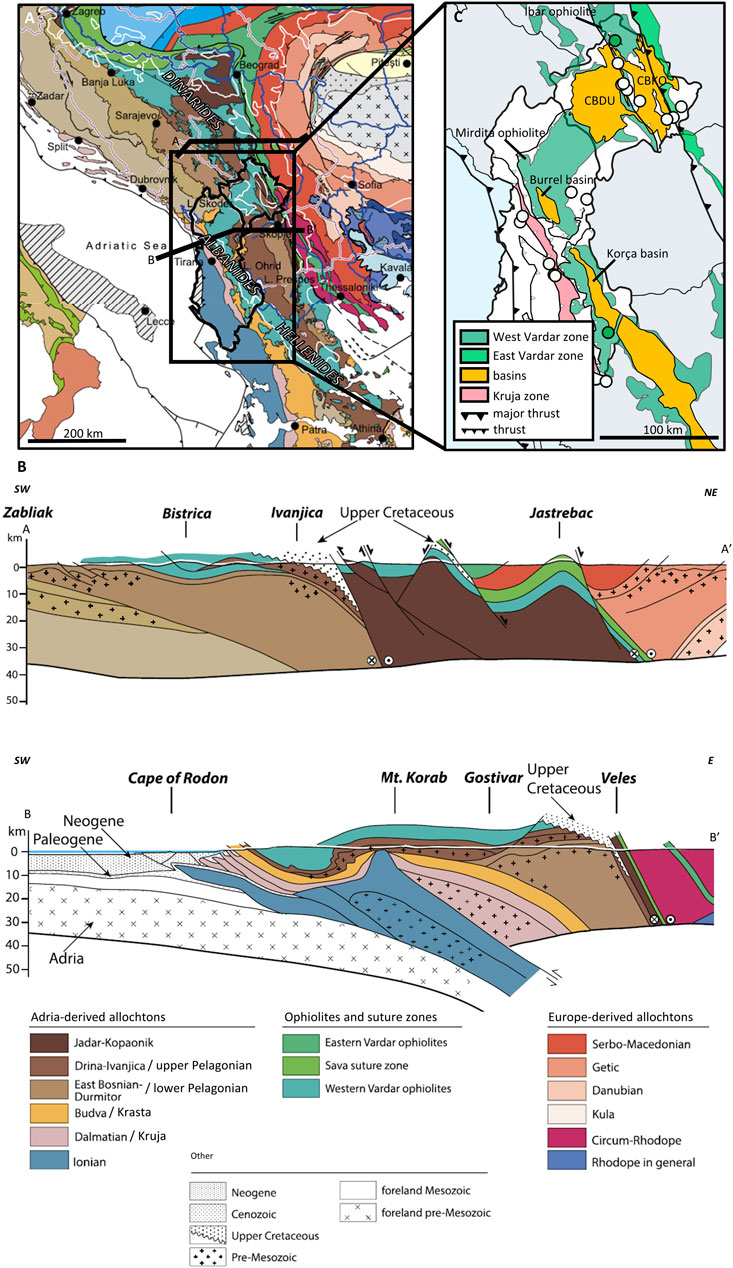

FIGURE 1. (A) Geological map of the Dinarides modified from Schmid et al. (2020) and (B) associated cross-sections A-A′ and B-B′ crosscutting West Vardar. (C) Simplified map of the zone of interest with the major structures related to the H₂ exploration: the ophiolites of West and East Vardar, the different basins, and the Kruja zone which is known as a geothermal area in Albania. The thrusts are also represented. CBDU, Cenozoic Basin of Dukagjin; CBDO, Cenozoic Basin of Kosova.

In Kosova, ophiolites outcrop on the eastern, center, southeastern, and northern part of the country, delimited by basin that can be filled by about 2 km of sediments. Apart from the southeastern ophiolite, the ophiolites are included in the West Vardar zone and are part of the Dinarides, in the continuity of Mirdita ophiolite. The central ophiolite of Kosova is represented by the massif of Golesh, bordered by Cenozoic basins (Elezaj, 2009), that suffered hydrothermal alteration (Ilich and Toshovich, 2005), leading to the precipitation of magnesite, currently exploited for their Mg content. The ophiolite in the north of Kosova is named Ibar. It was thrusted on the Jadar–Kopaonik block between Drina–Ivanjica and Serbo-Macedonian blocks (Toljić et al., 2019; Schmid et al., 2020; Spahic and Gaudenyi, 2020). It is mainly harzburgite and derived from an SSZ. Its thickness is not well constrained but based on some cross-sections, it can vary from several hundred (Miletić, 1995) of meters to ∼2 km (Schmid et al., 2020) even if gravimetric data are lacking to give a precise value. Some basins are present on the ophiolite filled with Miocene sediments or Tertiary volcanic rocks associated with some plutons that were exhumed in the Kopaonik area. This exhumation is to be related to a high erosion rate that occurred during the Neogene (Schefer et al., 2011). Gas occurrences in natural springs or in boreholes have been reported on the published exhaustive map of thermal water made by Çitaku et al. (2006). However, gas compositional or isotopic analyses were in general not performed. We can note the presence of one hyperalkaline spring in the north of Kosova (Çitaku et al., 2006).

In this part of the West Vardar zone, gas occurrences associated with natural springs are reported. However, only rare gas compositional analyses exist, and H₂ was never measured. Based on the high number of gas seeps in Albania and Kosova, we focused our effort on the regions of interest which are the Kruja zone, on the boundary between ophiolites and Cenozoic basins in Albania and Kosova, and on hyperalkaline springs. We can note that only the Duvalo, located in North Macedonia site, consisted in a “dry mofette” (i.e., crack or opening in a volcanic area emitting CO₂, water vapor, and other gases), with a low flow (Markoski et al., 2020). This site was analyzed because it was located near the zone of interest but without H₂ measurements.

3 Methods

3.1 Gas sampling

A total of 21 sites were analyzed, and different parameters such as temperature, pH, redox potential Eh, and weather conditions were systematically recorded. Free gas was collected from nine sites (Figure 2). For the other sites, the gas flow was too modest to collect a proper gas sample for laboratory analysis. The gas, bubbling into water at spring resurgence, was first collected in an open glass bottle reversed in water with progressive water flushed by gas. A funnel was also often used to collect bubbles faster. Once enough gas was collected, the bottle was closed with a septum cap in water. A volume of 15 ml of gas was then transferred with a syringe to a 10-ml glass tube. Three to five tubes were sampled in each site to enable major gas composition and isotopic analyses afterward at the lab.

FIGURE 2

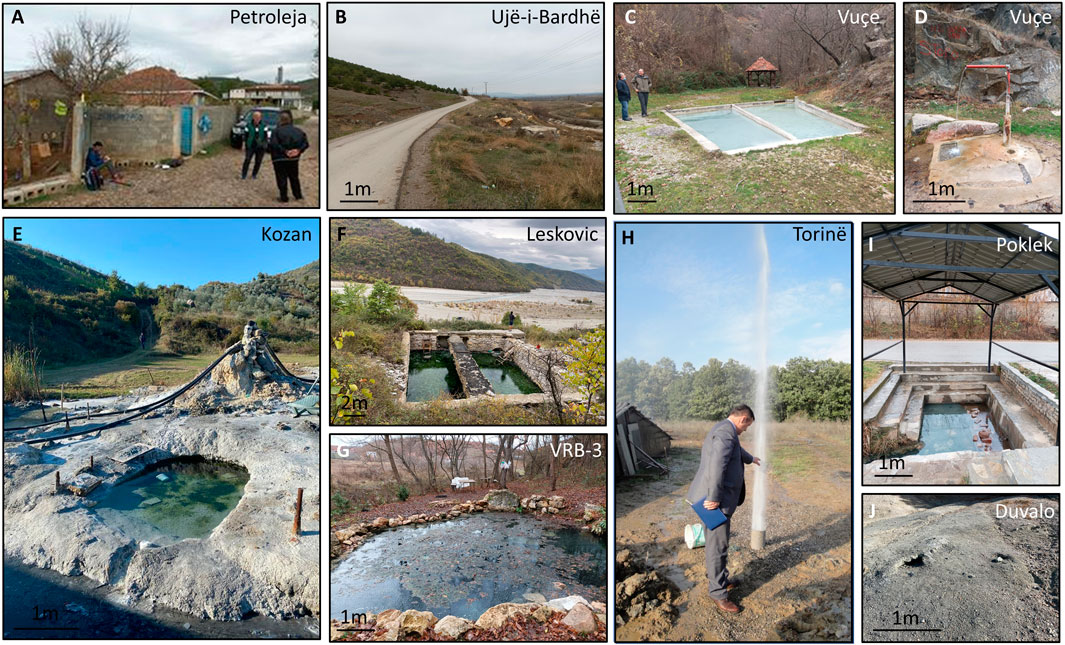

FIGURE 2. (A–J) Pictures taken in some sampled locations. Geographical coordinates in WGS84 datum are reported in Table 1.

The occurrence of H₂ in the gas was analyzed on the field using Geotech BIOGAS 5000 which measures in situ the gas composition of O₂, CO₂, CH₄, and H₂. Water vapor gas filters were always used during the measurements.

3.2 Molecular analyses

The composition of collected gas was obtained using gas chromatographic (GC) measurements carried out by 45-8 Energy (Metz, France) and ISOLAB (Neerijnen, Netherlands). H₂, O₂, N₂, CH₄, CO₂, and He were measured by 45-8 Energy, and H₂, O₂, N₂, CH₄, C2–C6+, CO₂, H₂S, and Ar were measured by ISOLAB. The gases were analyzed by 45-8 Energy on an Agilent 990 microGC. To measure He, H₂, Ne, O₂, and N₂, the microGC was equipped with a 20-m Molsieve column, a heated injection valve, a heated backflush valve, and a TCD detector with Ar as the carrier gas. To measure CO₂ and CH₄, it was equipped with a 10-m PoraPLOT-Q column for a heated injection valve, a heated backflush valve, and a TCD detector with He as the carrier gas.

In ISOLAB, H₂, O₂+Ar, N₂, and CH₄ were analyzed on an Agilent 7890A GC (Agilent Technologies, Santa Clara, US) equipped with a 12-m, 0.32-mm Molsieve column, a heated injection valve, and a TCD detector. Hydrocarbons and CO₂ were analyzed on an Agilent 7890B GC equipped with a 50-m, 0.32-mm Porabond-Q column, a heated injection valve, a heated backflush valve (for C6+), a TCD detector (for CO₂), and a FID detector (for hydrocarbons). From the results of all three detectors, one complete composition was calculated. Detector responses were calibrated several times a day using various reference standards.

3.3 Isotopic analyses

Carbon and hydrogen isotopic signatures of CH₄ and hydrogen isotopic analyses of H₂ were undertaken using ISOLAB (Neerijnen, Netherlands). Carbon isotopes of CH₄ were analyzed with an Agilent 6890N GC (Agilent Technologies, Santa Clara, US) interfaced to a Finnigan Delta SIRMS (Finnigan is now part of Thermo Scientific, Bremen, Germany) using a Finnigan GC-C II interface. The GC was equipped with a 12-m, 0.32-mm Molsieve column (Agilent) and an injection valve. Hydrogen isotopes of CH₄ and H₂ were analyzed on an Agilent 7890A GC (Agilent Technologies, Santa Clara, US) interfaced to a MAT 253 IRMS (Thermo Scientific, Bremen, Germany) using a GC-Isolink interface from Thermo. The GC was equipped with a 25-m, 0.32-mm Molsieve column (Agilent) and an injection valve. The samples were calibrated regularly against a calibration standard. The results are reported with the δ¹³C and δD notations, using vPDB and vSMOW standards.

4 Results

4.1 Geochemical analyses

4.1.1 Chemistry of waters

The different parameters such as temperature, redox potential (Eh), and pH were systematically measured at every location where gas was bubbling in water (Table 1; Figure 3). The hottest spring exhibited between 55 °C and 65 °C and was observed near and in the Kruja Zone where some deep drilling reach about 2 km (Table 1), like Bilaj and Kozan wells. Llixha and Hydraj are located next to thermal stations that use the hot water of the well of Kozan. Therefore, these two springs are connected to the Kozan well and have similar chemical parameters. Only one spring was at high temperature up to 43 °C in Peshkopi in the northeastern part of Albania. Lower temperature springs with recorded temperature between 20 °C and 35 °C were analyzed in the south of Albania (Benjes and Leskovik) and in the east of Kosova (Doberçan). The Vuçe well with a depth of 60 m also showed moderate temperature of 32 °C, whereas the Vuçe spring is at 21 °C. The remaining springs showed cold waters below 20 °C.

TABLE 1

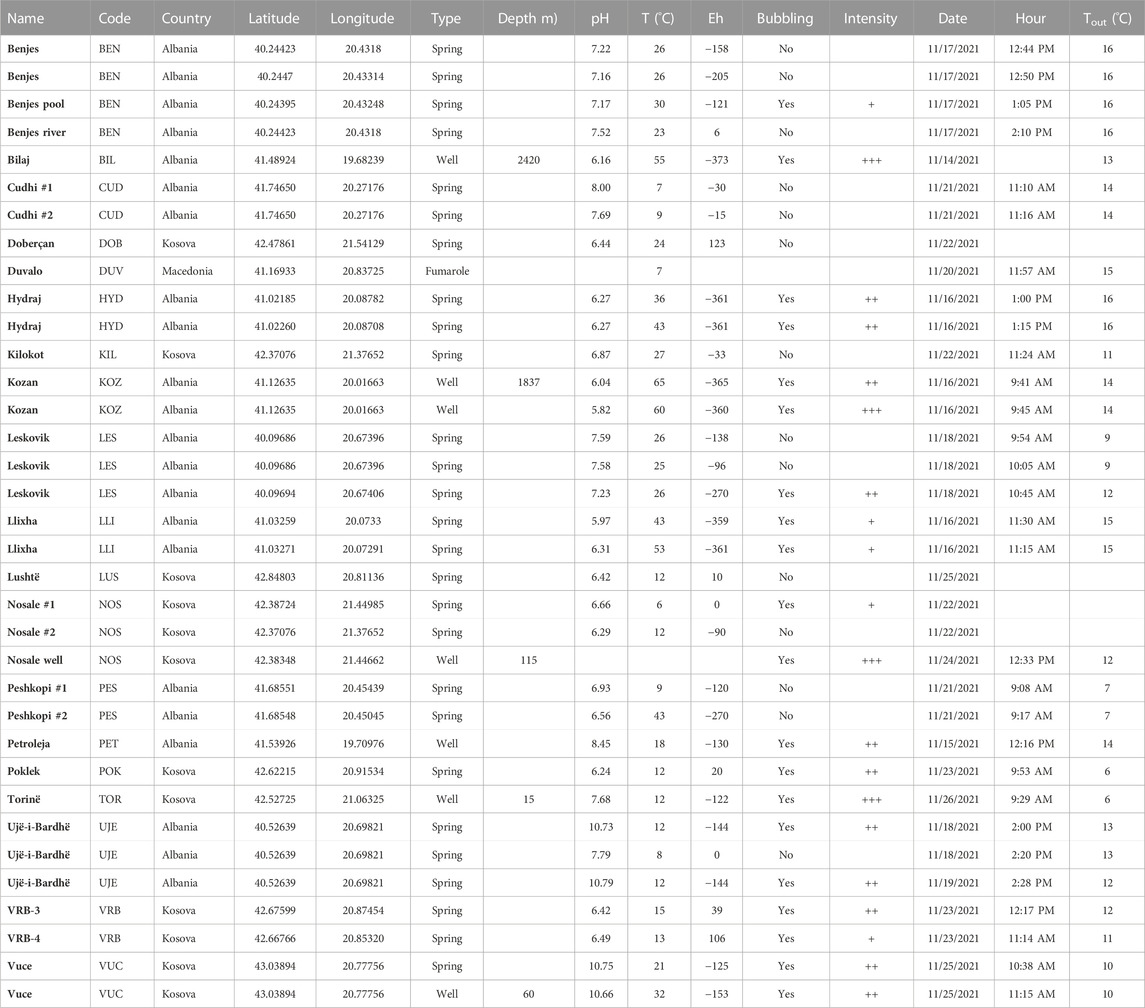

TABLE 1. Location of the gas seeps with the coordinates in WGS84 datum, and parameters of the water and the weather conditions associated with sampling. The intensity of bubbling is qualitatively from low (+) to high (+++). T_out is for the temperature of the air during sampling. The hour was reported because some daily variations can sometimes appear (Prinzhofer et al., 2019; Cathles and Prinzhofer, 2020).

FIGURE 3

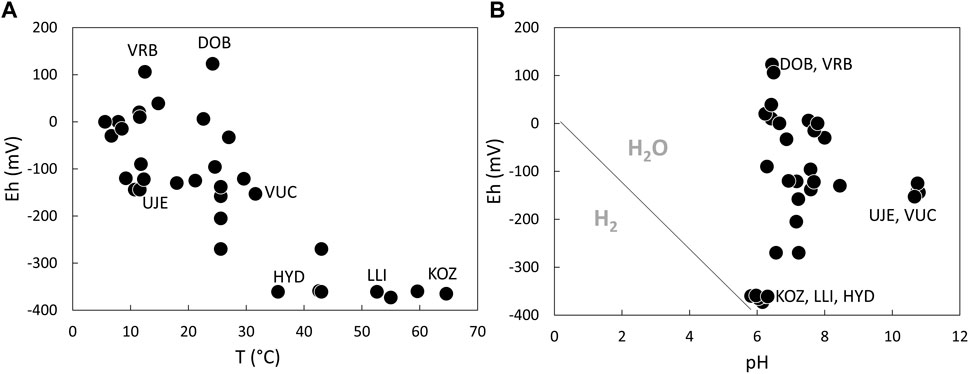

FIGURE 3. (A) Redox potential Eh against the temperature. We observe that for temperatures above 35 °C, the Eh is below −300 mV. (B) Redox potential Eh against pH. This highlights the presence of hyperalkaline springs in Vuçe and Ujë-i-Bardhë.

The Eh of the spring waters shows very low values down to −365 mV in locations where high temperatures were measured (Figures 3A, B, 4A). For spring waters with a temperature lower than 35 °C, this relation is less clear where the Eh values were mainly between −200 and 100 mV. Some high Eh values were recorded in Doberçan (123 mV) and VRB-3 (106 mV) locations.

FIGURE 4

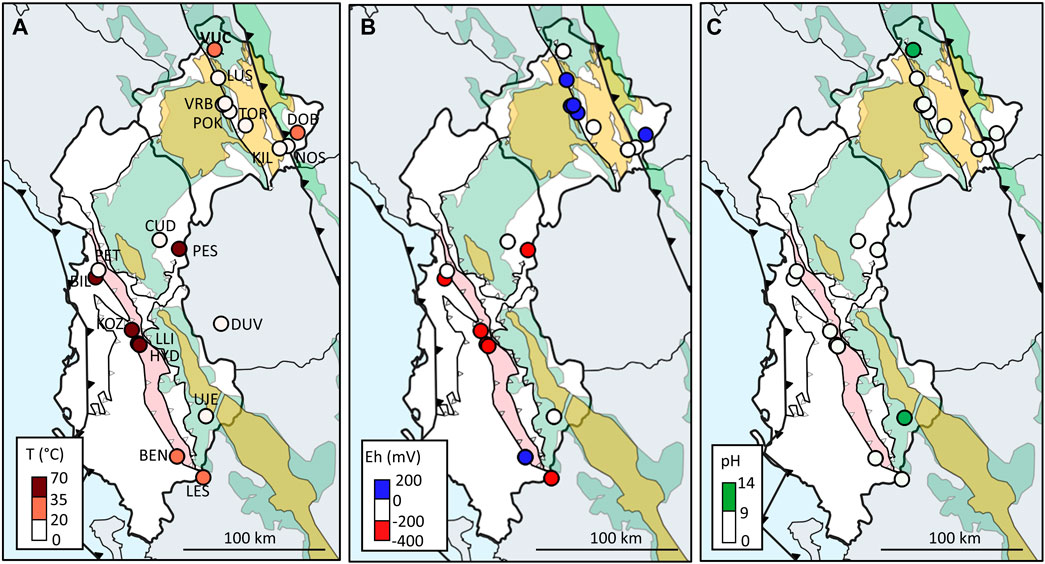

FIGURE 4. (A) Temperature, (B) redox potential Eh, and (C) pH are represented on the map shown in Figure 1C.

The pH levels of bubbling waters were mainly between 6 and 8, whereas the springs from Ujë-i-Bardhë, located at the border of the Korça Basin and the ophiolite massif of Voskopoja in the south of Albania, and in Vuçe (spring and well), in the north of Kosova, have a pH at about ∼10.7. This does not seem related to temperature nor Eh (Figure 4).

4.1.2 Gas composition

The composition of major elements of the sampled gases are represented in Figures 5, 6 (Table 2), corrected from air contamination. The raw gas compositions of the gases are reported in Supplementary Table S1. We note that for the Kozan sample, H₂S peak detected by 45-8 Energy’s GC could not be quantified (not calibrated for it). Therefore, for this sample, only data from ISOLAB are reported, without H₂ and He quantification.

FIGURE 5

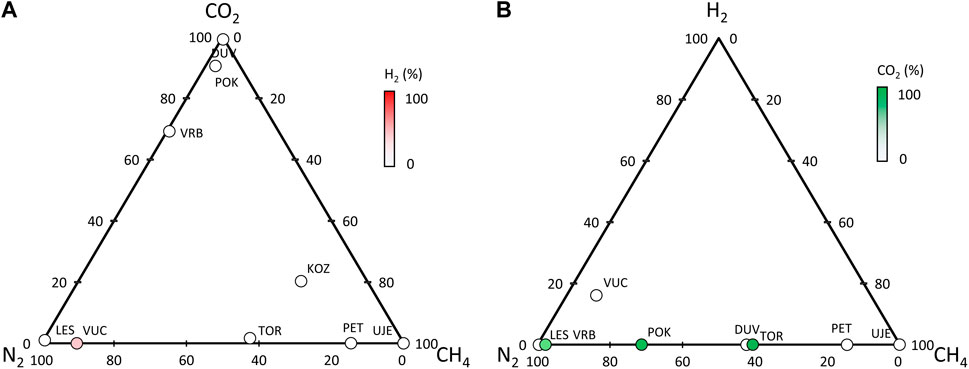

FIGURE 5. Gas compositions represented in ternary diagrams of (A) CO₂–N₂–CH₄ and (B) H₂–N₂–CH₄. For each diagram, the contents in H₂ and CO₂ are represented in red and green colors, respectively. See locations in Table 1.

FIGURE 6

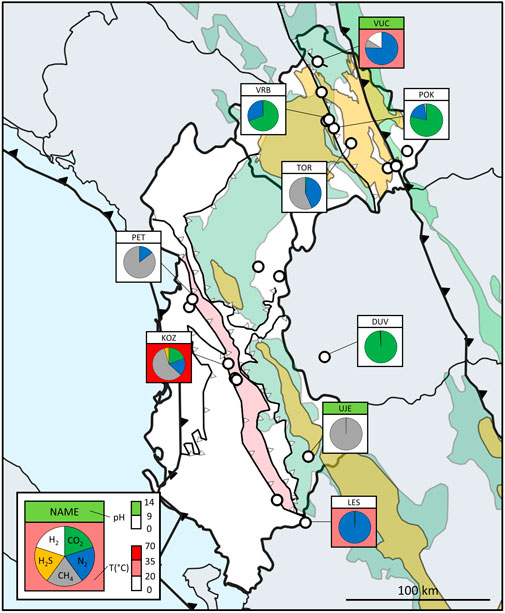

FIGURE 6. Gas composition of the different gas seeps with the temperature and pH of the associated water represented on the map shown in Figure 1C. The white points represent the studied gas seeps.

TABLE 2

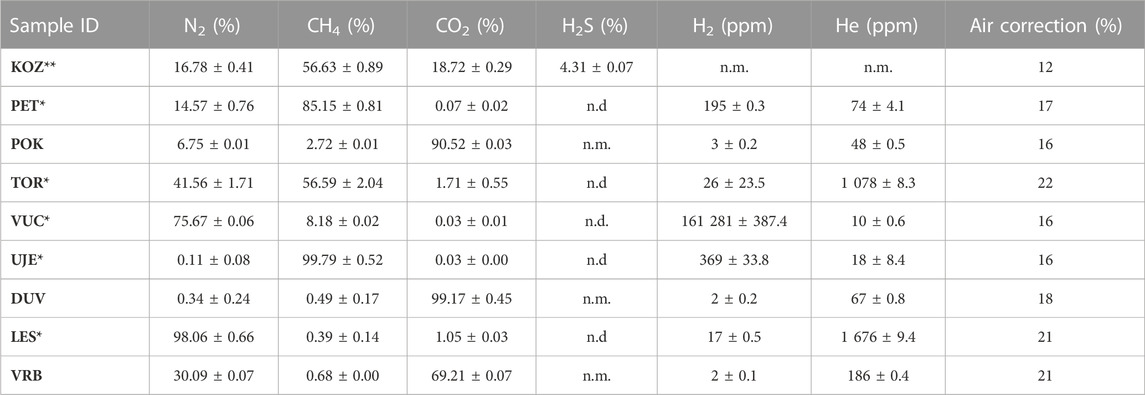

TABLE 2. Gas compositions of N₂, CH₄, CO₂, H₂S, H₂, and He with the associated air content used for air correction. The O₂ content is not represented being at 0%. The symbol * is used on the sample ID when the analysis is an average between analyses from the GC of 45-8 Energy and ISOLAB, the symbol ** when the analysis only comes from ISOLAB and when it is only from 45-8 Energy there is not any symbol.

We can distinguish three types of gas: CH₄-rich, CO₂-rich, and N₂-rich gas. It can be noted that Kozan and Vuçe also contain as a major gas 4.31% ± 0.01% of H₂S and 16.13% ± 0.04% of H₂, respectively.

H₂ was also detected in the other gases with content down to several ppm except in Petroleja and Ujë-i-Bardhë that contain 195 ± 0.3 ppm and 369 ± 33.8 ppm, respectively. Kozan also contains several hundreds of ppm of H₂ but as discussed in the methods, reported concentration is rather qualitative than quantitative. He was also detected as a minor gas. Its content is below 200 ppm for most of the gases, except from Torinë and Leskovik which have a He content of 1078 ± 8.3 ppm and 1676 ± 9.4 ppm. No relation is observed between H₂ and He which seem to be de-correlated (Figure 7).

FIGURE 7

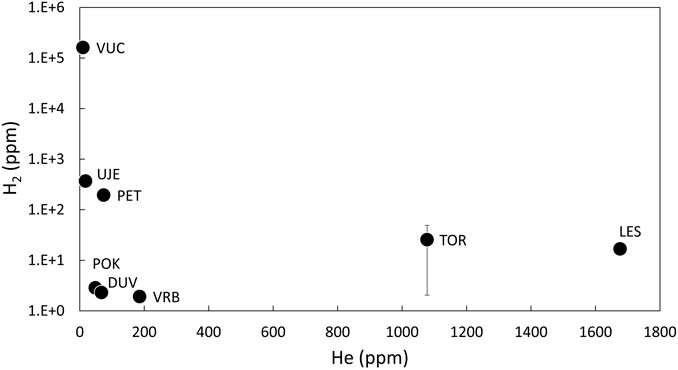

FIGURE 7. H₂ content against the He content. No correlation between H₂ and He is observed.

4.2 Isotopic analyses

To constrain the biotic or abiotic origin of CH₄, its C and H isotopic signatures have been measured (Table 3; Figure 8) when the gas contained enough CH₄. We observe that Torinë and Petroleja contain microbial CH₄, whereas CH₄ from Kozan and Ujë-i-Bardhë seems thermogenic. The analyses related to Vuçe spring and Vuçe show close isotopic signatures of CH₄ with δD values of −338 ± 2 and −336 ± 2 and δ¹³C values of −31.6 ± 0.2 and −30.6 ± 0.2, respectively. These isotopic values can be associated with abiotic CH₄ related to serpentinization (Etiope, 2017) or to microbial CH₄ (Xia and Gao, 2021; Xia and Gao, 2022). Finally, the measurement made in Leskovik gas shows an isotopic signature of CH₄ that is out of the classical signatures reported in the literature. This would need more analyses to be confirmed.

TABLE 3

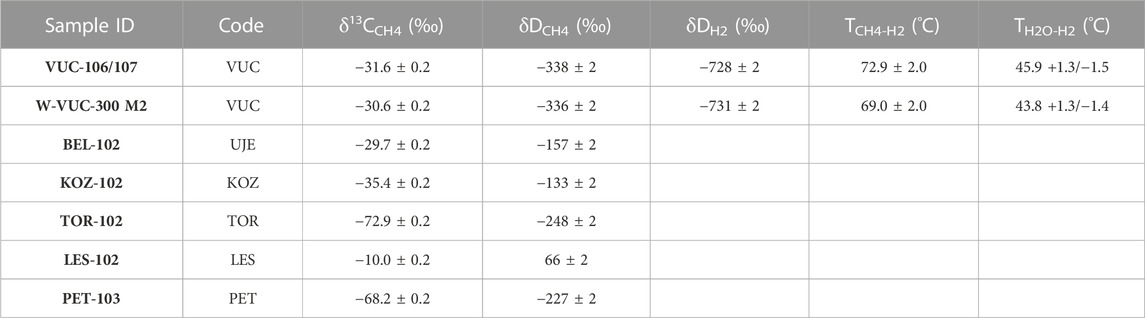

TABLE 3. Isotopic data of CH₄ and H₂ and the estimated temperature of equilibration based on the equation of Horibe and Craig (1995).

FIGURE 8

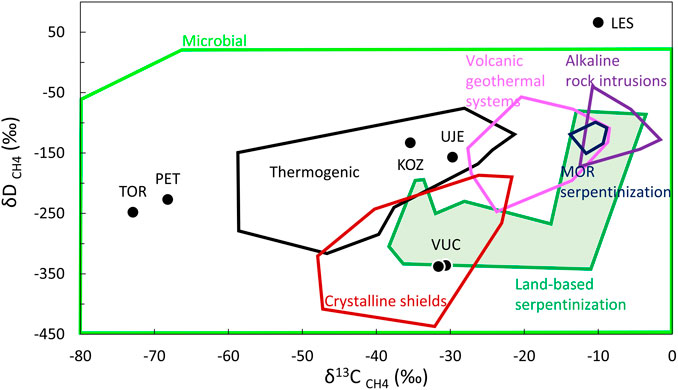

FIGURE 8. δD of CH₄ against δ¹³C of CH₄. The different zones on the diagram are from Etiope (2017) apart from the range defining microbial isotopic signatures that was extended based on the study by Xia and Gao (2022).

The H isotopic signature of H₂ was also measured in the gas of Vuçe spring and Vuçe well, in which H₂ is abundant. The measurements revealed a δD of −728‰ ± 2‰ and −731‰ ± 2‰, respectively. Based on the equations of Horibe and Craig (1995), a temperature of about −70 °C can be estimated using the CH₄–H₂ couple and about −45 °C for the H₂–H₂O couple. The meaning of these temperatures will be explored in the discussion.

5 Discussion

The obtained surface gas seeps dataset showed that, as anticipated, some locations exhibit a fraction of H₂. We will first discuss which locations are promising for H₂ exploration. The process at the origin of H₂ will be then discussed, before concluding about the important locations for H₂ exploration in the Dinarides.

5.1 Zones of interest for H₂ exploration

Four locations showed the presence of H₂ in the gas blend with more than 100 ppm in the area of interest: Kozan (−170 ppm before air correction), Petroleja (195 ± 0.3 ppm), Ujë-i-Bardhë (369 ± 33.8 ppm), and Vuçe (16.13% ± 0.04%). Associated with that, we can add that the gas flow is very important in Kozan, moderate in Vuçe and Ujë-i-Bardhë, and weak in Petroleja.

All these gases are associated with a variable fraction of CH₄, the highest one being Petroleja and Ujë-i-Bardhë with more than 85% of CH₄. Assessing the origin of CH₄ is key to highlighting possible reactions between H₂ and CO₂ that would, therefore, suggest that more H₂ has been/is being generated in the system but has been transformed into abiotic CH₄. This could be the case in Vuçe where CH₄ shows a potential abiotic signature and is likely to have formed via the Sabatier reaction:

$\mathbf{4}{\mathbf{H}}_{\mathbf{2}}+\mathbf{C}{\mathbf{O}}_{\mathbf{2}}\to \mathbf{C}{\mathbf{H}}_{\mathbf{4}}+\mathbf{2}{\mathbf{H}}_{\mathbf{2}}\mathbf{O}(2)$

However, the isotopic signature of CH₄ in Vuçe can also be related to microbial origin (Xia and Gao, 2021; 2022). For Kozan and Petroleja, the C and H isotopic signatures of CH₄ reveal a clear microbial origin, whereas for Ujë-i-Bardhë, it is thermogenic. The gas composition of Kozan in C₁–C₆+ (Supplementary Table S2) shows the presence of C₂–C₄ molecules which is consistent with the thermogenic origin. For Petroleja and Ujë-i-Bardhë, it cannot be ruled out that CH₄ is the result of the mixing of CH₄ of at least two different origins. The presence of C₂ in both gases could be related to a thermogenic origin like in Kozan. Petroleja could thus be a mix between microbial and thermogenic CH₄. Moreover, Ujë-i-Bardhë is a hyperalkaline spring, like Vuçe, with a pH of about 10.7. This high pH suggests that the process of serpentinization is likely to be currently ongoing (Barnes et al., 1967; Neal and Stanger, 1983; Abrajano et al., 1988; Deville and Prinzhofer, 2016), leading to the presence of OH⁻ based on reaction [1]. Then, CH₄ in Ujë-i-Bardhë could be a mix between CH₄ coming from thermogenic and serpentinization processes.

The area where serpentinization seems to occur is in the West Vardar zone which is consistent with the presence of ophiolites. However, no potential abiotic CH₄ was recorded in the Kruja zone which is a tectonic zone where thrusts go down to the ophiolites. The serpentinization seems, therefore, ongoing on the massif at rather low depth (<2 km), but more data are needed to know if it is also ongoing at great depth.

5.2 Origin of H₂

For the gas seeping out of the ophiolite massif in Vuçe and Ujë-i-Bardhë, where the water is hyperalkaline with a pH at about 10.7, we can infer that H₂ is likely to come from serpentinization. However, Vuçe and Ujë-i-Bardhë have to be discussed separately to better constrain how the serpentinization process might proceed.

Ujë-i-Bardhë is located at the southeastern boundary of the Korça Basin with the outcropping ophiolite, known as the massif of Voskopoja. The ophiolite is rich in lherzolite and known as intensively altered in this zone (Hoeck et al., 2014). The associated CH₄ is mainly thermogenic even if it can be partially abiotic. The fluid at the origin of the alteration could be recent meteoric water or an old aquifer. The gas is a blend with thermogenic CH₄ that could have been formed in the Korça Basin itself and could then have migrated via the boundary of the Korça Basin with the ophiolite. The low content of H₂ in the gas below 400 ppm could be related to a limited temperature slowing down the kinetics, or the fact that the peridotites are already highly serpentinized, limiting the process of serpentinization. A part of H₂ could also have been combined with CO₂ to form CH₄ by an abiotic or biotic process, but as the isotopic signature of CH₄ is mainly thermogenic, these processes seem limited.

The gas associated with Vuçe springs is located next to a thrust delimiting the ophiolite outcrop described as rich in harzburgite and Paleozoic gneiss belonging to the Jadar–Kopaonic block which constitutes the basement of the ophiolite (Supplementary Figure S1). H₂ is abundant in the gas with about −16% of H₂. By the presence of CH₄, whatever its origin, we can assume that more H₂ has been or is currently present in depth before the recombination of H₂ with CO₂. Based on the hydrogen isotopes of CH₄ and H₂, equilibrium temperatures of CH₄–H₂ and H₂–H₂O have been estimated to be about 70 °C and 45 °C, respectively. This means that the system CH₄–H₂–H₂O is in disequilibrium. This is typical of low-temperature serpentinization (Pester et al., 2018), where CH₄ and H₂ isotopic exchange is slower than that between H₂O and H₂. Hence, the H₂O–H₂ geothermometer represents a temperature of re-equilibration (Pester et al., 2018) which is lower than the CH₄–H₂ geothermometer. This latter geothermometer represents a temperature of equilibration between H₂ and CH₄ which can be associated with the alteration of H₂ into CH₄. This means that at 70 °C, H₂ was already formed. This temperature corresponds to a minimal temperature of serpentinization. Using a mean geothermal gradient of 30 °C/km, we can estimate that H₂ could have already been formed at about 2.3 km. The high pH suggests that this process is still ongoing. The thrust between the ophiolite and the gneiss is a favored path for gas.

The origin of H₂ in Kozan can be related to the thermogenic process where H₂ can be formed at high temperatures (Li et al., 2015; Horsfield et al., 2022). It is possible that a part of H₂ led to the formation of H₂S. Finally, we can propose that the H₂ in Petroleja could have been formed by thermogenics and/or bacteria. More work would be necessary to better constrain the origin of H₂ for Kozan and Petroleja. The origin of other sources with a low content of H₂ will not be discussed.

5.3 H₂ in the Dinarides

Based on this study and several other gas geochemistry studies conducted in the Dinarides area (Minissale et al., 1989; Daskalopoulou, 2017; Etiope et al., 2017; Randazzo et al., 2021), we now are able to fill in the map of H₂ occurrences in this region (Figure 9). To compare the data, we have corrected all the data in the literature from the air contamination. We observe that some hot spots for natural hydrogen appear in Bosnia and Herzegovina (8%–48% H₂), southeast Serbia (32%–85% H₂), and in the north of Kosova in Vuçe (16% H₂). H₂ is mainly associated with N₂ with several percent of CH₄ (Figure 10A). Regardless of the gas flow rate in the analyzed springs (which is in general modest and therefore could not be precisely measured), these locations are great to be considered in an H₂ exploration. Most of these H₂-rich springs are hyperalkaline and embedded in an ophiolite, therefore, inferring that H₂ is likely to be derived from serpentinization. Based on equilibrium temperatures of CH₄–H₂ and H₂–H₂O (Etiope et al., 2017) and despite re-equilibration, the serpentinization seems to occur at low temperatures (<100 °C).

FIGURE 9

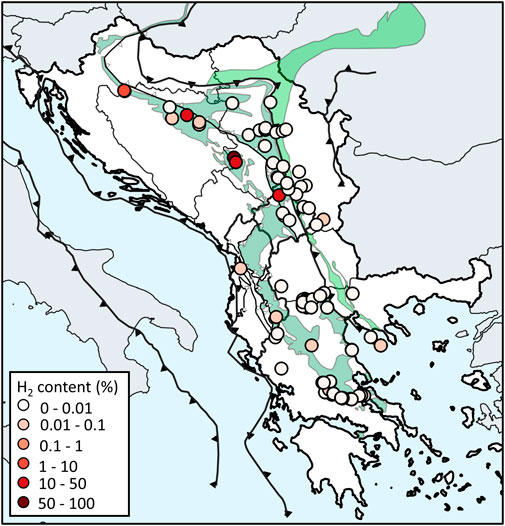

FIGURE 9. Compilation of the H₂ content in gas seeps in the Dinarides from this study and others in the literature (Minissale et al., 1989; Daskalopoulou, 2017; Etiope et al., 2017; Randazzo et al., 2021).

FIGURE 10

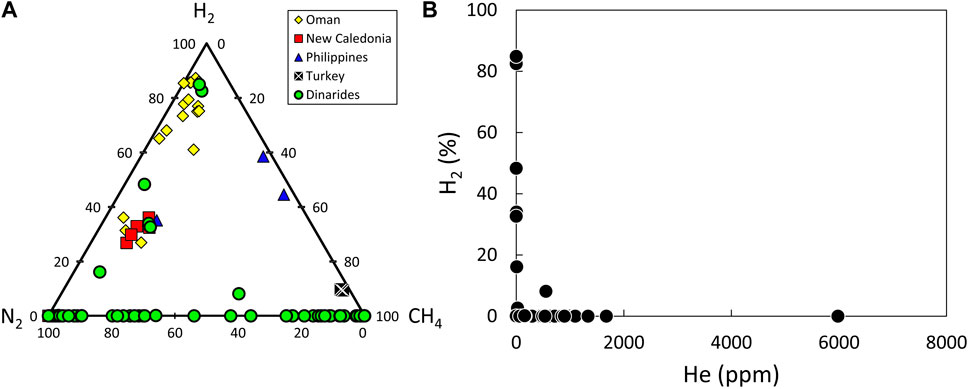

FIGURE 10. Compilation of gas compositions in the Dinarides represented in (A) ternary diagram of H₂–N₂–CH₄ in addition to gas compositions in Oman, New Caledonia, The Philippines, and Turkey (Vacquand et al., 2018) and plotted in (B) graph of H₂ content against He content.

It can be noted that the H₂-rich gases sampled in the Dinarides have comparable chemical compositions with the gases studied in other ophiolites such as those in Oman, New Caledonia, or The Philippines [Figure 10 (Vacquand et al., 2018)]. We can add that at the scale of the Dinarides, like for Albania and Kosova, H₂ does not seem related to He (Figure 10B). Therefore, they are de-correlated and have different sources, H₂ coming from serpentinization and He from crustal and/or mantle sources (Randazzo et al., 2021).

6 Conclusion

New gas measurements associated with natural springs in Albania and Kosova were made including H₂ data. Different types of springs were measured: CO₂-rich, N₂-rich, and CH₄-rich. Four springs with H₂ occurrence were analyzed. Three of them contained several hundred ppm of H₂, and one, 16% of H₂. This latter spring was sampled in the north of Kosova in a location named Vuçe. The main process at the origin of H₂ is likely to be serpentinization, occurring at about a 2-km depth based on H isotopic signatures and assuming normal geothermal gradient. No relation was found with He. With this new discovery, five seeps with more than 10% of H₂ are now referenced in Bosnia and Herzegovina, Serbia, and Kosova.

This study completes data at the scale of the Dinarides and shows that H₂ gas seeps are mainly located inside ophiolite massifs and not on major faults in the Kruja zone where the gas could have migrated like it is suggested in the Pyrenees (Lefeuvre et al., 2022). More work is now needed to better understand how the H₂-rich gas migrates to the surface and locate the potential gas traps in order to look for a reservoir of natural H₂.
