Two modes of gypsum replacement by carbonate and native sulfur in the Lorca Basin, SE Spain

Organoclastic sulfate reduction and bacterial sulfide oxidation have been suggested to explain the formation of authigenic carbonate and native sulfur replacing gypsum in the Lorca Basin, Spain. To gain more insight into the nature of this replacement, two types of sulfur-bearing carbonate (laminated and brecciated) from the late Miocene Lorca Basin were studied. Petrographic observations revealed that a sulfur-bearing laminated carbonate consists of clay-rich and dolomite-rich laminae with carbonate and native sulfur pseudomorphs after gypsum. Positive δ¹⁸O_carbonate values in the laminae (δ¹⁸O = 2.6‰) and lipid biomarkers of halophilic archaea (e.g., extended archaeol) suggest formation under hypersaline conditions. Bacterial sulfate reduction, evidenced by biomarkers such as iso-C₁₅, iso-C₁₆, and iso-C₁₇ fatty acids, produced hydrogen sulfide inducing the abiotic formation of organic sulfur compounds. Gypsum in the laminated carbonate likely dissolved due to undersaturation as evidenced by a low content of carbonate-associated sulfate (3,668 ppm) and ³⁴S-enriched native sulfur (δ³⁴S = 22.4‰), reflecting sulfate limitation. Such ³⁴S-enrichment implies limited fluid flow, which probably restricted the supply of molecular oxygen required for native sulfur formation through oxidation of hydrogen sulfide. Alternatively, sulfate-reducing bacteria may have mediated native sulfur formation directly as a stress response to environmental conditions. The formation of sulfur-bearing calcite in brecciated carbonates is due to post-depositional alteration. Negative δ¹⁸O values of the calcite (δ¹⁸O = −1.5‰) and a tenfold decrease in carbonate-associated sulfate content (752 ppm) suggest gypsum dissolution and subsequent calcite precipitation from meteoric water. Relatively ³⁴S-depleted native sulfur (δ³⁴S = 13.1‰) leaves it ambiguous whether meteoric water influx could have supplied sufficient molecular oxygen for oxidation of hydrogen sulfide. In case of the brecciated carbonate, methanogenesis, anaerobic oxidation of methane, and bacterial sulfate reduction apparently mediated the formation of secondary minerals as indicated by ¹³C-depleted lipid biomarkers representative for the respective metabolisms. This study reveals that the conditions and timing of gypsum replacement are variable–taking place 1) during or shortly after gypsum deposition or 2) significantly after sedimentation–and suggests that methanogens in addition to anaerobic methanotrophic archaea and sulfate-reducing bacteria may be involved in the mineral-forming processes in the sedimentary subsurface.

1 Introduction

Sulfate-bearing evaporitic deposits, such as gypsum or anhydrite, are commonly associated with replacement by authigenic carbonates and native sulfur. These replacement rocks are found in salt dome cap rocks, for instance in the coastal salt domes in the Gulf of Mexico, United States (Feely and Kulp, 1957; Caesar et al., 2019), or as stratabound deposits, like in the Messinian evaporites of Sicily (Hunt, 1915; Dessau et al., 1962; Ziegenbalg et al., 2010; 2012). The sulfur-bearing carbonates of the Lorca Basin in southeastern Spain replace gypsum layers in sedimentary rocks recording alternating periods of basin restriction and opening during the late Miocene (Russell et al., 1997; Rouchy et al., 1998). During basin restriction, abundant gypsum precipitated due to evaporation of seawater, while shales and diatomites, both rich in organic matter deposited during periods of open marine conditions with high primary productivity (Benali et al., 1995; Rouchy et al., 1998; Krijgsman et al., 2000; Drake et al., 2015). Shortly after deposition, the majority of gypsum was replaced by sulfur-bearing carbonates in the Lorca Basin (Rouchy et al., 1998; Andreetto et al., 2019), comprising six to eight layers of sulfur-bearing carbonate (Rouchy et al., 1998; Andreetto et al., 2019).

Gypsum dissolves under a range of environmental conditions (e.g., meteoric water influx, undersaturation of solution) to release calcium (Ca²⁺) and sulfate ions (SO₄²⁻). When abundant organic matter, oil, or methane are present, replacement of gypsum by authigenic carbonate and native sulfur formation is typically driven by microbial sulfate reduction. This produces hydrogen sulfide and bicarbonate (HCO₃⁻), the latter raising alkalinity and causing secondary carbonate precipitation, which is frequently represented by pseudomorphs after gypsum (Feely and Kulp, 1957; Davis and Kirkland, 1970; Anadon et al., 1992; Peckmann et al., 1999; Ziegenbalg et al., 2010; 2012; Aloisi et al., 2013). Alternatively, at temperatures above 100°C, abiogenic ‘thermochemical’ sulfate reduction is thought to degrade gypsum in a similar, yet abiotic fashion (Machel et al., 1995). However, the sediments in the Lorca Basin are immature and have therefore not experienced sufficiently high enough temperatures for thermochemical sulfate reduction (Benali et al., 1995; Machel, 2001; Permanyer et al., 2016).

Microbially-mediated, authigenic carbonate formation is inferred from characteristically low δ¹³C_carbonate values reflecting organic matter remineralization by heterotrophic sulfate-reducing bacteria (SRB, Ziegenbalg et al., 2010; Lindtke et al., 2011), oil-degradation (Aloisi et al., 2013), anaerobic oxidation of methane (AOM, Ziegenbalg et al., 2010), or mixed oil-degradation and AOM (Caesar et al., 2019). The sulfur-bearing carbonates replacing gypsum in the Lorca Basin have been suggested to result from organoclastic sulfate reduction (i.e., oxidation of low molecular weight organic compounds by sulfate-reducing bacteria; Andreetto et al., 2019), most likely fueled by organic matter from organic-rich shales and diatomites in the basin (Russell et al., 1997; Rouchy et al., 1998).

The microbial communities involved in these processes have been additionally characterized by molecular fossils. In case of some Messinian carbonates, characteristic lipids with extreme ¹³C-depletion were interpreted as biomarkers of anaerobic methanotrophic archaea (ANME) living in a syntrophic partnership with SRB (Ziegenbalg et al., 2012), much like the microbial communities found at marine methane seeps (Niemann and Elvert, 2008). Lipid biomarker data from oil-soaked carbonates rather pointed to oil degradation by SRB, with compounds including uncommon bacterial macrocyclic ether lipids (Baudrand et al., 2010; Aloisi et al., 2013). In samples from the German Zechstein, fatty acid patterns revealed that bacterial sulfate reduction was involved in the precipitation of diagenetic sulfur-bearing aragonite (Peckmann et al., 1999). Although SRB have to date not been recognized by lipid biomarkers for the Lorca Basin, abundant sulfurized organic compounds have been interpreted as evidence of abundant sulfate reduction (Benali et al., 1995; Russell et al., 1997, Russell er al., 2000; Rouchy et al., 1998). Indeed, organic sulfur compounds form when reduced sulfur species are present and when concentrations of metal ions are sufficiently low (especially Fe²⁺; for reviews see Werne et al., 2004; Amrani, 2014; Kutuzov et al., 2020).

The formation of native sulfur associated with carbonate replacement of sulfate minerals is commonly explained by the abiotic or biological oxidation of hydrogen sulfide in the presence of molecular oxygen (Machel, 1992; Andreetto et al., 2019). However, sulfur isotope analyses of gypsum, native sulfur, barite, celestine, and carbonate-associated sulfate (CAS) revealed that fluid flow in some sulfur deposits was too restricted to supply adequate amounts of molecular oxygen to convert hydrogen sulfide to native sulfur during diagenesis (cf. Labrado et al., 2019). The sulfur isotope offset (Δ³⁴S) between the most ³⁴S-enriched CAS and the most ³⁴S-depleted native sulfur subsequently reflects the ³⁴S-fractionation by microbial sulfate reduction, ranging from 0‰ to as large as 70‰ (e.g., Brunner and Bernasconi, 2005; Sim et al., 2011). Several alternative mechanisms for native sulfur formation other than oxidation of hydrogen sulfide with molecular oxygen have been proposed, all involving anaerobic processes driven by archaea and bacteria or various symbiotic partnerships (Labrado et al., 2019; Amend et al., 2020).

The Lorca Basin is ideal to study the various microbial activities and the potential mechanisms involved in the formation of sulfur-bearing carbonate because several types of sulfur-bearing carbonates with varying mineralogies and textures were found (Russell et al., 1997; Rouchy et al., 1998; Andreetto et al., 2019). To study the biogeochemistry of the Lorca Basin secondary carbonates in more detail, a multi-disciplinary approach is used on two types of sulfur-bearing carbonates, laminated and brecciated carbonates. Petrography, carbon, oxygen, and sulfur stable isotope analyses were performed to decipher the geochemical processes leading to the formation of such carbonates. Lipid biomarker and their compound-specific carbon isotope analysis were used to investigate which microbial processes were involved in the formation of gypsum-replacing carbonate.

2 Geological setting

The late Miocene Lorca Basin is located in the Betic Cordillera in southeastern Spain. The Betic Cordillera is an ENE-WSW oriented orogenic complex that resulted from the collision between the Iberian and African plates (de Galdeano, 1990). It contains several basins similar to the Lorca Basin. The basins are oriented parallel to the orogenic belt and are separated from each other by similarly oriented ranges of Betic basement rocks. During the late Miocene, these basins experienced progressive restriction, isolation, and eventually continental conditions (Rouchy et al., 1998; Krijgsman et al., 2000). The rock record of the transition from open marine conditions to isolation in the Lorca Basin is represented by sedimentary rocks outcropping at the NE-SW trending ridge of hills called La Serrata (Figure 1). A series of marls, organic-rich shales, and diatomites reflects the marine periods in a semi-enclosed intramontane basin typified by high productivity. Periods of increased basin restriction led to the deposition of intercalated gypsum layers in the sediment series, indicating evaporation and hypersalinity. On top of the succession are two thick evaporitic units of halite and gypsum, respectively, which represent the final stage of basin isolation (Garcia-Veigas et al., 1994; Garcia-Veigas et al., 1995).

FIGURE 1

FIGURE 1. Geological map of the Lorca Basin (modified after Garcia-Veigas et al., 2020). White areas are covered by Quaternary alluvium. Star symbol indicates sample location. Lithologies are shown with two names, based on either a Tortonian age (upper name, Garcia-Veigas et al., 2020) or a Messinian age (lower name, Carpentier et al., 2020). “Fm.” and “Mb.” are abbreviations for Formation and Member.

The age of the rocks in the Lorca Basin is a matter of debate. The respective lithologies carry different names (see Figure 1) based on age interpretation and correlation with other rocks. Rouchy et al. (1998) and more recently Carpentier et al. (2020) attributed a late Messinian age to the succession based on biostratigraphic and lithostratigraphic analysis. Both groups of authors argued that the sediment series and thick evaporites in the Lorca Basin deposited during the Messinian Salinity Crisis, a period typified by widespread deposition of similar successions in the Mediterranean Sea (Roveri et al., 2014; Andreetto et al., 2021). The sediments below the thick evaporitic units are believed to correlate with similar pre-evaporitic sediments found throughout the Mediterranean and are therefore referred to as Upper and Lower Tripoli Formation (Rouchy, 1982; García-Veigas et al., 1995). Krijgsman et al. (2000) on the other hand argued for a “Tortonian Salinity Crisis” in the eastern Betic Cordillera based on an integrated magnetostratigraphic, biostratigraphic, and cyclostratigraphic study of the Lorca Basin and another nearby basin. García-Veigas et al. (2020) also argued in favor of a Tortonian age, analyzing the geochemistry on the evaporites of the Lorca and the nearby Fortuna Basin, matching the age of evaporites in the nearby Las Minas and Cenajo Basins (Pineda et al., 2021). Both Krijgsman et al. (2000) and Kleikemper et al., 2004 dated the pre-evaporitic succession, named La Serrata Formation, as late Tortonian. This succession is subdivided into the Detrital Member and the Varied Member (Figure 1).

3 Materials and methods

Sulfur-bearing carbonates were sampled at the south end of the La Serrata ridge (Figure 1). The sample of laminated carbonate was collected in situ from an outcrop adjacent to the road C-15 (37°41′23.1″N, 1°44′10.7″W), though its stratigraphic position within the pre-evaporitic sediments could not be determined accurately due to poor outcrop conditions. Two similar samples of brecciated carbonate (1 and 2) were collected from mining dumps (37°41′23.9″N, 1°44′03.6″W; Table 1). Throughout the pre-evaporitic succession, several intercalated layers of gypsum-replacing carbonate layers are found. The brecciated carbonates derive from either gypsum-replacing carbonate layer 3 or 4 in the lower part of the succession. These layers were historically mined for sulfur and thus produced the mining dumps (Rouchy et al., 1998). The brecciated (1) carbonate sample failed to produce reliable compound-specific carbon isotope results for the alcohol compounds (see Results below). Though, some of the compounds in the alcohol fraction are crucial for the interpretation of secondary carbonate formation in the brecciated carbonates (see Discussion below). Therefore, the sulfur-bearing cement and cement-filled cavities (i.e., the secondary carbonate) were specifically selected and largely separated from the sedimentary clasts in the brecciated (2) carbonate sample to repeat this analysis.

TABLE 1

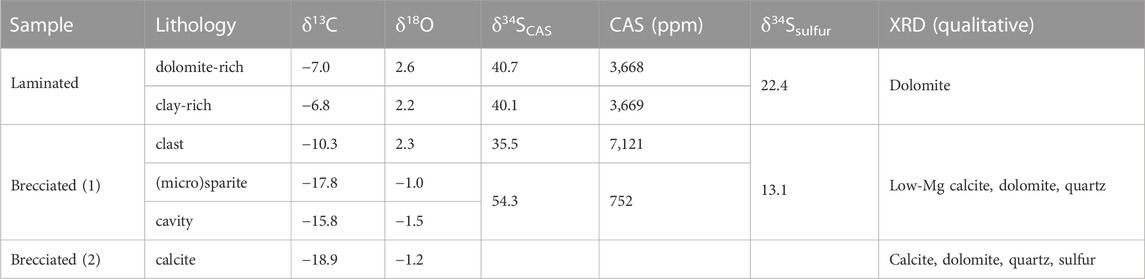

TABLE 1. Carbon, oxygen, and sulfur isotope compositions of individual carbonate phases, carbonate-associated sulfate (CAS) content, and mineralogy. Carbon and oxygen isotope values are in ‰ vs. V-PDB, sulfur isotope values are in ‰ vs. V-CDT.

Thin sections were prepared and partially stained with a combined potassium ferricyanide and alizarin red solution to distinguish calcite from dolomite (Füchtbauer, 1988). Petrography was performed with both cross-polarized and plane-polarized light on a Zeiss Axio Scope.A1 microscope mounted with a Canon EOS 1300D camera. Mineralogy was qualitatively determined for the laminated and brecciated (1) carbonate with a Stoe Stadi MP X-ray diffraction (XRD) system (Mo Kα radiation) at the Mineralogical-Petrographic Institute of the Universität Hamburg. The brecciated (2) carbonate sample was analyzed using a Siemens D-500 powder diffractometer (Ni filtered Cu Kα radiation) at the Laboratoire de Géologie of the University of Lyon.

Different textural phases in the brecciated (1) and laminated carbonate were subsequently drilled with a hand-held microdrill. The powders were analyzed for carbon and oxygen stable isotopes at the MARUM stable isotope laboratory of the University of Bremen. Measurements were performed on a ThermoFisher Scientific 253plus gas isotope ratio mass spectrometer with a Kiel IV automated carbonate preparation device. The analytical error over the measurement period for the in-house Solnhofen limestone standard was 0.03‰ for δ¹³C and 0.06‰ for δ¹⁸O values. The in-house standard was calibrated against a NBS 19 calcite standard. All carbon and oxygen stable isotope values are reported in per mil relative to Vienna Pee Dee Belemnite (V-PDB). Oxygen isotope values of carbonate with dominant dolomite mineralogy were not corrected because of an undetermined admixture of minor calcite (Sharma and Clayton, 1965). For the carbon and oxygen stable isotope analysis of the brecciated (2) sample, a semi-automated online method as described by Baudrand et al. (2012) and Aloisi et al. (2013) was used. Relative amounts of calcite and dolomite were quantified with the MacDiff program using the X-ray diffraction data. Dolomite and calcite contents were calculated by combining the relative quantification with carbonate content measurements from a Mélières manocalcimeter. Calcite and bulk carbonate stable isotope compositions were measured with an auto sampler MultiPrep^TM system coupled to a Dual-Inlet GV- isotope ratio mass spectrometer at the Laboratoire de Géologie of the University of Lyon. The standard deviation of the measurement was calculated as described in Baudrand et al. (2012). The error for the calcite stable isotope measurement was less than 0.10‰ for δ¹³C and 0.10‰ for δ¹⁸O values.

For the analysis of carbonate-associated sulfate (CAS) content and sulfur isotopes, different textural phases from the laminated carbonate and brecciated (1) carbonate were separated and were grinded manually to a fine powder. The powders were soaked overnight with a sodium chloride solution to remove easily soluble sulfate. Hydrochloric acid was added to dissolve the remaining carbonate. After dissolution, CAS was precipitated as barium sulfate by adding barium chloride to the acid insoluble residue (see Gischler et al., 2020). Content and isotope measurements were performed on an Elemental Analyzer (Elementar Pyro Cube) coupled to an isotope ratio mass spectrometer (Elementar GeoVisION) at the University of Texas at El Paso. The standard error (σ) was less than 0.30‰ for δ³⁴S values, based on repeated analyses of in-house and international standards. For the sulfur isotope measurements of native sulfur, solid sulfur from carbonate samples was extracted as Cu_xS_x using heptane and activated copper repeatedly. Cu_xS_x was then reduced into H₂S using acidic chromium reducible solution, prepared following the procedure of Fossing and Jørgensen (1989). The product H₂S was transformed into Ag₂S by reacting with a AgNO₃ solution (Geng et al., 2018), rinsed three times with MilliQ water and finally dried in an oven at 60°C. Ag₂S powder was subsequently reacted with F₂ to produce gaseous SF₆, purified (cryogenically and chromatographically) and analyzed by a dual inlet mass spectrometer MAT-253 at the Institut de Physique du Globe de Paris of Université Paris-Cité (Ono et al., 2006; Labidi et al., 2012). The δ³⁴S values were calibrated with an in-house SF₆ standard using IAEAS-1 international standard that has a δ³⁴S value of −0.31‰ V-CDT (Brand et al., 2014). Repeated analyses of IAEAS-1 yield δ³⁴S = −0.31‰ ± 0.2. All sulfur isotope measurements are reported as ‰ relative to Vienna-Canyon Diablo Troilite (V-CDT).

Preparation, decalcification, and extraction of lipid biomarkers for the laminated carbonate and the brecciated (1) carbonate followed the procedure described in Thiel et al. (1999), Birgel et al. (2006), and Sabino et al. (2020). The surfaces of the samples were removed, the remaining samples (188 g and 210 g) were crushed and carefully cleaned with acetone and 10% hydrochloric acid. The samples were subsequently dissolved with 10% hydrochloric acid. For each sample, the residual sediment was saponified with 6% KOH in methanol (MeOH) in a 50 ml screwcap vial in an ultrasonic bath at 80°C for 2 h. Lipids were extracted from the saponified sediment by repeated ultrasonication with dichloromethane (DCM):MeOH (3:1, v/v), until the solvent was colorless. The total lipid extract was then transferred to a separatory funnel and MilliQ water was added; to ensure the transfer of all fatty acids into the organic phase, pH was kept constant at 2 by adding 10% hydrochloric acid. The DCM phase containing the total lipid extract was repeatedly extracted from the funnel by adding new DCM and repeating the process. The total lipid extract was dried and then split into a n-hexane-soluble fraction (maltenes) and DCM-soluble fraction (asphaltenes). Elemental sulfur was removed overnight by adding activated Cu to the maltene fraction, which was further split into four fractions of increased polarity (hydrocarbons, ketones, alcohols, fatty acids) using column chromatography (SPE Chromabond, NH₂, 6 ml/500 mg). Half of the alcohol fraction was derivatized for 2 h at 80°C by adding pyridine and N,O-bis(trimethylsilyl)trifluoroacetamide (BSTFA; 1:1, v/v). The fatty acid fraction was derivatized for 1 h at 70°C by adding 10% borium trifluoride (BF₃) in MeOH. Fatty acids were subsequently extracted by adding n-hexane and MilliQ water and removing the organic supernatant. The underivatized part of the alcohol fraction was treated with hydrogen iodide and reduced with LiAlH₄ (cf. Birgel et al., 2014) to cleave ether bonds and release the side chains of archaeal and bacterial lipids, such as glycerol dibiphytanyl glycerol tetraethers (GDGTs) and isoprenoidal and non-isoprenoidal dialkyl glycerol diethers (DAGEs). The asphaltene fraction was desulfurized to release sulfurized compounds from organic macromolecules formed by intermolecular sulfurization (see Discussion for further explanation). The detailed desulfurization procedure was described in Sabino et al. (2020). The resulting hydrocarbons were separated from the remaining polar compounds with a silica gel column.

Lipid biomarkers were identified using a Thermo Scientific Trace GC Ultra gas chromatograph coupled to a Thermo Scientific DSQ II mass spectrometer; biomarkers were quantified using a Thermo Scientific Trace GC 1310 with a flame ionization detector. Both GCs used a 30 m DB-5MS ultra inert fused silica capillary column with a diameter of 0.25 mm and a film thickness of 0.25 μm. The GC temperature program was set to 50°C (held for 3 min) ramping up to 230°C at 5°C min⁻¹, and then to 325°C (held for 25 min) at 6°C min⁻¹. Compound-specific carbon isotope analysis was performed using an Agilent 6890 GC coupled sequentially to a Thermo Finnigan Combustion III interface and a Thermo Finnigan Delta Plus isotope mass spectrometer (GC-IRMS). The same column and temperature program as described above were used for the isotope measurements. δ¹³C values are reported in ‰ relative to V-PDB and were corrected for derivatization. The error of the δ¹³C values is less than 1‰. The δ¹³C values for the compounds in the alcohol fractions are reported only as ether cleavage products due to the high sulfur contents in this fraction, which compromised isotope measurements.

The brecciated (2) carbonate sample was extracted and separated as described in Baudrand et al. (2010) and Aloisi et al. (2013). The surface of the sample was taken away and the remaining sample was cleaned with acetone and subsequently ground manually in a mortar. Lipid biomarkers were extracted two times with MeOH, two times with DCM:MeOH (1:1, v/v), and finally two times with DCM using ultrasonication. Elemental sulfur was removed overnight by adding activated Cu to the extract. The extract was split into an apolar and a polar fraction by adsorption chromatography over a wet packed column of silica gel (4% H₂O). An aliquot of the polar fraction was derivatized for 1 hour at 60°C by adding pyridine and BSTFA (2:1, v/v). Lipid biomarker analysis was performed using GC-MS at the Laboratoire de Géologie of the University of Lyon. Lipid biomarkers were identified with a HP6890 GC interfaced to either a MD800 Voyager or an Agilent 5975C MS. The GC was equipped with the same column as described for the laminated and brecciated 1) carbonate. The GC temperature program was set to 60°C (held for 1 min), ramping up to 130°C at 20°C min⁻¹, and then to 320°C (held for 30 min) at 4°C min⁻¹. Compound-specific carbon isotope analysis was performed using either a Thermo MAT253 GC-irms (Pancost and Pagani, 2006), or a HP7890B gas chromatograph coupled to an Isoprime visION isotope ratio mass spectrometer via a GC-5 combustion interface at the Laboratoire de Géologie of the University of Lyon. The same column and temperature program as described above were used for the isotope measurements. All δ¹³C values are reported in ‰ relative to V-PDB and are corrected for derivatization. Errors for δ¹³C values were typically less than 1‰.

4 Results

4.1 Petrography, X-ray diffraction and stable isotopes

4.1.1 Laminated carbonate

The laminated Lorca carbonate shows irregular, wrinkly lamination, with laminae that vary in vertical thickness from half a millimeter to a centimeter. Lamination is horizontally continuous. The laminae are alternating between clay-rich and dolomite-rich (Figures 2A,B) and are not bioturbated. The dolomite laminae consist of microcrystalline dolomite and sparitic dolomite with local peloidal fabrics. Peloids are circular and roughly 100 µm up to 400 µm in size (Figure 2B). Both types of laminae contain carbonate pseudomorphs after gypsum (Figures 2A,B). The pseudomorphs range in size from 50 µm up to a few millimeters. The pseudomorphs in the dolomite-rich laminae are μm-sized, while those in the clay-rich laminae can be mm-sized. Pseudomorphs are lenticular, trapezoidal, and lozenge-shaped (Figures 2A,B). The elongated axes of these crystals are generally aligned with the layering. No deformation is apparent around the pseudomorphs. The majority of pseudomorphs consist of microcrystalline dolomite or have rims of dolomite, but large calcite crystals are common too (Figure 2A). Native sulfur and celestine are also solely found as pseudomorphs after gypsum (Figures 2A,B), again lacking evidence of deformation resulting from mineral growth. Native sulfur occasionally envelopes calcite (Figure 2B). The microcrystalline dolomite rims of pseudomorphs frequently enclose calcite, native sulfur, and celestine (Figure 2A).

FIGURE 2

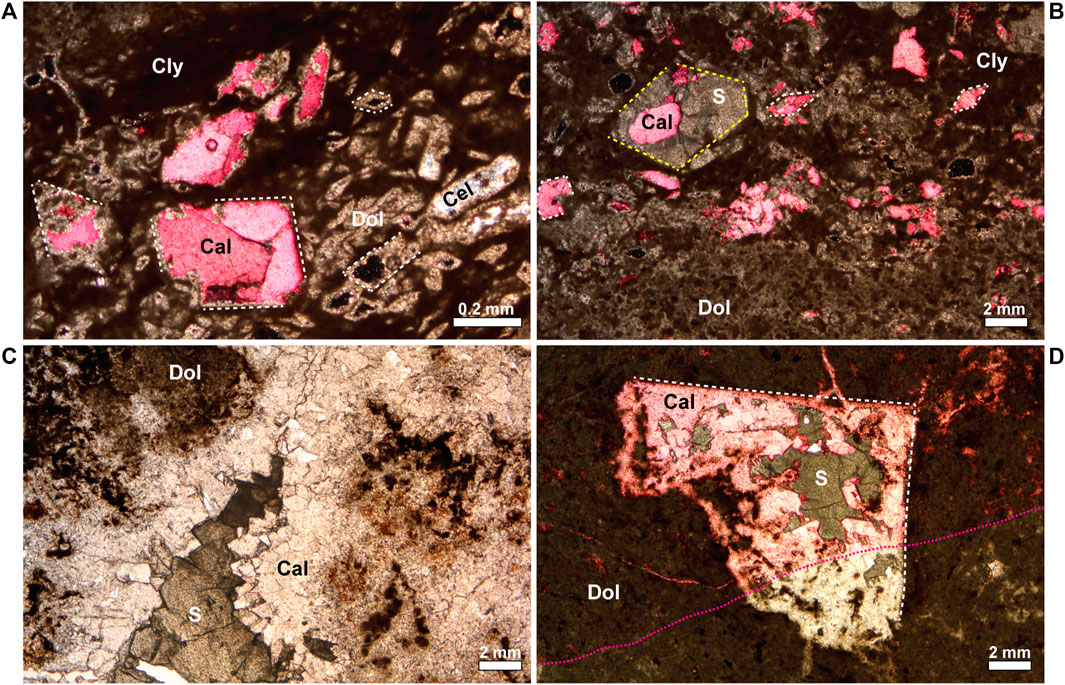

FIGURE 2. Petrography of the laminated (A, B) (under cross-polarized light) and brecciated (C, D) (under plane-polarized light) carbonates. White dashed lines in A and B delimit pseudomorphs after gypsum with dolomite rims. Yellow dashed lines highlight pseudomorphs after sulfur and sparry calcite. Calcite is stained pink with alizarin red-S. (C, D) Brecciated carbonate with peloidal dolomite, microcrystalline dolomite, sparry calcite cement, and sulfur. (D) Pseudomorphs after gypsum (white dashed line); calcite is partially stained pink with alizarin red-S (pink dotted line separates the stained from the unstained part of the thin section). Cal = calcite, Dol = dolomite, S = sulfur, Cel = celestine, Cly = clay-rich.

The carbon stable isotope compositions of carbonate in the laminae rich in microcrystalline dolomite and in the clay-rich laminae are similar (δ¹³C_dolomite = −7.0‰ and δ¹³C_clay = −6.8‰), whereas the oxygen stable isotope values show little more variability (δ¹⁸O_dolomite = 2.6‰; δ¹⁸O_clay = 2.2‰; Table 1). CAS contents in the laminated carbonate are similar with 3,668 ppm and 3,669 for the dolomite-rich and clay-rich laminae, respectively (Table 1) and CAS is enriched in ³⁴S (δ³⁴S_CAS-dolomite = 40.7‰; δ³⁴S_CAS-clay = 40.1‰). Native sulfur found in the laminated carbonate is also ³⁴S-enriched, although less than CAS (δ³⁴S_{native sulfur} = 22.4‰).

4.1.2 Brecciated carbonates

The brecciated carbonate samples consist of dolomite clasts, calcite cement, and large cavities. The lithology is matrix-dominated and contains clasts varying in size, from a few millimeters up to several centimeters. The fabric of the dolomite clasts is either aphanitic or peloidal (Figures 2C,D). Commonly clasts are crosscut by calcite veins. The clasts have either sharp or blurred boundaries (Figures 2C,D). Sharp clast boundaries probably reflect dissolved gypsum crystals that were adjacent to the clasts. Pseudomorphs after gypsum are abundant (Figure 2D). Pseudomorphs are several millimeters in size and have lenticular, trapezoidal, and lozenge shapes and contain calcite and native sulfur (Figure 2D). Calcite exhibits a (micro)sparitic texture (Figures 2C,D). Crystal growth started from physical boundaries, eventually forming scalenohedral calcite within cavities (Figure 2C). Native sulfur forms millimeter-sized nodules within calcite and cavities (Figures 2C,D). XRD analysis of the brecciated carbonate revealed that main carbonate phase is low-Mg calcite, accompanied by minor amounts of dolomite and quartz.

In the brecciated (1) sample, the calcite of the (micro)sparite texture and the calcite from cavity walls are both ¹³C-depleted (δ¹³C_{(micro)sparite} = −17.8‰; δ¹³C_cavity = −15.8‰; Table 1). The δ¹⁸O values show little variability (δ¹⁸O_{(micro)sparite} = −1.0‰; δ¹⁸O_cavity = −1.5‰). In the peloidal dolomite and clasts of microcrystalline dolomite, carbonate is less ¹³C-depleted and more ¹⁸O-enriched (δ¹³C_clast = −10.3‰; δ¹⁸O_clast = 2.3‰). In the brecciated (2) sample, the values obtained for calcite are similar to those of the (micro)sparite in the brecciated (1) sample (δ¹³C_calcite(2) = −18.9‰; δ¹⁸O_calcite(2) = −1.2‰). CAS contents in the brecciated (1) sample are 752 ppm and 7,121 ppm for the microsparite and the clasts, respectively (Table 1). CAS in the brecciated (1) sample is ³⁴S-enriched, although the value obtained from clasts (δ³⁴S_CAS-clast = 35.5‰) is significantly lower than the values obtained for microsparite (δ³⁴S_{CAS-microsparite} = 54.3‰). Native sulfur is also enriched in ³⁴S, although less than CAS (δ³⁴S_{native sulfur} = 13.1‰).

4.2 Lipid biomarkers and compound-specific carbon isotopes

4.2.1 Laminated carbonate

4.2.1.1 Hydrocarbon fraction

The total amount of hydrocarbons in the laminated carbonate is 3,840 ng/g rock (Supplementary Table S1). Among hydrocarbons, n-alkanes comprise 591 ng/g rock and show an odd-over-even predominance. Short-chain n-alkanes (C₁₅-C₂₄) are more abundant than long-chain n-alkanes (C₂₅-C₃₃), with n-C₁₇ as most abundant alkane. Isoprenoid hydrocarbons comprise 1,050 ng/g rock, with phytane as most abundant compound (618 ng/g rock). Phytane is accompanied by several unsaturated phytenes. Other, minor isoprenoid hydrocarbons are farnesane, nor-pristane, pristane, phytane, 2, 6, 10, 15, 19-pentamethylicosane (irregular PMI; hereafter “PMI” as opposed to 2, 6, 10, 14, 18-pentamethylicosane; hereafter “regular PMI”), and squalane. Other minor hydrocarbons are methyl-trimethyl-tridecyl-chromanes, albeit in low contents (36 ng/g rock in total).

The major lipid group in the hydrocarbon fraction are organic sulfur compounds with total contents of 2,163 ng/g rock (Figure 3A). Organic sulfur compounds in the laminated carbonate mainly comprise various thiophenes, thiolanes, and thianes (cf. Werne et al., 2004; Amrani, 2014; Kutuzov et al., 2020). High amounts of alkyl benzo[b]thiophenes, with a total content of 562 ng/g rock, are also observed (cf. Sinninghe Damsté and de Leeuw, 1990; Kutuzov et al., 2020). Organic sulfur compounds also include isoprenoids, such as various phytane thiophenes and regular PMI thiophenes. Sulfurized highly branched isoprenoids (HBIs), especially C₂₅ HBIs, sum up to 422 ng/g rock (cf. Wakeham et al., 1995) and include thiophenes, thiolanes, and thianes. Sulfurized cyclic terpenoids, such as C₂₇ to C₂₉ steranes thiophenes and thiols (cf. Adam et al., 1991; Behrens et al., 1997), and C₃₅ hopane thiophenes (cf. Valisolalao et al., 1984), are found too. The sulfurized steranes are highly abundant, with a total content of 272 ng/g rock, whereas the sulfurized C₃₅ hopanes have a content of 53 ng/g rock.

FIGURE 3

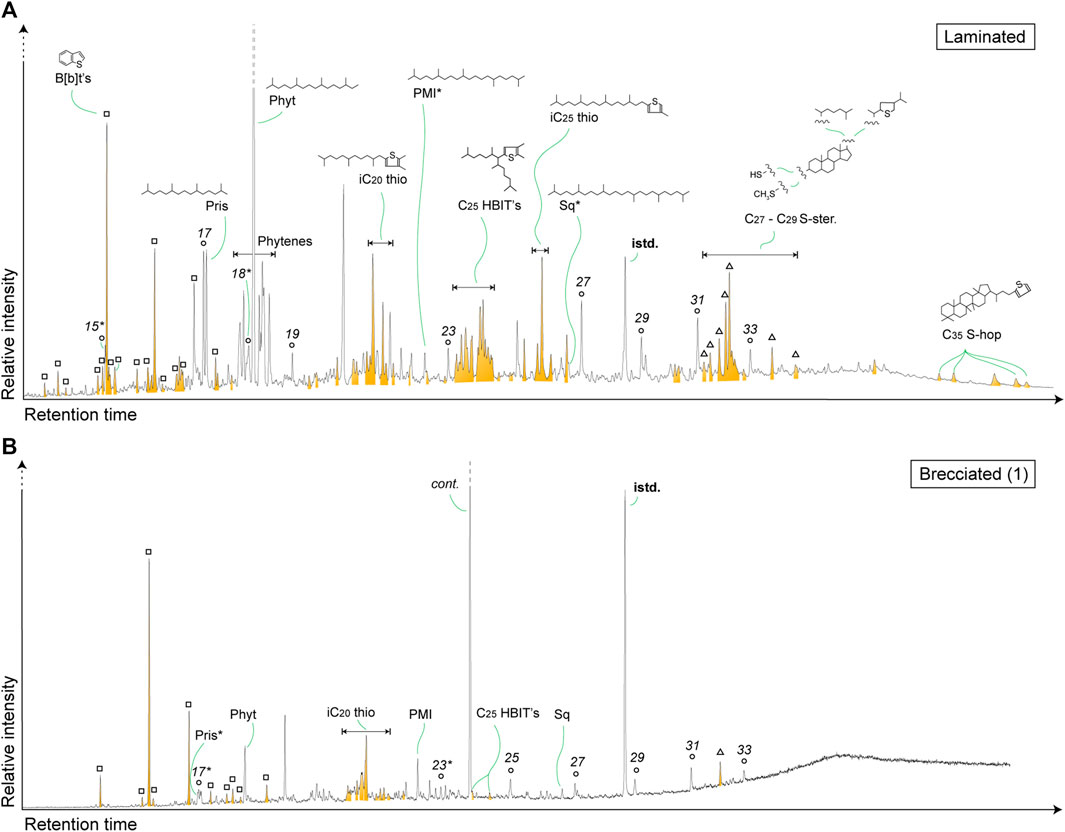

FIGURE 3. Partial gas chromatograms (GC-FID) of hydrocarbon fractions of (A) laminated carbonate and (B) the brecciated (1) carbonate. Squares indicate benzo[b]thiophenes, circles highlight n-alkanes numbered with their corresponding chain length, and triangles indicate sulfurized steranes. Yellow colored peaks correspond to organic sulfur compounds. For selected compounds, molecular structures and names are provided. For steranes, different structural configurations of the found steranes are shown. B[b]t’s = benzo[b]thiophenes, Pris = pristane, Phyt = Phytane, iC₂₀ thio = phytanyl thiophenes, thiolanes and thianes, iC₂₅ thio = PMI thiophenes, C₂₅ HBIT’s = C₂₅ highly-branched isoprenoid thiophenes, thiolanes and thianes, Sq = squalane, C₂₇–C₂₉ S-ster. = C₂₇–C₂₉ steranes with thiols or thiolanes, C₃₅ S-hop = C₃₅ thiophene hopanes, istd = internal standard, cont. = contamination. * = co-elution.

The δ¹³C values of the long chain n-alkanes vary from −28 to −21‰, whereas the short-chain n-alkanes range from −29‰ to −23‰ (Supplementary Table S1; Figure 4). The free saturated isoprenoids show δ¹³C values ranging from −21‰ to −18‰. Phytane has a δ¹³C value of −21‰, δ¹³C values of phytenes range from −27‰ to −16‰. The δ¹³C value of pristane (δ¹³C = −21‰) needs to be interpreted with caution as it partly co-elutes with n-C₁₇ (δ¹³C = −26‰). The organic sulfur compounds have δ¹³C values ranging from −21‰ to −13‰. Benzo[b]thiophenes show δ¹³C values ranging from −19‰ to −17‰. The δ¹³C values of phytane thiophenes range from −20‰ to −18‰, regular PMI thiophenes yielded a value of −18‰ and values of sulfurized HBIs range from −21‰ to −19‰. Neither sterane and hopane thiophenes nor methyl-trimethyl-tridecyl-chromanes yielded δ¹³C values due to too low contents.

FIGURE 4

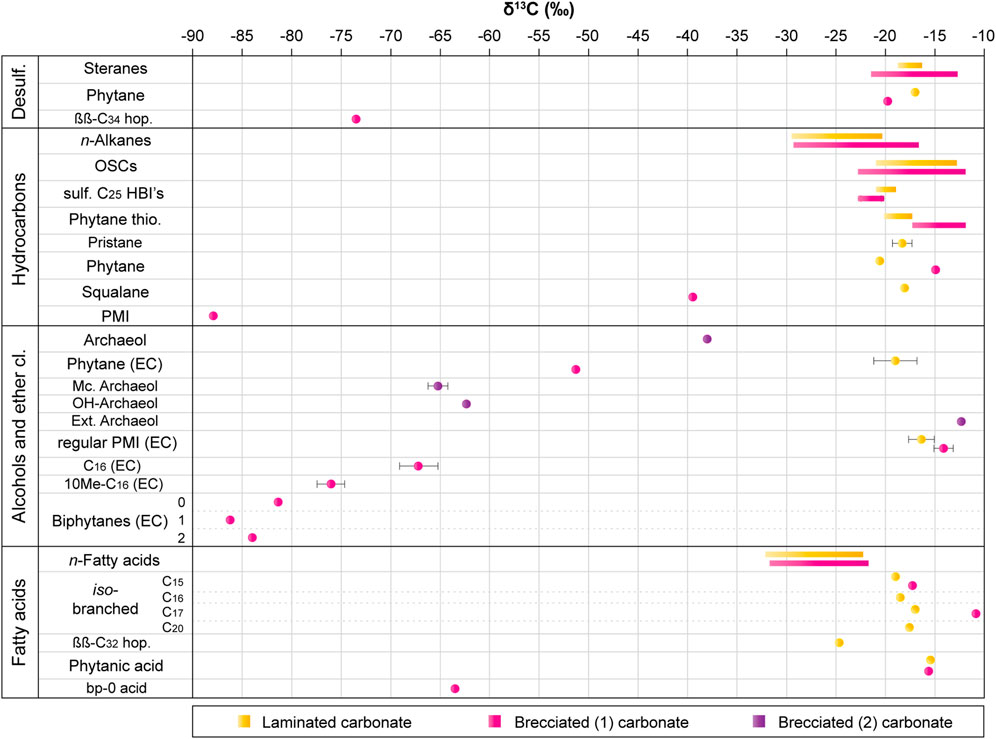

FIGURE 4. Compound-specific carbon isotope composition of selected biomarkers. δ¹³C values are in ‰ vs. V-PDB. Colored circles are δ¹³C values for specific compounds. Color bars show ranges of values for grouped compounds (e.g., n-alkanes). Error bars are shown when σ > 1. ββ-C₃₄ hop. = 17β(H),21β(H)-C₃₄ hopane, OSCs = organic sulfur compounds, sulf. C₂₅ HBIs = sulfurized C₂₅ highly-branched isoprenoids (includes thiophenes, thiolanes and thianes), Phytane thio. = phytane thiophenes, PMI = 2,6,10,15,19-pentamethylicosane, McDGs = macrocyclic dietherglycerols, where A, B and C refer to different moieties (see Results for more details), Mc. Archaeol = macrocylic archaeol, OH-Archaeol = sn-2 hydroxyarchaeol, Ext. Archaeol = extended archaeol, PMI regular = 2, 6, 10, 14, 18-pentamethylicosane, Biphytanes 0, 1 or 2 = biphytanes with 0, 1 or 2 cyclopentane rings, ββ-C₃₂ hop. = 17β(H),21β(H)-C₃₂ hopanoic acid, bp-0 acid = acyclic biphytanic acid. EC = compounds released and measured for their isotopes after ether cleavage.

4.2.1.2 Alcohols and ether cleavage products

The total amount of alcohols in the laminated carbonate is 1,525 ng/g rock, of which 209 ng/g rock are short-chain n-alcohols; long-chain alcohols are absent (Supplementary Table S1). Isoprenoid alcohols are most abundant and make up 1,269 ng/g rock. 2,3-diphytanyl-O-sn-glycerol-diether (C_20-20 archaeol) is the most abundant compound in this fraction (893 ng/g rock). 2-O-phytanyl-3-O-sesterterpanyl-sn-glycerol-diether (C_20-25 archaeol = extended archaeol) is present in minor amounts of 70 ng/g rock (Supplementary Figure S1). The C₂₀ isoprenoid alcohol phytanol was found with 306 ng/g rock. Other compounds are non-isoprenoidal macrocyclic glycerol diethers (McDGs A-C; cf. Baudrand et al., 2010), which are present with low contents.

Due to an unresolved mixture of compounds in the alcohol fractions, compound-specific carbon isotope values of intact compounds were found to be not reliable, therefore their ¹³C compositions were determined from their ether cleaved hydrocarbon products. Ether cleavage of the underivatized alcohol fraction produced phytane, predominantly derived from cleavage of archaeol, but also from phytanol and partially extended archaeol. This phytane has a δ¹³C value of −18‰. Regular PMI, deriving from the cleavage of extended archaeol, has a δ¹³C value of −16‰. Acyclic biphytane, which derives from GDGT-0 and GDGT-1, was identified as well, though present in minor amounts (16 ng/g rock). Measurements did not yield a δ¹³C value for acyclic biphytane due to too low contents. Contents of other biphytanes (bicyclic, tricyclic) were too low to be quantified and could not be measured for compound-specific carbon isotope compositions.

4.2.1.3 Fatty acid fraction

The fatty acid fraction yielded by far the highest content of lipid biomarkers summing up to 79.7 μg/g rock, which is about 20 times more than the hydrocarbon and alcohol fractions (Supplementary Table S1). Saturated n-fatty acids are the dominant components, with a content of 73.5 μg/g rock and a characteristic even-over-odd predominance. Saturated short-chain n-fatty acids (C₁₁-C₂₄) are significantly more abundant than long-chains (C₂₅-C₃₂), with 3.7 μg/g rock against 1.5 μg/g rock. The most abundant saturated n-fatty acids are C₁₈, C₂₂, and C₂₈ (1.0, 20.0, 1.0 μg/g rock, respectively). A series of terminally branched iso- and anteiso-fatty acids ranges from C₁₃ to C₂₀, with iso-C₁₅ and iso-C₁₇ most abundant. The ratio of anteiso-/iso-fatty acids shows a predominance of iso-fatty acids, ranging from 0.14 to 0.28. Only for C₁₉, anteiso-fatty acid predominates over iso-fatty acid with a ratio of 4.34. Besides terminally branched fatty acids, the mid-branched 10Me-C₁₆ fatty acid and a series of isoprenoic fatty acids are present. Among them are farnesic (3, 7, 11-trimethyldecanoic), pristanic (2, 6, 10, 14-tetramethylpentadecanoic), phytanic (3, 7, 11, 15-tetramethylhexadecanoic), and regular PMI acids. Hopanoic acids with chain lengths from C₃₁ to C₃₅ are present with both 17α(H), 21β(H) and 17β(H), 21β(H) stereoisomers. Further, two C₁₈ thiophenic acids were identified (116 ng/g rock and 64 ng/g rock).

Short-chain n-fatty acids have δ¹³C values ranging from −32‰ to −23‰, and values of long-chain n-fatty acids range from −30‰ to −23‰. δ¹³C values of iso-fatty acids range from −19‰ to −17‰, whereas δ¹³C values of anteiso-fatty acids could not be obtained due to too low contents. Isoprenoic fatty acids have δ¹³C values spanning from −18‰ to −15‰. 17β(H),21β(H)-C₃₂ hopanoic acid has a δ¹³C value of −25‰.

4.2.1.4 Desulfurized asphaltene fraction

The desulfurized asphaltene fraction contains hydrocarbons released after cleavage of sulfurized macromolecules (see Discussion for further explanation; Supplementary Table S1). Unfortunately, n-alkanes could not be reliably investigated due to contamination with n-alkanes from the chemical reactant used for desulfurization. Other compounds include isoprenoids (178 ng/g rock) with phytane most abundant (153 ng/g rock). Steranes account for a content of 213 ng/g rock. Phytane from desulfurization has a δ¹³C value of −17‰, steranes range from −19‰ to −15‰.

4.2.2 Brecciated carbonates

4.2.2.1 Hydrocarbon fraction

Brecciated (1) carbonate has a total hydrocarbon content of 406 ng/g rock (Supplementary Table S1). Among the hydrocarbons, 88 ng/g rock are n-alkanes. The n-alkanes reveal odd-over-even dominance for long-chain n-alkanes, with n-C₃₁ as the most abundant n-alkane (Figure 3B). No short-to mid-chain n-alkanes other than n-C₂₃ and n-C₂₄ are present. Isoprenoids have a total content of 73 ng/g rock. Phytane is the most abundant isoprenoid compound with a content of 40 ng/g rock, accompanied by minor amounts of squalane and PMI. As for the laminated carbonate, organic sulfur compounds are the major group in the hydrocarbon fraction of the brecciated (1) carbonate, with a total content of 258 ng/g rock. Benzo[b]thiophenes comprise 132 ng/g rock in total. The brecciated (1) carbonate also contains phytane thiophenes with 60 ng/g rock. Sulfurized HBIs include thiophenes, thiolanes, and thianes, albeit in low abundance (21 ng/g rock) and dominated by C₂₀ HBIs. A C₂₉ steroid thiolane (Behrens et al., 1997) is present too.

The δ¹³C values of the long-chain n-alkanes vary from −29‰ to −17‰, with long-chain n-alkanes ranging from −29‰ to −21‰ and short-chain n-alkanes ranging from −21‰ to −17‰. The δ¹³C values for the isoprenoids are −88‰ for PMI, −39‰ for squalane, and −15‰ for phytane. Organic sulfur compounds have values ranging from −23‰ to −12‰. Alkyl benzo[b]thiophenes have δ¹³C values ranging from −20‰ to −17‰. Values of phytane thiophenes span from −17‰ to −12‰, those of HBI organic sulfur compounds range from −23‰ to −15‰ and the C₂₉ steroid thiolane has a δ¹³C value of −16‰.

4.2.2.2 Alcohols and ether cleavage products

The brecciated (1) carbonate yielded 1,455 ng/g rock of alcohol compounds in total (Supplementary Table S1). Among the alcohols, 53 ng/g rock are n-alcohols exclusively composed of short-chain n-alcohols. Isoprenoid alcohols are the major group of compounds with a total content of 1,273 ng/g rock. Archaeol is the most abundant compound (1,036 ng/g rock). Other isoprenoidal glycerol diethers are present in lesser amounts (Supplementary Figure S1), as, for example, extended archaeol (30 ng/g rock) or macrocyclic archaeol (cf. Comita et al., 1984; 89 ng/g rock) and sn2-hydroxyarchaeol (C_20,20 sn2, C-7 hydroxy diphytanyl glycerol diether, 46 ng/g rock). Phytanol is a minor compound (48 ng/g rock). A non-isoprenoidal dialkyl glycerol diether (DAGE) is present in minor amounts (31 ng/g rock). This compound was identified as a C₃₆ DAGE (cf. Vinçon-Laugier et al., 2016). The structure was further confirmed after ether cleavage, which yielded a 10Me-C₁₆ alkane and a n-C₁₆ alkane. Other glycerol diethers present are the McDGs A-C (14 ng/g rock, 17 ng/g rock, 21 ng/g rock, respectively).

Due to an unresolved mixture of compounds in the alcohol fraction, compound-specific carbon isotope values of intact compounds were found to be not reliable for the brecciated (1) carbonate sample. Isotope measurements gave reproducible results for the alcohol fraction from the brecciated (2) carbonate sample. δ¹³C values were −38‰ for archaeol, −12‰ for extended archaeol, −65‰ for macrocyclic archaeol and −65‰ for sn2-hydroxyarchaeol.

Other compounds of the alcohol fraction released after ether cleavage in the brecciated (1) carbonate sample are acyclic, monocyclic, and bicyclic biphytanes with contents of 291 ng/g rock, 31 ng/g rock, and 21 ng/g rock, respectively. The compounds mostly derive from the ether cleavage of GDGT-0 to GDGT-4 (Birgel et al., 2008), although the ether cleavage of macrocyclic archaeol also results in acyclic biphytane. Biphytanes are strongly ¹³C-depleted, with δ¹³C values of −81‰ for acyclic biphytane, −86‰ for monocyclic biphytane, and −84‰ for bicyclic biphytane, suggesting only minor contribution of ether-cleaved biphytane from macrocyclic archaeol, which has a higher δ¹³C value of −65‰ (see above).

Ether cleavage of the alcohol fraction from the brecciated (1) sample resulted in regular PMI, deriving from the cleavage of extended archaeol, with a δ¹³C value of −14‰. Phytane released after ether cleavage shows a δ¹³C value of −51‰. This compound derives from phytanol and isoprenoidal glycerol diethers, with the largest contribution probably deriving from the abundant archaeol. The alkanes released by C₃₆ DAGE show δ¹³C = −76‰ for 10Me-C₁₆ and δ¹³C = −67‰ for C₁₆, though the δ¹³C of the C₁₆ alkane is affected by minor contributions of n-C₁₆ alcohol.

4.2.2.3 Fatty acid fraction

The fatty acid fraction corresponds to an overall high content of 11.5 μg/g rock (Supplementary Table S1). The saturated n-fatty acids are the dominant components, with a content of 10.4 μg/g rock and a characteristic even-over-odd predominance. Saturated long-chain n-fatty acids including C₂₉ (7.5 μg/g rock) are more abundant than short-chain n-fatty acids. Brecciated (1) carbonate yielded a series of terminally branched iso- and anteiso-fatty acids including C₁₅, C₁₆, and C₁₇. Anteiso-predominate over iso-fatty acids with a ratio ranging from 0.19 to 0.24. Pristanic, phytanic, and PMI acids as well as biphytanic diacid (bp-0) are present in the brecciated (1) carbonate, with phytanic acid most abundant (881 ng/g rock). δ¹³C values of n-fatty acids range from −31‰ to −22‰. The most abundant fatty acid, n-C₂₉, has a δ¹³C value of −22.0‰, while iso- and anteiso-fatty acids range from −17‰ to −11‰. Other values obtained include −16‰ for phytanic acid and −64‰ for bp-0 acid.

4.2.2.4 Desulfurized asphaltene fraction

The desulfurized asphaltene fraction contains 31 ng/g rock isoprenoids with phytane as most abundant compound (27 ng/g rock; Supplementary Table S1). Other compounds are various steranes, accounting for a content of 114 ng/g rock. Another compound in this fraction is 17β(H), 21β(H)-C₃₄ hopane with a content of 6 ng/g rock. Phytane has a δ¹³C value of −20‰. δ¹³C values of steranes range from −21‰ to −13‰, whereas 17β(H),21β(H)-C₃₄ hopane is strongly ¹³C-depleted (−74‰).

5 Discussion

5.1 Modes of carbonate formation

Both macroscopic and petrographic observations allow to differentiate the studied sulfur-bearing carbonates into two categories: (1) macroscopically unaltered, where dolomite is the main sulfur-bearing carbonate phase (i.e., the laminated carbonate) and (2) diagenetically altered with calcite as sulfur-bearing carbonate phase (i.e., the brecciated carbonates). Microbial sulfate reduction driving the formation of authigenic carbonate and native sulfur may only occur after gypsum dissolution. However, the explanation of gypsum replacement in the laminated carbonate by dolomite and native sulfur is not straightforward since low-temperature formation of dolomite is kinetically inhibited. Microbial activity arguably mitigates these kinetic constraints, enabling dolomite formation at low temperature (for a review see Petrash et al., 2017 and references therein). Specifically, SRB are suspected to play a key role due to their ability to mitigate potential inhibiting and catalyzing factors (Lippmann, 1973; Kastner, 1984; Burns and Baker, 1987; Markham et al., 2002; Zhang et al., 2012; Lu et al., 2018) and being present at many sites of contemporary dolomite formation (Bontognali et al., 2012; 2014; Krause et al., 2012; Lu et al., 2021).

Abiotic dolomitization textures like neomorphic dolomite rhombs are lacking in both the laminated carbonate and the dolomite-rich clasts in the brecciated carbonate. Rather, peloidal and aphanitic microcrystalline fabrics are observed (Figures 2B,C), which are considered as evidence of a microbial contribution to carbonate precipitation (Flügel, 2004). Microbial mediation is further supported by δ¹³C values of the laminated carbonate (δ¹³C = −7.0‰ and −6.8‰) and the dolomite-rich clasts in the brecciated (1) carbonate sample (δ¹³C = −10.3‰), revealing a contribution of organic carbon to carbonate formation. In addition, the formation of dolomite requires magnesium ions. Evaporation and gypsum precipitation likely concentrated magnesium in the brines (Rouchy et al., 1998), favoring dolomite formation (Warren, 2000). ¹⁸O-enrichment of the dolomite-rich carbonate with δ¹⁸O values as high as 2.6‰ and abundant gypsum pseudomorphs agree with evaporitic conditions during dolomite formation in the laminated and the dolomite-rich clasts in the brecciated carbonate. Positive δ¹⁸O_carbonate values are generally explained by the evaporation of seawater, as ¹⁶O partitions more easily into the water vapor phase and consequently the residual solution becomes enriched in ¹⁸O (Ziegenbalg et al., 2010). The new Lorca oxygen isotope data is consistent with previous isotope data from primary evaporitic dolomites of the Lorca Basin (Rouchy et al., 1998).

The laminated carbonate and the dolomite-rich clasts in the brecciated carbonate formed similarly, as evidenced by petrography and stable isotope composition. However, post-depositional alteration caused the later formation of sulfur-bearing calcite in the brecciated carbonates, as demonstrated by its precipitation between the brecciated clasts (Figure 2B). The δ¹³C value of sulfur-bearing calcite (as low as −18.9‰) in the brecciated carbonates also indicates a higher contribution of carbon derived from microbial oxidation of organic compounds (cf. Ziegenbalg et al., 2010; Caesar et al., 2019). Moreover, negative δ¹⁸O values of calcite as low as −1.5‰ reflect precipitation from meteoric water (Ziegenbalg et al., 2010) rather than evaporation. Likewise, the sparitic matrix (i.e., the sulfur-bearing calcite) shows a tenfold decrease in CAS content compared to clasts (752 ppm and 7,121 ppm respectively), which is characteristic for meteoric diagenesis (Gill et al., 2008). Evidently, influx of meteoric water led to the dissolution of gypsum and possibly reduced the volume of the original dolomite-rich carbonate, causing brecciation. The change from hypersaline to meteoric conditions and the concomitant brecciation of the original rock implies that both the influx of meteoric water and the formation of sulfur-bearing calcite in case of the brecciated carbonates occurred significantly later after gypsum deposition and sedimentary lithification (i.e., during early diagenesis). A possible mechanism to explain this scenario is that the pre-evaporitic succession of the Lorca Basin was characterized by repeated opening and restriction (cf. Rouchy et al., 1998). The re-opening of the Lorca Basin could have potentially introduced “fresher” water into the subsurface, subsequently causing gypsum dissolution, though this is a speculation as dating of the rocks is difficult.

Evidently, the two sulfur-bearing carbonates have different modes of formation. The formation of sulfur-bearing calcite in the brecciated carbonates was triggered by meteoric water influx significantly after sedimentary lithification, as evidenced by brecciation, and the peculiar oxygen isotope composition. Dolomite, calcite and native sulfur in the laminated carbonate precipitated during or shortly after gypsum deposition, as evidenced by the relatively undisturbed laminae, mineralogy, and the oxygen isotope composition. Because different pathways of formation are proposed, different modes of native sulfur genesis are probable. Both carbonate lithologies lack any petrographic evidence for native sulfur formation by bacterial sulfide oxidation (i.e., filamentous microfossils), as found in other sulfur-bearing carbonates of the Lorca Basin (Andreetto et al., 2019). In the brecciated carbonates, a possible mechanism for native sulfur formation could be meteoric water supplying molecular oxygen for abiotic sulfide oxidation. Native sulfur in the brecciated carbonates is less ³⁴S-enriched (13.1‰) than gypsum in the pre-evaporitic sediments (δ³⁴S_mean = 20.3‰ and 23.3‰, cf. Garcias Veigas et al., 2020; Playa et al., 2000). Furthermore, CAS reveals even more ³⁴S-enrichment during the precipitation of the sulfur-bearing calcite (54.3‰) compared to the dolomite clast (35.5‰). The ³⁴S-depletion of native sulfur with respect to gypsum and the range of ³⁴S-enrichment between sulfur and sulfate bearing phases (Δ³⁴S = 40.3‰) is akin to other sulfur deposits affected by meteoric diagenesis (Δ³⁴S = 41‰–66‰; Labrado et al., 2019). Differences in the S isotopic composition here between CAS, gypsum, and native sulfur mimic the isotope pattern reported for moderate to restricted fluid flow and limited to no supply of molecular oxygen in those deposits (cf. Labrado et al., 2019). These observations suggest that hydrogen sulfide oxidation was negligible or did not occur. Consequently native sulfur was most likely formed in an anoxic setting by a yet unknown mechanism (Labrado et al., 2019).

Evidence for gypsum dissolution by meteoric water is lacking for the laminated carbonate (positive δ¹⁸O values; Table 1). The CAS content of the laminated carbonate is significantly lower (3,668 and 3,669 ppm) than in the dolomite-rich clasts of the brecciated (1) carbonate (7,121 ppm). Sulfate consumption by SRB lowers sulfate concentrations, causing sulfate undersaturation and subsequent gypsum dissolution, as reported for other gypsum deposits (Bąbel, 2007; De Lange and Krijgsman, 2010; Natalicchio et al., 2021). Prominent sulfate reduction was taking place in the depositional environment as evidenced by the presence of organic sulfur compounds (cf. Benali et al., 1995; Russell et al., 1997, Russell et al., 2000; Rouchy et al., 1998). Maximum ³⁴S-fractionation between CAS and native sulfur (³⁴Δ = 18.3‰) is also within the range reported for bacterial sulfate reduction in natural environments (Habicht and Canfield, 1997; Canfield, 2001; Detmers et al., 2001; Wortmann et al., 2001; Avrahamov et al., 2014). Assuming dolomite precipitation was mediated by SRB, lowered sulfate levels are further supported by the dolomite rims and dolomite pseudomorphs after gypsum (Figure 2A). With ongoing sulfate consumption and gypsum dissolution though, calcium ions were released and carbonate formation shifted from dolomite to calcite during later stages of carbonate formation, as evidenced by pseudomorphs after gypsum with calcite cores and dolomite rims (Figure 2A). Similar to calcite, native sulfur formation also occurred after gypsum dissolution, as evidenced by its occurrence as pseudomorphs after gypsum (Figure 2B). The ³⁴S-enrichment of native sulfur, nearly identical to pre-evaporitic gypsum, also supports complete consumption and no external supply of sulfate. Additionally, this suggests no external supply of molecular oxygen for sulfide oxidation either. Yet, this interpretation is solely based on isotope patterns reported for (semi-)closed systems of sulfur deposits formed significantly after sedimentary deposition (i.e., epigenetic formation; Labrado et al., 2019), whereas the depositional basin environment was not physically closed with regard to sulfur cycling. Native sulfur formation in the laminated carbonate likely formed by an unknown mechanism in an anoxic setting, though sulfide oxidation cannot be ruled out completely due to the architecture of the basin and its unknown physical processes of transporting molecular oxygen.

5.2 Disentangling molecular signals of the depositional environment

In Messinian replacement carbonates dominated by calcite, biomarkers of SRB were found to be akin to biomarkers found in methane-seep deposits (Ziegenbalg et al., 2012). In those calcium carbonates and at methane seeps, lipid biomarkers of SRB are easily discerned by their extreme ¹³C-depletion, due to their syntrophic relation with ANMEs (Elvert et al., 2003; Blumenberg et al., 2004; Niemann and Elvert, 2008). In great contrast to these earlier observations, the laminated Lorca carbonate does not contain extremely ¹³C-depleted archaeal and bacterial lipid biomarkers. The majority of microbially-derived compounds in the laminated carbonate shows δ¹³C values ranging from roughly −25‰ to −15‰ (Figure 4). Therefore, it is rather challenging to distinguish biomarkers of SRB from other signals of the depositional environment. Petrography and isotope data suggest that the dolomite-rich clasts of the brecciated carbonates likely precipitated in a similar fashion as the laminated carbonate. In accord with those observations, the biomarker inventories of the laminated carbonate and brecciated carbonates include many similar compounds with similar ¹³C-depletion, which supposedly derive from the sedimentary depositional environment of the Lorca Basin. The brecciated carbonates, however, have been altered post-depositional, changing its biomarker inventory and adding additional compounds lacking in the laminated carbonate.

A proxy for the sedimentary organic matter input is the presence of long-chain n-alkanes (C_27-33), which derive from leaf waxes of terrestrial plants (Eglinton and Eglinton, 2008). Both laminated and brecciated carbonates contain similar long-chain n-alkane patterns, although these compounds are more prominent in the laminated carbonate (Supplementary Table S1). Their δ¹³C values are in the same range (−29‰ to −21‰) and reflect a mixture of C₃ plants (−38‰ to −32‰) and C₄ plants (−25‰ to −18‰; Collister et al., 1994; Naafs et al., 2012).

Organic sulfur compounds are present in both lithologies, although they are more abundant in the laminated carbonate. They form either through reactive organic compounds incorporating sulfur (intramolecular), ending up as free organic sulfur compounds, or through sulfide bridges between individual compounds (intermolecular), ending up as sulfurized macromolecules (Werne et al., 2004; Amrani, 2014; Kutuzov et al., 2020). Organic sulfur compounds provide further insight into the original sedimentary input present during bacterial sulfate reduction, as reactive organic compounds are otherwise easily degraded. Sulfurization under euxinic conditions in the water column would probably have preserved compounds specific of anoxygenic phototrophic bacteria or organisms living in stratified water bodies, such as isorenieratane (Sinninghe Damsté et al., 1995; Wakeham et al., 2012; Sabino et al., 2021) and tetrahymanol or its degradation product gammacerane (Repeta et al., 1989; Van Gemerden and Mas, 1995; Wakeham et al., 2007; Sala et al., 2021), respectively. Both lipids were not observed in the bitumen and the desulfurized asphaltenes, arguing against water column euxinia and stratification at the time of deposition. The sulfurization of the lipids therefore rather took place in the sediment. Both types of sulfur-bearing carbonates exhibit similar inventories of organic sulfur compounds with similar δ¹³C values from −23‰ to −12‰. Phototrophic microalgae were present during the sedimentary deposition of both carbonates as evidence by sulfurized C₂₅ HBIs (δ¹³C = −21‰ to −19‰), which derive from marine diatoms (Sinninghe Damsté and Rijppstra, 1993; 1999; Volkman et al., 1994; Grossi et al., 2004). Marine diatoms were continuously present in the basin leading to diatomite deposition during periods of high productivity in the pre-evaporitic period of the Lorca Basin (Rouchy et al., 1998). C₂₅ HBIs are known to sulfurize fast and completely within ca. 500 years after deposition (Wakeham et al., 1995; Werne et al., 2000; Sinnighe Damsté et al., 2007).

The sulfurized HBIs are accompanied by various sulfurized steranes; sulfurization of steranes is supposed to be somewhat slower but is completed after 1,000–3,000 years after deposition (Kok et al., 2000). The source of steranes is ambiguous, possibly including algae and higher plants (Huang and Meinschein, 1979; Volkman, 1986). Steranes in the laminated and brecciated carbonates are dominated by C₂₇ and C₂₉ steranes. Similar sulfurized steranes are found in Lorca Basin shales (Benali et al., 1995). Sterane ratios can be used to identify their origin, but sulfurization preferentially affects C₂₇ sterols and stanols over C₂₉ sterols and stanols (Kok et al., 2000; Wang et al., 2004). The δ¹³C values of C₂₇ to C₃₀ steranes from the desulfurized fraction are relatively uniform in both the laminated (−19‰ to −15‰) and the brecciated carbonates (from −21‰ to −13‰), suggesting similar sources. Moreover, the isotopic values are in the same range as those of HBIs and other organic sulfur compounds.

Both types of Lorca carbonates also contain free and sulfur-bond acyclic isoprenoids. One source of acyclic isoprenoids are archaeal cell membranes (Tornabene et al., 1979; Brassell et al., 1981; Chappe et al., 1982; Rowland, 1990; Grice et al., 1998), but some isoprenoids, like phytane and pristane, may also derive from the degradation of the phytol chain of chlorophyll (Powell and Mc Kirdy, 1973; Didyk et al., 1978). The free isoprenoids vary in their δ¹³C values from −18‰ to −16‰ for the laminated carbonate, phytane in the brecciated carbonate shows a similar δ¹³C value of −15‰. Such range partially overlaps with the δ¹³C values of free phytane (−17‰ to −12‰) in the brecciated carbonate, and phytane released by desulfurization of the asphaltenes from both carbonates, ranging from −20‰ to −17‰. At first glance, such pattern seems to suggest a common source of free and sulfurized acyclic isoprenoids from the water column, as observed for the sulfurized steranes and the HBIs. However, an alternative, archaeal source for both compounds needs to be considered since high contents of archaeol are found in the laminated carbonate; archaeol is a common membrane lipid among archaea (Tornabene et al., 1979; Kates, 1993; Hinrichs et al., 1999; Dawson et al., 2012; Tourte et al., 2020). Archaeol may be degraded to phytane, yet free phytane in the brecciated carbonate (1) sample does not show similar δ¹³C values as archaeol, disagreeing with archaeol as source compound. However, the isotopic fingerprint of archaeol-derived phytane after ether cleavage in the laminated carbonate is only slightly heavier (−19‰) than the free and sulfur-bound phytanes. Although the phytane isotope compositions after ether cleavage reflect a mixture of archaeol, phytanol, and extended archaeol, the major part is derived from archaeol, which is significantly more abundant than the other isoprenoids in the alcohol fraction. Since the isotopic signature of all phytanes are more or less similar and the isotopic signature of lipids from phototrophic algae are in the same range, phytane apparently represents a chlorophyll-derivative in this case, although minor contribution from archaea cannot be excluded.

At least two archaeal communities were likely present in the depositional environments of the laminated carbonate and the dolomite-rich clasts in the brecciated carbonate. Extended archaeol, a biomarker of halophilic archaea (Teixidor et al., 1993; Dawson et al., 2012), was found in both the laminated and the brecciated carbonates. It is used as a salinity proxy as it is not produced below 50 psu (Vandier et al., 2021). Regular PMI, which was identified after ether cleavage of extended archaeol, shows a similar ¹³C-depletion as extended archaeol found in Messinian filament-bearing gypsum (Natalicchio et al., 2022). More evidence for the presence of archaea in the depositional environments stems from minor amounts of acyclic biphytane observed after ether cleavage of GDGT-0, a transmembrane lipid produced by several archaeal families but not by Haloarchaea (Bauersachs et al., 2015; Bale et al., 2019; Tourte et al., 2020). Beside archaeal lipids, bacterial non-isoprenoid McDGs are present in the laminated and brecciated carbonates, further supporting the scenario of enhanced salinity during sedimentary carbonate formation. Initially reported by Baudrand et al. (2010) as products of extremophilic bacteria, McDGs have since then been reported for a wide variety of environments with either increased salinity or gypsum dissolution (Ziegenbalg et al., 2012; Aloisi et al., 2013; Birgel et al., 2014; Sorokin et al., 2021; Natalicchio et al., 2022).

The involvement of sulfide-oxidizing bacteria in native sulfur formation, as suggested by Andreetto et al. (2019), cannot be confirmed by lipid biomarkers. Major lipids of sulfide-oxidizing bacteria are saturated and unsaturated C₁₆ and C₁₈ fatty acids (McCaffrey et al., 1989; Zhang et al., 2005; Arning et al., 2008). Saturated C₁₆ and C₁₈ fatty acids are abundant in the laminated carbonate and show similar δ¹³C values as other lipids, but such compounds can be produced by a wide variety of organisms and are therefore not diagnostic. Unsaturated C₁₈ fatty acids were also likely present during bacterial sulfate reduction as evidenced by thiophenic C₁₈ fatty acids in the laminated carbonate. To conclude, these biomarkers are not source-specific as they are produced by a large variety of microorganisms including SRB (Stackebrandt, 2014). Since sulfide-oxidizing bacteria cannot be traced by lipid biomarkers, their involvement in native sulfur formation cannot be excluded.

5.3 Biomarker evidence of bacterial sulfate reduction and its role in native sulfur formation in the laminated carbonate

Assignment of biomarkers in the laminated carbonate to SRB is difficult because δ¹³C values do not allow discerning such biomarkers confidently from those of other microbial groups. Other evidence for microbial sulfate reduction is the large isotopic fractionation between CAS and native sulfur, the presence of organic sulfur compounds and, to a lesser extent, the δ¹³C_carbonate values of both clay- and dolomite-rich laminae and the presence of dolomite. The mid-chain branched fatty acid 10Me-C₁₆ is commonly assigned to SRB (Taylor and Parkes, 1983; Elvert et al., 2003; Londry et al., 2004; Vinçon-Laugier et al., 2017), yet it is only present in small amounts compared to the other biomarkers in the laminated carbonate. Terminally branched fatty acids are also common in marine SRB (Kaneda, 1991). Iso- and anteiso-C₁₅ and -C₁₇ fatty acids, with a predominance of iso over anteiso, and iso-C₁₆ fatty acids are synthesized by a wide variety of SRB (Stackebrandt, 2014; Zakharyuk et al., 2015; Thioye et al., 2017; Watanabe et al., 2017; Spring et al., 2019). Other fatty acids common in SRB are saturated C₁₄ to C₁₈ fatty acids, and unsaturated C₁₆ and C₁₈ fatty acids.

The δ¹³C values of iso-C₁₅, iso-C₁₆, and iso-C₁₇ fatty acids (−19‰, −18‰, −17‰, respectively) agree with a common source, likely representing SRB. The δ¹³C values of saturated C₁₄ to C₁₈ fatty acids are lower (−25‰ to −23‰), possibly indicating multiple producers including SRB. The iso-C₁₅, iso-C₁₆, and iso-C₁₇ fatty acids assigned to SRB reveal δ¹³C values indistinguishable from other compounds from the depositional environment, agreeing with organoclastic sulfate reduction. Minor ¹³C-fractionation in the lipids of SRB compared with substrates has been observed in culture experiments (Londry and des Marais, 2003; Londry et al., 2004) and reef microbialites (Heindel et al., 2010; 2012). During culture studies, little fractionation was found to be associated with heterotrophic growth (i.e., organoclastic sulfate reduction), consistent with observations made for heterotrophic microorganisms in general (Hayes, 1993; Abraham et al., 1998). Culture studies also showed that fatty acids produced by Desulfotomaculum acetoxidans have relatively high δ¹³C values when substrate is limited. Other species of SRB grown under similar conditions did not reproduce these results, and it has been suggested that high δ¹³C values can be used as an indication for growth substrate availability when Desulfotomaculum species are dominant (Londry et al., 2004). Coincidentally, iso-C₁₅ and iso-C₁₇ fatty acids are produced in significant amounts by Desulfotomaculum species (Parshina et al., 2005; Stackebrandt, 2014). Still, caution is required when using such information for the reconstruction of paleoenvironments, since carbon isotope fractionation in bacteria is affected by complex processes such as enzymatic pathways, microbial interactions and environmental conditions (Londry and des Marais, 2003). Heindel et al. (2012) suggested a combination of enzymatic ¹³C-enrichment and bacterial consumption of isotopically heavy extracellular polymeric substances (EPS) to explain relatively ¹³C-enriched lipids of SRB in reef environments. Microbes secrete EPS, which mainly consists of polysaccharides (Decho, 1990; Sutherland, 2001).

The obtained sulfur isotope data seem to suggest that molecular oxygen was low to absent during native sulfur formation in the laminated carbonate (see above), rendering abiotic or bacterial sulfide oxidation unlikely. Interestingly, SRB have recently been reported to form native sulfur (Zhang et al., 2020; Cai et al., 2022; Liu et al., 2022). SRB responding to salt stress is another potential mechanism for native sulfur formation (cf. Labrado et al., 2019). Marine sediments in the Lorca Basin have a high dolomite content but, contrary to the laminated carbonate, no native sulfur (Rouchy et al., 1998). The main differences between these Lorca Basin lithologies were probably different degrees of salinity as evidenced by gypsum pseudomorphs and the biomarkers of halophiles in the laminated carbonate. Under hypersaline conditions, microbes are required to cope with osmotic stress (e.g., Fernandes et al., 1993). This can suppress some metabolic processes, particularly processes yielding little energy (Brown, 1978; Welsh et al., 1996; Oren, 1999; Oren, 2013). Under stressed conditions, intermediate sulfur compounds used in microbial sulfate reduction can leak out of cells and can potentially form native sulfur (Fitz and Cypionka, 1990; Bishop et al., 2013). Such a scenario is supported by the presence of the non-isoprenoidal McDGs, membrane lipids that are arguably used to adapt to extreme, possibly sulfidic conditions. Other evidence is the relatively high δ¹³C values of iso-C₁₅, iso-C₁₆ and iso-C₁₇ fatty acids that suggest substrate limitation or consumption of isotopically heavy substrate (see above).

5.4 Biomarker evidence of methanogenesis, AOM, and bacterial sulfate reduction in the brecciated carbonates

The brecciated carbonates contain extremely ¹³C-depleted lipids similar to biomarkers of SRB and ANME found at marine methane seeps (Peckmann and Thiel, 2004; Birgel et al., 2008; Niemann and Elvert, 2008; Ziegenbalg et al., 2012; Thiel, 2020). Yet, different degrees of ¹³C-depletion are observed among these biomarkers. The strong, uniform ¹³C-depletion of macrocyclic archaeol, acyclic biphytanic diacid (bp-0), and sn2-hydroxyarchaeol (δ¹³C = −65‰, −64‰, −62‰, respectively) suggests a common archaeal source. Whereas sn2-hydroxyarchaeol is common in various methanogens and methanotrophs (Koga et al., 1998; Peckmann and Thiel, 2004), macrocyclic archaeol is more specific for thermophilic autotrophic methanogens (Comita et al., 1984; Baumann et al., 2018). Acyclic biphytanic diacid is a degradation product of GDGT-0 (Liu et al., 2016), which is occasionally found in sediments and more commonly in carbonates (Schouten et al., 2003; Birgel et al., 2008; Smrzka et al., 2017). Taken together, these lipids mimic the order-specific membrane composition of the haloalkaliphilic methanogen Methanosalsum natronophilum (Bale et al., 2019). Thus, it is likely that these archaeal lipids are indeed derived from methanogens similar to M. natronophilum. Methanosalsum natronophilum also produces GDGT-0 as major membrane lipid, like other methanogens (Koga et al., 1998; Bauersachs et al., 2015). Abundant acyclic biphytane after ether cleavage is indeed present in the Lorca brecciated carbonate, but with a lower δ¹³C value of −81‰. Moreover, acyclic biphytane is accompanied by ¹³C-depleted mono- and bicyclic biphytanes (−85‰ on average). Therefore, acyclic biphytane is possibly deriving from mixed archaeal sources. One source is probably methanogens related to M. natronophilum, producing both GDGT-0 and macrocyclic archaeol.

Source organisms of the ring-containing GDGTs present in the brecciated Lorca carbonate probably did not include methanogens, since methanogens have rarely been described to produce these membrane lipids (Bauersachs et al., 2015). The corresponding ¹³C-depleted biphytanes may rather derive from methanotrophic archaea since ANMEs produce such GDGT patterns (Blumenberg et al., 2004). Similarly, PMI is characteristic for ANMEs (Elvert et al., 1999; Thiel et al., 1999; Ziegenbalg et al., 2012), but also for some methanogens (e.g., Brassell et al., 1981; Schouten et al., 1997; Londry et al., 2008). Its ¹³C-depletion (−88‰), however, implies that AOM was involved in (secondary) carbonate authigenesis of the brecciated carbonates. At methane seeps dominated by an ANME-2 community, ¹³C-depleted PMI is typically found together with ¹³C-depleted crocetane (Peckmann and Thiel, 2004; Niemann and Elvert, 2008; Thiel, 2020), yet crocetane is missing in the brecciated carbonates. The lack of crocetane mimics the biomarker pattern of Sicilian sulfur-bearing carbonates described by Ziegenbalg et al. (2012) and suggests the presence of ANME-1 like communities during secondary (calcium) carbonate precipitation. Such communities are also known to produce ring-containing GDGTs, contrary to other ANME communities (Blumenberg et al., 2004; Rossel et al., 2008; 2011; Bertram et al., 2013). Although this could mean that similar ANME communities were involved in the sulfur-bearing calcite formation of the brecciated Lorca carbonates, Ziegenbalg et al. (2012) also found ¹³C-depleted sn3-hydroxyarchaeol in the Sicilian carbonates, a compound not observed in the brecciated Lorca carbonates.

Characteristic biomarkers of methanogens were not found in the Sicilian sulfur-bearing carbonates (Ziegenbalg et al., 2012). However, both sulfur cycling and methanogenesis are observed in the hypersaline and sulfidic environment of the Urania deep basin (Borin et al., 2009). Labrado et al. (2019) calculated that under such hypersaline conditions, sulfide oxidation coupled to methanogenesis using methylated substrates (‘methylotrophic’) is a thermodynamically viable mechanism for native sulfur formation. In accordance with such results, methylotrophic methanogenesis is the dominant methanogenic pathway in hypersaline environments and methylated substrates are commonly widely available under such conditions (Zhuang et al., 2016; McGenity and Sorokin, 2018). Interestingly, the halotolerant M. natronophilum was also cultured on methanol (Bale et al., 2019). Thus, the biomarker evidence reported herein supports sulfide oxidation coupled to methylotrophic methanogenesis.

For some settings, methanogenesis has been reported to fuel AOM in a so-called “cryptic methane cycle” (Xiao et al., 2017; 2018). Biogenic methane has a δ¹³C value ranging from −110‰ to −50‰, whereas thermogenic methane is ranging from −50‰ to −20‰ (Whiticar, 1999). Interestingly, ¹³C-fractionation between the oxidized methane and PMI produced by ANMEs typically ranges from −60‰ to −20‰ (Miyajima et al., 2020). Therefore, the δ¹³C value of methane in the Lorca Basin would have been in the range from −68‰ to −28‰. This suggests that AOM was fueled by thermogenic methane or a mixture of thermogenic and biogenic methane. Alternatively, substrate limitation during (methylotrophic) methanogenesis could result in isotopically heavy methane. Experiments with the methanogen Methanosarcina barkeri showed ¹³C-enrichment for methane in the experiment’s headspace (Londry et al., 2008). The overall inventory of archaeal lipids including ¹³C-depleted archaeol and squalane agree with the presence of different archaeal communities during carbonate formation (e.g., Tornabene et al., 1979; Grice et al., 1998) such as halophiles (extended archaeol δ¹³C = −12‰), methanogens, and ANMEs.

ANME at marine seeps typically form syntrophic partnerships with SRB (Boetius et al., 2000; Orphan et al., 2001; Nauhaus et al., 2005; Niemann and Elvert, 2008). Characteristic SRB biomarkers, such as terminally branched fatty acids, indeed occur in the brecciated carbonates. However, these SRB biomarkers do not show the strong ¹³C-depletion that is typical of seep-dwelling SRB. Rather, the observed terminally branched fatty acids show ¹³C-depletion similar to biomarkers of the sedimentary environment (e.g., organic sulfur compounds). In the Sicilian sulfur-bearing carbonates, terminally branched fatty acids were found to be strongly ¹³C-depleted (Ziegenbalg et al., 2012). Evidence for SRB involved in AOM only comes from strongly ¹³C-depleted 17β(H),21β(H)-C₃₄ hopane (δ¹³C = −74‰) in the desulfurized fraction of the brecciated Lorca carbonates. This hopane likely derived from a sulfurized bacteriohopanepolyol (cf. Xavier et al., 1997; Blumenberg et al., 2010). Strongly ¹³C-depleted hopanoids found together with markers of ANME have been interpreted to derive from SRB (Pancost et al., 2000; Thiel et al., 2003; Blumenberg et al., 2006). Another biomarker for SRB in the brecciated carbonate is a non-isoprenoidal C₃₆ DAGE. DAGEs found at seeps are also associated with the syntrophic AOM communities (e.g., Hinrichs et al., 2000; Aloisi et al., 2002; Teske et al., 2002; Chevalier et al., 2010). After ether cleavage, 10Me-C₁₆ alkane and C₁₆ alkane (δ¹³C = −76‰, −67‰, respectively) were found. The 10Me-C₁₆ alkane therefore reveals a similar depletion as the hopanoid. The C₁₆ alkane is slightly less depleted, most likely due to an additional contribution from a C₁₆ alcohol after ether cleavage. We therefore assume that the C₃₆ DAGE is composed of a 10Me-C₁₆ and n-C₁₆ hydrocarbon chain. The same compound has been reported for mesophilic SRB (Grossi et al., 2015; Vinçon-Laugier et al., 2016). In the brecciated carbonate, SRB lipids are roughly 10‰ less ¹³C-depleted than the ANME lipids, which is consistent with the isotopic offset observed at methane seeps (Orphan et al., 2002), where the DAGE-producing SRB are possibly heterotrophs and may be using various substrates although they are closely associated with AOM (Krake et al., 2022). However, in the present case, the lack of the characteristic ¹³C-depleted biomarkers and the small amounts of hopane and C₃₆ DAGE (see Supplementary Table S1) suggest that the contribution of SRB to the formation of the secondary carbonate was small, possibly even negligible.

Instead, sulfate reduction may have been conducted by ANME alone (Milucka et al., 2012; Antler et al., 2014). Coincidentally, such methanotrophic sulfate reduction resulting in calcite precipitation after gypsum dissolution is another possible mechanism for native sulfur formation that is thermodynamically viable (cf. Labrado et al., 2019). Further evidence for such a mechanism is that sulfur formation was observed within the cells of ANME (Milucka et al., 2012). Noteworthy, ANME-1 are more loosely associated with SRB (Bertram et al., 2013; Gründger et al., 2019) and are reported to be involved in a ‘cryptic methane cycle’ (Beulig et al., 2019; Kevorkian et al., 2021). Although all this is circumstantial evidence, together with the biomarker data (e.g., lack of crocetane, prominent GDGTs), an ANME-1-like community appears the most probable candidate involved in the sulfur-bearing calcite formation of the brecciated carbonates.

6 Conclusion

Two types of sulfur-bearing carbonates from the Lorca Basin studied herein suggest different modes of formation (Figure 5). A sulfur-bearing, laminated carbonate, consisting of clay-rich and dolomite-rich laminae, precipitated during gypsum deposition in a hypersaline, restricted basin environment. Dolomite formation was microbially mediated, likely by sulfate-reducing bacteria (SRB). Subsequent sulfate undersaturation caused gypsum dissolution, releasing sulfate for continuous sulfate reduction and dolomite formation. Either during or shortly after gypsum deposition, pseudomorphs of dolomite after gypsum formed. Simultaneously, the sulfurization of organic matter was favored by the production of hydrogen sulfide by SRB. With ongoing gypsum dissolution and the release of calcium ions, calcite nuclei in gypsum pseudomorphs show that carbonate formation shifted to calcite during later stages of carbonate formation. Native sulfur formation in the laminated carbonate was synchronous with dolomite and calcite formation as gypsum pseudomorphs. Native sulfur formation was likely mediated by SRB, possibly representing a stress response to high salt concentrations, although sulfide oxidation cannot be ruled out. The laminated carbonate is most likely recording (local) environmental change shortly after deposition.

FIGURE 5

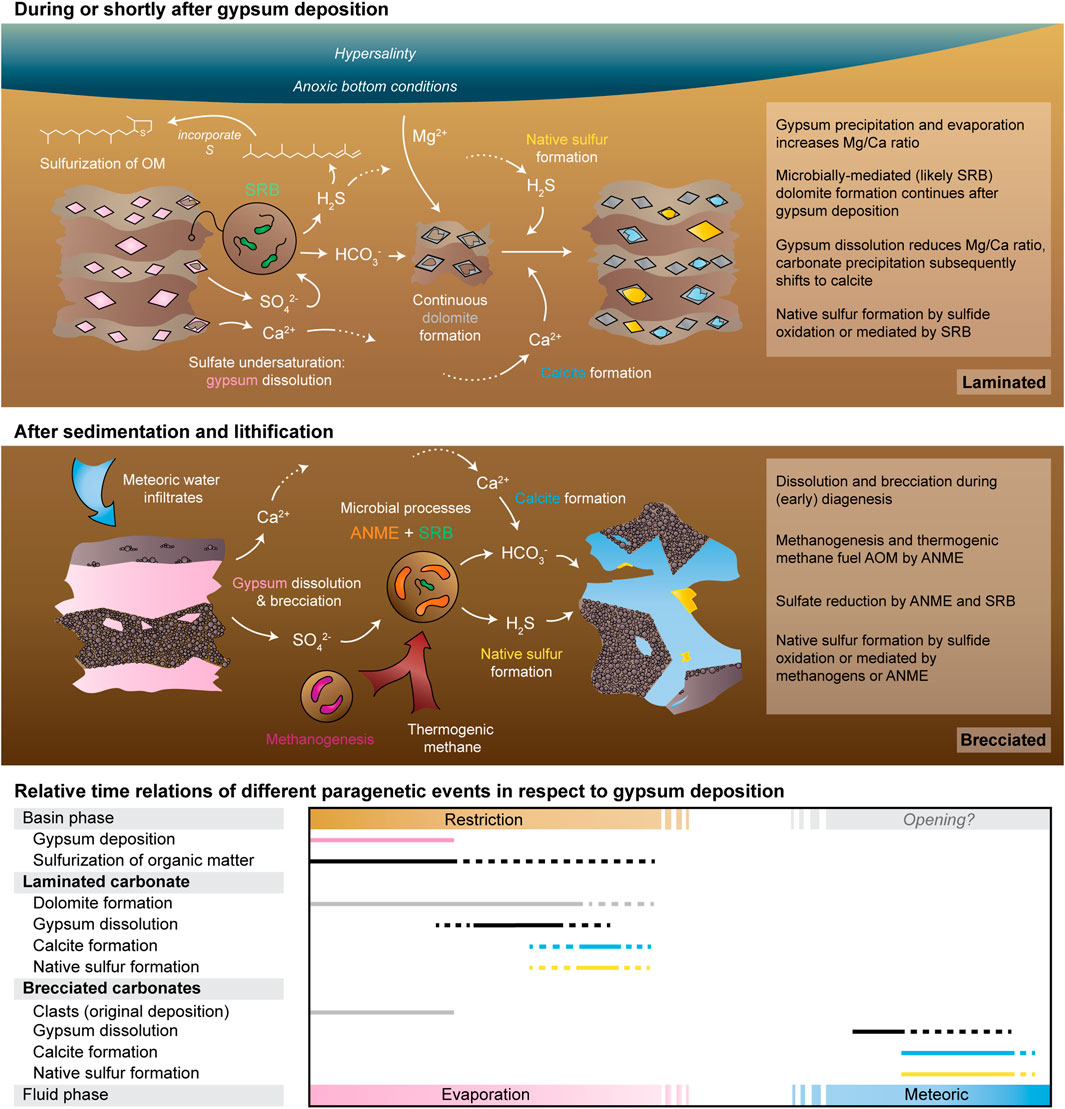

FIGURE 5. Sketch showing the sequential formation of laminated and brecciated sulfur-bearing carbonates (from left to right) and the relative time relations of different paragenetic events in respect to the original deposition of gypsum. Circles indicate microbial communities (orange = anaerobic methanotrophic archaea = ANME, green = sulfate-reducing bacteria, purple = methanogens).

In case of the brecciated carbonates, the formation of sulfur-bearing carbonate is the result of a later-stage diagenetic formation process. The dolomite-rich clasts in the brecciated carbonate rock reflect initial carbonate deposition in a restricted basin environment, similar to the laminated carbonate. Meteoric water dissolved gypsum significantly after sedimentation and lithification, causing the brecciation of the original, sedimentary carbonate. During the subsequent precipitation of sulfur-bearing calcite, the environment was shaped by methanogens, anaerobic methane oxidizing archaea (ANME) and SRB. Native sulfur formation was the consequence of microbial metabolisms. Such mediation was either methanogens oxidizing hydrogen sulfide likely under hypersaline conditions or methanotrophic sulfate reduction coupled to gypsum dissolution and calcite formation. Previously unreported, the brecciated carbonate contains evidence of the activity of methanogens during the formation of a gypsum-replacing carbonate. For both studied types of sulfur-bearing carbonates evidence is found that anaerobic bacteria and archaea might mediate native sulfur formation.
