ORIGINAL RESEARCH article

Front. Earth Sci., 29 September 2023
Sec. Sedimentology, Stratigraphy and Diagenesis

The environmental footprint of Holocene societies: a multi-temporal study of trails in the Judean Desert, Israel

  • 1Department of Physical Geography, Freie Universität Berlin, Berlin, Germany
  • 2Institute of Archaeology, Hebrew University of Jerusalem, Jerusalem, Israel
  • 3Department of Evolutionary Anthropology, University of Vienna, Vienna, Austria
  • 4Human Evolution and Archaeological Sciences (HEAS), University of Vienna, Vienna, Austria

The global distribution of footpaths and their inferred antiquity implies that they are widespread spatial and temporal anthropogenic landscape units. Arid environments are of special interest for investigating historically used footpaths, as older routes may preserve better due to minimal modern impact and slower pedogenic processes. Here we examine footpaths in the Judean Desert of the southern Levant, a human hotspot throughout the Holocene. We studied one modern and two archaeological footpaths (one attributed to the Early Bronze Age and one to the Roman period) using micromorphology, bulk samples laboratory analysis, and remote sensing. Field observations and color analysis indicate that footpaths in the studied arid limestone environment can result in brighter surface color than their non-path surroundings. Similar color changes are reflected using both laboratory analysis and high-resolution remote sensing, where the difference is also significant. Microscopically, the footpaths studied tend to be less porous and with fewer biogenic activities when compared to their non-path controls. However, the two ancient footpaths studied do exhibit minimal indicators of biogenic activities that are not detectable in the modern footpath sample. Our study shows that high-resolution remote sensing coupled with micromorphology, while using appropriate local modern analogies, can help to locate and assess both the environmental effect and the antiquity of footpaths.

1 Introduction

Trails are common human marks on the landscape, occurring in practically all environments (Rodway-Dyer and Ellis, 2018; Loor and Evans, 2021). In the social sciences, it has been argued that both paved and unpaved roads are an important part of our cultural heritage (Jackson, 1984; Zedeño and Stoffle, 2003), while geomorphological research shows that the environmental effects of trails by soil erosion is a problem on a global scale, reaching soil loss rate of 2090 Mgha1 Y1 (Salesa and Cerdà, 2020). Linear soil erosion in particular has recently been suggested to interact with the establishment of new pathways (Sidle et al., 2019). In footpaths, the process of soil compaction through trampling has been studied to some extent in recreational contexts mostly looking at the effect on the local flora (Studlar, 1980; Ayers et al., 2008; Yaşar Korkanç, 2014; Chenhao et al., 2019; Croft, 2019; Sherman et al., 2019). Other types of soil compaction have been investigated through various environments and fields, including the effects of humans, animals, and vehicles on the subsoil (Liddle, 1975; Eldridge, 1998; Boelhouwers and Scheepers, 2004; Pietola et al., 2005; Botta et al., 2020; Boardman 2022; Tomczyk and Ewertowski, 2023). From a temporal perspective, for a time span of 40 years, using cesium-137 to assess soil erosion due to recreational trail activities, it has been suggested that soil loss is double than that in a control, non-trail area (Rodway-Dyer and Walling, 2010). For longer time spans, gully erosion due to farming as well as the initiation of sunken lanes (i.e., holloways), resulting from erosion and deepening of the pathway, have been dated well into the Holocene (Wilkinson et al., 2010).

As with other types of human-made environmental impacts, it is difficult to assess the timing of the earliest occurrence of footpaths, as an impact that went beyond the environmental imprint produced by other animals (Boelhouwers and Scheepers, 2004; Foley and Lahr, 2015). During the late Pleistocene, human groups traveled long distances to obtain raw materials, and hunter-gatherers likely used similar routes at least on a seasonal basis (Winterhalder, 1981; Malinsky-Buller et al., 2021). However, with the appearance of sedentism, the foundation of settlements and the growth of population would have been accompanied by processes of intensive and repetitive use of trails. Therefore, with the onset of so-called “human niche construction” behavior, an environmental imprint through the repetitive use of trails would become more dominant (Wilkinson et al., 2015). Archaeological evidence for the domestications of both plants and animals marking the emergence of sedentary societies in the Near East dates to ca. 10–8 ka cal. BCE (Gibling, 2018). In our study area, sedentism is also evident in architecture, for example by the monumental walls and tower of Jericho, located in the Dead Sea basin and dated to ca. 8 ka BCE (Bar-Yosef, 1986). Therefore, a minimum age for a unique human imprint on the landscape, by the formation of footpaths, could be situated within the Early Holocene. With respect to the long-term residues of such imprints, i.e., geomorphological and pedological changes related to footpath formation, we present here the study of three footpaths in the Judean Desert.

In landscape-archaeology, the majority of attempts to track down possible prehistoric routes have focused on Least Cost Path (LCP) analysis, or archaeological finds (i.e., pottery, installations, stone tools) discovered along specific routes (Yekutieli, 2006; Schild, 2016; Hardt et al., 2023b), rather than pedogenic or geomorphological evidence. In micro- and geo-archaeology, paved or wheeled-driven tracks have often been investigated using construction materials and micromorphological residues as proxies (Tsokas et al., 2009; Charbonnier and Cammas, 2018). Recently, micromorphology has been used to reveal the application of similar construction methods for centuries of roman road paving (Gutiérrez-Rodríguez et al., 2022). Within archaeological sites, the effect of trampling on pathways and surfaces was thoroughly examined by Rentzel et al. (2017), while others have too used the in situ fracturing of microscopic artifacts embedded in sediment as proxies for trampling (Courty et al., 1989; Miller et al., 2010; Nicosia and Stoops, 2017; Goldberg, 2018). Off-site footpaths, however, have been until recently neglected in the geoarchaeological literature (Nir et al., 2022). The long-term effect unpaved footpaths may have on the natural environment is therefore a topic in need for further investigation.

The Judean Desert, a small arid region in the eastern flank of Cisjordan, is an excellent laboratory for the study of ancient pathways due to its limited land use and extreme aridity. The objective of this study, is to uncover comparable patterns and indicators at different scales for the effect footpaths may have on the natural environment, for both modern and long term paths in arid environments. We consider non-wheeled pathways, i.e., footpaths, as trails (>30 cm width) that are reused by humans and at times pack animals in ancient times. Identification of archaeological footpaths is difficult due to post-depositional overprinting, later sedimentary accumulation, and modern land use (Goldberg and Macphail, 2008). In arid environments, however, the influence of these processes is limited, which frequently allows the recognition of archaeological routes, both constructed and unconstructed. The duration of construction and usage of these routes can be time constrained using route-associated material culture, i.e., movement waste and/or road-related structures (Eichhorn et al., 2005). In Nir et al. (2022), the authors have inspected recent and historical footpaths in sub-humid and temperate climatic zones using a variety of methods. Therefore, surface resistance and micromorphological open-source porosity image analysis, that produced effective results in footpaths studied in the latter investigation, were implementable and tested here on footpaths occurring in arid surroundings. Following this notion, in this work, we attempt to further develop tools for documenting and testing the preservation of ancient footpaths in arid environments and their impact on the surface morphology, color and sub-surface of these environments. We couple field description, laboratory analysis on bulk samples and micromorphology of the near surface material to understand the local long- and short-term effects of trampling on the near surface material. Combing these observations from different scales, with local scale pattern analysis of surface structure (stone coverage, color, geomorphology) applying Unmanned Aerial Vehicle (UAV) imagery complemented by soil compaction measurements will allow us to understand the processes trampling has on the near surface material and how it affects the local environment.

2 Study area

2.1 Geographical and natural setting

The Judean Desert is a 20 km wide (W-E) and approximately 70 km long (N-S) arid region in the rain shadow of the central highland range of Cisjordan. It is geographically framed by the Judean Highlands to the west and the Dead Sea to the east, while the Negev Highlands marks its southern border. The Judean Desert constitutes the western flank of the morphotectonic Dead Sea depression (Garfunkel and Ben-Avraham, 1996). A remarkable attribute of the Judean Desert area is its sharp relief, ranging from ca. 800–1,000 m above sea level (a.s.l.) in the west to approximately 400 m below sea level (b.s.l.) to the east. Locally exposed bedrock units include dolomite, chalk, marl, limestone, and cherts (Lisker et al., 2010). Morphodynamics in the region are characterized by a few yearly flash flood events with exceptionally high sedimentary yield and deposition of slack water deposits and flood sediments. The seasonal flooding results in the abundance of typical arid environment vegetation such as Zygophyllum dumosum. The average annual rainfall in research area, at the south-eastern region of the Judean Desert, is 60–80 mm. In the sampling locations, where the modern and Roman period footpaths are located, the surface is composed of a regolith soil, while ca. 20 km to the south, at the Early Bronze Age (EBA) footpath sampling location, bare rock predominates with poorly developed lithosol (Steinberger et al., 1999; Singer, 2007).

2.2 Archaeological framework

As a desert strip bounded by settled zones on the west (the Judean Highlands) and east (the Transjordanian Plateau stretching east of the Dead Sea), the Judean Desert has been used intermittently throughout the Holocene as a bridge connecting both sides of the Dead Sea Rift (Davidovich, 2014). Moreover, local Dead Sea Valley products (e.g., salt, bitumen) and commercial cash-crops grown in the oases along the lake shores (palm dates, perfumes) served as important commodities in certain epochs in the history of the greater region, enhancing the development of road networks to mobilize goods and labor, in addition to other activity patterns typifying this region, e.g., refuge in cliff caves (Davidovich, 2013). In tandem, the severe topographical obstacles, created as a result of the tectonic faulting along the western margins of the Dead Sea Transform, limited the use of wheeled traffic in this area. Thus, routes ascending from the rift valley to the desert highlands were used for movement on foot, associated with pack animals (namely donkeys and camels). The Early Bronze Age footpath of the Zohar Ascent (EBA footpath) (Yekutieli, 2009) is part of an east-west route connecting two settled provinces–Arad to the west (Amiran and Ilan, 1978) and the Southeastern Dead Sea communities on the east (Rast, 2001). The ascent is located in the southern part of the Judean Desert, in a segment where the western Dead Sea Escarpment is replaced by a bend scarp (The Har Hemar anticline; Figure 1), locally known as the Wadi (also named Nahal) Zohar/Zeron Outlet. The EBA ascent is the southernmost in a series of routes from multiple periods that pass through this outlet. Along some segments of the ancient route a modern hiking trail is marked (but seldom used); however, the modern segments are easily distinguishable from the ancient footpath both by extremely bright color of the modern path as well as modern waste. The EBA route was identified during a high-resolution regional survey headed by Y. Yekutieli (The survey of the ‘‘En-Bokek Map”,Israel Antiquities Authority and Ben-Gurion University of the Negev). The surveyors have documented scatters of pottery sherds, consequently noting their location follows a quasi-linear distribution pattern. The footpath studied is located directly within some of the best suited passes for crossing the step topography, a mountain pass on the watershed line between Nahal Hemar and Nahal Zohar drainage basins. The pottery collections were all EBA. Thus, Yekutiely has concluded that these finds represent movement waste of an ancient route (Yekutieli, 2005; Yekutieli, 2006). As the survey proceeded, Yekutieli and his team have located, and later excavated, an EBA-built site on the ridge overlooking the footpath. This was interpreted as a military outpost associated with the use of, and control, over the ascent (Yekutieli, 2009). In later periods, this route was abandoned and more northerly paths were chosen for use (e.g., Aharoni and Rothenebrg, 1960). In the current study, we have selected a segment of the ascent located several tens of meters downslope from a local watershed line where a narrow saddle consists a necessary crossing point (Figures 2C, 3C).

FIGURE 1
www.frontiersin.org

FIGURE 1. An overview map of the study area. Footpaths attributed to the modern and Roman period are located within the Dead Sea plain (northern edge of the figure) while the footpath attributed to the Early Bronze Age (EBA) ascends from the lake shore to the desert uplands (southern edge of the figure). Directly west of the modern city of Arad are the archeological remains of a Bronze Age settlement. also The Digital Elevation Model is based on SRTM (1N31E035V3) available at USGS1. Satellite imagery of the water bodies is extracted using the visible light bands from the Sentinal-2 satellite (European Space Agency) available at Copernicus2. The underlying slope aspect layer was generated using QGIS (QGIS.org, 2021).

FIGURE 2
www.frontiersin.org

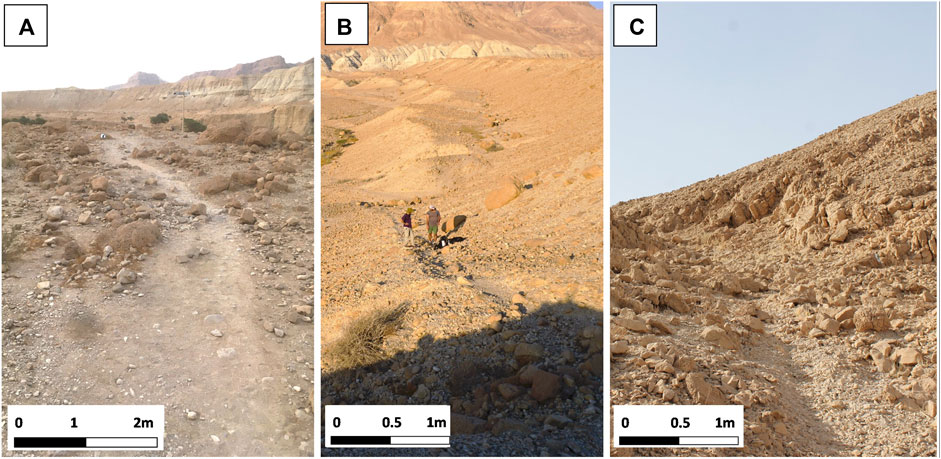

FIGURE 2. Illustrations of the studied Footpaths. (A) The modern hiking trail. (B) The Roman footpath and (C) The Early Bronze Age footpath. Carbonates of the Lake Lisan formation (Pleistocene) characterize the bedrock of the modern as well as of the Roman footpath. Both stretch over alluvial-colluvial sediments at the slope-foot and the ravine fan areas, while the EBA footpath in the Zohar Ascent stretches along a debris-covered backslope.

FIGURE 3
www.frontiersin.org

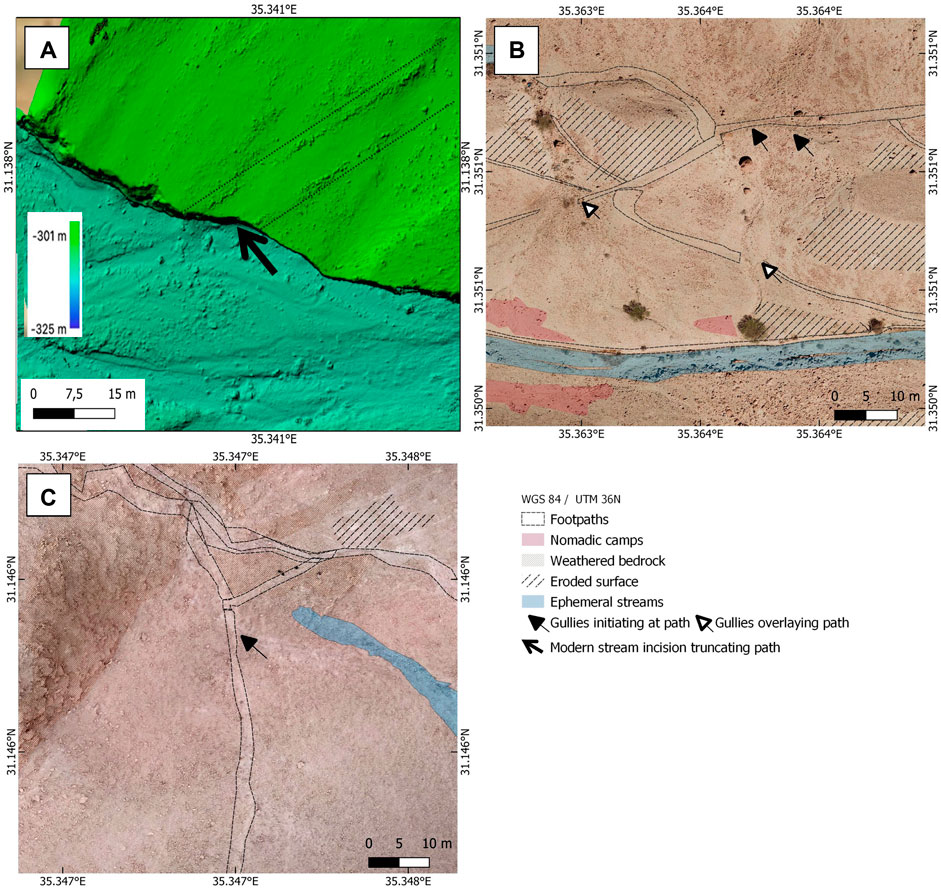

FIGURE 3. UAV image of selected geomorphological features on the archaeologically attributed footpaths; (A) DEM of the Roman path on the plane. Notice the approximately 7-m deep truncation by the active stream marked by the black arrow and the curbstones arranged to the sides of the path. (B) Orthophoto image of the Roman path segment on the hillslope. Notice the gully fan covering the path’s course. (C) Orthophoto image of the Early Bronze Age footpath. Notice the gully initiating directly below the path, marked by the black arrow.

The Roman period in the southern Judean Desert is best known for the construction of the Herodian palace-fortress at Masada, and the historically-documented Roman siege on the Jewish rebels entrenched in the fortress during the Great Revolt between 66 and 73/74CE (Yadin, 1966). The Roman-era road system around Masada has been briefly described by several scholars over the years (e.g., Schulten et al., 1933), and was recently documented as part of a regional archeological survey (Davidovich, 2014). In this study, we examined a segment of the route connecting Masada with the large oasis of Ein Gedi located approximately 20 km to the north; the road was most probably established in association with the efforts of the Roman siege on Masada, and has not been used since, other than by occasional travelers. The road stretches over some kilometers, and we have chosen to examine it in a segment where it is well preserved and list likely to have been distort by post-Roman use. The sampling area was positioned where the path crosses the Pleistocene alluvial deposits (<5°) of Wadi Seiyal (Nahal Zeelim) (Figures 1, 2B), at a segment that it is marked by curbstones along both its sides. Only few meters south of the sampling please as the path is abruptly truncated (>7 m vertically) by the currently active stream (Figure 3A), making it is clear that it has not been used in recent centuries.

3 Materials and methods

3.1 Selection of footpaths

Selection the two ancient path segments for this research was based on the following criteria: 1) presence of archaeological evidences for the use of the paths, such as structures, stones arrangements and scatters of pottery sherds along the path; 2) The paths were located in a markable distance from currently used trails; and 3) path construction and use can be associated with a distinct period, preferably without evidence of restructuring or extensive usage during later periods. In contrast to that, the modern footpath served as a recent reference and is located on an extensively used recreational route (Wikiloc, 2022). This latter modern footpath was selected based on its relative geographical proximity and environmental similarities to the Roman footpath (Figures 1, 2). Selected trails were sampled in areas where the passing of vehicles could be excluded (or in the case of the Roman segment on the plain area - where it is highly unlikely).

3.2 Field observations, mapping and sampling

Sampling included the extraction of undisturbed block samples for micromorphological analysis and bulk samples for bulk laboratory analysis. Following field observation, (Table 2), each footpath was measured along approximately 20 m for its width and slope inclination. Degree of inclination was also measured for the slopes on both sides of the trail. Measurements were taken by t Leica DISTO device. Surface resistance kg/cm2 was measured using a manual penetrometer (ELE pocket penetrometer), with three replicas for each sampling locations (Tejedo et al., 2016). For each such measurement of the footpath, a control measurement was taken, approximately 1–2 m outside the path’s course. Micromorphological samples from the footpaths were also taken, always starting directly at the undisturbed current surface (0 cm) and reaching 5–10 cm depth, depending on the state of the material as it affects sampling depth (i.e., when large pebbles prevented deeper extraction; number of samples=5). Also, outside each footpath, a nearby, undisturbed control was collected (approximately 1–4 m away from the sample within the path), where disturbances due to trampling were not evident (n = 5). Block samples were extracted using plaster of Paris. Bulk samples for laboratory analysis were taken at each micromorphological sampling point and at two additional locations along the paths and at the respective additional off-footpath control samples (Table 1). These bulk samples were each extracted from 0–5 and 5–10 cm below the surface (n = 38). Additionally, bulk samples from 10–15 cm below the surface were taken where unconsolidated fine material occurred in sufficient thickness forming the subsurface material at some footpaths (n = 12).

TABLE 1
www.frontiersin.org

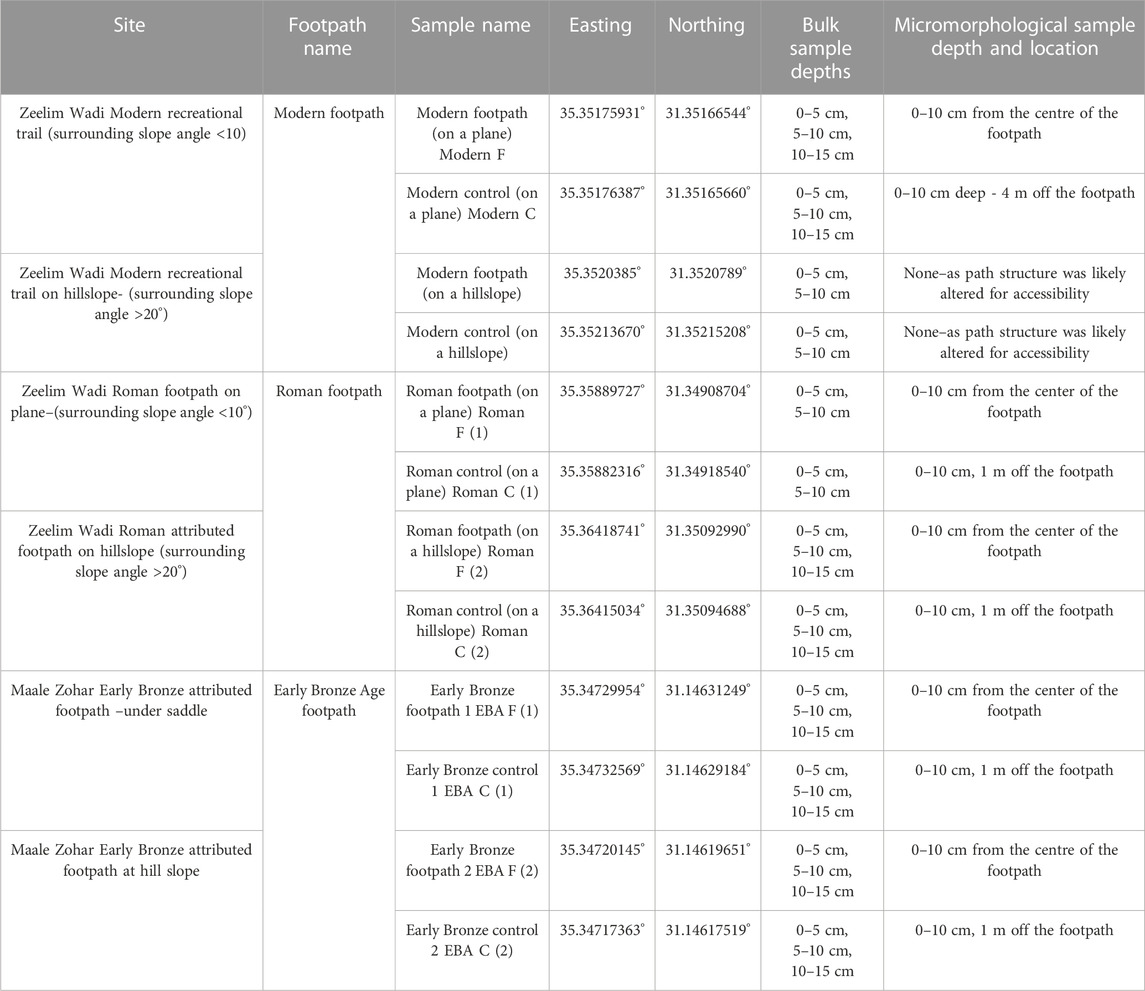

TABLE 1. Footpaths (F) and control (C) sites sampled in the Judean Desert, the location of their coordinates (UTM zone WGS84), and sampling method/parameters.

3.3 Remote sensing

Remote sensing imagery data was collected by a UAV using a DJI Phantom 4, RTK. Visible spectrum images above the areas of the two ancient footpaths provided a resolution of approximately 1 cm (Tomczyk et al., 2023). These were geocoded using Agisoft Metashape Pro software and then used for mapping the course of the footpaths. Three archaeologically affiliated footpath segments were documented by the UAV; the Roman path on the slope, the Roman path on the plain, and the Early Bronze Age path.

A second step taken was a manual geomorphological mapping of these three segments. For the third step, footpaths and non-path RGB values per pixel were extracted using shape file lines (n = 3 for each path, QGIS) along footpaths and non-path areas, the latter taken at ca. 0.5 m on both sides of the paths (n = 6 for each non-path area). Following the color values extraction, their color values were summed for each GIS shapefile drawn extraction line (approximately 7,000–10,000 pixels) and then averaged. Albedo value were estimated following standard UAV calculation (Wang et al., 2016). However, unlike other UAV studies, the normalization by Landsat 8 values was excluded and replaced by RGB normalization. The latter is sufficient for comparative purposes between path and non-path areas, while additionally the resolution of a 0.5 m wide path would not be detectable by Landsat data (Cao et al., 2018). Therefore, albedo values were calculated using the formula Eq. 1 (Wang et al., 2016):

αvis=0.5621R+0.1479G+0.2512B0.0015256

Remote sensing data were processed in an R environment using the “raster” package for image processing and the “base” package for significance tests (t-test at a significance level α = 0.05), graphs and box plot visualization (R Core Team, 2013).

3.4 Micromorphology

Block samples for micromorphological analysis (n = 10) were impregnated, cut and ground to 30 μm thick thin sections (7 × 5 cm) at the MKfactory in Stahnsdorf, Germany. Thin sections slides were made from the very top part of the samples, so that they would include the recent surface. Analysis of the slides was performed using four magnification ranges (x25, x100, x200, and x400) in plane and cross polarized light (PPL and XPL) and oblique incident light (OIL), on a Zeiss polarizing microscope following standard micromorphological analysis and terminology (Stoops, 2010; Stoops, 2021; Verrecchia and Trombino, 2021). To characterize porosity, we used optical digitalized void analysis (Pires et al., 2009; Rasa et al., 2012). Images were taken at 1 cm intervals starting at 0.1 cm below the surface and reaching 5 cm below the surface (n = 6 depths). At each depth, using x25 magnification, a triplicate picture was taken on three predetermined and identical locations on the slides (n = 18 per MM slide). Images were then processed using “imager” package in an R environment (R Core Team, 2013) where void cover was automatically assessed. The resulting data indicate the relative porosity of each image (Nir et al., 2022).

3.5 Laboratory analysis

Following the results of Nir et al. (2022), complementary laboratory analysis were conducted. Bulk samples were dried at 105°C in a drying cabinet and aggregates were disintegrated using a porcelain mortar. Samples were sieved into coarse (Ø >2 mm) and fine (Ø ≤ 2 mm) material. The Ø ≤ 2 mm fraction was further measured using a LS 13320 PIDS Beckmann Coulter Laser particle size analyzer to obtain the grain size distributions. The Ø ≤ 2 mm fraction was additionally used for further geochemical and mineralogical analyses (n = 60). The respective sample preparation and measurement steps were conducted according to previously published workflows (Nykamp et al., 2020; Hardt et al., 2023a). Measurement of the electrical conductivity (µS cm−1) and pH values of the water-saturated samples (n = 50) was determined in a 1:2.5 solution of 10 g of air-dried sediment and 25 ml of bi-distilled water, using handheld electrical conductivity and pH (with a resolution of 0.1) meters accordingly (Hanna Instruments). Total carbon (TC) content was determined using a LECO Truspec CHN and an add-on elemental analyzer (n = 50). Total Organic Carbon (TOC) was measured following CaCO3 dissolution using catalytic oxidation at 680°C and subsequent Non-Dispersive Infra-Red detection using a TOC-L Shimadzu device (n = 50). Mineralogical X-Ray Diffraction (XRD) values were determined by inserting flat-surfaced samples on metal pellets into a Rigaku Mini-flex 600 X-Ray Diffractometer (n = 15). Elemental analysis was carried out using the p-ED-XRF (portable energy-dispersive X-ray fluorescence) analyzer Thermo scientific Niton XLt3. Each XRF sample was placed in plastic cups and sealed with a mylar foil (0.4 µm). The prepared sample-cups were placed on the p-ED-XRF and measured for 120 s with different filters for detecting specific elements (n = 60). Measurements included four known reference standards (RF3, RF25, RF87, RF89) measured prior to and following the sample measurements for device error assessment and calibration. Further elemental analysis was conducted using Inductively Coupled Plasma-Optical Emission Spectrometry (ICP-OES) following digestion in aqua regia (HNO3 + 3 HCl). ICP-OES measurements were conducted in the Julius Kuhn Institute (JKI) Berlin (n = 50). Measurements included three reference materials and a black sample. Color band values were obtained using a Minolta Portable Spectrophotometer CM-2600d using the CIELAB color space (D65 European midday standards). A triplicate was measured for each sample under three different runs of the instrument which included white and room light measurements for calibration. The data was further normalized by dividing each color band by the total RGB sum and being placed on a logarithmic ratio in the R environment (R Core Team, 2013).

4 Results

4.1 Field observations

4.1.1 Modern footpath (zeelim wadi)

The part of the modern footpath examined includes a segment where the footpath is descending on a south-facing slope of ca. >15° (“hillslope”), from a plateau-like area (in Pleistocene floodplain and colluvial deposits), towards a lower plane area of approximately <5° inclination (“plane”), one that is truncated by the current Zeelim channel (Table 1). The examined segment of the path on the hillslope is approximately 80 m long, while on the plane area, the examined footpath segment is approximately 150 m long. The non-path areas were generally occupied by large (approximately 10–90 cm Ø), dark brown (dust and bacterial cover), and angular boulders. These boulders were sparsely dispersed and in the areas between them, homogeneous fine material was present (“soil crust”; Cole, 1990). The approximately 0.5–1-m wide (Table 3) footpath surface is covered with subrounded limestone and chert boulders and large pebbles (approximately 5–30 cm Ø) within and overlaying compacted fine sands and silt (Table 2). At some locations along the plane, the path is approximately 2–4 cm deeper than its surroundings (i.e., sunken). One minor gully (10–50 cm deep and 1 m wide) evolves directly below the path at the hillslope (>15°) segment (Figure 2A).

TABLE 2
www.frontiersin.org

TABLE 2. Field observations and measurements.

4.1.2 Roman footpath (zeelim wadi)

The Roman footpath is similarly composed of two segments, running on a hillslope (>15°) and on a plane (<5°) area, approximately 1 km southeast of the modern footpath sampling point (Table 2). On the hillslope, the footpath runs for roughly 200 m (approximately 1 m wide) semi-diagonally along a south-facing slope in NE-SW direction and descends south-westwards to a Lower Pleistocene terrace plane area. On the plane, the footpath runs for 450 m; here the footpath is generally 5 m wide and at parts, it is marked by a line of >20 cm curbstones on both sides (Figures 2B, 3). The path occasionally crosses gullies, 1–2 m deep, functioning as first to second-order ephemeral streams. As it continues southwest, at one of its better-preserved areas, the path is abruptly truncated by a > 7-m deep incision of the active stream cutting into its own deposits (Figure 3A). The areas adjacent to the path are covered by boulders (approximately 6–40 cm Ø) and shrubs with fine material occupying the surface between them (“desert crust”), while boulders lying on the paths generally show sizes of 3–20 cm Ø and are not accompanied by vegetation.

4.1.3 Early bronze age footpath (zohar ascent)

The Early Bronze age (EBA) footpath stretches on mostly bare bedrock from the northwest and crosses a watershed line through a saddle. In the current study, the footpath was examined where it crosses the saddle and continues to run on the east-facing hillslope (Table 1). The footpath is approximately 1 m wide and 75 m long in the sampling area. Under the saddle, it is composed of 3 broken segments of approximately 10-m long paths. These path segments descend semi-perpendicular to the slope on bare rock and patches of sediments. Some of these segments had coarse and fine grains cemented together in a ‘breccia-like’ surface. From the area below the saddle, on the southeast-facing hillslope, an officially marked modern trail, which does not show intensive usage, continues to the northeast. A second segment of the path continues to the southwest on the hillslope. On the latter segment, as the path runs perpendicular to the slope, a gully evolves directly from the surface of the footpath. The footpath surface is covered with subangular pebbles (approximately 5–60 cm Ø) within sands and silt (Table 2). Poorly sorted debris of angular rock fragments reaching up to boulder sizes cover most of the non-path surface while silt-fine sands occupy the areas between the boulders (Figures 2C, 3C).

For all footpaths, surface penetration resistance is significantly higher than non-footpath surfaces (t-test p < 0.05, n = 28). In the Zeelim Wadi, control samples have a compaction of 3.8 ± 1.2 (for the modern path area) and 4.4 ± 0.9 (for the Roman path area) while footpaths show higher values of 4.7 ± 0.6 (for the modern path) and 4.8. ± 0.3 (for the Roman path). The same trend is apparent in the measurements of the Zohar Ascent (Early Bronze Age); controls show values between 3.2 ± 1.4 and 4.3 ± 0.8, while the footpaths have values of 5 ± 0 and 4.6 ± 0.9 (Table 2).

4.2 Local scale pattern analysis

All sampled footpaths were observed to be brighter than their surroundings while their compacted surfaces seem to encourage overland flow, affecting local morphodynamics. Following the latter observations, we expected to find differences in the color measurements on and around the surface of trails compared with non-path areas. Color measurements of the fine fraction (<2 mm) show consistent differences between footpaths and their control samples (Figure 10). It is evident that footpaths have brighter color values and higher values for the green and blue bands than their controls (Figure 4A). Differences in the blue spectrum values between samples extracted from footpaths and their control samples are significant (p < 0.05) while the green values are insignificantly different between footpath and non-footpath areas (p > 0.05). Additionally, three sections were mapped using a UAV orthophoto image to extract the RGB signature of the footpaths and their neighboring areas; Roman footpath (1) situated on the plane topography, Roman footpath (2), its continuation on the hillslope, and the Early Bronze footpath segment. The extracted RGB values from triplicate lines marked on the footpaths show higher RGB values than the same lines placed approximately 1 m on both sides of the paths (Figure 4B). Based on the RGB values, albedo values were calculated to assess the possible reflection effect of the footpaths. There are higher albedo values on the surfaces of the footpaths compared to the non-path control areas (Figure 4). This difference is relatively small with a median of +2.7% and with the highest difference value lying at +5.7% for the EBA footpath, however, it is significant (p < 0.05).

FIGURE 4
www.frontiersin.org

FIGURE 4. Color evaluations of two archaeological footpaths. The footpaths color values are plotted against their corresponding non-path areas in logarithmic scale. The median average is marked by a black horizontal line within the boxplot. (A) RGB (Red, Green, Blue) and brightness values of the fine fraction (<2 mm) originating from footpaths (n = 30) vs. their respective control samples (n = 30). (B) RGB and calculated albedo orthophoto values originating from footpaths vs. their respective control samples (each n >10000 pixels). Notice both brightness (p > 0.05) and albedo (p < 0.05) values are higher on the footpath surfaces than on the non-path areas.

4.3 Laboratory analysis

To examine whether the patterns described in the previous section (4.2) are affected structural subsurface processes or triggered by surface processes and, we compare the average characters of the surface material extracted from 0–5 cm depth (color, grain size, bulk parameters, selected elements) with the corresponding data of all samples (0–5, 5–10, 10–15 cm).

Calcium and silicon are the dominating elements in all samples (Supplementary Figure S1). Texture of all samples is a sandy loam. Grain size, pH, EC and elemental analysis of the bulk samples did not show consistent differences between the footpaths and their controls and are presented in the Supplementary Material (Supplementary Table S1). Using correlation analysis some correlations emerged: In all samples the finer fraction tends to positively correlate with iron, titanium, aluminum, and manganese (Figure 5). Contrastingly, calcium concentrations are positively correlated with the occurrence of the sand fraction and negatively to the occurrence of the silt fraction. Sodium, chloride, and sulfur concentrations are strongly correlated with each other, although sodium and chlorine occur in low concentrations (Supplementary Figure S1; Blum 1997). Spectral data referring to the RGB color space do not show strong relationships to any of the elements or grain sizes when looking at the total samples (n = 50). Considering exclusively the near surface samples (0–5 cm) some correlation is evident: within all surface samples (n = 20), red band values are positively correlated with silt, manganese and silicon (α < 0.05), and negatively correlated with calcium (α < 0.05); while green and blue band values show a mirror image, being negatively correlated with silt, manganese and silicon (α < 0.05), and positively correlated with calcium (α < 0.05) (Figure 5, Supplemantary Table 1).

FIGURE 5
www.frontiersin.org

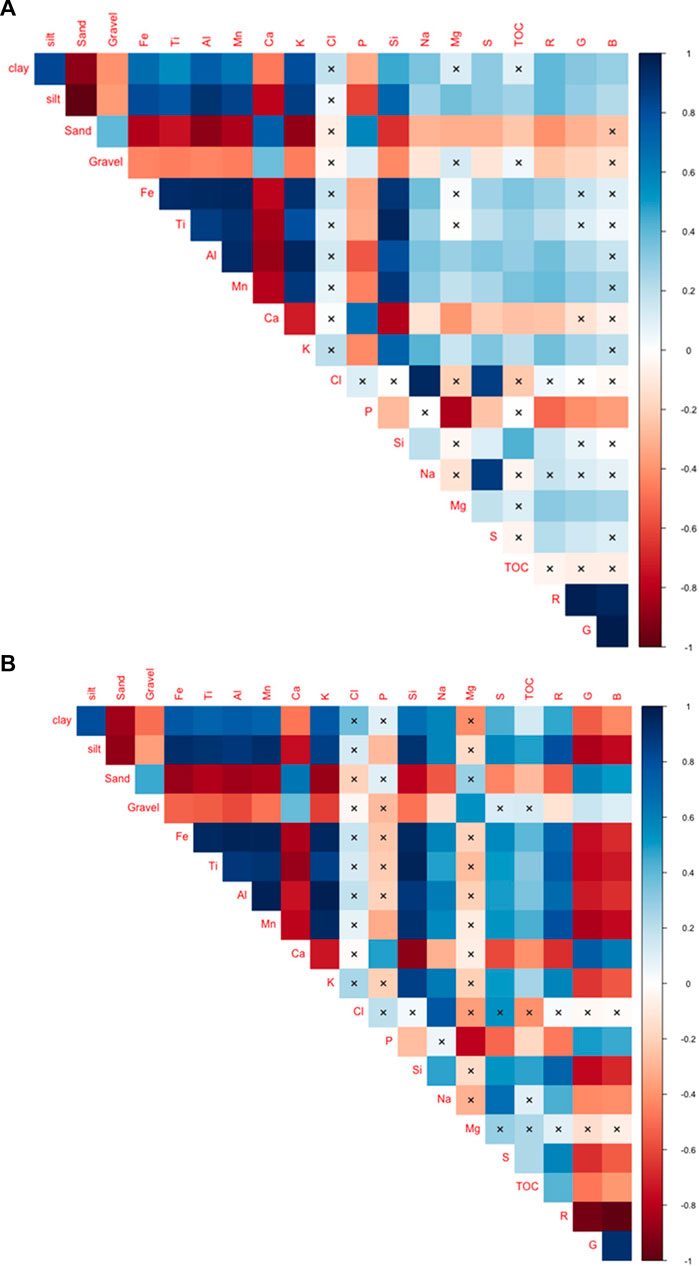

FIGURE 5. Correlation analysis (R “corrplot” package) between various data types; (A) all samples and (B) surface samples (n = 50 and n = 20 accordingly). X marks an insignificant correlation (p > 0.01). Positive correlations are colored coded in blue (max = 1) while negative ones are in red (max = −1). Grain sizes were assessed using a Coulter Laser particle size analyzer while elemental data was obtained using ICP-OES following digestion in aqua regia (HNO3 + 3 HCl), apart from chlorine which was measured in p-ED-XRF. Gravels were calculated by weight based on sieving. TOC was directly measured using Non-Dispersive Infra-Red detection. Color band values were obtained using a Minolta Portable Spectrophotometer.

4.4 Micromorphology

Similar mineralogical composition, originating from the exposed weathered bedrock and soil surfaces, is evident in all samples (Figure 5; Supplementary Figure S1). Particularly abundant are carbonate grains and rock fragments (limestone), and silicates (chert, quartz). The following descriptions depict the post-depositional differences related to footpath use between footpath and control samples wherever these are evident. A micromorphological description of all thin sections can be found in Table 3.

TABLE 3
www.frontiersin.org

TABLE 3. Micromorphological description of the footpaths and control samples.

For the Modern footpath, the control sample shows iron/manganese oxide nodules with regular outline and calcareous-cementation (plant roots). Alternating grain supported and fine clay dominated layers occur with vesicles (slaking crust). The latter are likely the result of water saturation (e.g., puddle) and trapped air. The footpath samples are absent of calcareous-cementation, we observed no alternating layers or vesicles. At 4 cm below surface, a micro-structural change occurs, the c/f related distribution changes here from coarse monic to enaulic, while the upper 4 cm present medium energy deposition (Table 3; Figure 6).

FIGURE 6
www.frontiersin.org

FIGURE 6. Thin section scans and microphotographs (PPL) of the modern (M) footpath (F) and its control (C) sample. Red boxes in the thin section scans indicate the location of microphotographs. (A) Scan of non-path control sample, which is dominated by coarse grains. (B) Scan of footpath sample showing three distinct units, where silt and clay dominate over coarse grains in the upper subunit, underlain by a bedded subunit (dashed lines) and the bottom subunit is dominated by coarse grains. (C) Open enaulic microstructure in the footpath control. (D) Closed phorphyric microstructure in the footpath samples from the upper subunit.

The footpath attributed to the Roman period was sampled both on a (1) plane and a (2) hillslope (Figure 7) area. For the footpath located on the plane, Roman footpath (1), in the control sample, light grey brown clay is evident as matrix and in subangular aggregates. Additionally, at 3 cm below the surface, an approximately 1 cm thick, horizontal clayey microlayer is evident, below which, alternating matrix and grain supported units occur. The clayey microlayer and alternating matrix and grain supported units are the result of seasonal water saturation and medium energy deposition. In the footpath sample, no subangular aggregates or clayey layer are evident, while we observed some calcareous cementation through redeposited calcite. The subangular aggregates and clay layer in the control sample represent natural accumulation and surface formation processes, while their absence in the footpath sample could be the result of surface compaction, i.e. trampling causing the destruction of aggregates and homogenization of microstratigraphic sequences. Additionally, water percolation is hindered, leaving the subsurface unsaturated and by doing so, decreasing the ability to form aggregates. The calcareous cementation related to plant growth and visible in the footpath sample could indicate periods of surface stabilization.

FIGURE 7
www.frontiersin.org

FIGURE 7. Thin section scans and microphotographs (PPL) of the Roman (R) footpath (F) and its control (C) sample in the plane (1) and hillslope (2) sampling locations. Red boxes in the thin section scans indicate the location of microphotographs. (A) Scan of non-path control sample R (1), where a silty-clayey desert soil crust layer is marked by an arrow. (B) Scan of footpath sample R (1) F. (C) An 0.8 mm wide redeposited aggregate serves as evidence of post-depositional activities. (D) Cementation and finer aggregates than those of the control sample. (E) Scan of non-path control sample R (2) presenting many voids, angular pebbles, indicating the interchanging colluvial-fluvial nature of the accumulation. (F) Scan of footpath sample R (2) showing some of the coarser grains following the slope direction which is towards the lower right side of the slide. (G) Notice one large clayey-silty bow-like infilling, a bioturbation feature, at the lower part of the micrograph. (H) Different sand-sized minerals and a lack of bioturbation or cementation with complex packing voids.

At the hillslope area, Roman footpath (2), in the control sample, aggregates are evident (100–2000 μm Ø) as well as iron/manganese nodules. At 2.5 cm below surface a subhorizontal orientation of the coarse material as well as slacking crusts with subhorizontal planes, channels and vughs are visible. The above mentioned aggregates do not seem to present an in situ formation process but are rather transported as colluvial material. The sample represents low energy depositions and bioturbation. The footpath sample lacks similar transported aggregates, neither did we observe channels here. Therefore, the foothpath samples also represent colluvium deposits, but with no clear indication of bioturbation or post depositional features.

The footpath associated with the Early Bronze Age is located close to the watershed line. The footpath was sampled in two locations on the south-facing slope, both with steep slope angles (>15°). The first Early Bronze footpath segment was sampled directly below the saddle (EBA footpath (1)), while the second was sampled on the hillslope (EBA footpath (2)). For both samples, little distinct patterns that differentiate the footpaths from the control samples were observed (Table 3; Figure 7).

For EBA footpath (1), the control sample has complex packing voids, channels and slacking crusts with planes. The latter observation along with subrounded medium-coarse sands to pebbles (see Table 3) suggest colluvial accumulation and low energy deposition with little indication of post depositional processes. Similarly, the footpath sample shows low to medium energy deposition with additionally some minimal mechanical compaction from the surface resulting in slightly smaller grain size distribution (absent of pebbles) and a c/f related distribution that is more closed porphyric than enaulic.

For EBA footpath (2), the control samples shows similar characteristics to the EBA footpath (1) samples, including complex packing voids, planes, vughs and iron/manganese oxide nodules. However the EBA (2) control sample additionally presents a few areas with calcareous cementation. The latter is the result of redeposited calcite via seasonal plants and following bacterial activities. The EBA (2) footpath sample has similar characters as its control sample but with additional slacking crusts with fissures while calcareous cementation was not evident for the footpath sample.

Triplicated porosity measurements at a microscopic level showed that the subsurface of the footpaths at the 5 sampling points tends to be less porous than their respective control samples (Figure 10B). This is especially true for the surface (i.e. the uppermost 0.1 cm) where all footpaths are less porous (p<0.05) than their control samples (Figure 10C). The modern footpath sample shows the lowest porosity of all case studies compared with its control sample, especially for the upper 3 cm below the surface. Deeper than 3 cm, the modern footpath’s control sample is less porous than the footpath sample. For all samples, variations along depth in the relative porosity between footpath and control samples are observed and are also partly responsible for the variability within each footpath while incorporating the entire 5 cm (Figure 10A). A trend of relatively increased porosity in the control samples along depth is evident between 0.1–2 cm and then again between 3–5 cm below the surface (Figure 10C).

5 Discussion

The surfaces and subsurfaces (ca. 0–15 cm below surface) of the two areas studied in the Judean desert (Figure 1), were previously defined as regolith soil, bare rock and poorly developed lithosol (Steinberger et al., 1999; Singer, 2007). Relating to the nature of accumulation, these are composed of alluvial conglomerate, colluvium and dust (Sneh, 1979; Yechieli et al., 1993; Oldenburg el al., 2000). In order to investigate the interaction between footpaths and the arid natural environment, footpath samples studied here are considered as a “disturbance” to the natural setting examined in three aspects; 1. Changes evident at the surface, in regards to surface-runoff-generation and colors; 2. Changes evident on the subsurface, specifically porosity and pedogenic activity; and 3. Changes through time in relation to long-term use and potential periods of abandonment.

5.1 Surface changes

From a mechanical perspective, similar to pathways and footpaths in other environments, footpaths in the Judean Desert show significantly higher penetration resistance than non-path controls (Supplementary Figure S3; Sherman et al., 2019; Nir et al., 2022). Due to the lower porosity and higher surface runoff, footpaths can promote different types of soil erosion (Sutherland et al., 2001; Brandolini et al., 2006; Buchwał and Rogowski, 2010; Sidle et al., 2019; Phillips et al., 2021). Analyzing recreational trails, it has been documented that soil erosion along and outside footpaths is promoted (Studlar, 1980; Ballantyn and Pockering, 2015; Fonseca Filho et al., 2018). Tomczyk and Ewertowski, (2023) recently proposed and illustrated some of the mechanisms behind footpath-related soils erosion, including the dependency of such effects on the location of paths on the slope. Similarly, in the Judean Desert, surface runoff causes soil erosion, in the form of rills and gullies initiating directly downslope from footpaths for both the Roman (2) and the EBA (2) footpath segments, located on hillslopes (Figure 2; Table 1). As evident in other studies, at the watershed level these type of linear soil erosion can contribute to both higher soil loss as well as increase hydraulic connectivity (Sidle et al., 2019; Zgłobicki et al., 2021; Nir et al., 2022).

A second result of footpath trampling is the abrasion of limestone pebbles, exposing its whitish-light colors. The latter interpretation is based on the positive correlation between the green and blue (GB) color bands and calcite content (Figure 5). Another linked factor responsible for the brighter colors on trails is the lower amount of the pure fine grain fraction (silt and clay) on the uppermost cover of the footpath samples, relative to the non-path controls (Figures 58; Table 3). The fine fraction was additionally positively correlated with the red (R) color as well as with iron and manganese (Figure 5). Both spectrometer measurements of the fine fractions, as well as RGB values extracted from the UAV orthophotos, show lighter colors on the footpath than on non-path areas. In both scales, the highest degree of change lies in the blue band (Figure 4). This observation could result in up to 5% higher relative brightness or albedo values for the footpaths than for non-path areas (Figure 4). In the nearby Sinai arid peninsula, looking at the opposite effect, increased vegetation cover decreased the albedo values by 25% (Otterman and Tucker, 1985). For a different arid environment, it was suggested that a 2% increase in albedo values can correspond to approximately 2-3°C decrease in surface temperature during spring (Zolotokrylin et al., 2020). Following this analysis, the possible local cooling, resulting from footpaths distributed throughout the Judean Desert over several millennia, should not be underestimated (Efrat, 1993). Looking at the possible effects on the surface, it has been shown that in the arid environment of the southern Levant, soil aggregate stability and biological activities of the surface crust is determined among other factors by temperature (Lavee et al., 1996).

FIGURE 8
www.frontiersin.org

FIGURE 8. Thin section scans and microphotographs (PPL) of the Early Bronze Age (EB) footpath (F) and its control (C) sample, directly below the saddle (1) and on the hillslope (2) sampling locations. Red boxes in the thin section scans indicate the location of microphotographs. (A) Scan of non-path control sample EB (1) showing gravel sized grains on the upper layer while at 4 cm below surface, fine-grained sediments are more abundant. (B) Scan of footpath sample EB (2) exhibiting a homogenous distribution of fine gravel throughout the slide. (C) Rounded medium and large sands and poorly sorted grain sizes, suggesting colluvial origins. (D) Notice brown-dark organic features and iron/manganese oxide nodules. (E) Scan of non-path control sample EBA (2) showing a colluvial nature of the deposit indicated by angular pebbles positioned in a semi-vertical orientation. (F) Scan of footpath sample EBA (2) with well-preserved but truncated slacking crusts marked with arrows. (G) Gravel and calcareous cementing material. (H) Massive microstructure and brown-dark organic features and iron/manganese oxide nodules.

5.2 Changes evident in the subsurface

Nir et al. (2022) report that recent and long-term used footpaths in sub-humid clay-silt rich environment and in sandy temperate environment, exhibited changes in pedogenic activities and microstructure in the subsurface, i.e., lower porosity, lower evidence of biogenic remains (O horizon) and higher pedogenic iron oxides in footpaths than in the non-path samples. The proposed mechanism suggested is that lower permeability resulting in 1. Removal of the O horizon through surfaced runoff and soil erosion; and 2. increased water saturation on footpaths surfaces than on non-paths, and in turn, after dehydration, higher amounts of pedogenic iron oxides on footpath surfaces (Nir et al., 2022). In the present study of an arid environment, the Judean Desert, micromorphological differences between the footpaths and their control are less clear. Calcareous-cementation and aggregates found in the modern footpath control sample of the Judean Desert (Table 3; Figures 6C, 9), are the result of seasonal water saturation followed by surface stabilization (Verrecchia et al., 1991; Banfield et al., 1999; Shankar and Achyuthan, 2007). Calcareous-cementation and aggregates in the Judean Desert are likely related to micro-organisms who have played an important role in the formation of both secondary calcite and soil crusts of lithosols and regolith soils. The specific typical biological agents responsible for soil crusts in the Judean Desert are cyanobacteria, fungi, and lichens (Cole, 1990; Steinberger et al., 1999; Sohrabi et al., 2017). Aggregates and calcareous-cementation, observed in the modern footpath control sample, are absent from the corresponding modern footpath sample. Thus, relatively less calcareous matrix and cement, and aggregate formation on the footpath sample, could be interpreted as resulting from a hindrance of the aforementioned surface processes, such as limited water percolation and surface compaction of the footpath. Similar hindrance or degradation of plants and biogenic activities as a result of footpath formation have been documented in other environments (Cole, 2004; Ballantyn and Pockering, 2015; Fonseca Filho et al., 2018; Chenhao et al., 2019; Sherman et al., 2019). While footpath subsurface porosity in the temperate environment is relatively low (compared to controls) throughout a 3 cm depth (Nir et al., 2022), in the Judean Desert, all footpaths show distinct and consistent lower porosity only for the upper 0.1 cm in the thin section (Figure 10). The lower porosity also corresponds to a general trend of higher amounts of fine fractions occupying the voids between the sand grains in footpaths than in control samples (Table 3; Figures 68). If the observed differences in footpath porosity ratios between temperate and arid environments are genuine (i.e., not a result of a small sample size, etc.), one explanation for that could be contrasting trampling effects on wet versus dry surfaces. Hence, trampling on wet surfaces (i.e., with pores completely filled with water) can result in a higher degree of compaction and lower porosity under footpaths (compared with non-paths), than that resulting from trampling in a dry environment. These interpretations follow similar conclusions reached by other studies addressing soil compaction (Pietola et al., 2005; Botta et al., 2020). For the Roman footpath segment sampled in the plane area, the control sample shows clear surface and pedogenic activities which includes a 1 cm thick, horizontal clayey microlayer with vesicles as well as aggregates. In the footpath sample, no such clay layer is present while mechanical compaction is evident. However, some pedogenic activities in the footpath sample are suggested by calcareous cementation, likely the result of plant roots. For the same Roman footpath, but sampled on the hillslope, the control sample shows channels and transported aggregates, representing low energy depositions and bioturbation. Contrastingly, the footpath sample, while also representing colluvium, shows no clear indications of bioturbation. This may be due to both the reduction in surface water stagnation and availability resulting from trampling that would in turn reduce biogenic activities but also, though less likely, due to homogenization by trampling that would mask any indication of bioturbation that already occurred. For both EBA footpath samples, also from slope contexts, a general matrix supported and homogenized microstructure of the uppermost ca. 1 cm was observed. In their non-footpath controls however, we, observed a more grain supported microstructure in the uppermost 1 cm (Table 3; Figures 8, 9). Further indicators, such as decrease in bioturbation and aggregates, which form a distinct difference between control and footpath samples for footpaths in the plane areas, were not evident or very minor for the footpaths on the hillslopes. The colluvial processes on those hillslopes would encourage the removal of surface sediments. Following that notion, it has long been shown for the southern Levant arid regions that decreased soil cover on slopes would result in lower water permeability and soil biogenic activities while generating high surface runnoff which would be especially true for the EBA hillslope (Yair, 1990).

FIGURE 9
www.frontiersin.org

FIGURE 9. Microphotographs of selected samples (PPL unless mentioned otherwise) showing bio-and pedo-genic processes under the different footpaths, and control samples. Control samples: (A) Calcareous cement/matrix with irregular rounded edges (biogenic/plant activity) in non-path control sample (M). (B) Vughy structure on the contact between a slaking crust layer and a coarser unit in Roman non-path control sample (R (1). (C) Vesicles ina biogenic matrix in non-path control sample (R (2) (XPL). (D) Channels and interconnected vesicles and vughs in micritic matrix in EBA non-path control sample (EB (1). Footpath samples: (E) Channel/vesicles and vertical plane in a slacking crust in EBA footpath sample (EB (2). (F) Cross-section of a large channel with a calcareous (quasi) coating in EBA footpath sample (EBA (2) (XPL).

FIGURE 10
www.frontiersin.org

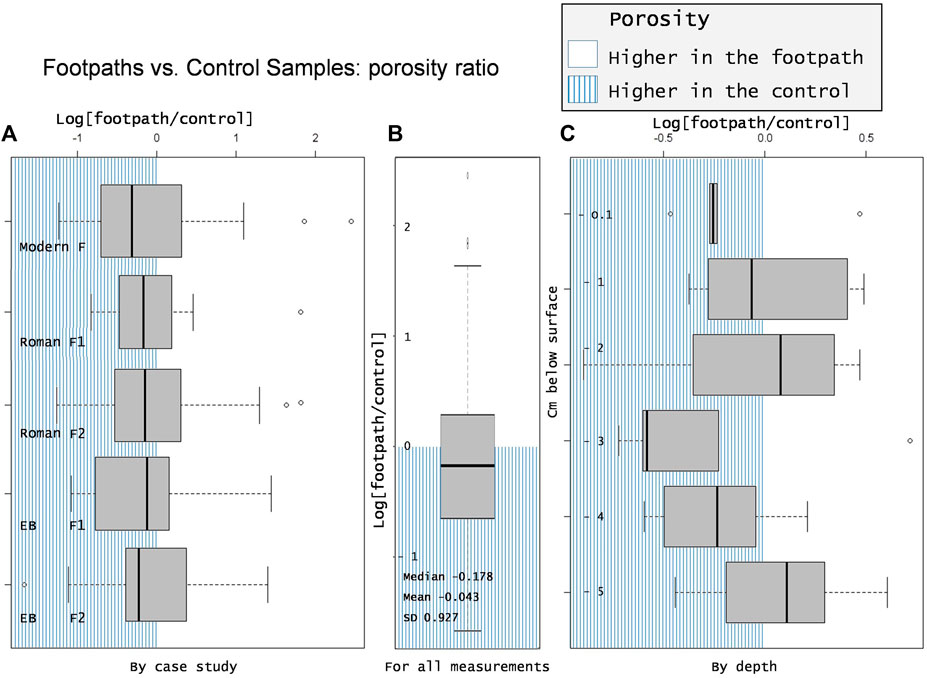

FIGURE 10. Porosity ratios of footpaths and their corresponding control samples (log (footpath/control) along 5 cm for each micromorphological slide. Presented according to (A). The individual paths, (B). Combined and (C). By depth (n = 180, at 0.1 and 3 cm below the surface: p<0.05 otherwise: p>0.05).

5.3 Long-term used footpaths

Absolute dating methods (e.g., radiocarbon dating, Optical Stimulated Luminesce (OSL), Beryllium-10) are routine techniques in establishing a time of deposition for both archaeological sites, sediments exposures and sediment cores (Rodríguez-Rodríguez et al., 2014; Roberts et al., 2015; Boaretto et al., 2021). However, for several centimeters of subsurface, laying outside clear archaeological context, these methods are challenging to apply. Conducting absolute dating in such context is especially challenging due to the limited datable subsurface material in arid environments, as well as to the interpretation of such materials as part of the early use of a footpath (Langgut et al., 2014). However, most control and footpath samples studied here, include silt to sand sized quartz and in some cases mica grains, suggesting a continues aeolian input in the Zohar Ascent and in the Wadi Zeelim outlet, or for the latter, reworked aeolian deposition originating from the Negev highlands (Sneh, 1979; Singer, 2007; Roskin et al., 2017). Such grains may prove as useful for future OSL measurements. Having stated that, in various environments, assessing the date of pathways and roads have often been established using dating from archaeological sites along the roads or on the basis of travel waste and historical evidence (Aharoni and Rothenebrg, 1960; Zedeño and Stoffle, 2003; Davidovich, 2014; Sidebotham et al., 2019). In the curent study we relay on a series of survey finds including installations and movement waste on the surface attributed to the Roman period, and similar finds and nearby excavations attributed to the Early Bronze Age, that have resulted in the affiliation of use of two of the studied footpaths to these times (Yekutieli, 2005; 2006; Davidovich, 2014). Therefore, the Early Bronze Age and the Roman period are regarded here as dominant phases within the lifespan of the two archaeologically attributed footpaths. Subsequently, any later (including recent) use of these trails could not be excluded, as recurrent use of existing trail systems is a well-known phenomenon (Jackson, 1994). Hence, we consider these two footpaths to be under long-term use during the Holocene, rather than proclaiming their absolute formation only to the specified archaeological periods.

Geomorphologically, the relative antiquity of the footpaths could be assessed through the interaction between linear soil erosion and the location of trails (Watchman and Twidale, 2002). On the plane area of the Wadi Zeelim outlet, the current streambed truncates the Roman footpath (1), indicating that the path predates the current riverbed configuration (Figure 3). It is worth noting that in the Judean Desert, within areas that are no longer fluvially active, such as hillslopes and elevated planes, certain pedogenic and fluvial processes are minimal, at times allowing better preservation of archaeological remains (Fanning et al., 2009). In contrast, active Wadi riverbeds in the Judean Desert can quickly incise and undercut the sedimentary accumulation due to the high surface runoff and the subsequently intense floods, as well as the decline in the levels of the Dead Sea. On the hillslope area of the Zeelim Wadi, some gullies and rills, or their outlets, overlie parts of the Roman footpath (2), Similarly, suggesting the latter predates the former (Figure 3). Hence, these features further imply a minimal recent-modern use of the Roman period footpath, but without absolute dating the geomorphological evidence is highly circumstantial (Watchman and Twidale, 2002).

For the long-term used trails studied here (affiliated with the EBA and Roman period), the only consistent differences evident between the modern footpath sample and their control is the increased compaction of the sediments under footpaths, compared with the control samples (Table 3; Figures 68, 10). Beyond that, for the long-termed used footpaths, no micro-archaeological remains of their use were found and we observed no other consistent (post)depositional markers. Instead, differences are context specific. For the Roman footpath segment sampled in the plane area, the minor calcareous cementation resulting from plant roots activities may reflect on periods of abandonment of the path as also evident from the current stream bed cutting the footpaths’ course and preventing passage. Such abandonment could result in a slight increase in porosity and water saturation followed by plant growth. Considering that dryland bacterial communities can recover within years of the original disturbance, such recovery cannot be overruled (Cole, 1990; Steven et al., 2021). For the EBA footpaths, multiple slacking crusts suggesting some degree of water saturation (e.g., puddle) as well as calcareous cementation, indicating post-depositional activities, were evident in both footpath (EBA (2) and control samples (EBA (1). These crusts do not exhibit granular structure which would suggest there were affected by trampling (Stahlschmidt et al., 2019). The likely abandonment of these route, based on archaeological evidence, directly after the Bronze Age may have resulted in over four millennia of potential recuperation, in which case the footpath surfaces would act more similar to non-path controls, including the formation of non granular slacking crusts (Yekutieli, 2005; 2006; Davidovich, 2014).

5.4 Method evaluation

Four methods were used to identify and assess the overall sediment and soil characters of ancient and modern footpaths in arid contexts. Analysing bulk parameters such as pH and electric conductivity as well as Cl-, intended to identify soil forming processes such as organic decay (Öberg, 1998), salt dislocation and evaporation (Mabbutt, 1977; McFadden and Knuepfer, 1990), as well as possible clay lessivage (Khormali and Abtahi, 2003) while overall grain size analysis provided the textural picture required for a valid process understanding (Kettler et al., 2001). Unfortunately, the analysis of these (bulk) parameters (i.e., grain size, pH, EC, elemental) did not allow differentiation of samples originating from footpaths and non-footpaths (Supplementary Figure S1). However, this lack of differentiation might be the result of the sampling strategy extracting bulk-samples of 5-cm thickness (0–5 cm depth, 5–10 cm depth, 10–15 cm depth) not allowing a high resolution of near surface material characters by lab parameters, while in parallel the micromorphological thin sections allow a high resolution analysis of the material regarding structure and texture (Figure 5). In consequence, a sampling strategy with higher resolution such as <1 cm intervals could prove itself as useful (Giesler and Lundström, 1993; Wells, 2010). Using micromorphology, a hindrance of pedogenic activities under the modern footpath sampled in the plane area compared with its control was observed while archaeologically affiliated footpaths, in the hill slope areas in particular, showed greater variability and no clear trend was observed beyond surface compaction (Figures 69). Due to the variable micromorphological observations between samples, e.g., the occurrence of slaking crusts, calcareous cementation and the degree of bioturbation, a larger sample set that includes spatially diverse contexts would be necessary to validate these trends (Croix et al., 2019). Furthermore, the integration of the micromorphological sampling with stratigraphic observations in such “test pit excavations” of a footpath, would require more intense field documentation of the complete path with multiple pits/trenches to better follow the stratigraphy of the path and non-path areas and test their change across various micro-environments. For both the Roman and EBA affiliated trails, an important constraint in our ability to identify a historical trail could lie in the interpretation of abandoned ancient footpaths as opposed to less frequently used modern footpaths. The former may have similar micro-features to the latter. However, it has been shown that after two dozen events of footpath trampling, the fresh soil crust layers are destroyed (Cole, 1990). This implies that minimally used recent footpaths should bear, to some extent, similarities to the intensely used modern trails rather than to ancient trails, if used concurrently. Image analysis has long been used in a micromorphological context, including attempts at assessing the degree of porosity (Pires et al., 2009). In some cases, such analysis included the successful estimation of void types. However, comparing the results of different case studies and authors to assess the degree of porosity is challenging as authors use different softwares, many times not accessible to others (Rasa et al., 2012). Using image analysis in an open-source R environment to evaluate subsurface porosity has produced a result showing a significant reduction of porosity in footpath samples compared with non-path controls at 0.1 cm below the surface alone (Figure 10) in agreement with surface penetration resistance measurements. In more humid environments the significantly lower porosity reached 3 cm below the surface, suggesting that this tool could be useful for comparing between environments (Nir et al., 2022). Using UAV and laboratory analysis for assessing color differences between footpaths and non-footpaths is very insightful (Figure 4). Coupled with elemental and grain size analyses (Figure 5), the combination of these results was helpful for understanding the contribution of abraded larger (sands, gravels, pebbles) grains to the resulting bright color of footpaths while iron rich silts and clays (dominating the undisturbed control areas) correlate with the darker red color (Chase et al., 2012). Therefore, using UAV, laboratory analysis and surface penetration resistance could prove itself useful for footpath recognition. Additionally, with a larger and well-contextualized sample set, detailed micromorphological analysis can evaluate formation processes related to footpath use and, again context- and analogy-dependent, whether the path could have been used in the long-term or abandoned. This could be especially true for footpaths located in arid-environments on plane areas, where water accumulate seasonally during flooding events, resulting in an overall similar depositional and bio/pedogenetic processes to the subsurface. The latter processes would be then more recognizable and their hindering easier to differentiate by the formation of footpaths.

6 Conclusion

In this paper we studied three footpaths in the arid environment of the Judean Desert of variable temporal contexts, representing recent and long-term, including archaeological use. The interstratification of the footpaths with geomorphological features, resulting, for example from gully erosion or river incising, served as relative indicators for the antiquity of a trail and in concert with the occurrence of archaeological remains (from different epochs) suggests that these trails have been active through a long time period. On the other hand, gullies initiating from footpaths bear witness to the local geomorphological impact of footpaths. Our analysis shows a general trend of increased compactness, lower porosity, and brighter colors in the footpaths compared to their immediate surroundings and controls. For the high-resolution UAV data, footpaths have a significantly higher albedo value than the non-trail surrounding areas. Using micromorphology, the main consistent difference is increased compaction of the sediments in footpaths compared to the controls while a few variable proxies, i.e., bioturbation, water percolation and homogenization of the sediments seem to be effected by footpath formation, however, their occurrence and expression varies by slope angel and archaeological context and they are more difficult to explain. Modern footpath sample shows the most striking examples of the above mentioned differences (e.g., open microstructure, calcareous cementation, slacking crust and vesicles in the control sample but not in the footpath), while the archaeological trails present mixed trends. This is could be due to micro-environmental variability, slope angle, and time passed since its intense usage and suggested abandonment. Looking at signals related to these processes, a differentiation between modern and archaeological trails based on qualitative micromorphology was not straightforward. Beyond, higher penetration resistance and thin section lower-porosity is evident in footpath near surfaces for the studied arid environment. However, in the arid zone porosity is significantly lower than corresponding controls only 0.1 cm below the surface while in previously studied temperate zone, relative porosity is lower down to 3 cm below the surface. This supports other studies that suggested that trampling on wet surfaces results in a higher degree of compaction than on dry ones. By sampling in multiple locations and using well defined controls, a combination of R based porosity analysis and micromorphological description can be used as tools for supporting archeological endeavors in uncovering (pre)historical footpaths. Further investigation using UAV and color recognition could be useful to explore the distribution of trails, particularly in arid limestone environments, as such effect could emerge as one of the earliest types of human-made (micro)climate change. A remote sensing approach could possibly quantify the albedo effect that ancient and modern trails hold on the landscape.

Data availability statement

The datasets presented in this study can be found in online repositories. The names of the repository/repositories and accession number(s) can be found in the article/Supplementary Material.

Author contributions

NN–Geo-and micro-morphological conceptualization, data collection and analysis. UD–Archaeological framework conceptualization and data collection MU–Archaeological framework conceptualization and data collection BS–Geomorphological conceptualisation and supervision MS–Micromorphological conceptualization, data analysis and supervision. All authors contributed to the article and approved the submitted version.

Acknowledgments

We would like to thank Moritz Nykamp, Philipp Hoelzmann, and René Schatten from the laboratory for Physical Geography at the Freie Universität Berlin and to Catrin Vetter from the Julius Kühn-Institut. Continued support was given by Jacob Hardt, Robert Busch, and the PhD students and postdocs of the Physical Geography working group at FU Berlin. Special thanks to Ruth Shahack Gross from Haifa University and Ariel Malinsky Buller of the Hebrew University of Jerusalem and Anna Shraer. Thanks also to the Studienstiftung des Deutschen Volkes for personal funding during this research period. We thank the reviewers for improving this manuscript.

Conflict of interest

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

Publisher’s note

All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.

Supplementary material

The Supplementary Material for this article can be found online at: https://www.frontiersin.org/articles/10.3389/feart.2023.1148101/full#supplementary-material
