Volatiles exert a critical control on volcanic eruption style and in turn impact the near source environment and global climate. La Soufrière de Guadeloupe in the Lesser Antilles has been experiencing volcanic unrest since 1992, increasing to a peak in 2018. The lack of data available on volatiles from past eruptions, and the well-developed hydrothermal system makes understanding deep-released volatile behaviour challenging. In this study, we analyse new melt inclusions and shed light on the volatile lifecycle and impacts at La Soufrière de Guadeloupe. We focus on four eruptions: 1657 CE (Vulcanian), 1010 CE (Plinian), 341 CE (Strombolian) and 5680 BCE (Plinian), and compare to the well-studied 1530 CE (Sub-Plinian) eruption. The maximum volatile content of these eruption melt inclusions are: 4.42 wt% H2O, 1700 CO2 ppm, 780 ppm S, 0.36 wt% Cl and 680 ppm F. We observe a decrease in S content over time indicating the whole system is evolving by early separation of FeS, resulting in a lower S content in younger magma. Using the CHOSETTO v1 model, we modelled degassing paths related to decompression at low pressures, suggesting the majority of S degassing has occurred during magma ascent. We also calculate the SO2 emissions using the petrologic method, and while the 1657 CE, 1530 CE and 341 CE eruptions have negligible emissions (0.0001–0.001 Mt of SO2), the 1010 CE and 5680 BCE eruptions (0.2 Mt and 0.3 Mt of SO2, respectively) are greater. Using the SO2 emissions and plume height, we calculated the climate forcing associated with each event. The 1010 CE and 5680 BCE Plinian eruptions produced a peak global mean stratospheric aerosol optical depth (SAOD) of 0.0055 and 0.0062, respectively. This suggests, that even the largest eruptions of La Soufrière de Guadeloupe did not exert a significant climate forcing individually, but are important contributors to the volcanic stratospheric sulfate aerosol background resulting from relatively moderate but frequent explosive eruptions. Overall, this study provides new insights into degassing processes and climate forcing not only at La Soufrière de Guadeloupe, but also for other basaltic-andesitic, magmatic-hydrothermal systems. These new constraints are vital particularly if the volcano is currently in a state of unrest and will contribute to improving monitoring crisis management and long-term planning.
1 Introduction
Volatiles are the driving engine of volcanic phenomena; meaning the behaviour of volatiles are key in understanding volcanic processes. Volatiles are chemical constituents of a magma which are present in small amounts (on the order of a few weight percent) and partition preferably into a gas phase at low pressures (e.g., Edmonds and Wallace, 2017). The volatile phase is usually predominantly made up of H2O, CO2, sulphur and halogens (Cl and F) and plays a key role in eruptive dynamics. Indeed, volatiles control the growth, size, abundance and overpressure in bubbles, the growth and composition of crystal phases, magma differentiation, ascent and convection, as well as, on reaching the atmosphere, an impact on the environment and climate (e.g., Wilson et al., 1980; Sisson and Grove, 1993; Roggensack et al., 1997; Sparks et al., 1997; Wallace, 2005; Gurenko et al., 2005; Davidson and Kamenetsky, 2007; Kelley and Cottrell, 2009; Balcone-Boissard et al., 2010; Edmonds and Wallace, 2017; Marshall et al., 2022).
Volatiles can be derived from various depths or structural levels of the magma pluming system according to where storage and degassing of magma is occurring (e.g., Scaillet and Pichavant, 2003). This is important to consider at arc volcanoes where magmatic processes are hypothesised to occur across a wide range of pressures. Volatiles can be present as both an exsolved, multicomponent vapour phase (if the magma is vapour saturated) or dissolved in the magma (if the magma is vapour undersaturated; e.g., Wallace, 2003). Vapour saturation occurs when the total partial pressure of dissolved volatiles in the magma is equal to the confining pressure (Edmonds and Wallace, 2017). Magmas, particularly intermediate to silicic magmas, become vapour saturated at low pressures due to cooling and crystallisation and underplating by CO2-rich magmas (e.g., Wallace, 2001; 2003; Edmonds and Wallace, 2017). Processes such as magma crystallisation can result in volatile oversaturation and subsequent exsolution and bubbles forming; this increases pressure in the magma reservoir and may trigger an eruption (e.g., Tait et al., 1989).
In addition to ash, during an eruption the injection of large quantities of volatiles can result in important impacts on the near source environment (e.g., Carlsen et al., 2021) and on global climate (e.g., Marshall et al., 2022). In particular, volcanic sulphur form volcanic sulphate aerosols which interact with Sun and Earth radiation and modulate Earth energy balance and climate (Robock, 2000). Stratospheric volcanic sulfate aerosols, formed from volcanic sulphur injected above the tropopause (ca. 9–16 km altitude depending on the latitude and season considered), have a lifetime of 1–3 years and spread globally (McCormick et al., 1995; Macdonald and Wordsworth, 2017). They backscatter solar radiation and result in a net surface cooling, for example, the 1991 Mount Pinatubo injected ca. 15 Mt of SO2 at 25 km height (Guo et al., 2004) and resulted in a global-mean cooling of 0.5°C for a year (McCormick et al., 1995). Eruptions injecting on the order of 0.1–1 Mt of SO2 into the stratosphere have much smaller climate impacts but are also much more frequent, and collectively they have a discernable footprint on forcing and large-scale climate metrics such as global mean surface temperature (Solomon et al., 2011; Santer et al., 2014; Schmidt et al., 2018).
Volatiles also play an important role at volcanic systems during quiescent phases of activity, when they are passively degassed. Volatiles in the exsolved phase are thought to be transported through permeable bubble networks (Eichelberger et al., 1986), or through the magma mush along quasi-brittle fractures at high gas fractions and through viscous fingering which could allow relatively fast migration (Gonnermann and Manga, 2003; Edmonds and Herd, 2007; Cabrera et al., 2011; Huber et al., 2011; Castro et al., 2012; Oppenheimer et al., 2015). It is particularly important to consider mafic underplating of a more silicic magma, given the presence of an exsolved phase (Annen et al., 2006). Indeed, the presence of a volatile-saturated magma will favour the process of volatile exsolution which in turn will trigger heating and remobilization of the magma above (e.g., Bachmann and Bergantz, 2006). Crystal mushes are also thought to ‘hold’ exsolved gases in melt layers which in some cases, can contribute to rapid outgassing of volatiles (Huber et al., 2011; Oppenheimer et al., 2015).
La Soufrière de Guadeloupe (hereby referred to as La Soufrière) in the Lesser Antilles has been experiencing increasing unrest since 1992; the unrest reached a peak in 2018 when an earthquake was felt by the population (Moretti et al., 2020a). This volcano has a well-developed hydrothermal system in which deep gases re-equilibrate and mix with groundwaters (Brombach et al., 2000; Allard et al., 2014; Villemant et al., 2014; Tamburello et al., 2019; Moretti et al., 2020a; Moretti et al., 2020b; Moretti et al., 2021; Inostroza et al., 2022a; Inostroza et al., 2022b; Moune et al., 2022). The hydrothermal system screens the actual input of volatile components from the magma beneath and makes our understanding of magma behaviour at this system difficult. Indeed, hot magmatic gases infiltrating hydrothermal aquifers become partly depleted in their most water-soluble acid components (SO2, HCl, HF) because of cooling and scrubbing into deep circulating groundwater (Hedenquist and Lowenstern, 1994; Symonds et al., 2001; Moretti and Stefánsson, 2020). This leads to acid, relatively oxidized, and highly reactive solutions that neutralize by reacting with wall rocks and leaching cations which then boil. This liberates the geothermally re-equilibrated steam-dominated vapors enriched in CO2, H2S, H2, CH4 and CO which feed surface fumaroles (Giggenbach, 1988; Giggenbach, 1997; Reed, 1997; Symonds et al., 2001; Moretti and Stefansson, 2020). Given the ongoing unrest and the lack of data available on volatiles in past eruptions of La Soufrière, it is important to understand and track the release of volatiles in the magmatic system and their behaviour during eruptions. To make progress, this study provides new insights on the volatile life cycle at La Soufrière using melt inclusion data from five eruptions (1657 CE, 1530 CE, 1010 CE, 341 CE and 5680 BCE).
2 Geological and magmatic setting
Guadeloupe is composed of several islands and is in the central segment of the Lesser Antilles Arc. The Lesser Antilles were formed due to the subduction of the American plate under the Caribbean plate at a rate of ∼1.9 cm/yr (Macdonald and Holcombe, 1978; McCann and Sykes, 1984; Jarrard, 1986; Rosencrantz and Sclater, 1986; Deng and Sykes, 1995; Dixon et al., 1998; DeMets et al., 2000; Feuillet et al., 2011; Symithe et al., 2015). The eastern islands of Guadeloupe (Grand-Terre and Marie-Galante) are associated with the external arc, and the western island of Basse-Terre is associated with the active inner arc (ca. 2.8 Ma, Plio-Pleistocene; Macdonald et al., 2000; Komorowski et al., 2005; Boudon et al., 2008; Samper et al., 2007; Kopp et al., 2011; Figure 1).
FIGURE 1. Map showing Guadeloupe in the Lesser Antilles, La Soufrière is found in the south of the western island of Basse-Terre. The current dome (photographs: Metcalfe et al., 2021a) was emplaced during the 1530 CE multiphase eruption.
Basse-Terre is composed of seven eruptive complexes with the Grande Découverte Soufriere complex (GDS) hosting the most recent volcanic activity observed in Guadeloupe, including La Soufrière, and occupies one-third of the island of Basse-Terre (Komorowski et al., 2005; Figure 1). La Soufrière is a basaltic-andesitic stratovolcano that was formed by a succession of lava flows, domes, pyroclastic sequences from explosive eruptions with sustained and collapsing plumes and explosive hydrothermal or activity. These deposits are intercalated between the debris avalanche deposits from a unique succession of at least nine partial edifice collapse events that occurred in the last 9,150 years (Komorowski et al., 2005; Boudon et al., 2007; Komorowski et al., 2008; Komorowski et al., 2008; Komorowski et al., 2012; Legendre, 2012; Komorowski et al., 2013; Komorowski et al., 2022). On average eruption products in the GDS have whole rock compositions spanning a range of compositions from basaltic-andesite to andesite (Metcalfe et al., 2022). However, the scoria cones of Echelle and of La Citerne are mainly basaltic composition, despite a mixed basaltic and andesite bimodal lava flow in the central part of the Echelle scoria cone (Metcalfe et al., 2023).
Legendre (2012) and Komorowski et al. (2012, 2013) report numerous, previously unknown explosive eruptions of La Soufrière with the majority being multiphase eruptions. The plume heights reported are calculated from isopleth data reported in Komorowski et al. (2008), Legendre (2012), Esposti Ongaro et al. (2020) and Komorowski et al. (2022), and are representative of the
Maximum plume heights above sea level (a.s.l.). Here, we provide a brief summary of the five La Soufrière eruptions discussed in this paper in order to contextualise the results and implications (Table 1). Detailed stratigraphy, radiocarbon dating, and eruptive deposit analysis available in Legendre (2012).

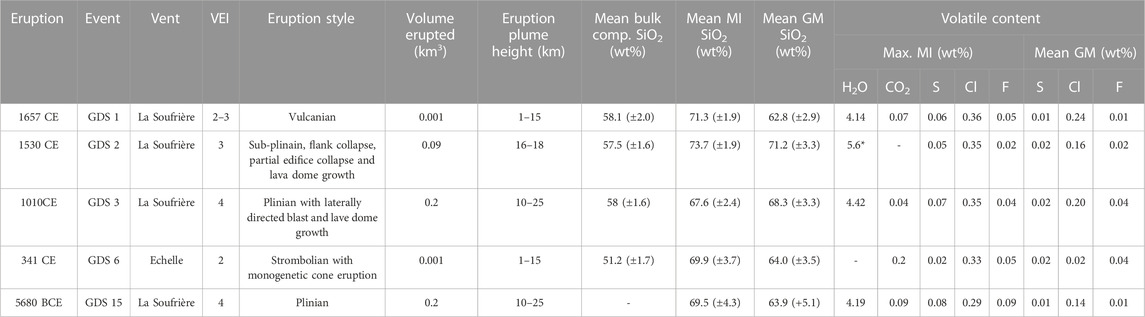

TABLE 1. Summary table for the eruptions studied. *from Pichavant et al., 2018 calculated by difference, all other volatile data is from SIMS and or EMPA measurements (Metcalfe et al., 2022). We report our standard deviations on the mean values of >10 analyses in brackets. Our analytical uncertainty on the volatile values is ±5%.
2.1 Relevant eruptive history of La Soufrière de Guadeloupe
2.1.1 The 5680 BCE eruption
The 5680 BCE (GDS15) eruption is the first and most violent magmatic eruption preserved in the geological record of the La Soufrière with an estimated VEI 4 (Volcanic Explosivity Index; Newhall and Self, 1982). This eruption generated a sustained eruption column reached a maximum height of 10–25 km a.s.l. and had a minimum estimated erupted volume of ∼0.1 km3, with scoria fallout found 7 km from the vent (Komorowski et al., 2012; Legendre, 2012; Komorowski et al., 2013).
2.1.2 The 341 CE eruption
The next eruption studied is the scoria cone eruption of Echelle, which is estimated to have occurred at 341 CE (GDS 6) (Boudon et al., 1988; Komorowski et al., 2005). This eruption occurred as magmatic activity migrated 0.8–1.4 km SE from the main La Soufrière vent, with the Echelle scoria cone erupted in a ∼N120 structural alignment with La Soufrière (Feuillet et al., 2011). The Echelle eruption was a Strombolian-style eruption, interpreted as VEI 2 event, with a minimum erupted volume of 0.001 km3 and an estimated 1–15 km a.s.l. eruption column (Legendre, 2012).
2.1.3 The 1010 CE eruption
The most recent Plinian eruption occurred at 1,010 ± 10 CE (GDS 3) and is categorised as VEI 4 explosive eruption. As with the 5680 BCE eruption the eruptive volume was estimated at ∼0.1 km3 and the eruptive column height estimated at 10–25 km a.s.l. Unlike the 5680 BCE eruption, the 1010 CE eruption was a multiphase eruption, also associated with a dome-building phase, which produced a laterally-directed explosion (blast) and high-energy pyroclastic density currents (Legendre, 2012).
2.1.4 The 1530 CE eruption
The most well-studied archetypal multiphase eruption of the La Soufrière episode is the 1530 CE eruption (GDS 2) which began with a partial edifice collapse followed by a phreatic explosive phase, a paroxysmal sub-Plinian explosive phase and that ended with emplacement of the current lava dome. This eruption is described in detail by Boudon et al. (2008); Komorowski et al. (2008); Komorowski et al. (2012); Komorowski et al. (2013); Pichavant et al. (2018); Esposti Ongaro et al. (2020). The eruption is categorised as VEI 3 with an estimated and revised eruptive volume of 0,07 to 0.09 km3 (Legendre, 2012; Esposti Ongaro et al., 2020), the maximum plume height is constrained by Esposti Ongaro et al. (2020) at 16–18 km a.s.l., both based on extensive field analysis.
2.1.5 The 1657 CE eruption
Finally, we studied the most recent magmatic eruption which occurred in 1,657 ± 20 CE (GDS 1) (Komorowski et al., 2012; Legendre, 2012; Komorowski et al., 2013; Metcalfe et al., 2021a; Metcalfe et al., 2021b). This eruption was a small, explosive Vulcanian eruption (VEI 2–3), with a minimum estimated erupted volume of ∼0.001 km3 and an eruptive column height estimated at 1–15 km a.s.l., with no evidence for associated flank collapse or dome activity reported.
2.2 Recent activity at La Soufrière de Guadeloupe
Following the 1657 CE magmatic eruption, six phreatic/hydrothermal non-magmatic explosions have occurred (Feuillard et al., 1983; Komorowski et al., 2005; Hincks et al., 2014; Rosas-Carbajal et al., 2016). The most recent sequence of 26 phreatic explosions occurred during a phreatic eruption between July 1976 and March 1977. This changed the mechanical state of the dome through the opening of new major fractures and widening and deepening of existing fractures1 and craters and has had an important effect on the evolution of the system (Komorowski et al., 2005; Rosas-Carbajal et al., 2016; Moretti et al., 2020a). The period of minimal activity ended in May 1992 when seismic swarms and a new degassing phase began with summit fumarole reactivation (Zlotnicki et al., 1994; OVSG-IPGP, 1999; Komorowski et al., 2001; Komorowski et al., 2005).
Degassing has continued to evolve with new fumarolic vents appearing and pre-existing fumaroles reactivating (temperature range for these fumaroles: 96°C–110°C; Jessop et al., 2021), with locally high-velocity degassing. Between April 2017-December 2018 unrest reached a maximum and the highest level since 1976–1977 (Moretti et al., 2020a). Seismicity in particular was observed to reach a peak on 27 April 2018 when a M 4.1 earthquake, located approximately 3 km below the surface and 2.5 km NW of La Soufrière, was felt by the Basse-Terre population. This was the largest volcanic earthquake in 42 years (OVSG-IPGP, 1999; Moretti et al., 2020a).
2.3 Magma storage at La Soufrière de Guadeloupe
Moretti et al. (2020a) proposed a model that describes the magma reservoir based on the crystal mush model, used at many similar systems to explain observations and activity (e.g., Cashman et al., 2017). This was refined by Metcalfe et al. (2021a), Metcalfe et al. (2021b); Metcalfe et al. (2022) to include a vertically and laterally extensive mush system extending 6–9 km in depth, which hosts relatively evolved magmas. A mush system is formed from repeated intrusions from depth and is composed of an interlocking framework of crystals with the presence of melt, containing dissolved volatiles, distributed in varying volumetric proportions within the network of crystals (e.g., Cashman et al., 2017). Remobilization of this mush system to produce eruptible magma may occur through the injection of mafic magma from depth into the shallow system, resulting in magma mixing. Alternatively, in eruptions where no mixing textures are observed (e.g., 1657 CE) exsolved fluids and heat from magma at depth may allow remobilization with no interaction with a mafic magma. Investigation of major and volatile elements of melt inclusions across several Holocene eruptions of La Soufrière shows the composition of the storage zone has remained stable during this time period (Metcalfe et al., 2022). Melt inclusions (MI) from La Soufrière, and the neighbouring monogenetic cone of Echelle, range from 58–79 wt% SiO2, with major elements showing no systematic changes across the Holocene eruptions (Poussineau, 2005; Boudon et al., 2008; Pichavant et al., 2018; Metcalfe et al., 2022; Metcalfe et al., 2023).
Eruptions at the La Soufriere system have been shown through diffusion timescale studies to occur <1 year following remobilisation of the magma mush reservoir (e.g., by recharge of a more mafic magma) (Pichavant et al., 2018; Metcalfe et al., 2021a; 2021b). Understanding the trigger behind eruptive processes and the role volatiles play in these processes is particularly important given the short timescales. The rapid remobilisation of the mush system and potential short period of volcanic unrest, which may rapidly accelerate, makes crisis management and evacuation planning very important (Metcalfe et al., 2021a; Metcalfe et al., 2021b). In order to make volcanic surveillance and crisis management most effective, we must understand clearly the processes leading to an eruption, including degassing dynamics and processes.
3 Methods
3.1 Sample collection and preparation
The samples used for this study were collected between 2001 and 2019, from both distal and proximal outcrops around La Soufrière. The units were sampled across the entire thickness of the layer (channel sample) at constant depth to ensure the sample is representative of the whole unit. Samples from the 1657 CE, 1010 CE and 5680 BCE were taken from pumice fallout units, and the 341 CE sample was collected from a recent slump estimated to be from the upper and outer parts of the cone. This rain-triggered slump was found along the road at the base of the Echelle cone and allowed us to obtain the least altered deposits (Metcalfe et al., 2021a; Metcalfe et al., 2021b; Metcalfe et al., 2022; Metcalfe et al., 2023). Detailed sample descriptions are available in Komorowski et al. (2005), Komorowski et al. (2008), Boudon et al. (2008), Legendre (2012) and Metcalfe et al. (2022), and for full stratigraphic context Legendre (2012) should be referred to. Stratigraphic context for the 1530 CE sample is from Komorowski et al. (2005), Poussineau (2005), Boudon et al. (2008), and Pichavant et al. (2018). All samples were treated and prepared using the same methods.
A selection of pyroxene and plagioclase crystals, which had been hand separated from the 500 μm sieved fraction, were also mounted in crystal bond. These crystals were partially polished in order to select crystals that hosted MIs. For Electron Micro-Probe analysis (EMPA), MIs were mounted in individual epoxy filled rings and polished individually using silicon carbide polishing pads sequentially in the following grades: P-800, P-1200, P-2400 and P-4000 and finished using 0.3 μm aluminium powder. The prepared inclusions were then carbon coated for EMPA. In order to avoid carbon contamination for CO2 determination via Secondary Ion Mass Spectrometry (SIMS), a selection of MIs were prepared separately (Rose-Koga et al., 2021). Plagioclase and pyroxene crystals were mounted in crystal bond and polished using aluminium powder (3 μm, 1 μm and 0.3 μm), and crystals with melt inclusions were then pressed into indium and gold coated. Following SIMS analysis, this coating was removed and re-coated in carbon for major, F, S and Cl elements (EMPA, see section 3.2). Groundmass glass was selected, mounted in epoxy, polished and carbon coated using the same technique as for minerals and MIs for SEM.
3.2 Sample analysis
EMPA of major element (Si, Ti, Al, Fe, Mn, Mg, Ca, Na and K) and volatile (F, S and Cl) compositions of MIs, GM and minerals were obtained using the Cameca SX-100 and SX-5 which are part of the CAMPARIS platform at University Pierre and Marie Curie. Minerals were analysed using a 15 KV accelerating voltage, a beam current of 10 nA and a focused beam diameter of 1 μm. Glasses were analysed using a 15 KV accelerating voltage, a beam current of 10 nA (for Si, Ti, Al, Fe, Mn, Mg, Ca, Na and K) or 50 nA (S, Cl and F) and a defocused beam of 5 μm. In order to reduce the loss of Na, this element was analysed first, with the beam regularly blanked with a Faraday cup. The increased current and increased acquisition time used for S, Cl and F insured minimal loss for the volatile elements. However, the detection limit for F is relatively high at 150 ppm (Rose-Koga et al., 2021), such that the F concentration was below the detection limit for many inclusions. Moreover, F analysis is less precise because of the overlap of the FKα peak by the FeLα peaks (Lowenstern, 1994; Todd, 1996; Witter and Kuehner, 2004). EMPA standards and errors are reported in Table S1.
SIMS analysis was conducted using the Cameca IMS 1270 ion microprobe at the Centre de Recherches Pétrographiques et Géochimiques using a 10kv Cs+ primary beam of 3 nA. This was used to measure H2O, CO2, S, Cl a F concentrations of the inclusions. Samples were pre-sputtered in order to reduce surface contamination reaching the mass spectrometer.
In addition to volatiles, we also measured deuterium D) as a D/H isotope ratio, in order to assess the degree of H+ diffusion which is used as a proxy for H2O loss in ∼40 representative inclusions. The D/H ratio was calibrated using ETNA-0, TAN25-0, TAN25-2 and values are reported as δD, which is the per mil deviation of the D/H isotope ration from the D/H ration of Standard Mean Ocean Water (δDSMOW).
3.3 Data processing
The petrologic method was developed by Devine et al. (1984) and considers the volatile composition dissolved at depth and the remaining volatile content following degassing during an eruption. As this method does not involve direct measurements of emissions, this leads to some uncertainties when using this method, including: i) uncertainties in the volume of degassed magma, ii) underestimation of the volatile content in magma at depth determined by melt inclusions (MIs; Wallace, 2005; Moune et al., 2007; Venugopal et al., 2020), iii) the separation and co-existence of an immiscible sulphide phase and/or S-rich minerals, and iv) the partition into a pre-eruptive vapour phase if the magma is vapour saturated. Although direct measurements of emissions will always be more accurate (e.g., using remote sensing, Carn et al., 2016), the petrologic method is the only option to estimate emissions from past eruptions:
For each eruption we use the maximum MI volatile content (which represents pre-eruptive magma composition), the groundmass (GM) volatile content (which represents the post-eruptive magma composition; e.g., Moune et al., 2007; Zurek et al., 2019) and the estimated mass of the eruption (from Komorowski et al., 2008; Legendre, 2012; Esposti-Ongaro et al., 2020):
(Where X is a volatile species, e.g., S, Cl, F).
A minimum degassing must be assumed here because the petrologic method does include volatile contributions from unerupted magma at depth and the eruption masses are a minimum estimate calculated by Legendre (2012) using VEI.
We used the SOLWCAD and CHOSETTO v1 models to understand degassing processes in the magma of La Soufrière (Moretti et al., 2003; Moretti and Papale, 2004; Papale et al., 2006; Papale et al., 2022; see also Supplementary Table S2). SOLWCAD (available at https://www.pi.ingv.it/progetti/eurovolc/; last accessed on 5 December 2022) codes the Papale et al. (2006) models the saturation surface of a H2O and CO2 in a melt of given composition. Hence for a given constant FeO/Fe2O3 ratio along with a precise assessment of the onset of exsolution pressures (≈PH2O+ PCO2), the total (gas + melt) amounts of these volatiles in the system can be calculated. For such reason, it can be used in a reverse mode to estimate saturation pressures back to the onset of exsolution from sets of melt inclusion data (see Metcalfe et al., 2023 for application to Lesser Antilles Arc magmas). CHOSETTO, extends SOLWCAD to compute forward degassing of H2O, CO2, SO2 and H2S in magmatic melts and also has the feature of consistently computing the relation between oxygen fugacity (fO2) FeO/Fe2O3 redox ratio and how this affects the amounts of sulphur dissolved as sulphide and sulphate and so, the S-redox ratio. This allows us to expand the study of H2O-CO2 degassing in order to understand the impact of S and the role of total volatiles on the degassing trends. Based on sulphur plus iron redox (Ottonello et al., 2001; Moretti and Ottonello, 2003; 2005; Moretti, 2005) H2O+ CO2 models (Papale et al., 2006), the model has proved useful to interpret degassing at many volcanic sites spanning a quite large range of magma composition and geodynamic contexts (Aiuppa et al., 2007; 2010; 2017; Edmonds and Herd, 2007; Marini et al., 2011; Oppenheimer et al., 2011; Pino et al., 2011; Moretti et al., 2013a; Moretti et al., 2013b; de Moor et al., 2016; Moretti et al., 2018; Aiuppa et al., 2022). The program can be downloaded from https://github.com/charlesll//chosetto (DOI: 10.5281/zenodo.5554941).
To calculate the stratospheric aerosol optical depth (SAOD) perturbation and radiative forcing produced by the studied eruptions, we used EVA_H (Easy Volcanic Aerosol_Height), a simple model of volcanic sulphate aerosol forcing (Aubry et al., 2020). EVA_H is an empirical box model predicting the temporal and spatial variation of aerosol optical properties given the characteristics of a volcanic SO2 injection (mass, latitude, altitude, and season). It was calibrated for the 1979–2015 eruption sequence using recent satellite based volcanic SO2 emission inventories (Carn et al., 2016) and stratospheric aerosol optical properties observations (Thomason et al., 2021). The SAOD at 550 nm predicted by EVA_H is converted into an effective radiative forcing at the top of the atmosphere using the tropical eruption scaling from Marshall et al. (2019).
4 Results
4.1 Volatiles
For a full report of major element analysis for MI and GM please refer to Metcalfe et al. (2022) and Metcalfe et al. (2022). A summary of key geochemical data is provided in Table 1. MIs in this dataset have not experienced any post-entrapment crystallization, and are in equilibrium with their host mineral (Putirka, 2008). Additionally, no bubbles were observed in the MIs.
To understand whether the volatile elements in the MI are representative of the undegassed magma, particularly if any H2O loss has occurred from the inclusions, we measured the D/H ratio of the MI. The D/H ratio is expressed as δD (the permil deviation from Standard Mean Ocean Water (δDSMOW)). Slab fluids related to the average upper MORB mantle fall in the range δD −20 and −80‰ and values below −150‰ are the upper limit of terrestrial mantle values (Shaw et al., 2008).
The 1657 CE, 1010 CE and 5680 BCE MI all fall within this δD −80 to −20‰ range, which indicates the trapping of variably degassed melts has occurred rather than post-entrapment H2O loss (Figure 2). However, the majority of the 341 CE eruption inclusions have a large range of positive values (δD 50‰–290‰; Figure 2).

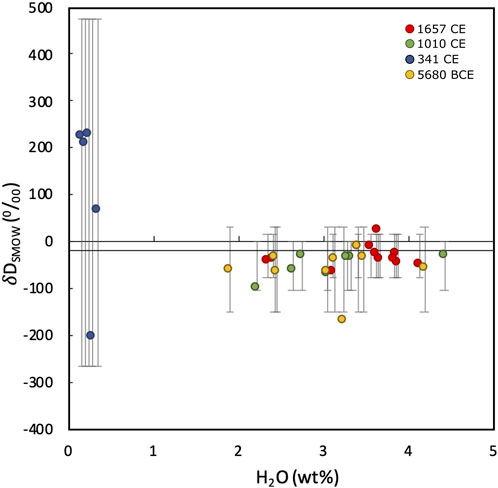

FIGURE 2. δD −20 to −80‰ is typical of slab fluids, our δD and H2O measured in the MIs indicates the majority of MI from the 1657 CE (red), 1010 CE (green) and 5680 BCE (yellow) eruptions have experienced no H+ loss for most inclusions. This is highlighted by the 341 CE (dark blue) MI which nearly all have positive δD values indicating diffusive H+ loss.
Positive δD values indicate loss of hydrogen, either by secondary degassing of H-bearing molecules or diffusive loss, addition of seawater and/or secondary hydrothermal alteration (Kyser and O’Neil, 1984; Hauri, 2002; Portnyagin et al., 2008; Shaw et al., 2008; Métrich and Deloule, 2014). This shows the 341 CE inclusions have experienced H2O loss, which explains the very low H2O values recorded. This shows that we can use the 1657 CE, 1010 CE and 5680 BCE H2O data as these can be interpreted as variably degassed melts, but the 341 CE data cannot be used as they have experienced post-entrapment H2O loss and do not represent the H2O content of the melt originally trapped.
Here, we report the MI volatile dataset plotted against the incompatible element K2O and also report the average GM value for each eruption to understand the effects of crystallization and degassing (Figure 3A). The H2O values measured for this study range from 1.05–4.42 wt% (excluding values from 341 CE). The H2O values for 1530 CE calculated by difference extend this range to 5.6 wt% (Pichavant et al., 2018) however, based on the SIMS data from the other eruptions discussed here this is perhaps an overestimate.

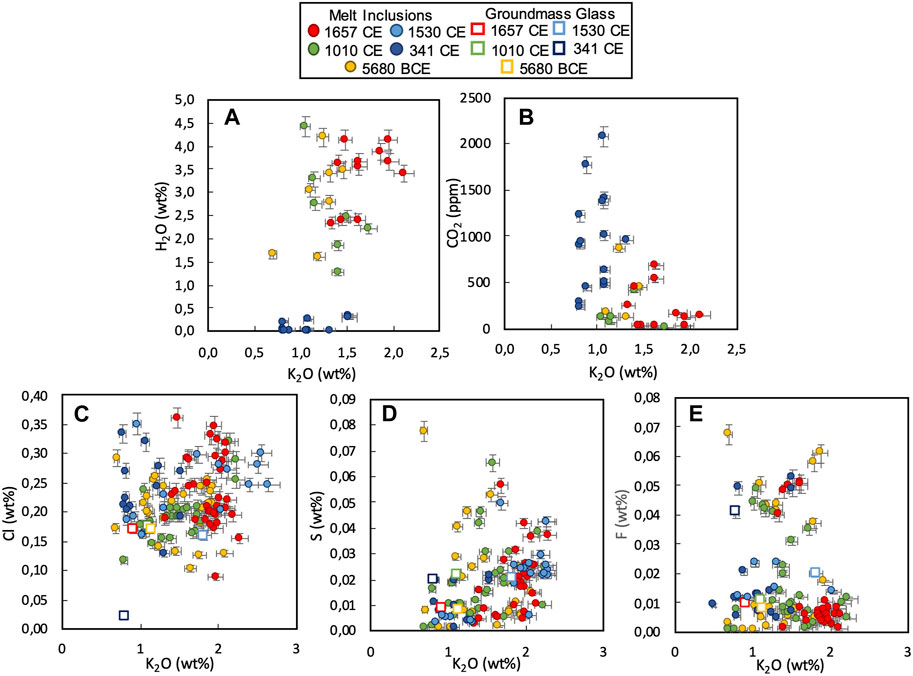

FIGURE 3. (A) H2O; (B) CO2; (C) Cl; (D) S; (E) F vs. K2O for melt inclusion (MI–circles) and average groundmass (GM–open squares) for the eruption series. The 341 CE inclusions have lost H2O so the data does not follow the trends of the La Soufrière MI. In comparison, the 341 CE CO2, S and Cl data appears to fit with the trend from the other eruptions, F data however, is generally below the detection limit. 1530 CE data is supplemented with data from Poussineau, 2005; Boudon et al., 2008; Pichavant et al., 2018.
CO2 for this study ranges from 2070 ppm to below the detection limit, with the highest CO2 values recorded in the 341 CE eruption (Figure 3B). The upper values above 1700 ppm may be outliers with most of the 341 CE CO2 data falling below 1,500 ppm, the H2O loss observed from these inclusions also makes it unclear if CO2 has also been affected. A clear trend of decreasing CO2 with increasing K2O is observed, which could relate to ascent and crystallisation of the magma, assuming incompatible behaviour (Blundy and Cashman, 2008). Alternatively, this could also relate to the effects of decompression on magmas in a polybaric storage zone (Blundy and Cashman, 2008). No distinction is made between CO2 and the eruption style (Metcalfe et al., 2022); however, the 341 CE Strombolian eruptions records distinctly higher CO2 contents.
The Cl data range from 0.10–0.36 wt% and the data are relatively clustered in comparison to the other volatiles with no clear correlation with K2O (Figure 3C). The GM values again generally show lower K2O and lower Cl than the MI (0.16–0.18 wt%); however, for the 341 CE eruption the GM Cl is notably lower (0.02 wt%), with no overlap between MI and GM data (Figure 3C). S data range from <780 ppm to below the detection limit and show a weak positive correlation, with S increasing with increasing K2O (Figure 3D). The average GM values range from 100–225 ppm and fit into this trend, with lower K2O and lower S values than many of the MI. F data range from 680 ppm to below the detection limit, with values below 100 ppm considered to be below the detection limit (Figure 3E). The data above the detection limit show a weak positive correlation. Generally, the F values for the GM is ca. 100 ppm; however, for the 341 CE eruption the GM shows similar F values to the MI (410 ppm). The 1530 CE GM F content is also higher than the other La Soufrière eruptions (200 ppm). No clear relationship is observed between eruption style and halogen content.
4.2 Volatile emissions

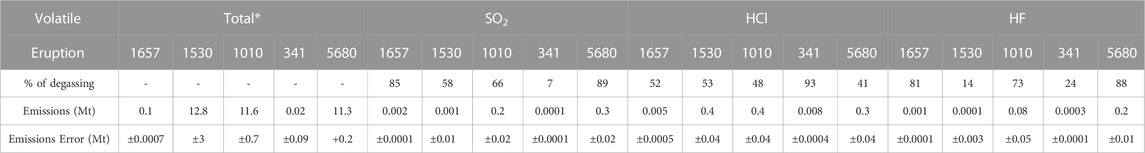

In order to estimate the volatile flux from past eruptions, we used the petrologic method (Devine et al., 1984) which compares the dissolved volatile content in MI to the GM volatile content (Table 1), scaled to the eruption volume with a rock density of 2,450 kg/m3 for all eruptions (calculated using a linear inversion of gravimetric data by Barnoud et al., 2016). As density values are not available for the individual eruptions, we chose to use the same density value for all eruptions. However, as the 341 CE eruption is more basaltic in composition than the 1657 CE, 1530 CE, 1010 CE and 5680 BCE eruptions this may increase the error on calculations for this eruption. Estimated eruption volumes are calculated by Legendre (2012) and are the main source of error in the calculation of volatile emissions (Table 1). Volumes calculated by Legendre (2012) use VEI (Newhall and Self, 1982) which integrates total volume of tephra erupted, height of eruptive column and duration of event with eruptive type, eruptive style to provide the relative size and magnitude of the eruptions. Given the lack of outcrops and erosion which has occurred this provides the best estimate of volume; however, this leaves large uncertainties which are difficult to assess. Legendre (2012) chose to report the minimum erupted volume value, this means any estimates of volatile emissions should also be considered a minimum. As discussed earlier; the 1530 CE sub-plinian eruption is the only one for which volumes have a known range (ca. 0,07 to 0,09 km3).
Overall, the larger Plinian (VEI 4) eruptions have higher emissions as expected (Table 2). The 1010 CE eruption has the highest total volatile emissions (11.6 Mt) which is comparable to the 5680 BCE eruption (11.3 Mt), the 1657 CE and 341 CE eruptions have considerably lower total emissions at 0.11 and 0.02 Mt, respectively (Table 2). We also calculated total emissions for the 1530 CE using the H2O value calculated by difference from Pichavant et al. (2018). This gives total emissions of 12.8 Mt, which is higher than both Plinian eruptions studied and can be considered an outlier, which could be explained by the method used to obtain the water concentration. Indeed, the by difference method (e.g., Kilgour et al., 2016) is known to be less accurate and precise than actual H2O concentration measurements.
As SO2 is one of the most important volatiles emitted due to its impact on the climate, SO2 emissions have also been calculated. The emissions of SO2 also constitute a relatively minor component in the 1657 CE, 1530 CE and 341 CE eruptions and ranges from 0.0001–0.002 Mt of SO2 (Table 2). When using a higher density (2,685 kg/m3; Komorwski et al., 2008) to calculate emissions for the more basaltic eruption we observe a negligible increase in SO2 emissions (increase of 6.7x10−6 Mt). SO2 emissions are higher in the two Plinian eruptions, with the 1010 CE eruption emitting 0.2 of Mt SO2 and the 5680 BCE eruption emitting 0.3 Mt of SO2. HCl emissions are higher with the two Plinian (VEI 4) eruptions which both emitted 0.3–0.4 Mt of HCl. 1530 CE also has a high HCl emission at 0.4 Mt of HCl, in comparison to 1657 CE and 341 CE eruptions which emitted 0.005 and 0.008 Mt respectively of HCl. Finally, HF emissions are only a relatively minor component ranging from 0.0003–0.08 Mt of HF, except in the 5680 BCE eruptions which has a HF emission of 0.2 Mt of HF (Table 2).
5 Discussion
5.1 Degassing processes at La Soufrière de Guadeloupe
5.1.1 SOLWCAD and CHOSETTO modelling
First, we investigated the H2O-CO2 degassing for the 1657 CE, 1010 CE and 5680 BCE eruptions, for which we have SIMS H2O and CO2 measurements with no clear volatile loss observed. To investigate H2O-CO2 degassing and the onset of exsolution the SOLWCAD program is used, which calculates saturation isobars and then open and closed degassing paths at various H2O(total) and CO2 (total) during degassing (Figure 4) for a constant melt composition, i.e., for a given FeO/Fe2O3 ratio. We started our model at the highest H2O and CO2 contents analysed (a 5680 BCE MI with 4.2 wt% H2O and 900 ppm CO2). The degassing paths highlight the spread in the MI data both across all the eruptions studied and within the individual eruptions. Though some data points, particularly from the 1657 CE eruption lie close to the closed system degassing path scenarios, it is unlikely that a simple closed or open degassing path can be used to explain the variability in the MI data. Instead, these data is better explained by the eruption being supplied from variably degassed melts within a mush system. In particular, degassing paths may reflect the CO2-enrichment due to the fluxing of shallower magma layers by the deep gas released from deeper levels in the magmatic system (Figure 4). This effect is commonly observed in almost all sets of melt inclusions from worldwide volcanoes (e.g., Métrich and Wallace, 2008; Blundy et al., 2010; Caricchi et al., 2018; Moretti et al., 2018), including those of the Lesser Antilles Arc (Metcalfe et al., 2023).

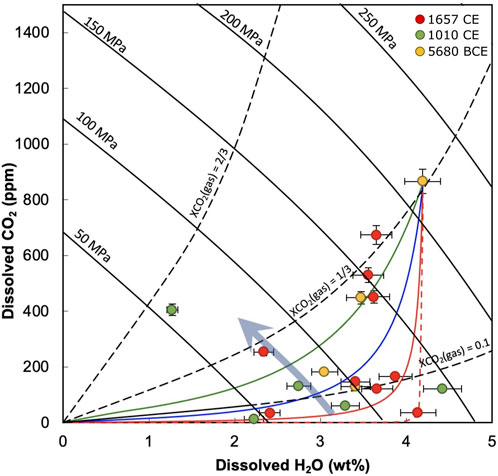

FIGURE 4. H2O vs. CO2 plot for SIMS data (1657 CE–red, 1010 CE–green, 5680 BCE–yellow). Isobars and isopleths are calculated from the SOLWCAD code (Papale et al., 2006). Open (dashed red line) and closed (solid red - 0.5% excess vapour, solid blue–1% excess vapour and solid green–3% excess vapour) degassing paths were also calculated using the same code. These degassing paths highlight the scatter in our H2O-CO2 data, however, some points particularly from 1657 CE lie close to the closed system degassing path. The degassing paths show a simple H2O-CO2 degassing scenario is unlikely. The arrow traced for an intermediate pressure between 50MPa and 200 MPa shows the shift of datapoints due to fluxing. In a mushy system, fluxing can occur at many pressure steps or be polybaric.
To further understand degassing processes in the presence of sulphur, we then use CHOSETTO v1, which is an extended version of SOLWCAD in forward mode (Moretti and Ottonello, 2003; Moretti and Papale, 2004). The average MI composition used comes from the 5680 BCE eruption (which has the highest MI S content) and is saturated with the highest total volatiles recorded across the geochemistry series (CO2 is the highest repeated value from 341 CE). We ran the same compositions and conditions at multiple oxidation states (NNO+0.8, NNO and NNO-0.5) under open and closed system conditions. This is important when investigating S as the partitioning of sulphur depends on redox conditions, with the sulphur partition coefficient increasing with increasing fO2 (e.g., Scaillet et al., 2012). Although the degassing paths under open conditions at NNO-0.5 conditions (Figure 5) fit closer to the dataset, this does not produce the steep decrease in sulphur over a small range of S contents (Figure 5) as long as the highest S-content is taken as the initial (total) value (Figure 5A).

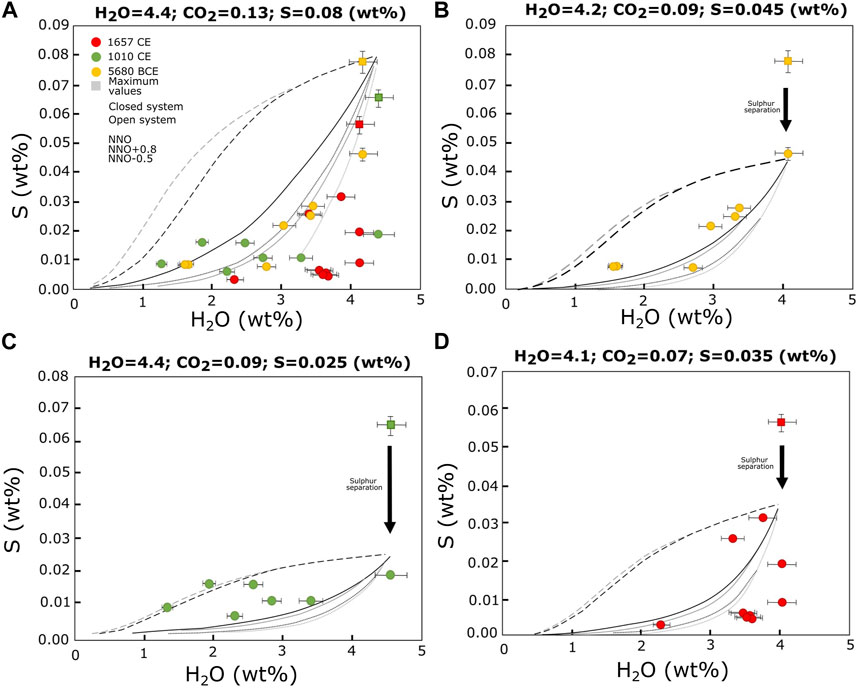

FIGURE 5. S vs. H2O graphs showing open system (grey) and closed system (black) degassing paths calculated by CHOSETTO at NNO+0.8, NNO and NNO-0.5. (A) Decompression of 5680 BCE MI composition, this is unable to reproduce the vertical drop in S using simple degassing paths. Following initial sulphide separation: (B) Decompression of 5680 BCE composition; (C) Decompression of a 1010 CE composition; (D) Decompression of 1657 CE composition. (Square symbol = Maximum values recorded by MI, arrows showing the change in composition due to sulphide separation).
We then interpret the vertical drop in S over a constant H2O across the different magmas as evidence for early S-separation. Such a drop was also necessary to effectively model degassing at Mt. Mazama (Marini et al., 2011) and Mt. Etna (Moretti et al., 2018). At sulphide saturation, a S-bearing phase will separate from the melt (e.g., as minerals such as pyrrhotite, chalcopyrite, anhydrite; as an immiscible liquid and/or as a vapour phase). Given the range of oxidation states adopted here and the evidence that FeS separation occurs in many magmatic suites falling in this range (Luhr et al., 1984; Williams et al., 1990; Andres et al., 1991; Gerlach and McGee, 1994; Wallace and Gerlach, 1994; Gerlach et al., 1996; Scaillet et al., 1998; Collins et al., 2012; Mungall et al., 2015; Yao and Mungall, 2020), we opt for early S-loss due to FeS separation. No S-rich minerals or sulphide globules are observed in the eruption products, as they may have segregated at depth into cumulate layers due to density differences or be resorbed during sulphur degassing. Moreover, no bubbles are observed in the MIs, suggesting that the hypothesis of the presence of a S-rich vapour phase could be ruled out.
5.1.2 Fe-S separation
S is removed from the magma by loss of S2- via sulphide separation as liquid FeS at magmatic temperatures (Marini et al., 2011; Moretti, 2021):
Sulphide precipitation results in patchy sulphur distribution through the magma and requires the calculation of the sulphur budget (S dissolved in the magma, S dissolved in the sulphide phase and exsolved S) over a large volume of the magma which cannot be approximated by the limited volume involved in MI. Phase separation is considered an important mechanism (Lester et al., 2013), that allows many natural magmas to co-exist with an immiscible liquid sulphide phase or pyrrhotite (Moretti and Baker, 2008; Jenner, 2017; Yao and Mungall, 2020).
Sulphide saturation and separation is an important process in arc magmas, which occurs within the mush zones prior to magma ascent (Jenner, 2017). Due to the immiscibility of the FeOS liquid and the silicate magma this can result in the concentration of FeS-droplets, the resulting liquids separate due to density differences (Collins et al., 2012). The Fe-S droplets are denser than the silicate magmas and so settle with cumulate phases at the base of the system, which prevents them from being readily sampled, including by melt inclusions, as shown by the La Soufrière samples. Alternatively, the interaction between Fe-S droplets and vapour bubbles may allow their flotation. This could provide a mechanism to transport sulphides through to shallower levels of the magma system and account for the release of excess S if sulfide resorption occurs to release S back into the melt+vapour system (Mungall et al., 2015; Edmonds and Mather, 2017; Lee and Tang, 2020; Yao and Mungall, 2020). This increases the complexity of understanding the S budget at this system, particularly when considering the S emissions at the surface.
Our data show a systematic decrease in S over time which indicates the whole system is evolving by separating FeS, which results in a decrease in S content from the oldest magma suite to the youngest. Understanding the values of sulphide saturation depends on where in the system, and at which point of magma differentiation, sulphide separation occurs. S solubility and saturation vary between melt composition, particularly the FeO content of the melt and pressure (Carroll and Rutherford, 1985; Moretti and Baker, 2008). We therefore estimate the sulphur concentration for the 1657 CE, 1010 CE and 5680 BCE magmas using the equation presented by Liu et al. (2007) to estimate the sulphur concentration of silicate melts at sulphide saturation (SCSS) as the MIs are not water saturated (e.g., Moune et al., 2007). Liu et al. (2007) constructed a model to predict SCSS in magmas ranging from basalts to rhyolites with a range of water contents. This model predicts SCSS in the 1657 CE, 1010 CE and 5680 BCE magmas occurs between 0.15–0.3 wt% S. This is higher than measured in the melt inclusions and indicates a larger S drop has occurred than observed in the data.
At La Soufrière we will consider the system must experience continuous FeS separation to produce the evolved magma batches, which are characterized by different initial S contents. We therefore initiate our degassing model after sulphur separation in the deeper system, to understand the shallow system degassing behaviour. This allows us to demonstrate degassing models from both high S (900 ppm) and low S (<500 ppm) with the difference between these two values produced by FeS separation (e.g., Marini et al., 2011).
Our shallow degassing models investigate the average 1657 CE, 1010 CE and 5680 BCE MI composition; however there is only a small variation in the average MI compositions, so this has a minimal effect on the degassing paths produced. The volatiles used for each scenario are shown in Supplementary Table S2. We used the maximum H2O and CO2 measured in each eruption, except for the 1010 CE eruption which we used 900 ppm (as in the 5680 BCE scenario), as CO2 was too low to allow saturation.
5.1.3 fO2 behaviour
Each scenario was decompressed from the pressure calculated from the MIs, as shown in Supplementary Table S2. We ran the same compositions and conditions at multiple oxidation states (NNO+0.8, NNO and NNO-0.5) under open and closed system conditions (where NNO is the nickel-nickel-oxide buffer). The upper limit oxidation state is taken from experimental results conducted by Pichavant et al. (2018), while the lower limit is required by the data. Decompression under these conditions allows us to demonstrate the shallow degassing path of S. Degassing occurring from a starting point of 450 ppm S under NNO to NNO-0.5 fits the trend of our data well (Figure 5). However, under more oxidised conditions (NNO+0.8) the degassing path does not fit the trend observed in the data, with the model showing S remaining relatively high decreasing with H2O in comparison to the data (Figure 5). This is also observed starting from 350 ppm S, with degassing paths at NNO-0.5 fitting the data (Figure 5). At lower S contents (250 ppm), more oxidised degassing paths appear more feasible (Figure 5).
Alternatively, we could adopt a unique relative oxygen fugacity (i.e., constant ΔNNO value) and consider that CO2-enrichement due to fluxing (Figure 4) would shift the degassing trend to low H2O-contents, as proposed by Moretti et al. (2018) for Mt. Etna. Nevertheless, our data do not allow a clear distinction between the effects due to fluxing and those due to varying oxygen fugacity. We speculate that the heterogeneity of magma distribution within a mushy plumbing system creates a variety of magma parcels each ruled by its own initial volatile content and oxygen fugacity.
Overall, the model reproduces reasonable degassing paths related to decompression at low pressures, suggesting the majority of S degassing has occurred during magma ascent. The results of this model indicate more reduced conditions than proposed by Pichavant et al. (2018), which is expected if FeS precipitation occurs. However, this may relate to variations within the mush system, with the more oxidised conditions modelled by Pichavant et al. (2018) relating to the deeper system (e.g., Pichavant et al., 2018), whereas the more reduced conditions modelled here would relate to shallower portions of the system. The changes related to decompression degassing and sulphide separation would result in a decrease in fO2 to more reduced conditions, as modelled here and also reported by a wide literature Progressive changes of oxygen fugacity during degassing have in fact been modelled and observed for several systems (e.g., Anderson and Wright, 1972; Candela, 1986; Carmichael and Ghiorso, 1986; Burgisser and Scaillet, 2007; Métrich et al., 2009; Gaillard et al., 2011; 2015; Oppenheimer et al., 2011; Kelley and Cottrell, 2012; Moussallam et al., 2014; Moussallam et al., 2016; Brounce et al., 2017). There is then consensus the fO2 of the magma after degassing will not represent the fO2 of the initial melt, unless recent forward models (Hughes et al., 2022) show that degassing begins near the sulphur-solubility minimum, which is defined with respect to fO2 and represents an important boundary of some models (Moretti et al., 2003; Cicconi et al., 2020; Hughes et al., 2022).
A decrease in fO2 from oxidised conditions to reduced conditions has also been reported at Etna (Gennaro et al., 2020) and Kilauea (Moussallam et al., 2017). The exact mechanism promoting this change appears to be specific to each magmatic setting. At Kilauea, this decrease was related to sulphur degassing without the involvement of H2O and CO2 (Moussallam et al., 2017). At Etna, the fO2 decrease was instead related to compositional evolution, primarily dehydration, and decreasing pressure (Moretti, 2022). A similar effect is modelled by Moretti and Ottonello (2022) for the experimental ferri-basalts synthesized and investigated by Botcharnikov et al. (2005), where water represents the main compositional variable.
However, the interpretation of different fO2 behaviours depends largely on adopted models, particularly the oxybarometers that are used to obtain and extrapolate fO2 as a function of pressure, temperature and melt composition (i.e., melt-driven interactions related to its structure or polymerization state) from measured redox pairs of iron and/or sulfur (Moretti and Stefansson, 2020; Moretti, 2021; Moretti, 2022). Despite magmatic differentiation and dehydration increasing the nominal abundance of oxygen in magmas approaching the surface, the decrease of oxygen fugacity reflects the increase of melt polymerization and then the decrease of so called “free-oxygen” (i.e., O2-) (Moretti, 2022), whose activity is proportional to oxygen fugacity (Moretti, 2005; Cicconi et al., 2020a; Moretti, 2021; Moretti and Ottonello, 2022).
5.1.4 Comparison to present day degassing
Allard et al. (2014) suggest the magma feeding the system of La Soufrière is open to basaltic replenishment at the base and to gas escape from the top, which supplies the hydrothermal emissions observed at the surface. The range of C/S(total) measured by the Observatoire Volcanologique et Sismologique de Guadeloupe with different methods (soda bottles, P2O5 bottles, MultiGas) across several years (2012–2022; Tamburello et al., 2019; Moretti et al., 2020a; Moretti et al., 2020b; Moune et al., 2022) ranges from 1 to 6, with a mean of 4 (Figure 5B in Moretti et al., 2020b). The vertically extensive plumbing system of La Soufrière involves the polybaric, multistep or even continuous degassing of magma from the main deep reservoir (ca. 5–9 km) up to the shallow reservoir (ca. 3 km) (Villemant et al., 2014; Moretti et al., 2020a). Therefore, the gas feeding the hydrothermal system at the top of the magma system results from multiple contributions that integrated over a large depth range.
We report the C/S(total) values from our CHOSETTO v1 degassing simulations vs. depth in Figure 6. This shows large C/S(total) ratios for the deep reservoir (8 km, 200 MPa), where the fresh magma has C/S(total) varying from approximately 10 (NNO-0.5) to approximately 100 (NNO+0.8 (Table 1; Supplementary Table S2). For depths corresponding to the shallow reservoir (∼3 km, ∼75 MPa), C/S(total) varies from approximately 1.5 (NNO+0.8, with open system degassing) to approximately 10 (NNO+0.08, with closed system degassing). The bracketed shaded area corresponds to the region at 3–6 km depth in which hydrothermal C/S(total) (measured values range from 1 to 6; with a mean of 4; Moretti et al., 2020b) is released, feeding the overlying hydrothermal system. Six km is hypothesised to be the top of the main reservoir and above this is a crystal mush, though it is unclear if this area of the system is crystallised or in a mushy state. Considering that the gas released should integrate contributions from various depths across this vertically extended magma system, we also consider that the C/S(total) hydrothermal values may be consistent with both degassing and the mixing between the deep system (200 MPa, 8 km) and shallow system (∼75 MPa, 3 km) residual magmatic gases.

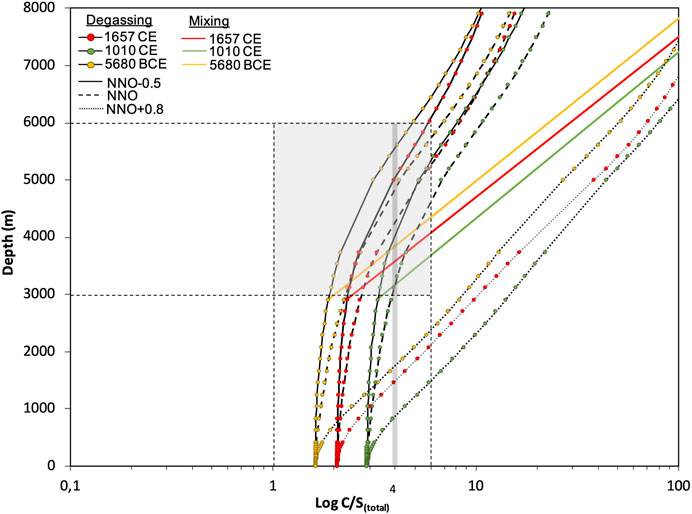

FIGURE 6. Model-based C/S(total) ratios resulting from closed-system magmatic degassing under different oxygen fugacities for the three eruptions considered in this study. Also reported are the mixing lines of shallow and reduced with deep and oxidized gases. The bracketed shaded area corresponds to the region at 3–6 km depth in which current hydrothermal C/S(total) (values are measured by multigas range from 1 to 6; with a mean of 4; Moretti et al., 2020a; Moretti et al., 2020b) is released, feeding the overlying hydrothermal system. With 6 km being the top of the main reservoir and above this is a crystal mush which is unclear has been crystallised. the C/S(total) hydrothermal values may be consistent with the mixing between the deep system (200 MPa, 8 km) and shallow system (∼75 MPa, 3 km) residual magmatic gases.
For the same oxygen fugacity mixing lines and closed system degassing patterns nearly overlap. However, as discussed above, it is highly plausible that a decrease in oxygen fugacity is observed with decreasing depth. Therefore, we plot on Figure 6 mixing lines connecting the gas composition from the deep oxidized (NNO +0.8) reservoir to a shallow but reduced magma (NNO–0.5). From Figure 6 we see that C/Stot values presently measured at La Soufrière fumaroles are not compatible with degassing under oxidized reservoir (NNO+0.8), which produces gases with C/Stot ratios that are significantly higher than those expected to occur within the shallow reservoir (grey rectangle in Figure 6). This suggests the magma degassing at about 3 km depth must be necessarily reduced (logfO2 < NNO). The present-day gas is entering the hydrothermal system and then separating from a magma emplaced and degassing under closed-system degassing between 3 and 6 km depth (shown by the 1657 CE and 5680 BCE models, the 1010 CE eruption, however has values consistent between 3 km and 5 km depth). Further mixing with the gas released by the deep oxidized magma at NNO+0.8 may contribute to the final composition in variable proportions.
These results should be taken cautiously, as they do not include the role of hydrothermal scrubbing, which will increase the C/S(total). These results also consider magmatic degassing driven uniquely by decompression, without accounting for crystallization, which in a mushy system leads to strong open system volatile differentiation in absence of decompression (e.g., Moretti et al., 2013a; Moretti et al., 2013b). Despite our approximations and limits discussed, the fumarolic C/S match reasonably well with those calculated from CHOSETTO for the magmatic gas input into the hydrothermal system (Figure 6). This suggests that the continuous flow-through of deep gas attains a steady state condition, such that the output fumarolic C/S ratio can be well approximated by the input magmatic C/S ratio. Under such a regime, the hydrothermal buffering of sulphur involving pyrite-like minerals (Giggenbach, 1988) does not alter significantly the bulk sulphur budget, as already shown for other hydrothermal-magmatic systems in a state of unrest such as Solfatara di Campi Flegrei, Italy (Moretti et al., 2013a; Moretti et al., 2017). In terms of monitoring, fluctuations of the fumarolic C/S ratio in the observed one to six range can instead be used as an indicator of hot and oxidized (CO2- and SO2-rich) gas pulses into the hydrothermal system (Moretti et al., 2020a).
5.2 Volatile emissions and climate forcing at La Soufrière de Guadeloupe
5.2.1 Volatile emissions at La Soufrière de Guadeloupe
More intense VEI 4 eruptions have higher total volatile emissions (Figure 7A). Eruptions with the same VEI have comparable total volatile emissions; this is due to the petrological method which requires scaling of the volatile concentration to erupted volume. A notable outlier is the 1530 CE eruption, which is due to the higher H2O content reported by Pichavant et al. (2018) and estimated by difference. The diffusion timescales calculated by Metcalfe et al. (2021a), Metcalfe et al. (2021b), shows no correlation with the total volatile emissions of each eruption. The 1657 CE and 5680 BCE eruptions have comparable expected diffusion timescales (Metcalfe et al., 2021a; Metcalfe et al., 2021b); however, the total volatile emissions are very different (Figure 7B). The groundmass glass plus microlites viscosity, calculated by Metcalfe et al., 2022, correlates with the total volatile emissions, with a higher groundmass glass viscosity correlating with lower total volatile emissions (Figure 7C). This suggests lower viscosity in the groundmass glass allows for more degassing and higher volatile emissions. Faster ascent rates (calculated by Metcalfe et al., 2022 to range from <1–12 m/s at La Soufriere) correlate with higher total volatile emissions (Figure 7D). However, this is not observed in all the eruptions due to top-down effects, such as a reduction of permeability at the surface due to hydrothermal activity (e.g., Cassidy et al., 2018), which have allowed slow ascending magmas to result in large eruptions.

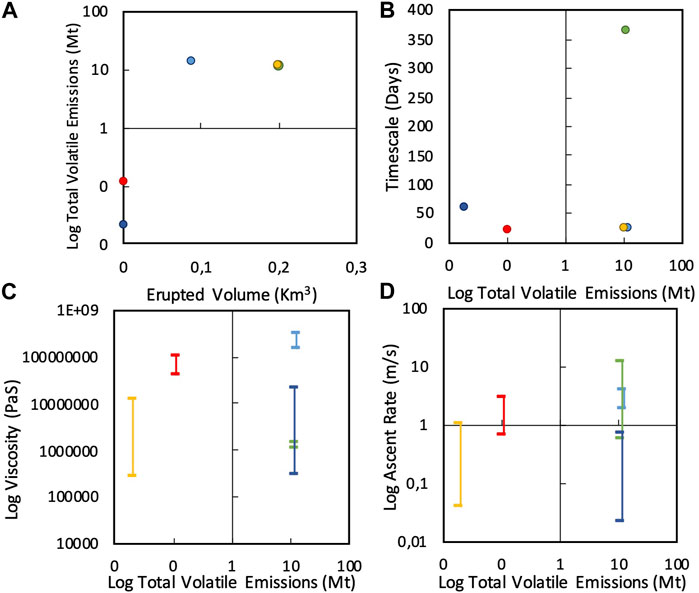

FIGURE 7. (A) Total Volatile Emissions (Mt) vs. VEI; (B) Expected Timescales; (C) Groundmass Viscosity; (D) Ascent Rate vs. Total Volatile Emissions (Mt) for the 1657 CE (red), 1530 CE (light blue), 1010 CE (green), 341 (dark blue) and 5680 BCE (yellow) eruptions. The 1530 CE eruption is an outlier due to the high H2O value used which was calculated by difference by Pichavant et al. (2018).
In order to contextualise our results, we integrate the La Soufrière emissions into a global database of subduction zone volcanoes (Figure 8). SO2 data are readily available, this is also one of the most important volatiles emitted due to its impact on the climate (Graf et al., 1997; Robock, 2000; Textor et al., 2003; Oppenheimer et al., ,; Timmreck, 2012; Macdonald and Wordsworth, 2017; Marshall et al., 2022). Hence, we focus on SO2 emissions, comparing our data to other systems where the petrologic method has been used to calculate SO2 emissions (Figure 8). It is important to consider that SO2 calculated using the petrologic method is usually lower than remote sensing measurements as described in Section 3.3 (e.g., Wallace, 2003). The collated data generally cover eruptions larger (>VEI 4) than those studied here; however, some data also exist for eruptions of lesser intensity. Although the petrologic method underestimates the quantification of volcanic emissions, Scaillet et al. (2003) provide a global database of SO2 emissions calculated using the petrologic method but also include a thermodynamic estimation to estimate the co-existing S-rich vapor phase at depth for intermediate to silica magmas (improved petrological method; Figure 8). Scaillet et al. (2003) demonstrate the SO2 emissions calculated closely agree with independent estimates obtained from analysis of ice cores, optical-depth measurements, and remote-sensing spectroscopic techniques.

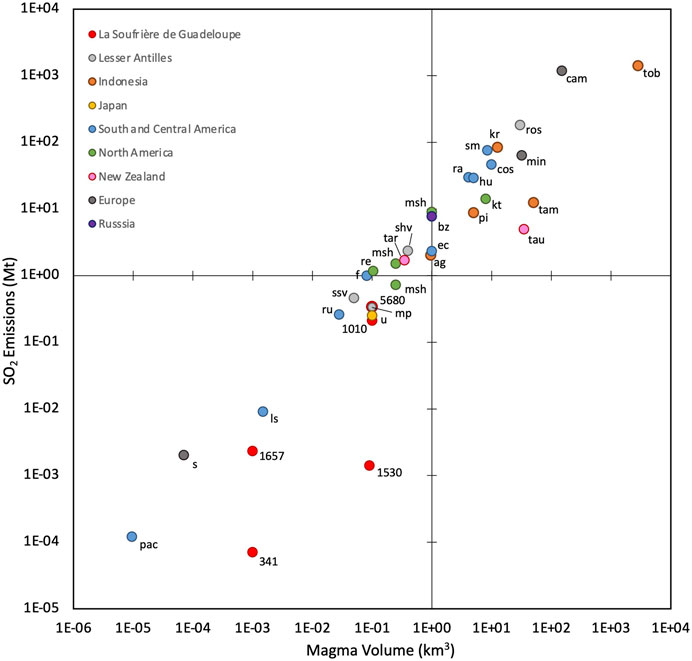

FIGURE 8. SO2 emissions for subduction zone volcanoes calculated from the petrologic method after Wallace, 2003; 2005 and Scaillet et al., 2003. Emissions calculated for this study fit within the global trend, with the 5,680 Cal. BCE and 1,010 Cal. CE eruptions having volumes and emissions comparable to Montagne Pelée and Soufrière St Vincent in the Lesser Antilles. The 341 Cal. CE eruption is outside of the trend, suggesting SO2 emissions have been underestimated or magma volume has been over estimated. Agung 1963 (ag; Self and King 1996); Samalas 1257 CE. (sa; Vidal et al., 2016); Krakatau 1885 (kr; Mandeville et al., 1998); Pinatubo 1991 (pi; Westrich and Gerlach, 1992); Toba 71000 BP (tob; Scaillet et al., 1998; Zielinski et al., 1996b); Tambora 1815 (tam; Devine et al., 1984; Scaillet et al., 1998); La Soufrière de Guadeloupe 1657 CE (1,657); La Soufrière de Guadeloupe 1,010 Cal. CE (1,010); La Soufrière de Guadeloupe 341 CE (341); La Soufrière de Guadeloupe 5680 BCE (5,680); Montserrat 1995 (shv; Scaillet and Pichavant, 2003); Mont Pelée 1902 (mp; Scaillet et al., 2003); Roseau Tuff 28000 BP (ros; Devine et al., 1984); Soufrière St Vincent 1979 (ssv; Devine et al., 1984; Devine and Sigurdsson, 1983); Unzen 1991 (u; Scaillet and Pichavant, 2003); Shinmoedake 2011 (shi; Mori and Kato 2013); Santa Maria 1902 (sm; Palais and Sigurdsson, 1989; Rose, 1987); Pacaya 1972 (pac; Andres et al., 1991), Fuego 1974 (f; Rose et al., 1984; Roggensack et al., 1997); El Chichon 1982 (ec; Devine et al., 1984; Carey and Sigurdsson, 1986; Krueger et al., 1995; Luhr et al., 1984); Ruiz 1985 (ru; Sigurdsson et al., 1990b); Lascar 1989 (ls; Andres et al., 1991; Matthews et al., 1999); Rabaul (ra; Palais and Sigurdsson, 1989); Coseguina 1835 (cos; Palais and Sigurdsson, 1989); Huaynaputina (hu; Costa et al., 2003); Mount St Helen’s 1980, 1800, 1,480 (msh; Gerlach and McGee, 1994; Palais and Sigurdsson, 1989); Bezymianny 1956 (bz; Palais and Sigurdsson, 1989; Zielinski, 1995); Redoubt 1989–91 (re; Gerlach and McGee, 1994; Nye et al., 1994); Katmai 1912 (kt; Westrich et al., 1991); Minoan 3650 BP (min; Devine et al., 1984; Sigurdsson et al., 1990a); Campanian (cam; Palais and Sigurdsson, 1989; Civetta et al., 1997); Stromboli 1980–93 (s; Allard et al., 2014); Tarawera 1886 (tar; Palais and Sigurdsson, 1989); Taupo 181 Cal. CE. (tau; Palais and Sigurdsson, 1989).
The VEI 4 5680 BCE and 1010 CE eruption SO2 emissions (0.3 and 0.2 Mt of SO2, respectively) are very comparable to eruptions with similar magma volumes (e.g., Mount Unzen 1991 which emitted 0.25 Mt of SO2). Data available from the Lesser Antilles eruptions Montagne Pelée 1902 (0.3 Mt of SO2) and Soufrière St Vincent 1979 (0.5 Mt of SO2) also have comparable SO2 emissions to those of the 5680 BCE and 1010 CE eruptions (Figure 8). The eruption of 1995 Soufrière Hills volcano, Montserrat, is less comparable due to a higher magma volume, but does give an indication of what SO2 emissions could be expected from a larger eruption from La Soufrière. It is notable that volatile emissions for the voluminous eruption of the Roseau Tuff on Dominica are much larger than those of any La Soufrière eruptions, despite being neighboring systems. The agreement of these different eruption SO2 estimates (Figure 8) indicates that our petrologic method using our maximum S values, which correspond to the sulfur in the magmas plus the separated sulfur phase (equivalent to the improved petrological method from Scaillet et al., 2003), provides reasonable minimum estimates of SO2 emissions at La Soufrière past eruptions.
5.2.2 Climate forcing from La Soufrière de Guadeloupe eruptions
Sulphur is considered the most important volatile emitted during eruptions in terms of its climatic impact (Emiliani, 1966; Van Donk, 1976; Marshall et al., 2022). Accordingly, we quantify the climate forcing from the studied eruptions using the EVA_H simple volcanic aerosol forcing model (Aubry et al., 2020; also see section 3). The eruption latitude is simply specified at that of La Soufriere (16.04 oN). The other two critical inputs to EVA_H are the SO2 mass and injection altitude, with the SO2 mass distributed vertically following a Gaussian profile centered on the injection altitude and a of width 1.2 km.
We use the SO2 mass in Mt calculated using the petrologic method and assume all sulphur is released as SO2. Despite the occurrence of H2S in the present-day hydrothermal system (e.g., Moune et al., 2022) we assume during a magmatic eruption SO2 would dominate over any hydrothermal H2S input, due to higher temperatures which favour SO2. We chose to run scenarios for both the best estimate and the maximum estimate of SO2 based on the calculated errors. However, as the petrologic method only provides a minimum estimate of volatile emissions, the magnitude of the resulting impact on the climate might be representative of a minimum estimate.
Plume heights above sea level were estimated by Komorowski et al. (2008), Legendre (2012), Esposti Ongaro et al. (2020) and Komorowski et al. (2022) using each eruption isopleth maps (Carey and Sparks, 1986), with a large uncertainty given the scarcity of outcrops (Table 1). The upper estimate of the 1657 CE and 341 CE eruption columns are 15 km a.s.l, which indicates sulphur may not have reached the stratosphere (tropopause altitude in Guadeloupe: 16.58 km; Komorowski et al., 2008) when considering plume heights lower than this upper limit. The Plinian eruption (1010 CE and 5680 BCE) columns are more likely to have reached the stratosphere with plume heights estimated at 10–25 km a.s.l.
As a very large range of plume heights are estimated for La Soufrière, we performed a sensitivity study and modelled SO2 injections at several altitudes, depending on the eruption. For the VEI two to three eruptions (Table 1), we use SO2 injection altitude between 10–15 km a.s.l. Given the recent re-evaluation of the maximum plume height for the 1530 CE Sub-Plinian eruption (16–18 km a.s.l.; Esposti-Ongaro et al., 2020), we also included a scenario with a 17 km a.s.l. SO2 injection altitude, just above the tropopause. For the VEI 4 eruptions, we tested SO2 injection altitudes of 10–25 km a.s.l.
Using the SO2 injection source parameter discussed above (latitude, mass and altitude), we ran the EVA_H model to calculate SAOD perturbation at 550 nm following each eruption. The modelled global mean SAOD time series show a steep rise over 6–9 months following each eruption, followed by a gradual decay over 1–2 years to a peak followed by a more gradual decay (Figure 9). For the 1657 CE, 1530 CE and 341 CE eruptions, the tropospheric or tropopause-level SO2 injection altitude and small mass of SO2 result in negligible peak global mean SAOD perturbation (<0.005; for comparison global mean SAOD peaked around 0.11 after the Pinatubo 1991 eruption). The corresponding global mean effective radiative forcing for the 1530 CE and 1657 CE eruptions and for the 17 km injection scenario is between and −0.00017 to −0.00010 W/m2; in comparison effective radiative forcing (ERF) from the 341 CE eruption is much lower, between and −0.000004 and −0.00001 W/m2.
FIGURE 9. Top: Global-mean SAOD at 550 nm vs. time after eruption for: (A) 1010 CE; (B) 5680 BCE. Shown are time series for both the maximum estimate of SO2 and best estimate of SO2 at plume heights ranging from 10–25 km height. Bottom: Global-mean effective radiative forcing vs. time after eruption for: (C) 1010 CE; (D) 5680 BCE.
In comparison to the smaller VEI two to three eruptions, the 1010 CE and 5680 BCE Plinian eruptions (VEI 4) exert a larger forcing effect. For the 1010 CE eruption, which is considered the smaller of the two Plinian eruptions (Legendre, 2012), and for the 25 km injection scenario, the resulting peak global mean SAOD is 0.0054–0.0055 (Figure 9) and peak global mean ERF is between −0.026 and −0.029 W/m2. The 5680 BCE Plinian eruption records the greatest climate forcing with peak global mean SAOD ranging between 0.0061 and 0.0062, and peak global mean ERF between −0.042 and −0.044 W/m2 (Figure 9). As with the smaller eruptions, no significant change from the background level is recorded for plumes not reaching the stratosphere (<15 km). As the plume heights represent an upper estimate of the SO2 injection height, the forcing effect could be considered an upper bound estimate; however, as the petrologic method underestimates the SO2 mass injected, this results in a competing effect between the overestimated SO2 injection height and the underestimated SO2 mass.
To put the climatic forcing and impact of the studied eruption in perspective, we use the Volcano-Climate Index (VCI) proposed by Schmidt and Black (2022). The main criteria for VCI are decreases in surface temperatures after an eruption, and the scale ranges from VCI 0 (negligible climate effects) to VCI 6+ (long-lasting or even catastrophic global disruption). As an example, the 1991 Mount Pinatubo (VEI 6; 10 and 20 Tg of SO2; 25 km SO2 injection height; Guo et al., 2004; Read et al., 1993; Carn et al., 2016), resulted in peak local mean SAOD, ERF and surface cooling of 0.1 (Thomason et al., 2021), −3 W/m2 (Schmidt et al., 2018) and −0.5°C (McCormick et al., 1995) has a VCI of 3 (Schmidt and Black, 2022). In comparison, based on our obtained SAOD values, all eruptions studied are expected to have VCI 0–1 (negligible climate effects to local and regional climate effects) and are very unlikely to have had any significant footprint on global climate as individual events. However, the reconstructed plume height (upper tropospheric-lower stratospheric), SO2 mass (on the order of 0.one to one Tg SO2) and SAOD perturbation (0.005–0.006) means that they are the type of events typically contributing to the “background stratospheric aerosol layer” variability (Solomon et al., 2011). This variability is governed by relatively moderate-magnitude volcanic events (like the 1010 CE and 5680 BCE La Soufriere eruptions), but which occur on a multi-annual basis globally and collectively result in significant radiative forcing (e.g., Solomon et al., 2011; Schmidt et al., 2018) and impacts on large-scale climate metrics, including surface cooling (e.g., Santer et al., 2015) and Antarctic ozone hole healing (e.g., Solomon et al., 2016).
6 Conclusion
Using new analyses of melt inclusions, we have investigated the volatile life cycle for five eruptions of La Soufrière de Guadeloupe. We report maximum volatile concentrations in the melt inclusions across the five eruptions as: 4.42 wt% H2O, 1700 CO2 ppm, 780 ppm S, 0.36 wt% Cl and 680 ppm F. Our data show a systematic decrease in S over time which indicates the whole system is evolving by separating FeS, which results in a decrease in S content from the oldest magma suite to the youngest. The changes related to decompression degassing and sulphide separation result in a decrease in fO2 to more reduced conditions in the shallow system.
We also quantify the total volatile emissions using the petrologic method, with the 1010 CE and 5680 BCE eruptions having the highest total volatile emissions (11.6 Mt and 11.3 Mt, respectively), while the 1657 CE and 341 CE eruptions have considerably lower total emissions at 0.1 and 0.02 Mt, respectively. The 1530 CE eruption has a higher total emission (12.8 Mt), due to the high H2O content reported for this eruption (Pichavant et al., 2018). Though the petrologic method underestimates volatile emissions, we show that SO2 emissions from the 1010 CE and 5680 BCE eruptions are 0.2 Mt and 0.3 Mt of SO2, respectively.
Using the calculated SO2 emissions and plume height constrained from isopleth data, we estimate that the two Plinian eruptions in 1010 CE and 5680 BCE were associated with peak global mean SAOD of 0.0055–0.0062, and peak global mean effective radiative forcing of −0.022 to −0.035 W/m2 (VCI 0–1). They were therefore, unlikely to exert significant climate disruption but contributed to the stratospheric volcanic aerosol “background” (Solomon et al., 2011). The other smaller La Soufrière de Guadeloupe eruptions investigated exerted negligible climate forcing owing to minor SO2 masses and tropospheric plume heights.
Overall, this study increases our understanding of La Soufrière de Guadeloupe by providing insights into the volatile processes occurring at depth, such as sulphide separation and sulphur degassing with decompression. Documenting the change in oxidation state in future efforts aimed at modelling the La Soufrière system is a major issue for understanding deep magma evolution and for the purposes of volcanic surveillance. We also provide new insights into the climate forcing effect of volatiles from La Soufriere de Guadeloupe eruptions. This will bring new constraints on the volatile processes occurring at depth and climate forcing effects of VEI two to four eruptions of basaltic-andesitic, magmatic-hydrothermal systems.
Data availability statement
The original contributions presented in the study are included in the article/Supplementary Material, further inquiries can be directed to the corresponding author.
Author contributions
AM prepared the samples, acquired the geochemical and petrological data, processed and analysed the data. RM and AM ran the CHOSETTO models, discussed and interpreted the data. TA ran the EVA_H models and with AM discussed and interpreted the data. J-CK, SM, and AM undertook fieldwork and sampling. AM drafted the manuscript and figures. All authors contributed to the article and approved the submitted version.
Funding
This work was supported by the Institut National des Sciences de l’Univers (INSU-CNRS) for radiocarbon dating (AO Artemis, LMC14-CEA Saclay), and the CASAVA Project funded by Agence Nationale de la Recherche, 2009–2015 (ANR-09-RISK-02). The PhD scholarship of AM was co-funded by the “Make our Planet Great Again” initiative (Campus France) and the IPGP Ecole Doctorale. We thank IPGP for general funding to the Observatoires Volcanologiques et Sismologiques (OVS), the INSU-CNRS for funding provided to the Service National d’Observation en Volcanologie (SNOV), a INSU-CNRS Tellus-Aleas project to SM (2020, Insights into the dynamics of the active hydrothermal system of La Soufrière de Guadeloupe from past eruptions), and the Ministère pour la Transition Ecologique et Solidaire (MTES) for financial support. This work has been supported by the Clervolc (UCA-LMV), the AO-IPGP 2018 project “Depth to surface propagation of fluid-related anomalies at La Soufrière de Guadeloupe volcano (FWI): timing and implications for volcanic unrest” (coord.: MR), the project “Vers la Plateforme Régionale de Surveillance Tellurique du futur” (PREST) co-funded by INTERREG Caraïbes V for the European Regional Development Fund, and the European Union’s Horizon 2020 research and innovation programme, under grant agreement No 731070 (EUROVOLC project). TA acknowledges support from the Cambridge Sidney Sussex College through a Junior Research Fellowship during completion of this work.
Acknowledgments
The authors thank the OVSG-IPGP team for logistical support and help with data collection. We are grateful for help and information from Laurence and E. Barret (Vert Intense). We thank Y. Legendre for assistance in the field and discussions of the geology and the eruptive past reconstruction of La Soufrière. We are grateful to the Parc National de Guadeloupe for allowing us to undertake research and obtain geological samples. Radiocarbon dates were obtained from Beta Analytical. TJA acknowledges support from the Cambridge Sidney Sussex College through a Junior Research Fellowship during completion of this work. Finally, we would like to thank the two reviewers. This study contributes to the IdEx Université de Paris ANR-18-IDEX-0001 and is Laboratory of excellence ClerVolc contribution number 604.
Conflict of interest
The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
Publisher’s note
All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.
Supplementary material
The Supplementary Material for this article can be found online at: https://www.frontiersin.org/articles/10.3389/feart.2023.1143325/full#supplementary-material
