- 1Institute of Global Environmental Change, Xi’an Jiaotong University, Xi’an, China
- 2State Key Laboratory of Loess and Quaternary Geology, Institute of Earth Environment, Chinese Academy of Sciences, Xi’an, China
- 3Key Laboratory of Karst Dynamics, MLR, Institute of Karst Geology, CAGS, Guilin, China
- 4Think Tank of Coastal Development, Yancheng Teachers University, Yancheng, China
Precipitation in southeastern China exhibits strong seasonal variability, which significantly impacts local agricultural production and social development. However, the reconstruction of precipitation seasonality has been limited by the lack of precisely dated high-resolution paleoclimatic records. This study presents seasonal-scale multi-proxy records (trace elements: Mg/Ca, Sr/Ca Ba/Ca and stable isotopes: δ18O and δ13C) of a modern (1810–2009 AD) annually laminated stalagmite (EM1) from E’Mei Cave, Jiangxi Province in southeastern China. Comparative analysis of observation data with meteorological and simulation data shows that the seasonal variation of EM1 δ18O, derived from precipitation δ18O, is mainly controlled by the large-scale circulation and precipitation seasonality on an interannual timescale. The seasonal EM1 δ18O variation is controlled by the seasonal precipitation δ18O, however, the most negative values of EM1 δ18O are higher than those of simulated calcite δ18O and the average amplitude of the seasonal variation of EM1 δ18O (∼1.93‰) is much smaller than that of simulated calcite δ18O (∼9.72‰) because of evaporation and mixing of waters in the epikarst system. On the decadal timescales, variations of δ13C, Mg/Ca, Sr/Ca, and Ba/Ca were found to be strongly correlated, consistent with the variation of the local dry/flood index, indicating a common influencing factor of local hydroclimate change. However, their seasonal phase relationships vary between strong and weak summer monsoon conditions. We find a strong covariation between Mg/Ca and δ13C with Sr/Ca and Ba/Ca during the strong monsoon period (1951–1976), and they are in antiphase with seasonal δ18O variation. However, the seasonal variations of Sr/Ca and Ba/Ca transformed to dominantly antiphase with Mg/Ca and δ13C during the weak monsoon period (1977–1991 AD). Therefore, we suggest that Mg/Ca and δ13C are dominantly controlled by the local hydroclimate changes on seasonal timescales but Sr/Ca and Ba/Ca might have been affected by complex processes in the epikarst under different hydrothermal configuration conditions. The findings indicate the potential of the variation of the seasonal phase relationships between multi-proxy records in reconstructing precipitation seasonality changes under different hydrothermal backgrounds.
1 Introduction
In recent years, with the rapid development of high resolution sampling methods and modern analysis techniques, many studies based on high-resolution stalagmite proxies have improved our understanding of climate change on the annual-decadal scales (Yadava et al., 2004; Baldini et al., 2005; Mattey et al., 2008; Cai et al., 2010; Jex et al., 2010; Orland et al., 2012; Baker et al., 2015; Lin et al., 2021). These studies focused on the analysis of stalagmite stable oxygen and carbon isotope (δ18O and δ13C) records, which not only provided important insights into climate-driven mechanisms but also provided more in-depth knowledge on the climatic significance of stalagmite stable isotopes as a climate index. However, the reconstruction of seasonally-resolved hydroclimate variability has generally proven difficult as seasonal resolution climate information is difficult to extract from as most stalagmites because of their slow growth rate. Furthermore, the main influencing factors of stalagmite δ18O are disparate in different regions on different timescales. For instance, cave monitoring in monsoonal China shows that the seasonal variation of precipitation/modern carbonate δ18O in some regions has no significant relationship with rainfall amount (Duan et al., 2016). Speleothem δ18O in subtropical Brazil is dominantly related to the variation of moisture source but not rainfall amount (Francisco et al., 2005). Speleothem δ18O in southeastern China might be largely controlled by changes in moisture source on seasonal timescales (Tian et al., 2021) and influenced by precipitation seasonality, moisture source, and integrated regional convection on the interannual to decadal timescales (Zhang et al., 2019; Zhang et al., 2020; Lu et al., 2021; Zhang et al., 2021). Different from the δ18O proxy, speleothem trace element concentrations and ratios are likely to be dependent on local hydroclimate conditions and epikarst systems (Cruz et al., 2007; Fairchild and Treble, 2009; Ban et al., 2018; Tan and Lin, 2020). The climatic explanation of trace elements should emphatically consider the influences of local rainfall on dissolution, recharge, and precipitation processes in epikarst systems (Fairchild et al., 2000; Karmann et al., 2007). Trace elements in speleothems are primarily derived from overlying soil and bedrock (Ban et al., 2018), with some contribution from atmospheric aerosol inputs (Tadros et al., 2019). A series of physical and chemical processes in epikarst zones, including prior aragonite precipitation (PAP), prior calcite precipitation (PCP), incongruent calcite dissolution (ICD) and water–rock interaction (WRI, involving calcite/dolomite recrystallization or inconsistent dissolution of dolomite), residence time of seepage water, mixing of fresh and old water, dilution effect and piston flow of fissure water, play complex but potentially important roles in the trace element ratios of speleothems (Fairchild et al., 2000; Tooth and Fairchild, 2003; Fairchild et al., 2006; Orland et al., 2014; Treble et al., 2015; Zhang and Li, 2019).
In addition, Mg incorporation into calcite may be affected by temperature in some regions (Day and Henderson, 2013; Koltai et al., 2017). Crystal growth rate may influence Sr incorporation into speleothems (Reeder, 1995; Gabitov and Watson, 2006; Tan et al., 2014a). Therefore, analyzing various climate proxy indicators of stalagmite, such as stable isotopes and trace elements, is particularly important for establishing a high-resolution paleoclimate record from stalagmite, which can not only improve the accuracy of the results but also help in distinguishing different mechanisms of trace elements through a multi-proxy approach for establishing reliable seasonal resolution cave records (Johnson et al., 2006; Baldini et al., 2012; Oster et al., 2012; Vansteenberge et al., 2020).
Located in the southern shore of the lower-middle reaches of the Yangtze River, China, northern Jiangxi Province is a crucial production base of grain, cotton, and oil. In the region, spring rain and Meiyu prevail in early summer, but summers in July and August are dry and hot. This seasonally variable precipitation dominantly leads frequent flood and drought events, leading to climate disaster events that seriously affect the lives of local people and hinder the development of agriculture and social economy (Ding et al., 2020). This study analyzed the seasonal variation and phase relation between δ18O, δ13C and Mg/Ca, Sr/Ca, and Ba/Ca using an annually laminated stalagmite (EM1), collected from E’mei Cave in northern Jiangxi. Combined with accurate seasonal-resolution multi-proxy records of EM1 in recent decades and meteorological data, the influencing factors of these stalagmite proxies in seasonal cycles and their hydro climatic implications were explored. This study is expected to provide suggestions and references for the reconstruction of high-resolution paleoclimate change records in this region.
2 Cave setting and sample
2.1 Cave setting
E’mei Cave (115°29′44″E, 29°33′18″N, 53 m a.s.l.) is located in Henggang Town of Ruichang City, northern Jiangxi Province (Figure 1A). The thickness of the cave roof is approximately 10–30 m.

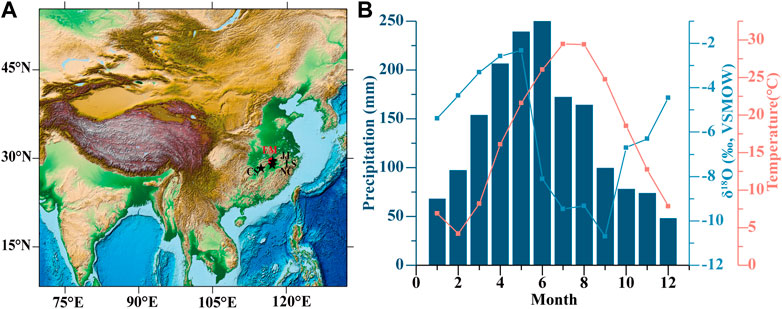

FIGURE 1. Cave location and climatic conditions of the study area. (A) Location of E’mei cave and the Jiujiang and Changsha meteorological stations (the red circle indicates E’mei cave (EM), and the black stars indicate the Changsha (CS), Jiujiang (JJ), Lushan (LS) and Nanchang (NC) meteorological stations); (B) monthly average precipitation (dark blue bars) and temperature (pink curve) from three stations (Jiujiang, Lushan and Nanchang) from 1951 to 2010 AD and monthly mean precipitation δ18O at the GNIP Changsha site from 1988 to 1992 AD (blue curve).
The study area is dominated by subtropical humid and monsoon climate with strong rainfall seasonality. Spring persistent rain (SPR) lasts from March to May, and the Meiyu period with high temperature and heavy rainfall occurs in June. In contrast, precipitation significantly declines from July to August under the control of the western Pacific subtropical high, which is reflected as high temperature and little rainfall. Precipitation is the lowest during the period from autumn to winter. According to instrumental data (1951–2010 AD) from the Jiujiang meteorological station near E’mei Cave (∼50 km from the cave), the region has an annual mean precipitation of 1426.9 mm and an annual mean temperature of 17.5°C. The spring (March to May) and summer (June to August) precipitation account for 35.8% and 34.6% of the annual precipitation, respectively. According to data from the nearest Global Network for Isotopes in Precipitation (GNIP) station (Changsha station, ∼100 km west of E’mei Cave) during 1988–1992 AD, March-May precipitation (Spring rain) δ18O values are higher and June-September precipitation (East Asian summer monsoon precipitation) δ18O values are lower (Figure 1B).
2.2 Sample
A rapidly growing calcitic stalagmite (EM1) of 60 mm in height was collected in December 2009 from an active drip site located ∼150 m behind the entrance of E’mei Cave. The top of EM1 is smooth.
The sample was halved along its growth axis and then polished. The polished profile shows continuous laminations; the annual growth laminae are all clearly visible to the naked eye, alternating between translucent, dense sub-layers (TDSL) and white, porous sub-layers (WPSL) (Genty and Quinif, 1996; Tan et al., 2014b) (Supplementary Figure S1). X-ray diffraction (XRD) analyses suggest that the mineral composition of EM1 is pure calcite.
3 Methods and data
3.1 Chronology
Four sub-samples were drilled from polished sections of EM1 using a carbide dental drill for 230Th dating. These subsamples were dated on a Multi-Collector Inductively Coupled Plasma Mass Spectrometry at the Institute of Global Environmental Change, Xi’an Jiaotong University. The laminae of EM1 were counted according to the scan image using a confocal laser fluorescent microscope at the State Key Laboratory for Manufacturing Systems Engineering, Xi’an Jiaotong University. The age model of EM1 was established by combining the 230Th dating results, δ18O cycle counting, and annual lamina counting. Further details on the age model are provided by Zhang et al. (2018).
3.2 Thin section, stable-isotope, and trace-element analyses
In order to minimize the sampling error, a 20.4 mm-long section (3.5–23.9 mm from the top) of EM1 with very clear annual growth laminae was selected (Supplementary Figure S1). Each annual lamina of this section consists of a translucent, dense and white, porous sub-layer couplet. The growth laminae are quite parallel with less visible pores. A thin section (0–28.5 mm from the top) was also prepared and examined using the Zeiss Axioscope5 microscope.
A total of 204 sub-samples were milled using a high-resolution Micromill device at an interval of 0.1 mm at 3.5–23.9 mm from the top of the polished EM1 profile. The correspondence relationship between each subsample and translucent-white couplet was recorded during the sampling process. Each subsample was divided into two parts for analyses: one part was measured for δ18O and δ13C using a Delta V isotope ratio mass spectrometer connected with a Kiel-IV system at Xi’an Jiaotong University and the other part was analyzed for Mg/Ca, Sr/Ca, and Ba/Ca using the Agilent 5110 ICP-OES at the Institute of Earth Environment, Chinese Academy of Sciences. The laboratory standard TTB1 was analyzed after every 10 subsamples to ensure the stability of the stable isotope data. The analytical precision of the δ18O and δ13C analyses was 0.07‰ and 0.05‰ (1σ), respectively. All isotopic values are reported in the δ notation relative to the Vienna Pee Dee Belemnite (VPDB) standards. Throughout the trace element measurements, the subsample was dissolved in 5% nitric acid in cleaned centrifuge tubes. A standard sample was inserted after every 5 subsamples and a set of standard samples was inserted after every 15 subsamples for calibration. The relative standard deviations (RSD) were less than 5% for Mg/Ca, Sr/Ca, and Ba/Ca.
3.3 Instrumental data
Average monthly precipitation and temperature data from three near meteorological stations (Jiujiang, Lushan and Nanchang) for the period 1951–2010 AD were obtained from the National Climate Center (NCA, http://ncc.cma.gov.cn). The D/F index records of Jiujiang region was reconstructed from drought and flood events during spring, summer, and autumn recorded in historical literature, reflecting the local precipitation variation. Monthly precipitation δ18O data (1988–1992 AD) from the GNIP Changsha stations were obtained from the GNIP (http://www.iaea.org/). Both Changsha station and the study area are located in the spring persistent rain area, their precipitation δ18O variabilities are consistent (Zhang et al., 2020). Monthly simulated δ18O data of precipitation (1979–2015 AD) were acquired from a water isotope-permitting general circulation model (IsoGSM) (Yoshimura et al., 2008). IsoGSM has been proven to be capable of producing reliable data for eastern China (Zhang et al., 2020). A comparison between the precipitation δ18O data (1988–1992 AD) from the GNIP Changsha station and those from IsoGSM simulation showed consistent variations, with a significantly positive correlation [r=0.754; 95% confidence interval (0.614; 0.848)], although the amplitude of the IsoGSM simulated δ18O was slightly smaller than that of the GNIP observation data (Supplementary Figure S2). Multivariate El Nino-Southern Oscillation Index (MEI) and West Pacific Subtropical High (WPSH) data (1951–1990 AD) were obtained from the Earth System Research Laboratory, National Oceanic & Atmospheric Administration (NOAA) (http://www.cdc.noaa.gov/people/klaus.wolter/MEI). The Pacific Decadal Oscillation (PDO) Index (1951–1990 AD) was also obtained from NOAA (http://www.ncdc.noaa.gov/teleconnections/pdo).
3.4 Water-calcite fractionation and data processing
Under isotope equilibrium fractionation, the δ18O values of calcite are mainly determined from the δ18O values of drip water and cave temperature, while the δ18O values of drip water are derived from the δ18O of precipitation. In order to calculate the fraction of stalagmite δ18O attributable to precipitation δ18O, the temperature dependent oxygen isotope fractionation factor between calcite and water established by Kim and O 'Neil (1997) was applied (Equation 1) (Kim and O ′Neil., 1997).
Where T is the absolute temperature in K (T=273+t°C), t is average annual temperature of the cave in °C. In this study, the IsoGSM simulated precipitation δ18O was used as drip water δ18O. It should be noted that the unit of precipitation δ18O is relative to the standard mean ocean water (VSMOW) and the unit of speleothem δ18O is relative to Pee Dee Belemnite (VPDB), and they need to be transformed into a consistent unit (Equation 2).
In order to better analyze the seasonal variations of trace element ratios and stable isotopes, the long-term trend of each record was removed using a data detrending method. PearsonT3 was used to calculate the linear Pearson correlation coefficient between different records, which provides the valid corrected 95% confidence intervals in the case of autocorrelation. Beyond that, the confidence interval can be used as a significance test by verifying whether it contains zero.
4 Results
4.1 Growth lamina characteristic
EM1 consists of couplets of alternating TDSL and WPSL under natural light (Figure 2). WPSL corresponds to the opaque layer under transmitted light and it is weak to the strong luminescence band under fluorescence (Figure 2). WPSL has a higher abundance of opaque particles under transmitted and cross-polarized light. These particles glow under fluorescence and may be clay-like impurities or organic matter (Figures 2B,C). Several wide fluorescent layers include multiple extremely thin fluorescent sublayers (Figure 2C). The thin-section image in Figure 2A shows that both sub-layers are composed of typical columnar and fibrous calcite crystalline structures under cross-polarized light.

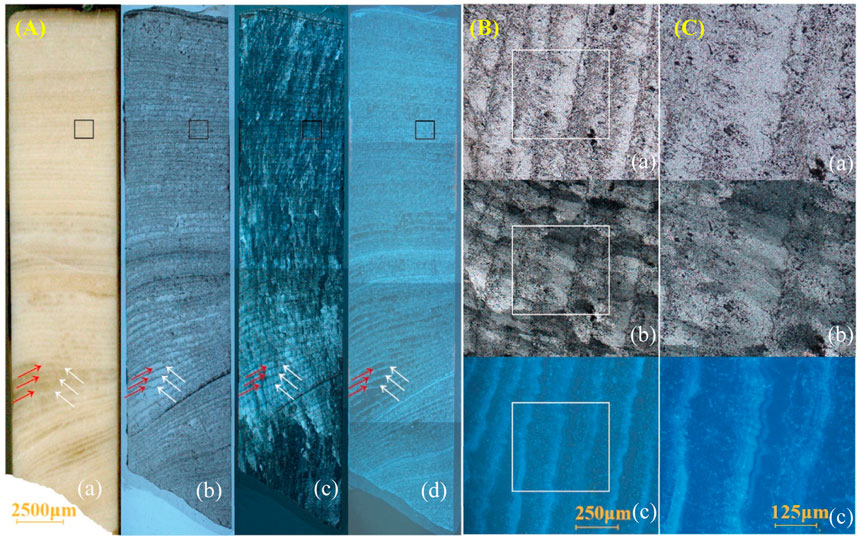

FIGURE 2. Lamina characteristics of stalagmite EM1. (A) (a) profile of EM1; (b–d): images of layers with very clear growth laminae under (b) transmitted light, (c) cross-polarized light and (d) blue-light epifluorescence. DTSL (red arrows) corresponds to the light transmittance layer under transmitted light, and the non-luminescent layer under fluorescence; WPSL (white arrows) corresponds to the opaque layer under transmitted light and the weak to strong luminescence band under fluorescence. (B) magnified images of the black rectangle in (A), where (C) is the amplified region of the white rectangle in (B); the fluorescence layer in (C) (c) has uniform width, and inner fluorescent sublayers are clearly visible.
4.2 Stable isotopes
EM1 δ18O and δ13C records showed clear annual cycles, with δ18O values varying from −8.87‰ to −5.67‰ and δ13C values from −9.46‰ to −6.13‰ (Figure 3). Our previous study shows a good replication of the δ18O and δ13C records from E’mei and Yongquan caves, suggesting EM1 is less influenced by the kinetic fractionation during the growth (Zhang et al., 2018). Variations of growth rate caused changes in lamina thickness, resulting in different resolutions of EM1 δ18O and δ13C records at different time periods. For example, between 1951 and 1991 AD, δ18O and δ13C records exhibited distinct seasonal cycles. Between 1928 and 1950 AD, δ18O and δ13C records consisted of seasonal cycles and annual cycles. On the long-term scale, the δ18O values exhibited more positive trends during 1928–1950 and 1977–1991 AD than in the interval of 1951–1976 AD (Figure 3), which might be related to the stronger monsoon intensity in 1951–1976 AD (Zhang et al., 2018). Previous studies based on instrumental data show a strong-to-weak shift of the summer monsoon intensity from 1951–1976 AD to 1977–1991 AD (Gong and Ho, 2002; Zhou et al., 2009).

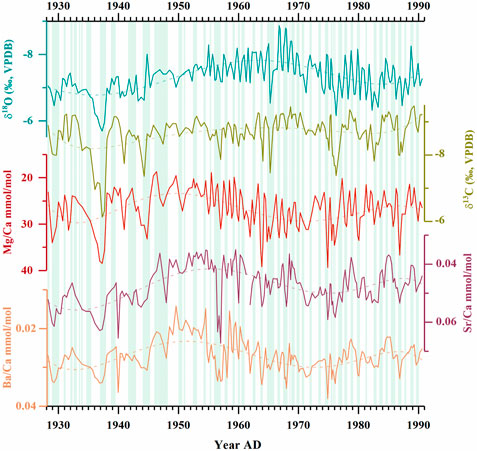

FIGURE 3. Variations of stable isotopes (δ18O and δ13C) and trace element ratios (Mg/Ca, Sr/Ca, and Ba/Ca) in EM1 from 1928 to 1991 AD and their relationship with DTSL and WPSL sublayers. The light green (white) bars represent DTSL (WPSL).
The seasonal amplitude of EM1 δ13C was smaller than that of δ18O. The EM1 δ18O and δ13C records showed an offset of ∼4 months in most years except for a few years (1965, 1971, 1983) that were in phase. δ13C values were lower in WPSL and higher in TDSL (Figure 3). The oscillation of δ18O exhibited clear seasonal characteristics, and δ18O showed the minimum or minimum to maximum values in TDSL. The annual seasonal variation of EM1 δ18O is basically consistent with that of precipitation δ18O from the GNIP Changsha station during 1988–1991 AD and IsoGSM simulated precipitation δ18O during 1979–1991 AD, showing a positive correlation with simulated precipitation δ18O [r=0.453; 95% confidence interval (0.31; 0.575)] (Figure 4). Lower δ18O values were observed during July-September and higher values during December-April. According to the water-calcite fractionation Equation 1, simulated calcite δ18O values were also calculated using IsoGSM simulated precipitation δ18O. The result showed that the seasonal variation trends of simulated calcite δ18O are consistent with those of EM1 δ18O, but the variation range of the simulated calcite δ18O was higher (−11.50 to −1.78‰, VPDB) than that of EM1 δ18O (−8.25 to −6.32‰, VPDB) (Figure 4).

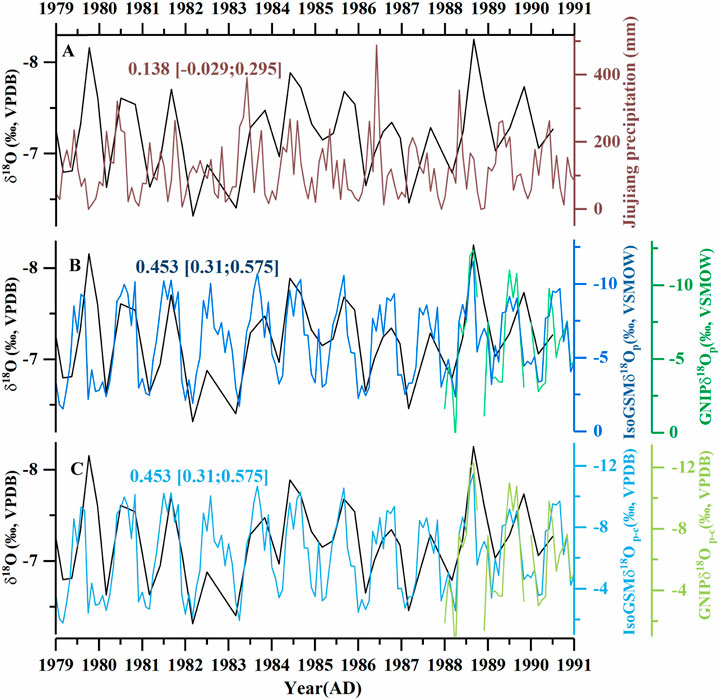

FIGURE 4. Comparison between EM1 δ18O, precipitation δ18Op, and simulated calcite δ18Op-c records. (A) EM1 δ18O (black curve) is not significantly correlated to the monthly average precipitation at Jiujiang station (brown curve) [r=0.136 with 95% confidence interval (−0.029; 0.295)]. (B) EM1 δ18O showing coherent variation with the monthly weighted mean precipitation δ18Op from the GNIP Changsha station and the monthly simulated precipitation δ18Op from IsoGSM, with a positive correlation between EM1 δ18O and simulated δ18Op from IsoGSM [r=0.453 with 95% confidence interval (0.31; 0.575)]. (C) Comparison between EM1 δ18O and simulated calcite δ18Op-c records calculated from the GNIP Changsha station δ18Op and IsoGSM simulated δ18Op, EM1 δ18O and simulated calcite IsoGSMδ18Op-c records during 1979–1991 AD show a positive correlation [r=0.453 with 95% confidence interval (0.31; 0.575)].
4.3 Trace element ratios
The seasonal and interdecadal variations of Sr/Ca were always consistent with Ba/Ca in EM1, but the relationship of Mg/Ca with Sr/Ca and Ba/Ca showed some changes at different timescales (Figure 3, Supplementary Figure S3). In the long term (1928–1991 AD), Mg/Ca, Sr/Ca and Ba/Ca showed coherent variations, exhibiting an antiphase relationship with δ18O (Figure 3).
During 1951–1976 AD, seasonal Mg/Ca, Sr/Ca and Ba/Ca showed variations in phase, which are also consistent with δ13C. However, Mg/Ca showed an antiphase relationship with Sr/Ca and Ba/Ca in a few years, such as 1953, 1972, and 1973. The annual cycles of Mg/Ca showed an antiphase relationship with Sr/Ca and Ba/Ca in most years during 1977–1991 AD, with coherent variations between Mg/Ca, Sr/Ca, and Ba/Ca in few years (e.g., 1979, 1985–1986). Remarkably, when the seasonal variations of Mg/Ca are in phase with Sr/Ca and Ba/Ca, δ13C also varies in phase with them (Supplementary Figure S3). During 1951–1991 AD, an in-phase relationship between Mg/Ca and δ13C and an antiphase relationship between Mg/Ca and δ18O were observed. The relationships between Mg/Ca ratios and sublayers are clearly visible, with lower Mg/Ca ratios corresponding to WPSL and higher Mg/Ca ratios within TDSL (Figure 3).
5 Discussion
5.1 Controlling factors of multi-proxy variations on inter-decadal scales
Zhang et al. (2018) suggested that precipitation and stalagmite δ18O are influenced by precipitation seasonality and the large-scale atmosphere circulation modulated by the El Nino-Southern Oscillation (ENSO) in the study area. It was suggested that stalagmite δ18O is negatively correlated with the East Asian summer monsoon (EASM)/non-summer monsoon (NSM) precipitation ratio on interannual to decadal timescales because the EASM/NSM ratio are predominantly affected by ENSO (Zhang et al., 2018; Zhang et al., 2020). A good correlation was observed between EM1 δ18O, precipitation amount, and dry/flood (D/F) from 1970 to 1991, with lower (higher) EM1 δ18O corresponding to decreased (increased) D/F index and increased (decreased) precipitation in the study area (Figure 5). From 1928 to 1970 AD, the D/F index and EM1 δ18O showed weak correlation (Figure 5), which is considered to be driven by the variation of precipitation seasonality associated with shifts in oceanic-atmospheric circulation (Zhang et al., 2018). Previous studies have proved that the PDO/ENSO circulation shifted from a cold phase during 1951–1976 AD to a warm phase during 1977–1990 AD (Chan and Zhou, 2005) (Supplementary Figure S4), and different phases of ENSO or PDO have important effects on EASM precipitation in southeastern China by regulating the intensity and position of WPSH (Wang and Lin., 2002; Dong and Xue, 2016). The comparison between EM1 δ18O, PDO, MEI, and WPSH in this study suggest that lower (higher) δ18O values correspond to a weakened (strengthened) WPSH associated with cold (warm) PDO/ENSO phases on the inter-annual to inter-decadal timescales (Supplementary Figure S4), which is a reasonable explanation for the antiphase relationship between stalagmite δ18O and the EASM/NSM ratio modulated by ENSO during 1951–1991 (Figure 5).

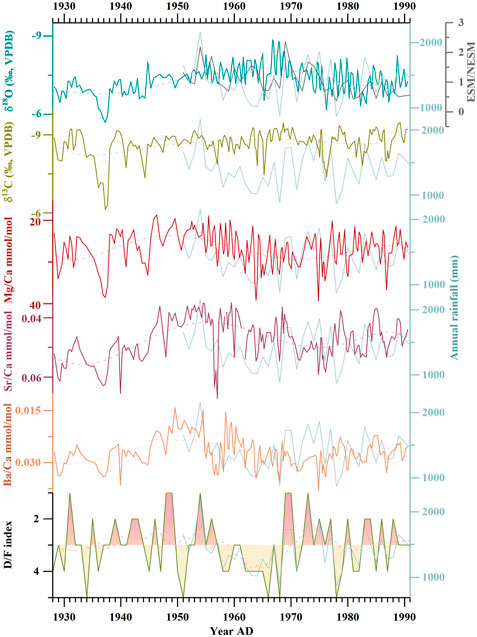

FIGURE 5. Comparison between EM1 multi-proxy records (1928–1991 AD) and annual precipitation and D/F index records of Jiujiang region. The D/F index was reconstructed from drought and flood events during spring, summer, and autumn recorded in historical literature, reflecting the local precipitation variation.
Stalagmite δ13C can be influenced by the δ13C values of soil and atmospheric CO2 (Baskaran and Krishnamurthy, 2013; Tan, 2013; Li and Liu, 2015). δ13C can reflect regional vegetation controlled by hydroclimate conditions and human activities on centennial-to-millennial scales (Zhang et al., 2015; Niu et al., 2022). Over annual to decadal scales, δ13C can be also largely influenced by the processes of PCP in epikarst systems, degassing speed of CO2 within caves, bedrock dissolution and residence time of seepage water (Tan, 2013). Studies demonstrated that PCP usually induces a consistent increase of δ13C, Mg/Ca, Sr/Ca, and Ba/Ca (Mattey et al., 2010; Sinclair et al., 2012; Koltai et al., 2017; Vansteenberge et al., 2020). The δ13C values of EM1 from 1928 to 1991 did not exhibit any distinct change (Figure 5), probably due to the lack of apparent changes in the overlying vegetation in the past 70 years. EM1 δ13C exhibited several inconspicuous cycles on annual to decadal scales, with a strong covariation of increased δ18O, Mg/Ca, Sr/Ca and Ba/Ca values, indicating the occurrence of PCP during these dry periods on annual to decadal timescales (Figure 5).
On the interdecadal scale, Mg/Ca, Sr/Ca, and Ba/Ca records showed in-phase variation, which are in antiphase with annual precipitation amount (Figure 5). The relationship between trace element ratios and the D/F index of the study area during 1928–1991 AD was also investigated, with higher (lower) Mg/Ca, Sr/Ca, and Ba/Ca ratios corresponding to dry (wet) climate (Figure 5). The response rates of Mg, Sr, and Ba to hydroclimate change were different (Mg>Ba>Sr) (Figure 5), which might be attributable to the different distribution coefficients of these trace elements (Mg<<Ba<Sr) (Fairchild and Baker, 2012; Day and Henderson, 2013). This indicates that Mg is more sensitive to precipitation variations than Ba and Sr. On interdecadal timescales, with decreased precipitation, the extended residence time of seepage water in the epikarst system enhances WRI, which is conducive to the dissolution of Mg, Sr, and Ba in bedrock and finally lead to higher Mg/Ca, Sr/Ca, and Ba/Ca ratios. The fact that higher values of Sr/Ca and Ba/Ca corresponded to increased rainfall from 1972 to 1976 AD indicate that the incorporation of Sr and Ba into speleothem might have a more complex mechanism (Figure 5). On the interdecadal scale, Mg/Ca, Sr/Ca, and Ba/Ca in EM1 were found to respond to local hydroclimate conditions, with higher values in dry climates.
5.2 Controls on the seasonal variability of δ18O and δ13C
Several studies have determined the seasonal variation of stalagmite δ18O through modern analysis techniques to explore the relationship between sub-annual climatic and cave environmental signals (Johnson et al., 2006; Baker et al., 2007; Orland et al., 2009; Orland et al., 2012; Koltai et al., 2017; Baker et al., 2019). Figure 4 and Figure 6 show a clear seasonal cycle of EM1 δ18O, EM1 retains seasonal climate responses probably because of abundant rainfall and the suitable cave environment. A comparison between EM1 δ18O records and meteorological data reveals that the seasonal variation of EM1 δ18O is significantly and positively correlated with precipitation δ18O but insignificantly correlation with precipitation amount (Figure 4). Cave monitoring studies from Shennong cave (around 200 km southeast of E’mei cave) and the study area show that there is more rainfall in spring with more positive δ18O values but less rainfall in summer with more negative δ18O values, this is not consistent with “amount effect” (Zhang et al., 2020; Tian et al., 2021). The relationship between seasonal rainfall amount and rainfall δ18O is consistent with that between seasonal rainfall amount and speleothem δ18O (Figure 1 and Figure 4). Therefore, we suggest that the “amount effect” does not fit the speleothem δ18O values in southeastern China on seasonal timescales.

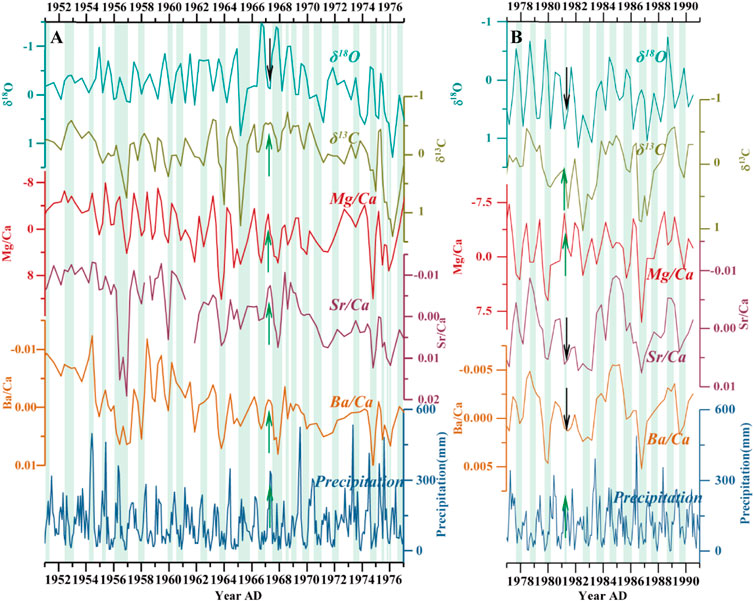

FIGURE 6. Comparison between EM1 multi-index records (1951–1991 AD, detrended) and meteorological data from Jiujiang station (1951–1991 AD), with the light green bar indicating TDSL. (A): Strong monsoon period (1951–1976 AD). δ13C showing in-phase relationships with Mg/Ca, Sr/Ca, and Ba/Ca with high values (low values) corresponding to the dry (wet) season, and δ18O showing antiphase relationships with δ13C, Mg/Ca, Sr/Ca, and Ba/Ca in the detrended data. (B): Weak monsoon period (1977–1991 AD). δ18O and Mg/Ca cycles showing inverse changes, and δ18O showing in-phase relationships with Sr/Ca and Ba/Ca. High Mg/Ca values (low Sr/Ca and Ba/Ca values) correspond to the dry season (light green bar indicates DTSL).
We also find that the seasonal variation range δ18O in EM1 (−8.25 ∼ −6.32‰, VPDB) was much smaller compared to the simulated calcite δ18O (−11.50 ∼ −1.78‰, VPDB) (Figure 4). Some potential mechanisms can blur or alter seasonal δ18O signals from precipitation to stalagmites, such as selective recharging (Baker et al., 2007; Baker et al., 2019), mixing of old and fresh water (Baker et al., 2007; Baker and Bradley, 2010), seepage path (Duan et al., 2016; Markowska et al., 2016), and evaporative fractionation in the soil and epikarst zone (Zimmerman et al., 1967). Cai et al. (2010) found that δ18O in stalagmites from northwestern Thailand and 5-year moving average of the local rainfall data has a better correlation than that comparing with 1-year moving average of the rainfall data, indicating a retention and mixing of old and fresh water in karst system. On the basis of the correlation analysis between stalagmite δ18O and precipitation, Jex et al. (2010) concluded that the drip water is supplied by an aquifer recharged by waters from the current year and the previous 5 years. Regression correlation between original monthly rainfall and EM1 δ18O [r=0.453; 95% confidence interval (0.31; 0.575)] is worse than the correlation between 8-point smoothed rainfall data and EM1 δ18O [r=0.486; 95% confidence interval (0.348; 0.603)], which indicates a mixing of old and fresh water in the epikarst (Baker and Bradley, 2010). When the temperature is high, precipitation may have undergone evaporation in soil or near surface water during the formation of EM1 drips, resulting in heavier δ18O values of the drip water than the original precipitation δ18O (Baker et al., 2007; Markowska et al., 2016). Our monitoring work in Shennong cave also shows that the δ18O values of drip water inside the cave are significantly higher than the δ18O values of original precipitation, and the amplitude of drip water δ18O is smaller than original precipitation (Tian et al., 2021), indicating evaporation occurs in the process from precipitation to drip water. Unfortunately, monitoring work was not performed in the E’mei cave. However, we can find the most negative values of simulated calcite δ18O (−11.50‰, VPDB) are lower than those of the EM1 δ18O (−8.25‰, VPDB) during summer when the precipitation δ18O is negative but the temperature is high (Figure 4). The amplitude of simulated calcite δ18O (∼9.72‰, VPDB) is much larger than that of EM1 δ18O (∼1.93‰, VPDB). These observations indicate that evaporation and water mixing occur in the process from the precipitation, drip water to speleothem in the E’mei cave.
Seasonal δ18O in EM1 peaks in spring (March-May) with high rainfall, decreases with the onset of the summer monsoon, and reaches the lowest level in late summer to early autumn with significantly reduced rainfall and strong evaporation. The high EM1 δ18O values in WPSL (luminescent layer) correspond to a large amount of precipitation with higher δ18O in the spring to early summer (Figure 6). The low EM1 δ18O values in TDSL (non-luminescent layer) are consistent with the low precipitation δ18O occurring during the late summer to early autumn when stalagmite sublayers are deficient in organic matter due to less precipitation and strong evaporation (low P-E), which are not conducive to soil organic matter production (Davidson et al., 2000; Fischer, 2009; Wang et al., 2016) and eluviation (Beynen et al., 2002). This further confirms the hypothesis of the seasonal variation of precipitation δ18O primarily controlling the seasonal variation of EM1 δ18O.
The seasonal variation of δ13C in cave sediments may be affected by various processes, such as bedrock dissolution (Riechelmann et al., 2011), soil biogenic CO2 content (Fairchild et al., 2006), degassing of CO2 (Sinclair et al., 2012), and PCP (Rampelbergh et al., 2014a). Seasonal cycles of δ13C are much less pronounced than those of δ18O, but an inverse correlation between seasonal δ18O and δ13C records could still be observed, with the minima of δ13C corresponding to the maxima (or maxima to minima) of δ18O (March-June) and the maxima of δ13C corresponding to the minima (or minima to maxima) of δ18O (July-February) (Figure 6). These can be attributed to the continuous spring precipitation from March to May and June being the Meiyu period in the region. In addition, the average temperature from March to June is suitable for plant growth. Therefore, soil contains more CO2 rich in 12C because of flourishing plant roots and strong soil microbial activity (Amundson et al., 1998; Zhang et al., 2015). At the same time, the δ13C values of calcite tend to be lower because the faster drip rates are not conducive to CO2 degassing (Banner et al., 2007; Fairchild et al., 2006). Rapid degassing of CO2, which is mainly controlled by good ventilation or slow drip rate, leads to increases in calcite δ13C (Duan et al., 2013; Johnson et al., 2006). From July to August, the decrease of rainfall and the increase of temperature in this area not only contributed to the dissolution of cave bedrock (Asrat et al., 2018), but also weakened the activities of plant roots and soil microorganisms because of low P-E, and slower drip rates promoted CO2 degassing (Banner et al., 2007). It is noteworthy that δ13C and δ18O displayed similar seasonal trends in individual years (e.g., 1965, 1971, 1983–1984). The δ18O, δ13C, Mg/Ca, Sr/Ca, Ba/Ca, of EM1 in the spring of 1965 and 1971 all showed high values. This may be attributable to piston flow. During the period of heavy spring rain, resident water in the surface karst in winter was flushed out, which may have been affected by PCP (Arbel et al., 2010). From 1983 to 1984, δ18O and δ13C showed in phase variation but antiphase variation with Mg/Ca, Sr/Ca, and Ba/Ca (Figure 7B), and the variation ranges of δ13C were 0.083‰ and 0.20‰, respectively (Figure 5). Therefore, rather than PCP, bedrock dissolution is suggested to be the cause of the δ13C increase under this scenario (Riechelmann et al., 2011).

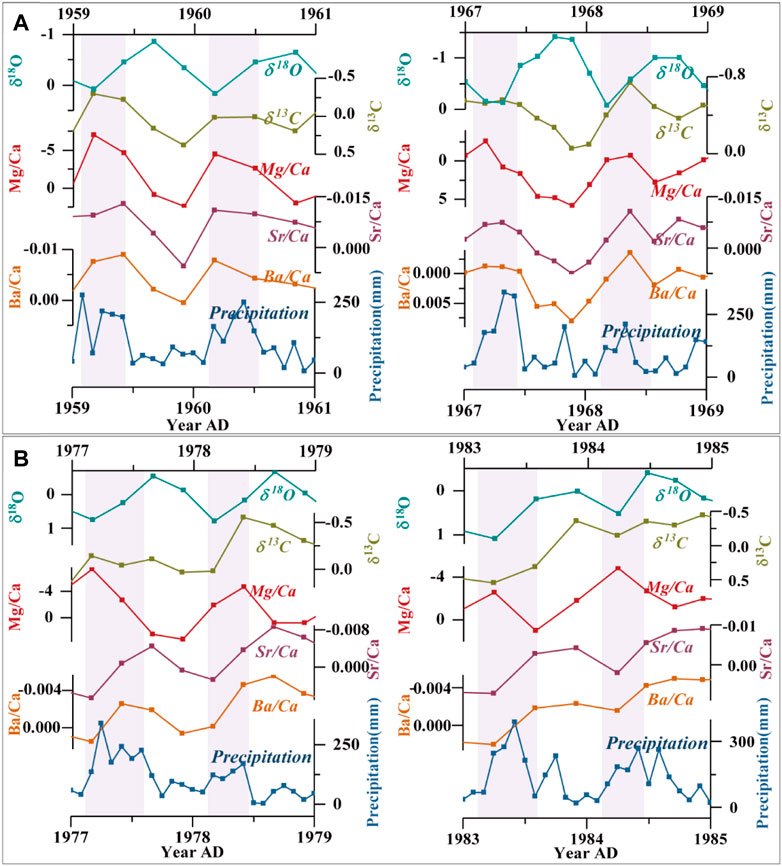

FIGURE 7. Local enlarged images of the strong monsoon period (A) and the weak monsoon period (B) in Figure.6 (mauve bar describes the wet season).
5.3 Controls on the seasonal change cycle of trace-elements
5.3.1 Strong monsoon period (1951–1976 AD)
On a seasonal scale, a strong covariation of Mg/Ca with Sr/Ca and Ba/Ca and δ13C was found during 1951–1976, and they were in antiphase with seasonal δ18O variation. Higher (lower) values of Mg/Ca, Sr/Ca, and Ba/Ca were observed in TDSL (WPSL), corresponding to the dry (wet) season (Figure 6A). Figure 7A displays more distinct relationships between them in detail. These relationships have generally been considered to reflect a PCP in the epikarst zone during a dry period (Fairchild et al., 2000; Johnson et al., 2006; Rampelbergh et al., 2014b; Riechelmann et al., 2020). In addition, studies have suggested that the preferential dissolution of Mg, Sr, and Ba relative to Ca2+ may lead to increased X/Ca values in drip water and stalagmite during ICD (McGillen and Fairchild, 2005; Casteel and Banner, 2015). Using a model based on a stable karst environment, Sinclair (2010) realized that the boosted partial dissolution of limestone will result in the higher enrichment of Mg/Ca and Sr/Ca in stalagmite than host rock because of ICD. Typically, enhanced WRI (including the incongruent dissolution of dolomite or dolomite/calcite recrystallization) during a dry period may also lead to increased Mg/Ca and Sr/Ca in stalagmite (Tan et al., 2015) because of increased bedrock dissolution (Baldini et al., 2002; Musgrove and Banner, 2004). Through mathematical modeling, Sinclair (2010), Sinclair et al. (2012) predicted that PCP/ICD will lead to a linear correlation with a theoretical slope (0.88± 0.13) in graphs of ln (Sr/Ca) vs. ln (Mg/Ca) independent of host rock or dripwater composition. The combined process of WRI and PCP/ICD is indicated by slopes below 0.709, with lower slope implying stronger WRI (Casteel and Banner, 2015; Zhang et al., 2019). In this study, the slopes of ln (Mg/Ca) vs. ln (Sr/Ca) during the strong monsoon period (1951–1976 AD) was 0.60 ± 0.07 (Figure 8A). Accordingly, the seasonal variation of Mg/Ca, Sr/Ca and Ba/Ca in the strong monsoon period (1951–1976 AD) may be dominated by the combined effect of WRI and PCP/ICD, which leads to the increase of trace element ratios during dry periods (late summer to winter) and decrease in the wet periods (spring and early summer) because of the dilution effect of recharge water (Gascoyne, 1983; Baldini et al., 2006; Tadros et al., 2016; Tadros et al., 2019).

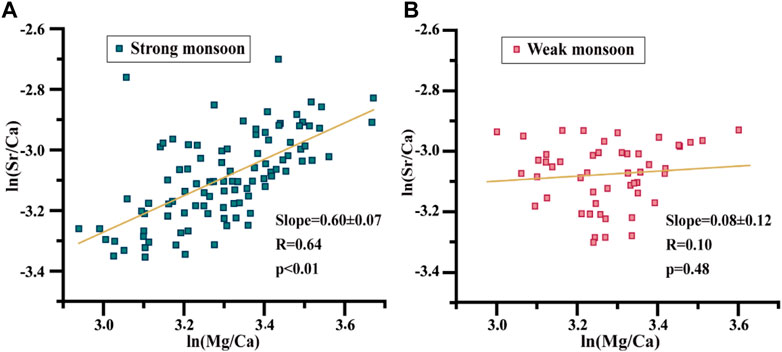

FIGURE 8. ln (Mg/Ca) vs. ln (Sr/Ca) in EM1 during the strong monsoon period (A) (1951–1976 AD, green) and the weak monsoon period (B) (1977–1991 AD, red).
5.3.2 Weak monsoon period (1977–1991 AD)
The seasonal cycles of Mg/Ca, and Sr/Ca, Ba/Ca transformed to dominantly antiphase during the weak monsoon period (1977–1991 AD) (Figure 6B, Figure 7B). Zhang et al. (2018) found the annual precipitation changed little between La Niña and El Niño years, but the precipitation seasonality (summer monsoon versus non-summer-monsoon precipitation amount) significantly change in the study area. During the weak monsoon period, the relatively increased precipitation in late summer-autumn (Supplementary Figure S5) was not conducive to the occurrence of PCP and ICD and weakened the controls of PCP/ICD and WRI on Sr/Ca and Ba/Ca. Although the slopes of ln (Mg/Ca) versus ln (Sr/Ca) in EM1 from 1977 to 1991 was 0.08 ± 0.12 (Figure 8B) and WRI may promote incongruent dissolution of dolomite (IDD of CaMg(CO3)2) to produce an antiphase relationship with Mg/Ca, Sr/Ca, and Ba/Ca (Roberts et al., 1998; Baldini et al., 2006), ln (Mg/Ca) and ln (Sr/Ca) did not show any correlation (Figure 8B) and the effect of IDD was limited by the dolomite content in the bedrock (Fairchild and Treble, 2009) or/and the residence time of retained water (Fairchild et al., 2006). The water recharge time in autumn during the strong monsoon period (1951–1977 AD) was significantly longer than during the weak monsoon period (1977–1991 AD) (Supplementary Figure S5), but no influence of IDD on the variation of trace element ratios in EM1 was observed during the strong monsoon period (1951–1976 AD) (Figure 6A). Therefore, it is not suggested that WRI account for the inverse changes of Mg/Ca and Sr/Ca, Ba/Ca during periods of weak monsoon.
Experimental studies and stalagmite data have indicated an increase in Sr and Ba with higher growth rates (Huang and Fairchild, 2001; Treble et al., 2003; Mcmillan et al., 2005; Johnson et al., 2006; Fairchild and Baker, 2012; Tan et al., 2014a). More precipitation and increased CO2 production by soil microbial communities and tree root respiration in spring-early summer can promote bedrock dissolution to increase calcite supersaturation, which is conducive to the growth of calcite (Boch et al., 2011; Baker et al., 2021). In addition, Mg2+ can also retard crystal growth (Davis et al., 2000; Kim et al., 2007). The lower Mg content in spring-early summer can compensate for the decreased calcite growth, but the opposite in autumn and winter. It could be deduced that Sr and Ba may have been controlled by the seasonal variations in the growth rates of EM1 during the weak monsoon period (Mcmillan et al., 2005; Johnson et al., 2006; Fairchild and Baker, 2012; Tan et al., 2014b). The higher growth rates of EM1 in spring-early summer increases defect sites and interstitials in the calcite crystal lattice and these sites are preferentially occupied by relatively large Sr and Ba ions (Reeder and Rakovan, 1999). Correspondingly, the lower growth rates in late summer-autumn and winter may reduce the Sr and Ba content in EM1. We can find the controlling factors of seasonal Sr/Ca and Ba/Ca may vary under strong and weak monsoon conditions, which need more studies in the future by detailed cave monitoring work.
5.3.3 Potential of Mg/Ca proxy in seasonal palaeohydrology studies
The high-positive correlation between Sr and Ba within both intervals (the strong and weak monsoon periods) suggests that Sr and Ba are dominated by common environmental parameters, which can be further attributed to the similar partition coefficients, ionic radii, and valence states of Sr and Ba (Desmarchelier et al., 2006; Day and Henderson, 2013). The climate influence mechanism of Sr and Ba varied under different monsoon intensities. The seasonal variations of Sr/Ca and Ba/Ca were mainly influenced by PCP/ICD and WRI with lower (higher) ratios occurring in the wet (dry) season during the strong monsoon period (Figure 9A) and controlled by growth rates with lower (higher) ratios occurring in the dry (wet) season during the weak monsoon period (Figure 9B). The seasonal cycles of Mg/Ca and δ18O in EM1 remained consistently antiphase, and the peak in Mg/Ca corresponded to the minimum value or minimum to maximum of δ18O. A comparison between Mg/Ca and modern instrumental records revealed that the Mg/Ca ratios were the highest during late summer to winter with reduced precipitation (precipitation δ18O was more negative) and the lowest during spring-early summer with increased precipitation (precipitation δ18O was more positive) (Figure 1, Figure 6, Figure 9), which is consistent with the correspondence relationships between Mg/Ca, δ18O and sublayer features (Zhang et al., 2022).

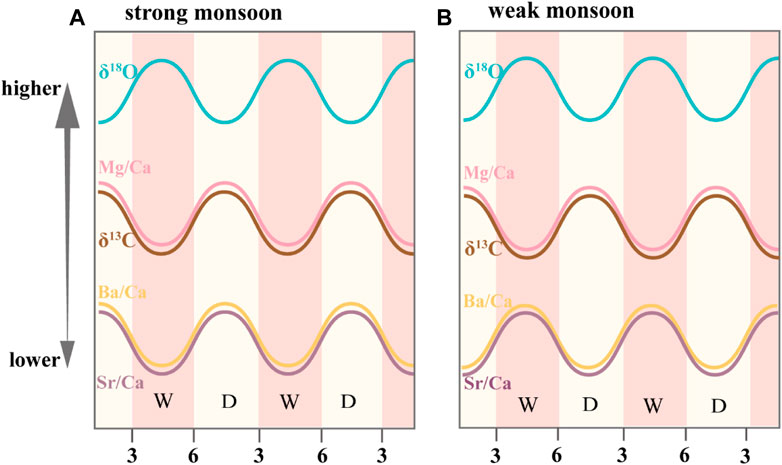

FIGURE 9. Conceptual model of content variation and correspondence of δ18O (blue curves), δ13C (brown curves), Mg/Ca (pink curves), Sr/Ca (purple curves), and Ba/Ca (orange curves) in the wet season (W, pink rectangle) and dry season (D, yellow rectangle) in the strong monsoon period (A) and weak monsoon period (B) (3 represents March, and 6 represents June).
On the whole, higher Mg/Ca (lower δ18O, higher δ13C) corresponds to TDSL with less organic matter (non-luminescent layer), while lower Mg/Ca (higher δ18O, lower δ13C) occurs in WPSL with more organic matter (weakly to strongly luminescent layer) (Figure 6, Figure 9). Rainfall is abundant during spring-early summer such that δ18O is more positive and Mg is lower in stalagmite, compared to the late summer -winter season. Moreover, from spring to early summer, the temperature and rainfall showed an increasing trend, which enhanced microbial activity in the soil of the overlying cave (Tegen and Dörr, 1996) and the increasing concentrated heavy rainfall could also effectively leach organic matter (Scott et al., 1998; Baker et al., 2008; Ban et al., 2008; Fairchild and Baker, 2012) to form WPSL with lower δ13C (weak to strong luminescence band under fluorescence). Multiple extremely thin fluorescent sublayers have been observed inside several wider fluorescent layers, which may correspond to several pulses of organic matter deposition driven by multiple strong rainfall events (Figure 2C). The seasonal cycles of Mg/Ca are suggested to respond to changes in local hydrological conditions (humidity and drought), even on a seasonal scale, leading to a decrease in Mg/Ca with increased precipitation and increase with decreased precipitation.
6 Conclusion
This study presents seasonal variations of trace-elements (Mg/Ca, Sr/Ca, and Ba/Ca) and stable-isotope compositions (δ18O and δ13C) during the period of 1928–1991 AD from an annually laminated stalagmite (EM1) in E’Mei Cave, northern Jiangxi Province, China. By comparing these index records with instrumental observation data, seasonal variations of the isotopes and trace elements in modern stalagmite EM1 and their controlling factors were emphatically discussed. The following conclusions can be drawn from the results.
(1) The annual laminae of EM1 comprise couplets of alternating TDSL (non-luminescent layer with lower δ18O and higher Mg/Ca) and WPSL (weakly to strongly luminescent layer with higherδ18O and lower Mg/Ca). The formation of WPSL might be attributable to a gradual increase in organic matter under the influence of progressively enhanced soil microbial activity and eluviation during the wet season from spring to early summer. Correspondingly, TDSL formed in the dry season from late summer to winter.
(2) On the interannual and interdecadal timescales, the variations in δ18O are suggested to be strongly correlated with the EASM/NSM ratio and the large-scale circulation associated with the ENSO phases. EM1 δ13C is mainly influenced by vegetation overlying the cave and PCP on interannual-decadal timescales. Mg/Ca, Sr/Ca, and Ba/Ca mainly respond to local hydrological conditions on interdecadal timescales, with lower (higher) values corresponding to wet (dry) periods.
(3) The seasonal variation of the δ18O signal of local precipitation is preserved in EM1, but the amplitude of changes in EM1 δ18O is much smaller than that of simulated calcite δ18O, which might be attributable to the mixing of waters and evaporation in the epikarst system. Seasonal δ13C values in EM1 are usually lower in spring and early summer and higher in autumn and winter, which is mainly affected by the soil microbial CO2 content, with a certain contribution of PCP. The seasonal variation of Mg/Ca in EM1 consistently showed a hydrological response to rainfall input; Mg/Ca decreased with increased rainfall in spring and early summer and increased in late summer to winter with decreased rainfall. However, the controlling factors (such as PCP/ICD, WRI and growth rate) of seasonal Sr/Ca and Ba/Ca may vary under different hydrothermal conditions, which still need further exploration in the future. Mg/Ca in stalagmites has potential as an indicator of local seasonal hydrological changes. The method integrating the analysis of Mg/Ca and other multi-proxy records (δ18O, δ13C, Sr/Ca, Ba/Ca, etc.) may contribute to the reconstruction of precipitation changes on both seasonal and interannual timescales under different hydroclimate backgrounds in subtropical regions.
Data availability statement
The raw data supporting the conclusions of this article will be made available by the authors, without undue reservation.
Author contributions
HZ and YB conceived and designed the project. YB performed the experiments, interpreted the data, and wrote the manuscript. HZ revised the manuscript. YB, HZ, BM, XN, JL, and RZ contributed to data analysis and discussion. All authors contributed to the article and approved the submitted version.
Funding
This study was supported by grants from the National Science Foundation of China (NSFC: 41972186 and 41888101), the Strategic Priority Research Program of the Chinese Academy of Sciences (XDB40000000), NSFC (41703007), Project for the “Young Talent Support Plan” of Xi’an Jiaotong University, and the China Postdoctoral Science Foundation (2019T120894 and 2015M580832).
Acknowledgments
We thank Jingjie ZANG from the Institute of Earth Environment, Chinese Academy of Sciences for their generous help in the preparation and testing of trace elements.
Conflict of interest
The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
Publisher’s note
All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.
Supplementary material
The Supplementary Material for this article can be found online at: https://www.frontiersin.org/articles/10.3389/feart.2023.1135901/full#supplementary-material
