Karst thermal reservoir tracer test and seepage characteristics analysis in Niutuozhen geothermal field in Xiong’an New Area

The carbonate rock karst thermal reservoir in the Niutuozhen geothermal field is a high-quality geothermal resource with significant development potential. However, due to the strong heterogeneity of karst thermal reservoirs, the connectivity between recharge and production wells is hard to determine, which seriously restricts the sustainable development of the Niutuozhen geothermal field. Therefore, this study revealed the hydraulic connection between the recharge and production well through the tracer test, quantitatively characterized the seepage characteristics of the reservoir combined with the numerical simulation, and proposed the deployment of the recharge well. The results show that the total recovery rate of the tracer is 0.42%, indicating that there are a small number of communication channels with a good hydraulic connection between the recharge and production well in the experimental area, and the recharge will not cause thermal breakthrough within a short time period. The velocity of recharge water can reach 359 m/d at the fastest, and the directions of dominant channels are concentrated in the NW, N, and E directions centered on the recharge well, this is consistent with the characteristics of regional fractures, recharge wells should be avoided to deployed in those directions. The results provide effective information for the prediction of the thermal breakthrough time and the accurate establishment of the thermal reservoir model in the Niutuozhen geothermal field, also provide a scientific basis for the sustainable utilization of the carbonate karst thermal reservoir geothermal resources.

1 Introduction

The development and utilization of geothermal energy have become an effective way to create a new type of smoke-free city, improve the urban atmospheric environment, save energy and reduce emissions (Lu, 2018). China is rich in middle-low temperature geothermal energy, which is mainly hydrothermal type (Cao et al., 2021; Zheng et al., 2022). Geothermal water is the main medium for exploiting geothermal energy. With the large-scale exploitation of geothermal water, the thermal reservoir pressure decreases greatly, resulting in a gradual increase in energy consumption (Wang et al., 2020; Li et al., 2021; Erol et al., 2022). Recharge technology can alleviate the decrease of the pressure of underground thermal reservoirs and the water level, and improve the utilization rate of geothermal resources, which has been widely used in the exploitation of geothermal resources (Chrysikopoulos, 1993; Aydin et al., 2018; Aydin and Akin, 2020).

Located in the central uplift area of the Jizhong Depression, Xiong’an New Area enjoys the best development and utilization conditions of geothermal resources in the central and eastern parts of China (He et al., 2018; Kuang et al., 2018; Zou et al., 2018). This is an extra-large geothermal accumulation system in the Bohai Bay Basin formed on the unique geological structure-thermal background of the North China Craton, which is closely related to the lithospheric thermal structure (Pang et al., 2020; Zuo et al., 2020). The geothermal field covers more than 80% of the New Area, and the Niutuozhen geothermal field is a demonstration area for the exploitation of middle-low temperature convective geothermal system in China (Li, 2018; Liu et al., 2022a). Its deep thermal reservoir type is carbonate rock karst fracture thermal reservoir, which has important characteristics such as large reserves, moderate burial depth, high temperature, excellent water quality, and easy recharge (Li et al., 2013; Wei, 2020; Zhao et al., 2021; Aydin et al., 2022). Although the Niutuozhen geothermal field recharges the condensed geothermal fluid into the thermal reservoir to overcome the reduction of thermal reservoir pressure and maintain the production capacity of the geothermal field. Affected by the development of fractures, karst caves and faults, the connectivity between production and recharge wells is hard to determine (Song et al., 2018; Suzuki et al., 2019; Yan et al., 2019; Liu et al., 2020b). Improper placement of recharge wells may cause cooling of the thermal reservoir, reduce the water temperature or output of production wells. To select and evaluate the quality of recharge wells, it is necessary to study and analyze the seepage characteristics of the recharge water, such as the migration direction, rate, and sweeping situation, which are directly related to the actual operation effect of hot water recharge (Su et al., 2018; Wang et al., 2018; Bender et al., 2020; Wang et al., 2021). The tracer test provides a very good way to quantitatively calculate the migration rate of the recharge water in the thermal reservoir and the hydraulic connection between the production and recharge wells, has been carried out in Japan and Iceland, countries with mature recharge and exploitation technology, which provides important basic parameters for the good deployment scheme of the geothermal field (Kaya et al., 2011; Xu et al., 2018; Wu et al., 2019; Pang et al., 2020; Dong et al., 2021; Wu et al., 2021).

Therefore, in this study, the indoor simulation and the field test were combined. The seepage laws such as the migration direction and rate of the recharged water in the study area were revealed through the tracer test data. Quantitative analysis of tracer recovery in the tracer test in the fractured matrix was made by numerical simulation. The dispersion characteristics, the connectivity between the recharge and production wells, and the thermal breakthrough in the influence area of the test well were determined. This study provides basic parameters for the prediction of thermal breakthrough time and accurate establishment of the thermal reservoir model in the Niutuozhen geothermal field, which has great theoretical and practical significance for protecting geothermal resources, ensuring the sustainable utilization of geothermal resources, prolonging the service life of geothermal fields and constructing environment-friendly society (Zhu et al., 2019).

2 Study area overview

2.1 Geological setting

The Xiong’an New Area, where the Niutuozhen geothermal field is located, is geologically located in the Jizhong Depression in the northwest of the Bohai Bay Basin in the central and eastern part of the North China (Du et al., 2019; Cui et al., 2022). The Xiong’an New Area includes important structural units such as the Niutuozhen uplift, the Rongcheng uplift, and the Gaoyang low uplift in the Jizhong Depression. The whole New Area is distributed in a triangular shape on the plane, with a total area of about 2,000 km², surrounded by sags, Langgu Sag in the north, Xushui Sag and Baoding Sag in the west and southwest, Raoyang Sag and Baxian Sag in the southeast and east respectively (Figure 1) (Cui et al., 2019; Zhao et al., 2021). Located in the central bedrock uplift of Xiong’an New Area, Niutuozhen geothermal field consists of Niutuozhen uplift and Rongcheng Uplift, etc., with a NE trending distribution and a total area of about 1,500 km².

FIGURE 1

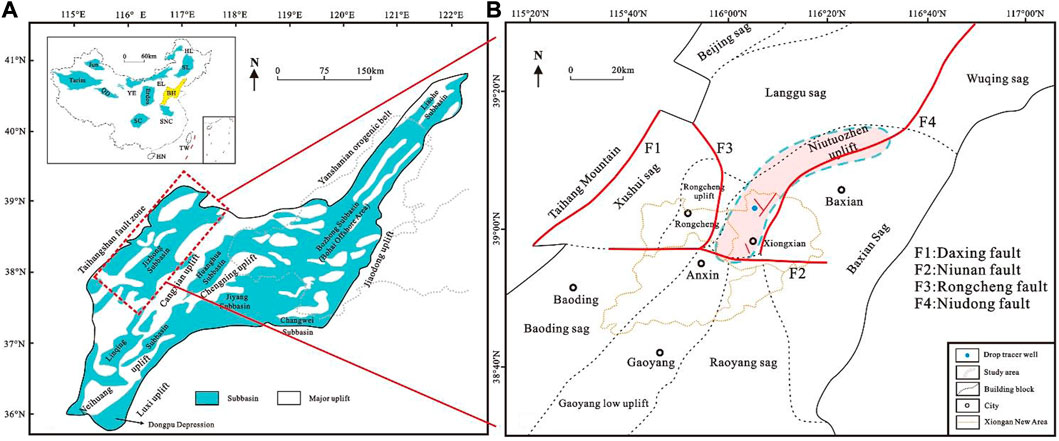

FIGURE 1. Regional tectonic setting of the Niutuozhen geothermal field. (A) Map showing the tectonic location and structural division of China and Bohai Bay Basin; (B) Structural division of the Xiong’an New Area and location of the Niutuozhen geothermal field. BH: Bohai Bay Basin; EL: Erlian Basin; HL: Hailaer Basin; HN: Hainan; Jun: Junggar Basin; QD: Qaidam Basin; SC: Sichuan Basin; SL: Songliao Basin; SNC: Southern part of North China Basin; TW: Taiwan and YE: Yingen-Ejinaqi Basin; (Jiang et al., 2021; Yan et al., 2019; Zhang, 2021).

The Bohai Bay Basin underwent tectonic transformation in the Mesozoic, during which the Niutuozhen uplift was developed. Under the influence of the Indosinian movement, the strata were extruded and uplifted, and the strata of the Lower Jurassic were deposited. In the late Yanshanian movement, under the influence of the North China Plate, the Middle Proterozoic strata were exposed and the Jurassic strata were denuded. In the Paleogene, the Alpine movement developed and the regional tectonic uplift was strengthened, which was also the main formation period of Niutuozhen Uplift. In the Neogene, the tectonic activity changed from tension to compression, and the fault activity weakened. Until the Quaternary, the basin has been dominated by depression, which is the main burial period of the Niutuozhen uplift, the fault no longer developed, and the stratum began to stably deposit.

The strata of the Xiong’an New Area have experienced a complex tectonic evolution process. The upper Cenozoic strata are affected by alternately developed uplifts and sags, showing drape-like deposits, and the Quaternary loose layers and Neogene loose layers show horizontal deposition, the Paleogene stratum dip is relatively gentle; the underlying strata include Cretaceous, Jurassic, Permian, Carboniferous, Ordovician, Cambrian, Qingbaikou, Jixian, Changcheng System, the basement is Archean metamorphic rock (Figure 2) (Pang et al., 2014; He et al., 2018). Among them, the karst thermal reservoir in the Wumishan Formation of the Jixian System is the most important thermal storage in the Niutuozhen geothermal field, which is characterized by wide distribution, large thickness, well-developed karst fractures, and good permeability (Field, 2016; Zhang, 2021).

FIGURE 2

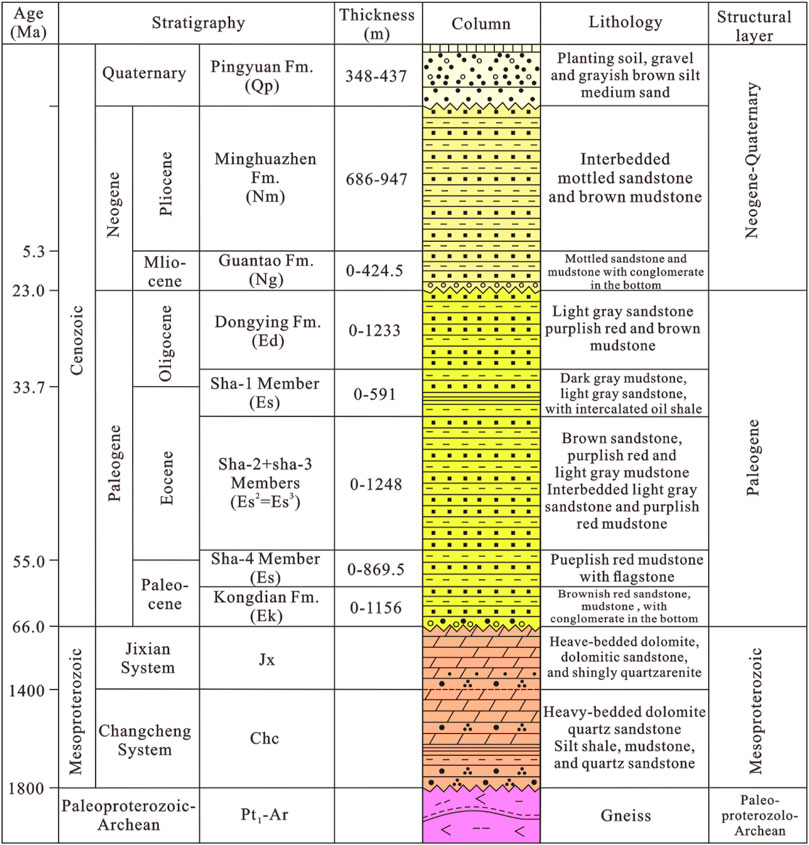

FIGURE 2. Generalized stratigraphic column of the Xiong’an New Area (modified from He et al., 2018).

The differential denudation at the top of Wumishan Formation is more severe in the east than in the west and in the south than in the north. During the period from the late Indosinian Movement to the Himalayan Movement, the strong tectonic action made the carbonate strata in the uplift area suffer from long-term weathering denudation and atmospheric precipitation leaching, forming a large number of dissolved pores, caves and fractures, with obvious weathering crust and unconformable contact with the overlying strata. Drilling records showed obvious blow-out and mud leakage. At this time, the development degree of karst is closely related to the paleo-submersible surface, stratigraphic interface and fault plane in the carbonate rocks. At the same time, magmatic activity is intense and accompanied by hydrothermal dissolution. The supergenetic karst formed at this time is the most conducive to reservoir construction, and the karst types mainly include weathering karst zone, fault karst zone and bedding karst zone (Xing et al., 2022).

The fault structures that have an important influence on Xiong’an New Area are mainly NE trending, followed by EW trending, NNE trending and NW trending, including Niudong fault, Rongcheng fault, Daxing fault and Niunan fault. Among them, the first three faults were formed in Yanshanian movement and intensified in the early Himalayan movement, which are long-term active faults. According to the regional geological data, it is believed that the NE trending fault changes from compressive to tensile. Due to the influence of the above faults, the Wumishan Formation thermal reservoir in the Jixian system in the study area mainly developed two stages of fracture system, in which the upper fracture tendency was mainly about 225° SW direction, and the strike was NW, which was basically similar to that of Niunan fault. The lower fracture has a trend of about 20° and strikes NE, which is similar to that of Rongcheng fault and Niudong fault (Wei et al., 2020; Zhang et al., 2022).

2.2 Geothermal resource conditions

Geothermal resource exploitation in Niutuozhen geothermal field is mainly concentrated in southern Xiongxian county. The total geothermal energy storage of Neogene, Paleogene thermal storage, and Jixian thermal storage shallower than 3,000 m in Xiongxian county is 194.23×10¹⁸ J, the total amount of geothermal water is 821.78×10⁸ m³, the geothermal energy stored in geothermal water is 116.42×10¹⁷ J. The thickness of the quaternary system is generally 400 m, and the average geothermal gradient is 4.57°C/100 m, and the highest is 12.61°C/100 m. The average geothermal gradient of the Neogene reservoir is 3.85°C/100 m and of the Jixian system reservoir is 1.21°C/100 m (Du et al., 2019).

As of 2018, Xiongxian county in Niutuozhen geothermal field has 49 production Wells and 33 recharge Wells in operation, with a ratio of 1.5:1. A total of 39 heat exchange stations were operated in the heating season of 2017-2018, exploiting about 4,842 m³/h of geothermal water and 4,503 m³/h of recharge. The recharge rate was about 93%, the average exploit water temperature was 68.2°C, and the recharge temperature was 37.5°C (Table 1). To further improve the recharge rate, production well temperature, and prolong the service life of the geothermal field, it is necessary to clarify the internal seepage condition of the geothermal reservoir.

TABLE 1

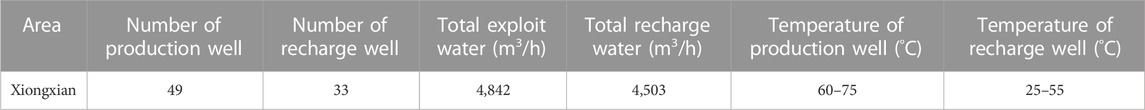

TABLE 1. Operation data of Geothermal Tianxiong County, Niutuo Town, 2017-2018 heating season.

3 Methods and principles

The thermal reservoir karst and fissure of Wumishan Formation in Xiong’an New Area are widely developed, which leads to the strong heterogeneity of the reservoir, and the connectivity between production and irrigation wells is difficult to determine. The tracer technology can quantify migration parameters, describe reservoir fluid characteristics well, and predict the cooling of mining wells that may be caused by long-term recharge. It is the most intuitive technology method to study the connectivity between karst thermal reservoir wells. The basic process of geothermal recharge tracer technology is as follows: add appropriate tracers to the recharge wells of the recharge test well group, prepare samples in the surrounding observation wells according to the established sampling system, obtain the tracer content in the samples, draw out the observation well tracer production curves (the change curve of tracer production over time) (Wang et al., 2013; Yan et al., 2019; Song et al., 2020). By comprehensively analyzing the tracer production curve and related data of the test well group, the movement direction, estimated velocity, and sweeping situation of the injected fluid are obtained. Based on this, the hydraulic connection between a recharge well and one or several production wells is studied. Introduce numerical simulation to quantitatively study the geothermal reservoir seepage characteristics such as the fluid flow velocity in the hydrogeological system (Diaz et al., 2016; Wu et al., 2019; Wang et al., 2020; Erol et al., 2022).

3.1 Tracer test

The selection of an appropriate tracer is one of the keys to a successful tracer test. For geothermal recharge, tracers should meet the following requirements: 1) The thermal reservoir should generally not exist, or the concentration is stable and far below the expected concentration at the tracer monitoring site during the test; 2) The selected tracer should not react with or be adsorbed by reservoir rocks; 3) It should still have good stability at high temperature; 4) It should be cost-effective and environmentally benign; 5) It should be easy to place, sample and analyze. Therefore, sodium fluorescein was selected as the tracer in this study, and 50 kg of tracer was placed at one time (Ungemach, 2003; Kaya et al., 2011; Li et al., 2021; Wu et al., 2021).

On 30 January 2013, well WQHY 2 (recharge well) was selected as the tracer injection well, and another 10 production wells within 1 km around the recharge well were used as observation wells and tracer sampling wells for sampling and analysis (Figure 3). The thermal reservoir system was in a steady state during the tracer test. On 15 March 2013, the tracer test ended, and a total of 1,477 samples were taken.

FIGURE 3

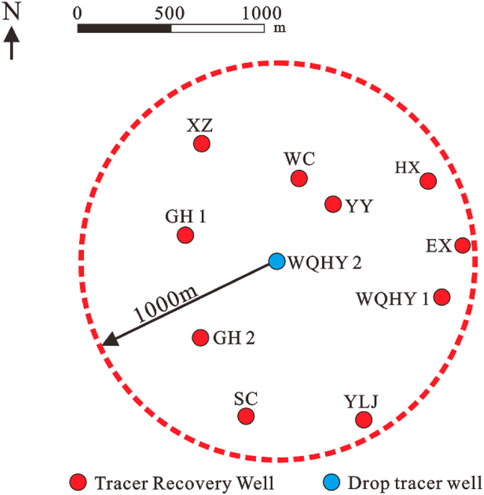

FIGURE 3. Schematic diagram of distribution of the tracer test recharge wells and sampling wells.

3.2 Numerical simulation

Geothermal recharge is carried out in the fissure thermal reservoir. Therefore, the direct channel connecting the recharge well and the mining well can be predicted according to the tracer test results, and the average velocity of recharge water movement can be calculated according to the peak time of the tracer concentration curve (Wang et al., 2018; Guo et al., 2019; Liu et al., 2019; Yue et al., 2019). In the tracer test of fractured thermal storage, we based on the following assumptions: 1) Recharge at a stable flow rate in one well, and produce at a stable flow rate in a nearby well; 2) Recharge water along a channel (such as a fracture zone) Flow from the recharge to the production well, and the flow in the channel is one-dimensional; 3) Ignoring the effect of molecular diffusion, a certain amount of tracer is put into the recharge well at one time, and a part of it goes to the production well along with the channel transport. Then the calculation equation of the tracer concentration at the fracture outlet is:

$\begin{array}{c}C\left(t\right)=\frac{Mr}{2\phi A\sqrt{\pi Dt}}\exp \left(\frac{{-\left(l-\mu t\right)}^2}{4Dt}\right)\end{array}(1)$

C, tracer concentration of recharge water at the fracture outlet (kg/m³); A, the cross-sectional area of the cracked passage (m²); φ, the porosity of fracture passage (dimensionless); M_r, tracer dose flowing into the fissure passage (kg); l, length of fissure passage between recharge well and mining well (m); D, dispersion coefficient (m²/s); u, the velocity of recharge water in the fissure (m/s); t, time (s).

Considering the material balance of the mining well, then:

$\begin{array}{c}C\left(t\right)\bullet q=c\left(t\right)\bullet Q\end{array}(2)$

q, recharge water flow to the crack channel (kg/s); c, the concentration of tracer in the production well (kg/m³); Q, the production amount of the mining well during the tracer test (kg/s).

In addition:

$\begin{array}{c}Q=\rho \mu \phi A\end{array}(3)$

ρ, the density of recharge water (kg/m³).

Eq. 1 can be rewritten as:

$\begin{array}{c}c\left(t\right)=\frac{\rho Mr\mu }{2Q\sqrt{\pi Dt}}\exp \left(\frac{{-\left(l-\mu t\right)}^2}{4Dt}\right)\end{array}(4)$

If there are N channels connecting the two wells, the tracer concentration of the production well is:

$\begin{array}{c}c\left(t\right)={\displaystyle \sum }_{i=1}^n{c}_i\left(t\right)\end{array}(5)$

Among them:

$\begin{array}{c}{c}_i\left(t\right)=\frac{\rho Mr{u}_i}{2Q\sqrt{\pi D_{i}t}}\exp \left(\frac{{-\left(l_i-{\mu }_{i}t\right)}^2}{4D_{i}t}\right)\end{array}(6)$

$\begin{array}{c}{\mu }_i=\frac{q_i}{\rho {\phi }_i{A}_i}\end{array}(7)$

$\begin{array}{c}{D}_i={\alpha }_{Li}{\mu }_i\end{array}(8)$

$\begin{array}{c}{q}_i=\frac{M_i}{M}{q}_{in}\end{array}(9)$

α_L, the longitudinal dispersion degree of crack (m); q_in, the recharge volume of the recharge well during the tracer test (kg/s); M, Total amount of tracer (kg); M_i, the tracer dose flowing through channel I (kg).

The software TRINV, developed by Axelsson, can be used to simulate tracer test data of multiple channels connecting production Wells and recharge Wells according to eqs 5–9 and has been applied in several geothermal fields in Iceland and other countries with satisfactory results (Wang et al., 2020). In this paper, the software TRINV is used to fit and analyze the recovery status of the tracer test in each receiving well.

4 Result

Among the 10 tracer receiving well samples, the recovery value of tracer concentration in wells NFC, SC, and YY was low, 0.02 ppb lower than the detection limit, so it was difficult to explain the recovery concentration of the tracer, because these Wells were exploited in small quantities and intermittently. In addition, it may be related to the closure of shallow aquifers by the three Wells. Tracers were recovered from the remaining seven sampling Wells, and the tracer recovery of well WQHY 1 at the representative receiving point was selected for analysis and interpretation (Figure 4).

FIGURE 4

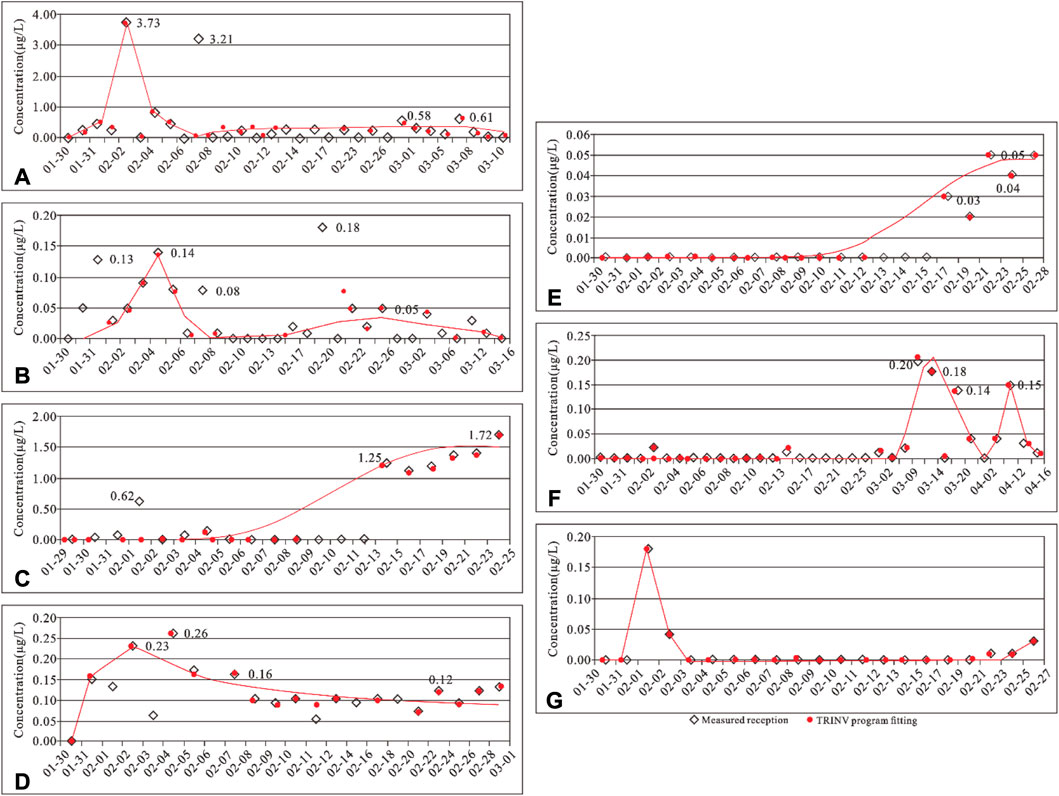

FIGURE 4. Comparison of the actual tracer concentration curve and the tracer concentration curve fitted by the software TRINV at the receiving point. (A) well WQHY 1; (B) well EX; (C) well GH 2; (D) well WC; (E) well HX; (F) well LJ; (G) well XZ.

The tracer breakthrough time at the receiving point of well WQHY 1 was about 3 days, the peak concentration was 3.73 μg/L, and the peak time was short. The tracer concentration dropped to 0.5 μg/L after 4 days and then showed a slightly lower peak. After the first week, due to the dispersion effect of tracer, the fissure thermal reservoir is not likely to have a sharp peak on the tracer recovery profile, but is more likely to have a relatively wide peak with a low peak concentration. And with the increase of time, the lower the peak value, the flatter the peak. To reasonably represent the decay in tracer concentration, the monitoring data affected by sorption needed to be corrected to remove sporadic concentration anomalies. The software TRINV was used to simulate the tracer test data from the well for a variety of scenarios, simulating different numbers of channels and channel lengths to obtain a better concentration fit curve, and the result of channel parameters are shown in Table 2.

TABLE 2

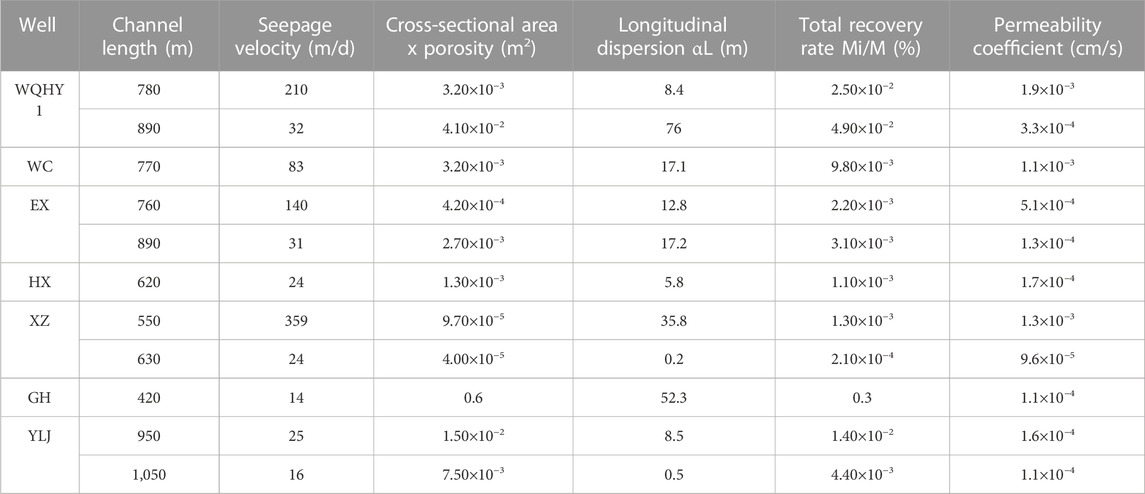

TABLE 2. Summary table of model parameters obtained from each receiving point in tracer test.

The straight-line distance between the wellhead of well WQHY 1 and the recharge well is 190 m, but well WQHY 1 is a directional well with a water level displacement of 530 m at the bottom of the well. According to the good formation report of the borehole and the interpretation of the temperature profile of the logged well, the simulation fit obtained is better when there are two hydraulic channels between the two wells with channel lengths of 750 m and 870 m respectively. The flow rate at the first appearance of the tracer is generally considered to be the maximum flow rate of the groundwater and the flow rate at the peak appearance is the average flow rate. The average flow rate was calculated to be 210 m/d for channel 1 and 31.7 m/d for channel 2 between the well WQHY 1 and the recharge well (Table 2). The product of channel cross-sectional area and porosity is very small. According to the logging interpretation report of well WQHY 1, 6% is taken as the average porosity of well WQHY 1 in the water supply section, so the cross-sectional area of channel 1 is 0.053 m² and that of channel 2 is 0.683 m². This indicates that the cross-sectional area of the good passage is very small, and the tracer dose flowing into well WQHY 1 through the fracture is very small. By 10 March 2013, the recovery rate of tracer was only 0.11%.

5 Discussion

The model parameters obtained for each receiving site of the tracer test are shown in Table 2. By 15 March 2013, the total recovery of tracer over the course of the 43-day test was 0.42%. On the one hand, this is due to the limited time period and the low amount of tracer recovery, and on the other hand, it also indicates that there are a limited number of connected channels with relatively good hydraulic connections between the receiving well sites in the experimental area, and that recharge will not cause large changes in production well temperatures in the short term.

The permeability coefficient, also known as the hydraulic conductivity coefficient, indicates the ability of the rock medium to conduct fluids. To quantitatively evaluate the medium permeability of non-homogeneous and anisotropic fractured rock in the test area, and to provide effective information for the accurate establishment of the thermal reservoir model, a simple solution for the permeability coefficient was carried out according to Darcy’s law. In the direction of groundwater flow on the groundwater iso-level map, the hydraulic gradient between two adjacent iso-level lines is obtained, and then the permeability coefficient of groundwater is calculated using the formula K=V/I, where: V is the seepage velocity of groundwater (m/d), K is permeability coefficient (m/d), I is hydraulic gradient. The permeability coefficients in Table 2 are calculated values. Compared with the permeability coefficients in the porous media, the permeability coefficients of the main permeability directions in different locations are several orders of magnitude higher, because of the strong connectivity of the fractured media channels.

When the longitudinal dispersion αL is small, the peak time of the tracer curve of the single strong water channel is inversely proportional to the average groundwater velocity. With the increase of longitudinal dispersion αL, hydrodynamic dispersion will delay the arrival of peak time, and the time of thermal breakthrough will increase accordingly. Therefore, the dispersion coefficient is one of the influencing factors in the prediction analysis of the decrease of thermal reservoir temperature that may be caused by long-term recharge. The numerical simulation results show that the longitudinal dispersion αL ranges from 0.2 m to 76 m, with an average of 21.3 m. The distribution range of permeability coefficient was 9.6×10⁻⁵∼1.9×10⁻³ cm/s.

To better understand the anisotropy of fracture development in the study area of the tracer test, the maximum seepage velocity in the tracer transport channel of this test was plotted by radar chart (Figure 5). The results show that the average tracer flow in the channel is 87.09 m/d, the maximum flow rate is 359 m/d, and the flow direction is NW direction centered on the recharge well. From the velocity radar chart of the fast passage at each receiving point, it can be seen that the dominant direction of the passage is concentrated in the NW, N, and E directions centered on the recharge well. The dominant direction of percolation velocity and recovery is inconsistent because the tracer diffuses more into the pores of the thermal reservoir rock due to hydrodynamic dispersion during the test.

FIGURE 5

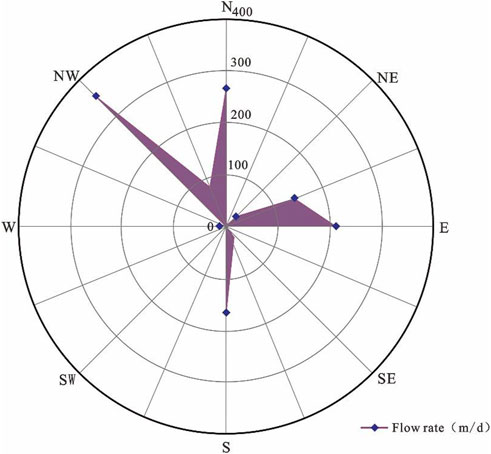

FIGURE 5. Statistical radar chart of the maximum velocity of the connected channel between each receiving well point in the tracer test area.

The research results on the origin and evolution of geothermal water show that the geothermal water flow direction in Niutuozhen geothermal field is NE-SW direction (Wang et al., 2016), which is consistent with the secondary flow direction of the tracer. On the other hand, the thermal reservoir of Wumishan Formation of Jixian System in the study area mainly developed two-stage fracture system, in which the upper fracture struck NW, while the lower fracture struck NE, which was consistent with the main flow direction of tracer. This indicates that the dominant migration direction of recharge water is mainly controlled by the fracture system, but less influenced by the flow direction of geothermal water in the geothermal field.

6 Conclusion

(1) In the 43-day recharge tracer test, the recovery rate of a single well with a tracer is up to 0.3%, and the total recovery rate is 0.42%, indicating that a relatively good hydraulic connection exists between the recharge and production wells in the experimental area, but on a limited scale, and that recharge will not cause large changes in production well temperatures in the short term.

(2) The maximum seepage velocity of tracer in the channel was 359 m/d, and the seepage velocity statistics radar chart showed that the dominant flow direction of recharge water was mainly NW, N, and E directions centered on the recharge well. To avoid the occurrence of immature thermal breakthrough, the placement of recharge Wells in the direction of good connectivity should be avoided.

(3) The main flow direction of the tracer is affected by the superposition of the flow direction of geothermal water in the geothermal field and the characteristics of regional fractures, of which the latter is more controlled.
