A characterization method for equivalent elastic modulus of rock based on elastic strain energy

Energy is an internal variable during rock deformation and failure, and its dissipation and conversion law can reflect the rock’s internal damage and deterioration state. Analysis of rock deformation and failure process from the perspective of energy is helpful to deeply understand the mechanism of rock damage, fracture and instability failure, and has important theoretical and practical significance for the stability evaluation and support control of surrounding rock. In this study, through single cyclic loading and unloading (SCLU) experiments, cyclic triaxial loading and unloading (CTLU) experiments and conventional triaxial compression (CTC) experiments, the equivalent elastic modulus method based on elastic strain energy is proposed to analyze the energy conversion of rock. The results show that the error of the elastic strain energy calculated by the strain energy formula method is generally higher than 10% with the secant and tangent modulus of the loading and unloading curve as input parameters. Taking the equivalent elastic modulus proposed in this study as an input parameter, more accurate elastic strain energy can be obtained by the strain energy formula. During the rock failure process, the equivalent elastic modulus shows a three-stage characteristic of increase, steady and decrease. The equivalent elastic modulus can be estimated by the quadratic function between the equivalent elastic modulus and confining pressure and axial strain. Under the same deformation and deviatoric stress, the elastic strain energy stored in rock increases with increasing confining pressure. The local maximum energy dissipation rate corresponds to stress drop, and the peak energy dissipation rate appears near the peak strength. High energy dissipation mainly occurs in a short time after peak strength, and energy release and dissipation are more sudden and severe under high confining pressure.

1 Introduction

The nature of rock mass deformation and failure is damage degradation and instability driven by energy. Energy is an internal variable in the whole process of rock mass deformation and failure, and its dissipation and conversion law can reflect the internal damage degradation state of rock mass (Xie et al., 2009; Peng et al., 2014). Under loading conditions, the transformation of rock from uniform deformation to local deformation, from disorderly failure to orderly failure, and from macroscopic homogeneity to macroscopic heterogeneity is accompanied by the transformation of energy accumulation to energy dissipation (Wang et al., 2019). Taking underground mining as an example, the excavation and support change the original stress field, and the surrounding rock accumulates, dissipates and releases energy (Cai et al., 2019; Keneti and Sainsbury, 2020; Xiao et al., 2021). Partial input energy of the rock mass is transformed into elastic strain energy (releasable strain energy) and released during instability failure, and some energy is transformed into plastic energy corresponding to plastic deformation, surface energy corresponding to crack initiation and expansion, kinetic energy of the failure surrounding rock mass, acoustic emission (microseismic) and radiation energy, etc., (Lu et al., 2021; Meng et al., 2021; Shirani Faradonbeh et al., 2021). During the process of rock mass excavation, stress redistributes and strain energy accumulates in surrounding rock, and the gathered energy is easily released along the face of caving, resulting in damage and fracture of surrounding rock and even sudden instability of surrounding rock (Li et al., 2018; Jiang et al., 2020; Liu et al., 2021; Tu et al., 2021; Zhang et al., 2021). Revealing the deformation and failure mechanism of rock mass from the perspective of energy is one of the research hotspots in the field of rock mechanics.

Many scholars (Huang and Li, 2014; Gong et al., 2019; Zhang et al., 2019; Qin et al., 2020) have systematically carried out laboratory experiments to study the laws of rock energy conversion under different loading conditions such as cyclic loading and unloading test, conventional compression test, unloading test, etc., and achieved many beneficial research results. Currently, two methods are widely used in calculating and analyzing rock energy, especially elastic strain energy. Firstly, the area method is based on the stress-strain curve under cyclic loading and unloading (Gong et al., 2021; Xu et al., 2021; Ding et al., 2022; Gong et al., 2022). This method has high accuracy, but it is generally applicable to laboratory experiments that can obtain cyclic loading and unloading curves, and it is difficult to be popularized and applied to engineering rock masses. Secondly, the traditional strain energy formula method based on elasticity theory is simple and fast, but the calculation accuracy depends on the value of elastic modulus (Gong and Wang, 2022; Qiao et al., 2022). Therefore, how to establish a simple, fast and easy method to calculate the elastic strain energy of engineering rock mass needs further study.

In this study, the quantification method of energy in the process of rock deformation and failure and its applicable conditions were discussed. Based on the single cyclic loading and unloading (SCLU) experiments, the influence of the method of calculating elastic modulus on the elastic strain energy calculated by the strain energy formula method was analyzed. On this basis, cyclic triaxial loading and unloading (CTLU) experiments were performed, and an equivalent elastic modulus characterization method of rock based on elastic strain energy was established. Based on the proposed equivalent elastic modulus estimation formula, the evolution characteristics of elastic strain energy and energy dissipation were analyzed through conventional triaxial compression (CTC) experiments. The research results have important theoretical and practical significance for the mechanism analysis, stability evaluation and support control of surrounding rock in the stope.

2 Energy transformation and quantitative analysis during rock deformation and failure

2.1 Energy transformation during rock deformation and failure

The process of rock deformation and failure under load is accompanied by energy input, energy accumulation, energy dissipation and energy release. The energy transformation process of rock under external load is shown in Figure 1.

FIGURE 1

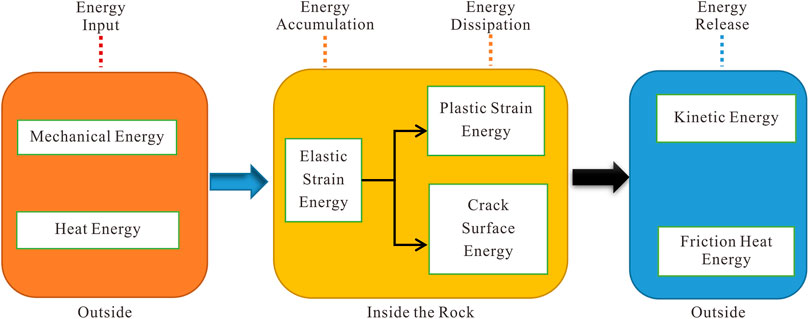

FIGURE 1. Energy transformation of rock under external load.

The change of rock state can be considered as the change from one energy balance state to another new energy balance state. If ignoring the temperature effect, part of the energy input by the external force working on the rock is accumulated in the form of elastic strain energy inside the rock, and this part of energy is reversible. The other part is mainly used for internal dissipated plastic strain energy and crack surface energy, released kinetic energy and friction heat energy.

In this study, the plastic strain energy is defined as irreversible internal dissipated energy which is not dissipated in the form of cracks. Before the macroscopic fracture, the kinetic energy released to the outside is mainly in the form of acoustic emission waves, while in the post-peak stage, it is mainly in the form of macroscopic movement of rock blocks. The frictional heat energy is the heat generated by the friction between rock substrates on both sides of the crack. During the process of rock deformation and failure, there are energy transformation processes such as external energy input, internal accumulation and dissipation, and release to the outside, and the specific bearing state corresponds to the specific energy transformation state.

2.2 Quantification of energy during rock deformation and failure

The total input energy can be separated into two parts: reversible elastic strain energy and irreversible dissipated energy, assuming that there is no heat exchange with the environment. The elastic strain energy is primarily stored in the rock during the pre-peak stage of rock deformation and failure, whereas the dissipated energy is primarily in the form of plastic deformation and damage energy dissipation. The elastic strain energy is primarily released in the rock during the post-peak period, and the energy is primarily used for macroscopic crack fracture, friction between rock substrates on both sides of the crack, and kinetic energy of fragments. According to the law of energy conservation, the energy relationship during the process of rock deformation and failure can be expressed as follows:

$\mathit{U}={\mathit{U}}^{\mathit{d}}+{\mathit{U}}^{\mathit{e}}$etc(1)

where, $U^d$ is dissipated energy density, hereinafter referred to as dissipated energy; $U^e$ is the elastic strain energy density, hereinafter referred to as the elastic strain energy.

The input energy density can be calculated by the following formula:

$\mathit{U}={\int }_{\mathbf{0}}^{{\mathit{\epsilon }}_{\mathbf{1}}}{\mathit{\sigma }}_{\mathbf{1}}\mathit{d}\mathit{\epsilon }+{\int }_{\mathbf{0}}^{{\mathit{\epsilon }}_{\mathbf{2}}}{\mathit{\sigma }}_{\mathbf{2}}\mathit{d}\mathit{\epsilon }+{\int }_{\mathbf{0}}^{{\mathit{\epsilon }}_{\mathbf{3}}}{\mathit{\sigma }}_{\mathbf{3}}\mathit{d}\mathit{\epsilon }(2)$

where, ${\sigma }_1$, ${\sigma }_2$ and ${\sigma }_3$ are the maximum principal stress, intermediate principal stress and minimum principal stress, respectively. ${\epsilon }_1$, ${\epsilon }_2$ and ${\epsilon }_3$ are the strain corresponding to the principal stress.

Elastic strain energy and dissipated energy during the process of rock deformation and failure can be determined by the area method or strain energy formula method.

2.2.1 Area method

As shown in Supplementary Figure S1, the area below the loading curve is the total input energy, the area below the unloading curve is the elastic strain energy $U^e$, and the area between the loading curve and unloading curve is the dissipated energy $U^d$.

2.2.2 Strain energy formula method

In the strain energy formula method, the elastic strain energy is calculated through the elastic theory formula, and the total input energy is calculated by the integral of stress-strain curve, and the difference between the above two is the dissipated energy.

The elastic strain energy $U^e$ can be expressed as:

${\mathit{U}}^{\mathit{e}}=\frac{\mathbf{1}}{\mathbf{2}}\left({\mathit{\sigma }}_{\mathbf{1}}{\mathit{\epsilon }}_{\mathbf{1}}+{\mathit{\sigma }}_{\mathbf{2}}{\mathit{\epsilon }}_{\mathbf{2}}+{\mathit{\sigma }}_{\mathbf{3}}{\mathit{\epsilon }}_{\mathbf{3}}\right)(3)$

From the Generalized Hooke’s Law:

$\left\{\begin{array}{c}{\mathit{\epsilon }}_{\mathbf{1}}=\frac{\mathbf{1}}{\mathit{E}}\left[{\mathit{\sigma }}_{\mathbf{1}}-\mathit{v}\left({\mathit{\sigma }}_{\mathbf{2}}+{\mathit{\sigma }}_{\mathbf{3}}\right)\right]\\ {\mathit{\epsilon }}_{\mathbf{2}}=\frac{\mathbf{1}}{\mathit{E}}\left[{\mathit{\sigma }}_{\mathbf{2}}-\mathit{v}\left({\mathit{\sigma }}_{\mathbf{1}}+{\mathit{\sigma }}_{\mathbf{3}}\right)\right]\\ {\mathit{\epsilon }}_{\mathbf{3}}=\frac{\mathbf{1}}{\mathit{E}}\left[{\mathit{\sigma }}_{\mathbf{3}}-\mathit{v}\left({\mathit{\sigma }}_{\mathbf{1}}+{\mathit{\sigma }}_{\mathbf{2}}\right)\right]\end{array}\right.(4)$

Substitute Eq. 4 into Eq. 3 to obtain:

${\mathit{U}}^{\mathit{e}}=\frac{\mathbf{1}}{\mathbf{2}\mathit{E}}\left[{\mathit{\sigma }}_{\mathbf{1}}^{\mathbf{2}}+{\mathit{\sigma }}_{\mathbf{2}}^{\mathbf{2}}+{\mathit{\sigma }}_{\mathbf{3}}^{\mathbf{2}}-\mathbf{2}\mathit{v}\left({\mathit{\sigma }}_{\mathbf{1}}{\mathit{\sigma }}_{\mathbf{2}}+{\mathit{\sigma }}_{\mathbf{2}}{\mathit{\sigma }}_{\mathbf{3}}+{{\mathit{\sigma }}_{\mathbf{1}}\mathit{\sigma }}_{\mathbf{3}}\right)\right](5)$

Where, $E$ and $v$ are elastic modulus and Poisson’s ratio, respectively.

For the conventional triaxial compression test, the Eq. 5 can be written as:

${\mathit{U}}^{\mathit{e}}=\frac{\mathbf{1}}{\mathbf{2}\mathit{E}}\left[{\mathit{\sigma }}_{\mathbf{1}}^{\mathbf{2}}+\mathbf{2}{\mathit{\sigma }}_{\mathbf{3}}^{\mathbf{2}}-\mathbf{2}\mathit{v}\left(\mathbf{2}{\mathit{\sigma }}_{\mathbf{1}}{\mathit{\sigma }}_{\mathbf{3}}+{\mathit{\sigma }}_{\mathbf{3}}^{\mathbf{2}}\right)\right](6)$

For the uniaxial compression test, the Eq. 5 can be written as:

${\mathit{U}}^{\mathit{e}}=\frac{{\mathit{\sigma }}_{\mathbf{1}}^{\mathbf{2}}}{\mathbf{2}\mathit{E}}(7)$

3 Quantitative method of elastic modulus and its limitations

For loading and unloading tests, the elastic strain energy corresponding to each cycle can be calculated by the area method, but for monotonic loading tests, the elastic strain energy can only be calculated by the strain energy formula method. In this case, the elastic modulus has a very important influence on the accuracy of the calculation results. Therefore, this section discusses the influence of several methods of calculating elastic modulus on theoretical calculation results of elastic strain energy.

3.1 Quantitative method of elastic modulus

As shown in Figure 2, the calculation methods of elastic modulus can mainly be concluded as follows:

FIGURE 2

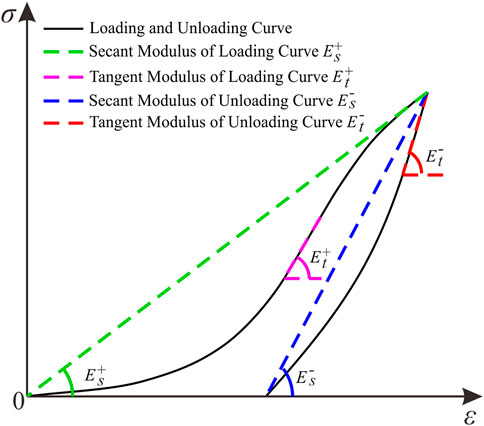

FIGURE 2. Schematic diagram of different calculation methods for elastic modulus.

Method 1: Secant modulus of loading curve (SMLC), denoted as $E_s^{+}$, is the slope of the secant line between the starting point of the loading and the upper limit stress point.

Method 2: Tangent modulus of loading curve (TMLC), denoted as $E_t^{+}$, is the slope of the straight line segment of the loading stress-strain curve.

Method 3: Secant modulus of unloading curve (SMUC), denoted as $E_s^{-}$, is the slope of the secant line between the starting point of unloading and lower limit unloading stress point.

Method 4: Tangent modulus of unloading curve (TMUC), denoted as $E_t^{-}$. It can be seen from the stress-strain curve in the unloading stage that the straight line segment of the unloading curve occurs within a period after the initial unloading moment. To avoid the calculation difference caused by the sudden change of stress and strain at the initial unloading moment, $E_t^{-}$ is the slope of the straight line segment between the starting point of unloading and the point of 8–10 MPa below.

3.2 Limitations of quantitative methods of elastic modulus

3.2.1 Experimental scheme

The specimens adopted in this study are cylindrical yellow sandstone with Φ50 mm × H100 mm, in which quartz, potash feldspar and clay minerals account for 76.12%, 20.93% and 2.95%, respectively, with an average density of 2.10 g/cm³ and no obvious joints on the surface, as shown in Supplementary Figure S2. The Sonic Viewer-SX ultrasonic wave velocity test system was used to screen the sandstone samples. The samples with similar wave velocities were selected for testing to reduce the dispersion of the samples. The loading device was TOP INDUSTRIE Rock 600–50 automatic servo rheometer. Two linear variable displacement transducer (LVDT) were used to collect axial strain, and annular electronic strain gauge was used to collect annular strain, as shown in Supplementary Figure S3.

In this study, single cyclic loading and unloading (SCLU) experiments, cyclic triaxial loading and unloading (CTLU) experiments and conventional triaxial compression (CTC) experiments were performed, which were discussed in more detail in Section 3.2.2, Section 4.2 and Section 5, respectively.

The SCLU experiments were carried out under confining pressure of 0 MPa and 20 MPa, i.e., single cyclic uniaxial loading and unloading (SCULU) experiments and single cyclic triaxial loading and unloading (SCTLU) experiments. Seven SCULU experiments were performed with the unloading stress of 10 MPa, 20 MPa, 30 MPa, 40 MPa, 50 MPa, 60 MPa and 70 MPa. For SCULU experiments, the specimens were loaded to the preset unloading stress with an axial loading rate of 0.5 MPa/s, and then the specimens were completely unloaded with an axial unloading rate of 0.5 MPa/s. In the seventh experiment, the rock specimen failed when it was loaded to 66.0 MPa, and the unloading stress-strain curve was not obtained. Eight SCTLU experiments were performed with the unloading deviatoric stress of 10 MPa, 20 MPa, 40 MPa, 60 MPa, 90 MPa, 120 MPa, 150 MPa, 180 MPa. For SCTLU experiments, the experimental procedure was as follows: (a) the hydrostatic pressure ( ${\sigma }_1$ = ${\sigma }_2$ = ${\sigma }_3$ = 20 MPa) was applied with a loading rate of 0.5 MPa/s; (b) the specimens were loaded to the preset unloading deviatoric stress with an axial loading rate of 0.5 MPa/s; (c) the specimens were unloaded to deviatoric stress of 2 MPa (in order to prevent the separation of the rock specimens from the pressure head of the testing machine) with an axial unloading rate of 0.5 MPa/s. In the eighth experiment, the rock specimen failed when it was loaded to 171.7 MPa, and the unloading stress-strain curve was not obtained.

The CTLU experiments were performed under the confining pressure of 0 MPa, 5 MPa, 10 MPa, 15 MPa and 20 MPa. Firstly, the hydrostatic pressure ( ${\sigma }_1$ = ${\sigma }_2$ = ${\sigma }_3$) was applied with a loading rate of 0.5 MPa/s. Then, the specimens were loaded to the preset unloading deviatoric stress and unloaded to deviatoric stress of 2 MPa with the same axial rate of 0.5 MPa/s. As shown in Supplementary Figure S4, the increment in the pre-peak stage and the decrement in the post-peak stage for cyclic stress were set to 10 MPa and 20 MPa respectively.

The CTC experiments were performed under the confining pressure of 0 MPa, 5 MPa, 10 MPa, 15 MPa and 20 MPa. The loading procedure was as follows: firstly, the hydrostatic pressure was applied with a loading rate of 0.5 MPa/s; then, the specimen was subsequently loaded to failure with an axial loading rate of 0.5 MPa/s.

3.2.2 Limitations of methods

As shown in Figure 3, the stress-strain curves of sandstone under uniaxial compression show obvious non-linear characteristics regardless of unloading at low-stress or high-stress levels, and the elastic modulus calculated by different methods are different. With the increase of confining pressure, the non-linear characteristics of stress-strain curve reduce, and the difference of calculated elastic modulus also decreases. Supplementary Tables S1, S2 list the elastic modulus in each SCLU experiment calculated by the abovementioned method. Under the same stress limit, the elastic modulus calculated by the four methods can be listed in descending order: TMUC $E_t^{-}$, TMLC $E_t^{+}$, SMUC $E_s^{-}$, and SMLC $E_s^{+}$.

FIGURE 3

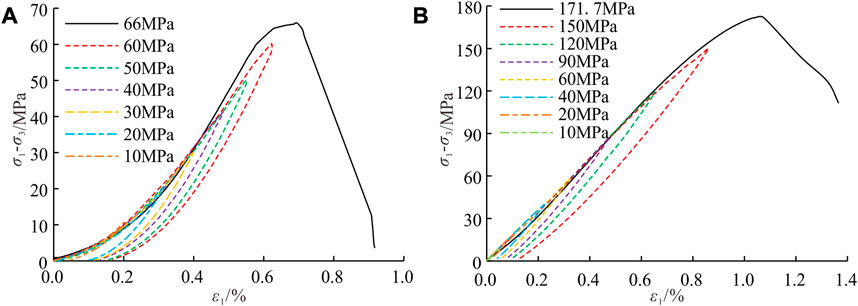

FIGURE 3. Stress-strain curves of sandstone under SCLU. (A) Confining pressure ${\sigma }_3$ = 0 MPa. (B) Confining pressure ${\sigma }_3$ = 20 MPa.

In order to compare the accuracy of elastic strain energy calculated by different elastic modulus, the elastic strain energy was calculated by using the area method and strain energy formula method, respectively. Based on the results of the area method, the calculation deviation corresponding to different values of elastic modulus was obtained, as shown in Tables 1, 2. As can be seen from the tables, the calculation deviation of elastic strain energy using different elastic modulus is large. For SCULU experiment, the calculation deviation of elastic strain energy using SMLC $E_s^{+}$ is the largest, followed by SMUC $E_s^{-}$, and the deviation using TMLC $E_t^{+}$ or TMUC $E_t^{-}$ is smaller. For SCTLU experiment, the deviation of elastic strain energy calculated by SMLC $E_s^{+}$ is obviously larger than the other three. The deviation of elastic strain energy calculated by the strain energy formula method using different elastic modulus is generally above 10% in the SCULU or SCTLU experiment. Therefore, in order to obtain more accurate elastic strain energy and provide more accurate basic data for analyzing energy conversion characteristics of rock, it is necessary to improve the quantitative method of elastic modulus.

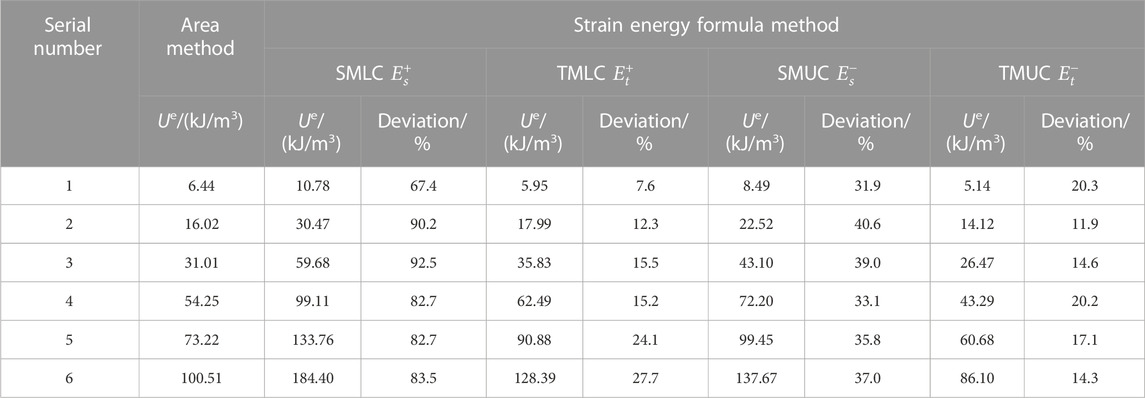

TABLE 1

TABLE 1. Results of elastic strain energy calculated by different elastic modulus (${\sigma }_3$ = 0 MPa).

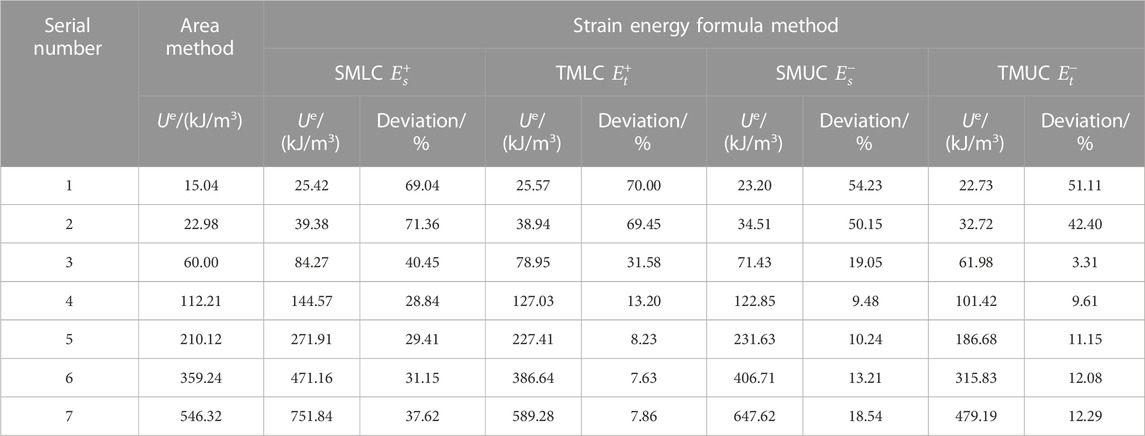

TABLE 2

TABLE 2. Results of elastic strain energy calculated by different elastic modulus (${\sigma }_3$ = 20 MPa).

4 Equivalent elastic modulus based on elastic strain energy and its evolution

4.1 Characterization method for equivalent elastic modulus based on elastic strain energy

As shown in Figure 4A, the main reasons for the calculation deviation of elastic strain energy can be concluded: the elastic strain energy calculated by SMUC $E_s^{-}$ is the area of triangle abc, while the actual elastic strain energy is the area of cross-sectional area adbca, and the deviation is the blue area. The non-linear characteristic of stress-strain curve in the unloading stage is mainly due to the non-linear elastic properties of the sandstone. Sandstone is a kind of porous medium rock, and rock matrix under a certain stress level will show more obvious linear elastic properties, but its internal microcracks, microvoids will gradually open under unloading, leading to the reducement of effective bearing area and the decrease of elastic modulus. Its apparent phenomenon is non-linear characteristic of unloading curve, which is also the essential reason for the large error of elastic strain energy calculated using secant modulus.

FIGURE 4

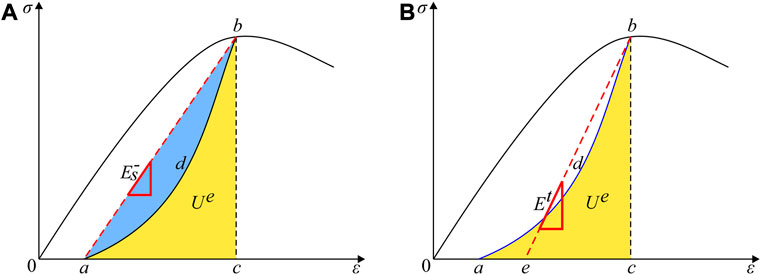

FIGURE 4. Schematic diagram of elastic strain energy and equivalent elastic modulus. (A) Elastic strain energy. (B) Determination of equivalent elastic modulus.

Based on the above analysis, this study put forward the equivalent elastic modulus (the slope of the line be in Figure 4B based on elastic strain energy, defined as $E^t$. The elastic strain energy can be calculated through the area between the unloading stress-strain curve and the horizontal axis, then the equivalent elastic modulus can be calculated according to the formula of elastic strain energy. For uniaxial compression, the equivalent elastic modulus can be calculated as follows:

${\mathit{E}}^{\mathit{t}}=\frac{{\mathit{\sigma }}_{\mathbf{1}}^{\mathbf{2}}}{\mathbf{2}{\mathit{U}}^{\mathit{e}}}(8)$

For triaxial compression, the elastic strain energy can be calculated through the axial and radial unloading curve, and the equivalent elastic modulus can be calculated as follows:

${\mathit{E}}^{\mathit{t}}=\frac{\mathbf{1}}{\mathbf{2}{\mathit{U}}^{\mathit{e}}}\left[{\mathit{\sigma }}_{\mathbf{1}}^{\mathbf{2}}+{\mathit{\sigma }}_{\mathbf{2}}^{\mathbf{2}}+{\mathit{\sigma }}_{\mathbf{3}}^{\mathbf{2}}-\mathbf{2}{\mathit{v}}^{\mathit{t}}\left({\mathit{\sigma }}_{\mathbf{1}}{\mathit{\sigma }}_{\mathbf{2}}+{\mathit{\sigma }}_{\mathbf{2}}{\mathit{\sigma }}_{\mathbf{3}}+{{\mathit{\sigma }}_{\mathbf{1}}\mathit{\sigma }}_{\mathbf{3}}\right)\right](9)$

where, ${\mathit{v}}^{\mathit{t}}$ is the unloading Poisson’s ratio obtained by the ratio of radial to axial strain increment at the unloading process (Huang and Li, 2014).

In this study, the characterization method for equivalent elastic modulus is proposed from the perspective of energy, which aims to better quantify the elastic strain energy stored in rock. It is essentially different from the elastic modulus defined by the stress-strain curve, and more suitable for the analysis of energy conversion law during rock failure.

4.2 Evolution law and estimation formula of equivalent elastic modulus

Based on the CTLU experiments, the equivalent elastic modulus proposed above (Formula 9) was used to determine the equivalent elastic modulus of rock under different confining pressure and cyclic limit stress, as shown in Table 3.

TABLE 3

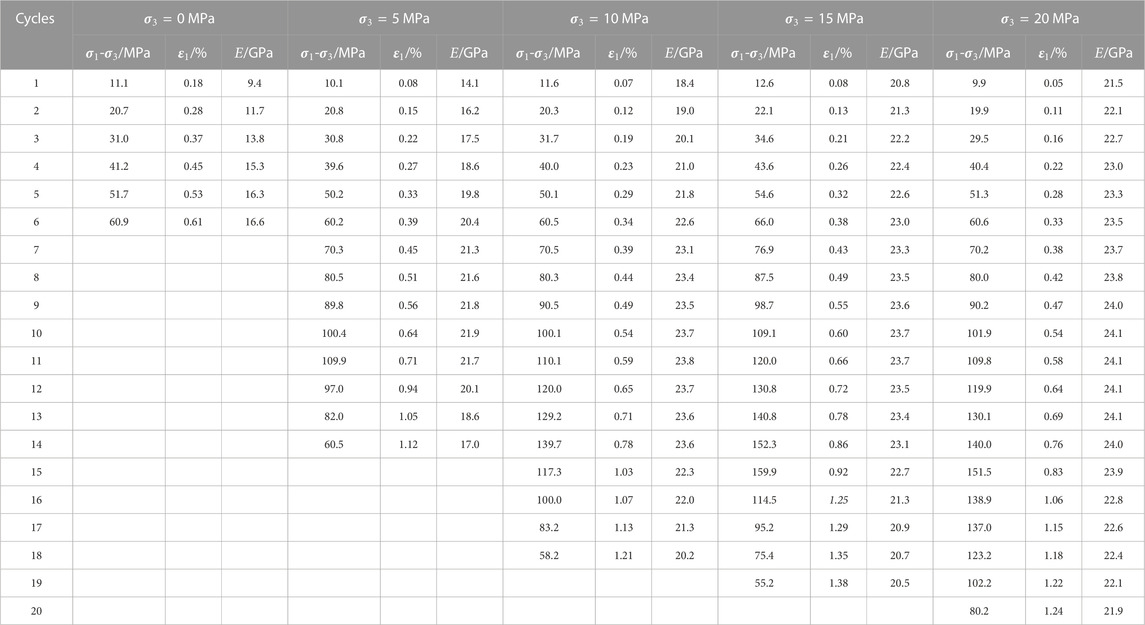

TABLE 3. Results of equivalent elastic modulus.

Figure 5 shows the change of equivalent elastic modulus under different confining pressure. Figure 5A shows that the post-peak unloading curve was not obtained under confining pressure of 0 MPa, and the equivalent elastic modulus increases gradually with the increase of cycles and axial strain. Theoretically, the storage capacity of elastic strain energy decreases after the specimen reaches the yield stage, leading to the decrease of the equivalent elastic modulus. The difference between peak stress and yield stress is less than cyclic stress increment (10 MPa) under confining pressure of 0 MPa, therefore the maximum stress of a cyclic loading is difficult to be exactly between the yield stress and peak stress, and the decrease of equivalent elastic modulus before the peak stress is not observed. It can be seen from Figures 5B–D that for triaxial cyclic loading and unloading tests, the equivalent elastic modulus shows a three-stage with the increase of cycles and axial strain, i.e., increasing, stabilizing and decreasing.

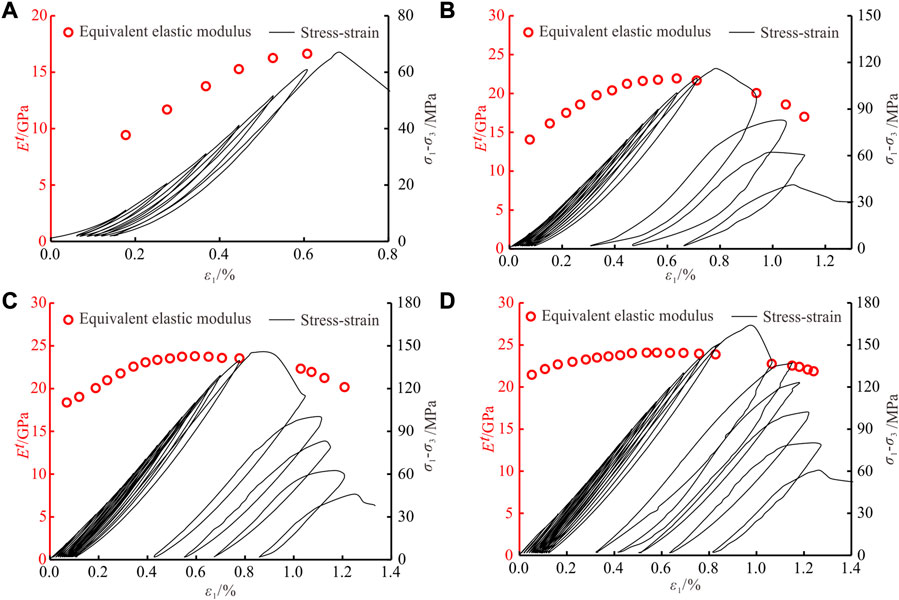

FIGURE 5

FIGURE 5. Evolution of equivalent elastic modulus under CTLU. (A) ${\sigma }_3$ = 0 MPa. (B) ${\sigma }_3$ = 5 MPa. (C) ${\sigma }_3$ = 10 MPa. (D) ${\sigma }_3$ = 20 MPa.

In order to further analyze the effect of confining pressure on the equivalent elastic modulus of rock, the evolution of equivalent elastic modulus for CTLU experiment under different confining pressure was shown in Figure 6. With the increase of confining pressure, the equivalent elastic modulus increases under the same deviatoric stress and axial strain, and the variation of equivalent elastic modulus decreases obviously with the increase of deviatoric stress and axial strain, indicating that the confining pressure has a strengthening effect on the elastic modulus of rock. It can be seen from Figure 6B that the quadratic polynomial fitting of equivalent elastic modulus with axial strain is fairly good, and the fitting formula can be used to estimate the equivalent elastic modulus of rock under different confining pressure and axial strain:

$\left\{\begin{array}{c}{\mathit{E}}^{\mathit{t}}=-\mathbf{66197}{\mathit{\epsilon }}^{\mathbf{2}}+\mathbf{864.6}\mathit{\epsilon }+\mathbf{21.312}{\mathit{\sigma }}_{\mathbf{3}}=\mathbf{20}\mathit{M}\mathit{P}\mathit{a}\\ {\mathit{E}}^{\mathit{t}}=-\mathbf{67947}{\mathit{\epsilon }}^{\mathbf{2}}+\mathbf{928.9}\mathit{\epsilon }+\mathbf{20.381}{\mathit{\sigma }}_{\mathbf{3}}=\mathbf{15}\mathit{M}\mathit{P}\mathit{a}\\ {\mathit{E}}^{\mathit{t}}=-\mathbf{144960}{\mathit{\epsilon }}^{\mathbf{2}}+\mathbf{1998.7}\mathit{\epsilon }+\mathbf{17.095}{\mathit{\sigma }}_{\mathbf{3}}=\mathbf{10}\mathit{M}\mathit{P}\mathit{a}\\ {\mathit{E}}^{\mathit{t}}=-\mathbf{233674}{\mathit{\epsilon }}^{\mathbf{2}}+\mathbf{3061}\mathit{\epsilon }+\mathbf{12.021}{\mathit{\sigma }}_{\mathbf{3}}=\mathbf{5}\mathit{M}\mathit{P}\mathit{a}\\ {\mathit{E}}^{\mathit{t}}=-\mathbf{271476}{\mathit{\epsilon }}^{\mathbf{2}}+\mathbf{3862.7}\mathit{\epsilon }+\mathbf{3.315}{\mathit{\sigma }}_{\mathbf{3}}=\mathbf{0}\mathit{M}\mathit{P}\mathit{a}\end{array}\right.(10)$

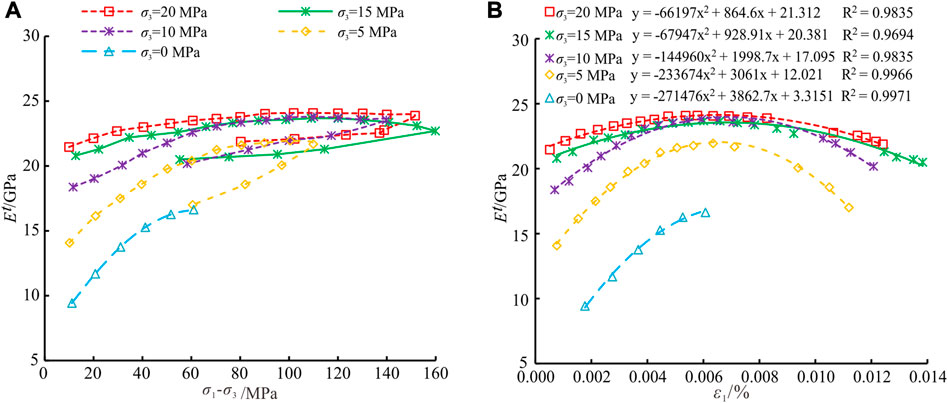

FIGURE 6

FIGURE 6. Equivalent elastic modulus under different confining pressure. (A) Relationship between equivalent elastic modulus and deviatoric stress. (B) Quadratic polynomial fitting of equivalent elastic modulus.

5 Conversion characteristics of energy based on the equivalent elastic modulus

5.1 Characteristic stress of rock

Based on the CTC experiments, the characteristic stresses such as crack closure stress, crack initiation stress and crack damage stress of sandstone under different confining pressure were calculated from the perspective of the crack activity inside the rock (Diederichs et al., 2004). As shown in Supplementary Figures S5, S6, it can be seen that the crack initiation stress and crack damage stress increase with increasing confining pressure, while the effect of confining pressure on crack closure stress is obvious under low confining pressure. When the confining pressure increases to 10 MPa, the crack closure stress tends to be stable. This is mainly due to: there is a limit stress for original cracks and voids inside rock, i.e., when the stress reaches a certain limit, the cracks and voids fully closed. As shown in Supplementary Figure S6B, the normalized characteristic stress (characteristic stress/peak strength) is less affected by confining pressure, and the normalized crack closure stress, crack initiation stress and crack damage stress are stable at about 0.31, 0.65 and 0.81, respectively.

On the basis of the above analysis, the equivalent elastic modulus of sandstone under different confining pressures is used for the subsequent analysis of energy conversion process. It should be pointed out that in the subsequent energy analysis, the calculation of energy takes the hydrostatic stress state as the starting point. Although there is energy dissipation and transformation during the loading process from initial state to hydrostatic stress state, this part of energy is small and does not affect the overall law of energy dissipation and transformation during the process of rock failure. Therefore, this part of energy is not considered in this study.

5.2 Evolution characteristics of elastic strain energy

5.2.1 Evolution law of elastic strain energy

According to the theory of elasticity, the elastic strain energy depends only on elastic modulus and the final value of external load, and has nothing to do with the loading sequence. Based on the equivalent elastic modulus obtained in section 4, elastic strain energy is calculated according to stress-strain data collected during the CTC experiment, and the results are shown in Figure 7. Under constant confining pressure, elastic strain energy is only affected by elastic modulus and external load. Therefore, the curve of elastic strain energy is similar to the curve of stress. During sandstone deformation and failure process, the elastic strain energy gradually accumulates and increases with increasing external input energy, and reaches the maximum value at the peak strength, namely, the elastic energy storage limit. When the elastic strain energy accumulated inside the rock reaches this limit, the rock will show macroscopic fracture. The greater the energy storage limit of the rock, the less likely it is to be damaged driven by energy. In the post-peak stage, the elastic strain energy decreases as the axial stress decreases. Under the same stress, the elastic strain energy in the post-peak stage is bigger than pre-peak stage, the main reason is that the fractured rock contains a large number of microcracks, the elastic strain energy calculated by the equivalent elastic modulus includes the elastic strain energy accumulated in rock microcracks.

FIGURE 7

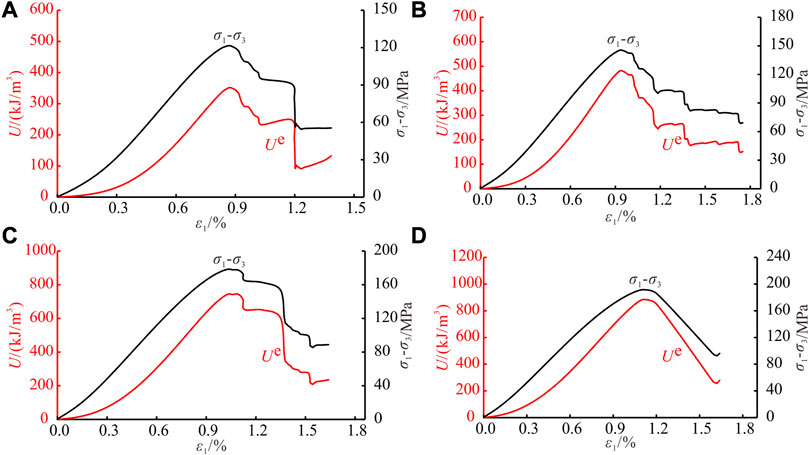

FIGURE 7. Evolution of elastic strain energy under CTC. (A) ${\sigma }_3$ = 5 MPa. (B) ${\sigma }_3$ = 10 MPa. (C) ${\sigma }_3$ = 15 MPa. (D) ${\sigma }_3$ = 20 MPa.

5.2.2 Effect of confining pressure on elastic strain energy storage efficiency

In order to analyze the storage characteristics of elastic strain energy in the pre-peak stage, the elastic strain energy storage efficiency $G_e$ is defined as the stored elastic strain energy of unit strain, and is calculated as follows:

${\mathit{G}}_{\mathit{e}}=\frac{∆{\mathit{U}}^{\mathit{e}}}{∆{\mathit{\epsilon }}_{\mathbf{1}}}(11)$

Where, $G_e$ is the elastic strain energy storage efficiency, kJ/m³; $∆U^e$ is the change of elastic strain energy, kJ/m³; $∆{\epsilon }_1$ is the change of axial strain.

Figure 8 shows the curve of elastic strain energy storage efficiency under different confining pressure. It can be seen that the elastic strain energy storage efficiency first increases gradually, and reaches the peak at the crack damage stress. After crack damage stress, the elastic strain energy storage efficiency decreases gradually. The comparison of elastic strain energy storage efficiency under different confining pressure shows that the elastic strain energy storage efficiency increases with increasing confining pressure. For example, the peak elastic strain energy storage efficiency increases from 80,000 kJ/m³ under ${\sigma }_3$ = 5 MPa to 140,000 kJ/m³ under ${\sigma }_3$ = 20 MPa, i.e., the elastic strain energy storage efficiency increases by 75%. Elastic strain energy storage efficiency reflects the rock elastic strain energy transformation efficiency. Before the crack damage stress, rock is dominated by elastic deformation, and elastic strain energy storage efficiency increases with increasing axial stress and strain. After the crack damage stress, the internal cracks propagate quickly, rock is dominated by plastic deformation, and the elastic strain energy storage efficiency decreases.

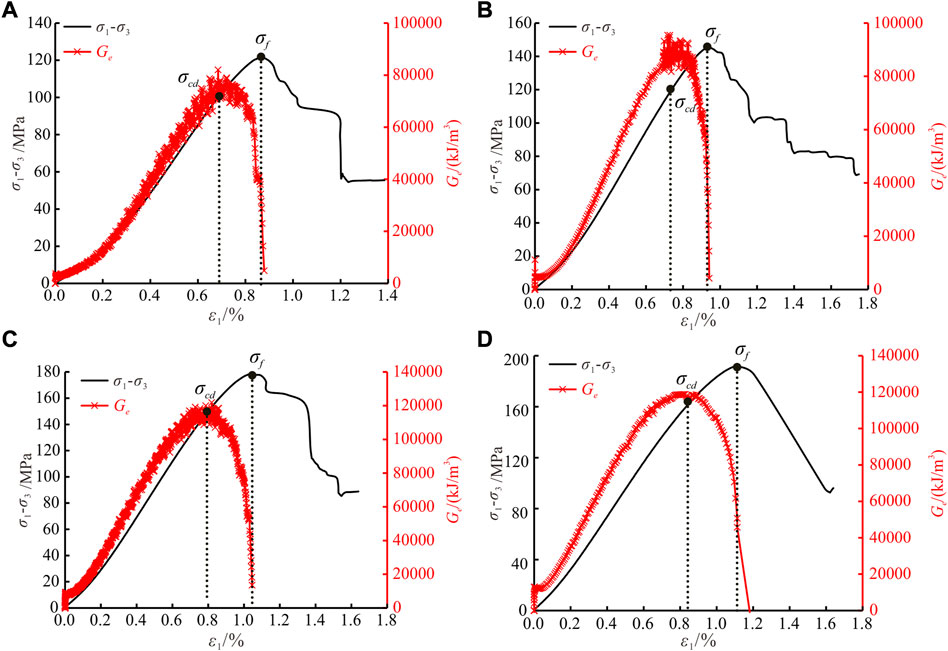

FIGURE 8

FIGURE 8. The elastic strain energy storage efficiency under CTC. (A) ${\sigma }_3$ = 5 MPa. (B) ${\sigma }_3$ = 10 MPa. (C) ${\sigma }_3$ = 15 MPa. (D) ${\sigma }_3$ = 20 MPa.

5.3 Evolution characteristics of energy dissipation

For sandstone under compression, the process of internal primary microcrack closure, new crack initiation and propagation is always accompanied by energy dissipation, that is, the damage and fracture of rock are driven by energy. Therefore, this section will analyze the characteristics of energy dissipation under different stress states.

5.3.1 Evolution law of energy dissipation

Figure 9 shows the curve of energy dissipation under CTC. It can be seen that the dissipated energy increases continuously with the increase of rock deformation. In the pre-peak stage, the dissipated energy is small, and the corresponding curve is relatively gentle and flat, i.e., the damage of rock develops steadily, and there is no sudden release and dissipation of energy. After reaching the peak strength, the dissipated energy increases rapidly with large-scale deformation and macroscopic fracture of rock. Furthermore, the dissipated energy increases suddenly to a certain extent at the stress drop point, i.e., when the local fracture occurs.

FIGURE 9

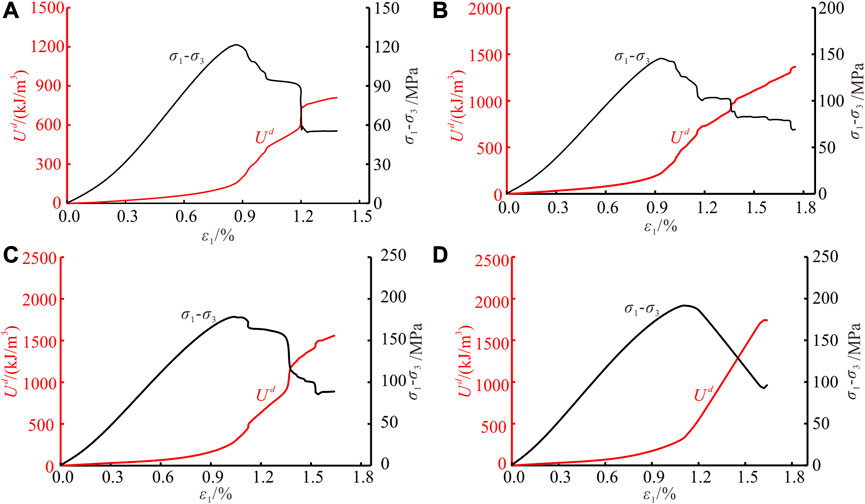

FIGURE 9. The curves of dissipated energy under CTC. (A) ${\sigma }_3$ = 5 MPa. (B) ${\sigma }_3$ = 10 MPa. (C) ${\sigma }_3$ = 15 MPa. (D) ${\sigma }_3$ = 20 MPa.

5.3.2 Characteristics of energy dissipation rate

To measure the speed of rock energy dissipation in different loading stages, this study introduces the energy dissipation rate $G_d^v$, namely, the dissipated energy per unit time, which can be calculated by the following formula (Wang et al., 2021):

${\mathit{G}}_{\mathit{d}}^{\mathit{v}}=\frac{∆{\mathit{U}}^{\mathit{d}}}{∆\mathit{t}}(12)$

Where, $∆U^d$ is the change of dissipated energy, kJ/m³; $∆t$ is the time increment, s.

Based on the above formula, the energy dissipation rate of rock under CTC is calculated, as shown in Figure 10. It can be seen that the local maximum energy dissipation rate appears at the stress drop point, and the peak energy dissipation rate appears near the peak strength. Outside the peak strength region, the energy dissipation rate is generally at a low level. Therefore, the energy dissipation rate can not only quantify the energy dissipation speed, but also can be used to evaluate the local failure and macroscopic failure of rock.

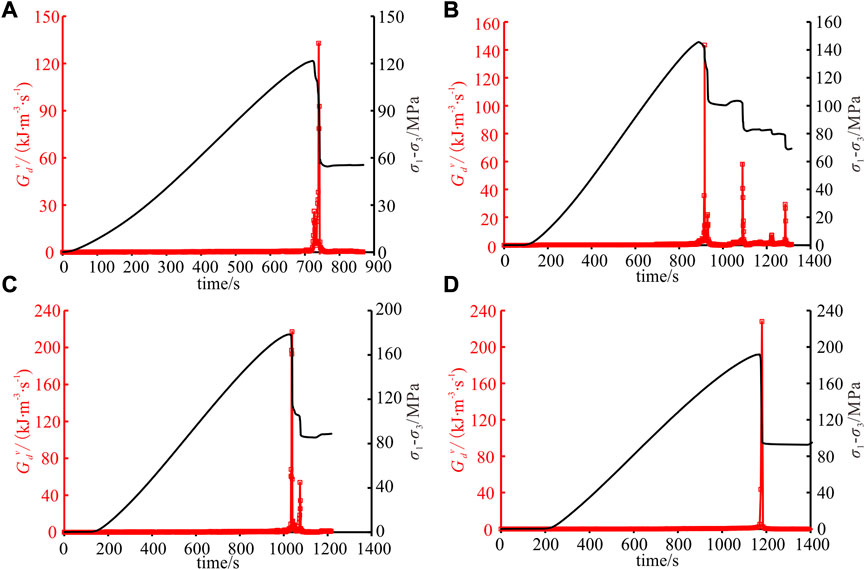

FIGURE 10

FIGURE 10. Evolution of energy dissipation rate under CTC. (A) ${\sigma }_3$ = 5 MPa. (B) ${\sigma }_3$ = 10 MPa. (C) ${\sigma }_3$ = 15 MPa. (D) ${\sigma }_3$ = 20 MPa.

The above analysis demonstrated that high-rate energy dissipation is mainly concentrated near the peak strength, so the dissipated energy near the peak strength is listed in Figure 11. The time = 0 in the figure represents the moment of peak strength, the negative value represents the pre-peak stage and the positive value represents the post-peak stage. Figure 11 shows that the energy dissipation rate presents an obvious hysteresis effect and confining pressure effect.

(1) Hysteresis effect. Before the peak strength, the energy dissipation rate is at a low level. After reaching the peak strength, the energy dissipation rate increases rapidly to a higher level, i.e., the high-rate of energy dissipation lags behind the peak strength. Under CTC, the peak energy dissipation rate usually occurs within 10–30 s after the peak strength.

(2) Confining pressure effect. Before the peak strength, the energy accumulated in the rock increases as the confining pressure increases. After reaching the peak strength, the amount and rate of energy dissipation during the rock failure process increase correspondingly. For example, the peak energy dissipation rate increases from 132.9 kJ m⁻³·s⁻¹ under ${\sigma }_3$ = 5 MPa to 228.0 kJ m⁻³·s⁻¹ under ${\sigma }_3$ = 20 MPa. In addition, the hysteresis effect of energy dissipation rate gradually weakens as the confining pressure increases. For example, with the increase of confining pressure from 5 MPa to 20 MPa, the high-level energy dissipation rate gradually moves forward to the peak strength, and the lag time of peak energy dissipation rate decreases from 22 s to 15 s.

FIGURE 11

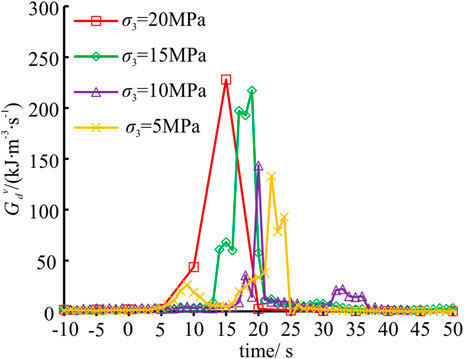

FIGURE 11. Energy dissipation rate near peak strength.

To summarize, energy release and dissipation of rock under load mainly occur in a short time after the peak strength. Under high confining pressure, energy release and dissipation are more sudden and severe, i.e., the engineering rock mass under high confining pressure will be easier to induce dynamic disasters.

5.3.3 Comparative analysis of energy dissipation and acoustic emission activities

During the process of rock deformation and fracture, the dissipation and release of energy are accompanied by elastic waves, namely, acoustic emission (AE). AE can reflect the process of energy dissipation inside rock, and AE energy is a part of dissipated energy. Based on this, this section analyzes the evolution characteristics of dissipated energy and AE count (Grosse and Ohtsu, 2008), as shown in Figure 12.

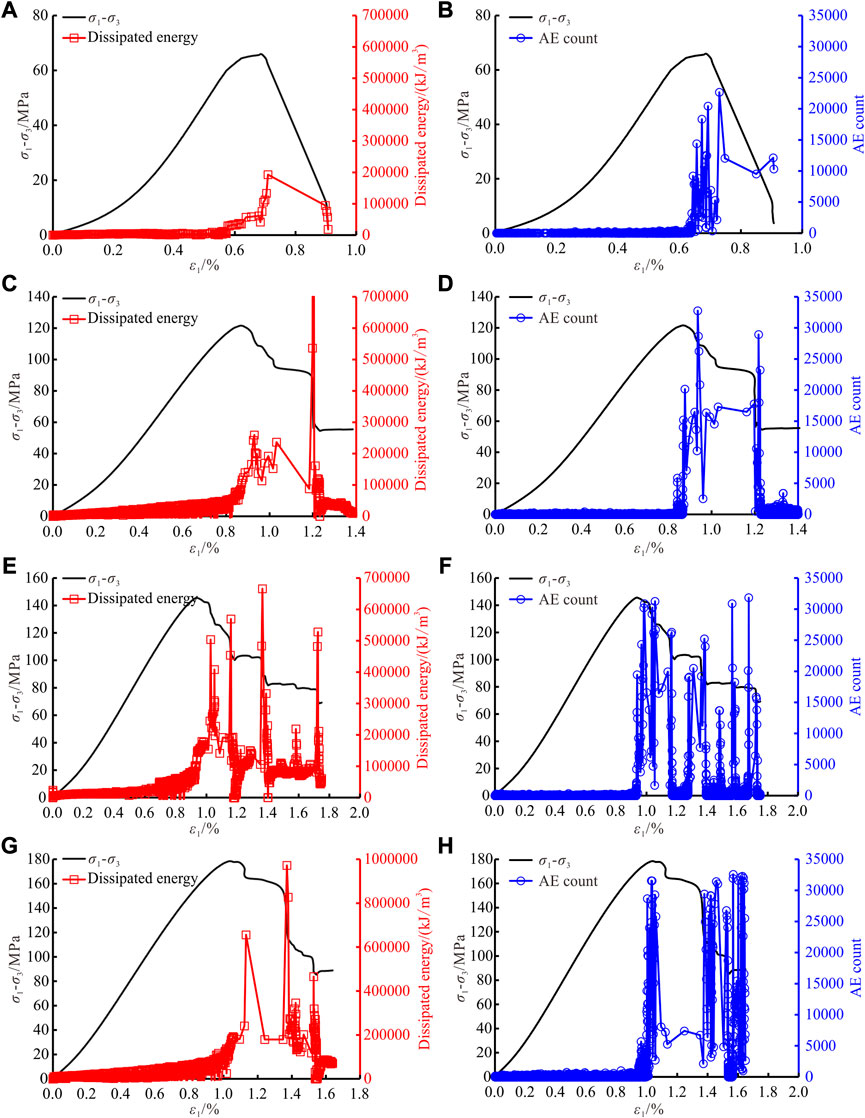

FIGURE 12

FIGURE 12. Evolution characteristics of dissipated energy and AE count. (A) Dissipated energy under ${\sigma }_3$ = 0 MPa. (B) AE count under ${\sigma }_3$ = 0 MPa. (C) Dissipated energy under ${\sigma }_3$ = 5 MPa. (D) AE count under ${\sigma }_3$ = 5 MPa. (E) Dissipated energy under ${\sigma }_3$ = 10 MPa. (F) AE count under ${\sigma }_3$ = 10 MPa. (G) Dissipated energy under ${\sigma }_3$ = 15 MPa. (H) AE count under ${\sigma }_3$ = 15 MPa.

Figure 12 shows that there is a good correspondence between dissipated energy and AE count, i.e., the sudden increase of AE count corresponds to high dissipation of energy. In the pre-peak stage, the dissipated energy and AE count are both at a low level. Near the peak strength, the dissipated energy and AE count increase rapidly and reach a high level. In the post-peak stage, after the formation of the main fracture surface, cracks continue to initiate, propagate and coalesce, and acoustic emission activities are relatively active. When the local fracture occurs, an obvious stress drop appears with a sudden increase of AE count.

From the perspective of energy dissipation, it can be seen that there are many local maximum energy dissipation points corresponding to stress drop points near and after the peak strength. This is mainly due to the initiation and propagation of secondary fracture surfaces along with the development of principal fracture surface. The initiation and propagation of secondary fracture surfaces will lead to the reduction of rock bearing capacity and the occurrence of stress drop, resulting in a sharp increase of energy dissipation. In addition, there is a confining pressure effect on energy dissipation: the greater the confining pressure, the greater the energy dissipation at the peak strength. For example, the energy dissipation at peak strength increases from 1.9 × 10⁵ kJ/m³ under ${\sigma }_3$ = 0 MPa to 6.5 × 10⁵ kJ/m³ under ${\sigma }_3$ = 15 MPa. Therefore, when preventing and controlling dynamic disasters such as rock burst in the practice of underground mining engineering, it is necessary not only to pay attention to the inherent properties such as peak strength and brittleness index of surrounding rock mass, but also to analyze the stress state of surrounding rock mass, especially the surrounding rock mass under high confining pressure.

6 Conclusion

Based on the theory of energy balance and elasticity, energy transformation and quantification of energy for sandstone are discussed. In view of elastic strain energy quantification, the reasonable value of elastic modulus in the strain energy formula method is analyzed with reference to the calculation results of the area method, and then the characterization method for equivalent elastic modulus based on elastic strain energy is proposed. Through the CTLU experiments of sandstone under different confining pressure, the fitting quadratic function between equivalent elastic modulus, confining pressure and axial strain is determined. The proposed equivalent elastic modulus is applied to analyze the evolution characteristics of elastic strain energy and energy dissipation. The following main points are concluded from this study.

(1) Taking the secant and tangent modulus of loading and unloading curve as input parameters respectively, the elastic strain energy under different confining pressure is calculated by using the strain energy formula method. Compared with the calculation results of area method, when the tangent modulus of loading curve or unloading curve is used as input parameter, the deviation of elastic strain energy calculated by the strain energy formula method is smaller, but the deviation is still generally higher than 10%.

(2) A characterization method for equivalent elastic modulus based on elastic strain energy is proposed to obtain more accurate calculation of energy when using the strain energy formula method. The elastic strain energy is calculated firstly by the area between the unloading stress-strain curve and the abscissa axis, and then the equivalent elastic modulus under specific confining pressure and axial strain is inversely calculated by using the theoretical calculation formula of elastic strain energy.

(3) The mechanical parameters such as elastic modulus, peak strength and residual strength show an obvious confining pressure effect, that is, they increase with increasing confining pressure. However, there are limit closure stress and limit closure amount. When the confining pressure increases to 10 MPa, the crack closure stress tends to be stable, but the crack initiation stress and crack damage stress increase with increasing confining pressure; The normalized characteristic stress is less affected by the confining pressure, that is, the normalized crack closure stress, crack initiation stress and crack damage stress are stable at about 0.31, 0.65 and 0.81, respectively.

(4) The elastic strain energy storage limit and elastic strain energy storage efficiency increase with increasing confining pressure. The local maximum energy dissipation rate point corresponds to an stress drop, and the peak energy dissipation rate appears near the peak strength. The energy dissipation rate presents hysteresis effect and confining pressure effect, i.e., high energy dissipation mainly occurs in a short time after the peak strength, and rock fracture and energy dissipation are more sudden and severe under high confining pressure.
