Geodynamic seawater-sediment porewater evolution of the east central Atlantic Paleogene ocean margin revealed by U-Pb dating of sedimentary phosphates

Emerging evidence suggests that U-Pb and Lu-Hf ages of sedimentary apatite group minerals are often younger than their biostratigraphic ages. However, U-Pb dating of exquisitely preserved carbonate fluorapatite (CFA) is rare. The Upper Cretaceous/Paleogene marine sedimentary rocks of the Moroccan High Atlas host phosphate-rich sediments bracketed by calcareous nannofossil Zones (NP4-NP9) of late Danian to Thanetian age. Here, we use a laser-ablation inductively coupled plasma mass spectrometry (LA-ICP-MS) to decipher whether CFA minerals are suitable for U-Pb chronostratigraphy and whether they can reveal the sedimentary and seawater history from which they formed. U-Pb dating of the CFA grains yields ages of 42.9 ± 1.3 Ma (MSWD = 2.3) and 35.7 ± 2.8 Ma (MSWD = 1.3) from three distinct phosphate-rich beds, being >15 million years younger than the expected biostratigraphic age. Combined scanning electron microscopy, X-ray diffraction, and infrared spectroscopy analyses, associate the Mg-rich clay minerals sepiolite and palygorskite, with micro-CFA crystals, while LA-ICP-MS trace element, rare earth element, and yttrium content for primary CFA grains, collectively point to long-term early diagenetic adsorption from oxygenated seawater-dominated porewater fluids. Authigenic clay minerals display a seawater-like pattern, with negligible U concentrations suggesting limited clay mineral influence on U-Pb dating of the CFA crystals. Considering the absence of extensive post-depositional alteration, we propose that because of their large surface area, the µm-sized CFA crystallites facilitated real-time surface adsorption and desorption of elements and diffusion processes. These conditions generated long-term open system connection of sediments with overlying seawater, enabling continuous U-Pb exchange for 15–25 Myr after phosphate precipitation. The data suggest that system closure was potentially associated with sediment lithification and the Atlas orogeny, pointing to stable oxygenation of shallow marine waters along the eastern passive margin of the central Atlantic Ocean in the Paleogene.

1 Introduction

Sedimentary apatite group minerals, hosted in marine phosphorus (P)-rich rocks (i.e., phosphorites), form in zones underlying strong upwelling currents (Föllmi, 1996). In such nutrient-rich environments, high biological productivity promotes an increase flux of sinking organic-bound P to the sediments. Multiple pathways lead to P burial; P is either organically bound if organic matter escapes remineralization or inorganically bound to Fe and Mn oxyhydroxides phases (Ruttenberg, 2003) in oxygenated environments, undergoing reductive dissolution in anoxic sediments to liberate P into porewaters. In contrast, P is dominantly preserved in authigenic apatite minerals, which are essentially fueled by 1) the release of organic-bound P during organic matter remineralization and 2) the hydrolysis of intracellular microbial polyphosphate reserves (Schulz and Schulz, 2005; Diaz et al., 2008). Authigenic P-rich phases precipitate from highly supersaturated porewater conditions containing dissolved phosphate of up to 400 μmol.L⁻¹ (Krajewski et al., 1994) immediately below the water-sediment interface.

High levels of supersaturation with respect to apatite, which controls nucleation rate, likely explain the large number of nano- to micro-metric crystals, being >10⁹ per cm³ in phosphate peloids (Krajewski et al., 1994). Pristine phosphate layers, containing <10 wt.% P₂O₅ (Pufahl and Groat, 2017) synsedimentary apatite minerals in varying proportions, accumulate during the initial step of phosphorite formation, as long as microbially mediated processes promote supersaturation with respect to apatite. In addition to biological stimulation of phosphate precipitation, in situ storm and bottom water currents may repeatedly winnow primary phosphate sediments, allowing phosphorites with >18 wt.% P₂O₅ (Glenn et al., 1994) to substantially accumulate (Föllmi, 1996; Filippelli, 2011; Pufahl and Groat, 2017). Depending on the strength, duration, and frequency of hydrodynamic agents, winnowing, reworking, and transport processes contribute to the enrichment of P in phosphorites (Pufahl and Groat, 2017). Thus, continental shelves and epeiric seas are preferred settings for the formation of large phosphate deposits due to prevailing hydrodynamic conditions that enable P enrichment (Pufahl and Groat, 2017).

The phosphogenic event that occurred in the South Tethyan province of North Africa and the Middle East, during the late Cretaceous and the Paleogene, led to the accumulation of the largest known phosphate deposit on Earth (Pufahl and Groat, 2017; Baioumy and Farouk, 2022, and references therein). Notably, Morocco hosts more than 70% of the world’s phosphate reserves (Jasinski, 2020) in thin tabular beds mined in the western Meseta (Figure 1). Further deposits exist along the Moroccan High Atlas (MHA). Although mineralogical, sedimentological, sequence stratigraphy, and biostratigraphic investigations have been previously conducted on the MHA deposits (Gheerbrant et al., 1993; Daoudi, 2004; Tabuce et al., 2005; Knidiri et al., 2014; El Bamiki et al., 2020), they however remain largely unexplored.

FIGURE 1

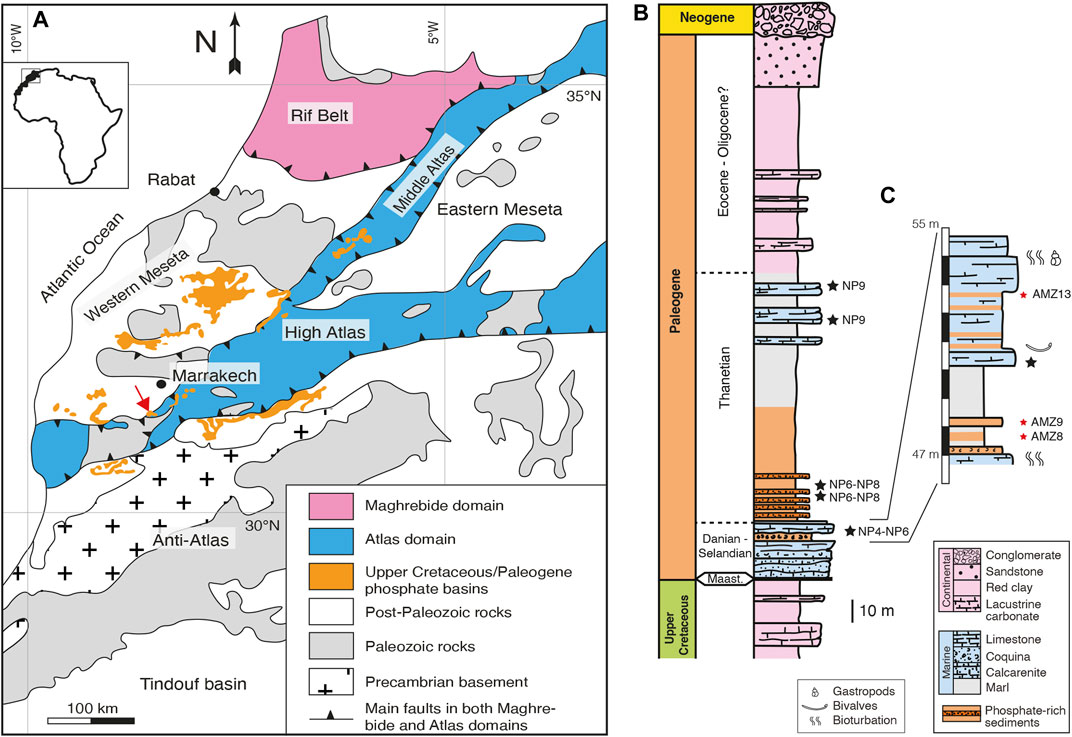

FIGURE 1. Geological map and lithostratigraphic column. (A) Simplified geological map and structural units of Morocco. The red arrow indicates the studied Amizmiz section, 31°12′09″N, 08°14′08″W. Geological map adopted from (Hollard et al., 1985) and the figure is modified from Aubineau et al. (2022). (B) Stratigraphic framework of the Amizmiz phosphate-bearing series. The figure is modified from El Bamiki et al. (2020). (C) Detailed lithostratigraphic column of the maximum flooding zone showing the sampled P-rich horizons. This interval results from a sedimentary condensation. Key nannofossil Zones are in black in b and c panels. NP: Paleogene Zonation.

Authigenic sedimentary apatite [Ca₁₀(PO₄)₆(OH,F,Cl)₂] in marine environments is predominantly composed of carbonate fluorapatite (CFA)—[Ca_10-x-yNa_xMg_y(PO₄)_6-z(CO₃)_z(F)_0.4zF₂] (McClellan, 1980). In equilibrium with seawater, CFA-hosted CO₃²⁻ content varies between 5 and 8 wt.% (Nathan, 1984). The accommodating chemical structure of apatite minerals allows easy incorporation of major and trace elements in the crystal lattice (e.g., Nathan, 1984). For example, a mean concentration of 120 ppm has been recorded for U in phosphorites (Altschuler, 1980), critical for U-Pb geochronology. Approaches for U-Pb dating of fossils, using biogenic hydroxyapatite, range from in situ and fission track techniques to solution methods (Sano and Terada, 1999; Romer, 2001; Sano et al., 2006; Balter et al., 2008; Jolivet et al., 2008; Fassett et al., 2011; Greene et al., 2018; Rochín-Bañaga et al., 2021).

Regardless of the dating techniques, it is worthy of mention that the U-Pb dates obtained from fossil bones and teeth are often younger and interpreted to reflect α-recoil effect and diagenetic alteration (e.g., Balter et al., 2008; Greene et al., 2018; Koenig et al., 2012; Romer, 2001). Controlled by both surface area and volume of the phosphate crystallites, α-recoil may generate a loss of daughter isotopes out of the apatite structure (Romer, 2001; Balter et al., 2008), yielding unconstrained, younger chronostratigraphic ages. Besides, diagenesis may be the locus of protracted interactions between fossil material and fluids, resetting the U-Pb radiometric system (Greene et al., 2018; Rochín-Bañaga et al., 2021).

The presence of significant amounts of common lead in the crystal lattice of apatite minerals is also a concern (Cochrane et al., 2014). Consequently, Phanerozoic sedimentary apatite may have low radiogenic Pb/common Pb ratios, leading to large age uncertainties. Furthermore, recent studies on in situ U-Pb dating of sedimentary phosphorites have barely constrained the chronostratigraphy of phosphate-bearing series (Molnár et al., 2018; Soares et al., 2019; O’Sullivan et al., 2021). Few of the studies cited above have integrated reliable screening techniques to identify diagenetic processes responsible for open system behavior in the samples analyzed by U-Pb method (e.g., Greene et al., 2018). Overall, linking U-Pb phosphate ages to the age of deposition is yet to be determined. The exquisite preservation of the Moroccan sedimentary apatite group minerals (e.g., Aubineau et al., 2022; Cosmidis et al., 2013; Kocsis et al., 2014), offers a unique opportunity for distinguishing primary geochemical and geochronological signals from artefacts associated potential post-depositional changes, to gain better insights on their impact on U-Pb dating of phosphorites.

In this study, we explore in situ U-Pb CFA dating by laser ablation inductively coupled plasma mass spectrometry (LA-ICP-MS) to obtain precise chronostratigraphic ages for sedimentary phosphate rocks relative to their biostratigraphic sedimentary age. By constraining the precise chronostratigraphy of the Paleogene MHA phosphate sequence, we aimed to enhance stratigraphic correlations between the MHA and various phosphate deposits in Morocco and the South Tethyan province. The findings provide new insights on prevailing paleoenvironmental conditions, paleogeographic and geodynamic evolution of the eastern Atlantic passive margin on the Moroccan coast during the Paleogene.

2 Geological background of the Moroccan High Atlas

The Atlas domain, extending from the Atlantic coast to Tunisia, is weakly shortened, intracontinental fold belts that formed as a direct consequence of the Cenozoic African-Eurasian convergence (Michard et al., 2008). The Atlas structural zone, comprising the ENE-trending High Atlas and NE-trending Middle Atlas Mountain belts in Morocco, first developed as an intracontinental basin related to the Central Atlantic rifting during the Triassic (Frizon de Lamotte et al., 2008). The following thermal subsidence promoted the accumulation of km-thick, Mesozoic marine sedimentary successions (Ellouz et al., 2003). Then, the Atlas recorded a basin inversion possibly initiated in the late Cretaceous during the Alpine orogeny, which resulted in the lowering of thermal subsidence—thus of sediment deposition—as well as the subsequent deformation and uplift of the Atlasic rocks during the Neogene (Ellouz et al., 2003; Frizon de Lamotte et al., 2008). The convergence-induced deformation remained weakly expressed by a slowing down of the post-rift thermal subsidence during the Paleocene, which allowed sediments to accumulate in a shallow platform within the MHA domain (El Bamiki et al., 2020). Although the timing of inversion events is uncertain, the deformation led to the formation of significant relief (Frizon de Lamotte et al., 2008; Frizon de Lamotte et al., 2009). Despite the continuous plate convergence, the deformation was discontinuous with two main tectonic episodes of shortening and uplift in the middle to late Eocene and late Miocene-Pliocene (Frizon de Lamotte et al., 2008; Frizon de Lamotte et al., 2009).

The MHA is notably composed of a wide variety of phosphate facies that have been related to both autocyclic, including wave and storm winnowing, and tectono-eustatic allocyclic processes (El Bamiki et al., 2020). The investigated Amizmiz section of the MHA consists of sedimentary rocks deposited during a second order relative sea-level cycle (El Bamiki et al., 2020). Most of the MHA sediments have been affected by km-size wave-length synclines (Frizon de Lamotte et al., 2008). The sedimentary series starts with Upper Cretaceous rocks that are dominated by continental sediments containing red fine-grained siliciclastic beds and yellowish lacustrine carbonates followed by a marine carbonate sequence. The subsequent subaerial exposure, caused by the large regression occurring during the late Cretaceous in the MHA domain, has karstified and eroded the Maastrichtian rocks in the Amizmiz area (Chellaï et al., 1995; El Bamiki et al., 2020). The Danian-Selandian rocks, deposited during a sea-level rise event, are dominated by shallow-water, bioclastic carbonates interbedded with thin layers of granular phosphates that mainly consist of winnowed and reworked phosphates in the Amizmiz area (El Bamiki et al., 2020). The overlying carbonates, deposited in the outer platform, are capped by a hardground surface, which is interpreted as reflecting the maximum bathymetry likely near the Selandian-Thanetian transition (Figure 1C; El Bamiki et al., 2020). This key marker is considered as a major stratigraphic surface that allows regional correlations in the MHA domain. In the wake of the maximum flooding, the phosphogenic window moved offshore of the outer carbonate platform in the western MHA domain (including the Amizmiz area). The net consequence is that large accumulations of pristine and winnowed phosphates were deposited. The phosphate sediments are typically crumbly. Overlying marls, marine carbonates, and continental sediments marked the progressive sea level fall in the MHA domain during the Eocene. Typical Lutetian Thersitea limestones overly the phosphate series in the western Meseta block and MHA domain (Boujo, 1976), but are eroded in the western MHA due to the following Atlasic, orogenic deformation (El Bamiki et al., 2020). The Neogene molassic sediments unconformably rest on the Upper Cretaceous/Paleogene sedimentary sequence.

Based on biostratigraphic data, the MHA phosphate series extends from late Cretaceous to Lutetian (Gheerbrant et al., 1993; Tabuce et al., 2005; and references therein). Notably, selachian fauna and planktonic foraminifera have helped to constrain the biostratigraphy of the phosphate sequence. Nonetheless, diachronous facies are likely in the MHA, which has raised concerns about these biostratigraphic ages (El Bamiki, 2020; El Bamiki et al., 2020). Moreover, organic carbon isotope compositions do not support the occurrence of Lutetian rocks in the phosphate series of the western Meseta domain (Yans et al., 2014). Nevertheless, a recent study of calcareous nannoflora allowed refining of the biostratigraphy in the lower to middle part of the Amizmiz sequence since some calcareous nannofossils provide reliable biohorizons (El Bamiki et al., 2020). Indeed, the Lowest Occurrences of Toweius pertusus (correlated to the foraminiferous NP4 Zone), Fasciculithus tympaniformis (NP5 Zone), Heliolithus kleinpellii (NP6 Zone), and Discoaster multiradiatus (NP9 Zone) collectively indicate a late Danian to Thanetian age of the main phosphate interval of the Amizmiz sedimentary sequence (El Bamiki et al., 2020).

In contrast, the upper part of the Amizmiz sequence is still poorly constrained. The sedimentation rate in the Amizmiz area can be approximately determined between the calcareous nannofossil biohorizons that are well correlated to the foraminiferous NP4 to NP9 zones. Although subject to relatively large uncertainties, a low sedimentation rate of ∼20 m/Myr was estimated. In this study, we have targeted granular phosphate sediments for U-Pb dating due to their relevant stratigraphic positions, representing the maximum flooding event (Figures 1B,C; El Bamiki et al., 2020). Considering the nannoflora determination at this specific stratigraphic emplacement (Foraminiferous NP4-NP6 Zones), a late Danian to early Thanetian age is, thus, expected.

3 Samples and methods

3.1 Sampling and sample preparation

In the Amizmiz area (Figure 1A), three fresh, unweathered samples (designated as AMZ8, AMZ9, and AMZ13) were collected from the interval reflecting the regional-scale maximum bathymetry immediately above the hardground surface (Figures 1B,C; El Bamiki et al., 2020). Specifically, AMZ8 and AMZ9 samples are stratigraphically separated by less than 0.5 m, while AMZ13 is ∼5 m stratigraphically above. Polished slab sections (from standard 2.5 cm-diameter mounts) for each sample were prepared for petrographic observations and in situ geochemical analyses using standard rock-polishing laboratory procedures at IC2MP, University of Poitiers. Portions of identical rock pieces were crushed and milled in agate mortar without using water for bulk mineralogical investigations.

3.2 Analytical methods

Scanning electron microscopy. Petrographic and mineralogical examination of carbon-coated, polished slab sections and rock slabs were performed using a FEI Quanta 200 FEG SEM equipped with an Oxford Instruments energy dispersive X-ray spectrometer (EDX) at MEA platform, University of Montpellier. Samples were imaged in secondary electron (SE) and backscattered electron (BSE) modes—operated under a low vacuum at an accelerating voltage of 10–15 kV, 1 nA beam current, and a working distance of 10 mm—to investigate the crystal size and morphology of minerals as well as textural relationships.

X-Ray Diffraction. Whole-rock powder and <2 µm clay mineral fraction of all samples were analyzed with XRD to characterize the mineralogy of MHA phosphorites. XRD patterns were acquired with a Bruker D8 ADVANCE diffractometer (CuKα radiation) operating at 40 kV and 40 mA at RRXG platform, University of Montpellier. The extraction protocol for the <2 µm clay fraction as well as XRD analytical conditions are provided in Supplementary Method. Bruker Eva software was used for indexing of peaks and the XRD patterns compared with reference data (Brindley and Brown, 1980).

Fourier transform infrared spectroscopy. The <2 µm fraction of AMZ8, AMZ9, and AMZ13 samples were further analyzed by the Fourier transform infrared (FTIR) spectroscopy at IC2MP, University of Poitiers. The study of OH-bending and OH-stretching vibration zones in middle infrared (MIR—400–4,000 cm⁻¹) is of deep interest for characterizing clay minerals (Farmer, 1974; Madejová et al., 2011). MIR spectra were acquired using a Nicolet iS50 FTIR spectrometer equipped with a potassium bromide (KBr) beamsplitter and a DTGS KBr detector. Spectra were obtained in transmission mode from KBr pellets; each spectrum is an accumulation of 100 scans acquired at 4 cm⁻¹ resolution. KBr pellets are a mixture of 1 mg of sample and 149 mg of KBr that was pressed for 5 min at 8 kbar and dried overnight in an oven at 120°C.

In situ major and trace element compositions. Quantitative major and volatile element concentrations of phosphate minerals were measured using a CAMECA SX-100 electron microprobe equipped with wavelength dispersive spectrometers at MAGE platform, University of Montpellier. The analysis of all samples was performed to geochemically characterize the phosphate composition and determine Ca abundances for LA-ICP-MS internal standardization. Electron probe microanalyses (EPMA) were performed with an acceleration voltage of 15 kV, 20 nA beam current, and a ∼1 µm focused beam. Additional information on the EPMA methodology and detection limits are detailed in Supplementary Method and Supplementary Table S1. Furthermore, trace element concentrations were determined by LA-ICP-MS using a ThermoFinnigan Element XR ICP-MS coupled with a Geolas platform housing a 193 nm Compex 102 laser from LambdaPhysik at AETE platform (OSU-OREME), University of Montpellier. The laser beam was characterized by a 6 J.cm⁻² energy density, 6 Hz repetition rate, and 50 µm spot size. LA-ICP-MS analyses were calibrated with NIST standard reference materiel 612 values (Pearce et al., 1997). BIR-1G standard was used as external standard. Data processing and reduction are detailed in Supplementary Method. LA-ICP-MS standard values and their corresponding standard deviation (1σ) and detection limits are reported in Supplementary Table S2. LA-ICP-MS measurements were realized close to the EPMA areas to carefully screen any possible weathering and diagenetic influences, using rare earth elements and yttrium (REEY) geochemistry (Supplementary Method for methods of calculation).

U-Pb analyses. AMZ8, AMZ9, and AMZ13 samples were investigated for U-Pb geochronology on sedimentary apatite, using a LA-ICP-MS at the GeOHeLiS analytical platform, University of Rennes. Detailed instrumental conditions of the U-Pb LA-ICP-MS analyses and analytical set-up are provided in Supplementary Table S3. Our data are originally uncorrected for common Pb due to the isobaric interference between ²⁰⁴Pb and ²⁰⁴Hg. More information about the analytical protocol can be found in Pochon et al. (2016). The primary apatite reference material used was Madagascar apatite standard (Chew et al., 2014; 473.5 ± 0.7 Ma), while Durango (McDowell et al., 2005; 31.44 ± 0.18 Ma) and McClure (Schoene and Bowring, 2006; 523.51 ± 2.09 Ma) apatite reference materials were analyzed as unknown to control reproducibility. The latter yielded ²⁰⁷Pb-corrected ages of 31.8 ± 0.3 Ma (n = 36) and 528.9 ± 3.3 Ma (n = 30), respectively (Supplementary Figure S1). Isotopic data of apatite standards, at 2σ confidence, are presented in Supplementary Table S4. Finally, petrographic images of studied samples are provided with all positions of in situ geochemical analyses (Supplementary Figure S2).

4 Sedimentary phosphate dating

We analyzed up to 30 phosphate grains for each of three MHA phosphorites. All U-Pb LA-ICP-MS data with corresponding 2σ uncertainties are reported in Supplementary Table S5 and plotted in Tera-Wasserburg diagrams using IsoplotR (Figure 2) (Vermeesch, 2018).

FIGURE 2

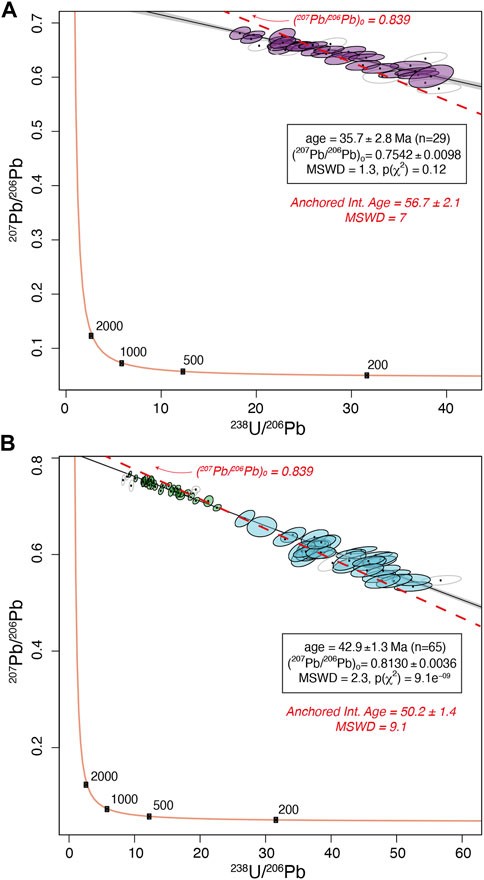

FIGURE 2. Tera-Wasserburg concordia diagrams for U-Pb dating of CFA in the Moroccan High Atlas. (A) AMZ13 sample. (B) AMZ9 (green) and AMZ8 (blue) samples. Black lines represent unanchored discordias. Following the Pb model of Stacey and Kramers (1975), red dashed-lines represent anchored discordias that were calculated with an initial (²⁰⁷Pb/²⁰⁶Pb)₀ ratio of 0.839, corresponding to an emplacement age of ∼60 Myr. Unfilled ellipses were excluded from age calculations. Ellipses and errors are reported at 2σ. MSWD: Mean Squared Weighted deviation.

Mean U concentrations of the investigated samples, 58.6 ± 5.7 ppm (1σ, n = 15), 45.1 ± 6.8 ppm (n = 12), 42.7 ± 9.6 ppm (n = 13) for AMZ8, AMZ9, and AMZ13, respectively (Supplementary Table S6), fall within the acceptable range suitable for U-Pb dating. A total of 108 U-Pb LA-ICP-MS measurements were conducted, all producing discordant results. The samples equally displayed a high proportion of common Pb with ²⁰⁷Pb/²⁰⁶Pb values ranging from 0.534 to 0.674, 0.697 to 0.766, and 0.579 to 0.681 for AMZ8, AMZ9, and AMZ13, respectively (Figure 2). Isotopic data for AMZ8 and AMZ9 plot along the same discordia, with a lower intercept date of 42.9 ± 1.3 Ma (MSWD = 2.3) (Figure 2B) and 35.7 ± 2.8 Ma (MSWD = 1.3) for AMZ13 (Figure 2A). Using an initial ²⁰⁷Pb/²⁰⁶Pb composition estimated from the crustal Pb evolution model of Stacey and Kramers (1975), a common Pb correction on the Tera-Wasserburg diagrams was also applied as significant amounts of common Pb are hosted in the MHA CFA. The modelled common Pb value was therefore anchored to a (²⁰⁷Pb/²⁰⁶Pb)₀ value of 0.839 (upper intercept) calculated for an age of 60 Ma (i.e., the expected age for the deposition of MHA phosphorites). The resulting lower intercepts of anchored discordia dates of 50.2 ± 1.4 Ma (MSWD = 9.1) and 56.7 ± 2.1 Ma (MSWD = 7) were inferred for the AMZ8-AMZ9 and AMZ13 samples, respectively. The MSWD of these anchored discordias are rather large (>7), which makes the corresponding lower intercept dates unreliable. Importantly, the U-Pb isotope values of phosphate grains show well-defined isochrons with a lack of significant scattering (Figure 2), suggesting that age constraints are robust. Nonetheless, the U-Pb dates are up to >15 Myr younger than the known late Danian to early Thanetian biostratigraphic ages (Foraminiferous NP4-NP6 Zones; Figure 1; El Bamiki et al., 2020). It is possible that the U-Pb ages of the MHA phosphorites are not related to the age of phosphate precipitation. We therefore screened for potential environmental controls and post-depositional processes that may have influenced the validity of the U-Pb dates.

5 Weathering and diagenetic screening

5.1 Nanoscale intergrowths between clay and phosphate minerals

Petrographic observations usually allow a better understanding of rock texture and mineral paragenetic relationships with indications of diagenetic alterations, if any (e.g., Middleton et al., 2003). SEM examinations reveal that the MHA phosphorites commonly consist of rounded and elongated phosphate peloids embedded in a clayey matrix (Figures 3A–C, 4A). Concavo-convex contacts between phosphate grains suggest a weak to moderate mechanical compaction (Figures 3A,B). Clay minerals are squeezed into pore between phosphate grains, which suggests that their formation predates compaction (Figure 3B). Rhombohedral dolomite, euhedral calcite crystals, and minor detrital grains, including quartz and titanium oxides, also compose the matrix (Figure 3C). In contrast to calcite, dolomite crystals exhibit partial dissolution features (Figure 3C). Finally, the interior of broken peloids shows high porosity occasionally filled by clay particles, as suggested by the presence of O, Si, Mg, and Al elements through EDX analysis (Figure 3D; Supplementary Figure S3A).

FIGURE 3

FIGURE 3. SEM images in back-scattered electron mode of Amizmiz phosphorites from the Moroccan High Atlas. (A) The phosphate grains are embedded in a dominantly clayey matrix in association with carbonate minerals. The P-rich grains experienced a weak to moderate degree of compaction as shown by the concavo-convex grain contacts (green arrows). (B) The clayey matrix is squeezed between phosphate peloids due to mechanical compaction (arrows). (C) Large and irregular phosphate peloid with numerous inclusions of quartz and fragmented shells. Orange and white arrows indicate traces left by in situ geochemical measurements and secondary dissolution features of rhombohedral dolomite, respectively. (D) Close up of image (C). Micrometric phosphate crystallites surrounded by a thin clayey structure within the peloid (arrows).

FIGURE 4

FIGURE 4. SEM images in secondary electron mode of Amizmiz phosphorites from the Moroccan High Atlas. (A) Rounded to slightly elongated phosphate peloids enclosed in a finely laminated matrix (arrows). (B) Broken phosphate grain that consists of densely packed crystallites. (C) The peloid surface is splotchy and occasionally draped by clayey layers (arrow). (D) Close up of image (C). High density of sphere-like phosphate crystallites intertwined with a clayey material filling the porosity. (E) Close up of image (B). Fan-shaped fiber bundle typical of sepiolite/palygorskite clay minerals. Arrows show the sphere-like phosphate crystallites. (F) Nm- to µm-long sepiolite/palygorskite fibers (purple arrows) in association with platy phyllosilicates (orange arrow) like smectite minerals.

The P-rich grains measure 365 ± 147 µm (1σ, n = 50) in size without irregular and discontinuous phosphate layers, suggesting poorly transported phosphorites and supporting their accumulation by an in situ winnowing environment (Pufahl and Grimm, 2003). Micrometric sphere-like crystallites with an average diameter of 0.53 ± 0.17 µm (1σ, n = 40) form the peloids (Figures 4B–D). Numerous pits are observed at the peloid surface, draped by a clay coating. Moreover, the clay matrix is characterized by unoriented phyllosilicate fibers and fan-shaped fiber bundles (Figures 4B,E,F), which are typical morphologies of sepiolite [Si₁₂O₃₀Mg₈(OH)₄(OH₂)₄·8H₂O] and palygorskite [Si₈O₂₀(Mg₂Al₂)(OH)₂(OH₂)₄·4H₂O] minerals (Knidiri et al., 2014; Kadir et al., 2016). Fiber particles have a micrometric length and a width of less than 0.2 µm (Figures 4E,F). The EDX spectrum of fibers mainly consists of Si and Mg with little Al and Fe, consistent with the suggested presence of Mg-rich clay minerals such as sepiolite and palygorskite (Supplementary Figure S3B). Considering that both fibrous minerals can appear together at the crystallite scale, morphological distinctions between sepiolite and palygorskite are, however, difficult at this magnification. Platy particles are also recognized in the matrix, which could be indicative of smectite-like swelling clays (Figure 4F). The association of smectite, sepiolite, and palygorskite has already been observed (Daoudi et al., 2009; Suárez and García-Romero, 2013; Knidiri et al., 2014; Kadir et al., 2016). The apparent clay coating texture on the MHA phosphate peloids and as pore filling point to authigenic rather than detrital origin, postdating phosphogenesis. Although the U-Pb measurements were performed on large phosphate peloids, our microscopic observations reveal that the U-Pb dates may also incorporate a mixed signal, caused by the unavoidable presence of nm-sized phyllosilicates that were introduced through highly porous spaces that existed between the phosphate crystallites.

5.2 Weak burial diagenesis

The CO₃²⁻ content of CO₃²⁻-rich fluorapatite may also serve as a good indicator of post-depositional alteration (McArthur, 1978; McClellan, 1980; McClellan and Van Kauwenbergh, 1991). Besides, the assemblage of clay minerals in sedimentary deposits, is mainly used as proxies for fluid-rock interactions, paleoclimatic, paleoenvironmental, and thermal diagenetic events in sedimentary rocks of Earth’s surface (Meunier, 2005; Wilson, 2013; Aubineau et al., 2021). Therefore, the integrated study of phosphate and clay mineralogy should provide pertinent information on secondary weathering and diagenetic history of the Amizmiz rock sequence.

Bulk XRD mineralogical data show that the MHA phosphorites are mainly composed of CFA as the main phosphate mineral with varying clay minerals, quartz, calcite, and dolomite occurring in relatively small proportions (Supplementary Figure S4A). The (211) and (300) strong reflections of CFA are shifted towards higher 2°θ values compared to fluorapatite, which suggests substitutions of CO₃²⁻ for PO₄³⁻ within CFA (LeGeros et al., 1967; Jahnke, 1984). Using an empirical equation between the CO₃²⁻ concentration and the difference in °2θ (Δ2θ) of the (004) and (410) CFA reflections (Schuffert et al., 1990), the estimated CO₃²⁻ contents of CFA in the MHA phosphate deposits (n = 3) range from 8.03 to 8.36 wt.% ± 0.5 % (Table 1; Supplementary Figure S4B). It should be noted that the presence of dolomite does not overestimate the CO₃²⁻ concentration of CFA (Aubineau et al., 2022). The clay-sized fraction of oriented preparations consists mainly of trioctahedral sepiolite and dioctahedral palygorskite clays (Figure 5). Sepiolite is defined by peaks at ∼12.06 Å, 7.47 Å, 4.46 Å, 3.72 Å, and 3.36 Å, while palygorskite is characterized by a strong peak at ∼10.52 Å as well as minor reflections at ∼6.48 Å, 5.39 Å, 4.46 Å, 3.68 Å, and ∼3.24 Å (Knidiri et al., 2014; Kadir et al., 2016). The position of their main reflections slightly varies from one sample to another, which is explained by heterogeneous Mg and Al contents in these minerals (Suárez et al., 2007; Suárez and García-Romero, 2013). Both sepiolite and palygorskite slightly expand to 0.2 and 0.1 Å, respectively, after saturation with ethylene glycol (Figure 5), which results from minute internal penetration of ethylene glycol into the channel of these fibrous clays (Wilson, 2013). In addition, swelling clays and mica are occasionally present in small amount.

TABLE 1

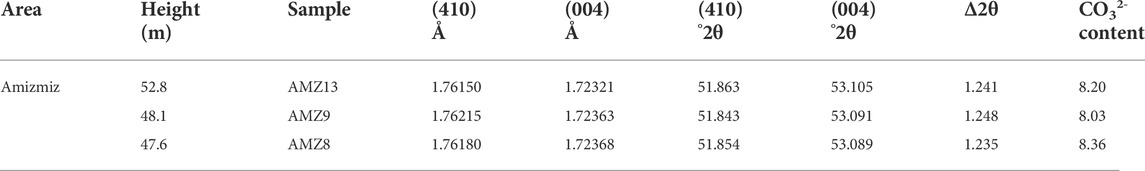

TABLE 1. XRD reflections and estimated CO₃^2- contents (wt.%) for the Amizmiz phosphorites. The carbonate concentration (wt.%) in CFA grains is calculated as 10.643x² − 52.512x + 56.986 where x stands for Δ2θ_(004–410) (Schuffert et al., 1990).

FIGURE 5

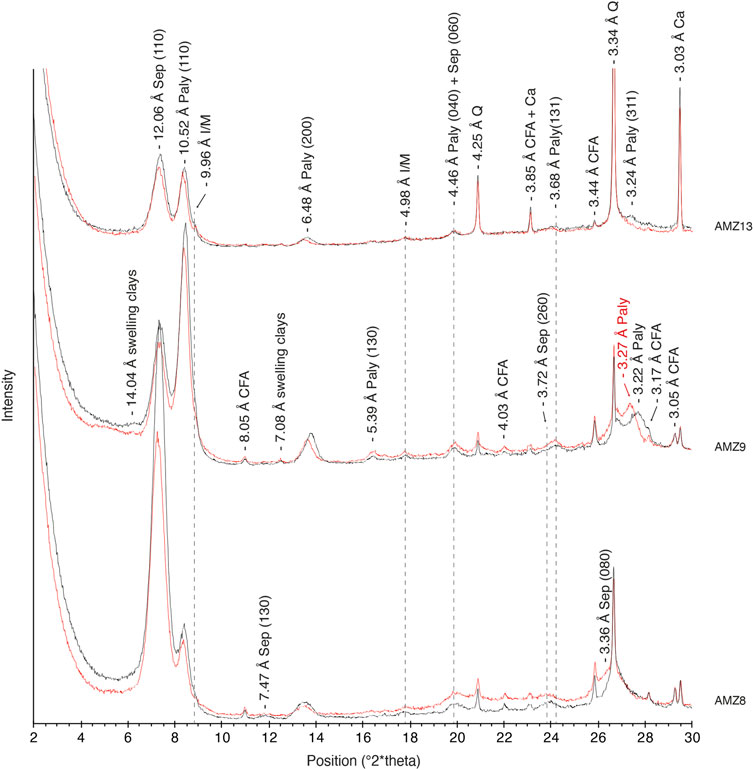

FIGURE 5. XRD patterns of the <2 µm clay fraction of Amizmiz phosphorites. Oriented preparations after airdrying (black lines) and glycolation (red lines). Sepiolite (Sep); Palygorskite (Paly) illite/mica (I/M); quartz (Q); carbonate fluorapatite (CFA); calcite (Ca).

FTIR analyses of the MHA clay-sized fraction were performed to further characterize the clay mineralogy in the OH-bending and OH-stretching vibration regions (Supplementary Figure S5). The OH bending bands, occurring at 443, 651 and 696 cm⁻¹, indicative of lattice, δSi–O, and δMg₃–OH vibrations, respectively (Supplementary Figure S5A), reveal the presence of trioctahedral Mg clay minerals. On the other hand, the 512 cm⁻¹ absorption band is attributed to δSi–O–^IVAl bending vibrations of dioctahedral Al clay minerals. Other spectra bands in the OH-bending region are dominated by the signature of phosphate minerals (568, 578, and 604 cm⁻¹), dolomite (712 cm⁻¹), and quartz (776 and 797 cm⁻¹) (Farmer, 1974; Comodi and Liu, 2000; Madejová et al., 2011). Furthermore, the OH stretching region shows one trioctahedral Mg clay mineral absorption band at 3,680 cm⁻¹, reflecting the νMg₃–OH vibrations, while two dioctahedral Al phyllosilicates bands at 3,613 and 3,621 cm⁻¹ are due to νAl₂–OH vibrations (Supplementary Figure S5B).

The OH stretching band at ∼3,560 cm⁻¹ is attributed to νFe³⁺Mg–OH or ν2Fe³⁺–OH vibrations (Wilson, 2013). A slight shift of this band towards higher or lower frequencies may represent substitutions of Fe²⁺ for Mg in octahedral layers. Finally, the ∼3,400 cm⁻¹ broad band is related to the presence of bound water molecules in phyllosilicates (Wilson, 2013). Considering the small contributions of swelling clays and micas in the MHA phosphorites (Figure 5), vibrational bands of trioctahedral clay structure, more intense in AMZ8 spectrum, are mainly related to sepiolite (Mg-rich clay), while dioctahedral clay structure vibrational bands are diagnostic of palygorskite Al- and Mg-rich clay. FTIR analyses point to an absence of distinguished features of other clay minerals, supporting XRD data.

Primary CFA are defined by a relatively uniform CO₃²⁻ content, from 5 to 8 wt.%, reflecting the equilibrium with seawater or porewaters in connection with the overlying water column (Nathan, 1984). Low-temperature alteration, including weathering and diagenesis can lead to a significant CFA decarbonation through time, resulting from the metastability of CFA with respect to fluorapatite (Chien and Black, 1976; McClellan and Van Kauwenbergh, 1991). Unaltered CFA from the Gantour basin, about 100 km northward of the studied section, contain on average 7.42 ± 0.74 wt.% (1σ, n = 5) of CO₃²⁻ (Aubineau et al., 2022), which is similar to our measured CO₃²⁻ concentrations. Moreover, the XRD patterns and MIR spectra, together with SEM observations revealed the occurrence of both sepiolite and palygorskite in the MHA phosphorites. Sepiolite and palygorskite authigenesis typically occur in lacustrine and lagoonal environments under semi-arid/arid and evaporitic climatic conditions (Singer and Galan, 1984). The formation of sepiolite-palygorskite has also been recorded in coastal marine environments during late Cretaceous to Eocene times since the climate was warm (Wilson, 2013). Specifically, these fibrous clay minerals precipitate from alkaline pH 8 to 9 and from saline waters with high Si and Mg activities (Weaver and Beck, 1977). Besides, increasing burial temperature (>100°C) during diagenesis leads to transformation of sepiolite-palygorskite (Weaver and Beck, 1977). Depending on the morphology of fibers, sepiolite and palygorskite may crystallize by direct chemical precipitation from evaporitic lake or supersaturated interstitial waters and by dissolution/recrystallization processes of a smectitic precursor (Wilson, 2013; Knidiri et al., 2014).

The absence of widespread swelling clays and fibrous sepiolite-palygorskite growing on platy smectite suggests that the transformation of smectite to sepiolite-palygorskite was not the dominant mechanism in the Amizmiz phosphorites. Secondary partial dissolution of rhombohedric dolomitic crystals could have resulted from changes in physiochemical conditions of the environments, which would have favored subsequent sepiolite and palygorskite precipitation (Weaver and Beck, 1977; Akbulut and Kadir, 2003; Kadir et al., 2017). Considering the low amount of dolomite in the Amizmiz samples, it is unlikely that all sepiolite-palygorskite-hosted Mg derived from the dissolution of dolomite. Rather, sepiolite and palygorskite chemically precipitated under supersaturated conditions. Importantly, the preservation of sepiolite and palygorskite, together with unaltered CFA, suggest that the Amizmiz sediments have undergone negligible diagenetic modifications.

5.3 Seawater-influenced chemical environments

While the composition of the major elements of phosphate grains has been used to document the chemistry of overlying seawater and porewaters of sediments (Glenn et al., 1988; Jarvis et al., 1994; Pufahl and Grimm, 2003; Arning et al., 2009; Aubineau et al., 2022), REEY in phosphate sediments are reliable tracers of paleo-oceanographic environments and post-depositional processes that affect sedimentary rock sequences (e.g., Reynard et al., 1999; Morad and Felitsyn, 2001; Shields and Stille, 2001; Kidder et al., 2003; Garnit et al., 2012; Kocsis et al., 2016; Lumiste et al., 2019; Ahmad et al., 2020; Yang et al., 2021; Baioumy and Farouk, 2022; Valetich et al., 2022). We studied the major and trace element geochemistry of the phosphate and clay minerals to decipher whether elemental composition could ascertain the chemical environments from which they formed.

5.3.1 Major element distribution in CFA peloids

The EPMA of the CFA grains show mixed chemical compositions between apatite and Mg-rich and Mg-poor clay minerals (Supplementary Figure S6; Supplementary Table S1). Consequently, the average structural formulae of CFA cannot be calculated. Quantitative major element mapping of the MHA phosphorites reveal homogeneous Ca and P—and thus CO₃^2- composition of the CFA grains (Supplementary Figure S7). Accessory minerals like sulfides are absent within the CFA peloids. Combined, these observations indicate uniform rate of organic matter remineralization and stable organic carbon export at the water-sediment interface during phosphogenesis, resulting in negligible local increase in alkalinity and porewater anoxic/sulfidic conditions (Pufahl and Grimm, 2003; Arning et al., 2009; Aubineau et al., 2022).

5.3.2 REEY distribution in CFA grains

The LA-ICP-MS results and corresponding REEY-based proxies are presented in Supplementary Table S6. Compared to unaltered modern and ancient phosphorites, PAAS-normalized REEY patterns (hereafter referred to as REEY_SN) of MHA CFA are relatively similar (Figure 6; Supplementary Figure S8). The uniformity of all REEY_SN patterns hints uptake of REEY from a geochemically uniform fluid. On the other hand, the MHA P-rich peloids are characterized by higher REEY_SN contents than the recent Namibian apatite grains and Cambrian phosphorites. Further, REEY_SN distribution in the MHA CFA grains are depleted in LREE_SN relative to HREE_SN, they contain negative Ce anomalies, slight positive Gd anomalies, and high Y/Ho ratios, characteristics pronounced for a seawater source (Bolhar et al., 2004; and references therein).

FIGURE 6

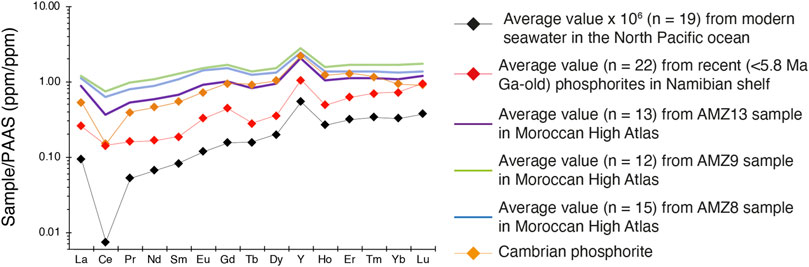

FIGURE 6. Average PAAS-normalized REEY values of Amizmiz phosphorites from the Moroccan High Atlas (blue, green, and purple lines) compared with the average REEY_SN spectrum of modern seawater (Alibo and Nozaki, 1999; black line), recent marine phosphorites (Lumiste et al., 2019; red line) and unaltered Cambrian phosphorite (IX-25, Shields and Stille, 2001; orange line). Seawater-like patterns in the Amizmiz samples are preserved with no MREE arching. Data from this study and Lumiste et al. (2019) were collected by LA-ICP-MS, while Shields and Stille’s (2001) and Alibo and Nozaki’s (1999) values come from bulk ICP-MS analyses. PAAS values are from Taylor and McLennan (1985).

None of the CFA grains display the “bell-shaped” MREE enrichment pattern (Figure 6; Supplementary Figure S8) diagnostic of intensive diagenetic REE scavenging (Shields and Stille, 2001). Similarly, the mean bell-shaped index, which assesses the degree of middle REE enrichment, is 1.12 ± 0.09, 1.08 ± 0.05, and 0.99 ± 0.04 for the AMZ8, AMZ9, and AMZ13 samples, respectively, consistent with the absence of strong diagenetic influence. Moreover, (Sm/Yb)_SN and (Sm/Pr)_SN ratios plot on the HREE enriched field (Figure 7A). Specifically, (Sm/Yb)_SN averaged 0.79 ± 0.12, 0.77 ± 0.07, and 0.62 ± 0.05 for the AMZ8, AMZ9, and AMZ13, respectively, with corresponding averaged (Sm/Pr)_SN ratios of 1.33 ± 0.09, 1.29 ± 0.06, and 1.28 ± 0.04, respectively. The (Ce/Ce*)_SN vs. (Pr/Pr*)_SN diagram shows that the samples display true negative Ce anomalies (Figure 7B), taken to reflect oxygenated seawater and porewater conditions.

FIGURE 7

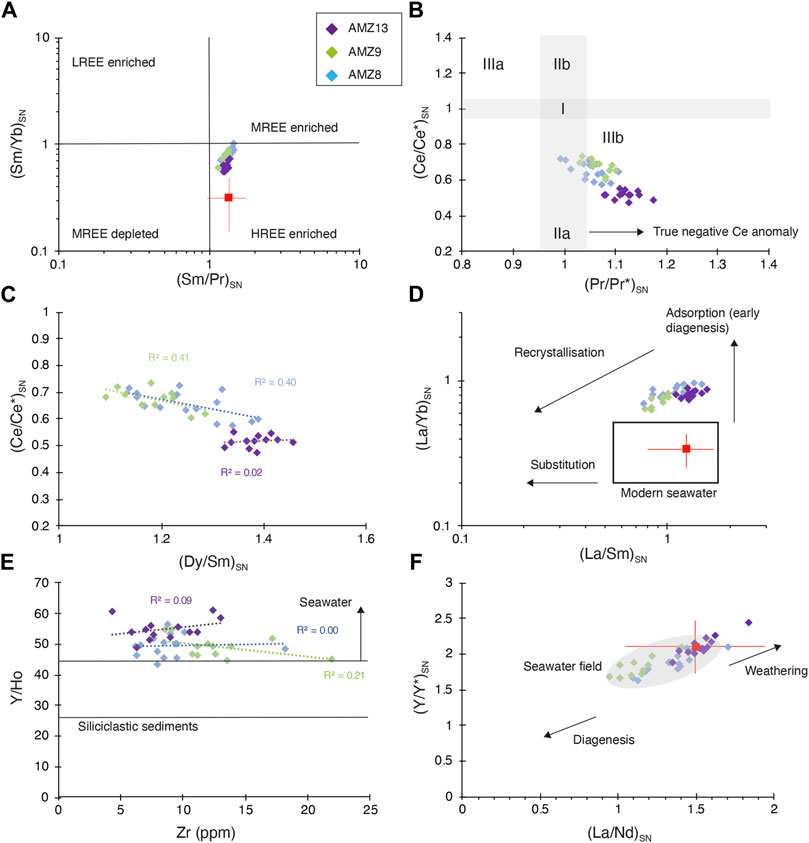

FIGURE 7. REEY cross-plots highlighting the effect of both depositional setting and diagenesis. Mean REEY_SN value (n = 22, 1σ) of unaltered, Plio-Quaternay Namibian phosphorites is shown by the red square (Lumiste et al., 2019). (A) (Sm/Yb)_SN vs. (Sm/Pr)_SN, after Garnit et al. (2012). Light (La to Nd), Middle (Sm to Dy), and Heavy (Ho to Lu) REE referred to as LREE, MREE, and HREE, respectively. (B) Ce anomaly vs. Pr anomaly, after Bau and Dulski (1996). Field (I) no La and Ce anomalies; Fields IIa and IIb: apparent negative and positive Ce caused by positive and negative La anomaly, respectively; Fields IIIa and IIIb: true positive and negative Ce anomaly, respectively. (C) Ce anomaly vs. (Dy/Sm)_SN, after Shields and Stille (2001). (D) (La/Yb)_SN vs. (La/Sm)_SN, after Reynard et al. (1999). (E) Y/Ho vs. Zr, after Bolhar et al. (2004). (F) Y anomaly vs. (La/Nd)_SN, after Shields and Stille (2001). PAAS values are from Taylor and McLennan (1985).

A positive La anomaly, causing apparent negative Ce anomaly, is sometimes observed in a few AMZ8 and AMZ9 grains. Importantly, the lack of strong correlations between (Ce/Ce*)_SN and (Dy/Sm)_SN in the MHA samples indicates that the negative Ce anomalies were not controlled by diagenetic fluids (Figure 7C) (Shields and Stille, 2001). However, a (La/Yb)_SN vs. (La/Sm)_SN plot suggests a weak or ‘early’ diagenetic adsorption of REE by the CFA grains cannot be ruled out (Figure 7D; Reynard et al., 1999). (La/Yb)_SN ratios, ranging from 0.63 to 0.98, are slightly higher than those of modern seawater, while (La/Sm)_SN ratios, between 0.85 and 1.57, are similar (Shields and Stille, 2001). The MHA CFA peloids display uniform and slightly positive Eu and Gd anomalies with (Eu/Eu*)_SN values of 1.23 ± 0.04, 1.18 ± 0.05, and 1.25 ± 0.06 as well as (Gd/Gd*)_SN values of 1.30 ± 0.03, 1.26 ± 0.04, and 1.31 ± 0.04 for the AMZ8, AMZ9 and AMZ13 samples, respectively (Figure 6; Supplementary Figure S8; Supplementary Table S6). Strong positive Eu anomalies (>2), usually promoted by high-temperature hydrothermal fluxes (>200°C) (Bolhar et al., 2004; Planavsky et al., 2010), are not observed in our samples. A Gd enrichment relative to the neighboring Eu and Tb rather implies a seawater origin (De Baar et al., 1985). On the other hand, Gd enrichment could simply reveal differences in surface complexation compared with Eu and Tb (Kim et al., 1991). The average Y/Ho ratios of the AMZ8, AMZ9, and AMZ13 samples are 49.56 ± 3.51, 49.18 ± 3.37, and 54.98 ± 3.54, respectively (Figure 7E), which is above the typical seawater ratio of 44 (Bolhar et al., 2004). Such high Y/Ho values reflect the lower affinity of Y towards metal oxides in oxygenated seawater (Bau et al., 1997; Planavsky et al., 2010). The absence of mixing trend towards Y/Ho molar ratio of ∼26, characterizing the terrestrial rocks (Bolhar et al., 2004), indicates that the CFA-hosted REEY concentrations are unlikely to be sourced from clay minerals or Fe–Mn oxyhydroxides during early diagenesis. Similarly, Y/Ho values do not correlate with Zr in the MHA CFA peloids (Figure 7E), suggesting no siliciclastic detrital influence on the REEY composition of CFA peloids. Finally, (Y/Y*)_SN and (La/Nd)_SN ratios plot within the seawater field, with the exception of three peloids (Figure 7F). Y anomalies have average values of 1.85 ± 0.15, 1.84 ± 0.15, and 2.11 ± 0.14, while (La/Nd)_SN average values are 1.32 ± 0.18, 1.14 ± 0.15, and 1.54 ± 0.12 for the AMZ8, AMZ9, and AMZ13 samples, respectively. Y anomaly and (La/Nd)_SN values are expected to increase during weathering due to the lanthanide tetrad effect (Bau et al., 1996), resulting in the preferential retention of the more stable La, Gd, and Y elements. Also, diagenesis lowers the La content and reduces the Y anomaly (Shields and Stille, 2001), which is not observed in our samples.

In light of these considerations, we interpret the observed REEY_SN distribution in the MHA CFA peloids to record a weak or ‘early’ diagenetic adsorption from oxic to suboxic, seawater-dominated pore fluids with a limited effect of detrital material. The absence of MREE enrichment precludes extensive or ‘late’ diagenetic recrystallization (Reynard et al., 1999) and influence of anoxic porewaters (Haley et al., 2004; Kocsis et al., 2009). The removal of non-tetrad REE is not shown by our dataset, which supports no post-depositional weathering influence. High hydrothermal activity, attributed to strong Eu_SN enrichment, is not recorded by the CFA grains. Thus, the REEY_SN patterns mirror near-pristine marine composition, implying that post-depositional alterations on the U-Pb geochronometer were unlikely.

5.3.3 Trace element distribution in clay minerals

LA-ICP-MS analyses of the clay matrix were also conducted to decipher whether phyllosilicates could have strongly influenced the U-Pb chronometry (Supplementary Table S7). Detrital clay material usually has a flat PAAS-normalized REEY pattern with no anomaly diagnostic of marine environments (Tostevin et al., 2016). REEY_SN patterns of the MHA clay minerals are similar to those of the CFA grains (Figure 8), although their REEY_SN contents are much lower by up to ≤10-fold, implying that the clay matrix formed from seawater-dominated pore fluids. Alternatively, the presence of CFA crystallites in the matrix (Figures 3A–C, 4E,F) could have overprinted clay REEY_SN patterns. Importantly, the U concentrations of clays average 3.11 ± 1.77 ppm (n = 12), which is radically smaller than those of CFA grains (49.35 ± 10.33 ppm, n = 40). The observed composition in clay minerals could result from lower adsorption rates and affinity for REEY and U from seawater relative to the phosphate minerals (Valsami-Jones et al., 1998; Trueman and Tuross, 2002; Moldoveanu and Papangelakis, 2012; Kunhikrishnan et al., 2022). Thus, if clay mineral-hosted uranium had contributed to the U-Pb date estimates, this influence would have been weak.

FIGURE 8

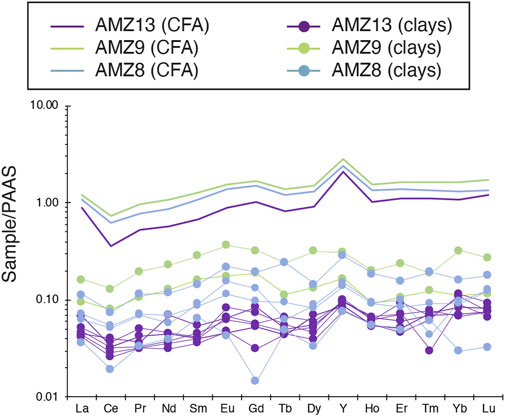

FIGURE 8. REEY_SN patterns of Amizmiz samples from the Moroccan High Atlas. Data comparisons between CFA peloids (average values) and clay matrix. REEY_SN patterns of clay minerals are not strongly different from those of CFA grains. However, values are, at least, ten times lower. PAAS values are from Taylor and McLennan (1985).

6 Understanding the U-Pb CFA dating

U-Pb ages of the MHA phosphorites, which are by far younger than the expected late Danian to early Thanetian biostratigraphic ages, do not obviously record phosphate precipitation at the water-sediment interface. Therefore, our studied samples were subjected to closer scrutiny. The loss of U decay products is unlikely as most of our U-Pb LA-ICP-MS data are aligned along robust discordias.

The petrographic, mineralogical, and geochemical screens reveal the presence of sepiolite/palygorskite clay minerals in close association with the phosphate material; both inside and outside, precipitated from high alkaline-saline seawater under hot arid climatic conditions, following either storm and bottom current wash-over transport to the inner platform or sea-level fall. The morphology of phosphate peloids, however, excludes the influence of significant hydrodynamic transport. The precise timing of clay formation after phosphogenesis remains uncertain, but would have occurred when the specific chemical conditions for sepiolite-palygorskite authigenesis were met. The depositional environment in the Amizmiz sequence becoming shallower during the late Paleocene to early Eocene, together with global warming events at that time (Zachos et al., 2001), could have been suitable for precipitation of sepiolite-palygorskite. Thus, the Mg-rich phyllosilicates in the late Danian-early Thanetian phosphorites would have crystallized from supersaturated interstitial conditions several million years (<5 Myr) after phosphate formation. High porosity in phosphate peloids (Mänd et al., 2018; Lumiste et al., 2019; Aubineau et al., 2022), could not have prevented circulation of fluids between CFA crystallites. Considering the lower amount of clays compared to CFA within the analyzed LA-ICP-MS volumes, together with low clay-hosted U contents, these Mg-rich phyllosilicates are, however, unlikely to influence the U-Pb dating. Overall, the reported U-Pb dates do not record the clay authigenesis.

REEY are usually released from organic and oxyhydroxide particulates through redox-driven organic matter remineralization and reductive dissolution of oxyhydroxides in sediments (Jarvis et al., 1994). REEY in porewaters may be either incorporated into the crystal lattice at the time of apatite precipitation or absorbed onto their surface sites during early diagenesis (Reynard et al., 1999). Rates of REEY uptake into bioapatite are presumably fast on geological timescales, <10⁵ years (Trueman and Tuross, 2002; Kohn, 2008), which implies that the REEY composition of phosphate minerals mirrors that of the medium in which they precipitate within the next hundreds of thousands of years. As long as typical seawater-like REEY_SN pattern is preserved, REEY_SN patterns of phosphate minerals are therefore interpreted to reflect ambient seawater-dominated pore fluids during early diagenesis. In addition, REEY enrichments in phosphorites is time-independent (Figure 6; Reynard et al., 1999; Baioumy and Farouk, 2022) and controlled by the REEY composition of seawater, redox-controlled mechanisms during early diagenesis, burial, or post-depositional processes (McArthur and Walsh, 1985; Haley et al., 2004; Lécuyer et al., 2004; Kocsis et al., 2009).

Also, the REEY_SN compositions of the MHA samples are strongly enriched by several orders of magnitude (>10⁶) with respect to seawater, which may point to long-term interactions with seawater-dominated porewaters. Based on the REEY geochemistry from this study, adsorption mechanism would have been the dominant process of REEY uptake onto the MHA CFA crystallite surfaces, resulting in a slight fractionation of (La/Yb)_SN ratios compared to seawater. The degree of adsorption may have controlled differences of REEY patterns and concentrations in phosphorites (Reynard et al., 1999), explaining the slight heterogeneity of MHA REEY_SN patterns relative to trends observed for unaltered phosphorites of different ages. Combined to adsorption, diffusion of REEY takes place in phosphate biominerals as a consequence of the large surface to volume ratio of the µm-sized phosphate crystals (Millard and Hedges, 1996; Kohn, 2008). As we have shown, such tiny crystallites characterized the MHA phosphate peloids. Furthermore, diffusion models predict homogeneous REEY concentrations in phosphate minerals (Millard and Hedges, 1996; Kohn, 2008). There are no significant differences in REEY concentrations from the edge to the core of the MHA phosphate peloids, with the exception of one sample (Supplementary Table S6), which likely indicates the presence of open system diffusion and re-equilibration with seawater-dominated porewaters for extended intervals.

Because adsorption, desorption and diffusion processes affect the distribution of REEY on the crystallite surfaces, it is reasonable to assume that a wide range of less immobile elements (e.g., U) would have behaved similarly. Besides, the crystallographic position of U in sedimentary CFA is uncertain. U may be incorporated in the CFA lattice or adsorbed onto the crystallite surfaces (Jarvis et al., 1994). Combined, this raises questions on the effectiveness of the U-Pb chronometer to precisely deduce the age of sedimentary phosphate precipitation, especially where minute phosphate crystals are present. If the U-Pb chronometry represents ages of phosphate precipitation, the CFA crystallites should behave as a closed system over time, with U uptake limited to the time of CFA formation. However, our U-Pb dating and geochemical investigation suggest that trace elements uptake may have not been limited to the first hundreds of thousands of years.

Similarly, Lu-Hf dating of bioapatite have yielded robust but younger ages >30 Ma than the expected biostratigraphic depositional ages (Kocsis et al., 2010; Herwartz et al., 2011, 2013), which is thought to result from the specific apatite crystallite size facilitating adsorption, desorption and diffusion processes and thus long-term open system behavior (e.g., Herwartz et al., 2013). Open system behavior over a prolonged timescale would have caused a REE uptake over millions of years in fossils (Kocsis et al., 2010; Herwartz et al., 2011, 2013), perturbing the Lu-Hf system. Trueman and Tuross (2002) suggested that the rapid infilling of pore spaces and intercrystalline porosity by mineral authigenesis would probably prevent diffusion of elements at the crystallite surface of apatite minerals. In other words, closure of the inter- and intragranular porosity would have lowered the P-rich crystallites-porewater interactions during diagenesis, which, in turn, would have likely protected crystallite surfaces from further exchange. The inherent porous structures of CFA peloids (Mänd et al., 2018; Lumiste et al., 2019), together with the crumbly MHA phosphate rocks, denote that the clay authigenesis alone, occurring rapidly after phosphogenesis on the geological timescale, would have not been sufficient to decrease both the pore spaces and intercrystalline porosity in the MHA phosphorites. We, thus, hypothesized that the µm-sized MHA CFA crystallites would have had the ability to chemically re-equilibrate with ambient medium upon long-term interactions with seawater-dominated fluids.

7 Significance of U-Pb ages of sedimentary CFA

Radiometric U-Pb LA-ICP-MS dating of Phanerozoic phosphorites are scarce and not well unconstrained (Molnár et al., 2018; O’Sullivan et al., 2021), probably because sedimentary apatite group minerals may be subject to alteration that could lead to diagenetic addition and loss of U and radiogenic daughter isotopes (e.g., Balter et al., 2008; Romer, 2001).

Robust U-Pb dating associated with primary CFA grains and seawater-like REEY_SN patterns in the MHA granular phosphorites are clearly unique data. While phosphate peloids rapidly form as little as few years after nucleation (Burnett et al., 1988), intense adsorption and diffusion processes would have significantly delayed the closed system behavior. Such considerations are particularly important because the MHA phosphate grains were continuously flushed by seawater-dominated fluids, which would have accounted for desorption of old bound U into the phosphorites as new U atoms from porewaters would have replaced the older ones. The 15–25 Myr time gap between biostratigraphic and chronological ages corresponds to a long-term open system behavior that needs to be taken with caution when interpreting geochemical data.

To our knowledge, two geological events could have inhibited the phosphate-porewater interactions. First, occlusion of pore spaces and intercrystalline porosity by mineral precipitation combined with rock compaction, resulting in sediment lithification, may have helped to lock the U-Pb system. Overall, lithification partly depends on sedimentation rates that are often low in phosphogenesis zones, estimated for example to be <20 m/Myr in the Peru Margin (Burnett et al., 1988; Filippelli, 1997) and consistent with the estimated sedimentation rates for the Amizmiz phosphate series. Consequently, a low sedimentation rate would have possibly amplified the long-term open system behavior of the MHA CFA crystallites. Moreover, in northwest Africa, the first stage of shortening and uplift of the Atlas domain possibly occurred during the middle to late Eocene (Michard et al., 2008; Frizon de Lamotte et al., 2009), which is in good agreement with our U-Pb dates of 42.9 ± 1.3 Ma (AMZ8 and AMZ9) and 35.7 ± 2.8 Ma (AMZ13). Therefore, the U-Pb ages of CFA could have recorded the beginning of the Atlas uplift. This would have drained the basin, preserving the recorded open system interaction of seawater with the shallow water sediments before final disconnection from seawater. Both lithification and Atlas orogeny may also have concurrently occurred.

Regardless of the cause that led to CFA crystallites assuming a closed system behavior, the REEY compositions of the MHA CFA escaped overprinting by post-depositional processes after phosphate precipitation, indicating that the origin of interstitial pore fluids was unchanged. Oxic to suboxic seawater-dominated porewaters were predominant until the system was closed by either lithification or drainage associated with the Atlas orogeny. In spite of evidence for temporal occurrences of lagoonal to deltaic sedimentation in the aftermath of Thanetian in the MHA (El Bamiki et al., 2020), fluids with strong seawater characteristics would have continuously percolated to the underlying phosphate-rich sediments, until definitive continentalization during the middle to late Eocene orogenic uplift. If true, the inferred U-Pb ages might be pointing to the early stages of the Atlas orogeny, marked by the uplifting of sediments and permanent termination of the exposure of the MHA grains to seawater.

The sedimentary thickness corresponding to a minimum time lapse of 15 Myr between biostratigraphic and chronological ages can be approximately estimated in the Amizmiz sequence. With the available biostratigraphic data, it approximates at least 100 m but could be twice as thick, which implies extensive percolated fluids from seawater. In modern environments, the microbially influenced conversion of smectite to illite is possibly promoted by K-bearing seawater fluids percolating down to 700 m below the seafloor through terrigenous turbidites and mudstones (Kim et al., 2019). We, thus, propose that a shallow marine sediments platform on the eastern passive margin of the central Atlantic Ocean remained opened and in stable connection with oxygenated seawater for at least 15 Myr after the Paleogene phosphogenic events. In the Amizmiz carbonates and marls, these redox conditions of seawater are further supported by the presence of abundant Thalassinoides galleries that reflect burrow ventilation and oxygen uptake by animals (El Bamiki, 2020; El Bamiki et al., 2020).

8 Conclusion

This study does not support the application of U-Pb CFA dating to constrain the chronostratigrahy of sedimentary phosphate rock sequences. The data however suggest that when combined with geochemical screening of CFA grains and the surrounding matrix and cement composition, U-Pb dating of CFA grains can be used to reconstruct the geodynamic and redox evolution of seawater as well as shallow sediment porewater fluids, long after deposition. This is attributed to the fact that the intrinsic feature of the nm- to µm-sized crystallites of sedimentary apatite group minerals allows efficient adsorption and diffusion to take place. This behavior enables real-time recording of seawater-sediment history, long after deposition of the CFA minerals, the drawback being that past events are erased. Therefore, it is impossible to predict the exact seawater conditions under which the grains initially formed. Importantly, extensive or “late” diagenetic alteration is not required to explain the observed time gap. Nonetheless, important information can be retrieved, including the age of closed system behavior and thus of the processes responsible for it. Considering the low sedimentation rate in upwelling-related phosphogenic areas, a further question is whether U-Pb dating of sedimentary CFA peloids in non-upwelling, continental margin environments under high sedimentation rate (e.g., Ruttenberg and Berner, 1993), yields the expected stratigraphic age. Alternatively, larger CFA crystallite sizes should be targeted for U-Pb dating (Herwartz et al., 2013).

The open system behavior of µm CFA crystallites, as suggested by our results, limits the use of phosphorite-hosted REEY as paleoseawater proxies for paleoceanographic, taphonomic, and paleoenvironmental reconstructions. If sedimentary CFA behaves as closed system millions of years after precipitation, REEY will be inherited from diachronous seawater-connected fluids. Petrography, mineralogy, and trace element geochemistry have barely helped to decipher how long the open system behavior lasted in this study. In contrast, because the U-Pb geochronometer for CFA grains is shown to be useful in constraining the extent of U-Pb exchange in sedimentary phosphate-rich environments, it is proposed as a geodynamic and seawater-sediment porewater fluid chronometer capable of recording real-time events long after sediment deposition, as a function of system closure time.

Data availability statement

The original contributions presented in the study are included in the article/Supplementary Material, further inquiries can be directed to the corresponding author.

Author contributions

JA, FP, ECF, and MS contributed to conception and design of the study. JA, OM, FB, and MP were involved in the data acquisition. JA, FP, ECF, REB, FB, MP, and MS wrote the manuscript. REB and MS contributed to the fieldwork. All authors read and approved the submitted version.

Acknowledgments

We would like to thank the support of Mohammed VI Polytechnic University (UM6P), University of Montpellier (UM) (UM6P-UM specific agreement n°UM 190775 relating to the UM6P-UM/CNRS framework agreement n◦ UM 190759) and, OCP S.A. (OCP) (OCP-UM6P specific agreement n◦ 7 “Multi-scale distribution of minor and trace elements in Moroccan phosphate deposits” relating to the OCP-UM6P framework agreement in Sciences and Technology). Es-Said Jourani, former Director of OCP Geology, and Jamal Amalik, OCP Innovation, are warmly thanked for their constant help and support of collaborative projects between OCP, UM6P, and UM. We specially thank Paul Antonio (UM) for aiding in the construction of Tera-Wasserburg diagrams. Olivier Bruguier, Frédéric Fernandez, and Bernard Fraisse are thanked for their technical assistance during analytical works performed at, respectively, AETE, MEA, and RRXG platforms of UM. We deeply acknowledge Claude Laforest for the preparation of high-quality polished slab sections at IC2MP, University of Poitiers (UP). The authors specially thank Abderrazak El Albani and Alain Meunier for scientific support and Claude Fontaine for laboratory support at IC2MP (UP). The authors also thank financial support from the European Union (ERDF) and Région Nouvelle Aquitaine.

Conflict of interest

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

Publisher’s note

All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.

Supplementary material

The Supplementary Material for this article can be found online at: https://www.frontiersin.org/articles/10.3389/feart.2022.997008/full#supplementary-material
