Fluids play a major role in facilitating igneous/metamorphic processes in the Earth’s crust and mantle. In this study, we investigate the nature and composition of fluids in Earth’s interior by studying the lower crustal rocks. We compare accessory minerals (e.g., apatite, monazite, allanite, and titanite), their texture, mineral reactions and composition among regionally distributed metamorphosed mafic and felsic rocks representing the roots of Neoarchean arc magmatism from the Nilgiri Block of the Southern Granulite Terrane in India. Regional trends in accessory minerals show the formation of monazite, allanite, and titanite in the felsic rocks. Apatite is depleted in REEs in all the rock types, irrespective of the difference in their whole-rock chemistry. Textural features and mineral reactions show that these accessory minerals were affected by fluids present in the lower crustal conditions. By comparing our results with those from previous experimental results, we further show that acidic CO2-H2O-HCl-HF fluids stable in lower crustal conditions could have resulted in these chemical and textural features. Dielectric constant of water is high (10–35 compared to lower crustal conditions) in high-pressure and low-temperature conditions of subduction zones and the upper mantle. Such conditions would enhance dissociation of HCl (compared to lower crust) and result in acidic fluids during dehydration reactions in subduction zones and in the upper mantle. Our results have important implications in understanding the nature and composition of fluids in Earth’s interior and would be helpful to model the tectonic and deep geochemical processes in both early and modern conditions in planetary interiors.
Introduction
Magmatic and metamorphic processes release fluids (aqueous or supercritical) to deep lithosphere and mantle (Fyfe et al., 1978; Ague, 2014). Physical and chemical properties of fluids in the Earth’s interior are key to model and interpret deep geochemical processes and element cycling. Water is predicted to be a major component in fluids in the Earth’s crust and mantle (Thompson, 1992). Thermodynamic models indicate that low dielectric constant of water causes association of solutes (NaCl and HCl) in water at deep conditions (Eugster, 1986; Pan et al., 2013). The experimental and thermodynamic models of deep Earth processes suggest mixing of CO2 and NaCl (more stable than components of HCl) in water, and could form immiscible H2O-CO2 and saline fluids (Manning, 2018). Recent molecular simulation studies on speciation in H2O-CO2 mixture at high temperature (T > 200°C) high pressure (P > 2 GPa) conditions predict that H2O-CO2 mixing causes an increase in the concentration of carbonic acid (aqueous H2CO3) compared to aqueous CO2 and suggest that fluid−rock interactions in Earth’s subduction zones and upper mantle may occur in an acidic environment if proton hopping is possible (Pan and Galli, 2016; Stolte and Pan, 2019). Such fluids have important implications in mass transport and release of H2O-CO2 from subduction zones and upper mantle (Stolte and Pan, 2019; Castillo, 2022). It is challenging to test these results due to limitations in availability of natural fluid inclusions representing deep Earth, and also experimental, modelling, and spectroscopic methods to detect and interpret speciation in H2O-CO2-Cl system in high P-T conditions. Our approach to improve our knowledge is exploring factors controlling mineral reactions and partitioning of fluid components in natural minerals in the Earth’s interior (Samuel et al., 2019; Kwon et al., 2020; Noh et al., 2020; Samuel et al., 2021).
In a previous study, we used the regional variations in high-halogen-bearing natural apatite grains to suggest presence of acidic fluids in the lower crust (750–900°C and 0.8–1 GPa) (Samuel et al., 2021). In this study, we provide further evidence of such conditions using accessory mineral reactions. We evaluate the role of fluids in lower crustal reactions of accessory minerals (i.e., apatite, monazite, titanite and allanite) using their composition, textural relationships and by comparing our results with previous experimental results. Our samples are from a tilted cross-section of arc magmatic root consisting of amphibolite, pyroxenite, metagabbro, and dioritic–tonalitic rocks in the southern part of Peninsular India (Samuel et al., 2014; Samuel et al., 2019). Based on our results we show that acidic CO2-H2O-HCl-HF fluids, in the absense of saline fluids or carbonic acid, could have facilitated solid state reactions of accessory minerals present in the lower crustal conditions. We further use this result to show the possible range of P-T conditions where such acidic fluids could be stable in Earth’s lower crust, subduction zones, and upper mantle.
Geological setting
Dharwar Craton and lower crustal blocks
Southern part of the Peninsular India is composed of the Paleo- to Neoarchean Dharwar Craton in the north and the mosaic of Archean-Proterozoic lower crustal blocks accreted to it towards the south (Figure 1; Radhakrishna, 1989; Chadwick et al., 2000; Jayananda et al., 2018; Wang et al., 2020; Wang and Santosh, 2019; Mathew et al., 2022). These lower crustal blocks include the Mesoarchean Coorg Block, and the Neoarchean Nilgiri (NIL)-Biligirirangan (BR)-Shevaroy (SH)-Namakkal (NM)-Madras (MD) Blocks (Peucat et al., 2013; Santosh et al., 2013; Samuel et al., 2014; Santosh et al., 2015; George et al., 2019; Ratheesh-Kumar et al., 2020; Santosh, 2020; Yang et al., 2021; Anoop et al., 2022) adjacent to the Dharwar Craton. The crust-scale Palghat-Cauvery Suture/Shear System (PCSS) separates the Mesoarchean to Neoarchean blocks adjacent to the Dharwar Craton in the north from younger blocks in the south (Chetty et al., 2003; Santosh et al., 2009; Santosh et al., 2017; Gao et al., 2021; Yang et al., 2022; Yu et al., 2022). Major rock types in Mesoarchean to Neoarchean blocks to the south of the Dharwar Craton and north of the PCSS (Figure 1) mostly have metasediments, banded iron formation, pyroxenite, gabbroic, and tonalitic to granodioritic composition and undergone granulite to amphibolite facies metamorphism 2500–2450 Ma ago (Peucat et al., 2013; Santosh et al., 2013; Samuel et al., 2014; George et al., 2019; Ratheesh-Kumar et al., 2020; Santosh, 2020; Yang et al., 2021).
![www.frontiersin.org](https://www.frontiersin.org/files/Articles/992900/feart-10-992900-HTML/image_m/feart-10-992900-g001.jpg)

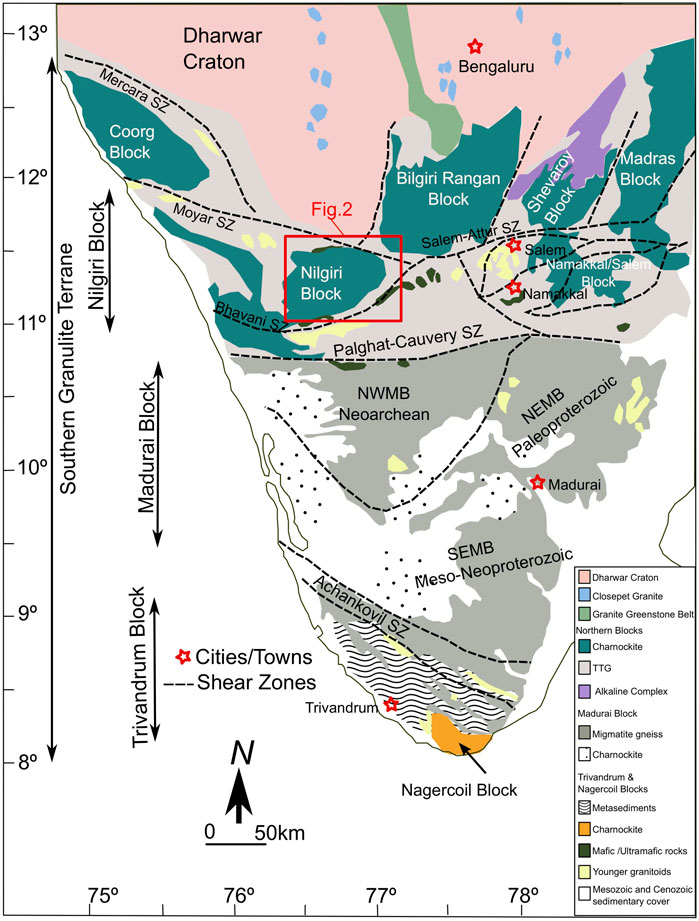

FIGURE 1. Regional geology and tectonic framework of southern India (modified after Samuel et al., 2018). The red box outlines the study area in the Nilgiri Block.
Nilgiri Block
For this study we use mafic and felsic samples from the lower crustal sections of Nilgiri Block, representing a triangular prism of crust uplifted up to ∼2500 m above sea level (highlands) in the eastern side and ∼900 m above sea level (lowlands) in the western part and along the shear zones (Figure 2). This block is bounded by two major crustal scale shear zones: the Moyar shear zone to the north and the Bhavani shear zone to the south (Bhaskar Rao et al., 1996; Raith et al., 1999; Meissner et al., 2002). Both shear zones converge at the eastern tip of the Nilgiri Block, and extend to the east as the Salem-Attur shear zone.
![www.frontiersin.org](https://www.frontiersin.org/files/Articles/992900/feart-10-992900-HTML/image_m/feart-10-992900-g002.jpg)

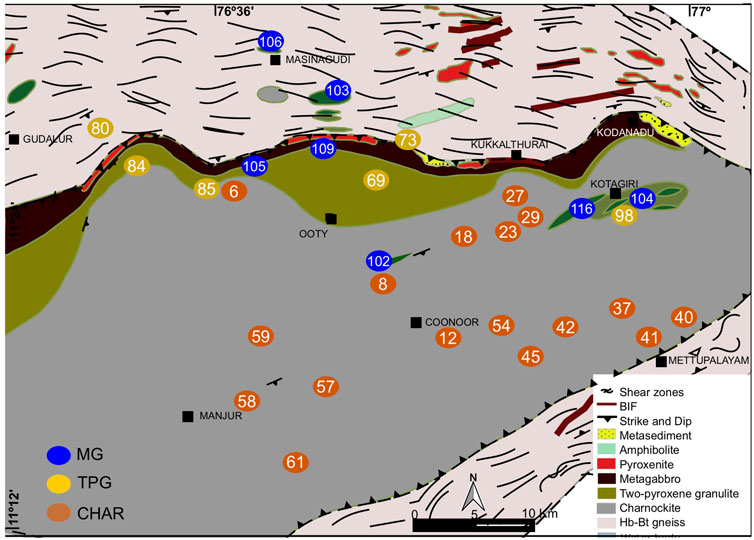

FIGURE 2. Geological map of the Nilgiri massif (modified after Samuel et al., 2021). Sample locations annotated by sample numbers are plotted on the map. The numbers are the same as those used in Samuel et al. (2021), and are also listed in the Supplementary Table S1. CHAR- charnockite samples, TPG- two-pyroxene granulite samples, and MG- metagabbro samples. This figure is created using QGIS 2.6.1 (https://www.qgis.org/en/site/) and modified using Inkscape version 0.92.2 (https://inkscape.org).
The Nilgiri highlands are characterized by metasediments, banded iron formation, amphibolite, pyroxenite, metagabbro in the north, two-pyroxene granulite in the transition zone, charnockite in the central and southern parts (Samuel et al., 2014; Samuel et al., 2015; Samuel et al., 2016; Samuel et al., 2018). The lowlands in the western part, and in the shear zones present towards the south and north of highlands consist of hornblende-biotite gneiss (Figure 2) (Samuel et al., 2014). All these rock types consist of rounded to sub-rounded minerals, and show additional textural indication (see below) of high-grade metamorphism. Metagabbro consists of garnet and clinopyroxene porphyroblasts with inclusions of orthopyroxene, amphibole and plagioclase, indicating high-pressure granulite facies metamorphism (Samuel et al., 2015). Two-pyroxene granulite and charnockite samples show dehydration textures like formation of anhydrous minerals (pyroxene) around hydrous minerals (biotite and amphibole) (Samuel et al., 2019). Thermo-barometric results indicate a regional trend in both temperature (−650–800°C) and pressure (∼700–1100 MPa) from SW to NE across the Nilgiri highlands (Samuel et al., 2015; Samuel et al., 2018; Samuel et al., 2019). Abundant anti-perthite formation in these felsic samples along with K-feldspar veins forming around quartz, pyroxene and biotite etc., possibly indicate metasomatic alteration during/following peak metamorphism (Samuel et al., 2019). Further trends of regional oxide-sulfide mineralogy show that charnockite is abundant in rutile-ilmenite-pyrrhotite-chalcopyrite, whereas hemo- Ilmenite-magnetite-pyrite +/− (minor pyrrhotite-chalcopyrite) dominates in the two-pyroxene granulites and metagabbros (Samuel et al., 2019). These trends suggest a regional oxidation, where mafic granulite/metagabbro and two-pyroxene granulite samples are highly oxidized compared to the charnockites (Samuel et al., 2019). These results suggest interaction of oxidizing fluids during high-grade metamorphism (Samuel et al., 2019).
In addition, a recent study on the halogen content in apatite from major rock types in this block shows that metagabbro, two-pyroxene granulite and few charnockite formed at higher P-T conditions have high Cl content (0.5–2.95 wt%). The observed Cl content in the apatite shows a decreasing trend with respect to the decrease in metamorphic grade (Samuel et al., 2021). Conversely, F content in the apatite is low in metagabbro compared to constant value of ∼3 wt% in two-pyroxene granulite, charnockite and Hb-Bt gneiss. The results suggest the presence of acidic CO2-H2O-Cl-F fluid to incorporate high Cl composition in apatite at granulite facies condition (Brenan, 1993; Samuel et al., 2021). To further understand the role of fluids in deep processes, in this study, we investigate mineralogical, textural and rare earth elements compositional trends in apatite, monazite, allanite and titanite from the metagabbro/mafic granulite (MG), two-pyroxene granulite (TPG), charnockite (Char) and hornblende-biotite gneiss (HBG) samples.
Analytical techniques
Due to their small grain size, compositions of apatite, monazite, allanite and titanite were analyzed using JEOL JXA-8100 Superprobe, Electron Probe Micro Analyzer (EPMA), attached with 5 spectrometers housed at the Department of Earth System Sciences, Yonsei University, Seoul, South Korea. All the analysis was conducted using an accelerating voltage of 20 kV and beam current of 15 nA for apatite, allanite, titanite and 50 nA for monazite. An electron beam spot size of 15 μm for apatite and titanite, 1 µm for monazite and allanite were used. X-rays of F, Cl, Ca, Na, Al, Si, P, Mn and Fe were counted for 10 s at peak position and 5 s at background position. X-rays of REE’s were counted for 50 s at peak position and 20 s at background position. F and Cl were measured first due to their volatile nature. To minimize the F X-ray excitation with time, elongated apatite grains were chosen for analysis based on the assumption that grains are oriented parallel to [0001]. Natural and synthetic silicates and oxides supplied by JEOL and ASTIMEX Standards Ltd., Canada, were used for calibration of Na, Al, Si, Mn, and Fe. F, Cl, Ca, P, and REE’s were calibrated using the standards (F-apatite, Cl-apatite, and REE-Y-PO4) provided by Prof. Daniel E. Harlov, GFZ Potsdam, Germany. Interference correction for REE’s were performed using the database in (Pyle et al., 2002). Relative errors in EPMA are estimated to be <1%at the >10 wt% level, 5–10% at the 1–10 wt% level, 10–20% at the 0.2 to 1 wt% level, and 20–40% at the <0.1 wt% level. The data were reduced using the ZAF correction procedures supplied by JEOL. An average of between 5 and 35 grains of apatite, and their monazite grains (if present) were analyzed in each sample. The composition of all the observed allanite veins are measured. Titanite is observed and measured only in HBG samples. Concentration below detection limits (∼500 ppm for Y + REE and ∼100 ppm for major elements) were discarded. During apatite recalculation procedure, H2O (wt%) is added to make OH+F+Cl = 2 in the recalculated apatite mineral formula (Supplementary Table S2). Mole fractions of OH in apatite are calculated assuming the halogen site is filled with F, Cl, and OH (XOHAp = 1-XFAp-XClAp).
Results
The locations of samples analyzed in this study and their petrography are given in Supplementary Table S1.
Petrography
Apatite is abundant in all the four rock types. Petrographical results show that apatite mostly crystallized as euhedral to subhedral grains and the grains are ∼100 µm long and ∼50 µm wide in size. They mostly occur in association with other major minerals along their grain boundaries as inclusions and along healed fractures (Figure 3). In the two-pyroxene granulite, apatite mostly occurs near K-feldspar veins and magnetite veins and pyroxene grain boundaries with magnetite rim (Figure 4). In metagabbro samples, a large proportion of apatite crystallization occurred along with magnetite veins and pyroxene grain boundaries with magnetite rim (Figure 5). In the HBG samples, apatite occurs mostly associated with amphibole grain boundaries (Figure 6C). The apatite grains show no compositional zoning in any of the samples. In metagabbro samples apatite grains are clean without any inclusions or compositional variation, while monazite is absent and rarely present in one sample (sample # 30-11) (Figure 5). In most cases, magnetite occurs as veins or chain of several grains along apatite grain boundaries in the metagabbro and two-pyroxene granulite samples (Figure 5). The two-pyroxene granulite and charnockite samples show abundant monazite inclusions and monazite grains along grain boundaries (Figures 3, 4). In few charnockites, two-pyroxene granulite and hornblende-biotite gneiss samples, allanite forms on the apatite grain boundaries (Figure 6). There is no monazite associated with apatite in hornblende-biotite gneiss samples (Figure 6C).
![www.frontiersin.org](https://www.frontiersin.org/files/Articles/992900/feart-10-992900-HTML/image_m/feart-10-992900-g003.jpg)
FIGURE 3. Back scattered electron images of equilibrium mineral assemblages and their textures in charnockite samples. Apatite grains with monazite blebs (A) within garnet; (B) near K-feldspar vein passing through quartz grains; (C) within garnet; (D–F) near K-feldspar veins in matrix of plagioclase and quartz.
![www.frontiersin.org](https://www.frontiersin.org/files/Articles/992900/feart-10-992900-HTML/image_m/feart-10-992900-g004.jpg)
FIGURE 4. Back scattered electron images of mineral assemblages in equilibrium and their textures in two-pyroxene granulite samples. Apatite grains with monazite blebs (A) within plagioclase; (B–D) near K-feldspar veins in matrix of plagioclase and quartz.
![www.frontiersin.org](https://www.frontiersin.org/files/Articles/992900/feart-10-992900-HTML/image_m/feart-10-992900-g005.jpg)
FIGURE 5. Back scattered electron images of mineral assemblages in equilibrium and their textures in metagabbro samples. Apatite grains (with no monazite blebs) (A,D) within garnet; (B) within clinopyroxene; (C) on garnet, plagioclase, quartz grain boundary; (E) along a magnetite-apatite vein passing through plagioclase; (F) on the orthopyroxene grain boundary.
![www.frontiersin.org](https://www.frontiersin.org/files/Articles/992900/feart-10-992900-HTML/image_m/feart-10-992900-g006.jpg)
FIGURE 6. Back scattered electron images of allanite at apatite grain boundary. (A) allanite forming on apatite associated to plagioclase in charnockite sample; (B) allanite forming on apatite associated to orthorpyroxene in two-pyroxene granulite sample; (C) allanite forming on apatite associated to amphiboles in Hb-Bt gneiss sample.
Metagabbro samples are generally devoid of monazite (Figure 5). Rarely one sample (sample # 30-11) shows few apatite grains with monazite. In two-pyroxene granulite and charnockite samples, however monazite is abundant and occurs as inclusions or along grain boundary of apatite grains (Figures 3, 4). Most monazite is present as multiple grains, as inclusion or along apatite grain boundaries with a round shape and a diameter of ∼10 µm or less. In few samples, monazite grains occur minute oval shaped grains along long axis parallel to the C-axis of apatite with ∼1 µm size or sometimes even smaller. Monazite is not observed in any other textural association in both charnockite and two pyroxene granulite. There are no independent monazite grains present in matrix of these samples. Monazite is absent in the hornblende-biotite gneiss samples (Figure 6).
Allanite is rarely present as veins at grain boundaries of apatite grains and found in three charnockite, one two-pyroxene granulite and two Hb-Bt gneiss sample (Figure 6). The allanite veins have a width of ∼1 µm or less. There is no discrete allanite grains are observed in any samples. Titanites are present only in the hornblende-biotite gneiss samples (Figure 7). They appear in typical wedge-shaped crystals with a size range of ∼2–0.5 mm. They occur as inclusions in amphibole and biotite grains, along grain boundaries, and also as discrete grains in the quartz feldspar matrix. Few titanite grains preserve hemo-ilmenite, and zircon inclusions in them (Figure 7B).
![www.frontiersin.org](https://www.frontiersin.org/files/Articles/992900/feart-10-992900-HTML/image_m/feart-10-992900-g007.jpg)
FIGURE 7. Back scattered electron images of titanite (sphene) formation in Hb-Bt gneiss samples. (A) Titanite and apatite associated to biotite laths; (B) Hemo-ilmenite inclusions in titanite associated to plagioclase-K-feldspar-quartz-biotite-amphibole matrix; (C) titanite grains associated to plagioclase-K-feldspar-quartz-biotite-amphibole matrix; (D) Titanite with zircon inclusions in a quartz-biotite-plagioclase-K-feldspar matrix.
Mineral chemistry
The main constituents of apatite in all samples are Ca, P, OH, F, Cl and Fe (Supplementary Table S2). Apatite grains in all samples are heavily depleted in their Y + REE content (below 5000 ppm). This is common in all textural associations including inclusions in other minerals. Y + LREEs contribute to the observed REE content, and HREE content are below detection limit. LREEs such as La, Ce, Pr, Nd constitute the main REE contributor in most samples, whereas Y, Gd, and Dy are rarely present. In the metagabbro, two pyroxene granulite and few charnockite samples, apatite is relatively enriched in Cl up to 2.95–0.5 wt% compared to other charnockite and hornblende-biotite samples (Samuel et al., 2021). Fluorine component in the apatite grains is relatively low in metagabbro samples, however, and shows a constant composition of ∼3 wt% in two pyroxene granulite, charnockite and hornblende-biotite sample (Samuel et al., 2021). Another important oxide in apatite is FeO, and its content is high (0.1–2.1 wt%) in all samples.
The major composition of the monazite is represented by LREEs such as La, Ce, Pr, Nd, Sm and Gd (Supplementary Table S3). Compositionally, these monazites are Th depleted, and its content is less than 0.05 wt%. Y is below detectable limits. The composition of LREEs in monazite in charnockite and two-pyroxene granulite samples shows similar trends. Monazite in these samples have La 5–16 wt%; Ce 26–35 wt%; Pr 2–5 wt%; Nd 11–22 wt%; Sm 0.6–5 wt%; Gd 0–2 wt%.
Similar to apatite and monazite, allanite is also enriched in FeO (8–12 wt%) and LREEs (Supplementary Table S4). The LREE content is substantially less in allanite compared to monazite. LREE composition of allanite consists of La 1–5 wt%; Ce 3-10 wt%; Pr 0.5–1.5 wt%; Nd 0–4 wt%; Sm 0–0.3 wt%; Gd 0–0.5 wt%. Th and Y are below detection limits in all the samples.
Titanites contain trace amount of FeO (1–2 wt%) and Al2O3 (0.5–4 wt%) in addition to SiO2, CaO and TiO2 (Supplementary Table S5). Na2O content is negligible. Th and Y are below detection limits. LREE composition of titanites consist of La 0–0.14 wt%; Ce 0-0.27 wt%; Pr 0–0.43 wt%; Nd 0–0.6 wt%; Sm 0–0.1 wt%; Gd 0–0.2 wt%.
Pseudosection modelling
To estimate the concentration of CO2 in H2O-CO2 solutions present in the lower crustal conditions, we have modelled T—XCO2 pseudosections for mafic and felsic granulite samples from the Nilgiri Block. We have used mineral compositions of garnet, orthopyroxene and clinopyroxene and whole-rock chemistry data from Samuel et al. (2014).
Pseudosections were modelled with XCO2 on the X axis (0–1) and temperature on the Y axis (750–950°C). We have used the Holland and Powell (2011) database (hp11ver.dat) implemented in the Perple_X (version 6.7.9) software of Connolly (2005) and H2O-CO2 fluid model of Holland and Powell (1991), Holland and Powell (1998). Following mineral solution models were used for modeling: clinopyroxene (Green et al., 2016); garnet (White et al., 2014); orthopyroxene (White et al., 2014); plagioclase and orthoclase (Holland and Powell, 2003); biotite (White et al., 2014); amphibole (Green et al., 2016); and magnetite (White et al., 2002). The solution model for partial melts was taken from Green et al. (2016). The solid solution model for ilmenite coexisting with magnetite was used for ilmenite (Andersen and Lindsley, 1988). The O2 value was estimated using the equation 2FeO + O = Fe2O3, with the fraction of Fe3+ set equal to 0.12 for mafic and felsic rock types (Rebay et al., 2010; Palin et al., 2016). The whole-rock chemistry of two samples (mole percent) used for modeling are given below:
Mafic granulite: SiO2=50.33; TiO2=0.77; Al2O3=8.18; FeO=11.50; MgO=13.92; CaO=12.95; Na2O=1.94; O2=0.345.
Felsic granulite: SiO2=66.99; TiO2=0.54; Al2O3=10.01; FeO=5.88; MgO=4.94; CaO=6.43; K2O=0.75; Na2O=4.17; O2=0.177.
Our results (Figure 8) suggest that orthopyroxene (XMg = 0.49–0.65) is stable in the felsic granulites at XCO2 = 0.4 and above (below 900°C). Previous geothermobarometry results suggest that mineral reactions in felsic granulites might have occurred ∼750–800°C (Samuel et al., 2019). Above 900°C, mineral assemblages in the sample are mostly stable at lower XCO2 conditions. In the case of mafic granulite sample (orthopyroxene XMg = 0.5–0.68), at higher P-T conditions of 850–900°C and XCO2 = 0.5 and above, representative mineral assemblages are stable. Even up to 950°C, orthopyroxene in not stable at or below XCO2 of 0.5 in the mafic samples. Comparison of P-T estimates using exchange thermobarometers (750–900°C; Samuel et al., 2015; Samuel et al., 2019), and XCO2 estimation in this study shows that relatively high concentration of XCO2 conditions existed during the lower crustal processes generated observed mineral assemblages in these samples.
![www.frontiersin.org](https://www.frontiersin.org/files/Articles/992900/feart-10-992900-HTML/image_m/feart-10-992900-g008.jpg)
FIGURE 8. XCO2-Temperature pseudosections modelled using compositions of felsic and mafic samples. (A) Pseudosection of felsic sample at 0.8 GPa. Blue dashed line represents orthopyroxene (XMg) composition. (B) Pseudosection of mafic sample at 0.8 GPa. Blue dashed line represents orthopyroxene (XMg) composition. Both pseudosections show that main mineral assemblage in both samples are stable at relatively high CO2 concentration (XCO2 > 0.5).
Discussion
Textural features of metasomatism during metamorphism
Petrographic studies of the rocks from Nilgiri Block show that apatite with monazite blebs occur mostly in the felsic rock types (i.e., charnockite and two pyroxene granulite) (Figures 3, 4). Previous experimental and transmission electron microscopic (TEM) investigations on growth/precipitation of monazite blebs on apatite at granulite facies conditions show that the reacted region is characterized by numerous nano-channels through which fluids interacted with apatite to form monazite (Harlov et al., 2005). The presence of allanite veins around apatite grain boundaries also indicate their precipitation by fluids passing along grain boundaries and fractures (Figure 6). Titanite grains in Hb-Bt gneiss have hemo-ilmenite inclusions, possibly indicating that Ti is removed from ilmenite to form titanite by enriching hematite component in ilmenite by fluids (Figure 7) (Harlov and Hansen, 2005). Presence of such textural features in all the samples collected regionally show that these rocks were significantly altered by fluids during regional scale metamorphism after their igneous crystallization.
Rare earth elements composition of accessory minerals
Accessory minerals such as apatite, zircon, monazite, allanite and titanite in metamorphosed magmatic rocks show important REE distribution patterns useful for understanding their petrogenesis. In this study, apatite grains in both felsic and mafic rocks are depleted in REEs. Monazite blebs in charnockite and two-pyroxene granulite are enriched in LREEs (Figures 9A,B). Zircon grains in all these rock types of this terrane are enriched in HREEs in their core and rim, and are depleted in LREEs (Samuel et al., 2014). REEs significantly partition to apatite during the crystallization of felsic rocks (Prowatke and Klemme, 2006). Whole-rock HREE content does not show any variation among different rock types in this block (Figures 9C–F; Supplementary Table S6). However, whole rock LREE content shows variation between felsic (i.e., two-pyroxene granulite, charnockite and Hb-Bt gneiss; Figures 9C–E; Supplementary Table S6) and mafic (i.e., metagabbro: Figure 9F; Supplementary Table S6) rock types. LREEs are depleted in mafic rocks compared to felsic rocks (Figures 9C–F; Supplementary Table S6). Among felsic rocks two-pyroxene granulite shows the maximum LREE enrichment compared to charnockite and Hb-Bt gneiss.
![www.frontiersin.org](https://www.frontiersin.org/files/Articles/992900/feart-10-992900-HTML/image_m/feart-10-992900-g009.jpg)

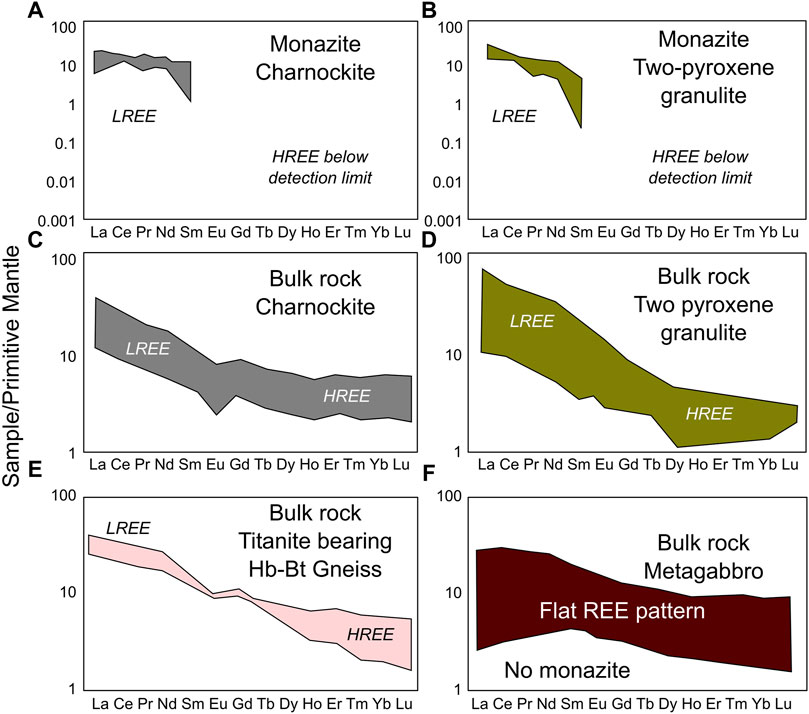

FIGURE 9. Primitive mantle-normalized REE patterns for samples from Nilgiri Block. Primitive mantle values from McDonough et al. (1991). (A) REE pattern of monazite blebs present on apatite grains present in charnockite samples. (B) REE pattern of monazite blebs present on apatite grains present in two-pyroxene granulite samples. (C–F) Since apatite REE composition depend on whole-rock REE, we compare apatite REE patterns with whole-rock REE patterns for different rock types from Nilgiri Block [data taken from Samuel et al. (2014) and Raith et al. (1999); Supplementary Table S6].
In general, igneous apatite crystallized from granodioritic magma (of charnockite, two-pyroxene granulite, and Hb-Bt gneiss) would have partitioned high amount of REE to apatite (Prowatke and Klemme, 2006). This indicates that REEs were effectively removed from apatite during high-grade metasomatic process at least in case of felsic rocks. New monazite grains present along with apatite in the charnockite and two-pyroxene granulite samples (Figures 3, 4). These monazites are markedly enriched in LREEs and depleted in Th and U (Figures 9A,B). All rock types (felsic and mafic) show depletion in Th and U in their whole-rock chemistry, possibly indicating nature of their protolith (Samuel et al., 2014). Formation of LREE enriched monazite blebs on apatite suggest interaction of fluids (Harlov et al., 2005). Therefore, it would be reasonable to correlate formation of LREE enriched monazite grains and allanite veins on grain boundaries of apatite grains with loss of LREE from original apatite (LREE enriched) grains in the felsic granulites. In the Hb-Bt gneiss samples, apatite grains are depleted in REEs, Th, and U similar to other rock types. Mostly allanite and titanite control the LREE budget in the Hb-Bt gneiss samples. The absence of formation of monazite blebs on apatite in the mafic rocks is most probably due to low LREE’s, Th, U in protolith of mafic rocks and in apatite.
Role of acidic fluids during metamorphism
Previous studies in Nilgiri Block using fluid inclusions, mineralogical, textural, compositional, isotopic and thermodynamic data suggest that H2O-CO2 or H2O-CO2-NaCl (brines/saline fluids) or CO2-H2O-HCl-HF fluids were involved during high-grade metamorphism (Santosh, 1986; Touret and Hansteen, 1988; Santosh, 1992; Srikantappa et al., 1992; Dunai and Touret, 1993; Samuel et al., 2019; Samuel et al., 2021). On the other hand, aqueous NaCl is not considered as an effective agent in incorporating high Cl content in apatite, and also removing Y + REEs from them, if they are charge balanced by Na (Brenan, 1993; Hansen and Harlov, 2007; Samuel et al., 2021). The aqueous NaCl fluid is incapable of removal of Na+ from apatite structure to destabilize (Y + REEs)3+ and Ca2+ charge balance exists through the following coupled substitutions (Pan and Fleet, 2002; Hansen and Harlov, 2007)
REE’s could also be stabilized by coupled substation with Si in the original apatite grain. The reaction of britholite (Ca2REE3Si3O12F) can be shown as below (Hansen and Harlov, 2007).
However, no additional quartz formation is observed anywhere near the monazite blebs. Therefore, it is reasonable to consider that REE’s are stabilized through coupled substitution with Na. Also, we have observed that, as the britholite component increases in the apatite, allanite forms along grain boundaries of apatite grains in the metagabbro, charnockites, two-pyroxene granulites and Hb-Bt gneiss samples. We could consider that allanite formation could be preferred over monazite, if britholite component is abundant in apatite. Such allanite forming reactions could be represented as below.
Thus, aqueous NaCl (at any pH) might retain REEs in apatite in contrast to REE and Na depleted nature of apatite grains in this terrane. Further, the high Cl (0.1–2.95 wt%) and F (0.78–3.5 wt%) contents in apatite [Ca10(PO4)6(F,Cl,OH)2] grains might indicate that the C-O-H-Cl-F fluid was highly acidic while interacting with these rocks (Samuel et al., 2021). Experimental results using 1 and 2 N HCl and H2SO4 solutions at temperatures of 300, 600, and 900°C and pressures of 500 and 1,000 MPa show that acidic fluids would generate the observed depletion in REEs in apatite and formation of monazite blebs (Harlov et al., 2005; Hansen and Harlov, 2007). The acidic nature of fluids (hydrochloric acid or carbonic acid) could make them a good agent of metamorphic recrystallization processes (either by diffusion or dissolution-reprecipitation).
The reaction of such apatite grains with acidic fluids (other than saline solutions) to form monazite could be represented by following equation,
The mineral chemistry data of apatite grains in mafic and felsic rocks from the Nilgiri Block show that apatite grains are enriched in FeO or Fe2O3. Therefore, removal of (Y + REE) from the apatite structure might be charge balanced by incorporating Fe available in the fluids into apatite structure through following Eqs 6, 7.
The abundance of magnetite at apatite grain boundaries and as veins also supports such possibility of abundance of Fe in infiltrating acidic C-O-H-Cl-F fluid. This probably indicates the lattice contraction during dehydration (OH-Cl exchange) of apatite grains. This would cause the release of LREE’s and led to the formation of monazite/allanite on them. Such acidic fluids could also have caused leaching of Ti from ilmenite to form titanite in the Hb-Bt gneiss samples. These features indicate that acidic C-O-H-Cl-F fluids were able to generate observed minerals, textures, LREE redistribution during lower crustal processes.
Nature and composition of fluids in the lower crust
Understanding the composition of acidic C-O-H-Cl-F fluid is important in gaining insights into the deep Earth processes. The presence of hydrous minerals, composition of fluid inclusions, and spectroscopic investigations of OH content in anhydrous minerals all indicate that H2O is a major component of fluid in lithosphere and upper mantle conditions (Thompson, 1992). Previous fluid inclusion studies suggest that H2O-CO2 is a major component in lower crustal fluids (Santosh, 1986; Touret and Hansteen, 1988; Santosh et al., 1990; Srikantappa et al., 1992; Dunai and Touret, 1993). Results of pseudosection modelling in this study show that major mineral assemblages in the felsic and mafic samples require a relatively high concentration of CO2 in the fluid (XCO2 = 0.5 or above; Figure 8). However, molecular dynamics simulations show no evidence for the formation of H2CO3 (aq) below 2.4 GPa, and suggest that below 2.4 GPa and 250°C (523 K) (at shallower conditions) CO2 becomes a major component of fluids (Pan and Galli, 2016; Stolte and Pan, 2019). Therefore, H2O and CO2 are major components of these fluids in the lower crustal conditions.
In the interior of the Earth, dissolved NaCl (ion pairs, Na+, Cl-) components in H2O are predicted to be more stable compared to components of HCl (Barnes et al., 2018). However, our previous results show that high Cl in the natural apatite grains could be incorporated by hydrochloric acid with modest Cl and F concentrations and suggest that saline fluids (at any pH) might not be a major component in fluids present in the lower crust (Samuel et al., 2021). At lower crustal conditions, where the dielectric constant of water is ∼10 (Eugster, 1986; Pan et al., 2013), an acidic nature of reactions indicates that the dissociation constant (KHCl/HF-H2O) is moderately high enough to dissolve Cl and F. Our results in this study further suggest that the formation of monazite blebs and allanite rims on apatite could have formed in acidic fluids (except saline fluids). In the absence of carbonic acid (H2CO3-H2O) and saline fluids (NaCl-H2O) we suggest that the composition of fluids in the lower crust are most probably be represented by a CO2-H2O-HCl-HF composition, where high HCl/HF fugacity could be correlated to their moderately high dissociation constant (KHCl-H2O) and an acidic environment in the lower crust. These fluids could be internally generated (granulite facies dehydration during collision of continental blocks) or externally derived (mafic underplating) or a mix of the two in a Cl rich environment. These aqueous acidic fluids might not dissolve other mineral forming components on a large-scale due to their low dielectric constant (low polarization) and low dissociation constant (low hydrogen bonding) at lower crustal conditions. The lattice contraction of apatite grains during dehydration (OH-Cl exchange) and fast diffusion (Bedford et al., 2017) of mineral-forming components (no dissolution-reprecipitation) facilitated by fluids might have caused the formation of monazite/allanite on apatite grains.
Implications
Stability of acidic HCl-HF in CO2-H2O fluids in the lower crust suggest that solutes will be comparatively more dissociated (higher KHCl/HF-H2O) in dehydrating environments (with no external saline pore fluids) when the dielectric constant of water (εW) is 10–35 (Figure 10). These conditions of high εW at p > 1 GPa and T < 800°C are represented across larger sections of subduction zones and the upper mantle in different scenarios- such as cold and hot subductions in the modern and/or early periods on Earth as well as on other planets (Figure 10). Our results suggest that εW between 10 and 35 would cause a mild increase in the dissociation constants of NaCl and HCl (KNaCl-H2O and KHCl-H2O). However, due to low or zero porosity (Chen et al., 2020) of subducting lithologies, saline pore fluid is most probably not being transported to greater depths (∼ above 20–25 km). Therefore, saline pore fluids might not be present during the dehydration of the lower crust, subduction zones and the upper mantle. Saline pore fluids could be stable in the upper crust with high porosity, where εW > 35 (limit of NaCl dissolution in water). Our results suggest that in rock buffered environments, an increase in the KHCl and εW (10–35) in deeper conditions (at T < 800°C) shows that we could expect acidic CO2-H2O-HCl-HF fluids during dehydration reactions (if minerals contain Cl) in the lower crust, subduction zones and the upper mantle. Further, molecular dynamic simulations suggest that above 2.4 GPa and 250°C (523 K), carbonic acid concentration would increase in CO2-H2O fluids. Therefore, it is reasonable to consider that most of subduction and upper mantle geochemical processes below the Mohorovicic Discontinuity (MOHO) occur in an acidic environment. An increase in concentration of H2CO3 and HCl in fluids (aqueous or supercritical) in subduction zones and the upper mantle could also cause an increase in the dissolution of carbonate minerals in subducting slabs and release more CO2 (than considered in existing models) to the mantle wedge and lower crust, and finally to the atmosphere causing global climatic variations. However, possibilities of diffusion or dissolution or dissolution-reprecipitation, and transport capacities of CO2-H2O-HCl-HF needs to be verified in future studies. Due to low dielectric constant and dissociation constant of aqueous acidic fluids, supercritical fluids might be the agent of large-scale mass transport in deeper conditions in Earth and other planets (e.g., Mars, Venus). However, the stability of supercritical fluids is highly dependent of variations in the geothermal gradient in planetary interiors through time.
![www.frontiersin.org](https://www.frontiersin.org/files/Articles/992900/feart-10-992900-HTML/image_m/feart-10-992900-g010.jpg)

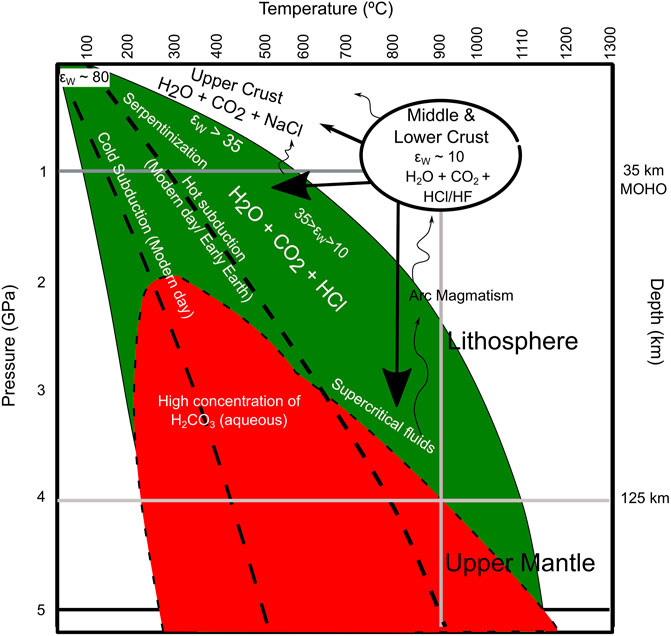

FIGURE 10. Schematic diagram representing P-T conditions of acidic CO2-H2O-HCl-HF fluids in lower crust, subduction zone, and upper mantle. Where εW is dielectric constant of water. Our results of acidic conditions at lower crust, where εW ∼ 10 suggest that dissociation constant of solutes is moderately high in water (KHCl/HF) at the lower crustal conditions. Therefore, below ∼800°C and above 1GPa, acidic CO2-H2O-HCl-HF fluids could exist in most of the subduction zone (both cold and hot subduction existed throughout Earth’s history and today (Thompson, 1992)) and upper mantle conditions. Concentration of carbonic acid (red area) increase above 2.4 GPa and 250°C in most of the upper mantle conditions (Pan and Galli, 2016; Stolte and Pan, 2019). Therefore, Earth’s interior is mostly acidic in dehydration reactions (if minerals incorporate significant amount of Cl and CO2) below Mohorovicic Discontinuity (MOHO).
Conclusion
1) Metagabbro in the Nilgiri Block of southern India is depleted in LREEs and contains high Cl-apatite grains depleted in REEs. No monazite blebs are associated with apatite grains.
2) Felsic rocks (charnockite, and two-pyroxene granulite) are enriched in LREEs. The REE-depleted apatite grains forms monazite blebs and/or allanite veins. Monazite and allanite are enriched in LREEs. In the Hb-Bt gneiss, apatite is depleted in REE’s, allanite and titanite are enriched in LREEs. Lattice contraction of apatite grains during dehydration (OH-Cl exchange) and fast diffusion of mineral-forming components in fluids might have caused the formation of monazite/allanite on apatite.
3) Acidic CO2-H2O-HCl-HF fluids present during regional dehydration reactions during metamorphism might have acted as efficient agent for the diffusion of Fe, Ti, LREEs on a micro-meter scale. These internally or externally derived fluids (with low dissolved components) passed through the fractures and grain boundaries, and moved upwards through different rock types, facilitating solid state reactions.
4) The presence of acidic CO2-H2O-HCl-HF fluids, where water has a dielectric constant of ∼10, implies high dissociation of solutes in subduction zones and the upper mantle (εW ∼ 10–35). Therefore, geochemical processes below MOHO might occurs mainly in acidic conditions, if Cl, F and CO2 (incorporated in minerals) are transported into the deep Earth.
