Surface deformation due to hydrocarbon extraction from buried reservoirs may gradually evolve to geological hazards, which can undermine the safety of infrastructure facilities. Monitoring the surface deformation and studying on the influencing factors of surface deformation have great significance to ensure the stability of oilfield development, and prevent geological hazards. In this study, Sentinel-1 interferometric synthetic aperture radar (InSAR) data of Karamay Oilfield acquired between January 2018 to December 2020 was used to map how the land surface has deformed in response to hydrocarbon exploitation. Based on the monitoring results of time series InSAR, geological data, and oilfield data, the correlations between the different factors and the surface deformation were analyzed. The results show that the reservoir buried depth, porosity and permeability have an impact on the surface deformation, and the influence on surface uplift is obviously greater than that on surface subsidence. Surface uplift decreases with the increasing buried depth and the decreasing porosity and permeability, and the correlation between porosity and surface uplift is the best. However, the impact is limited in the area with shallow reservoir depth, high porosity, and high permeability, such as the heavy oil blocks in the study area.
Introduction
Land surface deformation derived from oil and gas extraction has been observed in many productive oilfields and reported for over a century (Pratt and Johnson, 1926; Coplin and Galloway, 1999; Ng et al., 2015; Métois et al., 2020). The changes of reservoir pore pressure through time is the fundamental cause of land surface deformation (Shi et al., 2022). Land surface instability caused by hydrocarbon extraction can substantially damage buildings and infrastructure facilities and even produce geological hazards. Compared with the large-scale deformation caused by earthquake, coal mining and volcanic eruption, the land surface deformation induced by hydrocarbon exploitation is characterized by long duration and small deformation rate. For instance, the distribution of mines and oilfields in Ordos Basin overlaps considerably (Wang et al., 2014), which makes the surface deformation caused by hydrocarbon exploitation easily covered by the influence of mining. Therefore, in order to study the influence of geological factors on surface deformation caused by hydrocarbon exploitation, it is necessary to select suitable areas where other factors have little effect or can be easily removed. Karamay Oilfield in China is an appropriate selection due to the less vegetation cover and the fewer other influencing factors.
The capability in surface deformation monitoring increases rapidly with the advances in remote sensing technology. Interferometric synthetic aperture radar (InSAR) has been routinely used for mapping surface deformation over wide areas with millimeter accuracy (Bürgmann et al., 2000; Staniewicz et al., 2020). Small baseline subset InSAR (SBAS-InSAR) is an effective method to monitor oilfield surface deformation (Aimaiti et al., 2017; Hu et al., 2020). Previous studies have used SBAS-InSAR in Cushing Oilfield in east central Oklahoma, United States, to identify surface deformation with respect to the location of waste water injection wells (Loesch and Sagan, 2018). SBAS-InSAR was also used in Tengiz Oilfield in Kazakhstan to study the primary factors controlling the surface deformation, and the result showed that the hydrocarbon extraction industrial processes and natural subsurface tectonics are probably the controlling factors (Bayramov et al., 2022). In this study, SBAS-InSAR method was chosen to obtain the large-scale surface deformation results.
Previous monitoring results of Karamay Oilfield have provided the distribution and the rate of the surface deformation, and indicated that the surface uplift caused by subsurface fluid injection is related to the increase of reservoir pore pressure (Ji et al., 2016; Aimaiti et al., 2017; Shi et al., 2019; Yang et al., 2019). However, the influencing factors of surface deformation need more discussion. Most previous studies on the formation mechanism of surface deformation are based on the theoretical model of elastic deformation of uniform medium and inversion of reservoir parameters (Xu et al., 2001; Ji et al., 2016; Liu et al., 2016; Yang et al., 2019). In this study, we intend to analyze the influence of crude oil properties, exploitation methods, buried depths, sedimentary facies, and physical properties of the main reservoirs on surface deformation in Karamay Oilfield, which can effectively control the damage caused by surface deformation.
Geological setting

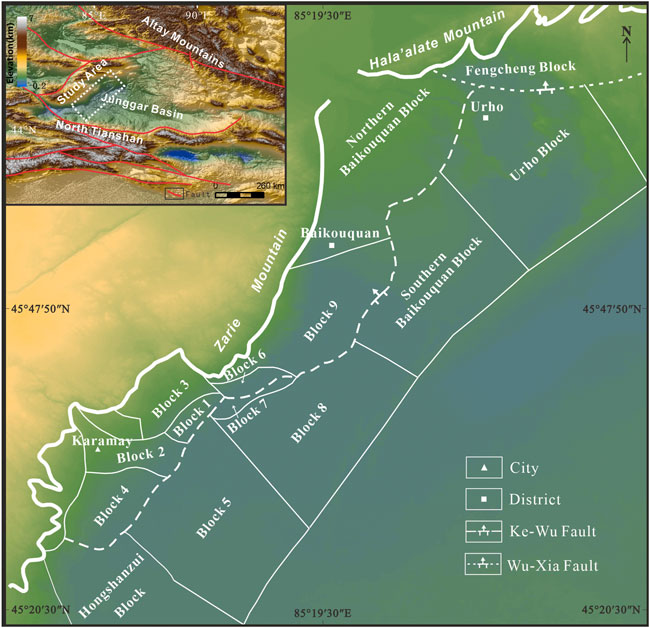

Karamay Oilfield is located in the northwestern of the Junggar Basin, it is the first and largest oilfield discovered in the Western China (Figure 1). Carboniferous, Triassic, Jurassic, and Cretaceous strata are exposed on the land surface. The altitude is high in the northwest and low in the southeast, with an average elevation of 265 m. The study area has a typical temperate continental desert climate and a low vegetation coverage, with an average annual precipitation of 110 mm and an annual evaporation of 2,690 mm (Yang et al., 2019).
Strata and structure
The study area is located in the thrust belt of Zaire Mountain and Hala’alate Mountain, which has experienced intense thrust during Permian, weakened thrust from Triassic to middle Jurassic, and become tectonically stable since Cenozoic (Yin et al., 2016). The giant nappe structure with a length of 250 km and a width of 20∼30 km was buried after middle Jurassic (Zou et al., 2007). The NE-SW trending Ke-Wu thrust fault and Wu-Xia thrust fault constitute the main fault belt in the study area, and high-angle NW-SE trending transverse faults are also developed. The complex fault systems have contributed to hydrocarbon migration and accumulation. According to the oilfield data, the study area has been divided into several blocks by faults, including Block 1∼9, Hongshanzui Block, Northern Baikouquan Block, Southern Baikouquan Block, and Fengcheng Block (Figure 1). The geological factors are similar within the same block and vary from block to block. Affected by the long-term activities of the thrust faults, the buried depths of the contemporaneous strata in the hanging wall and the foot wall are quite different. The Permian, lower Triassic and lower Jurassic strata of the hanging wall were eroded in different degrees, while the strata of the foot wall were completely developed and deeply buried (Table 1).

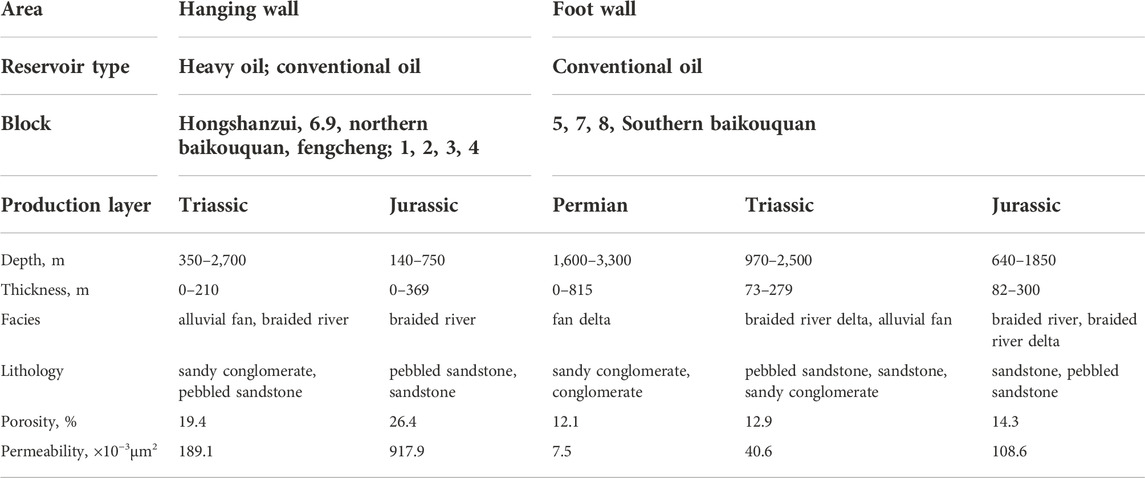

TABLE 1. Reservoir differences between the hanging wall and the foot wall of the thrust fault belt in the study area (revised from Zhu et al., 2010).
Sedimentary characteristics
The sedimentary facies in the study area were also influenced by the thrust fault belt, which acted as a boundary fault controlling the depositional process from Permian to Triassic. In Permian, fan delta reservoirs mainly consist of sandy conglomerate developed in the foot wall along the fault. In Triassic, the alluvial fan bodies gradually decreases, and braided river and braided river delta deposition developed both in the hanging wall and in the foot wall. In Jurassic, braided river and braided river delta were widely developed. Hydrocarbon is mainly accumulated in alluvial conglomerates and sandstones of Permian-Jurassic, and fluvial sandstones of Jurassic. The source rocks are mainly from the lower Permian. Both alluvial fan deposition and braided river deposition lead to strong heterogeneity of reservoir physical properties. Because of the shallow burial depths of the reservoirs in the hanging wall, the reservoir compaction is relatively weak and the primary pores are preserved well. Moreover, it was easy for the acid fluid to enter the strata through the faults and unconformities in the hanging wall, and the dissolution enhanced the reservoir quality. Therefore, the porosity and permeability of the reservoirs in the hanging wall is greater than those in the foot wall (Table 1).
Crude oil types
Different oil types have been found in the study area. According to the API Gravity index, crude oil can be divided into four categories, light oil, medium oil, heavy oil, and extra-heavy oil. In this study, we divide the oil into two broad categories, conventional oil means light oil and medium oil, heavy oil and extra-heavy oil are collectively called heavy oil with a viscosity of >50 mPas, or a viscosity of >100 mPas after degassing under oil layer conditions. Conventional oil in the study area is distributed in Block 1∼4 in the hanging wall and all the blocks in the foot wall of the thrust fault belt. Except for conventional oil, the study area is rich in heavy oil resources. Karamay heavy oil is known not only for its high quantity but also for its unique rheological property derived from low asphaltene and sulfur contents (Zhang et al., 2021). Previous studies have shown that heavy oil is generally formed by oxidation of conventional oil during migration and accumulation, and usually distributed in the pinch-out area of the updip strata with good physical properties through the channeling of faults (Wang and Jiang, 1998). At present, the heavy oil under production is mainly distributed in the Triassic and Jurassic strata in Hongshanzui Block, Block 6, Block 9, Northern Baikouquan Block, and Fengcheng Block, which are all in the hanging wall of the thrust fault belt. Jurassic heavy oil reserves account for more than 80% of the total reserves in the study area, such as Badaowan Formation and Qigu Formation. The heavy oil reservoirs are generally at a depth of less than 700 m with high viscosity and relatively low temperatures (Table 2).
Exploitation methods
Different production methods have been applied to the exploitation of different oil types. Thermally enhanced oil recovery techniques have been used in heavy oil recovery, such as steam flooding and steam assisted gravity drainage (SAGD). Steam flooding is usually adopted after steam stimulation in order to enhance heavy oil recovery, which means continuous injection of high dryness steam into the reservoir by the injection well. The injected steam not only continuously heats the reservoir, thus greatly reduces the viscosity of the formation crude oil, but also turns into hot fluid, driving the oil around the producing well and bringing it to the surface. SAGD is injecting steam into the injection well to form a steam chamber at the top of the formations, which can expand upward and laterally, and exchange heat with the oil in the reservoir. Then the heated oil and steam condensate are released by gravity to the horizontal producing well below. SAGD is commonly used to recover the heavy oil with higher viscosity. Water flooding development is usually adopted in conventional oil reservoirs and heavy oil reservoirs with a viscosity of less than 100 mPas under oil layer conditions, such as Block 6. The production methods are mainly determined by the physical properties of the crude oil.
InSAR Data and Prosessing

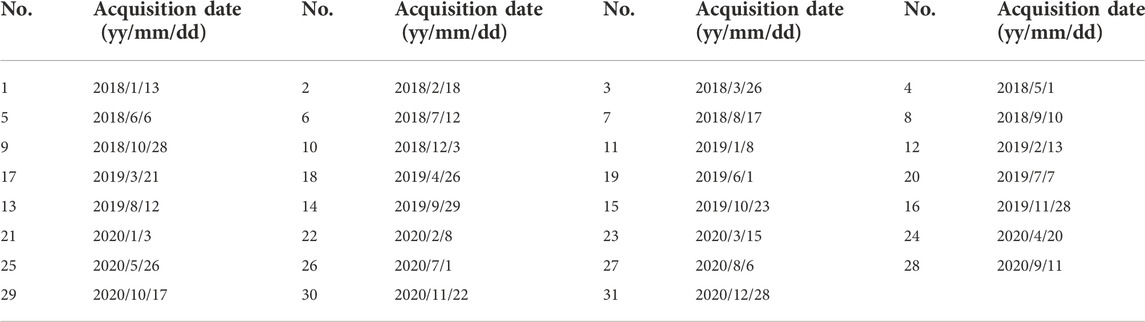

The C-band Sentinel-1A datasets covering the region of interest were provided by the European Space Agency (ESA). Sentinel-1A launched in April 2014 allows for generating ∼250 km wide across-track images with a slant range resolution of 5 m and an azimuth resolution of 20 m, and operates on a sun-synchronous orbit with a cycle time of 12 days (Geudtner et al., 2014). In this study, 31 single look complex (SLC) datasets from January 2018 to December 2020 were downloaded from the Alaska Satellite Facility (ASF) Distributed Active Archive Centers (DAAC) (Table 3). All of the datasets were collected from the ascending track 114. A digital elevation model (DEM) with 90 m resolution from the Shuttle Radar Topography Mission (SRTM) was used for removing topographic phase from interferograms, which was downloaded from http://www.gscloud.cn/.
Sentinel-1A data processing was carried out using SBAS-InSAR method and the SARscape software. First, the region of interest was cut from the original datasets. Interferometric pairs with both short perpendicular and temporal baselines were selected to construct network of the SBAS interferometric pairs. We chose critical spatial baseline percentage smaller than 2% and temporal baselines smaller than 120 days as the thresholds of the interferograms, and got 71 interferometric pairs (Figure 2). A master image was used as the geometry reference for SLC coregistration to minimize the effect of mis-coregistration caused by geometric, temporal, and Doppler decorrelations. The topographic phase in each interferogram was removed by the SRTM DEM. The interferograms were filtered by the Goldstein method. The minimum cost flow (MCF) algorithm and the unwrapping coherence more than 0.36 was chosen to unwrap the interferograms. 30 ground control points were selected in the region without interference fringes far from the deformation region, since orbital refinement and re-flattening were needed to remove the residual phase.

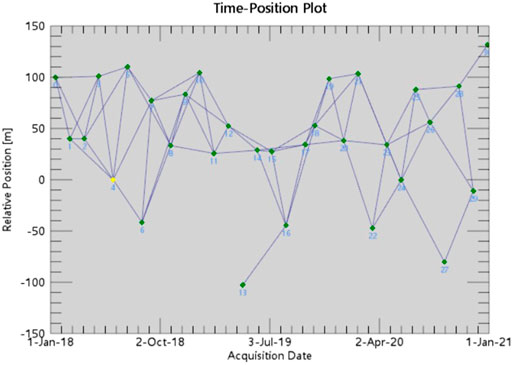

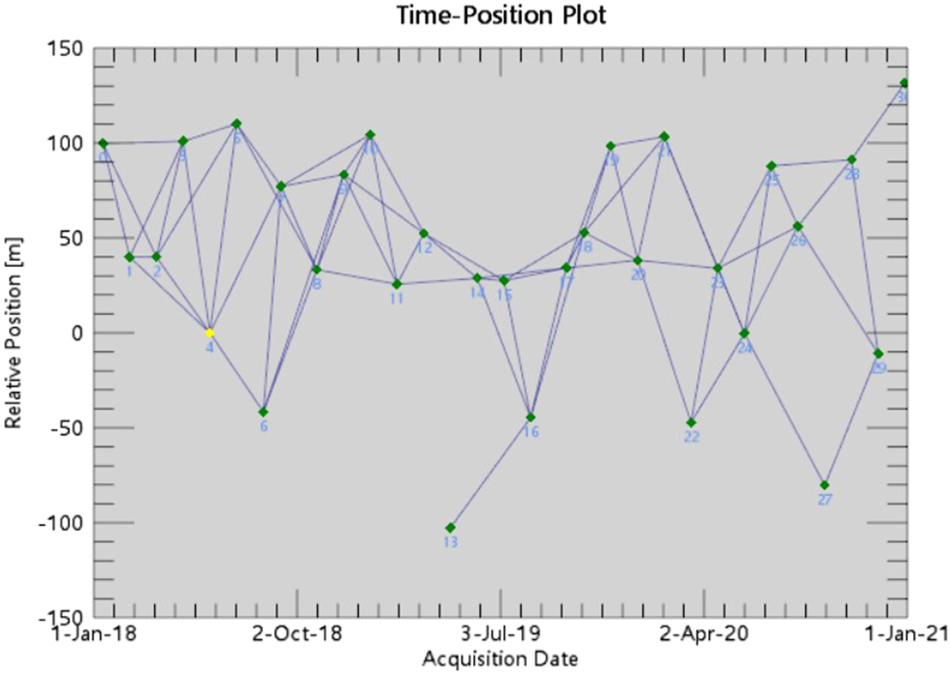

FIGURE 2. Connected network of interferograms. The yellow dot represents the master image. Each green dot denotes one slave image. The line between each two dots represents one interferometric pair.
After unwrapping and re-flattening, time series inversion was carried out in order to obtain the temporal evolution of ground displacement between each acquisition date and the average velocity of each pixel independently. The inversion included two steps, the first step was performed by the linear model for estimating the approximate deformation rate and the topographic phase, the second step aimed to remove the atmospheric phase by both low-pass filtering and high-pass filtering. Assuming that the atmosphere has strong spatial correlation and low temporal correlation, the filtering parameters were set as a low pass size of 1,200 m and a high pass size of 365 days. All the product coherence thresholds were 0.36. Finally, the processing result coordinates were transformed into geographic coordinates.
Results
The annual average deformation rate in the line of sight (LOS) over the Karamay Oilfield was obtained by SBAS-InSAR method. As shown in Figure 3, surface deformation generally exists in the oilfield exploitation area, and the surface uplift and subsidence are distributed in mosaic type. Both surface uplift and surface subsidence are developed in the study area, which is consistent with previous research results (Ji et al., 2016; Aimaiti et al., 2017; Yang et al., 2019). The pore pressure near the injection well increases due to fluid injection, which will lead to surface uplift. The pore pressure near the production well decreases due to underground fluid extraction, which will lead to surface subsidence. The surface uplift is more developed in the hanging wall than that in the foot wall of the thrust fault belt. The surface subsidence area is mainly distributed in the middle of the study area, that is, Block 8 and part of Block 9, and Block 5.

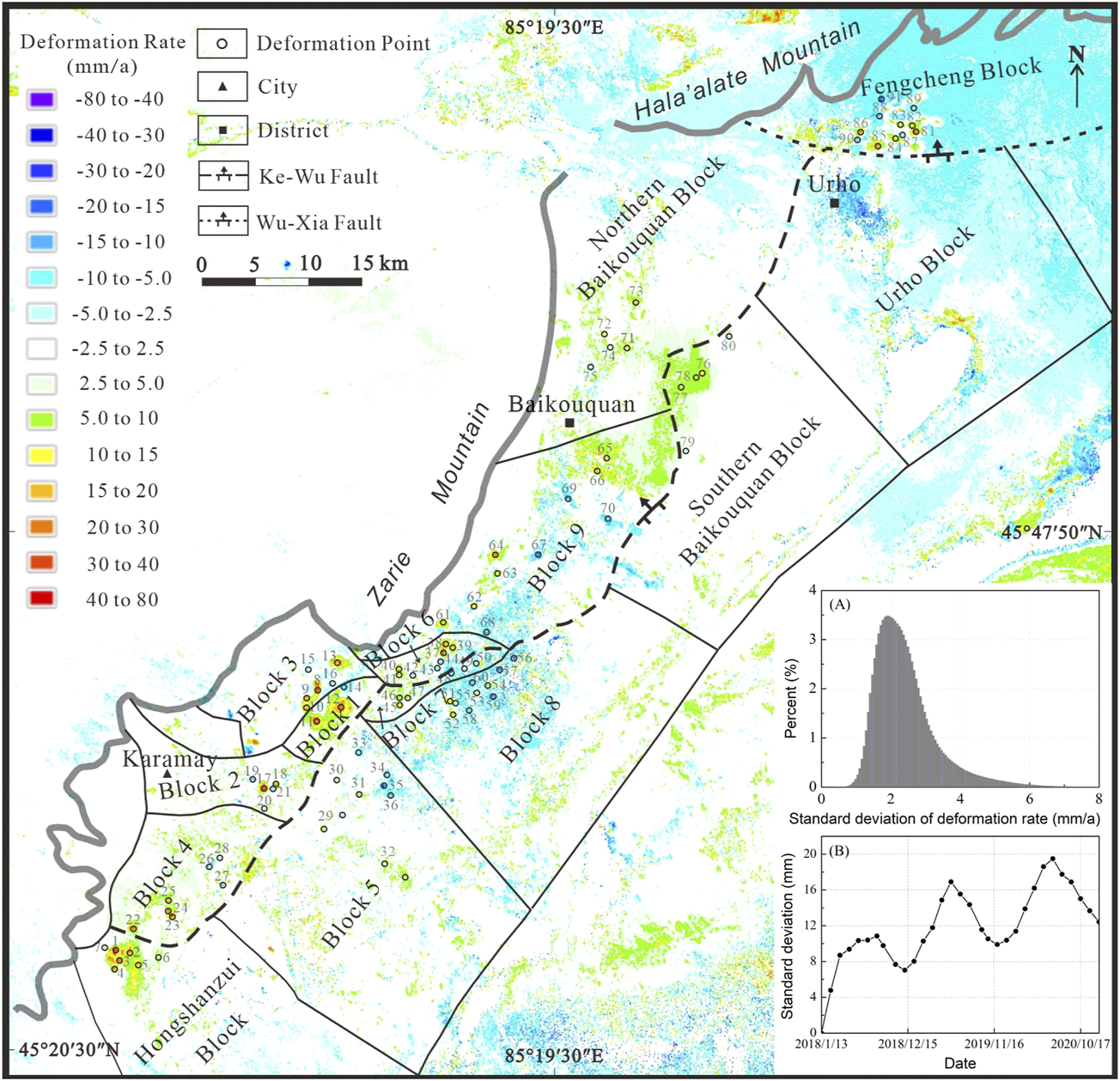

FIGURE 3. Deformation rate map in the line of sight (LOS) direction obtained by SBAS-InSAR processing from January 2018 to December 2020, in which (A) illustrates the precision of the deformation rate calculated by SARscape software, (B) shows the standard deviation of the surface deformation on each SAR acquisition date.
The average surface deformation rate caused by oil exploitation in the study area is mainly distributed in the range of -20∼30 mm/a from January 2018 to December 2020. The maximum average uplift rate is 58.3 mm/a located in the Hongshanzui Block and the maximum average subsidence rate is −36.6 mm/a located in the Block 5 (Figure 3). The mean standard deviation of average deformation rates in the study area is 2.46 mm/a calculated by SARscape software (Figure 3A). As shown in Figure 3B, the standard deviation of the cumulative surface deformation on each acquisition date increases with time and fluctuates on a yearly basis, which may be related to seasons and the periodicity of production activities. Previous research result of Hongshanzui Block and Block 1∼8 from March 2017 to August 2018 showed that four obvious surface uplift zones were developed, the maximum rate of surface subsidence in the line of sight was about −32 mm/a, and the maximum rate of surface uplift was about 100 mm/a (Yang et al., 2019). The locations of the obvious surface uplift zones in the previous result are consistent with this study, and the average deformation rate are also in the similar range.
According to the remote sensing image of the study area provided by Tianditu and the deformation rate map (Figure 3), we selected 91 representative deformation points in different blocks for further analysis. These points are located in the centers of the main surface deformation areas where hydrocarbon exploitation occurs. As shown in Figure 4, the surface deformation distribution and rate vary in different blocks. A large area of surface uplift is developed in the Hongshanzui Block with the cumulative uplift in the range of 60∼140 mm, while the surface subsidence is weakly developed. Both uplift and subsidence are developed in Block 1 and Block 3, where the uplift area and the cumulative uplift are obviously larger than the subsidence area and the cumulative subsidence. Surface uplift is more developed than subsidence in Block 2 and Block 4. The largest cumulative uplift reaches up to 118 mm and the subsidence ranges from −24 mm to −78 mm in Block 2. The cumulative uplift ranges from 69 mm to 105 mm and subsidence ranges from −33 mm to -46 mm in Block 4. The uplift area in Block 5 is larger than the subsidence area, but the cumulative uplift is small, generally less than 40 mm. The subsidence area is mainly developed in the northeast of Block 5, but the cumulative subsidence is generally larger than the cumulative uplift, up to −100 mm. Surface uplift and subsidence are developed simultaneously in Block 6, and the cumulative uplift is obviously greater than the cumulative subsidence. Both area and cumulative deformation of uplift and subsidence are similar in Block 7. A large area of surface subsidence is developed in Block 8, and the cumulative uplift is basically equal to the cumulative subsidence. Surface uplift and subsidence are developed simultaneously in Block 9. Obvious uplift is developed in some regions of Block 9, and the cumulative uplift is greater than the cumulative subsidence. Small-scale uplift is dominant in Baikouquan area. The cumulative uplift is larger than the cumulative subsidence in Northern Baikouquan Block, and the cumulative uplift is similar to the cumulative subsidence in Southern Baikouquan Block. In the Fengcheng Block, the surface uplift and subsidence develop in mosaic type, the cumulative uplift is greater than the cumulative subsidence, and the cumulative deformation changes with mining activities, with obvious waveform characteristics.

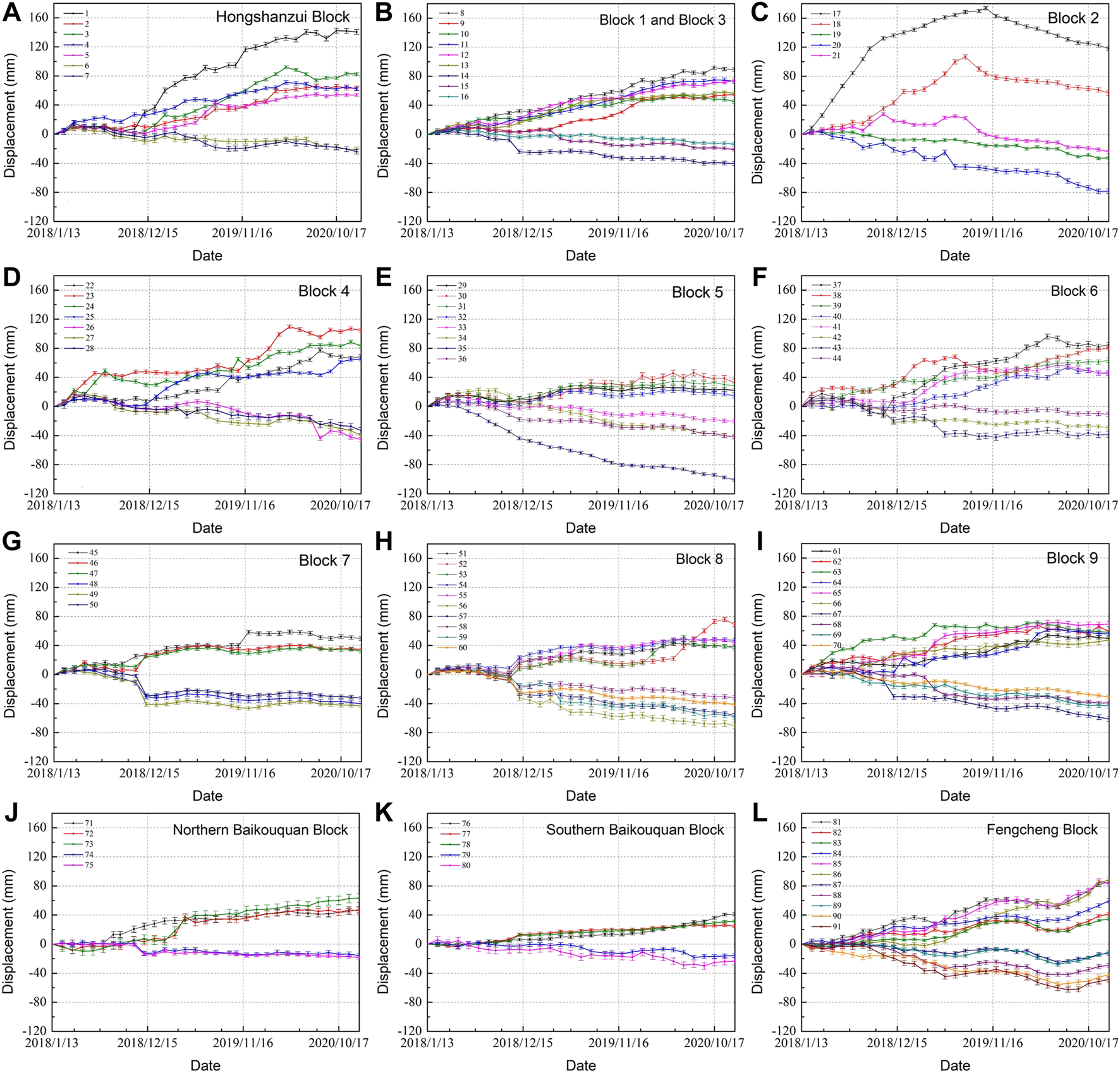

FIGURE 4. Time series deformation curves of the 91 deformation points in different blocks from January 2018 to December 2020. The positions of the 91 deformation points are shown in Figure 3. Each deformation curve is plotted with error bars, representing the mean standard deviation of average deformation rate.
Discussion
The surface deformation caused by hydrocarbon exploitation is affected by both geological factors and production parameters. Geological factors have a macroscopic impact on surface deformation, while production parameters, for instance, fluid injection volume and injection rate, usually affect a much smaller area, such as well groups. Even though the geological factors are the same, surface deformation of different well groups may vary greatly due to the different production parameters. When it comes to a much larger area, such as oilfield blocks, the surface deformation range can reveal the impact of the geological factors.
Geological factors classification
In order to study the influence of geological factors on surface deformation, geological data and oilfield data of different blocks were collected, including the main productive layers, reservoir types, crude oil properties, exploitation methods, buried depths, sedimentary facies, lithology, and physical properties of the reservoirs (Table 2). Some of these geological factors have relationships. Exploitation method is determined by crude oil properties. Porosity and permeability of the reservoirs are mainly controlled by reservoir buried depth, and also related to sedimentary facies and diagenesis. Although heavy oil is generally distributed at a depth of less than 700 m, the formation of heavy oil is determined by oxidation conditions. Sedimentary facies have an important impact on lithology. Therefore, based on the geological genetic relationships, the geological factors were classified into three groups, the factors related to crude oil properties (exploitation method), the factors related to reservoir buried depth (reservoir porosity and permeability), and the factors related to sedimentary facies (lithology).
The influence of one factor group can be separated if the other factor groups are basically the same. According to the crude oil properties and the buried depth of the reservoirs, we divided the 91 deformation points into three categories: the points of the heavy oil blocks in the hanging wall, the points of conventional oil blocks in the hanging wall, and the points of conventional oil blocks in the footwall, which are shown in different colors for further analysis (Figure 5). The points with same color have similar crude oil properties and the reservoir buried depth. The red points and pink points are similar in buried depth, but different in crude oil properties. The pink points and blue points are similar in crude oil properties, but different in buried depth.

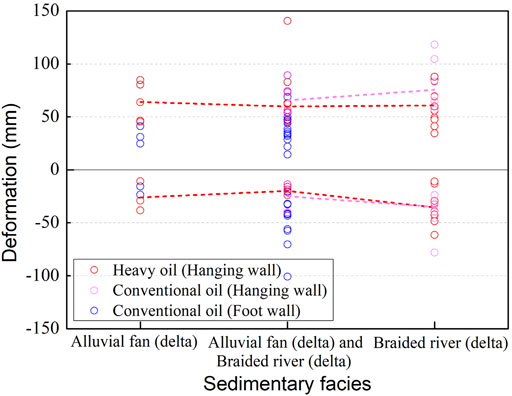

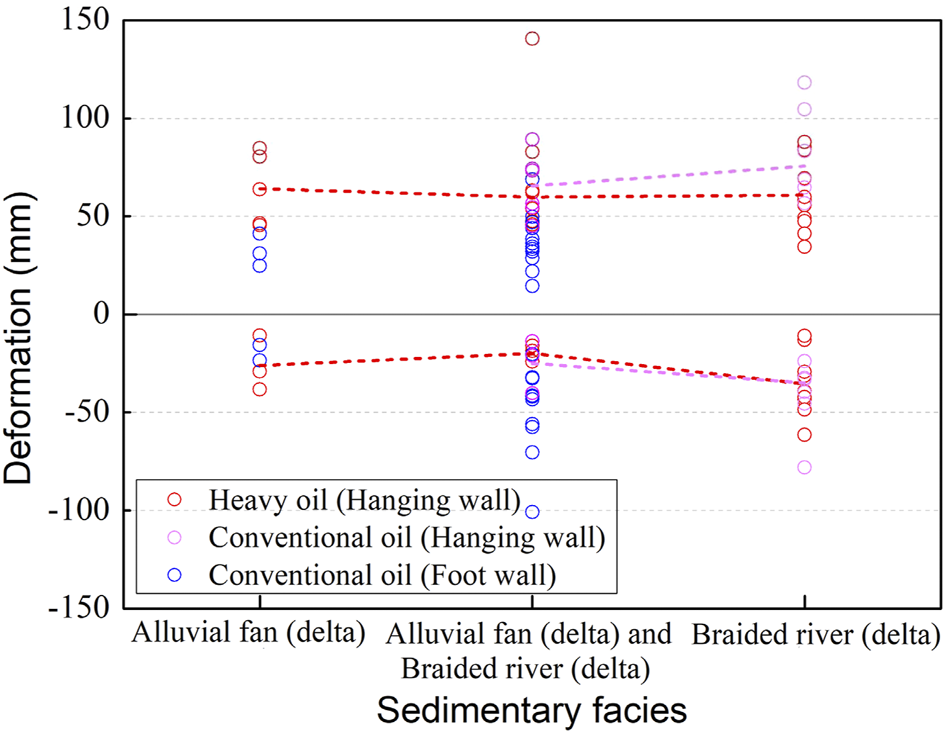

FIGURE 5. Relationship between the sedimentary facies and surface deformation. The red points represent the heavy oil, distributed only in the hanging wall of the thrust fault belt. The pink points and the blue points represent the conventional oil, distributed in both hanging wall and foot wall.
Sedimentary facies and lithology

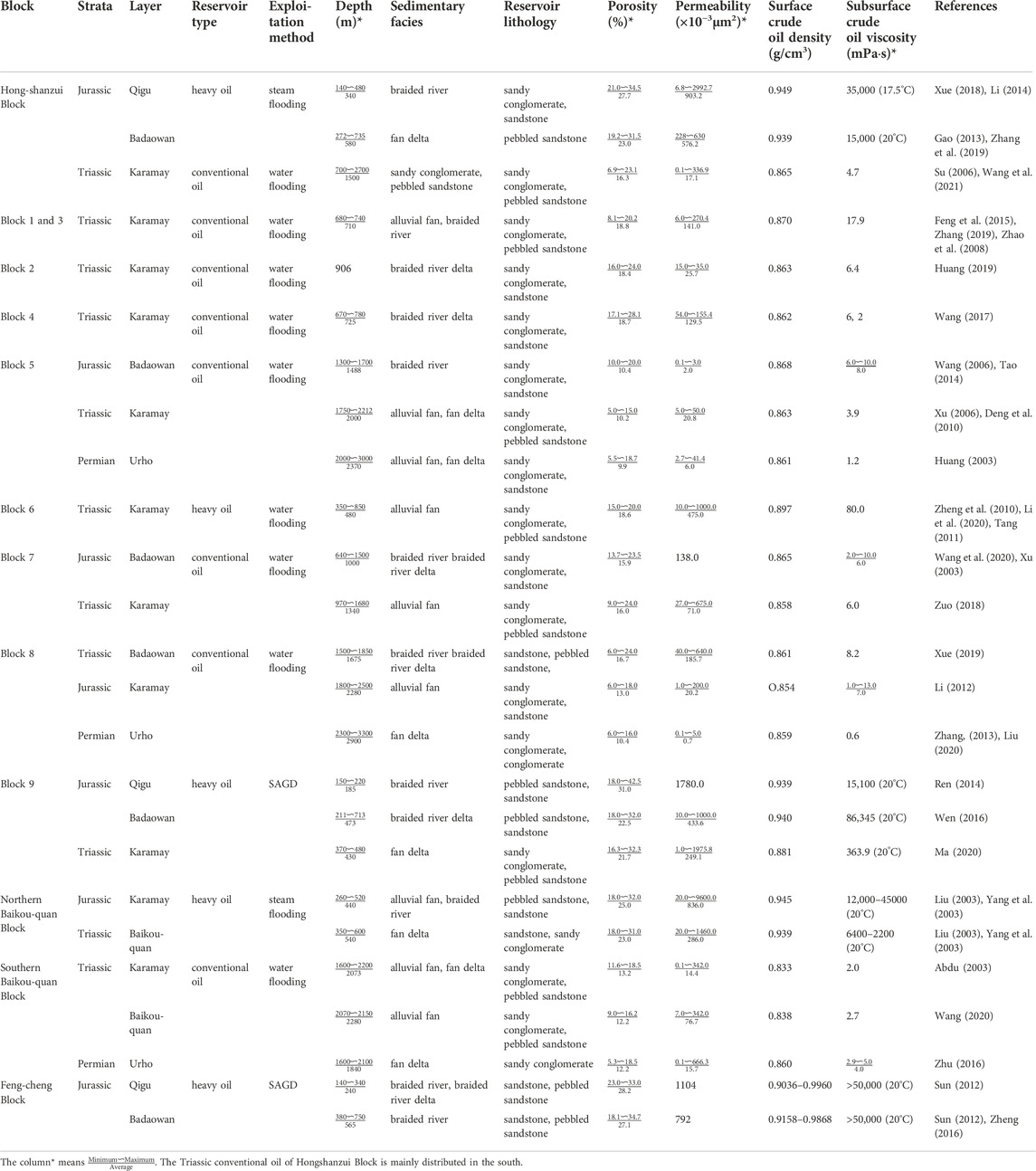

As shown in Table 2, since the lithology in different blocks is basically the same due to multiple production layers, the influence of lithology on surface deformation is negligible. In order to study the influence of sedimentary facies on surface deformation, we divide the blocks into three categories, the blocks with alluvial fan facies or fan delta facies, the blocks with braided river facies or braided river delta facies, and the blocks with both of the two kinds of facies mentioned above. The relationship between the sedimentary facies and surface deformation is shown in Figure 5. The influence of different sedimentary facies on the surface deformation can be identified, when other factors are basically the same. The points with same color have similar crude oil properties and reservoir buried depth. Since most of the points in conventional oil blocks in the footwall (blue points) are developed both alluvial fan and braided river deposits, the influence of different sedimentary facies on the surface deformation can be only identified by the red points and pink points. The average surface deformation of the points with same color in different sedimentary facies was calculated and connected with dotted lines. As shown in Figure 5, except for a few points, the main surface deformation range of the same color points and the average values in different sedimentary facies are similar, indicating that sedimentary facies have little impact on surface deformation.
crude oil properties and exploitation methods
The viscosity and density of crude oil have a good positive correlation. Figures 6A,B illustrate the relationships between the viscosity and density of the crude oil and the surface deformation. The average crude oil viscosity of each block is calculated by the average crude oil viscosity of the different production layers. Comparing the deformation range of the red points and the pink points, which have similar buried depth and different crude oil properties, the result shows that the surface deformation ranges of the red points and pink points are similar, indicating the physical properties of crude oil have little impact on surface deformation. Comparing the deformation range of the pink points and the blue points, which have similar crude oil properties and different buried depth, the result shows that the deformation ranges of the pink points and blue points are different. As shown in Figure 6A, when the crude oil viscosity is about 6 mPas, the surface uplift of the pink points is generally greater than that of the blue points, indicating the surface uplift is affected by different buried depth.

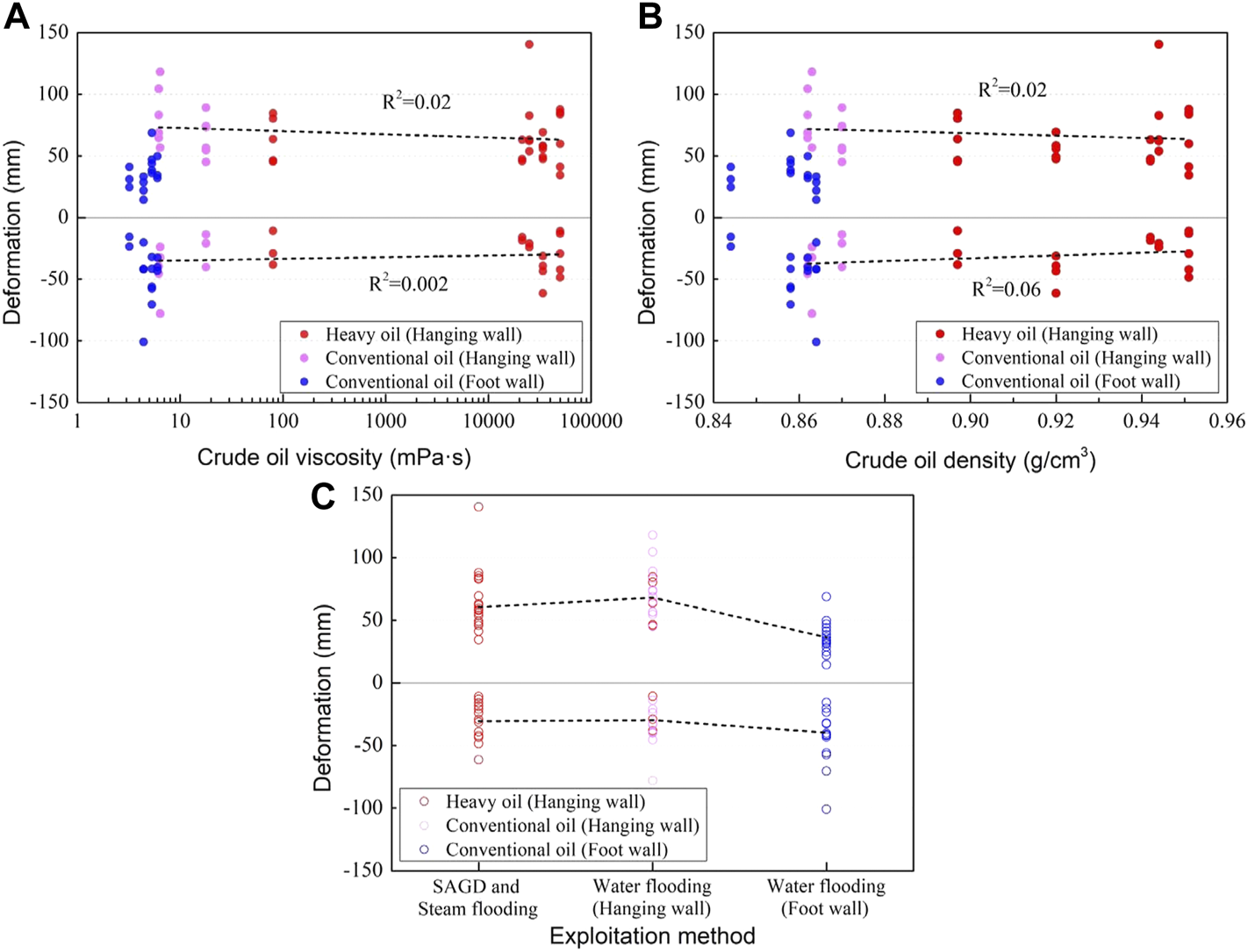

FIGURE 6. Relationships between crude oil properties as well as exploitation methods and surface deformation. The red points represent the heavy oil, distributed only in the hanging wall of the thrust fault belt. The pink points and the blue points represent the conventional oil, distributed in both hanging wall and foot wall.
The relationship between the exploitation methods and the surface deformation is shown in Figure 6C. The average surface deformation of different exploitation methods was calculated and connected with dotted lines. Thermal exploitation method including SAGD and steam flooding is only applicable to the heavy oil reservoirs in the hanging wall. The reservoir buried depths of the surface deformation points in the hanging wall are relatively close. By comparing the surface deformation caused by thermal exploitation and water flooding in the hanging wall, it can be seen that the surface deformation range and average value are basically equal. The reservoir buried depth of the hanging wall and footwall is quite different. By comparing the surface deformation caused by water flooding in the hanging wall and footwall, it can be seen that the surface uplift caused by water flooding of the hanging wall is greater than that caused by water flooding of the footwall. Therefore, the exploitation methods also have little impact on surface deformation, but the reservoir buried depth accounts for the surface deformation, especially the surface uplift.
Buried depth, porosity and permeability
The buried depths of the reservoirs in the hanging wall and in the foot wall vary greatly due to the NE-SW trending thrust fault belt, and the buried depths of the contemporaneous reservoirs in the foot wall can reach up to 1,000 m deeper than those in the hanging wall (Table 2). Since Figure 6 have shown that the buried depth affects the surface deformation, and porosity and permeability have close relationship with buried depth, it can be inferred that the porosity and permeability also have an impact on surface deformation. The influence of the burial depth and the reservoir physical properties on surface deformation can be revealed by all of the points without classification in Figure 7, because Figure 6 has indicated that the crude oil properties have little impact on surface deformation. As shown in Figure 7, when the buried depth is less than 700 m, the porosity is more than 18%, and the permeability is more than 150 ×10−3μm2, the surface deformation has little change with buried depth and reservoir physical properties. When the depth is greater than 700 m, the porosity is less than 18%, and the permeability is less than 150 ×10−3μm2, the buried depth and reservoir physical properties have an impact on surface uplift, but have little influence on surface subsidence. The surface uplift decreases with the increasing depth and the decreasing porosity and permeability, and the correlation between reservoir porosity and surface uplift is the best.

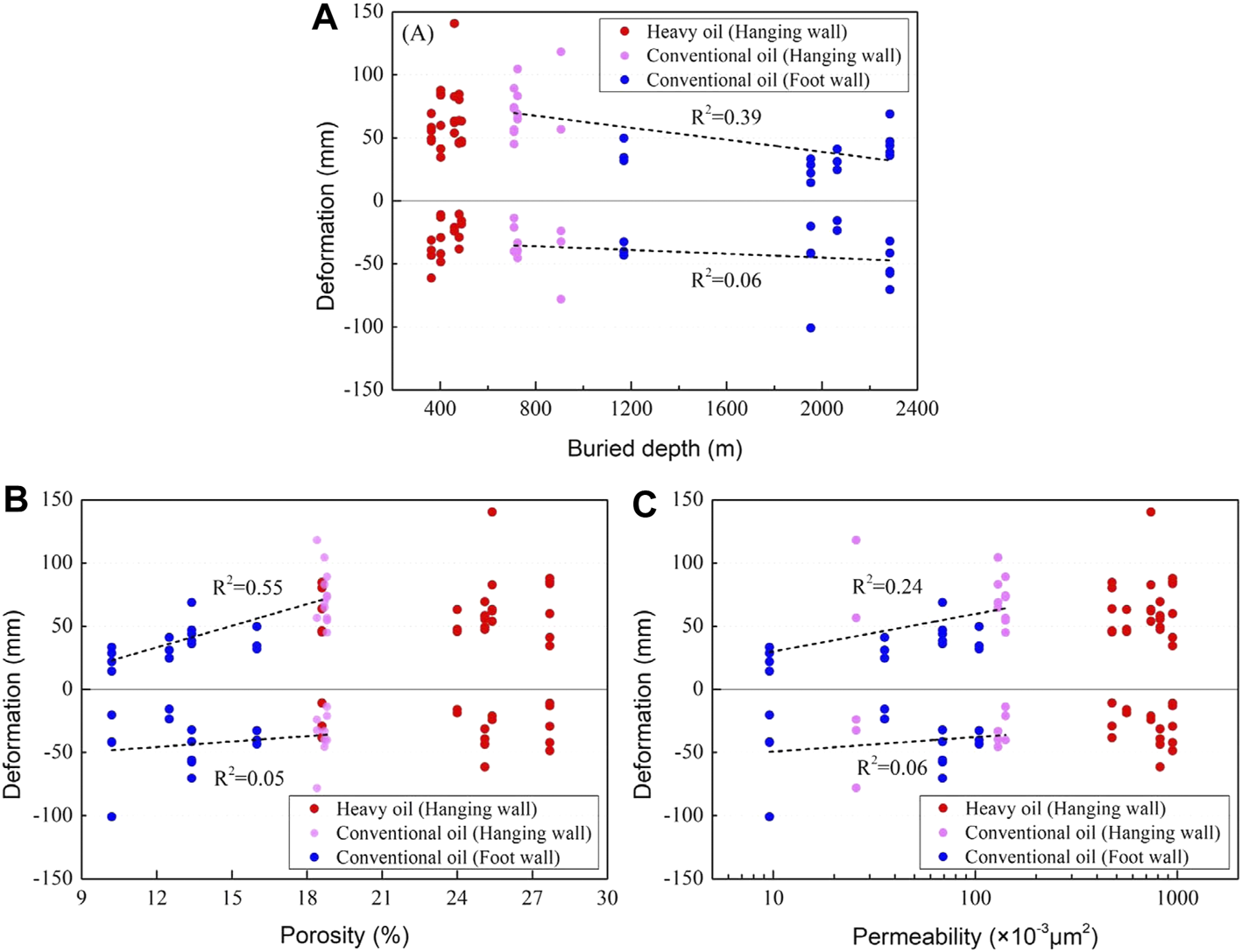

FIGURE 7. Relationship between the buried depth as well as the physical properties of the reservoirs and surface deformation.
Figure 7 also illustrates that the buried depth more than 700 m, the porosity less than 18%, and the permeability less than 150×10−3μm2, corresponds to the conventional oil blocks, and the area with the buried depth less than 700 m, the porosity more than 18%, and the permeability more than 150 ×10−3μm2, mainly corresponds to the heavy oil blocks. According to the previous analysis, all of the geological factors have little influence on the surface deformation of the heavy oil blocks, and the reservoir buried depth, porosity, and permeability have an impact on the surface deformation of the conventional oil blocks.
Conclusion
Surface deformation is widely developed in hydrocarbon exploitation areas, and the average surface deformation rate is mainly distributed in the range of -20–30 mm/a from January 2018 to December 2020. The maximum average uplift rate is 58.3 mm/a, and the maximum average subsidence rate is -36.6 mm/a.
Geological factors affect the surface deformation in a macroscopic scale. Tectonic movements led to the formation of the faults as well as the heavy oil reservoirs and the conventional oil reservoirs in the study area. The NE-SW trending thrust fault belt results directly in different buried depths of reservoirs, sedimentary facies, and reservoir physical properties between the hanging wall and the footwall. Among these geological factors, reservoir buried depth, porosity and permeability have an impact on the surface deformation. However, the impact is limited in the heavy oil blocks, because of the shallow buried depth as well as the high porosity and high permeability. In the conventional oil blocks, surface uplift decreases with the increasing buried depth and the decreasing porosity and permeability, and the correlation between porosity and surface uplift is the best. Compared with surface uplift, surface subsidence has little correlation with geological factors.
