Multiple-Stage Injection of Deep Hydrothermal Fluids in the Dolostone Reservoirs of Ordovician Majiagou Formation, Southern Ordos Basin

The Middle Ordovician Majiagou Formation in the southern Ordos Basin develops a set of sub-and peri-tidal carbonate successions that were extensively dolomitized. Diagenetic dolomitization is widely investigated because dolostones provide high-quality gas reservoirs in the southern Ordos Basin. Nonetheless, the ultimate mechanism controlling dolomitization remains enigmatic. In this study, integrated geochemical indexes including carbon and oxygen isotopes, rare earth elements, and microthermometry, coupled with U-Pb dating and lithofacies and mineralogic studies, are investigated to elucidate the periods of hydrothermal fluids involved in the formation of different types of dolomites in the studied section from Ma5 member. The results reveal that the micritic dolomite matrix was formed under the involvement of low-salinity meteoric water in the mixing zone during a shallow-burial environment. The mixing zone of paleokarst possibly provided accommodation for this dolomitization. The fine-/medium-sized dolomites were formed due to interactions between hydrothermal fluids of comparatively low temperature and matrix carbonates, which occurred during the period of the Middle Jurassic. The dolomitic microbialites were formed due to the injection of high-temperature acid fluids associated with organic matter maturing. This dolomitization occurred during the period of the Late Jurassic according to U-Pb ages. The coarse-sized dolomite cements can be furtherly classified into two types according to different U-Pb ages and carbon-oxygen isotopes, although they are very similar with respect to mineralogic features. Comprehensive geochemical evidence revealed that the dolomitizing fluids of two types of dolomite cements were derived from hydrothermal fluids associated with periodical magmatism, which occurred during the period of the Early Cretaceous. This finding provides a new insight for elucidating the diagenetic process of reservoir dolostones from the Middle Ordovician in the Ordos Basin.

1 Introduction

Compared with limestones, dolostones contribute major hydrocarbon reserves (more than 50%) in worldwide carbonate successions because the dolomitizing process usually enhances physical properties of reservoir rocks (Zenger et al., 1980; Sun, 1995; Warren, 2000; Ma et al., 2007). Multiple dolomitizing mechanisms have been proposed to explore dolomite origins, such as evaporative, seepage-reflux, microbial-mediated, and hydrothermal-fluid dolomitizations (e.g., Adams and Rhodes, 1960; Friedman and Sanders, 1967; Badiozamani, 1973; Hsu and Schneider, 1973; Baker and Kastner, 1981; Braithwaite and Rizzi, 1997; Huang et al., 2008). However, the ultimate nature of dolomites remains a subject of dispute, because it is difficult to identify precisely the origins of dolomitizing fluids due to complicated diagenetic processes and fluid-rock interactions. Hence, it is of great significance to elucidate the nature of diagenetic fluids. It is widely recognized that the interplay of diagenetic fluids and carbonate rocks exerts important controls on reservoir development in carbonate successions. The dissolution caused by different post-depositional fluids (e.g., hydrothermal fluids derived from deep-burying formation water or magmatism, organic acid, and Thermochemical sulfate reduction) can be constructive to reservoir properties (Smith, 2006; Lavoie and Chi, 2010).

The Middle Ordovician Majiagou Formation of the Ordos Basin, composed dominantly by dolostones, has been widely studied due to its abundant natural gas being reserved in karst-controlled and burial dissolution carbonate reservoirs (Dai, 2016). In previous studies, the favorable reservoir condition of the Majiagou Formation was mainly attributed to telogenetic karstification controlled by Caledonian tectonism (Chen et al., 2013; He et al., 2013). However, the dissolution process accompanying karstification was ignored. Recent studies revealed that complicated dissolving fluids occurred along fracturing systems and unconformities. For instance, high-frequency depositional cycles and subaerial exposure surfaces were identified in the Member-5 section of the Majiagou Formation (i.e., subsalt Ma5 member), implying a new type of karstification and associated later-stage fluids (Xiong et al., 2019). Moreover, hydrothermal fluids and their constructive effects on reservoir properties were identified in the Majiagou Formation (Liu et al., 2011). Nonetheless, the ultimate nature and evolution of these fluids were undocumented, which hindered our understanding of the dolomitizing process and the formation of dolostone reservoirs in this area.

Coupled with detailed hand specimens, lithofacies, petrography, and mineralogy studies, integrated isotopic/elemental geochemical proxies are analyzed in the current study to elucidate the origin and evolution of hydrothermal fluids related to reservoir formation of the Majiagou Formation, thus providing new insights for reservoir forming mechanism and prediction, as well as an analog to the occurrence of dolostone reservoirs of similar geological conditions.

2 Geological Setting

The Ordos Basin, covering an area of 25 × 10⁴ km², is located on the western edge of the North-China craton and consists of six tectonic structures, i.e., the Yimeng uplift, the Jinxi flexural belt, the Yishan slope, the Tianhuan depression, the western edge thrust belt, and the Weibei uplift (Figure 1A; Li et al., 2019). The Ordos Basin is the second largest inland basin in China, with abundant hydrocarbon resources and a thickness of more than 5,000 m of sedimentary rocks. The basement is composed of Archean and Proterozoic metamorphic rocks. The Middle-Ordovician Majiagou Formation consists of six lithologic sections (i.e., from the Ma1 to the M6 members), which represent a complete marine transgression-regression cycle upwardly (Figure 1B). The Majiagou Formation is a set of carbonate rocks intercalated with evaporites (He et al., 2014; Fu et al., 2017). Among them, the Ma1, the Ma3, and the Ma5 members are mainly composed of dolostones with gypsum or salty caprocks; the Ma2, the Ma4, and the Ma6 members dominantly consist of dolostones and dolomitized limestones. The gypsum and salt intercalations are mainly developed in the Ma1, the Ma3, and the Ma5 members, which indicate the depositional interval of the seawater regressive period. The Ma5 member can be furtherly divided into ten sub-members according to evaporative cycles upwardly, i.e., from Ma5-1 to Ma5-10 (Figure 1B). The Ma5-6 sub-member was deposited at the widest range with an area of −50000 km², and the thickness of regional gypsum rocks can reach to more than 80 m, thus dividing Ordovician strata into post-salt and pre-salt period. The eighth and 10th sub-members comprise mostly gypsum/salts and gypsiferous dolomites, which were considered to deposit under a highly saline environment and act as an important source of sealing rocks (Xia et al., 2007). Intraplatform shoals and microbial mounds were intercalated developing within these sub-members, thus forming important gas reservoirs of the Ordos Basin.

FIGURE 1

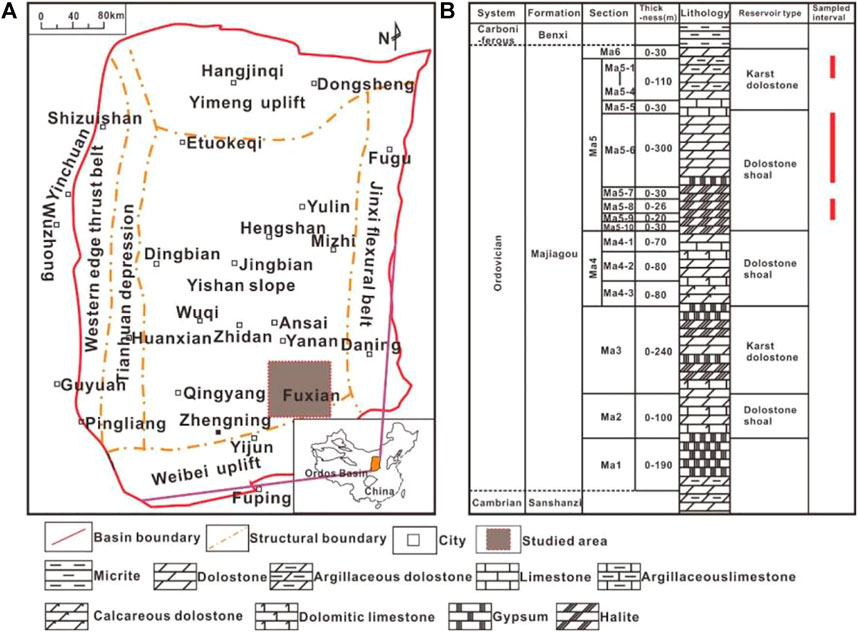

FIGURE 1. (A) Structural units and studied location within the Ordos Basin (modified after Dai, 2016). (B) Lithologic column showing stratigraphy of the Majiagou Formation and sampled interval.

3 Samples and Methods

Cored Samples are exclusively collected from the Ma5 member in the studied area (i.e., the Fuxian area, as shown in Figure 1A). Specific sampling intervals are shown in Figure 1B. A total of 185 samples are preliminarily described and treated in the field to avoid weathering crusts or drilling mud contamination. Detailed lithofaices, petrographic, and mineralogic observations of cores and thin-sections are undertaken for subsequent isotopic and elemental analysis. A proportion of thin-sections are impregnated with epoxy resin to identify the pore system.

For stable oxygen and carbon isotopic analyses, a total of 78 powder samples (weighting 50 mg) are obtained with a dental drill of diameter 50 μm. The powder samples are subsequently reacted with HNO₃ (90% in concentration) at 72°C for 5 h linked to Finnigan Delta-V mass spectrometer. All results are recorded in per mil of V-PDB standard. The accuracy of the isotopic measurements is calibrated by replicate analyses of internal-standard NBS-19 and the analytical error is better than ±0.05‰.

For radioactive strontium isotope (⁸⁷Sr/⁸⁶Sr) determination, 200 mg powder dissolved in distilled water solution is prepared. The aimed samples are transferred into Teflon vials containing a mixture of 2 ml concentrated HF, 3 ml concentrated HCl and 0.5 ml HNO₃. Samples are heated at 90°C for 48 h. Subsequently, the solution is dried, redissolved in 2.0 ml HCl, and heated for 24 h ⁸⁷Sr/⁸⁶Sr concentrations are determined using a Neptune multi-collector ICP-MS by static measurement of ⁸²Kr, ⁸³Kr, ⁸⁴Sr, ⁸⁵Rb, ⁸⁶Sr, ⁸⁷Sr, and ⁸⁸Sr ion beam intensities. Corrected ⁸⁷Sr/⁸⁶Sr ratios are then normalized to NBS SRM 987 (certified value of 0.71024 ± 0.00025). The measurement accuracy is better than 0.00002. The detailed experimental protocol and procedure follows Boral et al. (2021).

In-situ analyses are carried out to determine trace and rare earth elements for dolomites and matrix calcites. A LSX-200 UV laser ablation system linked to Nd-YAG laser emitter and Helium carrier is applied for measurement. The diameter of the laser spot is 50 μm with a wavelength of 213 nm and an impulse frequency of 10 Hz. The detection limits range from 0.001 ppm to 1 ppm with respect to different elements, and detection precision is better than 3%. The preparation of functional thin-sections and workflows follow Liu et al. (2017).

Zircon grains from carbonate samples by magnetic and methylene iodide liquid separation. Separated zircon grains are hand-picked and fixed in epoxy resin. Subsequently, the epoxy mounts are polished for the following date measurement. The samples are dated by in-situ Laser Ablation Inductively-Coupled Mass Spectrometry method. The equipment is introduced above. The synthetic glass NIST-610 is applied for instrumental optimization. The standard zircon 91500 is used as an external standard. The counting time of measurement is 30 s, including the first 10 s for background measuring.

Microthermometric fluid-inclusion analyses are performed using a Linkam THMS 300 heating-freezing stage linked with an electrical microscope and microthermometric analysis software. Inclusion populations are carefully described with respect to their sizes, distribution, and vapor-liquid ratios. The micro-areas developing fluid-inclusion assemblages (FIA) are focused and then the 0.5-mm-thick thin-sections are treated with acetone solution to acquire previously focused fragments for microthermometric analysis. Homogenization temperatures (T_h) and Ice-melting temperatures (T_m) are measured on primary liquid-vapor inclusions. The detailed measurement procedure sensu Shepherd et al. (1985). Salinities were calculated in form of wt% in the H₂O-NaCl-CaCl₂ system using the equation proposed by Hall et al. (1988), i.e., NaCl (wt%) = 1.78T_m–0.0442T_m² + 0.000557T_m³. The measured accuracy of the T_h and T_m values are within ± 1°C and ± 0.5°C, respectively.

The above experiments were carried out at the State Key Laboratory of Petroleum Resources and Prospecting in China University of Petroleum, Beijing.

4 Lithofacies and Mineralogy

In the studied area, Silurian or Devonian strata are absent because of the uplifting of the Ordovician carbonates, thus causing longtime depositional hiatus (Figure 1B). Therefore, erosional surfaces of multiple levels are documented mainly at the top of deposits including intraplatform shoals, microbials, and gypsum or salt bearing strata. This typical evaporitic environment resulted in the development of micritic dolomites (Figure 2A). Microbialites are widely developed in the subsalt Ma5 member, mainly consisting of stromatolite. The stromatolites are characterized by regular repetition occurrence of mm-scale thin layers of different colors (Figure 2B). Plate-shaped and corrugated stromatolites are major types. The breccias are widely developed below the exposed surfaces with a thickness of several centimeters. The breccias exhibit dark yellowish nodular features from observed cores (Figure 2C), showing distinctively different contact surfaces to the surrounding dolostone matrix. Particularly, breccias collapse easily at intervals of exposed erosional surfaces (Figure 2D). At intervals distal from exposure surfaces, karstification did not occur widely, thus developing few breccia dolostones. Instead, dissolved pores or fractures induced by other fluids forming visible caves are observed from bulky dolostones (Figure 2E). Nonetheless, these pores or fractures are rarely developed in micritic dolomites, possibly due to few porosities for accommodating diagenetic fluids. These fractures are regularly distributed (Figure 2E), thus providing effective reservoir porosities for natural gas. Micritic-to silty-dolostones most widely occurr as matrix rocks. This type of dolostones is widely developed in the platform shoal and evaporative zone. It is featured by coarse silty to fine-sized crystals, developing no visible pores or fractures from core observation (Figure 2F). The gypsum and salt are generally formed by leaching and/or collapsing of upper tidal-flat sabkha environments caused by meteoric-water influx during penecontemporaneous exposure (Figure 2G). Carbonate silts or authigenic argillaceous infillings of grey to black colors are commonly distributed in the gypsum or salt vugs, forming a chickenwire-like structure (Zhang et al., 1991).

FIGURE 2

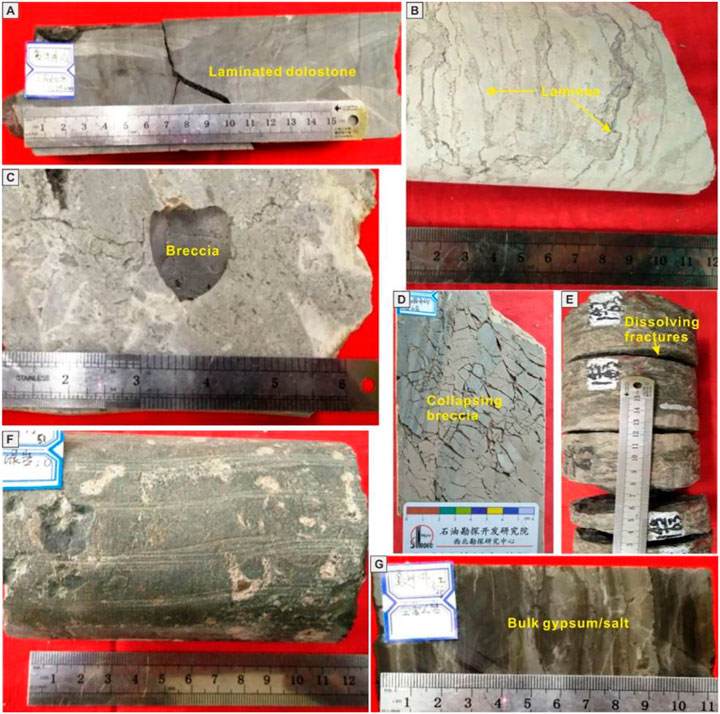

FIGURE 2. Core sample photographs showing lithofacies of the studied interval in the Ma5 member. (A) Micritic dolomite matrix showing laminated layers. (B) Stromatolites developing thin layers of different colors. (C) Dolomite breccias. (D) Breccias collapsing in the studied interval, leaving visible fractures. (E) Fractures developing in bulky dolostones. (F) Silty dolomites developing no visible pores. (G) Gypsum developing in upper tidal-flat sabkha environment.

Various types of dolomites are developed in the studied interval of the Majiagou Formation. 1) Micritic dolomite. This type of dolomite is mainly distributed in the platform flat and associated with evaporative minerals, exhibiting anhedral to subhedral crystals with grain sizes commonly less than 20 μm (Figure 3A). Some scattered pyrites are variably distributed within this type of dolomite, having content less than 10% in volume (Figure 3B). 2) Fine-to medium-sized dolomite. This type of dolomite is dominantly distributed in the middle part of meter-scale stratigraphic cycles, as well as the major construction of the carbonate matrix. Under thin-section observation, it usually displays a poikilotopic texture with euhedral to subhedral crystals and 50 μm–200 μm in crystalline sizes (Figure 3C). Few evaporative minerals are developed within this type of dolomite. In some coarse crystals, the texture of “cloudy-center-clear-rim” is observed (Figure 3C). Intercrystalline dissolved pores are widely developed with associated authigenic infillings in this type of dolomite (Figure 3D). 3) Dolomitic microbialites. This type of microbialites is displayed as thrombolites and stromatolites, both containing biotic debris and reflecting a high-energy shallow-water environment (Figure 3E). The microibalites usually exhibit cluster and granular structures and grid textures. Only a small proportion of residual pores are visible due to agglutinates filling (Figure 3F). Bituminous fillings are commonly developed in dolomitic microbialites (Figure 3E). 4) Dolomite cements. The dolomite cements consist of coarse crystals with sizes ranging from 400 μm to 1,000 μm, which generally occur as authigenic minerals filling in dissolved vuggy pores in the matrix dolostones. This type of dolomites exhibits planar euhedral to subhedral. The large-sized dolomites commonly develop intercrystalline porosities (Figure 3G). By contrast, the dolomite cements of comparatively smaller crystals usually develop no porosities (Figure 3H). Meanwhile, some authigenic minerals such as quartz and fluorite are associated with large-sized dolomite cements (i.e., saddle dolomite).

FIGURE 3

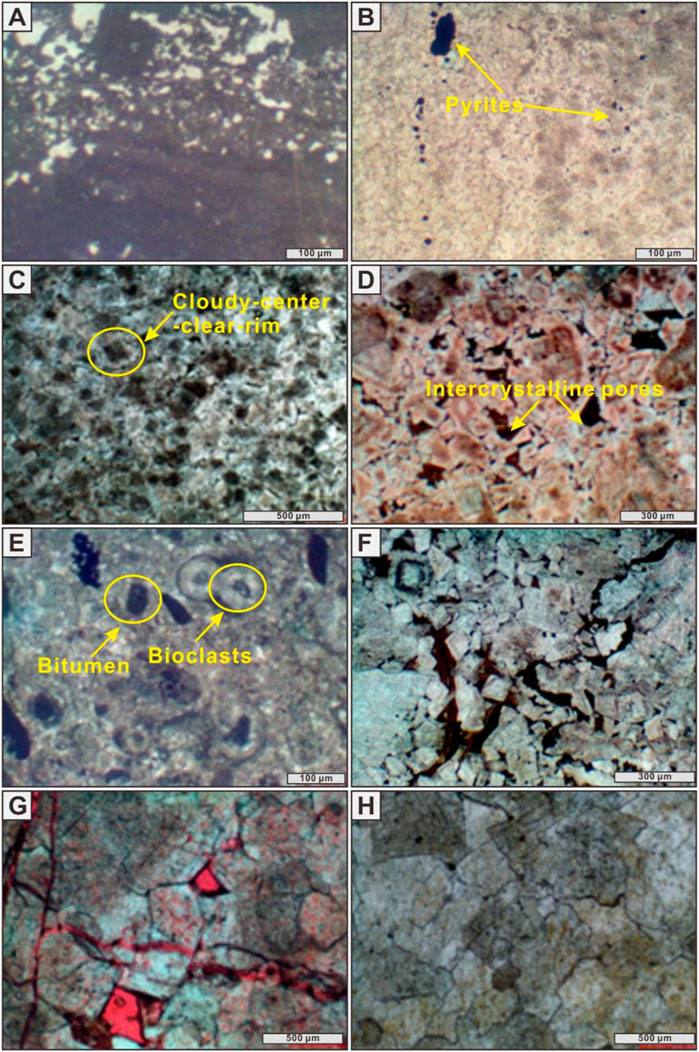

FIGURE 3. Photomicrographs showing mineralogic features of dolostones in the studied interval under plane-polarized light. (A) Micritic dolomites showing anhedral to subhedral crystals with micritic grain sizes. Well-J48, 3,225.86 m. (B) Pyrites distributed in micritic dolomites in scatter. Well-J432, 3,584.12 m (C) “Cloudy-center-clear-rim” features developing medium-sized dolomite. Well-J48, 3,237.48 m. (D) Intercrystalline pores developing in medium-sized dolomites. Well-J48, 3,239.89 m. (E) Bitumen and bioclasts developing in microbialites. Well-J445, 4,105.56 m. (F) Residual pores are visible in medium-sized dolomites of microbialites. Well-J431, 4,425.11 m. (G) Dolomite cements developing intercrystalline pores. Well-J431, 4,428.91 m. (H) Dolomite cements composed of smaller crystals developing no porosities and exhibiting saddle shapes. Well-J52, 4,123.56 m.

5 Results and Discussion

5.1 Dolomitization of Matrix Dolomites

In the eastern Ordos Basin, the occurrence of widespread micritic dolostones has been previously interpreted as the product of seepage-reflux dolomitization (Yang et al., 2018). However, its ultimate mechanism in the studied area is remaining unsolved. The Sr concentrations decrease with increasing burial depth during dolomitization (Liu et al., 2016). The micritic dolomite matrix exhibits Sr values ranging from 77 ppm to 135 ppm (mean value of 92 ppm), which is consistent with Sr content in normal seawater (i.e., less than 550 ppm; Tucker and Wright, 1990). Meanwhile, the Mn content of the matrix dolomite ranges from 55 ppm to 86 ppm with a mean value of 68 ppm, reflecting little influence on diagenesis because the Mn/Sr ratios are exclusively less than 2 (Figure 4; Huang et al., 2008). However, the δ¹³C values are slightly negative and out of the range of seawater origin (Figure 5), suggesting that this type of dolomite may not be formed in a typical marine environment. Diagenesis with meteoric water involvement should result in dolomites characterized by negative δ¹³C composition (Swart et al., 2005). Meanwhile, the δ¹⁸O values of the matrix dolomite (mean value of −8.05‰, V-PDB) are more pronouncedly depleted than the published ratios for Ordovician seawater (i.e., −6.6‰ to −4.0‰; Allen and Wiggins, 1993). This result indicates that the micritic dolomite matrix was formed under the involvement of meteoric fluids. This is also consistent with the distribution pattern of the rare earth elements of the micritic dolomites, which are different from seawater-origin micritic limestones (Figure 6A). The calculated salinity of this type of dolomite is Z = 105.5 using equation proposed by (Keith and Weber 1964) [i.e., Z = 2.048 (δ¹³C_PDB + 50) + 0.498 (δ¹⁸O_PDB + 50)].

FIGURE 4

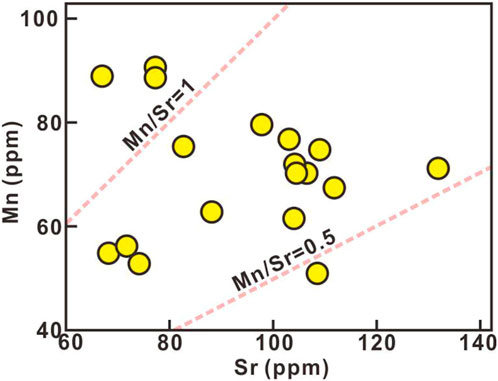

FIGURE 4. Crossplot showing Mn/Sr ratios of the micritic dolomites.

FIGURE 5

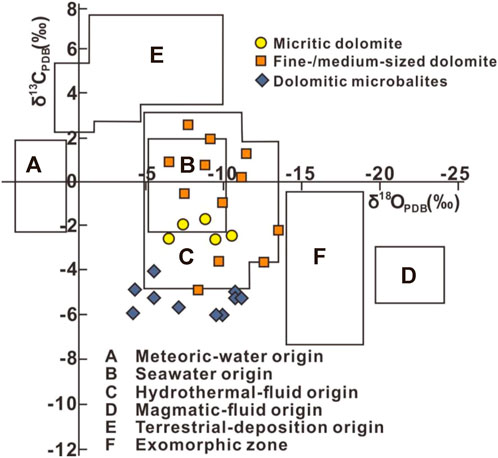

FIGURE 5. Crossplot showing carbon and oxygen isotope features of different types of dolomites. The isotopic ranges are referred from Li et al. (2011).

FIGURE 6

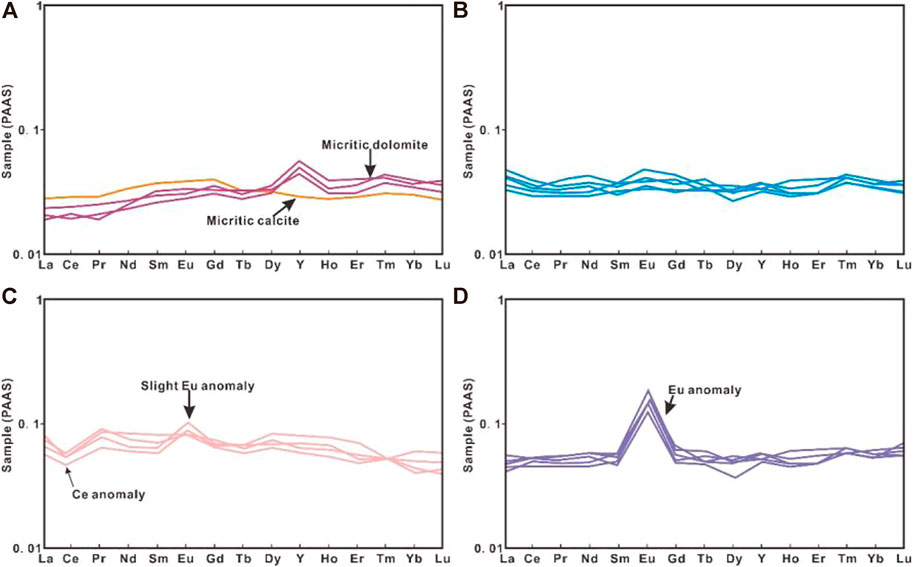

FIGURE 6. Distribution patterns of the rare earth elements in different types of dolomites or calcites. (A) Micritic dolomites and calcites. (B) Fine-to medium-sized dolomites. (C) Medium-to coarse-sized dolomites. (D) Dolomite cements. All samples are normalized to PAAS standard (Gromet et al., 1985).

Presumably, the matrix dolomites were formed under a low-salinity environment with the involvement of meteoric water at the mixing zone during the shallow-burial stage. The mixing zone possibly provided accommodation for widespread dolomitization. It is noteworthy that this dolomitization occurred at a normal burial temperature, as is evidenced by the homogenization temperature (i.e., mean value of 85°C; Figure 7A).

FIGURE 7

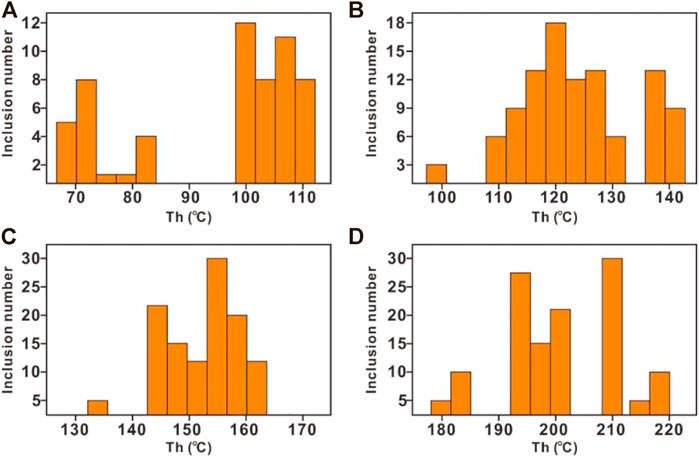

FIGURE 7. Histograms showing homogenization temperatures of different types of dolomites. (A) Micritic dolomite matrix. (B) Fine-to medium-sized dolomites. (C) Medium-to coarse-sized dolomites. (D) Dolomite cements.

5.2 Multi-Stage of Hydrothermal Dolomitizing Fluids

To determine the absolute ages of crystalline dolomites (i.e., crystal sizes larger than 50 μm), U-Pb dating has been conducted for quantitative measurement. The result shows that different dolomites were formed at different diagenetic stages. The recrystallized fine-to medium-sized dolomites were formed at the earliest geological period, with measured U-Pb age of 494 ± 12 Ma and 498 ± 36 Ma, respectively (Figures 8A,B), which is equivalent to Middle Jurassic. The dolomitic microbialites were formed at a later-stage after burial, with measured U-Pb age ranging from 474 ± 31 Ma to 480 ± 12 Ma (Figures 8C–E). It is equivalent to Late Jurassic. The dolomite cements of large-sized crystals were formed at the latest stage, which can be further classified into two periods, i.e., 459 ± 6 Ma −466 ± 11 Ma and 440 ± 15 Ma −445 ± 11 Ma (Figures 8F–I). This period of geological time is equivalent to the Early Cretaceous.

FIGURE 8

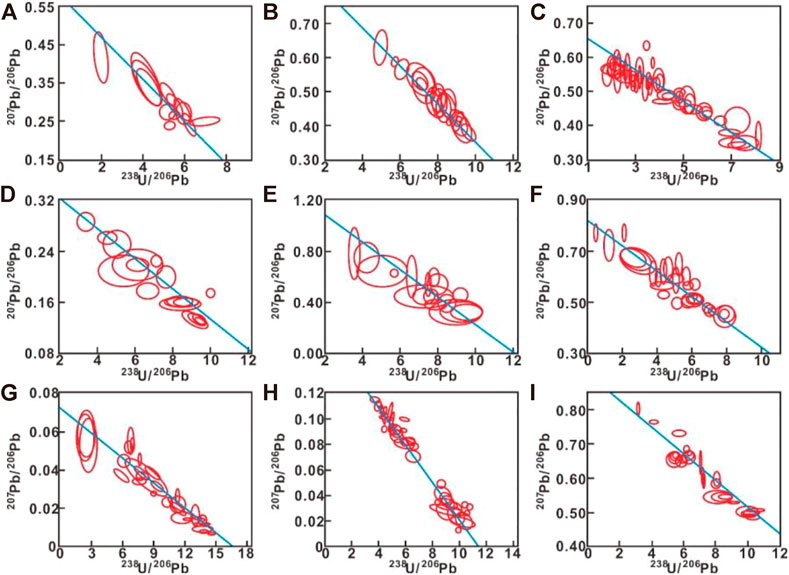

FIGURE 8. U-Pb ages from carbonate minerals using LA-ICP-MS method. (A) Fine-sized dolomite, age of 494 ± 12 Ma. (B) Fine-sized dolomite, age of 498 ± 36 Ma. (C) Dolomitic microbialite, age of 474 ± 31 Ma. (D) Dolomitic microbialite, age of 480 ± 12 Ma. (E) Dolomitic microbialite, age of 477 ± 12 Ma. (F) Dolomite cement, age of 466 ± 11 Ma. (G) Dolomite cement, age of 459 ± 6 Ma. (H) Dolomite cement, age of 440 ± 15 Ma. (I) Dolomite cement, age of 445 ± 11 Ma.

For pervasively distributed fine-/medium-sized dolomites, the calculated homogenization temperatures range from 96°C to 143°C, with a mean value of 126°C (Figure 7B), which is approximately 10°C higher than burial temperature during the Middle Jurassic (i.e., 125°C according to the thermal gradient of 2.5°C and burial depth of 2,800 m; Lei et al., 2020). Moreover, the carbon and oxygen isotopes are plotted at the zone of “hydrothermal-fluid origin” (Figure 5), indicating that this type of dolomitizing fluid was featured by a hydrothermal source. Nonetheless, the distribution pattern of REEs shows seawater-like composition, but has no positive Eu anomaly (Figure 6B). Presumably, this type of dolomites was formed due to interactions between hydrothermal fluids of comparatively low temperature and matrix carbonates (Liu et al., 2017).

For medium-to large-sized dolomites composing microbialites, the introduction of organic matter provided probable dolomitizing fluids, because bituminous matters are widely developed within microbialites (Figure 3E). This inference is supported by other geochemical proxies. Firstly, this type of dolomites shows much depleted carbon isotopes with δ¹³C values ranging from −4.05‰ to −6.18‰ and a mean value of −5.33‰ (Figure 5). These depleted carbon isotopes may result from the interplay of organic matter featured by extremely low δ¹³C composition and normal marine carbonates (e.g., Meyer et al., 2011). Secondly, this type of dolomites displays REE distribution pattern that is distinctively different from marine origin carbonates (Figure 6C). Particularly, negative Ce anomalies (i.e., δCe mean values of 0.75; Figure 6C) indicate a reduced environment, which is consistent with the environment for preservation of organic matter. Moreover, the microthermometric data reveals that the homogenization temperatures range from 134°C to 163°C with a mean value of 157°C (Figure 7C), which is consistent with a slight Eu anomaly (i.e., δEu mean value of 1.35; Figure 6C). To conclude, it is probably that the injection of high-temperature acid fluids associated with organic matter maturing has caused dolomitization and related dissolution.

Coarse-sized dolomite cements exhibit similar petrologic (Figures 3G,H) and REE distribution patterns (Figure 6D) although having different U-Pb ages. This may indicate that two types of dolomite cements were derived from similar origins but temporally discontinued. The microthermometric data reveals that two stages of homogenization temperature exist, i.e., the mean values of −195°C and −215°C, respectively (Figure 7D), which are significantly higher than temporal burial temperature. This indicates that the dolomitizing fluids are characterized by super-high temperatures, which is verified by pronouncedly positive Eu anomaly of dolomite cements (i.e., δEu mean value of 1.70; Figure 6D). To determine the ultimate differences of two type of hydrothermal fluids, the evolution patterns of δ¹³C and δ¹⁸O values are analyzed according to different distances from fractures. The result shows that the dolomite cements filling in major fractures display high δ¹³C value and low δ¹⁸O value (mean value of 3.3‰ and −23.5‰, respectively). On the contrary, the δ¹³C and δ¹⁸O values from dolomite cements decrease or increase linearly with increasing distances from visible fractures (Figure 9). This reflects that the dolomitizing fluids of two stages were derived from hydrothermal fluids associated with periodical magmatism because all previous proxies are consistent with features of magmatic fluids. Moreover, this inference is also evidenced by periodical volcanism occurring in the Ordos Basin (Li and Gao, 2010; Lei et al., 2020).

FIGURE 9

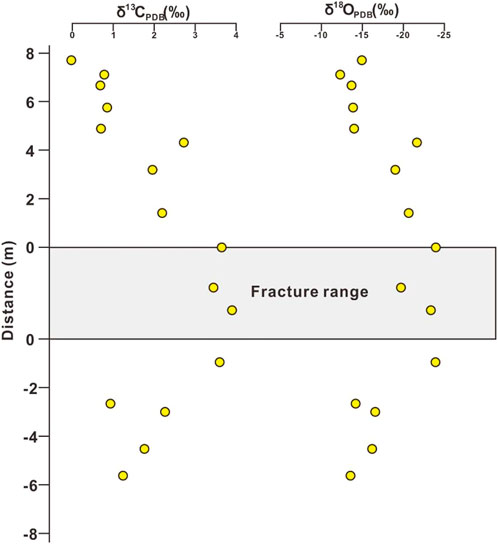

FIGURE 9. Evolution of carbon and oxygen isotopes of dolomite cements at different ranges from fractures.

6 Conclusion

According to the current study, the following conclusions can be drawn:

(1) The recrystallized fine- and medium-sized dolomites were formed in the geological period equivalent to Middle Jurassic. The dolomitic microbialites were formed at a later stage after burial. This stage is equivalent to Late Jurassic. The dolomite cements of large-sized crystals were formed at the latest stage, which can be further classified into two periods (i.e., 459 ± 6 Ma −466 ± 11 Ma and 440 ± 15 Ma −445 ± 11 Ma). This period of geological time is equivalent to the Early Cretaceous.

(2) The matrix dolomites were formed under a low-salinity environment with the involvement of meteoric water at the mixing zone during the shallow-burial stage. The mixing zone possibly provided accommodation for the occurrence of dolomitization.

(3) The fine-to medium-sized dolomites were formed because of the interplay between hydrothermal fluids of comparatively low temperature and matrix carbonates.

(4) The medium-to large-sized dolomites were formed because of injection of high-temperature acid fluids associated with organic matter maturing, which has caused dolomitization and related dissolution.

(5) The two types of dolomite cements were derived from similar origins but temporally discontinued. The geochemical proxies reveal that dolomitizing fluids of two stages were derived from hydrothermal fluids associated with periodical magmatism.
