Youli Wan
Jiashan Lin
Zhan Zhao1,2- 1Key Laboratory of Sedimentary Basin and Oil and Gas Resources, Ministry of Natural and Resources, Chengdu, China
- 2Chengdu Center, China Geological Survey, Chengdu, China
- 3College of Earth Sciences, Chengdu University of Technology, Chengdu, China
The Qiangtang Mesozoic sedimentary basin is a new field of hydrocarbon exploration, in which the Buqu Formation dolostone reservoirs have attracted increasing attention in recent years. To determine the origin of these reservoirs, petrographic study, fluid inclusion thermometry dating, and C-O and Sr isotopic dating were performed. The results revealed the genesis and evolution of different types of dolomite matrix and cement, as follows: 1) The dolomite texture in the study area is closely related to its formation environment and process and can be categorized as primary fabric well-preserved dolomite (Rd1), primary fabric poorly-preserved dolomite, and dolomite filling. The primary fabric-poorly-preserved dolomite includes fine-grained euhedral dolomite (Rd2), fine-grained planar subhedral dolomite (Rd3), and medium-to coarse-grained anhedral dolomite (Rd4). The dolomite filling includes fine-grained planar subhedral cave-filling dolomite (Cd1) and medium-to coarse-grained anhedral, saddle dolomite (Cd2). 2) Rd1 has δ13C‰PDB of 3.42‰–4.23‰, δ18O‰PDB from −4.22‰ to −3.37‰, and 87Sr/86Sr of 0.707654–0.708176 and was formed in the contemporaneous or penecontemporaneous stage at low temperatures by mimic replacement related to seawater evaporation. Abundant supersaturated dolomitization fluids favored the preservation of its primary dolomite texture. 3) Rd2 has δ13C‰PDB of 3.18‰–4.11‰, δ18O‰PDB from −4.56‰ to −4.23‰, and 87Sr/86Sr (0.707525–0.708037), while Rd3 has δ13C‰PDB of 2.72‰–4.42‰, δ18O‰PDB from −6.57‰ to −5.56‰, and 87Sr/86Sr of 0.707432–0.707990. Both were formed at low temperatures in the shallow-burial stage, when the dolomitization fluid was mainly derived from seawater. Excessive dolomitization during the late shallow-burial stage caused the destruction of the dolomite crystals from euhedral to subhedral. 4) Rd4 has δ13C‰PDB of 3.24‰–4.14‰, δ18O‰PDB from −8.22‰ to −6.37‰, and 87Sr/86Sr of 0.707234–0.707884 and resulted from dolomitization or recrystallization at high temperatures in the medium-to deep-burial stage. The crystal curvature was caused by high environmental temperatures. 5) Cd1 has δ13C‰PDB of 3.02‰, δ18O‰PDB of −5.13‰, and 87Sr/86Sr of 0.708147 and was formed during cavern filling before the shallow-burial stage. Cd2 has δ13C‰PDB of −0.09‰−3.38‰, δ18O‰PDB from −10.41‰ to −8.56‰, and 87Sr/86Sr of 0.708180–0.708876 and was related to the collisional orogeny between the Lhasa termite and the Qiangtang Basin in the late Early Cretaceous. Fluids in the overlying and underlying clastic strata of the Buqu Formation were driven by the thermal hot spot during compressional tectonic setting. These fluids caused negative shifts in the oxygen isotope compositions of the earlier dolomite.
1 Introduction
Dolostone reservoirs are an important target for carbonate oil and gas exploration (Dai et al., 2020; Fu et al., 2021; Liu et al., 2021; Yang et al., 2021; Yue et al., 2021). In 1791, French geologist Déodat de Dolomieu discovered and named the dolomite mineral in the Dolomieu mountain in Italy. For more than two centuries, the “dolomite problem” has challenged geologists and oil explorers. The complexity of dolomite has made it difficult to determine its origin, which has become a core topic of debate (Huang et al., 2021). Hence, based on petrographic and geochemical data, researchers worldwide have reported on the driving mechanisms of dolomitization fluid, favorable dolomitization environments, and corresponding macro-level dolomitization models, including the sabkha (McKenzie et al., 1980; Patterson and Kinsman, 1982; Mutti and Simo, 1994), mixed water (Hanshaw et al., 1971; Badiozamani, 1973; Choquette and Steinen, 1980), microbial (organic) (Vasconcelos and McKenzie, 1997), reflux (Adams and Rhodes, 1960; Jones et al., 2003), seawater dolomitization (Purser et al., 1994; Gregg et al., 2001), burial dolomitization (Land, 1985; Morrow, 1998; Mountjoy et al., 1999), and tectonic hydrothermal dolomitization (Qing and Mountjoy, 1994; Lonnee and Machel, 2004; L´opez-Horgue et al., 2010) models, among others. These findings have improved our understanding of dolomite origin and the mechanisms by which dolostone reservoirs are formed. Compared to these macro-scale aspects, little consideration has been given to the genetic implication of dolomite textures, which may be attributed to inadequate textural descriptions (Huang et al., 2011). However, dolomite textures may preserve unique information on the environment, crystallization, crystal growth, and fluid during the formation process, which can be used to study the formation environments and mechanisms (Friedman, 1965; Gregg and Sibley, 1984; Sibley and Gregg, 1987; Huang Q Y. et al., 2014; Lu et al., 2020; Huang et al., 2020; Qiao et al., 2021b; Xiong et al., 2021).
Friedman (1965) was the first to describe the significance of dolomite crystal textures. Using the classification terminology for migmatite and metamorphic rocks, he divided dolomites into three basic textures: euhedral, subhedral, and anhedral. Based on dolomite synthetic experiments, Gregg and Sibley (1984) and Sibley and Gregg (1987) combined the kinetic theory of crystal growth to propose a more detailed classification scheme based on the crystal size distributions, shapes, and boundary features. First, dolomites were divided into unimodal and multimodal types based on the size distributions of their crystals. They were then divided into planar euhedral (planar-e), planar subhedral (planar-s), and nonplanar anhedral (nonplanar-a) based on their boundary shapes and crystal features. The planar type refers to a straight crystal boundary, whereas the nonplanar/curved type refers to the bent, terraced, or other irregular crystal boundaries. Planar and nonplanar dolomites can exist in the form of cement. This classification scheme defines the critical temperature for crystal transformation from planar type to nonplanar type; namely, the critical temperature of anhedral crystal growth (around 50–60°C). Planar-e or planar-s dolomite is formed below this critical temperature, whereas nonplanar-a dolomite is formed above this critical temperature. Huang S. et al. (2014) assumed a maximum critical temperature of 73°C. Wright (2001) also defined a transition type from planar-s to nonplanar-a, which was supplementary to the scheme proposed by Gregg and Sibley. This classification scheme is highly valued for its easy use and description with certain significance regarding its origin (Amthor and Friedman, 1991; Warren, 2000; Machel, 2004; Huang Q. Y. et al., 2014). Recently, several scholars have studied the relationship between dolomite texture and origin in China. Based on the morphological characteristics of a single dolomite crystal, Wang et al. (2010) developed a structural-genetic classification for dolomites in the burial stages and investigated the relationship between dolomite shapes and the forming environment. Huang et al. (2011) studied the Permian–Triassic dolostones in the Sichuan Basin and analyzed the differences between different dolomites and their relationship in the dolomitization process. However, these studies lacked corresponding geochemical data. The structural-genetic concept was not thoroughly introduced until Huang S. et al. (2014) described a structural classification based on the Cambrian–Ordovician dolostones in the central uplift region of the Tarim Basin combined with C-O-Sr isotope data to investigate the origin of different types of dolomites (Yu et al., 2020).
The Qiangtang Mesozoic Marine sedimentary basin is the least explored oil-bearing basin in China. In recent years, dolostone paleo-reservoirs were discovered in the middle Jurassic Buqu Formation in the southern Qiangtang depression, providing a new direction for oil and gas exploration in the basin (Chen et al., 2018; Wang and Fu, 2018; Sun et al., 2020; Wang et al., 2020; Yi and Xia, 2022). The dolostone reservoir in the Buqu Formation has attracted attention as a high-quality reservoir under the overall dense background of oil and gas reservoirs in the Qiangtang Basin (Tan et al., 2004; Sun et al., 2020; Yi and Xia, 2022). Many researchers have conducted fruitful studies on this reservoir regarding the sedimentary environment, dolomite genesis, reservoir characteristics, etc. However, controversy remains about the dolomite genesis, including the mixed water model (Yi et al., 2004; Zhang et al., 2005; Chen et al., 2006; Liu et al., 2008a, b, c, 2010; Peng et al., 2008), high-temperature formation water (Yi et al., 2014; Li et al., 2018), tectonic hydrothermal fluids (Tian et al., 2019; Ji et al., 2020), burial dolomitization (Sun et al., 2020), and multi-stage dolomitization superimposes (Wan et al., 2017a, b, 2018a, b, 2020, 2021), all of which have restricted the discovery of oil and gas. The core dispute centers on the source and formation environment of dolomitization fluid; namely, whether it is seawater, concentrated brine trapped by strata, or meteoric water. Moreover, questions remain regarding whether the dolomite formed in a shallow-burial low-temperature environment or deep-burial high-temperature environments and if dolomitization occurred under a normal geothermal gradient or abnormal high-temperature hydrothermal condition.
This study investigated the petrography, geochemistry, and origin of various types of dolomites collected from the QZ11, QZ12, and QK-1 wells using various methods, including core description; petrographic observation; cathodoluminescence imaging; and carbon (C), oxygen (O), and strontium (Sr) isotope analyses. Combined with fluid inclusion measurement and salinity analysis, this study aimed to reveal the genetic mechanism of the dolostone in the Buqu Formation and provide a geological basis for the evaluation of the dolostone reservoir.
2 Geological setting
The Qiangtang Basin, located in the hinterland of the Qinghai-Tibet Plateau, is a marine sedimentary basin formed in the Mesozoic Era on the pre-Ordovician crystalline basement (Tan et al., 2016). The Qiangtang Basin is bounded by the Kekexili–Jinsha River suture zone (KJS) in the north and the Bangong Lake–Nujiang suture zone (BNS) in the south (Yang et al., 2000). Its structural framework can be divided into four first-order tectonic units: the northern fold and thrust belt, the northern depression belt, the central uplift belt, and the southern depression belt (Wang, et al., 2007; Wan et al., 2021). Overall, the basin presents a tectonic pattern of “two depressions interlocked with one uplift”. The study area was located in the southern depression belt (Figure 1A).
FIGURE 1. Tectonic location of the Qiangtang Basin (A), and distribution and well location of the Buqu Formation dolostone section assessed in the study area (B) ((A) modified from Wan et al., 2018a (B) modified from Ji et al., 2020). Buqu Formation dolostone section: SNP, Suonahu lake section; SBJP, Saibangji section; LEP, Long’eni section; GLP, Geluguanna section; CLP, Chalai section; NZP, Nianzha section; JMP, Jiamu’erqie section; ZRWP, Zharen west section; ZREP, Zharen east section; BGP, Bagedijiari section; RGP, Riga’erbao section; ZDP, Zhadonglaima section; ABP, Angbacundong section; SRP, Sairen section.
In the early Norian Age of the late Triassic Period, the Qiangtang Basin was under tension due to the opening of the Bangong Lake-Nujiang Oceanic Basin in the south. The Southern Qiangtang Depression entered the rift valley stage. Until the late Norian Age–the early Rhaetian Age, the Northern Qiangtang Rift Basin developed, and both the Northern and Southern Qiang Basins simultaneously sank and became sedimentary depressions to form the structural framework in the Qiangtang Basin (Wang et al., 2007). From the early Jurassic Period to the Kimmeridgian Age of the late Jurassic Period, the entire Qiangtang Basin was in a stable uniform environment (Wang et al., 2020). In the Bathonian age of the middle Jurassic Period and the Oxfordian Age–the Kimmeridgian Age of the late Jurassic Period, two large-scale marine transgressions occurred. Seawater submerged the Central Uplift, forming the sedimentary sequence of clastic rocks - carbonate rocks - clastic rocks - carbonate rocks (Table 1).

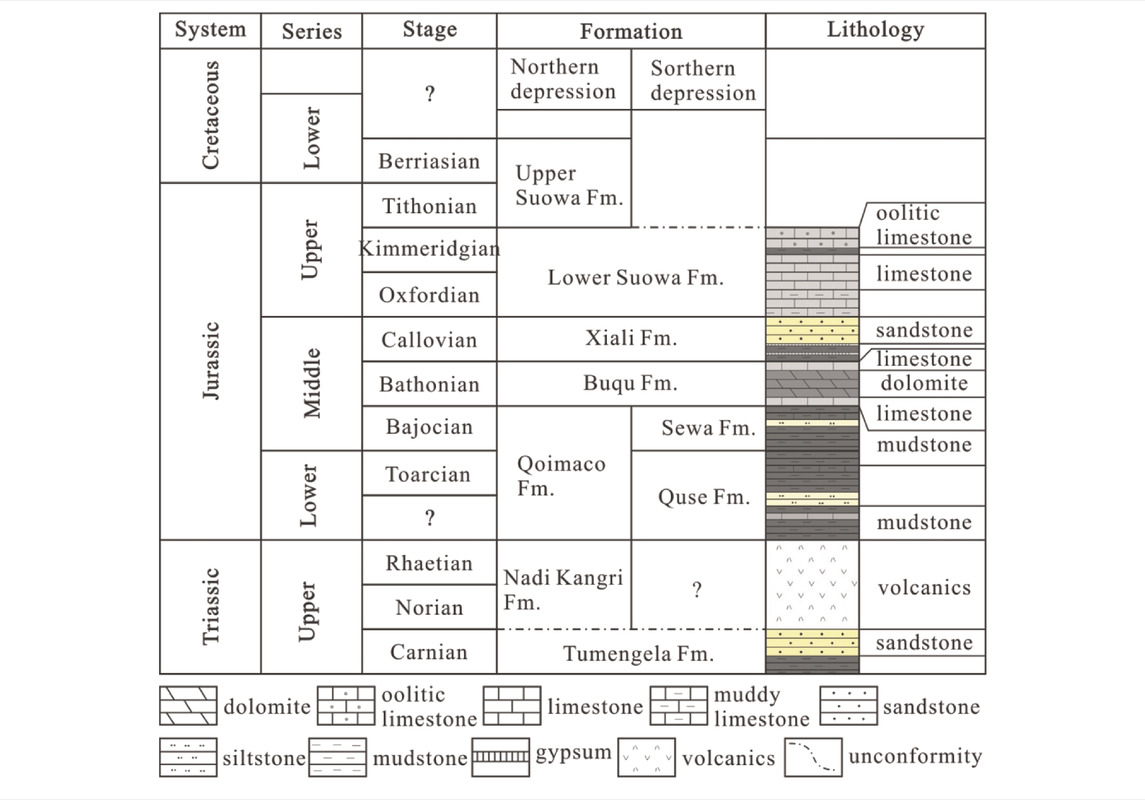

TABLE 1. Generalized stratigraphic column of the Qiangtang Basin.
In the Bathonian Age of the middle Jurassic Period, the first and largest marine transgression occurred in the Qiangtang Basin, which was nearly submerged by seawater. With the reduction in the terrigenous detritus supply, a stable carbonate platform deposition developed in the basin under a hot and arid-semiarid paleoclimate (Pan et al., 2015). Carbonate deposition with a restricted water body developed near the boundary of the open platform in the study area (Chen et al., 2020), which was controlled by the high-frequency relative sea-level change. The underwater plateau in the platform developed into intra-platform beaches and the water body in the intra-beach depression was under salinization in the late high stand systems tract. Due to deposition, the Buqu Formation was impacted by multiple diagenetic fluid media and tectonic movements in the burial-uplift process, forming high-quality reservoirs in the overall tight background of Mesozoic oil and gas reservoirs in the Qiangtang Basin (Wan et al., 2017; Wang et al., 2020). The second stage of the Yanshan Movement and the third stage of the Himalayan Movement had the most significant impacts (Wu et al., 2014, 2016; Ji et al., 2019; Zhao W. Z. et al., 2020).
3 Materials and methods
The dolomite samples used in this study were collected from wells QZ11, QZ12, and QK-1 and sections SNP (Figure 1A) and BGP (Figure 1B). We examined 284 thin sections and classified the textural types of well-preserved fabric, poorly preserved fabric, and texture-destroyed fabric according to classification system proposed by Gregg and Sibley (1984) and Sibley and Gregg (1987), as well as the replacive dolomite and void-filling dolomite cement classification. Fluid inclusion thin sections (33 pieces) of different dolomite texture types were also selected for temperature measurement of the fluid inclusions. Dolomite samples with cavities and fractures filled with high purity and little influence by diagenetic epigenesis (without “misty center and clear rim”) were selected. Micro-sampling was performed with a dental drill (0.05–0.1 mm) to eliminate the influence of filling or transformation by other minerals after dolomitization. A total of three limestone samples and 19 matrix dolomite samples were obtained. Five dolomite filling (cement) and five sparry calcite veins filled with fractures and cavities were used for C-O and Sr isotope analyses. Carbon and oxygen isotope analyses were performed on five granular dolomite samples collected from the SNP sections.
The petrographic and fluid inclusion thin sections were prepared in the State Key Laboratory of Oil and Gas Reservoir Geology and Exploitation of the Chengdu University of Technology. Thin section identification, cathodoluminescence analysis, scanning electron microscope observation, and fluid inclusion temperature measurement were completed at the Southwest Mineral Resources Supervision and Testing Center, Ministry of Natural Resources. The temperature measurements (homogenization temperature and ice-final melting temperature) of the dolomite fluid inclusions were conducted by LINKAM THMS600 Hot & Cold Stage to measure the misty center and clear rim of the dolomite, respectively.
Carbon and oxygen isotope analyses of 27 samples, including limestone, matrix dolomite, and dolomite filling (cement), and Sr isotope analyses of 32 samples were performed at the State Key Laboratory of Oil and Gas Reservoir Geology and Exploitation at the Chengdu University of Technology. The carbon and oxygen isotope analyses were performed on a MAT253, which performed the Sr isotope analyses by thermoelectric ionization solid isotope mass spectrometry (TIMS). Carbon and oxygen isotope analyses of five granular dolomite samples and five sparry calcite veins filled samples were completed by MAT252 isotope mass spectrometry analyzer in the Experimental Testing Center, School of Earth Science and Technology, Southwest Petroleum University. For C-O isotope analyses, pure phosphoric acid was used to generate CO2. The results were presented in δ‰ values as per PDB standards. The test was taken as per DZ/T0184.17–1997, with an analytical error of ±0.0005%. Sr isotope analyses were performed as per the standard Sample NBS987 of the US National Bureau of Standards, with an analytical error of the specific value of 87Sr/86Sr of ±0.002%.
4 Petrographic study
According to the profile geological survey data (BGP section) (Figure 1), the dolostone of the Buqu Formation in this study area was mainly fine crystal dolomite (Wan et al., 2017a). Core observation showed that the formation dip angle of the Buqu Formation encountered in well QZ12 was >50°, with enlarged thickness of severely weathered strata. The profile of a single well showed that the dolomite of the Buqu Formation developed at well depths of 213.56–4.25 m, with 81 “limestone-dolomite” meter-level lithologic cycles. In each cycle, thin-bedded “micritic limestone to micritic arenaceous limestone to sparry arenaceous limestone to calcareous dolomite to dolomite (fine-grained dolomite or medium-coarse grained dolomite)” developed from the bottom to the top, with the thicknesses of each lithologic segment ranging from 40 to 80 cm (Wan et al., 2017a; Wan et al., 2018a; Wan et al., 2020). Under the microscope, the samples from well QZ12 were mainly composed of fine-grained euhedral dolomite and fine-grained subhedral dolomite, followed by medium-coarse-grained dolomite and a small amount of microcrystalline dolomite. Only six of the 154 samples were saddle dolomite. The 600.00–575.00 m section of well QZ11 was pinhole dolomite, with saddle dolomite filling commonly observed. Saddle dolomite was found in half of the 64 samples in the core of the QK-1 hole, with equal fine-grained and medium-coarse-grained dolomite.
Two different varieties of dolomite were identified according to the primary fabric preservation (Huang Q. Y. et al., 2014): fabric-well-preserved dolomite (Rd1) and fabric-poorly preserved or fabric-destructive dolomite. Three different varieties of five different types of dolomite and fabrics were identified according to the crystal size distribution (unimodal or polymodal) and crystal boundary shape (planar or nonplanar) (Sibley and Gregg, 1987).
According to the preservation of the primary fabric, the dolomite was divided into Rd1 and poorly preserved fabric or fabric-destructive dolomite (Huang S. et al., 2014). Rd1 preserves primary fabrics well, while poorly preserved fabric or fabric-destructive dolomite is subdivided based on the crystal size and structural features of the dolomite. The crystal textures were classified as proposed by Sibley and Gregg (1987) and adjusted and simplified based on the actual situations in the research area. The crystal textures included euhedral (planar-e crystal), subhedral (mainly planar-s crystal, with some nonplanar-a crystal), and anhedral (nonplanar-a crystal) types. In addition, dolomite can also appear as filling of holes and cracks, which is significant in the analysis of dolomite origin. For instance, saddle-shaped dolomite is often thought to be linked to hydrothermal transformation (Davies and Smith, 2006). Thus, based on dolomite filling (cement), the dolomite of the Buqu Formation in the study area was categorized as Rd1, fine-grained euhedral crystalline dolomite (Rd2), fine-grained subhedral dolomite (Rd3), medium-to coarse-grained anhedral dolomite (Rd4), and dolomite fillings. The dolomite fillings included fine-grained euhedral-subhedral dolomite (Cd1) and medium-coarse grained saddle-shaped dolomite (Cd2) filling. The preliminary study for this work included an analysis of the trace elements and rare Earth elements for different types of dolomite, which can be mutually verified with this study (Wan et al., 2017b; 2018b).
4.1 Fabric well-preserved dolomite (Rd1)
The fabric-well-preserved dolomite inherits and/or retains the structural characteristics of the precursor limestone, which helps to reconstruct its sedimentary environment. Different intensities of metasomatism of the residual structures in the study area lead to different degrees of recognition of precursor limestone particles or plaster (Bi et al., 2001; Yang et al., 2021). The results of the petrographic examination showed fabric-well-preserved dolomite in the study area in the Buqu Formation, which was further divided into two subtypes.
The first subtype of dolomite (Rd1) has intact grain or a stucco outline; some scholars have termed the internal structure “mimic/mimetic replacement” (Kaldi and Gidman, 1982; Sibley, 1991). Combined with the inferred primordia fabric of the precursor limestone, this subtype contains granular (Figure 2A) and mud-silty (Figures 2B,C) dolomites. The muddy-silty dolomite in the Buqu Formation in the study area mostly retained the primary fabric of the residual precursor limestone, and single muddy-silty dolomite was rarely observed. This type of dolomite mainly consists of muddy-silty dolomite (0.001–0.05 mm) with tiny, mostly subhedral-anhedral, crystals. The other subtype, residual grain dolomite, only retains the shape or outline of the original particles with unrecognizable internal structures. It is rarely observed in the Buqu Formation. Primary Rd1 in this study refers to the mimetic crystal metasomatic dolomite.
FIGURE 2. Petrological characteristics of Rd1. (A). Plane-polarized-light image of an Rd1 sample showing nonplanar-a textures in small areas, with some calcite-filled pores. The sample was obtained from well QZ12 in the Buqu Formation at a depth of 140.86 m. (B). Plane-polarized-light image of an Rd1 sample showing nonplanar-a textures in most areas and an algal stromatolitic texture in some areas, with a few calcite-filled pores. The sample was obtained from well QZ12 in the Buqu Formation at a depth of 65.00 m. (C). Plane-polarized-light image of an Rd1 sample containing relatively dense peloids replaced by nonplanar-a dolomite to varying degrees, as well as scattered asphaltenes. The sample was obtained from well QZ12 in the Buqu Formation at a depth of 134.58 m (D). Cathodoluminescence image of the Rd1 sample in (C). These crystals show a dull-dull orange light, which is brighter along the grain edge. In contrast, the asphaltene shows no luminescence.
4.2 Fabric poorly preserved or fabric-destructive dolomite
4.2.1 Euhedral planar crystalline dolomite (Rd2)
This type of dolomite (Rd2) is also referred to as “sugar” dolostone (Ji et al., 2020). The core sample and field profiles showed light-dark gray, medium to thick layers or lumpy occurrence, with locally visible traces of biodisturbance or fossil fragments of shell organisms. Rd2 contained mostly fine grains (0.05–0.25 mm) and a small number of powdered crystals, with a high degree of self-morphism and sugar-like characteristics under a microscope. The crystals were highly euhedral and saccharoidal. Bright fine rings or “misty center and clear rim” structures were observed at the edge of some crystals (Figure 3A), with intercrystalline point/line contacts and pores. Under scanning electron microscopy, Rd2 was mostly composed of rhombohedral dolomite with flat crystal boundaries (Figure 3B). Cathodoluminescence showed uniform medium brightness and orange to dark red color (Figures 3C,D).
FIGURE 3. Petrological characteristics of Rd2. (A). Plane-polarized-light image of an Rd2 sample with fine crystalline size and showing planar euhedral textures, some dolomites with misty center and clear rim, and some calcite-filled pores. The sample was obtained from well QK-1 in the Buqu Formation at a depth of 352.74 m. (B). Scanning electron microscope image of an Rd2 sample showing planar euhedral textures, some mostly rhombohedral dolomite, and partially dissolved dolomite. The sample was obtained from well QZ11 in the Buqu Formation at a depth of 597.34 m. (C). Plane-polarized-light image of an Rd2 sample with fine crystalline size showing planar euhedral textures, a few dolomite areas with misty center and clear rim, and unfilled pores. The sample was obtained from well QZ11 in the Buqu Formation at a depth of 581.69 m. (D). Cathodoluminescence image of the Rd2 sample in (C). These crystals show a very dull-dull orange light that is brighter along the crystalline edge. In contrast, the pore shows no luminescence.
4.2.2 Fine-grained subhedral planar crystalline dolomite (Rd3)
In the core sample and the field cross-section, dolomite (Rd3) was mainly dark gray to gray in color and is slightly deeper than or interbedded with the fine crystal and euhedral dolomites. The crystals were mainly fine (0.05–0.25 mm), with minor medium grains (0.25–0.5 mm) and powder (0.006–0.05 mm). The crystals were mainly subhedral and anhedral and mainly in point or line contact, with some parts in embedded contact. The intercrystalline pores were drastically reduced compared to those in Rd2 (Figure 4A). The dolomite was tightly accumulated in scanning electron microscope examination. Although some crystals showed straight grain boundaries, they were restricted by their growing space. The crystal morphology was incomplete, or they were embedded in neighboring crystals and occupied the original interstitial space. Perfect rhombohedral crystals were observed in the direction toward the intercrystalline pores. (Figure 4B). The cathodoluminescence of such dolomite was predominately dark red in color, similar to or weaker than that of Rd2 (Figures 4C,D).
FIGURE 4. Petrological characteristics of Rd3. (A). Plane-polarized-light image of an Rd3 sample with fine crystalline size showing planar subhedral textures, several dolomite areas with misty centers and clear rims, as well as unfilled pores. The sample was obtained from well QK-1 in the Buqu Formation at a depth of 351.94 m. (B). Scanning electron microscope image of an Rd3 sample showing planar subhedral textures due to dense dolomite overgrowth. The sample was obtained from well QZ12 in the Buqu Formation at a depth of 105.02 m. (C). Plane-polarized-light image of an Rd3 sample with fine crystalline size showing planar subhedral textures, several areas of dolomite with misty centers and clear rims, and some calcite-filled pores. The sample was obtained from well QZ12 in the Buqu Formation at a depth of 54.86 m. (D). Cathodoluminescence image of the Rd2 sample in (C). These crystals show a very dull-dull orange, which is brighter in a few dolomite areas along the crystalline edge. The pores and calcite cement show no luminescence.
4.2.3 Medium-to coarse-grained anhedral crystalline dolomite (Rd4)
Rd4 was mainly composed of allomorphic dolomite with a poor degree of crystallography. Medium-/coarse-grained dolomite (0.25–2 mm) was dominant, followed by fine dolomite (0.05–0.25 mm). Rd4 showed two occurrences. One was a transitional type between limestone and dolostone due to incomplete or selective dolomitization. The mottled rock generally developed in the core of well QZ12 (Figures 5B–E), which presented as two-tone punctate, plaque, or ribbon. Microscopic observation showed that the dolomite grain was relatively thin, with mostly fine-medium grains, poor crystal automorphism, and well-developed intergranular pores (Figure 5B). The cathodoluminescence of Rd4 was mainly dark red in color or speckled, with bright orange bands or spots visible at the crystal edges or contacts. The overall cathodoluminescent intensity was slightly higher than that of the non-metasomatized limestone (Figure 5F).
FIGURE 5. Petrological characteristics of Rd4. (A). Plane-polarized-light image of an Rd4 sample with medium-coarse crystalline size showing anhedral texture, some dolomite with misty centers and clear rims, and unfilled pores. The sample was obtained from well QK-1 in the Buqu Formation at a depth of 308.97 m. (B). Plane-polarized-light image of an Rd4 sample showing incomplete dolomitization, and the accumulation of a fine dolomite crystal mosaic. The sample was obtained from well QZ12 in the Buqu Formation at a depth of 105.02 m. (C). Plane-polarized-light image of an Rd4 sample with coarse crystalline size showing planar subhedral textures and asphalt-filled microcracks. The sample was obtained from well QZ12 in the Buqu Formation at a depth of 54.86 m. (D). Cathodoluminescence image of the Rd4 sample in (C). These crystals show a very dull red, which is brighter in a few dolomite areas along the crystalline edge. (E). Plane-polarized-light image of an Rd4 sample showing fine crystal dolomite with incomplete dolomitization. The sample was obtained from well QZ12 in the Buqu Formation at a depth of 66.26 m. (F). Cathodoluminescence image of the Rd4 sample in (E). These crystals show a dull red, while the calcite does not emit light.
The other occurrence of Rd4 was in gray or dark gray massive medium to thick beds. The fractures and dissolution pores in the upper layers of the core were highly developed, accompanied by saddle dolomite filling. Under the microscope, Rd4 showed fine crystals, with medium, and predominantly coarse grains (Figures 5A–C). Some parts of the samples showed double number distributions, with coarse grains surrounding fine grains, namely between coarse grain dolomite packages or around the fine dolomite crystals, with some individuals differing under the coarse grain dolomite in the orthogonal polarization extinction phenomenon. This indicated the influence of recrystallization. This kind of dolomite crystal is dominated by curved plane boundaries. Rd4 showed entirely dark cathodoluminescence, with local dark red patches (Figure 5D).
4.3 Void-filling dolomite/dolomite cement
For the dolostone of the Buqu Formation in the study area, it was difficult to determine whether the dolomite growing around the inwall of a cavern or a crack was generated by cementation or metasomatism. Hence, it was described as “filling” rather than “cement” (Wan et al., 2018a). Although only a small amount of dolomite was present in the dolostone, it played a significant role in determining the property of the diagenetic fluid and identifying the evolutionary process of the formation and cavern filling. This study revealed two types of dolomite fillings in the dolostone of the Buqu Formation.
Fine planar subhedral crystalline cavern-filling dolomite generally acted as the cavern or crack filling by growing on its in-wall (Cd1). These mostly contained fine grains with little silty grains or medium grains and high euhedral degree (straight boundary) in the direction of the holes (Figure 6A). All crystals were clean with fewer impurities and predominant dark red cathodoluminescence with local glowing rings, similar to those observed Rd3.
FIGURE 6. Petrological characteristics of void-filling dolomite/dolomite cement. (A). Plane-polarized-light image of a Cd1 sample with fine-medium crystalline size showing dolomite cement filling along the inner wall of the calcite-filled fracture. The sample was obtained from well QZ12 in the Buqu Formation at a depth of 62.75 m. (B). Plane-polarized-light image of a Cd2 sample showing filled saddle dolomite in Rd3, The fractures are well developed and filled with calcite. The sample was obtained from well QZ12 in the Buqu Formation at a depth of 73.38 m. (C). Plane-polarized-light image of a Cd2 sample showing saddle dolomite with calcite-filled fractures. The sample was obtained from well QZ11 in the Buqu Formation at a depth of 580.90 m. (D). Cathodoluminescence image of the Cd2 sample in (C). These crystals show no visible cathodoluminescence.
In the core, the medium-coarse anhedral saddle dolomite filling (Cd2) was mostly light gray and mainly grew along the inner wall of the fracture or dissolution cavity, forming a shell around or filling the cavity. However, the crystal surface was dirty under plane-polarized light, wherein massive solid or liquid inclusions were seen. Microcracks and cleavages had developed inside the crystals. The grain boundary was bending in a sickle shape. Wavy extinction was obvious under cross-polarized light. The dark red ray was predominant in cathodoluminescence, with no light locally (Figure 6D). The saddle dolomite in the Buqu Formation in the study area was in abrupt contact with the surrounding rock, with matrix dolomite filling material (Figure 6B), indicating that the saddle dolomite was formed after matrix dolomite due to late reconstruction.
5 Dolomite geochemistry
5.1 Fluid inclusion characteristics
Fluid inclusions are poorly developed in the dolomite of the Buqu Formation in the Qiangtang Basin (Table 2). Among the 33 thin sections of different dolomite samples, only 17 samples contain fluid inclusions. Fluid inclusions were identified in replaced dolomite and dolomite cement, including Rd2, Rd3, Rd4, Cd1, and Cd2, but not in Rd1. As described previously, misty centers and clear rims were observed in Rd2, Rd3, Rd4, and Cd2. The fluid inclusions in the healed trails in these dolomites were carefully avoided. The fluid inclusions that were isolated and in clusters in the misty center were interpreted to be of primary origin. In the clear rim, inclusions occurring along the boundary between the misty center and clear rim, as well as those in clusters, were interpreted to be of primary origin. These fluid inclusions in the misty center and clear rim were liquid-vapor inclusions with gas-liquid ratios of <10% and were chosen for further microthermometric analysis to reflect the diagenetic temperature and fluid salinity when they were captured (Liu, 1995; Braithwaite and Rizzi, 1997; Goldstein, 2001).
TABLE 2. Homogenization and ice-final melting temperatures of fluid inclusions in different dolomites.
Among crystalline dolomites, the homogenization temperature of Rd2 types was low (lowest value 65.5°C), which is also the lowest homogenization temperature among the fluid inclusions observed in this study. Meanwhile, its ice-final melting temperature (−16.2°C) was also low. The highest homogenization temperature was 83°C, the average homogenization temperature was 73.24°C, and the lowest ice-final melting temperature was −20.1°C. The average corresponding salinity was 20.64%. The homogenization temperatures of the clear rim part of Rd2 dolomite ranged between 121.1 and 123.4°C (average 122.25°C), The ice-final melting temperatures were between −20.3°C and −20°C (average −20.15°C), with a corresponding salinity of 22.48%. While this study obtained only three fluid inclusion temperature measurements for the clear rim part of dolomite, which may not be statistically significant, these data indicated a higher formation temperature of the clear rim part of the dolomite compared to that of the misty center part.
The homogenization temperatures of fluid inclusions in Rd3 dolomite ranged from 82.9 to 98°C (average 90.18°C), slightly higher than those in Rd2 dolomite. Meanwhile, the ice-final melting temperatures, ranging from −19.7°C to −13°C (average −17.05°C), were also slightly higher than those in Rd2. The corresponding average salinity was 20.21%, slightly lower than that in Rd2. The homogenization temperatures of the clear rim part of Rd3 dolomite with “misty center and clear rim” were 102.8–157°C (average 126.75°C). The ice-final melting temperatures were between −21.1°C and −12.8°C (average of −17.8°C), with a corresponding salinity of 20.75%. These data indicated that the formation temperature of the clear rim part of Rd3 was higher than that of Rd3.
The homogenization temperatures of Rd4 dolomite inclusions were higher than those of Rd2 and Rd3, ranging from 84 to 117°C (average 102.67°C.) The salinity ranged from −13.6 to −21.3°C (average −18.15°C), corresponding to an average salinity of 21.03%. The homogenization temperatures of the clear rim part of Rd4 dolomite with a “misty center and clear rim” were 118–145°C (average 130.15°C). The ice-final melting temperatures were between −21.5°C and −10°C (average −18.69°C), with a corresponding salinity of 21.37%. These indicated that the formation temperatures of the clear rim of Rd4 were higher than those of Rd4 and similar to those of Rd3 dolomite. The homogenization temperatures of the clear rim part of the Rd4 dolomite with a “misty center and clear rim” were generally higher than the maximum formation temperatures of granular dolomite, indicating that the formation environment of the clear rim might have been altered by a high-temperature environment during burial.
For dolomite fillings/cements, the homogenization temperatures of Cd1 partially coincided with those of Rd4, ranging from 110.2 to 116.7°C (average 113.5°C). The ice-final melting temperatures ranged from −20.1 to −19.9°C (average −20°C), corresponding to an average salinity of 22.38%. The homogenization temperatures of Cd2 differed significantly from those of crystalline dolomite and Cd1 filling, ranging from 121 to 165°C (average 140.43°C). Comparatively, the corresponding ice-final melting temperatures ranging from −20.9°C to −13.3°C did not differ significantly, indicating that the fluid properties of Cd2 were not significantly different from those of crystalline dolomite and Cd1. This may be related to the warming of tectonic thermal events under the background of tectonic compression. Under the microscope, part of Cd2 was broken into coarse near-regular rhomboid dolomite crystals with a “misty center and clear rim” structure. The homogenization temperatures of the fluid inclusions at the clear rim (between 89 and 119.4°C) were much lower than those of Cd2 but similar to those of Rd3. The ice-final melting temperature was similar to that of Cd2, with an average corresponding salinity of 21.06%. These also indicated that the genetic fluids in the clear rim of Cd2 did not involve meteoric water.
5.2 Isotope geochemical characteristics
5.2.1 Oxygen and carbon isotope
Table.3 shows the carbon, oxygen, and strontium isotope data obtained in this study and the carbon and oxygen isotope data collected from published literature. The δ13C‰PDB of micritic limestone in the Buqu Formation of Qiangtang Basin ranged from 1.16‰ to 3‰ (average 2.08‰) and the δ18O‰PDB ranged from −11.9‰ to −3.79‰ (average −8.77‰). The carbon isotope δ13C‰PDB of SNP grain dolomite (Figure 1A) was 3.52‰–4.02‰ (average 3.74‰). The oxygen isotope δ18O‰PDB was −0.47‰– 0.36‰ (average −0.04‰). The carbon isotope δ13C‰PDB of Rd1 ranged from 3.42 to 4.23‰ (average 3.8‰). The oxygen isotope δ18O‰PDB of Rd1 ranged from −4.22‰ to −3.37‰ (average −3.81‰). The δ13C‰PDB ranged from 3.18 to 4.11‰ (average of 3.62‰) in Rd2 and varied from 2.72 to 4.42‰ (average 3.71‰). The oxygen isotope δ18O‰PDB of Rd3 ranged from −6.57‰ to −5.56‰ (average -6.10‰). The δ13C‰PDB of medium-coarse anhedral dolomite (Rd4) ranged from 3.24 to 4.14‰ (average 3.81‰). The δ18O‰PDB ranged from -8.22‰ to -6.37‰ (average −7.36‰).

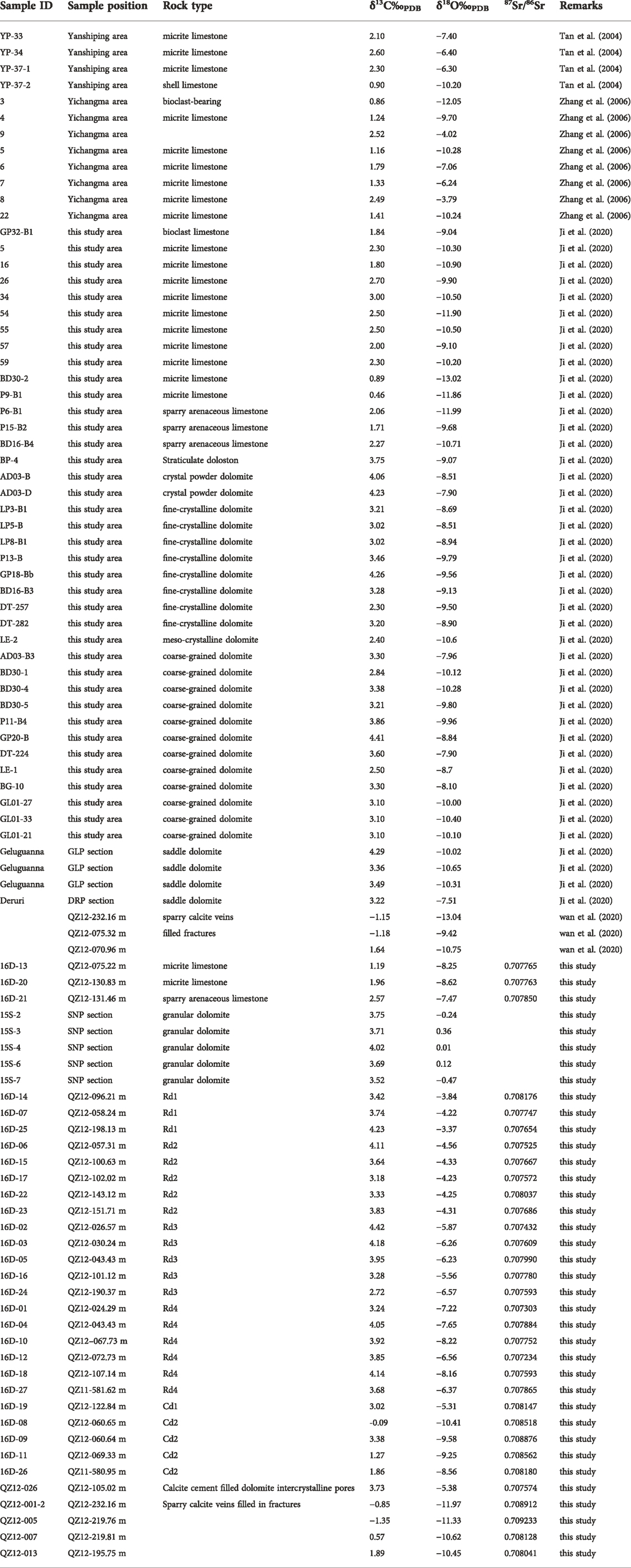

TABLE.3. C- O and Sr isotope data for the different carbonate rocks in the Buqu Formation.
The δ13C‰PDB and δ18O‰PDB of Cd1 were 3.02‰ and −5.13‰, respectively. The δ13C‰PDB of Cd2 ranged from −0.09 to 3.38‰ (average 1.61‰), while the δ18O‰PDB ranged from −10.41‰ to −8.56‰ (average −9.45‰). The calcite cement filling in the dolomite intercrystalline pores had a δ13C‰PDB of 3.73‰ and an δ18O‰PDB of −5.38‰. The sparry calcite veins filling the core fractures of well QZ12 had an δ13C‰PDB of between -1.35‰ and −1.89‰ (average −0.06‰) and an δ18O‰PDB between −13.04‰ and −9.42‰ (average −11.08‰).
5.2.2 Strontium isotope
Unlike C and O isotopes, Sr isotopes are not prone to fractionation or isotope exchange due to changes in biology, salinity, temperature, and pressure in geological history; thus, they are an effective tracer of carbonate diagenetic fluid (Huang S. et al., 2014). During the deposition of the Buqu Formation in the middle Jurassic, due to the further expansion of the Bangonghu-Nujiang ocean basin in the south of the Qiangtang Basin, large-scale transgression in the basin resulted in a large, flooded area and weakened weathering. This led to a decreased proportion of Sr supplied by aluminum-siliceous rocks in the continental crust, which has high 87Sr/86Sr ratios. The Sr isotopic composition of carbonate rocks deposited in this period was controlled by mantle-derived materials with a low 87Sr/86Sr ratio in the Bangonghu-Nujiang ocean basin, resulting in a reduced 87Sr/86Sr ratio, comparable to that reported worldwide (Wan et al., 2018a).
The 87Sr/86Sr ratios of micritic limestone in the Buqu Formation in the study area ranged from 0.707763 to 0.707850 (average 0.707793). Rd1 dolomite with original fabric preserved showed 87Sr/86Sr ratios of 0.707654–0.708176 (average 0.707859). The ranges of 87Sr/86Sr ratios in Rd2, Rd3, and Rd4 were 0.707525–0.708037, 0.707432–0.707990, and 0.707234–0.707884, respectively. The average 87Sr/86Sr ratios were 0.707697 (Rd2), 0.707681 (Rd3), and 0.707605 (Rd4). The 87Sr/86Sr ratio of Cd1 was 0.708147, while the ratios of Cd2 ranged from 0.70818 to 0.708876 (average 0.708534). The 87Sr/86Sr ratio of the calcite cement filling the dolomite intergranular pores was 0.707574. The 87Sr/86Sr ratios of sparry calcite veins filling the fractures were 0.708041–0.709233 (average 0.708579). Except for samples 16D-14 (Rd1), 16D-22 (Rd2), dolomite fillings, and fissure fillings of sparry calcite veins, all other samples showed 87Sr/86Sr ratios within the range of seawater (0.707–0.708) (Veizer et al., 1999).
6 Discussion
6.1 Genesis of fabric well-preserved dolomite
Rd1 comprises fine dolomite that preserves the primary fabric of the precursor limestone. A fine dolomite grain can be interpreted as the result of dolomitization under near-surface, low temperature, and high salinity conditions (Gregg and Shelton, 1990). Moreover, fine-grained dolomite might be formed by consolidated or half-consolidated marls in metasomatism. Sibley et al. (1987) and Amthor and Friedman (1991) reported that the tiny grains had a larger surface area, which was favorable for rapid dolomite nucleation. Furthermore, a non-luminance or uniform dark red ray under cathodoluminescence also reflected a marine diagenetic environment with very low manganese content (Huang et al., 2008), indicating the early formation of this type of dolomite. The well-preserved fabric of the precursor limestone might be related to mimetic metasomatism (Sibley, 1991) and lower diagenetic temperature (Machel, 2004). Metasomatism generally requires a high-density dolomite nucleus to ensure the preservation of the complex inner texture of calcium carbonate grains and cement (Sibley, 1991). The high-density nucleation was related to the highly soluble reactive and supersaturated dolomitization fluid. For instance, the bioclastic grain comprising high magnesium calcite was often first replaced by dolomite with a well-preserved primary fabric (Tucker and Wright, 1990).
Only a few fabric-well-preserved dolomites had developed and no associated evaporated salt was observed in the study area. However, the granular dolomite was associated with evaporite in the Suonahu section. The freezing temperatures of fluid inclusions in the granular dolomites suggested a higher diagenetic fluid salinity, indicating high seawater salinity and large Mg2+/Ca2+ ratios in the study area. These conditions are required for the formation of a highly saturated dolomitization fluid. The isotope geochemical data also supported this hypothesis. The 87Sr/86Sr ratios of 0.707763–0.707850 were close to the contemporaneous seawater ratios (0.707–0.708) (Veizer et al., 1999) (Figure 7), whereas the C-O isotope values were significantly biased/shifted (Figure 8). The positive excursion of the C isotope values might be related to an evaporative environment as in such restricted and oxygen-deficient conditions, the degradation of isotopically light carbon from organic matter in the water would have been significantly inhibited (Mckenzie, 1981; Warren, 2000; Xiong et al., 2021, 2022). Rd1 is a mimetic replacement dolomite related to evaporated seawater in the contemporaneous or penecontemporaneous stage and resulted from high salinity seawater metasomatism formed by the strong evaporation of restricted water bodies in carbonate platforms under hot and arid-semiarid conditions (Pan et al., 2015).

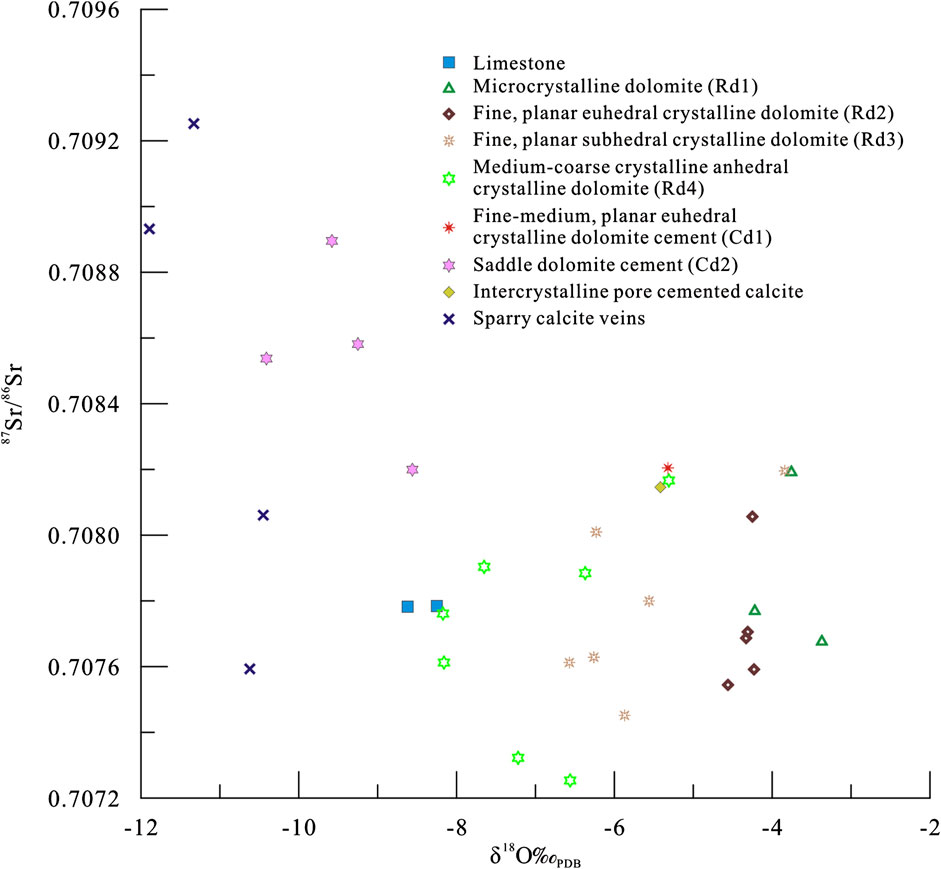

FIGURE 7. Cross-plot showing 87Sr/86Sr vs. δ18O for different carbonate rocks in the study area.

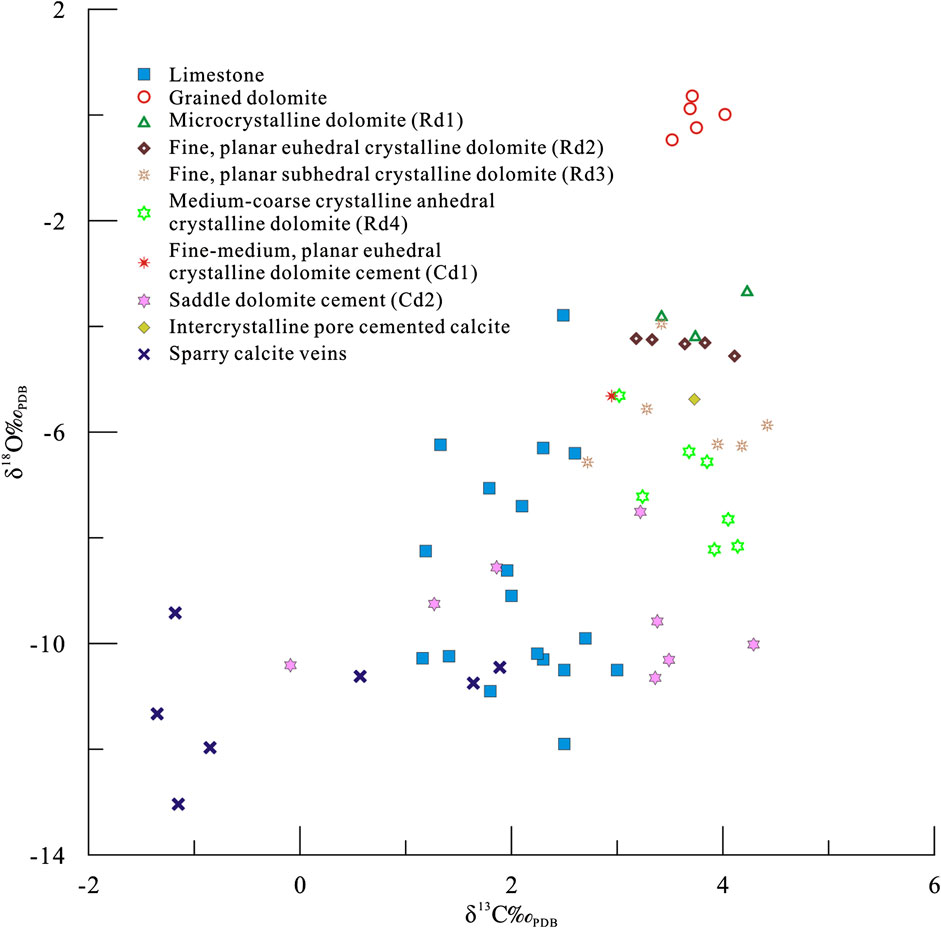

FIGURE 8. Cross-plot showing δ18O vs. δ13C for different carbonate rocks in the study area.
6.2 Genesis of fabric poorly preserved or fabric-destructive dolomites
The straight crystal boundaries, loosely stacked saccharoidal crystals, uniform red-dark red cathodoluminescence, and deficient stylolite of Rd2 indicated its formation before strong compaction and pressure solution. The homogenization temperatures of the fluid inclusions were low (65.5°C) and the freezing temperature indicated a salinity of 19.6% (Table.2; Figure 9A), suggesting that Rd2 was formed as a result of dolomitization at low temperature in the early diagenetic stage. The texture was similar to that of the typical dolomite formed by the backflow of high salinity evaporated seawater (Adams and Rhodes, 1960). Although associated evaporated salts did not develop in the dolostone of the Buqu Formation in the study area, the salinity of the fluid inclusions was 3–7 times higher than that of normal seawater (Table 2), indicating that seawater salinity might not reach the degree of large precipitation of evaporite when the dolomitization fluid was brackish water or mildly evaporated seawater. Therefore, it is difficult to explain the origin of such dolomite using the traditional hypersaline water backflow model. However, an increasing number of studies have shown the potential for dolomitization in medium salinity or mildly evaporated seawater (Whitaker and Smart, 1990; Qing et al., 2001). Similarly, in terms of isotopes, Rd2 showed slightly heavier oxygen isotope compositions than that of the contemporaneous marine calcite but similar strontium isotopes as that of contemporaneous seawater (Figure 7, Figure 8), indicating a correlation between its origin and slightly evaporated seawater. Medium salinity dolomitization fluid could also prevent excessive dolomitization favorable for the preservation of massive intercrystalline pores and the formation of loosely stacked saccharoidal crystals. Consequently, Rd2 was formed in a low-temperature environment in the early diagenetic stage. The backflow or infiltration diffusion of slightly evaporated seawater in the shallow burial stage might be the major mode of dolomitization, in which “appropriate” dolomitization was favorable for the development and preservation of the intercrystalline pores.
FIGURE 9. Histogram of the homogenization temperatures for fluid inclusions in different dolomite phases. (A) Various dolomites without misty centers and clear rims. (B) Clear rim parts of dolomite samples with misty centers and clear rim structures.
Rd3 has similar cathodoluminescence and O-Sr isotope compositions as those of Rd2, suggesting a similarity in their diagenetic environment and dolomitization fluid properties with predominant marine fluid in the shallow burial stage. Compared to Rd2, Rd3 had lighter O isotope compositions, related to the increased burial depth and temperature during its formation (Table.2; Figure 8, Figure 9A). With the increased burial depth, the continuous supply of dolomitization fluid and the increasing diagenetic temperature enabled dolomite to proceed to cementation accretion after it replaced calcite, resulting in excessive dolomitization. This excessive dolomitization led to the growth of new dolomite around the initially formed dolomite and the formation of enlarged rims or crustose zones, causing dolomite to transform from euhedral to subhedral crystal and intercrystalline pores to continuously decrease. However, Rd3 developed relatively straight crystal boundaries, indicating that the formation temperature did not reach the critical temperature for crystal curvature. Therefore, such dolomite was likely formed in the late shallow burial stage. The origins of Rd3 and Rd2 were similar and successive. In the burial process, excessive dolomitization was the major reason for the less-euhedral crystals.
Rd4 mainly comprised nonplanar-curved anhedral dolomite, significantly different from the abovementioned dolomite in texture. Previous studies reported high formation temperature (Gregg and Sibley, 1984; Sibley and Gregg, 1987), highly saturated dolomitization fluid (Shukla, 1986), and competitive growth of crystals for growing space as factors leading to crystal curvature (Jones, 2005). The coarse grains, wavy extinction, and associated pressure solution stylolite indicated that Rd4 dolomite in the Buqu Formation in the Qiangtang Basin was formed with increasing temperature in the medium-deep burial stage (Fairchild, 1980; Qing and Mountjoy, 1989). The oxygen isotope of Rd4 was significantly negatively biased, and reduced by 2‰ compared to that of fine dolomite. The carbon isotope of Rd4 does not differ significantly compared to the abovementioned dolomite, which also indicated the correlation between its origin and high temperature (Figure 8, Figure 9). In particular, the 87Sr/86Sr ratio was close to or slightly higher than that of contemporaneous seawater (Figure 7), indicating that no deep mantle source fluid or atmospheric freshwater participated in the formation of such dolomite. The slightly increasing Sr isotope ratios might be related to diagenetic alteration in the burial process (Qing et al., 1998) or the participation of a neutron-rich radioactive 87Sr fluid in the overlying or underlying clastic strata (Davies and Smith, 2006). Many high-temperature fluids participated in the formation of Rd4, as reflected by the homogenization temperatures of the fluid inclusions (average 102.67°C) and salinity of 21.03% (Table 2). In addition to the direct replacement of the precursor limestone, Rd4 might also be the result of recrystallization of the fine-grained dolomite formed at an early stage (Mazzullo, 1992; Hartig et al., 2011). Therefore, Rd4 was characterized by a bimodal granularity distribution. Moreover, the oxygen and strontium isotopes of some dolomite overlapped to different degrees, which might result from recrystallization due to the late dolomitization fluids alternating the early formed dolomite.
6.3 Genesis of dolomite filling
Cd1 often grew along the inwall of caverns and cracks as the first filling of caverns. Its crystal texture and cathodoluminescence were like those of fine-grained euhedral or subhedral dolomite. The freezing temperature and carbon and strontium isotopes of the fluid inclusions were also similar to those of thlarities, suggesting that Cd1 and fine-grained dolomite probably have a similar origin as that of fine-grained dolomite. These were similar to those of dolomitization fluid. However, the homogenization temperature of Cd1 was higher than that of fine-grained euhedral or subhedral dolomites and the oxygen isotope was negatively skewed compared to that of fine-grained or medium-to coarse-grained dolomites (Table 2; Figure 8, Figure 9), indicating that Cd1 experienced diagenetic transformations such as recrystallization in the deep burial stage, where the higher formation temperature resulted in the fractionation of heavy oxygen isotopes.
The unique crystal texture of Cd2 indicated a unique growing environment. The crystallographic and geochemical features illustrated that such a crystal was rapidly formed in a highly supersaturated solution (Searl, 1989), but a small quantity of Cd2 might be related to the self-regulation effect of the host dolomite (Qing and Chen, 2010) and thermochemical sulfate reduction in the burial and compaction process (Machel, 1987; Machel and Lonnee, 2002). The dolomite in the Qiangtang Basin has higher homogenization temperatures compared to the saddle-shaped dolomite with limestone as the host mineral in North America and salinity of nearly 7 times higher than the contemporaneous seawater, indicating the formation was related to thermal fluids (Wang et al., 2010). However, dolomite in the Qiangtang basin, in general, might be formed by the recrystallization of previous matrix dolomite or directly in a thermal fluid rather than by replacing limestone. The Cd2 in the Tarim Basin formed during the Cambrian–Ordovician periods has similar oxygen and strontium isotopes as Rd4, and the saddle-shaped dolomite of the Buqu Formation in the Qiangtang Basin has similar carbon isotopes as grained dolomite. However, Cd2 has higher strontium isotopes but significantly lower (2‰) oxygen isotope than that of medium-coarse-grained dolomite (Figures 7, 8). These results further indicate that the saddle-shaped dolomite fillings (Cd2) in the Buqu Formation dolomite in the Qiangtang Basin were formed with the participation of external thermal fluids.
If the foreign fluid was from the deep mantle-derived fluids, the saddle-shaped dolomite formed should be characterized by a low 87Sr/86Sr ratio. If the saddle dolomite flowed through the 87Sr-rich clastic rocks of the Lower Fuqu and Sewa formations, it would have absorbed a large amount of 87Sr and showed an increased 87Sr/86Sr ratio in the foreign fluid. However, this is inconsistent with our findings of lower 87Sr/86Sr ratios but a wider range in the saddle dolomite compared to those of the matrix dolomite (Table 3; Figure 7). In addition, the distribution range and average ice-final melting temperature of saddle-shaped dolomite were similar to those of Rd3 and Rd4, indicating the saddle-shaped dolomite fluid was a contemporaneous marine fluid trapped in the Buqu Formation without the involvement of atmospheric water. The Yanshan and Himalayan tectonic movements occurred after the Jurassic deposition in the Qiangtang Basin. The Yanshan Movement formed the intrusive rocks (Andesite?-porphyrite) in the Buqu Formation of the SBJP section, which may have provided a heat source for saddle dolomite genetic fluid. The tectonic compression then drove the movement of marine fluid trapped in the Buqu Formation. During this migration, the marine fluid passed through the 87Sr-enriched clastic strata of the overlying Xiali Formation, the underlying the Quse Formation, and the Sewa Formation. A schematic diagram of the evolution of dolomite texture in the study area of the Qiangtang basin is shown in Figure 10.
FIGURE 10. Model showing the evolution of diagenetic fabrics among representative dolomites from the study area.
6.4 Revelation of the misty center and clear rim
The granular dolomite and broken saddle dolomite in the study area in the Buqu Formation area tended to show a misty center and clear rim structure (Figure 2A). Dolomite crystals with clear rims have higher fluid formation temperatures compared to dolomite without the misty center and clear rim structure (Table.2; Figure 9B), or even higher than Rd4 and Cd2. Thus, the clear rim formation of the granular dolomite of the Buqu Formation was related to tectonic thermal events. The ice-final melting temperatures and corresponding salinity of the fluids forming the clear rim of the grain dolomite barely varied, indicating that these fluids were tectonic thermal fluids. The formation time was consistent with that of Cd2, indicating that tectonothermal events related to Cd2 significantly impacted the early dolomites, especially oxygen isotopic composition (Figure 11). The tectonothermal events may have caused high-temperature heat transfer fluid in the early dolomite oxygen isotope fractionation. The clear rim of dolomite formed in the high-temperature thermal fluid flow showed lower oxygen isotopic values, resulting in the lower oxygen isotope values of the dolomite with clear rim structures compared to those of the dolomite without misty center clear rim structures.
FIGURE 11. Comparisons of cross-plots showing δ18O vs. δ13C for different types of dolomite without misty centers and clear rims with previous research results.
Two tectonic activities in the Yanshan and Himalayan periods occurred after the deposition of Jurassic strata in the Qiangtang Basin (Fang et al., 2002), especially the late Cretaceous Yanshan Movement (Act Ⅱ) that produced many thrust nappe structures (Wu et al., 2014, 2016; Ji et al., 2019; Zhao Z. et al., 2020; Wan et al., 2021). Broken after a nearly perfect diamond saddle dolomite, the clear rim portion of the fluid inclusions has a homogenization temperature far below the formation temperature of the saddle dolomite (Table 2; Figure 9). The clear rim of the saddle dolomite formed later than the saddle dolomite, and the corresponding freezing temperature and salinity suggest that the saddle dolomite was broken. During this period, the fault lines that connect atmospheric water were not formed and atmospheric freshwater did not infiltrate the Buqu Formation, suggesting that the ancient oil reservoir was not destroyed at this time. Zircon U-Pb dating of andesitic porphyrite in the SBJP section of the Buqu Formation in the northern part of the study area (Figure 1B) determined the ages for the first time at 78–64 Ma B. P. (Wan et al., 2018a; Wan et al., 2020; Wan et al., 2021). Our latest research determined the intrusive age of andesitic porphyrites in this section of 79.03 Ma (this will be described separately in other articles), indicating that the saddle-shaped dolomite was formed at about 79.03 Ma and was possibly related to the intraplate-collision orogeny between the Lhasa and Qiangtang terranes. Moreover, U-Pb isotope (LA-ICP-MS) dating of saddle-shaped dolomite showed (Qiao et al., 2020; Qiao et al., 2021a) that the saddle-shaped dolomite was formed at about 80 Ma B. P (This will be described separately in other articles), further confirming that the saddle-shaped dolomite was formed during the late stage of early the Cretaceous. All these data support that the formation of the paleo-reservoirs of oil in the southern Qiangtang Depression was related to the collision between the Indian subcontinent and the Eurasian plate and the uplift of the Qinghai-Tibet Plateau in the Cenozoic.
7 Conclusion
1) According to the primary fabric of the precursor limestone, the dolostone of the Buqu Formation in the Qiangtang Basin is divided into fabric-well-preserved (residual) and fabric-poorly preserved or fabric-destructive dolomite. The fabric-well-preserved dolomite is mainly residual dolomite (Rd1) consisting of muddy–silty crystals. The other dolomites include fine-grained euhedral dolomite (Rd2), fine-grained subhedral dolomite (Rd3), and medium-to coarse-grained anhedral dolomite (Rd4). In addition, two types of dolomite fillings developed in the study area: fine-grained euhedral-subhedral dolomite filling (Cd1) and medium-to coarse-grained saddle-shaped dolomite filling (Cd2).
2) Rd1 was formed in the penecontemporaneous stage as a result of mimetic metasomatism related to seawater evaporation. The flow of massive highly saturated dolomitization fluids was favorable for the preservation of the primary fabric. Among the fabric-poorly preserved or fabric-destructive dolomite, Rd2 and Rd3 were formed in a low-temperature environment at the shallow burial stage. The backflow or infiltration diffusion might be the major driving mechanism of dolomitization fluids. Moderate dolomitization was favorable for the formation and preservation of holes, whereas excessive dolomitization resulted in the transformation from euhedral to subhedral crystals and gradually blocked holes. Medium-coarse-grained anhedral dolomite was mostly related to high temperature and recrystallization in the medium-deep burial stage and the higher formation temperature of curved crystals.
3) Cd1 was formed in the shallow burial stage. Cd2 was related to the collisional orogeny between the Lhasa and Qiangtang terranes in the late Early Cretaceous (79.03 Ma). The thermal fluid was the marine fluid trapped in the overlying and underlying clastic rocks driven by the tectonothermal event during this period. Cd2 was mainly formed by recrystallization or direct precipitation from thermal fluids.
4) The tectonothermal events of the late Early Cretaceous greatly influenced the dolomites formed in the early stage, leading to the development of the clear rim with a misty center. The geochemical characteristics of the clear rim structure that formed after the fracture of saddle-shaped dolomites indicate that the formation of the southern Qiangtang oil paleo-reservoir belt was related to the Himalayan movement.
Data availability statement
The raw data supporting the conclusions of this article will be made available by the authors, without undue reservation.
Author contributions
All authors listed have made a substantial, direct, and intellectual contribution to the work and approved it for publication.
Funding
This article was funded by the National Natural Science Foundation of China (“The mechanism of pores formation and preservation during dolomitization: a case study from Buqu formation dolomite reservoirs, Southern Qiangtang depression”, No. 41902138).
Conflict of interest
The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
Reviewer XT declared a shared affiliation with author JW to the handling editor at the time of review
Publisher’s note
All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors, and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.
