Can Eu Anomaly Indicate a Hydrothermal Fluid Si Source? A Case Study of Chert Nodules From the Permian Maokou and Wujiaping Formations, South China

The Middle–Late Permian witnessed an unusual chert accumulation event along the margin of the Pangea and Paleo-Tethys realms, known as the “Permian Chert Event (PCE).” The PCE is well recognized in the Permian limestone from South China, in the forms of nodular and bedded cherts. Previous studies suggested that PCE was caused by hydrothermal fluids related to the Emeishan large igneous province (ELIP). Meanwhile, another hypothesis supported the biogenic origin of PCE, i.e., the Permian chert derived from biosilicification of abundant sponges and radiolarian. Thus, sources of silica from the Permian chert remain uncertain. To understand linkages among PCE, biosilicification mechanism, and the ELIP event, this study focused on chert nodules collected from the Permian Maokou and Wujiaping formations in the Lianziya and Maoertang sections, South China. We measured germanium/silicon ratios (Ge/Si) and rare earth element (REE) compositions of chert nodules on the basis of petrographic analysis. Ge/Si ratios range from 0.14 to 0.63 μmol/mol with an average of 0.33 μmol/mol (n=18) in the Lianziya section and from 0.02 to 0.75 μmol/mol with an average of 0.18 μmol/mol (n=45) in the Maoertang section, both of which are close to the seawater value. The REE pattern is characterized by LREE depleted with a positive Eu anomaly ranging from 0.66 to 2.16 in the Lianziya section and from 1.05 to 9.57 in the Maoertang section. Our results indicate that the silica of the Permian chert predominantly originated from seawater with limited contributions from hydrothermal fluids. To further quantify the contributions of hydrothermal fluids, we applied a binary (seawater and hydrothermal fluid) mixing model based on two geochemical proxies, i.e., the Ge/Si ratio and Eu anomaly. The modeling results suggest a mixing of 0.5 vol% to 1 vol% hydrothermal fluids with contemporaneous seawater, verifying the dominant seawater source of silica in the PCE. Although it has been widely accepted that positive Eu anomaly points to the hydrothermal fluid origin of silica, our study demonstrates that positive Eu anomaly could also be present in cherts that was predominantly derived from normal seawater. Therefore, the analysis of the Ge/Si ratio or REE compositions is highly recommended when determining the Si source of cherts.

1 Introduction

Chert nodules and bedded chert are of great geological significance for their strong weathering resistance and various silica sources (Maliva et al., 1989; Sugitani, 1992; Racki, 1999; Beauchamp and Baud, 2002; Kato and Nakamura, 2003). A remarkable chert accumulation event, the “Permian Chert Event (PCE)”, occurred in the Middle-Late Permian (Beauchamp and Baud, 2002; Yao et al., 2013; Gao et al., 2020; Yu et al., 2020; Zheng et al., 2021). The Permian cherts were distributed in the margin of the Pangea and the Paleo-Tethys realm (Beauchamp and Baud, 2002; Yao et al., 2013; Dong et al., 2020; Yao et al., 2021). One hypothesis attributes chert formation around the Pangea to the upwelling of cold bottom seawater. Large amounts of nutrients were carried by the bottom seawater, facilitating the blooming of siliceous organisms (Beauchamp and Baud, 2002; Gates et al., 2004). The cold bottom seawater could be derived from glacier melting or wind-driven fluxes along the margin of the Pangea (Yu et al., 2020). It was also suggested that the PCE in the South China Block (SCB) might be triggered by various factors: 1) biologic origin, which became one of the most vital Si sources for cherts in the SCB, with the dramatic evolution of siliceous organisms (Beauchamp and Baud, 2002; Yao et al., 2013; Gao et al., 2020; Yu et al., 2020; Zheng et al., 2021); 2) tectonic activities, which could create extra space for crystal growth, elevate temperature, and induce silica-rich hydrothermal fluids that were saturated with respect to silica when moving up and precipitate as cherts (Dong et al., 2020; Yao et al., 2021); 3) the Emeishan Large Igneous Province (ELIP), which, evidenced by intense tectonic events and hydrothermal activities, is dated to 260 ± 3 Ma (Shellnutt, 2014) and might have led to formation of the PCE cherts (Dong et al., 2020; Zheng et al., 2021). However, there is no consensus on the Si sources of the PCE cherts.

The reservoirs of silicon mainly include normal seawater, hydrothermal fluids, and biological silica sinks (Maliva et al., 1989; Maliva et al., 2005). A series of geochemical proxies, such as germanium/silicon ratio (Ge/Si), Eu anomaly (Eu/Eu*), Al/(Al + Fe + Mn), Fe₂O₃/TiO_2, and Al₂O₃/(Al₂O₃ + Fe₂O₃) diagram, Co/Ni, Co × Mn, and Cd/Mo diagram have been widely used in determining Si sources (Murray et al., 1991; Murray, 1994; Shen et al., 2011; Dong et al., 2015; Shen et al., 2018; Cui et al., 2019). In this study, two geochemical proxies, Ge/Si ratio and Eu anomaly, are used to constrain the Si source of the Maokou and Wujiaping cherts in the SCB.

According to the apparent variations of Ge/Si ratios in different reservoirs, Ge/Si ratios are widely applied in tracing the Si source of chert formations (Tribovillard, 2013; Alibert and Kinsley, 2016; Tatzel et al., 2017; Cui et al., 2019; Guan et al., 2020; Deng et al., 2022). Germanium (Ge) and silicon (Si) belong to the same group (IVA) in the periodic table of elements and possess similar chemical characteristics (Bernstein, 1985). However, because of its larger atomic radius, Ge performs differently in low- and high-temperature geological processes compared to Si (Bernstein, 1985; Bernstein and Waychunas, 1987), leading to significant variations of Ge/Si (μmol/mol) ratios in various reservoirs (Bernstein, 1985; Baronas et al., 2017). Ge/Si ratio of hydrothermal fluids is about 9 μmol/mol, which is one order of magnitude higher than that of seawater (Ge/Si_sw = 0.72 μmol/mol) and river water (Ge/Si_rw = 0.58 μmol/mol) (Froelich et al., 1992; Mortlock et al., 1993; Escoube et al., 2015). Because biogenic silica does not fractionate Ge from Si, the Ge/Si ratios of siliceous organisms are close to those of seawater/river water. For instance, Ge/Si ratios of diatoms, siliceous sponges, and radiolarians range between 0.45 and 0.78 μmol/mol, 0.08–0.38 μmol/mol and 0.62–1.57 μmol/mol, respectively (Shemesh et al., 1989; Bareille et al., 1998; Tribovillard et al., 2011; Tribovillard, 2013).

The rare earth elements (REE) of cherts are difficult to fractionate during diagenetic process and have unique chemical characteristics in different reservoirs (Elderfield et al., 1988; Bau, 1991; Sholkovitz, 1992; Sholkovitz et al., 1994). Therefore, REE patterns and related proxies can be used to trace Si sources. For example, seawater-sourced chert shows a light REE-depleted pattern, with a negative Ce anomaly and a high Y/Ho. In contrast, chert originating from hydrothermal fluids has a flat REE pattern with a high Eu anomaly. High-temperature fluids preferentially take in Eu²⁺ from oceanic crust by water-rock reaction under acidic conditions (Elderfield et al., 1988), leading to an enrichment of Eu in hydrothermal fluids (Bau, 1991; Douville et al., 1999). Positive Eu anomaly of hydrothermal fluids [with an average of 14.17 (Mills and Elderfield, 1995)] is higher than that of seawater and river [1.13 and 0.76, respectively (Alibo and Nozaki, 1999; Soyol-Erdene and Huh, 2013)].

To constrain the Si source of the PCE chert nodules in the SCB, we collected chert nodules from two sections and conducted petrographic and geochemical analyses.

2 Geological Setting

The South China Block (SCB) is composed of the Yangtze Platform to the northwest and the Cathaysia Old Land to the southeast, separated by the Jiangnan Orogen (Wang and Jin, 2000; Shen et al., 2019). In the SCB, the Permian successions, consisting of the Liangshan member, Qixia, Maokou, Longtan/Wujiaping, and Changxing formations in ascending order, vary from 120 to 1,200 m thick, and are well constrained by biostratigraphic framework. The Yunan movement in the Late Carboniferous caused a big unconformity, the Permian successions began with the Liangshan Member (Shen et al., 2019; Shen et al., 2021). The Maokou Formation, with a thickness of 120–300 m, conformably overlies the Qixia Formation. It is composed of light gray limestone with bedded cherts and nodular cherts (Liu et al., 2020). There is a widespread parallel unconformity between the Maokou and Wujiaping formations, which is caused by the Dongwu movement (Shen et al., 2019). The Wujiaping Formation consists of 60–90 m-thick gray limestone intercalated with bedded/nodular cherts and coals. Emeishan large igneous province (ELIP) event occurred around 260 Ma (Shellnutt, 2014), leading to intense basalt weathering. The overlying upper Permian Changxing Formation is mainly composed of thick limestone intercalated with minor dolomitic limestone.

This study focuses on the Maoertang and Lianziya sections. The Maoertang section (105°25′3″N, 32°16′23″E) is located in Jiange County, Guangyuan City, Sichuan Province, which is in the transition zone between Songpan-Ganzi fold belt and southern part of Hannan-Micang Mountain uplift (Regional Geology of Sichuan Province, 1991). The Lianziya Section (110°47′20″N, 30°56′21″E) located in Zigui County, Yichang City, Hubei Province (Figure 1A). Carbonates and nodular cherts from these two sections were deposited in a shallow-water carbonate platform, which yielded abundant fossils, including bryozoans, brachiopods, fusulinids, and corals. Chert nodules in this study were collected from the Maokou Formation in the Lianziya section and the Maokou and Wujiaping formations in the Maoertang section.

FIGURE 1

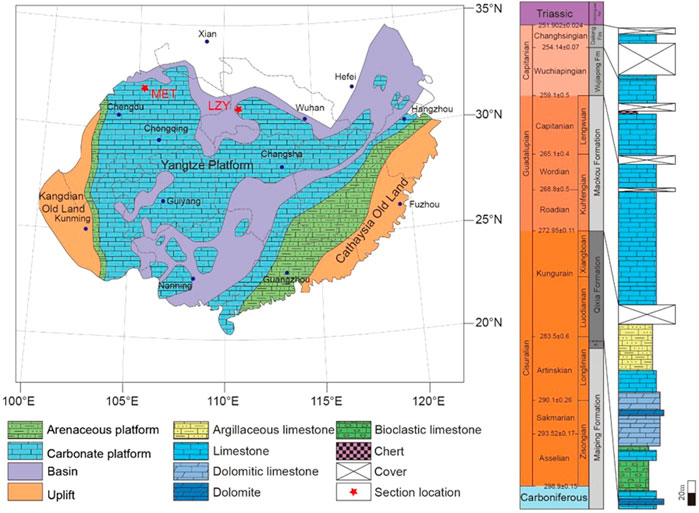

FIGURE 1. Paleogeographic map [modified from Wang and Jin, (2000)] and the stratigraphic column in the Permian (260 Ma) of the South China Block. Sampling localities are marked by red stars. LZY: The Lianziya section, MET: The Maoertang section. The geochronology data are modified from Shen et al. (2019).

3 Materials and Methods

3.1 Sample Preparation

Fresh chert nodules were collected from the Maoertang and Lianziya sections. Thin sections were prepared for petrographic observation. Chert nodules were crushed into 200 mesh powder for geochemical analysis.

3.2 Petrographic Observation

Thin sections were observed by using a polarizing microscope (Nikon Eclipse LV100N POL). Petrographic observations were focused on the crystallization of silica and the contact between carbonates and chert nodules. Alizarin Red-S solution was applied in staining thin sections to distinguish calcite from dolomite.

3.3 Major and Trace Elemental Analyses

An aliquot of 100 mg sample powder was first leached with 10 ml of 0.5N HAc to dissolve calcareous materials. After centrifugation, the residues were washed with 5 ml of 1N HCl to completely remove the carbonate content. To completely remove Cl⁻ from residues, samples were washed with deionized (DI) water five times. After being dried down in an oven at 65°C, about 50 mg of sample powder was weighed and dissolved in a Teflon beaker (7 ml) by 1 ml of concentrated HNO₃ and 3 ml of concentrated HF for 24 h on a hotplate at 120°C. The solutions were dried down on a hotplate, and then the residues were dissolved by 5 ml of concentrated HNO₃ at 120°C for 24 h. After complete dissolution of samples, the solutions were dried down on a hotplate to expel excessive HNO₃. Finally, the residues were dissolved in 5 ml of 2% HNO₃ for the analysis of elemental compositions.

Major element concentrations, including ²⁷Al, ¹³⁷Ba, ⁴⁰Ca, ⁵⁶Fe, ³⁹K, ²⁴Mg, ²³Na, and ⁵⁵Mn, were determined by a Spectra Blue Sop inductively coupled plasma optical emission spectrometer (ICP-OES) at Peking University. Rare Earth Elements and other trace elements were analyzed by an inductively coupled plasma mass spectrometry (ICP-MS) at Chinese Academy of Geological Sciences, including ¹³⁹La, ¹⁴⁰Ce, ¹⁴¹Pr, ¹⁴⁴Nd, ¹⁵⁰Sm, ¹⁵²Eu, ¹⁵⁷Gd, ¹⁵⁹Tb, ¹⁶³Dy, ⁸⁹Y, ¹⁶⁵Ho, ¹⁶⁷Er, ¹⁶⁹Tm, ¹⁷³Yb, ¹⁷⁵Lu, and ⁷⁴Ge contents. SiO₂ content was calculated by summing the weight of oxides of all major elements (Al₂O₃, CaO, Fe₂O₃, K₂O, MgO, and Na₂O) and minor elements to 100%. The analytical precision is better than 5% for all major elements and 10% for trace elements. Two standard materials, GSR-5 (shale) and GSR-13 (calcite), were measured to calibrate the accuracy of the determination.

4 Results

4.1 Petrological Observations

The Maokou and Wujiaping formations are composed of gray limestone and bioclastic limestone/packstone in the Lianziya and Maoertang sections. Dark gray chert nodules are randomly distributed in carbonates. Chert nodules show a variety of morphologies and sizes. Most chert nodules are irregular, discontinuous, and are distributed roughly parallel to the bedding (Figures 2A,B). The abundance of chert nodules varies through layers (Figure 1B).

FIGURE 2

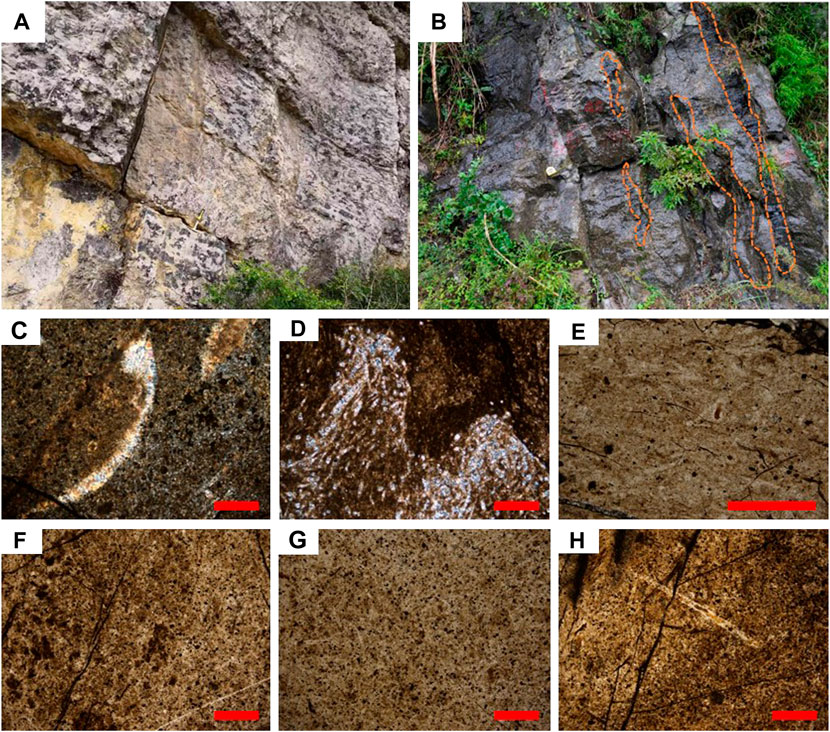

FIGURE 2. Field photographs and photomicrographs of the Permian chert nodules. (A) Field photograph of the Lianziya section; (B) Field photograph of the Maoertang section; (C–H) Photomicrographs of chert nodules. Scale bars are 500 μm in Figures 2C–H.

According to microscopic observations, the Maokou Formation in the Lianziya section is dominantly composed of limestone and bioclastic limestone/packstone (Figures 2C,D). Chert nodules predominantly consist of microquartz in both sections. Biological fabrics, including brachiopods, ostracods, bivalves, and sponges, could also be identified in the carbonate matrix and nodular cherts in both sections (Figure 2).

4.2 Geochemical Results

4.2.1 Major Elemental Compositions and Ge/Si Ratios

Major and trace elemental compositions of chert nodules in the Lianziya and Maoertang sections are presented in Supplementary Data S1, S2, respectively. In the Lianziya section, the SiO₂ content of the chert nodules ranges from 89.04% to 99.43%, with an average of 96.70%. Al₂O₃ and Fe₂O₃ contents range from 0.27% to 5.56% with an average of 1.77%, and 0.12%–3.11% with an average of 0.78, respectively. Germanium to silicon ratios (Ge/Si) in the Lianziya section range from 0.14 to 0.63 μmol/mol. The average Ge/Si ratio is 0.33 μmol/mol. In the Maoertang section, SiO₂ concentrations of chert nodules range from 96.42% to 99.76%, with an average of 98.80%. Al₂O₃ and Fe₂O₃ contents range from 0.10% to 2.03% with an average of 0.56% and from 0.03% to 1.39% with an average of 0.34%, respectively (Figures 3, 4). Ge/Si ratios vary between 0.02 and 0.75 μmol/mol, with an average of 0.18 μmol/mol (Figure 5).

FIGURE 3

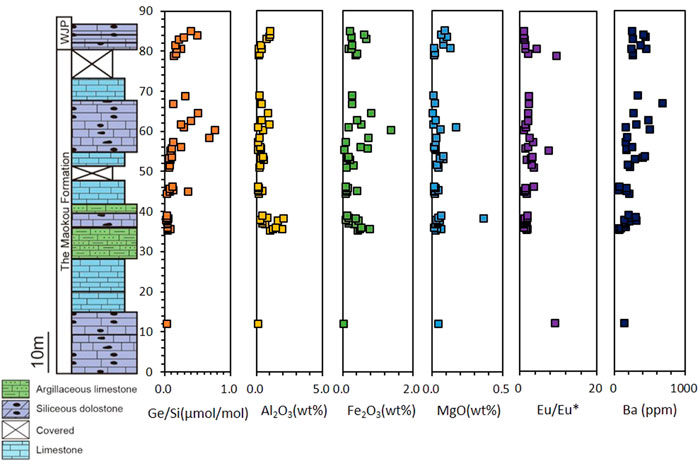

FIGURE 3. Integrated chemostratigraphy of the Maokou and Wujiaping formations in the Maoertang section.

FIGURE 4

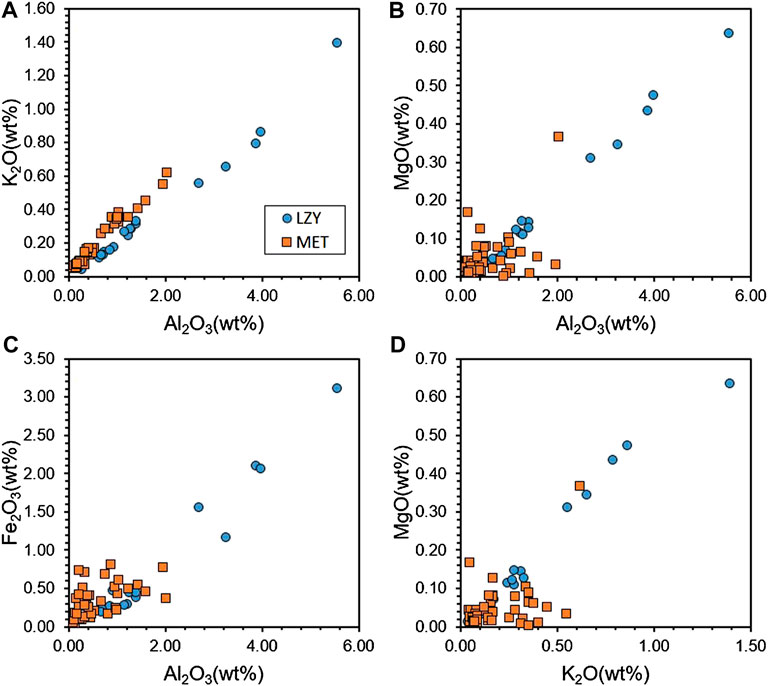

FIGURE 4. Cross plots showing the correlations between major element contents (measured as oxides in wt%). (A) Al₂O₃ vs. K₂O; (B) Al₂O₃ vs. MgO; (C) Al₂O₃ vs. Fe₂O₃; and (D) K₂O vs. MgO.

FIGURE 5

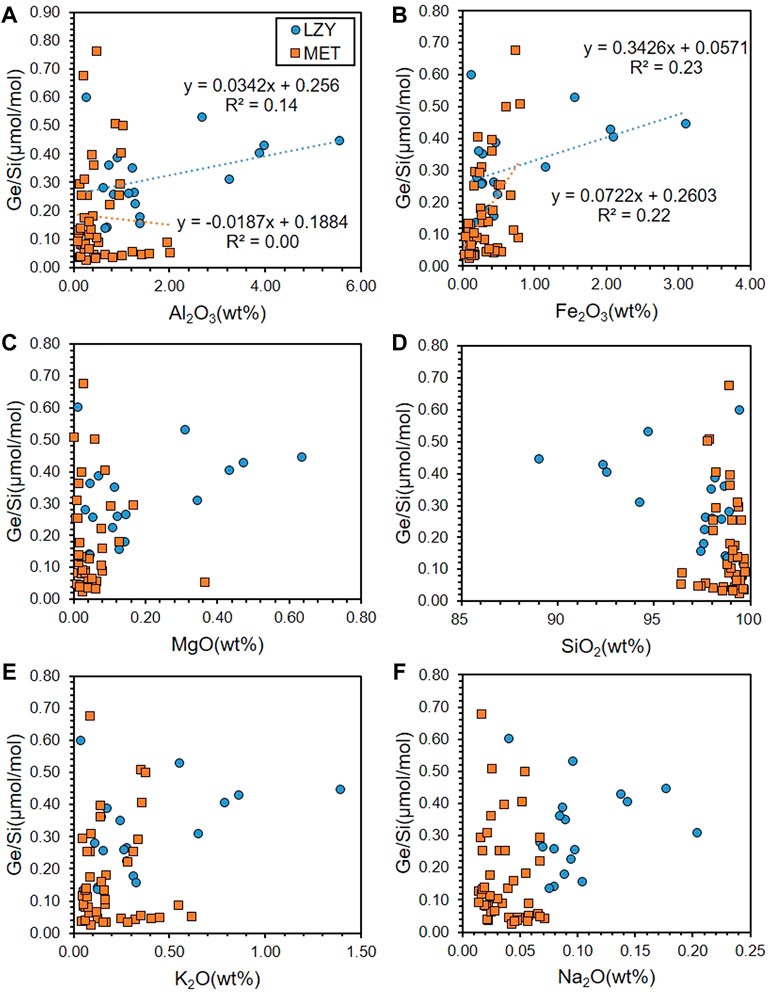

FIGURE 5. Cross plots showing the correlations between Ge/Si (μmol/mol) and major element contents (measured as oxides in wt%). (A) Al₂O₃ vs. Ge/Si; (B) Fe₂O₃ vs. Ge/Si; (C) MgO vs. Ge/Si; (D). SiO₂ vs. Ge/Si; (E) K₂O vs. Ge/Si; and (F) Na₂O vs. Ge/Si.

4.2.2 Rare Earth Element Compositions

In the Lianziya section, total rare earth element contents of chert samples range from 1.60 to 14.11 ppm, with an average of 5.90 ppm. The Post-Archean Australian shale (PAAS) normalized REE data display a consistent light REE (LREE) depleted pattern. Chert samples also yield low La/Yb ratios (0.24–0.84, mean = 0.55, n = 18). In addition, most samples are characterized by light negative Ce anomalies (Ce/Ce^*, 0.72–0.98, mean = 0.92, n = 18), Y/Ho >1 (0.98–1.37, mean = 1.13, n = 18), and medium Eu anomalies (Eu/Eu^*, 0.66–2.16, mean = 1.30, n = 18).

In the Maoertang section, the total REE contents vary within a relatively wider range, from 0.34 to 15.49 ppm, with an average of 4.21 ppm. The La/Yb ratios (0.57–2.23, mean = 1.22, n = 45) are also low, similar to those in the Lianziya section. Chert nodules in the Maoertang section also present negative Ce anomalies (0.62–1.38, mean = 0.82, n = 45). Y/Ho ratios are mostly higher than 1, ranging from 0.74 to 2.25, with an average of 1.12 (n = 45). Eu anomalies vary between 1.05 and 9.57 (mean = 2.43, n = 45), relatively higher than those of the Lianziya section (Figure 6), (Supplementary Data S2).

FIGURE 6

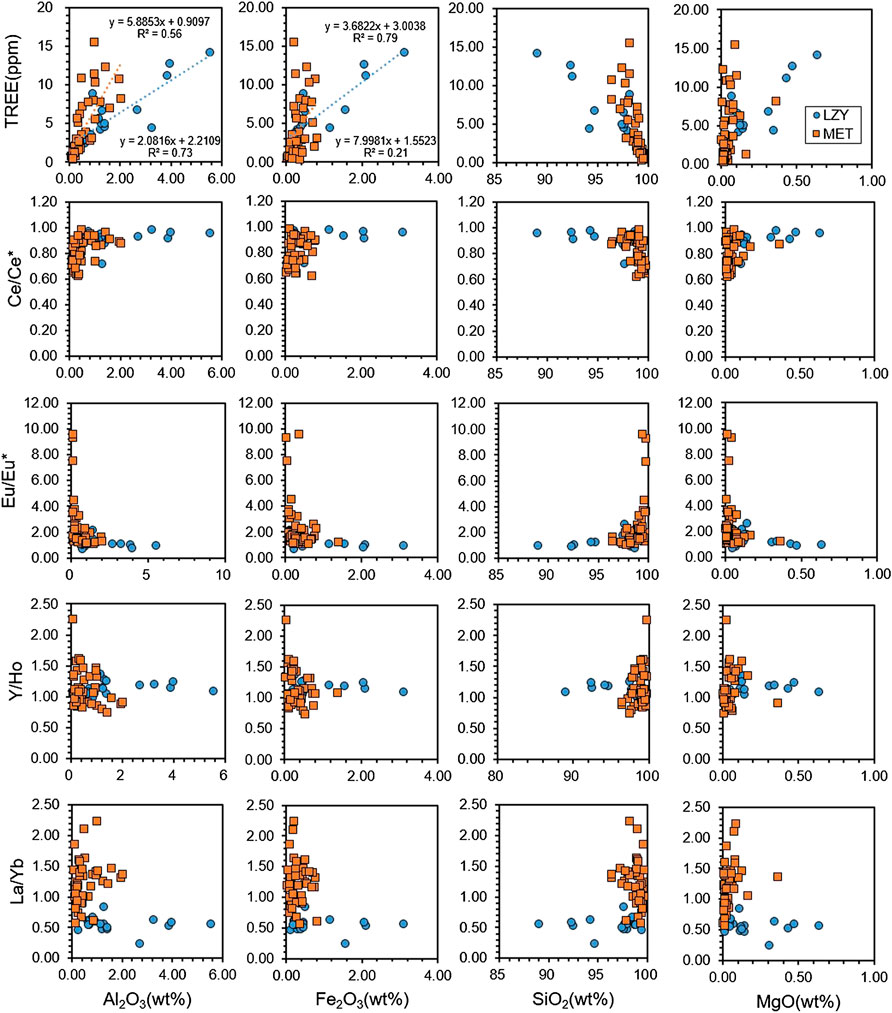

FIGURE 6. Cross plots showing the correlations between major element contents (measured as oxides in wt%) and TREE (ppm), Ce/Ce*, Eu/Eu*, Y/Ho, and La/Yb.

5 Discussion

5.1 Ge/Si Ratios of Cherts in the Maokou and Wujiaping Formations

Before interpreting Ge/Si ratios of chert nodules in the Maokou and Wujiaping formations, influences from terrigenous clays and other potential contaminations should be addressed. In this study, in order to completely remove carbonate content, bulk samples were first leached by 10 ml of 0.5N HAc and 5 ml of 1N HCl. Apart from carbonaceous components, Ge can be chelated with organic matter in seawater with high DOC concentrations (Pokrovski and Schott, 1998; Pokrovski et al., 2000). Meanwhile, clay minerals can further adsorb organic matter, and thus, clay minerals typically have high Ge/Si ratios. Besides, the Ge/Si ratio of iron oxides can also reach up to 189.4 μmol/mol (Bernstein, 1985; Escoube et al., 2015). As a result, mixing with clay minerals and iron oxides would elevate Ge concentrations and Ge/Si ratios in samples.

In the Lianziya section, chert nodules are dominantly composed of SiO₂, ranging from 89.04% to 99.43% with an average of 96.70% (Supplementary Data S1, Figure 4). Al₂O₃ and Fe₂O₃ contents are relatively negligible, varying from 0.27% to 5.56% with an average of 1.77% and from 0.12% to 3.11% with an average of 0.78%, respectively (Supplementary Data S1) (Figure 4). Ge/Si ratios are low and show no significant variations, from 0.14 to 0.63 μmol/mol (mean = 0.33 μmol/mol). Besides, Ge/Si ratios are not associated with Al₂O₃ and Fe₂O₃ (Figure 5). Thus, Ge/Si ratios of cherts in the Lianziya section are predominantly controlled by silica content. Low Ge/Si ratios are close to those of seawater and are lower than those of hydrothermal fluids, suggesting the Si of cherts in the Lianziya section was dominantly sourced from seawater.

In the Maoertang section, SiO₂ content in cherts is higher, reaching an average level of 98.80% (Supplementary Data S1; Figure 4). Similar to the Lianziya section, the Al₂O₃ and Fe₂O₃ contents of chert nodules in the Maoertang section range from 0.10% to 2.03%, with an average of 0.56%, and from 0.03% to 1.39%, with an average of 0.34%, respectively (Supplementary Data S1; Figure 4). There is no positive correlation between Ge/Si and Al₂O₃ or Ge/Si and Fe₂O₃ (Figure 5) either. Therefore, the Ge/Si ratios of cherts in the Maoertang section are dominated by silica components rather than clay minerals or iron oxides.

The Ge/Si ratios in both sections suggested that Si in chert nodules predominantly originated from seawater. In the Lianziya section, Ge/Si ratios range from 0.14 to 0.63 μmol/mol, with an average of 0.33 μmol/mol. Similarly, Ge/Si ratios of the Maoertang samples are distributed between 0.02 and 0.75 μmol/mol (mean = 0.18 μmol/mol). The Ge/Si ratios of the cherts from both sections are close to the modern seawater value of 0.72 μmol/mol (King et al., 2000), which is significantly lower than that of hydrothermal fluids (5–16 μmol/mol, Escoube et al. (2015)). Thus, the Ge/Si ratios of the PCE cherts in the SCB suggest that seawater was the dominant source of Si.

5.2 REE Features of Cherts in the Maokou and Wujiaping Formations

Chert samples in the Maokou and Wujiaping formations in this study are a mix of three components: silica content, clay minerals, and iron oxides. REE patterns will be affected by the ratio of each component. Detrital clay minerals contain high total REE (TREE) concentrations that show flat REE patterns, whereas the authigenic clay minerals come from seawater, recording a seawater pattern of depleted-LREE, high Y/Ho and a negative Ce anomaly (German et al., 1991). Iron-minerals show an MREE-enrichment pattern. Neither clay minerals nor iron-minerals have Eu or Ce anomalies. The hydrothermal fluid and seawater signals will not be affected by these two components. However, the mixing of clays and iron-minerals will elevate total REE concentrations, which may dilute Eu and Ce anomalies.

In the Lianziya section, both TREE vs. Al₂O₃ and TREE vs. Fe₂O₃ show positive linear correlations (R² = 0.73 and 0.79, respectively), indicating that clay and iron-minerals elevate TREE concentrations (Figure 6). Eu/Eu* and Ce/Ce* are diluted by high Al₂O₃ and Fe₂O₃ concentrations (Figure 6). There is no correlation between La/Yb and Al₂O_3, Y/Ho and Al₂O_3, La/Yb and Fe₂O_3, or Y/Ho and Fe₂O₃ (Figure 6). All samples show LREE-depletion patterns, negative Ce anomalies (0.72–0.98, with an average of 0.92) and their La/Yb ratios are all less than 1. And 14 out of 18 samples demonstrate positive Eu anomalies (0.66–2.16, mean = 1.30, n=18).

In the Maoertang section, REE data show a similar pattern to that of the Lianziya section. TREE and Al₂O₃ show a positive linear relationship (R² = 0.56, Figure 6), while the positive correlation between TREE and Fe₂O₃ is not obvious (Figure 6). Eu/Eu* and Ce/Ce* are also eliminated in samples with higher Al₂O₃ and Fe₂O₃ concentrations (Figure 6). There is no correlation between La/Yb and Al₂O_3, Y/Ho and Al₂O_3, La/Yb and Fe₂O_3, and Y/Ho and Fe₂O₃ as well. Overall, 11 out of 45 samples show LREE-depletion patterns and negative Ce anomalies (0.62–1.38, with an average of 0.82). All samples show positive Eu anomalies (1.05–9.57, mean = 2.43, n = 45). It is worth mentioning that the measurement of Sm, Eu, and Gd could also be affected by barium concentrations in ICP-MS; however, Eu/Eu* and Ba do not show positive correlations (Figure 7F), ruling out this possibility.

FIGURE 7

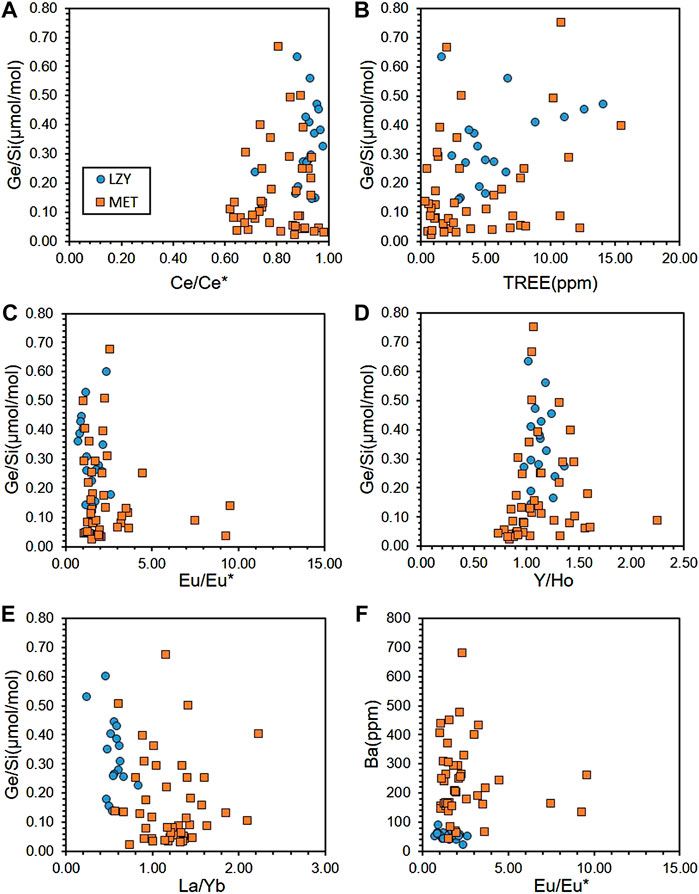

FIGURE 7. Cross plots showing the correlations between (A) Ge/Si (μmol/mol) vs. TREE (ppm); (B) Ge/Si (μmol/mol) vs. Ce/Ce*; (C) Ge/Si (μmol/mol) vs. Eu/Eu*; (D) Ge/Si (μmol/mol) vs. Y/Ho; (E) Ge/Si (μmol/mol) vs. La/Yb, and (F) Ba (ppm) vs. Eu/Eu*.

In the Lianziya and Maoertang sections, the LREE-depletion patterns, high Y/Ho ratios, and negative Ce anomalies suggest that the seawater might be the predominant Si source of chert nodules (Figure 8). Meanwhile, samples also show positive Eu anomalies, which is a typical hydrothermal fluids signal in chert. To resolve the conflict, we use a binary mixing model to quantify the contribution of hydrothermal fluid and seawater with regard to the Si source of chert nodules in the Maokou and Wujiaping formations from SCB.

FIGURE 8

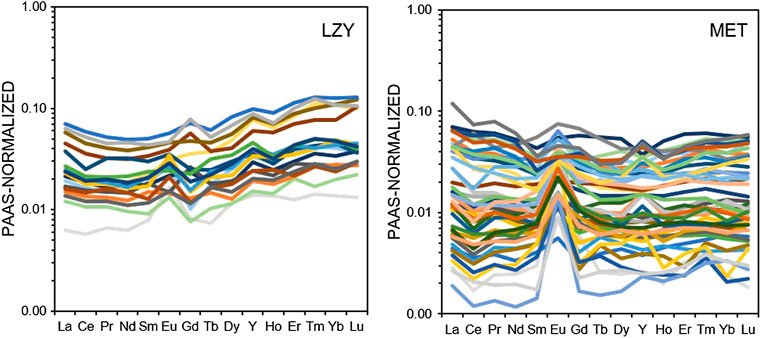

FIGURE 8. PAAS-normalized REE patterns of the MET and LZY sections, showing the LREE depletion and the positive Eu anomaly.

5.3 Ge/Si-Eu/Eu * Systematics of Cherts in the Maokou and Wujiaping Formations

5.3.1 Description of Ge/Si-Eu/Eu * Model

The binary mixing model is based on two parameters, Ge/Si and Eu/Eu*, and regards seawater and hydrothermal fluids as two endmembers (Cui et al., 2019). In this model, Ge/Si and Eu/Eu* can be calculated by mass-balance equations as follows:

$\frac{Ge}{Si}=\frac{f\times m_{HF}\times {\left(\frac{Ge}{Si}\right)}_{HF}+\left(1-f\right)\times m_{SW}\times {\left(\frac{Ge}{Si}\right)}_{SW}}{f\times m_{HF}+\left(1-f\right)\times m_{SW}},(1)$

$\frac{Eu}{E{u}^{\ast }}=\frac{f\times RE{E}_{HF}\times {\left(\frac{Eu}{E{u}^{\ast }}\right)}_{HF}+\left(1-f\right)\times RE{E}_{SW}\times {\left(\frac{Eu}{E{u}^{\ast }}\right)}_{SW}}{f\times RE{E}_{HF}+\left(1-f\right)\times RE{E}_{SW}},(2)$

where f is the volume fraction of hydrothermal fluids and m_i represents silica concentrations (mM); (Ge/Si)_i represents the Ge/Si ratio; (Eu/Eu*)_i represents the Eu anomaly; REE represents total REE concentrations (ppb); subscripts HF and SW represent the two endmembers: hydrothermal fluids and seawater, respectively.

Some parameters in hydrothermal fluids, including Eu anomaly, SiO₂ concentration and Ge/Si ratio, are strongly dependent on temperature (Douville et al., 1999). On the basis of the data collected from modern hydrothermal fluids in Lucky strike, Cruise (Douville et al., 1999), a negative correlation between Eu anomaly and temperature has been established (Cui et al., 2019), which can be expressed as:

$\frac{Eu}{E{u}^{\ast }}=-0.123\times \mathit{T}+49.604 \left(R^2=0.864\right),(3)$

where T is the temperature (in Kelvin) of hydrothermal fluids.

In hydrothermal fluids, SiO₂ remains saturated with respect to quartz, and the saturation concentration is determined by temperature (Crerar and Anderson, 1971). The relationship between SiO₂ and temperature can be expressed as (Crerar and Anderson, 1971):

$\mathrm{Log}\mathrm{m}=-\frac{1107}{\mathrm{T}}-0.0245,(4)$

where m is the saturation concentration of SiO₂ (mol) and T is the temperature of hydrothermal fluids in Kelvin. Solubility of SiO₂ usually decreases with decreasing temperature (Crerar and Anderson, 1971), so cooling of hydrothermal fluids can cause crystallization of quartz. Compared to Ge, Si preferentially enters into the lattice of quartz (Escoube et al., 2015), causing enrichment of Ge and a high Ge/Si ratio in hydrothermal fluids (Escoube et al., 2015). The development of Ge/Si ratios of hydrothermal fluids is in accordance with the Rayleigh distillation model (Evans and Derry, 2002), which can be expressed as:

${\left(\frac{Ge}{Si}\right)}_{HF}={\left(\frac{Ge}{Si}\right)}_0\times F^{\alpha -1},(5)$

$\text{F}=\left[\mathrm{Si}\right]/{\left[\mathrm{Si}\right]}_0,(6)$

$\mathrm{\alpha }=\left({\left(\text{Ge}/\text{Si}\right)}_{\text{quartz}}\right)/\left({\left(\text{Ge}/\text{Si}\right)}_{\text{fluid}}\right),(7)$

where (Ge/Si)₀ is the Ge/Si ratio of the primary hydrothermal fluids; F is the fraction of Si in the hydrothermal system, which can be calculated by Eq. 6; [Si]₀ is the initial silica concentration, and [Si] is the remaining silica concentration; α is the fraction factor of quartz precipitation, and is defined as the instantaneous quartz Ge/Si ratio divided by the instantaneous fluid Ge/Si ratio (Eq. 7). α value ranges between 0.0054 and 0.023 (Evans and Derry, 2002).

5.3.2 Parameter Setting

We assume that Si concentration and REE level in seawater remain consistent and REE concentrations in hydrothermal fluids are fixed. Parameters in this model are summarized in Table 1.

TABLE 1

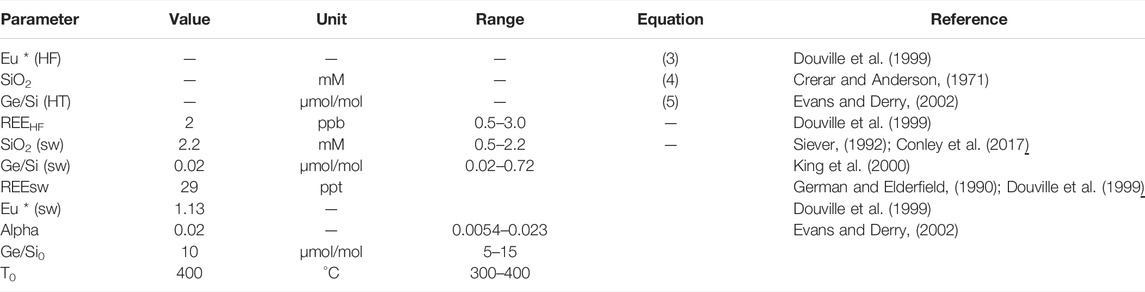

TABLE 1. Parameters of the binary-mixing model.

The Ge/Si ratio of modern seawater is 0.72 μmol/mol (King et al., 2000), and it is set at 0.02 μmol/mol (minimum of sample value) in this model. SiO₂ and REE concentrations of seawater are assigned to m_SW = 2.2 mM and REE_SW = 29 ppt, respectively (Douville et al., 1999; Conley et al., 2017). Eu/Eu^* of seawater is 1.13, and the seawater temperature is set at 25°C (Elderfield et al., 1988). As for hydrothermal fluid, the initial temperature T₀ and (Ge/Si)₀ are set as 400°C and 10 μmol/mol, respectively. Si concentration in hydrothermal fluids is 1281 ppm (Crerar and Anderson, 1971), and (Eu/Eu*)_HF0 is set as 0.4 and change with temperature (Douville et al., 1999). Besides, REE concentration in hydrothermal fluid (REE_HF) is estimated at 2000 ppt (Douville et al., 1999). According to Evans and Derry (2002), parameter α distributes between 0.0054 and 0.023. In this model, α is assigned to a value of 0.02.

5.3.3 Modeling Results and Si Source of Chert Nodules in the Maokou and Wujiaping Formations

The modeling results are presented by a Eu/Eu*-Ge/Si cross-plot (Figure 9). The solid contour lines represent various temperatures of hydrothermal fluids, while the dashed lines denote the mixing volume fraction of hydrothermal fluids. Eu/Eu*-Ge/Si data of samples are plotted in Figure 9.

FIGURE 9

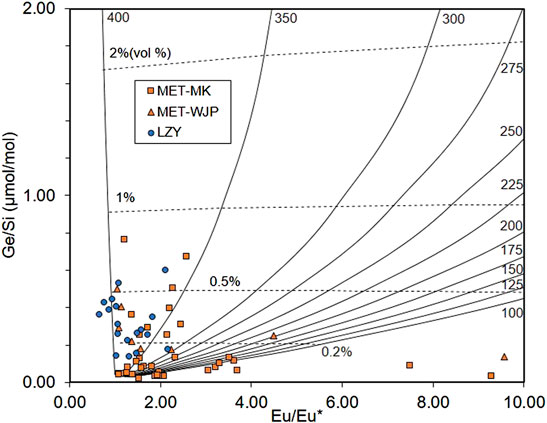

FIGURE 9. Modeling results showing the binary mixing between hydrothermal fluid and seawater. The solid contour lines represent hydrothermal fluids of different temperatures (100–400°C), while the tick marks and the dashed lines indicate the volume fraction of hydrothermal fluid (0.2%–2%).

In the Lianziya section, the temperature of hydrothermal fluids ranges from 300 to 400°C, and the mixing ratio of hydrothermal influx is lower than 1 vol% (Figure 9). In the Maoertang section, the temperature of hydrothermal fluids in the Maokou Formation ranges from <200 to 400°C, and the mixing ratio of hydrothermal influx is lower than 1 vol% (Figure 9). In the Wujiaping Formation, the temperature of hydrothermal fluids ranges from 200 to 400°C, and the mixing ratio of hydrothermal influx is lower than 0.5 vol% (Figure 9). Thus, based on the modeling results, the temperature of hydrothermal fluids ranges from <200 to 400°C. The mixing volume fraction of hydrothermal fluids is lower than 1 vol%, equivalent to the mass fraction of 10 wt%. This indicates that the Si of cherts in the PCE was dominantly sourced from seawater, as evidenced by Ge/Si ratios and REE patterns. It is interesting to see that although the contribution fraction of hydrothermal fluids is extremely low (lower than 1 vol%), it still results in positive Eu anomalies.

5.3.4 Sensitivity Test

The modeling results could be influenced by parameter settings. To verify the reliability of the modeling results, we ran sensitivity tests for different parameters according to their ranges (Table 1). The parameters that we tested include the original Ge/Si ratio of hydrothermal fluids (Ge/Si₀), the fractionation during hydrothermal quartz precipitation (α), the REE concentration of hydrothermal fluids (REE_HF), the initial temperature of hydrothermal fluid (T₀), the Ge/Si ratio of seawater (Ge/Si_SW), and the SiO₂ concentration of seawater (m_SW). Results of sensitivity tests indicate that the estimated mixing of 1 vol% of hydrothermal fluids is not significantly influenced by the tested parameters (Figure 10).

FIGURE 10

FIGURE 10. Sensitivity tests of the binary-mixing model. The initial default parameters are (Ge/Si)₀ = 10 μmol/mol, α = 0.02, REE_HF = 2.0 ppb, T₀ = 400°C, (Ge/Si)_SW = 0.02 μmol/mol, and m_SW = 2.2 mM. The sensitivity of parameters are tested by adjusting a single parameter, (A) (Ge/Si)₀; (B) α; (C) REE_HF; (D) T₀; (E) (Ge/Si)_SW; and (F) m_SW; while the other parameters are fixed at the default values. The contour lines represent hydrothermal fluid temperature of 400°C, 350°C, and 200°C in (A–C) and (E,F). The dashed lines represent the volume fraction of hydrothermal fluid (2%, 1%, and 0.5%). The modeling results indicate that the estimated mixing ratios are not sensitive to the values of the aforementioned parameters.

5.4 Implications of Positive Eu Anomaly in Determining Hydrothermal Source of Siliceous Precipitation

The Eu anomaly has long been regarded as a direct proxy for the implicated hydrothermal fluid source of Si in the chert formation. However, in this study, although the chert samples in PCE show significant Eu/Eu^*[The Lianziya section: 0.66 to 2.16 (mean = 1.30, n=18); the Maoertang section: 1.05 to 9.57 (mean = 2.43, n = 45)], their contribution fraction is rather low (1 vol%). In addition, low Ge/Si ratios and LREE-depleted REE patterns also strongly argue for the contemporaneous seawater origin of the Permian chert nodules.

In fact, Eu/Eu* in hydrothermal fluids and in seawater have a great variation of 14.17 to 1.13, which means that a small fraction of hydrothermal fluids could highly influence the Eu/Eu* of bulk samples. Enriched elements in hydrothermal fluids could have a very high concentration that is one order of magnitude higher than that in seawater, making these elements ineffective in tracing Si source of chert nodules. Therefore, a positive Eu anomaly does not necessarily indicate hydrothermal-sourced Si in cherts. In order to accurately determine the Si source of cherts, the Ge/Si ratio and REE pattern should also be carefully considered.

6 Conclusion

We measured Ge/Si ratios and REE compositions of chert nodules of the Maokou and Wujiaping formations from two sections in South China. Samples show low Ge/Si ratios (0.02–0.75 μmol/mol), LREE-depleted patterns and positive Eu anomalies, suggesting seemingly conflicting contemporaneous seawater and hydrothermal fluid origins of the PCE chert nodules. It is demonstrated, however, by a binary-mixing model with seawater and hydrothermal fluids as two endmembers, that hydrothermal fluids only account for 1 vol% of the Si source in the chert nodules, and seawater is the major source. This study suggests that a small amount of hydrothermal fluid can lead to a high Eu anomaly, and therefore, the Eu anomaly may not always be an effective proxy in determining the silicon source of cherts; instead, Ge/Si ratio and REE patterns should also be considered.

Data Availability Statement

The original contributions presented in the study are included in the article/Supplementary Material; further inquiries can be directed to the corresponding authors.

Author Contributions

Conceptualization: LD; Resources: LD, YC, CQL, MN, CX, and PX; Visualization: CQL, YC, and MN; Formal analysis: CQL and CL; Writing—original draft: LD, CQL, YC, CX, and MN; Writing—review and editing: LD, YC, CQL, and MN.

Funding

This work is supported by the Natural Science Foundation of China 42090021.

Conflict of Interest

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

Publisher’s Note

All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors, and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.

Acknowledgments

We thank the editor and two reviewers’ constructive comments and suggestions which improved the manuscript.

Supplementary Material

The Supplementary Material for this article can be found online at: https://www.frontiersin.org/articles/10.3389/feart.2022.932263/full#supplementary-material
