Fracture Identification of Deep Dolomite Reservoir Based on R/S-FD Analysis: A Case Study of the Cambrian Sinian Reservoirs in the Sandaoqiao Gas Field, Northern Tarim Basin

The pre-Mesozoic Sandaoqiao gas field, northern Tarim Basin, Western China, hosts a typical deep fractured dolomite reservoir. Taking this area as an example, this study carried out identification research on the fracture development section of the Cambrian Sinian deep (5,700–6200 m) thick (60–80 m) fractured dolomite reservoirs. The core scale identification and numerical analysis method of heavy gauge finite difference (R/S-FD) are used to identify the fracture development section. In the process of applying this method to the study area, by comparing the fracture development identification results of continuous and complete coring sections, three logging curves with high fracture sensitivity (AC/DEN/CAL) are selected. The adjusted R/S-FD analysis method can effectively identify the fracture development section of the fractured dolomite reservoir. Among them, five fracture development sections were identified in well Q1, with an average thickness of 6.8 m. The fracture development section is in good consistency with the reservoir interpretation section of conventional logging. Well, Q101 identified 11 fracture development sections with an average thickness of 2.5 m. The results show that the gas logging section lags behind the fracture development section, mainly corresponding to the lower part of the identified fracture development section. The thickness and distribution of the longitudinal fracture development section of the two wells are obviously different. The research shows that the R/S-FD method can well identify the fracture development section of a fractured dolomite reservoir.

Introduction

Carbonate reservoirs are one of the most important reservoir types in the world (Zhu et al., 2020). Dolomite reservoir is one of the common carbonate reservoir types (Antonellini and Mollema, 2000; Ma et al., 2008; Guo et al., 2020). Compared with limestone, this kind of reservoir facies is more brittle and has weak dissolution (Zheng H. et al., 2007; Zheng R. C. et al., 2007; Davies and Smith, 2011). The main reservoir space of the Cambrian Sinian reservoir in the sandaoqiao gas field is mainly fractured, and a typical fractured dolomite reservoir is developed. Structural fractures directly affect the quality and production of dolomite reservoirs.

Fractures in reservoirs are the key to high and stable production of oil and gas reservoirs, especially for tight sandstone, shale, and carbonate reservoirs (Chen et al., 2021; Lai et al., 2020; Song et al., 2015; Zhou et al., 2020; Liu et al., 2022; Zhou et al., 2022). The development degree and distribution characteristics of fractures directly affect the physical properties and production of oil and gas reservoirs. In recent years, fractures have always been the focus of reservoir research (Luo et al., 2012; Yin and Wu., 2020; Zhao et al., 2021; Wang et al., 2022). Identifying the characteristics of fracture development sections in underground reservoirs vertically is one of the research contents (Prioul and Jocker, 2009; Santos et al., 2015; Fernández-Ibanez et al., 2018; He et al., 2020; Wang et al., 2021; Yin et al., 2020).

There are many ways to identify the fracture development section longitudinally (Hong et al., 2020; Lan et al., 2021; Zheng et al., 2020; Li, 2022). These methods include geological outcrop, core, logging data, and seismic data (Aghli et al., 2016; Bates et al., 1999; Lai et al., 2017; Liu et al., 2019; Yin et al., 2018a; Li H. et al., 2020; Li, 2022). Considering the recognition accuracy, recognition range, representativeness, cost, and other factors, the use of conventional logging curves is more practical and economical (Miranda and Andrade, 1999; Zhao et al., 2011; Ding et al., 2012; Ding et al., 2013; Xue et al., 2014; Yang et al., 2017; Yin et al., 2018b; Afshari et al., 2018). R/S method uses several conventional logging curves sensitive to fracture response to identify fracture development sections (Mandelbrot and Wallis, 1969; Li et al., 2018; Xiao et al., 2019a; Xiao et al., 2019b; Li et al., 2019; Zhao et al., 2019). The finite difference method improves the accuracy and effect of the R/S method. R/S-FD method is used to identify the longitudinal fracture development section of a single well, and its application in shale and tight sandstone reservoirs is relatively mature (Wang et al., 2018; Xiao et al., 2019a; Li et al., 2019). This study applies this method to a deep fractured dolomite reservoir for the first time. The results have also been verified by other reservoir interpretation methods.

Geological Setting

The Tarim Basin is located in western China and is an important developing oil- and gas-producing area. The Sandaoqiao gas field is located in the northern Tarim Basin (Figure 1), in the western part of the Yakela Faulted Uplift (Han et al., 2016; Yang et al., 2018). The Kuqa depression is located to the north, and the Halahatang depression is located to the south. The Sandaoqiao gas field is generally located in the compression-derived structural slope of the far margin uplift of the foreland basin. The Sinian system of the Cambrian system was severely eroded with the formation of a structural compression fold, forming a buried hill drape structure (Li Y. et al., 2020; Wang et al., 2021), with a reservoir characterized by a denuded residual buried hill (Figure 1). The Cambrian Sinian strata are pinched out on the Yakela Faulted-Uplift oriented in the NW direction (Han et al., 2015). The Carboniferous strata overlying the Sandaoqiao gas field are compact and stable, with good caprock conditions, which prevented the surface water from leaching and dissolving Cambrian Sinian strata during the regional long-term denudation period. These conditions have formed a condensate gas reservoir producing area with a Carboniferous cap rock and developed structural fractures.

FIGURE 1

FIGURE 1. (A) Structural location of sandaoqiao gas field. (B) Stratigraphic elements and well location distribution map of the Cretaceous bottom boundary. The red line is the main fault, and the purple line is the Sinian pinch-out line. (C) NW-SE direction section AA’ stratigraphic structure diagram. The green line is the trajectory of key well Q1.

In the study area, the depth of the Cambrian Sinian system is 5,700–6,200 m, which is deep-ultradeep. The thickness of the Cambrian Sinian strata is uniform. From the late Paleozoic to Mesozoic, this stratum experienced multiple superimposed weak-strong thrusting fault events, accompanied by strong weathering and denudation. The Mesozoic Cretaceous strata cover formed a denudation residual buried hill drape structure. The lithology is characterized by the development of deeply fractured dolomite reservoirs (micritic and powdery). According to the measured physical property data, the porosity and permeability of dolomite reservoirs in the study area are relatively low. Structural fracture is the main reservoir space. The properties of the structural fractures are considered the key factors in determining the reservoir space and seepage performance.

Characteristics of Tectonic Stress

In the geological history period, the study area was mainly affected by NW strong compressive stress and pre-Mesozoic strong denudation, forming a buried hill drape structure with strata pinching out in the NW direction.

According to the analysis results of imaging logging and other logging data, the azimuth of the fast shear wave is NE, and the induced fractures thus strike NE. It is comprehensively inferred that the horizontal principal stress direction is NE. The NE trending fault strike (Figure 2) is roughly consistent with the current horizontal principal stress direction.

FIGURE 2

FIGURE 2. Fracture parameter statistics of Q1 well based on imaging logging. (A) The azimuth distribution of fractures was identified by imaging logging in the Q1 well. (B) The distribution of fracture tendency is shown in the rose diagram. (C) Statistical distribution of fracture dip angle. (D) The distribution of fracture strikes is shown in the rose diagram. Imaging logging shows that there are 36 fractures in well Q1, with an average dip angle of 76° and an average dip of 314°.

Fracture Characteristics

According to the seismic data, the main faults in the study area are NE-trending, and most of them terminate in the upper Cambrian strata. They are mainly high-angle and oblique parallel reverse faults with lower-order faults.

The fracture development of the core sections of wells Q1 and Q101 in fine crystalline powder dolomite has resulted in mainly high-angle and half-filled fractures (Figure 3), and conjugate fractures are found locally. The total length of the observed core is 50.3m, and the average coring rate is 76%. We analyzed and photographed all coring sections. Dissolution pores are rare.

FIGURE 3

FIGURE 3. Fracture development characteristics from core sections in the Sandaoqiao gas field. (A,B), well Q1, Z, 5,754.8 m, gray fine-grained dolomite, half-filled fracture; (C), well Q101, ∈, 5,758 m, light-red-oil-trace dolomite, high-angle fracture; (D), well Q101, ∈, 5,761.04 m, gray-black-oil-trace silty siliceous dolomite, high-angle fracture development, half-filled; (E), well Q101, ∈, 5,761.08 m, gray-black-oil-trace silty siliceous dolomite. (F), well, Q1, Z, 5,753.98–5,754.14 m, two intersecting oblique fractures with a width of 0.1–0.5 mm; (G); well, Q101, ∈, 5,757–5,757.19 m, gray-black calcareous dolomite, 1 inclined fracture, approximately 8 cm in length and 0.1 mm in width.

The cast thin sections show that the dolomite dissolution in this section is very weak (Figure 4). We observed and analyzed a total of 16 cast thin sections, 7 ordinary thin sections, and 10 SEM analysis reports. The typical fracture development parts in the study area are selected for sampling. It is clear that the fractured dolomite reservoir is the main feature in this section of the Sandaoqiao gas field. The scanning electron microscopy (SEM) results showed that there were microcracks in some parts of the section. This dolomite is generally subhedral heteromorphic, without obvious dissolution.

FIGURE 4

FIGURE 4. Fracture development characteristics from cast thin sections and SEM in the Sandaoqiao gas field. (A), well Q1, Z, 5,741.4 m, argillaceous dolomite; 3% continental debris, 1% siliceous, and 1% muscovite. Three microcracks were filled with siliceous material and 1 microcrack was filled with dolomite. (B), well Q1, Z, 5,754.8 m, silty argillaceous dolomite, 2% siliceous, and 1% muscovite. The face rate is less than 1%. One microcrack with a width of 0.01 mm. (C), well Q1, Z, 5,756.1 m, silty argillaceous dolomite, 2% siliceous, and 1% muscovite. The face rate is less than 1%. One straight microcrack with a width less than 0.01 mm; one microcrack along the suture, with a width less than 0.01 mm; (D), well Q101, ∈, 5,821.5 m, the dolomite grains are 0.04–0.10 mm, granular and inlaid. Microcracks are developed. Dolomite; (E), well Q101, ∈, 5,822.2 m, dolomite-filled fractures, part of which have clay on the surfaces, dolomite with poor crystallization, generally semi-automorphic-heteromorphic; (F), well Q1, Z,5,741.4 m, gray micrite dolomite, argillaceous dolomite, dolomite with poor crystallization, generally semi-automorphic-heteromorphic.

Methodology

R/S-FD Method

The numerical analysis method used in this study is based on the R/S method. In R/S analysis, R is the range, that is, the difference between the maximum cumulative deviation and the minimum cumulative deviation, representing the complexity of the time series; S is the standard deviation, that is, the square root of the change, representing the average trend of the time series (Hurst. 1951; Pang and North, 1996). The ratio of the range to the standard deviation (i.e., the rescaling range R/S) represents a dimensionless time series and the fluctuation intensity (Xiao et al., 2019a; Yang et al., 2020).

$R\left(\text{n}\right)=\underset{0<\text{u}<\text{n}}{{\displaystyle \max }}\left\{{\displaystyle \sum _{i=1}^{u}Z\left(i\right)}-\frac{\text{u}}{\text{n}}{\displaystyle \sum _{i=1}^{u}Z\left(j\right)}\right\}-\underset{0<\text{u}<\text{n}}{{\displaystyle \min }}\left\{{\displaystyle \sum _{i=1}^{u}Z\left(i\right)}-\frac{\text{u}}{n}{\displaystyle \sum _{i=1}^{u}Z\left(j\right)}\right\}(1)$

$\text{S}\left(\text{n}\right)=\sqrt{\frac{1}{\text{n}}{\displaystyle \sum _{i=1}^u{Z}^2\left(i\right)}-{\left[\frac{1}{n}{\displaystyle \sum _{j=1}^{u}Z\left(j\right)}\right]}^2}(2)$

The concave section of the R(n)/S(n) curve can be regarded as the location of fracture development. To avoid recognition error, the R/S-FD method uses the finite difference method to calculate the second derivative of these discrete data (Xiao et al., 2019a). The zone with a positive second derivative can be identified as a fracture development section. F is the multiplication of the K value of the multigroup logging curve, which represents the accumulation of the fracture development probability of multigroup logging data identification.

The basic data of the R/S-FD method is a conventional logging curve. Firstly, the crack sensitivity curve suitable for the study area is selected by various methods. On the basis of referring to several commonly used fracture sensitivity curves, this study first uses the fracture development of the coring section to restrict the curve selection and selects three fracture sensitivity curves (DEN, AC, and CAL) to calculate the K value. Considering that the sampling interval of logging data is mostly 0.1 or 0.125 m, it is of certain indicative significance to optimize the fracture sensitivity curve by using whether there are fractures in the core section with a certain length (0.3–0.5 m). Then calculate the R/S value of the logging data of the study interval, and carry out the finite difference calculation (Figure 5). Finally, the calculated F value is used to identify the fracture development section.

FIGURE 5

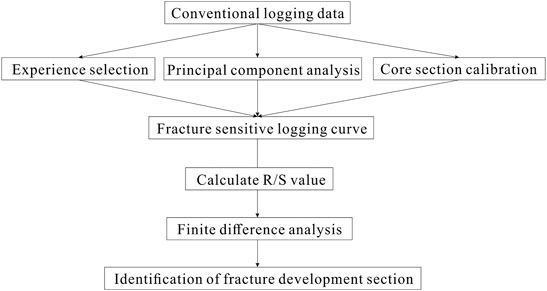

FIGURE 5. Process of identifying fracture development section based on R/S-FD method.

Data Selection and Calculation

The following factors are considered in the selection of the numerical analysis method. The pre-Mesozoic Cambrian Sinian system in the study area is the main body of a large set of dolomites with single and continuous lithologic structures. Unlike tight sandstone/shale sections, the dolomite reservoir in the study area does not include lithology mutation surfaces such as sand-mud interbedding surfaces. The reservoir as a whole is a fractured dolomite reservoir with undeveloped pores (based on the 50.3 m coring data of four wells in the Sandaoqiao gas field and imaging logging data, the pores are undeveloped). The interference of holes is eliminated. The logging curve is complete, and the quality of the logging core data is good. The combination of R/S logging and core analysis is suitable.

Taking well Q1 as an example, the double logarithm curve of R/S value and serial number is made, and seven kinds of logging curves are selected for this analysis (Figure 6). The sensitivity of different good logs to fracture development varies. At the same time, the difference in lithofacies between study areas will make the analysis effect of different logging curves different.

FIGURE 6

FIGURE 6. Double logarithm curve of the R/S calculation results of multiple logging curves in well Q1. In this method, the concave section of the curve is identified as the fracture development section. AC is the acoustic log, DEN is the density log, CAL is the caliper log, SP is the spontaneous potential log, GR is the natural gamma log, RS is the shallow lateral resistivity log and RD is the deep lateral resistivity log.

Seven kinds of logging curves are selected in the analysis of wells Q1 and Q101: the CAL, AC, and DEN curves, which are widely used in R/S analysis, and other control curves RS, RD, SP, and GR. After comparing and analyzing the calculation results of the confirmatory fracture development section and logging curve in the coring section, CAL, AC and DEN are selected as the research objects (Table 1). That is, the F value used in this study is a product of the CAL, AC, and DEN K values (K_CAL/K_AC/K_DEN). In the fracture development section, the identification result with good applicability is obtained.

${\text{F}=\text{K}}_{\text{AC}}{\text{∗K}}_{\text{DEN}}{\text{∗K}}_{\text{CAL}}(3)$

TABLE 1

TABLE 1. Recognition effect of various logging curves on the fracture development depth of the coring section.

The calculation method used in this study is adjusted on the basis of the R/S-FD method. Based on the particularity of the dolomite value, the value range is adjusted, and the K value calculated by the logging curve at this depth is smaller (this may be related to the particularity of dolomite logging curves, with a small number of especially large or small values). Because K represents the fluctuation in logging data, we homogenize the interval of k > 0 to 1-2, which makes the probability of fracture development accumulate positively. If k = 0, then F = 0; if K≠0, then F is the product of the K values of the CAL, AC, and DEN. Thus, the fracture development section can be clearly identified.

Results

Characteristics of the Fracture Development Section

The dolomite section of well Q1 has developed thick fractures (a 60 m section), which can be divided into five sections, with an average thickness of 6.8 m and an average fracture spacing of 5.6 m (Figure 7). The fracture development section of well Q1 is relatively thicker and denser. The fractures of the core of well Q1 are high-angle and half-filled. The vertical distribution of the fracture development section in well Q101 is relatively uniform (an 80 m section), which can be divided into 11 sections, and the thickness of these fractures is thinner than those in well Q1, with an average length of 2.5 m and an average spacing of 4.1 m (Figure 8). Relatively speaking, the fracture development section of well Q101 is thinner and more dispersed.

FIGURE 7

FIGURE 7. Results of fracture development section identified with the R/S-FD method in well Q1. The red and white double arrows show the corresponding relationship between the fracture development section and the conventional logging interpretation section.

FIGURE 8

FIGURE 8. Fracture development results identified with the R/S-FD method in well Q101. The red and white double arrows show the corresponding relationship between the fracture development section and the gas logging display section.

Correlation Between the Fracture Development Section and Actual Production Data

The R/S-FD method is used to analyze the fractured dolomite reservoir of the Cambrian Sinian system in the Sandaoqiao area. The results show that the comprehensive identification results of multiple logging curves are in good correspondence with the actual observation results of cored sections, traditional numerical logging interpretations, and gas logging displays.

The fracture development section identified by well Q1 shows a good correspondence with the reservoir section interpreted by traditional logging data. The identified fracture development section corresponds to logging interpretation reservoir section Nos. 11–15 (Figure 7). The lower gas logging section of the dolomite reservoir in the Q101 well has a good correspondence with the identified fracture development section, corresponding to gas logging section Nos. 19–25 and in the lower part of the identified fracture development section, lagging behind the fracture development section (Figure 8). This correspondence shows that the R/S-FD method has certain applicability in fractured dolomite reservoirs.

Discussion

Fracture Types

The fracture types in the fracture development section identified by the R/S-FD method are noteworthy information (Xiao et al., 2019a). Through the identification results of Q1 and Q101 wells, combined with core, imaging logging, and other data, it is considered that most of the identified fractures are medium high angle fractures, semi filled and unfilled. Part of the fractures generated under the compression of the early formation are completely filled in the later stage. Because the filling material is similar to the composition of the reservoir, it is less abnormal in density logging and caliper logging. The identification effect of this method on this kind of fracture is general.

Controlling Factors

The difference between the two wells in the characteristics of longitudinal fracture development sections is affected by many factors, mainly including lithology, structural position, structural stage, and so on (Zhao et al., 2019). In addition, compared with the two wells, well Q1 shows higher and more stable oil and gas production. This difference may be due to the greater thickness of the average fracture development section of well Q1.

Method Applicability

The R/S-FD method also shows its limitations in the application of different strata in different areas (Xiao et al., 2019a; Li et al., 2019; Yang et al., 2020). Firstly, the stratum thickness used to identify the fracture development section should not be too thick. With the increase of thickness, reservoir heterogeneity is also increasing, which will make the anomalies identified by the R/S method contain a variety of other information. Secondly, the lithology of the study interval should be unified as far as possible. The sudden change in lithology will bring complex changes to the logging curve, which will reduce the accuracy of R/S recognition. In the application of the dolomite stratum, it is generally considered that a thickness less than 100 m is more suitable. In the fracture identification of the 300 m reservoir section of well Q102, the results show that the spacing of fracture development sections is too large, and there is no good corresponding result in the comparison with the coring section and production means.

Conclusion

1. In this study, the adjusted R/S-FD method is applied to fractured dolomite reservoirs in the deep layer (5,700–6200 m) of the Cambrian Sinian system (60–80 m), and good recognition results are obtained. In the process of applying this method to the study area, by comparing the fracture development identification results of continuous and complete coring sections, three logging curves with high fracture sensitivity (AC/DEN/CAL) are selected.

2. The adjusted R/S-FD analysis method can effectively identify the fracture development section of the fractured dolomite reservoir. Among them, five fracture development sections were identified in well Q1, with an average thickness of 6.8 m. The fracture development section is in good consistency with the reservoir interpretation section of conventional logging. Well, Q101 identified 11 fracture development sections with an average thickness of 2.5 m. The results show that the gas logging section lags behind the fracture development section, mainly corresponding to the lower part of the identified fracture development section. The difference between the two wells in the characteristics of longitudinal fracture development sections is affected by many factors, mainly including lithology, structural position, structural stage, and so on.
