Effects of Deep Fluids on Middle Permian Dolomite of the Western Sichuan Basin

Huang, Huiwen; Chen, Hongde; Huo, Fei; Yang, Shuai; Chen, Anqing

doi:10.3389/feart.2022.910453

ORIGINAL RESEARCH article

Front. Earth Sci., 03 June 2022

Sec. Structural Geology and Tectonics

Volume 10 - 2022 | https://doi.org/10.3389/feart.2022.910453

This article is part of the Research Topic Effects of Deep Fluids in Hydrocarbon Accumulations in Sedimentary Basins View all 26 articles

Effects of Deep Fluids on Middle Permian Dolomite of the Western Sichuan Basin

Huiwen Huang^1,2

Hongde Chen^1,2

Fei Huo^1,2*

Shuai Yang^1,2

Anqing Chen^1,2*

¹Institute of Sedimentary Geology, Chengdu University of Technology, Chengdu, China
²State Key Laboratory of Oil and Gas Reservoir Geology and Exploitation, Chengdu University of Technology, Chengdu, China

Deep fluid activity is closely related to carbonate reservoir transformation as well as oil and gas accumulation. The large-scale deep fluid activity caused by Emeishan large igneous province (ELIP) brought a lot of deep material and energy to Sichuan Basin and changed the paleogeothermal and geochemical field of the region they flowed through, which had an important impact on the formation of the Middle Permian dolomite reservoir in Western Sichuan. Through comprehensive analyses of petrographic, geochemical, and fluid inclusion data from two drill cores and three outcrop sections of the Middle Permian Formation in the Western Sichuan Basin, the dolomitizing fluid, dolomite genesis, and effect of deep fluid were discussed. The dolomite was divided into four types which are matrix dolomites (Md1, Md2, and Md3) and cement dolomites (Cd). Among them, the Md1 was formed in penecontemporaneous seawater by seepage reflux dolomitization, while Md2 was formed in heated Permian seawater through thermal convection. In the northwest of the study area, the Md3 and Cd were formed by higher-temperature thermal convection without hydrothermal. In the southwest of the study area, the lower δ¹³C value and Sr contents, higher Mn contents and ⁸⁷Sr/⁸⁶Sr ratios, and positive Eu anomalies as well as much higher T_h and salinity values of inclusions show that hydrothermal participated in the dolomitization, forming the Md3 and Cd through structure-hydrothermal dolomitization and the thermal convection of seawater mixed with hydrothermal. The deep fluid activities of ELIP provided both the material source (Mg²⁺) for the dolomitization process and the migration motive power for the dolomitization fluid. From the southwest to northwest, with the deep fluid activity decreasing, the abundance of Md3 and Cd, which are closely related to the hydrothermal solution, reduced.

1 Introduction

In recent years, the significance of oil and gas accumulation of deep fluid is an important research topic in the field of oil and gas geology. Large-scale deep fluid activities bring a large amount of deep material and energy to the basin, change the paleogeothermal field and geochemical field of the region they flow through, and significantly change the composition and properties of sedimentary rocks directly (such as contact metamorphism) or indirectly (such as regional magmatic heating and compression fracture) and then further affect all stages of oil and gas formation and evolution in the basin (Liu et al., 2010; Zhang et al., 2021). Deep fluids mostly refer to all fluids from below the basement of sedimentary basins (Jin et al., 2002; Liu et al., 2005; Hu, 2016), including deep rigid crustal- and mantle-derived fluids. Some scholars also classify hydrocarbon source thermal fluids related to hydrocarbon generation under deep burial conditions as deep fluids (Dai et al., 1995). Crust-derived fluids often come from deep ancient strata and crystalline basement and are often related to volcanic magmatic events (Hu, 2016). Mantle fluid is dominated by the C-H-O-S system, with alkaline elements, rare gases, and a small amount of trace components (Zhang et al., 2000). Deep source thermal fluid has obvious distinguishing signs in terms of rock mineralogy, fluid inclusions, and geochemical anomalies (Hu, 2016). In addition, heavy metal elements, magmatism, deep structure, and paleogeothermal anomalies (Zeng, 2000; Jin et al., 2002) can be used as evidence of deep fluid transformation or activity.

In Southwest China, Emeishan large igneous province (ELIP) is the first recognized large igneous province in China by international academic circles (Xu et al., 2004, 2008; Sun et al., 2010). The deep fluid activity brought by large-scale basalt eruption made the deep material and energy migrate to the surface, affected the shallow surface system, magmatic and hydrothermal metallogenic system (Du et al., 2020), and controlled the sedimentary characteristics and lithofacies paleogeographic environment of its influence range (He et al., 2003; Xu et al., 2004; Song et al., 2008). Among them, the Middle Permian dolomite reservoir in Sichuan Basin, as a high-yield horizon that plays an important role in natural gas exploration in Sichuan Basin, is particularly affected by the deep fluid related to ELIP. The explaining models of dolomitization of Middle Permian dolomite are varied, such as mixed water (Badiozamani, 1973; Zhang et al., 2018), basalt leaching (Jin and Feng, 1999), seepage reflux (Adams and Rhodes, 1960), burial (Mattes and Mountjoy, 1980; Jiang et al., 2009), hydrothermal (Jiang et al., 2014; Xia et al., 2020), and thermal convection (Simms, 1984; Machel, 2004), and superposition of multistage (Tian et al., 2014). Among them, the hydrothermal dolomitization related to the ELIP is generally accepted (Huang et al., 2011; Chen et al., 2013; Ramkumar et al., 2019; Zheng et al., 2019).

While the hydrothermal dolomitization may be persuasive in explaining the genesis of dolomite near ELIP and fault zones, the dolomites in distal zones may not be convincing as the latter lack typical hydrothermal features in geochemistry and petrology, such as high homogenization temperatures (T_h) and typical hydrothermal minerals like fluorites and siderites (Chen et al., 2013; Zheng et al., 2019), providing evidence for nonhydrothermal dolomitization which may be drawn as thermal convection (Dong et al., 2020). Thus, it can be seen that the material and energy brought by deep fluid activities change with distance and accordingly have different effects on the formation of dolomite under different mechanisms.

Previous studies mainly focused on the influence of sedimentation, structure, and diagenesis on dolomitization, while less on deep fluid. Through petrological, fluid inclusion, and geochemical analysis, we studied the dolomitization fluid types, thermal conditions, and formation mechanism of the Middle Permian dolomite reservoir in the Western Sichuan Basin. We expounded on the influence of the changes of paleogeothermal and paleochemical fields caused by the deep fluid activity related to the Emeishan large igneous province (ELIP) on dolomitization, which provided an important reference significance for further understanding the role of deep fluid activity in the reconstruction of carbonate reservoirs in sedimentary basins.

2 Geological Setting

The Sichuan Basin, a composite superimposed craton basin with multiple tectonic cycles, is part of the Upper Yangtze Block of southern China (Figure 1A), located at low latitudes near the equator on the eastern side of the Paleo-Tethys Ocean in the Permian (Scotese and Schettino, 2017). It is bound by the Emeishan–Liangshan fold belt in the southwest, the Longmenshan fold belt in the northwest, and the Songpan-Ganzi, Qinling, and Dabashan fold belts in the north (Mei et al., 2014; Mei et al., 2016; Zheng et al., 2019). The study region is located in the Western Sichuan Basin, spans the regions of Emei, Yaan, Leshan, Jiangyou, Guangyuan, and Wangcang (Figure 1B).

FIGURE 1

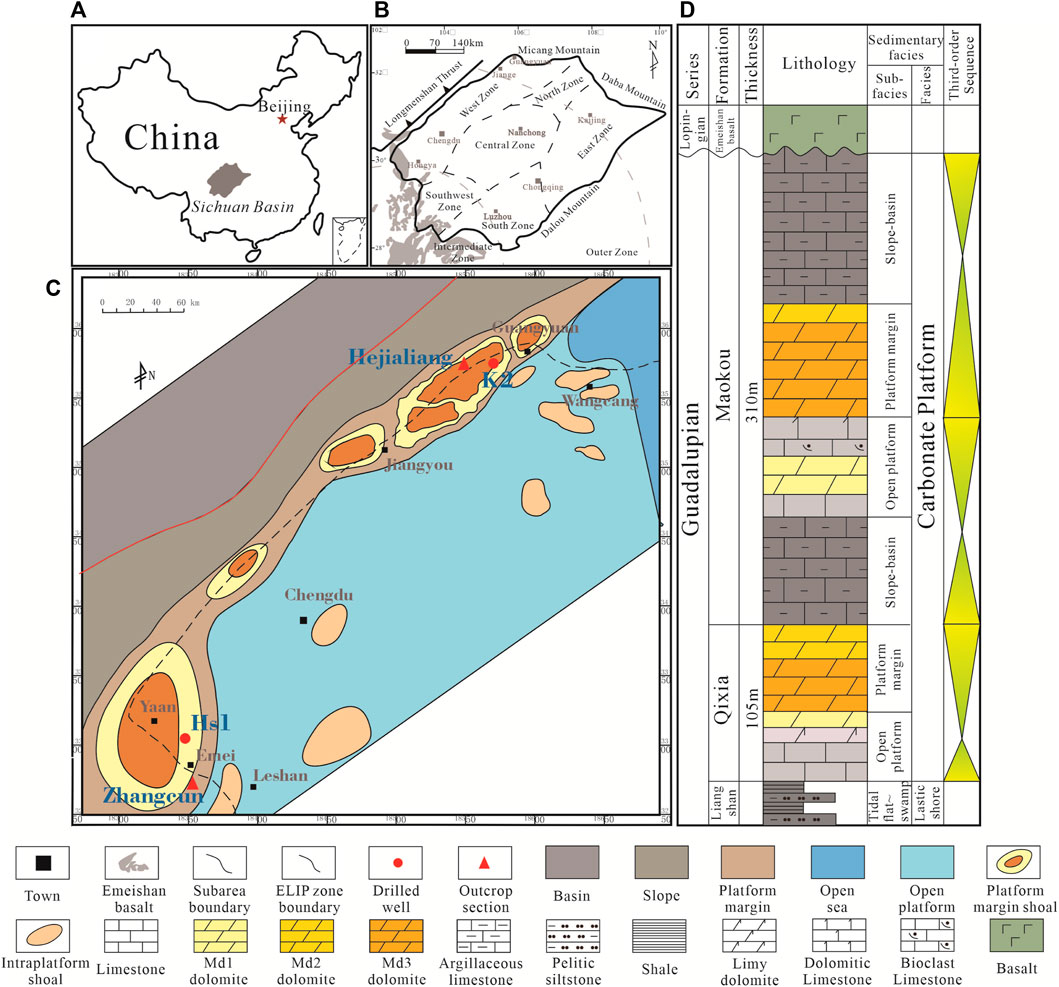

FIGURE 1. (A) Simplified location map of the Sichuan Basin in China. (B) Distribution of tectonic zones, ELIP zones, and basalts in the Sichuan Basin (modified after Huang et al., 2016; Dong et al., 2020). (C) Sedimentary map of the Middle Permian in the Western Sichuan Basin with the location of study outcrops and wells. (D) Generalized stratigraphic column of the Middle Permian (Guadalupian) succession in the Western Sichuan Basin (Zhou et al., 2016; Feng et al., 2021).

The Middle Permian in the Sichuan Basin consists of the Qixia Formation and the Maokou Formation, which conformably overlies the Liangshan Formation and unconformably underlies the Wujiaping (Longtan) Formation. The sedimentary facies of Middle Permian in Western Sichuan are generally shallow-water carbonate platforms with normal to high salinity and abundant marine organisms (Figure 1C) (Wei et al., 2010; Zhou et al., 2016). After the long hiatus from the Late Carboniferous to Early Permian, there occurred a large-scale transgression in the Upper Yangtze region during the Kungurian, followed by a steady sea level decrease, and there was a transition from the coal-bearing clastic shore facies of the Liangshan Formation to carbonate platform facies of the Qixia Formation (Zhao et al., 2012). Subsequently, in the late Kungurian, the decrease in the sea level became steady. The rifting and extension was the dominant tectonic movement during this period due to the subduction of the Paleo-Tethys oceanic crusting toward the Yangtze plate (Zhao et al., 2012; Xiao et al., 2018; Zhu et al., 2019). The Qixia Formation mainly consists of gray dolomite, dark-gray thin-bedded limestone, and medium-to-thin-bedded bioclastic limestone. With the activity of Longmenshan fault, the west side of the Longmenshan fault resides on the lower terrain, deepening the water of the basin (Figure 1C) (Chen, 2009; Wei et al., 2010; Huang et al., 2017). During the early Guadalupian, large-scale and long-term transgression occurred (Hu et al., 2012; Saitoh et al., 2013). The Maokou Formation was in the deep-water depositional environment. Thus, the sediments of the Maokou Formation are mainly deposited as thick layers of dark-gray bioclastic limestone, black muddy limestone, shale, and a few gray dolomites (Chen et al., 2013) (Figure 1D).

The study area was buried rapidly after deposition according to the reconstructed burial history model of the Middle Permian strata of Well Hanshen1 (Figure 2) in the southwestern part of our study area. Then, there was a small structural uplift due to the Variscan orogeny (Dongwu Movement), with the erosion of varying degrees to the Maokou Formation owing to the uplift related to the magmatic upwelling before the eruption of the Emeishan basalt (He et al., 2003; Zheng et al., 2019). Subsequently, the Permian strata increasingly subsided during the Triassic. It was not until the latest Triassic that an uplift (without exposure and erosion) due to the Indosinian Movement appeared. Followed by the continuous increase in burial depth from Jurassic to Paleogene, the strata were not uplifted again until the Neogene because of the constant Himalayan Orogeny (Richardson et al., 2008).

FIGURE 2

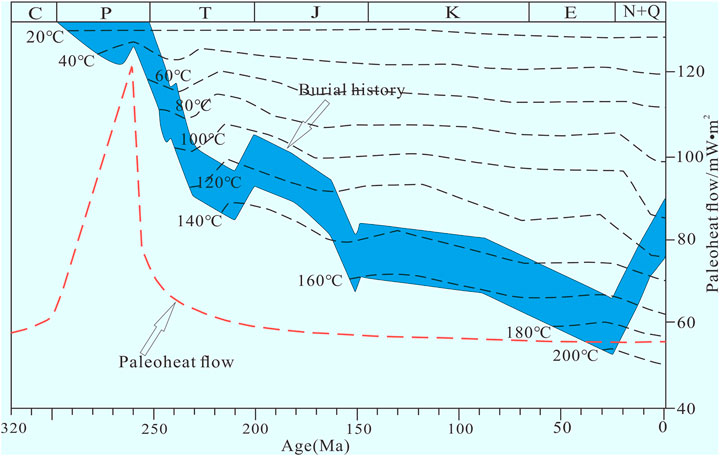

FIGURE 2. Schematic map of burial history, paleotemperature, and paleoheat flow distribution of the Middle Permian (the blue part) in Well HS1 of the Western Sichuan Basin (Cai et al., 2004; Zhu et al., 2010; Wei et al., 2016; Zheng et al., 2019).

From the end of the Guadalupian to the beginning of the Lopingian, the Variscan orogeny (Dongwu Movement) occurred. Emeishan basalts erupted on a large scale in pace with the activity of the Emeishan mantle plume, forming a large igneous province (Mahoney and Coffin, 1997; Courtillot et al., 1999). The general understanding of the eruption time is considered to be about 260 Ma lasting for less than 3 M.y. (He et al., 2007; Shellnutt et al., 2012; Dong et al., 2020). Evidence confirmed that the Emeishan large igneous province (ELIP) caused faulting which raised the regional geothermal temperature. There experienced a heat flow which commenced at ca. 290 Ma. The heat flow increase gradually during the Permian period and peaked when the ELIP erupted at ca. 259 Ma. In the study area, the paleoheat flow was relatively high in the southwestern (50–120 mW/m²) while relatively low in the northwestern (50–75 mW/m²) (Zhu et al., 2010; Dong et al., 2020).

3 Samples and Methods

In this study, a total of 7 samples of the Xinjigu (XJG) section, 11 samples of the Zhangcun (ZC) section, 5 samples from the drill cores of Well HS1, 18 samples of the Hejialiang (HJL) section, and 7 samples from the drill cores of Well K2 in Western Sichuan Basin were collected for geochemical and fluid inclusion analyses. The lithologies of the samples are dominated by dolomite (41 samples) and limestone (7 samples) (Figure 3; Tables 1–4). We attempted to select samples without impurities, and thus the samples were taken from fresh sections of drilling cores by micro-drilling; all samples were identified under a microscope (including alizarin red and potassium ferricyanide staining and casting slice analysis). At the same time, the samples used for geochemical analysis were carefully sorted under binoculars to avoid calcite veins and bright calcite cement as far as possible to ensure the reliability of the classified samples. The samples were ground in an agate mortar at a slow speed and pulverized into a 200-mesh sieve (<75 μm).

FIGURE 3

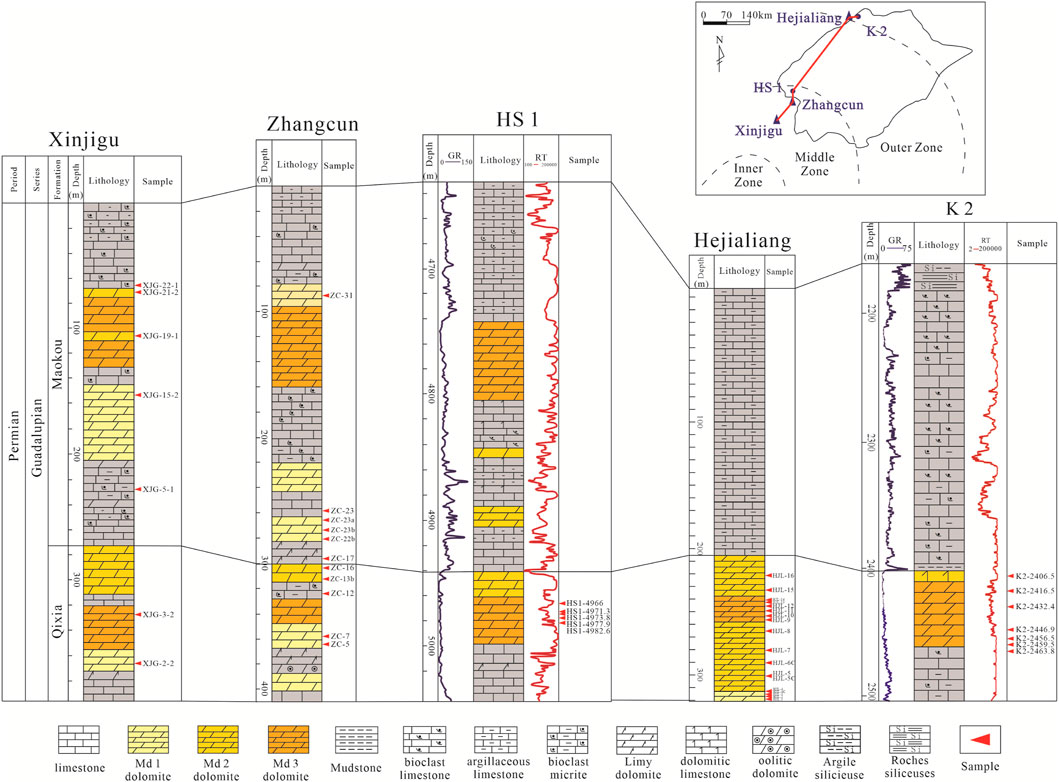

FIGURE 3. Stratigraphic correlation of Middle Permian in the study area, showing the distribution of dolomites and samples.

TABLE 1

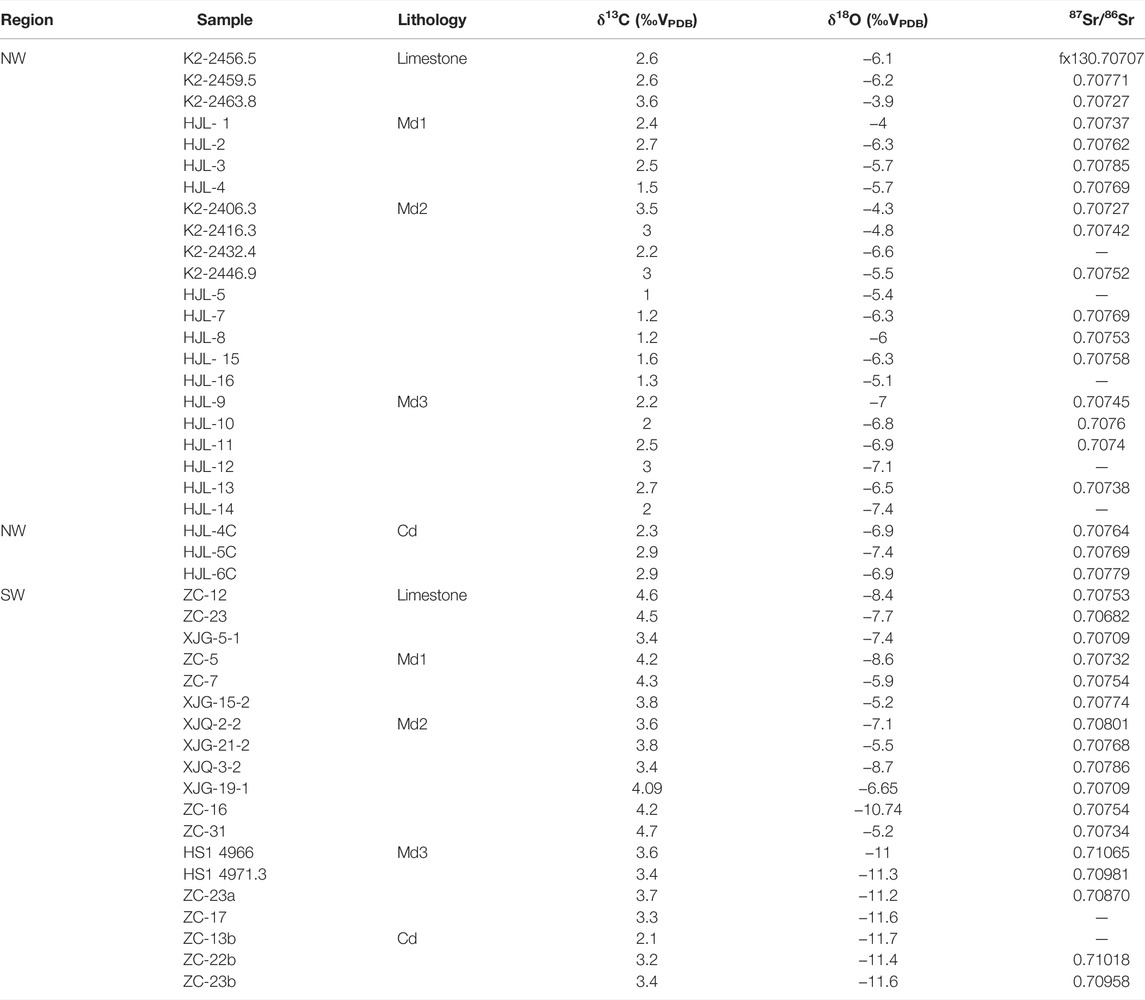

TABLE 1. Stable isotope data for Middle Permian carbonates of the Western Sichuan Basin.

TABLE 2

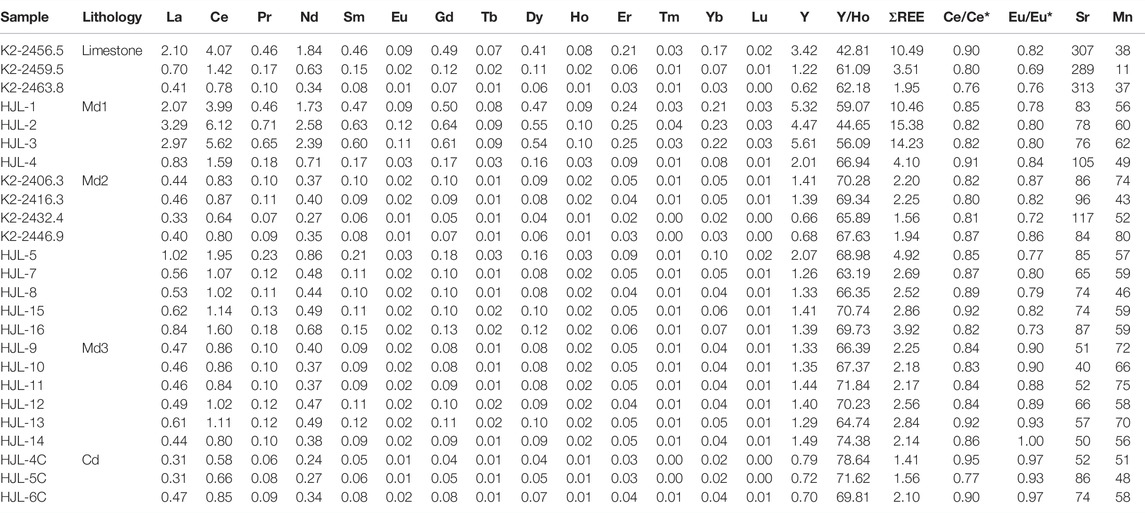

TABLE 2. Major and trace elements data for Middle Permian carbonates of the northwestern (NW) study area (10⁻⁶ mg/g).

TABLE 3

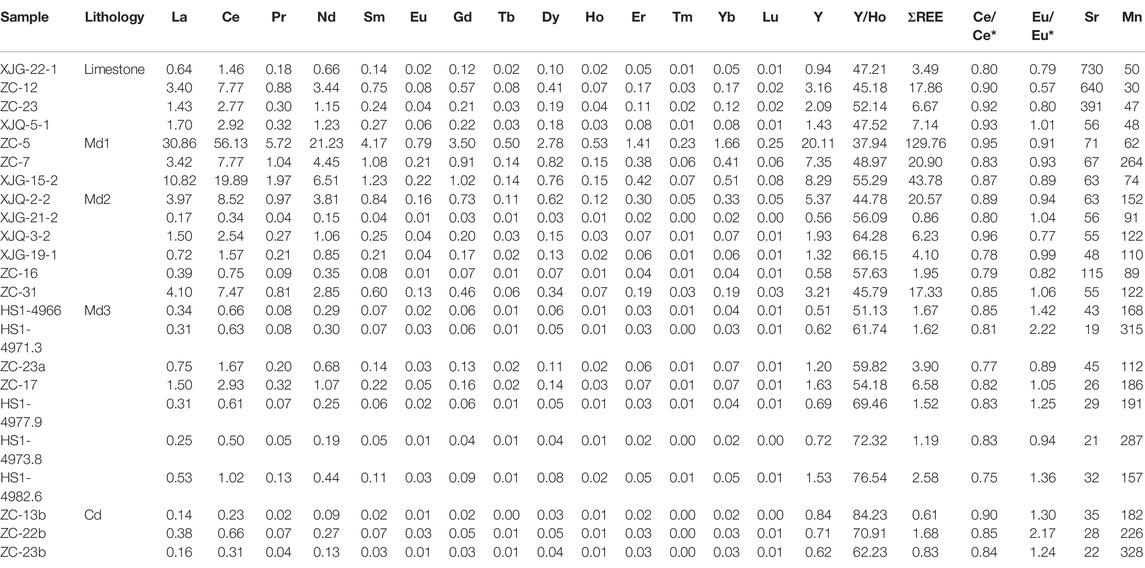

TABLE 3. Major and trace elements data for Middle Permian carbonates of the southwestern (SW) study area (10⁻⁶ mg/g).

TABLE 4

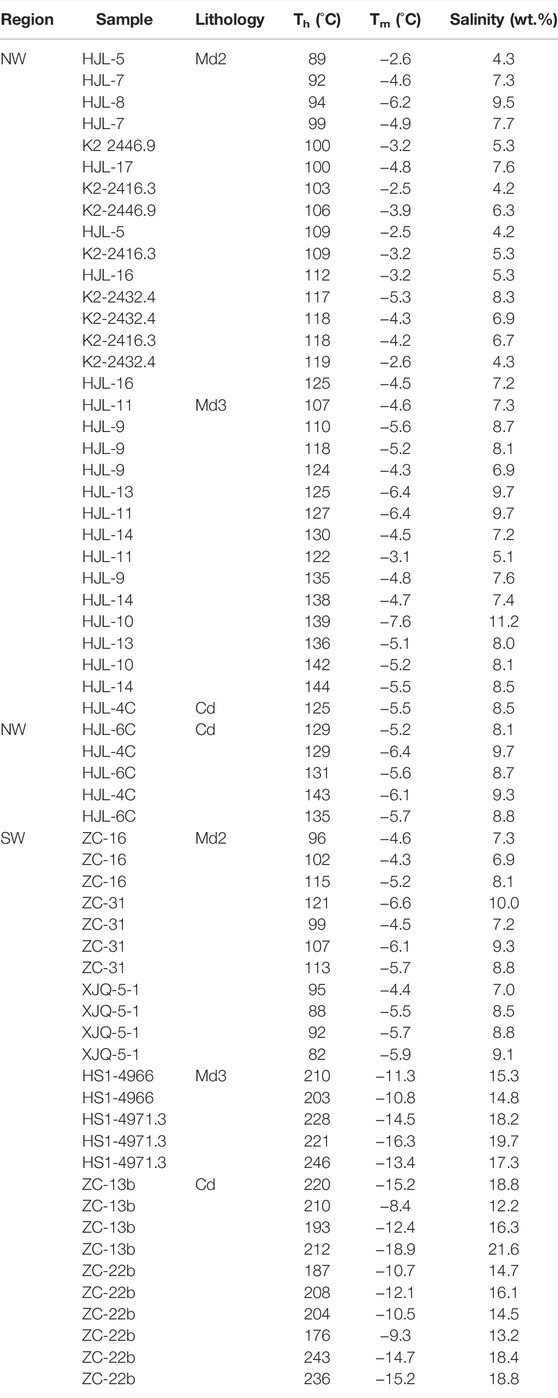

TABLE 4. Fluid inclusion data of Middle Permian dolomites from the Western Sichuan Basin. (T_h—homogenization temperature; T_m—ice melting temperature).

The C, O isotopic assays were processed and analyzed at the Key Laboratory of Orogenic Belts and Crustal Evolution, Peking University, China. Samples were measured using the IsoPrime 100 instrument after 16 h of soaking in 99% phosphoric acid at 70–80°C with an analytical accuracy of ±0.1‰. All results were conducted under the Vienna Peedee Belemnite standard (VPDB). Sr isotopes were also analyzed in the same place. The samples were dissolved in HCl, and measurement was performed using a Triton™ mass spectrometer with a standard deviation of ±1.0 × 10⁻⁵.

Trace elements and rare Earth elements (REEs) analyses were implemented at the Sichuan Metallurgical Geological Rock and Mineral Testing Center, China, using the ICP-MS, with an analytical precision of ±5‰. Mn and Sr were tested by atomic absorption spectrophotometry, of which the detection limits were 5 and 42 ppm, respectively, and the errors were 13% and 14%, respectively. The measured REE concentrations were normalized to the Post-Archean Australian Shale composite (PAAS) (Pourmand et al., 2012), with results marked by the subscript, _SN, after normalization.

Owing to the general anomaly of La in marine carbonate rocks, it was inappropriate to use δCe = Ce/Ce* = Ce_SN/(0.5La_SN + 0.5Pr_SN) to calculate the Ce anomaly (Bau and Dulski, 1996; Zhou et al., 2008; Liu et al., 2017). It was more accurate to use δCe = Ce/Ce* = Ce_SN/(Pr²_SN/Nd_SN) instead. Since there was a lack of the abnormally enriched Gd, the formula Eu/Eu* = Eu_SN/(0.5Sm_SN + 0.5Tb_SN) was used to calculate the Eu anomalies (Bau and Dulski, 1996). The (Nd/Yb)_SN ratio was used to reflect the relative enrichment of light REE (LREE) and heavy REE (HREE) in fractionation.

Fluid inclusion microthermometry was conducted at the Microscopic Hydrocarbon Detection Laboratory of China University of Geosciences (Wuhan). The homogenization temperatures (T_h) and final melting temperatures (T_m) were measured by a Linkam THMGS600 heating-freezing stage for two-phase aqueous inclusions. The accuracy of T_h and T_m are ±1°C and ±0.1°C, respectively. Salinities were calculated by T_m using the formula according to Steele–MacInnis et al. (2011).

4 Results

4.1 Petrological Characteristics

The carbonate rocks in the Western Sichuan Basin were mainly composed of limestones, dolomites, and transitional rocks such as dolomitic limestones and limy dolomites. The dolomite samples of the study area can be divided into matrix dolomite (Md) and cement dolomite (Cd, dominated by saddle dolomite), of which the Md samples can be further divided into three types, which are Md1 with very finely to finely crystalline, Md2 with medium to finely crystalline and Md3 with coarsely to medium crystalline (Bissell and Chilingar, 1967; Dong et al., 2020). The characteristics of these four types of dolomites mentioned previously are described as follows:

(1) Md1 usually appears gray–dark-gray in the hand specimen. It has a very finely to finely crystalline size (<0.25 mm) and is mostly xenomorphic with indistinct crystal rims with relatively dense and low porosity (Figure 4A). It partly preserves sedimentary fabrics from the precursor limestones and occasionally develops terrestrial quartz grains. Generally, Md1 is found at the bottom of the Qixia Formation and the middle-bottom of the Maokou Formation.

(2) Md2 consists of planar-e to planar-s dolomite crystals with unhomogeneous sizes of 50–450 μm. The crystals are commonly with cloudy-core and clear-rim textures (Figure 4B). It preserves no original fabrics and merely retains a few ghost outlines of the precursor particles. There exist abundant intercrystalline pores filled with bitumen (Figure 4C). It presents special dark patches associated with light limestone as partially dolomitized at the top of the Qixia Formation mostly in the northwestern Sichuan Basin, while completely dolomitized in the other parts.

(3) The Md3 appears brown-gray in the hand specimen. It consists of larger and more homogeneous crystals (350–800 μm), which are generally nonplanar-a and few planar-s. It differs from the Md2 as the crystals of Md3 are turbid without clear rims, showing sharp undulatory extinction under cross-polarized light (Figure 4G). Moreover, the Md3 is abundant in dissolution pores and fractures, which are partly infilled with bitumen or cement of quartz, dolomite, and calcite (Figures 4E, F, H). What is similar to Md2 is that their fabric structure is destroyed, which led the initial fabric and/or early diagenetic features which are hard to be remained.

(4) Cd is filled along the dissolution pores and fractures appearing white-gray–white. The crystal size is larger than that of Md (>400 μm). The crystals are nonplanar-a to saddle textures showing undulatory extinction under cross-polarized light (Figures 4C, D, I). The abundance of Cd is relatively lower in the northwestern Sichuan Basin compared to the southwestern Sichuan Basin (Liu et al., 2017; Zheng et al., 2019).

FIGURE 4

FIGURE 4. Photos showing petrographical characteristics of different dolomites. (A) Very finely to finely crystalline Md1 with residual bioclastic structure and early-stage dissolution vugs and microfracture preserved (Sample ZC-5); (B) Idiomorphic-hypidiomorphic crystalline Md2 with cloudy-core and clear-rim (Sample K2-2406.5); (C) Cd filling in the dissolved pores close to the Md2 and Md3 (Sample XJG-3-2); (D) cross-polarized photomicrograph of (C), Cd showing sharp undulatory extinction; (E) massive vugs and microfracture of Md3 are filled with calcite cements and bitumen (Sample HS1-4996); (F) Md3 with dissolved pores filled by authigenic quartz and calcite cements (Sample HS1-4977.9); (G) Md3 of coarsely to medium crystalline, nonplanar-a texture, and turbid crystals without clear rims, and the right half shows a sharp undulatory extinction under cross-polarized light (Sample HJL-10); (H) stylolites filled with bitumen-cut Md3 crystals and were later cut by microfracture filled with calcite cements (Sample HJL-13); (I) different-stage Cd filling in the hydraulic fracture close to the Md2 (Sample ZC-16).

4.2 Geochemical Characteristics

4.2.1 Stable Carbon and Oxygen Isotope Characteristics

In the northwestern Sichuan Basin, the δ¹³C values of the limestone range from 2.6‰ to 3.6‰ (avg. 2.9‰) and the δ¹⁸O values from −6.2‰ to −3.9‰ (avg. −5.4‰). The δ¹³C values of Md1 span from 1.5‰ to 2.7‰ (avg. 2.3‰) and δ¹⁸O values from −6.3‰ to −4.0‰ (avg. −5.4‰). For Md2, δ¹³C values are in the range of 1.0–3.5‰ (avg. 2.0‰) and the δ¹⁸O values are in the range of −6.6‰ to −4.3‰ (avg.−5.6‰). Obviously, the δ¹³C and δ¹⁸O values of both Md1 and Md2 overlap those of limestone as well as the δ¹³C (3.1‰–5.5‰) and δ¹⁸O values (−4.3‰–0.1‰) of calcites precipitated from Permian seawater (Korte et al., 2005; Mii et al., 2012; Buggisch et al., 2015). As for Md3, δ¹³C values are in the range of 2.0–3.0‰ (avg. 2.4‰) and δ¹⁸O values are in the range of −7.4‰ to −6.5‰ (avg. −7.0‰), lower than those of Md1 and Md2. (Table 1; Figure 9A). Moreover, the Cd are with δ¹³C values of 2.3‰–2.9‰ (avg. 2.7‰) and δ¹⁸O values of −7.4‰ to −6.9‰ (avg. −7.1‰), which apparently overlap that of Md3 (Table 1; Figure 5A).

FIGURE 5

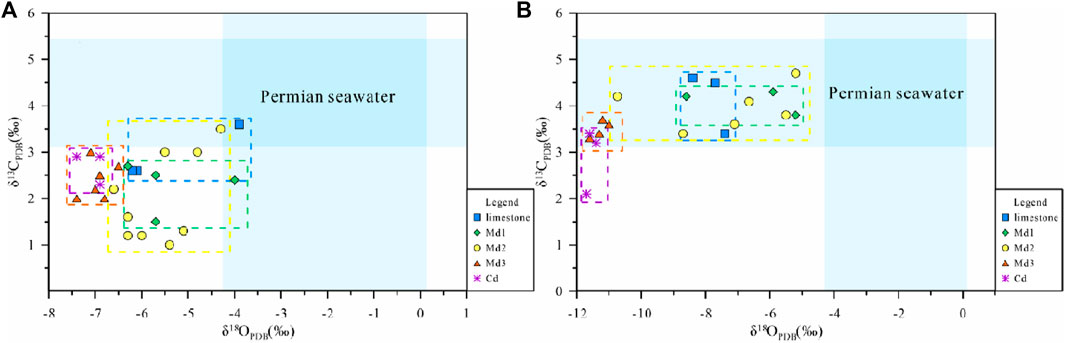

FIGURE 5. Cross-plot of δ¹³C versus δ¹⁸O values of limestones and four types of dolomites in the Middle Permian compared to the Permian seawater (Buggisch et al., 2015). (A) Northwestern (NW) study area; (B) southwestern (SW) study area.

As for the southwestern Sichuan Basin, the δ¹³C values of the limestone range from 3.4‰ to 4.6‰ (avg. 4.2‰) and the δ¹⁸O values from −8.4‰ to −7.4‰ (avg. −7.8‰). The δ¹³C values of Md1 range from 3.8‰ to 4.3‰ (avg. 4.1‰) and the δ¹⁸O values from −8.6‰ to −5.2‰ (avg. −6.6‰). For Md2, δ¹³C values are in the range of 3.4‰–4.7‰ (avg. 4.0‰) and the δ¹⁸O values are in the range of −10.7‰ to −5.2‰ (avg. −7.3‰). Same as the northwestern Sichuan Basin, the δ¹³C values of Md1 and Md2 are also of a similar range to that of limestone and Permian seawater. As for Md3, δ¹³C values are 3.3‰–3.7‰ (avg. 3.5‰) and δ¹⁸O values of −11.6‰ to −11‰ (avg. −11.3‰), of which the δ¹⁸O values are much lower than that of Md1 and Md2. (Table 1; Figure 9A). In addition, Cd are with δ¹³C values of 2.1‰–3.4‰ (avg. 2.9‰). And the δ¹⁸O values of Cd range from −11.7‰ to −11.4‰ (avg. −11.6‰), which are the lowest all over the study area. Compared with the northwestern Sichuan Basin, the Md3 and CD of the southwestern Sichuan Basin possess the lower δ¹⁸O values at almost 4‰ (Figure 5B; Table 1).

4.2.2 Radiogenic Sr Isotope Characteristics

In the northwestern Sichuan Basin, The ⁸⁷Sr/⁸⁶Sr ratios of the limestone range from 0.70707 to 0.70771 (avg. 0.70735), fitting with the approximate ⁸⁷Sr/⁸⁶Sr ratio range for Permian seawater (0.70680–0.70807; Veizer et al., 1999; Korte et al., 2006; Wang et al., 2019; Dong et al., 2020). The ⁸⁷Sr/⁸⁶Sr ratios of Md1 are from 0.70737 to 0.70785 (avg. 0.70763), which are similar to those of Md2 that range from 0.70727–0.70769 (avg. 0.70750). As for Md3, the ⁸⁷Sr/⁸⁶Sr ratios are 0.70738–0.70760 (avg. 0.70746). In addition, the ⁸⁷Sr/⁸⁶Sr ratios of Cd are from 0.70764–0.70779 (avg. 0.70771). In general, all the ⁸⁷Sr/⁸⁶Sr ratios of the four types of dolomites largely coincide with the range of coeval marine limestone (Figure 6A; Table 1).

FIGURE 6

FIGURE 6. ⁸⁷Sr/⁸⁶Sr ratios of limestones and four types of dolomites compared to the Permian seawater (0.70680–0.70807) (Veizer et al., 1999; Korte et al., 2006; Wang et al., 2019; Dong et al., 2020). (A) Northwestern (NW) study area; (B) southwestern (SW) study area.

In the southwestern Sichuan Basin, limestone had the same ⁸⁷Sr/⁸⁶Sr ratio (0.70682–0.70753, avg. 0.70715) as that of the Md1 (0.70732–0.070774, avg. 0.70753) and Md2 (0.70709–0.70801, avg. 0.70759), fitted with the ⁸⁷Sr/⁸⁶Sr ratio range for Permian seawater as well. However, the other dolomite types palpably possess a much higher ⁸⁷Sr/⁸⁶Sr ratio, which are Md3 (0.70870–0.71065, avg. 0.70972) and Cd (0.70958–0.71018, avg. 0.70988) (Figure 6B; Table 1).

4.2.3 Major and Trace Elements

In the northwestern Sichuan Basin, limestones are characterized by the lowest Mn concentrations (11–38 ppm and avg. 29 ppm) and highest Sr concentrations (289–313 ppm and avg. 303 ppm), with an average Mn/Sr ratio of 0.09. The Mn contents of Md1 are 49–62 ppm, with an average of 57 ppm, which are higher than those of limestone. On the contrary, the Sr contents of Md1 (76–105 ppm, avg. 86 ppm) are much lower than that of the limestones. The average Mn/Sr ratio of Md1 is 0.68. The Mn and Sr contents of Md2 are 43–80 ppm (avg. 59 ppm) and 65–117 ppm (avg. 85 ppm), respectively, with an average Mn/Sr ratio of 0.71, which are all similar to those of Md1. Md3 is slightly enriched in Mn (56–72 ppm, avg. 66 ppm) but reduced in Sr (40–66 ppm, avg. 53 ppm), with an average Mn/Sr ratio of 1.29. The Mn and Sr contents of Cd are 48–58 ppm (avg. 52 ppm) and 52–86 ppm (avg. 71 ppm), respectively, with the average Mn/Sr ratio of 0.77. In general, the average Mn concentration of Md1, Md2, and Md3 are relatively constant, while that of Cd are slightly lower. Compared with Md1 and Md2, the Md3 and Cd hold the lower Sr concentrations (Figure 7A; Table 2).

FIGURE 7

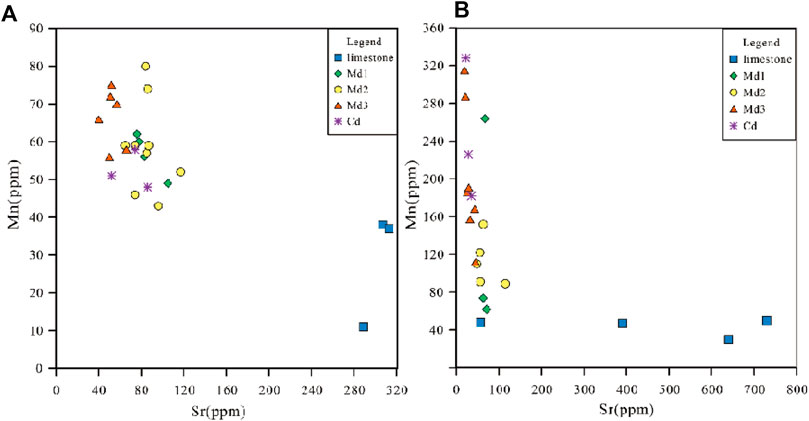

FIGURE 7. Cross-plot of Sr versus Mn contents in limestones and four types of dolomites. (A) Northwestern (NW) study area; (B) southwestern (SW) study area.

In the southwestern Sichuan Basin, Limestones also owns the lowest Mn concentrations (30–50 ppm, avg. 44 ppm) and highest Sr concentrations (56–730 ppm, avg. 454 ppm), with an average Mn/Sr ratio of 0.27. The Mn contents of Md1 (62–264 ppm, avg. 77 ppm) are higher than that of limestone while the Sr contents of Md1 (63–71 ppm, avg. 67 ppm) are apparently much lower. The average Mn/Sr ratio of Md1 is 2. The Mn and Sr contents of Md2 are 89–152 ppm (avg. 114 ppm) and 48–115 ppm (avg. 65 ppm), respectively, with an average Mn/Sr ratio of 1.92, which are similar to those of Md1. Md3 is obviously enriched in Mn (112–315 ppm, avg. 202 ppm) but reduced in Sr (19–45 ppm, avg. 31 ppm), with an average Mn/Sr ratio of 7.9. The Cd possess the highest Mn concentrations (182–328 ppm, avg. 245 ppm) and lowest Sr (22–35 ppm, avg. 28 ppm), with the average Mn/Sr ratio of 9.39. In general, the average Mn concentration of Md1 and Md2 are relatively constant, while that of Md3 and Cd are much higher. Compared with Md1 and Md2, the Md3 and Cd hold the low Sr concentrations (Figure 7B; Table 2).

In the northwestern Sichuan Basin, the total contents of REEs (ΣREE) in most dolomites and limestones do not vary substantially, with mostly low values of 1.41–4.92 ppm (avg. 2.55 ppm), except for a few limestone samples (K2-2456.5) and Md1 samples (HJL-1, HJL-2, and HJL-3), with higher values of 10.46–15.38 (avg. 12.64 ppm). The PAAS-normalized REE of limestone and all types of dolomites consistently show flat REE patterns with negative Ce and Eu anomalies (Figure 8A). The Ce/Ce* values of all samples have small variations between 0.76 and 0.95 (avg. 0.85). However, the Eu/Eu* values of the different lithologies differ: those of limestone, Md1, and Md2 fall within a similar range from 0.69 to 0.87 (avg. 0.79), while those of Md3 and Cd are slightly higher (0.88–1.00, avg. 0.92, and 0.93–0.97, avg. 0.96, respectively) (Figure 9A; Table 2). The (Nd/Yb)_SN ratios of Md1 and Md2 have a large range of 0.65–1.18 (avg. 0.85) while the Md3 and Cd have a narrower (Nd/Yb)_SN range of 0.74–1.18 (avg. 0.91). In addition, the Y/Ho ratios of all samples are 42.81–78.64, with an average of 65.60 (Table 2).

FIGURE 8

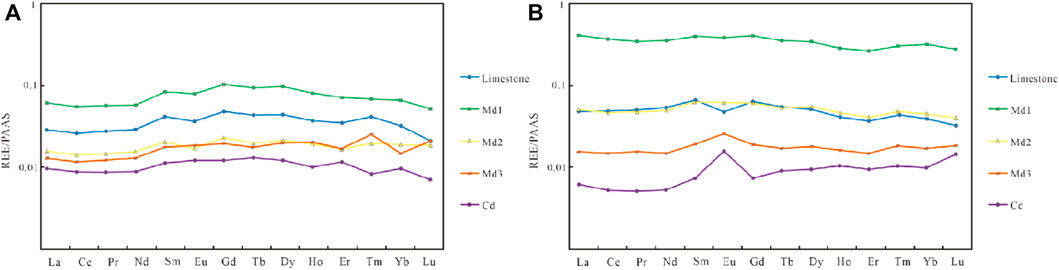

FIGURE 8. Post-Archean Australian Shale (PAAS; Pourmand et al., 2012) normalized mean rare Earth element (REE) patterns of limestones and four types of dolomites. (A) Northwestern (NW) study area; (B) southwestern (SW) study area.

FIGURE 9

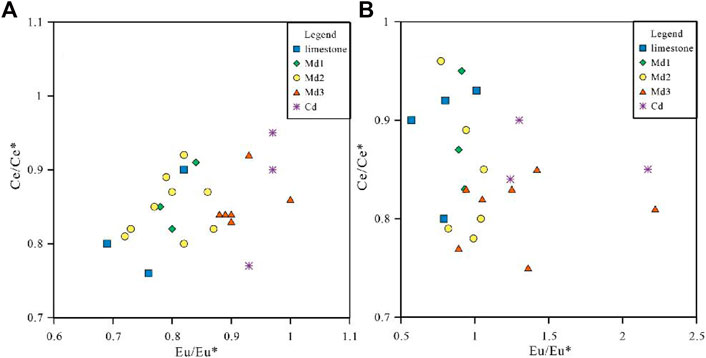

FIGURE 9. Cross-plot of Eu/Eu* versus Ce/Ce* ratios in limestones and four types of dolomites. (A) Northwestern (NW) study area; (B) southwestern (SW) study area.

In the southwestern Sichuan Basin, the ΣREE of Md1 is the highest (20.9–129.76 ppm, avg. 64.81 ppm), showing completely different mean REE patterns compared with that of limestone(3.49–17.86 ppm, avg. 8.79 ppm). The mean REE pattern of Md2 dolomite is similar to the limestone (Figure 8B), both showing relatively flat curves. The ΣREE of Md3 (1.19–6.58 ppm, avg. 2.72 ppm) and Cd (0.61–1.68 ppm, avg. 1.04 ppm) are both low, showing the similar mean REE patterns with positive Eu. The Ce/Ce* values of all samples also have small variations between 0.75 and 0.93 (avg. 0.85). The Eu/Eu* values of limestone, Md1, and Md2 fall within a similar range from 0.57 to 1.06 (avg. 0.89), while those of Md3 and Cd are higher (0.94–2.22, avg. 1.30, and 1.24–2.17, avg. 1.57, respectively) (Figure 9B; Table 3). The (Nd/Yb)_SN of limestone (0.84–1.77, avg. 1.28) was higher than those of the other dolomites. The (Nd/Yb)_SN of Md1 (0.95–1.12, avg. 1.06) and Md2 (0.66–1.33, avg. 1.05) are approximately the same, while the Md3 (0.55–1.34, avg. 0.84) and Cd (0.38–0.79, avg. 0.52) are lower. In addition, the Y/Ho ratios of all samples are 37.94–84.23, with an average of 57.89 (Table 3).

4.2.4 Fluid Inclusion Characteristics

A total of 36 fluid-inclusion samples in the northwestern Sichuan Basin were selected for measurement some of them were shown in the Figure 10. Fluid inclusions were not observed in the Md1. In the Md2, the fluid inclusion T_h values range from 89°C to 125°C (avg. 107°C), and the T_m values range from −6.2°C to −2.6°C (avg. −3.9°C), with calculated salinities ranging from 4.2 wt% to 9.5 wt% (avg. 6.3 wt%). As for the Md3, the T_h values range from 107°C to 144°C (avg. 128°C), with corresponding salinities of 5.1 wt% to 11.2 wt% (avg. 8.1 wt%). The fluid inclusion T_h values of Cd are 125–143°C (avg. 132°C), with calculated salinities ranging from 8.1 wt% to 9.7 wt% (avg. 8.85 wt%) (Figure 11A; Table 4).

FIGURE 10

FIGURE 10. Photomicrographs showing fluid inclusion petrography. (A) Liquid-dominated fluid inclusions were distributed along the edge of the crystal (Sample HS1-4966); (B) liquid-dominated fluid inclusions in random populations were distributed evenly in a crystal without special orientation (Sample K2-2432.4); (C) liquid-dominated fluid inclusions outlined the growth zone of Cd (Sample ZC-22b); (D) isolated fluid inclusions in the limpid Cd crystal (Sample HJL-6C).

FIGURE 11

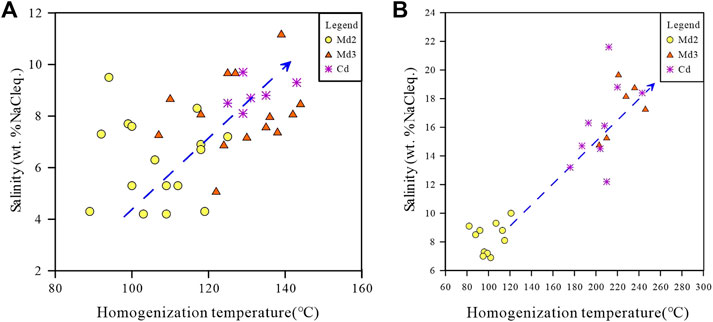

FIGURE 11. Cross-plot of homogenization temperatures (T_h) versus salinity (calculated from final melting temperatures (T_m)) from fluid inclusions of Md2, Md3, and Cd. (A) Northwestern (NW) study area; (B) southwestern (SW) study area.

There are 26 fluid-inclusion samples selected in the southwestern Sichuan Basin. First in the Md2, the fluid inclusion T_h values and corresponding salinities are 88–121°C (avg. 101°C) and 6.9–10.0 wt% (avg. 8.3 wt%), respectively. Second, the fluid inclusion T_h values and calculated salinities of Md3 are 203–246°C (avg. 222°C) and 14.8–19.7 wt% (avg. 17.1 wt%), respectively. Lastly in the Cd, the T_h values range from 187 to 243°C (avg. 209°C), with the salinities of 12.2–21.6 wt% (avg. 16.5 wt%). In general, the T_h values and calculated salinities of Md3 and Cd are notably higher than that of the Md2, which are also far beyond that of samples in the northwestern Sichuan Basin (Figure 11B; Table 4).

5 Disccussion

5.1 Estimation of the Fidelity of Geochemistry Data

The degrees of contamination of the samples by terrigenous clastic and diagenetic alteration were estimated to ensure the fidelity of the data before the result discussion. Terrigenous clastic contamination was assessed first. Trace elements of marine carbonate rocks are mainly affected by Fe and Mn oxides as well as terrigenous debris (such as shale) (Nothdurft et al., 2004). The Y/Ho ratios of global terrigenous sediments are relatively stabilized at a narrow range of 26–28, while that of marine sediments possess a larger range of 44–74 (Bau and Dulski, 1996; Webb and Kamber, 2000). The vast majority Y/Ho ratios of all samples in the northwest (42.81–78.64, avg. 65.60) and southwest (37.94–84.23, avg. 57.89) are within the range of marine sediments at the relatively high values, suggesting the minor influence of terrigenous input. Furthermore, the ΣREE of most samples in the study area is very low, which is also consistent with the low ΣREE feature of marine carbonates.

Second, the degree of diagenetic contamination was evaluated by the alteration of Sr concentrations and Mn/Sr values, for that the Sr is preferentially removed during the recrystallization of metastable carbonate rocks while the Mn is enriched in the formation of late Fe calcite cement (Kaufman, 1994; Korte et al., 2006). Generally, carbonates are considered to be without significant diagenetic alteration when Mn/Sr < 1.5 and δ¹⁸O > −10‰ (Fölling and Frimmel, 2002). The Mn/Sr ratios of all limestone samples in this study are <0.86, and the δ¹⁸O values are > −8.6‰, which fell into the scope mentioned earlier indicating that there is no significant diagenetic alteration in the limestone samples of our study area, which can reflect ancient seawater composition. Meanwhile, the Mn/Sr ratios of majority of dolomite samples in the northwest are lower than 1.5, suggesting that they experienced minor diagenetic alteration (Table 2).

5.2 Deep Fluid Together With Seawater as Dolomitizing Fluid

5.2.1 Formation of Md1

In both northwest (NW) and southwest (SW) Sichuan Basin, the Md1 are characterized by very finely to finely crystalline and original structure preserved. The δ¹³C values and ⁸⁷Sr/⁸⁶Sr ratio of Md1 are indistinguishable from that of the surrounding limestone and the Permian seawater (Korte et al., 2005; Mii et al., 2012; Buggisch et al., 2015; Wang et al., 2019; Dong et al., 2020), with the flat REE patterns almost in equilibrium with the surrounding limestone, indicating that the dolomitizing fluid was mainly coeval seawater. Moreover, the δ¹⁸O values of Md1 are comparable to that of limestone, confirming that the penecontemporaneous seawater may be dominated in the dolomitization. However, affected by the abnormal heat carried by the deep fluid related to ELIP, the δ¹⁸O values of Md1 are lower than those expected of normal Permian seawater dolomitizing fluids (Korte et al., 2005; Zhu et al., 2010). Furthermore, the δ¹⁸O values in the SW are evidently lower than that in the NW, which may be caused by the decline of the impact of deep heat fluid of ELIP from SW to NW (Figure 5). In addition, whether in the SW or NW, the δ¹⁸O values are evidently more negative than that of the typical evaporitic Permian dolomite (+0.2 to +7.4‰ V_PDB) (Peryt and Magaritz, 1990; Melim and Scholle, 2002) and it barely developed evaporative deposits, which suggest that the dolomitizing fluids are not from the evaporating process. In conclusion, the dolomitization fluid of Md1 is considered to be penecontemporaneous seawater without strong evaporation.

5.2.2 Formation of Md2

The stylolites are relatively developed in Md2, which clearly cut through the dolomite crystal (Figure 4H). Previous studies showed that the burial depth of the fully formed stylolites in the carbonate rock is about 500 m (Buxton and Sibley, 1981; Fabricius and Borre, 2007), so the formation environment of Md2 dolomite is considered a shallow burial condition (<500 m). Similar to Md1, the range of δ¹³C values and ⁸⁷Sr/⁸⁶Sr ratios of Md2 overlap that of ambient limestone and the Permian seawater (Figures 5, 6), which indicates that the dolomitizing fluids of Md2 are also derived from the Permian seawater. Moreover, Md1 and Md2 possess similar concentrations of Mn and Sr, which shows that Md2 was formed just a little bit later than Md1 (Budd, 1997). At the same time, the sign of the strong water-rock alteration by other fluids (e.g. hydrothermal fluids) that would have changed the REE composition (Qing and Mountjoy, 1994) is hard to be found in the study area. And it is obvious that the REE patterns, Ce anomalies, as well as Eu anomalies of Md2, are similitude to those of the limestones (Figures 8, 9), which can be inferred that dolomitizing fluids were minimally affected by the external fluids. The δ¹⁸O values of most samples in the Western Sichuan Basin are lower than host limestones and the Permian seawater, reflecting a higher formation temperature. The fluid inclusions in the Md2 support the heated seawater dolomitizing fluids as well. The T_h values measured in the fluid inclusion in the clear rims of Md2 (avg. 107.5°C in the NW and 101°C in the SW) are much higher than the maximum temperature of the shallow-burial 500 m strata (54°C, Dong et al., 2020). Meanwhile, the salinity calculated from T_m (avg. 6.3 wt% in the NW and 8.3 wt% in theSW) is higher than that of the Permian seawater (4.4 wt%), which may be related to the increased evaporation strength of seawater participating in thermal convection circulation due to the high temperature. Moreover, the evaporation in SW is stronger than in NW, thus showing slightly higher fluid inclusion salinity. Therefore, the dolomitization fluid of Md2 is considered to be originated from the Permian seawater in shallow burial strata, characterized by slightly higher temperature and salinity which may be caused by deep fluid related to ELIP.

5.2.3 Formation of Md3 and Cd

The genesis of dolomitization fluid of Md3 and Cd in the southwest (SW) differs from that of the northwest (NW) of the study area due to the different degrees of influence of deep fluids related to ELIP.

In the NW, the REE patterns, and ranges of δ¹³C values of Md3 and Cd are basically consistent with those of other matrix dolomites and limestone, together with the uniform petrologic features of matrix dolomites, supporting that the Permian seawater donated in dolomitization. The Sr contents of Md3 and Cd are slightly lower than that of Md2, while the Mn contents are slightly higher (Figure 7A), implying that Md3 were formed later than Md2. The Mn contents are lower than that of the deep buried or hydrothermal dolomitizing fluid (Widodo and Laya, 2017; Zhao et al., 2018), which indicates there is no massive Mn injected by external fluids under the relatively closed and weakly oxidized shallow burial environment ((Budd, 1997; Veizer, 1978; Hou et al., 2016). Owing to the absorption of the radiogenic ⁸⁷Sr isotope, the hydrothermal dolomites are with high ⁸⁷Sr/⁸⁶Sr ratios (Montanez and Read, 1992; Davies and Smith, 2006; Wang et al., 2019; Dong et al., 2020). Apparently, the ⁸⁷Sr/⁸⁶Sr ratios of Md3 in the NW of our study area are much lower than those of hydrothermal dolomites, overlapping the range of ⁸⁷Sr/⁸⁶Sr ratios of Permian seawater (Figure 6A), excluding the hydrothermal origin of dolomitization fluid. However, the high-temperature deep fluid of ELIP still made an impact on the Md3 and Cd in NW. First of all, the crystals of Md 3 and Cd are characterized by nonplanar-a to saddle textures with more curved faces and wavy extinction, reflecting a disordered overgrowth of crystals rapidly at the relatively high temperature. Second, the δ¹⁸O, Eu/Eu*, T_h values and salinities calculated based on T_m of Md3 and Cd are obviously higher than those of Md2. However, the δ¹⁸O values of Md3 and Cd in NW (avg. −6.99‰) are also much higher than that in SW (avg. −11.4‰) while the T_h values in NW (avg. 129°C) are much lower than that in SW (avg. 214°C), and the salinities are lower than that of the hydrothermal dolomite fluids as well (Davies and Smith, 2006). Thus, the low Mn contents, and similarity of ⁸⁷Sr/⁸⁶Sr ratios to the Permian seawater values, together with what was mentioned earlier, exclude the possibility of the large scale of hydrothermal dolomitizing fluids. There may be deep fluids of high temperatures and salinities associated with ELIP mixed with the dolomitizing fluids in some degrees. Generally, the Md3 and Cd in NW were formed at the period of shallow burial by seawater of relatively high-temperature mixed with deep fluids associated with ELIP to some degrees, and the crystals which were overgrown and recrystallized in the rapid circulation and diffusion of the dolomitizing fluids.

In the SW, the δ¹³C values of Md3 and Cd dolomite cements are centralized and slightly lower than those of other types of dolomite (Figure 5B), indicating that other fluids may have provided an additional carbon source which reduced the δ¹³C value. Mantle source carbon is usually light (−7‰ to −5‰), if discharged into diagenetic fluid and involved in the diagenesis of carbonate rocks, and the δ¹³C value of primary rock will be reduced (Renne et al., 1995), but the reduction is less than that of the organic matter dilution (Liu et al., 2018). Thus, the slightly lower δ¹³C value of some Md3 and Cd may be related to the mixing of deep fluid (magmatic hydrothermal) with mantle source characteristics provided by ELIP. The Sr contents of Md3 and Cd are slightly lower than that of Md2, also implying that Md3 were formed later than Md2. The Mn contents are evidently higher than that of the Md2 (Figure 7B), which shows the intensification of diagenesis and evolution of carbonate rocks and the input of Mn from external fluids. Additionally, the ⁸⁷Sr/⁸⁶Sr ratios of Md3 in the SW are much higher than that of Md3, Cd, and Permian seawater (Figure 5B). There are three following explanations: first, the diagenetic fluid was highly evaporated seawater and the evaporation caused the increase of ⁸⁷Sr in the fluid (Mountjoy et al., 1999; Nasir et al., 2008); second, a large amount of freshwater with high ⁸⁷Sr/⁸⁶Sr ratio was mixed in the diagenetic fluid (Compton et al., 2001; Meyers et al., 1997); third, the dolomitization fluid is the hydrothermal fluid or deep brine passing through the rich ⁸⁷Sr formation (Davies and Smith Jr, 2006; Jones and Jenkyns, 2001). However, in the sedimentary environment of the open carbonate platform, there barely developed evaporitic rock, and the δ¹⁸O value of carbonate rocks was generally negative, excluding the existence of strong evaporation; meanwhile, there was no apparently covariant relationship between δ¹³C and δ¹⁸O, so the mixed water as dolomitization fluid can also be excluded (Melim and Scholle, 2002). Therefore, the high ⁸⁷Sr/⁸⁶Sr ratio is considered to be related to the deep hydrothermal fluid associated with ELIP. Although the mantle source fluid has a very low ⁸⁷Sr/⁸⁶Sr ratio (<0.7045) (Hou et al., 2006), the ⁸⁷Sr/⁸⁶Sr ratio of dolomite formed or reconstructed by it could still be greatly increased when the hydrothermal fluid upwelled through the fault and passed through the underlying clastic rock stratum rich in ⁸⁷Sr due to tectonism (Davies and Smith Jr, 2006). Thus, it is inferred that the diagenetic fluid of Md3 and Cd was mixed with massive deep hydrothermal fluid. Moreover, the crystals of Md3 and Cd have apparently nonplanar-a to saddle textures with more curved faces and wavy extinction, reflecting a rapid formation under high temperature. The lower δ¹⁸O values of Md3 and Cd in SW than other types of dolomites also support the high temperature. That the diagenetic fluid is acidic, high temperature hydrothermal fluid is also confirmed by positive Eu anomalies of Md3 and Cd dolomite (Figures 8B, 9B) (Frimmel, 2009). What is more, the fluid inclusions provide more intuitive evidence of high temperature, with the T_h of inclusions in Md3 and Cd dolomite crystals from 176°C to 246°C (avg. 213°C), which are higher than that of Md2 (Figure 11B; Table 4). The salinity values of inclusions within Md3 and Cd are also much higher than that of Md2 and are comparable to the salinity of hydrothermal dolomite fluids calculated by Davies and Smith (2006). In conclusion, Md3 and Cd in SW are characterized by slightly lower δ¹³C, negative δ¹⁸O, low Sr content, high Mn content, high ⁸⁷Sr/⁸⁶Sr ratio, and high homogenization temperature and salinity, indicating a large amount of deep hydrothermal fluid taken part in the dolomitization.

5.3 Dolomitization Mechanism

Based on the aforementioned dolomitizing fluids, combined with the depositional settings, tectonic evolution, and burial history of the study area, we conclude different dolomitization mechanisms in SW and NW of the Middle Permian dolomite in Western Sichuan. The formation processes are as follows: (Figure 12).

FIGURE 12

FIGURE 12. Dolomitization pattern of the Middle Permian Formation in Western Sichuan Basin. (A) Seepage reflux dolomitization in the penecontemporaneous stage (Md1); (B) thermal convection dolomitization in the shallow burial stage (Md2); (C) high-temperature thermal convection dolomitization in shallow burial stage in NW (Md3 and Cd); (D) deep fluid participated in top and lateral open thermal convection at high temperature and structure-hydrothermal dolomitization in the shallow burial stage in SW (Md3 and Cd).

In both SW and NW of the study area, the diagenetic fluids of Md1 were all dominated by Permian seawater. The Md1 were in the relatively low energy and restricted environments (for example Lagoon, shoal edge, etc.), which could have a certain evaporation effect on the Permian seawater. However, the salinity levels of the Permian seawater might suggest to be insufficient which might be mesosaline or penesaline as evaporitic deposits have barely been found in the study area. Under the penecontemporaneous period, with the modification by BSR, the brackish and saturated seawater created conditions for the nucleation of dolomite, promoting the formation of “crystal seed” (crystal core), which laid a good foundation for the subsequent formation of Md2 (Warren, 2000; Choquette and Hiatt, 2008). It was followed by the process of extremely shallow burial. Affected by seawater density fluctuations and/or eustatic sea-level changes (Kaufman, 1994; Jones et al., 2003), the concentrated seawater continuously seeped and refluxed along the pores of the unconsolidated carbonate rocks of the high-energy shoal, leading to the overgrowth of the original dolomite seeds which further aggregated in Md1 (Figure 12A). Therefore, Md1 is considered to be seepage reflux dolomitization of slightly adjusted seawater at the peripheral of high energy shoals near the platform margin (Dong et al., 2020). Influenced by the geothermal warming effect brought by the deep fluid of ELIP, the evaporation was more developed in the SW, and the seawater density fluctuation is accordingly more apparent, resulting in the more widely distributed Md1 in the SW than in the NW.

The dolomitization fluid of Md2 are still considered to be originated from the Permian seawater in shallow burial strata, characterized by slightly higher temperature and salinity which may be caused by the geothermal warming effect brought by deep fluid related to ELIP. The ELIP initiated at ∼290 Ma and ended at ∼240 Ma (Zhu et al., 2010). Just before and after the ELIP active period, under the “baking” of the abnormal heat from the deep fluid, a temperature difference between the warm pore water in the Middle Permian Formation of the heated platform and the cold deep ocean water was produced, which further brought about a density gradient, leading to a convection that upwards did the warm pore water flow while being drawn into the platform was the cold deep ocean water. Subsequently, the cold deep ocean water into the platform was heated, moved upwards or laterally afterward, discharging from under the confined layers, and finally, the forced thermal convection occurred (Kaufman, 1994; Sanford et al., 1998) (Figure 12B). The previous dolomite seeds in Md1 provide the basics for the dolomitization of Md2. In addition, the Mg²⁺ for the dolomitization was supplied constantly when the cold deep ocean water was ceaselessly poured into the platform. Moreover, as the kinetic rate constant and mineral saturation state were temperature-depended (Arvidson and Mackenzie, 1999; Wilson et al., 2001), the convective system would be strengthened while the geothermal temperature increased, leading to the dolomitization being intensified. Thus, the dolomitizing fluids of Md2 were mainly the heated seawater preserved in the porous infiltration system of strata, mixed with the cold seawater from the deep open ocean, and the Md2 were formed by thermal convection dolomitization. Furthermore, the SW was located in the middle zone of ELIP, of which the heat flow values reached 70∼130 mW/m² at about 280∼240 Ma, which was higher than that of NW in the outer zone of ELIP. Therefore, it was more conducive to the water-rock reaction of diagenetic fluid in the thermal convection system.

As for Md3 and Cd, there are some differences between the NW and SW. In the NW, seawater of relatively high-temperature dominated in the dolomitization process. The hot deep fluid might have intruded through the deep fractures with the activities of ELIP, providing a massive heat source below the Middle Permian Formation, further enhancing the convective flux (Wood and Hewett, 1982; Machel, 2004). With the accordingly promoted rate and degree of dolomitization, the Md3 of high temperature was thus formed. Similarly, as the high temperature promoted the dolomitization fluids recirculating in the highly permeable convection cell, the Cd was enabled to precipitate in pores, vugs, and fractures. In general, the Md3 and Cd of NW were mainly formed by high-temperature seawater-dominated thermal convection dolomitization (Figure 12C), while the deep fluid just provided the high temperature instead of the material source. Owing to the short eruption process of ELIP and the location of the outer zone of ELIP which is relatively far away, the abundance of Md3 and Cd are much less than that of Md2 in the NW; in the SW, a large amount of deep hydrothermal fluid mixed in the seawater and together participated in the dolomitization, instead of simply heated seawater. During the active period of ELIP, a large amount of deep fluid (magma and hydrothermal) surged along the basement fault zone and the associated syngenetic faults, passed through the medium-basic crystalline basement of the leaching basin, and many sets of underlying strata rich in clastic rocks, thus enriching a large number of Mg²⁺. Thanks to the Md1 and Md2 formed by early dolomitization, the porosity and permeability of relevant formations were increased, so that the mixed dolomitizing fluid could continue to migrate laterally along with these high permeability formations and thus occurred structure-hydrothermal dolomitization at a high rate and degree (Figure 12D). Additionally, within the restricted platform, basement faults were active and relatively developed, with a high mixing degree of hydrothermal and seawater near the fault (Yapparova et al., 2017; Benjakul et al., 2020), which can form a fault-controlled top open thermal convection system in the intraplatform shoal and thus form a thermal convection dolomite with hydrothermal fluid properties. While in the platform margin zone, due to the upwelling of deep fluid through the faults, the temperature in the platform is further increased, and the dolomitized fluid mixed with hydrothermal and seawater can also form a higher temperature lateral open thermal convection cycle in the high permeability formation, so as to form dolomites with hydrothermal fluid properties. The early formed Md1 and Md2 were recrystallized through hydrothermal transformation to form Md3. Moreover, in the early formed karst caves, fractures, and hydraulic fracture structures caused by the hydrothermal intrusion, the hydrothermal fluid precipitated to form saddle Cd, and then the hydrothermal siliceous and other hydrothermal minerals were further filled in the pores and fractures. As the distance from the fault increased, the degree of deep hydrothermal fluid mixing into seawater was reduced, the temperature of the dolomitizing fluid gradually decreased, with Mg²⁺ gradually consumed, so that fewer Md1 and Md2 were recrystallized into Md3. Thus, the Md3 and Cd of SW were considered to be formed by structure-hydrothermal dolomitization and high-temperature thermal convection dolomitization of seawater mixed with hydrothermal.

5.4 The Effect of Deep Fluid on the Formation and Distribution of Dolomite

The distribution and volume of the dolomite body depend on the fluid composition, flow duration, and flow velocity of dolomitization. The fluid composition of dolomitization in the Middle Permian Formation in Western Sichuan is mainly seawater and a mixed fluid of seawater and deep fluid (hydrothermal). Therefore, when the dolomitization fluid is composed of deep fluid, the deep fluid activities related to ELIP can provide a sufficient material source (Mg²⁺ flux) for dolomitization. The final dolomitization may be the sum of multiple dolomitization events, and the duration is regarded as the sum of multiple activity cycles.

The motive power of fluid flow is driven by fluid potential difference, of which the triggering factors mainly consist of terrain difference, fluid overpressure, rock deformation caused by tectonic action, and fluid density change caused by temperature or density difference. In the hydrothermal system, first, when the deep fluid (magma) invades, magma release occurs, which increases the fluid volume and forms overpressure (Chi and Xue, 2011). Second, strong tectonic movement activates a large number of basement faults, and the pressure is released intensively at the faults, which makes the hydrothermal fluid migrate upward along with the fault system (Oliver, 1986; Whitaker et al., 2004). In addition, the abnormal geothermal and the high temperature brought by the deep fluid lead to the decrease of fluid density, and the accompanying fluid density difference further leads to the significant fluid potential difference, which provides the strong migration power for the fluid. Therefore, in the ELIP, the overpressure, structural faults, and high temperature caused by deep fluid activities provided motive power for the migration of dolomitized fluid. Among them, the heating “baking” effect of deep fluid leads to the decrease of fluid density and faster flow rate in the formation pores inside the platform, and the difference of density is caused by the temperature difference between the heated pore fluid and the cold seawater outside the platform forms the thermal convection cycle of fluid. According to different geological conditions and backgrounds, under the comprehensive control of high permeability beach and basement faults, a lateral or top open thermal convection circulation system is formed in the Middle Permian Formation in Western Sichuan (Dong et al., 2020). Before and after the active period of ELIP, the permeable beach and basement fault zone are conducive to the transmission of heat and fluid, forming a seawater-dominated thermal convection unit; during the active period of ELIP, the deep fluid intruded along the basement fault zone on a large scale and provided higher heat, forming structure-hydrothermal dolomitization and the thermal convection unit of mixed fluid by seawater and hydrothermal.

In general, the deep fluid activities of ELIP provide not only the material source (Mg²⁺) for the dolomitization process but also the migration motive power for the dolomitization fluid via overpressure, and tectonism, and high temperature. From the SW study area at the middle zone of ELIP to NW at the outer zone, the deep fluid activity decreases, the hydrothermal signal gradually weakens, the formation temperature of dolomite gradually decreases, and the distribution of dolomite is mostly controlled by high-permeability beach and basement faults, which further confirms that the Middle Permian dolomite in Western Sichuan is closely related to the deep fluid activity of ELIP.

6 Conclusion

(1) The petrological characteristics show that they are generally divided into four types of dolomite in the study area, which are matrix dolomite Md1 with very finely to finely crystalline size, Md2 with medium to finely crystalline size, and Md3 as well as cement dolomite (Cd) with coarsely to medium crystalline size.

(2) The dolomitizing fluids of Md1 and Md2 are mainly Permian seawater, which can be proved by similar δ¹³C values, ranges of ⁸⁷Sr/⁸⁶Sr ratios, REE patterns, and Ce anomalies of dolomites compared to those of the ambient limestones. Among them, the Md1 is considered to be formed by seepage reflux dolomitization of slightly adjusted penecontemporaneous seawater at the peripheral of high energy shoals near the platform margin. What differs is that the dolomitizing fluid of Md2 performed to be with slightly higher T_h values and salinity caused by deep fluid activities of ELIP, which led to the thermal convection dolomitization when the heated seawater preserved in the porous infiltration system of strata contacted and circled with the cold seawater from the deep open ocean.

(3) Compared with Md2, the lower δ¹⁸O and higher T_h values infer that Md3 and Cd were formed at a higher temperature influenced by the heat releasing of deep fluid from the ELIP. During the active eruption of the ELIP, the locally elevated temperature may have intensified the convective flux to form the higher-temperature thermal convective Md3 and Cd. In the NW of the study area, the dolomitizing fluid is dominated by heated seawater, while in the SW it was mixed with a large amount of deep fluid which was proved by lower δ¹³C value and Sr contents, higher Mn contents, and ⁸⁷Sr/⁸⁶Sr ratios, positive Eu anomalies as well as much higher T_h and salinity values of inclusions, so that there was a superposition of structure-hydrothermal dolomitization compounded with the thermal convection dolomitization of seawater mixed with hydrothermal in SW.

(4) The deep fluid activities of ELIP provided not only the material source (Mg²⁺) for the dolomitization process but also the migration motive power for the dolomitization fluid via overpressure, tectonism, and high temperature. From SW to NW, the deep fluid activity decreased, leading to the abundance reduction of Md3 and Cd, which were closely related to the hydrothermal solution. The deep fluid activities related to ELIP promoted the formation of dolomite, played a positive role in reservoir reconstruction, and provided more spaces for oil and gas accumulation.
