Qingqiang Meng
Qian Pang4- 1State Key Laboratory of Enrichment Mechanism and Effect Development of Shale Oil and Gas, Beijing, China
- 2State Key Laboratory of Organic Geochemistry, Guangzhou Institute of Geochemistry, Guangzhou, China
- 3Petroleum Exploration and Product Research Institute, Beijing, China
- 4School of Geoscience and Technology, Southwest Petroleum University, Chengdu, China
- 5Institute of Energy, Peking University, Beijing, China
- 6School of Energy, Chinese University of Geosciences (Beijing), Beijing, China
Volcanic ash improves the amount of nutritive elements in the lake and ocean, but it is not fully understood how volcanic ash influences the total organic matter content (TOC) and bio-precursor, and the scope. A volcanic layer, measuring 5 cm in thickness, was examined using electron microscopy scanning, TOC/TS, rock pyrolytic, and inorganic geochemical analyses. The study shows that the TOC content in the overlying shales increases by 18 wt.% on average, and the vertical scope of influence on shales is twice as thick as the volcanic layer. Organic matter enrichment is attributed to the fact that the volcanic layer provides nutritive elements and meanwhile changes the oxidation-reduction condition. Large variations of hydrogen index (HI) and oxygen index (OI) in the lower and upper parts of the volcanic layer is related to terrestrial organic matter vanishing, due to volcanic eruption and subsequently more terrigenous organic matter migrating into the ocean. Little change of the bio-precursor in the overlying and underlying shales may be related to the fast restoration within the ocean and land ecosystems after a volcanic eruption. The decrease in terrigenous sediments indicated by Rb/Sr, Zr/Y, and ∑REE after a volcanic eruption indirectly reflects fast restoration of terrestrial vegetation boom. This study could decipher the influence of volcanic ash on the qualities of the source rock, which can provide a better understanding on discovering more economically petroleum reservoirs in igneous rocks.
1 Introduction
Volcanic ash is the eruptive magmas sediments composed of vitric fragments, rock fragments, and crystal fragments, with a diameter smaller than 2 mm, that may float thousands of kilometers away (White and Houghton, 2006). Recent studies have shown that volcanic ash may cause an algae bloom and increase chlorophyll-a content in seawater. This phenomenon is widely observed in marine and lake after recent volcanic eruptions (Uematsu et al., 2004; Duggen et al., 2010; Hoffmann et al., 2012). Therefore, it is of great significance to demonstrate the impaction of volcanism on the change of sedimentary environment and the formation of source rocks.
Preceding studies showed the important effect of volcanic ash on organic matter enrichment in source rocks (Guoheng Liu et al., 2019), e.g., the Eagle Ford and Marcellus Shales in the US (Zeng et al., 2018), the seventh member in the Yanchang Formation, the Ordos Basin, China (Qing Li et al., 2020; Zhang et al., 2020), the Lucaogou Formation in the Junggar Basin (Jingya Zhang et al., 2019; Quanyou Liu et al., 2019; Shaomin Zhang et al., 2019), the Longmaxi Formation in the Sichuan Basin (Yan et al., 2018), and oil shales in the Bazhenov Formation, Russia (Liang et al., 2021).
As for the relation between volcanic ash and black shales in geologic history, volcanic ash may increase total organic carbon content (Guoheng Liu et al., 2019; Jingya Zhang et al., 2019; Shaomin Zhang et al., 2019; Li Li et al., 2020; Qing Li et al., 2020; Si et al., 2020; Zhang et al., 2020), alter organic matter type (Li Li et al., 2020; Si et al., 2020), change climate (Tao et al., 2020), and affect water oxidation-reduction (Liu et al., 2007). However, ash-bearing source rocks tend to be related to anoxic environments, marine transgressions, and upwelling currents (Zhao et al., 2020), which will similarly enrich the organic matter content. Therefore, it is difficult to separate all these factors and evaluate the effect of volcanic ash on source rocks. The neritic carbonate platform in the Maokou Formation is a good candidate to study, in view of its non-anoxic environment and non-upwelling effect (Gao et al., 2020).
To assess the influence of volcanic ash on organic matter, the TOC content, hydrogen index (HI), and oxygen index (OI), of the shales above and below the volcanic layer are usually used for comparison to establish the effect of volcanic ash on organic matter content and type (Zhao et al., 2020). However, these investigations seldom dealt with the duration of organic matter deposition, which may be promoted/inhibited by volcanic ash due to the lack of organic geochemical indexes. The ash thickness could be affected by the intensity of influence and mechanism. According to the study of recent volcanic eruptions, volcanic ash will release salts, which contain P, Fe, and Mn, altering organism type and content (Hoffmann et al., 2012) when the ash flows into water. On the other hand, volcanic ash will consume mass oxygen, changing sediments and water oxidation-reduction (Haeckel et al., 2001; Hembury et al., 2012; Longman et al., 2019, 2020). Above variations will be imprinted by inorganic elements in sediments. This means that it is possible to more deeply understand the effect of volcanic ash on organic matter enrichment through detailed high-precision sampling to verify the change in elements above and below the volcanic layer.
This study involves the Maokou Formation of Middle Permain containing volcanic ash in the Lengshuixi tunnel section in the Sichuan Basin, Shizhu County, China. The study focuses on 1) Terrestrial environmental responses before and after a volcanic eruption, 2) Perturbation of source organisms by a volcanic eruption, and 3) TOC variation before and after a volcanic eruption and the mechanism of volcanic ash effect on organic matter enrichment. Resulting evaluations are based on the analysis of volcanic ash type, origin, shale geochemistry, and organic petrology using organic geochemical, inorganic geochemical, and mineralogical techniques.
2 Geologic Setting
The Paleo-Tethys Ocean became more active during Permian, which resulted in the fault subsidence of the southern Qinling, and the origin of a rifted continental margin extending in a northwest direction in western Sichuan and western Yunnan (Ji et al., 1997). At the end of the Permian Period, the Emei basalts as covered with 250,000 km2. The lava sheet was mainly composed of basaltic and andesitic volcanic rocks in the lower part and felsic volcanic rocks in the upper part (Xu et al., 2001; Xiao et al., 2004). Felsic volcanic rocks (rhyolites and trachytes) have been reported to locally occur in Binchuan and Panzhihua (Shellnutt and Jahn, 2010; Xu et al., 2010).
During the Middle Permian Epoch, in the Maokou Formation of the upper Yangtze region, deposits of a carbonate platform environment were formed and were composed of bioclastic limestones, micrite, and some shales (Figure 1A). The study samples were acquired from a lithologic association of 60 cm thick, consisting of marls, shales, and volcanic tuffs. These samples were obtained from an outcrop section in the Maokou Formation of Middle Permain close to the Lengshuixi tunnel in Shizhu County, Chongqing. In this outcrop section, 5 cm of volcanic ash is sandwiched between two 25 cm layers of greyish black shale, apart from which there are grey marls. A significant amount of moss was growing on the volcanic ash, while only some scattered moss grew on the overlying and underlying black shales (Figure 1B).
FIGURE 1. Outcrop location (A) and the micro section composition (B) [A modified from Luo (2009)].
3 Materials and Methodology
The weathering surface was removed first, followed by sampling. 25 samples were acquired from the 60 cm thick lithologic association in the Maokou Formation, among which 14 were from underlying formations of volcanic ash, four from volcanic ash, and seven from overlying formations of volcanic ash. As for volcanic ash, overlying shales, and underlying shales, each layer was acquired with one moss sample.
Volcanic ash samples were observed using a field emission scanning electron microscope (SEM). The samples were first prepared in 1 cm3 cubes, and then the natural fracture surfaces were sprayed with gold using a coater. Mineral geometry and structure were observed in a high vacuum condition of the scanning electron microscope and the elements were checked using energy spectra. The accelerating voltage was set at 15 kV. The experiments were performed at the School of Geoscience and Technology, Southwest Petroleum University, China.
TOC/TS testing was carried out using an organic carbon/sulphur analyzer (CS230SH) for all 26 samples. Before conducting the experiments, all the samples were cleaned using hydrochloric acid to eliminate inorganic carbon and ions on the surface, e.g., Na, Cl, and Ca, and finally dried in an oven. These experiments were performed at the State Key Laboratory of Oil and Gas Reservoir Geology and Exploitation, China.
Pyrolytic experiments were made by Delsi Rock-Eval RE II. As the temperature increased, liquid hydrocarbons (S1) were released first, followed by cracked hydrocarbons (S2) as well as carbon dioxide and carbon monoxide (S3). HI = (100 × S2)/TOC; OI = (100 × S3)/TOC.
The 25 samples were carried out for major elements, trace elements, and rare Earth elements (REE). Powdered samples, of 200 mesh, were dissolved using aqua regia. Nitric acid-hydrofluoric acid digestion ICP-MS was employed, and a PlasmaQuant MS Elite ICP-MS analyzer was used during this procedure. International reference samples OU-6, AMH-1, and GBPG-1 were used for quality control with an analytical error of less than 10%. Refer to Ling et al. (2021) for detailed workflow. For all the samples, the analytical error was estimated to be less than 5%. The experiments of major elements, trace elements, and REEs were made in State Key Laboratory of Ore Deposit Geochemistry-Institute of Geochemistry, Chinese Academy of Sciences.
With respect to ash analysis, the moss samples were cleaned using absolute ethyl alcohol, a minimum of 10 times, or until the dust and shale powder on the surface were eliminated. The samples were dried at normal temperature and then ground to an 80 mesh size. Each sample of 0.5 g was weighed and put into a polytetrafluoroethylene beaker for aqua fortis digestion. Element detection was made using the ME-VEG41gt method. The experiments were performed in ALS Minerals, Guangzhou, China.
4 Results
4.1 Volcanic Ash Minerals
Clay and quartzes were the major minerals detected. The content of clay minerals, which may be the product of volcanic debris alteration, was as high as 90%. Quartzes in volcanic ash turn up in two forms. One is a hairline-like hollow tube known as Pele’s hair, with an outer diameter of 24 μm, tube thickness of 1.46 μm, and length of 29.23 μm (Figures 2A–C). EDS energy spectra showed essential constituents of Si and O as well as some Fe, Ca, Al, Mg, and Zr (Figures 2A,C). The other is microcrystalline quartz-like aggregate with a particle diameter of 5.33–8.93 μm, major elements of Si and O, and some Mg and Zr (Figure 2D).
FIGURE 2. SEM photos of quartzes in volcanic ash. (A–C): hairline-like hollow quartzes. (D): Aggregative quartzes.
4.2 Organic Matter Content, TS, and Rock Pyrolysis
The section being examined included five layers; volcanic ash, overlying and underlying shales, and upper and lower mud shales (Figure 1B).
The overlying shale layer exhibits the highest TOC content at 0.856–1.140 wt.%, with an average of 1.056 wt.%. This is followed by the underlying shale layer with a TOC content of 0.827–0.948 wt.% and an average of 0.892 wt.%. The TOC content ranges from 0.283 wt.% to 0.769 wt.%, with an average of 0.506 wt.% in the volcanic ash layer, which are smaller than those in the overlying and underlying shale layers. The TOC content ranges from 0.240 wt.% to 0.793 wt.% with an average of 0.524 wt.% in the upper and lower marl layers.
The TS content was 0.095, 0.017, and 0.068% in the underlying shales, volcanic ash, and overlying shales, respectively. The value first decreases and then increases from the lower layer to the upper layer. (Figure 3A).
FIGURE 3. Organic and inorganic geochemistry characters for different part of the micro section. (A): Vertical distributions of TOC, TS, S1, S2, S3, HI, and OI in the volcanic ash layer and upper and lower layers; (B): Vertical distributions of major elements and other elements; (C): Contents of immobile elements and vertical distributions of Zr/Y and Rb/Sr the lowest plain represents Lower Marl, the Lower pink means Lower shale and the blue belt for volcanic ash. The upper pink is for Upper shale and the plain part in the top is for Upper Marl in Figure 1B.
S1, S2, S3, HI, and OI are shown in Figure 4. HI and OI do not vary greatly in the overlying and underlying shales, but they are obviously different in volcanic ash-I and volcanic ash-II. OI is higher in the volcanic ash-I than in the volcanic ash-II, whereas HI is lower in the volcanic ash-I than in the volcanic ash-II (Figure 3A).
FIGURE 4. Comparison of essential element content in the moss samples from the tuff layer and shale layers.
4.3 Inorganic Elements
4.3.1 Major Elements
Ca content ranges from 10.70 to 22.30% in the marl layers, which is remarkably higher than in the shale layers, from 0.31 to 0.54% and volcanic ash layer from 0.45 to 0.55% (Table 1, Table 2; Figure 3B). Both shale layers show similar Ca and Mg contents, but Al, K, and Ti contents in the lower shale layer are higher than in the upper shale layer (Table 2; Figure 3B). Al, K, and Ti contents slightly increase in the lower shale layer and slightly decrease in the upper shale layer (Figure 3B).

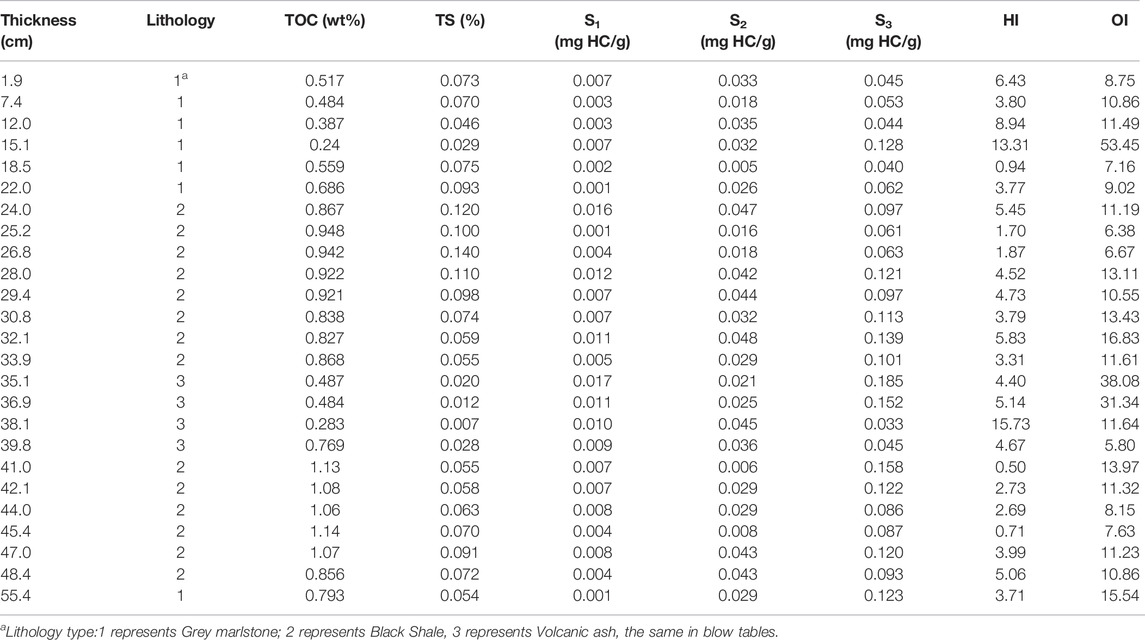

TABLE 1. TOC, TS, S1, S2, S3, HI, and OI in the volcanic ash layer and upper and lower layers in the Lengshuixi section of the Maokou Formation.

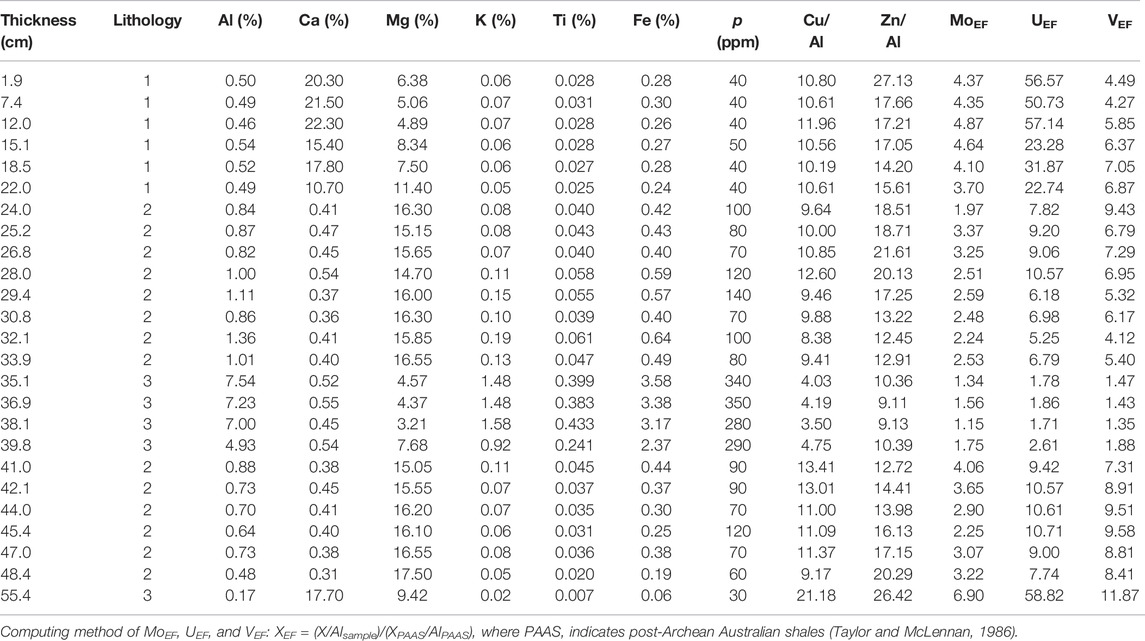

TABLE 2. Contents and ratios of representative elements in the five layers in the Lengshuixi section.
In the moss sample from the volcanic ash layer, the Ca, Mg, K, Fe, P, and Mn contents are higher than in the samples from the shale layers, except for the S content. (Figure 4).
4.3.2 Trace Elements
MoEF, UEF, and VEF contents were generally less in the lower shale layer than in the upper shale layer (Table 2; Figure 3B). Fe and P contents were higher in the shale layers and volcanic ash layer than in the marl layers, but lower shales showed slightly higher Fe and P contents than upper shales (Table 2; Figure 3B). Cu/Al and Zn/Al were predominantly less abundant in lower shales than in upper shales (Table 2; Figure 3B).
The contents of immobile elements, e.g., Hf, Nb, Sn, Ta, Th, and Zr, and ∑REE slightly increased from the deepest level in lower shales and slightly decreased from the lowest level in upper shales (Figure 3C). Zr/Y was more plentiful in lower shales than in upper shales. Rb/Sr increases upward in lower shales and basically remains unchanged in upper shales with decreased value (Figure 3C).
After mantle normalization of incompatible elements in volcanic ash, the spider diagram shows enriched large ion lithophile (LIL) elements (Cs, Rb, K, Ba, Sr, and Eu) and depleted high field strength (HFS) elements (Figure 5). Some elements (Ba, Nb, Ta, Sr, Zr, and Ti) are notably depleted (Figure 5).

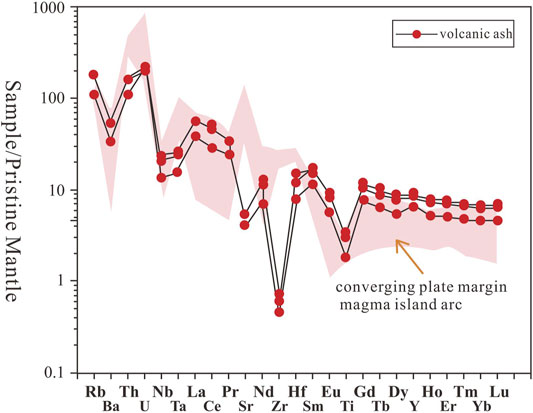

FIGURE 5. Spider diagram after mantle normalization of the elements in volcanic ash in the Lengshuixi section of the Maokou Formation. Convergent plate marginal magmatic island arc data are taken from Huang et al., 2018).
4.3.3 REEs
Sedimentary rock and volcanic ash samples were normalized separately using post-Archean Australian shales and chondrites. As for sedimentary rocks, two marl layers showed a flat REE pattern (Figure 6A), which is similar to that of the marls in the Permian Maokou Formation (Su et al., 2020). Two shale layers showed a REE pattern of depleted light REEs, negative Ce/Ce* anomaly, and positive Y anomaly. The Ce/Ce*, an anomaly in the lower shales, was measured at 0.49–0.90, with an average of 0.70 at n = 8. This was higher than the upper shales at 0.42–0.50, with an average of 0.47 at n = 6. A LaN/SmN value of 0.74–1.09, with an average of 0.89 at n = 8, in the lower shales, was less than in the upper shales at 0.98–1.46, with the average of 1.09 at n = 6. This indicates more enriched REEs in the lower shales than in the upper shales (Figures 6B,C).

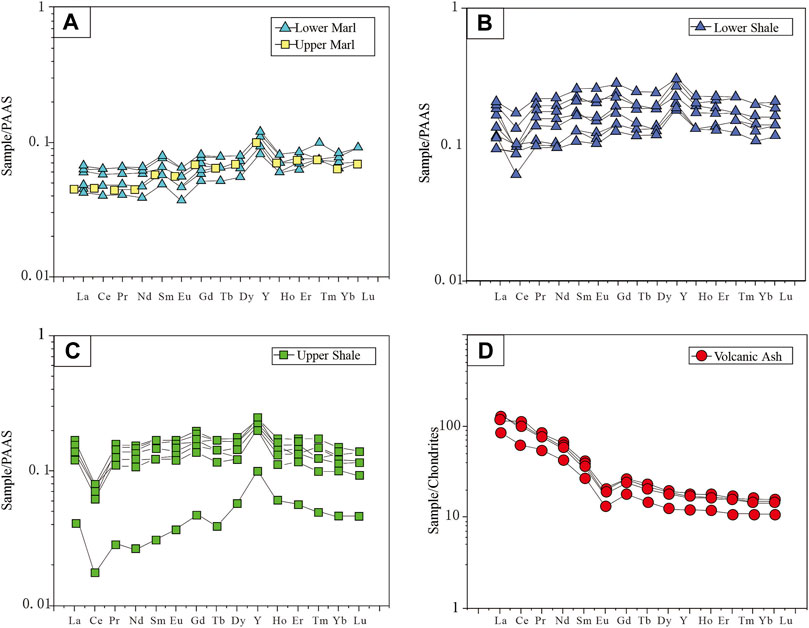

FIGURE 6. REE patterns of the volcanic ash and overlying and underlying rocks in the Lengshuixi section of the Maokou Formation. PAAS represents post-Archean Australian shales with their REE data taken from Taylor and McLennan (1986); chondrite REE data are taken from Boynton (1984) (A). low and upper marl; (B).lower shale; (C).upper shale; (D).volcanic ash.
As for the volcanic ash REE pattern, a LaN/YbN value of 7.23–8.85, indicates more enriched light REEs (Table 3, Table 4). The Eu/Eu* value of 0.58–0.62, indicates a notable negative Eu/Eu* anomaly (Table 4; Figure 6D).

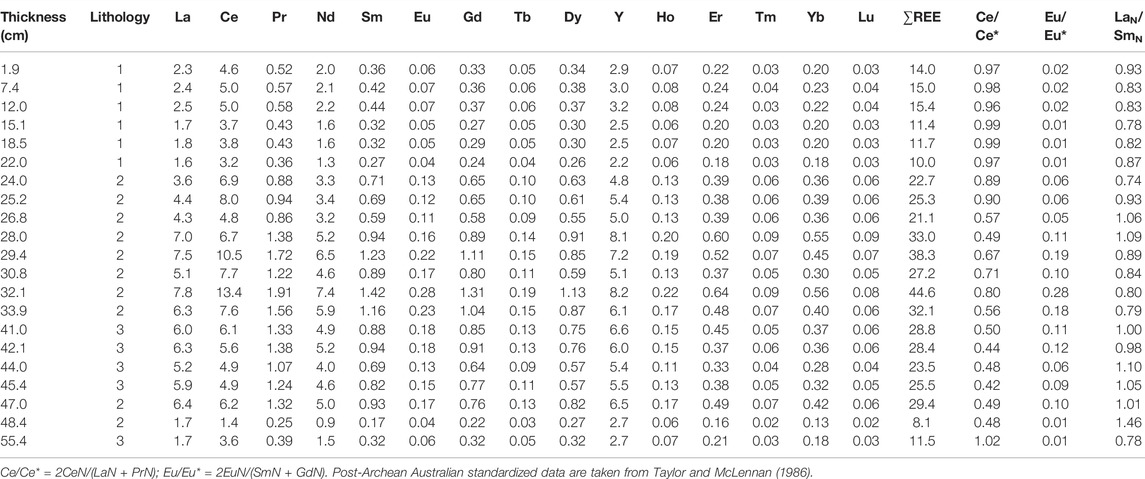

TABLE 3. REE contents and representative element ratios in the upper and lower marl and shale layers, the Lengshuixi section.

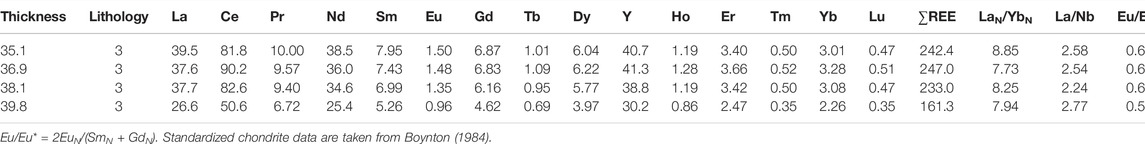

TABLE 4. REE contents and representative element ratios in the volcanic ash layer, the Lengshuixi section.
5 Discussions
5.1 Volcanic Ash Origin and Type
SEM observation show the hollow quartz known as Pele’s hair (Figure 2), is a typical kind of highly elongated volcanic debris (Duffield et al., 1977; Cannata et al., 2019). This denotes an intermediate-acidic magma eruption. The chondrite-normalized REE pattern with enriched light REEs, depleted heavy REEs, and negative Eu anomaly (Figure 6D) indicates evident plagioclase fractional crystallization before magmatic exhalation, which also indicate the acidic magma eruption (Rollison et al., 2000). Negative Sr, Ti, Ba, and P anomalies in the spider diagram of incompatible elements after primitive mantle normalization (Figure 5) indicate a lot of feldspar, apatites, and titanomagnetite detached by magma splitting to finally form rhyolites (Xu et al., 2010). The crossplot of Nb/Y-Zr/TiO2 also indicates the zone of rhyodacite/dacite (Figure 7), which agrees with the conclusion of Middle Permian eruptive rock types in Zhou et al. (2020).
FIGURE 7. Nb/Y-Zr/TiO2 (Winchester and Floyd, 1977) and Zr-Ti (Pearce, 1982) crossplots for volcanic ash samples from the Lengshuixi section in the Maokou Formation [reproduced from Huang et al. (2018)]. Wangpo-shale volcanic ash data was taken from (Pearce, 1982); the data of the volcanic ash from the Wujiaping-Changxing Formations in the Shangsi section was taken from Huang et al. (2018); the data of rhyolites and trachytes from the Emei Mountain were taken from Xu et al. (2001), Fan et al. (2008), He et al. (2010), Qi et al. (2008), Xiao et al. (2003), Xiao et al. (2004); the data of the last-phase volcanic ash from the Upper Permian Series in southeast China was obtained from Liao et al. (2016a), Liao et al. (2016b); post-Archean Australian shale data was taken from McLennan (2018).
Elements of volcanic ash may also contain implicit information of geological settings. The La/Nb value of 2.24–2.77 is much higher than the value of 0.94 on average (Table 4) in the primitive mantle and slightly higher than the value of 2.2 in the continental crust (Saunders et al., 1988). Enriched LIL elements and depleted HFS elements represent the geochemical features similar to island arc/epicontinental arc volcanic rocks relative to the subduction effect (Figure 5). The crossplot of Zr-Ti indicates the distribution of these elements in arc magmas (Figure 7). Thus, it was concluded that magma origin is related to oceanic crust subduction.
5.2 Terrestrial Environment Change Indicated by Terrestrial Input Before and After a Volcanic Eruption
Terrestrial input index is a good indicator in land ecosystem and tectonic activity. Physical and chemical weathering intensity in a source area for shale depositions are represented using ∑REE and the ratios of Rb/Sr and Rb/Y, respectively, where the higher value corresponds to the more intense weathering (Chen et al., 1999; Wei et al., 2001; Jin et al., 2006). Terrestrial input indicators include Al, Ti, Hf, Nb, Sn, Ta, Th, and Zr, which indicate a small degree of activity and less liable to move from volcanic ash into sea water (Zielinski, 1985; Hints et al., 2015; Kiipli et al., 2017).
The ∑REE content and Rb/Sr value increases in the underlying shale layer (Figure 3C), which indicates intensified the physical weathering and chemical weathering on land. It is unusual to observe this slight increase in the contents of immobile elements, e.g., Al, Ti, Hf, Nb, Ta, and Zr (Figure 3C), because immobile elements tend not to move from volcanic ash into surrounding formations (Hints et al., 2015; Liao, 2020). Such a trend of increasing in the underlying layer indicates the effect from the intensified terrestrial input instead of volcanic ash alteration. This corresponds with our observation of intensified terrestrial input into the Permian Period microbialite underlying layer of volcanic ash (Liao, 2020).
In fact, the volcanic ash beds originated from an island arc eruption. There may be related to the epicontinental uplift (Fisher and Smith, 1991; Sak et al., 2009; Di Capua and Scasso, 2020) and earthquakes (López et al., 2012) before an island arc eruption. For example, precursory monitoring of the 2011 volcanic eruption in El Hierro, Spain, recorded 10,000 earthquakes with the largest surface deformation exceeding 5 cm before the volcanic eruption (López et al., 2012). Land uplift and earthquakes will intensify the terrestrial input effect (Crisafulli and Dale, 2018), and the product of terrestrial input will migrate into the ocean via geologic processes (Xu et al., 2009). Coincidentally, the underlying shale layer shows obviously higher LaN/SmN, indicating a degree of light-middle REE enrichment, which denotes an intensified river input, compared to the overlying shale layer (Table 3; Figures 6B,C). This implies that mass terrestrial materials in the weathered zone were transported by rivers to the ocean, resulting in more terrestrial input into the underlying shale layer of volcanic ash (Figure 8A).

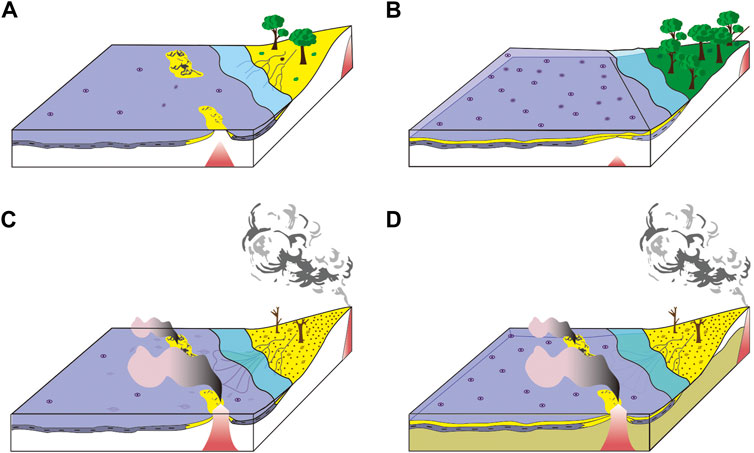

FIGURE 8. Mechanism of a volcanic action on organic matter enrichment in a neritic carbonate platform environment. (A) Topographic rise, enhanced earthquakes, and more terrestrial inputs before a volcanic eruption. (B) Synergistically increased ocean and land productivity after a volcanic eruption. (C) Land plants die and consequently increase input of terrestrial organic matter in phase-I of a volcanic eruption. (D) Decreased input of terrestrial organic matter and remnant organisms, like algae, in phase-II of a volcanic eruption.
Smaller ∑REE, Zr/Y and Rb/Sr in the overlying shale layer, than in the underlying shale layer (Figure 3C), indicates declined weathered input. A land ecosystem tends to be seriously destroyed by a volcanic eruption, which will then enhance subsequent terrestrial input. Liao (2020) discovered mass extinction of terrestrial biota and significantly increased terrestrial input on the volcanic ash deposits at the transition from the Permian to the Triassic Period. However, this study of the Maokou Formation observed a significant decrease in volcanic eruption. This may be attributed to a small-scale eruption which did not remarkably alter the land ecosystem. N.N. Li (2020) observed sporopollenin and found basically unchanged arboreal sporopollen and shrubby sporopollen, slightly increased sedgy pollen, and notably increased sphagnum after the volcanic eruption in the Holocene Epoch of northeast China. This implies that volcanic eruptions do not ruin land ecosystems but instead promote plant growth (Figure 8B). As a result, the bloom of land plants surpassed the weathering effect in the land-source area. It should be noted that the area of interest was less affected by the volcanic eruption due to the long distance from the crater, which cannot be excluded from the results.
5.3 Bio-Precursor Change During and After Volcanic Eruption
Volcanic eruptions bring forth wildfires and elementary substances, which may change ocean and land ecosystems (Cui et al., 1997; Crisafulli and Dale, 2018) and consequently the bio-precursor types. HI and OI could be used to indicate the change of the bio-precursor type in sediments. HI denotes hydrogen richness in organic matter, and OI denotes oxygen richness in organic matter. A high HI indicates strong hydrocarbon generation capacity. For example, bacteria and algae with high lipid content exhibits high HI. A high OI indicates poor hydrocarbon generation capacity. High content of terrestrial plants corresponds to high OI. Thus, we could use HI and OI to estimate the change in source organism type/organic matter type (Peters et al., 2005).
Volcanic ash-I feature increased OI and decreased HI (Figure 3A). The increase in OI is dominated by volcanic eruption-induced wildfires, which causes leaves to drop and trees to burn (Cui et al., 1997). A large amount of land plant fragments is transported by air or rivers to oceans, which increases the content of terrestrial organic matter in an ocean (Scott, 2010) (Figure 8C). This causes a sharp reduction in the biodiversity of an ocean (Hints et al., 2003; Perrier et al., 2012) and when organisms die, many corrosive animals first migrate into this area (Walker et al., 2013). Organic matter is consumed and not preserved in the formations (Figure 8C), eventually leading to increased OI and decreased HI.
Volcanic ash-II eruptions feature increased HI, and decreased OI, which are attributed to zero terrestrial organic matter transportation from the land. The existence of residual organisms, like algae in the ocean (Walker et al., 2013) (Figure 8D), give rise to increased HI and decreased OI.
However, a HI of 2.6 and OI of 10.5, on average, in the overlying shale layer are similar to the HI of 3.9 and OI of 11.2, on average, in the underlying shale layer. This mostly likely indicates a zero change in source organism type in the shales after a volcanic eruption. In fact, the land and ocean ecosystems may quickly recover after a volcanic eruption. A plankton and benthos food chain in the ocean could be rebuilt within a few years, and remnant land plants could be revitalized in less than 2 years (DeGange et al., 2010). Therefore, consistent HI and OI in underlying and overlying shale sediments may be related to regenerating organic matter in ocean and land environments. (Figure 8B).
5.4 Volcanic Action on Organic Matter Enrichment and Its Mechanism
5.4.1 Influence on Organic Matter Content Content and Vertical Range of Influence
HI and OI almost remain unchanged in the overlying shales, but further discussion on the volcanic ash effect on the TOC content is needed. Compared with the underlying shale layer, the overlying shale layer shows increased TOC content by 18% (Figure 3A). In the vertical direction, the TOC content significantly decreases in the upper level of the overlying shale layer (Figure 3A), which means that the largest range of influence doubles the thickness of the volcanic ash layer.
To clarify, further assessment is needed to determine if the TOC content in the underlying shale layer should be used as a background value because the TOC in this layer may be diluted by increased terrestrial inputs at the dispositional stage of shales. As for underlying shale samples, the TOC content hardly decreases with ∑REE content, Rb/Sr, and the content of immobile elements (Figure 3). This confirms the findings that terrestrial inputs were not sufficient enough to significantly alter the TOC content in the underlying shale layer at its depositional stage. Thus, it is appropriate to use the TOC content in the underlying shale layer as a background value to estimate TOC increment by volcanic ash.
5.4.2 Volcanic Ash Nourishment for Organism Growth
Increased TOC content in the overlying shale layer was related to improved paleoproductivity. Studies show that modern eruptive volcanic ash contains many nutritive elements, including volatile compounds, e.g., NH4+, NO3−, PO43−, and SiO2, and trace elements, e.g., Al, Cd, Co, Cu, Mn, Ni, Pb, and Zn (Frogner et al., 2001; Witham et al., 2005; Frogner Kockum et al., 2006; Duggen et al., 2007; Jones and Gislason, 2008). In particular, the element Fe, may greatly promote productivity (Zeng et al., 2018) because the oceans in geologic history usually assumed Fe deficiency (Duggen et al., 2010). This study showed much higher Fe content in volcanic ash than in overlying and underlying shales of the volcanic ash layer (Figure 3B). Figure 9 shows a Fe loss of 50%, which agrees with the results of Lee et al. (2018) and Zhao et al. (2020). This means Fe in volcanic ash travelled into the iron-deficient environment Lee et al. (2018).

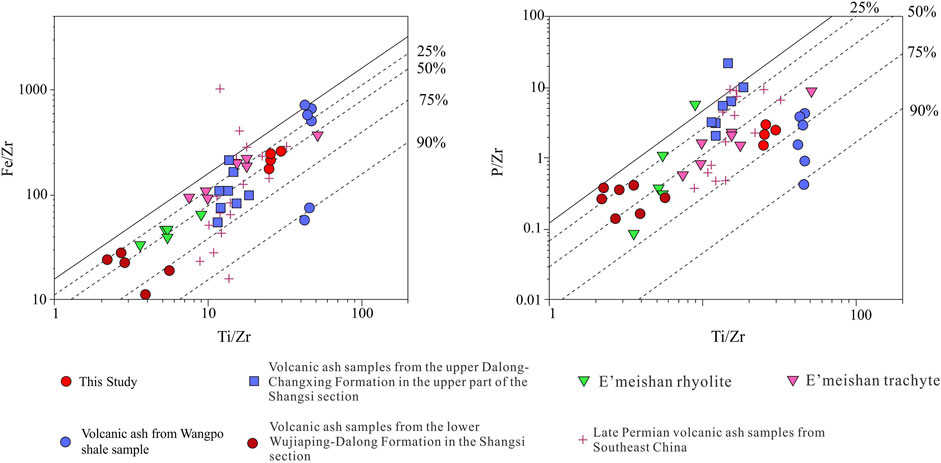

FIGURE 9. Nutritive element loss based on intrusive rock data from south China [after Zhao et al. (2020)]. Black lines indicate plutonite data from the South China plate; four dotted lines indicate the loss of 25, 50, 75%, and 90, respectively. Wangpo-shale volcanic ash data was taken from Huang et al. (2016); the data for the volcanic ash from the Wujiaping-Changxing Formations in the Shangsi section was taken from Huang et al. (2018); the data of rhyolites and trachytes from the Emei Mountain were taken from Xu et al. (2010); the data from the last-phase volcanic ash of the Upper Permian Series in southeast China, was taken from (Liao et al., 2016a; Liao et al., 2016b); and post-Archean Australian shale data was taken from McLennan (2018).
Element P, is a basic element of marine plankton and an important component of all organisms. P is widely used as a paleoproductivity indicator (Hints et al., 2015). Figure 9 shows P loss of over 75% in volcanic ash. Fe and P migrating from the volcanic ash layer into the overlying shale layer may boost the productivity in the overlying layer.
In addition, important micronutrients (e.g., Cu and Zn) in the ocean, are also limited-elements which could extensively stimulate ocean productivity and plankton accumulation (Brumsack, 2006). The ratio of element to Al could be used to exclude the effect of terrestrial input. For example, Cu/Al and Zn/Al. The Cu/Al value is obviously higher in the overlying shale layer than in the underlying shale layer (Figure 3B). The value of Zn/Al in the overlying shale layer increases with the distance to volcanic ash within 8 cm (Figure 3B), which is in agreement with the thickness of TOC increment. This means that in addition to terrestrial input, some Cu and Zn originated from volcanic ash and were re-deposited in water. In addition to increased Cu and Zn in volcanic ash observed in this study, Hints et al. (2015) observed remarkably increased P and Ca in the marls above bentonite, and Wang et al. (2021) showed increased P, Ni, and Cu in the shale layer above the volcanic ash layer. All these elements could improve paleoproductivity (Hints et al., 2015; Wang et al., 2021).
The moss sample from volcanic ash was compared with the analogues from shales to further confirm the direct effect of elements on plant growth. Moss is a transition group from aquatic plants to terrestrial plants. As per outcrop observation, the moss was more flourishing in volcanic ash than in the overlying and underlying mud shales (Figure 2). In accordance with the comparative study of the essential elements in moss, i.e., Ca, Mg, K, Fe, P, S, and Mn, additional element content was higher in the moss sample from volcanic ash than in the analogues from overlying and underlying shales, except S (low S content in volcanic ash) (Figure 4).
The essential elements mainly originate from atmospheric sedimentation and growth matrix. The former mainly includes atmospheric precipitation with dry (humid) dust fall, and the latter includes rocks and soil (Tuttle et al., 1986). The element discrepancies between two moss samples, with a difference of length in growth to be less than 1 m, and these are obviously related to growth matrix instead of atmospheric sedimentation. Further, Figure 3B shows that volcanic ash accumulates these essential elements. This means that moss growth was promoted by high-content essential elements migrating from volcanic ash into moss plants. Therefore, it can be inferred that volcanic action on TOC enrichment may be attributed to enough essential elements in volcanic ash for plant or algae growth and metabolism. It is worth mentioning that, with the existing means, we’re not sure that nutrients in volcanic ash are is the only sole thing trigger that could boost moss growth because the ash has higher permeability and moisture content.
5.4.3 Volcanic Ash Effect on Oxidation-Reduction
Volcanic ash may change the redox properties of sediments. After volcanic ash deposition, Fe2+ generated by volcanic ash bonded with silicate and oxidized by O2 will form Fe3+ and Fe(OH)3 precipitates. In this process, O2 in and below volcanic ash will be consumed sharply (Hembury et al., 2012) and even exhausted when the volcanic ash layer is thicker than 3 cm (Haeckel et al., 2001). After that, Fe(OH)3 will function as the oxidizing agent to oxidize methane, when methane is produced. Meanwhile, Fe(OH)3 itself will be reduced into Fe2+ (CH4 + 8Fe(OH)3 + 15H+ → HCO3− + 8Fe2+ + 21H2O) (Luo et al., 2020) and go into water column once again (Figure 10).

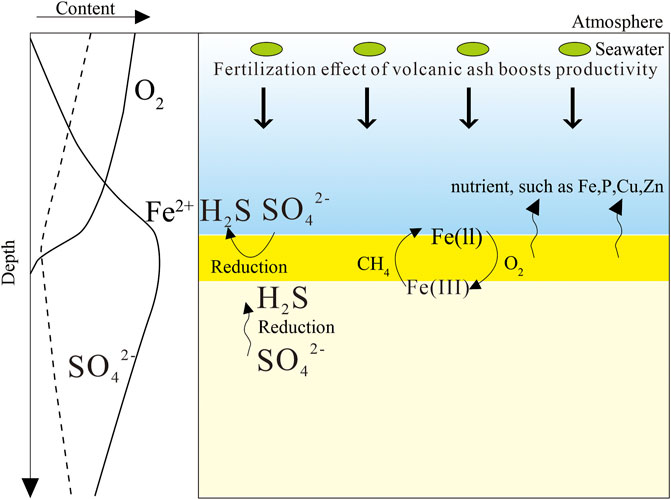

FIGURE 10. Schematic element movement, chemical reactions, and the effects on productivity and oxidation-reduction conditions close to the volcanic ash layer.
Water column of the volcanic ash may also be affected by volcanic ash. Figure 3A shows quickly declining TS content in the volcanic ash layer as well as in the overlying and underlying shale layers. Subsurface sulfur elements usually turn up in the forms of elemental sulfur, sulfates, disulfides, and compounds bonded with organic matter (Tuttle et al., 1986). Sulfur will be consumed by sulfate reducing bacteria in a reducing condition (2CH2O+ SO42−→ 2HCO3− + H2S) (Boetius et al., 2000). In the shallow oxidized carbonate platform, volcanic ash provides a reducing condition for sulfate reaction (Figure 10), which led to the decrease in TS content in the overlying and underlying layers of volcanic ash. Organic matter enrichment was more affected by volcanic ash in the overlying shale layer than in the underlying shale layer because underlying shales were in an oxidizing environment at the depositional stage, whereas overlying shales had already been affected by volcanic ash at the depositional stage.
The difference between MoEF enrichment and UEF enrichment, in different reducing conditions, could be used to indicate the oxidation-reduction conditions at the depositional stage (Algeo and Tribovillard, 2009). Figure 11A shows that samples from the overlying shale layer were closer to anoxic water which indicates that overlying shales were in a more reducing environment at the depositional stage and such an environment was favorable for organic matter enrichment. The crossplots of TOC content and MoEF, UEF, and VEF show that the TOC content is higher in the overlying shale layer than in the underlying shale layer (Figure 3B; Figures 11B,C).

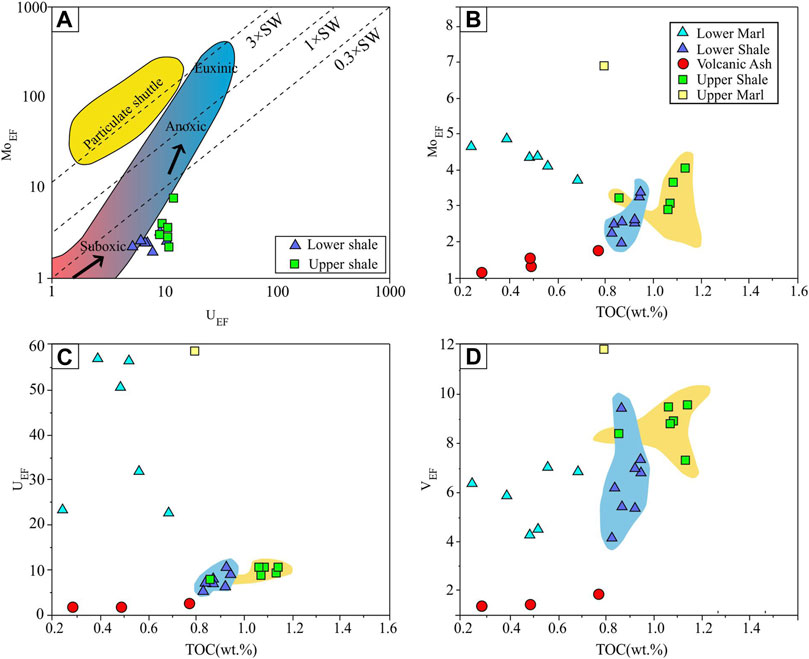

FIGURE 11. Crossplots of (A) MoEF vs UEF, (B) TOC vs MoEF, (C) TOC vs UEF, and (D) TOC vs VEF. Three dotted lines in (A) represent that the MoEF/UEF has a value of 0.3, 1, and 3 times that of sea water. The zone with graduated color indicates U-Mo covariance in a normal open ocean environment, and the green zone indicates U-Mo covariance with the effect of metal particle carriers [modified from Algeo and Tribovillard (2009)].
6 Conclusion
Based on outcrop, mineralogical, organic geochemical, and inorganic geochemical studies three conclusions can be determined:
1) Terrestrial inputs increase before a volcanic eruption and decrease after an eruption due to land ecosystem recovery and plant growth promoted by volcanic ash as a nutritive substance.
2) Plant fragments migrate to water at the beginning of a volcanic eruption, which results in poor organic matter type. At the end of a volcanic eruption, there is less input of plant fragments and organic matter mainly originating from bacteria and algae, which resulted in a good organic matter type.
3) Volcanic ash may increase the TOC content by 18%, and the range of influence doubled the thickness of the volcanic ash layer. Such effects were related to the fact that volcanic ash offered nutritive elements and altered the redox conditions of water (Xu et al., 2009).
Data Availability Statement
The original contributions presented in the study are included in the article/Supplementary Material, further inquiries can be directed to the corresponding authors.
Author Contributions
QM raised the key issues of this study, collected samples, interpreted the analysis data, and formed a draft outline. QP collected samples, conducted analytical tests, and wrote drafts. GH chose the field outcrop, analyzed the source of the volcanic ash, and formed a draft outline. ZJ proposed revisions to the full text, and initially established the influencing model. DZ carried out SEM analysis of reservoir physical properties and quartz. JL participated in field work and drew some drawings. CZ organized the analysis data and drew some graphs.
Funding
This work was jointly funded by the National Natural Science Foundation of China (Nos 41872164, 41872155,41930426 and 42172168) as same as State Key Laboratory of Organic Geochemistry, GIGCAS (Grant No. 2125).
Conflict of Interest
The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
Publisher’s Note
All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.
Acknowledgments
We thank Zhang Shuichang, Wang Huajian and Wang Xiaomei of PetroChina Research Institute of Petroleum Exploration and Development for their support in field section positioning and field discussion. We also thank Song Daofu of China University of Petroleum (Beijing) for analysis and test of TOC and rock pyrolysis. The authors appreciate the previewers, that is, Prof. Fujiang Jiang from China University of Petroleum, Beijing and Dr. Xiaoqiang Li from Texas Tech University, USA, who give constructive suggestion which polish the paper so much.
