ORIGINAL RESEARCH article

Front. Earth Sci., 12 July 2022
Sec. Petrology
This article is part of the Research Topic Advances in the Spatial and Temporal Evolution of Oceanic Arc-Backarc Systems View all 8 articles

Spinel Harzburgite-Derived Silicate Melts Forming Sulfide-Bearing Orthopyroxenite in the Lithosphere. Part 1: Partition Coefficients and Volatile Evolution Accompanying Fluid- and Redox-Induced Sulfide Formation

  • 1Institute of Earth Sciences, University of Lausanne, Lausanne, Switzerland
  • 2Institut de Physique du Globe de Paris, Université de Paris Cité, Paris, France
  • 3School of Earth, Atmosphere and Environment, Monash University, Clayton, VIC, Australia
  • 4Research School of Earth Sciences, The Australian National University, Canberra, ACT, Australia
  • 5Géosciences Montpellier, Université de Montpellier, Montpellier, France

We report abundances of major trace and volatile elements in an orthopyroxenite vein cutting a sub-arc, mantle-derived, spinel harzburgite xenolith from Kamchatka. The orthopyroxenite contains abundant sulfides and is characterized by the presence of glass (formerly melt) both interstitially and as inclusions in minerals, comparable with similar veins from the West Bismarck arc. The glass formed by quenching of residual melts following crystallization of abundant orthopyroxene, amphibole, and minor olivine and spinel. The interstitial glass has a low-Ti, high-Mg# andesite composition, with a wide range of H2O and S contents but more limited F and Cl variations. We calculate trace element partition coefficients using mineral and glass data, including those for halogens in amphibole, which agree with experimental results from the literature. Despite having a similar, high-Mg# andesite composition, the orthopyroxene-hosted glass inclusions usually contain much more H2O and S than the interstitial glass (4–7 wt% and ∼2,600 ppm, respectively). The initial vein-forming melts were oxidized, recording oxygen fugacity conditions up to ∼1.5 log units above the fayalite–magnetite–quartz oxygen buffer. They intruded the sub-arc mantle lithosphere at ≥1,300°C, where they partially crystallized to form high-Mg# andesitic derivative melts at ca. 1,050–1,100°C. Comparison with literature data on glass-free orthopyroxenite veins from Kamchatka and the glass-bearing ones from West Bismarck reveals fundamental similarities indicating common parental melts, which were originally produced by low-degree melting (≤5%) of spinel harzburgite at ≥1,360°C and ≤1.5 GPa. This harzburgite source likely contained ≤0.05 wt% H2O and a few ppm of halogens. Volatile evolution inferred from glass compositions shows that (i) redox exchange between S6+ in the original melt and Fe2+ in the host mantle minerals, together with (ii) the formation of an S-bearing, (H2O, Cl)-rich hydrothermal fluid from the original melt, provides the conditions for the formation of abundant sulfides in the orthopyroxenites during cooling. During this process, up to 85% of the original melt S content (∼2,600 ppm) is locally precipitated as magmatic and hydrothermal sulfides. As such, melts derived from spinel harzburgite sources can concentrate chalcophile and highly siderophile metals in orthopyroxenite dykes and sills in the lithosphere.

Introduction

The term boninite is used to characterize mantle-derived magmas of magnesian, basaltic andesite, and andesite compositions (≥52 wt% SiO2 and ≥8 wt% MgO in the most primitive end-members), which have distinctively low-TiO2 (≤0.5 wt%) and alkali (≤2 wt% Na2O + K2O) contents (Crawford et al., 1989; Le Bas, 2000). Although these two compositional proxies are believed to trace depleted mantle sources, the term boninite covers a continuum of magma compositions and conditions of melt generation (Falloon and Danyushevsky, 2000). This issue was partly addressed by using a CaO/Al2O3 discriminant of 0.75, believed to primarily indicate the transition from spinel lherzolite to spinel harzburgite sources consequent to the elimination of clinopyroxene from the residue (Crawford et al., 1989). This threshold distinguishes high-Ca (CaO/Al2O3 > 0.75) from low-Ca boninites (LCBs; CaO/Al2O3 < 0.75). A more recent classification by Pearce and Reagan (2019) connects clinopyroxene saturation or undersaturation during mantle melting to the SiO2 enrichment of boninites, distinguishing low-SiO2 boninites (lherzolite source) from high-SiO2 boninites (harzburgite source) (Umino et al., 2015; Pearce and Arculus, 2021; Valetich et al., 2021).

Magmas classified as boninites (particularly LCBs) are relatively rare rock types and are usually found at convergent plate margins. All LCBs are depleted in moderately incompatible heavy rare-earth elements (HREEs), which contrast with frequent, although variable, enrichments in the highly incompatible large-ion lithophile elements (LILE) or light REEs (LREEs), often producing primitive mantle-normalized, U-shaped patterns. The canonical views imply that these signatures originate from partial melting of prior melt-depleted mantle sources at low pressure (≤2 GPa), triggered by the ingress of a mobile component (“flux-melting”) derived by the devolatilization and/or partial melting of subducted oceanic lithosphere (“slab”; Jenner, 1981; Hickey and Frey, 1982; Cameron et al., 1983; Umino and Kushiro, 1989; Taylor et al., 1994; Bédard, 1999; Kamenetsky et al., 2002; Reagan et al., 2009; König et al., 2010). Elevated H2O and halogen contents in some boninites, found either as lavas (Sobolev and Chaussidon, 1996; Li et al., 2022) or as quenched melts in mantle rocks (sub-arc peridotites; Bénard et al., 2016; 2017a; 2018a), are consistent with the critical involvement of a volatile-rich, slab component.

The classical models of boninite petrogenesis consider the two end-members (i.e., high Ca–low SiO2 and low Ca–high SiO2) as being formed within a continuum where mantle melting proceeds within the clinopyroxene stability field and possibly extends beyond the exhaustion of this mineral in the residues, and wherein orthopyroxene melts incongruently (e.g., König et al., 2010). All of these models are based on the inversion of boninite chemical characteristics to infer the nature of their respective mantle sources. More recently, however, new information has been gained from direct detailed studies of mantle peridotites from the Kamchatka (Bénard and Ionov, 2012, 2013) and West Bismarck (Papua New Guinea; Bénard et al., 2018a) arcs, both containing sulfide-bearing orthopyroxenite veins, which in the case of the second locality are characterized by the presence of sulfide-bearing glass. It has been shown that these veins formed from LCB magmas, producing high-Mg# (with Mg# = Mg/[Mg + Fet], where Fet indicates all Fe treated as Fe2+) andesitic derivatives through fractional crystallization (Bénard and Ionov, 2012, 2013; Bénard et al., 2018a). Petrological modeling was used to argue that low-degree (≤5%), partial melting of refractory (prior melt-depleted) spinel harzburgite can occur as an independent, second-stage event rather than in a melting continuum (Bénard et al., 2018a). Aggregating low-volume harzburgite-derived melts to a larger batch of lherzolite-derived liquids (i.e., implying elevated total melting degrees) leads to major element compositions of the bulk magmas, which are significantly distinct from those produced through a low-degree, second-stage melting process of harzburgite only (Duncan and Green, 1987; Klingenberg and Kushiro, 1996; Falloon and Danyushevsky, 2000; Bénard et al., 2018a).

A fundamental question linked to our understanding of LCB petrogenesis concerns highly and moderately incompatible element concentration processes during melt generation in the mantle, such as for some volatiles or Fe3+, respectively. For example, assuming a low-degree, second-stage melting process, the spinel harzburgite sources of the parental melts forming West Bismarck orthopyroxenite veins should only contain 0.01–0.05 wt% H2O (Bénard et al., 2018a). Such low abundances overlap those expected in the mantle sources of mid-ocean ridge basalts (Saal et al., 2002; Salters and Stracke, 2004) and are thus difficult to reconcile with a flux-melting process for generating these LCBs. However, the behavior of other volatiles such as halogens (F and Cl) and sulfur (S) during low-degree, second-stage melting processes is poorly constrained. One fundamental issue is the sulfide saturation state and how it evolves from mantle sources to magma emplacement. Second-stage melting has notably been proposed as key for triggering sulfide undersaturation during melt generation in the mantle, allowing for the chalcophile and highly siderophile element abundances to concentrate in the evolving melts during the early stages of crystal fractionation (Hamlyn and Keays, 1986; Keays, 1995). Regarding the sulfide-rich nature of orthopyroxenite veins, a range of 2–3 orders of magnitude was estimated for oxygen fugacity conditions (fO2), extending from −1 to +1.5 log units relative to the fayalite–magnetite–quartz (FMQ) oxygen buffer (−1≤ΔlogfO2[FMQ]≤+1.5; Bénard et al., 2018a). This fO2 range typically corresponds to the transition from S2- to S6+ in silicate melts (Jugo et al., 2010), which leaves considerable uncertainties on the real nature and extent of sulfur transport in LCBs.

In the first article of this two-part study, we report a detailed account of the abundances of major and lithophile trace elements and volatiles (H2O, F, Cl, and S) in a sulfide- and glass-bearing orthopyroxenite vein cutting a sub-arc mantle xenolith from Kamchatka. We compare the results to those from Bénard and Ionov (2012, 2013) and Bénard et al., (2018a), with an emphasis on volatile behaviors (H2O, F, and Cl) and the evolution of the sulfide saturation state. In the second article, these results will be extended to new analytical data for vein sulfide compositions, including major base metals as well as chalcophile and highly siderophile trace elements.

Materials and Methods

Electron-Probe Micro-analysis

Major element compositions of silicate minerals and glasses were determined in a polished thick (∼120 μm) section by wavelength-dispersive (WDS) electron-probe micro-analysis (EPMA) using a CAMECA SX100 instrument at the Research School of Earth Sciences at the Australian National University (ANU, Australia), and a JEOL 8530-F field-emission instrument at the Institute of Earth Sciences of the University of Lausanne (UNIL, Switzerland). Mineral analyses were performed at an accelerating voltage of 15 kV and a sample current of 20 nA (focused beam routine). Glass analyses were performed with a defocused beam (5–10 μm) and at a reduced sample current of 2–8 nA, with Na and K analyzed first with reduced counting times to minimize the loss or migration of alkali metals. Sulfur was the last element determined during glass analyses at ANU, using two spectrometers (PET and LPET) and a sample current of 100 nA. Counting times at ANU were 5–10 s on the background, and 120 s (S), 20 s (Cr and Ni), 15 s (Ca and Ti), and 10 s for all other elements on peak. Counting times at UNIL were 5–10 s on the background and 10–20 s on peak for Na and K, and 15 and 30 s for all other elements. Matrix effects were corrected using Phi (r) z modeling available on Peak Sight© software from CAMECA™ at ANU and using the Armstrong PRZ oxide correction at UNIL. The positions of the element peaks were checked at least every 10 analyses. Mineral and glass (VG-2; Jarosewich et al., 1980) standards were analyzed either daily or at the start and end of each analytical session to estimate analytical drift, which was negligible. Major element maps were collected at ANU at an accelerating voltage of 15 kV and an increased sample current of 40 nA. Some of the maps were collected with a Bruker™ energy-dispersive spectrometer (EDS) coupled to the SX100 instrument.

Amphibole analyses at UNIL were performed with a defocused beam (10 μm) at an increased sample current of 40 nA, and with counting times of 5 s (background) and 10 s (peak) for Cr, 10 and 20 s for Ca, Na, and K, and 15 and 30 s for all other elements, except for halogens. Fluorine and chlorine analyses in amphibole were performed using a method similar to that described in Bénard et al. (2017a), with F being simultaneously analyzed on a TAP and two TAPL spectrometers to increase counting times and avoid Fe Lα tail overlapping on F Kα. The total counting times were 300 s for F and 100 s for Cl, both on peak and background. This analytical protocol resulted in a significant decrease of the detection limits (down to ∼100 ppm for F and ∼30 ppm for Cl on the JEOL 8530-F instrument) relative to a conventional setup (typically 650–800 ppm for F and 200–250 ppm for Cl). Primary standards used for peak positioning and intensity calibration were F-phlogopite for F (9.02 wt% F) and scapolite for Cl (1.43 wt% Cl). The calibration was tested daily against VG2 basaltic glass secondary standard (220 ± 66 F and 306 ± 13 Cl; Jarosewich et al., 1980) and mantle-derived vein amphibole from Kamchatka, for which both EPMA and secondary-ion mass spectrometry data have already been reported (e.g., with F ranges between ∼1,500 and 5,000–6,000 ppm; Bénard et al., 2017a).

The same analytical protocol as for amphibole was used to analyze F in glass with a 10–20 μm beam and matrix effects corrected using compositions previously acquired with the glass routine described before. No halogen loss, either through devolatilization or migration from below the beam within the glass, was observed during those analyses, demonstrating that the method is valid for the glass compositions in this study (Supplementary Figure S1).

Scanning Electron Microscopy

Back-scattered electron (BSE) images and semi-quantitative phase analyses at high spatial resolution were acquired using a Tescan MIRA II LMU field-emission scanning electron microscope (SEM) at UNIL. In situ analyses were performed on this instrument by EDS using a PentaFET 3x X-ray detector. BSE images were acquired at a working (sample) distance of 9 mm, an accelerating voltage of 20 kV, and a sample current of ∼0.5 nA, allowing a spatial resolution (spot size) of ∼5 nm. EDS analyses were performed at a working distance of 20–23 mm and with an increased sample current of 0.9–1.3 nA to maximize count rates, leading to a spatial resolution of 6–7.5 nm. Acquisition parameters included an energy step of 20 eV, a process time of 5 s to increase the signal-to-background ratio and spectral resolution, and an acquisition time of 1 min per analysis. Data treatment was made using the Oxford Instruments AZtec software packaging.

Laser Ablation Inductively Coupled Plasma Mass Spectrometry

Lithophile trace element abundances in vein minerals and glass were determined in the thick section by laser ablation inductively coupled plasma mass spectrometry (LA-ICPMS) at ANU. This system comprises a UV (λ = 193 nm) excimer laser (Lambda Physik CompEx 110) and an ANU-designed HelEx ablation cell coupled to an Agilent 7700x quadrupole ICPMS. Analyses were performed with a laser set at a 5-Hz pulse rate, 29.5 kV, 50 mJ, and using 50 or 100 μm beam diameters. For each laser ablation run, ∼25 s were counted on the carrier gas (background) followed by ∼35 s for signal. The NIST 610 glass standard was used for calibration (Jochum et al., 2011), with 29Si chosen as the internal standard (with the abundances determined by EPMA). The accuracy and precision of the method were assessed by calculating 1σ RSD from replicate analyses of BCR-2G reference material during the runs (Gao et al., 2002; Jochum et al., 2005). For each analysis, we carefully avoided the ablation of inclusions, exsolutions, or cracked areas by optical checks prior to ablation. The signal was further filtered to eliminate any eventual heterogeneity bias during data processing, using an in-house Excel spreadsheet following the method of Longerich et al. (1996).

Raman Microspectroscopy

The dissolved H2O contents in glasses were measured using confocal Raman microspectroscopy at the Paris Institute of Earth Physics, University of Paris (IPGP, France). The Raman spectra of the glasses were recorded with a LabRAM HR Evolution spectrometer, equipped with a Peltier-cooled CCD and 1800 lines mm−1 grating. The samples were excited with a Coherent MX solid-state laser (λ = 488 nm) focused through a ×50 Olympus objective on the sample surface. The confocal aperture of the spectrometer was set to 30. With this setup, spectral resolution was ∼3 cm−1 and spatial resolution was ≤ 1 μm. All spectra were recorded with the laser focused at 3–5 µm below the sample’s surface to avoid any surface effects (Schiavi et al., 2018). The laser power on the sample was measured as equal to ∼10 mW with this setup. Potential damage of the samples was checked by recording several spectra on the same spot and varying laser power, without the identification of any effect.

The H2O contents of the glasses were retrieved from 1) the internal calibration protocol defined in Le Losq et al. (2012) and 2) an external calibration method, following Behrens et al. (2006) and Schiavi et al. (2018). The internal calibration method of Le Losq et al. (2012) allowed measurements that are independent of the spectrometer setup and glass chemical composition. The external calibration method allowed cross-validation of the values determined with the internal calibration, following the practice adopted in Bénard et al. (2018a). For both methods, glass standards include those from Le Losq et al. (2012) and Ca-bearing alumino-silicate hydrous glasses with known H2O contents ranging from 0.2 to 8 wt% (Le Losq et al., 2017). Raman data treatment was performed using Python programming software, with the rampy open-source software library (Le Losq, 2018).

Results

Petrographic Observations

The complete dataset supporting this study is reported in Supplementary Table S1. The new sample in this study (Av55) was collected on the active Avacha volcano in the southern part of the Kamchatka peninsula (Russian Federation). It was found in volcanic ash and scoria of low-K basaltic andesite and andesite compositions on the western slope of Avacha facing Koryaksky volcano, together with the samples from the same collection described in Ionov (2010), Bénard et al. (2011), Ionov et al. (2011), Bénard and Ionov (2012, 2013), and Bénard et al. (2016, 2018c). More details on the geology of the region and the overall tectonic setting can be found in those studies.

The host rock of the orthopyroxenite vein in this study is a predominantly coarse-grained spinel harzburgite with protogranular micro-structures outlined by olivine and spinel, which are typical textural features for peridotites from the sub-arc mantle lithosphere (Supplementary Figures S2–S5; McInnes et al., 2001; Ionov, 2010; Ionov et al., 2011, 2013; Bénard et al., 2017b, 2021). Host spinel occurs as coarse or fine grains (Supplementary Figure S2). Former coarse orthopyroxene (opx) from the host appears as pseudomorphs entirely re-crystallized as anhedral fine grains of predominantly opx with minor clinopyroxene (cpx) and amphibole, which all contain minute spinel inclusions (Supplementary Figures S2, S4).

The orthopyroxenite vein displays irregular contacts with its host harzburgite, while grain coarsening and glass enrichment trends are identified from the contact toward the interior of the vein (Supplementary Figures S3, S5). As such, the vein contact can be considered as a “fringe,” a chilled margin likely formed by faster cooling rates with possible reaction with the host olivine (melt consumption is attested by the absence of glass). We use this textural feature to categorize the vein as “rapidly crystallized” (i.e., fringe-bearing; “Type 1A”) following previously established classifications (e.g., Bénard and Ionov, 2012, 2013). Small euhedral olivine grains were identified in the vein using EDS, but they are extremely rare (Supplementary Table S1). Vein opx is generally euhedral and systematically shows strong core-to-rim zoning and, much less frequently, oscillatory or irregular zoning (Figures 1A–D and Supplementary Figure S6). Minor amphibole, without any apparent zoning patterns, is either found as euhedral grains neighboring glassy areas or as an anhedral reaction product from former coarse spinel from the host (Figures 1A–D, Supplementary Figures S7, S8). Smaller spinel grains can occur not only as subhedral to euhedral inclusions in opx (Supplementary Figure S9) but also as anhedral host relics (isolated or as trails) in the same mineral, which are sometimes associated with traces of replacing amphibole (Figure 1C and Supplementary Figure S5). EDS analysis allows identifying these subhedral to euhedral spinels as chromite (Supplementary Figure S9). Small, rounded sulfide inclusions are frequent in vein opx (Figure 1 and Supplementary Figure S6) but are more abundant in the fringes than in the central part of the vein (Supplementary Figures S3, S8).

A distinctive feature of the Kamchatka vein in this study when compared with earlier studies of Type 1A veins from this locality (Bénard and Ionov, 2012; 2013) is that it contains silicate glass, the proportion of which increases from the fringes toward the central part of the vein (Supplementary Figure S5). Glassy areas in the central part of the vein contain abundant vugs with curvilinear borders (Figure 1 and Supplementary Figure S6). These vugs are frequently bordered by a coating, identified as Fe oxyhydroxide (FeO(OH)) by EDS, while clusters of small sulfides or isolated larger sulfide globules are found in the glass (Supplementary Figure S9). Fe oxyhydroxide also appears as a post-magmatic replacement product of some sulfide inclusions in opx (Supplementary Figure S9). Another feature, absent from other Kamchatka vein samples, is the occurrence of abundant glass (formerly melt) inclusions (hereafter referred to as MIs), which are enclosed in opx and, more rarely, in amphibole (Figure 1E, Supplementary Figures S6, S7, S10). Only opx-hosted MIs were investigated in this study. Many of these MIs contain vugs, some contain sulfides, and a few contain visible daughter silicate crystals with euhedral shapes (Supplementary Figure S10). These have been identified by EDS analysis as amphibole (Supplementary Figure S9). A striking feature observed through BSE imaging is the varying contrast among all glassy areas, with darker MIs and lighter interstitial glass, although significant variations exist within the two groups (Figures 1A–E, Supplementary Figures S6, S8, S10). Variable BSE contrast is most likely imposed by fluctuating compositional parameters. However, whereas major element mapping confirms grain-scale compositional variations in vein opx, the interstitial glass appears homogeneous (Figures 1F–I).

FIGURE 1
www.frontiersin.org

FIGURE 1. Textural features of the Type 1A vein cutting the new Kamchatka sample Av55 in this study. Data acquired using EPMA. (A–E) Back-scattered electron (BSE) images and (F–I) major element maps. Scale bar is 100 μm in (A–E) and 500 μm in (F–I). The elements mapped in (F–I) are indicated in the top left corners of the images. Note the strong chemical zoning of opx and the variable contrast of the interstitial glass. Amph, amphibole.

Major and Lithophile Trace Elements

The BSE images and mapping suggest solid-state element diffusion in host olivine neighboring the vein, which is confirmed by EPMA profiles with homogeneous host olivine far from the vein but decreasing Mg# (from ∼0.91 to ∼0.86) and increasing MnO (from ∼0.15 to ∼0.3 wt%) and NiO (from ∼0.4 to ∼0.5 wt%) contents toward the vein fringes (Supplementary Figure S3). Similar “reacted” compositions are observed for rounded olivine relics, either isolated in the vein fringes or in fragments of the host harzburgite trapped within the branching vein (Supplementary Figure S3). Taken collectively, a melt-rock reaction trend is identified with olivine compositions, wherein Mg# decreases from the values of 0.91–0.92, typical of spinel harzburgite residues previously identified using Avacha mantle xenoliths (e.g., Ionov, 2010), to ∼0.86 (Figures 2A,B). A similar trend is observed for spinel, given that Mg# in reacted spinel decreases from host harzburgite values, whereas Cr# (with Cr# = Cr/[Cr + Al]), TiO2, MnO, and NiO increase (Figures 2C–F). This trend is confirmed by core-to-rim zoning patterns in former, coarse spinel from the host, now reacted to vein amphibole (Supplementary Figure S7). Despite being re-crystallized as fine grains, host opx compositions are homogeneous and similar to that in other spinel harzburgite residues previously studied using Avacha mantle xenoliths, as do the host cpx (Supplementary Figure S4; Ionov, 2010).

FIGURE 2
www.frontiersin.org

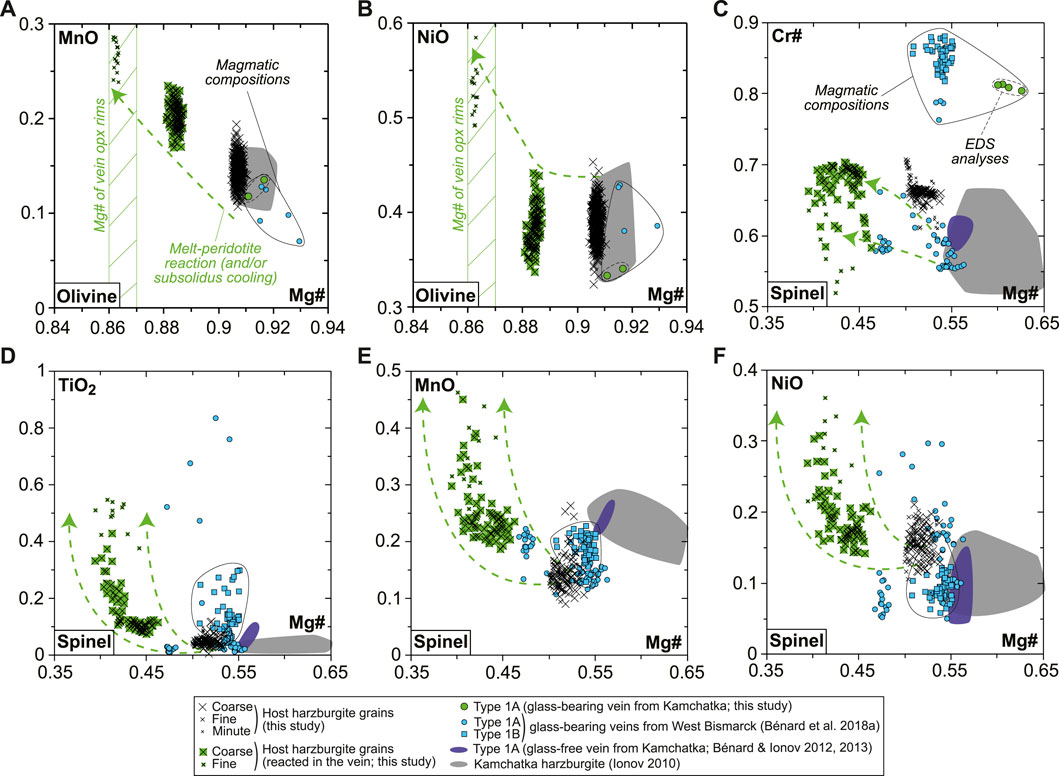

FIGURE 2. Olivine and spinel major element compositions (in wt% for oxides) for the new Kamchatka sample in this study. (A,B) Olivine compositions and (C–F) spinel compositions. Also shown are data for glass-free Type 1A veins from Kamchatka (dark-blue fields and symbols; Bénard and Ionov, 2012, 2013), glass-bearing Type 1A (dots) and Type 1B (squares) veins from West Bismarck (blue fields and symbols; Bénard et al., 2018a), and Kamchatka spinel harzburgite residues (gray fields; Ionov, 2010).

The rare, euhedral olivine grains from the vein tend to have higher Mg# than in the host harzburgite (0.915–0.92; Figure 2A). Small euhedral vein chromite analyzed by EDS has much higher Mg# (0.60–0.63) and Cr# (∼0.81) than host relics (Figure 2C). Vein opx display outstanding zoning features, some of which are outlined by former, skeletal-hopper grain shapes (Figure 3A), and the most common of which are “normal” patterns with a core-to-rim decrease of Mg# from ∼0.93 to ∼0.86 (i.e., similar to the low-Mg# host olivine relics in the vein; Supplementary Figure S3). This Mg# decrease is generally accompanied by increasing TiO2, MnO, and CaO and decreasing Cr2O3 and NiO (Figures 3B–E and Supplementary Figure S6). No “reverse” zoning patterns were observed with the notable exception of Cr2O3; instead, normal patterns are commonly shifted toward lower Mg# values with consistent variations in the other elements (Supplementary Figure S6). Taken collectively, these data define clear covariation trends, for instance, a core-to-rim increase of TiO2, MnO, and CaO against decreasing Mg#, with the visible effects of sharp enrichment fronts at grain rims for TiO2 and CaO (Figures 4A–C). Vein amphibole (mainly magnesio-hornblende), either found as euhedral grains or replacing spinel, was also investigated for core-to rim chemical variations (Figures 5A–D and Supplementary Figure S8). Mg# generally decreases (0.89–0.83) with increasing TiO2 and Na2O, replacing amphibole being intermediate in Mg# between the host and the euhedral examples (Figures 5E,F). Some Cr# variations were only observed in the replacing amphibole with higher Cr# close to coarse spinel relics from the host (Figure 5D and Supplementary Figure S8). F and Cl range at 200–400 and 100–150 ppm, respectively, in all vein amphibole grains (Figure 5G). Glass compositions (normalized on an anhydrous basis) are illustrated in Figure 6, together with mineral–glass relationships. Interstitial glass has a limited compositional range, in agreement with mapping evidence; it has a low TiO2 (≤0.4 wt%; Figure 6A), intermediate to magnesian (2–4 wt% MgO; Figure 6B) andesite composition with small variations in CaO (7–9 wt%; Figure 6C). This composition can also be labeled as “high-Mg# andesite” according to its Mg# of 0.45–0.6 (Figure 6D) and following the classification of Kelemen et al. (2014). Melt inclusions display a very similar geochemical affinity but span a wider compositional range extending to high-Mg# dacite, which has lower CaO contents than the andesite (Figures 6A–D). While the Mg#, CaO, and Al2O3 relationships between coexisting opx rims and interstitial glass are consistent with experimental equilibrium values (Bédard, 2007; Waters and Lange, 2017), this is apparently less the case for amphibole rims (Figure 6E; Nandedkar et al., 2016).

FIGURE 3
www.frontiersin.org

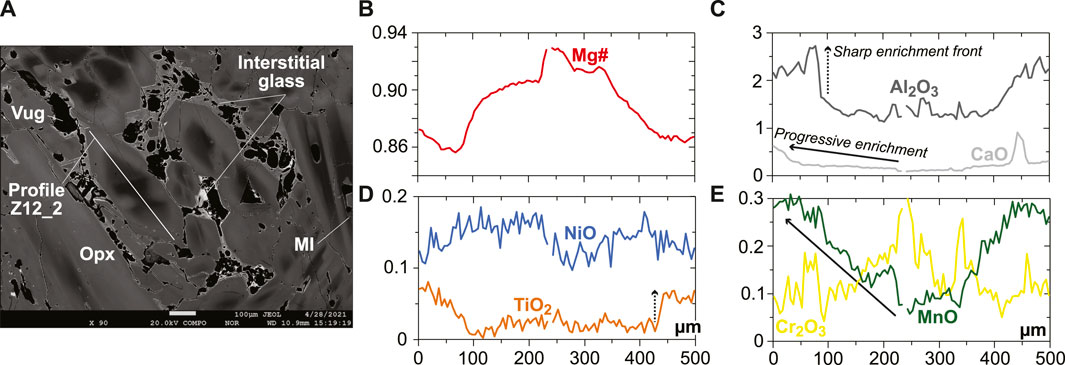

FIGURE 3. Rim-to-rim profile in a opx grain from the new Kamchatka vein in this study (in wt% for oxides). (A) BSE image (EPMA) showing the texture and zoning pattern of a large opx grain located in the glassy central part of the vein. (B–E) Rim-to-rim variations in (B) Mg#, (C) Al2O3, and CaO contents, (D) TiO2 and NiO contents, and Cr2O3 and MnO contents for the profile in (A). Note the skeletal-hopper texture outlined by the high-Mg# core of the opx grain and the sharp vs. progressive increases for elements of different degrees of incompatibility.

FIGURE 4
www.frontiersin.org

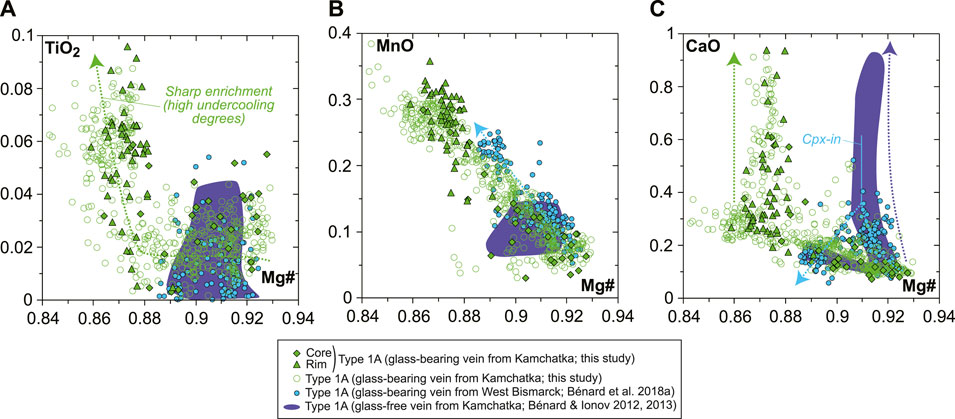

FIGURE 4. Orthopyroxene major element compositions (in wt% for oxides) for the new Kamchatka vein in this study.

FIGURE 5
www.frontiersin.org

FIGURE 5. Core-to-rim profiles and compositions for amphibole for the new Kamchatka sample in this study. (A,B) BSE images (EPMA) showing variable texture of (A) euhedral and (B) anhedral (i.e., replacing coarse spinel from the host harzburgite) vein amphibole. Scale bar is 100 μm. (C) Mg# and (D) Cr# variations for the profiles in (A,B), with solid and dashed lines, respectively, referring to euhedral and anhedral (replacing) amphiboles. (E–G) Major element (in wt% for oxides) and halogen compositions of all vein amphibole grain types. Note that euhedral grains occur in the glassy central part of the vein, on the contrary to anhedral (replacing) grains.

FIGURE 6
www.frontiersin.org

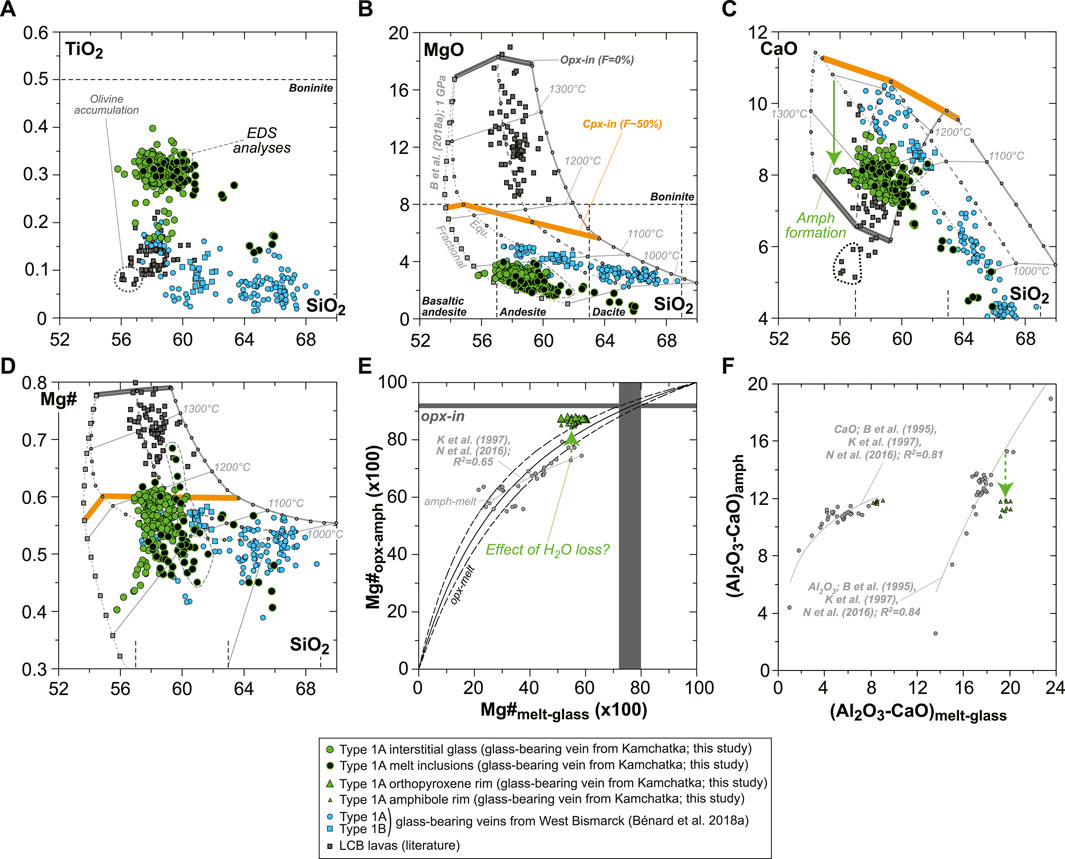

FIGURE 6. Glass compositions and mineral–glass relationship data for the new Kamchatka vein in this study (glass and melt compositions are normalized on an anhydrous basis). (A–D) Major element compositions (in wt% for oxides) of vein MIs and interstitial glass. (E) Opx–glass and amphibole–glass Mg# relationships and (F) amphibole–glass Al2O3 and CaO relationships. In (A–D), the vein glasses are compared to isobaric models for the liquid lines of descent of harzburgite-derived melts at 1 GPa (gray lines), calculated by Bénard et al. (2018a) with pMELTS (Ghiorso et al., 2002). The starting melt compositions of those models were calculated with pMELTS for spinel harzburgite melting at 1 GPa, 1,360°C, and with 0.01, 0.05, and 0.1 wt% H2O (Bénard et al., 2018a). Both liquid lines of descent driven by equilibrium (Equ; dots) and fractional (squares) crystallization processes are shown for 0.01 wt% H2O in the mantle source. The onsets of opx (opx-in) and cpx (cpx-in) crystallization are, respectively, indicated with dark gray and orange bars, together with the corresponding degree of crystallization of the pyroxenite (F, in %). Note the more consistent fits of those models for West Bismarck glass than for Kamchatka glass (see text for details). Also shown is a compilation of LCB lavas’ bulk-rock compositions from the literature (dark gray squares; Komatsu, 1980; Kushiro, 1982; Cameron et al., 1983; Umino, 1986; Shimizu et al., 1992; Taylor et al., 1994; Dobson et al., 1995; Pearce et al., 1999; Yajima et al., 2001; Dobson et al., 2006). The rock classification is taken from Le Bas (2000). In (E,F), experimental amphibole–glass relationships from the literature are shown with gray dots and include data from Brenan et al. (1995), Klein et al. (1997), and Nandedkar et al. (2016).

Primitive mantle-normalized patterns (PM; McDonough and Sun, 1995) for lithophile trace element abundances in vein opx are consistent whatever the laser spot size is, but only data acquired using a 50 μm beam allowed the analysis of high-Mg# cores without the effects of zoning (Figures 7A,B). Pronounced core-to-rim trace element enrichments (by a factor of ca. 2-5 for a given grain) are correlated with the decrease in Mg#; starting from the most depleted compositions, the overall level of enrichment for all vein opx grains investigated here reaches an order of magnitude (Figures 7A,B). Much less pronounced core-to-rim zoning is observed for vein amphibole, with HREEs ranging mostly between ∼7 and ∼10 times primitive mantle values (Figure 7C). The glass composition is homogeneous within the vein, which is characterized by slightly sinusoidal and LREE-enriched REE patterns, strong depletions in some of the high-field strength elements (HFSE; Nb, Ta, and Ti), and relative enrichments or positive spikes in some LILE (Cs, Rb, Ba, and Pb) or fluid-mobile elements (U; Figure 7D). The REE partitioning relationships between grain rims and glass are generally consistent with experimental equilibrium values for andesitic melt compositions, both in the case of opx and amphibole (Figures 7E,F; Bédard, 2007; Nandedkar et al., 2016). This consistency also persists for HFSE partitioning between amphibole and glass, but not for the most incompatible LILE (Supplementary Table S1).

FIGURE 7
www.frontiersin.org

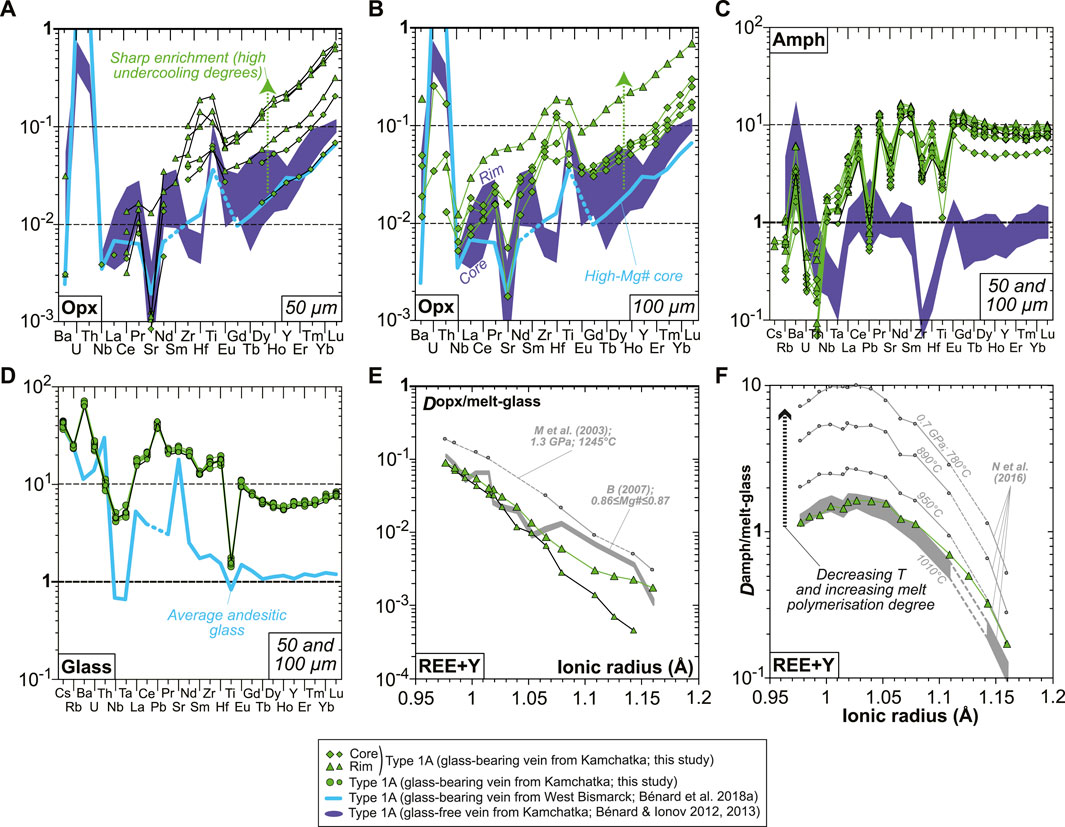

FIGURE 7. Mineral and glass trace element compositions and partitioning data for the new Kamchatka vein in this study. (A–D) Primitive mantle-normalized (McDonough and Sun, 1995) abundances of lithophile trace elements in (A,B) opx, (C) amphibole, and (D) interstitial glass. Orthopyroxene data acquired using a 50-μm laser spot are shown in (A), while those acquired using a 100-μm laser spot are shown in (B). (C) Opx–glass and (D) amphibole–glass REE and Y partition coefficients calculated using averages of the data shown in (A–D). Also shown in (E) are opx-melt partitioning data from the experiments of McDade et al. (2003) and those calculated using the parameterization based on opx Mg# from Bédard (2007). Also shown in (F) are amphibole–melt partitioning data from the experiments of Nandedkar et al. (2016).

Volatiles

Special attention was given in this study to volatile systematics between various glassy areas in the vein. Despite the frequent effect of micro-crystals on the Raman spectra of MIs (Figure 8A), deriving H2O contents was possible using the OH vibration bands (Figure 8B). Water contents are variable in the interstitial glass ranging from virtually 0 (i.e., below the detection limit of ∼0.05 wt%) to ∼2.5 wt%, while higher abundances are generally found in the andesitic MIs (4–7 wt%; Figure 8C). Nearly all dacitic MIs appear to have lost much of their original H2O endowments (mostly ≤3.5 wt%), but rare ones contain up to 7–10 wt%, suggesting a positive correlation of H2O with SiO2 contents in undegassed inclusions (Figure 8C and Supplementary Table S1). F (100–400 ppm) and Cl (800–1,200 ppm) contents are consistent among interstitial glass and MIs (Figure 8D and Supplementary Table S1). The calculated amphibole–melt partition coefficients (D) for these two volatile elements are relatively constant within the vein, with averages of 1.1 ± 0.3 and 0.11 ± 0.01 for F and Cl, respectively (Figures 8E,F).

FIGURE 8
www.frontiersin.org

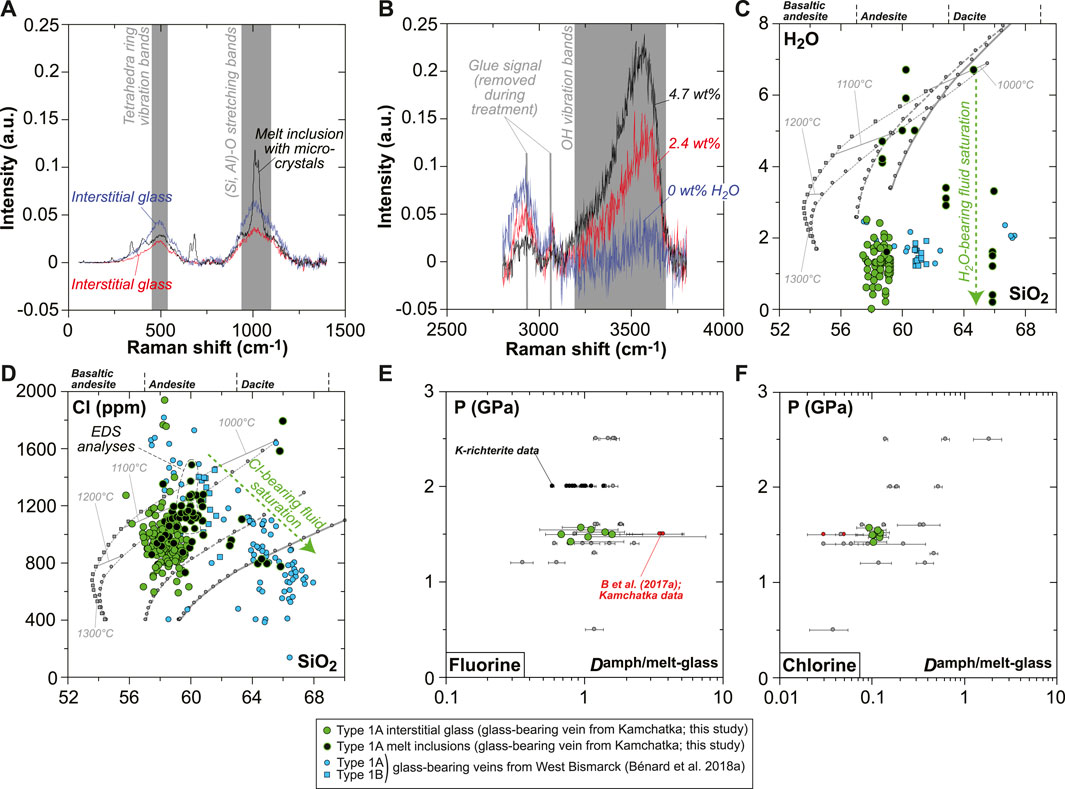

FIGURE 8. Volatile (H2O, F, and Cl) compositions and partitioning data for the new Kamchatka vein in this study (glass and melt compositions are normalized on an anhydrous basis). (A,B) Representative Raman spectra for interstitial glass and MIs showing (A) signature of micro-crystals in MIs and (B) variable H2O contents traced by changing OH vibration band intensities. (C) H2O and (D) Cl compositions of the vein MIs and interstitial glass (H2O and SiO2 in wt%). (E,F) Pressure plotted against (E) F and (F) Cl partition coefficients between amphibole and glass. Also shown in (C) are isobaric models for the liquid lines of descent of harzburgite-derived melts at 1 GPa (gray lines), calculated by Bénard et al. (2018a) with pMELTS. The same models are used in (D) for Cl, assuming 400 ppm in the starting melt and a purely incompatible behavior for this element during crystallization. Also shown in (E,F) are literature data for F and Cl partitioning, including experiments for calcic amphibole (gray dots; Hauri et al., 2006; Dalou et al., 2014; Van den Bleeken and Koga, 2015; Flemetakis et al., 2021) and K-richterite (black dots; Edgar and Pizzolato, 1995). Partitioning data acquired on natural rocks by Bénard et al. (2017a) (melt pockets in Kamchatka spinel harzburgite mantle xenoliths) are shown with red dots.

S abundances display complex evolution trends that can be related to petrographic observations. S abundances are notably variable in each andesitic MI, where they may decrease from ∼2,600 down to ∼1,400 ppm toward vugs (Figure 9A and Supplementary Figure S10). Other vug-bearing andesitic MIs contain 800–1,000 ppm S, with the lowest S abundances analyzed in these inclusions ranging at ∼400 ppm (Supplementary Figure S10 and Supplementary Table S1). Dacitic MIs generally contain ≤400 ppm S, some of which clearly include sulfide daughter crystals (Supplementary Figure S10 and Supplementary Table S1). The interstitial glass displays lower S contents than the MIs (≤1,400 ppm S), with notably more stable abundances next to vugs coated by sulfide alteration products such as Fe oxyhydroxide (400–600 ppm; Figure 9B). The presence of the latter secondary mineral as vug coatings appears to be widespread in the vein, as revealed by Fe mapping (Figure 9C and Supplementary Figure S9). Globally, S abundances decline from those within andesitic MIs to those in the interstitial glass at ∼58 wt% SiO2, ∼4 wt% FeOt, and 2–3 wt% MgO (Figures 9D–F).

FIGURE 9
www.frontiersin.org

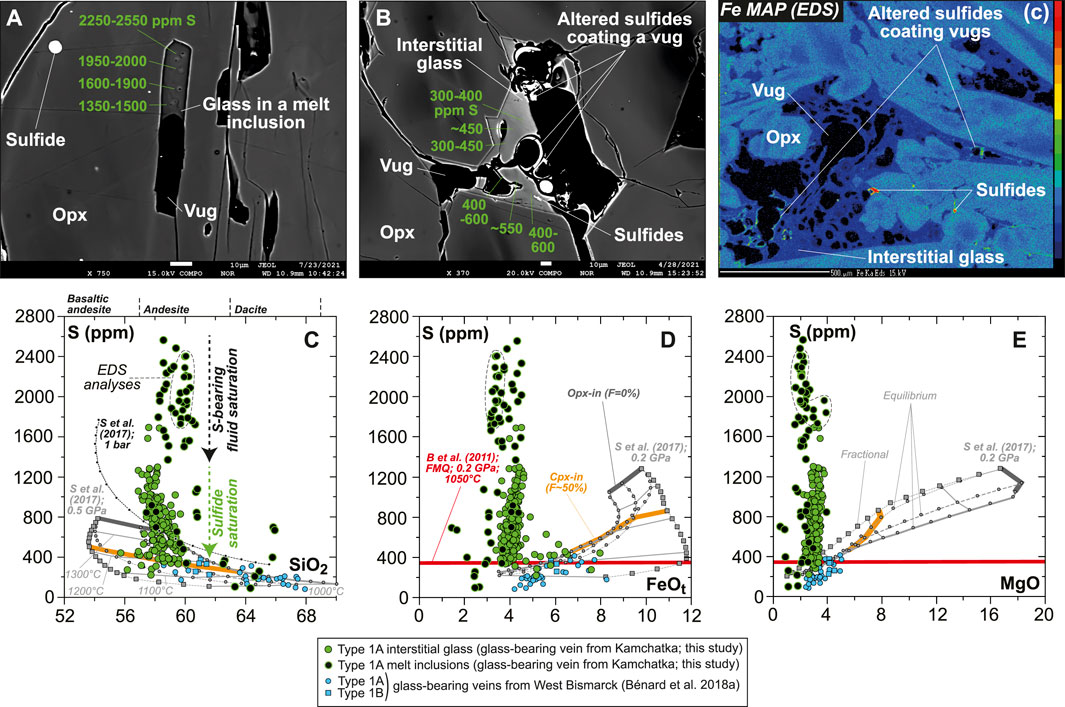

FIGURE 9. Sulfur composition for the new Kamchatka vein in this study (glass and melt compositions are normalized on an anhydrous basis). (A,B) BSE images (EPMA) showing local variations in S abundances (in green) in (A) a MI and (B) interstitial glass. Note that S abundances in the glass of the sulfide-free MIs decrease toward the vug. (C) A Fe map (EPMA) showing the distribution of sulfides and Fe oxyhydroxide coating vugs (Fig. S9). Scale bar is 10 μm in (A,B) and 500 μm in (C). (C–E) S abundances in vein MIs and interstitial glass plotted against oxide compositions (in wt%). Also shown in (C–E) are SCSS calculated with the model of Smythe et al. (2017) at (C) 1 bar and 0.5 GPa (black and gray lines, respectively) and (D,E) 0.2 GPa (gray lines). Melt major element compositions used to calculate SCSS are those of isobaric models for the liquid lines of descent of harzburgite-derived melts at 1 GPa, calculated by Bénard et al. (2018a) with pMELTS. Note the more consistent fits of those models for West Bismarck glass than for Kamchatka glass (see text for details).

Discussion

Undercooling and Differentiation of a Mantle-Derived Melt in the Sub-Arc Mantle Lithosphere

Several lines of evidence suggest that the orthopyroxenite vein from Kamchatka studied here formed by undercooling of a high-temperature, mantle-derived melt that intruded the sub-arc mantle lithosphere. The opx coarsening trend from the fringes to the vein center can be explained by the presence of a thermal gradient during the crystallization of the orthopyroxenite, with faster cooling rates at the fringes (Supplementary Figure S5). Normal zoning patterns in both major and trace elements in vein opx can also result from the rapid crystallization of an undercooled silicate melt (Figures 3, 7, Supplementary Figure S6). If crystal growth is sufficiently fast to prevent anomalous lattice incorporation, boundary layers enriched in incompatible major elements form at melt–crystal interfaces (Watson, 1996; Watson and Müller, 2009). Such a process is indicated by zones of abrupt enrichment in Ti, Al, and sometimes Ca in vein opx (Figures 3, 7, Supplementary Figure S6). Similarly, the 10-fold increase in trace element concentrations in opx (e.g., REE and HFSE; Figure 7) appears difficult to reconcile with an equilibrium process, as this would require ≥80% crystallization. These observations are rather consistent with the extreme trace element enrichments of grain rims in some pegmatitic dykes, which result from kinetic disequilibrium during fast crystal growth driven by the intrusion of an undercooled magma in a relatively cold country rock (e.g., London and Morgan, 2012).

A key textural feature in the orthopyroxenite vein in this study is the skeletal-hopper shape of some of the high-Mg# cores of opx (a typical tracer of fast cooling rates; e.g., Shea and Hammer, 2013), which contrasts with the generally euhedral borders outlining the low-Mg# rims of these elongated to blocky grains (Figure 3A). A sharp compositional interface is commonly observed between the high-Mg# cores and the low-Mg# rims of opx, which is consistent with the shapes of many major element profiles (Figure 3 and Supplementary Figure S6). These textural features are also coherent with the abrupt increases in Ti and Ca at Mg# ranging at 0.86–0.88 in the vein opx (Figures 4A,C and Supplementary Figure S4). In a first phase, major and trace elements were thus enriched in the silicate melt (i.e., disequilibrium growth with highest thermal gradient), and in a second phase, opx rims formed from these enriched silicate melts. This two-phase undercooling regime can be explained in several ways, but the most likely process is that the original, high-temperature vein melt differentiated rapidly on cooling (first-phase growth of opx cores) to temperatures of the sub-arc mantle lithosphere (second-phase growth of opx rims). The association of skeletal-hopper cores with euhedral rims indicates that the first- and second-phase undercooling processes occurred in continuity, most likely because of decreasing cooling rates (Figure 3 and Supplementary Figure S6). More importantly, this provides favorable conditions for the attainment of equilibrium between the enriched grain rims and the last glass-forming residual melt.

The host harzburgite sample in direct contact with the orthopyroxenite vein in this study records equilibration temperatures of 897–932°C, as calculated using average olivine compositions and those of coarse and fine spinel grains (Figure 2) with the olivine-spinel geothermometer of O’Neill and Wall (1987) and Ballhaus et al. (1991) at 1 GPa. These pressure conditions match estimates for the crust–mantle transition in South Kamchatka (Bénard et al., 2018b). Similar values (898–918°C) are found using the opx–cpx thermobarometer of Brey and Köhler (1990), or a more recent equivalent with Equation 37 of Putirka (2008). They are also consistent with Ca-in-opx results using Brey and Köhler (1990) (923–941°C). All these estimates are in the range previously determined for Avacha spinel harzburgites (900–1,000°C; Ionov, 2010; Ionov et al., 2011; Bénard and Ionov, 2012,2013; Bénard et al., 2016, 2017a, 2018c). Liquidus temperatures of the last residual melts in the orthopyroxenite vein can also be constrained using opx–glass thermometers, since some of the analyzed pairs appear to be both in Fe–Mg and trace element equilibrium (Figures 6E, 7E). Using Equations 28a, 28b of Putirka (2008), average temperatures of, respectively, 1,118 ± 8°C and 1,140 ± 6°C are calculated at 1 GPa, for a selection of opx rim-glass pairs recording KD(Fe-Mg)>0.2 (all 1σ; Supplementary Table S1). In all these calculations, H2O contents were set to the averaged measurements in the interstitial glass (1.2 ± 0.5 wt%); using 5.1 ± 0.9 wt% H2O as in the high-Mg# andesite MIs lowers these estimates by ∼50°C (all 1σ; Figure 8C). From the previously mentioned temperature estimates, the undercooling degrees of the glass-forming, high-Mg# andesite melt range at ca. 100–200°C, depending on the extent of H2O-rich fluid loss. Weak to inexistent core-to-rim zoning patterns in euhedral amphibole (crystallizing at ≤1,100°C; e.g., Mandler and Grove, 2016) indicate that this mineral must have formed during this low-thermal gradient, second-phase undercooling process, as rims on opx.

The more primitive parental melt forming the strongly zoned opx grains must have been intruding the sub-arc mantle lithosphere at much higher temperatures than those estimated by opx–glass thermometry. According to experimental KD(Fe-Mg)mineral-melt, Mg#≥0.91 in the olivine and opx cores indicate crystallization from parental melts with Mg#≥0.72 (Figures 2-4, Supplementary Figures S4, S6; Beattie, 1993; Putirka, 2008; Waters and Lange, 2017). This implies that the vein-forming melts originated from mantle peridotite sources. The formation of high-Mg# andesite, interstitial glass and MIs resulted from the quenching of residual liquids formed after the crystallization of abundant opx, minor olivine and spinel, and likely amphibole (Figure 6). Effects of the late-stage fractionation of amphibole is confirmed by the analysis of MIs, with direct textural evidence for daughter amphibole saturation and a Ca-depletion trend toward dacite compositions (Figure 6 and Supplementary Figure S9). Given the following observations: (i) high Cr# of spinel (Figure 2); (ii) low-Ti and alkali metals in the high-Mg# andesite, interstitial glass and MIs (Figures 6, 7, Supplementary Table S1); and (iii) low trace element levels in high-Mg# opx cores (e.g., HREEs; Figure 7), it can be deduced that the primitive parental melt of the orthopyroxenite vein was generated from refractory and depleted mantle sources (e.g., Klingenberg and Kushiro, 1996). Volatile analyses in the MIs show that they generally have higher H2O contents than in the interstitial glass but are otherwise similar in composition (except for S; Figures 8, 9). This suggests a damp melting process for the formation of the parental vein melts.

A Parental Melt Formed From a Volatile-Poor Spinel Harzburgite Source

According to IUGS classification, (Ti, alkali metal)-depleted signatures of a high-Mg# andesite, such as is the case for the orthopyroxenite glass, indicate a boninitic affinity (Figures 6, 7, Supplementary Table S1; Le Bas, 2000). From the absence of cpx and the late-stage appearance of amphibole along the liquid line of descent, the results of experimental studies suggest that a spinel harzburgite mantle source can be envisaged for the vein-forming original melt (Umino and Kushiro, 1989; Klingenberg and Kushiro, 1996; Falloon and Danyushevsky, 2000; Parman and Grove, 2004).

The ability of an original melt to form low-Ti, high-Mg# andesite derivatives after a crystallization sequence dominated by opx can be further evaluated using the forward melt differentiation models in Bénard et al. (2018a). These authors used pMELTS software (Ghiorso et al., 2002) to model partial melting of spinel harzburgite sources at 1–1.5 GPa, 1,340–1,480°C, ΔlogfO2[FMQ] = 0, and containing moderate, bulk H2O abundances (0.01–0.1 wt%). The results were found to be consistent with spinel harzburgite melting reactions from experimental studies (Parman and Grove, 2004), with modeled melting degrees (F) ranging mostly between 0.5 and 10%. The primary melts derived from spinel harzburgite melting models at 1,360°C were then used by Bénard et al. (2018a) to calculate the liquid lines of descent down to 1,000°C (opx + cpx ± olivine ± spinel fractionation) at 0.5–1 GPa. Here, we use the same models and further adapt them for discussing volatile evolution in the parental melts of orthopyroxenite veins (Figures 6, 8, 9).

The modeled liquid lines of descent at 1 GPa generally match closely the composition of the high-Mg# andesite glass in the orthopyroxenite vein. They differ in several compositional parameters because the models predict cpx saturation at ∼1,200°C for 0.01–0.05 wt% H2O in the source, and do not consider any amphibole solid solution model (Figure 6). Consequently, the vein glass appears too low in CaO (by ∼2 wt%; Figure 6C) for a given degree of crystallization, most likely because of the effects of late-stage amphibole fractionation. However, ∼2 wt% CaO induce only minor shifts in the other elements’ contents during normalization, with ∼1 wt% in SiO2, ∼0.4 wt% in Al2O3, 0.01–0.08 wt% in FeOt, MgO, Na2O, and K2O, and 0.001–0.007 wt% in TiO2, Cr2O3, MnO, NiO, and P2O5. Nevertheless, a consequence is that the comparison of CaO contents in the vein glass with those predicted by the models cannot be used to infer melt temperatures (Figure 6C). From the decreasing CaO with increasing SiO2 contents in the vein glass; however, it can be deduced that the influence of amphibole fractionation seems to be crucial to form the rare high-Mg# dacite compositions identified for some of the vein MIs (Figure 6C). Overall, it appears that at least 50–60% crystallization of opx ± olivine ± spinel (cpx-in conditions; Figure 6B) is required to form the glass compositions found in the veins, when starting from an original melt derived from spinel harzburgite sources. These original melts can be designated as low-Ca or high-Si boninites, depending on the choice of classification (e.g., Crawford et al., 1989; Pearce and Reagan, 2019).

The pronounced zoning in lithophile trace elements in vein opx can hardly be reconciled with 50–60% crystallization, which we relate instead to boundary layer effects during fast crystal growth (Figure 7). A key physicochemical parameter of silicate melts controlling the production of such enrichment fronts is viscosity, which is inversely correlated with REE and HFSE diffusivities (e.g., Mungall, 2002 and references therein). Calculations by Bénard et al. (2018a) have shown that their modeled primary melts derived from spinel harzburgite originally have viscosities ranging between −0.2 and 0.7 log Pa⋅s, which are positively correlated with falling temperatures, as well as decreasing MgO and increasing H2O contents in the melts (i.e., lower meting degrees). In addition to the moderately to highly incompatible nature of REE and HFSE in opx (e.g., Bédard, 2007), further increase in melt viscosity throughout the liquid line of descent will be crucial to produce enrichment fronts in response to high undercooling degrees (Figure 6; Watson and Müller, 2009). It can be anticipated, therefore, that these enrichment processes will occur for any incompatible element or compound in opx, such as volatiles. As such, differentiation models can also be used, assuming a fluid-undersaturation state, to evaluate the volatile compositions of the original vein-forming melts and their spinel harzburgite sources. The analyses of H2O, F, Cl, and S in the MIs, in particular, provide reliable estimates of the maximum concentrations in melts which have suffered minimal volatile loss (Figures 8, 9).

The average H2O, F, and Cl contents in high-Mg# andesite MIs, which appear to be the least affected by saturation (H2O and Cl correlate with SiO2; Figure 8 and Supplementary Table S1) or devolatilization, are 5.1 ± 0.9 wt%, 260 ± 36 ppm, and 1,012 ± 62 ppm, respectively. The case of S is treated separately, since the formation of S-bearing fluids in many of the MIs appears to have altered the abundances of this element to much greater extents than for other volatiles (Figure 9 and Supplementary Figure S10). Assuming partial melting at 1 GPa and 1,360°C from a spinel harzburgite source, the crystallization degrees inferred from the differentiation models suggest that the original vein melt contained less than ca. 2–2.5 wt% H2O and ∼400 ppm Cl (Figure 8). Note that all volatiles are considered here as purely incompatible, in line with the low partition coefficients for H2O and Cl in equilibrium experiments between Al-poor opx and melt (∼10−3; Dobson et al., 1995; Hauri et al., 2006; Dalou et al., 2014; Bénard et al., 2017a; Urann et al., 2017). The volatile estimates for the original, vein-forming melts translate into 0.01–0.05 wt% H2O and ca. 2–8 ppm Cl in their spinel harzburgite sources (i.e., F = 0.4–2% at 1 GPa and 1,360°C; Bénard et al., 2018a).

Comparison With Earlier Studies of Kamchatka and West Bismarck Orthopyroxenite Veins and Some Alternative Processes for Their Formation

All the petrological and geochemical features implicating an original vein-forming melt derived from spinel harzburgite sources proposed here can also be found in the glass-free veins from Kamchatka (Bénard and Ionov, 2012, 2013) and the glass-bearing veins from West Bismarck (Bénard et al., 2018a). However, small differences do exist from one setting to another, which are either related to changes in the melt extraction rates from the conduit or in the thermobarometric conditions imposed when intruding the sub-arc mantle lithosphere.

The glass-free nature of the veins from Kamchatka in Bénard and Ionov (2012, 2013) indicates that the residual melts left after opx fractionation must have been efficiently expelled from the sampled conduit. This interpretation is consistent with the Mg# range of opx in the glass-free veins, which are typically limited to 0.89–0.92, while CaO contents can extend to elevated levels, as in the rims of the vein opx in this study (Figure 4). Because of high undercooling degrees, high-Mg# opx rapidly filled an open crack (hydraulic fracturing), and a high-Mg# andesite residual liquid, akin to that of the vein in this study, was expelled from the intergranular spaces in the sampled channel section. As such, the glass-free veins from Kamchatka can be interpreted as primitive crystal cumulates formed by parental melts derived from spinel harzburgite sources. This interpretation is also in line with the fact that the opx rims and the amphibole in these glass-free veins are less enriched in incompatible, lithophile trace elements than those in this study (Figure 7); mineral equilibration with a fractionating high-Mg# andesite melt residing in the conduit was more limited in the glass-free veins. In contrast, the F contents of amphibole in the glass-free veins are ca. 10–60 times higher than in this study (Figure 5), which could either result from variable F compositions of the spinel harzburgite sources and/or fluid-undersaturated conditions in the glass-free veins (see the following).

In both Kamchatka and West Bismarck, glass-bearing orthopyroxenites, the quenched phase is concentrated in the central part of the vein (Figure 7). This suggests that this central part was relatively insulated (i.e., thermally and/or chemically) when compared with the fringes, which allowed the preservation of a residual melt after in situ differentiation. The West Bismarck interstitial glass ranges compositionally from high-Mg# andesite to dacite (Figure 6). The higher amounts of dacite glass in the West Bismarck setting can be explained by the lower equilibration temperatures of the sub-arc mantle lithosphere in this region than in Kamchatka (down to 650–700°C; Bénard et al., 2017b; Tollan et al., 2017; Bénard et al., 2018b). Mineral–glass equilibration temperatures in West Bismarck veins are similar to those in this study (1,114 ± 17°C), which indicates higher undercooling in the West Bismarck setting (≥300°C). The latter point is consistent with some of the specific textural features of West Bismarck veins, including skeletal and acicular shapes of pyroxenes or more frequent, oscillatory zoning patterns, which are expected at the highest undercooling degrees (L’Heureux and Fowler, 1996; Shea and Hammer, 2013). Other compositional differences exist between Kamchatka and West Bismarck vein glass, including higher lithophile trace element contents in this study (Figure 7). This appears to be mainly related to the absence of cpx formed from ∼1,200°C along the liquid line of descent, since this phase tends to efficiently sequester some of the trace elements, such as HREEs, with temperatures decreasing below ∼1,100°C (e.g., Wood and Blundy, 1997; Bénard et al., 2018a). Otherwise, the interstitial glasses in Kamchatka and West Bismarck veins are compositionally close, which includes the volatile contents left after fluid and sulfide saturation (Figures 8, 9).

Our inferences are at odds with earlier interpretations of Kamchatka glass-free orthopyroxenite veins as the direct products of the interaction of the sub-arc mantle lithosphere with a slab-derived liquid (reactions at 800–1,000°C with either a silicate melt or a fluid; Ishimaru et al., 2007; Ishimaru and Arai, 2008; Grant et al., 2016). In particular, the new combination of opx and glass data documents the high-temperature history of the veins, where melts derived from a refractory and depleted mantle intrude a relatively “cold” sub-arc lithosphere at >>1,100°C. Analyses of the first vein MIs further suggest a limited influence of a volatile-rich, slab-derived component in the spinel harzburgite sources. The inferred low H2O and Cl contents in such sources, in particular, do not exceed the typical budget of poorly metasomatized spinel harzburgite xenoliths from Kamchatka, which contain up to ∼1 wt% amphibole (Ionov, 2010; Soustelle et al., 2010; Bénard et al., 2017a).

An alternative explanation of our findings could be related to the decompression melting of amphibole disseminated in the spinel harzburgite xenoliths during their transport to the surface (e.g., Bénard et al., 2021). At first glance, the SiO2-rich and high-Mg# nature of the liquids and minerals (opx and cpx; Bénard et al., 2021) produced during incongruent melting of amphibole could be compared to the orthopyroxenite vein assemblages. However, the low cpx and amphibole contents of the veins, together with the relatively CaO- and Cr2O3-poor compositions of their opx, are both inconsistent with an amphibole melting process (Supplementary Figure S11). Instead, these compositions require the dominant contribution of opx melting in spinel harzburgite sources to produce the MgO-rich vein original melts. This preferred interpretation is further substantiated by sulfide analyses, which are provided in the second article of this two-part study.

Lithophile Trace Element and Volatile Partition Coefficients

Equilibrium exchange and partition coefficients calculated using grain rims in this study are generally consistent with literature data (Figures 68). A deviation from experimental results is, however, the KD(Fe-Mg)amphibole–melt, which appears lower in the orthopyroxenite vein than in literature datasets for andesite to rhyolite melts (Figure 6E; Klein et al., 1997; Nandedkar et al., 2016). Since H2O contents measured in the experiments of Nandedkar et al. (2016) (9–13 wt%) are much higher than in the vein interstitial glass (∼1 wt%), it is possible that the deviation in KD(Fe-Mg)amphibole–melt results from the effects of variable volatile contents in the melt phase. A positive relationship between H2O contents and KD(Fe–Mg) has notably been found in opx-melt equilibration experiments (Waters and Lange, 2017).

In the case of lithophile trace elements, good fits are observed between the orthopyroxenite vein data and those in Bédard (2007) and Nandedkar et al. (2016), respectively, for opx-melt and amphibole–melt experiments (Figures 7E,F). This suggests that kinetic disequilibrium during the second-phase undercooling process of the glass-forming, high-Mg# andesite melt played a minor role. However, the second-phase cooling rate was insufficiently slow for the most incompatible trace elements (e.g., LREEs and LILE in amphibole; Figure 7F and Supplementary Table S1) to attain equilibrium partitioning. The temperature effect on the amphibole–melt partition coefficients is prominent, which has been interpreted as imposed by the structure of the silicate melt (increasing polymerization degree; Figure 7F; Nandedkar et al., 2016). A comparison of the latter experiments with those of Brenan et al. (1995) and Klein et al. (1997) suggests that this temperature effect is considerably more pronounced than the influence of pressure on a 0.7–1.5 GPa range, which allows the use of amphibole–melt partition coefficient as a geothermometer. A temperature of ∼1,000°C is the most appropriate for the formation of euhedral amphibole in the orthopyroxenite vein (Figure 7F). This indicates that the formation of hydrothermal fluids from the high-Mg# andesite, residual melt in the vein also occurred at relatively high temperatures; vapor saturation from a similar silicate melt was also inferred to proceed at 950–1,010°C in the experiments of Nandedkar et al. (2016) at 0.7 GPa.

The partition coefficients for F and Cl between amphibole and melt generally agree with experimental data for calcic amphibole and K-richterite (Edgar and Pizzolato, 1995; Hauri et al., 2006; Dalou et al., 2014; Van den Bleeken and Koga, 2015; Flemetakis et al., 2021). The general tendency of F being compatible (or slightly incompatible) and Cl being incompatible in amphibole is thus confirmed (Van den Bleeken and Koga, 2015; Bénard et al., 2017a). This tendency is notably more pronounced for calcic amphibole equilibrated with low-H2O andesite (∼0.2 wt%) in sub-arc mantle peridotites reported by Bénard et al. (2017a), where F was found to be compatible (partition coefficients up to ∼3.6) and Cl highly incompatible in amphibole (partition coefficients down to 0.03–0.05). Both the Al/(Si + Al) and H2O contents of the silicate melt have already been demonstrated to affect F and Cl solubility in contrasting ways (Dalou et al., 2015; Dalou and Mysen, 2015), notably resulting in a decrease in F partition coefficients and an increase in those of Cl for pyroxenes in more hydrous compositions (Dalou et al., 2014). Assuming similar pressure and temperature (P–T) conditions, and given the close Al/(Si + Al) in all the investigated andesite glass, an effect of H2O on amphibole–melt partitioning would also explain the slight differences between the measurements in this study and those in Bénard et al. (2017a). Further experimental investigations are required, however, to confirm that such a mechanism exists for the partitioning of halogens between amphibole and melt.

Fluid Saturation and Hydrothermal Sulfide Formation in Melts Derived From Spinel Harzburgite Sources

The loss of volatiles from the residual melt to a hydrothermal fluid phase is evidenced by the presence of curvilinear vugs (former bubbles) and decreases in H2O, F, Cl, and S concentrations in the glass of both Kamchatka and West Bismarck veins (Figures 1, 3, 5, 810, Supplementary Figures S3, S5–S10; Bénard et al., 2018a). Saturation in a hydrothermal phase likely started in situ (i.e., during isobaric cooling upon melt emplacement) and from temperatures at least as high as ∼1,000°C since amphibole F and Cl compositions reflect fluid-saturated conditions (Figures 5, 7). The halogen-rich nature of the hydrothermal fluids is further indicated by the presence of Cl-rich amphibole (5,000–6,000 ppm; Supplementary Table S1) growing from the border of the vugs toward their cores (i.e., heterogeneous nucleation of a hydrothermal mineral; Supplementary Figure S9). In the West Bismarck case, these vugs are frequently accompanied by sulfide-rich vesicles (Bénard et al., 2018a).

The H2O solubility limits of haploandesite melts at 0.8–1 GPa range from 6–9 wt% at 1,100°C to 7–10 wt% at 1,000°C (Mysen and Wheeler, 2000), which are very close to the uppermost abundance levels of the vein MIs (up to 6–7 wt% H2O in high-Mg# andesite and up to 7–10 wt% H2O in high-Mg# dacite; Figure 10A and Supplementary Table S1). However, most of the high-Mg# andesite MIs show a weak positive correlation between H2O, Cl, and SiO2 contents and contain lower H2O concentrations on average (5.1 ± 0.9 wt%; Figures 8, 10A). This suggests that the original melts were H2O-undersaturated. It appears, therefore, that crystallization led to isobaric fluid saturation in some of the residual melts formed in the vein at sub-arc mantle depths. Shortly after saturation, devolatilization must have occurred during the ascent of the xenoliths and the vein-trapped, undercooled melts to the surface. This is suggested by the final, low H2O contents in the interstitial glass (Figures 8, 10A), consistent with the strong positive relationship between pressure and H2O solubility in haploandesite melt (Mysen and Wheeler, 2000).

FIGURE 10
www.frontiersin.org

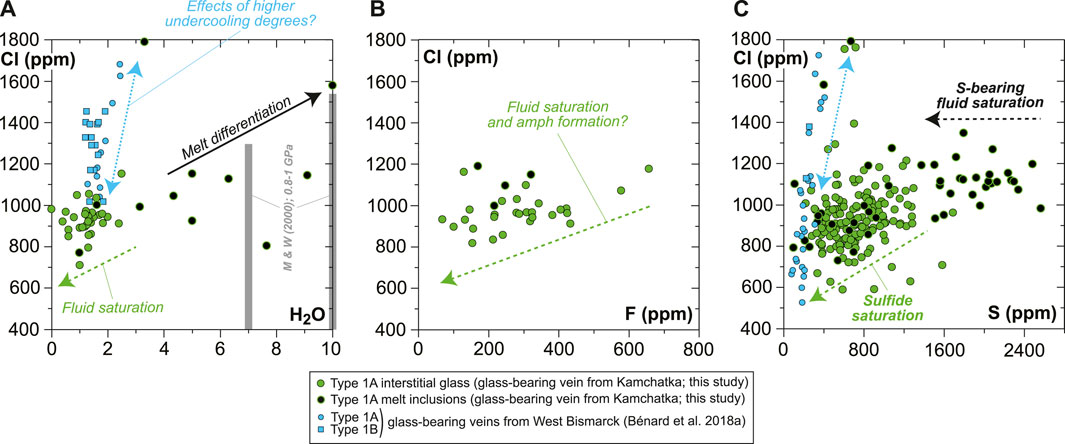

FIGURE 10. Plots showing the volatile (H2O, F, Cl, and S) compositional relationships for the MIs and interstitial glass in the new Kamchatka vein in this study (normalized on an anhydrous basis). (A,C) Average data acquired using a sample current of 20 nA and (B) average data acquired using a sample current of 40 nA (Supplementary Table S1). Also shown in (A) are literature data for H2O solubility limits in haploandesite melts at 0.8–1 GPa (two gray bars for 1,000°C and 1,100°C; Mysen and Wheeler, 2000).

In contrast with H2O concentrations, the abundances of Cl in both the interstitial glass and MIs are far below the solubility limits of this element in hydrous andesite at high pressure (e.g., Webster et al., 1999). However, Cl abundances decrease progressively with increasing SiO2 contents of the interstitial glass, from the onset of H2O-rich fluid saturation in high-Mg# andesite attaining ∼7 wt% H2O (Figure 8). This progressive trend is at odds, for instance, with the sharp decline in S concentrations (Figure 9), and most likely reflects a structural control on Cl solubility at saturation in a H2O-rich fluid (e.g., decreasing (Al + Na + Ca + Mg)/Si of the silicate melt; Webster, 1997a, 1997b; Webster et al., 1999). The F budget might have been affected by fluid exsolution as well, since F is poorly correlated with Cl in the interstitial glass (Figure 10B and Supplementary Table S1). However, the extent of this process is uncertain for the case of F. The near-compatible nature of F in amphibole might have also contributed to the observed correlation with Cl.

Variable S abundances characterize some of the sulfide-free MIs, with a typical decrease from ∼2,600 ppm to ∼1,400 ppm toward vugs (formerly bubbles), corresponding to the upper abundances in the interstitial glass (Figures 9, 10C, Supplementary Figure S10). The drop of S in MIs likely results from the efficient partitioning of S from the low-FeOt andesite melt into a (H2O, Cl)-rich hydrothermal phase at fluid saturation (e.g., Zajacz et al., 2012). Diffusion of some of the major elements, such as Fe (Zajacz et al., 2012; Venugopal et al., 2020), from the melt into the hydrothermal phase can also occur at high temperatures, which must have led to the formation of vug-hosted sulfides in some of the MIs and low S contents in their glass (Figure 9 and Supplementary Figure S10). If sulfide globules of clear magmatic origin can be found as inclusions in vein opx, or in the coexisting, interstitial glass (Figures 1, 9, Supplementary Figures S3, S5–S10; Bénard et al., 2018a), hydrothermal sulfides must have also resided at the edges of many fluid-derived vugs, where they are now found as Fe oxyhydroxide coatings (Figure 9 and Supplementary Figure S9). Oxyhydration of sulfides to form goethite, for instance, is common when deuteric alteration occurs (e.g., Lorand, 1990). The formation of hydrothermal sulfides is also consistent with the presence of sulfide-rich vesicles in the interstitial glass of the West Bismarck veins (Supplementary Table S1; Bénard et al., 2018a). The most likely explanation is, therefore, that these widespread hydrothermal sulfides were produced in a process of S solubilization from the vein parental melts into high-temperature fluids (Figure 9), shortly after or concurrently with the onset of magmatic sulfide formation (i.e., from ∼1,100°C at ∼1 GPa; Zhang and Hirschmann, 2016).

Redox-Induced Formation of Magmatic Sulfides in Melts Derived From Spinel Harzburgite Sources

While MI data trace the role of a (H2O, Cl)-rich, S-bearing fluid in the formation of hydrothermal sulfides, further evolution of S abundances from ∼1,400 ppm down to 200–300 ppm in the interstitial glass and some MIs may be related to the precipitation of abundant magmatic sulfides from ∼1,100°C down to ≤850°C (Figure 9; Craig and Kullerud, 1969; Kullerud et al., 1969; Fleet et al., 1993; Fleet and Pan, 1994; Zhang and Hirschmann, 2016). Calculations of the sulfur content at sulfide/sulfate saturation (SCSS) with the recent parameterization of Smythe et al. (2017), considering the major element compositions from the differentiation models of Bénard et al. (2018a), show that 200–300 ppm can be expected in a high-Mg# andesite melt at sulfide saturation, 0.2–0.5 GPa and 1,000–1,100°C (Figure 9). These values are consistent with the high-pressure experimental results of Botcharnikov et al. (2011), but only for redox conditions in a range of -1≤ΔlogfO2[FMQ]≤0 (Figures 9, 11A). However, elevated S contents in the volatile-rich vein MIs in this study (1,400–2,600 ppm; Figure 9) are at odds with the predictions from S2- capacity models for a high-Mg# andesite melt equilibrated at ΔlogfO2[FMQ]≤0 (e.g., up to ∼1,400 ppm at 1 bar and 1,400°C in the Cape Vogel andesite; O’Neill and Mavrogenes, 2002). The new observations in this study, therefore, can only be reconciled if fO2 variations occurred during the formation of the orthopyroxenite veins.

FIGURE 11
www.frontiersin.org

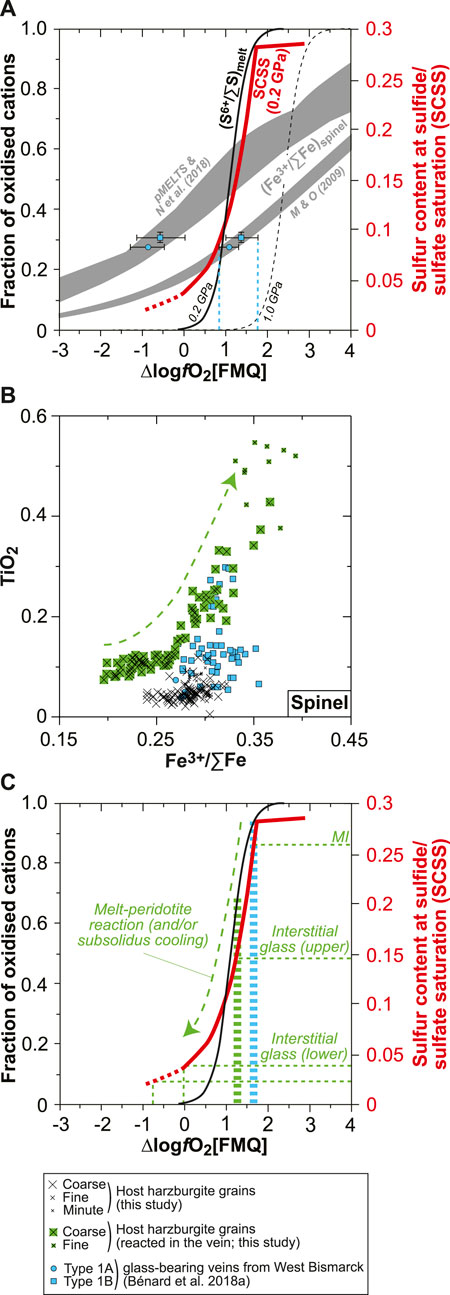

FIGURE 11. Constraints on redox conditions and S6+–Fe2+ redox exchange during melt-rock reaction for the new Kamchatka vein in this study. (A) Plot of SCSS and fractions of oxidized cations against ∆logfO2[FMQ] for S6+/∑S in silicate melts (S6+/∑Smelt; black curves) and Fe3+/∑Fe in spinel (Fe3+/∑Fespinel; gray fields). The S6+/∑Smelt curves are derived from experiments at 0.2 GPa (solid curve; Jugo et al., 2010; Klimm et al., 2012) and 1.0 GPa (dashed curve; Matjuschkin et al., 2016). The Fe3+/∑Fespinel values were calculated by Bénard et al. (2018a) using experimental Fe3+ and Fe2+ partition coefficients from Mallmann and O’Neill (2009), and pMELTS and SPINMELT-2.0 (Nikolaev et al., 2018). In both cases, Fe3+/∑Femelt was estimated with the model of Kress and Carmichael (1991), using the melt major element compositions calculated with pMELTS for spinel harzburgite melting at 1 GPa, 1,360°C, and with 0.01 wt% and 0.05 wt% H2O (Bénard et al., 2018a). Also shown are experimental SCSS values for an andesite melt at 0.2 GPa (red curve; Botcharnikov et al., 2011). These data are compared with the calculated Fe3+/∑Fespinel for magmatic grains in West Bismarck orthopyroxenite veins and the corresponding theoretical fO2 conditions (blue symbols and dashed lines; Figures 2C–F; Bénard et al., 2018a). See text for details. (B) Plot of TiO2 contents (in wt%) against calculated Fe3+/∑Fe in spinel. (C) Same plot as in (A) but showing representative S abundances measured in the MIs and interstitial glass of the new Kamchatka vein in this study and the corresponding, theoretical fO2 conditions (dashed green lines). Also shown are fO2 conditions inferred from magmatic spinel grains in West Bismarck orthopyroxenite veins (dashed blue bar; Bénard et al., 2018a) and from the host spinel harzburgite in this study (dashed green bar; see text for details).

It is well known that the S solubility in silicate melts of various compositions is positively correlated with fO2, as a result of the S2- to S6+ transition (e.g., Jugo et al., 2010; Botcharnikov et al., 2011; Klimm et al., 2012). In andesite melts, SCSS increases sharply from ∼250 to ∼2,750 ppm at 0.2 GPa, 1,050°C, and for ΔlogfO2[FMQ] ranging from −1 to +2 (Figure 11A; Botcharnikov et al., 2011). Even though the relationships between SCSS or (S6+/∑S)melt (where ∑S=S2- + S6+) and fO2 could be modified at higher pressure conditions (Figure 11A; Mavrogenes and O’Neill, 1999; Moretti and Baker, 2008; Matjuschkin et al., 2016), these solubility values roughly correspond to the range of S abundances measured in the vein glasses in this study and in Bénard et al. (2018a) (Figure 9). On top of the constraints from SCSS, EPMA analyses of spinel in West Bismarck veins are sufficiently precise to derive their Fe3+/∑Fe (where ∑Fe=Fe2+ + Fe3+) by stoichiometric calculations. In the light of the contrasting origin of spinel in the orthopyroxenite veins outlined in this study (as shown later), we select the (Fe3+/∑Fe)spinel from grains of demonstrated magmatic origin (i.e., Cr#≥0.75; Figure 2) in the West Bismarck database to plot them in Figure 11A. Different Fe3+–Fe2+ distribution models between spinel and melt provide contrasting results, using either thermodynamic modeling (Ghiorso et al., 2002; Nikolaev et al., 2018) or experimental partitioning coefficients (Mallmann and O’Neill, 2009). However, the second approach was already compared successfully with oxybarometry calculations (Bénard et al., 2018c) and provides an estimate of +1≤ΔlogfO2[FMQ]≤+1.5 from the vein Fe3+/∑Fespinel (Figure 11A). Both SCSS and Fe3+/∑Fespinel data, therefore, suggest that the orthopyroxenite parental melts were originally equilibrated at ΔlogfO2[FMQ]∼+1.5 (Figure 11A).

There are several pieces of evidence for the involvement of a melt-rock reaction process during the emplacement of the vein parental melts in this study. These notably include profiles in the neighboring host harzburgite olivine or the presence of olivine and spinel relics from the host directly inside the vein (Figures 2, 5, Supplementary Figures S3, S7). In the case of spinel relics, amphibole formation from these grains suggests that they have been partially consumed and re-equilibrated with the percolating melt through a peritectic reaction, as traced by grain-scale profiles and the continuous evolution of their compositions from the host harzburgite to within the vein (Figure 2 and Supplementary Figure S7). Using stoichiometric calculations for the whole spinel relic dataset, it emerges that this melt-rock reaction process is also reflected in their Fe3+/∑Fe, with a positive correlation between this parameter from ∼0.25 to ∼0.35 and TiO2 contents (Figure 11B). The oxidizing effect of the percolating melt can be even traced in the neighboring host harzburgite, which records +1≤ΔlogfO2[FMQ]≤+1.2 calculated with the oxybarometers of Wood et al. (1990) and Ballhaus et al. (1991) at 1 GPa and using the olivine–spinel equilibration temperatures (Figure 11C). The abundant, fine-grained spinel formed in the host harzburgite opx pseudomorphs can be further interpreted as a petrographic signature of this oxidation process (Supplementary Figure S2).

Taken collectively, the observations and calculations mentioned before can be reconciled in a model where the vein parental melts were originally oxidized at ΔlogfO2[FMQ]∼+1.5 and contained ∼2,600 ppm of S, mostly dissolved as S6+ (MI data; Figure 11C). The whole range in S abundances in the vein glasses, therefore, not only records the formation of hydrothermal fluids but also a melt-rock reaction process where S6+ was locally reduced to S2- through a redox reaction with Fe2+-bearing mantle minerals (interstitial glass data; Figure 11C). This suggests that the original vein melt was undersaturated in H2O, F, Cl, and sulfide when intruding the sub-arc mantle. Given that sulfide starts crystallizing from ∼1,100°C at ∼1 GPa (e.g., Zhang and Hirschmann, 2016), saturation of the silicate melt with a sulfide liquid is the volatile exsolution process that occurred at the highest temperatures in the veins at sub-arc mantle depths (formation of a Fe-Ni-Cu-S-O “matte” precursor to sulfide minerals; e.g., Fonseca et al., 2008). The presence of some magmatic sulfide globules found as inclusions in high-Mg# opx cores indeed suggests that saturation in a sulfide liquid occurred during the first-phase undercooling process (Figures 1, 9, Supplementary Figures S3, S5–S10). This means that redox reactions with the host harzburgite were initiated just upon the intrusion of the original melt in the sub-arc mantle.

The combination of S6+–Fe2+ redox exchange during melt-rock reaction and S capture in (H2O, Cl)-rich hydrothermal fluids is key to trigger the formation of abundant sulfides in melts derived from spinel harzburgite sources. During such a process at ≥0.2 GPa, up to 85% of the original S content in melts is locally precipitated as magmatic and hydrothermal sulfides (Figure 9). This appears to be primarily facilitated by the relatively low FeOt contents of the derived high-Mg# andesite melts, which lower SCSS and favor the partitioning of S2- into hydrothermal fluids (e.g., Zajacz et al., 2012; Smythe et al., 2017).

Conclusions

We report a detailed petrological and geochemical study of a sulfide- and glass-bearing orthopyroxenite vein transecting a mantle-derived spinel harzburgite xenolith from the Kamchatka arc. The primary conclusions of this study are as follows:

i) The glass formed by quenching of residual liquids left after the crystallization of abundant opx (strongly zoned enstatite), amphibole (magnesio-hornblende), and minor olivine (forsterite) and spinel (chromite). The interstitial glass has a low-Ti (≤0.4 wt% TiO2) and high-Mg# (0.4–0.6) andesite composition.

ii) The interstitial glass has a wide range of H2O (0–2 wt%) and S (200–1,400 ppm) contents, whereas F (100–400 ppm) and Cl (800–1,200 ppm) are generally less variable, as in coexisting amphibole (200–400 ppm F and 100–150 ppm Cl). Trace element partition coefficients, including those for halogens between amphibole and melt, are calculated using the compositions of interstitial glass and coexisting minerals. Despite having a similar andesitic composition, most of the opx-hosted melt inclusions contain much more H2O (4–7 wt%) and S (up to ∼2,600 ppm) than the interstitial glass.

iii) As previously deduced for glass-free veins from Kamchatka and glass-bearing veins from the West Bismarck arc, the orthopyroxenite in this study formed by cooling of parental melts (low-Ca boninite; LCB), which were originally produced by low-degree (≤5%), second-stage melting of spinel harzburgite at ≥1,360°C and ≤1.5 GPa. Using the new volatile data, we further infer that this harzburgite source cannot have contained significantly more than 0.01–0.05 wt% H2O and a few ppm of halogens.

iv) Petrological and sulfur solubility models, thermo-barometric calculations, and partitioning data indicate that the original vein-forming LCB melt intruded the sub-arc mantle lithosphere at ≥1,300°C, where it partially crystallized (50–60%; opx + amphibole ± olivine ± spinel fractionation) to form high-Mg# andesitic derivative liquids at ca. 1,050–1,100°C. The original vein-forming melt was relatively oxidized, recording oxygen fugacity conditions ∼1.5 log units above the fayalite–magnetite–quartz oxygen buffer.

v) Redox exchange between S6+ in the original melt and Fe2+ in the host mantle minerals, together with saturation in a S-bearing, (H2O, Cl)-rich hydrothermal fluid during cooling, concurrently led to the formation of abundant sulfides in the orthopyroxenite. During this process, up to 85% of the original melt S content (∼2,600 ppm) was locally precipitated as magmatic and hydrothermal sulfides. As such, melts derived from spinel harzburgite sources can concentrate chalcophile and highly siderophile metals in orthopyroxenite dykes and sills.

Data Availability Statement

The original contributions presented in the study are included in the article/Supplementary Material, further inquiries can be directed to the corresponding author.

Author Contributions

AB acquired and treated the whole dataset in this study, except for Raman micro-spectroscopic data, which were acquired and treated by CL. AB wrote the manuscript with later contributions from all the co-authors.

Funding

This work was supported by the Australian Research Council (DE120100513 to ON and DP120104240 to RA and ON) at ANU. AB received funding from the European Union's Horizon 2020 research and innovation program under the Marie Sklodowska-Curie grant agreement 844795 at UNIL. CL received support from a Chaire d’Excellence IDEX19C627X/FD070/D110 from the ANR IdEX Université de Paris 18-IDEX-0001. R Rapp and JW Park provided assistance, respectively, with EPMA and LA-ICPMS analyses at ANU. C De Meyer and A Demers-Roberge provided assistance with SEM analyses at UNIL.

Conflict of Interest

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

Publisher’s Note

All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors, and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.

Supplementary Material

The Supplementary Material for this article can be found online at: https://www.frontiersin.org/articles/10.3389/feart.2022.867979/full#supplementary-material

Supplementary Figure S1 | Chart records of counts on F (dark gray) and Cl (gray) peaks against time for glass halogen analyses (EPMA) using a focused beam and a defocused beam of 20 µm (indicated in the bottom left corner). Note that none of these beam conditions lead to a decrease of either F or Cl counts with time, while count variability is reduced when using a defocused beam.

Supplementary Figure S2 | Photomicrograph in transmitted light of the new Kamchatka sample in this study and BSE images (EPMA), showing textural features of the spinel harzburgite part (host) of this composite sample. Top: coarse- and fine-grained spinel and coarse-grained olivine; scale bar is 100 µm. Middle: cpx- and amphibole-bearing, fine-grained opx pseudomorphs; scale bar is 100 µm. Bottom: minute spinel inclusions in fine-grained opx pseudomorphs; all scale bars are 100 µm, except for BSE image insets, which are 1 or 10 µm. Note the absence of glass in the host spinel harzburgite.

Supplementary Figure S3 | Olivine major element compositions (in wt% for oxides) analyzed in different parts of the new Kamchatka sample in this study. Top: major element maps (EPMA) of the Type 1A vein rim; elements mapped are indicated in the top left corner and scale bar is 500 µm. Top middle: photomicrograph in transmitted light, BSE images (EPMA), and profiles for olivine from the spinel harzburgite part (host); scale bar is 100 µm. Bottom middle: BSE images (EPMA) and profiles for olivine against the Type 1A vein rim; scale bar is 100 µm. Bottom: BSE images (EPMA) and profiles for olivine from a host spinel harzburgite fragment in the Type 1A vein; scale bars are all 100 µm, except for BSE image insets, which are 10 or 100 µm. Note the limited amount of glass in the vein rims, contrasting with the presence of abundant sulfides.

Supplementary Figure S4 | Pyroxene major element compositions (in wt% for oxides) analyzed in different parts of the new Kamchatka sample in this study. Top: photomicrograph in transmitted light, BSE images (EPMA), and profiles for fine-grained opx pseudomorphs from the spinel harzburgite part (host); scale bar is 100 µm. Middle: opx major element compositions, including a comparison of the Type 1A vein and host spinel harzburgite parts of the new sample with literature data. Bottom: cpx major element compositions, including a comparison of the host spinel harzburgite part of the new sample with literature data.

Supplementary Figure S5 | Photomicrograph in transmitted light and BSE images (EPMA) showing the rim (left) and central part (right) textural features of the Type 1A vein cutting the new Kamchatka sample in this study. Scale bar is 100 µm. Note that opx grain size and glass abundance increase from the rim to the central part of the vein.

Supplementary Figure S6 | BSE images (EPMA) and rim-to-rim profiles (in wt% for oxides) for opx grains from the Type 1A vein cutting the new Kamchatka sample in this study. All scale bars are 100 µm, except for profile Z8_1, which is 10 µm. Note that opx core composition can evolve from primitive (Mg#>0.9) to slightly more evolved (Mg#<0.9), in concert with other elements, while Cr2O3 reverse zoning sometimes occurs in the most primitive grains.

Supplementary Figure S7 | BSE images, major element maps (all acquired using EPMA), and profiles (in wt% for oxides) for anhedral (i.e., replacing coarse spinel from the host harzburgite) amphibole grains from the new Kamchatka vein in this study. Top: BSE images with variable contrast; scale bar is 100 µm. Middle: major element maps; elements mapped are indicated in the top left corner and scale bar is 500 µm. Bottom middle: BSE images and profiles; scale bar is 100 µm. Note variations in Mg#, Cr#, and MnO and NiO contents in reacted spinel relics (originally coarse grains from the host harzburgite), which are traced by the combination of major element maps and profiles.

Supplementary Figure S8 | BSE images (EPMA) and profiles (in wt% for oxides) for euhedral amphibole grains from the new Kamchatka vein in this study. Scale bar is 100 µm. Note the small variations in Cr# in euhedral amphibole grains when compared with the anhedral ones (i.e., replacing coarse spinel from the host harzburgite; dashed lines), while sometimes Mg# slightly decreases from core-to-rim in the former type.

Supplementary Figure S9 | BSE images (SEM) and related, representative EDS spectra for the new Kamchatka vein in this study. Top: chromite inclusions in vein opx. Orange peaks in the related EDS spectra (yellow) are fits to the V and Zn Ka and Kb emission lines. Second from top: sulfide alteration products coating a vug in interstial glass (Figure 9b), which also contains a cluster of sulfide micro-grains. Using EDS analysis, this alteration material is identified as Fe oxyhydroxide. Third from top: cluster of sulfide micro-grains shown above, which is partially located beneath the surface of the interstitial glass. Note the slight S KaKb peak in the related EDS spectra. Fourth from top: a sulfide globule included in vein opx, which has been entirely altered into Fe oxyhydroxide. Fifth from top: a MI included in vein opx and containing daughter micro-crystals. As seen in the related EDS spectra, a slight increase in the Ca Ka peak’s intensity occurs when moving the beam from the MI’s glass to its daughter crystals, allowing these latter to be identified as amphibole. Bottom: a vug in interstitial glass containing not only the common altered sulfide coating but also amphibole micro-crystals at its edges. As seen in the related EDS spectrum, a clear bump is related to the Cl Ka peak, whereas this is not the case for the F Ka peak, which is overlapped by the Fe L emission lines.

Supplementary Figure S10 | BSE images (EPMA) showing local variations in S abundances (in green) in MIs from the new Kamchatka vein in this study, some of which contain sulfides. Note that, as shown in Figure 9, S abundances in the glass of sulfide-free MIs frequently decrease toward vugs.

Supplementary Figure S11 | Pyroxene major element compositions (in wt%) for the new Kamchatka sample in this study, compared with data for amphibole incongruent melting relics and products in spinel harzburgite matrix (yellow dots; Bénard et al. 2021).
