Fracture Characteristics and its Role in Bedrock Reservoirs in the Kunbei Fault Terrace Belt of Qaidam Basin, China

Fracture characteristics at bedrock reservoirs in the Kunbei fault terrace belt in the southwest of Qaidam Basin, China, are investigated based on cores, thin sections, formation microscanner imaging, and production data. Results show that the weathered unit at the top of bedrocks is not an effective reservoir because of extremely low porosity. A semi-weathered unit is a potential reservoir, where formation water migrating along early effective fractures could form dissolution fractures and pores as primary storage space, and fractures can also act as seepage channels. Four fracture types can be identified from bedrock reservoirs, e.g., structural ones, diagenetic ones, weathering ones, and dissolution ones, while shear fractures related to faults are the most important ones. Fracture types and characteristics are different in granite and slate, e.g., high fracture density results in intensive dissolution in granite. Fracture density is closely related to tectonic stress. The bedrock reservoirs near fault zones and semi-weathered units are potential oil and gas exploration targets in the Kunbei fault terrace belt. Effective fractures govern dissolution behaviors as well as dominant seepage directions, which play a significant role in the development of bedrock reservoirs.

Introduction

Bedrocks are defined as all rocks forming a basin basement, which are commonly buried under sedimentary rocks (Miriam et al., 2010). With increasing oil and gas exploration practices, bedrock reservoirs (including metamorphic and plutonic rocks) have become potential unconventional oil and gas exploration targets, which increasingly attracts the attention of petroleum geologists and engineers (Tamagawa and David, 2008; Tong et al., 2017; Wang J. Q. et al., 2021). Hydrocarbon in bedrock reservoirs was primarily sourced from upper sedimentary sequences via unconformities or faults (Bagriy and Griga, 2015), which was characterized as a “new source to old reservoir” (Ma et al., 2006). The bedrocks can be favorable reservoirs as they are adjacent to hydrocarbon generation centers, high-quality reservoir-cap assemblages, and conduit systems (Zhu et al., 2020). The storage space in bedrock reservoirs includes fractures associated with tectonism, weathering, and dissolution, as well as dissolution pores (Shanley and Cluff, 2015; Zhang et al., 2021), whose production behavior varies greatly with fracture density, connectivity, and distribution (Wu et al., 2012). Variations in mineral compositions and rock structures give rise to different weathering resistance and dissolubility of bedrocks, resulting in strong heterogeneity in fracture growth (Wishart et al., 2008; Liu, 2012). Consequently, bedrock reservoirs are commonly characterized by high initial production, but rapid decline with short or no stable period. Therefore, understanding fracture characteristics and their primary controllers is critical for the efficient exploration and development of bedrock reservoirs.

In this paper, taking bedrock reservoirs in the Kunbei fault terrace belt in southwestern Qaidam Basin, China, as an example, we systematically investigated fracture characteristics in bedrock reservoirs and their role in hydrocarbon accumulation and reservoir development through integrating geology, imaging log, and experiment and production data.

Geological Setting

Structure

Kunbei fault terrace belt in the southwest of Qaidam Basin in China is an inherited uplift developing on Paleozoic metamorphic rocks and Hercynian granite (Liu et al., 2015). The study area is a NW-NWW extending transpressional structural system controlled by basin-range coupling and tectonic evolution, especially the NS-trending tectonic dynamics during Himalayan movement (Fu et al., 2010) (Figure 1) NW-trending faults control primary structural trends as well as alternated sags and uplifts in the Kunbei fault terrace belt, where NS-trending secondary faults modified local structures. Diverse traps were developed in the Kunbei fault terrace belt, including faulted noses, faulted blocks, and faulted anticlines. (Chen et al., 2010).

FIGURE 1

FIGURE 1. Structure location of the study area.

Oil Source

Oil source correlation shows that oil and gas in the Kunbei fault terrace belt are mainly derived from the Qiekelike Sag in the northeast (Liu et al., 2008; Wu et al., 2014), where E₃² and N₁ source rocks are developed with an area over 2000 km². The average organic carbon content (TOC) of E²₃ source rocks is 0.85%. Ro values are about 0.5–1.1%, indicating that source rocks are at the hydrocarbon generation peak (Chen et al., 2012; Gao et al., 2014). They are high-quality source rocks for bedrock reservoirs in the Kunbei fault terrace belt.

Reservoirs

The eastern Kunbei fault terrace belt is dominated by a granite basement, while the western has a compound basement dominated by metamorphic rocks and granite, with a small amount of siliceous rocks and metasandstone (Li et al., 2011). Granite is a typical plutonic intrusive rock that is dominated by potassium feldspar, plagioclase, quartz, and biotite, with amphibole and muscovite of secondary importance. It is surrounded by metamorphic rocks, mainly slate with a small amount of metasandstone. The slate is primarily composed of sericite, with a small amount of feldspar, quartz, and carbonate minerals, such as ferrocalcite and ferrodolomite. (Liu et al., 2015). The storage space is dual medium consisting of pores and fractures, where matrix porosity is 1.5–4.5%, with an average value of 2.8%, and permeability varies between 0.02 × 10^–3 μm² and 5.5 × 10^–3 μm², with an average value of 0.6 × 10^–3 μm².

Production Performance

The pilot production of bedrock reservoirs in the Kunbei fault terrace belt shows that both granite and slate have good production performance, which varies greatly among different structures, e.g., wells at the structure edge have low production and low efficiency. Wells at structure highs, however, have large reservoir thickness and good oil shows, whose initial production is high but decreases rapidly after water injection. The bedrock reservoirs in the Kunbei fault terrace belt have clear oil-water contacts, where no stable interlayer is developed between the bedrock and the E₃¹ sandstone at the top. It is a typical structural reservoir controlled by bottom water with unified oil-water system.

Materials and Methods

Fractures are identified and described based on formation microscanner imaging log(FMI) data from seven wells with total length of 539.1 m, coring data from 20 wells with length of 109.9 m, and production data from 25 wells.

Lithology Recognition

The boundary between bedrocks and sedimentary rocks in the study area can be easily identified with sharp change in gamma-ray log and resistivity log. Granite and slate can be distinguished from FMI images, e.g., the former appears as block in FMI images, while the latter is lamina. Meanwhile, the gamma-ray curve varies significantly at the boundary between granite and slate (Figure 2), e.g., granite is characterized by high gamma-ray (80–190 API). High-density granite has obvious low neutron porosity hydrogen index (NPHI) (<0.10) and high litho-density (RHOB) (2.50–2.70 g/m³) (Figure 3). Slate has an obvious low gamma-ray (40–80 API) and high NPHI (0.07–0.22) and RHOB (2.55–2.75 g/m³) (Figure 3).

FIGURE 2

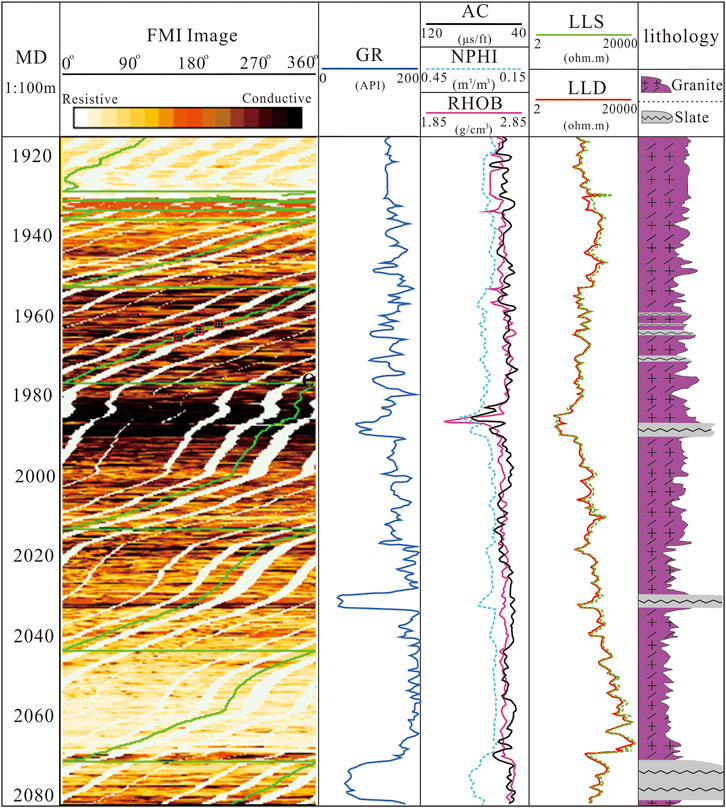

FIGURE 2. FMI image and logging response of bedrock sections from the well W5. See Figure 1 for well W5 location.

FIGURE 3

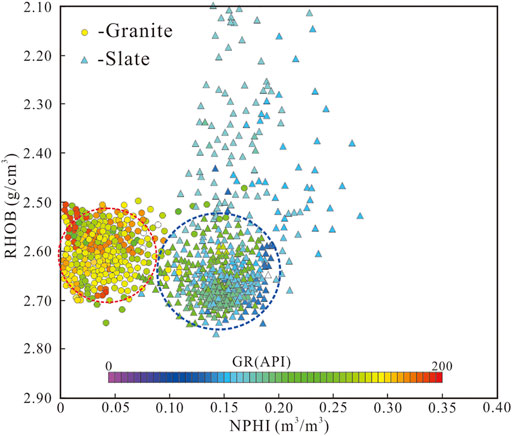

FIGURE 3. Cross plot of RHOB-NPHI from FMI logging data (N = 694).

Fracture Identification and Quantitative Evaluation

Fractures providing reservoir space and/or seepage channels are defined as effective (Zeng et al., 2010). FMI can provide visualized information about locations and features of natural fractures, induced fractures, and small faults. Natural fractures can be represented by sine curves on FMI images, while effective fractures are dark sine curves due to good conductivity after being filled by drilling fluid (Huang, et al., 2006). Mutual cutting can be observed among multiple groups of fractures, which are ineffective after being completely filled with minerals (e.g., calcite or quartz). Poor conductivity leads to bright sine curves on FMI images (Qu et al., 2016). The characteristics of different types of fracture on FMI images are shown in Table 1 (Jan et al., 1995).

TABLE 1

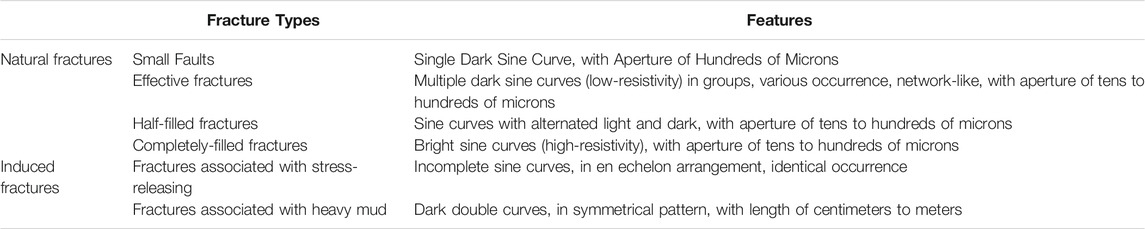

TABLE 1. Fracture patterns on FMI images.

Fracture density is often expressed by fracture numbers per unit length, 1/m or 1/ft. Fracture aperture and porosity from FMI are deduced as the following Equations 1, 2 (Luthi and Souhaite, 1990):

$W=CA{R}_{mf}^b{R}_{xo}^{1-b}(1)$

Where W is fracture aperture (mm), C and b are coverage ratios of FMI, A is the increased current due to fractures (mA), R_mf is resistivity of mud filtrate (Ω▪ m), and R_xo is resistivity of detected zone (Ω▪ m).

${\phi }_f=\frac{1}{2\pi RLC}{\displaystyle \sum _{i=1}^n{L}_i}{W}_i(2)$

Where Φ_f is fracture porosity (%), R is well radius (meter), L is length of statistical interval (meter), L_i is fracture length in image (meter), and W_i is fracture aperture (millimeter).

Considerable data shows that fracture permeability is positively correlated with porosity and aperture (Hoffman and Narr, 2012), hence fracture permeability can be determined by the following (Niu et al., 2010):

$K_f=e{W}^m{\phi }_f(3)$

Where K_f is fracture permeability (×10^–3 μm²) and e is empirical coefficient, m is 1.5–2.0.

Results

Bedrocks in the Kunbei fault terrace belt can be divided into three units from top to bottom: weathered unit dominated by clay, semi-weathered unit, and fresh unit. The weathered unit is characterized by small thickness (0–2.5 m, average: 1.9 m) and extremely low porosity, which is not regarded as a high-quality reservoir. Most weathered units in the highs of paleo-structure have been eroded with poor continuity. Bedrock reservoirs are mainly developed in semi-weathered units. Of oil-producing intervals, 75% are within 20 m from the top of the bedrocks in the study area, and 25% of oil-producing intervals are developed at the positions at about 20–50 m from the top. Neither oil not gas is discovered in fresh bedrocks. FMI data suggests that induced fractures in bedrocks are near N-S direction, while borehole collapse is near E-W direction.

Three fracture types were developed in semi-weathered granite, e.g., structural fractures, dissolution fractures, and weathering fractures. Structural fractures were derived from local tectonic events or regional tectonic stress fields (Chad et al., 2003). Shear fractures related to faults are popular in granite, accounting for over 90%. About 72.5% of near E-W extending shear fractures, occurring mainly from the Late Hercynian to Indosinian, are filled with quartz, which are ineffective, while only 16.7% of N-S extending shear fractures, occurring mainly during the Himalayan, is filled. These fractures have straight and smooth surfaces and large cutting. Dissolution along structural fractures is common, creating dissolution fractures and dissolution pores (Figures 4A,B). Fracture networks can be identified from FMI images with obvious dissolution (Figure 4C). Weathering fractures are irregularly distributed at the top of semi-weathered bedrock, with small-scale and poor connectivity. Effective fractures in granite are 4.2/m in average line density, and are about 20–50 μm in aperture with average value of 33.2 μm. Fracture porosity is generally lower than 0.1%, with the peak at 0.01–0.04%, while average fracture permeability is 35.3 × 10^–3 μm², e.g., average permeability of near N-S trending and near E-W trending fractures is 40.7 × 10^–3 μm² and 9.4 × 10^–3 μm², respectively. These effective fractures assume chiefly the near N-S strike (Figure 4D), while primary seepage orientation at some wells (e.g., W21 well and W22 well) is along NNE-SSW direction.

FIGURE 4

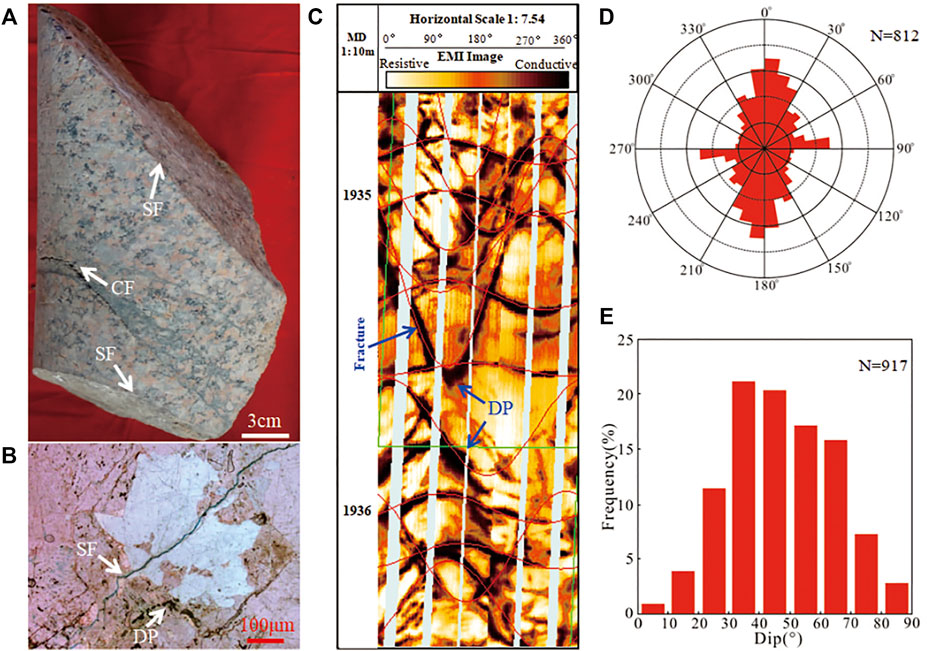

FIGURE 4. Fracture development on cores and FMI image. (A) A group of fractures in granite. Well W2: depth 2,104.2 m. SF is shear fracture, CF is corrosion fracture. (B)Thin section showing shear fracture in granite. Well W18: depth 2,128.3 m. DP is dissolution pore.(C) Network fractures in FMI image of Well W5. (D) Rose diagrams of natural fracture strike in granite from FMI. (E) Dip angles of natural fracture in granite from FMI and cores. See Figure 1 for wells location.

Structural fractures, diagenetic fractures, and a small amount of dissolution fractures can be observed in slates in the semi-weathered unit. Three stages of fractures can be identified based on fracture distribution (Figure 5A). Diagenetic fractures and structural fractures near the top of semi-weathered units are mostly filled by shale or quartz, while the density of filled structural fractures decreases gradually with increasing burial depth. Although dissolution pores and dissolution fractures are also found in slate (Figure 5B), dissolution in slate is weak compared with granite. The fracture porosity is generally lower than 0.05%, with the peak at 0.01–0.02%, and the average fracture permeability is 21.4 × 10⁻³μm² in near NNE-SSW strike. The effective fractures have average linear density of 2.6/m, which assume chiefly the near NNE-SSW strike (Figure 5C) with dip angle of 30–70° (Figure 5D).

FIGURE 5

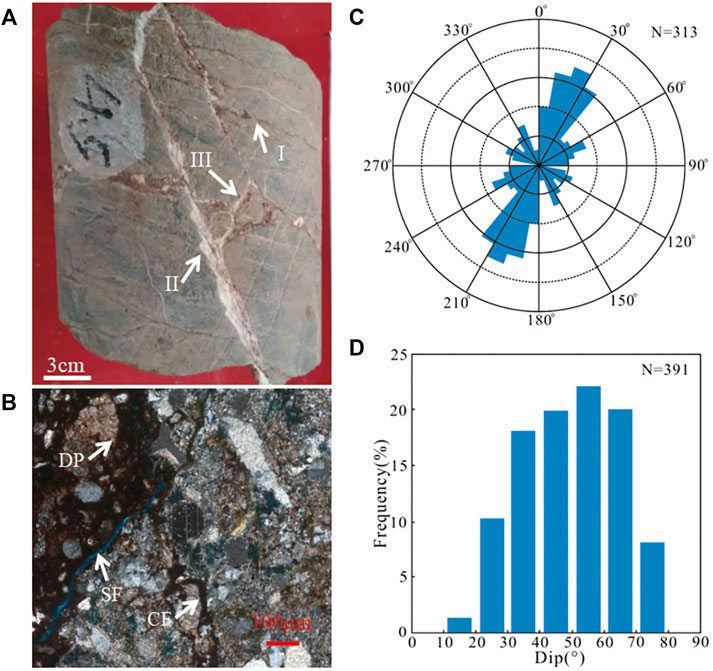

FIGURE 5. Fracture characteristics in slate.(A) Fractures are completely filled with minerals in the weathered layer. Well W18: depth 1847.6 m.(B)Shear fracture observed from thin sections. Well W2: depth 1848.4 m. (C) Rose diagrams of natural fracture strike in slate from FMI. (D) Dip angles of natural fracture in slate from FMI data and cores. See Figure 1 for wells location.

Discussion

A large number of natural fractures have been developed in the bedrocks in the study area due to multi-stage tectonic movements (Jun et al., 2016; Wu et al., 2018; Sun et al., 2018), e.g., Indosinian movement, Yanshan movement, and Himalayan movement. NW-SE compressive stress during Late Hercynian to Indosinian (Peng et al., 2015) resulted in near E-W trending structural fractures. The bedrocks were uplifted and weathered during Indosinian to Yanshanian (Wang et al., 2020), creating dissolution pores and fractures. NNE-SSW compressive stress, Kunbei fault, and piedmont fault in the Himalayan worked together to create considerable secondary faults and near N-S structural fractures in the study area (Wang and Peng, 1991). However, no effective fracture occurred in the weathered unit at the top of the bedrocks. The semi-weathered unit can be a high-quality reservoir because of dissolution pores and fractures (including dissolution fractures). The fracture intensity varies greatly with tectonic stress (Zeng et al., 2016), while difference in rock mechanical properties can result in varied fracture density under the same tectonic stress. Also, gravity is an important factor controlling the stress state of rocks (Narr and Suppe., 1991). Generally, fracture density decreases with increasing depth due to increasing rock compressive strength (Figure 6A). Furthermore, faults are important factors controlling fracture intensity and distribution in the study area, e.g., fault activity can produce stress disturbance, resulting in high fracture density near faults (Laubach et al., 2018). Therefore, fracture density decreases with lateral distance between fracture and fault plane (Figure 6B).

FIGURE 6

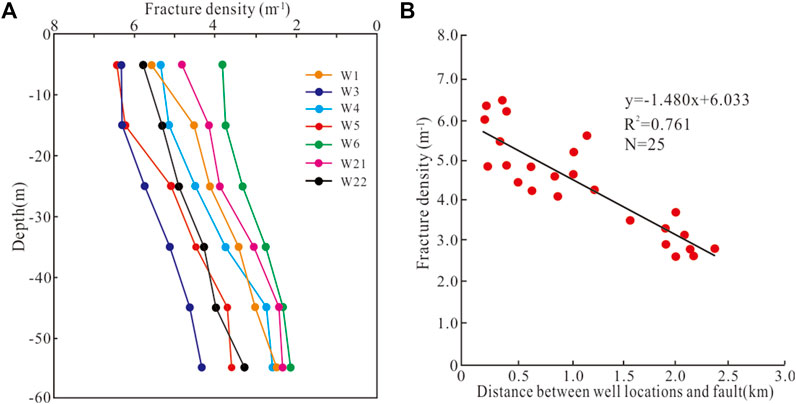

FIGURE 6. Distribution characteristics of bedrock fractures. (A)Fracture density varies with depth (data from FMI, and the point 0 is at the top of semi-weathered unit). (B) Relationship between fracture density and distance between well points and fault (data from FMI and cores).

Effective fractures are critical for seepage behaviors of reservoirs, which is determined by fracture density, fracture aperture, dip angle, and fracture scale (Nelson et al., 2000; Wang Z. S. et al., 2021). Induced fractures are commonly parallel to the present-day maximum horizontal in-situ stress, while borehole collapse is perpendicular to the present-day maximum horizontal in-situ stress (Barton et al., 1988; Scelsi et al., 2019). Effective fractures in granite and slate in the study area have high density near N-S and NNE-SSW directions, respectively (Figure 4D), which is parallel to or intersected at a small angle with the present day maximum horizontal in-situ stress direction. Also, fractures in granite and slate have large apertures near N-S and NNE-SSW directions under the present day in-situ stress, respectively. Fractures in different directions share similar dip angles, ranging from 30° to 70°(Figure 4E and Figure 5D). Consequently, dominant seepage channels in granite and slate are generally developed near N-S and NNE-SSW directions, respectively, which varies slightly in different positions.

The basement faults and unconformities are primary oil and gas migration channels for bedrock reservoirs in Kunbei fault terrace belt (Cao et al., 2013). Fractures (including dissolution fractures) and dissolution pores are connected with each other to form conduit networks, contributing to lateral oil and gas migration along unconformities (Cukur et al., 2010). Dissolution fractures and pores provide favorable storage space in bedrock reservoirs, while dissolution fractures are also main seepage channels. They were developed due to the dissolution of soluble mineral along early effective fractures (Alhuraishawy et al., 2018), which depended on soluble mineral contents in bedrocks and their contact with formation water (Hakala et al., 2021). Since sericitization or kaolinization easily occurs to feldspar particles in granite and vermiculization can occur to biotite, the dissolution prevails in granite compared with slate and decreases with increasing depth. Fault zone and semi-weathered unit in Kunbei fault terrace belt have high fracture density and intensive dissolution, which is favorable for oil and gas accumulation. Effective fractures control the formation and distribution of dissolution fractures and pores in the later stage as well as dominant seepage direction, which is one of the key factors controlling oil and gas accumulation and reservoir development in bedrocks.

Conclusion

A large number of natural fractures with different types have been developed in the bedrocks in the study area due to diagenesis and multi-stage tectonic movements, e.g., Indosinian movement, Yanshan movement, and Himalayan movement. Pores and fractures are poorly developed in weathered units at the top of bedrocks in the Kunbei fault terrace belt, which are not effective reservoirs. Formation water migration along early effective fractures can create dissolution fractures and pores in the semi-weathered unit, acting as primary storage space for oil and gas. Fracture intensity varies greatly with lithology, e.g., dissolution fractures are well developed in granite. The fracture density is closely related to tectonic stress and other factors, e.g., lithology, burial depth, and structural location. Effective fractures control the distribution of dissolution fractures and pores developing in later stage as well as dominant seepage direction, which is critical for oil and gas accumulation and reservoir development in bedrocks. Oil and gas accumulation could be well developed in bedrock reservoirs near fault zones and semi-weathered units in the Kunbei fault terrace belt.

Data Availability Statement

The original contributions presented in the study are included in the article/Supplementary Material, further inquiries can be directed to the corresponding author.

Author Contributions

ZW: Methodology, Writing—Original Draft; HX: Investigation, Conceptualization; LW: Experiment; LX: Resources, Software; ZZ: Visualization, Data Curation; LG: Funding acquisition; ZY: Resources, Methodology; FL: Data Curation.

Funding

This study is financially supported by the National Natural Science Foundation of China (No: 41172015).

Conflict of Interest

ZW was employed by the Company College of Mining Engineering, Liaoning Technical University.

Author ZW is employed by College of Mining Engineering, Liaoning Technical University, China. Author HX is employed by Zhundong Oil Production Plant, Xinjiang Oilfield Company of PetroChina, China. Author LW is employed by Research Institute of Petroleum Exploration and Development of PetroChina, China. Author LX is employed by Research Institute of Petroleum Exploration and Development of Qinghai Oilfield Company, PetroChina, China. The remaining authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

HX was employed by the Company Xinjiang Oilfield Company of Petro China.

LW was employed by the Company Research Institute of Petroleum Exploration and Development of Petro China.

LX was employed by the Company Research Institute of Petroleum Exploration and Development of Qinghai Oilfield Company, Petro China.

The remaining authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

Publisher’s Note

All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.

Acknowledgments

The authors wish to thank Bing Hou, professor at China University of Petroleum (Beijing), for his sincere and generous help.
