The thermal regime of the lower crust is a critical factor that controls crustal anatexis, high-grade metamorphism, and granite formation, which finally results in crustal differentiation. However, the large-scale thermal regime in the Precambrian continental crust is generally not well established. In this study, we first applied Ti-in-quartz (TitaniQ) thermometer to map the temperature variation in the lower crust within an area of ∼10,000 km2 in the Paleoproterozoic eastern Khondalite Belt, North China Craton. The studied rocks are aluminous gneisses/granulites, which contain abundant quartz that generally coexists with rutile. The results show that matrix-type quartz with substantial rutile exsolution generally contains the maximum Ti concentration, which is <300 ppm higher than that of inclusion-type quartz. This result suggests that two quartz types probably formed at the prograde and near-peak to early cooling metamorphic stages, respectively. Therefore, the temperature mapping result based on the maximum Ti concentrations of the matrix-type quartz can better represent the thermal regime than inclusion-type quartz. Our regime shows that the hottest Paleoproterozoic lower crust is underneath the Liangcheng-Heling’er-Zhuozi area, where ultrahigh-temperature (UHT) metamorphism is closely associated with abundant charnockite. The hottest region may represent the root of an ancient large hot orogeny. Our study provides a new insight into the formation of UHT metamorphism.
Introduction
Ultrahigh-temperature (UHT) metamorphism occurs at temperatures of ≥900°C (0.7–1.3 GPa; Harley, 1998), and is the hottest metamorphism in the lower crust. The first UHT metamorphism was reported over 50 years ago. Numbers of UHT localities have been discovered worldwide, and detailed studies have laid the foundation for a complete understanding of the crustal thermal regime (Harley, 1998; Sajeev et al., 2004; Santosh et al., 2007a; Harley, 2008; Janwari et al., 2012). Study of UHT metamorphism facilitates interpreting the lithospheric evolution throughout Earth’s history, especially the crust–mantle interaction and tectonic evolution.
The Khondalite Belt within the North China Craton (NCC) was formed by the collision of the Yinshan Block in the north and the Ordos Block in the south at ca. 1.95 Ga (Zhao et al., 2005). Since the first identification of two typical UHT metamorphic localities at Dongpo in the Daqingshan terrane (Guo et al., 2012) and Tuguiwula in the Jining terrane (Santosh et al., 2006), investigations have discovered new localities of UHT rocks, for example, Tuguishan, Xuwujia, Hongsigou, Zhaojiayao, Xumayao, Nantianmen, and Xiaonangou (Jiao et al., 2011; Jiao and Guo, 2011; Liu et al., 2012; Zhang et al., 2012; Yang et al., 2014; Li and Wei, 2016; Wang et al., 2020). However, their spatial relationship, especially the distribution area of UHT metamorphism, is ambiguous.
Numerous methods have been applied to estimate the peak metamorphic temperature of UHT granulites, including thermometers and phase equilibria modeling. The thermometers of two-feldspar, Zr-in-rutile, Ti-in-zircon, and Al-in-orthopyroxene performed well in the UHT temperature estimates. Titanium in quartz was also calibrated as a Ti-in-quartz (TitaniQ) thermometer (Ostapenko et al., 1987; Wark and Watson, 2006; Thomas et al., 2010; Huang and Audétat, 2012; Zhang et al., 2020), which has been applied to various rock types and proved to be valid (Spear and Wark, 2009; Storm and Spear, 2009; Thomas and Bruce Watson, 2012; Kidder et al., 2013; Tual et al., 2018). Quartz is ubiquitous in many UHT rocks, and the application of the TitaniQ thermometer is convenient because only the quartz phase needs to be analyzed. In addition, quartz internal structures revealed by cathodoluminescence (CL) images can assist in interpreting the mechanism of quartz formation (Sprunt et al., 1978; Müller et al., 2002; Kendrick and Indares, 2018). Therefore, the application of the TitaniQ thermometer in combination with quartz CL imaging can potentially indicate the metamorphic evolution of UHT granulites.
In this study, we applied the TitaniQ thermometer and CL imaging of quartz to metapelites (including UHT granulites) in the eastern Khondalite Belt for the first time. The samples were collected from an area of ∼10,000 km2 to conduct regional temperature mapping. Our approach provides a new simple method for calculating metamorphic temperature in this region. Our temperature mapping shows the regional thermal regime of the lower crust and provides a new insight into the formation of UHT metamorphism.
Geological Setting and Sampling Locality
The formation and evolution of the NCC have been topics of ongoing debates for many decades. As the oldest craton in China with an age record of up to 3.8 Ga (Liu et al., 1992; Wan et al., 2005), the NCC has experienced complicated geological processes. The model ages from zircon Hf isotope and whole-rock Nd isotope in TTG gneisses suggest that the formation age of the continental crust of NCC is 2.8–2.7 Ga and ca. 2.5 Ga (Wu et al., 2005; Geng et al., 2012).
A suggestion has been that the NCC could be divided into three major tectonic units: The Western block, the Eastern block, and the collisional belt of the Trans-North China Orogen (Zhao et al., 2011). There are two other recognized orogens: the Jiao-Liao-Ji Belt in the Eastern Block, formed by the collision between the Nangrim Block and Longgang Block at ca. 1.95–1.90 Ga and the Khondalite Belt in the Western Block, formed by the collision between the Yinshan Block and Ordos Block at ca. 1.95 Ga, which is related to the assembly of the Columbia supercontinent (Zhao et al., 1998; Zhao et al., 2001; Zhao et al., 2003; Zhao et al., 2005; Zhao et al., 2011).
The east-west trending Khondalite Belt is located in the north-central part of the Western Block, NCC. It can be divided into three terranes from west to east: Helanshan-Qianlishan (H-Q), Wulashan-Daqingshan (W-D), and Jining (JN) terranes (Figure 1A). The rock types of the belt are composed of khondalite series rocks (aluminum-rich meta-sedimentary rocks), garnet-cordierite granites, charnockites, meta-gabbros, and a small amount of TTG gneisses. Zircon geochronological results suggest that detrital materials in the Khondalite Belt were derived from Archean and Paleoproterozoic magmatism (Zhai and Peng, 2007; Zhai, 2009). The protolith of the Khondalite series is considered to have been deposited between 2.00 and 1.95 Ga, which represents the deposition of an active continent margin, instead of an Archean cratonic basin (Wan et al., 2009; Dan et al., 2012).

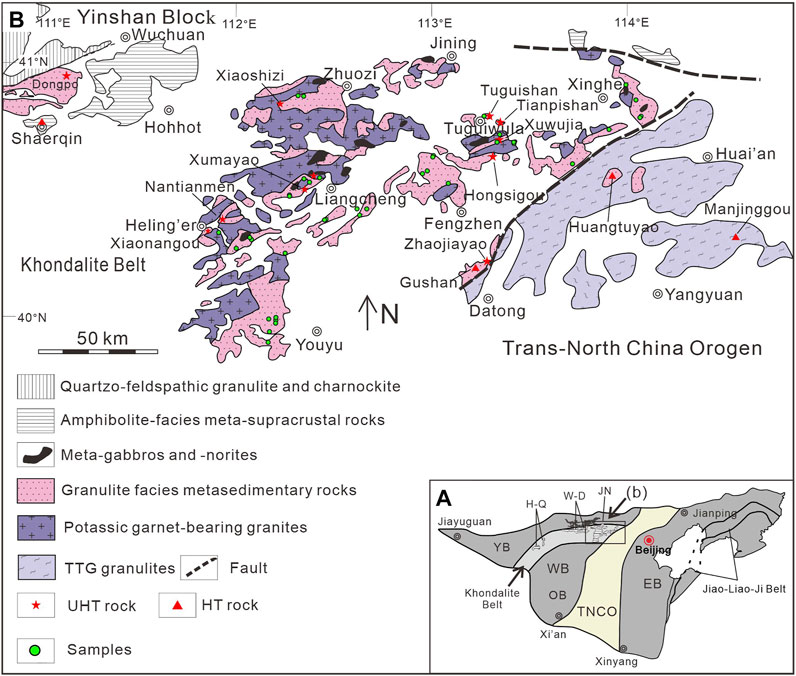

FIGURE 1. (A) Tectonic subdivision of the basement in the North China Craton; (B) Distribution of the exposed rocks in the eastern Khondalite Belt, North China Craton. Samples are distributed throughout the whole research region. Abbreviations of areas: WB, Western Block; EB, Eastern Block; TNCO, Trans-North China Orogen; YB, Yinshan Block; OB, Ordos Block; H-Q, Helanshan-Qianlishan; W-D, Wulashan-Daqingshan; JN, Jining.
The whole Khondalite Belt has experienced upper amphibolite- to granulite-facies metamorphism, including high-pressure metamorphism between 1.96 and 1.94 Ga and an overprinted HT-UHT metamorphism event at 1.94–1.80 Ga (Santosh et al., 2007b; Santosh et al., 2009; Yin et al., 2011; Jiao et al., 2020; Jiao and Guo, 2020; Jiao et al., 2021).
In the Helanshan-Qianlishan terrane of western Khondalite Belt, the calculated peak temperature and pressure conditions are 850–870°C and 1.4–1.5 GPa, within a clockwise P–T path, and this high-pressure metamorphism suggests the occurrence of continent-continent collision in the Khondalite Belt (Yin et al., 2009; Yin et al., 2011; Yin et al., 2015; Zhou et al., 2010). In the Wulashan-Daqingshan terrane, rock types are variable and contain meta-sedimentary rocks, Archean TTG gneisses, and mafic granulites, with varying degrees of multi-metamorphism (Jiang et al., 2022).
Rock types in the Jining terrane of eastern Khondalite Belt are khondalite series rocks associated with a small amount of quartzite, graphite gneiss, marble, calc-siliceous gneiss, potassic garnet-bearing granite, and intrusive meta-gabbro and –norite (Figure 1B). The distribution area of the potassic garnet-bearing granite is large: 40% of the rock exposed (Figure 1A). The potassic garnet-bearing granite is dominated by abundant charnockite associated with minor leucogranites, which represent two periods of magmatic events (Peng et al., 2012; Wang et al., 2017; Wang et al., 2018). The distribution area of intrusive meta-gabbros and norites is small. A suggestion has been that the formation of meta-gabbros and meta-norites provides a heat source for UHT metamorphism (Peng et al., 2010; Peng et al., 2012), which leads to the formation of garnet-bearing granite by in-situ anatexis of khondalite series rocks. The volume of granites is one third to one half of the khondalite series rocks, and the age of granite formation is coeval with the metamorphic age of khondalite series rocks (Zhai, 2009).
Sapphirine-bearing metapelites or residual granulites have been discovered at the Dongpo and Shaerqin localities in the Wulashan-Daqingshan terrane, recording HT-UHT conditions of 910–980°C and 860–890°C, respectively (Guo et al., 2012; Jiao et al., 2015). The sapphirine-bearing UHT granulites were reported from the Tuguiwula (Tianpishan) locality (Santosh et al., 2007a), which preserves the diagnostic UHT mineral assemblages of Spr + Qz and Opx + Sil + Qz (Mineral abbreviations follow Warr, 2021), and the near-peak temperature of 900–1,000°C was recorded. Subsequently, additional UHT granulite localities have been reported in the Jining terrane, such as Tuguishan, Xuwujia, Nantianmen, Xiaonangou, and Xumayao (Santosh et al., 2007a; Jiao et al., 2011; Jiao and Guo, 2011; Liu et al., 2012; Zhang et al., 2012). In Helanshan terrane, UHT metamorphism was reported in spinel-bearing granulites, with peak conditions of ∼960–1,030°C and 6.3–7.3 kbar (Gou et al., 2018). Generally, the UHT granulites in the Khondalite Belt have experienced complex clockwise P–T paths, including decompression-heating, nearly isobaric cooling (IBC), and nearly isothermal decompression/decompression-heating stages, although anticlockwise P–T paths were also proposed (Figure 2; Liu et al., 2010; Jiao et al., 2011; Jiao and Guo, 2011; Li and Wei, 2016).

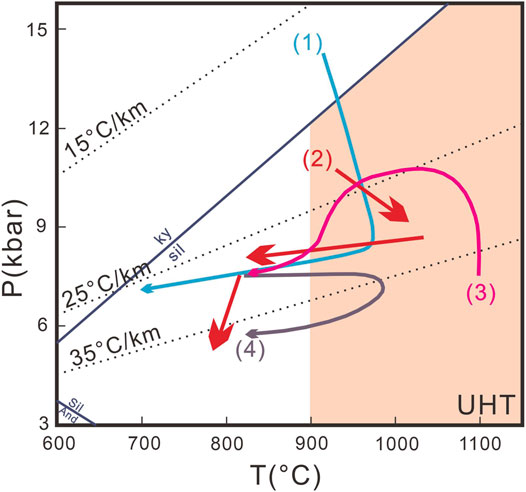

FIGURE 2. Previously reported P–T paths of UHT granulites in the Khondalite Belt. (1) is from Li and Wei (2016), (2) is from Li and Wei (2018), (3) is from Santosh et al. (2012) and (4) is from Yang et al. (2014).
Our research region is the Jining-Tuguiwula-Liangcheng-Heling’er-Youyu area located within the Jining terrane of the eastern Khondalite Belt (Figure 1B), which contains several UHT localities. Forty-four representative samples throughout this region were studied using a TitaniQ thermometer to constrain the occurrence and spatial scale of the UHT metamorphism.
Petrography
The studied samples were mostly aluminous gneisses (or granulites). The major minerals in these samples are quartz, plagioclase, K-feldspar, garnet, sillimanite, and biotite. These samples were classified into four groups. The first group is characterized by a Grt + Sil + Bt + Qz + Pl/Kfs mineral assemblage, which can be subdivided into coarse-grained and fine-grained according to the granularity of garnet grains (Figures 3A,B). Thirty-two samples belong to this group, accounting for the majority of the samples. In addition, four samples in this group had distinct foliation structures (samples 20HL19, 20HL39, 20HL89, 20HL143) (Figure 3C). The oriented arrangement of sillimanite composes the foliation. Except for sillimanite, minerals such as quartz, biotite, and resorbed garnet can also compose the foliation. The second group was characterized by a Grt + Bt + Qz + Pl/Kfs mineral assemblage and comprised four samples (Figure 3D). In this group, the volume proportion of sillimanite was relatively low to none, and biotite was the main aluminous-rich mineral. The third group was characterized by a Grt + Sil + Qz + Pl/Kfs mineral assemblage and comprised three samples (Figure 3E). In this group, the size of the biotite was small, and the main aluminous-rich mineral was sillimanite. The fourth group was characterized by a Grt + Qz + Pl/Kfs mineral assemblage and comprised five samples (Figure 3F).

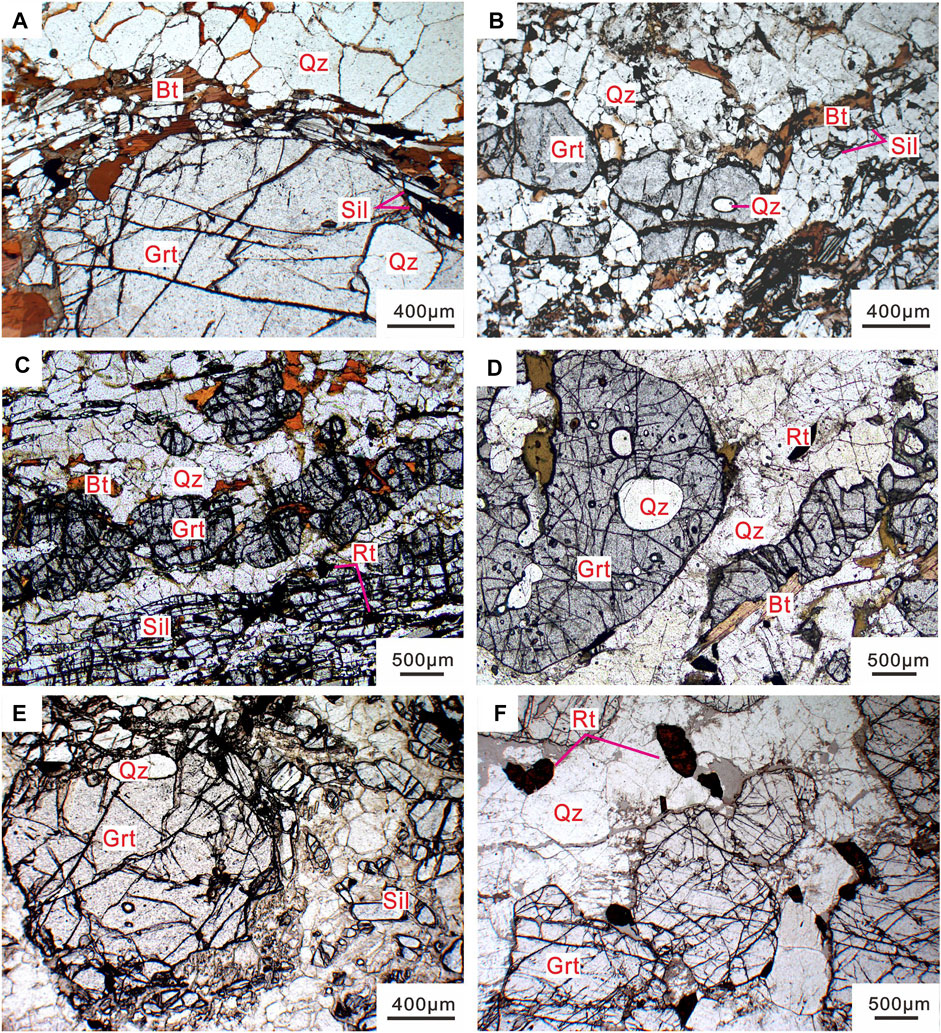

FIGURE 3. Photomicrographs showing the typical mineral assemblages and quartz micro-textures of samples from the eastern Khondalite Belt, North China Craton. (A) Quartz occurs as inclusions in rims of coarse-grained garnet, and in the matrix from Grt-Sil-Bt gneiss (sample 20HL64); (B) Quartz is included by fine-grained garnet and occurs in the matrix from Grt-Sil-Bt gneiss (sample 20HL39); (C) Quartz occurs in the matrix from fine-grained Grt-Sil-Bt gneiss (sample 20HL19), the oriented arrangement of sillimanite defines the foliation; (D) Quartz occurs as inclusions in rims of coarse-grained garnet, and in the matrix from Grt-Bt gneiss/granulite (sample 18LC21), with rutile in the matrix; (E) Quartz occurs as inclusions in rim of coarse-grained garnet, and in the matrix from Grt-Sil gneiss (sample 20HL123); (F) Garnet occurs as porphyroblast with quartz and rutile in the matrix from garnet-bearing gneiss/granulite (sample 09XH21). Mineral abbreviations follow Warr (2021).
Garnet occurs as porphyroblasts in all samples, which contain quartz, plagioclase, biotite, and rutile as inclusions. Garnet in some samples had been resorbed and broken into small pieces. Plagioclase and K-feldspar are commonly present in the matrix. K-feldspar had been altered in some samples. Sillimanite mainly occurs in the matrix in the needle-and-column shape. Lamellar biotite mainly disperses in the matrix: Some grains are distributed around garnet, and some occur as inclusions in garnet. Quartz exists in two forms: Matrix-type quartz and quartz inclusions in garnet. In some samples, rutile needles are within quartz grains, which can be observed in the photomicrographs. In some samples, rutile grew along three directions, which may represent the crystallization direction. We observed that the occurrence of rutile needles in quartz grains from the northern part is more general than that in the southern part of the studied region.
Rutile exists as an accessory phase in all the samples. Most of the rutile grains occur in the matrix surrounded by quartz, and the others occur as inclusions in garnet. The volume proportion and grain size of rutile differ. In five samples from south of Heling’er (samples 20HL49, 20HL59, 20HL64, 20HL73, and 20HL89), rutile was 50–200 μm in size and had an extremely low volume percentage. By contrast, rutile in samples from the Xinghe area was 100–800 μm and occupied a higher volume percentage (samples 09XH07, 09XH16, 09XH21, and 09XH32). In samples from Tuguishan locality, a few spinel grains with grain sizes of 100–250 μm were observed (samples 09TGS01, 09TGS18, and 18TG01), which is distinct from the other samples.
Analytical Methods
Electron Microprobe Analysis
Concentrations of major (Si) and minor (Al and Ti) elements in quartz grains were all determined by CAMECA SXFive electron probe micro-analyzer at the Institute of Geology and Geophysics, Chinese Academy of Sciences (IGGCAS) in Beijing, China. Accelerating voltage was 15 kV and beam currents were 30 and 300 nA for major and minor elements. The peak counting times were 20s for Si and 120s for Al and Ti. Rhodonite, albite and rutile were used as standards for calibration. Standardization was performed with a beam current of 20 nA and with a peak counting time of 20s. Data were obtained by the X-PHI matrix correction (Merlet, 1994). Oxygen was calculated by cation stoichiometry and included in the matrix correction. The following detection limits were based on a 3σ estimate of the measured background variance: ∼210 ppm for Si, ∼12 ppm for Al and ∼13 ppm for Ti.
A large spot size of 50 μm was used for all analyses in order to involve the composition of substantial rutile needles in the measurement, because TiO2 in these rutile needles might have once occupied by pre-existing quartz that is before rutile exsolution (See Section Discussion). The natural smoky quartz crystal was used as a secondary standard, which has reproducible Ti concentration (57 ± 4 ppm; Audétat et al., 2015). Our averaged Ti concentration (N = 55) of the quartz standard is 58 ± 3 ppm, which is consistent with the recommended value within error. Our analyzed quartz grains in the matrix are all far away from other major Ti-bearing minerals, such as rutile and biotite, to avoid secondary fluorescence effect.
Cathodoluminescence Imaging
The Cathodoluminescence (CL) images of quartz were observed using a Nova NanoSEM 450 (FSEM) scanning electron microscope at the IGGCAS. The Nova NanoSEM 450 was equipped with a Gatan Instrument “MonoCL14” detector. An accelerating voltage of 10 kV and a beam current of 1.1 nA were used during the analysis, and the working distance was 27–29 mm.
Thermometry
The titanium concentration in quartz was first proposed as a geological thermometer in 1987 (Ostapenko et al., 1987). The thermodynamic principle of the TitaniQ thermometer depends on the titanium equilibrium between quartz and rutile, which can be expressed in an exchange reaction: TiO2Qz = TiO2Rt. The calibration experiments suggest that titanium solubility in quartz depends on the pressure and temperature conditions in the case that quartz crystallizes coexisting with rutile, and titanium contents of quartz (in ppm by weight) would increase exponentially with T. Similar to other trace-element thermometers, TitaniQ thermometer has several calibrations (Wark and Watson, 2006; Thomas et al., 2010; Huang and Audétat, 2012; Thomas et al., 2015). Within these models, the experiments were set to high pressure (5–20 kbar) and high temperature (700–940°C) conditions in the Thomas et al. (2010) model, which is the most suitable for the metamorphic conditions of our studied samples. Hence, we used the model calibrated by Thomas et al. (Thomas et al., 2010) in this study. And the pressure we have chosen for all calculations is 8 kbar based on couples of previous studies in the eastern Khondalite Belt (Figure 2; e.g., Santosh et al., 2007a; Santosh et al., 2012; Jiao et al., 2013a; Yang et al., 2014; Li and Wei, 2016; Li and Wei, 2018).
When applying the TitaniQ thermometer, the activity of TiO2 should be accurately estimated. The value is generally 1 if rutile exists in the studied rocks, which means that the system is TiO2 saturated (Ghent and Stout, 1984). There are also methods for calculating TiO2 activity if the rocks do not contain rutile, which are mainly based on different solution models and compositions of Fe-Ti oxides (Hayden and Watson, 2007; Hildreth and Wilson, 2007; Kularatne and Audétat, 2014).
All samples in this study contain rutile, although the grain size and volume percentage vary. For example, five samples from south of Heling’er (samples 20HL49, 20HL59, 20HL64, 20HL73, and 20HL89) contain few tiny rutile. A study suggested that fluid remains saturated with respect to rutile once the fluid is rutile-saturated, and subsequent rutile growth is not sufficient to drive the liquid to rutile-undersaturation (Acosta et al., 2020). Although the absence of rutile does not necessarily imply quartz growth from a rutile-undersaturated liquid, researcher interpreted it as a liquid that was near saturation but below the critical supersaturation required to nucleate new rutile crystals (Acosta et al., 2020). Because of the aforementioned reasons, we used a TiO2 activity of 1 for all samples.
TitaniQ temperature mapping was conducted using ArcGIS with the inverse distance weighted interpolation method.
Result
Quartz Ti Concentrations and Temperatures by TitaniQ
A total of 463 spots were analyzed in 44 samples. Analyses with unacceptable total SiO2 content (>105 or <95) were discarded. We finally obtained 417 valid data points (Supplementary Tables S1, S2), among which 182 were quartz inclusions within garnet from 42 samples (Supplementary Table S1), and 235 were of matrix-type quartz from 43 samples (Supplementary Table S2).
Within quartz inclusions of garnet, Ti concentrations range from 40 to 550 ppm. We calculated the average Ti concentrations for each sample, which range from 58 to 420 ppm, and four data points of extremely high Ti concentrations far from the others within several samples (samples 20HL34, 20HL59, 20HL64, and 09TGS01) were not included and regarded as outlier data (Figure 3A). Temperatures calculated by the TitaniQ thermometer for these quartz average Ti concentrations range from 654°C (sample 20HL89) to 891°C (sample 18LC01), all below UHT conditions (Figure 4A). The maximum Ti concentrations of each sample range from 65 to 550 ppm, the corresponding TitaniQ temperatures range from 665 to 934°C, and the highest temperatures are from samples in the Liangcheng and Zhuozi areas (Figure 4B).

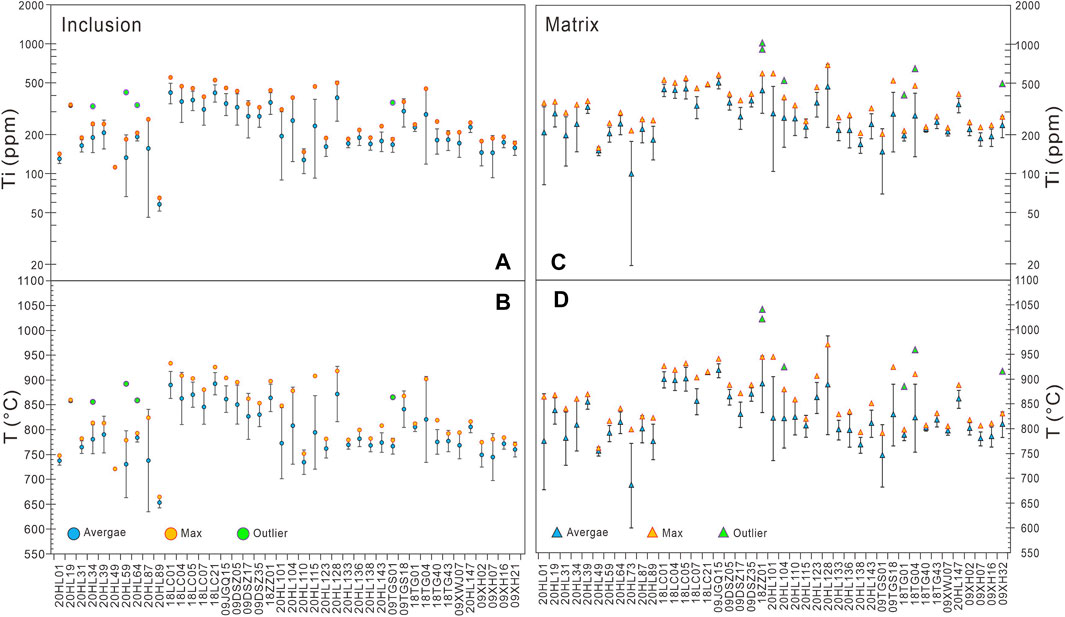

FIGURE 4. The titanium concentrations of quartz and the calculated temperatures by TitaniQ thermometer in Grt-Sil-Bt and Grt-Bt gneisses (or granulites) from the eastern Khondalite Belt. (A,B) The titanium concentrations of quartz inclusions in garnet and the calculated temperatures. (C,D) The titanium concentrations of matrix-type quartz and the calculated temperatures. We have three series of data: the average data, the maximum data and the outlier data. The average concentration of titanium and the temperature were calculated without the outlier data. The temperatures were calculated at pressure = 8 kbar and aTiO2 = 1. The error is 1SD of the dataset in each sample. The TitaniQ model we used here was calibrated by Thomas et al. (2010).
Within matrix-type quartz, Ti concentrations range from 30 to 1,000 ppm. The calculated average Ti concentrations for each sample, range from 100 to 528 ppm, and six data points of extremely high Ti concentrations far from the others within several samples (i.e., samples 18ZZ01, 20HL104, 18TG01, 18TG04, and 09XH32) were not included, and were regarded as outlier data (Figure 4C). Temperatures calculated by the TitaniQ thermometer for these quartz average Ti concentrations range from 685 to 917°C (Figure 4D), and some of them have recorded UHT metamorphic conditions. The maximum Ti concentrations of each sample range from 156 to 680 ppm (Figure 4C), and the corresponding TitaniQ temperatures are 760–970°C, and the highest temperatures are also from samples in the Liangcheng and Zhuozi areas (Figure 4D).
We compared the difference in average Ti concentrations between the matrix-type quartz and quartz inclusions for each sample, without considering the outlier data (Figure 5A). The matrix-type quartz contains Ti concentrations <180 ppm higher than that of quartz inclusions, and only five samples show an inverse trend (Figure 5A). Therefore, the temperature calculated for the matrix-type quartz is generally <120°C higher than that of quartz inclusions (Figure 5B).

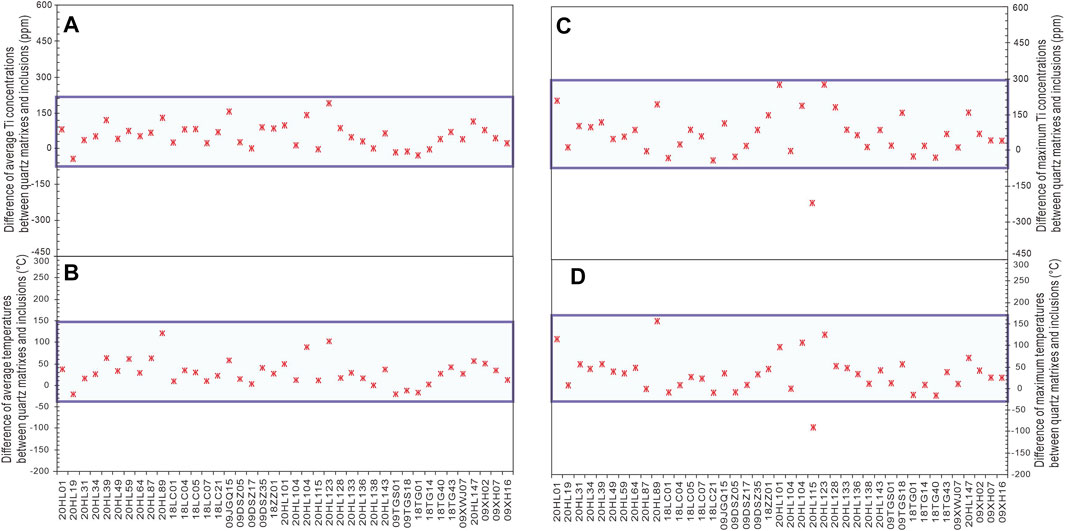

FIGURE 5. Comparison of quartz titanium concentrations and the calculated temperatures by TitaniQ thermometer between matrix-type quartz and quartz inclusions in garnet. (A) Difference of the average quartz titanium concentrations between matrix-type quartz and quartz inclusions; (B) Difference of the average calculated temperatures between matrix-type quartz and quartz inclusions; (C) Difference between the maximum titanium concentrations between matrix-type quartz and quartz inclusions; (D) Difference between maximum calculated temperatures between matrix-type quartz and quartz inclusions; The Y axes are that Ti concentrations of quartz or calculated temperatures of matrix-type quartz minus those of quartz inclusions in garnet in each sample.
We also compared the difference in maximum Ti concentrations between the matrix-type quartz and quartz inclusions for each sample, without considering the outlier data (Figure 5C). The matrix-type quartz also contains Ti concentrations <300 ppm higher than that of quartz inclusions. The temperature calculated for matrix-type quartz is generally <160°C higher than that of quartz inclusions (Figure 5D).
Quartz Internal Structures
The CL images revealed types of quartz internal structures not observed in the photomicrographs. We divided quartz according to internal structure into four types: 1) Non-structure with homogeneous luminescence, 2) linear structure with low luminescence, 3) sealed fractures, and 4) reticular structures.
The non-structure with homogeneous luminescence is the simplest CL image in our samples and displays uniform luminescence without a special structure (Figure 6). It is more common in quartz inclusions than in matrix-type quartz. Quartz inclusions with non-structure contain low Ti concentrations, generally 100–200 ppm, and TitaniQ temperatures are 700–800°C (Figures 6A,B). Matrix-type quartz with non-structure has different Ti concentrations, which could be as low as 225 ppm with a TitaniQ temperature of 805°C (Figure 6D) and as high as 490 ppm with a TitaniQ temperature of 917°C (Figure 6F).

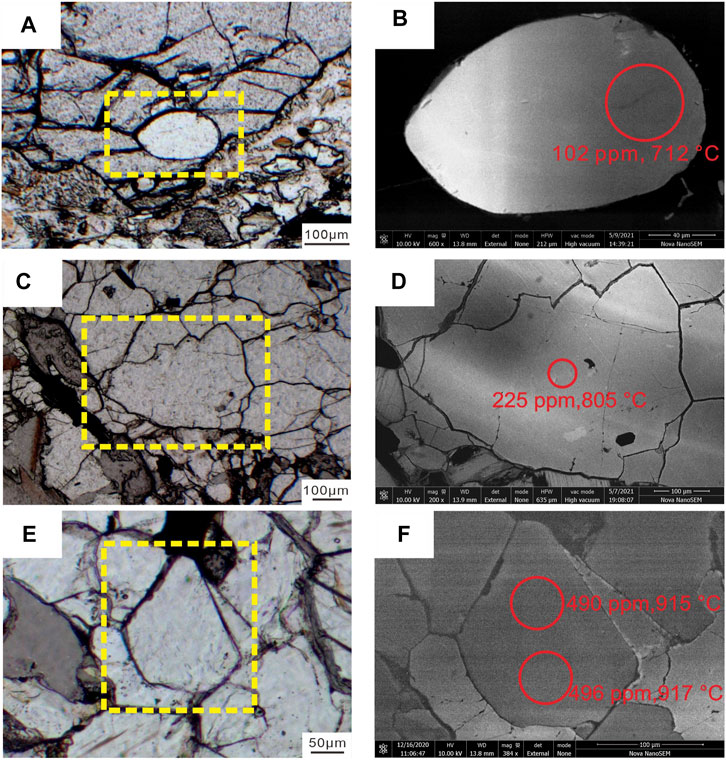

FIGURE 6. Representative photomicrographs and CL images of the analyzed quartz grains showing non-structure with homogeneous luminescence. (A) Quartz inclusion within garnet rim in sample 20HL101, and CL image is shown in (B); (C,E) Matrix-type quartz in samples 09XH07 and 09JGQ15, and CL images are shown in (D,F), respectively. The red circle marks the analyzed EPMA spot.
A linear structure with low luminescence occurs in both quartz inclusions and matrix-type quartz (Figure 7). These dark linearities within quartz generally correspond to the rutile needles shown in the photomicrographs. Rutile is rare and barely visible under photomicrographs but distinct in CL images. The occurrence of rutile needles is more common in quartz inclusions than in matrix-type quartz but generally occurs in the cores of the grains. Quartz Ti concentrations within rutile needle-rich domains are commonly high (>250 ppm), and the corresponding temperatures are >820°C (Figure 7).

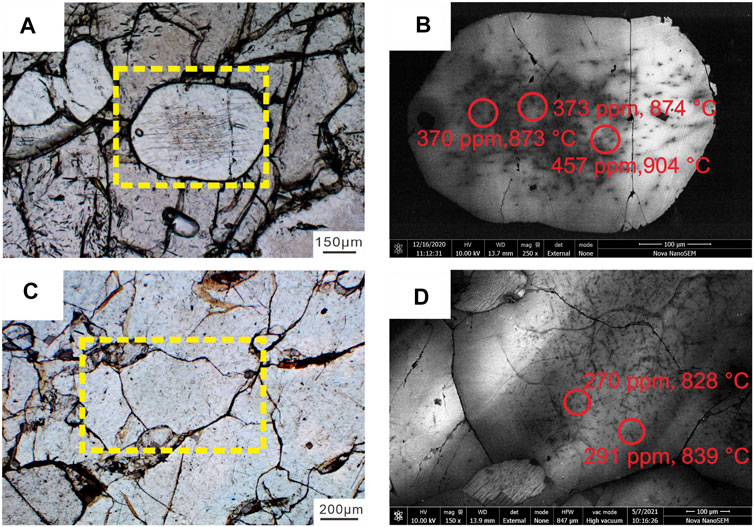

FIGURE 7. Representative photomicrographs and CL images of the analyzed quartz grains showing linear structure with low luminescence. (A) Quartz inclusion within garnet in sample 09JGQ15 and CL image is shown in (B); (C) Matrix-type quartz in sample 09DSZ17 and CL image is shown in (D).
Healed fractures characterized by healed microcracks and dark patches occur in both quartz inclusions and matrix-type quartz (Figure 8). The dark patches grew around and extended along the cracks. Healed fractures generally occur simultaneously with rutile needles (i.e., linear structures with low luminescence). Thus, quartz with healed fractures also has high Ti concentrations of >200 ppm and corresponding temperatures of >790°C (Figures 8B,D).

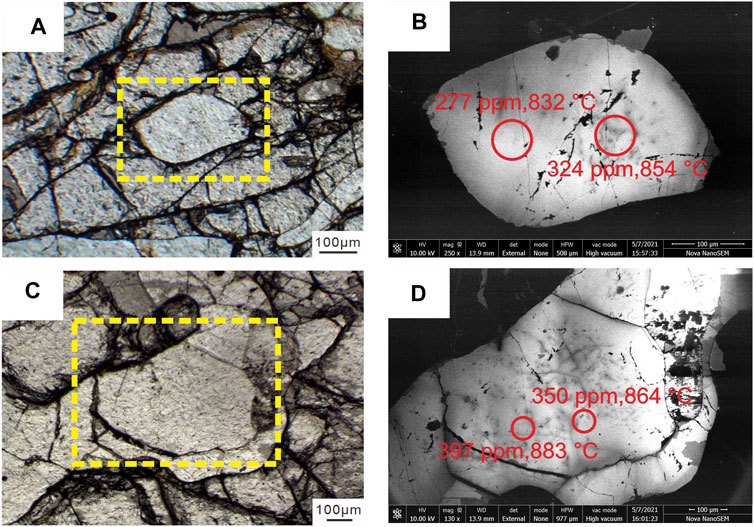

FIGURE 8. Representative photomicrographs and CL images of the analyzed quartz grains showing healed fractures. (A,C) Quartz inclusion within garnet and matrix-type quartz both in sample 09DSZ35, and CL image is shown in (B,D), respectively.
Reticular structures only occur in a few quartz grains (Figure 9). An irregular pattern of differential CL forms an enigmatic reticular microstructure. It is likely that a large single quartz crystal with bright luminescence is separated by dark stringers into numerous sub-crystals. However, this structure occurs differently in quartz inclusions and matrix-type quartz; in the former, the dark stringers are relatively blurry and disappear in the rim of the grain (Figure 9B). By contrast, the stringers are more fully developed in the matrix-type quartz (Figure 9D). Quartz grains with this internal structure generally contain low Ti concentrations of <250 ppm and corresponding temperatures of <820°C (Figure 9).

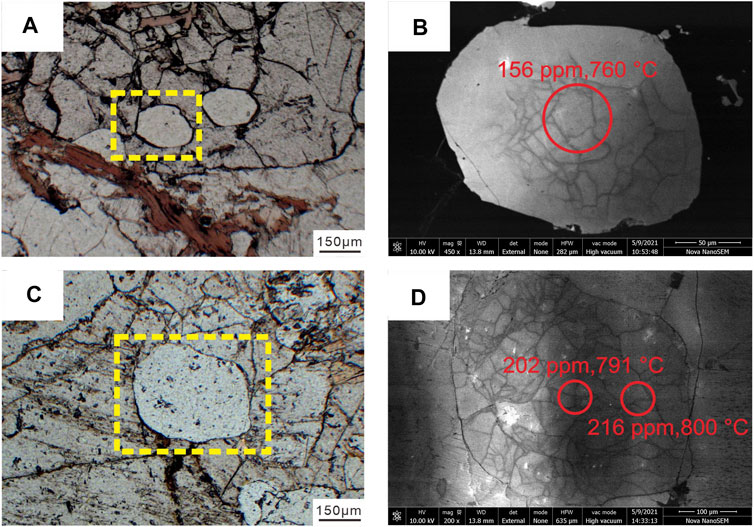

FIGURE 9. Representative photomicrographs and CL images of the analyzed quartz grains showing reticular structure. (A) Quartz inclusion within garnet in sample 20HL59 and CL image is shown in (B); (C) Matrix-type quartz in sample 20HL89 and CL image is shown in (D).
Discussion
Multi-Stage Quartz Formation/Alteration During Metamorphism
Studies have constrained the metamorphic age and P–T path of aluminous gneisses/granulites in the eastern Khondalite Belt. Zircon U-Pb dating and detailed petrological investigations in combination with phase equilibria modeling have constrained the timing of UHT metamorphism at 1.94–1.80 Ga, following the prior HP metamorphism (Santosh et al., 2007b; Jiao et al., 2013b; Li and Wei, 2016). The P–T paths involved post-peak cooling and decompression stages, although the prograde stages were variable (Figure 2; Santosh et al., 2007a; Santosh et al., 2012; Yang et al., 2014; Li and Wei, 2016; Li and Wei, 2018). We interpret the quartz formation based on the aforementioned metamorphic evolution history.
Quartz inclusions in garnet generally contain less Ti concentrations than matrix-type quartz, and the TitaniQ temperature is <160°C lower (Figure 5). This result suggests that the quartz inclusions probably grew during prograde metamorphism. Garnet may protect quartz inclusions from later resetting. However, quartz inclusions have a wide range of Ti concentrations, which may represent quartz inclusions that formed during different periods of prograde metamorphism, or are reset by later retrogression. Quartz inclusions with homogeneous luminescence CL images have low Ti concentrations, which may form at relatively low temperatures during the early prograde period, and others with rutile needles have high Ti concentrations and may form at relatively higher temperature conditions of the prograde metamorphism.
Matrix-type quartz was dominant in the studied rocks. The grains with homogeneous luminescence CL images and rutile needle structures that contain high Ti concentrations probably formed during the near-peak or early cooling stage. It was suggested that the high-temperature quartz that crystallized from the residual melt during early cooling is characterized by non-structure homogeneous luminescence CL (Storm and Spear, 2009).
The occurrence of rutile needles has been observed in Ti-rich quartz interiors of medium- to high-grade metamorphic rocks, such as quartz in migmatites and UHT metamorphic rocks (Cherniak et al., 2007; Sato and Santosh, 2007; Storm and Spear, 2009). Two mechanisms have been proposed to explain these features: 1) The entrapment of preexisting acicular rutile by growing quartz and 2) the exsolution of high-Ti quartz into low-Ti quartz and acicular rutile. In our samples, rutile needles are generally restricted to grain cores and are consistent with quartz crystallographic orientations, which strongly proves the second mechanism (Storm and Spear, 2009; Thomas and Nachlas, 2020). The dark “spots” in the CL images observed by Cherniak et al. (2007) were also interpreted as the feature of rutile exsolution during the post-peak cooling.
For both quartz inclusions and matrix-type quartz, especially the latter without garnet protection, some grains contain low Ti concentrations, which suggest the occurrence of later resetting. Healed fracture structures exist in both quartz inclusions and matrix-type quartz, which are similar to filled fractures in plutonic quartz and fluid-controlled quartz recovery in granulites (Seyedolali et al., 1997; Van den Kerkhof et al., 2004). Quartz first formed with non-healed fractures owing to the stresses imposed on the grains and decrepitation of fluid inclusions caused by the pressure difference between fluid inclusions and host quartz, probably by tectonic settings, such as uplift. Subsequently, the fractures were filled with secondary quartz or quartz nuclei by precipitation of non-luminescing SiO2. Quartz with such structures commonly contains high Ti concentrations and yields high TitaniQ temperatures. Thus, we propose that quartz with such fractures within our samples grew or recrystallized during post-peak nearly isothermal decompression.
The occurrence of reticular structure in quartz is less common in our samples, and quartz with such structures contains relatively low Ti concentrations and accordingly records low TitaniQ temperatures. Many studies have verified a positive correlation between Ti concentrations in quartz and CL intensity (Sprunt et al., 1978; Müller et al., 2002; Spear and Wark, 2009). Thus, the Ti concentrations are heterogeneously distributed. Reticular zoning might indicate the pathway of fluid infiltration.
In summary, we posit that matrix-type quartz with extensive rutile exsolution most probably grew during the near-peak to the early cooling stage and can better constrain the near-peak conditions of the studied samples than inclusion-type quartz. Therefore, the variation in the maximum TitaniQ temperatures of matrix-type quartz in these samples can better show the thermal regime of the studied region.
Validity of the TitaniQ Thermometer
Another major question can be posed to interpret the meaning of TitaniQ temperature: Can the matrix-type quartz that formed during near-peak or early cooling preserve the original Ti concentrations? Mechanisms for quartz Ti re-equilibrium are diffusion (e.g., both lattice and grain boundary diffusion) and recrystallization during deformation and/or retrogression.
Experimental studies have shown that Ti diffusion is slow in quartz (Cherniak et al., 2007; Jollands et al., 2020). According to Cherniak et al. (2007), the diffusion distance of Ti-in-quartz is 0.05, 2, and 5 μm at 0.001, 1.0, and 10 Ma at 500°C. However, the diffusion distances increased to 16 μm, 500 μm, and 1,600 μm over the same time range at 800°C. Nevertheless, experiments under anhydrous conditions suggest that grain boundary diffusion is 3–4 orders of magnitude faster than lattice diffusion (Bromiley and Hiscock, 2016). Therefore, the grain boundary acts as an efficient conduit for Ti equilibrium, especially in fine-grained rocks. Studies have shown an increasing trend of Ti concentrations from the core toward the rim in quartz inclusions of garnet, interpreted as an exchange with the host garnet (Spear et al., 2012), but we did not recognize such features in our samples.
Many studies have suggested that dynamic recrystallization is an efficient mechanism for Ti re-equilibrium, especially fast grain boundary migration, which is crucial for Ti re-equilibrium at high temperatures (Stipp et al., 2002; Grujic et al., 2011). Generally, recrystallized quartz, which has well-developed facets impinging on the preliminary quartz, results in cuspate, serrated, and irregular grain boundaries of preliminary quartz (Thomas and Nachlas, 2020). Typical serrated boundaries from matrix-type quartz shown in Figures 5C,D suggest incomplete re-equilibration and would contain low Ti concentrations; thus, we did not select domains near the serrated boundaries for analysis.
Despite the aforementioned factors, the highest TitaniQ temperatures (ca. 960–970°C) are broadly consistent with the reported temperatures calculated by other methods in the studied region (Santosh et al., 2007a; Jiao et al., 2013a; Jiao et al., 2013b; Li and Wei, 2016; Li and Wei, 2018), for example, 966–1,096°C by a two-feldspar thermometer in Xuwujia, 850–1,000°C by a Zr-in-rutile thermometer in Tuiguishan, 940–1,030°C by Ti-in-zircon and a ternary feldspar thermometer in Nantianmen and Xiaonangou, ∼975°C based on phase equilibria modeling in Xumayao, and 930–1,050°C by pseudosection in Hongsigou (Jiao et al., 2011; Jiao and Guo, 2011; Liu et al., 2012; Zhang et al., 2012; Yang et al., 2014). This result confirms the validity of the TitaniQ thermometer in high-grade rocks, and TitaniQ temperatures may represent the minimum estimates of the peak temperatures.
Other possible influences on our calculated temperatures were 1) the pressure estimation, 2) the location of selected analytical spots, and 3) sample bias. We set a pressure of 8 kbar for all calculations in this study. Pressure at 1 kbar higher would result in a 30°C higher calculated temperature. The analyzed domains with abundant rutile needles contain higher Ti concentrations than the domains without rutile needles; therefore, if any, we generally selected domains with the most abundant rutile needles for analysis. However, quartz and rutile have different crystal structure, which result in different characteristic X-ray efficiencies. This effect might influence the measured Ti concentrations. The EMP analytical spots are actually in two-dimension, which may underestimate the real volume percentage of rutile needles in quartz. Finally, we must acknowledge that in some samples we probably missed the quartz grain that contains the highest Ti concentrations, and in this case, the maximum TitaniQ temperatures for such samples would be underestimated.
Thermal Regime of the Eastern Khondalite Belt
In Figure 10A, the mapping is based on the temperature calculated from the maximum Ti concentrations of matrix-type quartz in each sample; for comparison, that in Figure 10B is based on the temperature calculated from the average Ti concentrations of matrix-type quartz in each sample. Sample localities are marked in the picture to show the distribution of the samples and the effect of sample bias.

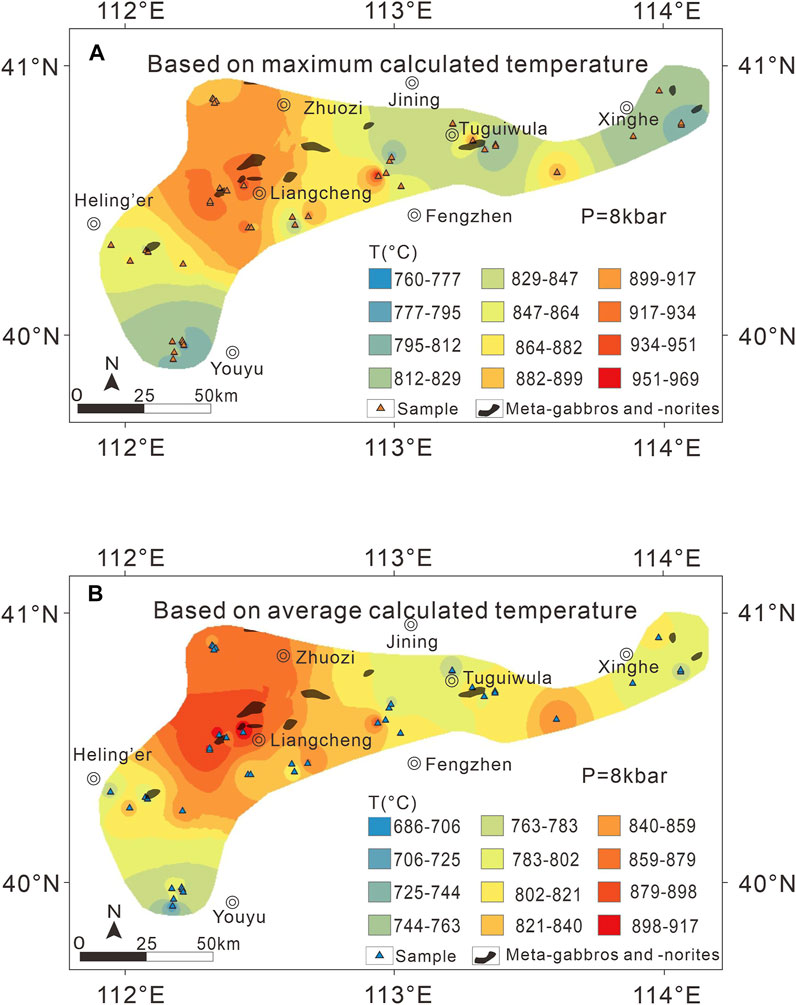

FIGURE 10. The thermal regime of the lower crust of the eastern Khondalite Belt, North China Craton, constrained by TitaniQ thermometer in this study. (A) Metamorphic temperature mapping with the maximum calculated temperatures of matrix-type quartz. (B) Metamorphic temperature mapping with the average calculated temperatures of matrix-type quartz. The mapping was conducted by ArcGIS, with inverse distance weighted (IDW) method. Sample localities are marked as triangle labels.
Both temperature mapping results show that the large-scale and extremely hot regions are surrounded by Liangcheng, Heling’er, and Zhuozi. The maximum TitaniQ temperatures were >900°C, suggesting the occurrence of UHT metamorphism. This phenomenon is consistent with those of several UHT metamorphic localities reported in this area (e.g., Liu et al., 2012; Jiao et al., 2013a; Jiao et al., 2013b). This hottest area was also consistent with the region where extensive charnockite occurred (Figure 1). Our results also show that Tuguiwula area, where typical UHT granulites with diagnostic Spr + Qz and Opx + Sil + Qz mineral assemblages have been reported, are hot, but the scale of the hot region is limited and surrounded by a relatively cold region. It might imply that the surrounding area is probably located at a higher crustal level. Alternatively, it is noticed that we have not collected samples from Zhuozi to Jining and further to Tuguiwula because of the thick sediment cover. The variation of temperatures in this region is probably caused by sample bias. Therefore, it is also possible that the whole area of Heling’er-Liangcheng-Tuguiwula-Jining-Zhuozi have experienced UHT metamorphism. It requires confirmation in future research.
In contrast, the Youyu and Xinghe areas are not as hot as the Liangcheng-Heling’er-Zhuozi area, although the major mineral assemblages are mostly the same. The maximum TitaniQ temperature is below 900°C, implying that these two areas probably do not experience UHT metamorphism. Alternatively, the analyzed quartz probably crystallized during the later stage of post-peak cooling. Quartz from these areas generally shows a non-structure with homogeneous luminescence structures, and rutile needles cannot be observed.
The thermal regime of the eastern Khondalite Belt, established by the TitaniQ thermometer in this case, is consistent with the results of another independent study using Zr-in-rutile thermometry mapping (Qi et al., unpublished). This particular case study further confirms the validity of the TitaniQ thermometer in recognizing UHT metamorphism and constraining its thermal conditions and spatial scales.
Several models have been proposed to interpret the formation of UHT metamorphism in the eastern Khondalite Belt, including radiogenic heat production (Jiao et al., 2013a), post-collisional lithosphere extension due to asthenospheric upwelling (Zhao, 2009; Li and Wei, 2018; Jiao et al., 2021), ridge subduction (Santosh and Kusky, 2009; Peng et al., 2011; Santosh et al., 2012), mantle plume (Santosh et al., 2008), and emplacement of mantle-derived mafic magma (Huang et al., 2019). In addition, a back-arc setting has also been proposed to explain UHT metamorphism in other regions (Brown, 2006; Brown and Johnson, 2018). Our study certifies the regional distribution of UHT metamorphism in the eastern Khondalite Belt, and the large-scale hottest region is the Liangcheng-Heling’er-Zhuozi area, which is consistent with the occurrence of extensive charnockite. This result implies that the formation of UHT metamorphism is closely related to charnockite. This extremely hot metamorphism and magmatism might be the coupling effect of the same mechanism, which probably formed in the root of a Paleoproterozoic large hot orogeny. However, we could not distinguish these UHT formation models in this study, and the potential model should be able to explain the spatially close relationship between UHT metamorphism and charnockite.
Conclusion
In this study, we first applied TitaniQ thermometer to 44 aluminous gneisses/granulites in the Paleoproterozoic eastern Khondalite Belt, collected from an area of ∼10,000 km2. Our results show that matrix-type quartz with substantial rutile exsolution generally yielded the maximum TitaniQ temperatures, and that of quartz inclusions in garnet was <160°C lower. These results implied that quartz inclusions probably formed during the prograde metamorphism, and matrix-type rutile needle-rich quartz formed during the near-peak to early cooling stages. The temperature mapping result based on the maximum TitaniQ temperatures of matrix-type quartz indicates that the hottest Paleoproterozoic lower crust is beneath the Liangcheng-Heling’er-Zhuozi area, where UHT metamorphism is closely associated with abundant charnockite. This region may represent the root of an ancient large hot orogeny.
