The Geochemical Evolution of Santa Cruz Island, Galápagos Archipelago

Understanding how ocean island volcanoes evolve provides important insight into the behavior of mantle plumes, how plumes interact with mid-ocean ridges, and potential risks posed to inhabitants as the islands age. In this field-based study of the Galápagos Islands, we use radiogenic isotope ratio, major element, and trace element analysis of >70 new lava samples to document the geochemical evolution of Santa Cruz Island over the past ∼2 million years, as it has been carried away from the plume. Currently, Santa Cruz is a dormant shield volcano in the central archipelago. Previous work indicates that exposed lavas preserve >1 million years of activity in two eruptive units: 1) The older Platform Series, exposed primarily in the northeast; and 2) the Shield Series, which blankets the rest of Santa Cruz and erupted from a WNW trending fissure system. Our new geochemical analyses indicate that the Platform Series lavas are more evolved and isotopically enriched than Shield lavas, but neither as compositionally monotonous nor as isotopically enriched as the younger western Galápagos volcanoes. Santa Cruz formed when the Galápagos Spreading Center (GSC) was closer to the plume than it is today, resulting in enhanced plume-ridge interaction and transport of plume material to the ridge. Consequently, the Platform Series was formed under relatively magma-starved conditions compared to today’s western volcanoes. Magma supply was sufficient for partial fractionation and homogenization of melts in shallow reservoirs, but inadequate to support thermochemically buffered networks like those in the present-day western archipelago. The slight depletion of Platform Series lavas relative to Fernandina reflects entrainment of depleted upper mantle and/or diversion of deep, enriched plume melts to the nearby GSC. The younger Shield Series lavas are even more depleted because plate motion has carried the volcano across the compositional boundary of the bilaterally asymmetric plume into its more depleted zone. Shield Series lavas’ variable, primitive compositions reflect minimal crustal processing in small, ephemeral, poorly supplied magma reservoirs. Unlike the young western shields, the constructional history of Santa Cruz has been controlled to a significant extent by its proximity to the GSC.

Introduction

Ocean island volcanoes serve as windows into the composition and behavior of mantle plumes. How the geochemistry of lavas erupted at these volcanoes changes as they are transported downstream provides further insight into temporal and spatial variations of mantle plumes, as well as important constraints on island evolution. The Galápagos Islands are the surface expression of a mantle plume that has been active for at least 14.5 million years (e.g., Werner et al., 1999). Despite both Galápagos and Hawai’i originating as deep mantle plumes (e.g., Morgan, 1972; Wolfe et al., 2009; Weis et al., 2011; French and Romanowicz, 2015), the Galápagos Archipelago is distinct from the Hawaiian mantle plume archetype in multiple ways (Harpp and Weis, 2020). Of most importance for this study, the Galápagos Islands lack a predictable petrologic and geochemical evolutionary sequence like that observed at Hawai’i, in which the islands transition from an alkalic pre-shield to a tholeiitic shield, and eventually to an alkalic post-shield stage, related to changes in magma supply rate as a function of proximity to the Hawaiian plume (e.g., Chen and Frey, 1983; Macdonald et al., 1983; Clague and Dalrymple, 1987, 1988; Geist et al., 2014a).

Furthermore, radiogenic isotopic ratios of Galápagos lavas extend from enriched compositions to signatures indistinguishable from depleted mid-ocean ridge basalt (MORB; e.g., White and Hofmann, 1978; Geist et al., 1988; White et al., 1993; Blichert-Toft and White, 2001; Harpp and White, 2001). In this work, we use “enriched” for material with high time-integrated U/Pb, Th/Pb, and Rb/Sr, as well as low time-integrated Sm/Nd (i.e., high ²⁰⁶Pb/²⁰⁴Pb, ²⁰⁸Pb/²⁰⁴Pb, ²⁰⁷Pb/²⁰⁴Pb, ⁸⁷Sr/⁸⁶Sr, and low ¹⁴³Nd/¹⁴⁴Nd), and “depleted” for the opposite geochemical systematics. These same adjectives are used as comparative terms for both radiogenic isotope ratios and trace element contents throughout this study. Striking differences distinguish the older, eastern Galápagos Islands from their young western counterparts.

Whereas most of the active western shield volcanoes erupt lavas with a narrow range of major and trace element compositions (e.g., Geist et al., 2014a), the eastern islands exhibit greater compositional variability (e.g., Geist et al., 1986; Harpp and Geist, 2018). Most eastern islands are cut by fissures and faults, many of them trending broadly E-W, instead of the caldera-related structures of the young shields (Chadwick and Dieterich, 1995). The lack of a gravity high corresponding to a residual cumulate body beneath the Santa Cruz and San Cristóbal edifices confirms that these eastern islands do not have buried calderas (Cleary et al., 2020). Consequently, no straightforward evolutionary link between western and eastern Galápagos Islands has been identified to date (Harpp and Geist, 2018), despite detailed geochemical studies on islands and seamounts in the east, including Floreana (Harpp et al., 2014a) and Santiago (Gibson et al., 2012; Schwartz et al., 2020), and in the west (e.g., Geist et al., 1995; Reynolds and Geist, 1995; Allan and Simkin, 2000; Naumann et al., 2002; Geist et al., 2005; Geist et al., 2006; Geist et al., 2014a; Anderson et al., 2018; Schwartz et al., 2020).

Santa Cruz Island is located ∼150 km downstream from the presumed plume center between Fernandina and Cerro Azul volcanoes (e.g., Kurz and Geist, 1999; Hooft et al., 2003) and is the second largest island in the archipelago in subaerial extent, covering an area of nearly 1000 km² (Figure 1). Previous authors have documented the complexity and diversity of Santa Cruz geochemistry (Bow, 1979; White et al., 1993; Kurz and Geist, 1999). For example, ⁸⁷Sr/⁸⁶Sr ratios in lavas vary from 0.7026 to 0.7031 (White et al., 1993), a significant fraction of the compositional range exhibited by the archipelago (e.g., Harpp and White, 2001). One of the most puzzling aspects of Santa Cruz is that it exhibits such a wide variation in isotopic composition, in striking contrast to the western Galápagos volcanoes, many of which erupt isotopically monotonous lavas and display little elemental variation (e.g., White et al., 1993; Allan and Simkin, 2000; Naumann et al., 2002; Geist et al., 2008; Geist et al., 2014a). An important objective of our study is to explain this dramatic difference in geochemical variation between the older, eastern Galápagos islands such as Santa Cruz and the strongly homogeneous compositions erupted by the young western shield volcanoes, in the context of the Galápagos plume and its compositional structure (e.g., Harpp and Geist, 2018; Harpp and Weis, 2020).

FIGURE 1

FIGURE 1. (A) Map of the Galápagos Archipelago. Santa Cruz is located in the central Galápagos. Cocos and Nazca absolute plate motion directions are from Argus et al. (2011). The yellow line denotes the boundary between the enriched, LLSVP-sourced stripe on the W/SW side of the plume and the less enriched, ambient mantle-sourced stripe on the E/NE side of the plume; see text for discussion and Harpp and Weis (2020) for further details. The white dashed line indicates the line between the western and eastern volcanic morphologies in the archipelago. (B) Digital Elevation Model (DEM) of Santa Cruz with locations for all samples collected during the 2012 and 2015 field excursions to the island. Faults are represented as gray lines. Cinder and tuff cones are colored dark gray. Red circle is the town of Puerto Ayora, and white circles are sampling locations. Light red regions (northeast quadrant and Baltra Island) are Platform Series (Bow, 1979). According to Bow (1979), additional reversely polarized lavas (i.e., >700 ka Ma) are located in the northwest quadrant, but they are not shown here; consequently, it is possible that samples SCZ15-01 through 06 may be Platform Series as well.

According to the two previous studies of Santa Cruz (Bow, 1979; Schwartz et al., 2022), field evidence indicates that the volcano has experienced two periods of volcanism and two of tectonic activity, spanning at least 1 My (White et al., 1993). Thus, exposed lavas on Santa Cruz provide an opportunity to document the geochemical evolution of Galápagos volcanoes as they have been carried downstream from the plume. In this study, we present new major element, trace element, and radiogenic isotopic data from Santa Cruz Island lavas. Our objectives are to identify the processes responsible for producing some of the most heterogeneous compositions observed at a Galápagos volcano, developing an evolutionary model for the volcanic island, and, at the broadest scale, understanding the compositional structure of the Galápagos plume.

Background

Tectonic Setting

The Galápagos Archipelago is located ∼1000 km west of South America on the Nazca plate, which is moving eastward at 51 km/Ma (Argus et al., 2011). The east-west trending Galápagos Spreading Center (GSC), where the Nazca and Cocos plates are diverging, is between 150 and 300 km north of the archipelago (Figure 1A). The GSC has experienced multiple southward ridge jumps during the last 5 million years, the most recent at ∼1 Ma. Consequently, the GSC was closer to the Galápagos plume when the central and eastern islands were forming than it is today (Wilson and Hey, 1995; Mittelstaedt et al., 2012). Santa Cruz is one of several older islands in the central Galápagos, in addition to San Cristóbal, Santiago, Española, Floreana, Rabida, Pinzón, and Santa Fe (Figure 1A). Santiago, Santa Cruz’s neighbor to the northwest, has experienced limited historical activity, having erupted as recently as 1906 (Siebert et al., 2010), and San Cristóbal has ∼5 ka lavas along its northern coastline (Geist et al., 1986; Mahr et al., 2016).

Mantle Sources

The geochemistry of Galápagos lavas is complex; lavas ranging from depleted, MORB-like compositions to enriched alkali-olivine basalts have erupted across the archipelago (e.g., White and Hofmann, 1978; Geist et al., 1988; Graham et al., 1993; White et al., 1993; Kurz and Geist, 1999; Blichert-Toft and White, 2001:; Harpp and White, 2001). White and Hofmann (1978) first noted the distinctive, horseshoe-shaped spatial distribution of geochemical signatures in the Galápagos; along the western and southern periphery of the archipelago, volcanoes erupt lavas with geochemically enriched signatures, whereas the central and eastern volcanic centers produce material with depleted, MORB-like signatures (e.g., Geist et al., 1988; White et al., 1993; Harpp and White, 2001).

Initially, the enriched geochemical horseshoe pattern was attributed to plume-asthenosphere mixing (Geist et al., 1988) or thermal entrainment of the asthenosphere into a sheared plume (White et al., 1993; Blichert-Toft and White, 2001; Harpp and White, 2001). Researchers have also invoked a spatially heterogeneous plume, in which multiple mantle reservoirs with different evolutionary histories supply the plume (Hoernle et al., 2000; Gibson et al., 2012; Harpp et al., 2014b; Harpp and Weis, 2020; Gleeson et al., 2021). Harpp and White (2001) established that at least four isotopically distinct mantle endmembers are required to generate the geochemical variation observed across the archipelago: 1) plume material with primordial helium isotope signatures (PLUME; Graham et al., 1993), supplying the western shields; 2) ancient recycled material with fluid-mobile element-enriched signatures, concentrated along the southern archipelago near Floreana Island (FLO); 3) moderately depleted material with elevated ²⁰⁷Pb/²⁰⁴Pb and ²⁰⁸Pb/²⁰⁴Pb signatures, limited to the northern reaches of the archipelago and whose source remains enigmatic (WD); and 4) the depleted upper mantle (DUM). Harpp and Weis (2020) proposed that the more enriched signatures originate in the Large Low Shear Velocity Province (LLSVP) at the core-mantle boundary, incorporating ancient, recycled material to provide the enriched signatures, whereas the central and eastern lavas are supplied primarily by less enriched, lower Pacific mantle. They proposed that the compositional boundary between the W/SW enriched and E/NE depleted zones of the bilaterally asymmetric plume runs ∼NW-SE, cutting through the archipelago west of Santa Cruz (Figure 1A).

Volcanic Evolution

The archetype model for hotspot-generated ocean island evolution is based on Hawai’i (MacDonald and Katsura, 1964; Chen and Frey, 1983; Macdonald et al., 1983; Clague and Dalrymple, 1987; Clague and Dalrymple, 1988). Hawaiian volcanoes experience four lifecycle stages, explained by their proximity to the plume as the edifice is carried northwest by the Pacific plate: 1) the pre-shield stage, when the volcano is on the upstream periphery of the plume, generating low-degree melts with alkalic compositions; 2) the shield stage, dominated by high-volume, high-degree melts and tholeiitic lavas; 3) the post-shield phase, primarily alkalic, low degree melts at the downstream edge of the plume; and 4) rejuvenated volcanism, which occurs after ∼0.25–2.5 Ma of quiescence (e.g., Clague and Dalrymple, 1987, 1988).

Galápagos volcanoes do not conform to the Hawaiian evolutionary sequence (Geist et al., 2014a; Harpp and Geist, 2018; Harpp and Weis, 2020). For example, the central and eastern Galápagos volcanoes do not exhibit clearly defined post-shield or rejuvenation stages (e.g., Geist et al., 1986; Gibson et al., 2012; Harpp et al., 2014a). Furthermore, the eastern Galápagos volcanoes bear little morphological resemblance to the current western shields. The older islands of Santiago, Santa Cruz, San Cristóbal, and Española lack submarine rift zones and calderas characteristic of many western shields (and most Hawaiian volcanoes) and lack buried calderas (Cleary et al., 2020). Like Hawaiian volcanoes, however, the eastern volcanoes also experience extended volcanically active phases, erupting for >2 m.y. beyond when the island was located near the plume center (e.g., Geist et al., 1986; White et al., 1993; Mahr et al., 2016). Finally, petrographic modeling by Geist et al. (1998) indicates that magmatic cooling in the eastern islands, including Santa Cruz, is primarily controlled by clinopyroxene rather than plagioclase. They conclude that the bulk of the fractionation in eastern Galápagos island melts is taking place in the deep crust, at depths within the mantle in the range of 17–23 km. This depth interval is greater than that for the young western shields, whose magmatic plumbing systems are at shallower depths (∼10 km; Geist et al., 1998; 2014a) owing to their more robust magma supplies.

As a consequence of the striking differences between the eastern and western Galápagos volcanoes, Harpp and Geist (2018) proposed that the eastern islands are magmatically starved compared to the western shields, preventing development of thermochemically buffered magmatic systems capable of supporting long-lived magma chambers and caldera formation (Geist et al., 2014a). They attribute the lower magma flux to the proximity of the GSC between 1 and 5 Ma (e.g., Wilson and Hey, 1995; Mittelstaedt et al., 2012), which may have diverted plume material toward the ridge, away from the volcanoes developing at the time, which are currently the older, central and eastern Galápagos islands.

Previous Field Studies of Santa Cruz Island

As the largest island in the center of the archipelago, Santa Cruz provides an opportunity to document how ocean islands mature as they are carried downstream from a mantle plume. Three previous field studies of Santa Cruz’s development (Bow, 1979; Schwartz, 2014 M.Sc. thesis; Schwartz et al., 2022; the original Masters’ thesis of Schwartz is available here: https://drive.google.com/file/d/1iMk9grGWRNORT7K2JxjsoXs4EY6IPKRU/view?usp=sharing), conclude that Santa Cruz has experienced two periods of volcanism and two periods of tectonic activity since the volcano migrated east from the hotspot center during the last >1 million years, as follows (Ar-Ar ages all from Schwartz et al., 2022):

1. Formation of the Platform Series, emplaced primarily between 1620 ± 15 and 1160 ± 35 ka, with only a trivial volume of activity extending beyond 1160 ka.

2. Normal faulting of the Platform Series, exposed in the NE part of the island and striking sub-parallel to highland vent systems; faulting occurred since 1160 ± 35 ka and likely between 780 and 500 ka (Bow, 1979; Schwartz et al., 2022) and only crosscuts Platform lavas.

3. Formation of the Shield Series between 271 ± 17 and 74 ± 38 ka, erupted from the E-W summit vent system and deposited primarily along the southern flank of the island).

4. Formation of southern flank faults between 274 ± 18 and 38 ± 8 ka, which overlaps with the emplacement of the Shield Series, ending ∼20 ka.

The Platform Series consists of lavas exposed primarily along the northeastern coast of Santa Cruz (Figure 1B), as well as Baltra and Seymour Islands, which are faulted remains of Santa Cruz (Bow, 1979). Platform Series lavas are both subaerial and submarine, thick (∼10 m) pahoehoe flows, and many are interbedded with beach and shallow water deposits (Bow, 1979). Field observations confirm that the Platform Series lies stratigraphically below the Shield Series wherever a contact between the units is exposed. Schwartz et al. (2022) identified Platform Series lavas in several locations (e.g., SC12-572B) along the North Puerto Ayora fault that extends NW from Santa Cruz’s largest town, along the south coast of the island. The 416 ± 36 ka (2σ) age of SC12-572B (Schwartz et al., 2022) is anomalously young for a Platform Series lava. Thus, the Platform Series may have been active as recently as ∼0.4 Ma (nearly concurrent with some Shield Series flows), and may not have shut down entirely at ∼1.1 Ma (White et al., 1993; Schwartz et al., 2022), but the lack of any other Platform Series samples from <1.1 Ma suggests that sample SC12-572B represents only a trivially small-volume tail of activity, and that the bulk of the Platform Series was emplaced between 1.6 and 1.1 Ma.

The Shield Series consists of predominantly pahoehoe flows erupted from the WNW-trending fissure system bisecting the island (Figure 1B; Bow, 1979). The fissures are manifested as a quasi-linear arrangement of late-stage cinder cones and pit craters in the highlands and tuff cones near the coast. Gravity studies by Cleary et al. (2020) confirm that they do not define the remnants of an in-filled caldera (Bow, 1979). Shield Series flows exhibit features typical of pahoehoe lava, with inflation lobes and tumuli.

Two Shield Series lavas have been dated using cosmogenic helium techniques, yielding ages between 0.111 ± 0.006 Ma and 0.585 Ma ± 0.013 (Kurz and Geist, 1999). On the basis of Ar-Ar ages and normal paleomagnetic polarity, Schwartz et al. (2022) estimates that the Shield Series became active ∼700 ka. Consequently, >1 million years of volcanic and geochemical history are preserved and exposed at Santa Cruz. Unfortunately, dense vegetation severely limits detailed field mapping across most of the island.

Along the northern, eastern, and southern coasts, a series of normal faults strike sub-parallel to the highland cinder cone lineation (Schwartz et al., 2022; Figure 1B). Schwartz et al. (2022) proposes that the faults define two distinct periods of tectonic activity. The older faults, limited to the northeast quadrant, only crosscut Platform Series lavas and formed since 1160 ± 35 ka, and likely between 780 and 500 ka (Bow, 1979; Schwartz et al., 2022), as a consequence of regional extension early in the island’s construction. The younger faults, along the southern flank, formed contemporaneously with the Shield Series, between 274 ± 18 and 38 ± 8 ka (Schwartz et al., 2022). Schwartz et al. (2022) attributes the younger faults to southward extension of the island caused by E-W-oriented magmatic intrusions that ceased ∼20 ka.

Materials and Methods

During July and August 2012, we collected >70 samples from Santa Cruz Island (Figure 1B), each of which was located by GPS (Table 1). An additional 10 samples were collected along the north shore in 2015. Owing to the lack of deeply eroded valleys or a caldera, most samples in this study originate from the uppermost stratigraphic layers of the volcano; only a handful of samples were collected from within pit craters; consequently we have no samples from early in the island’s development. The rocks were broken into small chips by a jaw-crusher, and then examined under a binocular microscope to collect ∼15 g of fresh material for chemical analysis.

TABLE 1

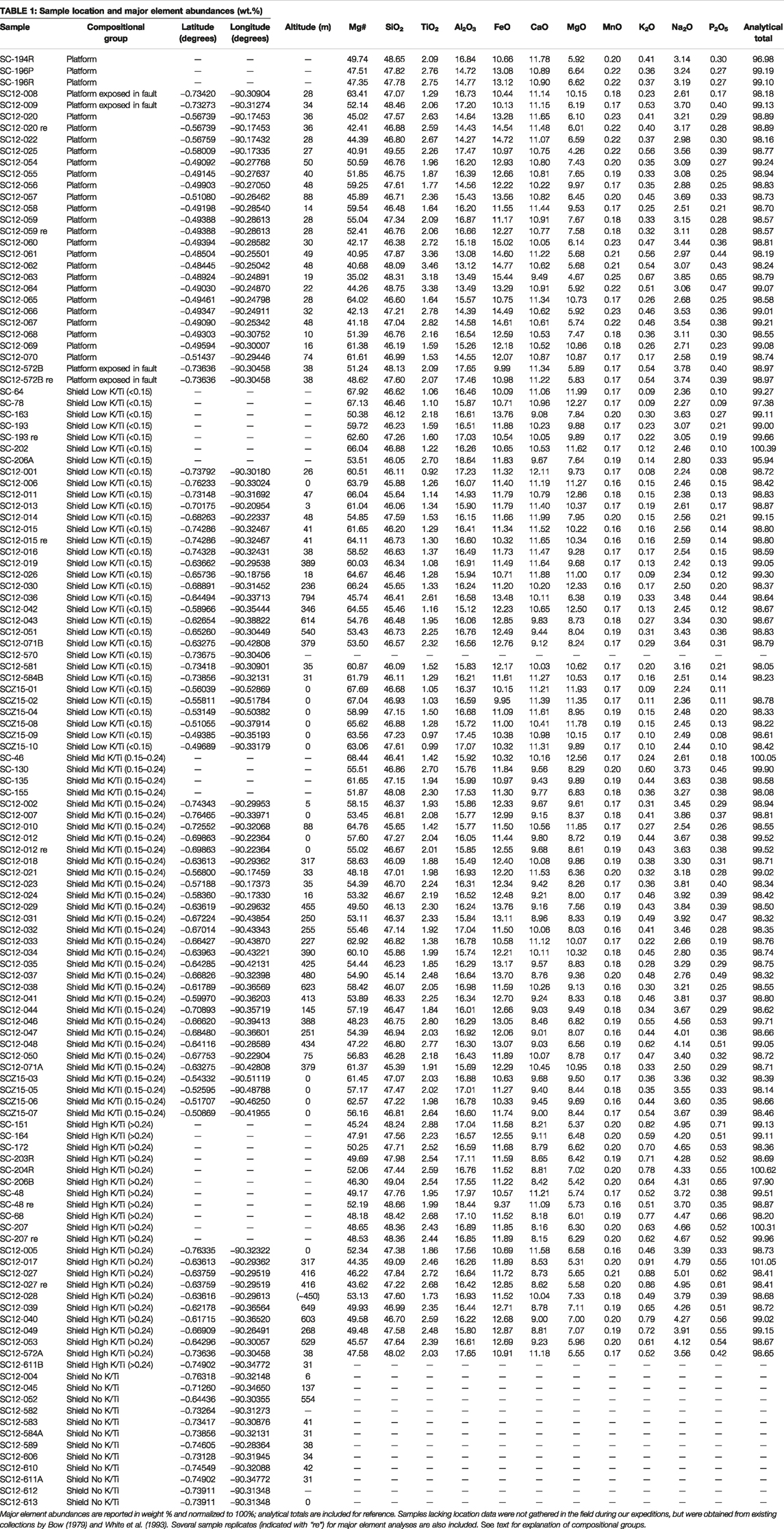

TABLE 1. Santa Cruz sample locations and major element contents.

Major and Trace Element Analysis

Samples were analyzed for major elements at Colgate University by X-Ray Fluorescence (XRF) spectroscopy following a method adapted from Norrish and Hutton (1969) on a Philips PW240 instrument. Replicate analyses of USGS Standard Reference Material (SRM) BHVO-2 yielded precision for all major element oxides <0.85% (1σ; Table 1). The precision of triplicate analyses of two samples (SC12-001 and SC12-063) yielded <1% relative standard deviation (RSD, 1σ) for all major elements, except P₂O₅ (1.2% RSD, 1σ). A subset of previously collected samples (Bow, 1979) was analyzed by XRF at Washington State University’s (WSU) GeoAnalytical Laboratory following procedures described in Johnson et al. (1999). Whole rock major element data were not adjusted for phenocryst content (e.g., crystal accumulation).

Trace element concentrations were determined via Inductively Coupled Plasma-Mass Spectrometry (ICP-MS) using a Varian 820MS quadrupole instrument at Colgate University. A 200-ppb internal standard solution of ¹¹⁵In, ¹³³Cs, ¹⁸²W, and ²⁰⁵Tl was diluted to 1:20 using in-line mixing during analysis. Analyte masses were corrected to the nearest internal standard mass of those listed above to account for instrument drift, according to the method developed by Eggins et al. (1997). External standard curves were created using solutions of USGS SRMs BHVO-2, BIR-1, DNC-1, AGV-2, and W-2. The Pearson correlation coefficients of the standard curves were consistently >0.998. A solution of USGS SRM W-2 was analyzed every five to six samples as an unknown and yielded <4% RSD (1σ) precision for elements with atomic masses greater than 89. Only Sc and Rb registered precisions >8% (1σ) in replicate W-2 solutions run as unknowns; elements with masses less than 89 amu had precisions <8% and usually <5%. Corrections were made for isobaric interferences on Gd.

Radiogenic Isotope Analysis

Strontium, neodymium, and lead radiogenic isotope analyses were performed at the University of Florida’s Department of Geological Sciences Table 3. Samples were leached aggressively to remove sea salt spray and weathering products according to procedures in Goss et al. (2010). All subsequent chromatographic elemental separations were performed in a class 100 clean laboratory. Samples were diluted with 2% HNO₃ to achieve ∼4–6 V total ion current for each solution concentration. To monitor instrument performance, NBS 987 Sr and JNDi Nd standards were analyzed every four samples. External precision for Sr (2σ) is 0.00002 (n = 42) and 0.00002 (n = 91) for Nd. Strontium results were corrected to a ⁸⁸Sr/⁸⁶Sr value of 0.1194 and neodymium ratios were normalized to a ¹⁴⁶Nd/¹⁴⁴Nd value of 0.7219 using an exponential law for mass bias fractionation. Strontium and neodymium isotope ratios presented here have been corrected to SRM NBS 987 Sr (⁸⁷Sr/⁸⁶Sr = 0.710248) and La Jolla (¹⁴³Nd/¹⁴⁴Nd = 0.511858). The Pb standard, NBS 981, achieved a long-term (June 2012–January 2013) average of ²⁰⁶Pb/²⁰⁴Pb = 16.938 ± 0.004 (2σ), ²⁰⁷Pb/²⁰⁴Pb = 15.488 ± 0.003 (2σ), and ²⁰⁸Pb/²⁰⁴Pb = 36.693 ± 0.009 (2σ). The Pb isotopic analyses presented here are corrected to NBS 981 values ²⁰⁶Pb/²⁰⁴Pb = 16.9405, ²⁰⁷Pb/²⁰⁴Pb = 15.4963, and ²⁰⁸Pb/²⁰⁴Pb = 36.7219 (Weis et al., 2006). A subset of Santa Cruz samples were analyzed at the Pacific Centre for Isotopic and Geochemical Research (PCIGR) at the University of British Columbia, according to methods described in Harpp and Weis (2020). All data have been corrected to the same reference values as samples analyzed at the University of Florida.

Results

Petrography

According to thin section observations, lavas in the Platform Series are aphyric to plagioclase-phyric with a subophitic groundmass composed of plagioclase, clinopyroxene, olivine, and opaque oxides. Plagioclase phenocrysts are up to 1 cm long, and constitute 1–3% of Platform Series samples. A plagioclase ultraphyric lava in the Cerro Colorado area contains 25% modal plagioclase, with crystals up to 10 × 5 mm, but its major element composition is not exceptional compared to the others from the same unit. Most lavas have sparse (<2%) olivine phenocrysts ∼1 mm in diameter; however, olivine and plagioclase are often present in glomerocrysts up to 1 cm in diameter.

Shield Series lavas include plagioclase- and olivine-phyric rocks. Plagioclase and Ti-rich clinopyroxene are ubiquitous groundmass phases. Olivine is also present in the intergranular to subophitic groundmass. Plagioclase phenocrysts are variable in shape and typically between <1 and 5 mm long. They constitute up to 25% modal abundance in some samples, although the majority have <10% phenocrysts. Olivine phenocrysts are also prevalent in Shield Series lavas, usually <25% modal abundance. Olivine phenocrysts are subhedral to euhedral, ∼1–2 mm in diameter, and some contain spinel inclusions. Hawaiites erupted at cinder and tuff cones preserve a pilotaxitic matrix rich in plagioclase microlites, oxidized olivine, and opaque oxides all <1 mm long.

Major Element Compositions

Major element concentrations of Santa Cruz lavas define a wide compositional range that spans values observed across the archipelago (Figures 2–4; Table 1; e.g., White et al., 1993), despite a relatively small range of SiO₂ contents (45.1–49.6 wt.%); rocks are tholeiitic to weakly alkaline (Figure 2). Major element variations do not exhibit any systematic geographic pattern. Santa Cruz lavas have between 4.3 and 12.9 wt.% MgO, extending to both more primitive and evolved compositions than Fernandina and most of the other active volcanoes in the western Galápagos (Figures 3A–H; Allan and Simkin, 2000). At a given Mg# value, Santa Cruz has lower TiO₂ and CaO contents than Fernandina, but higher Al₂O₃, FeO_t, Na₂O, and P₂O₅. In general, K₂O values at a given Mg# are higher than those from Fernandina for most of the Shield series, but lower for the Platform Series.

FIGURE 2

FIGURE 2. Alkali-silica diagram of Santa Cruz lavas. The alkalic-tholeiitic dividing line is from Macdonald and Katsura, 1964). Fields are literature data. Red: Fernandina, blue: Genovesa, brown: Santiago (White et al., 1993; Harpp et al., 2002; Harpp et al., 2003; Saal et al., 2007; Gibson and Geist, 2010; Gibson et al., 2012; Harpp et al., 2014a). Samples indicated by a cross are literature data from Santa Cruz (White et al., 1993; Kurz and Geist, 1999; Saal et al., 2007); they have not been attributed to either the Platform or Shield Series owing to a lack of GPS coordinates for their origin locations.

FIGURE 3

FIGURE 3. Selected major element variation versus Mg# for Santa Cruz lavas. Fields are literature data. Red: Fernandina, blue: Genovesa, brown: Santiago (White et al., 1993; Harpp et al., 2002; Harpp et al., 2003; Saal et al., 2007; Gibson and Geist, 2010; Gibson et al., 2012; Harpp et al., 2014a). Concentrations are in weight percent (wt.%) and have been normalized to 100%. Mg# = [molar Mg/(Mg + Fe)]. Symbols are larger than 1σ analytical error. Samples indicated by a cross are literature data from Santa Cruz (White et al., 1993; Kurz and Geist, 1999; Saal et al., 2007); they have not been attributed to either the Platform or Shield Series owing to a lack of GPS coordinates for their origin locations. (A) SiO₂-Mg#; (B) TiO₂-Mg#; (C) Al₂O₃-Mg#; (D) FeOtotal-Mg#; (E) CaO-Mg#; (F) K₂O-Mg#; (G) Na₂O-Mg#; (H) P₂O₅-Mg#

FIGURE 4

FIGURE 4. Major element ratio variation with Mg# for Santa Cruz lavas. (A) K₂O/TiO₂, to illustrate how Shield Series sub-groups were defined. (B) CaO/Al₂O₃. Concentrations are in weight percent (wt.%) and have been normalized to 100%. Symbols are larger than 1σ analytical error. Samples indicated by a cross are literature data from Santa Cruz (White et al., 1993; Kurz and Geist, 1999; Saal et al., 2007); they have not been attributed to either the Platform or Shield Series owing to a lack of GPS coordinates for their origin locations.

The Platform Series rocks are more fractionated than Shield lavas, but cannot be produced from the more primitive Shield Series samples, owing to their different incompatible element ratios and the distinct trends they define in Harker diagrams. The lack of dominant trends in either the Platform or Shield Series lavas suggests that there is not a single parental melt composition responsible for each geologic unit; instead, there must be an array of primary melt compositions and depths of melt generation within both the Shield and Platform Series. Similarly, the range of FeO_t contents in primitive lavas may signal that the mantle source includes a pyroxenitic component, as has been proposed for other lavas from the central Galápagos (Gleeson et al., 2020).

In CaO-Mg# space (Figure 3E), Santa Cruz lavas define two broad trends. The positive trend that includes most of the Shield Series lavas likely reflects control primarily by clinopyroxene fractionation, whereas the shallower trend defined by Platform lavas and a handful of mostly low K₂O/TiO₂ Shield lavas has experienced less clinopyroxene fractionation. The high modal abundance of plagioclase and elevated Al₂O₃ contents of many Shield Series lavas indicates that there has been plagioclase accumulation. In contrast, the Platform Series’ lower Al₂O₃ contents suggest greater control by plagioclase fractionation.

The Platform Series defines a horizontal array in Mg#-K₂O/TiO₂ space, varying between ∼0.1 and 0.25 in K₂O/TiO₂. The low FeO and MgO values of some Platform Series suggest that a few may have fractionated Fe-Ti oxides, although to a limited extent given that these lavas maintain relatively elevated TiO₂ contents (Figures 3B,D). The Shield Series array is negatively sloped in Mg#-K₂O/TiO₂ space; consequently, we have divided the Shield Series into three compositional sub-groups (Figure 4). Shield Series lavas with K₂O/TiO₂ <0.15 are classified as the Low K₂O/TiO₂ suite. These samples have the highest MgO and CaO, and the lowest K₂O, TiO₂, Na₂O, and P₂O₅, of the Shield Series (Figures 3A,B,E–H). Samples with K₂O/TiO₂ >0.25 are the High K₂O/TiO₂ suite, and constitute the most evolved lavas within the Shield. Lavas with K₂O/TiO₂ values between 0.15 and 0.25 are designated as the Mid K₂O/TiO₂ suite of the Shield Series (Figure 4).

Trace Element Compositions

Broadly, trace element concentrations vary from depleted, near-MORB-like values to more enriched compositions typical of ocean island basalt (Table 2; White et al., 1993). The Platform Series exhibits less compositional variability in trace element contents than the Shield Series (Figures 5–7).

TABLE 2

TABLE 2. Trace element abundances of Santa Cruz lavas, reported in parts per million (ppm). One replicate analysis (indicated by “re”) is included.

FIGURE 5

FIGURE 5. Representative chondrite-normalized rare earth element (REE) values. Normalizing values are from McDonough and Sun (1995). All symbols are larger than 1σ analytical error. (A) Platform Series. (B) High K₂O/TiO₂ Shield Series. (C) Mid K₂O/TiO₂ Shield Series. (D) Low K₂O/TiO₂ Shield Series.

FIGURE 6

FIGURE 6. Representative trace element contents of Santa Cruz lavas normalized to primitive mantle (McDonough and Sun, 1995). All symbols are larger than 1σ analytical error. (A) Platform Series. (B) High K₂O/TiO₂ Shield Series. (C) Mid K₂O/TiO₂ Shield Series. (D) Low K₂O/TiO₂ Shield Series.

FIGURE 7

FIGURE 7. Santa Cruz incompatible trace element ratio variations relative to selected Galápagos Islands. Fields are literature data. Red: Fernandina, blue: Genovesa, brown: Santiago, pink: Floreana, yellow: Northern Galápagos Volcanic Province (Bow and Geist, 1992; White et al., 1993; Harpp et al., 2002; Harpp et al., 2003; Saal et al., 2007; Gibson and Geist, 2010; Gibson et al., 2012; Harpp et al., 2014a; Harpp et al., 2014c). (A) Chondrite-normalized La_n/Sm_n and Sm_n/Yb_n ratios (McDonough and Sun, 1995). (B) Nb/La versus chondrite-normalized Sm_n/Yb_n ratios. (C) Nb versus Nb/Zr. (D) ΔNb versus Nb/Zr discrimination diagram to identify origin of depleted signatures. ΔNb (Fitton et al., 1997) = 1.74 + log(Nb/Y) − 1.92 log(Zr/Y). ΔNb >0 is attributed to lower mantle origin (OIB field); ΔNb <0 indicates depleted mantle origin (MORB field). Lavas with Nb/Zr > 0.06 are considered enriched, and those with Nb/Zr < 0.06 are depleted according to Fitton et al. (2003). Several Floreana literature data extend to Nb/Zr = 0.655 and ΔNb = 0.939, but are not shown. Samples indicated by a cross are literature data from Santa Cruz (White et al., 1993; Kurz and Geist, 1999; Saal et al., 2007); they have not been attributed to either the Platform or Shield Series owing to a lack of GPS coordinates for their origin locations.

Rare Earth Elements

Santa Cruz lavas exhibit a wide range of Rare Earth Element (REE) compositions. Chondrite-normalized REE concentrations of Platform Series lavas define nearly linear patterns with slight negative slopes (Figure 5). Most Platform Series REE patterns are parallel to each other, with minor variations in slope steepness in the mid-to-heavy REEs. Platform Series lavas mostly have minor negative europium anomalies.

The Shield Series lavas exhibit greater variability than the Platform Series in terms of absolute REE concentrations and their patterns (Figure 5). The High K₂O/TiO₂ Shield Series lavas are most similar to the Platform Series, with relatively gentle, negatively sloping patterns and Eu anomalies that range from slightly negative to zero. The Low K₂O/TiO₂ Shield Series has the most depleted REE compositions, with positive light-REE (LREE) slopes for some samples, a common characteristic of MORB (e.g., Workman and Hart, 2005; McLennan and Taylor, 2012); others have gentle negative LREE slopes, more like the High K₂O/TiO₂ suite, but with flatter LREE slopes. The Mid K₂O/TiO₂ Shield lavas resemble the more enriched Low K₂O/TiO₂ group, but several have steeper LREE slopes. A few samples from across the island also exhibit minor negative Ce anomalies.

Incompatible Trace Elements

All three Shield Series K₂O/TiO₂ groups have compositions that overlap significantly but not completely in primitive mantle-normalized trace element contents (Figure 7). Generally, the Platform and High K₂O/TiO₂ Shield samples have the highest incompatible trace element (ITE) concentrations, and the Low K₂O/TiO₂ Shield lavas have the lowest. Most Santa Cruz lavas are enriched in the High Field Strength Elements (HFSE; Ti, Nb, Zr, Hf, Ta) compared to less incompatible elements, but the extent of enrichment varies. Within each eruptive unit, ITE concentrations vary by up to a factor of four relative to primitive mantle (Figure 6).

The Low K₂O/TiO₂ suite is the least enriched group of the Shield Series, and the High K₂O/TiO₂ lavas are the most enriched (Figure 6). Shield Series lavas exhibit positive slopes for the most incompatible trace elements and negative slopes for the less incompatible ones. The Low K₂O/TiO₂ suites have mostly positive Sr anomalies, whereas the High K₂O/TiO₂ and Platform Series lavas’ Sr anomalies are negative, and the Mid K₂O/TiO₂ have both types. Many Low and Mid K₂O/TiO₂ suite samples also exhibit small positive Ba anomalies, as is the case for Floreana lavas (e.g., Harpp et al., 2014a). By contrast, the Platform Series has positive Ba but negative Sr anomalies. Taken as a whole, Santa Cruz lavas have ITE contents that span the range between Genovesa’s depleted and Fernandina’s enriched compositions (Figure 6; White et al., 1993; Harpp and White, 2001).

Variations in light (La_n/Sm_n) and heavy REE (HREE) ratios (Sm_n/Yb_n) for Santa Cruz also vary widely (Figure 7A). Santa Cruz lavas define a broad range in La_n/Sm_n at Sm_n/Yb_n < 2.6. The Shield Series’ Low K₂O/TiO₂ lavas have the greatest variability in LREE and HREE ratios, and the Mid K₂O/TiO₂ lavas overlap the Low K₂O/TiO₂ group in all but the lowest values; the Shield’s High K₂O/TiO₂ suite exhibits less variation as well as the island’s highest La_n/Sm_n values. The Platform Series overlaps the Shield’s Mid K₂O/TiO₂ lavas, but also has some of the highest Sm_n/Yb_n observed on the island. Compared to the rest of the Galápagos Archipelago, LREE and HREE ratios of Santa Cruz lavas extend between the fields of Fernandina and Genovesa, with little overlap into the shallow-melting, low Sm_n/Yb_n field of Floreana (White et al., 1993; Harpp et al., 2014a).

Ratios of comparably incompatible trace elements are relatively consistent across Santa Cruz, whereas the Platform Series is slightly more enriched in the more incompatible elements and in fluid-mobile elements. For instance, the Nb/Zr ratio of the Platform Series is 0.064 (± 0.009 1σ; n = 32), and the Shield value is 0.049 ± 0.011 (1σ; n = 93); the Platform Series Ba/La is 7.97 (± 3.89 1σ; n = 32) compared to the Shield Series’ 5.34 (± 1.24 1σ; n = 94). Santa Cruz ITE ratios define distinct fields from those of most other Galápagos volcanoes, and usually fall between the Fernandina and Genovesa fields. Across the archipelago, Santa Cruz ITE ratios are most similar to Santiago’s less enriched lavas (Figure 7; Gibson et al., 2012) and rocks from Volcán Wolf (Geist et al., 2005).

The variation across Santa Cruz in La_n/Sm_n (Platform: 1.17–1.97; Shield: 0.51–2.15) and Sm_n/Yb_n (Platform: 1.67–2.56; Shield: 0.98–2.55) indicates that the island’s lavas were generated across a range of extents and depths of melting, similar to those at Santiago Island (Gibson et al., 2012). Comparison of Sm_n/Yb_n values as an indication of depth of melting reveals that the Platform and Shield Series’ averages are similar, but the Shield Series varies more than the Platform (Platform average Sm_n/Yb_n = 1.90 ± 0.23 (1σ), n = 31; Shield average Sm_n/Yb_n = 1.91 ± 0.34 (1σ), n = 90). The Shield and Platform Series lavas have nearly identical Sm_n/Yb_n maxima (∼2.55), but the Shield minimum indicates shallower melting (0.98) than Platform lavas (1.67). The Shield’s Low K₂O/TiO₂ lavas exhibit the shallowest melting, with an average Sm_n/Yb_n of 1.63 (± 0.34 (1σ), n = 32). The Shield Mid and High K₂O/TiO₂ rocks have higher averages, indicative of deeper melting (Shield Mid Sm_n/Yb_n = 2.10 ± 0.20 (1σ), n = 33; Shield High Sm_n/Yb_n = 2.14 ± 0.19 (1σ), n = 16).

Isotopic Ratios

Basalts from Santa Cruz define a wider range of isotopic ratios than those erupted at most other Galápagos Islands (Figures 8A–D; Table 3, e.g., White et al., 1993). The ⁸⁷Sr/⁸⁶Sr ratios vary from 0.702633 to 0.702959, and ε_Nd values extend from 7.77 to 9.43. Lead isotopic ratio ranges are 18.531–18.947 for ²⁰⁶Pb/²⁰⁴Pb, 15.519–15.560 for ²⁰⁷Pb/²⁰⁴Pb, and 38.071–38.515 for ²⁰⁸Pb/²⁰⁴Pb. Platform Series lavas are generally more enriched than the Shield Series. Even though there is overlap between the two groups, taking into account analytical uncertainty, the averages of the Platform and Shield Series lavas in all isotopic ratios are significantly different from each other at >95% certainty. The enrichment in Platform over Shield Series lavas supports previous observations based on fewer samples (White et al., 1993).

FIGURE 8

FIGURE 8. Variations in radiogenic isotope ratios for Santa Cruz lavas. Fields are literature data. Red: Fernandina, blue: Genovesa, brown: Santiago, pink: Floreana, yellow: Northern Galápagos Volcanic Province (Bow and Geist, 1992; White et al., 1993; Harpp et al., 2002; Harpp et al., 2003; Saal et al., 2007; Gibson and Geist, 2010; Gibson et al., 2012; Harpp et al., 2014a; Harpp et al., 2014c). Symbols are larger than 1σ analytical error. (A) ⁸⁷Sr/⁸⁶Sr versus ε_Nd; note that two Shield Series samples offset from the main array to higher ⁸⁷Sr/⁸⁶Sr values are likely contaminated by seawater and their compositions are not considered in further discussion; (B) ε_Nd versus ²⁰⁶Pb/²⁰⁴Pb; (C) ²⁰⁶Pb/²⁰⁴Pb versus ²⁰⁸Pb/²⁰⁴Pb; (D) ²⁰⁷Pb*/²⁰⁶Pb* versus ²⁰⁸Pb*/²⁰⁶Pb*. Radiogenic lead calculation: ²⁰⁸Pb*/²⁰⁶Pb* = [(²⁰⁸Pb/²⁰⁴Pb)_sample–(²⁰⁸Pb/²⁰⁴Pb)_{Earth Initial}]/[(²⁰⁶Pb/²⁰⁴Pb)_sample–(²⁰⁶Pb/²⁰⁴Pb)_{Earth Initial}], with (²⁰⁸Pb/²⁰⁴Pb)_{Earth Initial} = 29.475 and (²⁰⁶Pb/²⁰⁴Pb)_{Earth Initial} = 9.307 based on Canyon Diablo Troilite (Galer and O’Nions, 1985). ²⁰⁷Pb*/²⁰⁶Pb* = [(²⁰⁷Pb/²⁰⁴Pb)_sample–(²⁰⁷Pb/²⁰⁴Pb)_{Earth Initial}]/[(²⁰⁶Pb/²⁰⁴Pb)_sample–(²⁰⁶Pb/²⁰⁴Pb)_{Earth Initial}], with (²⁰⁷Pb/²⁰⁴Pb)_{Earth Initial} = 10.294 and (²⁰⁶Pb/²⁰⁴Pb)_{Earth Initial} = 9.307 based on Canyon Diablo Troilite (Galer and O’Nions, 1985). (E) ⁸⁷Sr-⁸⁶Sr variations in Santa Cruz lavas over time (in ka), for all available dates of study samples; (F) ε_Nd variations in Santa Cruz lavas over time (in ka), for all available dates of study samples. Samples indicated by a cross are literature data from Santa Cruz (White et al., 1993; Kurz and Geist, 1999; Saal et al., 2007); they have not been attributed to either the Platform or Shield Series owing to a lack of GPS coordinates for their origin locations.

TABLE 3

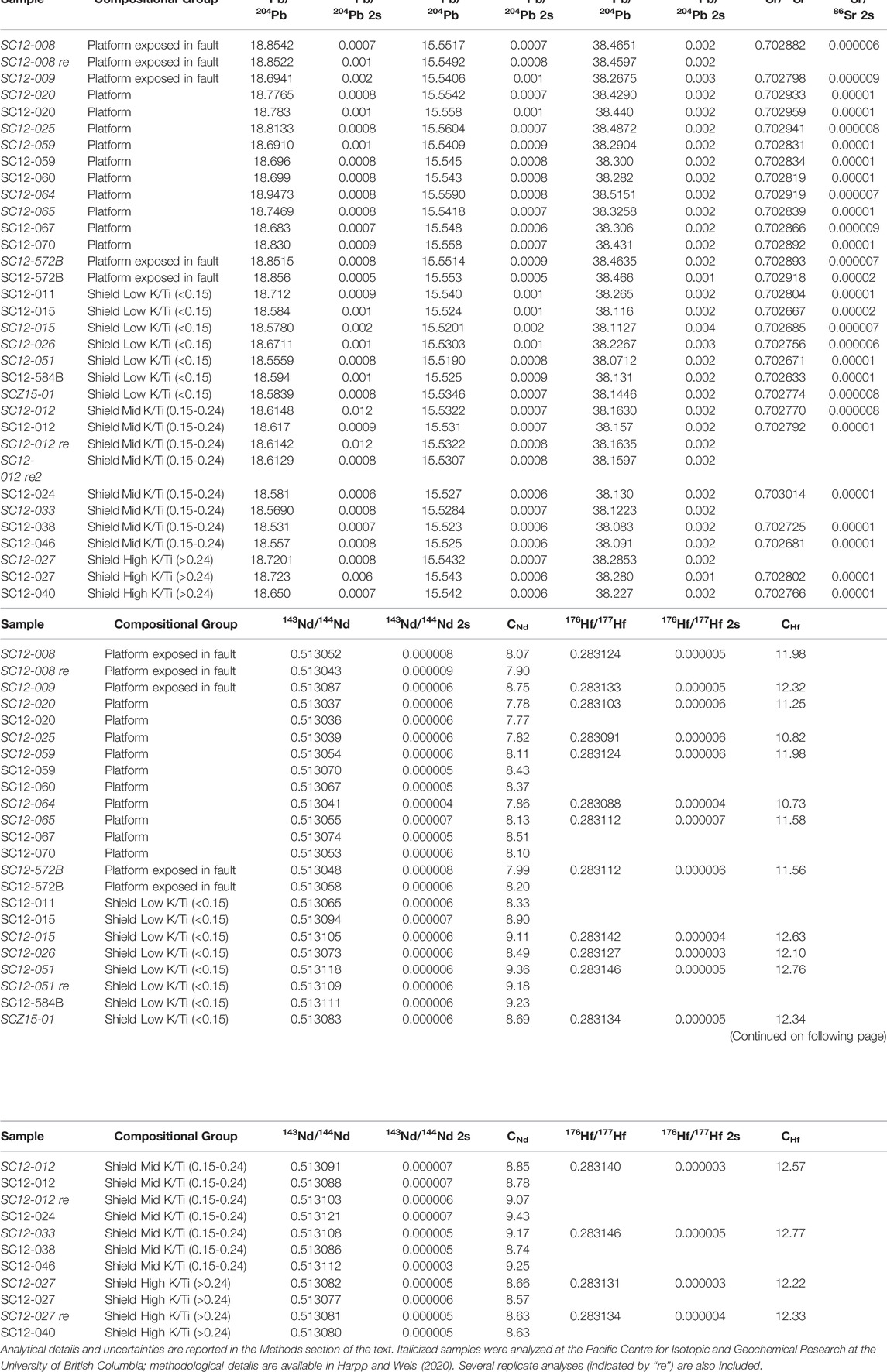

TABLE 3. Radiogenic isotope ratios for Santa Cruz lavas.

The most depleted signatures of the Shield Series (e.g., ⁸⁷Sr/⁸⁶Sr < 0.7027; ε_Nd > 9) resemble material erupted at Genovesa Island in the Northern Galápagos Volcanic Province (NGVP; e.g., Harpp et al., 2003; Harpp et al., 2014c). The most enriched Santa Cruz lavas are comparable to the enriched material erupted at other eastern Galápagos volcanoes, including Santiago and San Cristóbal, which also display comparable ranges in isotopic ratios (e.g., Geist et al., 1986; Gibson et al., 2012). Santa Cruz lavas are not as enriched as those produced at volcanic centers closer to the leading edge of the plume, such as Fernandina, Volcán Sierra Negra, and Volcán Cerro Azul (e.g., White et al., 1993; Allan and Simkin, 2000; Naumann et al., 2002).

Relationship between Incompatible Trace Element Ratios and Isotopic Ratios

Santa Cruz geochemical variations are consistent with the archipelago-wide observation first noted by Kurz and Geist (1999) that ε_Nd has a strong negative correlation with Nb/La (Figure 9), and therefore that Nb/La can be a proxy for plume material (highest Nb/La = greatest plume contribution). Santa Cruz compositions extend from the depleted Genovesa field and overlap with the depleted end of the Santiago field. Santiago, in turn, extends toward Fernandina’s enriched compositions, resulting in a relatively coherent array in Nb/La-ε_Nd space. The average Nb/La of the older Platform Series (1.00 ± 0.08 1σ; n = 31) is significantly higher than that of the Shield Series (0.88 ± 0.12 1σ; n = 89), consistent with radiogenic isotope ratio systematics that indicate a decrease in the contribution of enriched plume material to Santa Cruz lavas over time (Figures 8E,F; White et al., 1993). Variations in isotopic ratios with ITE ratios such as La_n/Sm_n whose elements differ more in their incompatibility than Nb/La display a different pattern. Most Galápagos lavas define a broadly binary array in ε_Nd-La_n/Sm_n space (Figure 9). Unlike Santiago (Gibson et al., 2012), isotopic and ITE ratios do not correlate at Santa Cruz.

FIGURE 9

FIGURE 9. Variations in radiogenic isotope ratios and incompatible trace element ratios for Santa Cruz lavas. Fields are literature data. Red: Fernandina, blue: Genovesa, brown: Santiago, pink: Floreana, yellow: Northern Galápagos Volcanic Province (Bow and Geist, 1992; White et al., 1993; Harpp et al., 2002; Harpp et al., 2003; Saal et al., 2007; Gibson and Geist, 2010; Gibson et al., 2012; Harpp et al., 2014a; Harpp et al., 2014c). Symbols are larger than 1σ analytical error. (A) Nb/La versus ε_Nd. (B) La_n/Sm_n (normalized to primitive mantle; McDonough and Sun, 1995) versus ε_Nd. Samples indicated by a cross are literature data from Santa Cruz (White et al., 1993; Kurz and Geist, 1999; Saal et al., 2007); they have not been attributed to either the Platform or Shield Series owing to a lack of GPS coordinates for their origin locations.

Mantle Components at Santa Cruz

Isotopic ratios from Santa Cruz define nearly linear arrays, suggesting that mixing between two primary endmembers, PLUME and DUM, controls most of the island’s geochemical variation (Figures 8A–D; Harpp and White, 2001). We applied a simple two-component mixing calculation (Langmuir et al., 1978) to estimate contributions of DUM and PLUME, using the isotopic ratios and absolute concentrations of Sr, Nd, and Pb from Harpp and Weis (2020).

According to our estimates, Platform Series lavas have higher contributions of PLUME (20–40%) than the Shield Series (5–35%). In this first-order examination of mantle endmembers, we did not model in detail the role of either WD or FLO, given how much of the variation at Santa Cruz can be explained with mixtures of PLUME and DUM. Owing to the fact that the WD endmember is distinctive primarily in its Pb isotope ratios, it is challenging to distinguish unequivocally whether Santa Cruz signatures are the result of mixing among DUM-PLUME and WD or DUM-PLUME and FLO. Mixing curves calculated for ²⁰⁷Pb*/²⁰⁶Pb*-²⁰⁸Pb*/²⁰⁶Pb*, however, suggest that WD is the likely reservoir augmenting the dominant combination of DUM and PLUME (Figure 8D). Santa Cruz exhibits little evidence that FLO, the component thought to consist of ancient recycled material, is contributing significantly to its source (e.g., Harpp and White, 2001; Harpp and Weis, 2020); this conclusion is supported by Santa Cruz’s lack of other compositional features characteristic of Floreana, such as concave-up REE patterns or more extreme Sr and Pb isotopic ratios (Harpp et al., 2014a).

The depleted component responsible for Santa Cruz lavas could be the upper mantle (e.g., Geist et al., 1988; White et al., 1993; Harpp and White, 2001; Blichert-Toft and White, 2001), or it could be intrinsic to the plume, with deep mantle origins (e.g., Hoernle et al., 2000). According to studies of the Icelandic plume by Fitton et al. (1997, 2003), lavas generated at mid-ocean ridges from the upper mantle have distinct signatures in Nb/Y-Zr/Y space compared to basalts sourced by mantle plumes. Fitton et al. (1997) define a reference line (ΔNb) in Nb/Y-Zr/Y space that delimits the lower boundary of the Icelandic array. Lavas with ΔNb >0 are thought to be generated from lower mantle sources (i.e., plume), whereas those with ΔNb <0 are derived from the depleted upper mantle. Santa Cruz lavas land primarily in the quadrant defined by Nb/Zr < 0.06 and ΔNb <0, which corresponds to the depleted MORB source (Figure 7). Other Galápagos lavas with similar signatures include those from Genovesa (Harpp et al., 2003), many from Santiago (Gibson et al., 2012), a few from San Cristóbal (Geist et al., 1986; White et al., 1993), and numerous from the NGVP (e.g., Harpp and Geist, 2002; Harpp et al., 2014c; Sinton et al., 2014). A handful of Platform and High K₂O/TiO₂ Shield Series lavas have Nb/Zr > 0.06 (but less than 0.09), which qualify as enriched MORB (Fitton et al., 1997). No Santa Cruz samples have ΔNb >0. Thus, consistent with findings based primarily on isotopic data by Harpp and Weis (2020) for the archipelago as a whole, the depleted material contributing to Santa Cruz lavas’ geochemical signatures is likely supplied primarily by the depleted upper mantle, rather than a depleted source intrinsic to the plume.

Trace Element Modeling: Depth and Extent of Melting

To constrain melt generation conditions at Santa Cruz, we apply a simple model to a representative subset of samples that assumes equilibrium melting of the dominant PLUME and DUM mantle components (see Supplementary Material for details; Supplementary Table S1; Harpp and White, 2001). The compositions of most Platform Series samples can be reproduced by melting 1–10% of a mixed DUM-PLUME mantle source, with 10–30% generated in the garnet stability field. All the modeled Platform lavas require small degree melts of their more enriched source (0.1–1%). The Shield Series lavas, on average, need greater contributions from the depleted mantle source and also exhibit more variation in the degree of melting than the Platform Series. Low K₂O/TiO₂ group lavas are generated by the highest melt fractions (1–20%), High K₂O/TiO₂ requires the least melting (0.5–5%), and Mid K₂O/TiO₂ is generated by an intermediate amount of melting (1–7%) of their mixed mantle sources. The Shield Series melts are generated at shallower depths than the Platform Series, with only minor melting (0-<20%) in the garnet stability field. The Low and Mid K₂O/TiO₂ groups are produced at slightly shallower depths than the High K₂O/TiO₂ lavas, but there is considerable variability within each Shield sub-group in all melt parameters (especially the Low and Mid K₂O/TiO₂ sub-units).

Compositional Variation of Santa Cruz Lavas

Across Santa Cruz

To document the variation of Santa Cruz lava compositions and to compare them to other volcanoes in the Galápagos, probability density function and interquartile ranges (Wessa, 2021) were generated for Mg#, La_n/Sm_n, Sm_n/Yb_n, and Nb/La (Figure 10). We chose Mg# as an indicator of shallow fractionation, La_(n)/Sm_(n) as a proxy for extent of melting, Sm_(n)/Yb_(n) to track depth of melting, and Nb/La as a measure of Galápagos plume contribution, which is rich in the refractory TITAN elements (Jackson et al., 2008; Kurz et al., 2014).

FIGURE 10

FIGURE 10. Gaussian kernel distribution statistics for Mg# (proxy for extent of shallow fractionation), La_n/Sm_n (proxy for extent of melting), Sm_n/Yb_n (proxy for depth of melting), and Nb/La (proxy for plume contribution; Kurz and Geist, 1999) for Santa Cruz lavas, shown as Platform and Shield (all sub-groups treated together because they erupted contemporaneously). Also shown for comparison are statistics from Fernandina (White et al., 1993; Kurz and Geist, 1999; Allan and Simkin, 2000), Volcán Sierra Negra (White et al., 1993; Reynolds and Geist, 1995), Volcán Alcedo (Geist et al., 1995), and Santiago (Gibson et al., 2012). MD is the maximum density and IR is the interquartile range, both determined using Wessa (2021). La, Sm, and Yb are normalized to chondrite values (McDonough and Sun, 1995).

As stated above, the older Platform Series is more evolved and less variable than the Shield Series; Platform Series lavas have a lower Mg# Maximum Density (MD) than the Shield Series, and a slightly lower interquartile range (IR) (Figure 10; Platform MD: 44.4, IR: 10.7; Shield MD: 53.9, IR: 11.5). The sub-groups within the Shield Series increase in Mg# MD and IR from the High to Low K₂O/TiO₂ groups (Figure 10).

The Platform Series has La_n/Sm_n and Sm_n/Yb_n values that overlap the Shield Series, but the Shield lavas exhibit ∼4 times the variability of Platform lavas (Platform La_n/Sm_n MD: 1.36, IR: 0.12; Shield La_n/Sm_n MD: 1.43, IR: 0.50; Platform Sm_n/Yb_n MD: 1.87, IR: 0.10; Shield Sm_n/Yb_n MD: 1.92, IR: 0.44). Within the Shield Series, the High K₂O/TiO₂ group was generated by the smallest extents of melting at the greatest average depths (La_n/Sm_n MD: 1.86, IR: 0.15; Sm_n/Yb_n MD: 2.25, IR: 0.27). Through the Mid and Low K₂O/TiO₂ groups, extent of melting increases and extends to progressively shallower depths (Mid Shield La_n/Sm_n MD: 1.51, IR: 0.23; Sm_n/Yb_n MD: 2.20, IR: 0.27; Low Shield La_n/Sm_n MD: 0.97, IR: 0.41; Sm_n/Yb_n MD: 1.65, IR: 0.41). The most primitive lavas (Low K₂O/TiO₂ Shield lavas) from Santa Cruz were generated at the shallowest depths and by the greatest extents of melting, on average.

Our proxy for the contribution from the Galápagos plume source, Nb/La, is higher in the Platform than the Shield Series (Platform Nb/La MD: 0.97, IR: 0.08; Shield Nb/La MD: 0.88, IR: 0.13). Platform lavas exhibit less variation in Nb/La than the Shield Series, and the Low K₂O/TiO₂ group has the greatest variability (Nb/La MD: 0.85, IR: 0.16), consistent with radiogenic isotope signatures.

Taken together, the La_n/Sm_n, Sm_n/Yb_n, and Nb/La variations across Santa Cruz suggest that Platform Series lavas were generated by slightly higher extents of melting (on average) at comparable depths to the Shield Series, but with a greater contribution from the enriched PLUME source. Furthermore, Platform Series melts experienced more fractionation than the Shield Series. Platform Series lavas, however, exhibit considerably narrower ranges in incompatible trace element ratios, indicating that they were homogenized significantly more than Shield Series lavas. Within the Shield Series, many of the melts were generated by variable but small degrees of melting of a more depleted source than the Platform Series, likely across a wide range of melt column lengths (Gibson and Geist, 2010), and with little homogenization compared to the Platform Series lavas.

Comparison With Gala´pagos Archipelago

Probability density functions for the four geochemical metrics Mg#, La_n/Sm_n, Sm_n/Yb_n, and Nb/La from Fernandina, two Isabela volcanoes (Volcán Alcedo and Volcán Sierra Negra), and Santiago are compared to Santa Cruz (Figure 10; White et al., 1993; Geist et al., 1995; Reynolds and Geist, 1995; Kurz and Geist, 1999; Allan and Simkin, 2000; Gibson et al., 2012; Geist et al., 2014a). Consistent with previous findings (White et al., 1993; Harpp and Geist, 2018), the older islands in the Galápagos (Santa Cruz and Santiago) produce lava compositions that vary more in all four metrics (Mg#, La_n/Sm_n, Sm_n/Yb_n, and Nb/La) than Fernandina and Volcán Sierra Negra, two of the archipelago’s youngest volcanoes.

Santa Cruz Platform lavas have similar Mg# MD values to Fernandina, Volcán Sierra Negra, and Volcán Alcedo, but greater variability than Fernandina and Volcán Sierra Negra (Figure 10); the wider interquartile range of Volcán Alcedo reflects its bimodal compositional distribution, which includes rhyolites from an explosive event ∼100 ka (Geist et al., 1995). The distribution of Mg# in Shield Series lavas most closely resembles Santiago’s geochemical profile (White et al., 1993; Gibson et al., 2012), also with greater variation in Mg# than Fernandina or Volcán Sierra Negra.

Platform Series lavas have an MD for La_n/Sm_n close to that of Fernandina, a Sm_n/Yb_n MD lower than Fernandina’s, and more depleted isotopic and Nb/La ratios (Figures 8, 10). Like Fernandina and Volcán Sierra Negra, the Platform Series has a narrow range of La_n/Sm_n and Sm_n/Yb_n. Thus, compared to Fernandina and Volcán Sierra Negra, Platform melts were generated by broadly similar extents of melting at shallower depths of a more depleted mantle source, which reflect longer melt columns owing to the volcano’s proximity to the GSC and therefore its thinner lithosphere (Gibson and Geist, 2010). By contrast, Shield Series samples exhibit greater variation in degree and depth of melting than the Platform Series or the western shields, resembling the more primitive, variable Santiago lavas (Figure 10; Gibson et al., 2012).

In terms of Nb/La, the ITE plume proxy, all Santa Cruz lavas exhibit values close to the MD of Santiago and lower than those of the western shields (Figure 10). Thus, even though Platform Series lavas are enriched compared to the Shield Series, none of the Santa Cruz lavas are as enriched as those from the western archipelago.

Discussion

Petrogenetic Development of Santa Cruz Island

Melt Generation Processes at Santa Cruz

Geochemical variations in the Platform and Shield Series indicate that melts of the two units were generated under distinct sets of conditions. The key differences between the two units include:

1) The Platform Series requires more melting in the garnet stability field (10–30%) than the Shield Series (0–20%), according to REE systematics (e.g., Gibson and Geist, 2010).

2) Shield Series lavas exhibit more variation than the Platform Series in all melting parameters, including source composition, depth of melting, and extent of melting (Figure 10), specifically: a. whereas average depths of melting for both the Shield and Platform Series are comparable, some Shield Series melts were generated at significantly shallower depths, as reflected by the samples with lower Sm_n/Yb_n ratios than the Platform Series; and b. most lavas from the Platform Series result from 1 to 10% melting of a mixed PLUME-DUM source, whereas the Shield Series was produced by a greater range in extents of melting (1–20%) of a more depleted mixed PLUME-DUM source.

In general, depth and extent of melting at hotspot-generated ocean islands are controlled by mantle composition (e.g., Ito and Mahoney, 2005), thickness of the lithosphere (e.g., McKenzie and O’Nions, 1991; Gibson and Geist, 2010), and proximity to the plume (potential temperature; e.g., Herzberg and Gazel, 2009). Variation in mantle composition only explains a small part of the observed melt systematics across Santa Cruz. Enriched mantle sources initiate melting at greater depths than depleted material because they are more fertile and capable of melting at lower temperatures owing to different source lithologies and/or volatile content (e.g., Hirschmann, 2000; Gleeson and Gibson, 2021). Consequently, variable extents of melting of a mixed source result in a direct correlation between incompatible trace element ratios and radiogenic isotope ratios (e.g., at Santiago; Gibson et al., 2012). At Santa Cruz, ITE ratios do not correlate strongly with radiogenic isotope ratios (Figure 9), suggesting that a model in which a plum-pudding mantle made of mixed depleted and enriched components becomes progressively depleted with increasing extents of melting is not the dominant process controlling chemical heterogeneity of the island’s lavas (e.g., Ito and Mahoney, 2005). We cannot rule out, however, the possibility that chemical and lithologic heterogeneities in the mantle contribute in part to the observed chemical and isotopic variations.

Lithospheric thickness affects the average depth of melting if upwelling and melting continues to the base of the lithosphere (e.g., Klein and Langmuir, 1987; Ellam, 1992; Ito and Mahoney, 2005; Gibson and Geist, 2010). According to Gibson and Geist (2010), typical geochemical estimates for lithospheric thickness are ∼57 km in the western Galápagos and ∼53 km in the east. Gibson et al. (2012) document a strong correlation between ITE and radiogenic isotope ratios at Santiago, which they attribute to differential melting of a compositionally heterogeneous mantle across an abrupt lithospheric gradient, coupled with a slight shift in bulk source composition across the lithospheric discontinuity. According to their model, enriched and depleted components are intermixed at a short spatial scale beneath Santiago, on the order of kilometers. Beneath the western half of the island, thicker lithosphere limits the top of melt columns so that melts are dominated by the enriched component of the heterogeneous mantle; farther east, where the lithosphere is thinner and melt columns are longer, more of the refractory depleted material melts, diluting the enriched signal. The lack of a correlative relationship between ITE and isotopic ratios on Santa Cruz (Figure 9), however, also eliminates lithospheric thickness as a primary control on the geochemical variations on Santa Cruz.

The remaining factor influencing depth and extent of melting at Santa Cruz is distance from the plume center and intensity of magma supply. The potential temperature of the Galápagos plume is ∼1350–1400°C (e.g., Ito et al., 1997; Hooft et al., 2003), and thermal anomalies are typically 200–300°C greater than the ambient mantle (Herzberg et al., 2007). Hotter upwelling plumes cause the mantle to intersect the solidus at greater depths than the ambient mantle, supplying overlying volcanoes with higher magmatic fluxes. The oldest recently dated Platform Series lava of Santa Cruz (SC12-020; 1620 ka ± 15 (1σ); Schwartz et al., 2022), was formed when the island was in the current location of Volcán Alcedo, on Isabela Island ∼80 km to the west, and most dated Platform Series have ages >1 Ma. We suggest that the Platform Series’ greater depth of melt generation, more enriched compositions, and lesser geochemical variation are consistent with its location closer to the hotter plume center.

The low extent of mantle melting suggested by our modeling to generate the Platform Series (1–10%) may be explained by the fact that seismic tomography places the hottest part of the Galápagos plume center to the south and west of Fernandina Island (Hooft et al., 2003; Villagomez et al., 2007; Villagomez et al., 2014). By the time the oldest Platform Series lavas were emplaced, the volcano had moved to the eastern edge of the plume’s core and was experiencing a waning magma flux (e.g., Geist et al., 2014a). This is a similar condition to the active Volcán Wolf today, which also taps a depleted source at the northern periphery of the Galapagos plume (Geist et al., 2005).

The younger Shield Series lavas erupted when Santa Cruz was closer to the island’s current location, after an apparent hiatus of ∼500 ka. Thus, they erupted >150 km from the tomographically identified core of the plume (e.g., Villagómez et al., 2014).

Magmatic Processing Prior to Eruption at Santa Cruz

The Platform Series is more evolved and less compositionally variable in its trace element and isotopic variations than the Shield Series (Figures 2, 3, 10). Furthermore, Platform Series lavas fractionated at shallower depths than the Shield Series, in a regime controlled primarily by plagioclase crystallization, and have, on average, lower phenocryst contents than Shield lavas. The Shield Series lavas experienced deeper fractionation, reflected by stronger clinopyroxene control (Figure 4; Geist et al., 1998) and higher average Sm_n/Yb_n values. Taken together, our data indicate that Platform Series magmas were stored in shallower, more mature magmatic bodies that were sufficiently developed to cause partial homogenization of trace element concentrations and isotopic ratios. The Platform Series’ greater variability in Mg# relative to western volcanoes such as Fernandina, however, indicates that the Platform Series plumbing system was not able to develop a fully thermochemically buffered system (Geist et al., 2014a; Harpp and Geist, 2018). By contrast, the magmatic reservoirs in which Shield Series melts resided were poorly developed, neither thermochemically buffered nor networked, and likely located at a variety of depths.

Compared to the present-day western shields such as Fernandina, the characteristics of the Platform and Shield Series are those of relatively magma-starved systems, with the Shield Series being supplied by an even lower magma flux than the Platform Series. Similar geochemical systematics related to magma supply are observed at mid-ocean ridges. For example, in high-magma supply areas along the GSC, Colman et al. (2012) observe lower MgO content, lower phenocryst contents, and shallower depths of crystallization, all characteristics of both the Platform and Shield Series, but especially the latter. Colman et al. (2012) argue that low-magma supply ridges have deeper chambers because the magma tends to equilibrate thermally with the mid-to-lower crust, yielding more primitive magmas and higher phenocryst contents. We conclude that magmatic processing conditions at Santa Cruz shifted between the eruption of the Platform Series ∼1 Ma and the younger Shield Series. Platform Series lavas were generated by melting a moderately enriched mantle, though more depleted than the current source for Fernandina, to broadly similar extents at, on average, shallower depths than Fernandina (Figure 10). Furthermore, western Galápagos shields such as Fernandina and Volcán Sierra Negra exhibit narrow ranges of major and trace element contents, reflecting a thermally buffered magmatic system that efficiently homogenizes melts en route to the surface (Geist et al., 2014a). By contrast, Platform Series lavas have more heterogeneous major element compositions but comparably narrow ranges in trace element ratios, suggesting that the Platform’s magmatic plumbing system was sufficiently robust to homogenize melts prior to eruption but inadequate to achieve thermal buffering (Geist et al., 2014a). The younger Shield Series lavas at Santa Cruz were produced from a more depleted mantle source via a wide variety of extents and depths of melting similar to those at Santiago (Gibson et al., 2012). Magma supply to the Shield Series, in turn, was considerably lower than that of the Platform Series; Shield Series melts experienced limited crustal processing in small, poorly networked, likely ephemeral magma reservoirs, resulting in more variable and more primitive erupted compositions (e.g., Geist et al., 2014a; Harpp and Geist, 2018).

Magma Supply and Influence of the GSC Across the Archipelago

Construction of Santa Cruz in a Magma-Starved Regime

Geist et al. (2014a) propose a three-stage model for the evolution of the present-day western Galápagos shield volcanoes. The Juvenile Phase (e.g., Volcán Cerro Azul, on Isabela; Figures 1, 10) occurs when a volcano is at the leading edge of the hotspot and the magmatic system is functioning in an unsteady thermal state. When the ∼5 km-deep magmatic system is immature and poorly networked, individual batches of magma experience distinct crystallization histories, resulting in moderately heterogeneous geochemical signatures.

Next, the volcano moves into the Mature Steady-State Phase. Located directly above the plume stem, magma supply is sufficiently robust to achieve a steady thermal state, as exemplified by Fernandina, Volcán Wolf, and Volcán Sierra Negra (Figure 10). Magmas are compositionally monotonous and reside in a 1–3 km-deep sill immediately prior to eruption. The high flux of mantle-derived melts creates a crystal mush that acts as a thermal regulator, yielding a thermochemically buffered system capable of homogenizing most melts passing through it (Stock et al., 2018, 2020). Finally, when a Galápagos volcano is carried downstream from the plume, it reaches the Dying Phase. When the melt supply rate decreases, a steady-state magmatic plumbing system can no longer be maintained, and the 1–3 km deep magma reservoir likely freezes. Volcán Alcedo has erupted rhyolites fractionated from such a cooling crystal mush (Figure 10; Geist et al., 1995; Geist et al., 2014a).

This evolutionary model, however, only considers the western Galápagos shield volcanoes, and melt systematics of Santa Cruz do not align with any of its proposed phases. While the Platform Series exhibits comparably homogeneous trace element signatures to Fernandina and Volcán Sierra Negra, it lacks the monotonous major element compositions that define the thermochemically buffered Mature Steady-State phase of these younger volcanoes (Figure 10; Geist et al., 2014a). Though sampling of Santa Cruz is limited to the uppermost stratigraphic layers, to date no felsic material has been observed on the island, suggesting that it does not emulate Volcán Alcedo’s Dying Phase, either (Geist et al., 2014a).

Harpp and Geist (2018) and Cleary et al. (2020) propose an alternative paradigm for the formation of the older, eastern Galápagos volcanoes. They note that the distinct magmatic, compositional, and structural characteristics of the western and central/eastern Galápagos Islands define separate geological provinces. The central and eastern volcanoes, including Santiago, Santa Cruz, Floreana, and San Cristóbal, erupt more primitive, heterogeneous lavas, suggesting that magmas spent shorter times in crustal storage, and their plumbing systems were poorly developed with no thermochemical buffering. The eastern islands lack submarine rift zones, have never hosted summit calderas (Cleary et al., 2020), and are dominated by faults and linear vent systems, characteristics consistent with a magma-starved regime compared to that of the present-day western archipelago. In the eastern Galápagos, regional stresses are the dominant influence on structural and eruptive behavior (Schwartz et al., 2022). This regime contrasts with the western volcanoes, where magmatic pressure is the strongest influence on volcano construction, resulting in large shields with calderas, circumferential and radial faults and fissures, and many submarine rift zones (e.g., Lonsdale, 1989; Chadwick and Howard, 1991; Smith et al., 2002; Bagnardi et al., 2013).

Influence of the Proximal Gala´pagos Spreading Center on Eastern Volcano Construction

Harpp and Geist (2018) suggest that Santa Cruz and most of the other central and eastern islands are not older, evolved versions of the western shields, but were constructed in a distinct tectonic setting from the younger volcanoes, one strongly influenced by the adjacent GSC. The GSC has been migrating northeast, away from the Galápagos hotspot at 65 km/Ma (Wilson and Hey, 1995; Mittlestaedt et al., 2011). During the past 5 million years, however, the GSC has experienced multiple southward ridge jumps, which occurred at ∼4.5 Ma, ∼3.5 Ma, between 2.5 and 3.5 Ma, and ∼1 Ma, each time resulting in a 20–30 km displacement of a GSC segment toward the archipelago (Mittelstaedt et al., 2012). The last two ridge jumps established the Galápagos Transform Fault (GTF) and a transtensive stress field expressed as oblique faulting near the transform (Taylor et al., 1994).

The regional stress field created by a transform fault along a mid-ocean ridge can have far-reaching effects on the lithosphere (e.g., Gudmundsson, 1995; Ribe, 1996; Ito et al., 2003; Hall and Kincaid, 2004; Georgen, 2014). Mittelstaedt et al. (2012) proposed that the stress field generated by the two most recent GSC jumps may have perturbed the lithosphere within ∼150 km sufficiently to promote the formation of the NW/SE-trending seamount chains of the NGVP, between the main archipelago and the GSC (Harpp and Geist, 2002). If the stress field initiated by the GTF is responsible for the Northern Galápagos seamount lineaments, then the present-day central/eastern Galápagos islands forming when the GSC was closer to the plume are likely to have been strongly influenced by the ridge as well. The GTF jumps contemporaneous with Santa Cruz construction, the transtensive kinematics of the GTF (Taylor et al., 1994), and stresses generated by the GSC (e.g., Fujita and Sleep, 1978) may explain the preponderance of linear vent systems and faults across the central and eastern islands, including Santa Cruz. In support of this hypothesis is the fact that Floreana, which would have been the farthest active volcano from the GSC at 1.5 Ma, lacks linear vent structures and faults (Harpp et al., 2014a).

Furthermore, the intensity of the magma flux supplying the central and eastern islands was also likely affected by the proximity of the plume to the GSC. Even though the precise mechanism is debated (e.g., Mittelstaedt et al., 2011; Georgen, 2014; Gibson et al., 2015; Mittal and Richards, 2017; Gleeson and Gibson, 2021), geochemical and morphological behavior clearly indicates that the GSC currently incorporates material from the Galápagos plume (e.g., Schilling et al., 1982; Ribe, 1996; Canales et al., 1997, 2002; Detrick et al., 2002; Sinton et al., 2003; Behn et al., 2004; Christie et al., 2005; White et al., 2008; Ingle et al., 2010). When the GSC was closer to the plume 1–3 Ma, the ridge probably siphoned even more plume material toward its axis than it does today, diverting it from the nascent volcanoes, and resulting in a constructional regime that was magma-starved compared to today’s western Galápagos volcanoes (Harpp and Geist, 2018). At the time of their formation, therefore, Santa Cruz, along with the other central and eastern volcanoes, had a reduced magma supply incapable of establishing thermochemically buffered, crustal-scale mush columns or calderas normally associated with robust magma supplies.

In addition to changes in magma supply related to the migration of the GSC, the constructional and evolutionary trajectories of the eastern volcanoes may also have been controlled by the presence of especially thin lithosphere underlying those structures, owing to their near-ridge location. The lithosphere underlying an ocean island is flexed by the volcanic load, which in turn can have a strong influence on magma ascent pathways during construction (McGovern et al., 2015). On relatively young, thin lithosphere, such as that underlying the western Galápagos (Feighner and Richards, 1994; Gibson and Geist, 2010), the island’s load induces compression, which limits and focuses magma ascent, encouraging formation of sill complexes (McGovern et al., 2013; McGovern et al., 2015; LeCorvec and McGovern, 2018). Consistently, the magma reservoirs supporting Fernandina and Volcán Sierra Negra volcanoes are constructed from networks of sills (e.g., Chadwick et al., 2006; Yun et al., 2006; Bagnardi et al., 2013).

The central Galápagos platform has a thinner, weaker lithosphere with an elastic thickness <6 km (Feighner and Richards, 1994; Gibson and Geist, 2010), owing in part to the GTF that displaces the eastern GSC ∼100 km closer to the archipelago. When the central volcanoes such as Santa Cruz were forming, from at least 1.6 Ma and up to another million years earlier, the GSC was even closer to the archipelago, and the lithosphere was thinner than it is today. When the lithospheric flexure models of McGovern et al., 2013; Le Corvec and McGovern, 2018; P.J. McGovern, pers. comm., 2021, are extended to near-zero lithospheric thickness, as was probably the case when Santa Cruz was first forming, there is little stress to control the construction process; magma ascent paths are therefore relatively unconstrained, preventing the formation of sill-dominated, centralized magmatic plumbing systems. Instead, magma is free to ascend, resulting in small, dispersed, poorly networked magma storage systems, consistent with the heterogeneous, minimally fractionated lavas erupted across the eastern Galápagos Islands (Harpp and Geist, 2018).

Evolution of Santa Cruz in the Context of the Galápagos Archipelago

To integrate the structural study of Santa Cruz by Schwartz et al. (2022) into our findings for the petrologic evolution of Santa Cruz, we propose the following model (Figure 11):

FIGURE 11

FIGURE 11. A conceptual timeline of Santa Cruz’s volcanic evolution. Left side panels: Map view of archipelago and relationship between plume, islands, and GSC. Right side panels: NE-SW cross-section of Santa Cruz. Note that vertical scales above and below 0 km are different, and that island cross-section has a vertical exaggeration of 4×. Current depth to the MOHO is estimated at ∼17 km (Feighner and Richards, 1994). (A) LEFT: Prior to ∼3 Ma, the GSC was nearly superimposed on the Galápagos plume (Wilson and Hey, 1995). None of the present-day Galápagos Islands date to 3.5 Ma (White et al., 1993), but older islands now submerged downstream to the east existed at the time; their locations are hypothesized here (Christie et al., 1992). The plume’s (red dashed circle; limits estimated from Gibson et al., 2012) bilateral compositional asymmetry is indicated with the pink (more enriched, LLSVP-sourced) and blue (more depleted, lower mantle-sourced) zones (Harpp and Weis, 2020). Evolution of the GSC is based on Mittelstaedt et al. (2012). (B) LEFT: At ∼2 Ma, Santa Cruz begins to form and emerge; between 1629 and 1160 ka, most of the Platform Series lavas sampled in this study are emplaced (brown; Schwartz et al., 2022). The Platform Series is being emplaced as Santa Cruz approaches the compositional boundary of the plume, resulting in geochemical signatures slightly less enriched than present-day Fernandina lavas. According to Mittelstaedt et al. (2012), the Galápagos Transform Fault is formed in the most recent southward jump of the GSC ∼1 Ma. RIGHT: The Platform Series lavas constitute the main shield-building phase of Santa Cruz. The proximity of the GSC causes diversion of some plume material toward the ridge, resulting in lower flux to the nascent Santa Cruz volcano than currently supplies Fernandina, sufficient to support formation of a magmatic network capable of partially homogenizing melts prior to eruption, but unable to generate thermochemically buffered conditions. (C) LEFT: Between 780 and 500 ka, the Platform Series experiences normal faulting, likely in response to the ∼1 Ma southward jump of the GSC. Faults are shown in crimson on the north side of Santa Cruz and Baltra (see inset; possible extensions of the faults toward the center of the island are shown as dashes). RIGHT: Normal faulting from Galápagos Transform Fault-related stresses may initiate additional, small volume eruptive activity. (D) LEFT: The Shield Series (green) is emplaced between 271 and 74 ka, primarily from aligned vents that cross the volcano’s central highlands (green dashed lines). Nearly contemporaneously, normal faulting (dark green lines) occurs along the southern flank of the island (274–38 ka; see inset; Schwartz et al., 2022). RIGHT: Southern flank of Santa Cruz begins to slump, forming extensional structures. Magma in small, ephemeral, poorly networked reservoirs that are incapable of storing or homogenizing melts is erupted as the Shield Series, with more variable and more primitive compositions compared to the Platform Series. The island has crossed into the plume’s eastern compositional zone, causing lavas to have more depleted geochemical signatures (blue colors).

1. Proximity of GSC to plume: Between 3.5 and 2.5 Ma, the GSC experienced a ridge jump of several 10s of kilometers southward toward the plume (Mittelstaedt et al., 2012). Throughout this period, the GSC is considerably closer to the plume than it is currently, diverting plume material toward the ridge (e.g., Ribe, 1996; Ito et al., 2003). Thus, volcanoes forming at the plume center have a reduced magma supply compared to today’s western shields (Harpp and Geist, 2018).

2. Emergence of Santa Cruz (1–2 Ma): Geist et al. (2014b) bracket the emergence of Santa Cruz to between 1.1 and 2.3 Ma. Actual emergence must be closer to the old end of this range, because the oldest lavas on Santa Cruz date to ∼1.6 Ma (Schwartz et al., 2022).

3. Eruption of the Platform Series: The Platform Series is emplaced primarily between at least ∼1620 ± 15 and 1160 ± 35 ka; at the time, the island was ∼80 km closer to the plume (51 km/M.y.; Argus et al., 2011). Even though these lavas are the most enriched on Santa Cruz, they are less so than Fernandina (e.g., White et al., 1993; Allan and Simkin, 2000; Harpp and Weis, 2020). Potential explanations for their less-than-pristine enriched plume signatures include either dilution by depleted upper mantle owing to interaction with the then-adjacent GSC or the island’s location at the eastern edge of the enriched zone of the plume, where it may have begun transitioning into the more depleted eastern zone (Harpp and Weis, 2020; Figure 1). The Platform Series’s relatively homogeneous trace element compositions suggest that magma supply was sufficient to homogenize melts to some extent prior to eruption, but inadequate to establish a thermochemically buffered state like Fernandina (Geist et al., 2014a).

4. Platform Series Faulting: According to Schwartz et al. (2022), a series of E/W-trending faults crosscuts the Platform Series <1160 ± 35 ka, possibly between 780 and 500 ka. Given the proximity of the GSC to the archipelago at the time (∼65 km closer than the 150–300 km it is today), the Platform Series faulting may reflect regional stresses generated by the most recent southward GSC jump, which displaced the ridge by ∼30 km toward the plume and established the regional transtensive stress regime around the now 100 km-long transform fault. The extensional component of the stress field may have generated E-W oriented magmatic intrusions across the near-ridge region (e.g., Mittelstaedt et al., 2012), which may have initiated the Shield Series.

5. Eruption of the Shield Series: The most recent activity on Santa Cruz is the Shield Series, which mostly erupted from 271 ± 17 to 74 ± 38 ka (Bow, 1979; Schwartz, 2014). Regional extension generated by the ∼1 Ma GSC ridge jump and Platform Series faulting may have initiated Shield Series activity. The Shield Series lavas are more depleted than the Platform Series, which reflect the island’s location farther east, within the less enriched zone of the bilaterally asymmetric plume (Harpp and Weis, 2020). Shield Series melts are highly heterogeneous and more primitive than Platform Series rocks, owing to the ephemeral nature of the small, poorly networked magmatic reservoirs and limited magma supply.

6. Faulting of the Southern Flank’s Shield Series: Between 274 ± 18 and 38 ± 8 ka, fault swarms cut Santa Cruz’s southern flanks (Figure 1; Schwartz et al. (2022)). Schwartz et al. (2022) propose that these faults are in response to the E/W-oriented intrusions that supplied the Shield Series, although the sequence of events could be reversed (i.e., extensional faulting generates decompression melting; a similar mechanism is modeled for the seamounts and islands in the Northern Galápagos Volcanic Province; see Mittelstaedt et al., 2012).

7. Present-day Santa Cruz: Although there has been no documented eruptive activity since 74 ka on Santa Cruz, there has been relatively recent faulting (∼38 ka) along the southern flanks. If this phenomenon reflects ongoing structural instability, there is the potential for future tectonic or eruptive events that could pose a risk to the population living along the southern coast of the island in the town of Puerto Ayora.

Mantle Sources at Santa Cruz and Implications for the Galápagos Plume

Harpp and Weis (2020) explained the wide range of geochemical signatures in the Galápagos as the manifestation of a bilaterally asymmetric plume, with the compositional zonation originating at the core-mantle boundary, as originally posited for Hawai’i (Weis et al., 2011). As volcanoes are carried eastward by the Nazca plate, they cross the NW-trending compositional boundary between the western, enriched zone of the plume into the more PREMA-like eastern zone. Consequently, the last material erupted on a Galápagos island will have less enriched signatures than the older material (Harpp et al., 2014b; Harpp and Weis, 2020).

Santa Cruz data are consistent with the bilaterally asymmetric plume model. Harpp and Weis (2020) delineate the boundary between the highly enriched and the less enriched zones immediately west of Santa Cruz. The oldest Platform Series lavas were emplaced when Santa Cruz was located on the eastern edge of the bilateral plume’s strongly enriched zone, where the eastern coast of Volcán Alcedo is located today (Harpp and Weis, 2020). The compositions of these 1.6–1.1 Ma lavas, which are not as enriched as material erupted at Fernandina today, may reflect the transition between the western enriched and the eastern, less enriched zone. The more depleted signatures of the younger Shield Series reflect their emplacement location east of the bilateral plume’s compositional boundary.

The proximity of the GSC to Santa Cruz >1 Ma when it was first being constructed may also contribute to the Platform Series’ being more depleted than Fernandina, via two potential mechanisms. In their modeling study of melt transport from plumes to nearby mid-ocean ridges, Gibson and Richards (2018) propose that low-degree, volatile-rich melts formed by initial, deep melting of the plume (>3 GPa; Gleeson and Gibson, 2021) are transported directly to a nearby spreading center via channelized flow, reducing contributions from the more enriched, fusible plume to erupted lavas. When the GSC was closer to the Galápagos plume >1 Ma, the intensity of this deep melt transport may have been enhanced, resulting in greater relative depletion of the mantle source responsible for the Platform Series.

A second, well documented mechanism that could explain the depletion of Platform Series lavas relative to Fernandina also reflects the closer proximity of the plume to the GSC >1 Ma. Depleted geochemical signatures at other near-ridge plume systems, including Kerguelen, the Cretaceous Hawaiian plume, and Easter (e.g., Hart et al., 1992; Frey and Weis, 1995; Kingsley and Schilling, 1998; Harrison et al., 2020), have been attributed to dilution of the more enriched plume material by entrainment of depleted upper mantle owing to the proximity of the two magmatic systems. All of the Santa Cruz lavas in this study have MORB-like ΔNb <0 (Figure 7; Fitton et al., 1997), suggesting that depleted upper mantle material likely plays an important role in the depleted Santa Cruz lavas (Harpp and Weis, 2020), consistent with their near-ridge origin.

Conclusions

Like several of its nearest island neighbors and in contrast to the young western Galápagos volcanoes, the geochemistry of Santa Cruz Island is diverse, erupting lavas with variable major and trace element concentrations, in addition to a range of isotopic ratios. The older Platform Series has a more enriched signature than the younger Shield Series, and both are more depleted than younger western Galápagos volcanoes such as Fernandina. Platform Series lavas have relatively invariant trace and isotopic ratios, comparably homogeneous to those at Fernandina, but with heterogeneous, evolved major element compositions. Shield Series lavas are, in turn, significantly more primitive and heterogeneous than those of the Platform Series.

We propose that Santa Cruz has followed a different evolutionary path from the present-day western Galápagos shields, controlled primarily by its proximity to the GSC and its construction in a relatively magma-starved regime (Figure 11; Harpp and Geist, 2018). Santa Cruz was formed >1.6 Ma, when the plume was considerably closer to the GSC than it is today. Enhanced plume flow to the ridge may have reduced the magmatic flux available for the construction of Santa Cruz.

Consequently, the Platform Series, the major constructional unit emplaced between ∼1620 ± 15 and 1160 ± 35 ka (Schwartz et al., 2022), was established under relatively magma-starved conditions compared to the present-day younger shields. The Platform Series had a sufficiently robust magma supply to develop plumbing systems capable of homogenizing melts to a limited extent, but unable to support development of the caldera-producing, thermochemically buffered systems that exist today in the western archipelago (Geist et al., 2014a; Cleary et al., 2020). The Platform Series is more compositionally depleted than present-day Fernandina lavas because of two factors: 1) its location at the eastern edge of the plume’s enriched zone (Harpp and Weis, 2020); and 2) dilution of plume material by depleted upper mantle owing to its closer proximity to the GSC at the time of its formation.

The most recent jump of a GSC segment toward the plume ∼1 Ma (Mittelstaedt et al., 2012) may have initiated the E-W-trending faults that crosscut the Platform Series <1160 ± 35 ka (Schwartz et al., 2022). After an apparent hiatus in eruptive activity, the Shield Series lavas erupted between 271 ± 17 and 74 ± 38 ka (Schwartz et al., 2022). These lavas are more depleted than the Platform Series, consistent with migration of the Nazca Plate eastward over the boundary dividing the enriched and depleted zones of the bilaterally asymmetric Galápagos plume (Harpp and Weis, 2020). Owing to their even weaker magma supply farther from the plume center, the more variable, more primitive Shield Series lavas erupted after little to no crustal processing from small, ephemeral, poorly networked reservoirs. Coincident with the emplacement of the Shield Series, the southern flank of Santa Cruz experienced a period of faulting between 274 ± 18 and 38 ± 8 ka (Schwartz et al., 2022). Given that the faulting along the southern flank is extensional, it is possible that tectonic or eruptive activity could occur in the future, putting the population in the town of Puerto Ayora at risk. Much of the distinctive constructional characteristics of Santa Cruz can be attributed to its proximity to the GSC, its limited magma supply owing to diversion of plume material toward the ridge, and the thin, near-zero age lithosphere underlying the volcano.
