Tao Wang
Yafan Zang1
Zhikun Ma
Jishuai Yang- 1School of History, Capital Normal University, Beijing, China
- 2School of Cultural Heritage, Northwest University, Xi’an, China
- 3Key Laboratory of Western China’s Environmental Systems (Ministry of Education), College of Earth and Environmental Sciences, Lanzhou University, Lanzhou, China
- 4Group of Alpine Paleoecology and Human Adaptation (ALPHA), State Key Laboratory of Tibetan Plateau Earth System, Resources and Environment (TPESRE), Institute of Tibetan Plateau Research, Chinese Academy of Sciences, Beijing, China
From 6,000 calendar years before the present (cal BP) onward, grooved pottery vessels occurred in the lower and middle reaches of the Yangtze River in succession. After a thousand years, it was introduced into central China and became popularized there around 4,000 years ago. It has been proposed that the function of the grooved vessels was to process plant foods, replacing the previously used stone slabs and rollers in terms of ethnographic investigation, but there is a lack of solid and direct evidence although little evidence of starches has been provided. Here we report our study on the sherds of grooved vessels from the Meishan site in central China (late Longshan and Erlitou period). The combined starch and phytolith analyses were first used together to examine the residues on the sherds. Starches from geophytes, millets (Setaria italica and Panicum miliaceum), wheat (Triticum aestivum), and phytoliths from the glumes and leaves of these crops plus rice (Oryza sativa), seem to suggest that the grooved pottery vessels were likely to be used to grind geophytes and dehusk grain seeds. But, incorporating the extremely low proportion of grooved vessels to entire pottery tools at the site, we hypothesize that the invention of grooved vessels may have been related to the success of rice domestication and may have been used as tools to pound by-products of crops, leaves, and husks somehow.
Introduction
During the transition from the Paleolithic Age to the Neolithic Age, stone slabs and rollers were widely used in the world. By means of starch grain analysis, it has been demonstrated that these tools were used to process cereal grains and other edible plant foods (Liu et al., 2010a, 2010b, 2018; Piperno et al., 2004; Yang et al., 2009, 2012a). From the Neolithic Age onward, as staple crops were gradually domesticated and agricultural communities came to be established during the period of 6,000–5,000 cal BP (Zhao, 2019), the number of stone slabs and rollers decreased notably in China, and then almost disappeared by the stage of the Longshan culture around 4,000 years ago (Ding, 2007; Song, 1997; Zeng and Zhu, 2012).
Since 6,000 cal BP, a type of pottery began to appear in the lower reaches of the Yangtze River, then immediately occurred in the middle Yangtze River regions and the middle reaches of the Yellow River, and was eventually popularized during the Erlitou culture (3,800–3,500 cal BP) (Figure 1) (Wang, 2019). After that, it showed signs of abating, although it still existed (An, 1986; Ding, 2007). This particular pottery is generally named kecaopen (刻槽盆in Chinese character), meaning grooved vessels. The features of this kind of ceramic are mostly like the pot from the same period but decorated with crisscross or radial grooves on the inner wall of the pots (Figure 2). Since the grooved vessels happened to occur as agricultural societies were established and as the number of the stone slabs and rollers decreased (Jin, 2013; Zhao, 2019), the hypothesis is that the function of grooved vessels was to replace stone slabs and rollers to grind or filter plant foods, in terms of ethnographic observation (An, 1986; Chen, 2005; Ding, 2007; Liu, 1991; Ye, 1989; Ye and Li, 1996; Zhang, 2017). Therefore, direct evidence is needed to verify this hypothesis.

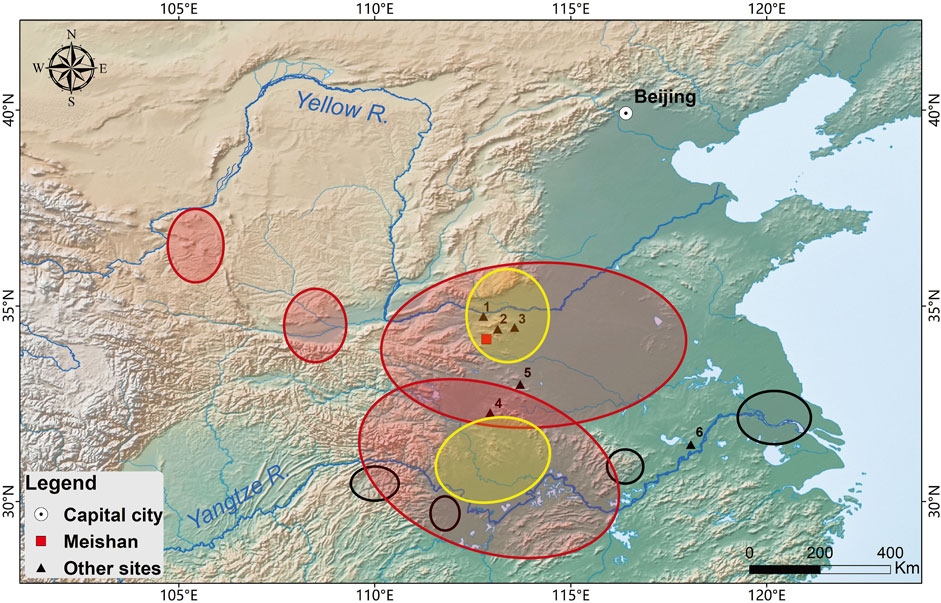

FIGURE 1. Spatiotemporal distribution of grooved pottery vessels and location of the Meishan site and other archaeological sites mentioned in the text. Shadows with black circles indicate the initial area where the grooved pottery vessels appeared during the early phase of the Songze culture, shadows with yellow circles indicate the scenario during the mid-Songze culture, and shadows with red circles indicate the scenario at around 4,000 years ago. 1, Yanshi Shangcheng; 2, Wangchenggang; 3, Xinzhai; 4, Diaolongbei; 5, Yangzhuang; 6, Lingjiatan. The base map was obtained from the Natural Earth public domain map dataset (https://www.naturalearthdata.com/downloads/10m-raster-data/).

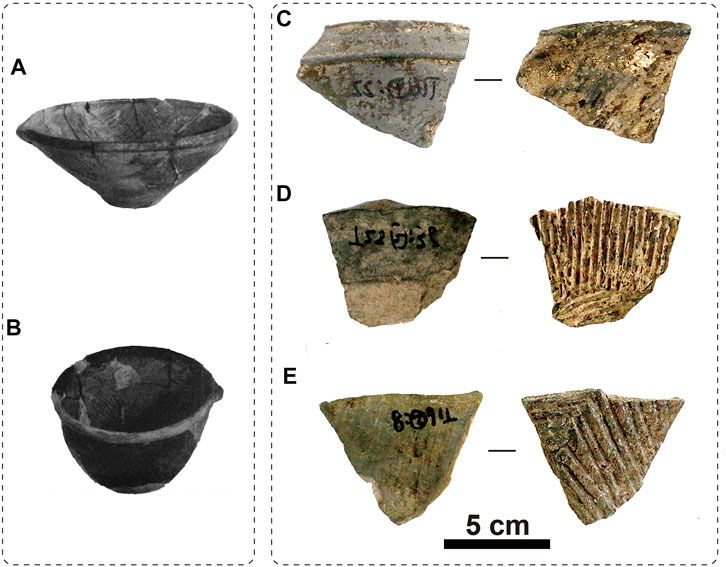

FIGURE 2. Typical grooved pottery vessels and potsherds from the Meishan site. (A,B) Two types of the grooved vessels at the Meishan site, taken in the 1970s, without a scale bar (Fang, 1975). (C,D) Images for exterior (left) and interior (right) faces of three sampled potsherds in this study. (C) Potsherd with very shallow grooves. (D) Potsherd with deep grooves, ∼0.2 cm in depth. (E) Potsherd bearing cross grooves, ∼0.1 cm in depth.
As the studies on the function of stone slabs and rollers which were once suggested to be processing acorns, mineral pigments, animal skins, and so on (Xie et al., 1989; Zhao, 2005; Liu et al., 2010a), directly evidenced by the means of starch grain analysis to process cereal grains and other edible plants at least (Liu et al., 2010a, 2010b, 2018; Piperno et al., 2004; Yang et al., 2009, 2012a), starch recovered from the residues on the interior face of the grooved vessels can be tested for the aforementioned hypothesis. Previous studies on grooved vessel sherds from the Diaolongbei site and the Lingjiatan site in the middle and lower Yangtze River regions, respectively, were reported (Tao et al., 2009; Sun et al., 2019). Some unidentifiable starch grains were recovered from the residues on three 5000-year-old potsherds from the Diaolongbei site, and incorporating the evidence of the bright red color of stained starches with Congo red, it is deduced that grooved vessels at the Diaolongbei site were used for steaming or boiling some starchy foods, but the specific sources of the starches are not clear (Tao et al., 2009). Starches from the Lingjiatan site further revealed that wild resources, such as acorns and geophytes, were processed by using grooved vessels at 5,000 cal BP or so (Sun et al., 2019). A recent publication reported a similar study on 17 potsherds of grooved vessels from an early Bronze Age site, Yanshi Shangcheng, in central China, and raised a hypothesis that grooved vessels were perhaps used to dehusk seeds and make flour from dried roots and acorns, based on the morphological features of ancient starch grains from the residues on these potsherds (Reinhart, 2020).
Starches are usually contained in caryopses, geophytes, and palm piths, while phytoliths are usually produced in leaves and glumes. In fact, all human behaviors of dehusking, grinding, or cooking could cause starch residues to stick to the surface of the ware. Although the survival chances of phytoliths are much less than those of starches on the surface of the wares because of their non-sticky property, phytoliths from the glumes fortunately recovered from the residues would be a definite indicator for dehusking seeds.
Here we report our study on the residues adhering to the interior faces of grooved pottery vessels excavated from the Neolithic-Bronze Meishan site in central China using the analyses of both starch and phytoliths, to provide direct evidence for the function of this type of vessels.
Materials and Methods
Meishan
The Meishan site (112.85°E, 34.15°N) is located in Ruzhou City of Henan Province in central China (Figure 1). It was found in 1958 and excavated during several seasons in 1970, 1975, 1987–1988, 1995, and 1997. Dwells, buries, pottery kilns, wells, pits, and other ruins were revealed, and stone tools of an axe, sickle, chisel, and knife, bone tools of arrowhead, awl, and hairpin, and pottery vessels of pots, steamer, plate, spinning wheels etc., were discovered, recording the evolution track of societies from the Longshan culture to the Erlitou culture in central China (Henan No. 2 team, Institute of Archaeology, Academy of Social Sciences, 1982; Yuan, 1991). Four AMS 14C dating data obtained from bones put the occupation during the period of 4,000–3,500 cal BP (You et al., 2017).
Pottery Sherds of Grooved Vessels for Study
There are two types of grooved vessels excavated from the Meishan site. One is gray sand-tempered pottery with an inverted rim, whose upper part is trumpet-shaped and the lower part is cylindrical-shaped, with radiating grooves on the interior face (Figure 2A). The other type is gray clay pottery in the shape of a basin with an inverted rim and arc wall, of which the interior face is incised with oblique grooves and the exterior face is decorated with chopped basket patterns (Figure 2B). The sherds from the grooved vessels take up 3.3% of excavated potsherd assemblage at the Meishan site.
A total of 20 sherds of grooved potteries from the Meishan site are selected for this study (Figures 2C–E), that is, 14 sherds from the late Longshan period (∼4,000 cal BP) and six from the early Erlitou period (∼3,800 cal BP), which were excavated during the excavation seasons of 1995 and 1997 conducted by the Henan Provincial Institute of Archaeology. Half of the sherds are from gray sandy pottery, and the other half are from gray clay pottery. Of them, only one sherd, No. T19②b: 17, of the early Erlitou period, can be discerned from a vessel with a spout. Ancient starches from residues on both interior and exterior faces of the sherds were recovered, and then ancient phytoliths were recovered after starch extraction from six residue samples of the late Longshan and two residue samples from the early Erlitou (Supplementary Tables S1, S2).
Analyses of Starch and Phytolith
When we discuss the functions of a specific type of artifact, sources of residues on the surfaces are crucial. Usually, phytoliths and starches recovered from the residues on artifacts will be compared with those from sediments to confirm whether the artifacts were the primary source of these micro plant remains or not (Hart, 2011). However, the potsherds in our study were excavated more than 20 years ago, and contemporaneous sediments which are often used as contamination control samples are not available. Therefore, residues from the interior face can be compared with those from the exterior face of each potsherd based on an assumption that in the same taphonomic conditions, the contamination chances of both faces of the sherds are equal (Barton et al., 1998). If the quantity of micro plant remains on the exterior face of a sherd is more than or equal to that on the interior face, we think the recovered plant remains are sourced from the secondary deposition from the site’s sediments after the tools were discarded, although we cannot rule out the possibility that plant residues on the exterior face are derived from the same plant-processing activity as the manipulator’s hands touched both the foods and vessels at the same time, and the vessels must have been surrounded by the foods as they were processed. As a matter of fact, previous studies have demonstrated that few starches could be retrieved from sediment and soil (Li et al., 2010; Yang et al., 2012a; Ma et al., 2017).
To dislodge adhering residues, the interior face of the potsherds was submerged in ultrapure water and shaken in an ultrasonic water bath for 5–10 min, then the starches were isolated with heavy liquid flotation using a solution of CsCl at a density of 1.8 g/cm3. The recovered residues were mounted in 10% glycerine and 90% water on a slide and examined with both white and cross-polarized light at a magnification of × 400. Starch grains were counted, analyzed for morphological features, and then recorded and compared with those from the modern reference collection. For a detailed protocol, refer to previous publications (Yang et al., 2009; 2012a, 2015). To identify the recovered starches, we compiled a modern reference collection of more than 260 species from 20 families of plants that are common in China, including crops and their wild related species, roots and tubers, tree seeds, and peas and beans (Supplementary Figure S1) (Wang et al., 2013; Wang et al., 2018; Yang and Perry, 2013; Yang et al., 2012b, 2013). Other published collections are consulted as well (Reichert, 1913; Piperno et al., 2000, 2004; Liu et al., 2010a, 2013, 2014).
Recovery of residues for the phytolith analysis followed that of sampling for starches. A heavy liquid of zinc bromide (ZnBr2) at a density of 2.35 g/cm3 was used to isolate phytoliths which were then mounted on a slide with Canada Balsam. Phytolith identification and counting were performed at × 400 magnification. Descriptions and nomenclature of the phytoliths followed the International Code for Phytolith Nomenclature (ICPN) 2.0 (Neumann et al., 2019). To identify phytoliths in the archaeological samples, published modern reference collections were consulted (Rosen, 1992; Wang and Lu, 1993; Piperno, 2006; Lu et al., 2009; Zhang et al., 2011; Gu et al., 2013; Ball et al., 2016; Ge et al., 2018).
Results
Ancient Starches Recovered From the Residues
In total, 380 starch grains were recovered from all samples that can be classified into four groups (Figures 3, 4 and Supplementary Table S1).
FIGURE 3. Starch grains (A−E) and phytoliths (F−L) recovered from the residues on the grooved vessels from the Meishan Site. Each starch grain is shown in brightfield and polarized views. (A,B) Foxtail millet or broomcorn millets; (C) Triticeae; (D) geophytes; (E) possibly Chinese yam; (F) rice bulliform phytoliths from rice leaves with increased scale numbers; (G) double-peaked phytolith from rice husk; (H) Ω-type phytolith from foxtail millet husk; (I) η-type phytolith from broomcorn millet husk; (J) dendritic epidermal phytolith possibly from wheat or barley glumes; (K) bilobate-scooped phytolith from Oryzoideae; and (L) bilobate-scooped phytolith from Paniceae. Scale bar, 20 μm.

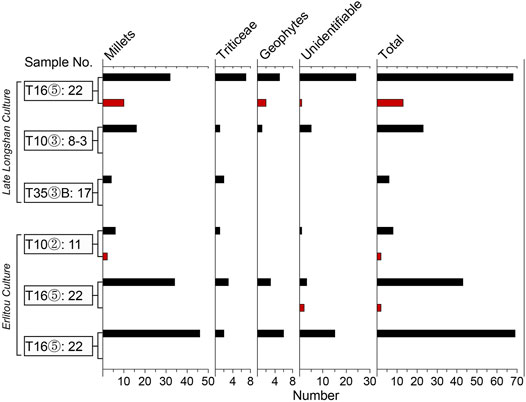

FIGURE 4. Number of starch grains recovered from the residues on the grooved pottery vessels at the Meishan site. Black and red bars represent the samples from the interior face and exterior face, respectively. The results from possible contaminated potsherds have been excluded.
Group A includes 238 starch grains in total, dominating the recovered starch assemblage. The grains are characterized by a polyhedral shape with central and open hila, and by Y-shaped or stellated fissures on occasion (Figures 3A,B). Sometimes, short lines radiating from the center to the edges on the surfaces of grains can be observed. The size of starch grains ranges from 7.2– 26.0 μm. Both the sizes and the morphological features of this group of starches are consistent with those of foxtail millet (Setaria italica) and broomcorn millet (Panicum miliaceum) (Supplementary Figures 1A,B) (Ge et al., 2010; Yang et al., 2012b). Some granules larger than those from modern reference collections might be the result of grinding (Ma et al., 2019).
Group B includes 24 starch grains that are characterized by distinctive lenticular shapes and larger sizes between the range of 15.67∼33.3 μm (Figure 3C). Pressure craters on the surface are apparent. They are identical to starch grains from the modern tribe Triticeae in which wheat (Triticum aestivum) and barley (Hordeum vulgare) are included (Supplementary Figures 1C,D) (Yang and Perry, 2013).
Group C includes 26 starch grains that have the shape of a partial sphere, hemisphere, or sphere, with facets (Figures 3D,E). The hilum is eccentric. Starch grains in this group are similar to geophytes (Supplementary Figures 1E,F), in which Chinese yams (Dioscorea spp.) could be identified at least.
Group D comprises unidentifiable starch grains because of their lack of typical morphological features or severe damage.
Ancient Phytoliths Recovered From the Residues
More than 7,000 phytoliths were recovered from the potsherds after the recovery of starches (Supplementary Table S2). A total of 265 typical bulliform phytoliths from rice leaves (Figure 3F), 253 double-peaked phytoliths from the glume of rice grains (Figure 3G), 89 Ω-type and 136 η-type phytoliths from glumes of foxtail and broomcorn millets (Figures 3H,I), and 34 phytoliths with wave patterns in conjunctions from glumes of wheat or barley are observed (Figure 3J), in addition to bilobate-scooped phytoliths usually extracted from the leaves of Paniceae and Oryzoideae (Figures 3K,L) (Piperno, 2006; Lu et al., 2009, 2017; Ball et al, 2016). The percentage of each type of phytolith is shown in Figure 5. It should be noted that the phytoliths from leaves, such as bulliform, bilobate, saddle, blocky, and rondel phytoliths, can reach up to half of the phytolith assemblage.

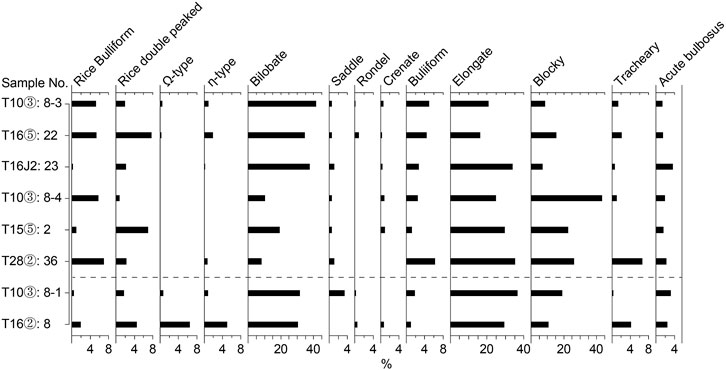

FIGURE 5. Percentage of each type of phytolith recovered from the residues on the grooved pottery vessels at the Meishan site. The samples above the dashed line are from the late Longshan period, while the samples below the dashed line are from the Erlitou period.
Discussion
Plant Subsistence at the Meishan Site
From other contemporaneous sites of the Longshan culture in central China, such as the sites of Yangzhuang, Wangchenggang, Xinzhai, etc., charred seeds of five grains which were staple crops in historical North China (Zhao, 2011), foxtail and broomcorn millets, rice, wheat, and soybean (Glycine max), were recovered by floatation (Jiang et al., 1998; Zhao and Fang, 2007; Zhong et al., 2016). Since barley was introduced in central China by the Shang and Zhou Dynasties (Guo and Jin, 2019), and the Meishan site should have the same plant subsistence as these contemporaneous sites, the phytoliths with wave patterns in the conjunctions and the starches identified to the tribe Triticeae recovered from the Meishan site should be from wheat. Therefore, multiple lines of evidence of both phytoliths and starches from the residues on the grooved vessels from the Meishan site comprise four grains except soybean which does not produce both phytoliths and characteristic starch grains. However, starches of geophytes from the Meishan site supplement archaeobotanical data from other contemporaneous sites of the late Longshan culture in central China.
Function of the Grooved Pottery Vessels
Phytoliths recovered from eight sherds show that the number of phytoliths on the interior face of each sherd is much higher than that on the exterior face, indicating phytoliths sourced from the use of vessels. But starch data are not ideal. The number of recovered starches is so small that there are 380 from 20 sherds in total for statistical analysis. Excluding the sherds of which both faces yield equal or approximately equal numbers of starches or those that their exterior faces yield more starches than the interior faces, in other words, excluding those sherds that might have a secondary deposition from contemporaneous sediments, only three sherds, T16⑤: 22, T10③: 8-3, and T35③B: 17 of the Longshan culture, and three sherds, T10②: 11, T16②: 8, and T10③: 8-1 of the Erlitou culture remain useful for the discussion about the function of grooved vessels (Figure 4).
Both the phytoliths and starches from the residues confirm that grooved vessels were indeed used to process plants, as shown by previous studies at the sites of Lingjiatan and Yanshi Shangcheng (Sun et al., 2019; Reinhart, 2020). Wang (2019) summarized the studies on the grooved vessels in China and tends to agree that the principal function of the vessels was grinding geophytes. In our study, starch grains from Chinese yams and other geophytes were observed from residues on the interior faces of four sherds, providing evidence for the function of grinding geophytes again.
We recovered 7,595 phytoliths and 380 starch grains from the residues on 20 potsherds (Supplementary Tables S1, S2). The pattern of abundant phytoliths with a few starches from glumes and/or caryopsis of rice, foxtail millet, broomcorn millet, and wheat in this study seem to suggest that the grooved vessels were once used to dehusk seeds. But, two factors should be taken into consideration. One is the large number of phytoliths from leaves, taking up 54% of the phytolith population (Figure 5); the other is the small number of sherds from grooved vessels, taking up 3.3% of the pottery ware at the Meishan site. If the grooved vessels were used as principal tools to dehusk seeds, it could be difficult to cope with the work in an agricultural community using 3.3% pottery tools. The phytoliths from leaves may have been occasionally brought in when harvesting ears, so we cannot exclude the function of dehusking seeds. However, we prefer to hypothesize that they are the result of intentionally pounding leaves and husks for some reason. A few starch grains recovered from the potsherds might source the husks on which some starches had been left as dehusking. Rice leaves were once proved to be tempered in the ceramic mold for casting bronze ware during history (Lu et al., 1996). The reason for processing leaves and husks by the grooved vessels at the Meishan site needs further study.
We also noted that the function of grooved vessels is not related to the materials used for pottery manufacturing, because either sand-tempered sherds or clay sherds have the same starch and phytolith patterns in their residues. Since only one sherd is apparently from the vessel with a spout, we cannot distinguish the difference of functions between vessels with or without a spout, though we think the spout is a crucial factor in understanding the function.
Pottery Function and Agricultural Development
The function of early potteries from China, Japan, and Russia in East Asia has been proved to be used for cooking food by the residue analysis (Craig et al., 2013; Shoda et al., 2020; Yang et al., 2012a, 2014, 2015). Furthermore, millet starches recovered from charred residues on early potteries excavated from the sites of Nanzhuangtou, Donghulin, and Zhuannian indicated that the function of cooking plant food and that the invention of pottery manufacturing in the North China Plain may have been related to early farming activities around 10,000 years ago (Yang et al., 2012a, 2014, 2015). By the mid-Neolithic Age, the functions of pottery began to diversify with the establishment of the agricultural societies, and a variety of cooking utensils and containers were often discovered (Wang, 2005).
It is accepted that the middle and lower reaches of the Yangtze River are two centers of rice domestication. Rice was fully domesticated by around 8,000 cal BP in the middle regions after more than 2000 years of cultivation (Deng et al., 2015); however, in the lower regions, the process of rice domestication lasted for even 4,000 years and ended by around 6,000–5,500 cal BP (Fuller et al., 2009; Fuller, 2011; Gao, 2012; Ma et al., 2016, 2018). During the Yangshao Period, rice agriculture spread to central China, joining the millet agriculture (Qin, 2012; Zhang et al., 2012). It seems that the grooved vessel is highly relevant to rice agriculture. The earliest grooved pottery vessels were invented at the archaeological sites of the early stage of the Songze culture (6,000–5,300 cal BP) in the lower reaches of the Yangtze River (Wang, 2019), which happened to be consistent with the end of the process of rice domestication (Ma et al., 2018), and the technics first spread among the rice agricultural societies in the Middle Yangtze River regions during the mid-Songze culture, then was gradually introduced in central China by around 5,300 years ago where rice had been introduced, and local crops, two millets and wheat, were added to be processed as well.
Incorporating the rice phytoliths in a large number on the interior face of grooved vessels at the Meishan site (Figure 5 and Supplementary Table S2), we hypothesize that the grooved pottery vessel might be invented to process by-products of rice for some reason, and to dehusk seeds and grind geophytes, probably. The hypothesis needs systematic residue analysis on the grooved pottery vessels from the lower Yangtze River regions to central China, from the earliest ones to the latest ones, in future studies.
Conclusion
Different from the previous studies based on the ethnographic investigation or single ancient starch evidence, we combine phytolith evidence in the study methods to conclude the function of the grooved pottery vessels, taking an example of the study on sherds excavated from the Meishan site, in central China. We studied the residues on the potsherds of grooved vessels at the Meishan site occupied during the period of 4,000–3,500 cal BP. In terms of starches from geophytes including Chinese yam and starches/phytoliths from glumes and leaves of rice, foxtail and broomcorn millets, and wheat, we demonstrate that the grooved pottery vessels were once principally used to pound leaves and husks for some reason, and to grind geophytes and dehusk crop seeds, possibly. In terms of the timing of rice domestication, we raised a hypothesis that the invention of grooved pottery vessels may have been related to the end of rice domestication in the lower reaches of the Yangtze River. This hypothesis needs further study.
Data Availability Statement
The original contributions presented in the study are included in the article/Supplementary Material; further inquiries can be directed to the corresponding author.
Author Contributions
XY and JY designed the study. YZ, ZM, and XY performed microfossil analysis. TW, JY, YZ, XY, and GY analyzed the data. TW, JY, and XY wrote the manuscript with contributions from all authors.
Funding
This research is funded jointly by the National Social Science Foundation of China (Grant No. 15BKG005) and the National Natural Science Foundation of China (Grant Nos. 41807436 and 41771231).
Conflict of Interest
The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
Publisher’s Note
All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors, and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.
Supplementary Material
The Supplementary Material for this article can be found online at: https://www.frontiersin.org/articles/10.3389/feart.2022.832145/full#supplementary-material
References
Ball, T., Chandler-Ezell, K., Dickau, R., Duncan, N., Hart, T. C., Iriarte, J., et al. (2016). Phytoliths as a Tool for Investigations of Agricultural Origins and Dispersals Around the World. J. Archaeol. Sci. 68, 32–45. doi:10.1016/j.jas.2015.08.010
Barton, H., Torrence, R., and Fullagar, R. (1998). Clues to Stone Tool Function Re-examined: Comparing Starch Grain Frequencies on Used and Unused Obsidian Artefacts. J. Archaeol. Sci. 25, 1231–1238. doi:10.1006/jasc.1998.0300
Chen, Z. (2005). Talk about the Origin and Development of Kejia Leicha and Leicha Porridge (In Chinese). Guangdong Tea 6, 19–21.
Craig, O. E., Saul, H., Lucquin, A., Nishida, Y., Taché, K., Clarke, L., et al. (2013). Earliest Evidence for the Use of Pottery. Nature 496, 351–354. doi:10.1038/nature12109
Deng, Z., Qin, L., Gao, Y., Weisskopf, A. R., Zhang, C., and Fuller, D. Q. (2015). From Early Domesticated Rice of the Middle Yangtze Basin to Millet, Rice and Wheat Agriculture: Archaeobotanical Macro-Remains from Baligang, Nanyang Basin, Central China (6700-500 BC). PLoS One 10, e0139885. doi:10.1371/journal.pone.0139885
Ding, L. (2007). The Investigation of the Function of the Grooved Pottery in Prehistory (In Chinese). Relics Museology 6, 45–51.
Fang, X. (1975). Investigation and Trial Excavation of Meishan Site in Linru City Henan Province (In Chinese). Archaeology 5, 285–294.
Fuller, D. Q. (2011). Pathways to Asian Civilizations: Tracing the Origins and Spread of Rice and Rice Cultures. Rice 4, 78–92. doi:10.1007/s12284-011-9078-7
Fuller, D. Q., Qin, L., Zheng, Y., Zhao, Z., Chen, X., Hosoya, L. A., et al. (2009). The Domestication Process and Domestication Rate in Rice: Spikelet Bases from the Lower Yangtze. Science 323, 1607–1610. doi:10.1126/science.1166605
Gao, Y. (2012). “A Study of Plant Remains and Neolithic Subsistence in Tai Lake Region,” in Chinese (Dissertation) (Beijing, China: Peking University).
Ge, W., Liu, L., and Jin, Z. (2010). Morphological Analyses on Starch Grains of Five Grass Species and Their Significance for Archaeology (In Chinese). Quat. Sci. 32, 269–281.
Ge, Y., Lu, H., Zhang, J., Wang, C., He, K., and Huan, X. (2018). Phytolith Analysis for the Identification of Barnyard Millet (Echinochloa sp.) and its Implications. Archaeol. Anthropol. Sci. 10, 61–73. doi:10.1007/s12520-016-0341-0
Gu, Y., Zhao, Z., and Pearsall, D. M. (2013). Phytolith Morphology Research on Wild and Domesticated Rice Species in East Asia. Quat. Int. 287, 141–148. doi:10.1016/j.quaint.2012.02.013
Guo, R., and Jin, G. (2019). Study on the Wheat Agriculture in the Pre-qin Period of Haidai Region (In Chinese). Quat. Sci. 39, 144–160. doi:10.11928/j.issn.1001-7410.2019.01.14
Hart, T. C. (2011). Evaluating the Usefulness of Phytoliths and Starch Grains Found on Survey Artifacts. J. Archaeol. Sci. 38, 3244–3253. doi:10.1016/j.jas.2011.06.034
Henan, H. (1982). Excavation of the Meishan Site in Linru, Henan Province (In Chinese). Acta Archaeol. Sin. 4, 427–476.
Jiang, Q., Song, Y., Li, Y., and Han, J. (1998). Environmental Archaeology of Longshan Period of the Yangzhuang Site in Zhumadian, Henan Province (In Chinese). Archaeol. Cult. Relics 2, 34–40.
Jin, G. (2013). Study on Food Structure of Residents in Longshan Culture (In Chinese). J. Chin. Humanit. 2, 99–111.
Li, M., Ge, Q., Wang, Q., Cai, L., and Ren, X. (2010). Ancient Starch Grains from Ash Pits of Fengtai Site, Qinghai Province and Their Application in Archaeology (In Chinese). Quat. Sci. 30, 372–376. doi:10.3969/j.issn.1001-7410.2010.02.14
Liu, L., Bestel, S., Shi, J., Song, Y., and Chen, X. (2013). Paleolithic Human Exploitation of Plant Foods during the Last Glacial Maximum in North China. Proc. Natl. Acad. Sci. U.S.A. 110, 5380–5385. doi:10.1073/pnas.1217864110
Liu, L., Field, J., Fullagar, R., Bestel, S., Chen, X., and Ma, X. (2010a). What Did Grinding Stones Grind? New Light on Early Neolithic Subsistence Economy in the Middle Yellow River Valley, China. Antiquity 84, 816–833. doi:10.1017/s0003598x00100249
Liu, L., Field, J., Fullagar, R., Zhao, C., Chen, X., and Yu, J. (2010b). A Functional Analysis of Grinding Stones from an Early Holocene Site at Donghulin, North China. J. Archaeol. Sci. 37, 2630–2639. doi:10.1016/j.jas.2010.05.023
Liu, L., Levin, M. J., Bonomo, M. F., Wang, J., Shi, J., Chen, X., et al. (2018). Harvesting and Processing Wild Cereals in the Upper Palaeolithic Yellow River Valley, China. Antiquity 92, 603–619. doi:10.15184/aqy.2018.36
Liu, L., Ma, S., and Cui, J. (2014). Identification of Starch Granules Using a Two-step Identification Method. J. Archaeol. Sci. 52, 421–427. doi:10.1016/j.jas.2014.09.008
Liu, Z. (1991). The Uses and the Proper Name of the Burnisher (In Chinese). Agric. Archaeol. 1, 283–294.
Lu, H. (2017). New Methods and Progress in Research on the Origins and Evolution of Prehistoric Agriculture in China. Sci. China Earth Sci. 60, 2141–2159. doi:10.1007/s11430-017-9145-2
Lu, H., Wu, N., and Wang, Y. (1996). The Identification of Fan-Shaped Phytolith of Rice and its Application in Archaeology (In Chinese). Archaeology 4, 84–88.
Lu, H., Zhang, J., Wu, N., Liu, K.-b., Xu, D., and Li, Q. (2009). Phytoliths Analysis for the Discrimination of Foxtail Millet (Setaria Italica) and Common Millet (Panicum Miliaceum). PLoS One 4, e4448. doi:10.1371/journal.pone.0004448
Ma, Y., Yang, X., Huan, X., Gao, Y., Wang, W., Li, Z., et al. (2018). Multiple Indicators of Rice Remains and the Process of Rice Domestication: A Case Study in the Lower Yangtze River Region, China. PLoS One 13, e0208104. doi:10.1371/journal.pone.0208104
Ma, Y., Yang, X., Huan, X., Wang, W., Ma, Z., Li, Z., et al. (2016). Rice Bulliform Phytoliths Reveal the Process of Rice Domestication in the Neolithic Lower Yangtze River Region. Quat. Int. 426, 126–132. doi:10.1016/j.quaint.2016.02.030
Ma, Z., Perry, L., Li, Q., and Yang, X. (2019). Morphological Changes in Starch Grains after Dehusking and Grinding with Stone Tools. Sci. Rep. 9, 2355–2413. doi:10.1038/s41598-019-38758-6
Ma, Z., Zhang, C., Li, Q., Perry, L., and Yang, X. (2017). Understanding the Possible Contamination of Ancient Starch Residues by Adjacent Sediments and Modern Plants in Northern China. Sustainability 9, 752. doi:10.3390/su9050752
Madella, M., Alexandre, A., and Ball, T. (2005). International Code for Phytolith Nomenclature 1.0. Ann. Bot. 96, 253–260. doi:10.1093/aob/mci172
Neumann, K, Strömberg, C. A. E., Ball, T, Albert, R. M, Vrydaghs, L, and Cummings, L. S. (2019). International Code for Phytolith Nomenclature (ICPN) 2.0. Ann. Bot. 124, 189–199.doi:10.1093/aob/mcz064
Piperno, D. (2006). Phytoliths: A Comprehensive Guide for Archaeologists and Paleoecologists. New York: AltaMira Press.
Piperno, D. R., Ranere, A. J., Holst, I., and Hansell, P. (2000). Starch Grains Reveal Early Root Crop Horticulture in the Panamanian Tropical Forest. Nature 407, 894–897. doi:10.1038/35038055
Piperno, D. R., Weiss, E., Holst, I., and Nadel, D. (2004). Processing of Wild Cereal Grains in the Upper Palaeolithic Revealed by Starch Grain Analysis. Nature 430, 670–673. doi:10.1038/nature02734
Qin, L. (2012). The Research and Prospect of the Agricultural Origin of Chinese Agriculture (In Chinese). Archaeol. Res. 9, 260–315.
Reichert, E. (1913). The Differentiation and Specificity of Starches in Relation to Genera, Species. etc. Washington, DC: Carnegie institution of Washington, 1–97.
Reinhart, K. (2020). Analysis of Grooved Ceramic Vessels from the Early Chinese Bronze Age Site of Yanshi Shangcheng: Preliminary Evidence of Food Preparation Methods through Starch Analysis. J. Archaeol. Sci. Rep. 29, 101852. doi:10.1016/j.jasrep.2019.05.017
Rosen, A. M. (1992). Preliminary Identification of Silica Skeletons from Near Eastern Archaeological Sites: an Anatomical Approach. In: G. R. Rapp, and S. C Mulholland (ed) Phytolith Systematics: Emerging Issues. Plenum, New York, pp. 129–147.doi:10.1007/978-1-4899-1155-1_7
Shoda, S., Lucquin, A., Yanshina, O., Kuzmin, Y., Shevkomud, I., Medvedev, V., et al. (2020). Late Glacial Hunter-Gatherer Pottery in the Russian Far East: Indications of Diversity in Origins and Use. Quat. Sci. Rev. 229, 106124. doi:10.1016/j.quascirev.2019.106124
Song, Z. (1997). Prehistoric Food Processing Technology: On the Origin of Grinding Tools and Pestle (In Chinese). Agric. Archaeol. 3, 187–195. doi:10.32028/9781789697926-4
Sun, Q., Shuo, Z., Wu, Y., and Yang, Y. (2019). Starch Grain Analysis of the Grooved Basin from the Lingjiatan Site, Hanshan County, Anhui Province (In Chinese). Acta Anthropol. Sin. 38, 132–147. doi:10.1007/s13131-019-1460-6
Tao, D., Yang, Y., Huang, W., Wu, Y., and Wu, Y. (2009). Residue Analysis for the Artifacts from Diaolongbei Site (In Chinese). Archaeology 9, 94–98. doi:10.1007/s11434-009-0545-0
Wang, C., and Lu, H. (2012). Research Progress of Fan-Shaped Phytolith of Rice and Relative Issues (In Chinese). Quat. Sci. 32, 269–281.
Wang, N. (2019). “The Study of Grooved Basin in Prehistoric,” in Chinese) (Dissertation) (Xi’an, China: Northwest University).
Wang, Q., Jia, X., Li, M., and Yang, X. (2013). Morphological Analysis of Starch Grains from Common Food Legumes in China and its Application in Agricultural Archaeology (In Chinese). Wenwuchunqiu 3, 8–14.
Wang, T. (2005). A Study on Early Pottery (In Chinese) (Dissertation). Beijing, China: Peking University.
Wang, W., Ma, Y., Li, Z., Ma, Z., and Yang, X. (2018). Morphological Analysis of Modern Starch Grains of Underground Storage Organs in China (In Chinese). Quat. Sci. 38, 1409–1423.
Wang, Y., and Lu, H. (1993). The Study of Phytolith and its Application (In Chinese). Beijing: China Ocean Press.
Xie, X., Yan, J., and Tao, F. (1989). The Shizitan Site of Epipaleolithic Age in Shanxi, China. Archaeol. J. 3, 305–323.
Yang, X., Ma, Z., Li, J., Yu, J., Stevens, C., and Zhuang, Y. (2015). Comparing Subsistence Strategies in Different Landscapes of North China 10,000 Years Ago. Holocene 25, 1957–1964. doi:10.1177/0959683615596833
Yang, X., Ma, Z., Wang, T., Perry, L., Li, Q., Huan, X., et al. (2014). Starch Grain Evidence Reveals Early Pottery Function Cooking Plant Foods in North China. Chin. Sci. Bull. 59, 4352–4358. doi:10.1007/s11434-014-0500-6
Yang, X., and Perry, L. (2013). Identification of Ancient Starch Grains from the Tribe Triticeae in the North China Plain. J. Archaeol. Sci. 40, 3170–3177. doi:10.1016/j.jas.2013.04.004
Yang, X., Wan, Z., Perry, L., Lu, H., Wang, Q., Zhao, C., et al. (2012a). Early Millet Use in Northern China. Proc. Natl. Acad. Sci. U.S.A. 109, 3726–3730. doi:10.1073/pnas.1115430109
Yang, X., Yu, J., Lü, H., Cui, T., Guo, J., and Ge, Q. (2009). Starch Grain Analysis Reveals Function of Grinding Stone Tools at Shangzhai Site, Beijing, Sci. China Ser. D-Earth Sci., 52. Beijing, 1164–1171. doi:10.1007/s11430-009-0089-9
Yang, X., Zhang, J., Perry, L., Ma, Z., Wan, Z., Li, M., et al. (2012b). From the Modern to the Archaeological: Starch Grains from Millets and Their Wild Relatives in China. J. Archaeol. Sci. 39, 247–254. doi:10.1016/j.jas.2011.09.001
Ye, W. (1989). An Examination of the Origin and Development of the Grinding Bowl (In Chinese). Archaeology 5, 456–462.
Ye, W., and Li, D. (1996). “The Archeological Research of the Ancient Societies in Yiluo Region in the Past 40 Years,” in Forty Years of Archaeology Study in Luoyang: Proceedings of the Seminar on Archaeological Research in Luoyang in 1992 (In Chinese) (Beijing: China Science Press), 11.
You, Y., Yuan, G., Zhao, Y., and Jin, S. (2017). Zooarchaeological Research on the Meishan Site in Linru, Henan Province. South. Relics 3, 165–176.
Yuan, G. (1991). Excavation Report of the Meishan Site in Linru in 1987-1988 (In Chinese). Huaxia Archaeol. 3, 5–23.
Zeng, H., and Zhu, H. (2012). Some Thoughts on the Use of Stone Millstone in Neolithic Period in China (In Chinese). Agric. Archaeol. 3, 137–140.
Zhang, J., Lu, H., Gu, W., Wu, N., Zhou, K., Hu, Y., et al. (2012). Early Mixed Farming of Millet and Rice 7800 Years Ago in the Middle Yellow River Region, China. PLoS One 7, e52146. doi:10.1371/journal.pone.0052146
Zhang, J., Lu, H., Wu, N., Yang, X., and Diao, X. (2011). Phytolith Analysis for Differentiating between Foxtail Millet (Setaria Italica) and Green Foxtail (Setaria Viridis). PLoS One 6, e19726. doi:10.1371/journal.pone.0019726
Zhang, X. (2017). A Preliminary Research on the Pottery Wine Vessels of the Songze Culture (In Chinese). Archaeology 12, 69–81.
Zhao, Z. (2011). Characteristics of Agricultural Economic Development during the Formation of Chinese Civilization (In Chinese). J. Natl. Mus. China 1, 27–39.
Zhao, Z., and Fang, Y. (2007). Flotation Results from the Wangchenggang Site in Dengfeng, Henan Province (In Chinese). Huaxia Archaeol. 2, 78–89.
Zhao, Z. (2019). Introduction of the Origin of Agriculture in China (In Chinese). Res. Heritages Preserv. 4, 5–11.
Keywords: starch grain analysis, phytolith analysis, food processing, agricultural society establishment, Yangtze river
Citation: Wang T, Zang Y, Ma Z, Yang J, Yuan G and Yang X (2022) Micro Plant Remains Reveal the Function of Grooved Pottery Vessels From the Late Neolithic Meishan Site in Central China. Front. Earth Sci. 10:832145. doi: 10.3389/feart.2022.832145
Received: 09 December 2021; Accepted: 30 May 2022;
Published: 05 July 2022.
Edited by:
Nadia Solovieva, University College London, United KingdomCopyright © 2022 Wang, Zang, Ma, Yang, Yuan and Yang. This is an open-access article distributed under the terms of the Creative Commons Attribution License (CC BY). The use, distribution or reproduction in other forums is permitted, provided the original author(s) and the copyright owner(s) are credited and that the original publication in this journal is cited, in accordance with accepted academic practice. No use, distribution or reproduction is permitted which does not comply with these terms.
*Correspondence: Jishuai Yang, yangjsh2013@lzu.edu.cn
