Thousands of square kilometers of habitable land have been created on the Loess Plateau in China. In arid and semi-arid area of Northwest China, the mechanical behavior of structural loess is sensitive to water intrusion and human engineering activities. Meanwhile, the higher water salinity in loess and seasonal variation of ambient humidity are common in this area. Due to different physical and mechanical properties of natural and compacted loess, the impacts of ambient humidity and saline water migration on their deformation are still unclear. This paper developed an oedometer test to investigate the compression behavior of natural and compacted loess under environmental humidity (represented by total suction Ψ) and injection water salinity (represented by osmotic suction Ψ_π) changing. The results showed that the void ratio variation Δe of compacted loess (the dry density is 1.8 g/m³) under the impact of total suctions (from 14.01 to 146.23 MPa) and salinities of injected solution (0.17 mol/L NaCl, 0.29 mol/L Na₂SO₄ and distilled water) were under 0.01. The variation of void ratio for undisturbed loess increased about 8 times with 10 times decreasing of total suction, which was corresponding to the increase of relative humidity (RH). In the stage of solution injection, the deformation of undisturbed loess increased with the Ψ-Ψ_π increasing, and the differences between different samples reached to nearly 20 times. The mechanism was that the salt inside undisturbed loess would deliquescence when the RH was higher than DRH (Deliquescence Relative Humidity), and the natural structure collapsed. The compression index C_c of samples generally decreased with Ψ-Ψ_π, and the compressibility of undisturbed loess was higher. The swelling indices C_s of samples slightly decreased with Ψ-Ψ_π, but the variation was not significant. The strain-stress relationships of loess can be well described by Duncan-Chang constitutive model. Interestingly, the difference of initial deformation modulus ΔE_s of two loesses, which represented the structural compression under the coupling of total suction and osmotic suction, linearly related to the Ψ-Ψ_π. The Δε_max between the structural loess and compacted loess exponential increased with Ψ-Ψ_π. In the engineering practice, the humidity and saline water intrusion should be considered in the long-term behavior of loess in shallow layer.

Introduction

In recent years, a large number of land reclamation projects in Loess Plateau are in progress, which located in the arid and semi-arid loess area. The loess in Western China is mainly a kind of silty clays, and the groundwater frequently composed of sodium sulfate and sodium chloride. The structural loess is easy to collapse under water intrusion. In the land reclamation area, the different physical properties of compacted and undisturbed loess will lead to uneven settlement near the interface of filling and excavating area. Under the coupling effect of water infiltration (rainfall, irrigation and groundwater migration) and human engineering activities, the mechanical properties of loess deteriorated. Especially, the climate changing leads to environmental humidity change. In the engineering practice, it is doubtful that the humidity and saline water intrusion should be considered in the long-term behavior of loess in shallow layer (Ng and Pang, 2000; Zhang et al., 2013; Daliakopoulos et al., 2016; Chen et al., 2017; Ivushkin et al., 2019).

The water chemistry effects on the compression behavior of soil has been drawn an extensive attention. Lu et al. (2020) (Zuo et al., 2020) indicated that the migration of groundwater will lead to the decrease of ion concentration of pore water, the decrease of bonding strength and the collapse of loess structure. Wen et al. (2014) (Wen and Yan, 2014) considered that the soluble salts existed on the surface of soil particles play a role of skeleton and cementation. Niu et al. (2021) (Niu and Yao, 2021) revealed that the elastic modulus of soil decreased after multiple drying-wetting cycles. Zhang et al. (2019) (Zhang and Wang, 2019) adopted the osmotic suction to characterize the chemical effects of pore water, and investigated its influences on the compression and permeability characteristics of remolded clay. Amir et al. (2018) (Amir Akbari et al., 2018) reported that the saline water infiltration significantly influenced the hydraulic characteristics of unsaturated soil in the subgrade of highway, and resulted in the collapse of soil. The reason was that the matrix suction changed with the environmental humidity.

The particular structure and water sensitivity of loess are the main factors of subgrade settlement. In practice, compaction has been frequently used to improve the strength of soil and bearing capacity of foundation. The water sensitivity of compacted loess is closely related to their mineralogy and microstructure (Ma et al., 2016). During compression, the moisture content of compacted loess increased by 4.4–7.4% (Mu et al., 2020). Then, there are some differences of the structure and water sensitivity between undisturbed and compacted loess. Recently, based on the development of unsaturated soil theory and test methods, there have been many valuable achievements in the study of compression behavior of loesses. Chang et al. (2020) (Chang et al., 2020) conducted consolidation and drainage triaxial shearing tests on undisturbed Q₃ loess and undisturbed Q₂ loess in Yan’an New Area. The results explored that the matrix suction controlled the strength and initial Young’s modulus of unsaturated loess. Lan et al. (2021) (Lan et al., 2021) found that the cyclic expansion and contraction of loess slope correlated to the changes of humidity and temperature and established a prediction model. Qin et al. (2020) (Qin et al., 2020) indicated that the structural properties of unsaturated and saturated loesses during compression exhibited different trend and the anisotropy of samples tend to be stable as vertical strain increases. Besides of studies on loess, Deng et al. (2018) (Deng et al., 2018) pointed out the mineralogy of saturated remolded soil was the key factor controlling pore water salinity effects on their compression and permeability. Miller et al. (2006) (Debora and Miller, 2006) found that the osmotic suction should be considered in the matrix suction measurement, and the matrix suction was not proper to replace the total suction in unsaturated soil with high salinity. He et al. (2020) (He et al., 2020) studied the swelling and shrinkage characteristics of compacted GMZ bentonite by varying the concentration of NaCl solution and total suction. Results showed that the sample saturated with salt solution has a higher degree of saturation than the sample saturated with distilled water for a given total suction.

In summary, many researchers paid attention on the salinity, moisture content and micro-structure effects on mechanical properties of different soils (Loret et al., 2002; Debora and Miller, 2006; Koniorczyk and Gawin, 2008; Zhang et al., 2016; Elkady and Al-Mahbashi, 2017; Jabar and Rasul, 2017; Sato and Hattanji, 2018; He et al., 2020; Wang et al., 2020). While, few studies focus on the response of compression behavior of undisturbed loess and remolded loess to the environmental humidity change and saline water intrusion in the northwest arid and semi-arid areas. This paper aimed to reveal the different performance of engineering properties of remodeling and undisturbed loess under extreme climate and human activities. Then, a modified one-dimensional consolidation test with controlling humidity and intruded water salinity was developed. The compression behavior of undisturbed and remolded loess under the coupling of loading, total suction and osmotic suction were investigated. The results will provide a reference for the evaluation of long-term behavior of land reclamation project in Western China.

Materials

The undisturbed loess was sampled at a depth of 1 m from the excavation area of a land reclamation site in Lanzhou New Area, Gansu Province. The basic physical properties of soil were determined according to Chinese standard GB/T 50,123–2019 for geotechnical tests. As shown in Table 1, the initial void ratios of natural loess and compacted loess were 1.14 and 0.53 respectively. The differences of permeability coefficient between these two loesses were 10 times. The particle size distribution of fine particles based on laser analysis is shown in Figure 1. The XRD pattern shown in Figure 2 indicates that the main clay minerals are illite-smectite mixed layer and kaolinite. The KCl, MgCl₂, Ki, ZnSO₄, K₂CO₃ and Na₂SO₄ were used to prepare saturated salt solution. Meanwhile, sodium chloride (NaCl) and sodium sulfate (Na₂SO₄) solutions with 0.17 mol/L and 0.29 mol/L were prepared respectively. The selected salinities were according to the in-situ investigation on loesses in Lanzhou New Area.

TABLE 1

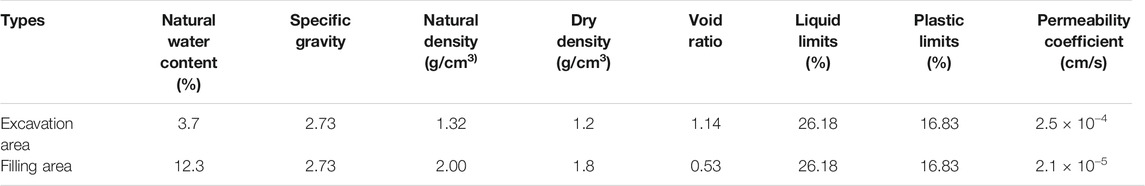

TABLE 1. Physical properties of selected loess.

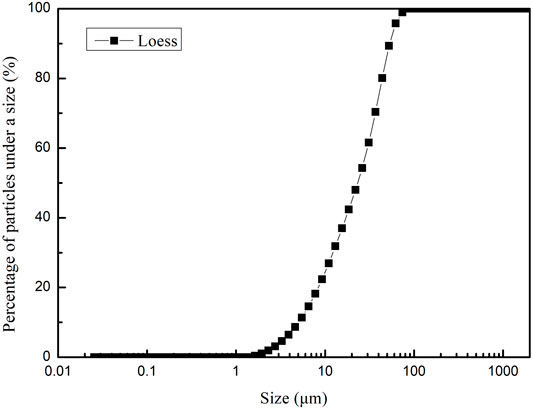

FIGURE 1

FIGURE 1. Particle size distribution of selected loess.

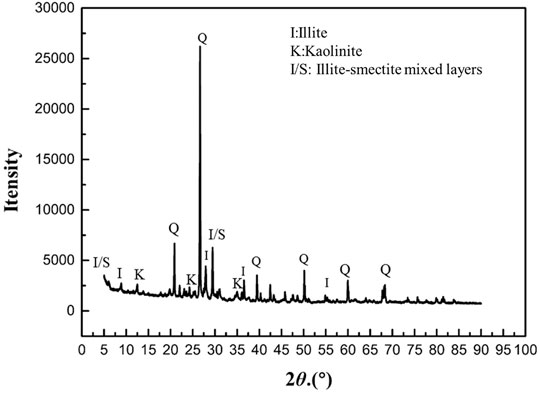

FIGURE 2

FIGURE 2. The mineralogy of loess in Lanzhou New Area.

Methods

Sample Preparing

For the undisturbed loess, the samples with a height 20 mm and diameter 61.8 mm were prepared by cutting the intact soil in field. Then, they were air dried or titrated to a uniform moisture content 3.7%, and sealed for 24 h to reach a homogenous state. For the compacted samples, the remolded loess was statically compressed in the steel ring with a height 20 mm and diameter 61.8 mm according to the physical indexes of compacted loess shown in Table 1.

Modified Oedometer Tests

The set-up of modified oedometer tests mainly included a sealed container filling with saturated solution, a peristaltic cycling pump and a loading system. As shown in Figure 3A, the vapor of saturated solution was circularly pumped (the speed was 20 rpm) to the top and bottom of installed sample. Besides, the saturated solution was also filled in the container to obtain the homogenization of total suction or humidity in samples. The samples were not allowed to be contaminated with saturated solution in the container. Figure 3B presented the scheme of solution injection stage of the compression tests. In this stage, the 0.17 mol/L NaCl and 0.29 mol/L Na₂SO₄ were circularly pumped to soak the bottom of samples.

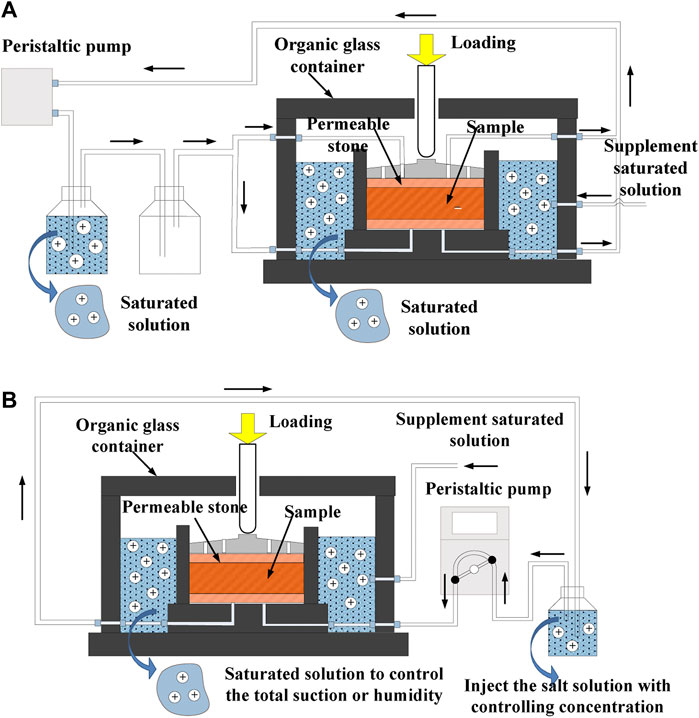

FIGURE 3

FIGURE 3. The schematic diagram of modified oedometer tests with controlling total suction and injected solutions: (A) The set-up of total suction controlling device; (B) The set-up of solution injection device.

The osmotic suction and total suction controlled compression tests were performed following these procedures:

1) The loading of 12.5 and 25 kPa were applied to the undisturbed and remolded loess following Chinese standard GB/T 50,123–2019, and each step of loading last for 24 h.

2) Under the load of 25 kpa, the vapor of saturated solution was circularly pumped to samples for reaching the equilibrium of relative humidity as shown in Figure 3A. The period of this stage was about 7 days, which was based on the ending of deformation development.

The total suction includes matrix suction and osmotic suction, and normally correlated to the relative humidity in soil. In this test, the saturated solution was used to provide a certain relative humidity in the sealed container. According to thermodynamics, the relationship between the total suction and the relative humidity of the saturated solution was expressed as follows:

$\psi =\frac{RT{\rho }_w}{W}\ln \left(\frac{1}{RH}\right)(1)$

Where Ψ is the total suction in kPa; R is molar gas constant, 8.3145 J/(mol·K); ρ_w is the density of water, kg/m³; W is the molar mass of water vapor, 18.016 g/mol; T is the absolute temperature in K; RH is relative humidity, %.

The tests were performed at 15°C, and the relative humidity and calculated total suction corresponding to various saturated salt solutions are shown in Table 2.

3) When the vertical deformation was unchanged at stage (2), replace the experimental set-up to control the osmotic suction of inject solution as shown in Figure 3B. The samples were soaked with NaCl at a mass content of 1%, Na₂SO₄ at a mass content of 4% and distilled water. Meanwhile, we recorded the vertical deformation of soil under saline water infiltration. The period of solution soaking was maintained to 24 h.

TABLE 2

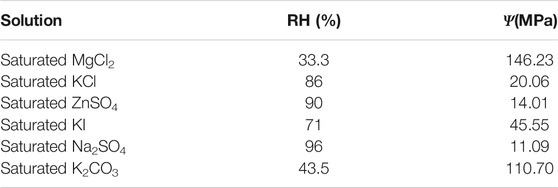

TABLE 2. The total suction and RH of saturated solution (15°C).

Witteven et al. (2013) (Witteveen et al., 2013) experimentally studied the influences of NaCl solution on the suction of illite clay. The results showed that osmotic suction of soil-NaCl mixtures and NaCl solution identified by filter paper method were close, which indicated that the clay minerals almost had negligible influences on the measured osmotic suction. Then, the controlling osmotic suction in soil can be considered as the osmotic suction of injected saline water. Metten 1966) (Wang et al., 2020) proposed that the osmotic suction can be calculated by Van Hoff equation as following:

${\psi }_{\pi }=\upsilon RTc(2)$

Where Ψ_π represents osmotic suction, kPa; υ is the number of ionizable ion, such as NaCl solution υ = 2; R is gas constant, R = 8.3145 J/mol·K; T is absolute temperature, K; c represents molar concentration of solution (mol/L). The relationship between molar concentration and mass concentration is c = 1000ωρ/M, where ω represents the mass concentration, ρ is the density of water in g/cm³, and M is the molar mass of the solute. Table 3 gives the calculated osmotic suction of 1% sodium chloride (NaCl) solution, 4% sodium sulfate (Na₂SO₄) solution and distilled water based on eq. (Ivushkin et al., 2019).

4) After the deformation was stable in the soaking stage, the conventional consolidation tests were carried out under the loading from 25 to 1,600 kPa, and then unload to 25 kPa step by step. The loading increment or decrement followed a ratio of 1:2 or 2:1, and the loading or unloading period would last for 24 h. Based on the e-lgp curves of each sample, the total suction and osmotic suction effects on the compression coefficient, compression index and other mechanical behavior of compacted and undisturbed loess were discussed.

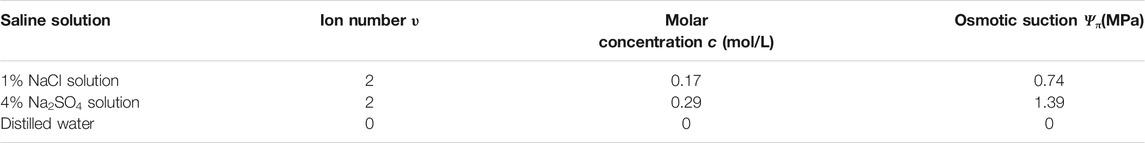

TABLE 3

TABLE 3. The osmotic suction of selected solution for soaking soil (15°C).

Results and Discussions

The Compression Curves e-lgp

Figure 4A–C presented the e-lgp curves of undisturbed loess with vary controlling environmental humidity and salinities. The results showed that the structure of undisturbed loess significantly collapsed under the coupling of total suction and osmotic suction at the 25 kPa, and the compression indices changed after 25 kPa. In Figure 4A, the variation of void ratio Δe at 25 kPa reached to about 0.10 under Ψ = 146.23 MPa and Ψ_π = 0.74 MPa for undisturbed loess, while it significantly decreased to about 0.035 under Ψ = 20.06 MPa and Ψ_π = 0.74 MPa. It indicated that the volume of collapse increased with the total suction for a critical osmotic suction. After 25 kPa, the slope of e-lgp curve under Ψ = 146.23 MPa and Ψ_π = 0.74 MPa was lower than that under Ψ = 20.06 MPa and Ψ_π = 0.74 MPa. In Figure 4B, the collapsed volume of samples under Ψ = 45.55 MPa and Ψ_π = 1.39 MPa were larger than that under Ψ = 14.01 MPa and Ψ_π = 1.39 MPa at 25 kPa. While, it is interesting that their slopes in e-lgp curves were close for the approximately close total suction (the difference was within one order of magnitude). In Figure 4C, the Δe of undisturbed samples at 25 kPa under Ψ = 110.7 MPa and Ψ_π = 0 MPa was higher than that under Ψ = 11.09 MPa and Ψ_π = 0 MPa, and the changes of compression indices presented a similar trend which the compression index of samples under Ψ = 11.09 MPa and Ψ_π = 0 MPa was higher.

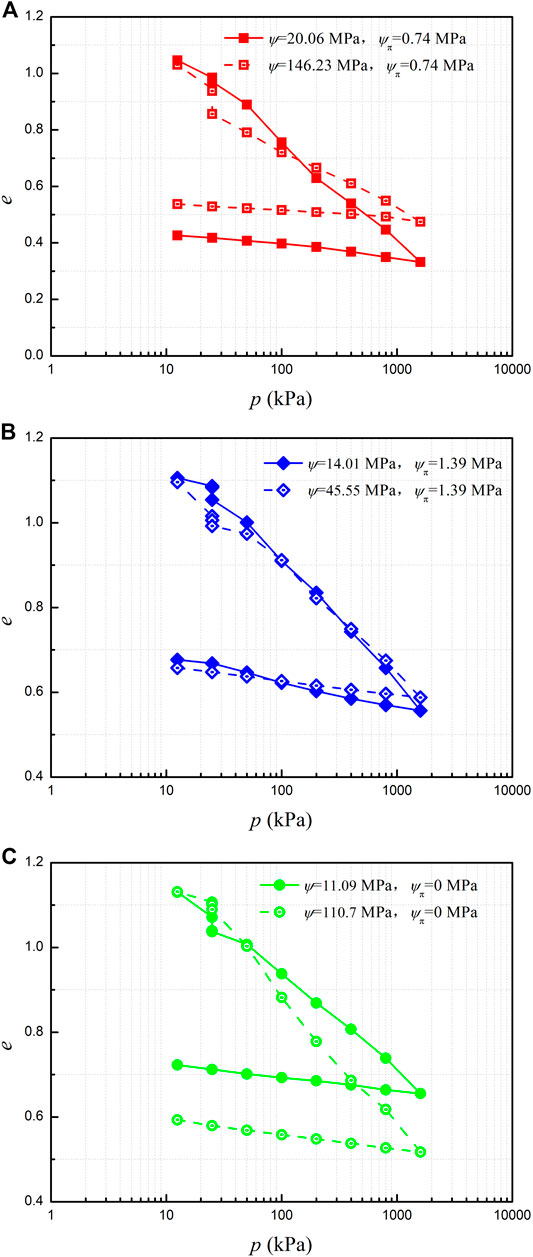

FIGURE 4

FIGURE 4. The e-lgp curves of undisturbed loess under total suction and osmotic suction: (A) Ψ_π = 0.74 MPa; (B) Ψ_π = 1.39 MPa; (C) Ψ_π = 0 MPa.

Figure 5A–C presented the e-lgp curves of remolded loess, being at a consistent compacted dry density 1.8 g/cm³ and compressed under vary controlling environmental humidity and salinities. Being different with undisturbed samples, the volume changes Δe at 25 kPa decreased with total suction Ψ increasing for Ψ_π = 1.39 MPa, Ψ_π = 0.74 MPa and Ψ_π = 0 MPa. After 25 kPa, the slopes in e-lgp curves of compacted loess were not significantly influenced by environmental humidity, and they seemed to be close under an identical Ψ_π. Generally, the final volume changes Δe of samples with lower total suction Ψ at 1,600 kPa was higher than that of samples with larger total suction Ψ for an identical Ψ_π. The differences of final void ratio in two compression curves of each figure were about 0.1. Meanwhile, the impact of total suction and osmotic suction on the collapsed volume of compacted loess significantly decreased comparing to undisturbed loess.

FIGURE 5

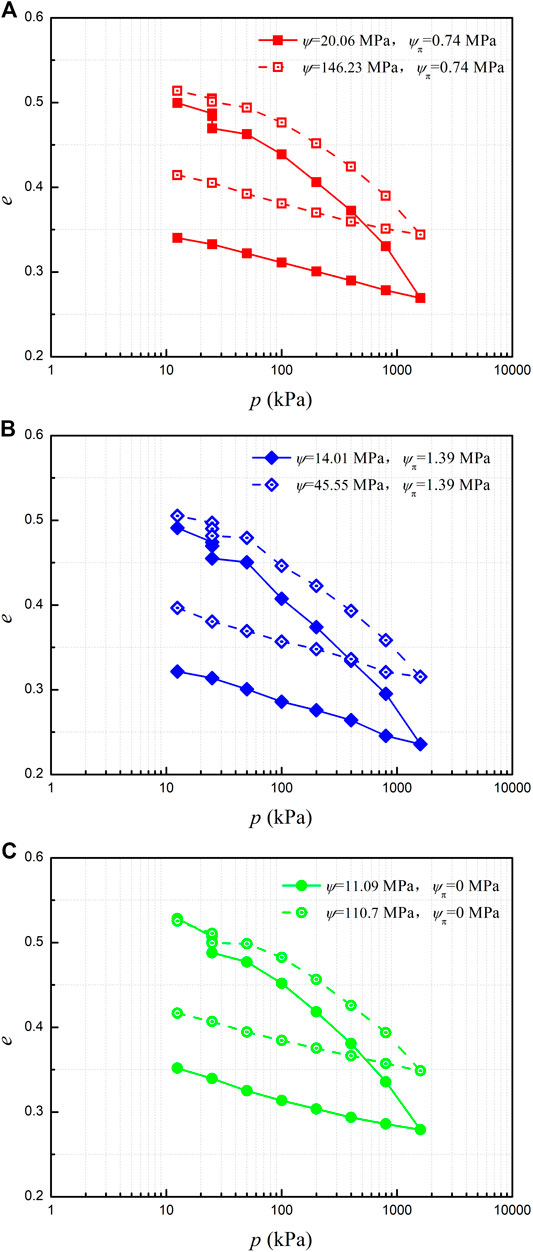

FIGURE 5. The e-lgp curves of compacted loess under total suction and osmotic suction: (A) Ψ_π = 0.74 MPa; (B) Ψ_π = 1.39 MPa; (C) Ψ_π = 0 MPa.

The Volume Change With Elapsed Time at 25 kPa

To compare the deformation of undisturbed loess and compacted loess at different stages, the void ratio e changed with elapsed time T (s) were illustrated in Figure 6. The stages included an applied loading of 25 kPa (I), total suction equilibrium (II) and saline water injection (III).

FIGURE 6

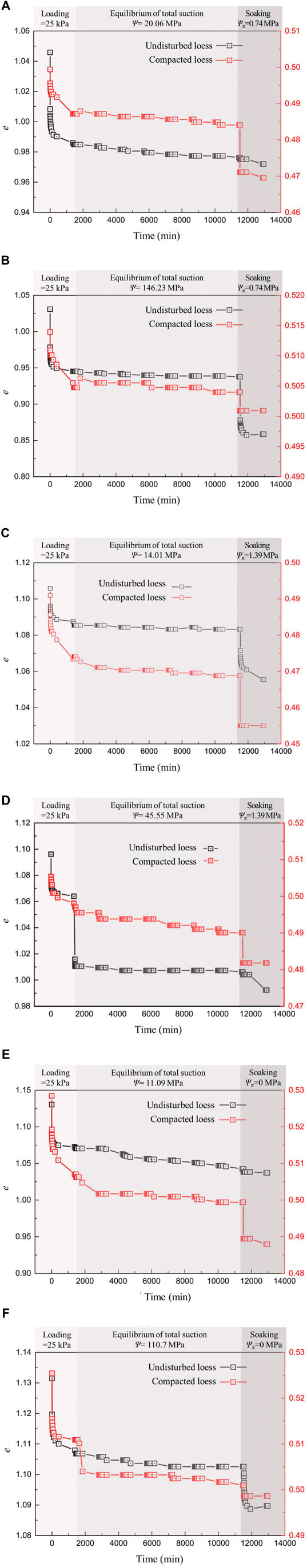

FIGURE 6. The e-Time curves of undisturbed and compacted loess under impact of total suction and osmotic suction: (A) Ψ = 20.06 MPa and Ψ_π = 0.74 MPa; (B) Ψ = 146.23 MPa and Ψ_π = 0.74 MPa; (C) Ψ = 14.01 MPa and Ψ_π = 1.39 MPa; (D) Ψ = 45.55 MPa and Ψ_π = 1.39 MPa; (E) Ψ = 11.09 MPa and Ψ_π = 0 MPa; (F) Ψ = 110.7 MPa and Ψ_π = 0 MPa.

As shown in Figure 6A, the primary compression at 25 kPa of undisturbed loess was about 6 times larger than that of compacted loess, which indicated a higher compressibility of structural loess with an initial void ratio larger than 1.0. At the stage of total suction equilibrium, the secondary consolidation settlement Δe of undisturbed and compacted loess were 0.009 and 0.003. When the samples soaked in the solution with osmotic suction equal to 0.74 MPa, the compacted soil collapsed from e = 0.485 to e = 0.47, and the Δe of undisturbed loess was only 0.004. In Figure 6B, the volume change of undisturbed loess was about 9 times larger than that of compacted loess at the first stage. Then, the creeping deformation of undisturbed loess was also 5 times than compacted loess at the second stage, but their Δe were both under 0.01. Under the coupling of Ψ = 146.23 MPa and Ψ_π = 0.74 MPa, the volume contraction of undisturbed soil significantly larger than compacted samples, being different with the results shown in Figure 6A

In Figure 6C,D, the larger primary compression of undisturbed loess under 25 kPa applied was confirmed. The difference of the long-term creeping of two soil was within 10 times under Ψ = 14.01 MPa and Ψ = 45.55 MPa which were less than 100 MPa. At the third stage, the collapsed volume of undisturbed loess were about 2 times higher than that of compacted loess in the case of Ψ_π = 1.39 MPa.

In Figure 6E,F, the Δe of undisturbed loess were from 0.03 to 0.06 and that of compacted loess was about 0.01–0.02 at the first stage. Under the higher controlling total suction Ψ = 110.7 MPa, the creeping void ratio decrement of two soils were within 0.01. While the void ratio variations of undisturbed loess and compacted loess were 0.03 and 0.008 in the condition of lower total suction Ψ = 11.09 MPa which corresponding a RH = 96%. When the distilled water induced, the void ratio of undisturbed loess decreased 0.013 and 0.005 in the condition of Ψ = 110.7 MPa and Ψ = 11.09 MPa respectively. At this stage, the volume of compacted loess decreased 0.002 and 0.011 for Ψ = 110.7 MPa and Ψ = 11.09 MPa respectively. Generally, the primary compression of samples under a constant loading 25 kPa were controlled by the initial structure and void ratio. Then, the volume changes of primary consolidation of structural loess were higher than that of compacted loess. While, with the RH changing and saline water induced, the collapses of loess were significant. Figure 7A summarized the void ratio decrement Δe varied with total suction Ψ at the second stage. To characterize the coupling effect of Ψ and Ψ_π on the collapse of loess, the relationships between Δe and Ψ-Ψ_π were presented in Figure 7B.

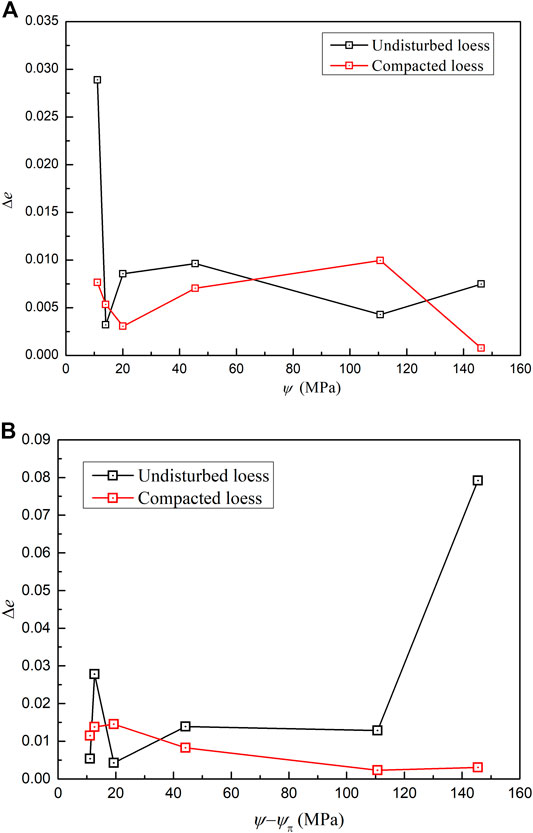

FIGURE 7

FIGURE 7. The Δe under impact of total suction and osmotic suction: (A) the Δe versus Ψ at the second stage; (B) the Δe versus Ψ-Ψ_π at the third stage.

As shown in Figure 7A, the results indicated that creeping deformation of undisturbed loess significantly decreased with total suction increasing which corresponding to relative humidity decreasing. When the RH < 90%, the Δe at secondary consolidation stage were lower than 0.01. While, the Δe reached to 0.03 when the RH = 96%. For the compacted loess, the Δe at secondary consolidation stage were all lower than 0.01 and the media value was 0.005, which seemed to be irrelevant to environmental humidity.

When the solution was induced, the collapse of undisturbed loess increased from 0.005 to 0.08 with the Ψ-Ψ_π increasing as indicated in Figure 7B. The highest difference between the samples was nearly 20 times. The higher Ψ-Ψ_π resulted in a higher solution inducing collapse. While, the volume changes of compacted loess decreased with Ψ-Ψ_π increasing, and that of all samples were under 0.015.

Therefore, the creeping in high environmental humidity and the collapse under saline water intrusion being high Ψ-Ψ_π for loess would be considered for the shallow layer, especially the uneven settlements between undisturbed loesses and compacted loesses. For the undisturbed loesses, higher relative humidity resulted in higher creeping without considering water intrusion. Under the groundwater intrusion, the dry loess with higher Ψ-Ψ_π would collapsed dramatically. For the compacted loesses, the creeping seemed to be irrelevant to environmental humidity without considering water intrusion. When saline water induced, a higher collapse of wet loess with lower Ψ-Ψ_π occurred.

The Compression Parameters

The compressibility index of soil based on e-lgp curves is the fundamental parameters to investigate the soil settlement. The compression index C_c is the slope of the straight section in e-lgp curve after yielding of soil, and the swelling index C_s the slope of the e-lgp curve in the unloading stage. Previous studies revealed that the compression index of saturated montmorillonite clay significantly decreased with the increase of osmotic suction and then tend to be constant (Deng et al., 2018; He et al., 2020). In this study, the relationships between the compression index of unsaturated loess and osmotic suction under the changing of ambient humidity represented by total suction were considered. As mentioned, the coupling effects of ambient humidity and saline water intrusion on soil settlement were expressed as the relationships between compressibility index and Ψ-Ψ_π. The results plotted in Figure 8 showed that the compression index C_c of samples generally decreased with Ψ-Ψ_π, and the compressibility of undisturbed loess was higher. The swelling indices C_s of samples also decreased with Ψ-Ψ_π, but the variation was not significant as C_c. The reason is that the swelling of loess is mainly attributed to the elastic deformation of particles. Unlike the montmorillonite soil, water molecule can not go into interlayer of kaolinite or illite and result in soil expansion. Then, the variation of C_s was not significant.

FIGURE 8

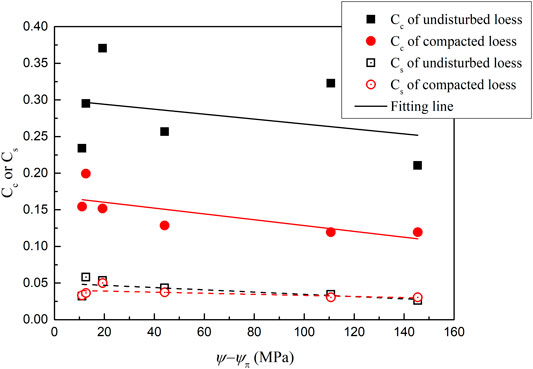

FIGURE 8. The compression index C_c and swelling index C_s versus Ψ-Ψ_π

In terms of compression, the responses of undisturbed and remolded loess to environmental humidity and water salinity were different. When the Ψ-Ψ_π reached to 40 MPa, the compression index of remolded loess was almost constant. The Ψ-Ψ_π of undisturbed loess significantly fluctuated after 40 MPa. The maximum C_c and C_s of samples corresponded to the Ψ-Ψ_π being 10–20 MPa. The reason for the higher C_c of undisturbed and remolded loess under higher humidity is that the micro pores in soil absorbed water and moisture content increased. The soil cementation was hydrated resulting in large compressibility of structural loess (Sato and Hattanji, 2018; Wei et al., 2020; Xu et al., 2020). Meanwhile, the sodium sulfate in soil would form hydrated crystals in the process of humidity increasing. It lead to the expansion of soil and the reduction of compressibility (Zhang et al., 2012; Langlet et al., 2013).

The stress-strain relationships of undisturbed and remolded loess were further discussed by elastoplastic model. Among the constitutive models, Duncan Chang model has been widely used in engineering practice. Based on that, the hyperbolic model was also used to describe the one-dimensional stress-strain relationships of soil under confining conditions. The function can be expressed as following:

$\epsilon =\frac{p}{a+bp}(3)$

Where ε is the vertical strain of the specimen in one-dimensional compression test; p is vertical stress; a and b are the constant. The parameter a is the reciprocal of the slope of the straight section at the initial stage of the curve, which is the compression modulus E_s (MPa) under the lateral confining condition. The parameter b is the reciprocal of the ultimate strain ε_max when the stress is infinite. As shown in Figure 9, the stress-strain relationships of soil were well described by Eq. 3.

FIGURE 9

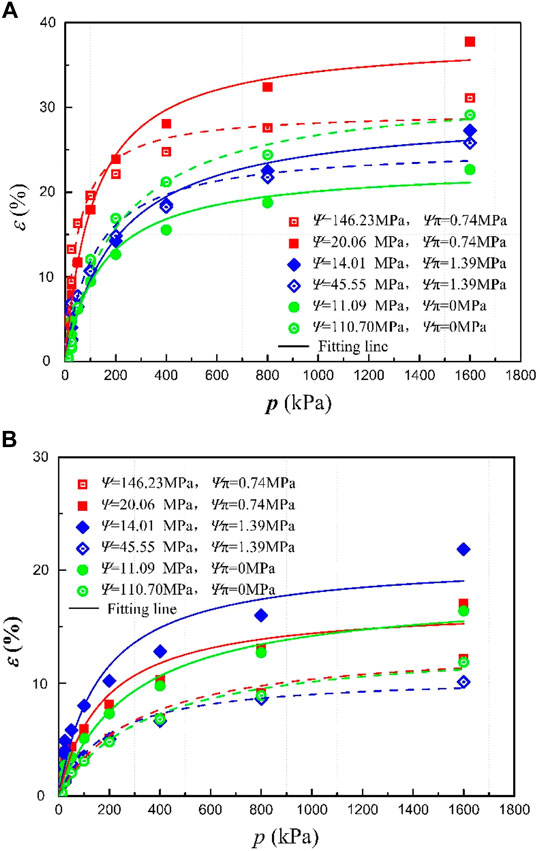

FIGURE 9. The strain-stress relationships of samples: (A) undisturbed loess; (B) compacted loess.

The key parameters E_s and ε_max in the above formula changed with Ψ-Ψ_π were shown in Figure 10. As shown in Figure 10A, the trends of the two curves were similar and the initial E_s of compacted loess were higher than that of structural loess. The E_s generally increased with Ψ-Ψ_π, which indicated that the initial compression modulus was higher at lower ambient humidity corresponding to a dry state. While the E_s followed an inverse relationship in the range of 11–14 MPa and 110–146 MPa. It could be attributed to the deliquescence and efflorescence of saline crystals and different pore water chemistry in soil. In the range of 11–14 MPa, the crystals in soil deliquesced at high ambient humidity and the osmotic suction of intrusion liquid increased the applied chemistry loading. The maximum E_s at Ψ-Ψ_π = 110.7 MPa was due to the efflorescence of crystals and increasing of solid phase volume. The results shown in Figure 10B indicated that ε_max of compacted loess regularly decreased with Ψ-Ψ_π increasing due to the lower moisture content under high total suction. Due to the collapse of structural loess, the ε_max of undisturbed loess located above the curve of compacted loess. There existed a peak value at Ψ_π = 0.74 MPa and Ψ = 20.06 MPa, which corresponded to that the NaCl solution induced collapse under high ambient humidity (RH > 85%). It could be impacted by the coupling of initial pore structure and pore water chemistry.

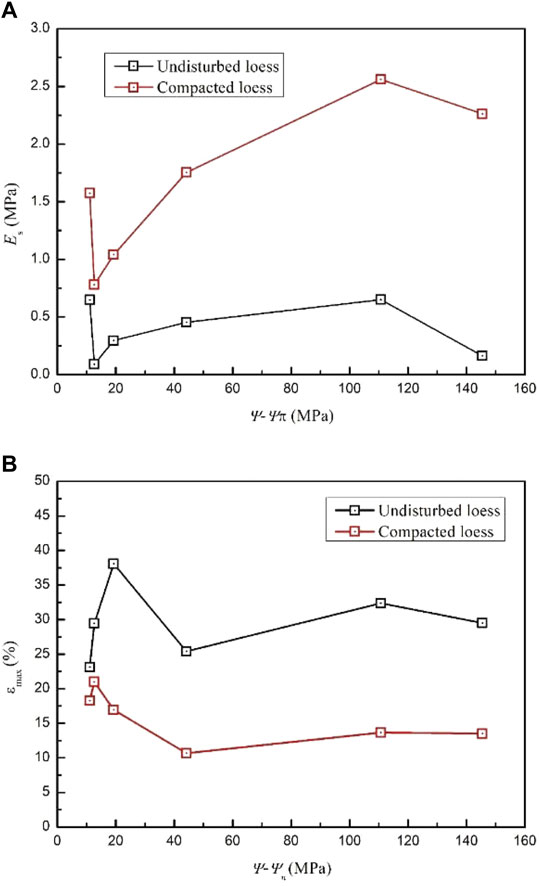

FIGURE 10

FIGURE 10. The compression modulus and ultimate strain changed with Ψ-Ψ_π: (A) E_s versus Ψ-Ψ_π; (B) ε_max versus Ψ-Ψ_π

To compare the influences of initial structure of loess, the ΔE_s and Δε_max, which were the differences between the E_s or ε_max of structural loess and E_s or ε_max of compacted soil, were plotted in Figure 11. It is interesting that the relationship between ΔE_s and Ψ-Ψ_π subjected to a positive linear function as shown in Figure 11A. The results indicated that the elastoplastic modulus was significantly correlated to the Ψ-Ψ_π without considering initial structure of loess under the water intrusion. The scattered data could be attributed to the clay particle flocculation resulted by the ion concentration increasing in pore water. In Figure 11B, the Δε_max between the structural loess and compacted loess exponential increased with Ψ-Ψ_π, which indicated that samples with higher total suction would have a larger strain under the liquid intrusion. When the RH decreased, the solution induced volume change became inert with the Ψ-Ψ_π.

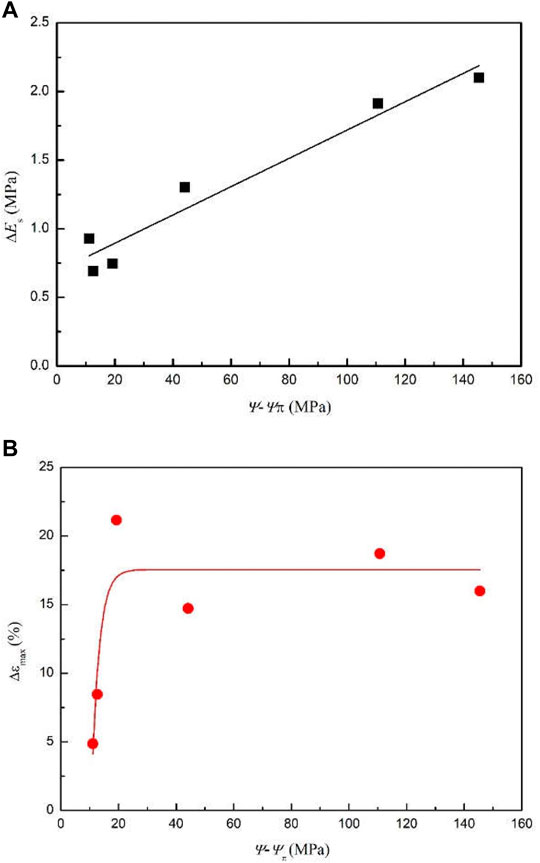

FIGURE 11

FIGURE 11. The differences of compression parameters changed with Ψ-Ψ_π: (A) ΔE_s versus Ψ-Ψ_π; (B) Δε_max versus Ψ-Ψ_π

Based on the above results, the different physical properties of compacted and undisturbed loess will lead to uneven settlement near the interface of filling and excavating area. In the engineering practice, the humidity and saline water intrusion should be considered in the long-term behavior of loess in shallow layer.

The Mechanism of Total Suction and Osmotic Suction Effects

Normally, the soil was considered as a three-phase material. The saline soil widely distributed in the arid area, and the salt crystals commonly existed between soil particles, composing the inter particle cementation and skeleton. Meanwhile, the dissolved salt in pore water would transform between the liquid phase and crystal in the solid phase under certain conditions. In the condition of relatively dry environment, the excessive salt will change from liquid phase to solid phase. During the upward migration of groundwater, precipitation infiltration or ambient humidity increasing, the salt crystals in the solid phase will change to liquid phase. Thus, the cementation would dissolve and the skeleton would collapse. The NaCl and Na₂SO₄ are two main salts in saline soil, which have a certain degree of deliquescence and moisture absorption capacity. In the process of environmental humidity change, their phase transform played a key role in the structure of loess.

In recent years, many studies had obtained the variation rule of NaCl crystal deliquescence under environmental humidity changing (Zhang et al., 2012; Langlet et al., 2013). As shown in Figure 12, the deliquescence relative humidity (DRH) divided the deliquescence process of NaCl into two stages. When the ambient humidity was less than DRH, the adsorption of water molecules by salt crystals was in term of physical adsorption. With the increase of humidity, water molecules continued to be absorbed and finally formed a water film on the surface of salt crystals. When the ambient humidity was higher than DRH, the salt crystals will deliquesce, and further dissolve with the increase of humidity to form a saturated salt solution. After salt deliquescence, the cementation and skeleton of soil were weakened.

FIGURE 12

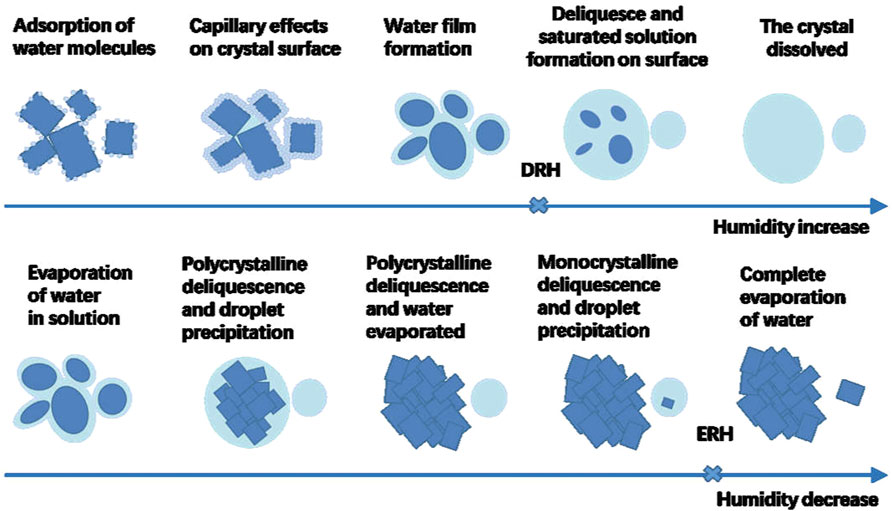

FIGURE 12. The deliquescence and efflorescence under relative humidity change (Xu et al., 2020).

Different from the effects of deliquescence of sodium chloride on the deformation of undisturbed loess, the effects of sodium sulfate on undisturbed deformation were more complex. On one hand, with the increase of humidity, sodium sulfate hydrated with water molecules, resulting in a significant increase in crystal volume. This volume expansion process squeezed the pores, resulting in the loosening and destruction of the microstructure of the soil. On the other hand, a variety of salts in the soil lead to the decrease of DRH of sodium sulfate, and sodium sulfate dissolved to form a saturated solution. The DRH of Na₂SO₄ was about 96%, which show that lower ambient humidity can not make it completely dissolved. When the humidity of the saturated solution of dissolved sodium sulfate decreased, the recrystallization process after efflorescence relative humidity (ERH) occurred. As shown in Figure 12, during recrystallization, sodium sulfate crystals resulted in a more dense structure of loess. That is the reason that compression parameters and creeping deformation fluctuated when Na₂SO₄ solution was involved.

Conclusion

In this paper, we developed an oedometer test to investigate the compression behavior of natural and compacted loess under environmental humidity (represented by total suction Ψ) and injection water salinity (represented by osmotic suction Ψ_π) changes. Based on the analysis of results, several conclusions were drawn:

1) The creeping of undisturbed and compacted loess under the ambient humidity changing, and the collapse under the coupling of total suction and saline water intrusion were nonnegligible. The volume changes of structural loess, whose initial void ratio was larger than 1.0, were normally higher than that of compacted loess at above two stages. The differences between two loesses were 3–20 times.

2) Under the constant loading of 25 kPa which represented the stresses in shallow layer, the creeping deformation of undisturbed loess significantly decreased with total suction increasing which corresponding to relative humidity decreasing. When the RH < 90%, the Δe at secondary consolidation stage were lower than 0.01. While, the Δe reached to 0.03 as the RH = 96%. For the compacted loess, the Δe at secondary consolidation stage were all lower than 0.01 and seemed to be irrelevant to environmental humidity. When the solution was induced, the collapse of undisturbed loess increased to 0.08 with the Ψ-Ψ_π increasing. The difference under different humidity reached nearly 20 times. The higher Ψ-Ψ_π resulted in a higher solution inducing collapse. While, the volume changes of compacted loess decreased with Ψ-Ψ_π increasing, and that of samples were under 0.015.

3) In the e-lgp curves, the compression index C_c of samples generally decreased with Ψ-Ψ_π, and the compressibility of undisturbed loess was higher. The swelling indices C_s of samples also decreased with Ψ-Ψ_π, but the variation was not significant. The reason for the higher C_c of undisturbed and remolded loess under higher humidity is that the micro pores in soil absorbed water and moisture content increased. The soil cementation hydrated resulting in larger compressibility of structural loess.

4) In the stress-strain curves, the E_s generally increased with Ψ-Ψ_π, which indicated that the initial compression modulus was higher at lower ambient humidity. The maximum E_s at Ψ-Ψ_π = 110.7 MPa was due to the efflorescence of crystals and increasing of solid phase volume. The ε_max of compacted loess regularly decreased with Ψ-Ψ_π increasing due to the lower moisture content under high total suction. Due to the collapse of structural loess, the ε_max of undisturbed loess located above the curve of compacted loess. It is interesting that the relationship between ΔE_s (the differences between the structural loess and compacted loess) and Ψ-Ψ_π subjected to a positive linear function. The Δε_max between the structural loess and compacted loess exponential increased with Ψ-Ψ_π.

5) When the ambient humidity was higher than deliquescence relative humidity (DRH), the salt crystals will deliquesce, and further dissolve with the increase of humidity to form a saturated salt solution. After salt deliquescence, the cementation and skeleton of soil were weakened. When the humidity of the saturated solution of dissolved sodium sulfate decreased, the recrystallization process after efflorescence relative humidity (ERH) occurred. During recrystallization, sodium sulfate crystals resulted in a more dense structure of loess.

Based on the above results, the different physical properties of compacted and undisturbed loess will lead to uneven settlement near the interface of filling and excavating area. In the engineering practice, the humidity and saline water intrusion should be considered in the long-term behavior of loess in shallow layer.
