Nature and geochemical characteristics of ore-forming fluids in the Zhaoxian gold deposit, Jiaodong gold province, eastern China

Introduction

Jiaodong is the most prolific gold province in China. Based on the spatial distribution and structural characteristics of gold deposits, the province can be divided into three ore belts, i.e., (from west to east) the Laizhou-Zhaoyuan-Pingdu, Penglai-Qixia, and Muping-Rushan (Chen et al., 1989). The Jiaodong gold deposits are usually divided into three types: altered-rock type (aka. Jiaojia type, e.g., Jiaojia, Sanshandao, Xiadian, and Xincheng) (Li, 1988; Lu et al., 1999a; Wen et al., 2016; Ma et al., 2017), quartz vein type (aka. Linglong type, e.g., Linglong, Jiuqu, and Baotouqing) (Qiu et al., 1988; Lu et al., 1999b; Yang et al., 2016a) and pyrite-carbonate type (aka. Liaoshang type, incl. Liaoshang, Tudui, and Shawang) (Li et al., 2017). Many previous studies have analyzed the source and properties of ore-forming fluids of the Jiaodong gold deposits, with the main findings include: 1) the ore-forming fluids have had input from the mantle (Deng et al., 2015; Liang et al., 2015), magmatic water (Zhao et al., 2015; Zhang et al., 2017), and a mixture of metamorphic-hydrothermal fluids and meteoric water (Xu et al., 2016; Tan et al., 2018); 2) the ore-forming fluids likely changed from early-stage medium-high temperature and medium-low salinity to late-stage medium-low temperature and low salinity (Wang et al., 2014; Yan et al., 2014; Deng et al., 2015; Yang et al., 2017); 3) the ore-forming materials may have sourced from the mantle, Yanshanian (Jurassic-Cretaceous) granites, and Yanshanian (Jurassic-Cretaceous) granite-greenstone (Zhou et al., 2000; Zhang et al., 2014; Deng et al., 2015; Yang et al., 2016b). However, some workers argued that ore-forming fluids of the different ore types are not very different, and the physicochemical properties and interpreted ore-fluid sources are largely the same. This implies that these different types of gold deposits were formed in the same ore-forming event, and the ore geological differences were likely caused by the ore-controlling structures (Yang et al., 2006).

The Zhaoxian gold deposit (altered-rock type) is located at the junction between the Sanshandao-Cangshang and Laizhou-Longkou gold belts. Built on previous works, our study focuses on the trace element compositions (e.g., Rb, Ta, Nb, Sr, Zr, Hf) of fluid inclusions and ore-stage granite at Zhaoxian. We discuss the ore-fluid properties, the ore-material source(s), and the gold metallogeny at Zhaoxian, in order to provide reference for regional gold exploration and research.

Regional geology

The Jiaodong gold province is located in the eastern part of Tanlu fault zone, which is the tectonic junction of the North China Craton, Yangtze Block and Qinling-Dabie Orogen (Figure 1A). The province comprises (from north the south) the Jiaobei uplift, Jiaolai basin, and Sulu ultra-high pressure (UHP) belt (Figure 1B) (Li et al., 2007; Tan et al., 2012; Li, 2016). Rocks in the province include mainly Precambrian metamorphic basement rocks and Mesozoic magmatic rocks. The former includes the Archean Jiaodong Group (incl. Neoarchean Qixia tonalite-diorite gneiss and Malianzhuang metagabbro), Paleoproterozoic Jingshan and Fenzishan Groups, and the Neoproterozoic Penglai Group (Tang et al., 2007; Tang et al., 2008; Zhai and Santosh., 2013); The Mesozoic magmatic rocks include mainly ca. 160–150 Ma crustal source Linglong medium-grained biotite monzogranite, ca. 130–126 Ma Guojialing granodiorite with a crust-mantle mixed origin (Yang et al., 2012; Yang et al., 2014), and the intermediate-mafic dikes (incl. lamprophyre, diorite porphyrite, and diabase porphyrite). Gold deposits are mainly hosted in the Linglong granite and Guojialing granodiorite, and the contact zone between the granite and Precambrian metamorphic rocks. Tectonic activity in the northwestern Jiaodong region has formed brittle and brittle structures (Li et al., 2003; Song et al., 2020). The Sanshandao, Jiaojia, and Zhaoping faults are the main ore-controlling structures in the region, which control the formation and distribution of gold deposits (Song et al., 2010a).

FIGURE 1

FIGURE 1. Types and spatial distribution of key ore deposits in the Jiaodong gold province (modified after Yang et al., 2017).

Deposit geology

Stratigraphy, structure, and magmatic-metamorphic rocks

At the Zhaoxian gold deposit, exposed pre-Quaternary strata comprise mainly the Paleoproterozoic Lugezhuang Formation (Jingshan Group) granulite, marble and schist, and the Cenozoic Zhubidian Formation (Wutu Group) pebbly feldspar sandstone and clayey sandstone (Zhu, 2018). The Jiaojia fault (∼60 km long, max 1 km wide) at Zhaoxian is divided into three segments, i.e., (from north to south) the Gaojiazhuangzi-Xincheng, Xincheng-Jiaojia (Matang), and Sizhuang. The fault strikes 30°–50° and has a dip angle of 80° (Shu et al., 2022). The Jiaojia fault branches out into secondary structures locally and is featured by multistage movements (Song et al., 2010b; Hen et al., 2015; Cao et al., 2016; Sun et al., 2018). Magmatic rocks are widely distributed at Zhaoxian, and comprise (from old to young) the meta-gabbro in the Neoarchean Malianzhuang sequence (Figure 2), the Qixia gneiss, biotite tonalite, (weakly gneissic) early Yanshanian Linglong medium-grained monzogranite, the late Yanshanian Guojialing porphyritic granodioritez, and some younger dykes (Song et al., 2010b).

FIGURE 2

FIGURE 2. Geological and mineral map of the study area (modified after Song et al., 2018).

Wallrock alteration

Alteration is well developed along the faults at Zhaoxian. In the hanging-wall, there is a cataclastic zone with sericitized wallrocks, which transitions into a partially pyrite-sericite-altered cataclastic zone. The footwall also contains a pyrite-sericite-altered cataclastic zone, which transitions into pyrite-sericite alteration in the granite wallrocks (Figure 3).

FIGURE 3

FIGURE 3. Schematic alteration zoning profile in the Zhaoxian gold deposit.

Major alteration styles in the wallrocks include mainly 1) silicification (Figure 4A), which is often associated with metal sulfides and gold mineralization; 2) pyrite-sericite alteration (Figure 4B), with the mineral assemblage of sericite + quartz ± pyrite in cataclastic rocks; 3) chloritization (Figure 4C), which is altered from magmatic hornblende and biotite, occurring locally as patches or veinlets; 4) K-feldspar alteration (Figure 4C), which occurred in an early hydrothermal stage and the altered rocks have a fleshy red color; 5) carbonate alteration (Figure 4D), which occurs as late calcite veining (cutting the ores) and locally massive aggregates.

FIGURE 4

FIGURE 4. Photos of wallrock alteration at the Zhaoxian gold deposit ((A). Silicification; (B). Pyrite-sericite alteration; (C). Chloritization, K-feldspar alteration; (D). Carbonate alteration).

Orebody characteristics

The orebodies at Zhaoxian can be divided into four groups (I to IV) (Figure 5): I) The orebodies in the pyrite-sericite-altered cataclastic zone on the footwall (Figure 5), containing 20 orebodies and accounting for 71.04% of the estimated total resource. Among them, No. I-2 orebody is the main orebody, accounting for 42.44% of the total resource; II) The orebodies in the pyrite-sericite-altered granitic cataclastic zone below Group I (Figure 5), containing 13 orebodies and accounting for 19.93% of the estimated total resource. Among them, No. II-1 orebody is one of the largest, accounting for 10.48% of the total resource; III) The nine orebodies in the pyrite-sericite-altered granite belt below Group II (Figure 5), accounting for 3.95% of the estimated total resource; IV) The orebodies in the pyrite-sericite-altered granite cataclastic zone above the main fault surface (Figure 5), containing seven orebodies and accounting for 5.08% of the estimated total resource.

FIGURE 5

FIGURE 5. Integrated profile north of the Zhaoxian gold deposit (modified after Wang et al., 2022).

Alteration and mineralization paragenesis

Based on the field crosscutting relationships and mineral assemblages, the alteration/mineralization at Zhaoxian can be divided into four stages, namely (from old to young):

1) Pyrite-quartz-K-feldspar (Figures 6A,B): Pyrite is coarse-grained subhedral, and occurs as patches and veins with cataclastic texture. The quartz is coarse-grained milky and with wavy extinction. The K-feldspar is coarse-grained anhedral granular, and is commonly altered to sericite in the later hydrothermal stages. At this stage, minor native gold mineralization is observed under the microscope. The gold particles are small and mostly included in pyrite.

2) Pyrite-quartz-sericite ± chlorite (Figures 6C,D): The pyrite is fine-grained (mostly 50–300 μm) euhedral with local corroded margin. The quartz and sericite were derived from the alteration of stage I minerals. Stage 2 gold occurs mainly in inclusions or fissures.

3) Polymetallic sulfide-quartz (Figures 6E–G): This stage is featured by fine-grained quartz + sulfides (galena, pyrite, chalcopyrite, sphalerite) in veinlets or disseminations, with the veinlets cutting early-stage pyrite veins. The quartz veins are smoky gray, and gold is abundant and exists in various forms, including fissure or interstitial among galena, chalcopyrite, and pyrite grains.

4) Quartz-calcite ± pyrite (Figures 6H,I): Pyrite is coarse-grained (10 mm) cubic, and occurs in veins. Quartz and calcite are mainly distributed in ore-cutting veins/veinlets.

FIGURE 6

FIGURE 6. Photomicrographs of ores and altered rocks from the different metallogenic stages at Zhaoxian: (A) and (B) Pyrite-quartz-K-feldspar stage; (C) and (D) Pyrite-quartz-sericite stage; (E,F) and (G) Polymetallic sulfide-quartz stage; (H) and (I) Quartz-calcite stage. Abbreviations: Au-Native gold; Py-Pyrite; Ccp-Chalcopyrite; Gn-Galena; Q-Quartz; Kfs-K-feldspar; Chl-Chlorite; Cal-Calcite; Ser-Sericite.

Fluid inclusion types and compositions

Sampling and analytical methods

The samples were collected from the ZK01 drill-hole at 2038–2,146 m depths (Figure 2). Because the Jiaojia fault has undergone multistage faulting and hydrothermal alteration and mineralization, we collected four ore samples at different depths to recover quartz grains from the different ore-stages. The samples consist of pyrite-sericite-altered cataclasitic granite (ZX5, ZX6) and pyrite-sericite-altered clastic rock (ZX11, ZX21). The samples were prepared into double-polished thin-sections (0.3 mm thick) for optical microscopic observations. Representative quartz-hosted fluid inclusions (FIs) from the early-ore I), main-ore (II, III), and late-ore IV) stages were selected for microthermometric and laser Raman spectroscopic analyses.

The FI microthermometric measurement was performed at the Fluid Inclusion Laboratory of the Analysis, Test and Research Center (Beijing Institute of Geology of Nuclear Industry), on a Linkam-THMS600 temperature control stage. The heating and freezing stages were calibrated by using the synthetic FI standard provided by Fluid Inc. (United States). The instrument measurement accuracy is ± 0.5°C down to −120°C, ±0.2°C at −70°C–100°C, and ±2°C at 100°C–500°C. The heating rate is 0.2°C–10°C/min, and that for the CO₂-bearing FIs decreased to 0.2°C/min near the melting point, and to 0.2°C–0.5°C/min near the freezing point and homogenization for the aqueous FIs (Hu et al., 2021). All the raw data were processed with the MacFlincor program (Brown and Hagemann, 1995). Laser Raman probe analysis (RAM) was performed at the same laboratory, using a LABHR-VIS LabRAM HR800 microlaser Raman spectrometer. The analysis used a YAG crystal frequency-doubled solid-state laser with 532 nm wavelength, 100–4,200 cm⁻¹ scanning range, and 2 cm⁻¹ spectral resolution. Detailed sample preparation and analytical procedures follow those by Wei et al. (2015) and Shu et al. (2022).

Fluid inclusion types

Syn-ore FIs at Zhaoxian can be divided into primary and secondary ones, with the former comprising four types: CO₂-H₂O three-phase I), H₂O aqueous II), CO₂ single-phase III) and gaseous CO₂ and H₂O with daughter minerals IV).

Type I FIs account for ∼30% of the total FIs, and can be divided into two subtypes (Ia and Ib): type Ia FIs contain a liquid water phase (L_H2O), a liquid CO₂ phase (L_CO2), and a gaseous CO₂ phase (V_CO2) (Figures 7E, F, I–J). The L_CO2+V_CO2 phase accounts for ca. 15–40 vol% of the FIs. V_CO2 has relatively large volume. L_CO2 usually forms a thin dark rim around V_CO2, and this FI type is mostly stripy. These FIs are generally 2 × 2 to 12 × 14 μm in size. In type Ib two-phase (L_H2O+V_CO2) FIs (Figures 7D, I–J), the volume percentage of V_CO2 is largely similar (ca. 15–20 vol%). Most of these FIs are oval or negative crystal shape, with sizes of 2 × 3 to 4 × 10 μm (mostly 3 × 4 μm).

FIGURE 7

FIGURE 7. Photomicrographs of ore-stage fluid inclusions from the Zhaoxian gold deposit: (A) CO₂ single-phase; (B) aqueous single-phase; (C) two-phase aqueous inclusions; (D) two-phase H₂O + CO₂ inclusions; (E) and (F) three-phase (L_H2O + L_CO2 + V_CO2) inclusions; (G) gaseous CO₂ and H₂O with daughter minerals; (H) neck contraction inclusions; (I) pre-ore-stage inclusions; (J) and (K) syn-ore-stage inclusions; (L) post-ore-stage inclusions.

Type II FIs can also be divided into two subtypes: type IIa gas-liquid (L_H2O+V_H2O) FIs (Figures 7C, L) have their gas phase accounting for ca. 15–20 vol% (and ∼60% of the total number of type II FIs). They have mostly oval or negative crystal shape, with sizes of 2 × 3 to 4 × 6 μm (mostly 2 × 3 μm). Type IIb (aqueous single-phase L_H2O) FIs (Figures 7C, K) are colorless, transparent, and without air bubbles. They are usually long or oval shaped and are typically 2 × 5 μm in size.

Type III FIs (Figures 7A, J) are composed of a pure CO₂ gas phase, accounting for ∼7% of the total number of FIs. These inclusions are usually dark black with size of 3 × 3 μm.

Type IV FIs (Figures 7G, K) are composed of the gas phase (V_H2O+V_CO2) and daughter minerals S), and account for ∼3% of the total number of FIs. Daughter minerals (size: 1–2 μm) consist mainly of halite, and occur in aqueous L_H2O at room temperature. Type IV FIs are generally 4 × 10 to 5 × 12 μm in size (Figures 7H).

Fluid inclusion morphology and microthermometry

Homogenization temperature and salinity

The types, distribution characteristics and microthermometric results of the primary FIs from Zhaoxian are shown in Table 1 and Figures 8 and Figure 9. Stage I quartz contains mainly type Ia (L_H2O + L_CO2 + V_CO2) (Figure 7I) and type Ib (L_H2O + V_CO2) FIs (Figure 7I). Type IIa (L_H2O + V_H2O) FIs are also uniformly distributed, commonly with small size (2 × 3 μm). Type Ia FIs are homogenized partially to gaseous or liquid phase at 28.5°C–31.2°C, and completely at 234°C–357°C (mainly 260°C–269°C) to liquid phase and (minor) to gaseous phase (Table 1; Figure 8). The fluid salinity is 3.52–11.61 (mainly 8.00–9.90) wt.% NaCleqv. (Figure 9), whilst the fluid pressure and density are 261–353 MPa and 0.73–0.94 g/cm³, respectively (Table 1). For type Ib (L_H2O+V_CO2) FIs, the ice-freezing and homogenization temperatures are -5.4°C–5.6°C and 234°C–276°C, respectively. The salinity is 8.03–8.41 wt.% NaCleqv., whilst the density is 0.83–0.97 g/cm³ (Table 1).

TABLE 1

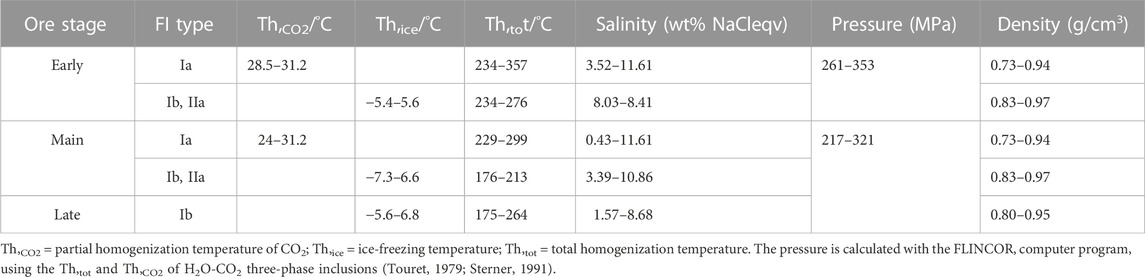

TABLE 1. Microthermometry results of ore-stage fluid inclusions from the Zhaoxian gold deposit.

FIGURE 8

FIGURE 8. Homogenization temperature histogram of fluid inclusions from the different metallogenic stages at Zhaoxian.

FIGURE 9

FIGURE 9. Salinity distribution histogram of fluid inclusions from the different metallogenic stages at Zhaoxian.

During the main-ore stages II and III, the smoky-gray quartz contains all four FI types (I to IV), but are dominated by type Ia. The FIs are mostly 5–10 μm in diameter and occur as isolation or in groups. Type Ia FIs are homogenized partially at 24.0°C–31.2°C, and completely at 229°C–299°C (mostly 229°C–269°C) (Table 1; Figure 8). The FIs have 0.43–11.61 (mostly 4.00–7.90) wt.% NaCleqv. salinity (Figure 8), 217–321 MPa fluid pressure, and 0.73–0.94 g/cm³ density. Type IIa FIs have ice-freezing and homogenization temperatures of -7.3°C to 6.6°C and 176°C–213°C, respectively. They have 3.39–10.86 wt.% NaCleqv. salinity and 0.83–0.97 g/cm³ density (Table 1).

Stage IV quartz has mainly type Ib FIs, with size of 2 × 3 μm. These FIs are clustered or randomly distributed, most of which are elliptical or irregular-shaped. The ice-freezing and total homogenization temperatures are -5.6°C–6.8°C and 175°C–264°C (175°C–209°C), respectively (Table 1; Figure 8). The FIs have 1.57–8.68 (6.00–9.90) wt.% NaCleqv. salinity, and 0.80–0.95 g/cm³ density (Figure 9; Table 1).

Fluid inclusion temperature of the various ore stages

The ore-fluid temperature and salinity decrease gradually from the early to late ore stage. Type Ia and Ib FIs with different phase ratios coexist in this stage, and they have similar homogenization temperature range (176°C–299°C) but different homogenization modes (homogenized to liquid and gas phase, respectively). The CO₂ content decreases markedly in the late ore stage (Table 1).

Stage I: The CO₂ liquid and gas phases of the FIs are homogenized to liquid. The partial (Th,_CO2) and total (Th,_tot) homogenization temperatures are 28.5°C–31.2°C and 234°C–357°C, respectively.

Stage II and III: Both the CO₂ liquid and CO₂ gas phase in the FIs homogenized to liquid, with Th,_CO2 = 24°C–31.2°C. The Th,_tot of type Ia FIs is generally higher than that of type Ib FIs.

Stage IV: A small number of type II FIs are observed in quartz and calcite, but those in the calcite are not fit for microthermometric measurement. The ice-freezing and homogenization temperatures of type IIa FIs in quartz are -5.6°C–6.8°C and 175°C–264°C, respectively, with corresponding salinity of 1.57–8.68 wt.% NaCleqv.

Density

The following formula is used to calculate the density of type Ib and IIa FIs from Zhaoxian (Potter et al., 1977; Lu et al., 2004):

$\begin{array}{l}\rho =A+Bt+{Ct}^2\\ A=0.993531+8.72147*{10}^{-3}\ast S-2.43975\ast {10}^{-5}\ast S^2\\ \begin{array}{l}B=7.11652\ast {10}^{-5}-5.2208*{10}^{-5}\ast S+1.26656\ast {10}^{-6}\ast S^2\\ C=-3.4997\ast {10}^{-6}+2.12124\ast {10}^{-7}*S-4.52318\ast {10}^{-9}\ast S^2\end{array}\end{array}$

where t = Th,_tot of the gas‒liquid two-phase FIs (Th (t°C)), S = salinity (wt.% NaCleqv.), and ρ = fluid density (g/cm³).

The following formula is used to calculate the density of ore-stage type I FIs from Zhaoxian (Potter et al., 1977; Lu et al., 2004):

$\begin{array}{c}\mathrm{\rho }\left(I\right)=0.4683+0.001441\ast \left(3.35-\mathrm{t}\right)+0.1318\ast \left(3.35-\mathrm{t}\right)\frac{1}{3}\\ \mathrm{\rho }=\mathrm{\phi }\left({CO}_2\right)\ast \mathrm{\rho }\left(I\right)+\left(1-\mathrm{\phi }\left({CO}_2\right)\right)\ast \mathrm{\rho }\left(aq\right)\end{array}$

where t = (Th,_CO2) of the gas phase CO₂ (°C), φ (CO₂) = volume percent of the CO₂ gas phase and liquid phase in the FIs (%), ρ(I) = density of the CO₂ phase when homogenized to liquid (g/cm³), ρ(aq) = brine density (g/cm³), and ρ = ore fluid density (g/cm³).

The calculated density (0.73–0.97 g/cm³) is shown in Table 1. The density of type Ia FIs and type Ib and IIa FIs are 0.73–0.94 and 0.80–0.97 g/cm³, respectively, indicating that the fluid has low density.

Metallogenic depth estimation

The trapping pressure of our FI samples is 217–353 MPa (mainly 260–330 MPa). The metallogenic depth H) is estimated to be 7.4–12.0 km with the equation of: P = ρgH (ρ = 3 g/cm³), where P = metallogenic pressure (Sheperd et al., 1985).

Laser Raman spectroscopic results

Representative type Ia, Ib and IIa were analyzed, and the resulting laser Raman spectra show characteristic CO₂ peaks (1,386 cm⁻¹, 1,285 cm⁻¹, 1,282 cm⁻¹) (Figure 10) and a slightly weaker CH₄ peak (2,912 cm⁻¹) (Figure 10). Laser Raman spectra also show that the early ore stage type Ia FIs has pure CO₂ Besides, the gas phase basically does not contain CH₄.

FIGURE 10

FIGURE 10. Laser Raman spectra of the ore-stage fluid inclusions from the Zhaoxian gold deposit: (A) and (B) CO₂ inclusions in the early ore-stage; (C,D) CO₂ and CH₄ inclusions in the main ore-stage.

Trace element compositions of ore-stage granite

In this study, we have analyzed the sericite-pyrite-altered cataclasitic granite (n = 4) (main-ore) and sericite-pyrite-altered cataclastic rocks (n = 3) (main-ore) from Zhaoxian, using the ME-MS81 method at the ALS Laboratory (Guangzhou) Co. Ltd. The analysis used an Elan9000 inductively coupled plasma mass spectrometer (ICP‒MS) (United States), with better than 5% analytical accuracy (Xiao and Liao, 2016). Detailed sample preparation and analysis methods follow those of Zhang and Guo (2012). The data are given in Table 2. The ore-stage granites have the following geochemical characteristics: 1) low Nb/Ta ratios. The Nb/Ta is largely unaffected by fractionation. Tatalum and Nb is enriched and depleted in the crust, respectively, and thus the Nb/Ta ratio can indicate the degree of crustal involvement in magma formation (Green et al., 1995). The Nb/Ta ratio of our granite samples are is 0.22 ± 1.88 (except for sample ZX9), which is significantly lower than the average Nb/Ta (11) of the post-Archean continental crust (Green et al., 1995).

TABLE 2

TABLE 2. Trace element contents and ratios of syn-ore granite at Zhaoxian (trace element unit: ppm).

During magmatic fractionation, Rb could replace K in K-feldspar, and Sr replaces Ca in plagioclase. Therefore, highly fractionated magma would have higher K-Rb and lower Ca-Sr. Our granite samples have high Rb/Sr (0.19–0.51, avg. 0.38), suggesting high degree of fractionation (Table 2). This is consistent with the low Zr/Hf and Th/U ratios of the granite samples (Zhang and Guo, 2012). The primitive mantle-normalized multielement plot for the granite samples shows that the granites are obviously enriched with large-ion lithophile elements (LILEs) such as Rb and Th, and depleted in Nb and Sr (Figure 11).

FIGURE 11

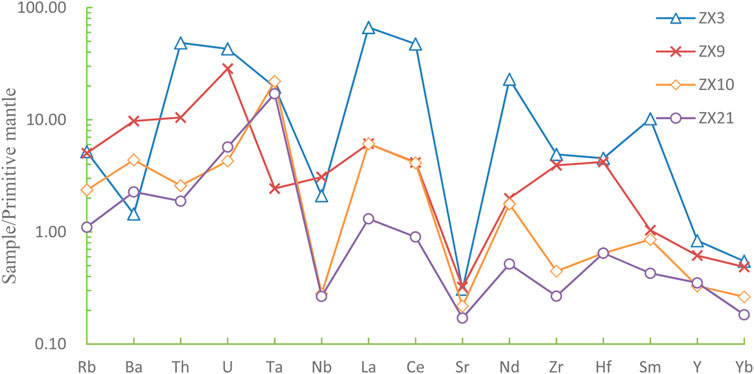

FIGURE 11. Primitive mantle-normalized multi-element spidergram of the syn-ore granite at Zhaoxian.

Discussion

Ore fluid properties and evolution

The FI petrographic, microthermometric and laser Raman spectroscopic data show that the ore fluids are of medium-low salinity and belong to a CO₂-H₂O system, consistent with the published data from the shallow part of the Jiaojia gold deposit and most Jiaojia-type gold deposits in this area. The features are different from typical high-temperature and high-salinity magmatic ore-forming fluids, but resemble the ore-forming fluids of most orogenic-type gold deposits.

Our results show that the main ore stage fluids are hotter and are more CH₄-rich than those of the early ore stage. Some studies suggested that the early ore-forming fluids of Jiaojia-type gold deposits are CO₂-rich and CH₄-poor, while the main ore stage fluids contain more CH₄ (Fan et al., 2005; Wen et al., 2016). There are two possible sources of CH₄: 1) re-equilibrium by the infiltration of H₂ into the FIs (Hall and Bodnar, 1990; Ridley and Hagemann, 1999); 2) the H₂O-NaCl-CO₂ fluids produced a small amount of CH₄ with the decreasing temperature and oxygen fugacity from the early to main ore stage.

Because the fluid immiscibility would cause substantial CO₂ loss, the temperature drop would lead to a decrease in the SiO₂ solubility, forming the late-stage quartz-calcite veins (Shu et al., 2022). The low salinity in type II FIs suggests that the late-stage fluids are of low-salinity and CO₂-poor.

In the early ore stage, the FIs are dominantly CO₂-bearing three-phase, and thus the ore-forming fluid is CO₂-rich and of high temperature. Metal complexes are stable in this weakly acidic hydrothermal fluid, and thus it could dissolve and carry gold and other ore-forming elements (Yang, 1986; Liu and Shen, 1999; Phillips et al., 2004; Hou et al., 2007; Lu, 2011; Mao et al., 2013).

The homogenization temperature of type Ia FIs is higher than those of type Ib FIs, and the salinity and density of type Ib FIs are lower than those of type Ib FIs. This may be caused by fluid immiscibility (Huang, 2021). During fluid immiscibility, the homogeneous temperature and pressure of inclusions are similar and can represent the fluid trapping temperature and pressure. (Huang, 2021). Therefore, the homogenization temperature of type Ia FIs can represent the capture temperature of immiscible inclusions, i.e., the ore-forming temperature is 234°C–357°C. The formation of many CO₂-bearing three-phase inclusions in quartz indicates that the fluid is CO₂-rich or carbonic. The presence of CO₂ can increase the solubility of chlorine and water in magmatic fluids and facilitate metal migration (Rui et al., 2003; Chen et al., 2006).

Source of ore-forming materials

According to previous studies, the ore-forming materials in northwestern Jiaodong gold province were mainly derived from the Jiaodong metamorphic rocks (Deng et al., 2004; Li et al., 2007; Guo et al., 2008; Liang et al., 2015), yet the average gold content of the latter (2.47 ppb) is lower than that of the crust average (4 ppb) (Li and Ni, 1990). The average Au content of the Neoarchean Jiaodong Group metagabbro in the Jiaojia fault hanging-wall at Zhaoxian is low (1.16 ppb) (Yang et al., 1991), and could unlikely represent a main gold source. The Au content of Linglong granite (19 ppb) and Guojialing granite (49 ppb) in the Jiaodong district area are higher (Lu et al., 1999; Xu et al., 2022), and both being interpreted to have a crust-mantle mixed magma source. An upper mantle source of Au has also been suggested for the Jiaodong gold deposits (Gui, 2014).

In the geochemical tectonic discrimination plots for granites (Figure 12), our granite samples all fall inside the volcanic arc granite field, reflecting that they were formed in an arc setting (Pearce et al., 1984).

FIGURE 12

FIGURE 12. Trace element tectonic discrimination diagrams for granites (modified from Pearce, 1984): Yb+Nb-Rb (A); Yb+Ta-Rb (B) tectonic discrimination diagrams; VAG-Volcanic arc granite; ORG-Ocean ridge granite; WPG-Within-plate granite; COLG-Collision granite.

Thus, the granites at Zhaoxian may have emplaced in an arc environment, with its formation related to mantle-derived magma underplating. The mantle source may have provided both the heat to partially melt the crust and mix with the crustal magma (Zhang and Guo, 2012). Our geochemical data on the Zhaoxian granite show that the granite is highly fractionated with dominantly continental crustal source. Therefore, we infer that the gold ore-forming materials were mainly derived from the upper mantle. During the upwelling of mantle materials, gold may have ascended with the magma and formed gold deposits.

Source of ore-forming fluid and the gold metallogeny

Based on the close spatial relationship of the Jiaodong gold deposits with the Jiaodong Group metamorphic rocks, Linglong granite, and Guojialing granodiorite. Many works in the 1980s and 1990s proposed that the ore-forming fluids were magmatic-hydrothermal sourced with meteoric water input (Wang and Li, 1985; Zhang et al., 1994; Wang et al., 1995.; Zhang et al., 1995; Lin and Yin, 1998). In recent years, some works have invoked mantle-derived input for the ore fluids in the Jiaodong gold province, based on mineral isotope and FI studies (Sun and Shi, 1995; Mao et al., 2002; Zhang et al., 2002; Liu et al., 2003; Fan et al., 2005).

Published He and Ar isotope data of FIs in pyrite from the Denggezhuang and Jiaojia gold deposits indicated that the ore-forming fluids have high 3He/⁴He and 40Ar/³⁶AR values, resembling mantle-derived fluids (Zhang et al., 2002). By studying the carbonate minerals from the Rushan and Jiaojia gold deposits, Liu et al. (2003) concluded that the Sr-Nd isotopic compositions are similar to those of the mantle source rocks.

The northwest Jiaodong region has experienced a complex tectonic evolution. In the Late Jurassic, the regional tectonics was influenced by the Paleo-Pacific subduction beneath Eastern China. Since the Early Cretaceous, regional tectonics had evolved from intracontinental compressional orogeny and crustal thickening to intracontinental rifting and lithospheric thinning. The Paleo-Pacific subduction had also led to sinistral shearing of the transcrustal Tanlu (Yishu) fault and its associated NE-NNE-trending structures. The transtension may have provided open space for the ascent of deep magmatic fluid (and thus gold mineralization) and mafic dyke intrusion (Goldfarb and Groves, 2015; Guo, 2016; Dou et al., 2021). During the upwelling of mantle material, gold may have ascended with the magma, and deposited at the open-space formed by the transtensional faults.

Conclusion

1) The gold ore-forming fluid at Zhaoxian belongs to a medium-to low-salinity H₂O-NaCl-CO₂ ±CH₄ system. The main types of FIs (FIs) in quartz are CO₂-H₂O (type I) and H₂O aqueous (type II). Early- and main-stage mineralization involves mainly type II and type I, respectively. The phase proportion changes substantially, and the CH₄ content increases markedly with ore-fluid evolution. The syn-ore FIs have medium-low homogenization temperature (234°C–357°C) and low salinity (3.52–11.61 wt.%NaCleqv). The ore-fluid pressure and density are estimated to be ca. 217–353 MPa (medium-low pressure) and 0.73–0.97 g/cm³ (low density), respectively, yielding medium-large ore-forming depth of 7.4–12.0 km.

2) Trace element characteristics of ore-stage granites at Zhaoxian inferred that the gold ore-forming materials at Zhaoxian were mainly derived from deep source, possibly associated with asthenospheric upwelling.

3) In the Mesozoic, the NW-dipping subduction of Paleo-Pacific plate under Eurasia may have resulted in the left-lateral shear of the Tanlu fault zone, and the Jiaodong region had undergone intense tectonic deformation and magmatism. During the Mesozoic regional tectonic transition, the Tanlu fault and its secondary structures may have opened by the transtension and provided channels for the ascending deep magmatic-sourced fluids. These fluids may have mixed with the metamorphic water and meteoric water circulating in the middle-upper crust, and eventually led to the gold mineralization (Song et al., 2018).

Data availability statement

The raw data supporting the conclusions of this article will be made available by the authors, without undue reservation.

Author contributions

All authors listed have made a substantial, direct, and intellectual contribution to the work and approved it for publication.

Funding

The work was funded by the National Natural Science Foundation of China (42172087, 41772125, 41572063), Shandong Provincial Engineering Laboratory of Big Data Application and Development for Deep Gold Exploration (SDK202208), and the Key Laboratory of Gold Ore Formation Process and Resource Utilization (Ministry of Land and Resources) (2013003). We would like to thank the Analysis and Testing Research Center (Beijing Geological Research, Institute of Nuclear Industry) and the ALS Laboratory (Guangzhou) Co., Ltd. for the analytical work.

Conflict of interest

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

Publisher’s note

All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.
