A high-resolution soil moisture content analysis product in Jing-Jin-Ji using the successive correction method

Two soil moisture content analysis products, each with a spatial resolution of 0.0625° and a temporal resolution of 1 h from 1 October 2015 to 1 October 2021 in the Jing-Jin-Ji area, have been developed and evaluated. Using a quality control (QC) scheme based on the biweight method and a successive correction method (SCM) with different weighting functions introduced from the Cressman and/or Barnes methods, the soil moisture collected from China Land Data Assimilation System version 2.0 was taken as the background data. Two soil analysis products with induced hourly station soil observations were constructed and further compared with in situ observations and satellite products. Results show that with the biweight method, the outliers of soil moisture could be identified, and that the number of these was less than 10% of the actual reported samples. The analysis product is more accurate with the Cressman weighting function than with the Barnes as the root mean square error was reduced by 30% to 0.06, while the correlation coefficient increased by 73% to 0.59, compared to the control. These results indicate that the Cressman product is a useful and promising soil moisture data set. The proposed Cressman method is computationally simple and efficient, so the product can be easily updated to keep pace with significant increases in the volume of soil moisture data. The methods used here for QC, SCM, and comparison could help evaluate and improve land surface models and their soil moisture products.

1 Introduction

A regional climate can be affected by soil moisture, which can change the latent and sensible heat transported to the atmosphere, the reflectance of the surface, and the heat capacity of the ground. Soil moisture also plays an important role in medium- and small-scale atmospheric processes (Ma et al., 2001). Thus, it is important to properly use soil moisture data in the land surface model and to correctly understand the mechanisms underlying the interaction between the atmosphere and soil moisture (Pan and Mahrt, 1987; Chen et al., 1997; Gaertner et al., 2010; Seneviratne et al., 2010; Vereecken et al., 2014; Li et al., 2019; Shi et al., 2019; Song et al., 2019). The accurate measurement of soil moisture is very important for accurately understanding its role in atmospheric and climate processes. Good-quality soil moisture observation is also needed to improve a numerical model and soil moisture data assimilation (Kim and Wang, 2007; Li et al., 2012; Li et al., 2015; Ju et al., 2019). Research on soil moisture variation can be hindered because of the lack of observations with high temporal and spatial resolution (Seneviratne et al., 2010). Therefore, studies of soil moisture content usually depend on retrieved soil moisture data (Lai et al., 2014; Zhu et al., 2019). Remote sensing data from satellites can be used to produce a soil moisture product with high spatial resolution (Njoku et al., 2003; Parkinson, 2003; Qiao et al., 2007; Dabboor et al., 2019). However, low temporal resolution does reduce the accuracy of soil moisture retrieval when such data are used in numerical models (Lan et al., 2015; Fereidoon et al., 2019).

Powered by developing technologies for ground-based soil moisture monitoring, automatic devices have been developed and widely applied (Susha et al., 2014). Since 2004, the China Meteorological Administration has conducted a systematic project of generating soil moisture data using automatic monitoring devices. This project has been in operation since 2009. As of 2020, 2,400 observation stations had been established. In general, the automatic observation system for monitoring soil moisture in China has been developed mainly based on frequency domain reflectometry (Minet et al., 2010). In addition, the data volume and coverage have exceeded all previous traditional manual soil moisture observations. Recently, a growing number of researchers have been utilizing those automatically measured soil moisture data (Zhu and Shi, 2014; Wang and Gong, 2018).

However, automatic soil moisture stations are still sparse, and the spatial distribution of observations from the station system is nonuniform. These constraints have resulted in poor applications of the station data. Thus, a gridded analysis product with soil observations is needed, whereas the successive correction method (SCM) could be selected as a primary regular way of merging station data when considering applications in grid space. The advantage of SCM is that signals with different scales can be captured according to predefined weighting factors. Unlike other assimilation methods such as OI, 3DVAR, and EnKF, SCM needs neither the background error covariance nor the assumption of Gaussian errors of background and observation. Thus, given the sparse distribution of soil moisture data and the nonlinearity of the land surface model or the system, SCM is easier for implementing gridded product analysis and updates to keep pace with large increases in the volume of soil moisture data. In this work, the Cressman scheme (Cressman, 1959; Li, et al., 2017) and the Barnes scheme (Koch, 1983) are used as weighting factors. On this basis, the automatic soil moisture data for the areas of Beijing city, Tianjin city, and Hebei province were integrated into the China Land Data Assimilation System (CLDAS) version 2.0 dataset (Shi et al., 2014) to conduct the hourly soil moisture analysis from 1 October 2015 to 1 October 2021. This area is called Jing-Jin-Ji for short and is located in the middle of northern China. The newly constructed gridded analysis datasets were compared and evaluated against in situ data and Soil Moisture Active Passive (SMAP) satellite retrievals (Entekhabi et al., 2010). Ultimately, the dataset with higher quality can be used for further process studies, as well as for the validation and evaluation of other soil moisture products.

In the following sections, we first introduce the background data from CLDAS V2.0 and the station data (Section 2.1). The quality control (QC) methods are presented (Section 2.2). The algorithms for SCM and validation (Section 2.3) and the experimental design (Section 2.4) are then described. In Section 3, we describe several synthetic experiments to investigate their performances. In Section 4, the results of these cases are discussed. Conclusions are drawn last, in Section 5.

2 Experiments

2.1 CLDAS soil data and station soil data

The CLDAS V2.0 dataset, established and updated by CMA, contains hourly 0.0625° near-surface meteorological variables for mainland China from 2008 to 2021. This dataset merges surface measurements from over 2,400 national automatic weather stations and approximately 40,000 regional CMA automatic weather stations with 0.125° 3-hourly numerical analysis/predicted products from the European Centre for Medium-Range Weather Forecasts to produce the near-surface wind speed, air temperature, and specific humidity. Using these ongoing near-surface data to force the offline land surface model, the finer land products were determined, the accuracy of which depends mainly on the quality of the atmospheric forcing data (Liu, et al., 2019). For this study, the soil moisture product from CLDAS V2.0 was selected as background data to combine with the station soil moisture observations.

This study observed soil moisture volumetric content on the hourly scale, as measured by the automatic soil moisture observation system, including 417 stations lying loosely in the Jing-Jin-Ji area, as shown in Figure 1. It should be noted that all raw soil moisture data used here are in situ observations.

FIGURE 1

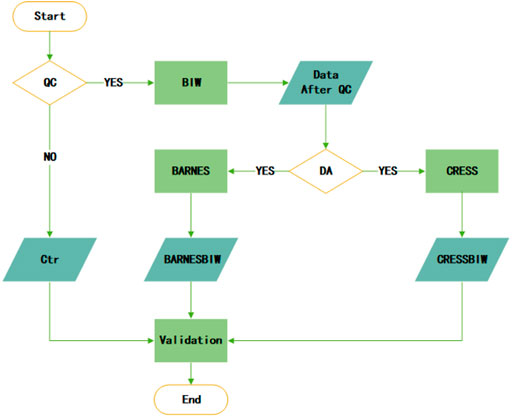

FIGURE 1. Experimental flowchart.

2.2 Quality control

First, extreme values of soil moisture content (larger than 65%) and missing data from the raw data were eliminated. Then, to check the consistency of the background, the biweight technique—which was first described by Lanzante (1996) and further introduced into high spatial-temporal resolution soil moisture applications by Shao et al. (2020)—was applied to remove occasional outliers. The biweight function was defined using the following equation:

${\omega }_i=\frac{X_i-M}{7.5\times MAD}(1)$

where the observation bias $X_i$ is defined as $X_i=y_i^o-y_i^b$, where $i=\mathrm{1,2},\dots ,n$, $n$ is the total number of the samples, $i$ is the $i^{th}$ sample, $y_i^o$ is the observed value, and $y_i^b$ is the background value. $M$ is the median of $X_i$, and $MAD$ is the median of $\left|X_i-M\right|$. When $\left|{\omega }_i\right|>1$, ${\omega }_i=1$, the biweight mean $\overline{X_{bw}}$, the biweight standard deviation $BSTD$, and $Z_i$ are defined by the following equations:

$\overline{X_{bw}}=M+\frac{{\displaystyle \sum }_{i=1}^n\left(X_i-M\right){\left(1-{\omega }_i^2\right)}^2}{{\displaystyle \sum }_{i=1}^n{\left(1-{\omega }_i^2\right)}^2}(2)$

$BSTD=\frac{{\left[n{\displaystyle \sum }_{i=1}^n{\left(X_i-M\right)}^2{\left(1-{\omega }_i^2\right)}^4\right]}^{0.5}}{\left|{\displaystyle \sum }_{i=1}^n\left(1-{\omega }_i^2\right)\left(1-5{\omega }_i^2\right)\right|}(3)$

$Z_i=\frac{\left|X_i-\overline{X_{bw}}\right|}{BSTD}(4)$

For a given value of $Z_T$, the $i^{th}$ observed value was identified as an outlier when $Z_i\ge Z_T$. Generally, the value of $Z_T$ was empirically set to be 1.5, 2.0, or 3.0, and the selection of $Z_T$ ensured that the percentage of elements removed was about 10% of the actual reported elements (Shao et al., 2020). Thus, the $Z_T$ was set to 2.0.

2.3 Data fusion and validation

The SCM can be generally written as follows:

$f_i^{n+1}=f_i^n+\frac{{\displaystyle \sum }_{b=1}^{k_i^n}{w}_{ib}^n\left(f_b^o-f_b^n\right)}{{\displaystyle \sum }_{b=1}^{k_i^n}{w}_{ib}^n}(5)$

The $i$, $b$, and $n$ in equation (Eq. hereafter) (Eq. 5) represent the $i^{th}$ grid point, the $b^{th}$ observation point, and the $n^{th}$ iteration number. $f_i^n$ is the analysis field after the $n^{th}$ iteration at the $i^{th}$ grid point, and $f_b^o$ is the $b^{th}$ observation within a predefined scan radius $R_n$, called the influence distance. For the $n^{th}$ iteration interpolation with the location of the $b^{th}$ observation, $k_i^n$ is the total number of observations collected within $R_n$ of the $i^{th}$ grid point. Due to different weighting factors, $w_{jb}^n$, different data fusion schemes were defined. Two data fusion schemes used in this study, based on the Cressman and Barnes methods, are briefly described in the following.

The Cressman scheme is defined as follows:

$\left\{\begin{array}{c}{w}_{ib}^n=\frac{R_n^2-r_{ib}^2}{R_n^2+r_{ib}^2},r_{ib}^2<R_n^2\\ w_{ib}^n=0,r_{ib}^2\ge R_n^2.\end{array}\right.(6)$

In Eq. 6, $r_{ib}$ is the distance between the $i^{th}$ grid point and the $b^{th}$ observation, while $R_n$ is usually taken to be several times the value of $r_{ib}$. According to Cressman (1959), to resolve small-scale signals, $R_n$ should be gradually decreased with successive iterations. Moreover, to ensure that a large-scale signal is retained, $R_{n-1}$ should be set to a relatively large value.

The Cressman scheme with three iterations (Eqs 5, 6) was used in this study to conduct the hourly soil moisture analysis. The scan radii $R_1$, $R_2$, and $R_3$ were set to 281.25, 93.75, and 31.25 Km, respectively (Li et al., 2017).

In the meantime, a refined Barnes scheme was used for comparison. This scheme was originally proposed and refined by Barnes (1964, 1973) and is similar to the Cressman scheme. The main difference between the methods is how they compute the weighting factor, $w_{jb}^n$. A Gaussian function is used to compute $w_{jb}^n$ in the Barnes scheme. Barnes (1973) refined this method by proposing the modified weighting factor

$\left\{\begin{array}{c}{w}_{ib}^n=\mathit{exp}\left(\frac{-r_{ib}^2}{\chi \gamma }\right),r_{ib}^2<R_n^2\\ w_{ib}^n=0,r_{ib}^2\ge R_n^2,\end{array}\right.(7)$

where $r_{jb}^2$ and $R_n$ are defined as in Eq. 6, $\gamma$ is the convergence factor, and $\chi$ is the filtering constant. The number of iterations required to reach a stable solution can typically be reduced by this modified weighting factor. Prior to the analysis (Koch, 1983), the parameters $\chi$ and $\gamma$ were set at 5.052 and 0.25, as one or two iterations should be used. We selected a two-pass (two-iteration) analysis in the scheme. Thereby, the scan radii were set to 281.25 (the overall radii of our study area) and 93.75 (1/3 of the overall radii, for a quick convergence) Km.

In this study, SMAP retrievals and station observations were used to compare against and/or validate the analysis obtained from each experiment over various temporal and spatial scales. Four metrics (i.e., root mean square error [RMSE], correlation coefficient [Corr], skewness [SKEW], and kurtosis [KURT]) were calculated as follows.

$RMSE=\sqrt{\frac{{\displaystyle \sum }_{i=1}^n{\left(y_i-x_i\right)}^2}{n}}(8)$

$Corr=\frac{{\displaystyle \sum }_{i=1}^n\left(y_i-\stackrel{-}{y}\right)\left(x_i-\stackrel{-}{x}\right)}{\sqrt{{\displaystyle \sum }_{i=1}^n{\left(x_i-\stackrel{-}{x}\right)}^2}\sqrt{{\displaystyle \sum }_{i=1}^n{\left(y_i-\stackrel{-}{y}\right)}^2}}(9)$

$SKEW=\frac{n}{\left(n-1\right)\left(n-2\right)}{\displaystyle \sum }_{i=1}^n{\left(\frac{x_i-\overline{x}}{s}\right)}^{3}KURT=\left\{\frac{n\left(n+1\right)}{\left(n-1\right)\left(n-2\right)\left(n-3\right)}{\displaystyle \sum }_{i=1}^n{\left(\frac{x_i-\overline{x}}{s}\right)}^4\right\}-\frac{3{\left(n-1\right)}^2}{\left(n-2\right)\left(n-3\right)}(10)$

where $x_i$ is the reference data point, $y_i$ is the corresponding data point to be validated, n is the sample size, and $\stackrel{-}{x}\left(\stackrel{-}{y}\right)$ is the mean value of x (y) of n values. In this article, the cross-validation method is presented using both station soil moisture observation and SMAP Level-2 gridded soil moisture product as validation data.

2.4 Experiment description

To efficiently induce the station soil moisture data into the grid products, QC and assimilation (DA) were the primary assignment. A brief description of the main procedures of this work is given in Figure 1. The QC process based on the biweight method was carried out using the available station observations. The Ctr was first taken as a comparison candidate and was conducted to generate two comparison candidates, following the assimilation process based on SCM with the diversity of weighting factor. Finally, cross-validation among the different candidate products and validation data was further conducted.

The hourly CLDAS V2.0 soil moisture product was used as the ongoing background data during station soil moisture assimilation. All types of datasets, including CLDAS V2.0, SMAP data, and station data in this study, concentrated on the area 113.2E∼120.0E, 36.0N∼42.7N, which covers Jing-Jin-Ji, as shown in Figure 2.

FIGURE 2

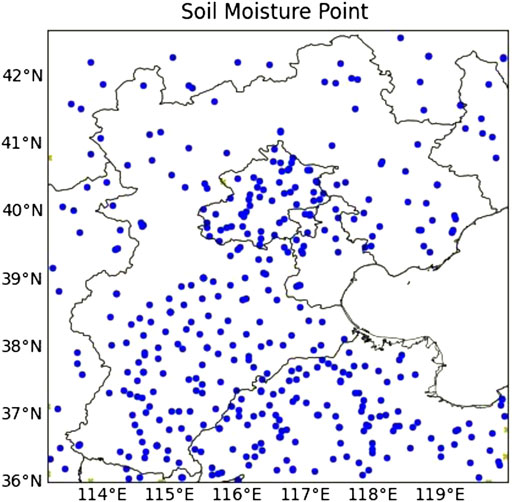

FIGURE 2. Distribution of the soil moisture station in Jing-Jin-Ji.

In addition, as shown in Table 1, data in the Ctr experiment (known as the control experiment) collected from the CLDAS V2.0 soil moisture product had no QC nor assimilation. Meanwhile, the experiments BARNESBIW and CRESSBIW both used the biweight method during QC and applied the SCM method with Barnes and Cressman weight factors, respectively, during observation assimilation. Moreover, to objectively verify the differences between various grid products, station observation and SMAP retravel data were used to compare against the three products, using evaluation indicators including RMSE, Corr, SKEW, and KURT.

TABLE 1

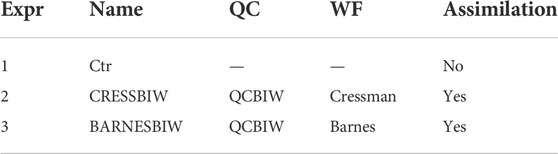

TABLE 1. Experimental design.

3 Results

3.1 QC of the station soil moisture

QC was conducted before assimilation as the CLDAS V2.0 grid data are continuously spatial and temporal, whereas raw station observations are discrete, to avoid assimilation distortion induced by countless differences with non-Gaussian noises between background and observation. When all observation and background samples were compared at the station points, the non-Gaussian noises could be greatly improved (Shao et al., 2020).

As shown in Figure 3, our datasets include a total of 720 hourly observations collected at 417 stations from 1 September to 1 October 2020, with one observation record per hour at each station. A total of 300,240 elements were recorded. After rejecting extreme values and missing data, the number of actual records was 292,308, accounting for about 97.36% of the actual reported elements, while after QCBIW, the number of rejected records was 276,518 and the corresponding percentages among actually reported records about 7.7%. Overall, about 10% of the raw data were rejected in total.

FIGURE 3

FIGURE 3. Hourly numbers of actual reported (solid line) and valid samples after QC (dotted line) from 1 September to 1 October 2020.

It should be noted that the ongoing results show more consistent behavior during QC, as compared to former research (Shao et al., 2020), because the actual reported rate during the whole QC procedure was higher in this paper. This indicates that SCMs assimilate more realistic soil moisture data into CLDAS V2.0 products.

3.2 Comparisons against station observations

To assess how the two schemes behave differently during the DA process, it was necessary to compare analysis data with station data. Station soil moisture data were used to calculate the RMSEs and Corrs of experiment results. Eighty percent of the whole-station data records after QC (Section 3.1) were used in data fusion, while the remaining 20% were used for additional independent validation. Next, we take the first soil layer, with more temporal-spatial variants, as an example.

The RMSE and Corr between the station and gridded data during the first soil layer [e.g., RMSE (1) and Corr (1)] for each experiment are shown in Figure 4. While distinguished boundary gaps can be found among different soil moisture products, both the CRESS and BARNES experiments can produce better soil moisture than the background (Ctr); at the same time, it is also clear that CRESS is superior to BARNES. In addition, we compared the available ESSMRA data (Naz et al., 2020), which provides long-term surface soil moisture at a high spatiotemporal resolution, with our results. Satellite-derived soil moisture data were assimilated into the community land model (CLM3.5) using an ensemble Kalman filter scheme in ESSMRA. Table 2 shows the average RMSE and Corr values for each experiment, as well as the ESSMRA results. It also shows that the CRESS scheme is superior to the Ctr, BARNES scheme, and ESSMRA, which coincides with the result shown in Figure 4.

FIGURE 4

FIGURE 4. Hourly RMSEs (A) and Corrs (B) between station observations and products of each experiment from 1 September to 1 October 2020, including Ctr (black lines), BARNES (blue lines), and CRESS (red lines).

TABLE 2

TABLE 2. Average calculation of hourly RMSEs and Corrs between station observations and each product of Ctr, CRESSBIW, and BARNESBIW.

Overall, these results show improved station scale soil moisture when observation was properly induced (e.g., smaller RMSE and larger Corr in CRESS, when compared to observations, than for both in BARNES or Ctr). This indicates that the widely used Cressman weighting factor (e.g., ocean data assimilation) is also suitable for the soil moisture data fusion scheme, and the results of the station scale promise to be statistically improved.

3.3 Comparisons against the SMAP grid dataset

Preliminary validation studies have suggested that SMAP is meeting its performance targets (Chan et al., 2016; Pan et al., 2016), and therefore, the SMAP products were used for cross-validation here. However, the SMAP data records are on a daily scale while the assimilation results are on an hourly scale. Thus, the hourly values for the analysis have been averaged into daily values before validation. As we can see, the spatial distributions of the two analysis products were both more similar to the SMAP than to the background or Ctr, as shown in Figures 5A–F. Thereby, as seen from the difference between analysis and Ctr, the Cressman scheme clearly has a smoother and more reasonable spatial distribution than does the Barnes scheme.

FIGURE 5

FIGURE 5. Distribution of monthly averages from Ctr (A), BARNES (B), CRESS (C), and SMAP (D). Difference between analysis [i.e., BARNES minus Ctr (E) and CRESS minus Ctr (F)].

In addition, as the daily spatial average surface soil moisture content (Figure 6) suggests, the two analysis products are both closer to the SMAP than to the Ctr and in situ observation. Also, a consistent variant tendency among all products can be observed (e.g., the sudden increase of soil moisture around 15 September), indicating that SMAP agrees well with the others on domain-averaged daily scales. While lower surface soil moisture values can be found in SMAP retrievals than in station data, this should explain the quite different probe methods and also indicates that soil moisture data fusion is necessary.

FIGURE 6

FIGURE 6. Daily average soil moisture content of SMAP (violet cross), station data (green cross), Ctr (black line), BARNES (blue line), and CRESS (red line) from 1 September to 1 October 2020.

Furthermore, as shown in the daily RMSEs and Corrs (Figure 7) and the averaging during the analysis of daily RMSEs and Corrs between SMAP and the analysis of each experiment (Table 3), the Cressman scheme is clearly superior to the Barnes scheme when lower RMSEs and larger Corrs can be found; this is consistent with the results of comparisons against station data. Also, as shown in both the probability density distribution (Figure 8) and the values of skewness and kurtosis (Table 4), the analysis using the Cressman scheme is closest to the Gaussian distribution and has the smallest SKEW and KURT for all validation candidates.

FIGURE 7

FIGURE 7. Daily RMSEs (A) and Corrs (B) between SMAP and products of each experiment from 1 September to 1 October 2020, including Ctr (black lines), BARNES (blue lines), and CRESS (red lines).

TABLE 3

TABLE 3. Comparison of SMAP with Ctr, BARNESBIW, CRESSBIW, ASCAT, and AMSR2.

FIGURE 8

FIGURE 8. Probability density function of deviations between SMAP and products of each experiment from 1 September to 1 October 2020, including Ctr (A), BARNES (B), and CRESS (C).

TABLE 4

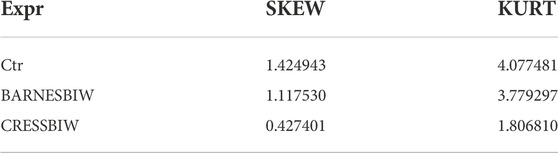

TABLE 4. Skewness and kurtosis of each product of Ctr, CRESS, and BARNES.

Notably, Burgin et al. (2017) have compared SMAP with products of AMSR2 and ASCAT using the same statistical evaluation indicators, as shown in Table 4. It is clear that the CRESSBIW product is superior to the AMSR2 product. Compared with ASCAT, although the Corr of CRESSBIW is smaller by 9.1%, the RMSE is smaller by 44.6%. Therefore, the CRESSBIW product can capture the comparative daily scale characteristics as satellite-gridded retrievals. In general, all the aforementioned results indicate that the CRESSBIW product is a good choice with a simple SCM assimilation method and a quality promised gridded dataset.

4 Conclusion and discussions

In this work, we developed and evaluated two analysis products using SCMs with Barnes and Cressman weight factors. The hourly CLDAS V2.0 soil moisture content product was adopted as background data, and the hourly automatic soil moisture station data as observations to be assimilated. QC was conducted using the biweight method with the result of eliminating less than 10% of the actual reported data. Then, two hourly soil moisture content analysis products were produced using two schemes, including Barnes and Cressman, with a spatial resolution of 0.0625°. All validation results showed that the analysis product using the Cressman scheme had smaller RMSE and larger Corr than that using the Barnes scheme. In addition, the probability density distribution of deviations from the Cressman scheme analysis was closer to a normal or Gaussian distribution than was that of the Barnes scheme analysis, which should be attributed to the weighting factor. Finally, the Cressman scheme is recommended for use in analysis production with the sources of CLDAS V2.0 soil moisture content product and automatic soil moisture station data in the Jing-Jin-Ji area.

The dataset presented here provides hourly surface soil moisture analysis at a high spatiotemporal resolution and will be beneficial for many hydrological applications across the Jing-Jin-Ji region. Our results indicate that the Cressman product is a useful and promising soil moisture dataset. The proposed Cressman scheme is computationally simple and efficient, so the product can be easily updated to keep pace with large increases in the volume of soil moisture data. These findings will help evaluate and improve numerical models and their corresponding products. The comparison and evaluation steps employed in this work can also be applied to other data sources, for example, to satellite remote sensing products and to soil moisture products produced in other ways. It is noted that the iterations and scan radius specified in this work may be altered when the resolution of the data changes. In the future, new methods for assimilating soil moisture data and optimal weighting factors will be developed to further improve the analysis product.
