Study on characteristics of oil and gas occurrence and reservoir space of medium-high maturity continental shale—A case study of middle jurassic lianggaoshan formation in fuling block, southeast of sichuan basin, south China

Possessed of easy access to development and fair economic benefits, medium-high maturity continental shale oil and gas have become the focus of shale oil and gas study in the future. Shale oil and gas mainly occur in pores, but studies on the pore characteristics of shale oil and gas occurrence are by no means sufficient. Focused on shale from the Middle Jurassic Lianggaoshan Formation in Well TYX, Fuling block, southeast of Sichuan Basin where a breakthrough in shale oil and gas exploration was recently achieved, this study selects core samples and conducts a series of analyses, including vitrinite reflectance analysis, kerogen microscopic examination experiment, total organic carbon (TOC) content analysis, mineral composition analysis, gas content measurement, isothermal adsorption experiment, S₁ content analysis, and others. The analyses are to identify the pore characteristics of the continental medium and high maturity shale oil and gas by virtue of scanning electron microscope (SEM) with Ar-ion milling and the image processing software ImageJ. The conclusions are drawn as follows: in terms of lithofacies, medium-high maturity continental shale oil and gas mainly occur in organic-rich clay shale and organic-rich mixed shale; with regard to material composition, shale oil and gas mainly occur in organic matter, illite-smectite mixed layers and illite. Shale adsorbed gas content accounts for at most 40% of the total shale gas content and shale free gas content takes up at least 60% of the total shale gas content. Pores of solid bitumen, solid bitumen-clay mineral complex mass, clay minerals, structured vitrinite, and funginite are mostly developed in shale. Among them, the first three types of pores are the main reservoir space in shale considering their large number, good roundness, medium pore diameter, fairly good roundness of pore edges, and the complex shapes which altogether contribute to the large surface porosity.

Introduction

Thanks to the geological theory of shale oil and gas and the advancement of horizontal well drilling technology and fracking technology, marine shale oil and gas have managed to be commercially explored and developed on a large scale in North America in recent years (Bazilian et al., 2014; Loucks et al., 2017; Adeleye and Akanji, 2018; Ardakani et al., 2018; Bakshi and Vishal, 2021). China also boasts huge shale oil and gas resources of marine, continental and marine-continental transitional facies. Since 2010, China National Petroleum Corporation (CNPC) and China Petroleum & Chemical Corporation (Sinopec Corp) have obtained commercial breakthroughs in marine shale gas of the Lower Silurian Longmaxi Formation in blocks like Weiyuan, Changning, Jiaoshiba, Weirong, Luzhou, Zhaotong, Yongchuan, Dingshan, et al. (Guo, 2016; Li et al., 2019; Nie et al., 2019; Wang et al., 2019; Fan et al., 2022). In addition to shale gas, China is also practicing the exploration and development of shale oil. In continental strata, when the organic matter in shale is at medium-high maturity (maturity Ro>0.9%), shale oil is light (relative density<0.87), which makes it easy to be exploited in light of its great mobility. In this way, the economic benefits are considerable, and accordingly light shale oil has become the key research object at present. (Zhang et al., 2019b; Liu B. et al., 2021; Liu et al., 2021c).

The characteristics of shale oil and gas occurrence and reservoir space figure prominently in the study of shale reservoir characteristics (He et al., 2019; He et al., 2020). Previous studies have been carried out on the characteristics of shale reservoirs (Gao et al., 2018; Jin et al., 2018; Gao et al., 2020; Jin et al., 2020; Li, 2022). To be specific, by virtue of rock thin section, SEM with Ar-ion milling, nuclear magnetic resonance (NMR), high-pressure mercury intrusion and low-temperature nitrogen adsorption experiment, a study was conducted on the low maturity continental shale strata of Lower Sub-member 3-Upper Sub-member 4 in Paleogene Shahejie Formation, Dongying Sag. Data about pore structure and porosity of shale reservoirs were obtained, and analyses of the influences that mineral composition and organic matter content exerted on porosity and pore diameter were also conducted. The above data and analysis results were further combined to form thermal simulation experiments where the evolutionary characteristics of main pore types were discussed Zhang et al. (2018). Taking advantage of SEM, Soxhlet extractor method, gas adsorption, NMR (including centrifugation) and other methods, a study was carried out on the muddy shale in the lower sub-member of the Member 3 of Shahejie Formation in Zhanhua Sag in order to ascertain the influences of reservoir characteristics of muddy shale on the mobility of shale oil, and to understand its mechanism of action (MOA) Jiang et al. (2020). In view of the diverse types of shale oil reservoirs and great difficulty in sweet-spot prediction in the Lucaogou Formation, analysis on the mechanism influencing shale oil pore development and evaluation on oil-bearing properties, are supposed to be carried out. To this end, this study focuses on the microscopic pore structure of shale oil reservoirs in the Permian Lucaogou Formation, Jimsar Sag, through an integration of core observation, SEM, mercury intrusion porosimetry (MIP) and NMR, etc. As a result, the influential mechanism is disclosed and classification criteria for reservoir evaluation are set up Wang L et al. (2022).

Although systemic studies have been carried out on the reservoir characteristics of shale, research on the characteristics of oil and gas occurrence and reservoir space of medium-high maturity continental shale is still insufficient. With Well TYX as a research object in the Fuling block, southeast of Sichuan Basin where a commercial breakthrough in continental light shale oil was recently made, this study proceeds in the following order: first the gas content and oil content of shale of different lithofacies types are analyzed; second the reservoir space where shale oil and gas occur is identified; third the main pore types of shale is recognized by virtue of SEM, and the SEM image is analyzed using the image processing software ImageJ, so that the pore characteristics of shale of different matrices are quantitatively characterized; finally the patterns of pore characteristics of shale oil and gas occurrence are summarized.

Geological settings

Sedimentary and stratum characteristics

The Middle Jurassic Sichuan Basin was a depression basin, and the block located in the southeast of the Sichuan Basin which is under investigation in this study experienced a complete transgression-regression cycle during the sedimentary period of the Lianggaoshan Formation. (Gao et al., 2017; Li et al., 2020c; Liu et al., 2020; Gao, 2021; Wang Z et al., 2022). From bottom to top, the Lianggaoshan Formation can be divided into 3 members and they are Member I, Member II and Member III. Moreover, Member I and Member II can be further subdivided into upper and lower submembers, respectively. Among them, the upper submember of Member I and the lower submember of Member II were shallow to semi-deep lake depositional environments. In other words, the submembers are organic-rich shale, as well as shale oil and gas enrichment strata.

Tectonic characteristics

As is shown in Figure 1, the block is located in the high-angle fault fold belt in the southeastern Sichuan Basin. The west of the high-angle fault fold belt is bounded by the Huayingshan fault and is adjacent to Chuanzhong Uplift, and the east of the belt, reaching up to the Qiyueshan fault zone, is made up of a series of arc-shaped mountains (Li et al., 2010; Liu and Ni, 2010; Pang et al., 2019; Qing et al., 2019; Li et al., 2020b). The arc-shaped mountain range is a high-angle anticline with the Permian-Triassic as the core. The two wings of the range are asymmetrical. Generally, the dip angle of the stratum on the gentle wing is 20°–30°, and that on the steep wing is 40°–70° and the stratum can even be upright and inverted. (Li et al., 2017; Li H. et al., 2020; Li et al., 2021a; Li et al., 2022a). The broad valleys between the arc-shaped mountains are Jurassic trapped syncline. The high-angle fault fold belt is ejective from both tectonic and geomorphic aspects (Wang et al., 2018; Wang et al., 2021a; Li et al., 2021b; Wang et al., 2021b).

FIGURE 1

FIGURE 1. Location of the Fuling block and the distribution of TYX well sites in the southeast of Sichuan Basin, South China. Modified from references (Guo et al., 2016; Guo et al., 2017; Liu W. et al., 2021; Wei et al., 2021; Zhang et al., 2022b).

Samples, experiments, and data sources

Organic matter maturity, TOC content analysis, mineral composition analysis

In this study, a uniform sampling was conducted on the shale from the shale core section of the Lianggaoshan Formation in Well TYX and the specific sampling depth is shown in Figure 2. Specifically, 7 samples were selected to carry out organic matter vitrinite reflectance analysis and the organic matter vitrinite reflectance analyzers of ZEISS Imger A2m and J&M MSP200 were utilized to analyze the shale organic matter maturity; 205 samples were selected to perform TOC content analysis and the TOC content analyzer of Sievers 860 were used; 72 samples were selected to do mineral composition analysis and the mineral analyzer of YST-I was used to conduct X-ray diffraction whole rock mineral analysis.

FIGURE 2

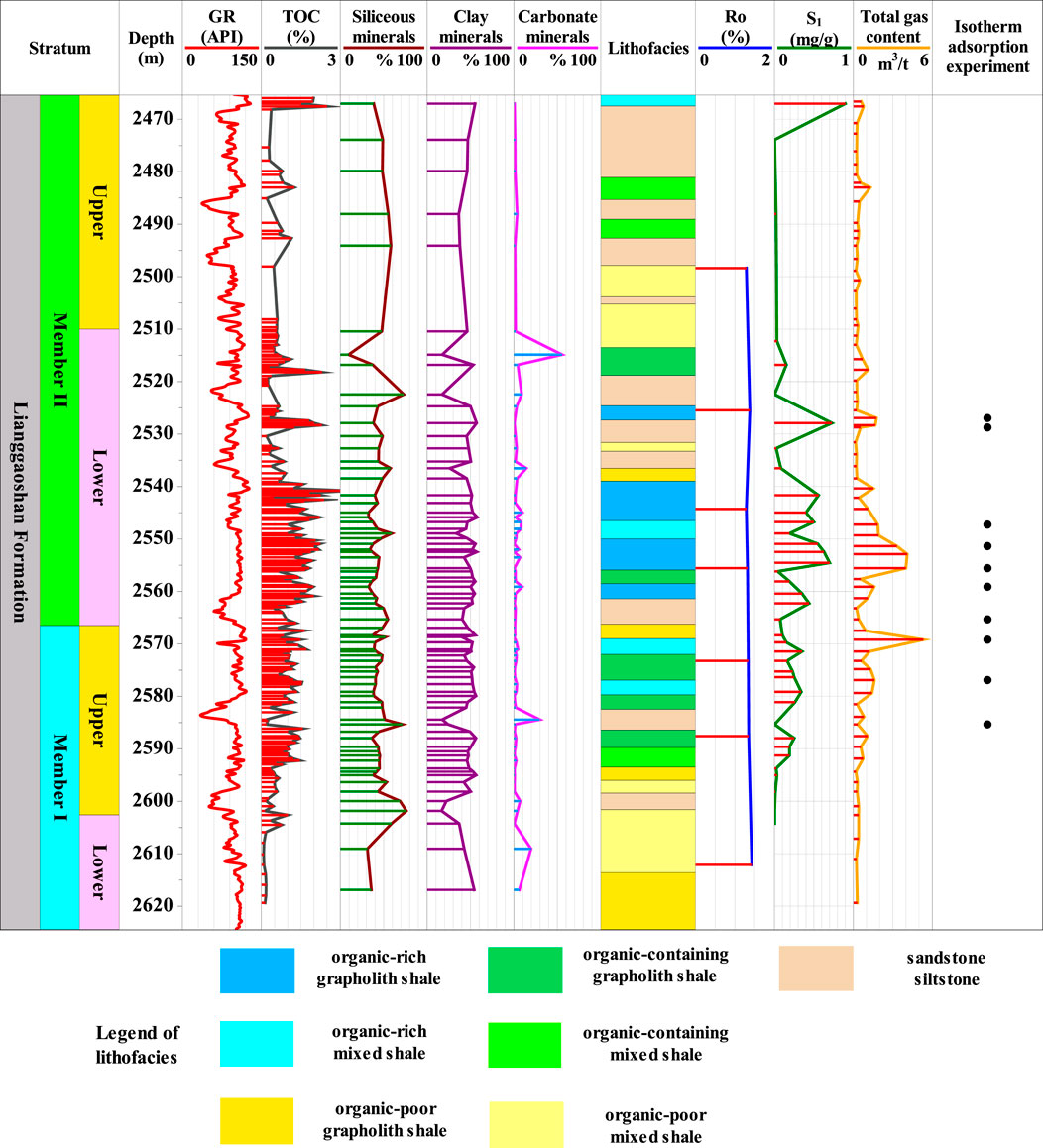

FIGURE 2. Comprehensie histogram of sampling depth, analysis and test results of the samples, and lithofacies division results in Member I and Member II of Well TYX. Modified from references (Liu W. et al., 2021; Wei et al., 2021; Zhang et al., 2022b). See Figure 1 for the well location.

Rock pyrolysis experiment

Rock pyrolysis, put forward by the French Institute of Petroleum (IFP), can evaluate source rocks in a short time period. The basic principle is to pyrolyze source rocks by heating the rock samples in certain instruments and afterwards the source rocks are evaluated on the basis of the type and quantity of products. The pyrolysis results are displayed in the pyrolysis spectrum which has three peaks. Particularly, the P₁ peak turns up when pyrolysis temperature is less than 300°C, and the area of the peak is represented by S₁. The residual hydrocarbon content in the rock is displayed by kg (hydrocarbon)/t (rock), which is equivalent to chloroform bitumen “A”. This study conducted a uniform sampling and 38 samples were selected form the shale core section of Lianggaoshan Formation in Well TYX, and the specific sampling depth is shown in Figure 2. An instrument of ROCK Eval 7 was utilized to perform the rock pyrolysis experiment.

On-site analysis of total gas content in shale

The total gas content of shale plays an important role in evaluating the oil-gas-bearing potential of shale. The shale gas analyzer can measure the residual shale gas content at the core of shale in the well sites, and the original total gas content of shale can be simulated by mathematical formula. This study conducted a closed sampling and 70 samples were selected from the core section of the Lianggaoshan Formation in Well TYX, and the specific sampling depth is shown in Figure 2. An analytical gas analyzer of YSQ-IV was used to measure the total gas content of shale.

Isothermal adsorption experiment

The isothermal adsorption experiment can quantitatively analyze the maximum adsorption capacity of shale. In this study, 10 samples were selected from the core section of Lianggaoshan Formation in Well TYX, which are shown in Figure 2. The isothermal adsorption apparatus of FY-KT 1000 was used to conduct the experiment at a temperature of 125°C.

FIB-SEM observation

Focused ion beam scanning electron microscope (FIB-SEM) can perfectly identify the microscopic mineral composition and pore type of shale. FIB technology is a new technique with high resolution that focuses the ion beam spot to sub-micron or even nanometre scale and realizes microfabrication with a deflection system. A FIB-SEM sample can only be obtained through several procedures, such as grinding, Ar-ion milling, carbon spraying, etc. The rather mature secondary electron imaging technology of FIB-SEM can fairly identify the surface topography of minerals and pores, in particular. With this technology in use, the micro-nanometre pores of shale are bright all around, which makes it easy to be identified and together with the backscattered technology of FIB-SEM which can help identify the mineral composition, the type of shale micro-nanometre pores can be effectively determined (Zhang et al., 2019c; Li et al., 2021c; Zhang et al., 2022d; Zhang et al., 2022e). In this study, FIB-SEM observation was carried out using an instrument of FEI HELIOS NANOLAB 650 SEM.

Results and discussion

Analysis of shale organic matter maturity

The analysis results of shale organic matter maturity are shown in the table below. According to Table 1, it can be seen that Ro of organic matter of Lianggaoshan Formation shale in Well TYX ranges from 1.29 to 1.38%, with an average value of 1.34%.

TABLE 1

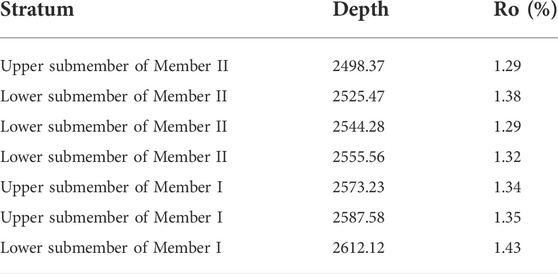

TABLE 1. Analysis results of organic matter maturity of Lianggaoshan Formation shale in Well TYX.

China’s continental shale oil resources are generally divided into two categories according to their maturity. When Ro is greater than 0.9%, the shale oil is believed to have medium-high maturity, and when the situation is opposite, it is called medium-low maturity shale oil. The shale oil of Lianggaoshan Formation in Well TYX is of medium-high maturity. When Ro is greater than 0.9%, the original organic matter (kerogen) evolves into a massive hydrocarbon generation stage, and the occluded hydrocarbons (petroleum, bitumen, etc.) fill the organic and inorganic pores of shale.

Lithofacies division of shale

The division schemes of shale lithofacies were proposed based on TOC content and mineral composition in previous studies: 1) according to TOC content, shale was divided into 3 types and they are: organic-rich shale (TOC content:≥2%), organic-bearing shale (TOC content: 1–2%), and organic-lean shale (TOC content: 0–1%); 2) according to mineral composition, shale was divided into 4 types and they are: calcareous shale (carbonate minerals ≥50%), clayey shale (clay minerals ≥50%), siliceous shale (siliceous minerals ≥50%), mixed shale (siliceous minerals, clay minerals and carbonate minerals are all less than 50%) (Clarkson et al., 2013; Daigle et al., 2017; Zhang et al., 2019a; Li et al., 2022b; Zhang et al., 2022c). In combination with the two division schemes, there appear 3×4=12 types of lithofacies. Based on the TOC content and mineral composition of shale samples, the shale lithofacies are divided as shown in the figure.

Analysis of S₁ content in shale of different lithofacies types

The analysis results of S₁ content in shale are shown in Figure 2. The statistical analysis of S₁ content in shale of different lithofacies types is shown in Figure 3, according to which, S₁ content in organic-rich clayey shale is the highest, with an average value of 0.58 mg/g; S₁ content in organic-rich mixed shale is the second highest, with an average value of 0.41 mg/g; S₁ content in organic-bearing clayey shale, as well as organic-bearing mixed shale, is around 0.19 mg/g; S₁ content in organic-lean clayey shale, organic-lean mixed shale and sandstone is as low as 0.01–0.05 mg/g.

FIGURE 3

FIGURE 3. Characteristics of S₁ content in shale of different lithofacies types in Lianggaoshan Formation in Well TYX. See Figure 1 for the well location.

Analysis of gas content in shale of different lithofacies types

Analysis of total gas content in shale

The analysis results of gas content in shale are shown in Figure 2 and the statistical analysis of gas content in shale of different lithofacies types is shown in Figure 4. According to Figure 4, gas content in organic-rich mixed shale is the highest, with an average value of 2.59 m³/t; gas content in organic-rich clayey shale is the second highest, with an average value of 1.68 m³/t; gas content in organic-bearing clayey shale and organic-bearing mixed shale is around 1.58–1.13 m³/t; gas content in organic-lean clayey shale, organic-lean mixed shale and sandstone is the lowest, that is, 0.35–0.51 m³/t.

FIGURE 4

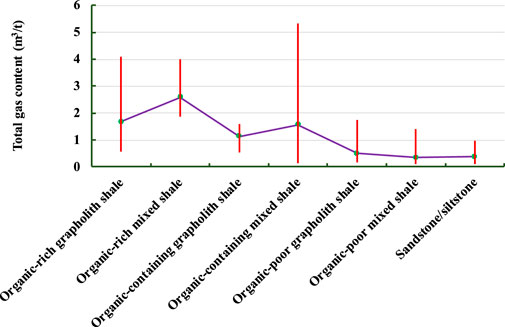

FIGURE 4. Characteristics of gas content in the shale of different lithofacies types in Lianggaoshan Formation in Well TYX. See Figure 1 for the well location.

Analysis of adsorbed gas content and free gas content

The Langmuir volume and Langmuir pressure of each shale sample can be obtained through the isotherm adsorption experiment. Langmuir volume (V_L), with the unit being m³/t, is the maximum adsorption capacity and physically, it signifies the adsorbed gas content in shale when the adsorption of methane reaches saturation point at a given temperature. Langmuir pressure (P_L), with the unit being MPa, is the pressure at which one-half of the Langmuir volume can be adsorbed.

The isotherm adsorption equation is as follows:

$V=\frac{V_{L}P}{P+P_L}$

Specifically,

V is the maximum adsorption capacity of shale sample under formation pressure P (unit: m³/t); P is formation pressure (unit: MPa), p=1×9.81×H×formation pressure coefficient/1000, H is burial depth (unit: meter); V_L represents Langmuir volume and P_L Langmuir pressure.

The formation pressure coefficient of the Lianggaoshan Formation in Well TYX is 1.2. The formation pressure can be calculated based on the burial depth of shale samples and the formation pressure coefficient. The maximum adsorbed gas content of the shale samples under formation pressure P can be calculated when the values of P, V_L and P_L are substituted into the isotherm adsorption equation. The calculation results are shown in Table 2. The minimum free gas content can be calculated by subtracting the maximum adsorbed gas content from the measured total gas content, so that the ratio of the maximum adsorbed gas content, as well as the minimum free gas content, to the total gas content in shale can be further calculated. The calculation results are shown in Table 3. According to Table 2 and Table 3, the average value of adsorbed gas content in shale in Well TYX is at most 0.66 m³/t and the value ranges from 0.06 to 1.06 m³/t. And adsorbed gas content accounts for at most 40% of the total shale gas content; the average value of free gas content in shale in Well TYX is at least 1.39 m³/t and the value ranges from 0.09 to 4.39 m³/t. And free gas content takes up at least 60% of the total shale gas content.

TABLE 2

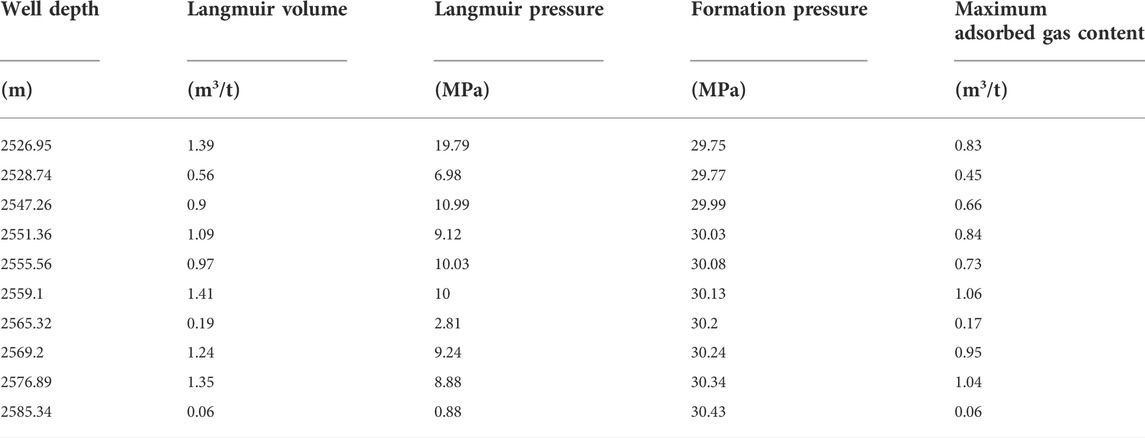

TABLE 2. Results of isothermal adsorption experiment and calculation results of formation pressure and maximum adsorbed gas content in Lianggaoshan Formation of Well TYX.

TABLE 3

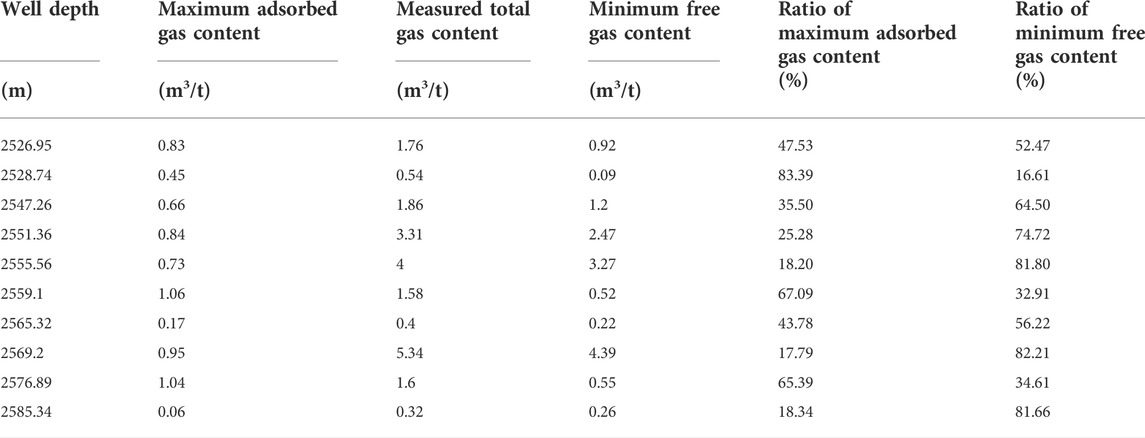

TABLE 3. Ratios of minimum free gas content and maximum adsorbed gas content to total shale gas content and calculation results of minimum free gas content.

Research on the occurrence space of shale oil and gas

Shale oil and gas occur in the reservoir space of shale matrix, but considering the complex composition and various types of reservoir space of medium-high maturity continental shale, related research is required to find out in what reservoir space the shale oil and gas occur.

Correlation analyses of shale oil and gas and shale material composition

In order to figure out the occurrence space of shale oil, the S₁ content - TOC content diagram and S₁ content - Clay mineral content diagram are displayed in this study, as shown in Figure 5. There is a fairly positive correlation between S₁ content and TOC content and clay mineral content (Figures 5A,B), which indicates that shale oil mainly occurs in kerogen and clay minerals. S₁ content is largely positively correlated with illite/smectite (I/S) mixed layer and illite (Figures 5C,E), but it is first positively and then negatively correlated with kaolinite and there also exists a slight positive correlation between S₁ content and chlorite (Figures 5D,F), which show that shale oil in clay minerals mainly occurs in I/S mixed layer and illite and only a small amount occurs in kaolinite and chlorite.

FIGURE 5

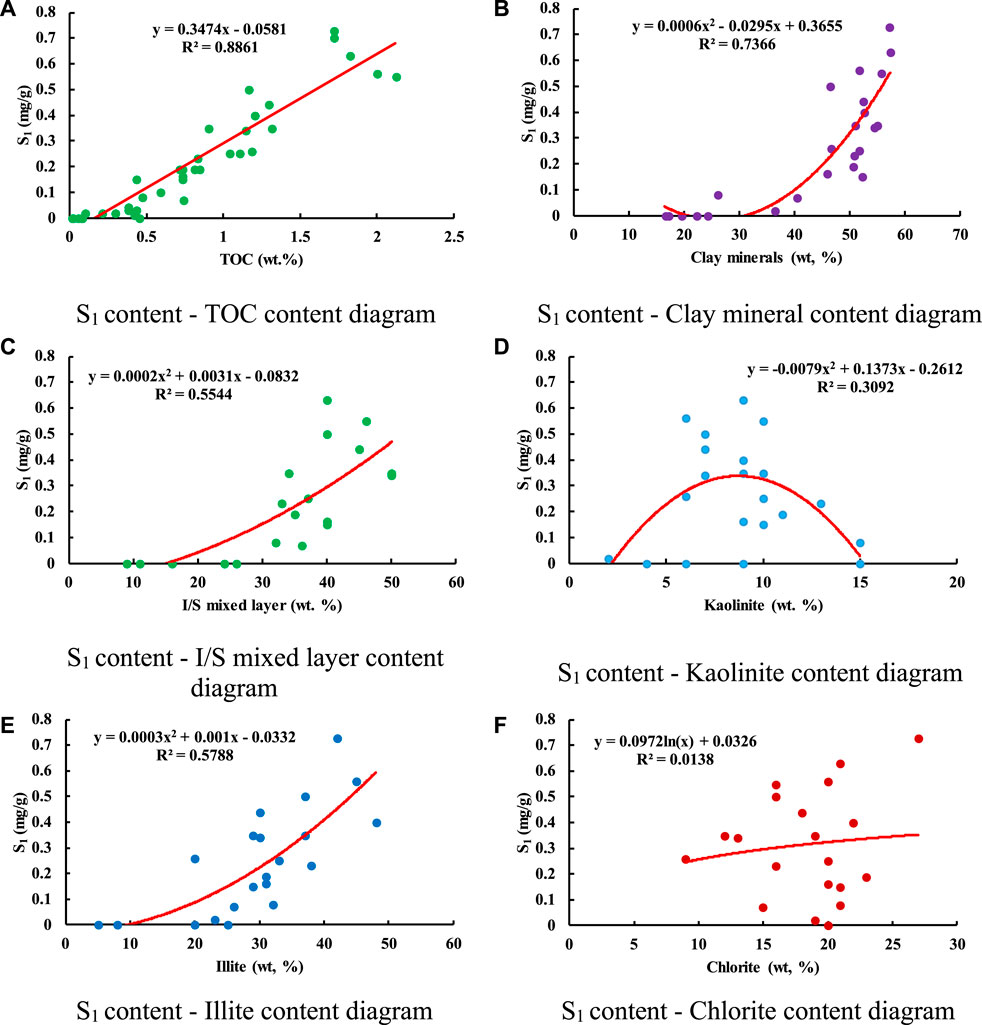

FIGURE 5. Correlation analysis of S₁ content in shale and shale material composition, Lianggaoshan Formation shale in Well TYX. See Figure 1 for the well location.

In order to figure out the occurrence space of shale gas, this study displays the total gas content - TOC content diagram and total gas content - Clay mineral content diagram, as shown in Figure 6. There is a fairly positive correlation between total gas content and TOC content and clay mineral content (Figures 6A,B), which indicates that shale gas mainly occurs in kerogen and clay minerals. Total gas content is largely positively correlated with illite/smectite (I/S) mixed layer and illite (Figures 6C,E), but it is slightly positively correlated with kaolinite and chlorite (Figures 6D,F), which shows that shale gas in clay minerals mainly occurs in I/S mixed layer and illite and only a small amount occurs in kaolinite and chlorite.

FIGURE 6

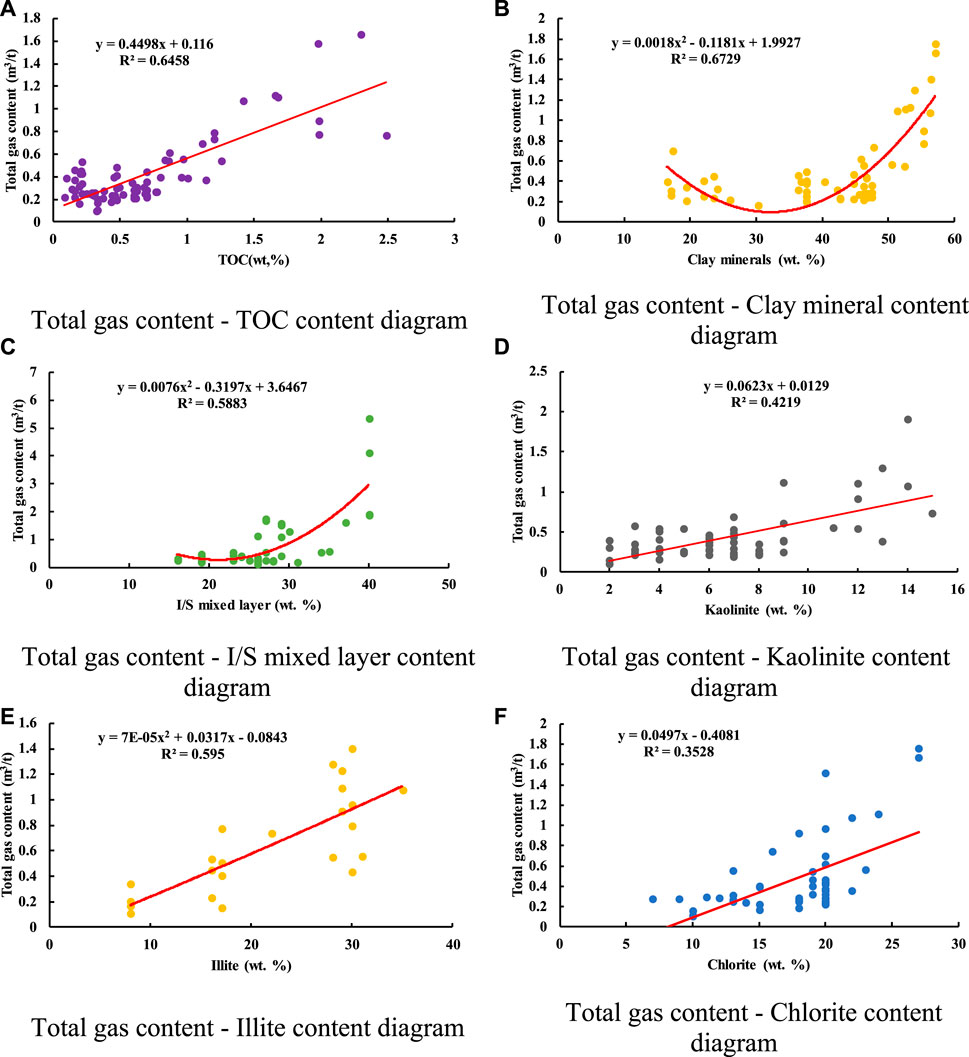

FIGURE 6. Correlation analysis of total gas content in shale and shale material composition, Lianggaoshan Formation shale in Well TYX. See Figure 1 for the well location.

Identification of pore types developed in shale

In order to identify in detail the main pore types developed in shale, the FIB-SEM experiment was performed in this study to observe the organic-rich shale strata in the lower submember of Member II and the upper submember of Member I in the Lianggaoshan Formation. Under the SEM with Ar-ion milling, different material composition of shale manifests different characteristics, among which clay minerals can be easily identified, but the organic macerals with complex classifications are difficult to identify (Hackley and Cardott, 2016; Davudov and Moghanloo, 2018; Davudov et al., 2020). The maceral types in this study are determined through a combination of factors, such as the external form, color, brightness, protrusion of organic matter, the relationship between organic matter and its surrounding minerals, characteristics of organic pore development and fissure development, among others.

As a pretty important organic matter component in shale, solid bitumen is secondary organic matter and is often developed in the mature stage of oil-generating window and gas-generating window (Klaver et al., 2016; Zhang et al., 2017; Zhang et al., 2020b; Zhang et al., 2020c). Solid bitumen-clay mineral complex mass widely exists in such fine-grained sediments as shale. Studies show that in shale, about 72% of the organic matter is bound to clay minerals and they are together preserved in the form of organic clay complex mass. The solid bitumen-clay mineral complex mass has a great influence on the enrichment of oil and gas. Vitrinite is a type of maceral formed by humification and gelation role of lignocellulosic tissues of higher plants. Lignocellulosic structures are often retained in well-preserved vitrinites, in which cell walls and cell lumina are visible, while the badly damaged vitrinites are often granular in all directions and their cell structures are difficult to identify. Vitrinite includes structured vitrinite, unstructured vitrinite, and detrital-vitrinite. Under a polarizing microscope, inertinite reflects white--yellow-white light and this feature distinguishes itself sharply from vitrinite. Inertinite includes fusinite, semi-fusinite and detrital-inertinite (Zou et al., 2019; Wang et al., 2020; Xia et al., 2020; Yu et al., 2022).

As is shown in Figure 7, with the FIB-SEM experiment, the following components were observed: solid bitumen (Figure 7A), solid bitumen-clay mineral complex mass (Figure 7E), clay minerals (Figure 7I), structured vitrinite (Figure 7M), funginite (Figure 7Q), detrital-vitrinite/detrital-inertinite (Figure 7U). Pores are mainly developed in solid bitumen, clay minerals, and solid bitumen-clay mineral complex mass; pores are also partially developed in structured vitrinites and funginite; almost no pores are developed in unstructured vitrinites, vitrinites, fusinite, semi-fusinite and detrital-inertinite.

FIGURE 7

FIGURE 7. Pore types developed in the Lianggaoshan Formation shale in Well TYX and the image processing procedures of ImageJ. Solid bitumen pores and image processing procedures (A–D), 2547.26 m; pores of solid bitumen-clay mineral complex mass and image processing procedures (E–H), 2589.61 m;clay mineral pores and image processing procedures (I–L), 2483.01 m; structured vitrinite pores and image processing procedures (M–P), 2555.56 m; funginite pores and image processing procedures (Q–T), 2547.26 m; detrital-vitrinite/detrital-inertinite pores and image processing procedures (U–X), 2575.25 m. See Figure 1 for the well location.

Quantitative characterization of pore characteristics of shale of different matrices

The software ImageJ is utilized to process images. ImageJ is a Java-based image processing program inspired by USA National Institutes of Health (NIH). Electronic images in TIFF, JPEG, BMP, PNG and other formats can all be processed by ImageJ (Wang et al., 2016a; Wang et al., 2016b; Wang et al., 2017). In the field of oil and gas geology, ImageJ is often used to analyze the pore-fissure structural systems of sedimentary reservoirs. With ImageJ, quantitative characterization of pore development characteristics of specific macerals can be achieved. The imported SEM image which is of high resolution and high quality was converted to 8bit Gy image and then the organic matter where pores were to be extracted was selected. Since organic matter is generally irregular in shape, the image processing module in ImageJ was used to manually delineate the organic matter. After counting the area of the organic matter, the threshold module in ImageJ was used to segment the pores in the organic matter and the pore area was also counted. The ratio of the pore area to the area of the organic matter is organic pore surface porosity (Zhang et al., 2020a; Zhang et al., 2022a; Zhang et al., 2022b). The final result is the average value of multiple results extracted by different people so as to avoid statistical deviation caused by human factors.

The SEM pictures were processed with ImageJ and the processing procedures are shown in Figure 7. The following pore characteristics of shale of different matrices are secured: perimeter, roundness, average pore diameter, average pore area, number of pores per unit area, form factor, fractal dimension, average surface porosity, etc. The statistical results of pore characteristics of shale of different matrices are shown in Figure 8, The analyses are as follows: the pores of solid bitumen, solid bitumen-clay mineral complex mass and clay minerals are large in number, with fine roundness, medium pore diameter, fairly good roundness of pore edges and complex shapes, thus altogether contributing to their large surface porosity, i.e., 17.791, 11.147 and 12.991%, respectively. Therefore, these pores are the main reservoir space of shale oil and gas. Funginite pores have medium pore diameter, good roundness, average number, good roundness of pore edges, and relatively complex shapes, which altogether lead to its medium surface porosity of 3.458%. Funginite pores partially serve as the reservoir space of shale oil and gas. Small in number, structured vitrinite pores have good roundness, large pore diameter, good roundness of pore edges, and relatively complex shapes, which altogether result in the low surface porosity of 1.282%. Structured vitrinite pores slightly function as the reservoir space of shale oil and gas. Small in number, the pores of detrital-vitrinite/detrital-inertinite and the microfractures developed in them have large pore diameters, poor roundness, poor roundness of pore edges, and relatively complex shapes, thus resulting in the low surface porosity of 1.378%. Hence, these pores slightly work as the reservoir space of shale oil and gas.

FIGURE 8

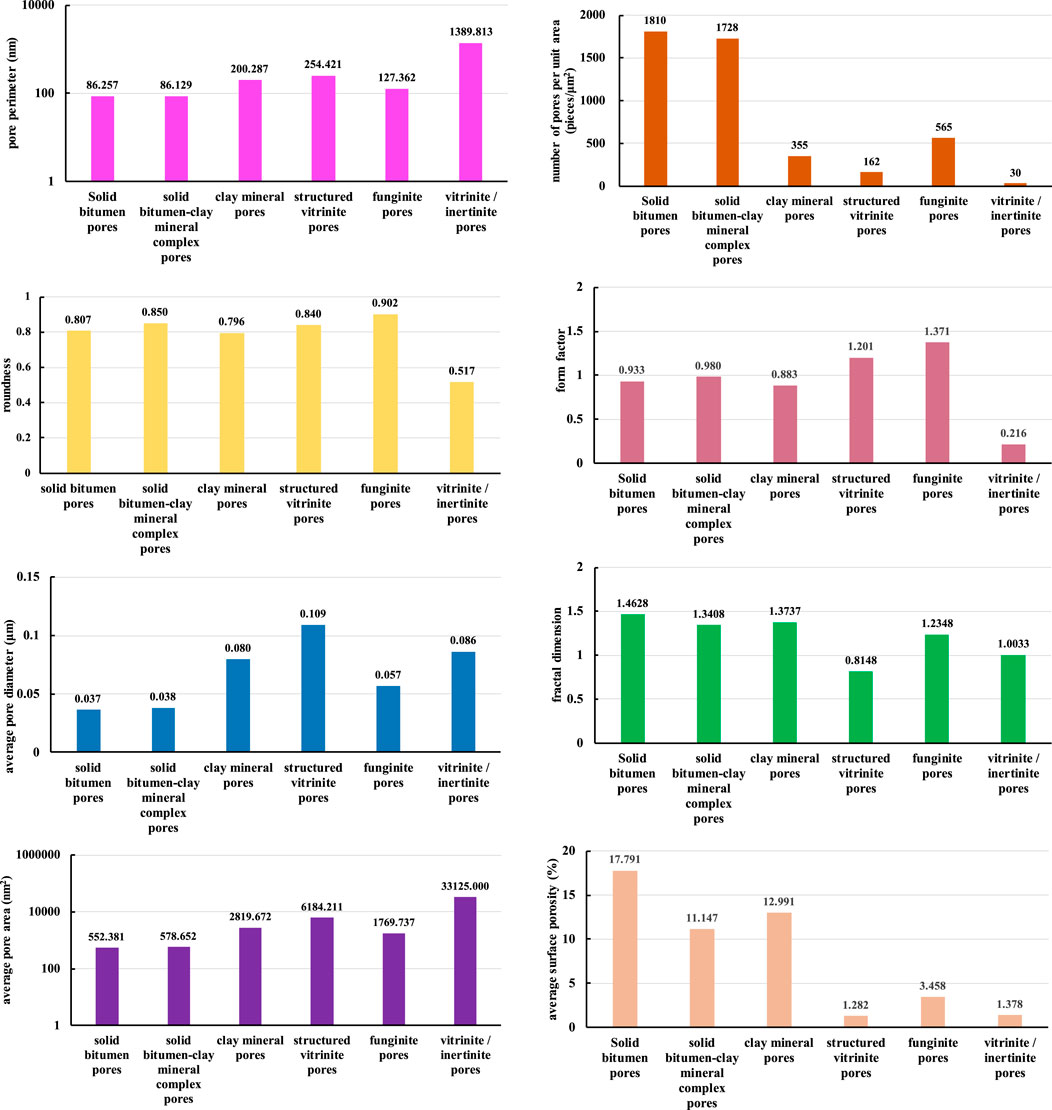

FIGURE 8. Quantitative characterization of pore characteristics of shale with different matrices in Lianggaoshan Formation in Well TYX. See Figure 1 for the well location.

Summary of patterns of pore characteristics of shale oil and gas occurrence

After the above discussion, the patterns of pore characteristics of shale oil and gas occurrence are summarized, which is shown in Figure 9. In terms of lithofacies, medium-high maturity continental shale oil and gas mainly occur in organic-rich clayey shale and organic-rich mixed shale. With regard to the material composition, shale oil and gas mainly occur in clay minerals including organic matter, illite-smectite mixed layers and illite. As for pore types, shale oil and gas mainly occur in the pores of solid bitumen, solid bitumen-clay mineral complex mass and clay minerals, and partly occur in structured vitrinite pores and funginite pores. Among them, pores of solid bitumen, structured vitrinites and funginite are organic.

FIGURE 9

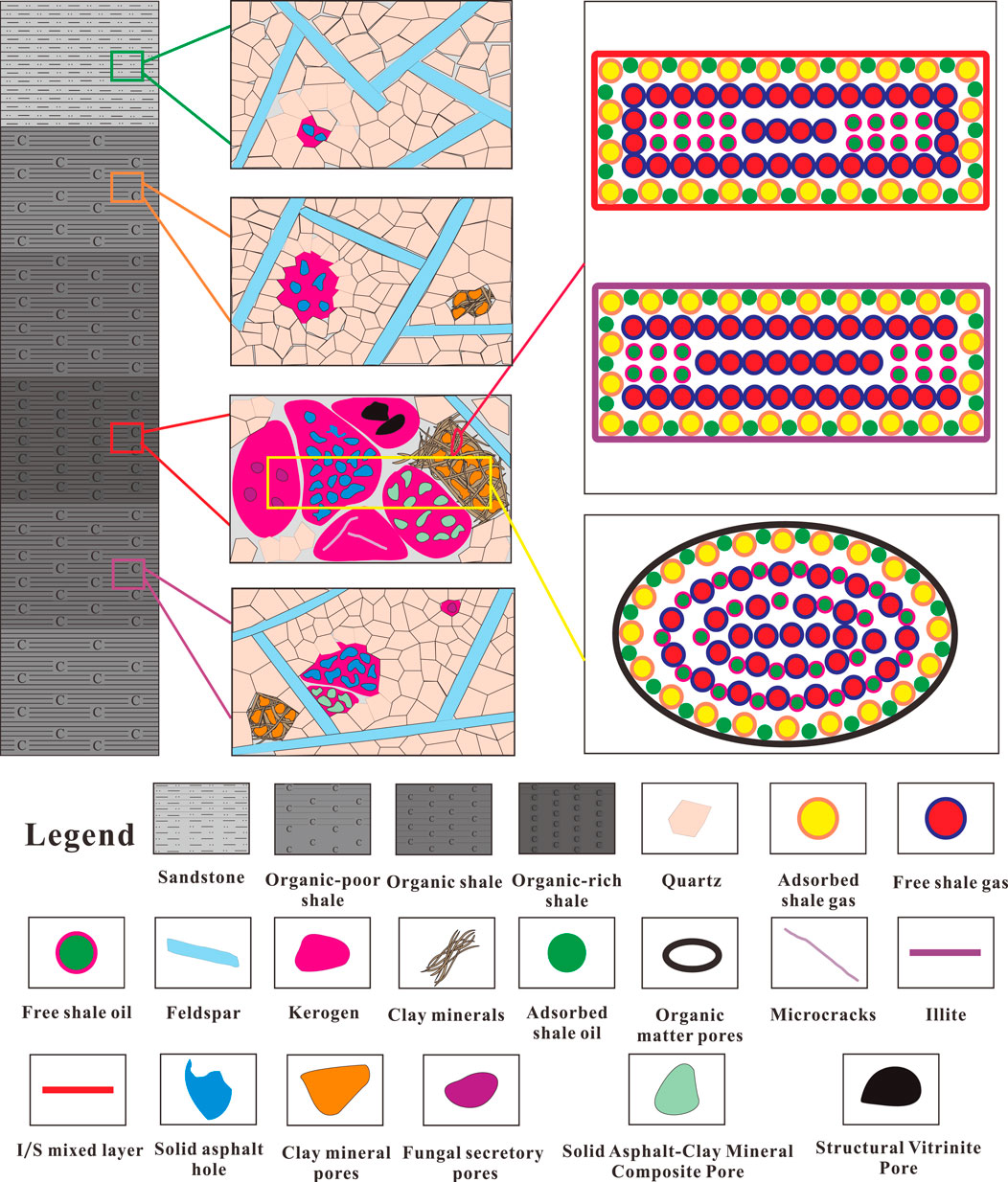

FIGURE 9. Summary of patterns of pore characteristic of medium-high maturity continental shale oil and gas occurrence.

Conclusion

Focused on shale from the Middle Jurassic Lianggaoshan Formation in Well TYX, Fuling block, southeast of Sichuan Basin in the Upper Yangtze region of southern China, this study, selecting shale core samples, has conducted a series of analyses and they are: vitrinite reflectance analysis and kerogen microscopic examination experiment, the identification of shale organic geochemical characteristics, TOC content analysis and mineral composition analysis, the classification of shale lithofacies, S₁ content analysis, gas content measurement and isothermal adsorption experiment, the identification of oil-gas-bearing potential of shale of different lithofacies, as well as occurrence space of shale oil and gas. The SEM with Ar-ion milling and ImageJ were used to identify the main pore types developed in shale, and the pore characteristics of shale of different matrices were quantitatively characterized. The conclusions are drawn as follows:

1) In terms of lithofacies, medium-high maturity continental shale oil and gas mainly occur in organic-rich clayey shale and organic-rich mixed shale.

2) With regard to the material composition, shale oil and gas mainly occur in organic matter, illite-smectite mixed layers and illite which are of clay minerals. The adsorbed gas content in shale accounts for at most 40% of the total shale gas content and the free gas content in shale takes up at least 60% of the total shale gas content.

3) As for pore types, shale oil and gas mainly occur in the pores of solid bitumen, solid bitumen-clay mineral complex mass and clay minerals, and partly occur in structured vitrinite pores and funginite pores.

4) Large in number, the pores of solid bitumen, solid bitumen-clay mineral complex mass, and clay minerals, with the characteristics of fine roundness and large surface porosity, are the main reservoir space of shale oil and gas; funginite pores, with medium pore diameter, good roundness and medium surface porosity, partially serve as the reservoir space of shale oil and gas; small in number, structured vitrinite pores, with good roundness and low surface porosity, slightly function as the reservoir space of shale oil and gas; the pores of detrital-vitrinite/detrital-inertinite and the microfractures developed in them have large pore diameters, poor roundness and low surface porosity, so the pores are merely the reservoir space of shale oil and gas.
