A unified method of predicting soil deformations induced by various shaped-section tunnelling in clays

A unified method of predicting soil deformations induced by general and special-section tunneling in clays is proposed. Assuming that the tunneling-induced ground loss can be divided into infinite ground loss elements, and the soil deformation induced by the overall ground loss is equal to the sum of deformation due to each unit ground loss, the soil deformation due to unit ground loss is first derived based on elasticity theory solution. The soil deformation induced by random shaped-section tunneling is then obtained by integrating along the overall ground loss distribution, and the expressions are presented in the Cartesian and polar coordinate forms, respectively. By means of several cases of single circular tunneling, the reliability of the unified method is well verified through comparing with the measured data, and the performance of this method is quantitatively evaluated against the error analysis of the predictions. Taking the double-O-tube (DOT) shield tunnel for example, the unified method is further applied to predict soil deformation induced by special-section tunneling. The results show that the shape of the surface settlement curve caused by DOT shield tunneling also presents an inverted Gaussian curve. With the increase of the soil depth, the settlement of soil above the DOT shield tunnel increases slightly first and then decreases, and the settlement trough width keeps decreasing, resulting in the change of the shape of the settlement curve from “V” to “W”.

1 Introduction

Until now, shield tunnel construction method has had a history of about 190 years. During a long period of time in the past, the general circular section shield construction method has obtained sufficient development and been widely used in worldwide underground engineering such as subway tunnels and underground pipelines. With the rapid development of urbanization and modernization, the construction of underground engineering is subject to increasing difficulties and challenges in urban, due to the decrease of available underground space and the densification of underground structures (Simpson and Tatsuoka, 2008). Therefore the advanced special-section shield tunneling technology comes into being, which can save the underground space, decrease the impact of tunneling on ambient structures, or reduce the potential security issues in complicated circumstances (Nakamura et al., 2003; Maeda and Kushiyama, 2005; Chow, 2006; Shen et al., 2009; Fang et al., 2012; Huang and Zeng, 2017; Zeng et al., 2022). For instance, as the most widely used special-section shield tunneling technology, the double-O-tube (DOT) shield tunneling have been carried out successfully in Japan, Shanghai and Taipei, China (Fang et al., 2012). In the recent decade, many species of special-section shield tunneling have also been implemented successfully in China, such as rectangular shield tunneling, quasi-rectangular shield tunneling and horseshoe-shaped shield tunneling, as illustrated in Figure 1.

FIGURE 1

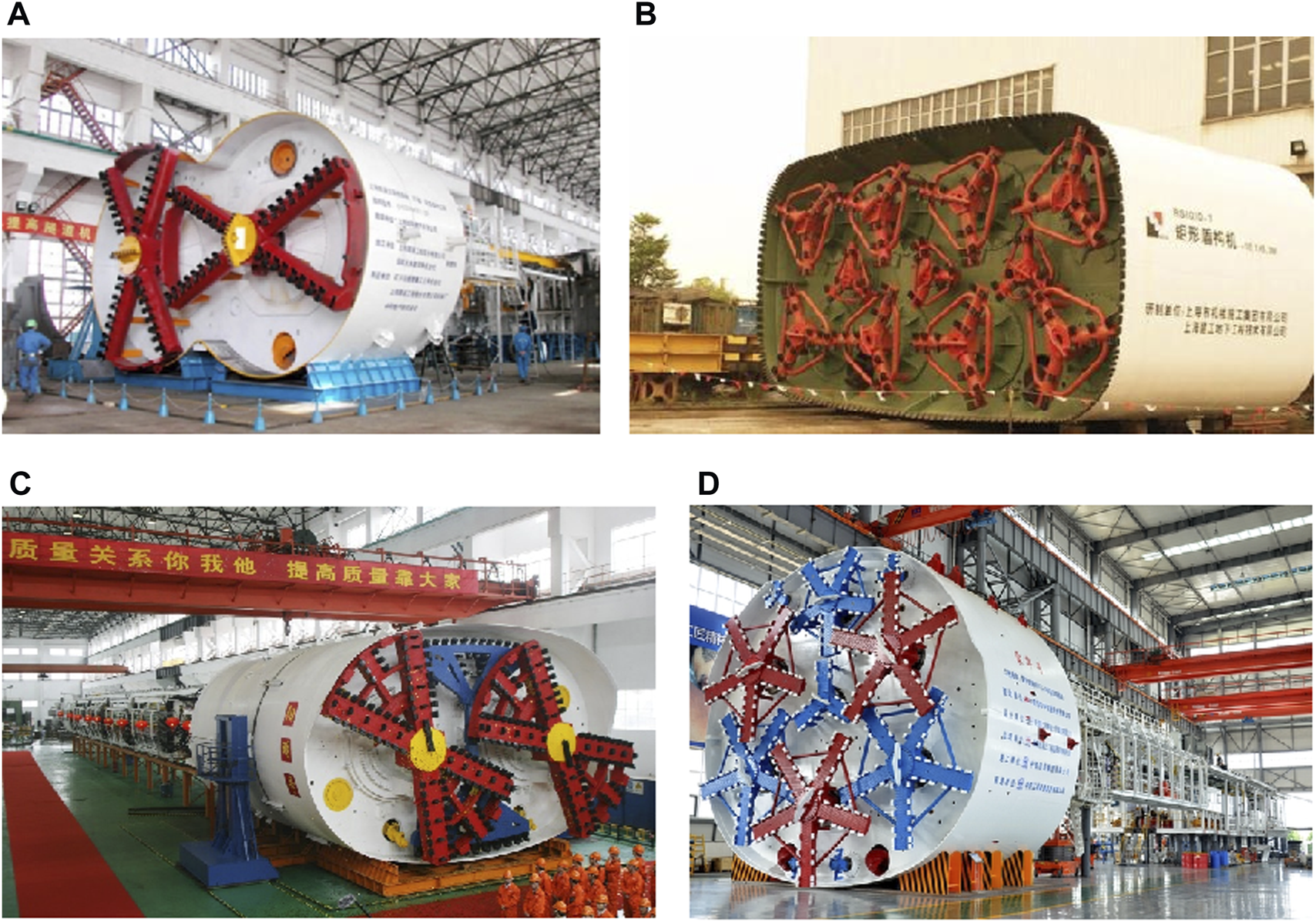

FIGURE 1. Several representative special-section shield machines: (A) DOT shield machine; (B) rectangular shield machine; (C) quasi-rectangular shield machine; (D) horseshoe-shaped shield machine.

The underground excavation will inevitably cause surface and subsurface deformations, and maybe further affect the performance of adjacent underground structures (Bilotta, 2008; Mohamad et al., 2010; Fargnoli et al., 2015; Ng et al., 2016; Cui et al., 2021; Zhou et al., 2021; Cui et al., 2022; Li et al., 2022). Therefore the prediction of soil deformation induced by tunneling is always a key issue in urban underground engineering (Mair, 2008; Wan et al., 2017). Since Peck (1969) presented an empirical equation by means of the statistical analysis based on numerous measured settlements of surface soils during tunnel construction, various methods have been proposed to predict tunneling-induced soil deformation, such as empirical equations (Mair et al., 1993), elastic-plastic analytical solutions (Wood, 1975; Verruijt, 1997; Bobet, 2001; Park, 2004; Park, 2005; Osman et al., 2006; Puzrin et al., 2012; Zymnis et al., 2013), numerical methods (Franzius et al., 2005; Wongsaroj et al., 2007; Wongsaroj et al., 2013; Bym et al., 2013; Avgerinos et al., 2016), and model tests (Loganathan et al., 2000). Using the virtual image technique, Sagaseta (1987) presented a closed form solution for computing soil deformations due to ground loss induced by tunneling in an isotropic and homogeneous incompressible soil. Considering the compressibility of soil and the ovalization of tunnel, Verruijt and Booker (1996) derived the generalization of Sagaseta’s solution based on the uniform radial convergence model of ground loss. However, the estimated results are inconsistent with the observations of soil deformations, and the predicted settlement trough is wider while the predicted horizontal displacement is larger. In fact, due to the self-weight of tunnel, the upward rebound deformation of soil below the tunnel is limited, which leads to non-uniform void distribution around the tunnel lining. Therefore Loganathan and Poulos (1998) proposed the model of oval-shaped soil deformation and derived the prediction equations of soil deformation with short-term undrained conditions. The predicted results are in good agreement with the measured values.

These methods mentioned above are used to predict soil deformation induced by the general circular section tunnel construction. For special-section shield tunneling, there are few studies on the prediction method of soil deformation. Based on the empirical Peck function (1969), the superposition method and the equivalent excavated area method were carried out to predict surface settlement induced by DOT shield tunneling (Fang et al., 2012; Gui and Chen, 2013). The two methods are rude and the predicted results are rough. More unfortunately, the methods cannot be extended to other special-section shield tunnels. Stochastic medium theory method, which is a flexible mature method for predicting soil deformation induced by underground excavation (Yang et al., 2004; Yang and Wang, 2011), also was been successfully used to predict soil deformation induced by DOT shield tunneling (Zeng and Huang, 2016). However, the method can only calculate soil deformation above the tunnel.

In this paper, soil deformation due to unit ground loss is derived based on the equations proposed by Loganathan and Poulos (1998). The overall ground loss induced by underground excavations can be divided into infinitesimal ground loss elements, and the total soil deformation is the sum of soil deformation due to each unit ground loss. Finally, a unified method is proposed to predict soil deformation induced by general and special-section shield tunneling. The proposed method is then applied to the prediction of soil deformation induced by general circular tunneling and DOT shield tunneling, respectively. The predicted soil deformations are compared with the measured values, and the results verify the reliability of the proposed method.

2 Unified prediction method of soil deformation induced by underground excavation

2.1 Overview of Loganathan’s solution

Based on the elasticity theory solution of solid mechanics in semi-infinite spatial elastomer, Sagaseta (1987) firstly derived the closed form solution by means of a virtual image technique in isotropic and homogeneous incompressible soils. Considering the compressibility of soils and the long-term ground deformation due to the ovalization of tunnel lining, Verruijt and Booker (1996) further derived the generalized Sagaseta’s solution based on the model of uniform radial ground deformation (Figure 2A), and soil settlement W (x, z) and horizontal soil deformation U (x, z) with respect to the soil at (x, z) are expressed as (Verruijt and Booker, 1996):

$W\left(x,z\right)=-{\epsilon }_0{R}^2\left(\frac{z_1}{x^2+z_1^2}+\frac{z_2}{x^2+z_2^2}\right)+\delta R^2[\frac{z_1\left(k{x}^2-z_1^2\right)}{{\left(x^2+z_1^2\right)}^2}+\frac{z_2\left(k{x}^2-z_2^2\right)}{{\left(x^2+z_2^2\right)}^2}]+\frac{2{\epsilon }_0{R}^2}{m}\left[\frac{\left(m+1\right)z_2}{x^2+z_2^2}-\frac{mz\left(x^2-z_2^2\right)}{{\left(x^2+z_2^2\right)}^2}\right]-2\delta R^2{z}_0\left[\frac{x^2-z_2^2}{{\left(x^2+z_2^2\right)}^2}+\frac{m}{m+1}\frac{2z{z}_2\left(3x^2-z_2^2\right)}{{\left(x^2+z_2^2\right)}^3}\right](1)$

$U\left(x,z\right)=-{\epsilon }_0{R}^2\left(\frac{x}{x^2+z_1^2}+\frac{x}{x^2+z_2^2}\right)+\delta R^2[\frac{x\left(x^2-k{z}_1^2\right)}{{\left(x^2+z_1^2\right)}^2}+\frac{x\left(x^2-k{z}_2^2\right)}{{\left(x^2+z_2^2\right)}^2}]-\frac{2{\epsilon }_0{R}^{2}x}{m}\left(\frac{1}{x^2+z_2^2}-\frac{2mz{z}_2}{{\left(x^2+z_2^2\right)}^2}\right)-\frac{4\delta R^{2}x{z}_0}{m+1}\left[\frac{z_2}{{\left(x^2+z_2^2\right)}^2}+\frac{mz\left(x^2-3z_2^2\right)}{{\left(x^2+z_2^2\right)}^3}\right](2)$

where z is the soil depth; x is the horizontal distance far away from the tunnel axis; R is the radius of excavated tunnel; k = v/(1-v); m is an auxiliary elastic constant, m = 1/(1-2v); ν is the Poisson’s ratio of soil; z₀ is the ordinate of the tunnel center (i.e., the depth of the tunnel center, h); z₁ = z - z₀; z₂ = z + z₀; δ is the long-term ground deformation parameter due to the ovalization of tunnel lining; ε₀ is the ground loss rate, defined as the ratio of ground loss to the excavated volume.

FIGURE 2

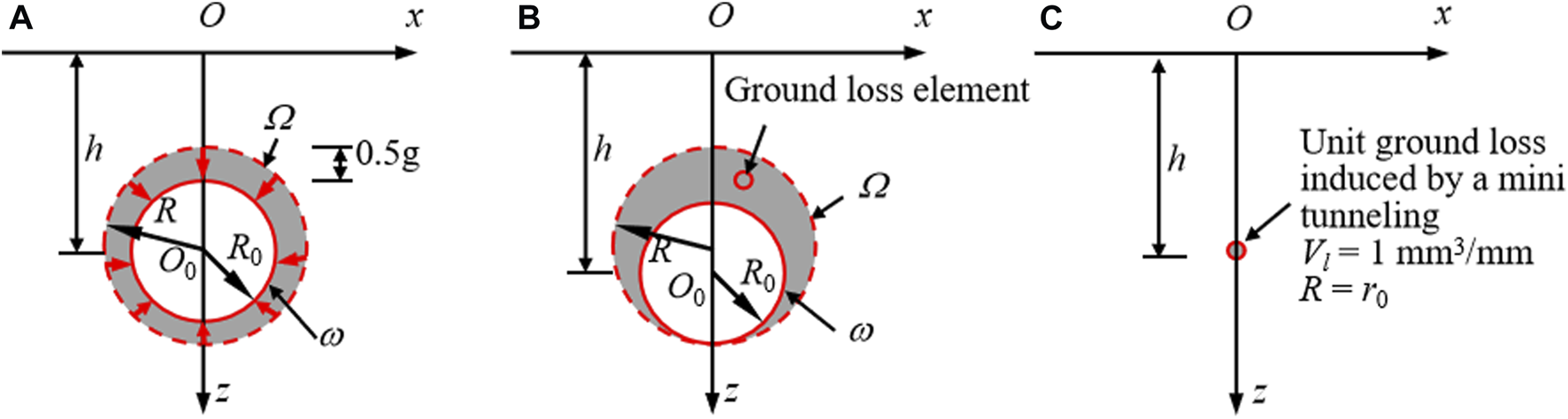

FIGURE 2. Models of ground deformation induced by circular shield tunnelling: (A) uniform radial ground deformation (Verruijt and Booker, 1996); (B) oval-shaped ground deformation (Loganathan and Poulos, 1998); (C) unit ground loss induced by a mini tunneling with the radius of r₀.

For the circular section tunnel, ε₀ can be expressed as

${\epsilon }_0=\frac{V_l}{\pi R^2}(3)$

where V_l is the ground loss per unit length along the direction of tunnel axis (i.e., the area difference between the excavated cross section Ω and the convergent cross section ω in Figures 2A,B).

In practice, the ground loss rate, ε₀, is usually converted by the equivalent ground loss parameter, g, which was defined and discussed in detail by Lee et al. (1992). The relationship between ε₀ and g is (Zeng and Huang, 2016)

${\epsilon }_0=\frac{\pi R^2-\pi {\left(R-g/2\right)}^2}{\pi R^2}=\frac{4gR-g^2}{4R^2}(4)$

The soil deformation, predicted by the generalized Sagaseta’s solution,i.e. Eqs. 1, 2, deviates greatly from the measured value (Loganathan and Poulos, 1998). The analysis from Stallebrass et al. (1996) and Loganathan and Poulos (1998) showed that the tunnel lining would settle due to its self-weight during the tunnel construction, which caused the upward deformation of the soil below the tunnel was limited while the void above the tunnel increased. Therefore Loganathan and Poulos (1998) proposed the model of oval-shaped ground deformation as illustrated in Figure 2B and modified the ground loss rate ε₀, as follows

$\epsilon ={\epsilon }_0\exp \left\{-\left[\frac{1.38x^2}{{\left(h+R\right)}^2}+\frac{0.69z^2}{h^2}\right]\right\}(5)$

On the other hand, the parameter δ in Eqs 1, 2 characterizes the long-term ground deformation due to the ovalization of tunnel lining. Loganathan and Poulos (1998) only considered soil deformation with short-term undrained conditions during the period of tunnel construction, and neglected the long-term soil deformation (i.e., δ = 0). Substituting Eq. 5 and δ = 0 into Eqs 1, 2, Loganathan and Poulos (1998) obtained the analytical function for predicting tunneling-induced soil deformation in clays, expressed as

$W\left(x,z\right)=-{\epsilon }_0{R}^2\{\frac{z-z_0}{x^2+{\left(z-z_0\right)}^2}-\frac{\left(3-4v\right)\left(z+z_0\right)}{x^2+{\left(z+z_0\right)}^2}+\frac{2z\left[x^2-{\left(z+z_0\right)}^2\right]}{{\left[x^2+{\left(z+z_0\right)}^2\right]}^2}\}\exp \left\{-\left[\frac{1.38x^2}{{\left(z_0+R\right)}^2}+\frac{0.69z^2}{z_0^2}\right]\right\}(6)$

$U\left(x,z\right)=-{\epsilon }_0{R}^{2}x[\frac{1}{x^2+{\left(z-z_0\right)}^2}+\frac{3-4v}{x^2+{\left(z+z_0\right)}^2}-\frac{4z\left(z+z_0\right)}{{\left[x^2+{\left(z+z_0\right)}^2\right]}^2}]\exp \left\{-\left[\frac{1.38x^2}{{\left(z_0+R\right)}^2}+\frac{0.69z^2}{z_0^2}\right]\right\}(7)$

2.2 Soil deformation due to unit ground loss

Sagaseta (1987) considered that the ground loss induced by single tunneling was concentrated at the tunnel axis to compute the surface ground deformation. According to this law, with the decrease of the tunnel radius, R, the magnitude of ground loss, V_l, reduces, and the dispersive ground loss also tends to be concentrated in the tunnel center. According to the study by Yang et al. (2004), the whole ground loss volume induced by tunneling can be considered to be divided into infinitesimal ground loss units, and the overall soil deformation is equal to the sum of the soil deformation induced by each unit ground loss. Therefore, it can be assumed that the ground loss in Figures 2A,B can be divided into infinite ground loss elements and that the soil deformation induced by the overall ground loss is equal to the sum of deformation due to each unit ground loss. As a result, the soil deformation equation induced by unit ground loss can be derived through dividing soil deformation formula developed by Verruijt and Booker (1996) and Loganathan and Poulos (1998) by the ground loss induced by the general single circular tunneling, where the ground loss has been assumed to be concentrated at the tunnel center.

As illustrated in Figure 2C, when unit ground loss is generated (i.e., V_l = 1 mm³/mm) induced by a mini tunneling, the corresponding tunnel radius is tagged as r₀. According to the definition of the ground loss rate, ε₀, in Eq. 3, the following expression can be obtained.

${\epsilon }_0=\frac{1}{\pi r_0^2}(8)$

The mini tunnel radius, r₀, corresponding to unit ground loss, thus is

$r_0=\frac{1}{\sqrt{\pi {\epsilon }_0}}(9)$

Replacing R in Eqs 6, 7 with the mini tunnel radius, r₀, soil deformation due to unit ground loss located at (0, z₀) can be derived, as follows

$w\left(x,z\right)=-\frac{1}{\pi }\{\frac{z-z_0}{x^2+{\left(z-z_0\right)}^2}-\frac{\left(3-4v\right)\left(z+z_0\right)}{x^2+{\left(z+z_0\right)}^2}+\frac{2z\left[x^2-{\left(z+z_0\right)}^2\right]}{{\left[x^2+{\left(z+z_0\right)}^2\right]}^2}\}\exp \left\{-\left[\frac{1.38x^2}{{\left(z_0+1/\sqrt{\pi {\epsilon }_0}\right)}^2}+\frac{0.69z^2}{z_0^2}\right]\right\}(10)$

$u\left(x,z\right)=-\frac{x}{\pi }[\frac{1}{x^2+{\left(z-z_0\right)}^2}+\frac{3-4v}{x^2+{\left(z+z_0\right)}^2}-\frac{4z\left(z+z_0\right)}{{\left[x^2+{\left(z+z_0\right)}^2\right]}^2}]\exp \left\{-\left[\frac{1.38x^2}{{\left(z_0+1/\sqrt{\pi {\epsilon }_0}\right)}^2}+\frac{0.69z^2}{z_0^2}\right]\right\}(11)$

The ground loss rate, ε₀, is mainly determined by the geological conditions, the construction method and the construction technology level (Standing and Burland, 2006). The analysis carried out by Attewell (1978) showed that the range of ε₀ was 0.5%–2.5% in clays. O’Reilly and New (1982) summarized the magnitude of ε₀ in various types of soil in the United Kingdom, as listed in Table 1. The study from Mair (1996) showed that ε₀ was generally in the range of 0.5%–2.0% in the homogeneous soil, of which 0.5% in sand soils and 1%–2% in soft soils.

TABLE 1

TABLE 1. Empirical values of the ground loss rate, ε₀, in the United Kingdom (Mair, 1996).

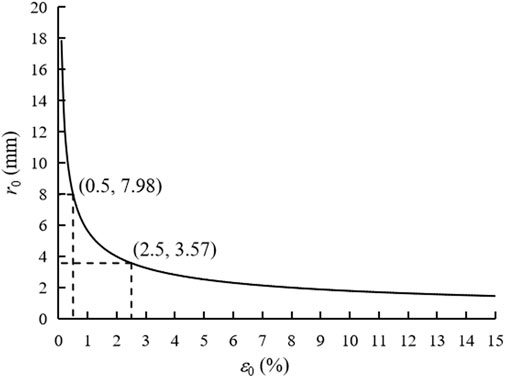

Figure 3 shows the relationship between r₀ and ε₀. When ε₀ increases from 0.1% to 15.0%, r₀ decreases from 17.84 to 1.46 mm. Especially, the range of r₀ in clays is 3.57–7.98 mm z₀ in Eqs 10, 11 represents the depth of the mini tunnel (approximatively the ordinate of unit ground loss), which is generally in the order of meter. As a result, the quadratic term (z₀ + 1/$\sqrt{\pi {\epsilon }_0}$)² in Eqs 10, 11 can be approximatively equal to z2 0when subsequently analyzing the influence of the parameters, ν and h, on soil deformation due to unit ground loss.

FIGURE 3

FIGURE 3. Relationship between r₀ and ε₀.

The influence of Poisson’s ratio,ν, on surface deformation due to unit ground loss located at (0, h) is shown in Figures 4A,B. It can be seen that Poisson’s ratio of soil will affect significantly soil deformation. With the decrease of Poisson’s ratio, both soil settlement and horizontal deformation almost increase linearly. When ν = 3.5, soil deformation field induced by unit ground loss is shown in Figure 4C. Maximum deformation is about 2h⁻¹ mm, and is located just above and near the ground loss element. Soils in the section all tend to move towards the ground loss element.

FIGURE 4

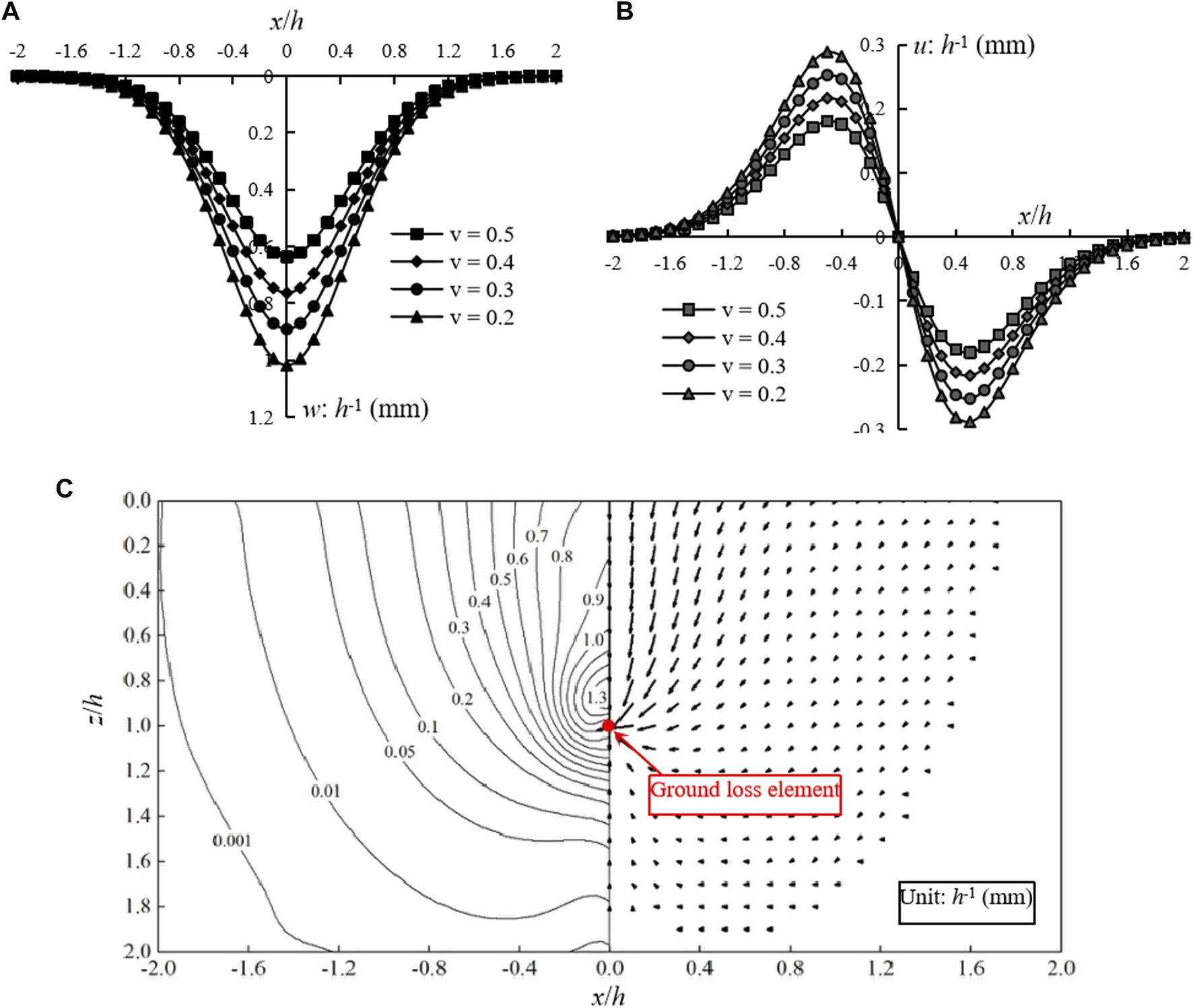

FIGURE 4. Soil deformation due to unit ground loss: (A) surface settlement; (B) horizontal surface deformation; (C) Soil deformation field.

Eqs. 10, 11 are the formulas for computing soil deformation induced by unit ground loss located at (0, z₀). As for unit ground loss located at arbitrary position (x₀, z₀), according to the translation of coordinate axes, the general expressions for soil deformation due to unit ground loss can be written as

$w\left(x,z\right)=-\frac{1}{\pi }\{\frac{z-z_0}{{\left(x-x_0\right)}^2+{\left(z-z_0\right)}^2}-\frac{\left(3-4v\right)\left(z+z_0\right)}{{\left(x-x_0\right)}^2+{\left(z+z_0\right)}^2}+\frac{2z\left[{\left(x-x_0\right)}^2-{\left(z+z_0\right)}^2\right]}{{\left[{\left(x-x_0\right)}^2+{\left(z+z_0\right)}^2\right]}^2}\}\exp \left\{-\left[\frac{1.38{\left(x-x_0\right)}^2}{{\left(z_0+1/\sqrt{\pi {\epsilon }_0}\right)}^2}+\frac{0.69z^2}{z_0^2}\right]\right\}(12)$

$u\left(x,z\right)=-\frac{\left(x-x_0\right)}{\pi }[\frac{1}{{\left(x-x_0\right)}^2+{\left(z-z_0\right)}^2}+\frac{3-4v}{{\left(x-x_0\right)}^2+{\left(z+z_0\right)}^2}-\frac{4z\left(z+z_0\right)}{{\left[{\left(x-x_0\right)}^2+{\left(z+z_0\right)}^2\right]}^2}]\exp \left\{-\left[\frac{1.38{\left(x-x_0\right)}^2}{{\left(z_0+1/\sqrt{\pi {\epsilon }_0}\right)}^2}+\frac{0.69z^2}{z_0^2}\right]\right\}(13)$

2.3 General formula of unified prediction method

According to the assumption in Section 2.2 that the whole ground loss is divided into infinite ground loss elements and the soil deformation induced by the overall ground loss is equal to the sum of deformation due to each unit ground loss, a unified prediction formula of soil deformation induced by random shaped section tunneling can be expressed in the following Cartesian coordinate form.

$W\left(x,z\right)={\iint }_{\Omega -\omega }w\left(x,z,x_0=\xi ,z_0=\eta \right)d\xi d\eta (14)$

$U\left(x,z\right)={\iint }_{\Omega -\omega }u\left(x,z,x_0=\xi ,z_0=\eta \right)d\xi d\eta (15)$

In most cases, the outer boundary of the cross section of tunnel is arc-shaped. To provide ease of calculation, the unified prediction formula of soil deformation with a polar coordinate form is needed. As illustrated in Figures 5A,B, the location of arbitrary ground loss element in Cartesian coordinate system (ξ, η) can be denoted by the local polar coordinate (r, θ), and the dimension of ground loss element dξ by dη can also be converted into r by dr by dθ, where (X₀, Z₀) is the center coordinate of local circle containing the ground loss element. According to the geometrical relationship, the following equations of coordinate transformation can be obtained.

$\xi =X_0+r\cos \theta (16)$

$\eta =Z_0-r\sin \theta (17)$

FIGURE 5

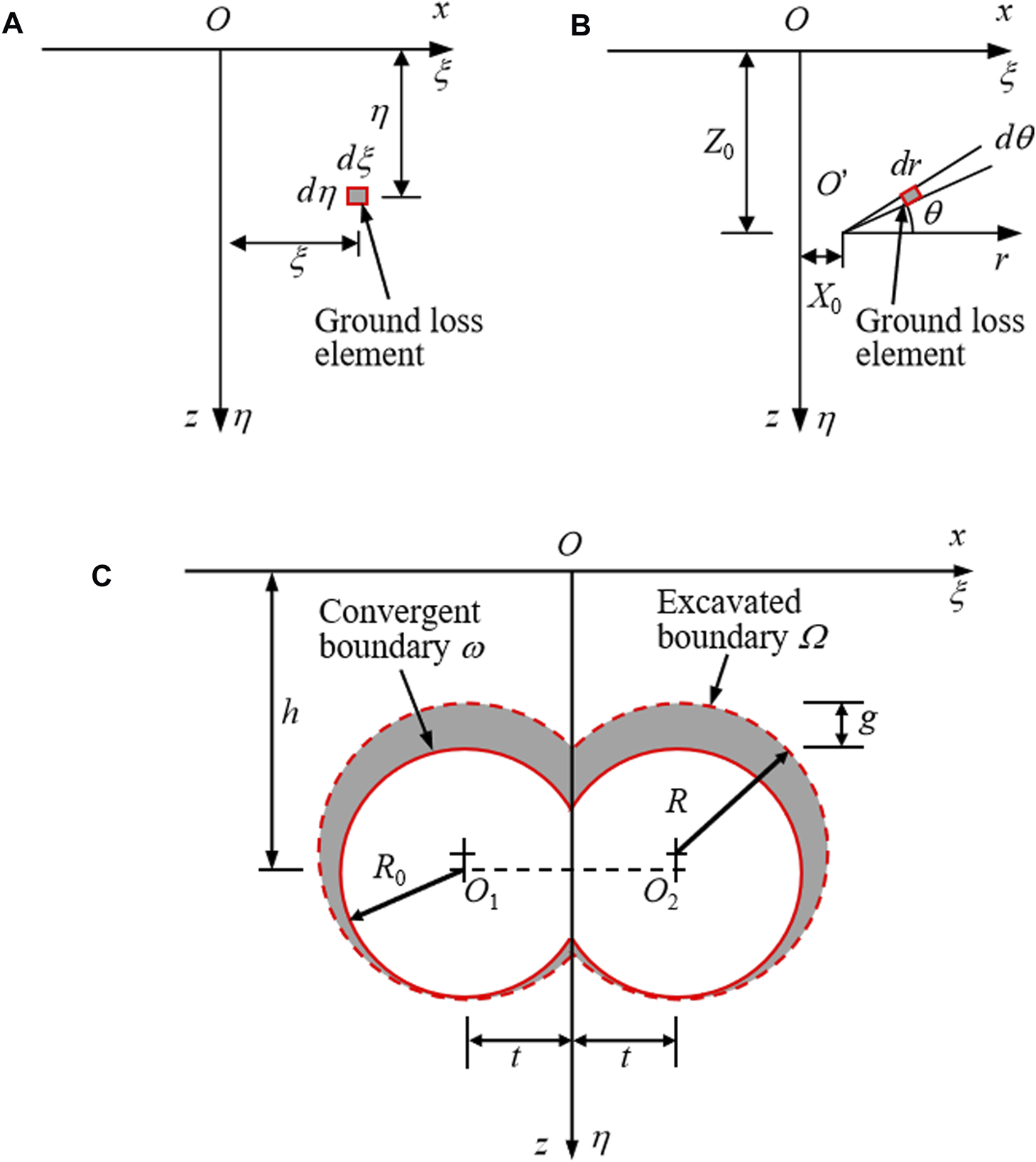

FIGURE 5. Model of DOT shield tunneling-induced soil deformation: (A) Cartesian coordinate system considering ground loss element; (B) polar coordinate system considering ground loss element; (C) Ground loss model induced by DOT shield tunnelling.

Substituting Eqs 16, 17 into Eqs 14, 15, the unified prediction formula of soil deformation with the polar coordinate form can be expressed as follows.

$W\left(x,z\right)={\iint }_{\Omega -\omega }w\left(x,z,x_0=X_0+r\cos \theta ,z_0=Z_0-r\sin \theta \right)rdrd\theta (18)$

$U\left(x,z\right)={\iint }_{\Omega -\omega }u\left(x,z,x_0=X_0+r\cos \theta ,z_0=Z_0-r\sin \theta \right)rdrd\theta (19)$

The above formulas can be applied to predict soil deformation induced by tunneling with a random shaped section, such as the general circular tunnel, the DOT shield tunnel, the rectangular shield tunnel and the quasi-rectangular shield tunnel.

3 General and DOT shield tunneling-induced soil deformation

3.1 General circular section tunneling-induced soil deformation

Circular section tunnels are the most widely adopted in the underground engineering. According to the statement in Section 2.1, the model of oval-shaped ground deformation proposed by Loganathan and Poulos (1998) is more reasonable than the model of uniform radial ground deformation. As shown in Figure 2B, based on the model of oval-shaped ground deformation, herein the unified formulas of soil deformation with the polar coordinate form, i.e., Eqs 18, 19, are chosen to conveniently integrate along the distribution area of ground loss. According to the geometrical relation, the expressions can be written as follows.

$W\left(x,z\right)={\iint }_{\Omega }w\left(x,z,x_0=r\cos \theta ,z_0=h-0.5g-r\sin \theta \right)rdrd\theta$

$-{\iint }_{\omega }w\left(x,z,x_0=r\cos \theta ,z_0=h-r\sin \theta \right)rdrd\theta$

$={\int }_0^{2\pi }{\int }_0^R-\frac{1}{\pi }\{\frac{z-h+0.5g+r\sin \theta }{{\left(x-r\cos \theta \right)}^2+{\left(z-h+0.5g+r\sin \theta \right)}^2}$

$-\frac{\left(3-4v\right)\left(z+h-0.5g-r\sin \theta \right)}{{\left(x-r\cos \theta \right)}^2+{\left(z+h-0.5g-r\sin \theta \right)}^2}+\frac{2z\left[{\left(x-r\cos \theta \right)}^2-{\left(z+h-0.5g-r\sin \theta \right)}^2\right]}{{\left[{\left(x-r\cos \theta \right)}^2+{\left(z+h-0.5g-r\sin \theta \right)}^2\right]}^2}\}$

$\exp \left\{-\left[\frac{1.38{\left(x-r\cos \theta \right)}^2}{{\left(h-0.5g-r\sin \theta +1/\sqrt{\pi {\epsilon }_0}\right)}^2}+\frac{0.69z^2}{{\left(h-0.5g-r\sin \theta \right)}^2}\right]\right\}rdrd\theta$

$-{\int }_0^{2\pi }{\int }_0^{R-0.5g}-\frac{1}{\pi }\{\frac{z-h+r\sin \theta }{{\left(x-r\cos \theta \right)}^2+{\left(z-h+r\sin \theta \right)}^2}$

$-\frac{\left(3-4v\right)\left(z+h-r\sin \theta \right)}{{\left(x-r\cos \theta \right)}^2+{\left(z+h-r\sin \theta \right)}^2}+\frac{2z\left[{\left(x-r\cos \theta \right)}^2-{\left(z+h-r\sin \theta \right)}^2\right]}{{\left[{\left(x-r\cos \theta \right)}^2+{\left(z+h-r\sin \theta \right)}^2\right]}^2}\}$

$\exp \left\{-\left[\frac{1.38{\left(x-r\cos \theta \right)}^2}{{\left(h-r\sin \theta +1/\sqrt{\pi {\epsilon }_0}\right)}^2}+\frac{0.69z^2}{{\left(h-r\sin \theta \right)}^2}\right]\right\}rdrd\theta (20)$

$U\left(x,z\right)={\iint }_{\Omega }u\left(x,z,x_0=r\cos \theta ,z_0=h-0.5g-r\sin \theta \right)rdrd\theta$

$-{\iint }_{\omega }u\left(x,z,x_0=r\cos \theta ,z_0=h-r\sin \theta \right)rdrd\theta$

$={\int }_0^{2\pi }{\int }_0^R-\frac{\left(x-r\cos \theta \right)}{\pi }[\frac{1}{{\left(x-r\cos \theta \right)}^2+{\left(z-h+0.5g+r\sin \theta \right)}^2}$

$+\frac{3-4v}{{\left(x-r\cos \theta \right)}^2+{\left(z+h-0.5g-r\sin \theta \right)}^2}-\frac{4z\left(z+h-0.5g-r\sin \theta \right)}{{\left[{\left(x-r\cos \theta \right)}^2+{\left(z+h-0.5g-r\sin \theta \right)}^2\right]}^2}]$

$\exp \left\{-\left[\frac{1.38{\left(x-r\cos \theta \right)}^2}{{\left(h-0.5g-r\sin \theta +1/\sqrt{\pi {\epsilon }_0}\right)}^2}+\frac{0.69z^2}{{\left(h-0.5g-r\sin \theta \right)}^2}\right]\right\}rdrd\theta$

$-{\int }_0^{2\pi }{\int }_0^{R-0.5g}-\frac{\left(x-r\cos \theta \right)}{\pi }[\frac{1}{{\left(x-r\cos \theta \right)}^2+{\left(z-h+r\sin \theta \right)}^2}$

$+\frac{3-4v}{{\left(x-r\cos \theta \right)}^2+{\left(z+h-r\sin \theta \right)}^2}-\frac{4z\left(z+h-r\sin \theta \right)}{{\left[{\left(x-r\cos \theta \right)}^2+{\left(z+h-r\sin \theta \right)}^2\right]}^2}]$

$\exp \left\{-\left[\frac{1.38{\left(x-r\cos \theta \right)}^2}{{\left(h-r\sin \theta +1/\sqrt{\pi {\epsilon }_0}\right)}^2}+\frac{0.69z^2}{{\left(h-r\sin \theta \right)}^2}\right]\right\}rdrd\theta (21)$

3.2 DOT shield tunneling-induced soil deformation

DOT shield tunneling is a typical method of special-section shield tunnel constructions. As shown in Figure 1A, the cross-section of DOT shield machine is formed by two incomplete circles, each of which has a cutter head with four radial spokes in the end to cut the soil. During the advance of DOT shield tunnel, the two cutter heads rotate synchronously at a same speed with a fixed phase angle to avoid the mutual contact and crash. The construction process of DOT shield tunnel was described in detail by Chow (2006), Shen et al. (2009); Shen et al. (2010) and Fang et al. (2012).

Similar to the model of soil deformation induced by the general circular tunneling (Figure 2B), the model of soil deformation induced by DOT shield tunneling is demonstrated in Figure 5C, where t denotes a half of the distance between two tunnel centers, and other parameters have the same meanings with those in Figure 2B. Herein the unified prediction formulas with the Cartesian coordinate form, i.e., Eqs 14, 15, are chosen to calculate soil deformation induced by DOT shield tunneling. According to the geometrical relation, the expressions can be written as follows.

$W\left(x,z\right)={\iint }_{\Omega -\mathrm{l}\mathrm{e}\mathrm{f}\mathrm{t}}w\left(x,z,x_0=\xi ,z_0=\eta \right)d\xi d\eta +{\iint }_{\Omega -\mathrm{r}\mathrm{i}\mathrm{g}\mathrm{h}\mathrm{t}}w\left(x,z,x_0=\xi ,z_0=\eta \right)d\xi d\eta$

$-{\iint }_{\omega -\mathrm{l}\mathrm{e}\mathrm{f}\mathrm{t}}w\left(x,z,x_0=\xi ,z_0=\eta \right)d\xi d\eta -{\iint }_{\omega -\mathrm{r}\mathrm{i}\mathrm{g}\mathrm{h}\mathrm{t}}w\left(x,z,x_0=\xi ,z_0=\eta \right)d\xi d\eta$

$={\int }_{-t-R}^0{\int }_{h-0.5g-\sqrt{R^2-{\left(\xi +t\right)}^2}}^{h-0.5g+\sqrt{R^2-{\left(\xi +t\right)}^2}}-\frac{1}{\pi }\{\frac{z-\eta }{{\left(x-\xi \right)}^2+{\left(z-\eta \right)}^2}-\frac{\left(3-4v\right)\left(z+\eta \right)}{{\left(x-\xi \right)}^2+{\left(z+\eta \right)}^2}$

$+\frac{2z\left[{\left(x-\xi \right)}^2-{\left(z+\eta \right)}^2\right]}{{\left[{\left(x-\xi \right)}^2+{\left(z+\eta \right)}^2\right]}^2}\}\exp \left\{-\left[\frac{1.38{\left(x-\xi \right)}^2}{{\left(\eta +1/\sqrt{\pi {\epsilon }_0}\right)}^2}+\frac{0.69z^2}{{\eta }^2}\right]\right\}d\eta d\xi$

$+{\int }_0^{t+R}{\int }_{h-0.5g-\sqrt{R^2-{\left(\xi -t\right)}^2}}^{h-0.5g+\sqrt{R^2-{\left(\xi -t\right)}^2}}-\frac{1}{\pi }\{\frac{z-\eta }{{\left(x-\xi \right)}^2+{\left(z-\eta \right)}^2}-\frac{\left(3-4v\right)\left(z+\eta \right)}{{\left(x-\xi \right)}^2+{\left(z+\eta \right)}^2}$

$+\frac{2z\left[{\left(x-\xi \right)}^2-{\left(z+\eta \right)}^2\right]}{{\left[{\left(x-\xi \right)}^2+{\left(z+\eta \right)}^2\right]}^2}\}\exp \left\{-\left[\frac{1.38{\left(x-\xi \right)}^2}{{\left(\eta +1/\sqrt{\pi {\epsilon }_0}\right)}^2}+\frac{0.69z^2}{{\eta }^2}\right]\right\}d\eta d\xi$

$-{\int }_{-t-R+0.5g}^0{\int }_{h-\sqrt{{\left(R-0.5g\right)}^2-{\left(\xi +t\right)}^2}}^{h+\sqrt{{\left(R-0.5g\right)}^2-{\left(\xi +t\right)}^2}}-\frac{1}{\pi }\{\frac{z-\eta }{{\left(x-\xi \right)}^2+{\left(z-\eta \right)}^2}-\frac{\left(3-4v\right)\left(z+\eta \right)}{{\left(x-\xi \right)}^2+{\left(z+\eta \right)}^2}$

$+\frac{2z\left[{\left(x-\xi \right)}^2-{\left(z+\eta \right)}^2\right]}{{\left[{\left(x-\xi \right)}^2+{\left(z+\eta \right)}^2\right]}^2}\}\exp \left\{-\left[\frac{1.38{\left(x-\xi \right)}^2}{{\left(\eta +1/\sqrt{\pi {\epsilon }_0}\right)}^2}+\frac{0.69z^2}{{\eta }^2}\right]\right\}d\eta d\xi$

$-{\int }_0^{t+R-0.5g}{\int }_{h-\sqrt{{\left(R-0.5g\right)}^2-{\left(\xi -t\right)}^2}}^{h+\sqrt{{\left(R-0.5g\right)}^2-{\left(\xi -t\right)}^2}}-\frac{1}{\pi }\{\frac{z-\eta }{{\left(x-\xi \right)}^2+{\left(z-\eta \right)}^2}-\frac{\left(3-4v\right)\left(z+\eta \right)}{{\left(x-\xi \right)}^2+{\left(z+\eta \right)}^2}$

$+\frac{2z\left[{\left(x-\xi \right)}^2-{\left(z+\eta \right)}^2\right]}{{\left[{\left(x-\xi \right)}^2+{\left(z+\eta \right)}^2\right]}^2}\}\exp \left\{-\left[\frac{1.38{\left(x-\xi \right)}^2}{{\left(\eta +1/\sqrt{\pi {\epsilon }_0}\right)}^2}+\frac{0.69z^2}{{\eta }^2}\right]\right\}d\eta d\xi (22)$

$U\left(x,z\right)={\iint }_{\Omega -\mathrm{l}\mathrm{e}\mathrm{f}\mathrm{t}}u\left(x,z,x_0=\xi ,z_0=\eta \right)d\xi d\eta +{\iint }_{\Omega -\mathrm{r}\mathrm{i}\mathrm{g}\mathrm{h}\mathrm{t}}u\left(x,z,x_0=\xi ,z_0=\eta \right)d\xi d\eta$

$-{\iint }_{\omega -\mathrm{l}\mathrm{e}\mathrm{f}\mathrm{t}}u\left(x,z,x_0=\xi ,z_0=\eta \right)d\xi d\eta -{\iint }_{\omega -\mathrm{r}\mathrm{i}\mathrm{g}\mathrm{h}\mathrm{t}}u\left(x,z,x_0=\xi ,z_0=\eta \right)d\xi d\eta$

$={\int }_{-t-R}^0{\int }_{h-0.5g-\sqrt{R^2-{\left(\xi +t\right)}^2}}^{h-0.5g+\sqrt{R^2-{\left(\xi +t\right)}^2}}-\frac{\left(x-\xi \right)}{\pi }[\frac{1}{{\left(x-\xi \right)}^2+{\left(z-\eta \right)}^2}+\frac{3-4v}{{\left(x-\xi \right)}^2+{\left(z+\eta \right)}^2}$

$-\frac{4z\left(z+\eta \right)}{{\left[{\left(x-\xi \right)}^2+{\left(z+\eta \right)}^2\right]}^2}]\exp \left\{-\left[\frac{1.38{\left(x-\xi \right)}^2}{{\left(\eta +1/\sqrt{\pi {\epsilon }_0}\right)}^2}+\frac{0.69z^2}{{\eta }^2}\right]\right\}d\eta d\xi$

$+{\int }_0^{t+R}{\int }_{h-0.5g-\sqrt{R^2-{\left(\xi -t\right)}^2}}^{h-0.5g+\sqrt{R^2-{\left(\xi -t\right)}^2}}-\frac{\left(x-\xi \right)}{\pi }[\frac{1}{{\left(x-\xi \right)}^2+{\left(z-\eta \right)}^2}+\frac{3-4v}{{\left(x-\xi \right)}^2+{\left(z+\eta \right)}^2}$

$-\frac{4z\left(z+\eta \right)}{{\left[{\left(x-\xi \right)}^2+{\left(z+\eta \right)}^2\right]}^2}]\exp \left\{-\left[\frac{1.38{\left(x-\xi \right)}^2}{{\left(\eta +1/\sqrt{\pi {\epsilon }_0}\right)}^2}+\frac{0.69z^2}{{\eta }^2}\right]\right\}d\eta d\xi$

$-{\int }_{-t-R+0.5g}^0{\int }_{h-\sqrt{{\left(R-0.5g\right)}^2-{\left(\xi +t\right)}^2}}^{h+\sqrt{{\left(R-0.5g\right)}^2-{\left(\xi +t\right)}^2}}-\frac{\left(x-\xi \right)}{\pi }[\frac{1}{{\left(x-\xi \right)}^2+{\left(z-\eta \right)}^2}+\frac{3-4v}{{\left(x-\xi \right)}^2+{\left(z+\eta \right)}^2}$

$-\frac{4z\left(z+\eta \right)}{{\left[{\left(x-\xi \right)}^2+{\left(z+\eta \right)}^2\right]}^2}]\exp \left\{-\left[\frac{1.38{\left(x-\xi \right)}^2}{{\left(\eta +1/\sqrt{\pi {\epsilon }_0}\right)}^2}+\frac{0.69z^2}{{\eta }^2}\right]\right\}d\eta d\xi$

$-{\int }_0^{t+R-0.5g}{\int }_{h-\sqrt{{\left(R-0.5g\right)}^2-{\left(\xi -t\right)}^2}}^{h+\sqrt{{\left(R-0.5g\right)}^2-{\left(\xi -t\right)}^2}}-\frac{\left(x-\xi \right)}{\pi }[\frac{1}{{\left(x-\xi \right)}^2+{\left(z-\eta \right)}^2}+\frac{3-4v}{{\left(x-\xi \right)}^2+{\left(z+\eta \right)}^2}-\frac{4z\left(z+\eta \right)}{{\left[{\left(x-\xi \right)}^2+{\left(z+\eta \right)}^2\right]}^2}]\exp \left\{-\left[\frac{1.38{\left(x-\xi \right)}^2}{{\left(\eta +1/\sqrt{\pi {\epsilon }_0}\right)}^2}+\frac{0.69z^2}{{\eta }^2}\right]\right\}d\eta d\xi (23)$

By means of MATLAB programming, Eqs 20–23 can be solved numerically. As a result, soil deformation at an arbitrary position of the cross section, induced by the general and DOT shield tunnel construction, can be computed.

4 Case studies

4.1 General circular tunneling

Five typical circular tunnels presented by Loganathan and Poulos (1998) are selected to verify the reliability of this proposed analytical method, which consists of various construction methods and small to large section tunnels. The background of each case was described by Loganathan and Poulos (1998). The soil layers and the relevant calculation parameters are listed in Table 2. Soil deformations including soil settlements and horizontal deformations predicted by this method are compared with the measured values and the predicted results from Loganathan’s solution.

TABLE 2

TABLE 2. Soil layers and relevant calculation parameters of circular tunneling-induced soil deformation (Loganathan and Poulos, 1998).

Figure 6 shows the predicted and measured surface settlements. As the most important parameters of surface settlement curve, the maximum surface settlement (i.e., the settlement of the surface ground above the tunnel center) and the surface settlement trough width are listed in Table 3. It can be seen that the maximum surface settlement predicted by this proposed method is slightly greater than that predicted by Loganathan’s solution, and the surface settlement trough width computed by this method is smaller than the latter.

FIGURE 6

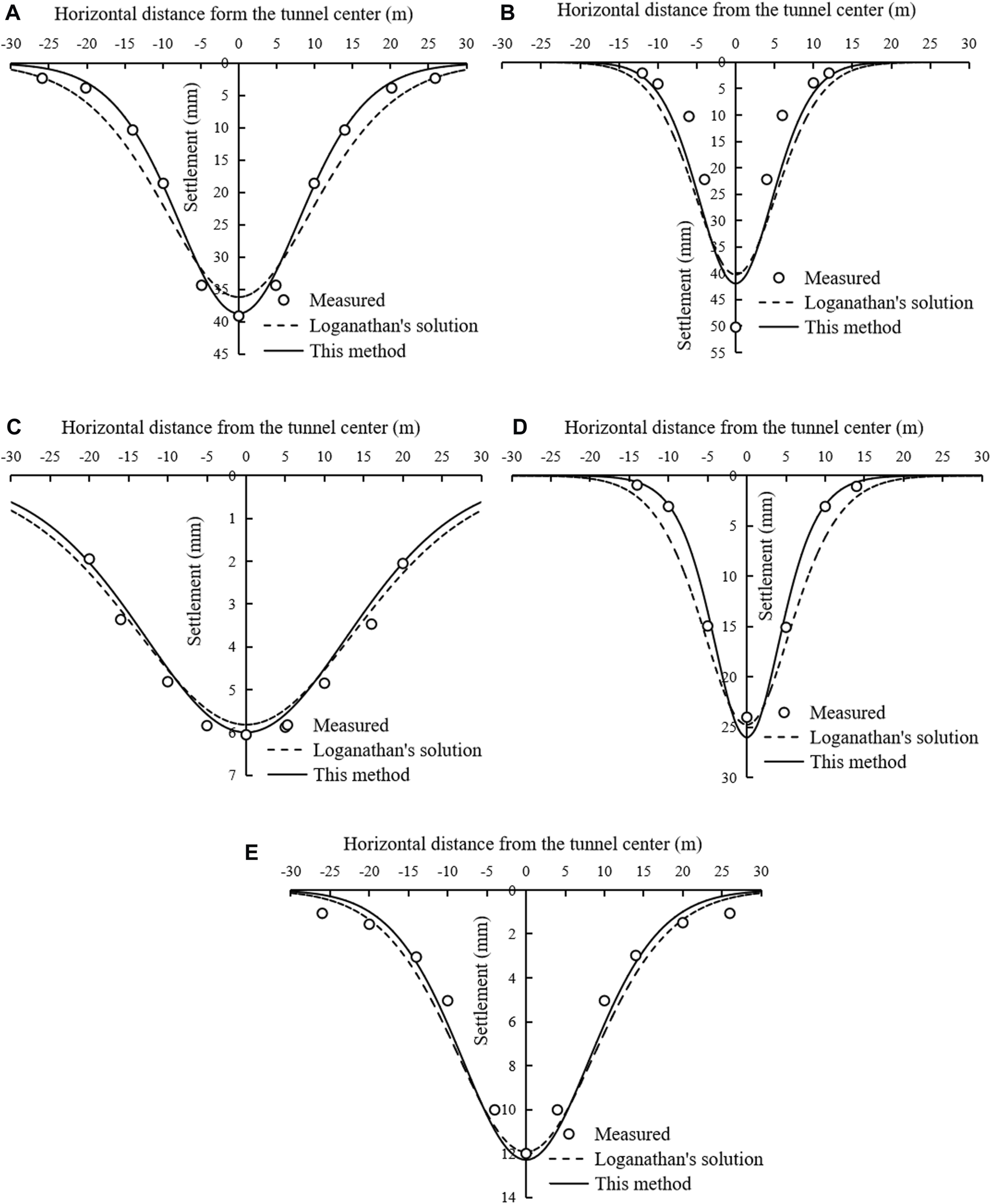

FIGURE 6. Surface settlement induced by general circular tunneling: (A) Heathrow Express Trail Tunnel; (B) Thunder Bay Tunnel; (C) Green Park Tunnel; (D) Barcelona Subway Tunnel; (E) Sewer Tunnel, Bangkok.

TABLE 3

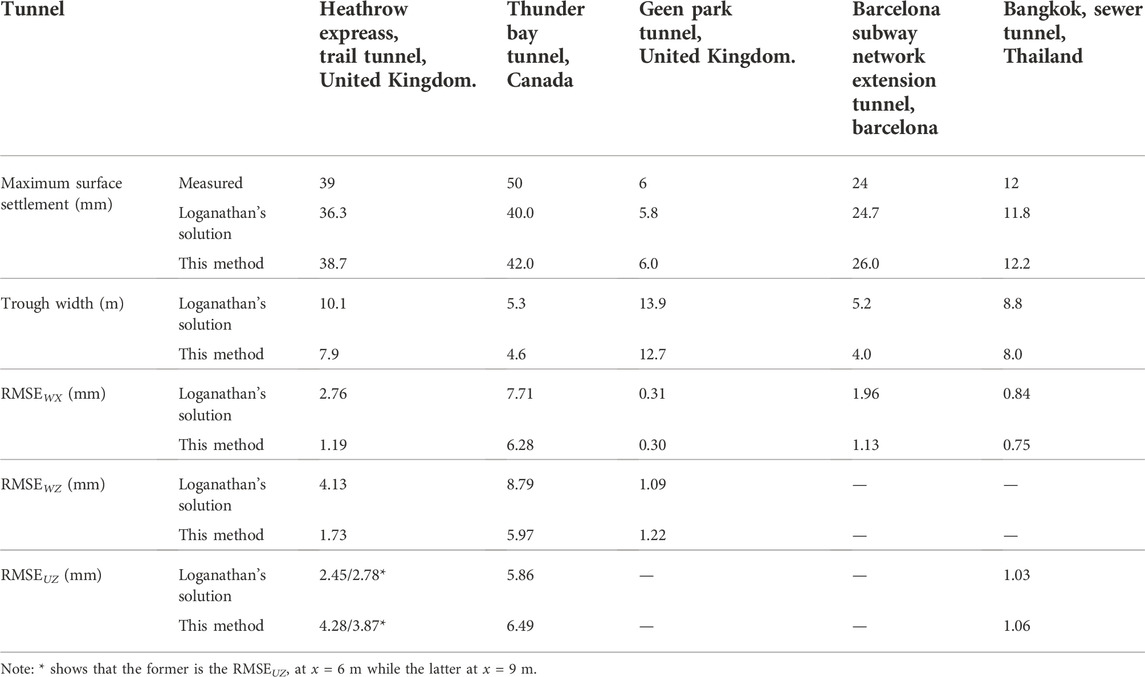

TABLE 3. Comparison of predicted and measured soil deformation parameters.

To quantitatively analyze the performance of the proposed method, the root mean square error (RMSE) is introduced to evaluate the difference between the prediction results and the measured values. The expression of RMSE is as follows.

$\mathrm{R}\mathrm{M}\mathrm{S}\mathrm{E}=\sqrt{\frac{1}{N}{\displaystyle \sum }_{i=1}^N{\left(d_i-d_{0i}\right)}^2}(24)$

where N is the number of the measured points; d_i and d_0i are the predicted and measured soil deformation at the ith measured point, respectively.

The RMSE value of the surface settlement of each case in Figure 6, denoted by RMSE_WX, is presented in Table 3. For all the five tunnels, the RMSE_WX values calculated by this method are smaller than those computed by Loganathan’s solution. Therefore, the surface settlement predicted by this method is in better agreement with the measured value, and the performance of the unified method is better than that of Loganathan’s solution.

The soil settlements, at different depths above the tunnel center, of three tunnels are evaluated in Figure 7, and the RMSE values of the soil settlements are listed in Table 3, denoted by RMSE_WZ. Except for the Green Park Tunnel, where the RMSE_WZ value calculated by this method is slightly greater than that obtained from Loganathan’s solution, the RMSE_WZ values from this method are obviously smaller for the other two tunnels.

FIGURE 7

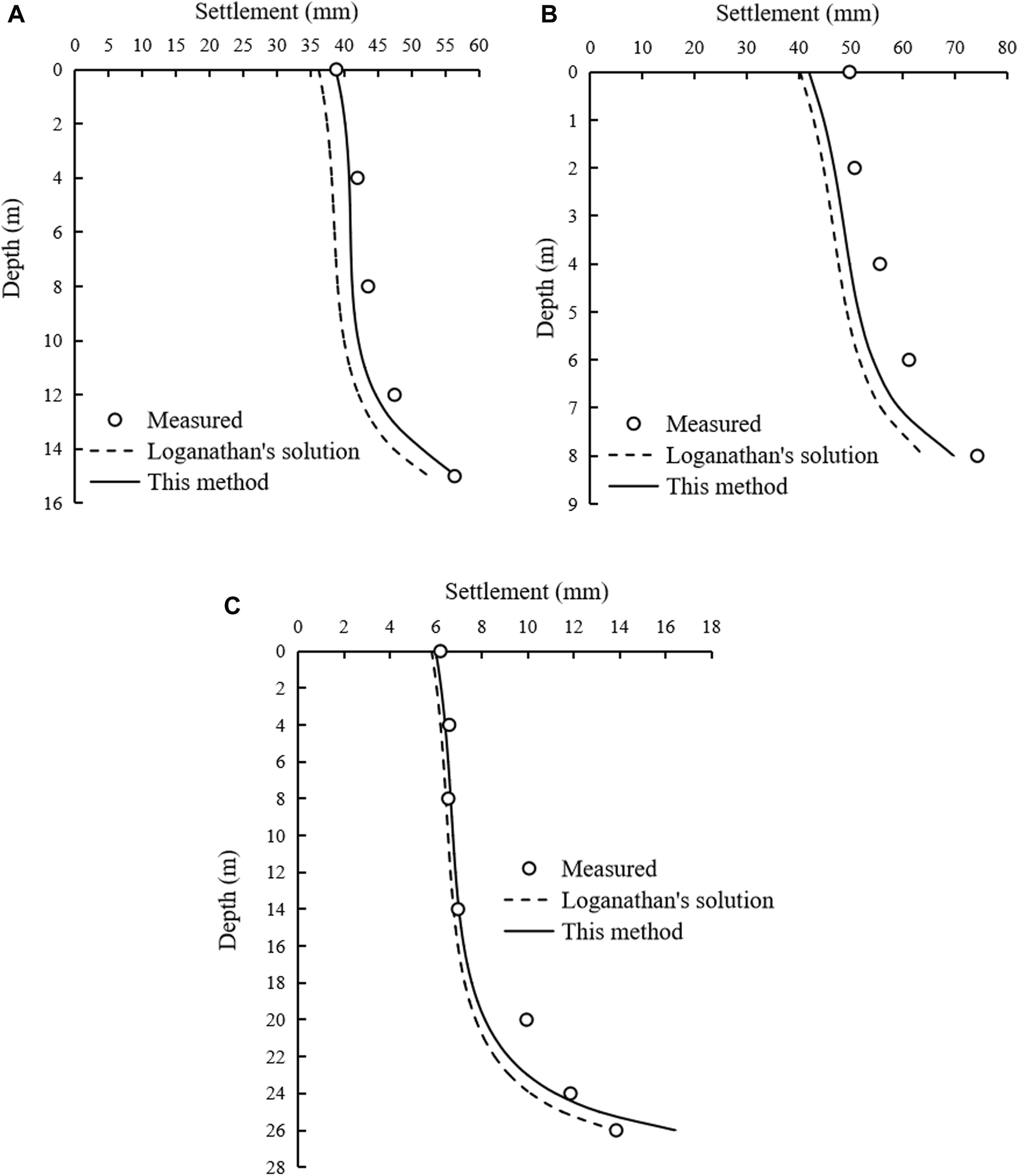

FIGURE 7. Settlement above the tunnel center induced by general circular tunneling: (A) Heathrow Express Trail Tunnel; (B) Thunder Bay Tunnel; (C) Green Park Tunnel.

Figure 8 shows the horizontal deformations of soils with the same transverse distance from the tunnel center at different depths. It can be seen that the performance of this method is better than that of Loganathan’s solution for the soils above the tunnel, whereas is worse for the soils below the tunnel. The RMSE value of horizontal soil deformation, denoted by RMSE_UZ, is shown in Table 3. The RMSE_UZ value from this method are slightly greater than those obtained from Loganathan’s solution.

FIGURE 8

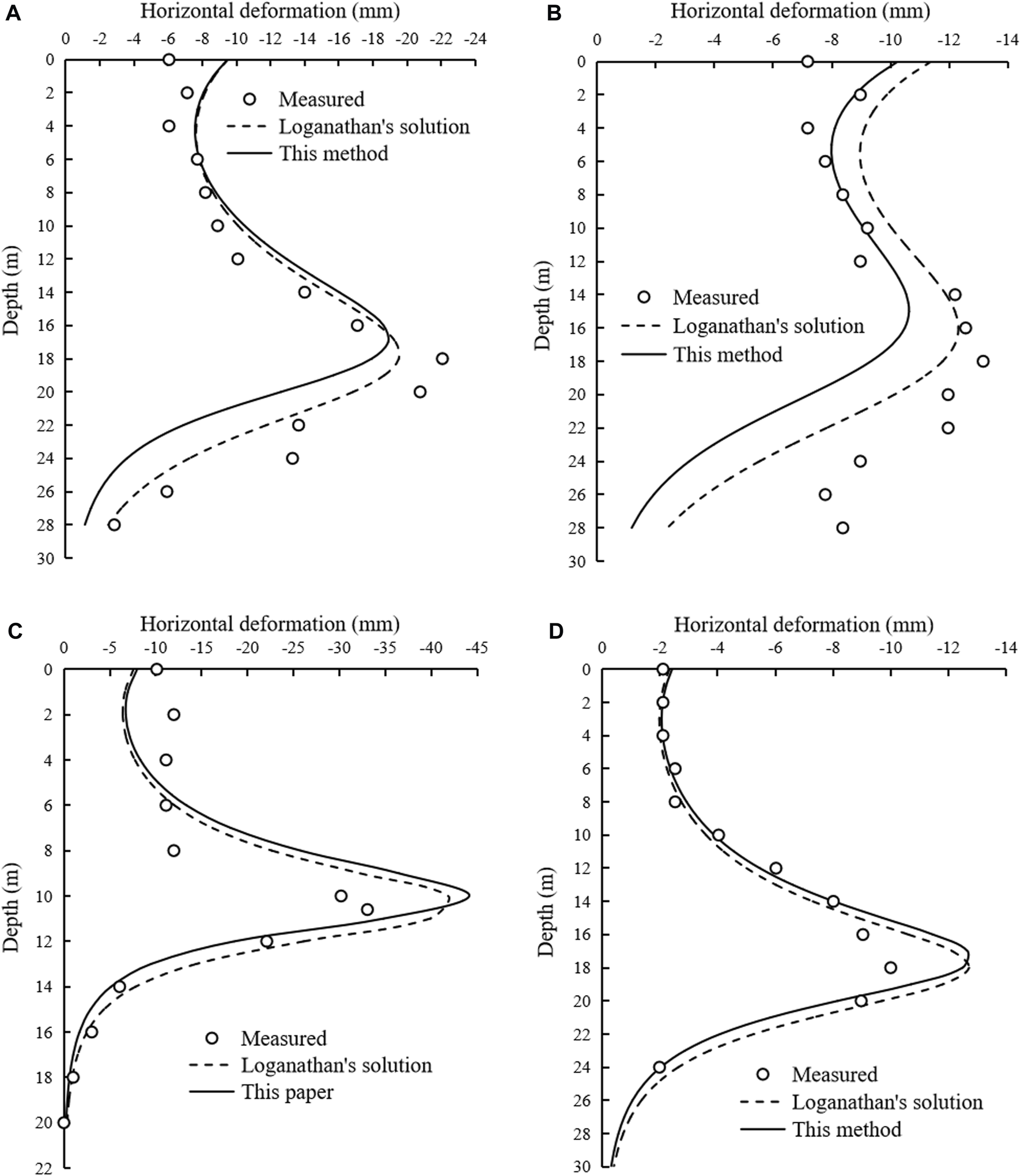

FIGURE 8. Horizontal deformation induced by general circular tunneling: (A) Heathrow Express Trail Tunnel: x = 6 m; (B) Heathrow Express Trail Tunnel: x = 9 m; (C) Thunder Bay Tunnel: x = 2.2 m; (D) Sewer Tunnel, Bangkok: x = 4 m.

As a whole, the performance of this method is better than that of Loganathan’s solution, especially for the prediction of soil settlement. Therefore, the reliability of this proposed method is verified.

4.2 DOT shield tunneling

The lot 9 of Shanghai metro line 6 was constructed by DOT shield tunneling. The DOT shield machine was manufactured by the Japanese Ishikawajima-Harima Heavy Industries (IHI), with 6,520 mm in external diameter and 11,120 mm in external width, and 6,370 mm in inner diameter and 10,970 mm in inner width. The length of the DOT shield machine was 7,880 mm The lining of the DOT shield tunnel was made up by the prefabricated reinforced concrete components, and each ring of the lining consisted of 11 components. The process of assembling the lining was described by Chow (2006) in detail. The geological condition of the DOT shield tunnel is illustrated in Table 4. Herein the monitored sections at the 100th and 130th ring are studied, labeled by R100 and R130. The relevant calculation parameters of soil deformation in the sections are listed in Table 5.

TABLE 4

TABLE 4. Soil conditions in the project of lot 9 of Shanghai metro line 6 (Zeng et al., 2016).

TABLE 5

TABLE 5. Calculation parameters of soil deformation induced by DOT shield tunneling and surface deformations.

The predicted and measured surface settlements in the two sections are shown in Figure 9. The shape of the surface settlement curve is similar to that in the general single circular tunnel, i.e. an inverted Gaussian curve (Peck, 1969). The maximum surface settlement and the predicted surface settlement trough width are presented in Table 5. It can be seen that the predicted maximum surface settlements are very close to the measured ones. The surface settlement trough widths are ∼7.2 m The RMSE values of surface settlements in the sections R100 and R130, denoted by RMSE_WZ in Table 5, are 3.10 mm and 1.86 mm, respectively.

FIGURE 9

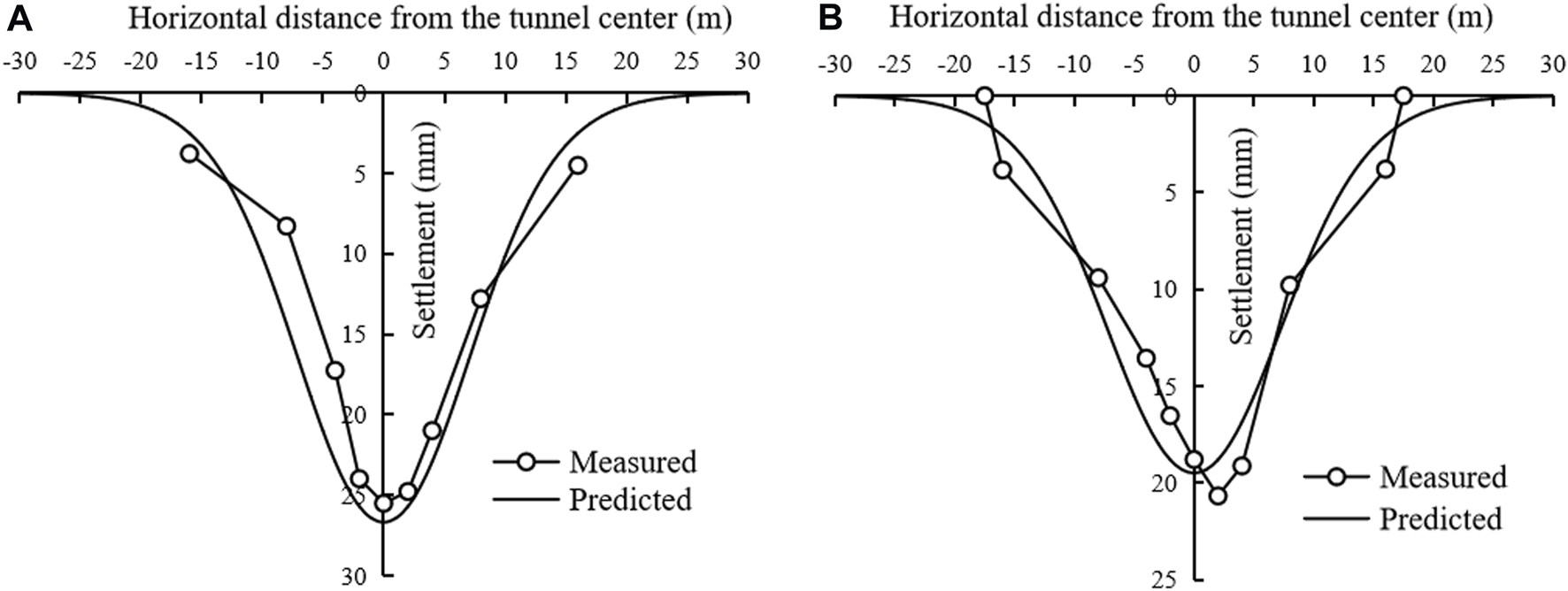

FIGURE 9. Surface settlement induced by DOT shield tunneling: (A) R100; (B) R130.

To analyze the impact of the depth on the soil deformation, taking the section R100 as an example, the soil settlement and horizontal deformation at different depths are shown in Figures 10A–D. With the increase of the soil depth, the settlement of soil above the tunnel center increases slightly first and then decreases dramatically, and the settlement trough width keeps decreasing, which changes the shape of the settlement curve from “V” to “W”. The maximum settlement of soil above the tunnel center is ∼28.00 mm and occurs at ∼3.06 m below the ground. On the other hand, with the increase of the soil depth, the maximum horizontal deformation decreases first and then increases, and the corresponding transverse distance from the tunnel center almost keeps decreasing. Particularly, for the soil at ∼3.61 m depth, the maximum horizontal deformation is ∼4.94 m, which occurs at a transverse distance of ∼7.32 m from the tunnel center, and is smaller than the maximum horizontal deformations at other depths above the tunnel.

FIGURE 10

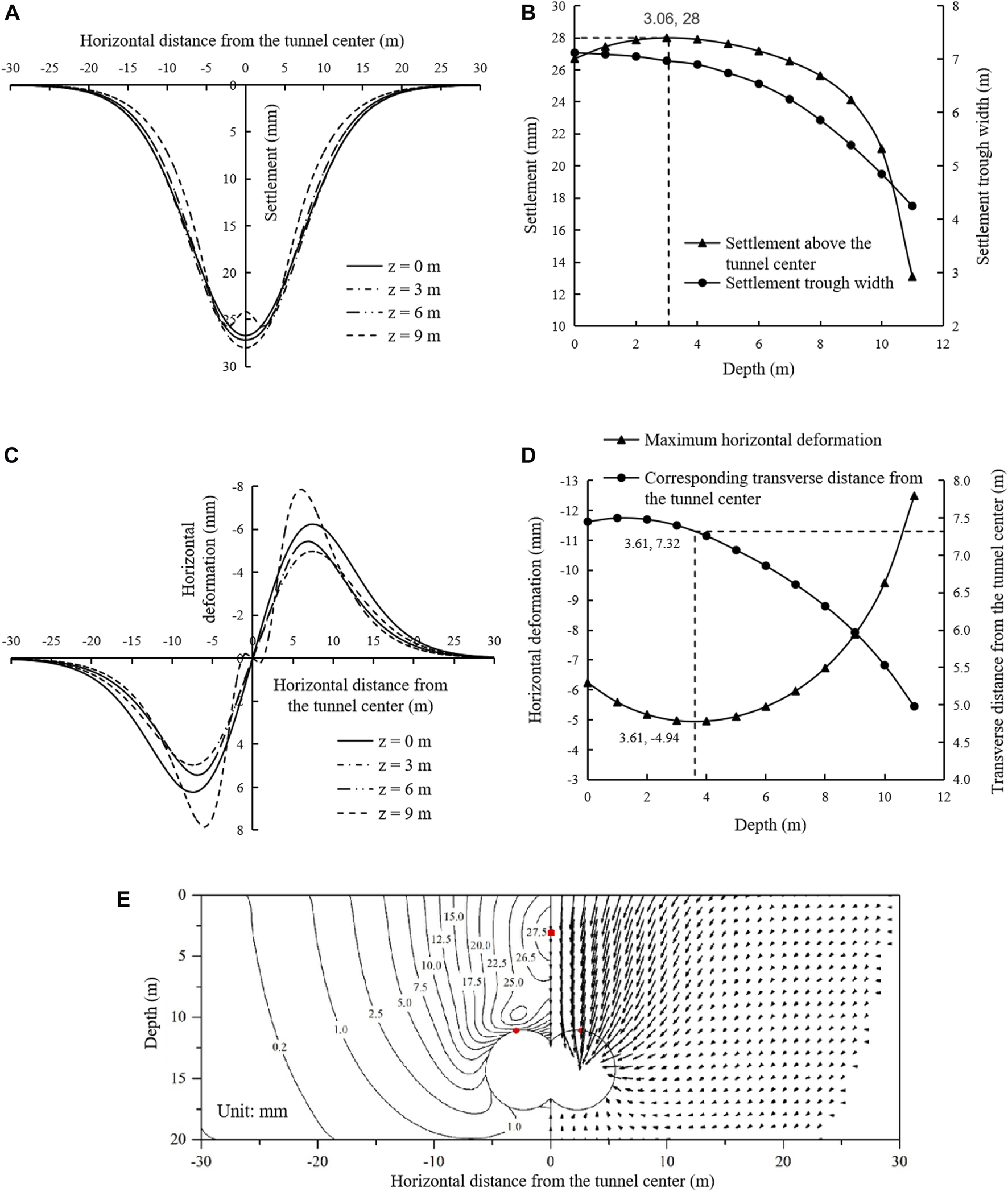

FIGURE 10. Soil deformations at R100 induced by DOT shield tunneling: (A) settlement curve; (B) characteristic settlement parameters; (C) horizontal deformation curve; (D) maximum horizontal deformation and position; (E) Soil deformation field.

Figure 10E shows the deformation field at the section R100 induced by DOT shield tunneling, where the left part is a contour map and the right part is a vector diagram. As marked by a small rectangular block in Figure 10E, the maximum deformation of soil above the DOT shield tunnel center is ∼28.00 mm and its position is at ∼3.06 m below the ground, which are the same as the maximum soil settlement and location in Figures 10A,B, due to no horizontal deformations above the DOT shield tunnel. In the whole section, the maximum deformation is ∼32.04 mm, and occurs at ∼11.10 m depth and at a transverse distance of ∼2.93 m from the tunnel center (almost on the top of the left and right tunnels), marked by a small circular block in Figure 10E.

5 Conclusion

Based on elasticity theory solution for predicting single circular tunneling-induced soil deformation, this paper first derived the soil deformation due to unit ground loss. Assuming that the tunneling-induced ground loss could be divided into infinite ground loss elements and the soil deformation induced by the overall ground loss was equal to the sum of deformation due to each unit ground loss, a unified method for predicting the soil deformation induced by a random shaped section tunnel construction was proposed, and the expressions were presented in two forms (Cartesian coordinate form and polar coordinate form). Subsequently, the unified method was applied to evaluate the soil deformation induced by the general single circular tunneling and DOT shield tunneling. Through the analysis of several cases, the following conclusions can be summarized.

(1) For general single circular tunneling, the maximum surface settlement predicted by this method is greater than that obtained from Loganathan’s solution, and the surface settlement trough width is smaller. With the increase of the soil depth, the predicted settlement of soil above the tunnel center by this method is always larger than that by Loganathan’s solution. In most cases, the predicted horizontal deformation of soil above the tunnel by this method is slightly larger than that by Loganathan’s solution, whereas that below the tunnel by this method is smaller.

(2) Compared with the measured values, for the soil settlement, the performance of this method is better than that of Loganathan’s solution through calculating the EMSE value. Nevertheless, for the horizontal soil deformation, the latter is slightly better than the former.

(3) For DOT shield tunneling, compared with the measured surface settlements, the predicted results by this method are reliable. With the increase of the soil depth, the settlement of soil above the DOT shield tunnel increases slightly first and then decreases, and the settlement trough width keeps decreasing. Meanwhile, the maximum horizontal soil deformation decreases first and then increases.

(4) The unified prediction method can be used flexibly to compute not only the soil deformation induced by random shaped section tunneling but also the deformation of soil at an arbitrary position in the section, and therefore is of a wide applicability.
