Front. Earth Sci., 11 November 2022
Sec. Solid Earth Geophysics
This article is part of the Research Topic Advances and Applications of Passive Seismic Source Characterization View all 12 articles

Sensitivity analysis of anisotropic parameter inversion simultaneously with microseismic source location in layered VTI media

  • 1Key Laboratory of Petroleum Resource Research, Institute of Geology and Geophysics, Chinese Academy of Sciences, Beijing, China
  • 2Innovation Academy for Earth Science, Chinese Academy of Sciences, Beijing, China

The hypocenters of microseismic events induced by hydraulic fracturing are conventionally located with an initial model established from well logs or perforation shots. In most geological settings, the arrival times are insufficiently explained without accounting for the velocity changes introduced by the reservoir stimulation process. The model parameters and source locations should be inverted simultaneously with arrival time information. Therefore, the joint inversion of event locations and velocity model requires the information of anisotropy parameters, which leads to the problem of the selection of degree of symmetry of anisotropic media in the inversion process. Since it is not possible to retrieve all elastic moduli from limited passive seismic data, the joint inversion is constrained to layered vertical transversely isotropic (VTI) media. Various methods have been proposed to invert the velocity model and source locations from the arrival times in anisotropic media, but the number of retrievable parameters in different parametrization types and acquisition scenarios have not been decisively discussed. We analyze the sensitivities for event locations and anisotropic parameters by the singular value decomposition (SVD) of the Fréchet derivatives in a layered anisotropic medium with vertical axis of symmetry. The singular values and eigenvectors obtained from SVD can be used to predict which unknown parameters are better constrained by the available traveltimes. The comparison of different parametrizations and monitoring array configurations allows to design a better inversion strategy to provide microseismic event locations and anisotropic parameters.

1 Introduction

Microseismic monitoring is an important diagnostic tool for hydraulic fracturing stimulation in unconventional reservoirs (Grechka, 2010; Maxwell et al., 2010; Li et al., 2019b; Pan et al., 2022). Locating induced microseismic events is the primary task in such monitoring, which requires the accurate velocity model (Eisner et al., 2009; Zimmer et al., 2009; Li et al., 2020). Traditionally, the velocity models are derived from sonic logs and perforation shots (Pei et al., 2009; Bardainne and Gaucher, 2010). As the perforation shots illuminate limited subsurface, the locations are prone to errors due to the unreliable velocity information (Grechka et al., 2011; Li et al., 2013; Li et al., 2019a). Additionally, the hydraulic stimulation and fractured shales in the reservoir may change the velocity model. The estimated velocity models may be updated based on the information supplied by the microseismic events, which is similar to the passive seismic tomography in global seismology (Thurber, 1986; Zhang and Thureber, 2003).

As the anisotropy commonly exists in shale (Eisner et al., 2011; Tsvankin, 2012) and shear wave splitting is commonly observed (Grechka and Yaskevich, 2014; Grechka, 2015), the isotropic velocity models are most likely insufficient to explain the recorded traveltimes in the estimation of velocity simultaneously with event locations. For example, Grechka et al. (2011) show that event locations lead to lower residuals when anisotropy is taken into account. Grechka and Duchkov (2011) propose that isotropic model is inadequate and develop methodology to estimate elements of elastic moduli from traveltimes observed in downhole geophones. The challenge of the inversion is that the phase and group velocities are represented in narrow angular apertures for typical downhole geometries. Grechka et al. (2011) estimated the anisotropy simultaneously with events locations in a single-well geometry. The analysis is based on stiffness tensor and only the downhole case is discussed. Li et al. (2013) proposed to use differential arrival times and differential azimuths for event location and anisotropic tomography, which is also discussed in a single well geometry. Grechka and Yaskevich (2014) used the traveltimes and polarizations to invert event locations and parameters for layer triclinic media using downhole microseismic data with wide aperture. Michel and Tsvankin (2016) developed an elastic waveform inversion algorithm to estimate the anisotropic parameter and source information in the layered vertical transversely isotropic (VTI) media. In this study, we do not use full waveforms as the amplitude is often contaminated by noise and compromised by receiver coupling in downhole monitoring. The arrival times of the direct P- and S- waves sometimes are more reliable than the waveforms in the source location.

In the above discussed studies, the downhole geophones in a single vertical monitoring well are usually assumed and the elastic stiffness tensor is used to delineate the anisotropic properties. Alternatively, surface or near-surface arrays are also used in monitoring hydraulic fracturing (Duncan and Eisner, 2010). In such geometry most of the rays travel through overburden which can be characterized as vertical transversely isotropic media (VTI), and it is enough to describe the observed direct arrival times in field data (Gei et al., 2011).

In this study, we derive the analytical sensitivities for the elastic moduli and Thomsen-type parameters (Thomsen, 1986) in the joint inversion of event locations, source origin times and anisotropic properties with layered anisotropy assumption. We investigate the sensitivities of the direct P- and S- arrival time inversion to source location and anisotropic parameters by using singular value decomposition (SVD). We compare the sensitivity matrices derived from microseismic data for downhole geometry and establish the methodology to judge the effectiveness and limits of using the traveltimes to invert the unknown parameters.

2 Methodology

2.1 Joint inversion of microseismic location and anisotropic parameters

The objective function in the joint inversion of the source location, origin times and anisotropic tomography is the traveltime differences between the observed arrival time and the corresponding modelled arrival time. The sensitivities of the arrival time with respect to the hypocenter xi, the origin times τi, the anisotropic parameters m and the layer thickness lj are given by the Fréchet derivativest

F=[tQm,tQxi,tQτi,tQlj],(1)

where tQ is the arrival time and Q is used to denote the wave types, which can be quasi-P (qP), quasi-SV (qSV) or SH waves in the anisotropic media (Grechka and Duchkov, 2011). tQm are the derivatives of arrival times with respect to anisotropic parameters. Different parametrizations have been suggested to represent the anisotropic properties in homogeneous VTI medium. The first one is the combinaton of five elastic modulus, c11, c33, c55, c66, and c13. Alternatively, Thomsen-type parameters can be used to define a VTI medium. Then m includes the vertical P- and S-wave velocities, VP0 and VS0, and the anisotropic coefficients, ε,γ and δ. The derivatives can be calculated by the chain rule

tQm=tQgQgQm=tQgQgQm,(2)

where gQ represents group velocities. The derivation of these derivatives for qP, qSV and SH is given in Supplementary Appendix S1.

The second part on the right side of Eq. 1 is the derivatives of traveltime tQ with respect to source location coordinates x={x1, x2,x3}. The location can be expressed by the event azimuth α, radial distance r and depth difference h in a cylindrical coordinate system with the origin at the receiver.

x={x1, x2,x3}={rcosα,rsinα,h}.(3)

In our joint inversion approach, the event azimuth is assumed to be known as they are independently measured from particle polarization, from the work of Eisner et al., 2009. The sensitivity of arrival times with respect to hypocenter can be expressed as

tQx=tQ{r,h}={prQ,phQ},(4)

where prQ and phQ are the radial and vertical slowness, which are associated with anisotropic parameters and propagation angle.

The third part on the right side of Eq. 1 is the derivatives of arrival time tQ with respect to the origin times τi. In the inversion, microseismic events are independently evaluated and the arrival time is only relevant with its own origin time. If the number of microseismic events is n, tQτi is the n×n identity matrix. It’s equal to Iij for the j-th event.

The last part is the sensitivity with respect to the layer thickness. This problem has been discussed by Li et al. (2013). The sensitivity expression is

tQlj=prQ(tanφ2tanφ1)+1cosφ1g1Q1cosφ2g2Q,(5)

To specify the case to calculate the derivatives in the equations, here we assume the ray travels downwards, the terms should be adjusted in upward cases. φ1 and φ2 are the group angles in the first and second layer, respectively. g1Q and g2Q represent the corresponding group velocities.

As the derivatives {tQm,tQxi,tQτi,tQlj} have different unit dimensions, they should be scaled by factors to balance the contributions from different unknowns (Grechka et al., 2011). Here the factors we choose are the mean source-receiver distance f(x)=mean(|x|), the mean arrival times f(τ)=mean(|tQ|) and the mean layer thickness f(l)=mean(|l|). The matrix used in sensitivity analysis can be expressed as

F=[(f(x)f(τ))2{tQc},f(x)tQxi,f(τ)tQτi,f(l)tQlj],or
F=[f(x)f(τ){tQVP0,tQVS0}, {tQε,,tQγ,tQδ},f(x)tQxi,f(τ)tQτi,f(l)tQlj].(6)

2.2 Singular value decomposition

Singular Value Decomposition (SVD) of a matrix is a factorization into three parts. It indicates the algebraic properties and provides important geometrical insights of the original matrix. The quantitative assessment of the joint inversion can be obtained by applying singular value decomposition to the Fréchet derivatives (Grechka et al., 2011; Kazei and Alkhalifah, 2018)

F=u s wT,(7)

where u is an orthogonal matrix and consists of eigenvectors of FFT, s is a diagonal matrix with singular values on the diagonal, w is an orthogonal eigenvector matrix and consists of eigenvectors of FTF, and wT is the conjugate transpose of w. The absolute magnitude of the diagonal elements of s show how perturbations in the corresponding eigenvectors shift the arrival times. And the values of the elements in each eigenvector show the relative weight of the parameters in joint inversion. The number of non-zero values on the diagonal of matrix s indicates the invertible linear combinations of parameters. If it is less than the number of parameters, some trade-offs between the parameters exist in the inversion. As the eigenvectors are unit vectors and orthogonal to each other, the ideal parametrization is that each eigenvector has only one non-zero element. Then we could invert the parameter one by one, from the eigenvector with large singular value to small. Usually the eigenvectors have multiple non-zero elements and the crosstalk issues are introduced. Then, the rough inversion strategy is that we could sort the eigenvectors based on its corresponding singular values and invert the dominant diagonal elements sequentially.

3 Synthetic examples

To illustrate the sensitivity analysis in the joint inversion, we use a model with four layers. It is shown in Figure 1. The anisotropic parameters (density-normalized stiffness matrix in Voigt notation) used in the synthetic tests are shown in Table 1 (Li et al., 2013; Huang et al., 2019). In the third layer, which is assumed to be the reservoir, there are ten events divided into two fracture systems. The arrival times of the microseismic events are calculated analytically.

FIGURE 1
www.frontiersin.org

FIGURE 1. The layered anisotropic model used in synthetic tests. There are 11 receivers (green triangles) located in the monitoring well and two fracture systems in the third layer, which is associated with five microseismic events (red stars and red dots).

TABLE 1
www.frontiersin.org

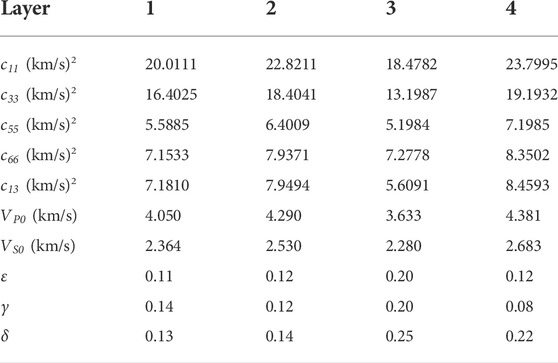

TABLE 1. The anisotropic parameters of the four layers.

As the data in microseismic is often not sufficient to pick all three waves (qP, qSV and SH), we discuss two cases that only the arrival times of P-wave are used or the arrival times of three wave types are all used in the joint inversion. For the application of field data, the initial guess of the anisotropic parameters is derived from the polarization analysis of the seismic data (Grechka et al., 2011). A least-squares objective function is constructed to invert the anisotropic model with a local isotropic assumption (Grechka and Mateeva, 2007). As we are only focusing on the sensitivity analysis in this study, the parameters of mentioned above are directly used with 5% randomly perturbation. In the analysis of specific cases, firstly the Fréchet derivatives (Eq. 6) is calculated and used as the input for SVD. Then the eigenvectors are sorted by their corresponding singular values. Then the element in the column are automatically sequenced by the maximum value and formed the suggested inversion strategy. With less parameter with singular values close to zero, the inversion process is better constrained.

First, we use the qP arrival times of ten microseismic event recorded by all receivers in sensitivity analysis. When the elastic moduli are used to represent the anisotropic media, the results are shown in Figure 2. The singular values close to zero indicates there are four parameters that can not be inverted. By resorting the rows to make it with best diagonal dominance, we can find that the smallest singular values correspond to c66. They are poorly constrained as the arrival times of S- waves are not used.

FIGURE 2
www.frontiersin.org

FIGURE 2. (A) The sensitivity analysis of the joint inversion using qP arrival times in the downhole array. The anisotropic is represented by cij parametrization. (B) the rows of eigenvector matrix are sorted to make it diagonally dominant as possible. The horizontal axis shows the index of eigenvectors, the vertical axis on the left shows the corresponding normalized singular values, and the vertical axis on the right shows the represented parameters. The blue solid dotted line in (B) indicates the suggestion inversion sequence of the unknowns. The singular values close to zero means the parameters on the right do not contribute to the observed data.

When the initial model is close to the true solution, Figure 2B shows the methodology to invert the parameters in the downhole geometry shown in Figure 1. When only the arrival times of P- waves are used, the arrival times are strongly related with c66, c11, the radial distance r and the vertical distance h. The values of layer thickness l and the origin times τ have lower sensitivity to the arrival times. The value of c13 is least constrained in the joint inversion. When only the arrival times of P-wave are available, the columns that have non-zero singular values have off-diagonal elements with high values. It indicates the crosstalk between the parameters are introduced and some trade-off exist. The parameter array on the right in Figure 2B shows the possible inversion sequence, from the best constrained parameter to the worst.

Figure 3 shows the result when the anisotropic media are represented by Thomsen-type parameters. In this case, the sensitivity analysis provided the relation sequence: VP0, ε, r, h, δ, l and VS0. It has four near-zero singular values corresponding to γ in the four layers, which means they can not be inverted in the joint inversion.

FIGURE 3
www.frontiersin.org

FIGURE 3. (A) The sensitivity analysis of the joint inversion using qP arrival times in the downhole array. The anisotropic is represented by Thomesen parametrization. (B) the rows of eigenvector matrix are sorted to make it diagonally dominant as possible. The singular values close to zero means the parameters on the right do not contribute to the observed data.

When the arrival times of three wave types are used, the anisotropic parameters are better constrained in the inversion. Figures 4, 5 show the result. Figure 4B indicates that c55, c66, c13 and c11 have the highest possibility to be inverted from the inversion. The second group is the radial and vertical distance r, h, and c33. The similar colors of r and h in each column indicate that the two parameters trade-off with each other. The third group is the excitation time of ten events and the layer thickness. Figure 5B shows that the relation sequence becomes VS0, VP0, ε, γ, δ, r, h. The parameters that are not well constrained in the joint inversion are still the excitation times and layer thickness.

FIGURE 4
www.frontiersin.org

FIGURE 4. (A) The sensitivity analysis of the joint inversion using the arrival times of qP wave and two S- waves. The anisotropic is represented by cij parametrization. (B) the rows of eigenvector matrix are sorted to make it diagonally dominant as possible. The absence of singular values close to zero means all the parameters on the right contribute to the observed data.

FIGURE 5
www.frontiersin.org

FIGURE 5. (A) The sensitivity analysis of the joint inversion using the arrival times of qP wave and two S- waves. The anisotropic is represented by Thomsen-type parametrization. (B) the rows of eigenvector matrix are sorted to make it diagonally dominant as possible. The absence of singular values close to zero means all the parameters on the right contribute to the observed data.

We used the downhole array to illustrate the proposed method, and it is also applicable to surface geometries or more mircoseismic events. The difference is the traveltimes calculation for the relative locations between receiver and microseismic sources. In the specific cases, the analysis process should be performed respectively and the terms in the derivatives need to be adjusted accordingly. The inferred inversion strategy highly depends on the locations of the events and receivers, but the main procedures are quite similar and not included here.

4 Conclusion

The sensitivity analysis of the joint inversion are obtained by the SVD of the Fréchet derivative matrix. As the monitoring arrays affect the measured quantities, this analysis should be done for each specific monitoring array. We use elastic moduli and Thomsen-type parametrization to describe the VTI media as the horizontal shale layers often have vertical axis of symmetry.

We derive the derivative of group velocity with respect to the elastic moduli and Thomsen-type parameters. We demonstrate how to establish the Fréchet derivative matrix in the joint inversion of anisotropic parameters and source locations. We show how to perform the sensitivity analysis to the monitoring array. It gives the tool to judge the constrain on the unknows in the joint inversion when limited data are obtained.
