Introduction
Organic-rich shales are primary targets for unconventional oil and gas exploration and development around the world (Jarvie et al., 2007; EIA, 2013; Zou et al., 2019). These shales are classified into three types based on origins, including marine shales, marine–continental transitional shales, and continental shales (Zou et al., 2019; Dong et al., 2021). Significant attention has been attracted by marine and continental shales in recent years, where considerable progress has been achieved (Curtis, 2002; Dai et al., 2016; Sweere et al., 2016; Li et al., 2017; Zou et al., 2019; Liu et al., 2021). Comparatively, marine–continental transitional shale is poorly investigated, which requires further and comprehensive study (Chalmers et al., 2012; Zhang et al., 2021). Petrological and geochemical properties of shales vary greatly with deposition environment (Zou et al., 2019). Furthermore, transitional shales are characterized by a frequent lithology alternation in vertical because of rapid variation in water depth during deposition. Transitional shales are commonly small in thickness and are interbedded with tight sandstone, limestone, and coal, resulting in a unique pore structure (Gentzis, 2013; Yang et al., 2017; Qi et al., 2020). Marine-continental transitional sedimentary facies can be divided into various sub-facies (Galloway, 1998; Boggs, 2012; Harraz, 2013). Dong et al. (2021) divide it into five sub-facies: delta facies, estuarine facies, lagoon facies, barrier island facies, and tidal flat facies. Current research on transitional shales in China mainly focuses on Carboniferous-Permian in the Ordos Basin and Yangtze area, which are dominated by delta facies and shallow sea shelf facies, respectively (Yan et al., 2015; Zhang et al., 2015; Guo et al., 2018; Kuang et al., 2020). Organic-rich shales and associated fine-grained transitional deposits in the Upper Carboniferous Keluke Formation in the Eastern Qaidam Basin were primarily developed in the tidal flat and lagoon facies (Zhang et al., 2016), forming frequently mixed carbonate-siliciclastic sequences (Wei et al., 2018). Currently, mixed carbonate-siliciclastic fine-grained rocks in continental and marine facies and their roles in petroleum accumulation have been widely investigated (Zecchin and Catuneanu, 2017; Abdel-Fattah et al., 2018; Zhang et al., 2018), whereas forming mechanism of high-quality reservoirs in transitional fine-grained rocks is poorly understood (Ng et al., 2019; Silva et al., 2021).
Previous researchers have evaluated shale gas prospects of the Carboniferous sequences in the Eastern Qaidam Basin based on outcrops and shallow well data, which reported that the Keluke Formation had good shale gas enrichment conditions (Yang et al., 2014; Liu et al., 2016). Some researchers have identified lithofacies and reservoir development in the Keluke Shales in the eastern Qaidam Basin using outcrops (Li et al., 2015; Chen et al., 2016a; Zhang et al., 2016; Liu et al., 2020). However, pore structures and their controllers in the Keluke fine-grained reservoirs (shale, tight sandstone, tight mixed rocks, etc.) are not well understood. More accurately, fine-grained deposits with grain size less than 62.5 μm can be defined as shale, which has nothing to do with mineral composition and lithofacies (Jiang and Tang, 2017). The CY2 well in the SHG area in the Eastern Qaidam Basin exhibits good gas show from the Carboniferous Keluke transitional organic-rich shales (Cao et al., 2016). Hydraulic fracturing at the CY2 well indicates that the Carboniferous has good shale gas exploration potential. The QDD1 well shows an obvious gas logging anomaly in the Keluke Formation. Hence, it is necessary to systematically investigate pore structures and reservoir formation mechanism of the Keluke fine-grained reservoir with core samples from shallow drillings (ZK5-2, ZK1-1, ZK2-1, ZK3-2), the CY2 well, and the QDD 1 well, which can deepen our understanding of shale-gas enrichment potential in this area.
Geological Setting
The Qaidam Basin with an area of approximately 120,000 km2 is regarded as the largest intermontane basin in the Tibetan Plateau. Structurally, it is bounded by the South Qilian thrust belt at the northeast, the eastern Kunlun Shan–Qiman Tagh system at the southwest, and the left-lateral Altyn Tagh fault at the northwest. It is 3,000 m above mean sea level but is 1,000–2000 m lower than the surrounding mountains (Yin et al., 2002; Yin et al., 2008; Fang et al., 2007) (Figure 1A).

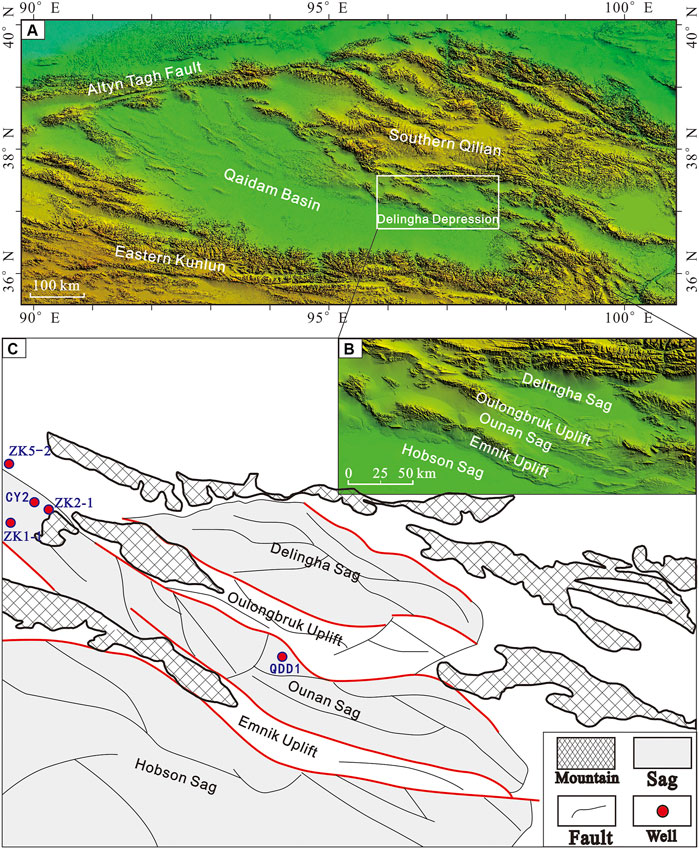

FIGURE 1. DEM presentation of the geomorphology of the Qaidam Basin and its surrounding mountains (A,B) and outline diagram of structure units at the Eastern Qaidam Basin (C).
It is one of the important petroliferous sedimentary basins in northwest China, with an annual oil and gas yield of seven million tons oil equivalent since 2011 (Fu et al., 2015). The Delingha Depression in the east of the Qaidam Basin can be divided into five structural units by second-order faults and local structural traps, i.e., Oulongbruk Uplift, Onan Sag, Delingha Sag, Emnik Uplift, and Hobson Sag, which are NW-NWW extending alternately with a typical pattern of “three depressions alternating with two uplifts” (Figures 1B,C). The Proterozoic, Paleozoic, and Mesozoic successions are widely developed in the Delingha Depression, where the deeply buried and widely distributed Carboniferous is overlain by the Jurassic with no Permian or Triassic. The fault system is dominated by reverse faults. The Carboniferous system is commonly deeply buried and widely distributed in the depression. Mature to high mature mudstone prevails in the Upper Carboniferous Keluke and Zhabusagaxiu transitional coal measures with high TOC and type Ⅱ2 and type Ⅲ kerogen (Cao et al., 2016; Liu et al., 2016).
The Keluke-1 Member (C2k1) can be lithologically divided into two sections, i.e., the lower is carbonaceous shale interbedded with coal seams and the upper is stripped micrite, which was primarily deposited at shore, tidal flat, peat flat, and mixed tidal flat setting. The Keluke-2 Member (C2k2) is composed of micrite with grey mudstone interbedded with thin coal seams (thickness <3 m). It was mainly derived from shore, tidal flat, and mixed tidal flat environments. The Keluke-3 Member (C2k3) is mainly sand-conglomerate and sandstone alternating with dark mudstone, carbonaceous shale, and coal seams, which were deposited at shore, barrier island, and tidal flat environment. The Keluke-4 Member (C2k4) is dominated by dark carbonaceous shales laminated with thin limestone and coal seams from shore and tidal flat environment (Figure 2).

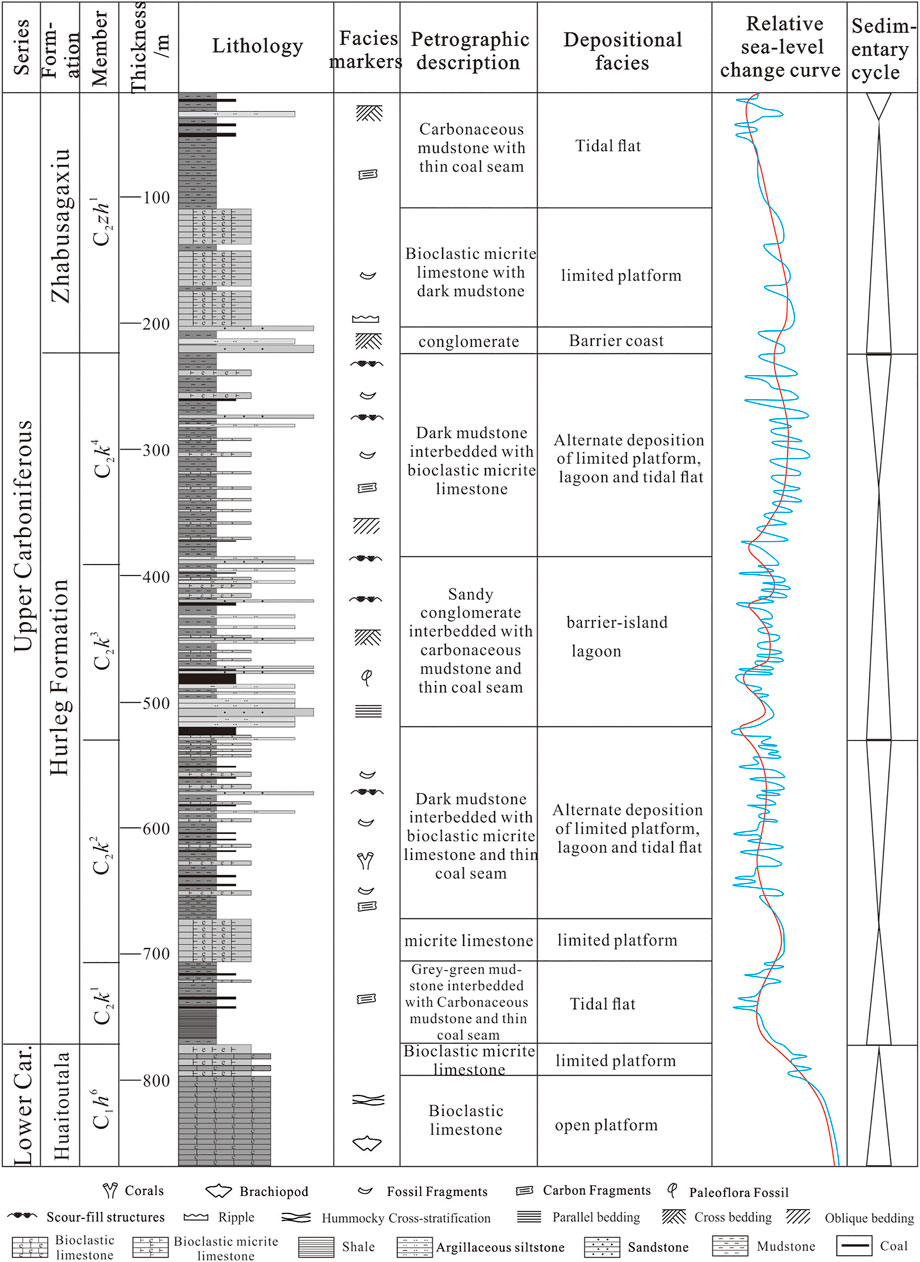

FIGURE 2. Comprehensive stratigraphic column of the Upper Carboniferous Keluke Formation in the Eastern Qaidam Basin (modified from Zhang et al., 2016 and Qi et al., 2018).
Samples and Methods
There were 64 core samples from shallow drillings (ZK5-2, ZK1-1, ZK2-1, ZK3-2), the CY2 well, and the QDD 1 well taken to conduct the porosity and permeability test and the X-ray diffraction (XRD) analysis. Then, some samples were selected to carry out Quantitative Mineral Evaluation via Scanning Electron Microscopy (QEMSCAN), Field Emission Scanning Electron Microscopy (FESEM), and combined N2 adsorption and high-pressure mercury injection (MICP).
A PoroPDP-200 full-automatic instrument was used to determine porosity and permeability under various confining pressures. There were 3 cm plugs drilled from cores. Porosimeter can be used to calculate porosity (from 0.01% to 40%) based on Boyle’s Law and the principle of helium gas expansion, under operation pressure of 0 MPa–0.7 MPa. The permeability measurement based on the pulse decay technique can measure permeability ranging from 0.00001 to 10 mD, while confining pressure increases from 7 to 32 MPa under a constant pore pressure of 7 MPa.
An XRD experiment was performed using a ZJ207 Bruker D8 advance X-ray diffractometer following the Oil and Gas Industry Standards (SY/T5463-2010). Shale samples were crushed into smaller than 300 mesh and were mixed with ethanol in a mortar and pestle, then smear-mounted on glass slides for XRD analysis. The X-ray diffractometer with Cu X-ray tube was operated at 40 kV and 30 mA and was scanned from 2 to 70° at a step of 0.02°, and data was semi-quantified using Jade® 6.0 software.
Two shale samples were mineralogically imaged by QEMSCAN at standard (5 µm) and high (1 µm) resolution. Large standard resolution images can better express rock properties as a whole, whereas high-resolution images can give more details about rock fabric, mineral associations, and lithology. The higher resolution images also underestimate porosity as the area imaged represents a small unit of the whole sample. Hence, the standard resolution measurements provide the reference mineralogical, density, and porosity data; the data for the detailed measurements are provided for reference only.
Thin sections were examined under both transmitted light and reflected light using a Zeiss microscope instrument. FESEM was used to observe micro- and nano-sized pores. All shale samples were crushed into flakes measuring approximately 10 × 10 × 3 mm by using a stone-cutting machine, which were observed directly without being polished. Sample surfaces were coated with 10 nm thick gold to enhance electrical conductivity before the observation. The experiments were conducted using an FEI Quanta200F scanning electron microscope, with a maximum resolution of 1.2 nm and a maximum magnification of 0.2 million times. All SEM observations were performed following the Chinese oil and gas industry standard SY/T 5162–2014.
Low-pressure gas (N2) adsorption and MICP were carried out to determine pore size distribution (PSD) following NB/T 14008-2015. PSDs derived from mercury porosimetry (pore radius of 6–10,000 nm) and low-pressure gas adsorption (pore radius of 1–10 nm) were normalized and connected at 6 nm based on porosity parameters, expressing PSDs in a range of 1–10,000 nm. Gas-water capillary pressure can be converted from gas-mercury capillary pressure with surface tensions of water and mercury, obtaining a full-pore capillary pressure curve. Consequently, breakthrough pressure and other parameters can be interpreted.
Results
Mineralogy and Petrography
Core observation and thin section identification show that the Upper Carboniferous Keluke Formation in the Eastern Qaidam Basin varies greatly in lithology, forming typical mixed rock and mixed sequences (Figure 3), e.g., siltstone, fine sandstone, calcareous siltstone, argillaceous siltstone, silty mudstone, mudstone, carbonaceous mudstone, coal, bioclastic limestone, marlstone, shell-bearing silty mudstone, lime-bearing argillaceous siltstone, dolomite-bearing silty mudstone, silty-bearing dolomite, and dolomite-bearing limestone.

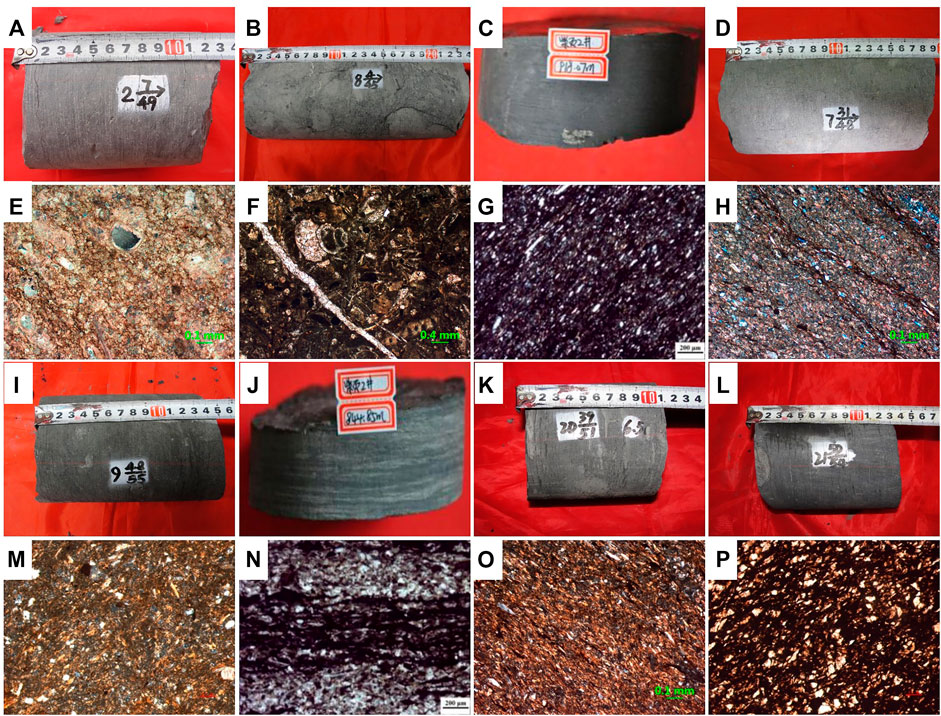

FIGURE 3. Various lithologies of transitional shales in the Upper Carboniferous Keluke Formation. (A,E): Limestone, dominated by recrystallized calcite with minor bioclastic. (B,F): Argillaceous bioclastic limestone. (C,G): Black laminated argillaceous siltstone, pyrite. (D,H): Calcareous mudstone. (I,M): Gray black silty mudstone. (J,N): Black striped argillaceous siltstone. (K,O): Mudstone. (L,P): Gray black silty carbonaceous mudstone.
Measured typical XRD patterns and mineral compositions are shown in Table 1. Generally, the Keluke fine-grained samples vary greatly in mineral compositions, where carbonate minerals, e.g., calcite and dolomite, widely developed with subordinate aragonite, siderite, and magnesite. Various rock types are identified from samples, e.g., mudstone, lime mudstone, argillaceous siltstone, lime siltstone, siltstone, fine sandstone (dominated by lithic arenite and lithic wacke), and marlstone. The Upper Carboniferous Keluke fine-grained transitional shales behave as typically mixed rocks and mixed sequences (Figure 4), which is consistent with thin section identification.

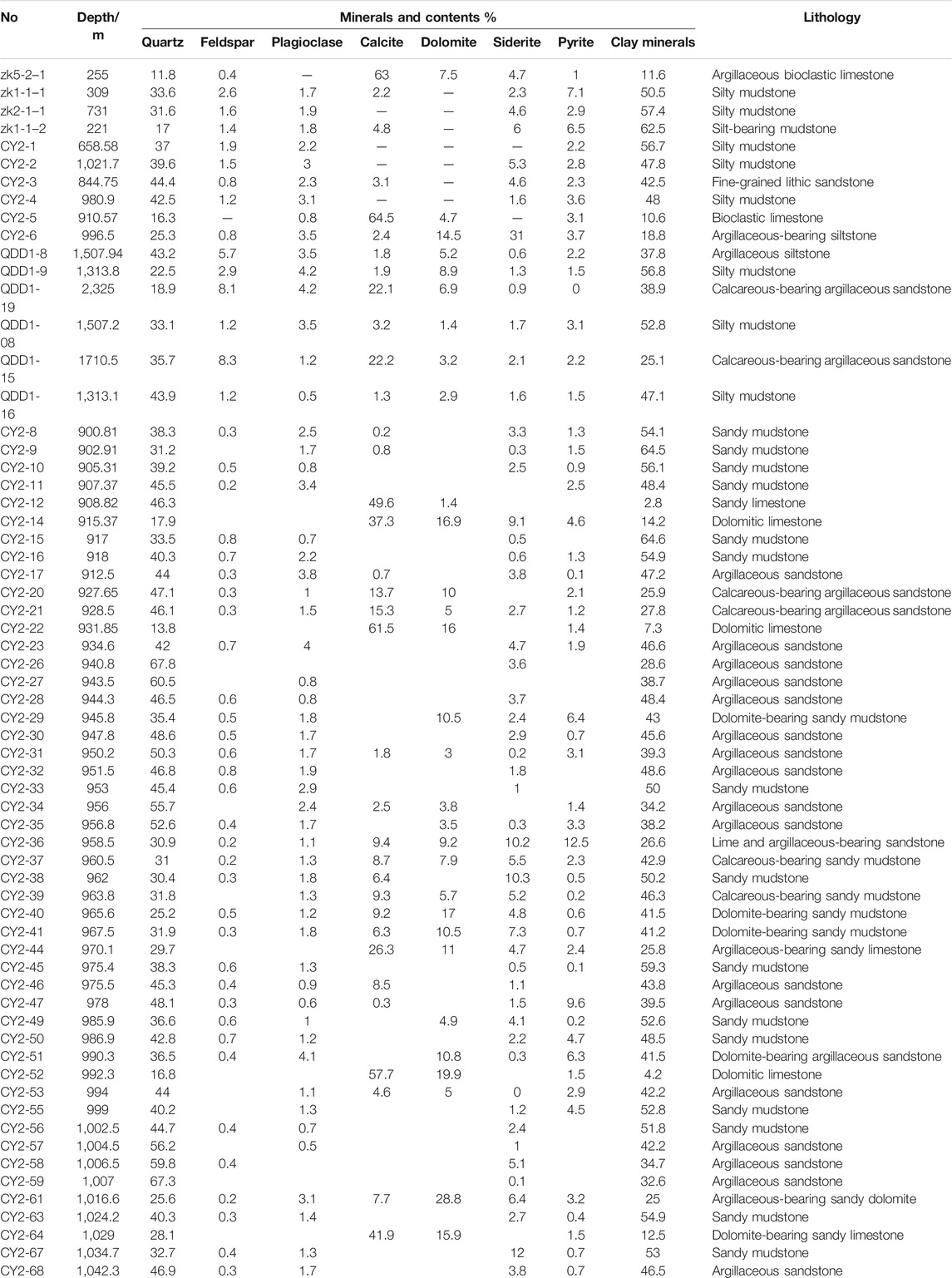

TABLE 1. XRD analysis-based mineral compositions of fine-grained transitional deposits of the Upper Carboniferous Keluke Formation.
FIGURE 4. Mineral composition of the Upper Carboniferous Keluke fine-grained transitional deposits determined by XRD, showing mixed sedimentary patterns.
Two shale samples were mineralogically imaged by QEMSCAN at standard (5 µm) and high (1 µm) resolution. Sample ZK2-1-1 is generally dominated by coarse- and silt-grade quartzes and K-feldspar grains with muscovite and kaolinite (Figure 5). Grain-like kaolinite is a good indicator of grain replacement (e.g., plagioclase alteration and replacement). Flake-like muscovite is mixed with illite as a matrix surrounding silt grains. Biotite flakes are popular, whereas some are partially altered to, or completely replaced with, chlorite. Both muscovite and biotite flakes are parallel to weak bedding. Moderate amounts of macropores are recorded (3.3 area %), occurring as voids and fractures parallel to bedding. Pores are generally bedding-parallel connected but are poorly connected in vertical.

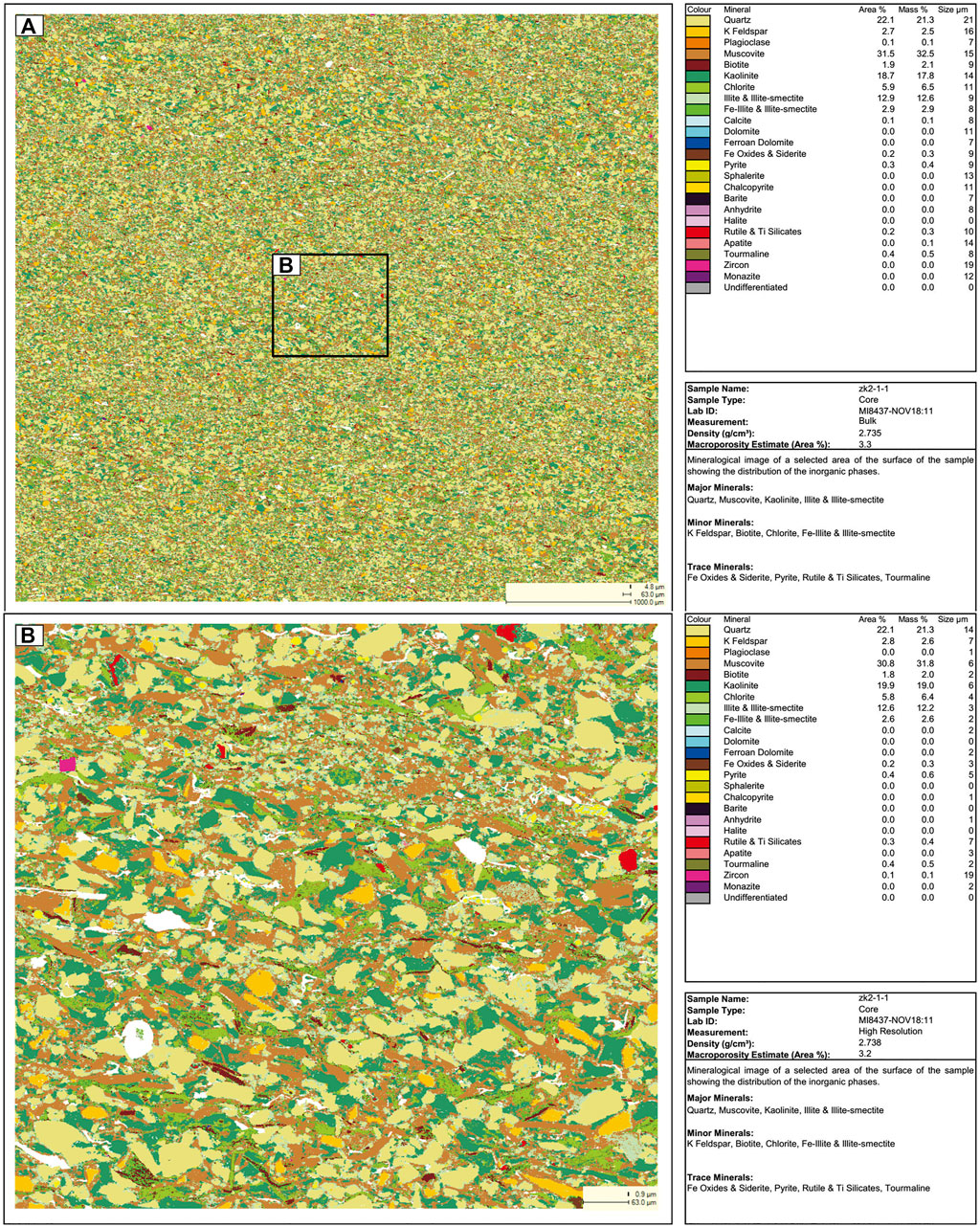

FIGURE 5. QEMSCAN image of sample ZK2-1-1. (A) Bulk measurements and (B) high-resolution measurements.
For CY2-4 in Figure 6, this finely laminated silty mudstone is characterized by subangular to subrounded quartz and plagioclase grains surrounded by illite mixed with kaolinite. Different from most samples analyzed, K feldspar is not popular in this sample. Large muscovite grains occur throughout, typically parallel to laminations. Considerable chlorite particles but no biotite indicate that the latter may have been altered and/or replaced. Most illite presents as an intergranular matrix, whereas some occur as grain-like particles. Ferroan dolomite grains are prevailing and pyrite framboids are also widely developed. Macro pores (4.8 area %) are associated with plate-like pores representing bedding-parallel fractures.

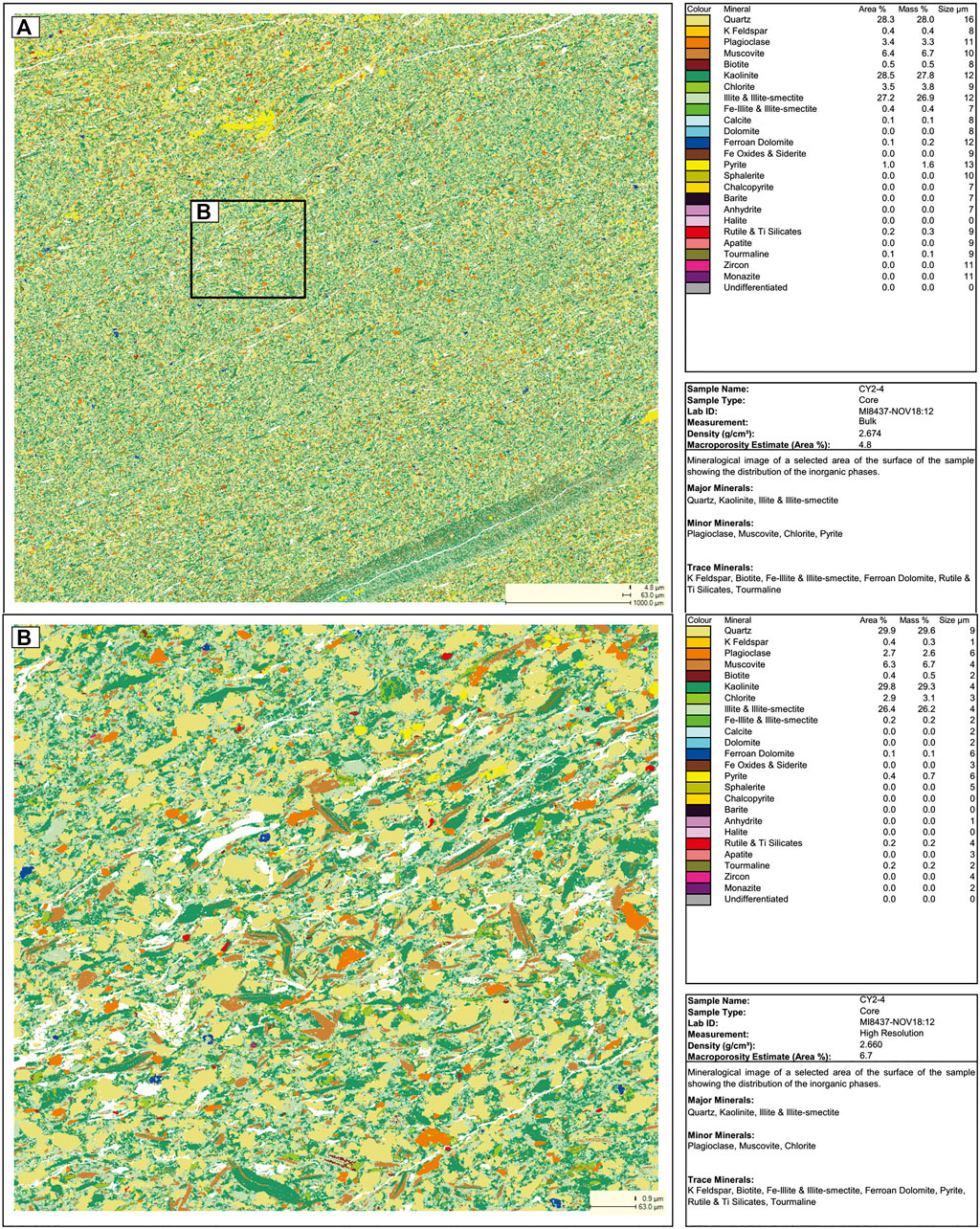

FIGURE 6. QEMSCAN image of sample CY2-4. (A) Bulk measurements and (B) high-resolution measurements.
Porosity and Permeability
Petrophysical property measurement on 64 Keluke fine-grained rocks shows that porosity is in the range of 0.19–5.23% (average 2.13%), and permeability is in the range of 0.01–1 ×10–3 μm2 (average 0.19 × 10–3 μm2), which are lower than typical marine shales and are roughly equivalent with other transitional shales (Luo et al., 2018). A positive correlation can be observed between porosity and permeability. Sandstones have the highest porosity, in the range of 0.19–5.23% (average 3.16%), while mudstones have lower porosity (0.46–3.54%, average 1.65%). Carbonate rocks have the lowest values of 0.19–1.1%, averaging 0.65% (Figure 7). Permeability follows a similar variation, while mudstone has a great variation in permeability. Porosity and permeability of mudstone samples are poorly correlated with each other, which may be caused by mineral composition and diagenesis of different sedimentary facies.

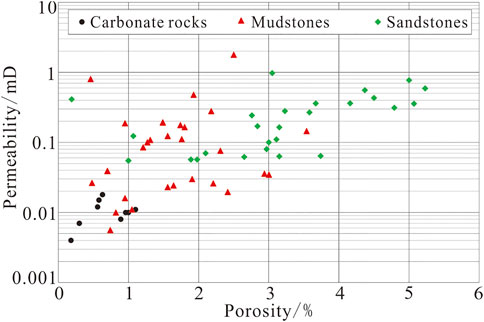

FIGURE 7. Cross-plot of porosity vs. permeability of the studied samples.
Pore Structure Characterization
Pore Types
Pores in shale can be classified as 1) organic-matter-hosted pores, 2) interparticle pores (pores between grains and crystals), 3) intraparticle pores (pores within grains, crystals, and clay aggregates), and microfractures (Loucks et al., 2012; Ko et al., 2016). FE-SEM observation identifies various pore types and pore sizes in the studied samples, e.g., residual interparticle and intercrystalline pores, interparticle and intraparticle dissolution pores, etc.
Interparticle and intercrystalline pores are the most popular ones, e.g., pores between siliceous particles and carbonate minerals, pores between organic matter and surrounding minerals (or shrinkage joint of organic matter), and pores supported by some special minerals. Interparticle pores are primarily associated with pyrites and clay minerals. The dissolution pores observed are contributed by pyrite falling and calcite dissolution (Figure 8). A large amount of organic matter (mainly vitrinite, with fusinite of secondary importance) can be identified from samples, while bitumen with nano-spherical structure can be found occasionally. However, organic-matter-hosted pores are not found, while only pores among organic matter frameworks can be observed from fusinite. Well-preserved original cell architecture can be observed, presenting as network or sieve-like. Different types of micro-fractures are also widely developed, e.g., bedding fractures, structural fractures, and dissolution fractures, where tectonic fractures connect different fractures in local positions (Figure 8).

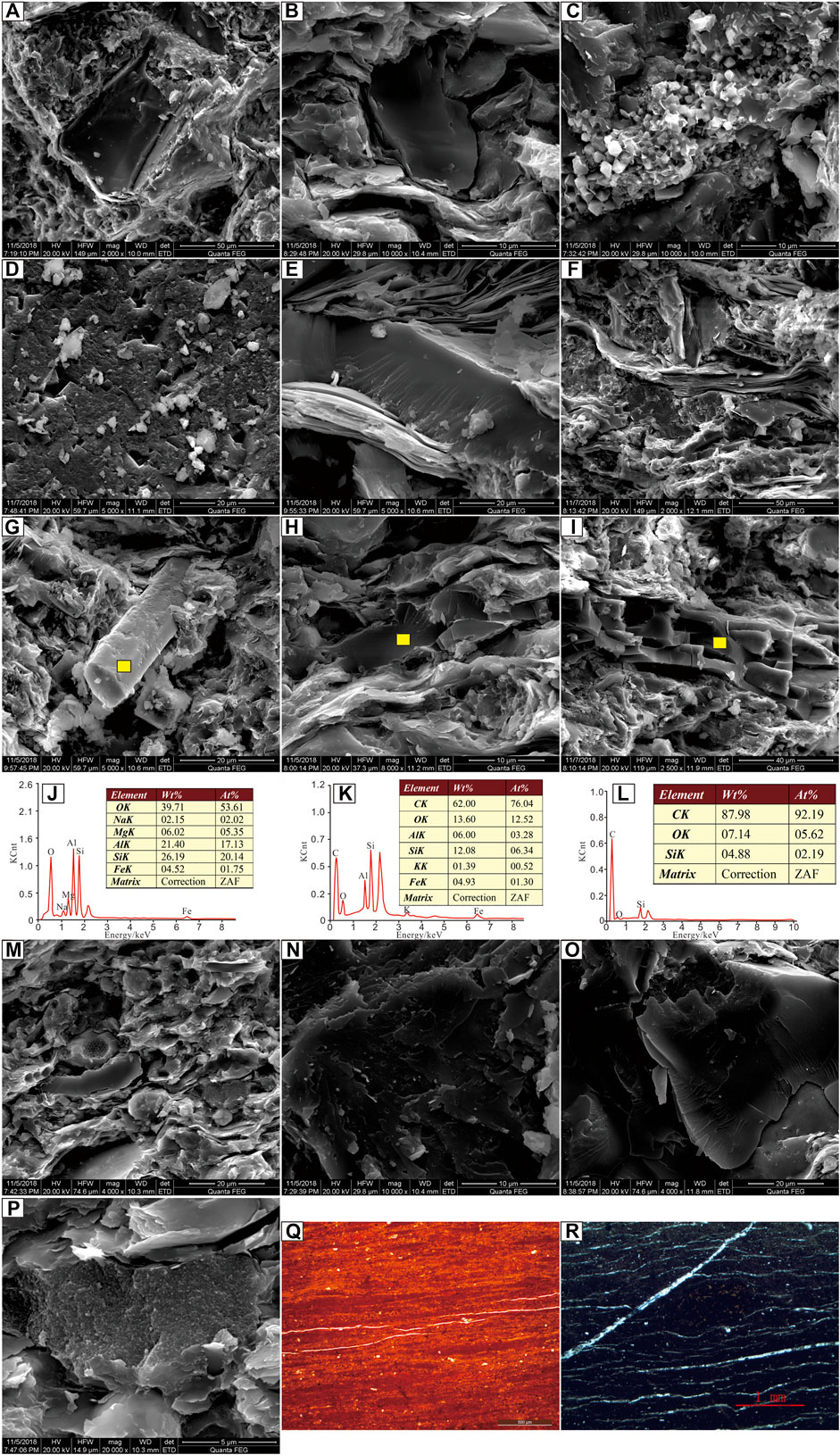

FIGURE 8. FESEM images, energy spectrum, and thin-section photomicrographs of the Upper Carboniferous Keluke transitional shales. (A) Siliceous grains and associated pores. (B) Micro-scale organic matter (coal cuttings), interparticle pores. (C) Nano-scale pyrite aggregate. (D) Calcite and associated intergranular pores. (E) Siliceous grains, slit-like minerals, and associated pores. (F) Slit-like minerals (chlorite and mica), coal seam intermixed with grained minerals (carbonate minerals), interparticle pores. (G) Columnar minerals (detrital aluminate minerals) and alteration products. (H) Micro-scale organic matter (coal cuttings), short stripe along bedding, interparticle pores, no pore in organic matter. (I) Coal cuttings (fusinite) intermixed with mudstone (clay minerals). (J–L) energy spectrums of minerals marked by yellow boxes in (G–I), respectively. (M) Pyrites and associated pores, fractures along bedding. (N) Nano-scale dissolution pores in calcite. (O) Broken organic matter (coal and vitrinite) and conchoidal fracture. (P) Organic matter and its internal structure show nano-scale spherical structure (asphaltite?). (Q,R) Fractures and laminas.
Pore Size Distributions
Although SEM can directly image individual pores or provide information on their mode, it cannot demonstrate pore size distributions. Pore size characterization is commonly performed with indirect petrophysical methods such as MICP measurements, nitrogen/CO2 adsorption, and nuclear magnetic resonance (NMR) spectroscopy (Loucks et al., 2012; Yang et al., 2017; Song et al., 2019). Pores with size less than 2 nm are assumed to be undeveloped in Keluke Shales since organic pores are not well developed. Hence, the CO2 adsorption experiment was not carried out to obtain pore size < 2 nm, while MICP and nitrogen adsorption were performed on four samples with different lithologies.
The PSD of Keluke fine-grained rocks follows a bimodal pattern, which is not obvious in some samples. The PSD of argillaceous bioclastic limestone (ZK5-2-1) is a weak bimodal pattern, while the peak of mesoporous and macropore is concentrated at 16–25 nm and at about 4,000–6,000 nm, respectively. The PSD of silty mudstone (ZK1-1-1) exhibits an obvious bimodal pattern, with peak values at 6–16 and 2,500 nm, respectively. For bioclastic limestone (CY2-5), the peak value of mesopores and macropores is centered at 6–16 nm and at about 100 nm, respectively, which is smaller compared with other lithologies. For argillaceous siltstone (CY2-6), the peak of mesopores is at 6–16 nm, while that of macropores is at about 6,000 nm (Figure 9). Breakthrough pressure and median pressure refer to capillary pressures at cumulative saturation of 10% and 50% under gas-water conditions, respectively. Argillaceous bioclastic limestone and bioclastic limestone have large breakthrough pressure and small breakthrough radius, indicating a small proportion of macropores (Table 2). Hence, bioclastic limestone has worse reservoir quality compared with other lithologies. Sandstone and mudstone show an obvious bimodal pattern with a similar proportion of macropores and mesopores, indicating that sandstone and mudstone have stronger heterogeneity than bioclastic limestone.

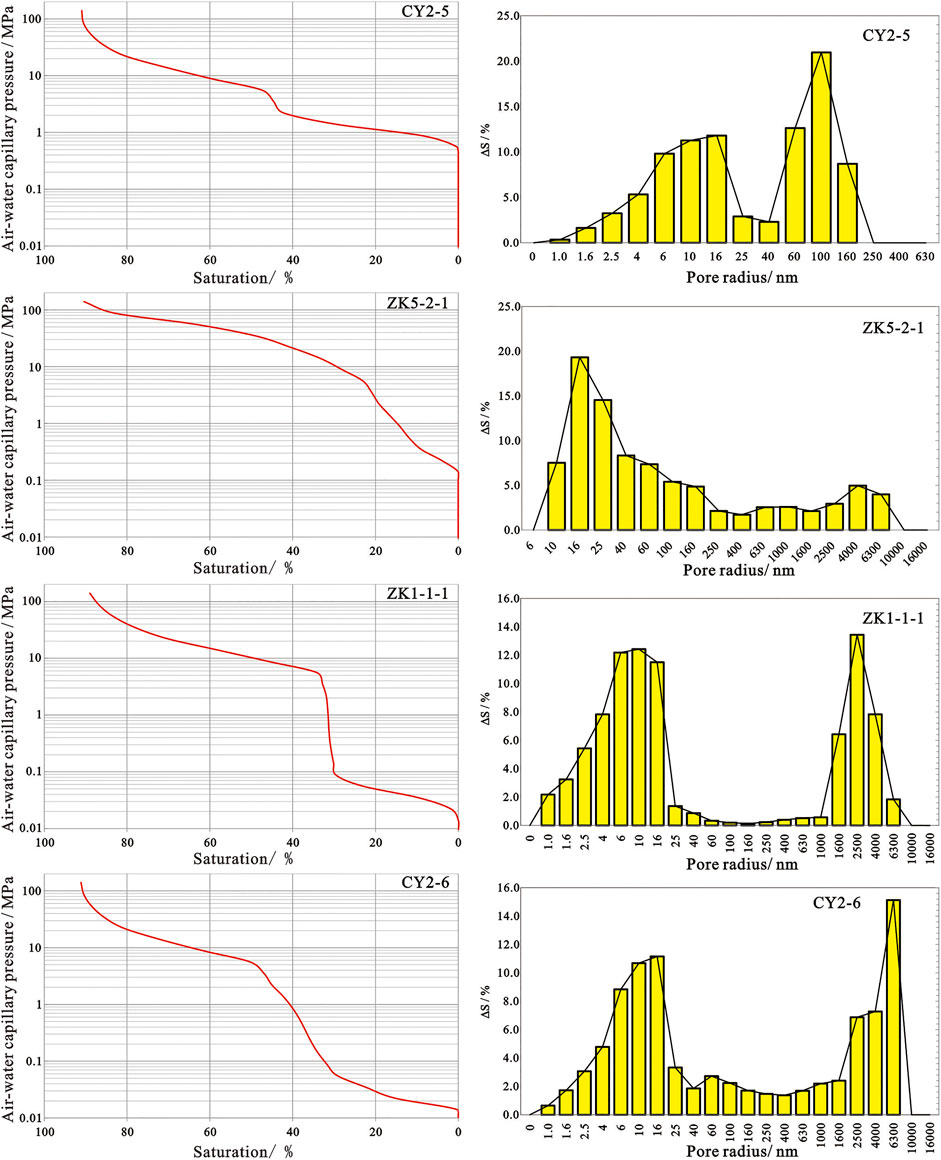

FIGURE 9. Joint test of low-pressure gas (N2) adsorption and MICP as well as converted pore size distribution.

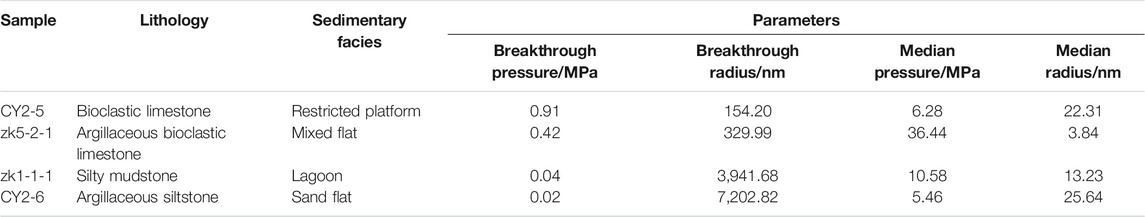

TABLE 2. Reprehensive parameters of jointed low-pressure gas (N2) adsorption and MICP measurements.
Discussion
Factors Affecting Organic Pore Development
Previous studies suggested that organic pores were not developed in all organic matter, which was controlled by both organic macerals and thermal maturity (Curtis, 2002; Gao et al., 2019; Song et al., 2019; Cavelan et al., 2019; Katz and Arango, 2018). The vitrinite reflectance (Ro) of Keluke Shales is higher than 1.3% in the study area, e.g., >1.6% at the CY2 well, and >2.0% at the QDD 1 well, which is higher than the threshold value of organic pore growth. Therefore, thermal maturity is not the controller of organic pore development in Keluke Shales in the study area.
The organic pore development is essentially related to hydrocarbon generation potential of different organic macerals, e.g., sapropelinite and exinite have the largest hydrocarbon generation potential, vitrinite is primarily gas-prone, inertinite almost has no hydrocarbon generation capacity, and solid bitumen can be cracked into light oil and natural gas (Behar et al., 2008; Ko et al., 2016). Organic matter in Keluke Shales is dominated by vitrinite with minor inertinite (Figure 10), where vitrinite is mainly composed of vitrodetrinite or striped collinite, with a small group of desmocollinite and corpocollinite. The inertinites are mainly inertodetrinite, coexisting with vitrinite. This agrees well with coal cuttings identified under the scanning electron microscope (Figure 8), where no organic pores are developed. It is different from representative marine gas shales worldwide, where many organic pores are developed (mostly in solid bitumen) (Inan et al., 2018; Katz and Arango, 2018; Guo et al., 2019). However, XRD identification and SEM observation show no solid bitumen at high to over-high maturity stage in the study area. This may be attributed to type-III kerogen in the Keluke Shales with few oil-prone macerals. In other words, organic pore development varies as a function of kerogen types. Generally, organic pores are the worst developed in transitional shale compared with marine and continental shales.
FIGURE 10. Bulk microscopic composition of the Upper Carboniferous Keluke Formation identified by optical microscope [(A) ZK5-2-1, (B) ZK1-1-1, (C) ZK2-1-1, (D) QDD1-1, (E) QDD1-3, (F) QDD1-4].
Favorable Lithofacies in the Marine–Continental Transitional Shales
The analysis above shows that the Keluke Formation is a set of mixed sequences, and thereby, determining favorable lithofacies is essential to seek sweet spots. The Keluke sequences were deposited in tidal flat, lagoon, restricted platform, and barrier island. Low-energy clastic coast (including tidal flat and lagoon), mixed restricted platform, and mixed shelf were developed in the lower section of the Keluke Formation, and mixed sandy clastic coast with barrier bar, mixed restricted platform, as well as a mixed shelf were developed in the middle-upper section (Chen et al., 2016b).
Sedimentary facies play an important role in controlling pore growth because it not only governs deposition pattern, but also controls mineral compositions and contents, as well as determines diagenesis to a large extent (HallCraig, 2019; Gogoi and Rima, 2020). The cross plot of porosity and permeability shows that reservoir quality is the best in sandstone, followed by mudstone, and is the worst in carbonate rocks. Porosity is positively correlated with quartz content and is negatively correlated with clay mineral content. A poor correlation can be observed between it and carbonate mineral content. This can be explained by following reasons. Intensive hydrodynamics, low organic matter content, and high carbonate and quartz content can result in high porosity in deposits from barrier bar and tidal delta. Deposits from low-energy lagoon with no organic pore has low porosity. Rocks from sand flat and tidal channel with intensive hydrodynamics generally have coarse particles, resulting in high porosity. Mixed flat and mud flat have weaker hydrodynamic conditions, resulting in finer deposits with the lowest porosity. The thin section identification and XRD analysis show that weak hydrodynamics in the restricted platform can deposit fine-grained rocks, e.g., argillaceous limestone, silty limestone, micrite, bioclastic-bearing micrite, and bioclastic micritic, with poor physical property when no dissolution and dolomitization occur to them. Intensive carbonate cementation is common in shale from tidal flat intersected with restricted platform, which is not conducive to primary pore preservation and can decrease porosity significantly.
Conclusion
In this study, we comprehensively investigated mineralogy and pore structure of the Upper Carboniferous Keluke marine-continental transitional shales. Controlling factors of pore development in shale reservoir were discussed based on detailed analysis of reservoir properties, and organic pore development in transitional shales and typical marine shales were compared. The conclusions obtained from this study are as follows:
1) The Upper Carboniferous marine-continental transitional strata consists of complex interbedded sandstone, shale, coal, and limestone. The complex mineral compositions result in typically mixed rocks and mixed sequences. The porosity of Keluke fine-grained rocks is in a range of 0.5–5% and permeability is in a range of 0.01–1×10–3 μm2, which is the highest in sand laminaes.
2) Considerable interparticle and intercrystalline pores with minor dissolution pores and micro-fractures are developed in the Keluke transitional shales. Pores associated with organic matter frameworks can be found. Particularly, vitrinite and inertinite are the dominant organic macerals in Keluke Shales, which limits secondary organic pore development.
3) The PSDs of fine-grained rocks in the Keluke Formation follow a bimodal pattern, while dominated pore sizes vary greatly with lithologies. The proportion of micro-scale pores and macro-scale nanopores increases in an order: bioclastic limestone, argillaceous bioclastic limestone, silty mudstone, argillaceous siltstone. The differences in pore structure are attributed to the sedimentary facies and associated mineralogy and diagenesis.
