An Investigation Into the Mechanism of Rock Bursts in Mines for Tunnel-Cut Isolated Areas with Multiple Stress Fields

Tunnels in several mines in Shaanxi Province, China, which are subject to multiple stress fields, are used as case studies to clarify the structural problems associated with rock bursts that occur in high-stress mines. Field studies featuring field measurements and theoretical analysis are used to investigate the modes and mechanisms of failure. The following are the main findings: (1) a model for distributing the dominant pressure features around the goaf was established by analyzing the stress distribution induced by the goafs on both sides of the excavated zone in a coal seam. The model reveals the pressure distribution in the tunnel-cut area, which is the mechanical factor responsible for rockburst. (2) Because of the goafs acting on both sides of the tunnel, an area of concentrated stress was formed, and stress was transferred to the coal seam. The intense tunnel-cutting action can reduce the stability of the coal. The plastic area caused by tunnel mining and a reduction in the elastic area of the tunnel-cut coal pillars in each segment, increase the possibility for rockburst under the application of dynamic-static stress; this process is known as a stabilizing factor. (3) Due to the combined effect of the tunnel-cut and goafs on both sides, most of the microseismic incidents happened in the core area of coal pillar and in the side of tunnels. When the stress applied on coal pillar is more than critical strength, burst and mine earthquake can be induced. Our study focused mainly on rockburst incidents that occurred in coal mines in Shaanxi Province, which were caused by tunnel-cut coal seams that were subject to multiple stress fields. The study has direct implications for developing new and improved guidelines for preventing rockburst in mines.

Introduction

When a large amount of energy is stored in abandoned mines, it has a great impact on the safety of underground coal mines, resulting in the occurrence of rock burst accidents (Jiang et al., 2016; Fan et al., 2020; Liu et al., 2020a; Kang et al., 2021). Rock bursts, which can occur in mining are well known in the industry and can threaten mine safety (Ma et al., 2015; Barton and Shen, 2017; Keneti and Sainbury, 2018; Rehman et al., 2021; Xiong et al., 2021). A rockburst is typically influenced by geological conditions and the mining technology used (Jiang et al., 2014; Qi et al., 2020; Qi et al., 2019; Liu et al., 2020b; Zhang et al., 2021a). Many rockburst accidents have occurred as mining depths have increased, resulting in numerous casualties and damage to equipment and infrastructure (Dou et al., 2003; Pan et al., 2003; Pan et al., 2012; Fan et al., 2019; Jiang et al., 2021; Li et al., 2021). On October 20, 2018, a serious rockburst incident occurred in Shandong Province (Shandong Energy Dragon Mine Group, Longyun Coal Industry Co., Ltd.), resulting in 21 deaths and four injuries. On August 2, 2019, a dynamic event occurred in the connecting tunnel (F5010) around a coal pillar while 12 workers were cleaning the tunnel, resulting in seven fatalities. Another accident occurred on February 22, 2020, in the Xinjulong mine in Shandong, resulting in four deaths and the loss of 18 million RMB. In the aforementioned incidents, the tunnel-cut coal areas were subjected to the lateral abutment pressure of the goafs and mining stress in the working face, which affected the associated geological structures and accumulated a significant amount of strain energy in the areas in question (Cui et al., 2021; Liu et al., 2021; Tian et al., 2021; Wu et al., 2021). Therefore, failure of overlying strata readily occurred over a wide area, resulting in rock bursts.

Wang et al. (2019) elaborated on the principles of failure for isolated coal seams in a tunnel in a deep mine and proposed a mechanism and a failure model for the coal under reduced pressure. Zhao et al. (2018) demonstrated that the stability of a coal pillar is mainly determined by the movement of the overlying strata in the goaf and by repeated mining; a practical method to evaluate the width of the coal pillar was also proposed. Feng et al. (2015) investigated an elastic bearing area and developed a model for the abutment pressure applied to an isolated working face. Song et al. (2018) outlined the principles of failure due to creep in an isolated coal pillar over time and obtained the conditions of failure for the entire working face. Chen et al. (2012) investigated the conditions of a stripe coal pillar under pressure over a long period and discovered that the coal pillar can be divided into three parts, i.e., an elastic area, a plastic area, and a failed area. Lu and Guo (1991) investigated the relationship between the deformation of the surrounding rocks and the width of the coal pillar. Jiang et al. (2018) used tectonic stress to determine the width of the coal pillar based on inverse analysis of in situ stress and numerical modeling. Li et al. (2013) used theoretical analyses and modeling to study the mechanical mechanism of rockburst based on the surrounding rock stress by monitoring microseismic activities and field data. Zheng et al. (2012) reviewed the laws of stress distribution of coal pillars in gob-side mining at different widths by combining theoretical and numerical analysis and proposed that the width of the coal pillar can be affected by disturbances caused by tunnels in the mine and advanced mining practices. Yang et al. (2017) proposed a method for determining the width of a coal pillar by analyzing the creep data. Yin et al. (2012) used theoretical analysis and numerical modeling to investigate the size of the protected dip coal pillar in joint mining areas. Wang and Miao (2007) used mechanical analysis to conduct topotactic transformation studies on the conditions of a coal pillar failure and obtained the probability function for failure. Wang et al. (2009) developed a mechanical model for the residual coal pillar in the lower protective strata. Li et al. (2020) investigated the mechanism of rockburst caused by a coal pillar, developed a computational model of the overlying loading by the strata on the coal pillar, and assessed the risk of rockburst for the entire pillar. Jiang et al. (2015) proposed a system in the context of coal seam failure and noted that when the stress loading on the coal seam is greater than 1.5 times the uniaxial compressive strength, a rock burst will occur.

Several studies have been conducted to prevent the occurrence of a rockburst in an isolated coal pocket or pillar (Adoko et al., 2013; Xu et al., 2017; Zhou et al., 2018; Pinzani and Coli, 2011; Zhang et al., 2021b; Liu et al., 2021), but little research has focused on the types of rock bursts that can occur in tunnel-cut coal. This study focuses on several incidents that have occurred in Shaanxi Province. We investigated the features of stress distribution and variation in the elastic area under the action of tunnel cutting, whereby both sides of the tunnel are goafs, clarifying the mechanical mechanism for the rockburst and failure of the coal pillar, which is subject to combined multiple stress fields. The risk of a rockburst that occurs in a mine and some preventative measures to avoid it are also elaborated.

Case Studies

General Introduction to the Working Face

There are four tunnels 100 m south of goafs 204, 205, and 206, including the west-wing haulage roadway, the second section of the air-inlet roadway, the belt roadway, and the air-return roadway with gaps of 20, 30, and 30 m between each roadway, respectively. The working face of mine 302, which is 180 m wide, is located 80 m south of the air-return roadway (Figure 1). The coal seam is 590.5 m deep and the overlying layers within 100 m are less than 10 m thick, with a uniaxial compressive strength of <60 MPa. The overlying strata consist of sandstone and mudstone (Figure 2). The coal seam has a dip angle of 4 and a uniaxial compressive strength of 15 MPa. The floor of the coal seam consists of coarse-grain sandstone, mudstone, and fine-grain sandstone. The test results show that the coal seam and roof strata are prone to failure because of rockburst, whereas the reverse is true for floor strata.

FIGURE 1

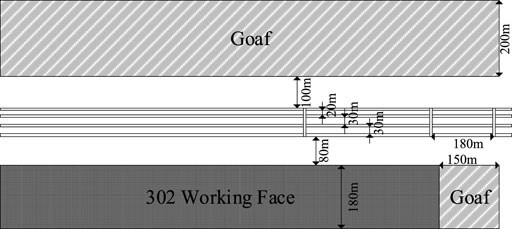

FIGURE 1. Layout of roadways and working faces on both sides of the island area.

FIGURE 2

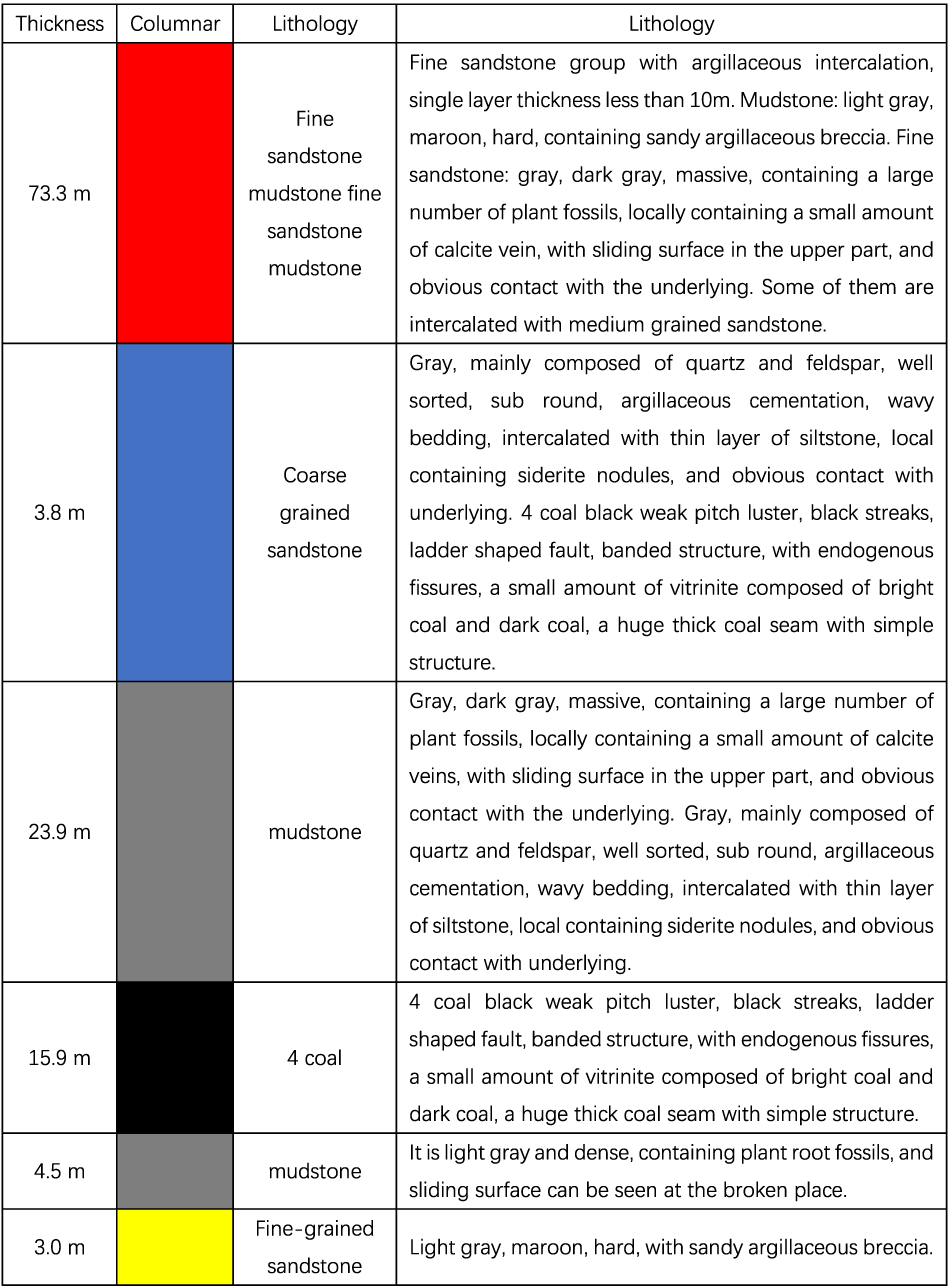

FIGURE 2. Histogram for working face of a coal mine.

The Incident

On February 25, 2017, the belt roadway, the air-return roadway, and the connecting roadways experienced gunite-layer cracking, cracking of the walls and roof, the heaving of the floor and walls, and deformation because of the combined effects of the lateral abutment pressure from three consecutive goafs (204, 205, and 206), as well as the lateral abutment pressure from the working face 302 and the mining stress; this resulted in significant damage to the tunnel support systems, with roof protrusion of up to 1 m at a maximum. All the roadways were set inside the coal seam. Photographs of the damage caused by the rockburst are shown in Figure 3 and the exact locations are shown in Figure 4.

FIGURE 3

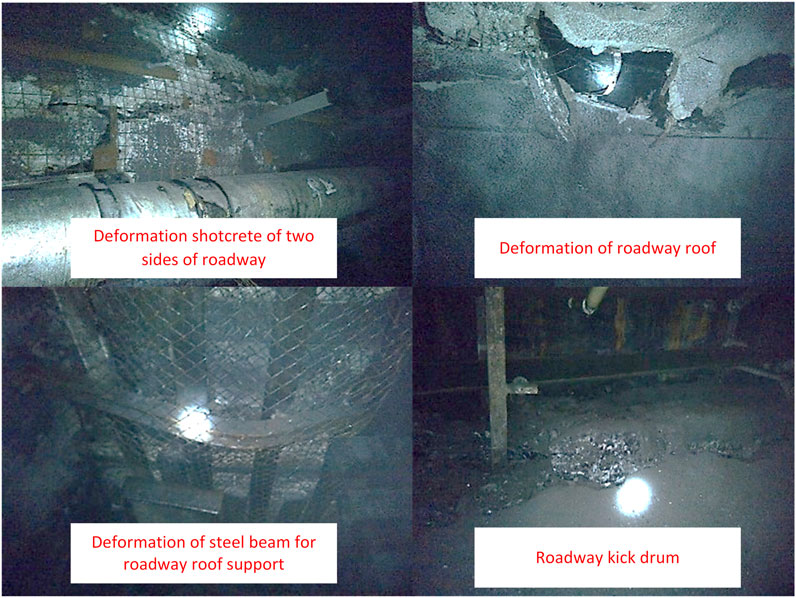

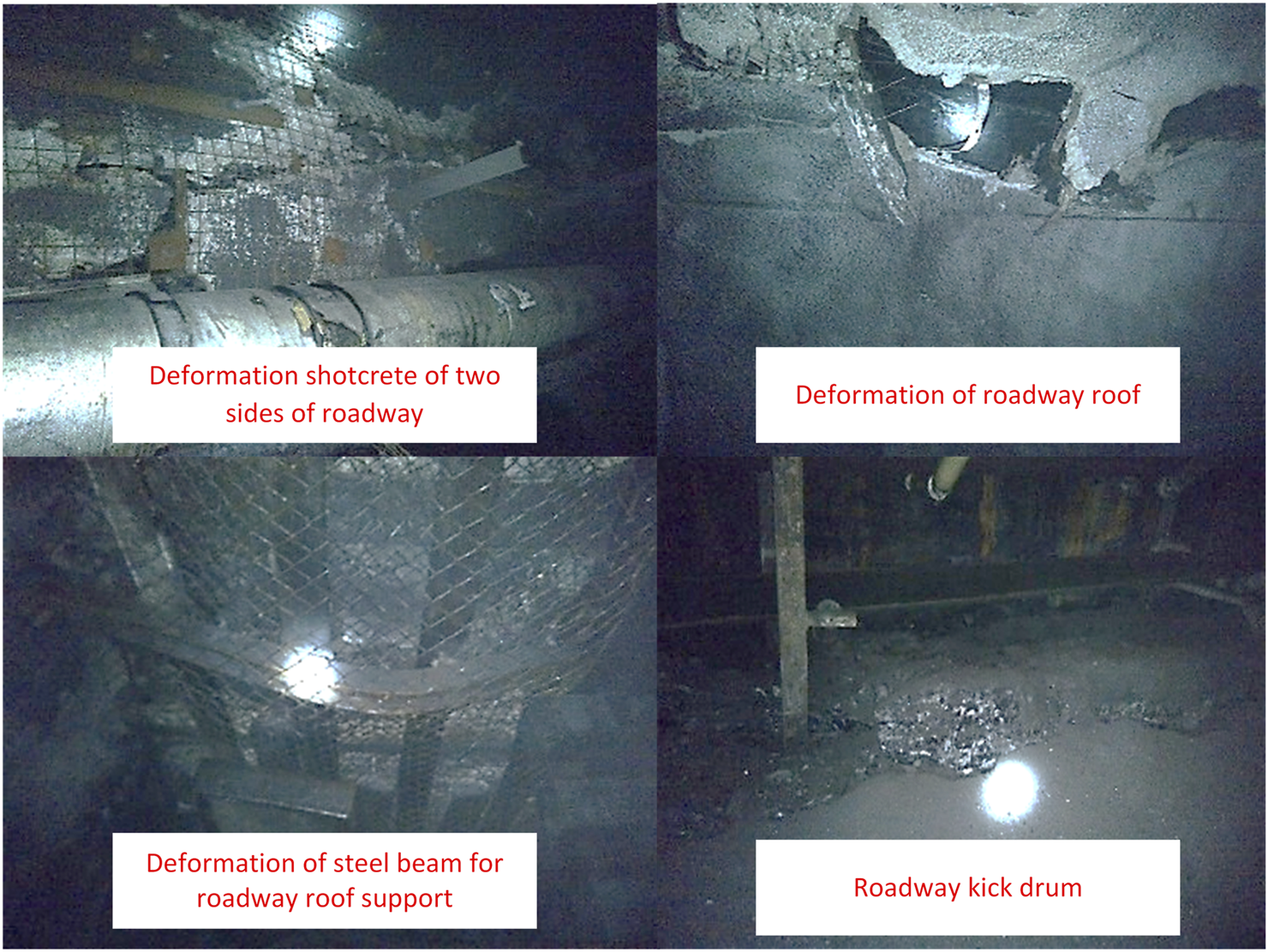

FIGURE 3. Photographs of the rockburst event.

FIGURE 4

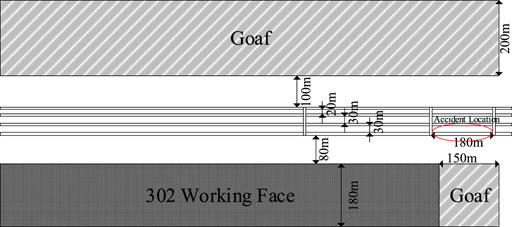

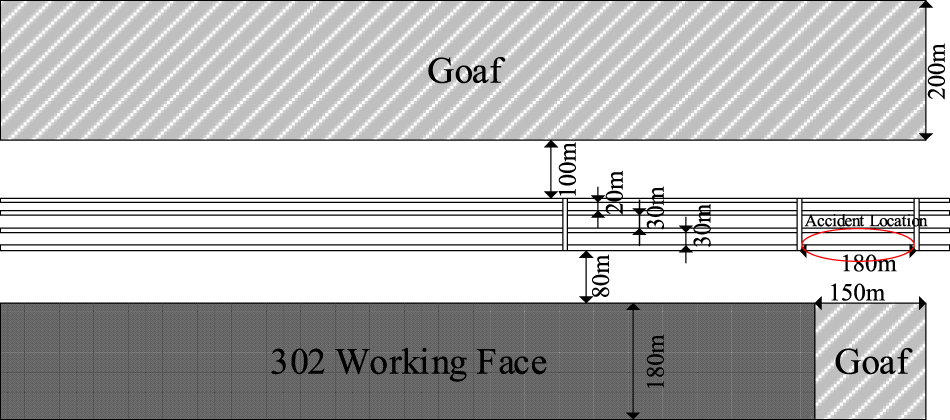

FIGURE 4. Schematic of the location of the incident.

Microseismic Monitoring and Analysis

The tunnel-cut coal pillar has experienced a dense distribution of microseismic events over time because it has been subjected to stress from the lateral goaf, the cutting tunnel, and the working face of the mine. Figure 5 is a schematic of microseismic monitoring points and the locations of the events. Three mobile sites for microseismic monitoring were located in the working face 302 (Figure 5A), one in the air-return roadway and one in the air-inlet roadway, each with a horizontal separation distance of 20 m; another was located in the air-inlet roadway, which was situated 50 m ahead of the working face. The black circles in Figure 5A represent microseismic events with an order of magnitude of 10² $J$ or less, whereas the green circles represent events of magnitude 10³ $J$, and the red circles represent events of magnitude 10⁴ $J$. Figure 5B shows that numerous microseismic events occurred in the roadways and in the front of the working face, especially at the side close to the working face 302. The tunnel-cut isolated area featured a dense distribution of microseismic events of a large order of magnitude, indicating that the rock system retained a massive amount of elastic energy, with the tunnels cutting through the isolated area. The lateral abutment pressure and tunnel-cutting behavior resulted in energy accumulation and a concentration of stress in the isolated area in the mining of the working face. When the abutment pressure reached a critical level, the coal-rock mass fails, releasing a significant amount of energy and causing a rockburst.

FIGURE 5

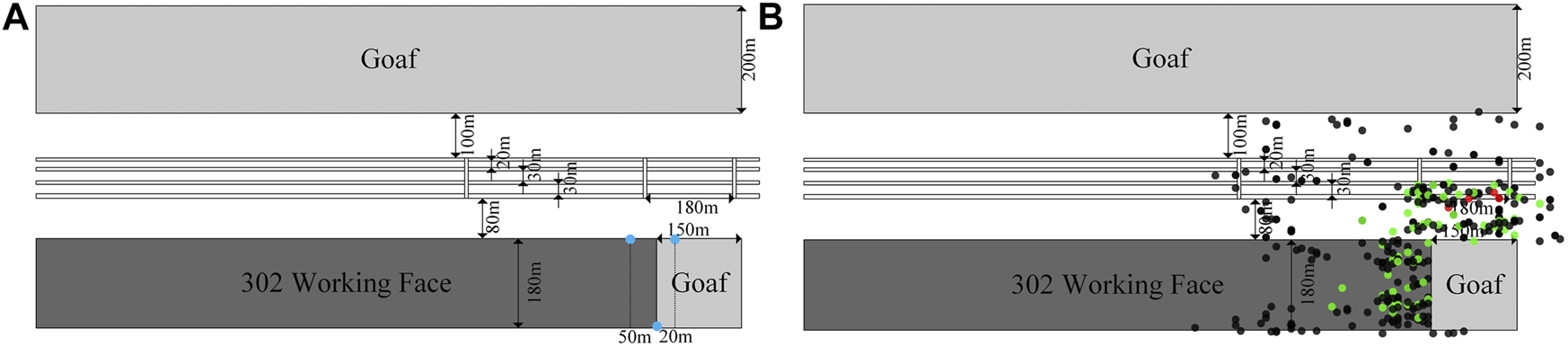

FIGURE 5. Schematic of microseismic monitoring points and the locations of the events.

Monitoring of Ground Surface Settlement and Analysis

The ground surface settlement was monitored in the air-return roadway, belt roadway, the second section of the air-inlet roadway, and the isolated area cut by the west-wing tunnel (Figure 6). Based on the monitoring of the working face 302, the surface settlement curve is shown in Figure 7. This figure showed that in March 2016, the accumulated settlements at monitoring points 1, 2, and 3 were 33.5, 58, and 72.3 mm, respectively; additionally, the average settlement rates for each isolated area were 1.12, 1.93, and 2.41 mm/ d, respectively, indicating that the ground surface settled steadily. The settlements for the three locations in March 2017 are indicated in Figure 7B. The settlements corresponding to the air-return roadway, belt roadway, the second segment of the air-inlet roadway, and the isolated area cut by the west-wing tunnel correspond to displacements of 295, 146.5, and 102.1 mm, respectively. The maximum settlement for monitoring point 1 was 200 mm on March 25 with a rate of 200 m/d, which was approximately 178 times the previous rate (Figure 7A). In conclusion, as the overlying strata over the goafs and working face move, disturbances in the overlying strata of the tunnel-cut area are induced, resulting in the ground surface settlement.

FIGURE 6

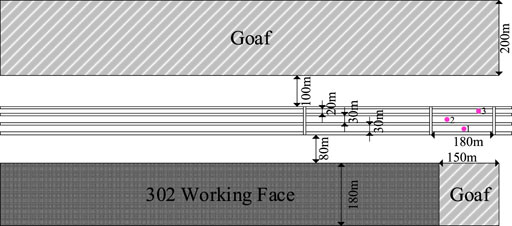

FIGURE 6. Ground displacement monitoring points.

FIGURE 7

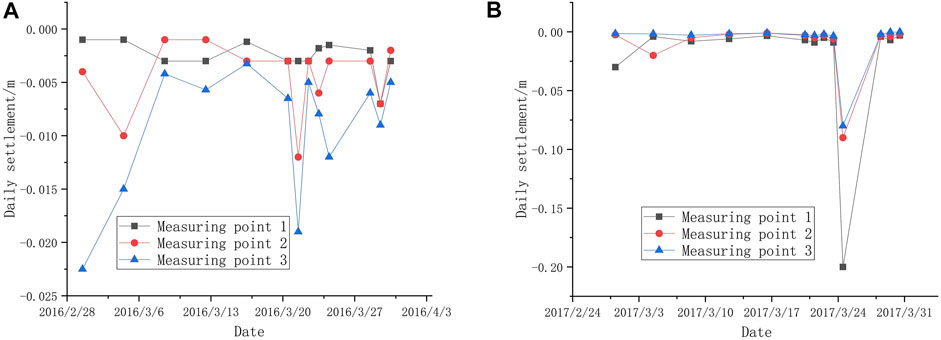

FIGURE 7. Surface settlement curve.

Monitoring the ground surface settlement revealed that the constant movement of the strata on the goaf and the working face causes movement of the strata on the tunnel-cut isolated coal seam, resulting in massive loading of the roof with subsequent heaving, cracking, and deformation of the supporting beams in the tunnels.

Stress Monitoring and Analysis

Stress gauges were installed in the air-return roadway, belt roadway, the second section of the air-inlet roadway, and the railway (for transport) in the west wing. The gauges were numbered 1#, 2#, 3#, and 4#. The stress values in March 2016 and 2017 are shown in Figure 8, indicating that the average stress values for the air-return roadway, belt roadway, the second section of the air-inlet roadway, and the railway in the west wing in March 2016 were 4.33, 4.50, 4.46, and 4.47 MPa, respectively, with all values increased significantly in March 2017 (Figure 8). For example, the stress value for gauge 1 (Figure 8A) reached 9.39 MPa, more than double of the previous year. The lateral abutment pressure from the goaf, the tunnel-cut action, the constant settlement of the overlying strata over the goaf, and the mining working face ultimately affected the roadways, resulting in deformation and failure of the roadways and support systems.

FIGURE 8

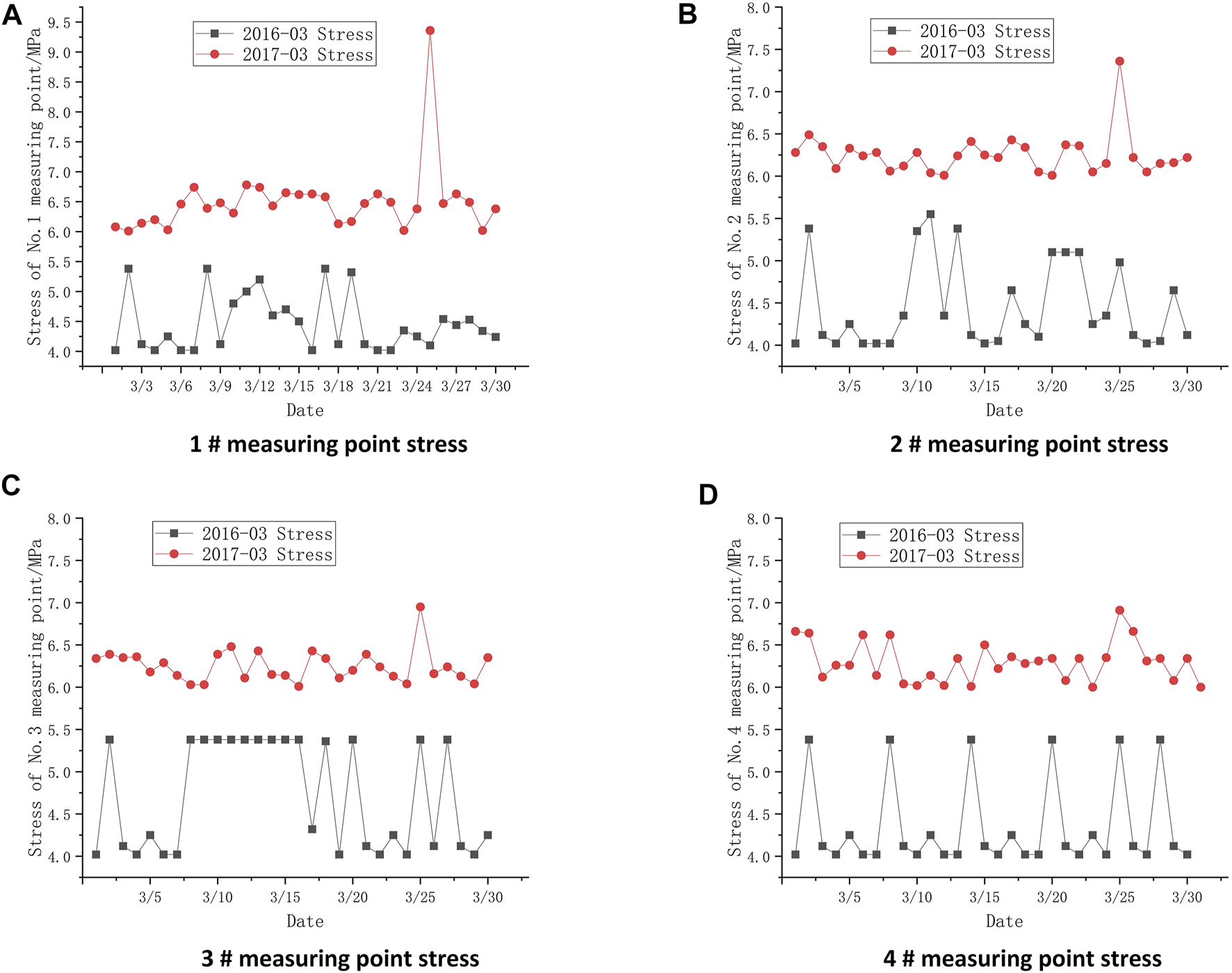

FIGURE 8. Stress curve diagrams for each main roadway. (A) 1 # measuring point stress, (B) 2 # measuring point stress, (C) 3 # measuring point stress, and (D) 4 # measuring point stress

Failure Mechanism in the Isolated Area With Combined Multiple Stress Fields

Mechanical Mode for the Lateral Abutment Pressure

As the working face are mined, goafs are formed on both sides of the tunnel-cut coal pillar. An isolated coal pillar is shown in Figure 9A, while the stress transfer in the isolated coal pillar is shown in Figure 9B. Stress transfer occurred as goafs are formed on both sides and the overlying strata move with the geostatic stress of the isolated coal pillar. The peak of the stress curve moved toward the isolated coal pillar from the goaf and stress was transferred to the isolated coal pillar below, changing the stress distribution in the isolated coal pillar.

FIGURE 9

FIGURE 9. Distribution characteristics of superimposed stress field after the formation of the goaf on both sides of the coal pillar island area. (A) Plan view on both sides of coal pillar, and (B) Stress structure diagram

The isolated coal pillars in the goafs were imposed by the transfer of stress from the excavated zone, the suspended strata, and the geostatic stress of the topsoil (σ_i, σ_m, σ_Z) (Figure 11). For simplicity, a model of complete settlement in the goafs was assumed to operate. The stresses applied on the coal pillar consisted of three parts, such as the gravity of the excavated zone (σ_i), half pressure from the suspended rock zone (σ_m), and gravity due to the overlying topsoil (σ_Z). The combined stresses from multiple fields in the goafs were applied to the coal pillar, resulting in a cumulative stress equation, which is written as the following:

$\text{σ}={\text{σ}}_{\text{z}}+{\text{σ}}_{\text{m}}+{\text{σ}}_{\text{i}}(1)$

The geostatic stress of the overlying topsoil is:

${\sigma }_z=\{\begin{array}{c}\frac{\gamma H\tan \eta }{2h_1+h_2}\begin{array}{cc}{x}_1+\frac{\gamma H\tan \epsilon }{2n_1+n_2}{x}_2& x_1\end{array}\left[0,\frac{2h_1+h_2}{\tan \eta }\right],x_2\left[0,\frac{2n_1+n_2}{\tan \epsilon }\right]\\ \gamma H_1\begin{array}{cc}+\gamma H_2& H_1\end{array}\left[\frac{2h_1+h_2}{\tan \eta },+\infty \right],H_2\left[\frac{2n_1+n_2}{\tan \epsilon },+\infty \right]\end{array}(2)$

and stress from the suspended rock zone is

${\sigma }_m=\{\begin{array}{c}\frac{2{\sigma }_{m1max}{x}_1\tan \eta }{2h_1+h_2}\begin{array}{cc}+\frac{2{\sigma }_{m2max}x2\tan \epsilon }{2n_1+n_2}& x_1\end{array}\left[0,\frac{2h_1+h_2}{2\tan \eta }\right],x_2\left[0,\frac{2n_1+n_2}{2\tan \epsilon }\right]\\ {\sigma }_{m1max}\left(2-\frac{2x_1\tan \eta }{2h_1+h_2}\right)+{\sigma }_{m2max}\left(2-\frac{2x_2\tan \epsilon }{2n_1+n_2}\right) x_1\left[\frac{2h_1+h_2}{2\tan \eta },\frac{2h_1+h_2}{\tan \eta }\right]\\ 0x_1\left(\frac{2h_1+h_2}{\tan \eta },+\infty \right),x_2\left(\frac{2n_1+n_2}{\tan \epsilon },+\infty \right)\end{array},x_2\left[\frac{2n_1+n_2}{2\tan \epsilon },\frac{2n_1+n_2}{\tan \epsilon }\right]0(3)$

where ${\sigma }_{m1max}$ and ${\sigma }_{m2max}$ can be expressed as the following:

${\sigma }_{m1max}=\frac{\left[\left(\frac{L1}{2}+\frac{2h_1+h_2}{2\tan \eta }\right)h_2+\left(\frac{L1}{2}+\frac{h_1+h_2}{\tan \eta }\right)h_3\right]\gamma }{\left(2h_1+h_2\right)\cot \eta }(4)$

${\sigma }_{m2max}=\frac{\left[\left(\frac{L2}{2}+\frac{2n_1+n_2}{2\tan \epsilon }\right)n_2+\left(\frac{L2}{2}+\frac{n_1+n_2}{\tan \epsilon }\right)n_3\right]\gamma }{\left(2n_1+n_2\right)\cot \epsilon }(5)$

Stress from the excavated zone may be written as the following:

${\sigma }_i=\{\begin{array}{c}\frac{2{\sigma }_{i1max}{x}_1\tan \eta }{h_1}\begin{array}{cc}+\frac{2{\sigma }_{i2max}x2\tan \epsilon }{n_1}& x_1\end{array}\left[0,\frac{h_1}{2\tan \eta }\right],x_2\left[0,\frac{n_1}{2\tan \epsilon }\right]\\ 2{\sigma }_{i1max}\left(1-\frac{x_1\tan \eta }{h_1}\right)+2{\sigma }_{i2max}\left(1-\frac{x_2\tan \epsilon }{n_1}\right) x_1\left[\frac{h_1}{2\tan \eta },\frac{h_1}{\tan \eta }\right],\\ 0 x_1\left(\frac{h_1}{\tan \eta },+\infty \right),x_2\left(\frac{n_1}{\tan \epsilon },+\infty \right)\end{array}{x}_2\left[\frac{n_1}{2\tan \epsilon },\frac{n_1}{\tan \epsilon }\right](6)$

where ${\sigma }_{i1max} and {\sigma }_{i2max}$ can be expressed as the following:

${\sigma }_{i1max}=\left(\frac{L_1\tan \eta }{4}+\frac{h_1}{2}\right)\gamma K_{i1}(7)$

${\sigma }_{i2max}=\left(\frac{L_2\tan \epsilon }{4}+\frac{n_1}{2}\right)\gamma K_{i2}(8)$

In Eqs 1–8 and Figure 10 H is the depth of mining, and h₁, h₂, h₃, n₁, n₂, and n₃ are the strata heights in the three zones; $\eta , and \epsilon$ are the excavation angles; x₁ and x₂ are the goaf-affected distances in the lateral side; ${\sigma }_{m1max}, {\sigma }_{m2max}, {\sigma }_{i1max}, and {\sigma }_{i2max}$ are the peak values of transfer stresses from the excavated zone and the suspended zone, respectively. L₁ and L₂ are the widths of the goafs, D₁, D₂, and D₃ are the widths of the coal pillars in the different areas of the goaf on both sides. K_i1 and K_i2 are the stress transfer coefficients in the excavated zone.

FIGURE 10

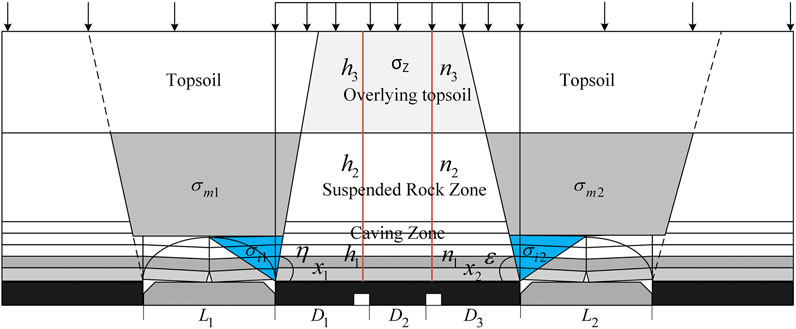

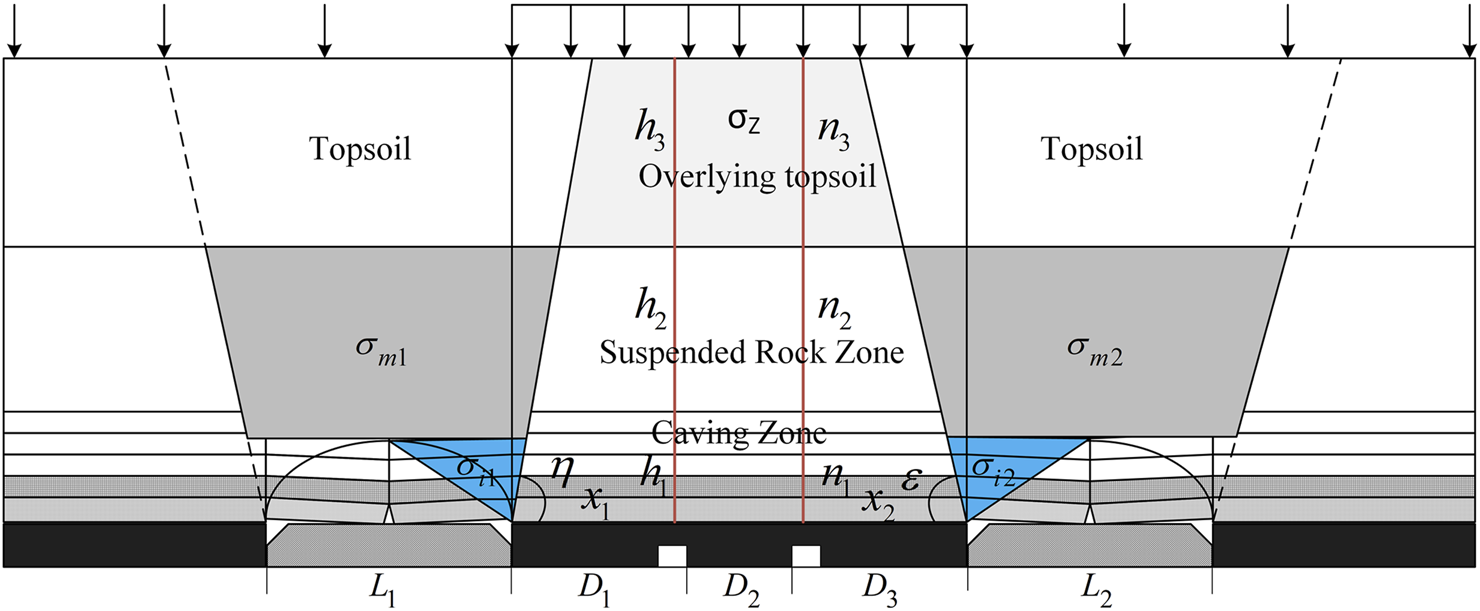

FIGURE 10. Theoretical analysis model of the coal stress structure field in the area of the goaf islands on both sides of the excavated zone.

The equations above only considered the transfer stress from the three zones in the goafs and the geostatic stress of the overlying strata. The isolated coal pillar was also affected by mining-induced stresses in the roadway, at the working face, and the geological structure, which would have increased the degree of stress concentration in the area. The sum of the lateral abutment pressure is given by the following:

${\text{σ}}_{\text{T}}=\lambda \text{σ}(9)$

where $\lambda$ is the coefficient of stress concentration caused by multiple factors, the value usually varies between 1 and 1.5. By analyzing the above equations, and combining them with the values of x₁ and x₂, the solution for distributing stress for the abutment pressure on the coal pillar D₂ can be obtained.

Action by Goafs on Both Sides of the Excavated Zone

The parameters for the goafs and the working face 302 include the following: L₁ = 200 m, L₂ = 180 m, D₁ = 130 m, D₂ = 30 m, D₃ = 80 m, $\eta$ = $\epsilon$ = 71°, and H = 590.5 m. The height of the working face was 3.8 m, and the unit weight of the rock is $\gamma =$ 25 KN/m². Given that the working face 302 has been mined to a depth of 150 m, which was greater than the size of squaring, leads to complete settlement in the goafs. Therefore, we can substitute h₁ = n₁ = 38 m, h₂ = n₂ = 200 m, and h₃ = n₃ = 352.5 m into Eqs 1–9.

Transfer of the geostatic stress from the overlying topsoil can be expressed as a step function as follows:

${\sigma }_z=\{\begin{array}{c}0.155\left(x_1+x_2\right) x_1,x_2\left(\mathrm{0,95.2}\right)\\ 0 x_1,x_2\left(95.2,+\infty \right)\end{array}(10)$

Transfer of the stress from the suspended rock zone:

${\sigma }_m=\{\begin{array}{c}0.525x_1+0.494x_2 x_1,x_2\left(\mathrm{0,47.6}\right)\\ \left(49.922-0.524x_1\right)+(46.978-0.493x_2) x_1,x_2\left(47.6,95.2\right)\\ 0 x_1,x_2\left(95.2,+\infty \right)\end{array}(11)$

Transfer of stress from the excavated zone:

${\sigma }_i=\{\begin{array}{c}0.688x_1+0.627x_2 x_1,x_2\left(\mathrm{0,6.5}\right)\\ \left(9.02-0.688{\text{x}}_1\right)+(8.22-0.627x_2) x_1,x_2\left(6.5,13.1\right)\\ 0 x_1,x_2\left(13.1,+\infty \right)\end{array}(12)$

In summary, the combined multiple stress fields acting on the coal pillar from the goafs on both sides can be expressed as:

${\text{σ}}_{\text{T}}=\lambda \text{σ}=\{\begin{array}{c}\begin{array}{c}1.368{\text{x}}_1+1.276{\text{x}}_2{\text{ x}}_1,{\text{x}}_2\left(\mathrm{0,6.5}\right)\\ (9.02-0.008{\text{x}}_1)+(8.22+0.022{\text{x}}_2){\text{ x}}_1,{\text{x}}_2\left(6.5,13.1\right)\\ 0.68{\text{x}}_1+0.649{\text{x}}_2{\text{ x}}_1,{\text{x}}_2\left(13.1,47.6\right)\end{array}\\ \left(49.922-0.369x_1\right)+(46.978-0.338x_2) x_1,x_2\left(47.6,95.2\right)\\ 0 x_1,x_2\left(95.2,+\infty \right)\end{array}(13)$

where $\lambda$ is set as 1.4 by considering the coal residing in the tunnels, the working face, and the geological structure. According to the above equations, the graph of the lateral abutment pressure in the goafs corresponds to that shown in Figures 11, 12.

FIGURE 11

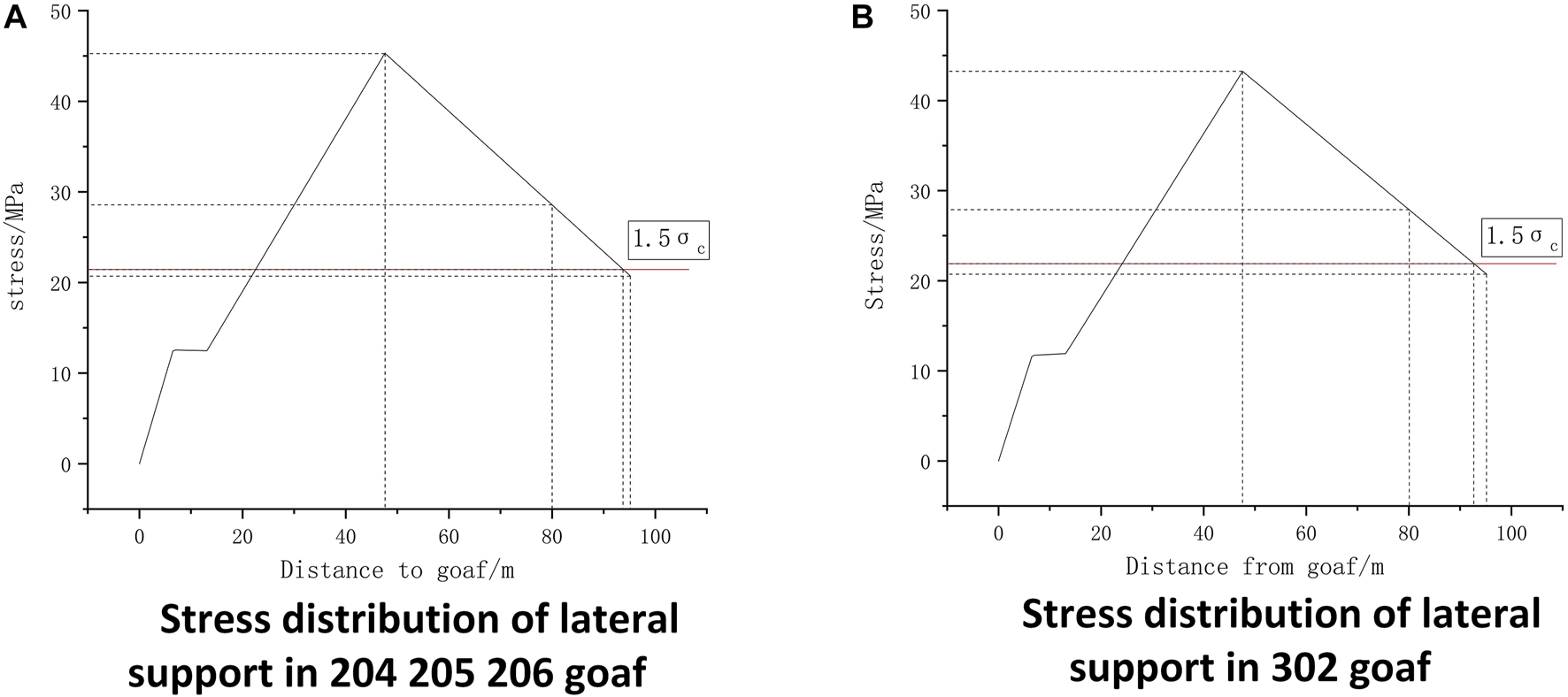

FIGURE 11. Stress distribution diagram of lateral support. (A) Stress distribution of lateral support in 204 205 206 goaf, and (B) Stress distribution of lateral support in 302 goaf

FIGURE 12

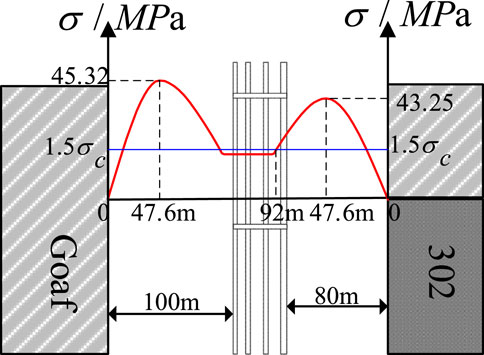

FIGURE 12. Effect of the supporting stress in the goaf on both sides.

Because the action and mechanical mechanism of the goaf on both sides of the roadway on the coal pillar cutting area are the same, Figures 11, 12 show that the two lateral influence pressure diagrams are similar, and the maximum range of lateral supporting stress on both sides of the goaf is 95.2 m. The stress peak area is located at 47.6 m from the coal wall of the goaf. Figure 11A shows that the peak value of lateral supporting stress applied to coal pillar in goaf 204, 205, 206 is 45.32 MPa. As shown in Figure 11B, the peak value of lateral supporting stress in goaf 302 is 43.2 MPa. The lateral side of goafs 204, 205, and 206 was 150 m to the coal pillar (Figure 12), which was cut by the belt roadway and the air-return roadway, and the distance was more than the maximum lateral affecting range (95.2 m), where the wall of goaf 302 was 80 m to the coal pillar cut by the air-inlet and belt roadways. Therefore, the coal pillar (D₂) was affected only by the transfer stress from goaf 302. The isolated coal pillar between 80 and 95.2 m, the air-return roadway, and the connecting tunnel experience a high concentration of stress (Figures 11B, 12).

The index used to assess the likelihood of a rockburst is given by the following:

$I_c={\sigma }_{\text{T}}/{\sigma }_c(14)$

where ${\sigma }_{\text{T}}$ is the total stress applied to the coal seam, and ${\sigma }_{\text{c}}$ is the uniaxial compressive strength of the coal. Based on Table 1, Figures 11B, 12, and Eq. 14, the coal beyond 24–92 m was subject to the stress of 1.5 times the uniaxial compressive strength imposed by the goaf and there was no risk of a rockburst, but if the coal body was within this range (24–92 m), the index would be greater than 1.5. Particularly, all rockburst indices for the coal pillar, the air-return roadway, and the connecting tunnel were greater than 1.5, which can significantly induce a rockburst. The tunnels-cut isolated coal pillar, the tunnels, and the connecting tunnels were subject to a state of high-stress concentration. Significantly, the distance between the isolated coal pillar and the goaf was inadequate because of the high probability of rockburst in the tunnels and connecting tunnel, so rockburst incidents were likely.

TABLE 1

TABLE 1. Risk level.

Analysis of the Stability of Tunnel-Cut Coal

To study the stability of an isolated coal seam cut by tunnels, a model with a size of 100*1*100 m was established based on the actual geological conditions. The following are the boundary conditions; the bottom and the four sides were fixed, and the top was free. Geostatic stress was applied to the top of the model. The model included 120,800 nodes, 5,800 elements, and the space between the tunnels was set as 30 m. The parameters for the properties of the coal-rock body are listed in Table 2.

TABLE 2

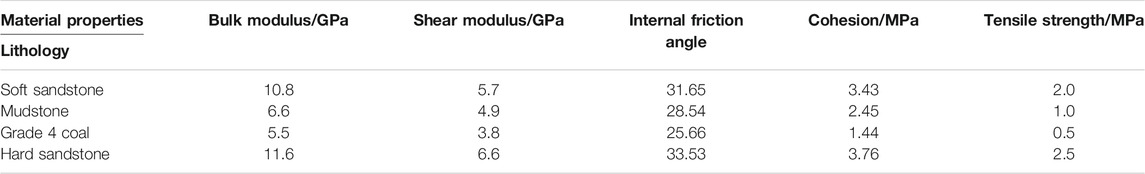

TABLE 2. Material properties.

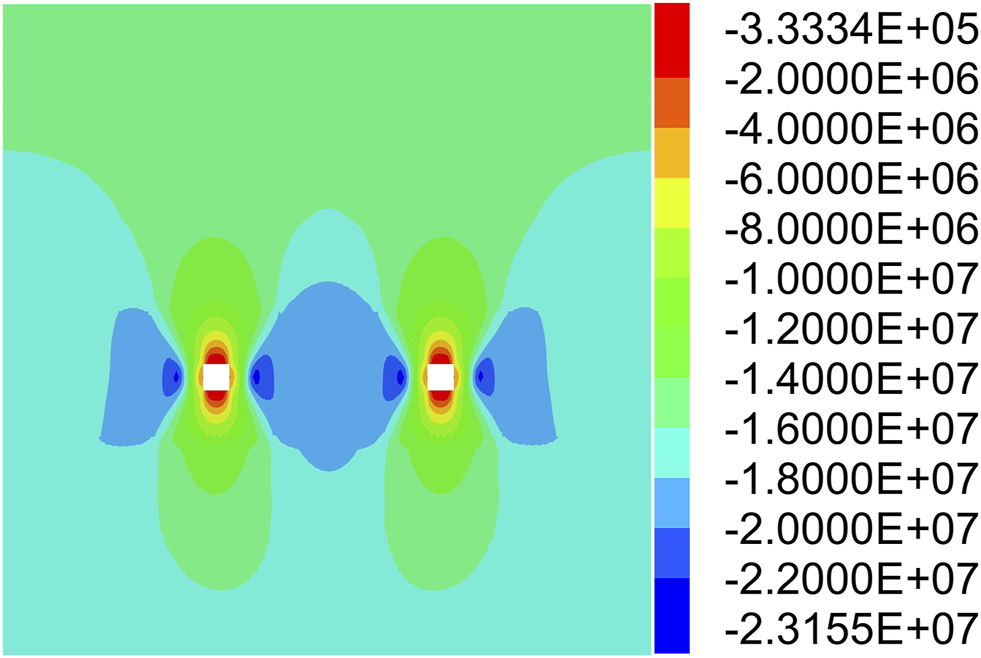

Figure 13 shows a 20-m gap between the tunnels, and the coal cut by the tunnels is subject to a concentration of stress, with a peak value of up to 23.15 MPa. According to the rockburst index, a rock burst would occur when the stress applied to the coal was greater than 1.5 times the uniaxial compressive strength (${\sigma }_c>$ 22.5 MPa).

FIGURE 13

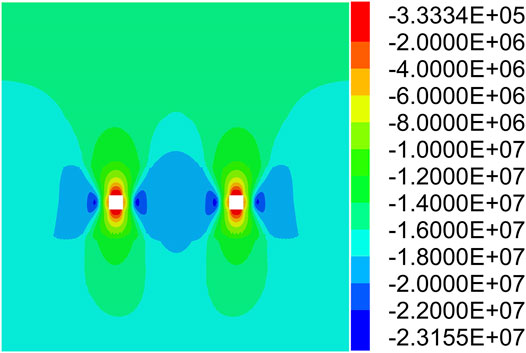

FIGURE 13. Cloud diagram for the vertical stress distribution (Pa).

Figure 14 shows that the distance between the tunnels is 30 m. The isolated coal pillar, the roof, the walls, and the floor are displaced during the mining process; the maximum displacement of the roof was 19 mm; the walls on both sides had maximum displacements of 17 mm; the displacement of the floor was 9 mm; The displacement of the middle coal pillar is approximately 1–7 mm, the position movement and deformation of the coal and rock mass around the cutting coal pillar, and the roadway are broken, and the integrity of the coal pillar and coal-rock mass is poor, and the stability of the coal pillar is reduced.

FIGURE 14

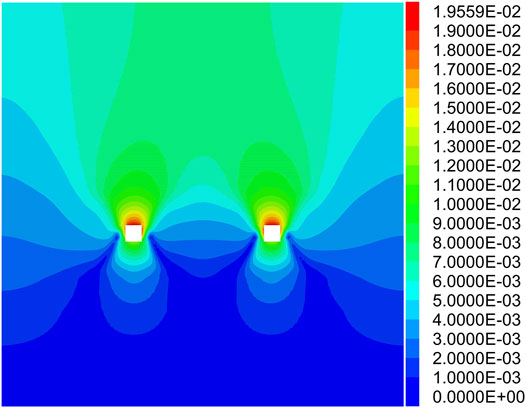

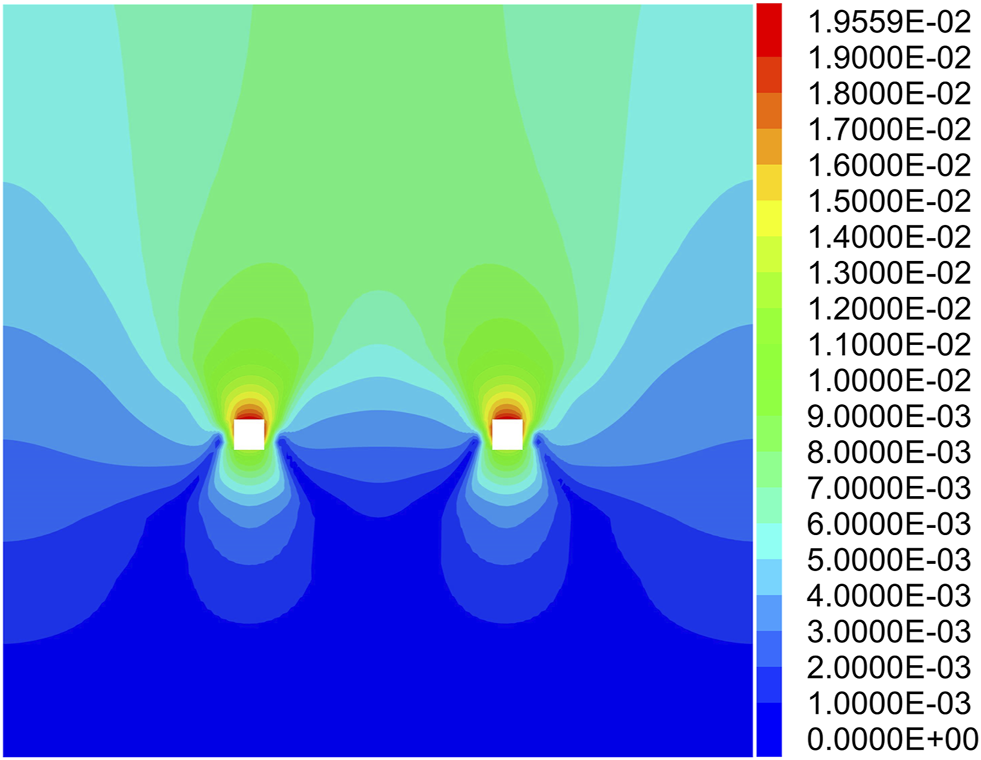

FIGURE 14. Displacement nephogram (m).

Figure 15 shows that when the roadway spacing is 30 m. Shear and tensile failure occurred around the roadway during the mining process, a large plastic failure area appears in the cutting coal pillar and roadway surrounding rock, the stress-bearing limit is reduced, and the elastic zone is reduced to the central area of the coal pillar.

FIGURE 15

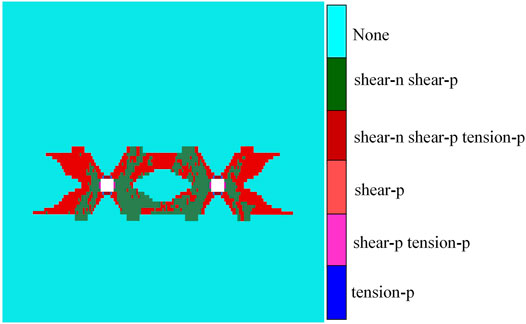

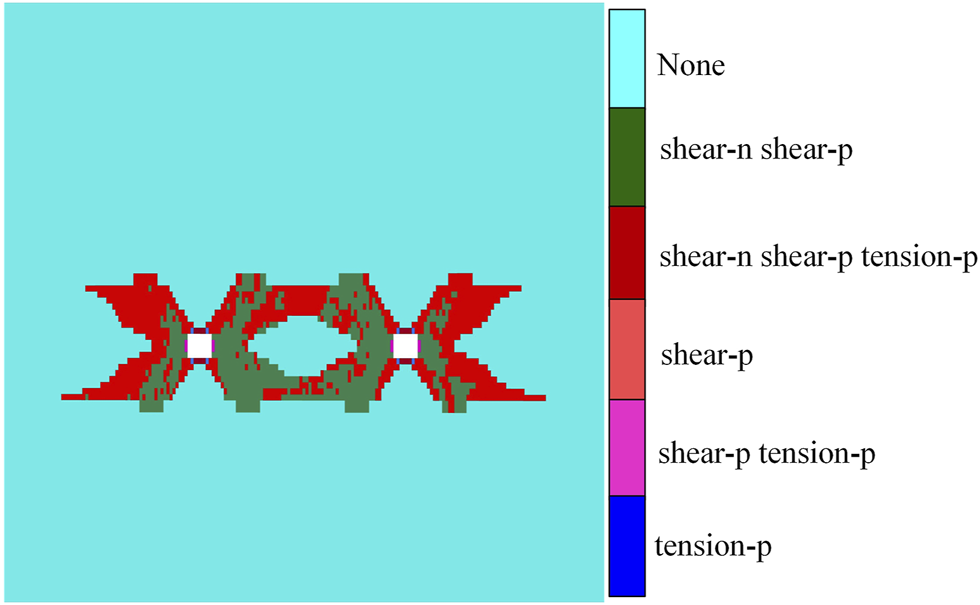

FIGURE 15. Cloud diagram of the plastic zone.

In summary, tunnel cutting while mining reduced the stability of the coal pillar and redistributed stress on the isolated coal pillar; simultaneously, the stress began to be transferred to the middle of the coal pillar, resulting in stress concentration on both sides of the tunnel-cut isolated coal seam. The rockburst index was greater than 1.5, indicating that the coal pillar was prone to fracture. Meanwhile, the plastic area in the coal pillar increased while the elastic area decreased, reducing the elastic strain energy. An intense concentration of stress developed on both sides of the goaf and the working face, causing the combined dynamic-static stress to cause a rockburst.

Discussion

Mechanical analysis and numerical modeling studies have been conducted to clarify the mechanism of tunnel-cut induced rock bursts and to identify measures that can avoid or at least minimize the incidence of rock bursts in coal mining. The following key measures must be implemented: arranging a reasonable gap between the isolated coal pillar and the goafs on both sides; arranging for a reasonable distance between tunnels; increasing the compressive strength of isolated coal pillars; increasing the strength of tunnels; strengthening the monitoring and warning systems in the mines.

1) Arranging a reasonable distance between the tunnel-cut isolated coal pillar and the goaf

According to Eq. 14 and Figures 11, 12, the stress applied to an isolated coal pillar cut by a tunnel increased and then decreased with distance to the goaf; the distance of goaf 302 to the isolated coal pillar was 80 m, which was within the range of stress concentration. To avoid a rockburst, we must set a reasonable distance between the goaf and the isolated coal pillar, increase the size of the coal pillar and avoid a high-stress concentration situation caused by lateral goaf.

2) Arrange the gap between tunnels to be at a reasonable distance

The gap between tunnels is an important factor in determining the stress applied to the coal seam in an isolated area. The geostatic stress and lateral abutment pressure from both sides of the tunnel can affect the coal pillar. Thus, increasing the gap between tunnels can prevent the transfer of peak stress due to tunnel mining, reducing the degree of stress build-up and avoiding a rockburst.

3) Increase the compressive strength of the isolated area

According to Eq. 14, the probability for a rockburst is closely related to the uniaxial compressive strength of the coal. For a certain amount of stress applied to the coal, the smaller the uniaxial compressive strength, the higher is the probability for a rock burst, and vice versa. The grouting method can be used in a rock layer to increase the compressive strength or the tunnel can be set in a rock layer to increase strength, ensuring the tunnel and isolated area’s long-term stability.

4) Increase the supporting strength of the tunnel and roof

An inspection of the scene of the rockburst in the current study reveals that the bolt mesh framework had failed and the roof support was bent, demonstrating that the existing support measures did not satisfy the requirements to prevent a rockburst. The bolt mesh framework and the roof support system must be strengthened.

5) Strengthening of monitoring and warning systems

An examination of microseismic and stress monitoring data associated with the rockburst reveals the occurrence of abnormal data. Thus, strengthening monitoring and warning systems, as well as implementing warning measures at both the local and global levels, are essential. When energy or stress levels increase abruptly, timely measures must be implemented to quickly release the pressure build-up to avoid rock bursts.

Conclusion

A mechanical model was established to investigate a tunnel-cut isolated coal seam, which was subject to lateral abutment pressure from goafs on both sides of the excavated zone. The model can be used to calculate the range affected by the goafs’ stress. The lateral abutment pressure from goaf 302 caused stress concentration at a distance of 80–92 m. Because the goaf on the opposite side of the zone is far from the coal pillar, it cannot affect the isolated coal pillar.

Using numerical modeling, it was found that with tunnel cutting, the stability of the coal pillar decreased, and the isolated coal pillar was subject to a concentration of stress, causing the plastic area to decrease and the elastic area to increase. The lateral abutment pressure and geological conditions of the tunnel, as well as the working face, are the main factors that control the probability of a rockburst.

The following measures can be implemented to prevent a rockburst: 1) arrange a reasonable gap between the tunnel-cut isolated coal seam and the goafs; 2) arrange a reasonable gap between tunnels; 3) increase the compressive strength of isolated coal pillars; 4) strengthen mine support infrastructure; 5) strengthen the monitoring and warning systems installed in the mine.

The findings of this study can be used to assess the risk of rockburst for tunnel-cut isolated coal seams subjected to combine multiple stress fields.
