Yipeng Wang1,2,3Jialei Yang3Guichen Wang4Yinyi Zhang4
Rui Zhang1,2,3,5*Tiegang Li6,7,8*James Russell5Jiayue Wang3Xinling Wang3Fan Zhang9Yuehua Song3Xiaoxiao Yu10Junjie Hu3Zhiyong Liu11Minglei Guan3Qi Han12- 1Co-Innovation Center of Jiangsu Marine Bio-industry Technology, Jiangsu Ocean University, Lianyungang, China
- 2Jiangsu Key Laboratory of Marine Bioresources and Environment, Jiangsu Ocean University, Lianyungang, China
- 3School of Geodesy and Geomatics Engineering, Jiangsu Ocean University, Lianyungang, China
- 4Lianyungang Meteorological Bureau, Lianyungang, China
- 5Department of Earth, Environmental, and Planetary Sciences, Brown University, Providence, RI, United States
- 6First Institute of Oceanography, Ministry of Natural Resources, Qingdao, China
- 7Laboratory for Marine Geology, Qingdao National Laboratory for Marine Science and Technology, Qingdao, China
- 8University of Chinese Academy of Sciences, Beijing, China
- 9Department of Chemical Engineering, Jiangsu Ocean University, Lianyungang, China
- 10State Key Laboratory of Isotope Geochemistry, Guangzhou Institute of Geochemistry, Chinese Academy of Sciences, Guangzhou, China
- 11School of Radiation Medicine and Protection, Medicine College, Soochow University, Suzhou, China
- 12School of Ocean Sciences, China University of Geosciences, Beijing, China
Branched glycerol dialkyl glycerol tetraethers (brGDGTs) are components of bacterial membranes in terrestrial soils, which are widely used in paleoenvironmental reconstruction in global terrestrial soils and marine sediments. In marine sediments, the mixed sources of brGDGTs complicate the applications of brGDGT-related indicators in reconstructing terrestrial environments. In this study, we reported the spatial distribution of brGDGT-related indicators (MBTʹ 5ME, CBTʹ 5ME, #Ringstetra, and IIIa/IIa) in surface sediments from the East China Sea (ECS). MBTʹ 5ME and CBTʹ 5ME showed a stepped trend from the inner shelf to the outer shelf, and #Ringstetra and ∑IIIa/∑IIa values in sediments of the ECS are distinct compared with those in the catchment soils, suggesting marine in situ production of brGDGTs. We also examined the existence of marine in situ brGDGTs and quantitatively determined the contributions of terrestrial and in situ production of brGDGTs. This study reported mixed sources of soil-derived brGDGTs were dominant, and marine in situ brGDGTs were overprinted. Our results indicate that there were predominantly marine in situ brGDGTs (avg. 60.5 ± 5.5%) in the outer shelf due to the weak riverine transportation and were characterized by high #Ringstetra and IIIa/IIa.
Introduction
Branched glycerol dialkyl glycerol tetraethers (brGDGTs) are membrane-spanning lipids found in bacteria with different degrees of methylation and cyclization. They are widespread in soil, peat, rivers, lakes, and marine sediments (Hopmans et al., 2004; Blaga et al., 2009; Kim et al., 2012). The methylation index of branched tetraethers (MBT) and the cyclization ratio of branched tetraethers (CBT) are found to have substantial correlations with mean annual air temperature (MAAT) and pH, and the associations are used to recreate paleoenvironments in worldwide soils and peat (Weijers et al., 2007). However, some studies have reported the significant differences when applied to estimated MAATs by global soil- and peat-based brGDGT calibrations due to the source and seasonal differences in regional coasts (Coffinet et al., 2014; Dong et al., 2014; Ge et al., 2014; Zell et al., 2014). The limitations of the global calibrations promote the development of local regional temperature calibrations. For example, compared with local regional calibrations, global calibration overestimated MAAT by about 4°C in warm and humid acid soil regions (Yamamoto et al., 2016) but underestimated about 4–9°C MAAT in semiarid and arid region alkaline soils (Yang et al., 2014). Besides, improved chromatographic methods can be used to separate 5-, 6-, and 7-methyl isomers, and the MAAT, pH calibrations have been improved by 5-methyl brGDGTs (De Jonge et al., 2013; De Jonge et al., 2014; Liu et al., 2021). Moreover, Russell et al. (2018a), 2018b developed a new temperature calibration method for MAAT for use in the aquatic environment, based on the MBT′ 5ME-empirical model and a multivariate regression of brGDGT fractional abundances on temperature.
During previous reports, brGDGTs in marine sediments were considered to be particular tracers for terrestrial soil organic matter (Hopmans et al., 2004). Recent research has reported that the distributions of brGDGTs in marine sediments and continental soils are distinct (Hopmans et al., 2004; Peterse et al., 2009; Sparkes et al., 2015). Sinninghe Damsté (2016) established the average number of cyclopentane moieties in tetramethylated brGDGTs (#Ringstetra), and reported that #Ringstetra value of marine-derived brGDGTs (>0.7) is higher than that of the soil-derived brGDGTs (<0.7). This index has been effectively utilized to reconstruct the sources of brGDGTs in the North Sea Basin and Baltic Sea (Crampton-Flood et al., 2018; Warden et al., 2018). Additionally, the ratio of hexamethylated to pentamethylated brGDGT (∑IIIa/∑IIa) has been used to trace the sources of brGDGTs in marine sediments. The ∑IIIa/∑IIa value less than 0.59 in over 90% of global soil, varies between 0.59 and 0.9 in nearshore marine sediments, and above 0.9 in the deep sea (Xiao et al., 2016). Some simulations also suggested in situ lipid production in the lake water column (Martínez-Sosa et al., 2020). Additionally, these investigations demonstrate the existence of water or marine in situ production of brGDGTs, which had effects on paleoclimate reconstructions.
BrGDGTs and related indicators were used for paleoclimate reconstructions in the ECS (Zhu et al., 2011; Ge et al., 2016; Zhang et al., 2018; Duan et al., 2019; Zhang et al., 2020). In previous studies, the Yangtze River subaqueous delta is mainly composed of sediment discharged from the Yangtze River, and most finer sediments escape the river mouth and disperse further seaward (liu et al., 2006). Zhu et al. (2011) reported that the MBT/CBT-derived MAAT reflected the temperature of the upper basin (4–10°C), rather than the mid-lower basin (14–18°C) in ECS surface sediments. And Ge et al. (2016) established MBT/CBT-derived MAAT was more likely to reflect mid-lower basin temperature. Zhang et al. (2018) reported a strong correlation between brGDGT records and historical flood events. The Zhe-Min coastal mud area was limited to the offshore area and mainly affected by the source material of the Yangtze River, and local rivers in Zhejiang-Fujian. However, different amounts of Yangtze River sediments moved south in different periods, and the source of sediments in the outer shelf remains to be clarified in future studies (Liu et al., 2018). Due to mixed sources of sedimentary deposits and the complexity of hydrodynamic processes, the brGDGT-related indicators are used to reveal different climatic information in the ECS. In addition, Cao et al. (2020) and Liu et al. (2021) attempted to constrain the source attribution of mixed brGDGTs in the ECS sediments. According to these research studies, brGDGTs are predominantly derived from continental soil erosion. Recently, it is challenged by the potential existence of marine in situ brGDGTs in ECS sediments (Duan et al., 2019; Zhang et al., 2020). However, the source attribution of different brGDGT sources in marginal ECS remains poorly constrained, which is significant for paleoclimatic reconstruction. The purpose of this study was to determine the source of brGDGTs and investigate the link between the native environment of brGDGTs and their indicators.
Materials and Methods
Study Area
The study areas were located in the ECS (Figure 1), a typical river-dominated continental margin sea that has been deeply influenced by riverine inputs from terrestrial soil in the Yangtze River (YR) catchments. The ECS received about 12 Mt/yr of organic matter (OM) as the largest continental margin in the Western Pacific realm (Wu et al., 2003). The muddy areas on the Yangtze River subaqueous delta and the Zhe-Min coastal mud area are formed by terrestrial inputs. As a result, the ECS shelf is an important target for paleoclimate reconstruction and understanding the role of the continental marginal sea in global carbon cycling.
FIGURE 1. Location of surface sediment samples in the East China Sea. ZFCC: Zhejiang and Fujian Coastal Current; TWC: Taiwan Warm Current; YSCC: Yellow Sea Coastal Current; YSWC: Yellow Sea Warm Current; TSWC: Tsushima Warm Current; CDW: Changjiang diluted water.
Sample Collection and Analysis
Between 2013 and 2015, surface sediments (0–2 cm) were collected from 53 study locations in the ECS using a box corer (Figure 1). Samples were immediately placed in pre-cleaned polyethylene bags, sealed, and stored in a −20°C freezer until further analysis. Samples were freeze-dried for more than 48 h in a Christ Delta 1–24 LSC Laboratory freeze dryer (Christ, Germany). The dried samples were ground using a pre-cleaned agate mortar and pestle for further analysis.
Lipid Extraction and GDGT Analysis
Lipid extraction and GDGT analysis were conducted following the protocol described by Hopmans et al. (2016) and Zhang et al. (2018). Then 5 g of freeze-dried samples were weighed, ground, mixed with a quantified standard (C46GDGT) (Huguet et al., 2006), and analyzed using an Agilent 1200 high-performance liquid chromatography system coupled to an Agilent 6460A triple-quadrupole mass spectrometer (HPLC-MS/MS) with atmospheric pressure chemical ionization (APCI) (Hopmans et al., 2004; Hopmans et al., 2016). The GDGTs were separated using two silica columns in tandem at 40°C. The elution gradients were n-hexane/ethyl acetate (84:16; v:v) for the first 5 min, n-hexane/ethyl acetate (82:18; v:v) for another 60 min, and then ethyl acetate for 21 min and kept for 4 min, followed by n-hexane/ethyl acetate (84:16; v:v) for 30 min at a flow rate of 0.2 ml/min. The MS conditions were given as follows: nebulizer at 60 psi, vaporizer at 400°C, N2 flow at 6 L/min and temperature at 200°C, the capillary voltage 3500 V, and corona current at 5 μA (3200 V). Selected ion monitoring (SIM) was used for monitoring at m/z 1,292, 1,050, 1,048, 1,046, 1,036, 1,034, 1,032, 1,022, 1,020, 1,018, and 744. The quantification of GDGTs was performed by comparing the peak area of each compound with that of the C46 GDGT internal standard. The average relative standard deviation (RSD%) was lower than 10%.
Calculation of GDGT-Related Proxies
BIT (a ratio of the branched and isoprenoid tetraether) index was calculated according to Hopmans et al. (2004):
MBT′ 5ME, CBT′ 5ME, and pH were calculated according to De Jonge et al. (2014):
The weighted average number of cyclopentane moieties (#Ringstetra) was calculated for the tetramethylated brGDGTs according to Sinninghe Damsté (2016):
MAAT was calculated according to Russell et al. (2018):
IIIa/IIa as calculated according to Xiao et al. (2016):
Results
Spatial Distribution of brGDGTs and Crenarchaeol (Cren) in ECS Surface Sediments
In ECS, the brGDGT contents in the sediments ranged from 19.7 ng/g to 158.7 ng/g (avg. 66.59 ng/g), as shown in Figure 2A. From the subaqueous delta of the Yangtze River and the Zhe-Min coastal mud area to the outer shelf, the brGDGT contents showed a decreasing trend with water depth. The Cren contents varied from 36.1 ng/g to 814.9 ng/g (avg. 312.15 ng/g) in ECS (Figure 2B). In comparison with brGDGTs, the spatial distribution of Cren exhibited an opposite spatial distribution (Figure 2B).

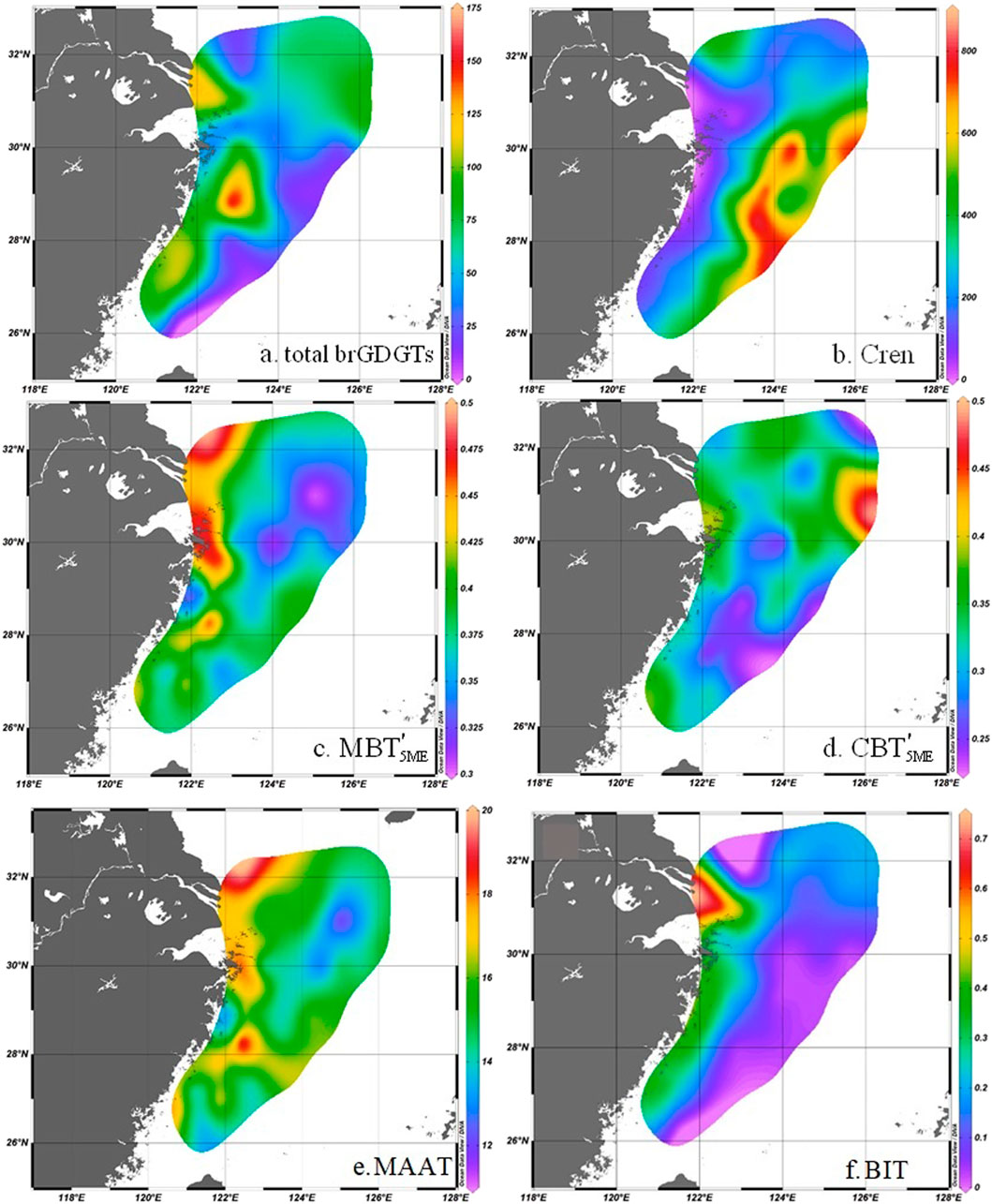

FIGURE 2. Spatial distributions of brGDGTs and Cren in the ECS and MBT′5ME, CBT′5ME, MAAT, BIT, #Ringstetra, and IIIa/IIa derived from brGDGTs. (A) Total brGDGTs (ng/g); (B) Cren (ng/g); (C) MBT′5ME; (D) CBT′5ME; (E) MAAT; (F) BIT.
In addition, the brGDGT contents were dominated by brGDGTs without cyclopentane moieties including brGDGT-Ia (16.6 ± 4.7%), IIa (19.3 ± 3.1%), II´a (8.7 ± 2.9%), IIIa (11.3 ± 4.5%), and III´a (10.8 ± 3.1%), which accounted for between 60.1 and −70.2% of the total brGDGT content, while brGDGTs with 1-2 cyclopentane moieties accounted for between 29.8 and 39.9%. Besides, tetra-, penta- , and hexamethyl-brGDGTs accounted for 32.3 ± 1.3%, 46.3 ± 1.2%, and 26.4 ± 1.1% of the total brGDGT content, respectively (Figure 3).

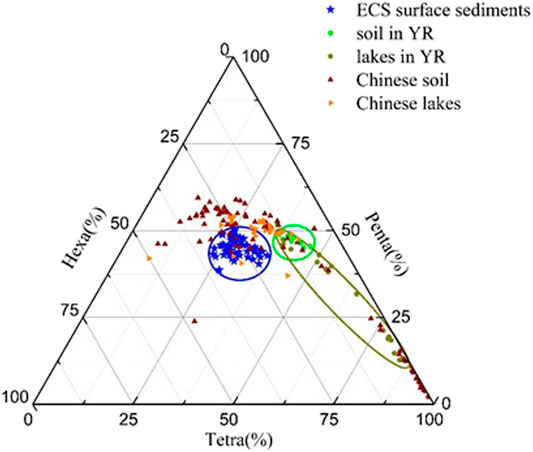

FIGURE 3. Abundances of tetramethyl, pentamethyl, and hexamethyl brGDGTs of surface sediments of the ECS continental shelf, Chinese soil, Chinese lakes, lakes, and soils in the Yangtze River catchment (Xie et al., 2012; Yang et al., 2014; Dang et al., 2018).
brGDGT Proxies in ECS Surface Sediments
In ECS sediments, the MBT′ 5ME value ranged between 0.30 and 0.48 (avg. 0.38 ± 0.11), and the MBT′ 5ME value showed a decreasing trend from the subaqueous delta of the Yangtze River and inner shelf to the outer shelf (Figure 2C). The CBT′ 5ME value ranged between 0.23 and 0.49 (avg. 0.31 ± 0.13, Figure 2D). Compared with the CBT′ 5ME in the inner shelf, the brGDGTs in the subaqueous delta of the Yangtze River showed stronger cyclization. The CBT′ 5ME-derived pH ranged from 7.0 to 7.45 (avg. 7.3 ± 0.2) in the ECS. The calibration for MAAT by Russell et al. (2018a) ranged from 11.9°C to 19.7°C (avg. 15.4 ± 2.4°C, Figure 2E) and was consistent with the measured annual MAAT in mid-lower reaches of the Yangtze River (14.7°C–16.9°C, avg.15.4 ± 1.8°C) (Li et al., 2015). The MAAT based on MBT′ 5ME ranged from 8.6°C to 14.5°C (avg. 11.2 ± 2.1°C) and was 4°C lower than the measured annual MAAT in mid-lower reaches of the Yangtze River. The BIT values ranged from 0.02 to 0.71 (avg. 0.12 ± 0.13), which showed a decreasing trend from the inner shelf to the outer shelf (Figure 2F). The #Ringstetra and IIIa/IIa values ranged from 0.40 to 0.79 (avg. 0.59 ± 0.15) and 0.35 to 0.78 (avg. 0.58 ± 0.13), respectively, which also showed an increasing trend from the inner shelf to the outer shelf (Figures 2G,H).
Discussion
Environment Significance of MAAT Based on brGDGTs in the ECS
In comparison to the calibration (based on worldwide soil) for MAAT by De Jonge et al. (2014), the calibration (based on the aquatic environment) for MAAT by Russell et al. (2018a) had a lesser variance with the measured annual MAAT in the Yangtze River’s mid-lower reaches. This finding was most likely attributable to the aquatic environment, yet Russell et al. (2018a)’s MAAT was still a deviation applied to ECS sediments. In the inner shelf, the MAAT was more consistent with the recorded air temperature in the mid-lower reaches of the Yangtze River (Supplementar Figure S1 in the Supplementary Materials). This supports the previous report that most of the riverine inputs deposited and accumulated to form the subaqueous delta and inner shelf (Liu et al., 2006). Therefore, the MAAT of the subaqueous delta-brGDGTs closely matched the recorded air temperature of mid-lower catchments of the Yangtze River. Compared with the inner shelf, the MAAT based on MBT′ 5ME in the outer shelf indicated a lower level temperature than the recorded air temperature in the mid-lower reaches of the Yangtze River. In membrane lipid simulations, decreasing the degree of methylation leads to a more ordered and compact membrane with reduced membrane fluidity, providing a mechanistic foundation for widespread observation from natural samples that the degree of methylation of brGDGTs decreases with increasing temperature (Naafs et al., 2021). This explains why marine sediments contained fewer tetramethylated brGDGTs than soil (Sinninghe Damsté., 2016). Moreover, the presence of marine in situ brGDGTs resulted in a lower degree of tetramethylation brGDGTs in marine sediments than in the soil.
Source Apportionment of brGDGTs in the ECS
BIT was used to track terrestrial OM in the sediments, where brGDGTs originated from terrestrial soil (Hopmans et al., 2004; Weijers et al., 2007, Kim et al., 2012). The BIT value decreased offshore in ECS sediments, and the peak area was controlled by the Changjiang River. Although the BIT value did not take into account the in situ production of brGDGTs in the ECS, but it still indicated the influence of terrestrial materials in the large estuary. When compared to soil and lake sediments in the Yangtze River Basin, ECS surface sediments showed significant differences among tetra-, penta-, and hexamethylated brGDGTs (Figure 3) (Xie et al., 2012; Yang et al., 2014; Dang et al., 2018). This is consistent with findings from previous studies (Zhu et al., 2011; Sinninghe Damsté, 2016; Zhang et al., 2020). The fractional abundance of tetramethylated brGDGTs in ECS surface sediments was lower than the soil and lake sediments of the Yangtze River Basin, and the pentamethylated brGDGT level was higher. Furthermore, the majority of the brGDGTs in the ECS surface sediments were pentamethylated brGDGTs, whereas the soil contained mostly tetramethylated brGDGTs. This result represents the aquatic environment was smaller than the soils in our study area due to the degree of temperature difference, and the degree of methylation of brGDGTs decreases with increasing temperature. In ECS sediments, the #Ringstetra values increased offshore, as other reports in shelf sediments (Sinninghe Damsté, 2016). Due to the #Ringstetra value controlled by pH (Weijers et al., 2007), we suggest that the low #Ringstetra values controlled by Changjiang River and Zhe-Min coastal rivers. The high #Ringstetra values indicated marine in situ brGDGTs on the outer shelf, which was consistent with previous reports results (Duan et al., 2019; Zhang et al., 2020). The IIIa/IIa value was a sensitive source indicator for brGDGTs, and it considerably increased offshore in ECS sediments, which is useful for accurate estimation of organic carbon.
These were also significant differences in the #Ringstetra and IIIa/IIa values between soil and marine derived brGDGTs (Sinninghe Damsté, 2016; Xiao et al., 2016; Crampton-Flood et al., 2018; Warden et al., 2018; Cao et al., 2020; Zhang et al., 2020; Liu et al., 2021). In marine sediments, the #Ringstetra values ranged from 0.79 to 1.12 (avg. 0.96), while the IIIa/IIa values ranged from 0.92 to 1.16 (avg. 1.04), as shown in Figure 4A (Zhou et al., 2014; Sparkes et al., 2015; Xiao et al., 2016; Crampton-Flood et al., 2018; Cao et al., 2020; Zhang et al., 2020; Liu et al., 2021). In Yangtze River Basin soil, the #Ringstetra values ranged from 0.2 to 0.32 (avg. 0.29), whereas the IIIa/IIa values ranged from 0.22 to 0.45 (avg. 0.35) (Dang et al., 2018). The value of #Ringstetra and IIIa/IIa in Yangtze River Basin soil was lower than that in the surface sediments in ECS (Yang et al., 2014; Dang et al., 2018). Therefore, the existence of marine in situ production of brGDGTs in ECS was shown by the distribution of #Ringstetra and IIIa/IIa.

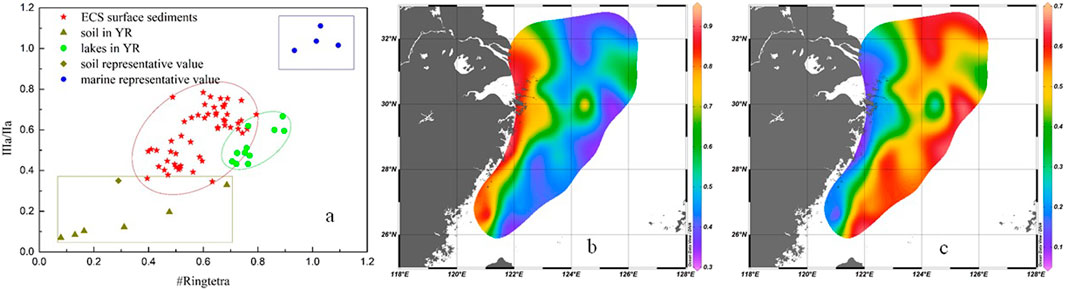

FIGURE 4. (A) #Ringstetra index and Ⅲa/Ⅱa ratio in different environment, (B) the spatial distribution of contributions from terrestrial soil brGDGTs, and (C) marine in situ brGDGTs.
Thus, the source of brGDGTs is discriminated by the following equations:
where AC represents the contribution of brGDGTs in the Yangtze River soil, Amarine represents the contribution of marine in situ production of brGDGTs, #RC represents the mean value of #Ringstetra in the Yangtze River catchment soil (a mean of 0.29), and
Implications for Marine In Situ brGDGTs Paleothermometry
Previous studies suggest that brGDGTs can be produced in situ in the water column or the sediments of an aquatic environment (Peterse et al., 2009; Kim et al., 2012; Sparkes et al., 2015; Sinninghe Damsté., 2016; Xiao et al., 2016; Crampton-Flood et al., 2018; Warden et al., 2018; Cao et al., 2020; Zhang et al., 2020, Liu et al., 2021). Acidobacteria have been proposed as a potential candidate group, and its subdivisions I, III, IV, and VI had produced the presumed building block of brGDGTs (Weijers et al., 2009; Sinninghe Damsté et al., 2018). Compared with the anaerobic zones, Acidobacteria increased from 2.80 to 4.69% of total bacterial RNA in sediments and increased from 0.05 to 4.91% in oxygen-saturated areas (Zimmermann et al., 2012). Acidobacteria preferred aerobic zones with an organically enriched environment. In addition, they had a feedback relationship with phototrophic communities dominated by cyanobacteria (Zimmermann et al., 2006; Zimmermann et al., 2012). The differences of methylation and cyclization of brGDGTs in microbial cultures of Acidobacteria were not only considered as physiological responses but also related to compositional changes (Sinninghe Damsté et al., 2018). As shown in Figure 4, the methylation of brGDGTs in ECS was similar to that of the lakes in the catchments when compared with the soils in the Yangtze River catchments. Moreover, in situ brGDGTs synthesis in water is associated with eutrophication and redox stratification. The high proportion of IIIa´ in total brGDGTs is a common phenomenon in marine environments, where in situ production of brGDGTs is significant (Xiao et al., 2016). Besides, it is predominantly biosynthesized in the lower part of the oxygenated water column (Weber et al., 2018), which imprints the redox transition zone at the subsurface water in the ocean. In membrane lipid simulations, the decreasing degree of methylation leads to a more ordered and compact membrane with reduced membrane fluidity (Naafs et al., 2021). Therefore, marine in situ brGDGTs are preferred to associate with subsurface water. In recent work, samples by the contribution rate of in situ production of brGDGTs for temperature reconstructions allowed the MBTʹ 5MEmarine to be separated from samples (Crampton-Floodet al., 2018). Thus, we calculated the MBTʹ 5MEmarine in low-latitude continental margin surface sediments and associated with the subsurface water. It showed good potential in paleoenvironment reconstruction and land–sea interactions. Moreover, earlier research had shown that pH has a significant impact on modifying the degree of cyclization to mix the sources of brGDGTs (De Jonge et al., 2014; Russell et al., 2018a; Naafs et al., 2021). Therefore, the effects of methylation and cyclization on keeping membranes fluid and permeable must be considered in brGDGTs paleothermometers. Overall, brGDGT paleothermometer is worth further research to understand its responses in climate changes.
Conclusion
The spatial distribution and fractional abundance of brGDGTs in ECS were reported in this study. There was also a quantitative source analysis of brGDGTs. The results showed a decreasing trend in total brGDGTs from the estuary and the inner shelf to the outer shelf. The MAAT based on MBTʹ 5ME at the estuary and the inner shelf matched the recorded air temperature at the Yangtze River mid-lower reaches. Furthermore, the findings indicated mixed sources of soil-derived brGDGTs were dominant and showed decreased offset offshore. Meanwhile, due to weak riverine transportation, the outer shelf was dominated by marine in situ brGDGTs, which were characterized by high #Ringstetra and IIIa/IIa values. Overall, the degree of brGDGT methylation or cyclization is deeply influenced by the environment. Compared with MAAT, marine in situ brGDGT components are more relevant with subsurface water temperature. It is worth noting that there are deviations when employing the relation indicators of brGDGT components to separate land and sea sources in sediments, and much data are required to train the model.
Data Availability Statement
The raw data supporting the conclusion of this article will be made available by the authors, without undue reservation.
Author Contributions
Conceptualization, RZ and TL; formal analysis, YW, JY, RZ, TL, JR, FZ, YS, XY, JH, JW, XW, ZL, MG and QH; original draft preparation, YW, RZ and TL; and review and editing, RZ and TL. All authors have read and agreed to the published version of the manuscript.
Funding
This work was financed by the National Natural Science Foundation of China (U1906211, 91958108, 42176059, 41830539, 41406055, 41506106, 41230959, 41476043), the Strategic Priority Research Program of the Chinese Academy of Sciences (XDA11030104), the project of Global Change and Air-Sea Interaction, International Postdoctoral Exchange Fellowship Program (20160073), Natural Science Foundation of Jiangsu Province (BK20170451, BE2016701), Six talent peaks project in Jiangsu Province (JNHB-143), “521” talent peaks project in Lianyungang City (LYG52105-2018044, LYG06521202131). We are also grateful to “Qing Lan Project” of Jiangsu Provincial Department of Education and Academic Program Development of Jiangsu Higher Education Institutions.
Conflict of Interest
The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
Publisher’s Note
All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors, and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.
Acknowledgments
We thank Fengming Chang, the Institute of Oceanography, Chinese Academy of Sciences, and Zhifang Xiong, the First Institute of Oceanography, Ministry of Natural Resources of China, for reviewing this study.
Supplementary Material
The Supplementary Material for this article can be found online at: https://www.frontiersin.org/articles/10.3389/feart-2021-796539/full#supplementary-material
