ORIGINAL RESEARCH article

Front. Earth Sci., 03 August 2021
Sec. Geochemistry
This article is part of the Research Topic Refining the Interpretation of Nitrogen Isotopes in Deep Time Systems View all 11 articles

The Nitrogen Cycle in an Epeiric Sea in the Core of Gondwana Supercontinent: A Study on the Ediacaran-Cambrian Bambuí Group, East-central Brazil

Paula Luiza Fraga-Ferreira
Paula Luiza Fraga-Ferreira1*Magali AderMagali Ader2Srgio Caetano-FilhoSérgio Caetano-Filho1Pierre SansjofrePierre Sansjofre3Gustavo Macedo Paula-SantosGustavo Macedo Paula-Santos4Marly BabinskiMarly Babinski1Cristian GuacanemeCristian Guacaneme1Carolina Bedoya-RuedaCarolina Bedoya-Rueda1Virginia RojasVirginia Rojas2Humberto L. S. ReisHumberto L. S. Reis5Matheus KuchenbeckerMatheus Kuchenbecker6Ricardo I. F. TrindadeRicardo I. F. Trindade7
  • 1Instituto de Geociências, Universidade de São Paulo, São Paulo, Brazil
  • 2Université de Paris, Institut de Physique du Globe de Paris, CNRS, Paris, France
  • 3Institut de Minéralogie, de Physique des Matériaux et de Cosmochimie, MNHN, Sorbonne Université, Paris, France
  • 4MARUM – Center for Marine Environmental Sciences, University of Bremen, Bremen, Germany
  • 5Laboratório de Modelagem Tectônica, Departamento de Geologia, Universidade Federal de Ouro Preto, Ouro Preto, Brazil
  • 6Laboratório de Estudos Tectônicos, Centro de Estudos em Geociências, Instituto de Ciência e Tecnologia, Universidade Federal do Vale do Jequitinhonha e Mucuri, Diamantina, Brazil
  • 7Instituto de Astronomia, Geofísica e Ciências Atmosféricas, Universidade de São Paulo, São Paulo, Brazil

The Ediacaran-Cambrian transition is marked by the diversification of metazoans in the marine realm. However, this is not recorded by the Ediacaran-Cambrian Bambuí Group of the São Francisco basin, Brazil. Containing the sedimentary record of a partially confined foreland basin system, the Bambuí strata bear rare metazoan remnants and a major carbon isotope positive excursion decoupled from the global record. This has been explained by changes in the paleogeography of the basin, which became a restricted epicontinental sea in the core of the Gondwana supercontinent, promoting episodes of shallow water anoxia. Here, we report new δ15Nbulk data from the two lowermost second-order transgressive-regressive sequences of the Bambuí Group. The results show a rise of δ15N values from +2 to +5‰ in the transgressive system tract of the basal sequence, which was deposited when the basin was connected to other marginal seas. Such excursion is interpreted as an oxygenation event in the Bambuí sea. Above, in the regressive systems tract, δ15N values vary from +2 to +5‰, pointing to instabilities in the N-cyle that are concomitant with the onset of basin restrictions, higher sedimentary supply/accommodation ratios, and the episodic anoxia. In the transgressive systems tract, the δ15N values stabilise at ∼+3.5‰, pointing to the establishment of an appreciable nitrate pool in shallow waters in spite of the basin full restriction as marked by the onset of a positive carbon isotope excursion. In sum, our data show that the N-cycle and its fluctuations were associated with variations in sedimentary supply/accommodation ratios induced by tectonically-related paleogeographic changes. The instability of the N-cycle and redox conditions plus the scarcity of nitrate along regression episodes might have hindered the development of early benthic metazoans within the Bambuí seawater and probably within other epicontinental seas during the late Ediacaran-Cambrian transition.

Introduction

Nitrogen (N) has two stable isotopes, 14N and 15N, and they occur in a proportion of 99.633 and 0.337%, respectively (Meija et al., 2016). Due to its abundance, ability to build chemical bonds with carbon, and to join redox reactions when it is dissolved in liquid water, nitrogen is an important component in Earth’s life system (Stüeken et al., 2016). In seawater, N is found mostly as N2 (di-nitrogen), NO2 (nitrite), NO3 (nitrate), NH4+ (ammonium) and Norg (dissolved or particulate organic nitrogen) (Thomazo et al., 2011) depending on the redox structure of the water column, which controls most of the reactions operating the N-biogeochemical cycle. These reactions impart nitrogen isotope fractionation, hence, they also control the nitrogen isotope composition of these nitrogen species. Based on the study of modern systems, it is commonly assumed that the measured δ15N of a rock/sediment reflects the isotopic signature of primary producers (i.e. superficial waters) which itself reflects the δ15N of the N species they have assimilated (see review in Ader et al., 2016). Hence, δ15N in past sedimentary rocks enables to obtain valuable information about changes in both redox structure of ancient water bodies (e.g., Godfrey and Falkowski, 2009; Quan et al., 2013; Ader et al., 2014; Wang et al., 2015; Chen et al., 2019) and past N-biogeochemical cycle paths (e.g., Cremonese et al., 2013; Stüeken et al., 2015; Cox et al., 2019; Sun et al., 2019; Xu et al., 2020).

To understand the biogeochemical cycle of nitrogen in the past, it is important to understand how it operates now, since, even if not accurate, our knowledge of the modern N cycle is used as the basis of comparison to understand ancient systems. When they are not completed, the reactions of this cycle produce isotopic fractionation (ε=δ15Nproduct δ15Nreactant) and the modern biogeochemical cycle of N in the oceans operates as follows (Figure 1):

i) Nitrogen enters the ocean when N2 is fixed by bacteria and archaea, the diazotrophs (ε = −7 to +1‰, Zhang et al., 2014; Sigman and Fripiat, 2019). Subsequently, N2 is converted to a biologically available form of N, the NH3 gas, which is quickly converted to the soluble NH4+ (Glass et al., 2009). The fractionation on this step depends strongly on which cofactor is used by the nitrogenase enzyme. Mo-based nitrogenase imparts a small fractionation (−2 to +1‰), while Fe or V-based ones lead to a much larger isotopic differentiation, reaching values as low as −7‰ (Zhang et al., 2014).

ii) During organic matter mineralization, Norg is converted into NH4+ (ε = 0 to −2.3‰, Möbius, 2013). This NH4+ can be fixed into clays (ε = 0, Ader et al., 2016), since its ionic radius is similar to the potassium one (Müller, 1977; Greenfield, 1992) or it can be assimilated by organisms (ε = 0 to −27‰, Hoch et al., 1992; Pennock et al., 1996; Liu et al., 2013). NH4+ can also be nitrified, i.e. NH4+ is oxidized to NO2 (ε = −14 to −38‰, Casciotti, 2009) and NO2 is rapidly oxidized to NO3 (ε = +12.8‰, Casciotti, 2009). Finally, NH4+ can contribute to the loss of fixed N in the ocean in a process called anammox, in which NO2 is used to oxidize NH4+, generating N2 (ε = −23.5 to −29.1‰ for εNH4+ N2 and ε = −16.5‰ for εNO2 N2, Brunner et al., 2013).

iii) Denitrification (ε = −25 to −30‰ in the water column and 0 to −3‰ in sediments, Granger et al., 2008; Casciotti, 2009; Kessler et al., 2014), the conversion of NO3 to N2/N2O, is the major sink of fixed N in modern oceans. It occurs in the sediments and in the water column where oxygen levels are low. The remarkable difference in the fractionation of N in the two environments where the process happens is explained by the fact that in sediment pore waters nitrate is almost fully consumed, leading to a small fractionation (Sigman and Fripiat, 2019). NO3 is an important nutrient, accounting for most of the fixed N in marine ecosystems. When it is assimilated by microorganisms (ε = 0 to −10‰, Casciotti, 2009; Granger et al., 2010) its fractionation depends on the abundance of the species, the scarcer is the nutrient, the closer to 0‰ the kinetic isotopic effect is (Fogel and Cifuentes, 1993).

iv) The direct conversion of NO3 to NH4+, known as dissimilatory nitrate reduction to ammonium (DNRA). Although the isotopic effect of this process is not very well known, it can account for fractionations larger than −30‰ (McCready et al., 1983).

FIGURE 1
www.frontiersin.org

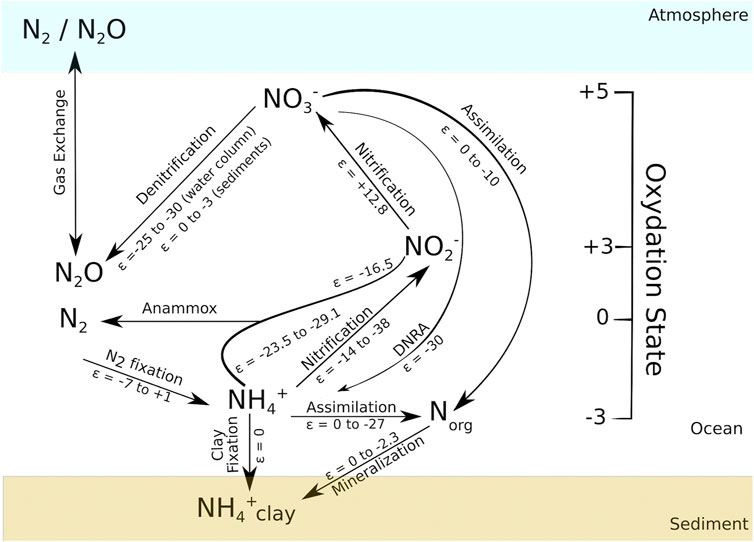

FIGURE 1. Schematic diagram of the modern marine nitrogen cycle. Oxidation state of nitrogen species is shown on the vertical axis going from −3 (NH4+) to +5 (NO3). Nitrogen isotopic fractionation of the pathways of the N-cycle are detailed in the text and are expressed in ‰. Modified after Ader et al. (2016).

Many sedimentary basins worldwide record the transition from the Ediacaran to Cambrian with a rich fossil assemblage, however this does not happen in the Bambuí Group, east-central Brazil, which is almost fossil-barren. This Neoproterozoic unit is situated in the São Francisco Craton and was deposited in a foreland basin, which was generated in response to the uplift of the Brasília and Aracuaí belts (Reis et al., 2017). The Bambuí Group encompasses carbonates and siliciclastic rocks that were deposited above glaciogenic units (Alkmim and Martins-Neto, 2001, 2012; Martins-Neto and Hercos, 2002; Martins-Neto, 2009; Reis and Alkmim, 2015) and lately, it has been a matter of intense research regarding the conditions that could have prevented the Ediacaran fauna to thrive at the core of West Gondwana (e.g., Paula-Santos et al., 2017, 2020; Uhlein et al., 2017, 2019; Okubo et al., 2018, 2020; Paula-Santos and Babinski, 2018; Caetano-Filho et al., 2019, 2021; Crockford et al., 2019). Geochronological and chemostratigraphic data suggest that the Bambuí evolved from a sea connected to the global ocean to a fully restricted environment (Paula-Santos et al., 2015, 2017), which might have influenced its paleoenvironmental conditions, leading to very high δ13Ccarb values (Iyer et al., 1995; Martins and Lemos, 2007; Kuchenbecker et al., 2016b; Guacaneme et al., 2017; Caetano-Filho et al., 2019; Uhlein et al., 2019) and anoxia (Paula-Santos et al., 2017; Hippertt et al., 2019; Uhlein et al., 2019). These in turn may have prevented complex life forms to thrive (Hippertt et al., 2019). Further knowledge on the interplay between the redox state of Bambuí seawater and the biological metabolic paths could help understanding the limiting conditions for life during the Ediacaran-Cambrian boundary, and thus on the comprehension of how life may have progressed to more complex forms at that period. Aiming to contribute to this debate, we present a new redox proxy on the Bambuí Group sediments: nitrogen isotopic composition (δ15N). The nature of δ15N data have the potential to provide important information on the Bambuí seawater chemistry, its redox state and prevailing metabolisms.

Geological Setting

The São Francisco Basin and the Bambuí Group

The São Francisco Basin (SFB) is a long-lasting sedimentary locus in east-central Brazil, whose records cover a large area (∼350.000 km2) of the São Francisco craton (Figure 2). This intracratonic basin encompasses many first order sedimentary cycles younger than 1.8 Ga, which record important tectonic and climate events (Reis et al., 2017). The basement of SFB present three main structural domains: two structural highs, named Januária (north) and Sete Lagoas (south) highs, separated by a deep NW-trending aulacogen, called Pirapora aulacogen. During the Neoproterozoic-Phanerozoic transition, the SFB hosted a complex foreland system, which evolved in response to the growth of the Brasília and Araçuaí orogens around the São Francisco craton in the context of the Gondwana supercontinent assembly (e.g. Alkmim and Martins Neto, 2001; Martins-Neto, 2009; Reis and Suss, 2016; Reis et al., 2017; Uhlein et al., 2017; Kuchenbecker et al., 2020). The records of such important foreland system are encompassed in the Bambuí Group, which cover a large area of the São Francisco basin, presenting mostly carbonates, pelites, sandstones and conglomerates. Regarding the lithostratigraphy of the Bambuí Group, Dardenne (1978), after Costa and Branco (1961), divided the unit into six units: A diamictite at its base and the Sete Lagoas, Serra de Santa Helena, Lagoa do Jacaré, Serra da Saudade and Três Marias formations. Other units of the Bambuí Group are the Samburá (Barbosa et al., 1970), Lagoa Formosa (Seer et al., 1989) and Gorutuba formations (Kuchenbecker et al., 2016a). The Bambuí has been interpreted as a first-order sequence subdivided into four second-order progradational-retrogradational sequences (Figure 3) (Martins and Lemos 2007; Martins-Neto, 2009; Reis and Alkmim, 2015; Caetano-Filho et al., 2019). The basal second-order sequence comprises the Carrancas Formation and the base of the Sete Lagoas Formation. The Carrancas Formation is composed of conglomerates with a sandy-calcareous matrix, whose glacial origin has been discussed (e.g. Martins-Neto et al., 2001; Uhlein et al., 2016; Delpomdor et al., 2020) and the overlying Sete Lagoas Formation consists mainly of marine dolostones, limestones and organic-rich shales (e.g. Iglesias and Uhlein, 2009; Reis and Suss, 2016). The basal limestones of the Sete Lagoas Formation have been interpreted as a cap carbonate related to a Neoproterozoic glaciation (e.g. Babinski et al., 2007; Vieira et al., 2007b; Caxito et al., 2012; Kuchebecker et al., 2016a). The two-following second-order sequences are the upper part of the Sete Lagoas, Serra de Santa Helena, Lagoa do Jacaré, and the lower Serra da Saudade formations, which also record marine environments. The Serra de Santa Helena Formation is composed of siltites, pelites, shales and minor limestones, whereas the Lagoa do Jacaré Formation is characterized by pisolitic and oolitic limestones, marbles, intraclastic breccias, shales and siltites and the Serra da Saudade Formation is a succession of siltites and greenish shales, with minor limestones and dolostones (Dardenne, 1978). The uppermost second-order sequence encompasses the upper Serra da Saudade and the shallow marine/continental deposits of the Três Marias and Gorotuba formations (Kuchenbecker et al., 2016a; Reis and Suss, 2016). At the western portion of the basin, the Samburá and Lagoa Formosa formations are interpreted as the deposits of fan-deltas and submarine-fans, representing the gravitational flows associated to the intermediate second-order sequences (Uhlein et al., 2011; Reis et al., 2017).

FIGURE 2
www.frontiersin.org

FIGURE 2. The São Francisco Craton geological map and the São Francisco Basin. Studied sections: A, Arcos; W, Well 1; J, Januária. Modified after Caetano-Filho et al. (2019).

FIGURE 3
www.frontiersin.org

FIGURE 3. Litho-sequence and chemostratigraphy of the São Francisco Basin. Yellow Star represents maximum depositional age obtained in detrital zircons in the upper Sete Lagoas Formation (Paula-Santos et al., 2015); The red star represents a Serra da Saudade Concordia Age obtained by Moreira et al. (2020). Chemostratigraphic intervals (CIs) were defined by Paula-Santos et al. (2017). Cloudina occurrences are reported in Warren et al. (2014) and Perrella Júnior et al. (2017) and Treptichnus pedum occurrences are reported in Sanchez et al. (2020). Modified after Caetano-Filho et al. (2019).

Chemo and Sequence Stratigraphy of the Bambuí Group

Many chemostratigraphic studies were done on the Bambuí Group applying 13C isotopes on carbonate rocks (δ13Ccarb) (Iyer et al., 1995; Santos et al., 2004; Martins and Lemos, 2007; Vieira et al., 2007a; Caxito et al., 2012; Kuchenbecker et al., 2016b; Guacaneme et al., 2017; Paula-Santos et al., 2017; Caetano-Filho et al., 2019; Uhlein et al., 2019). Considering δ13Ccarb and also 87Sr/86Sr ratios, Paula-Santos et al. (2017) divided the basal Bambuí into three chemostratigraphic intervals (CIs) and interpreted the shifts in the measurements in terms of oceanic connection and restriction of the basin (Figure 3). The first interval (CI-1) comprises the Sete Lagoas cap carbonates, in which δ13Ccarb values records a negative excursion (−3 to −5‰) followed by a positive excursion (−5 to 0‰). Also, at CI-1, the 87Sr/86Sr ratio increases from 0.7074 to 0.7082. At CI-2, which corresponds to the middle of the Sete Lagoas Formation, both δ13Ccarb and 87Sr/86Sr are stable, around 0‰ and 0.7082, respectively. At the CI-2 the marine late Ediacaran index fossil Cloudina sp. (Grotzinger et al., 1995) was reported by Warren et al. (2014), suggesting that the São Francisco basin was connected to other Gondwana marine basins through a sea pathway, allowing the migration of metazoans and C-isotope homogenization with global seawater. Finally, the third interval (CI-3), encompasses the upper Sete Lagoas, Serra de Santa Helena, and Lagoa do Jacaré formations. At CI-3, δ13Ccarb reaches very high values (up to +16‰) and 87Sr/86Sr ratios decrease when compared to CI-2, being close to 0.7075. The reported 87Sr/86Sr ratios are low for the late Ediacaran/early Cambrian, suggesting restriction and lack of homogenization with external seawaters, hence, its Sr signature was mostly controlled by weathering of ancient carbonate platforms (Paula-Santos et al., 2015, 2017). Such restriction was probably caused by the progressive uplift of the marginal orogens of the São Francisco Craton (Paula-Santos et al., 2017), which isolated the basin. Uhlein et al. (2019) named these very high δ13Ccarb values reported in CI-3 interval as MIBE (Middle Bambuí Excursion). They were mostly interpreted as the result of enhanced burial of organic matter and active methanogenesis coupled to methane emissions to the atmosphere (Iyer et al., 1995; Paula-Santos et al., 2017; Caetano-Filho et al., 2021) or the consequence of a change in carbon input due to weathering of ancient sedimentary carbonates and higher burial rates of authigenic carbonates due to organic matter oxidation (Uhlein et al., 2019; Cui et al., 2020). The chemostratigraphic division made by Paula-Santos et al. (2017) was later corroborated by Paula-Santos et al. (2018) since the Rare Earth Elements + Yttrium (REY) patterns that were reported by the authors present secular trends that matches the intervals CI-1, CI,-2 and CI-3. Using geochemical data and two major stratigraphic surfaces, the maximum flooding surface (MFS) and the first sequence boundary (SB1), which are recognizable throughout the basin, Caetano-Filho et al. (2019) established correlations between the sections used in this work, classifying its basal units in terms of systems tracts identified both at the Sete Lagoas and at the Januária highs. The authors defined a transgressive system tract (TST), an early highstand system tract (EHST) and a late highstand system tract (LHST) and also a second transgression at the base of the upper second-order sequence. The TST corresponds to a retrogradational pattern that marks a transgression over the forebulge of the Bambuí domain and its connection to the global ocean, and it comprises deposits of diamictites from Carrancas and carbonates from the basal Sete Lagoas Formation. This sequence ends at MFS, which in the Sete Lagoas High is marked by a succession of shale and mudstones, whilst in Januária bindstones lacking structures related to flows were chosen as the limiting surface, this interval is associated to the CI-1 of Paula-Santos et al. (2017). Above it, a progradational pattern shows that a regression occurred, marking the EHST. At this stage, the Bambuí was still connected to the global ocean. Carbonates are the main lithology of this stage and represent a stable marine ramp. The boundary between EHST and LHST was defined by a sharp increase in the Sr/Ca ratio since the latter present an average value of 0.004, while the former the value of 0.001 and this increment was interpreted as the beginning of the restriction of the Bambuí seaway. LHST comprises very pure carbonates that become coarser towards the top of the sequence. Despite the rise in Sr/Ca ratios, Paula-Santos et al. (2017) defined that the CI-2 covers both EHST and LHST, which places the beginning of the restriction later than it was suggested by Caetano-Filho et al. (2019). The LHST ends with the surface identified as SB1 marking the beginning of the second second-order sequence, which corresponds to the CI-3 of Paula-Santos et al. (2017). The SB1 is defined by subaerial features in shallow environments, whereas in deeper it is defined by an erosional surface at the base of peritidal channels limestones.

Age of the Bambuí Group

A large set of data show that the deposition of the Bambuí Group largely took place between the late Ediacaran and Cambrian. Paula-Santos et al. (2015) determined U-Pb ages in detrital zircons from pelites intercalated with carbonates from the upper part of the Sete Lagoas Formation and obtained a maximum depositional age around 560 Ma. The discovery of fossils of Cloudina sp. and Corumbella Werneri (550–542 Ma) (Grotzinger et al., 1995) in the middle Sete Lagoas Formation (Warren et al., 2014; Perrella Júnior et al., 2017) corroborate Paula-Santos et al. (2015) ages. Recently, Moreira et al. (2020) reported that ten prismatic zircon grains extracted from a K-bentonite volcanoclastic bed in the upper Serra da Saudade Formation defined a U-Pb Concordia age of 520 Ma ± 5 Ma. Finally, the fossil Treptichnus pedum was reported in the upper Três Marias formation, which places the deposition age of this unit in the early Paleozoic (Sanchez et al., 2020).

Materials and Methods

Studied Sections

Three stratigraphic sections from the Bambuí Group were studied in this work: Januária (∼130 m-thick), an assemblage of three minor sections in the central-east portion of the São Francisco Basin in Januária High domain, Arcos (180 m-thick) and Well 1 (430 m-thick), the latter two sections corresponding to drill cores, at the South of the Basin, in the Sete Lagoas High domain (Figure 2). Januária and Arcos represent shelf environments of the Bambuí, while Well 1 represents a forebulge graben setting. For detailed lithostratigraphy and sedimentological features of Januária, Arcos and Well 1, seeCaetano-Filho et al. (2019), Kuchenbecker et al. (2011, 2013) and Reis and Suss (2016), respectively. The samples analyzed here correspond to the two lowermost second-order sequences of the Bambuí Group.

Januária Section

The Januária composite section (Figure 4) is composed of three minor sections, Cônego Marinho (CM), Barreiro (BAR) and Januária-Lontra (JL), all located at the North of Minas Gerais State, Brazil. Above the unconformity that separates the Bambuí Group from the basement, grey calcilutites (0–4 m) presenting aragonite pseudomorphs (cap carbonates) are overlapped by pink carbonates (4–19 m) that transition to light grey fine-grained carbonates (19–25 m) interleaved with pelitic siliciclastic layers. The presence of such layers was interpreted as evidence for a deep environment, therefore, at this interval, Caetano-Filho et al. (2019) set the maximum flood surface for the section. Overlying the light grey limestones, there are dark grey calcisiltites (25–58 m) intercalated with thin beds of clay. From 58 to 98 m, carbonates become gradually coarser and flat pebble breccias. At the top of the Sete Lagoas Formation, there are dolostones (98–100 m) with intraclasts and vugular porosity, which are interpreted as the result of a shallow to subaerial conditions (Caetano-Filho et al., 2019). Above them, an unconformity marks the end of the first second-order sequence. Following a gap of unknown thickness, the Serra de Santa Helena Fm. outcrops in a 20 m-thick succession of laminated to massive siltstones and mudstones and it is overlapped by the 20 m-thick package of limestones of the Lagoa do Jacaré Formation, which shows features such as oolites, intraclastic breccias and planar-parallel lamination. This section is detailed described in Caetano-Filho et al. (2019).

FIGURE 4
www.frontiersin.org

FIGURE 4. Januária section: Depositional environments, lithologies, structures and sequence stratigraphy framework. δ15N data was obtained in this study and δ13Corg was published by Caetano-Filho et al. (2021). The axis on the Corg/N column is fixed on the Redfield ratio (6.6). System tracts: TST, Transgressive System Tract; MFS, Maximum Flooding Surface; EHST, Early Highstand System Tract; LHST, Late Highstand System Tract; SB1, Sequence Boundary. Granulometry scale: C, clay; S, sand; G, gravel. Adapted after Caetano-Filho et al. (2019).

Arcos Section

The Arcos section (Figure 5) consists of two drillcores of about 200 m that were obtained by mining companies within the area of the city of Arcos, Minas Gerais, Brazil. Its detailed description can be found in Kuchenbecker et al. (2011, 2013) and will be summarized here. The basement comprises slightly deformed dark-green to grey granodiorites, above it, in an irregular contact, a 0.5 m-thick layer of the Carrancas diamictite occurs, containing clasts from the basement, besides clasts of limestones, siltite and quartz. The next 9 m of the section encompasses light-grey impure limestone intercalated with calcilutites. Microbial lamination is present so as fenestral porosity, commonly filled with sparry calcite and more rarely with crysptocrystalline silica. From 600 to 608 m, the terrigenous content diminishes and calcilutites are the dominant lithology and, occasionally, there is the occurrence of impure calcarenite. Stylolites and other dissolution structures are present, and at the top of this segment, there are aragonite pseudomorphs. Pyrite crystals, euhedric or framboidal, are also a common feature. Between 608 and 627 m the detrital content increases remarkably and the interval is marked by mudstones and siltstones, and, more rarely, by calcilutites. Such enhance in the detrital content was used as a guide to determine the maximum flood surface of the Arcos section (Caetano-Filho et al., 2019). Again, from 627 to 668 m, the terrigenous content is very low and limestones featuring microbial laminations predominate. However, from time to time, intraclastic calcarenites are also found. At the segment that goes from 668 to 705 m, calcilutite exhibiting microbial structures intercalates with black shaly rocks presenting a crinkled lamination. Then, until 718 m, calcilutites are the major lithology. From 718 to 738 m there are oolitic and intraclastic calcarenites. The interval between 738 and 761 m is heavily dolomitized, featuring oolitic and intraclastic doloarenites, sometimes laminated. The dolomitization is evidence of regression; therefore, at this interval, there is an unconformity that marks the end of the first second-order sequence and the beginning of the second second-order sequence. Following the dolomitic rocks, the Arcos section comprises, again, calcilutites with microbial structures, until the end of the section.

FIGURE 5
www.frontiersin.org

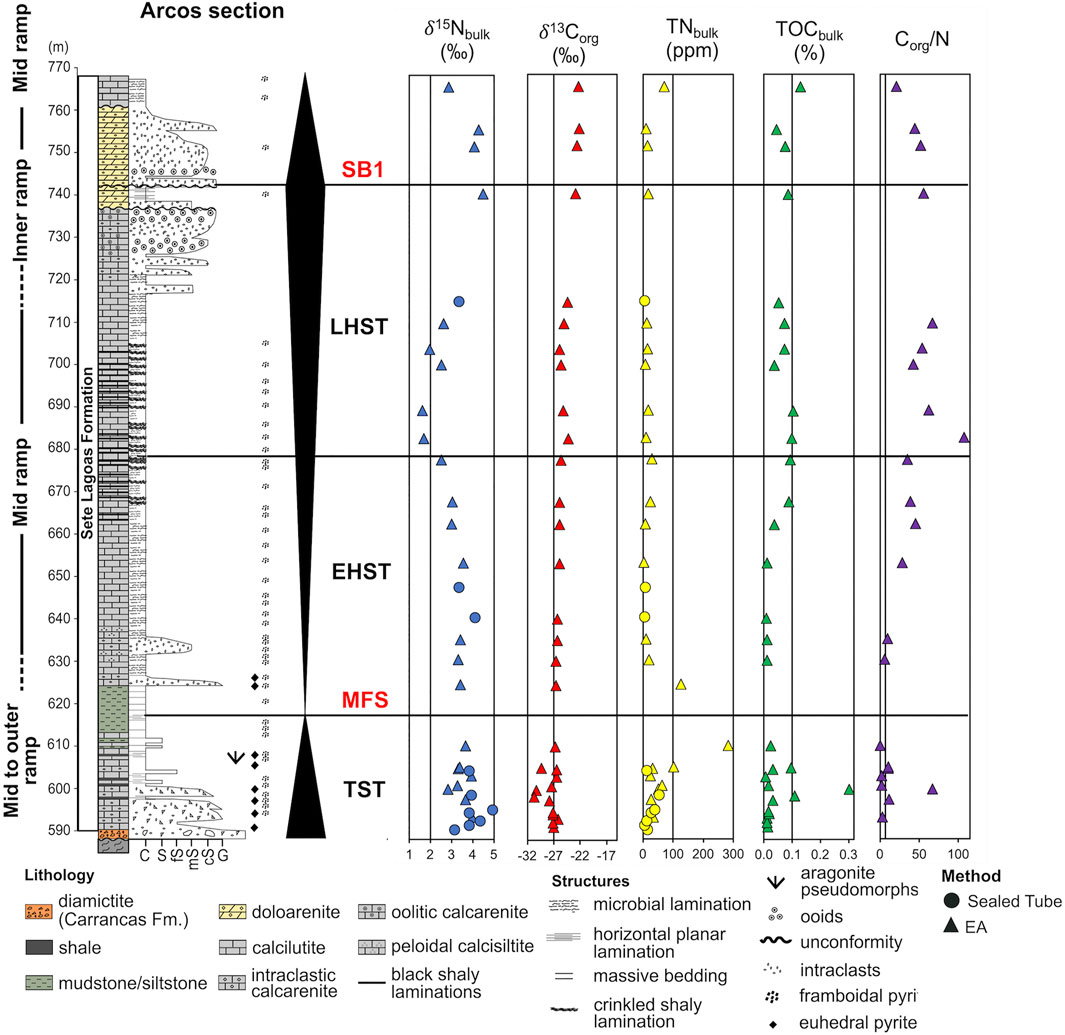

FIGURE 5. Arcos section: Depositional environments, lithologies, structures and sequence stratigraphy framework. δ15N data was obtained in this study and δ13Corg was published by Caetano-Filho et al. (2021). The axis on the Corg/N column is fixed on the Redfield ratio (6.6). Abbreviations here are the same as the ones used in Figure 4.

Well 1 Section

The Well 1 section (Figure 6) is a continuous drill core that was drilled in the southern São Francisco basin during hydrocarbon exploration campaigns. The detailed stratigraphy and depositional environment of Well 1 is present by Reis and Suss (2016). Its base, which will be investigated in this work, is approximately 430 m-thick, consisting of the thickest studied section presented here. An erosional unconformity marks the appearance of the Carrancas diamictite (muddy matrix sustaining clasts of metasedimentary rocks, granitoids and quartz veins) above the basement. The conglomerate grades upward to recrystallized dolomites ∼80 m-thick) cemented by sparry dolomite and chert; wave ripples and hummocky stratification are present as well. From 1100 to 1075 m-depth dark shales intercalate with limestones, and from 1075 to 1045 m-depth a thick layer of shale containing pyrite closes this portion of the drill core. In the middle of this interval, the maximum flood surface was set (Caetano-Filho et al., 2019), as it represents deeper facies. Above the shaly interval, until approximately 880 m-depth, greenish siltstones intercalate with calcilutites, calcarenites and calcirudites. Structures such as wavy, lisen and flaser beddings, wave ripples and hummocky stratification are reported. From 880 to 720 m-depth the section comprises dark-limestones of varied granulometry, in which wavy ripples, gutter casts, hummocky and horizontal planar lamination are described at the base of this segment and ooids, trough cross-bedding, planar cross-stratification and microbial lamination at the top. Also, associated with these microbial laminations, there is the limit of the first second-order sequence, an erosional surface at the base of peritidal channels limestones (Caetano-Filho et al., 2019).This is the only studied section in which there are no dolostones associated with the end of the first second-order sequence. The uppermost 30 m of Well 1 comprises shales with minor intercalations of calcirudites and calcarenites, pyrite is a common feature.

FIGURE 6
www.frontiersin.org

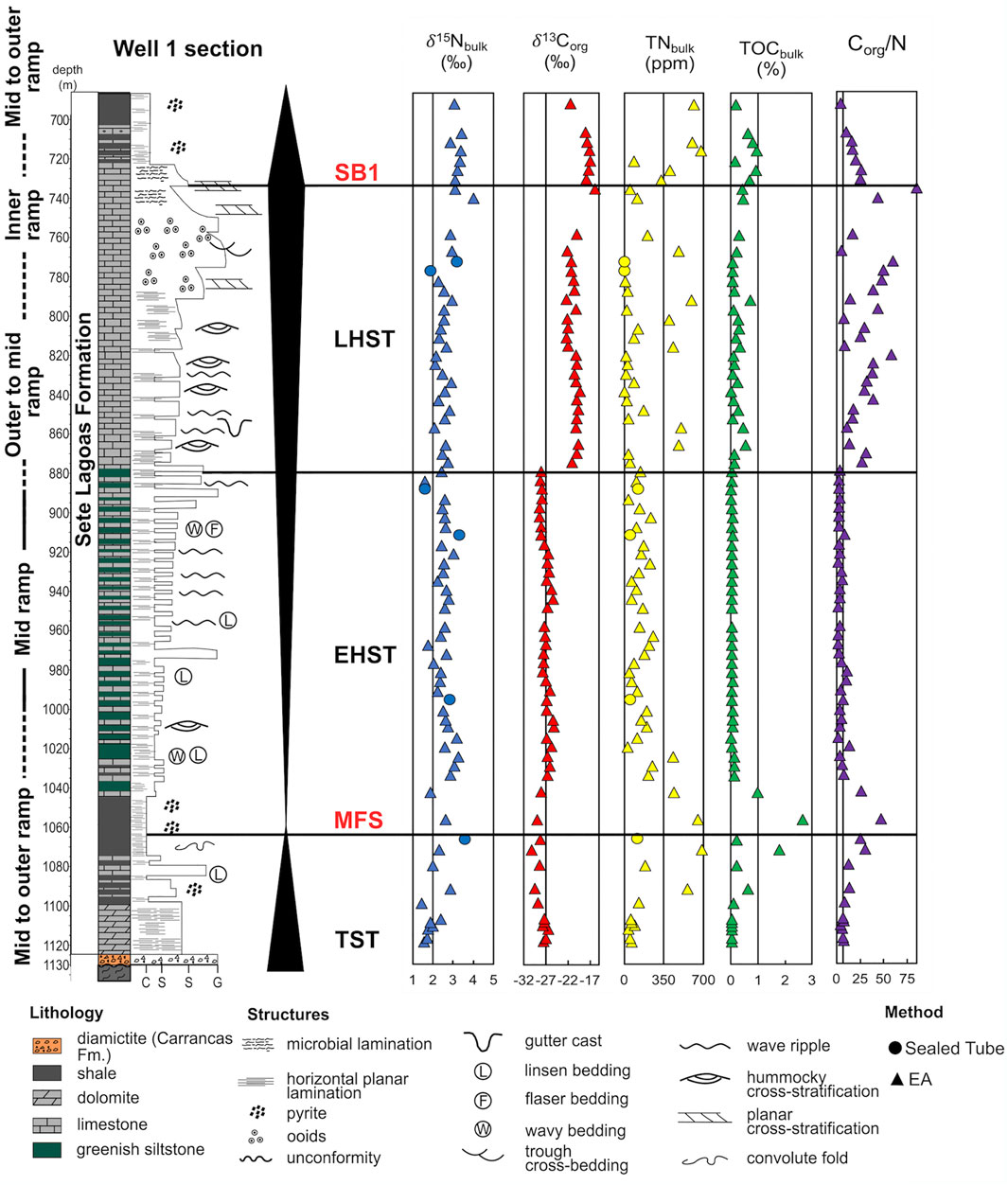

FIGURE 6. Well 1 section: Depositional environments, lithologies, structures and sequence stratigraphy framework. δ15N data was obtained in this study and δ13Corg was published by Caetano-Filho et al. (2021). The axis on the Corg/N column is fixed on the Redfield ratio (6.6). Abbreviations here are the same as the ones used in Figure 4.

Preparation of the Samples for Analysis

In total, 177 samples were analysed, from these, 86 were from Well 1, 46 from Januária and 45 from Arcos. A stratigraphic resolution of 1 m was deployed for the cap carbonate interval, except Well 1, in which the resolution was 3 m. Also, for the second sequence of the Januária section, the resolution of sampling was 1 m. For the rest of the sections, the interval was of 5 m, encompassing all the systems tract intervals defined by Caetano-Filho et al. (2019). To acquire δ15Nbulk (N bounded to clays + N bounded to kerogen) data, the rocks were crushed into smaller pieces using mortar and pestle and were subsequently pulverized using a tungsten carbide mill. The carbonate fraction was removed by adding 25 ml of 5 N HCl to 3–15 g of sample for 12 h at 25°C. The reaction proceeded after that at 80°C for 2 h. Leachate was centrifuged and discarded and the residue of this procedure was rinsed with distilled water until its pH was neutral and was then dried in an oven at 50°C. This allowed to concentrate N in the residue, a necessary step given the high carbonate content and very low TOC of most samples.

δ15N, Total N and Total Carbon – Elemental Analyzer

To obtain the δ15Nbulk data, samples were analyzed on an elemental analyser Thermo Scientific EA Flash 2000 coupled to a Thermo Scientific Delta V+, at Pôle de Spectométrie Océan, University of Western Brittany, France. For this, 5–10 mg of the insoluble residue of each sample was weighted in tin capsules and dropped by an autosampler into an oxidation furnace at 1020°C. An 8 s injection time of dioxygen at a flux of 240 ml/min was used to accomplish the flash combustion. To avoid incomplete oxidation of the flash combustion products, chromium(III) oxide and silver-plated cobalt oxide were added to the oxidation reactor. The produced gas was transported by continuous helium flow (100 ml/min) to a reducing column containing activated copper (heated at 650°C), which enabled the removal of oxygen in excess and the conversion of NOx to N2. Water vapor was removed from the gas using anhydrous magnesium perchlorate. The rest of the gases were separated using gas chromatography and were introduced into the mass spectrometer via a Thermo Scientific ConFlo IV universal interface. Total nitrogen (TN) was measured by the Thermal Conductivity Detector of the Flash EA 2000 and in this work, we report TNdecarb as the measured N concentration in the insoluble residue obtained after HCl leaching. δ15Nbulk data is reported in per mil (‰) deviation from the atmospheric N isotopic composition (δ15Nair = 0‰). The average uncertainty was calculated based on repeated measurements of the reference standard SED-IVA (sediment; + 4.42‰) and the in-house standard LIPG (yeast; −0.16‰) and it was better than 0.15‰ (2σ) for δ15Nbulk and better than 0.03% (2σ) for N total concentration. This work also reports total nitrogen in samples (TNbulk), which was calculated gravimetrically based on the amount of mass of sample remaining after the HCl leaching. Most of the total carbon data used here was published by Caetano-Filho et al. (2021), except for 11 samples from the second second-order sequence of Januária and one sample from Arcos that were measured at the Institut de Physique du Globe de Paris using a Flash EA 1112 coupled to a Thermo-Fisher Delta + XP isotope ratio mass spectrometer. The analytical procedure is similar to the one already described in Caetano-Filho et al. (2021) and the reproducibility of duplicate samples was better than 0.02% (2σ).

δ15Nbulk and Total N – Sealed Tube Combustion + Dual Inlet Mass Spectrometer

For some of the samples from Arcos, Well 1 and Januária the nitrogen content was too low to obtain accurate results using the EA method. In these cases, when there was still enough material, samples were measured using what is known as the classical sealed tube method (Ader et al., 1998, 2016) at the Institut de Physique du Globe de Paris. In this method, the N2 is extracted and purified using a vacuum line (Ader et al., 1998, 2016). For this purpose, quartz tubes were filled with previously purified CuO, Cu wires and sample. Then, the tubes were attached to the vacuum line and were degassed under 150°C until high vacuum conditions were obtained. Subsequently, the tubes were flame-sealed and proceeded to the combustion step, in which the tubes were heated in a furnace at 950°C for 6 h to allow the CuO to decompose into Cu and O, as the liberated O causes the combustion of the sample, which generates water, dinitrogen, carbon dioxide and nitrogen oxides as products. Then, the tubes are cooled down until 600°C for 2 h, to allow for the NOx to react with Cu to generate N2 and CuO. After the combustion, the generated gas was extracted and purified using the vacuum line. CO2 and H2O were separated from N2 using a liquid nitrogen trap. After the purification step, the gas was concentrated and pushed into a sample vessel using a Toepler pump, which also allows the quantification of the extracted N2. To assess possible contaminations coming from the vacuum line, blanks were commonly done, yielding less than 0.02 μmol of gas within the vacuum line system, which is negligible considering the amount of N2 in Bambuí samples. The extracted gas was analyzed using a Thermo-Fisher Delta + XP mass spectrometer with a dual inlet introduction system to determine the nitrogen isotope composition. Nitrogen isotopes are measured in masses 28, 29 and 30 and masses 12 (C), 32 (O2), 40 (Ar) and 44 (CO2) are tracked to check for possible contaminations. The precision of δ15Nbulk values was better than 0.5‰ (2σ), estimated from multiple measurements of a batch of samples. Accuracy was monitored by measuring certified materials IAEA-N1(+0.4 ± 0.2‰) and IAEA-N2 (+20.3 ± 0.2‰) and IPGP internal standard MS#5 (+14.9 ± 0.5‰).

K and AI Contents

K and Al contents were measured using a portable XRF device Thermo Scientific Niton XL3t provided by the Geological Survey of Brazil (CPRM). Sample slabs were polished and veins or terrigenous laminations were avoided during measurements. A blank (SiO2) and a certified reference material (QC 180-673; Thermo) were run after every batch of 30 samples. The blanks present K content that was less than 0.01 ppm and the reproducibility of the standard was better than 0.2% (1σ). The Al blanks were lower than the detection limits and the reproducibility of standards was better than 0.5% (1σ). K and Al content are reported in percentage (%).

Results

δ15N and Total N

From the initial batch of 177 samples, we obtained 152 results. 39 from Januária section, 34 from Arcos section and 79 from Well 1 section (Figures 46). The results of the isotopic compositions of bulk nitrogen (δ15Nbulk), total nitrogen samples in residues (TNdecarb) and total nitrogen in bulk rock (TNbulk) are shown in Supplementary Table S1. The results were paired with total organic carbon in the insoluble residue (TOCdecarb), total carbon in bulk rock (TOCbulk) and δ13Corg data published by Caetano-Filho et al. (2021) except for 11 samples from the second sequence of Januária and one from Arcos, whose TOCdecarb and TOCbulk were obtained in this work. Corg/N ratios were calculated from measured TOCdecarb and TNdecarb on an atomic basis and are also reported in Supplementary Table S1; Figures 46. δ15Nbulk values are fairly constant on the three sections ranging from a minimum of +1.3‰ in Januária to a maximum of +5.0‰ in Arcos, with an average value of +2.9‰ (n = 152). TNbulk (ppm) values are low in all sections, with an average value of 119.3 ppm (n = 152). In respect of Corg/N ratios, they range from 0.63, in Januária, to a maximum of 107.4, in Arcos, while the average value for the three sections is 20.3 (n = 152), which is above the Redfield Ratio (6.6) for Corg/N. Even if our average Corg/N value is low for Precambrian rocks, similar Corg/N ratios have been reported on the Ediacaran/Cambrian transition in China (Kikumoto et al., 2014). In all sections, the lowermost samples display a remarkable enrichment in N compared to the Redfield value and this enrichment ends near the transition to the LHST, except in Well 1, in which occasionally samples with low Corg/N are reported in the upper segments of the section (Figures 46; Supplementary Table S1).

Januária Section

Januária section samples average δ15Nbulk is +3.1‰ (n = 39), ranging from +1.3 to +4.3‰ (Figure 4). In its TST interval, a pronounced positive δ15Nbulk excursion from +1.2 to +3.8‰ occurs on the post-glacial carbonates of this section. In the EHST interval, Januária values form a plateau around +3.0‰, however, in the LHST interval, the δ15Nbulk data of Januária oscillate between ∼+2 and ∼+4‰. Meanwhile, during the second second-order sequence, the average δ15Nbulk of Januária is +3.0‰ (n = 13). Januária average TNbulk and Corg/N is 29 ppm and 20 (n = 39), respectively. In Januária, the low Corg/N interval is present in its 13 lowermost samples, with an average Corg/N of 2.7, which corresponds to the cap carbonates and the upper limit of the EHST interval.

Arcos Section

Considering the three studied sections, Arcos has the heaviest N mean isotopic composition, +3.4‰ (n = 34) with δ15Nbulk going from +1.6 to +5.0‰ (Figure 5). Some excursions are present along Arcos profile. The TST interval of this section presents a shift in which δ15Nbulk values go from +3.2 to 5.0‰. In the EHST interval, δ15Nbulk values are stable (∼+3.0‰), but in the LHST interval they fall to a minimum of +1.6‰ near EHST/LHST boundary and then they return to +3.4‰. During the second second-order sequence, the δ15Nbulk values of Arcos section rise and its mean value during this interval is +3.8‰ (n = 3). Arcos section average TNbulk and Corg/N is 37 ppm and 31 (n = 34), respectively. Here, the low Corg/N interval ends earlier than in the other sections, in the middle of the EHST interval. One sample is an exception in this segment, with a Corg/N ratio of 67, which drives the mean value of this interval to 12. Without this sample, the average value for Arcos low Corg/N interval would be 8.

Well 1 Section

Well 1 section has the lowest δ15Nbulk mean, +2.5‰ (n = 79), with N signatures going from +1.4 to +4.0‰ (Figure 6). In the TST interval, the cap carbonates from Well 1 present a little positive δ15Nbulk shift going from +1.5 to +2.8‰ and during the EHST and LHST intervals, the δ15Nbulk values of the Well 1 section are around a plateau of +2.5‰. In the second second-order sequence, δ15Nbulk values rise and the average N isotopic composition is +3.2‰ (n = 6). Well 1 section is enriched in N when compared to the other two sections, with a TNbulk of 198 ppm (n = 79). Also, TNbulk concentrations increase as the amount of carbonate minerals diminish (Supplementary Table S1). This feature generated a remarkable zigzag pattern on the EHST interval of Well 1 section, in which limestones more or less rich in insoluble residue intercalates (Figure 6). In Well 1 the low Corg/N interval extends from the bottom of the section until the EHST/LHST boundary, except for values >6.6 that occurs near to the Maximum Flood surface (Figure 5) and rise the mean value of this interval to 7.

K and Al Contents

The average K content of samples is 0.4, 0.6 and 2.9%, whilst the average Al content is 1.0, 1.3 and 2.1% in Januária, Arcos and Well 1, respectively. Higher K and Al contents are reported during transgressive tracts, while the regressions show lower values (Table 1).

TABLE 1
www.frontiersin.org

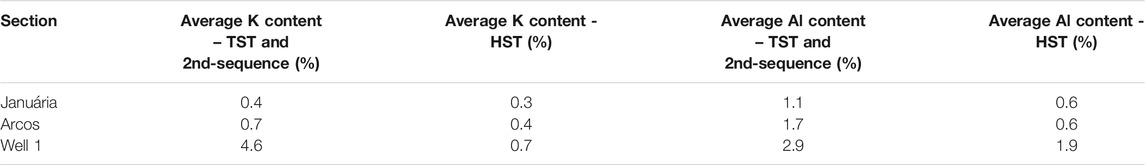

TABLE 1. Al and K content average values during the transgressions and regressions.

Discussion

Preservation of δ15N Primary Signals

We must evaluate the effects of diagenesis and metamorphism on the rock samples to check if the measured δ15Nbulk values represent primary signals. In sedimentary rocks, N occurs mainly in two phases: within the organic fraction or present as clay-bound NH4+ substituting K+ in crystal lattices (Müller, 1977; Greenfield, 1992), together, they compose the Nbulk reservoir. The clay-bound NH4+ comes mainly from the in-situ degradation of organic matter, although it can come from external fluid circulations (e.g. Schimmelmann et al., 2009). During the early diagenesis, as organic matter is degraded and Norg is liberated as NH4+ with minimum isotopic fractionation (Möbius, 2013), a pool of ammonium within the pore waters is generated. This NH4+, depending on the mineralogy, permeability and porosity of sediments (Stüeken et al., 2017), can either be fixed into clay minerals substituting K (Müller, 1977; Greenfield, 1992) without fractionation (Ader et al., 2016) or/and it can be oxidized into NO2, NO3 and N2, which depends on the O2 concentrations of the environment. Since partial oxidation of NH4+ leads to isotopic fractionation, diagenetic effects on δ15Nbulk are enhanced under oxic conditions, as it favors the instability of ammonium. Under anoxic environments, studies have shown that diagenetic effects increase primary δ15N signal of bulk sediments by less than +1‰, while in oxic environments the increment can reach +4‰ (Altabet et al., 1999; Lehmann et al., 2002). Studies using Rare Earth Elements and iron speciation indicate that the bottom waters of the Bambuí sea were anoxic in the intervals reported on this paper (Paula-Santos et al., 2018; Hippertt et al., 2019), which likely diminished the effects of diagenesis on the N isotopic signatures of the samples. Well 1 and Arcos section samples show a moderate and strong correlation (R2 = 0.57 and 0.89, respectively) between TNdecarb and TOCdecarb (Figures 7A,B), indicating that N came mainly from the primary organic matter (Calvert, 2004). In Januária, the correlation is weaker, R2 = 0.33 (Figure 7C), however, its coefficient of determination is influenced by an outlier heavily enriched in N. When the outlier is removed, R2 rises to 0.75. None of the trendlines of TNdecarb and TOCdecarb plots pass through the origin, which shows that a fraction of N in the samples is clay-bound. The presence of NH4+ linked to clay minerals is also notable when Albulk values are plotted against Nbulk concentrations. In Well 1 (Figure 7D) a correlation between these proxies is not seen during the HST interval, which drives its R2 to 0.18, however, the correlation is clear during the TST and second-sequence interval of this section. In Arcos (Figure 7E) and Januária (Figure 7F), the correlation is also clear, with an R2 of 0.90 and 0.30, respectively. The apparently low R2 of Januária is caused by one Nbulk-rich sample present in its second second-order sequence. One remarkable feature in all sections is the Corg/N ratio at their base. The ratios are low when compared to the modern redfield ratio (6.6), which might indicate that the samples are enriched in N compared to the organic matter from which they were generated. This enrichment of N, when coupled to the fact that some N may be linked to clays and not to organic matter, must be investigated since the excess in N can be non-primary. Alternatively, excess of N can be a result of N preservation at the expense of C. If the first alternative is true, the samples cannot be used for paleoenvironmental reconstruction.

FIGURE 7
www.frontiersin.org

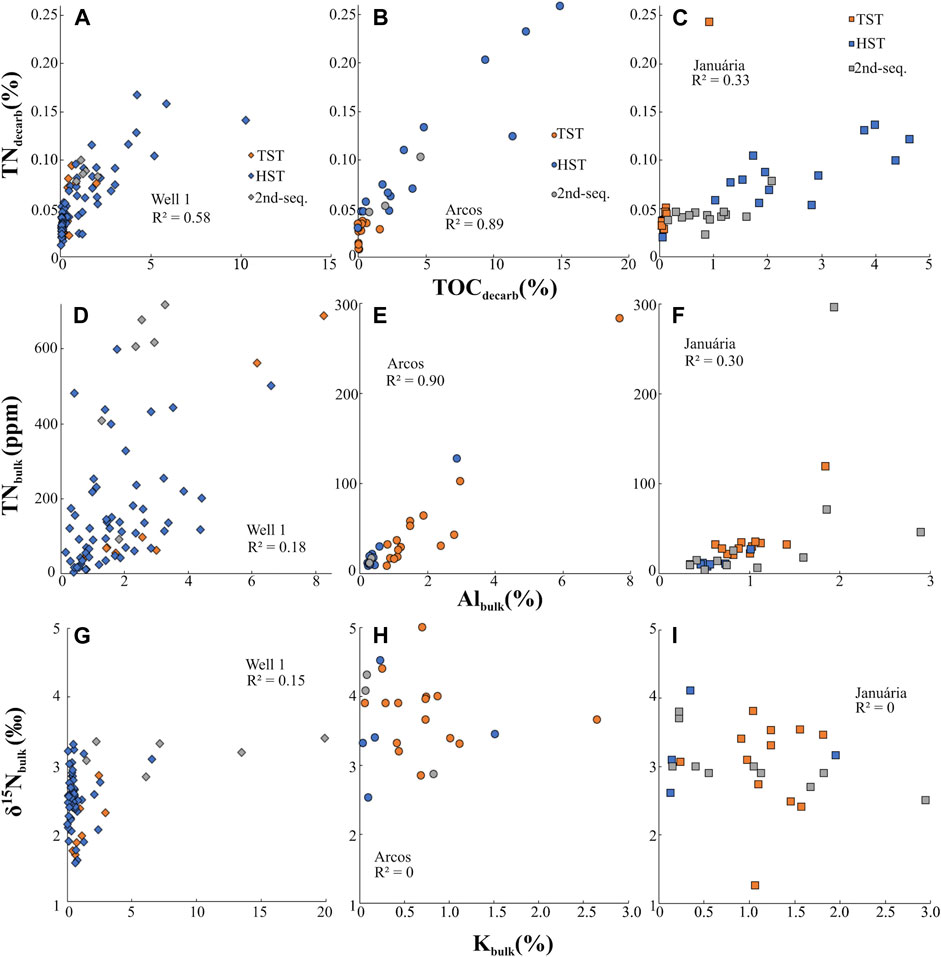

FIGURE 7. Analyses of total nitrogen (TN), total organic carbon (TOC), Al, K and δ15N in Well 1, Arcos and Januária sections.

Metasomatic alteration can add non-primary NH4+ to the rocks and this could have happened in the sections, especially along intervals in which lithological heterogeneities facilitate fluid percolation, such as in the EHST interval of the Well 1 section. However, such external ammonium would have been preserved in clay minerals substituting K, and the lack of correlation between Kbulk and δ15N in all three sections (Figures 7G–I) argues against such external N contamination. Therefore, the low Corg/N observed in the base of the sections was likely caused by exceptional preservation of N, which occurred due to the in-situ degradation of organic matter and releasement of NH4+ that was later trapped by clay-rich sediments while C was lost. Another evidence for this is that the Albulk/TOCbulk ratios are higher in the low Corg/N intervals (Table 2). This ratio shows that clays are abundant when compared to organic matter, which creates favourable condition for the preservation of N in the form of NH4+. The conversion of Norg to mineralized NH4+ that is subsequently trapped into clays does not imply significant changes on the original primary δ15Nbulk signal, especially under anoxic conditions. This hypothesis also is corroborated by the strong correlation observed between TOCdecarb and Corg/N ratios of the sections (Figures 8A–C) (Calvert, 2004), pointing that carbon loss is the major responsible for Corg/N variations. Such scenario requires a process that oxidizes C and preserves N, which can be achieved via microbial sulfate reduction, a plausible process considering the visual abundance of pyrite in the base of all sections decreasing towards the top of the basal sequence (Caetano-Filho et al., 2019). As sulfate cannot oxidize NH4+ under most conditions, NH4+ tends to accumulate in anoxic pore waters (Stüeken et al., 2016) and then it is trapped in clay minerals. Metamorphism effects on δ15N signatures increase with metamorphic grade, as 14N is preferentially volatilized (reviewed by Thomazo and Papineau, 2013; Ader et al., 2016). Fortunately, samples from the Bambuí Group are metamorphosed under greenschist facies and their signature was unlikely altered by more than 1‰ (Ader et al., 2016). A negative correlation between δ15N and TNdecarb is also an indicator of metamorphic effects on δ15N due to metamorphism, as during thermal alteration mainly 14N is lost from the system, lowering N content and enhancing δ15N primary signatures. Except for Arcos, which presents a moderate negative δ15N and TNdecarb correlation (R2 = 0.48; Figure 8E), the other sections do not present such a negative trend (Figures 8D,F). However, Arcos average δ15Nbulk values (+3.4‰, n = 34) are similar to ones of Well 1 (+2.5‰, n = 79) and Januária (+3.1‰, n = 39), which discredits the hypothesis of heavy alteration of primary δ15N. Furthermore, the sections do not show relevant δ15N and Corg/N correlations (Figures 8G–I), which would be expected if metamorphic alteration of N signals was relevant. Arcos shows a weak negative trend (R2 = 0.34), the opposite expected for a metamorphism influence, as N is preferentially lost in higher temperatures when compared to C (Ader et al., 2006). Lastly, Corg/N ratios are mainly under 100, which is consistent with Proterozoic data with little δ15Nbulk alteration (e.g, Beaumont and Robert, 1999; Chen et al., 2019). Hence, it is reasonable to consider that δ15Nbulk of the Bambuí Group reflects mainly the primary signals of the organic matter and the data can be used for paleoenvironmental reconstructions.

TABLE 2
www.frontiersin.org

TABLE 2. Albulk/TOC ratios in low and high Corg/N ratios interval.

FIGURE 8
www.frontiersin.org

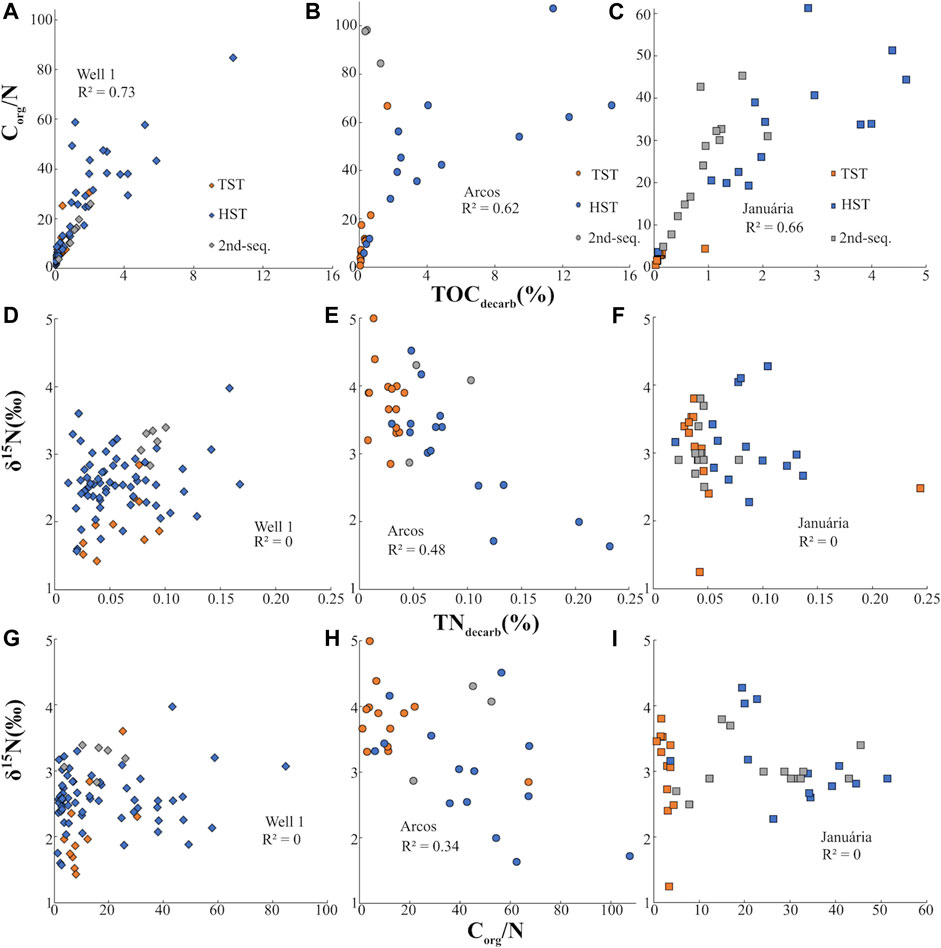

FIGURE 8. Analyses of total nitrogen (TN), total organic carbon (TOC), Corg/N and δ15Nbulk in Well 1, Arcos and Januária sections.

The Nitrogen Biogeochemical Cycle in the Bambuí Sea

Increasing Oxygenation During the Deposition of the TST Interval

All the studied sections present a positive δ15Nbulk excursion, from a minimum of +1‰ to a maximum +5‰, depending on the section, during the first transgression registered in the Bambuí Group (Figure 9). Two scenarios can generate δ15Nbulk values comprehended between ∼−2 and ∼+1‰ (e.g., Casciotti, 2009; Quan et al., 2013; Sigman and Fripiat, 2019).

(i) assimilation of NO3 from an ocean where denitrification occurs only in the sediments. This would require a fully oxygenated water column to prevent the conversion of NO3 to N2 while the former is transported/sunk.

(ii) biological N2 fixation using Mo-based nitrogenase as a dominant path of the N cycle;

FIGURE 9
www.frontiersin.org

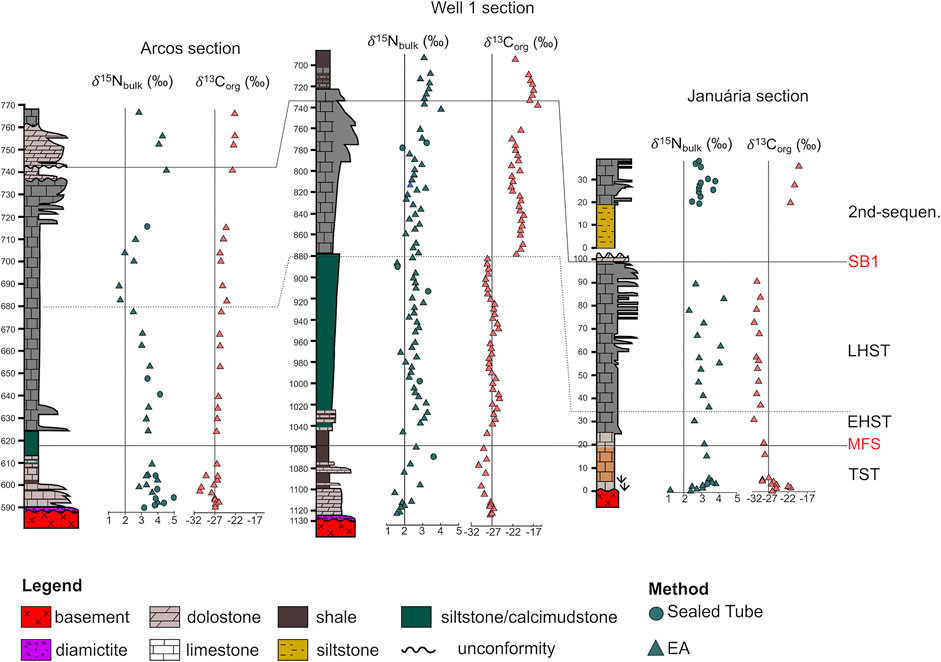

FIGURE 9. Arcos, Well 1 and Januária stratigraphic correlation and their δ15Nbulk and δ13Corg data. δ13Corg was published by Caetano-Filho et al. (2021).

In the Bambuí Group, the reported low values on the TST interval (∼+1‰) cannot be explained by a fully oxygenated ocean without denitrification on the water column. This scenario is not only unrealistic for the Precambrian (Canfield et al., 2010; Ader et al., 2016; Stüeken et al., 2016), it does not fit the published geochemical data available for the Bambuí which indicate bottom water anoxia (e.g. Caxito et al., 2018; Paula-Santos et al., 2018; Hippertt et al., 2019). Hence, the reported low δ15Nbulk signature of Well 1 and Januária sections was likely caused by N2 fixation using Mo-based nitrogenase in a redox stratified water body. The covalent bonds present in the N2 molecule makes the conversion of N2 to NH3 energetically costly. Consequently, N2 fixation requires more energy than NO3/NH4+ direct assimilation to be processed (Alexander, 1984) and can only happen when no other form of N nutrient (NH4+ or NO3) is available. As N2 fixers are sensitive to O2 (Gallon, 1981) anoxic conditions favours diazotroph and the presence of nutrient phosphorous (Tyrrell, 1999) and Mo (Seefeldt et al., 2009) are also important for the success of Mo-based N2 fixation. Hence, δ15Nbulk data points that at the beginning of the deposition of the cap carbonates from Well 1 and Januária sections (both presenting δ15Nbulk values near +1‰ at their base) the water column was mainly anoxic which made N2 fixation a main path of N-assimilation. NH4+ and NO3 would be near quantitatively consumed at the redoxcline by anammox and denitrification respectively. Phosphorus would also be in abundant supply as melting glaciers would deliver it to the Bambuí sea, however this hypothesis must be tested using other proxies. Besides that, as anoxic conditions enhance P residence time in the water column, environmental conditions prevented it from binding with Fe oxyhydroxides and being sequestered into sediments (Van Cappellen and Ingall, 1994). Finally, previous studies on the Bambuí Group show that Mo availability was high enough to support N2 fixation (Hippertt et al., 2019). In fact, despite microbiological culture studies showing that low Mo-conditions might harm nitrogenase enzyme operation (Zerkle, 2005), there is no evidence that Mo-scarcity played a role in diazotrophy activity in geological time (Stüeken et al., 2016).

As along the TST interval δ15Nbulk values increase, another N-assimilation pathway must have competed with N2 direct fixation. Two possibilities can be envisaged depending on redox state of the euphotic zone. In an anoxic photic zone (i.e. NH4+ is the main dissolved N species) δ15Nbulk >+2‰ can be interpreted as:

(i) assimilation of NH4+ from a reservoir in which NH3 dissociated from NH4+ and was volatilized (e.g. Stüeken et al., 2015);

(ii) non-quantitative assimilation of upwelled NH4+;

(iii) assimilation from an NH4+ pool that faced non-quantitative nitrification while the resultant nitrite and nitrate were completely reduced (e.g. Thomazo et al., 2011).

NH4+ can be dissociated to H+ and volatile NH3 and, as this reaction proceeds, 14N-rich NH3 is lost to the atmosphere and the remaining ammonium pool becomes strongly enriched in 15N (Li et al., 2012). Thus, when this enriched NH4+ is assimilated, the sediments will yield very high δ15N values. However, this process is observed only in highly alkaline lakes (pH > 9.25), which is not the case of Bambuí Group rocks (Li et al., 2012; Stüeken et al., 2015). The second alternative, non-quantitative assimilation of upwelled NH4+ is also unlikely. Microorganisms prefer to assimilate 14N, which would generate more negative δ15N values while enriching the residual NH4+ pool in 15N. The absence of negative δ15N values reported in any section is not in favour of this hypothesis. Finally, partial ammonium oxidation happens even when oxygen concentrations are in nanomolar levels (Füssel et al., 2012) and it is usually a quantitative reaction. Very few records of incomplete nitrification are reported on the geological history (Thomazo et al., 2011; Morales et al., 2014) and none of them for the Ediacaran/Cambrian, which discredit the third alternative. Moreover, all these paths involving NH4+ as the main nutrient are associated with big fractionation factors and should intuitively lead to significant stratigraphic δ15N variability, which does not match the mild and consistent fractionation data reported on the Bambuí rocks. Hence, we assume in the following that samples from the TST interval which δ15Nbulk values are higher than +2‰ do not reflect ammonium as a main nutrient.

In an oxidized photic zone (i.e. nitrate is stable), values of δ15Nbulk >+2‰ is usually interpreted as:

(i) non-quantitative assimilation of NO3 (e.g. Sigman et al., 1999).

(ii) assimilation from a nitrate reservoir that experienced some degree of denitrification (e.g. Godfrey and Falkowski, 2009; Tesdal et al., 2013);

(iii) assimilation from a nitrate reservoir that experienced dissimilatory nitrate reduction (DNRA) (e.g. An and Gardner, 2002; Dong et al., 2011; Jensen et al., 2011);

In the Bambuí, non-quantitative assimilation of upwelled NO3 is improbable. This alternative would require a large reservoir of nitrate to have built on deep oxygenated waters, which is not the case. Therefore, it is likely that δ15Nbulk >+2‰ reported on TST interval is linked to the assimilation of a NO3 reservoir that faced dissimilatory nitrate reduction and/or denitrification. However, in DNRA, differently from denitrification, N does not escape from the water column, but it is converted to light bioavailable NH4+. Hence, if DNRA was a main path, one would expect to find in other samples a complementary light reservoir opposing the enriched δ15Nbulk reported here. As the light reservoir was not found in any section, the importance of DNRA was likely minimal. Hence, discarded all others possibilities, the positive δ15Nbulk excursion reported at the basal Januária and Well 1 section represents a shallow sea that was initially dominated by Mo-based N2 fixation and later was enough oxygenated to support nitrate accumulation and assimilation from a pool that faced denitrification (Sigman and Fripiat, 2019) (Figure 10A). The built-up of a nitrate reservoir in the oxygenated surface waters during the transgressive tract on the euphotic zone matches geochemical data that suggests progressive oxygenation of the Bambuí seawater associated with the input of oxygenated freshwater. For instance, positively fractionated δ53Cr (Caxito et al., 2018), punctual negative Ce anomalies (Caxito et al., 2018; Hippertt et al., 2019; Paula-Santos et al., 2020) and iron speciation/redox-sensitive elements data indicating locally oxygenated conditions (Hippertt et al., 2019) are reported in this interval. Importantly, in Januária and Well 1, δ15Nbulk values associated with nitrate assimilation are low (maximum value of +3.8‰ in Januária) when compared to the mean value of modern nitrate (∼+5‰, Tesdal et al., 2013). This implies that N2 fixation was still playing an important role in bioproduction and also that the nitrate reservoir was small and denitrification occurred nearly quantitatively, i.e., with a reduced isotope fractionation at a shallow redoxcline. The lowermost sample from the Arcos section presents a δ15Nbulk value of +3.2‰, which means that at the beginning of the transgression there was already a nitrate reservoir in this part of the basin. Moreover, Arcos’ values rise to 5‰, implying reduced N2 fixation and a large nitrate reservoir compared to the other sites. This points to more oxygenated surface waters in the South of the São Francisco basin paleohighs (Arcos section), compared to the forebulge grabens area (Well 1 section). Oxygenation in Arcos TST interval was also observed by Paula-Santos et al. (2020) using Ce anomalies.

FIGURE 10
www.frontiersin.org

FIGURE 10. Possible scenario of the N-cycle on the Bambuí Basin during the deposition of its basal sequences. (A) During the TST, a stable nitrate pool was established and the most dominant form of N available was nitrate that went through partial denitrification on zones of low oxygenation. (B) During the LHST, the high input of nutrients coming from the continent and P recovery under anoxic bottom water conditions, caused the limitation of NO3 in superficial waters, making N2 fixation the main form of N acquisition by phytoplankton.

Increasing Anoxia During the Highstand System Tract Interval

In the EHST interval, the δ15Nbulk data point to a stable N-cycle, as no significant shift is N isotopic signature is observed in any of the sections (Figure 9). The δ15Nbulk average values for the EHST are +2.9, +3.3 and +2.5‰ in Januária, Arcos and Well 1, respectively, suggesting the maintenance of the nitrate reservoir established in surface waters during the TST interval. Also, REY data shows that freshwater input was still happening during the EHST (Paula-Santos et al., 2020) deposition, which might have contributed to the maintenance of nitrate on surface waters. However, oxygenation was not pervasive, as δ15Nbulk values are still low when compared to the modern nitrate reservoir, pointing to a shallow redoxcline and nitrate loss compensated by N2 Mo-based fixation. The δ15Nbulk values from Arcos and Januária sections are slightly higher than in Well 1, indicating that surface waters were more oxygenated in shallow domains than in forebulge grabens.

In the LHST interval, the sections present different trends. Many geochemical proxies mark significant paleoenvironmental changes in this interval that are linked to the progressive restriction of this unit (e.g. Paula-Santos and Babinski, 2018; Paula-Santos et al., 2020). The LHST may also record a period of higher bioproductivity, a hypothesis that is further corroborated by its slightly higher TOC when compared to the other system tracts (Figures 46; Caetano-Filho et al., 2021). This could have been induced by a change to more congruent weathering regimes at the surrounding orogenic fronts that led to higher total alkalinity of seawater during the LHST (Paula-Santos et al., 2020), although proxies to quantify weathering fluxes are still required. These environmental changes are also tracked by N data. A negative excursion is present at the lower Arcos LHST and sometimes its δ15Nbulk values are within the N2 fixation range (<+2‰). As in the TST interval, there is no evidence that ammonium incomplete assimilation was a main path during the LHST, as the reported fractionation values are mild and constant, differently from large fractionations usually associated with NH4+ assimilation (e.g. Thomazo et al., 2011; Stüeken et al., 2015). Therefore the negative shift at the transition from the EHST to the LHST in Arcos section could be caused either by 1) excess of nitrate and its incomplete assimilation or 2) exhaustion of the nitrate reservoir forcing microorganisms to fix N. The first alternative is unlikely. In modern oceans, excess of nitrate is only achieved in zones named high-nutrient, low chlorophyll (HNLC) zones, where despite the abundance of macronutrients, the phytoplankton biomass is low, due to a shortage of iron, which seems not to occur in the Bambuí (Hippertt et al., 2019). Also, HNLC conditions are usually met in open oceans, a different scenario from the restricted Bambuí sea during the LHST (Edwards et al., 2004). Then, the drop in the δ15Nbulk values during Arcos EHST/LHST transition is probably an effect of enhanced bioproductivity, as the nitrate reservoir that was built during the EHST was not able to support the high productivity related to high input of nutrients. In this scenario, the input of P due to the enhanced weathering disturbed the normal 16:1 ratio of [NO3]:[PO43−] on seawater. Consequently, diazotrophic activity rose to restore this ratio (Tyrrell, 1999), which is reflected by low δ15Nbulk values (Figure 10B). Also, at this stage, not only the input of phosphorus via weathering was high, but progressively anoxic conditions also favored the recycling of this nutrient (Van Cappellen and Ingall, 1994; Ingall and Jahnke, 1997), making it abundant when compared to nitrate. In addition to that, the restriction likely disturbed the circulation patterns of the basin, diminishing the amount of NH4+ that is upwelled and nitrified, making the supply of NO3 even shorter. As the availability of NO3 diminished, the energetic costly N2 fixation became the main path to acquire N. High productivity associated to high N2 fixation rates was also observed in modern environments, such as the Black Sea (Quan et al., 2013) and the Cariaco Basin (Haug et al., 1998). Importantly, as the Bambuí, these two settings are also restricted. Up section, in the LHST, the δ15Nbulk values from Arcos rises from +1.6 to +3.4‰, implying that the nitrate reservoir was re-established, but it does not reach the +5.0‰ values reported in the TST interval. In Januária, there is not an abrupt shift in δ15Nbulk during the transition from the EHST to the LHST interval as in Arcos. However, when one observes the δ15Nbulk profile of the LHST interval in the Januária section, the most striking feature are the rapid changes of δ15Nbulk, as sometimes they interchange between values around +2.5 and +4.0‰, which creates a zigzag pattern (Figure 4). These increased variability indicate that in the central part of the São Francisco Basin shallow domains also faced instability of a limited superficial nitrate pool during regression, which was compensated by N2 fixation. Also, the average δ15Nbulk of the LHST from Januária (+3.2‰, n = 12) and Arcos (+3.3‰, n = 9) is low, which means that even when redox conditions permitted the stability of NO3, the pool was not large and δ15Nbulk still reflects a mix between N2 fixation and NO3 assimilation. It is important to access that the fossil Cloudina sp. was reported (Warren et al., 2014) in this section and it is associated to the LHST interval (Caetano-Filho et al., 2019). The δ15Nbulk values show that even if deep waters were anoxic (Hippertt et al., 2019), superficial waters could intermittently sustain a small nitrate reservoir, which is important given the fact that major Cloudina sp. reports are found in oxic contexts (Bowyer et al., 2017). The record of the LHST from Well 1 section differs from the other two, as no shift in the δ15Nbulk values is observed in comparison to the EHST interval. The values reported for Well 1 section in the entire HST are low, nearly at the boundary of N2 fixation and NO3 assimilation. The stability of δ15Nbulk during the regression stages points that progressive restriction and relative changes in accommodation and sediment supply did not influence the N cycle in the forebulge graben setting compared with shallower domains. It also implies that during the regression stage, local controls affected the nitrogen cycle in the forebulge grabens, despite changes in sea level. One of those controls may have been poor wind mixing effects inside the extensional depocenters, which would have prevented the vertical mixing of superficial waters and enhance stratification in deep environments (Yang et al., 2018). Also, if the rates of sinking organic matter are low, this can move the redoxcline to shallower depths (Meyer et al., 2016). The TOCbulk content of Well 1 during the HST is three times higher than the ones from Januária and Arcos section for the same interval, which suggests that bioproduction could be one of the local factors that caused consistent low values of δ15Nbulk. Finally, if we consider that the chemocline was at the same level in all the Bambuí sea, Well 1 would have a larger anoxic water column than the other two sections (Figure 11), which might have contributed to its consistent low values. In the LHST interval, the Bambuí was physically restricted and circulation was very inefficient. Therefore, the bioavailable NO3 recharge of surface waters was limited to diffusion from deeper waters or by induced water column mixing caused by storms (Ader et al., 2016). There are evidences of storms in Arcos and Well 1 LHST interval (Hummocky Cross-stratification, Figures 5, 6), which explains why the δ15Nbulk values are not entirely within the N2-fixation range. However, such storms are occasional events and the NO3 reservoir was small. The scarcity of NO3 during the LHST is also corroborated by episodes of euxinia observed during this interval (Hippertt et al., 2019). Nitrate and sustained euxinia can never coexist because denitrification produce more free energy per mole of carbon than microbial sulfate reduction (MSR), being therefore a preferred respiratory pathway when SO42− and NO3 coexist. For that reason, nitrate concentrations exert a primary role in the rates of MSR and this mechanism is prohibited when NO3 is available (Canfield, 2006). However, a form of N acquisition is essential to fuel the production of the organic matter that will be respired by MSR and consequently generate an H2S pool. As this species cannot be NO3, Boyle et al. (2013) argued that intermediate euxinic waters must be coupled to superficial waters in which the main path of the N-cycle is direct N2 fixation, which is a plausible scenario in the Bambuí Group geological context.

FIGURE 11
www.frontiersin.org

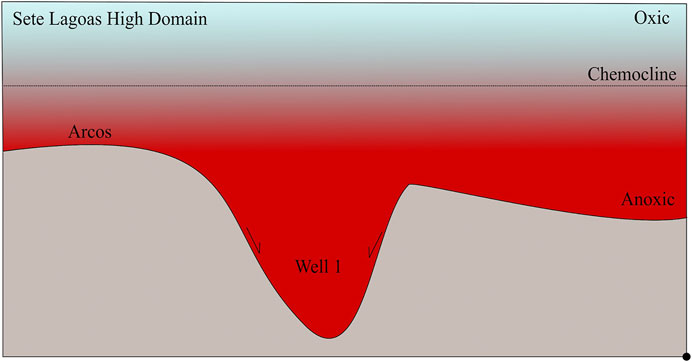

FIGURE 11. Schematic representation of the Sete Lagoas High Domain. Well 1 is located inside a forebulge graben and Arcos in a shallower part of the Sete Lagoas Domain. Hence, if we consider that the chemocline was at the same level, Well 1 had a deeper anoxic water column than Arcos.

Oxygenated Euphotic Zone During the Second second-Order Sequence

The sedimentary rocks from the second second-order sequence of the Bambuí Group are considered to be deposited under a fully restricted sea and this interval is marked by very high δ13Corg values interpreted to be caused by high methanogenic activity under anoxic conditions (Caetano-Filho et al., 2021) and/or recycling of ancient carbonate platforms, higher burial rate of authigenic carbonate, and low-sulfate conditions (Uhlein et al., 2019; Cui et al., 2020). When one compares the δ15Nbulk and the δ13Corg data of the Bambuí during the second second-order sequence it is clear that they are decoupled, which shows that despite big changes in the carbon cycle, the nitrogen cycle was not much affected (Figure 9). Still, minor changes occurred. The δ15Nbulk data from this sequence suggests that a nitrate pool was buildup, although smaller and not stable as the one from the basal TST interval, which implies that at least superficial waters were oxygenated. Furthermore, samples from this interval do not present a consistent REY pattern, which shows that freshwater input might have happened during its deposition (Paula-Santos et al., 2020), influencing superficial oxygenation. In all sections, in the second second-order sequence δ15Nbulk values are around ∼+3‰. Even in Well 1 section, whose δ15Nbulk data were stable during the EHST/LHST, δ15Nbulk values rise during the second transgression. Since values of δ15Nbulk higher than +2.0‰ can be interpreted as assimilation from a nitrate pool that went through partial denitrification, δ15Nbulk values suggest that during the second second-order sequence transgression there was more oxygen dissolved in superficial waters of forebulge grabens than during the EHST/LHST. As both transgressions recorded in the Bambuí basal second-order sequences present a rise in δ15Nbulk values, which contrast with the regressive tract data, one must think if there is a relationship between transgression and oxygenation. In fact, it was suggested that in the Ediacaran Nama Group persistent oxygenation in mid-ramp settings was controlled by basin hydrodynamics, as data from this unit implies that ventilation was favored by highly energetical flooding events (Wood et al., 2015). Although the tectonic setting of the Bambuí (restricted epicontinental sea) and Nama groups (open sea connected to global ocean) are different, the data presented here show that sea-level changes affected oxygenation and the N-cycle of the former. However, the nitrate pool of the second transgression was not as stable or large as the one from the first TST, which can be inferred by their lower values and also δ15Nbulk oscillation, especially in Arcos section. This is probably a response to a heavily stratified water column, as proposed by other studies (Hippertt et al., 2019; Caetano-Filho et al., 2021).

The Nitrogen Cycle and its Implications for Life Systems

The metazoan fossil record of the Bambuí Group is scarce when compared to other geological Ediacaran/Cambrian units (e.g. Nama Group, Doushantuo Formation). It was hypothesized that such scarcity could be related to anoxia, euxinia, hypersaline and methane-rich conditions of the Bambuí seawater (Hippertt et al., 2019; Caetano-Filho et al., 2021). In addition to this, δ15Nbulk points out that as expected in such a situation, the N-cycle (and hence redox conditions) functioned with a reduced nitrate pool, which could have contributed to hinder the sustainability of complex forms of life. The link between oxygenation and the Cambrian explosion has been discussed for more than 60 yr (e.g., Nursall, 1959; Wood et al., 2020). Metazoans can indeed habit environments with low oxygen concentrations and some studies even suggest that the amount of O2 necessary for their metabolism was achieved much earlier than the first appearance of animals on the fossil record (e.g., Mills et al., 2014). However, poorly oxygenated environments cannot support complex life systems or large organisms (Sperling et al., 2013), and concordantly, most of the Ediacaran/Cambrian Fauna is recorded at oxygenated habitats, even if oxygenation was transient (Bowyer et al., 2017; Wood et al., 2019). Therefore, the fluctuations of the generally shallow chemocline’s depth in the Bambuí basin may have been one of the drivers of its low macrofauna diversity. In fact, the metazoans reported at the Bambuí Group were found on the Januária’s LHST interval, which is, if δ15Nbulk values are considered, the most nitrate rich and oxygenated site during this stage, although with a strong variability, indicating that conditions were unstable (seesection 5.2.2). Redox conditions control the availability of nitrate, which is the form of nitrogen preferred by eukaryotes, as they cannot process direct N2 fixation and other forms of fixed-N, such as NH4+, are mainly consumed by prokaryotes (Fawcett et al., 2011). Complex and large-celled phytoplankton communities generate food webs that are more effective to transfer nutrients and energy to higher trophic levels (Irwin et al., 2006) and the rise of eukaryotes is linked to the development of metazoans as they have higher energetic demands (Brocks et al., 2017). As the δ15Nbulk values from Bambuí Group suggest that nitrate pools were not large or stable, especially during regressions, this could have affected the large-celled plankton and consequently metazoans. In addition, if a large eukaryote community do not develop and the phytoplankton is dominated by prokaryotes, due to their low mass, the sinking rate of the organic matter particulates is low and remineralization of this organic matter is faster and occurs within the water column, enhancing anoxia (Lenton et al., 2014). The relation between nitrate and complex life forms during the Ediacaran/Cambrian transition has been studied mainly in South China (e.g., Wang et al., 2018; Xiang et al., 2018; Liu et al., 2020; Xu et al., 2020) and although it is not possible to link the Bambuí Group to global trends, due to its marine isolation, this study brings more data to clarify how the N-cycle operated at that time. These episodes of nitrate limitation reported here are probably one of the many factors that might have driven the inhospitality of the Bambuí sea, associated with phases of methane or free H2S in the water column (Caetano-Filho et al., 2021).

Conclusion

Relative sea-level variations seem to exert control in the Bambuí N-Cycle. During the first transgression interval (TST), in all the studied sections δ15Nbulk values rise from a minimum of ∼+1.0‰ to a maximum of ∼+5.0‰, which is parsimoniously explained as a rise of the nitrate reservoir and hence oxygen levels in surface waters. As the restriction of the Bambuí increases (LHST) the NO3 stability is disturbed, which is shown by a negative excursion observed in the transition of Arcos EHST to LHST and by increased variability in the δ15Nbulk values of Januária. The low δ15Nbulk observed in the LHST interval of both sections is interpreted as the result of N2 fixation using Mo as cofactor, indicating a small NO3 reservoir. Finally, the slightly higher δ15Nbulk values of the second second-order transgressions show that the nitrate pool increased again, but not to the level that prevailed during the first transgression. In this latter interval, N2 fixation still played a significant role, maybe due to the restriction of the Bambuí seawater at this stage. Hence, the δ15Nbulk data shows that the basin operated in periods in which N2 fixation and NO3 assimilation intercalated as the dominant path of nitrogen assimilation by primary producers, which can be interpreted in terms of more or less oxygen within superficial waters. Nitrate is a very important nutrient for eukaryotes primary producers and eukaryotes are necessary to fuel higher trophic levels, its depletion in some intervals might be one of the factors that drove the hostile conditions for metazoans in the Bambuí seawater.

Data Availability Statement

The raw data supporting the conclusions of this article will be made available by the authors, without undue reservation.

Author Contributions

PF-F analyzed the nitrogen isotopic composition of the samples, interpreted the data and wrote the manuscript. SC-F, MA, PS, and VR acquired N data. SC-F, GP-S, CG, and CB-R obtained K and Al data and also did fieldwork. MB, MK, HR, and RT assisted with tectonic, stratigraphic, petrographic, geochemical information regarding the Bambuí Group and also with the conceptualization of this project. MK and HR provided samples from the sections of Arcos and Well 1 respectively. All the authors collaborated on the final version of the manuscript and assisted with geological interpretations.

Funding

This study was funded by the São Paulo Research Foundation (FAPESP) thematic project The Neoproterozoic Earth System and the rise of biological complexity grant 2016/06114-6. PF-F holds a FAPESP scholarship grant #2019/13228-6.

Conflict of Interest

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

Publisher’s Note

All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.

Acknowledgments

We acknowledge to Lhoist and Petra Energia S.A. for providing drill core samples, Brazilian Geological Service (CPRM) for providing the XRF device, CAPES for institutional support and Pôle de Spectométrie Océan and Institut de Physique du Globe de Paris staff for the technical support in data acquisition. PF-F holds a FAPESP scholarship grant #2019/13228-6. MB, RT, and MK are fellows of the Brazilian Research Council (#307563/2013-8, #206997/2014-0 and #309106/2017-6, respectively). We are also thankful to the reviewers Dr. Xinqiang Wang and Dr. Fabricio Caxito for constructive suggestions, and to Dr. Graham Shields for the editorial handling of the manuscript.

Supplementary Material

The Supplementary Material for this article can be found online at: https://www.frontiersin.org/articles/10.3389/feart.2021.692895/full#supplementary-material
