Trace Element Signatures in Pyrite and Marcasite From Shallow Marine Island Arc-Related Hydrothermal Vents, Calypso Vents, New Zealand, and Paleochori Bay, Greece

  • 1GeoZentrum Nordbayern, Friedrich-Alexander Universität (FAU) Erlangen-Nürnberg, Erlangen, Germany
  • 2National and Kapodistrian University of Athens, Faculty of Geology and Geoenvironment, University Campus, Athens, Greece
  • 3Bundesanstalt für Geowissenschaften und Rohstoffe, Hannover, Germany
  • 4Institut für Geologie und Paläontologie, Universität Münster, Münster, Germany

Fluid conditions of shallow marine hydrothermal vent sites (<200 mbsl) in island arcs resemble those of subaerial epithermal systems. This leads to a distinct mineralization-style compared to deeper arc/back-arc (>200 mbsl) and mid-ocean ridge-related environments (>2000 mbsl). At Calypso Vents in the Bay of Plenty and Paleochori Bay at the coast of Milos Island, fluids with temperatures <200°C are emitted through volcaniclastic sediments in water depths <200 mbsl. The hydrothermal mineralization from these fluids is dominated by pyrite and marcasite showing diverse textures, including colloform alternations, semi-massive occurrences surrounding detrital grains, vein-type pyrite, and disseminated fine-grained assemblages. Pyrite and marcasite from Calypso SE show elevated concentrations of volatile elements (e.g., As, Sb, Tl, Hg) implying a vapor-rich fluid phase. By contrast, elements like Zn, Ag, and Pb are enriched in hydrothermal pyrite and marcasite from Calypso SW, indicating a high-Cl liquid-dominated fluid discharge. Hence, vapor-liquid element fractionation induced by fluid boiling is preserved in the seafloor mineralization at Calypso Vents. Hydrothermal mineralization at very shallow vent sites (<10 mbsl), like Paleochori Bay, are affected by wave action causing a seasonal migration of the seawater-fluid interface in the sediment cover. The δ34S composition of native S crusts and crystalline S (0.7–6.7‰) is indicative for host rock leaching and thermochemical reduction of seawater sulphate. By contrast, the highly negative δ34S signature of native S globules in sediments (−7.6 to −9.1‰) is related to microbial sulphate reduction or a subordinate magmatic fluid influx. Alunite-jarosite alteration (Paleochori Bay) and a mineral assemblage consisting of orpiment, realgar, and native S (Calypso Vents) may also suggest a contribution by an oxidised (sulphate-rich) low pH fluid of potential magmatic origin. However, fluid boiling is pervasive at Calypso Vents and Paleochori Bay, and the condensation of vapor-rich fluids in a steam-heated environment may produce a similar alteration and mineralization assemblage without a significant magmatic fluid influx, as known from some subaerial epithermal systems.

Introduction

Submarine hydrothermal systems and associated sulphide occurrences are known from a wide range of tectonic settings including mid-ocean ridges, back-arc basins and island arc volcanoes (Fouquet et al., 1993; Hannington et al., 2005; de Ronde et al., 2011; German et al., 2016; Hannington et al., 2017). Magma bodies beneath hydrothermal systems represent the heat sources that drive the circulation of seawater-derived fluids through the oceanic crust, causing chemical exchange and heat transfer between the lithosphere and the oceans (Scott et al., 1974; Von Damm, 1995; Hannington et al., 2005; Tivey, 2007; Stucker et al., 2017; Kleint et al., 2019). Physico-chemical fluid parameters like temperature, pH, redox and the availability of complex forming-ligands (e.g., HS, Cl, OH), together with water depth and host rock composition control the mineralogy and chemistry of seafloor sulphide precipitates (Keith et al., 2014; Seward et al., 2014; Wohlgemuth-Ueberwasser et al., 2015; Keith et al., 2016a; Nozaki et al., 2016; Evans et al., 2020). Island arc and young back-arc hydrothermal systems occur at <2000 m water depth and are typically associated with felsic host rocks enriched in As, Sb, Pb and Tl compared to hydrothermal vents in mature back-arcs and along mid-ocean ridges that are mainly hosted by mafic (to ultramafic) rocks enriched in Co, Ni and Cu at >2000 m water depth (Binns and Scott, 1993; Fouquet et al., 2010; Jenner et al., 2010; Keith et al., 2017; Patten et al., 2017). Submarine vent fields that occur at shallow water depths <200 m are a notable sub-group of island arc-related hydrothermal systems (Prol-Ledesma et al., 2002; Monecke et al., 2014), since they are usually hosted by thick layers of volcaniclastic sediments, which affects the precipitation conditions due to higher degrees of sub-seafloor fluid-seawater mixing enhancing the metal deposition (Pichler et al., 1999; Prol-Ledesma et al., 2002; Valsami-Jones et al., 2005; Price et al., 2013).

Subduction zone magmas commonly reach volatile saturation during their evolution, leading to a release of volatiles that may contribute significant amounts of metals and metalloids with a volatile affinity (e.g., Cu, Au, As, Sb, Tl, Se, Te) to an overlying hydrothermal system (Yang and Scott, 1996; de Ronde et al., 2011; Seewald et al., 2015; Keith et al., 2018b; Patten et al., 2019; de Ronde et al., 2019; Martin et al., 2020). Similar volatile-rich fluids can be produced by boiling, which is a common process in shallow marine (<1500 mbsl) island arc-related hydrothermal systems (Stoffers et al., 2006; Monecke et al., 2014; Diehl et al., 2020). Physical separation of boiling fluids into a high-density alkaline saline liquid and a low-density acidic vapor, rich in volatile species (CO2, H2S, H2, SO2), is particularly common at low pressure conditions (Drummond and Ohmoto, 1985). Metals and metalloids either partition into the vapor (e.g., As, Sb, Te, Tl, Hg) and liquid phase (e.g., Fe, Co, Ni, Zn, Pb), or alternatively precipitate during fluid boiling (e.g., Au; Pokrovski et al., 2013; Brugger et al., 2016; Gartman et al., 2018; Román et al., 2019; Keith et al., 2020). Boiling and vapor-dominated venting (gas bubbling) were observed at several shallow marine and lacustrine hydrothermal vent fields, such as Lake Taupo, New Zealand (de Ronde et al., 2002); the west coast of Mexico (Prol-Ledesma et al., 2002; Canet et al., 2005); Lihir Island, Papua New Guinea (Pichler et al., 1999); Paleochori Bay, Milos, Greece (Valsami-Jones et al., 2005), and offshore Kueishantao islet, Taiwan (Chen et al., 2005; Yu et al., 2019). Magmatic volatile influx and vapor-dominated fluid venting lead to a mineralization- (e.g. native S) and alteration-style (advanced argillic) in shallow marine island arc-related settings that is partly comparable to subaerial epithermal systems reflecting volatile-rich and acidic fluid conditions (Naden et al., 2005; Alfieris et al., 2013; Yeats et al., 2014; Wu et al., 2016; Seewald et al., 2019; Yu et al., 2019).

Pyrite is a common constituent in hydrothermal precipitates and incorporates a wide range of trace elements under highly variable fluid conditions (e.g., temperature, pH, redox). Hence, trace element contents and stable isotope variations (e.g. δ34S) in pyrite allow us to monitor changes in fluid composition related to processes like fluid boiling and magmatic volatile influx (Wohlgemuth-Ueberwasser et al., 2015; Keith et al., 2016a; Keith et al., 2016b; Maslennikov et al., 2017; Martin et al., 2019; Román et al., 2019; Keith et al., 2020; Martin et al., 2020). However, the trace element composition of hydrothermal pyrite in shallow marine hydrothermal systems (<200 mbsl) has not been investigated to date, and hence little is known about the enrichment processes of trace metals and metalloids in these environments (Valsami-Jones et al., 2005; Wu et al., 2016; Houghton et al., 2019). In a recent study, the mineralogical and major (and minor) element composition of hydrothermal pyrite and marcasite from Paleochori Bay (Milos, Greece) has been described and related to the venting of high-Cl liquid- and low-Cl vapor-dominated fluids (Voudouris et al., 2021). We significantly extend this approach by a micro-analytical trace element study combined with S isotope analyses on samples from Paleochori Bay and Calypso Vents (Bay of Plenty, New Zealand). We propose a hydrothermal model, in which fluid boiling and seawater mixing are key processes for trace metal and metalloid enrichment and fractionation in shallow marine hydrothermal systems, leading to a mineralization-style that is comparable to some subaerial epithermal systems.

Geological Setting and Sample Localities

Calypso Vents

The Calypso Vents are located within the Bay of Plenty in the Whakatane Graben, the offshore extension of the geothermally active Taupo Volcanic Zone, New Zealand (Figure 1A; Davey et al., 1995; Wilson et al., 1995). The Pliocene to Quaternary arc volcanism of the Taupo Volcanic Zone results from the subduction of the Pacific Plate underneath the Australian Plate (Davey et al., 1995; Wilson et al., 1995). The Whakatane Graben is located between the volcanoes White Island in the NE and Whale Island in the SW on the continental shelf of New Zealand (Figure 1B) hosting a succession of volcaniclastic sediments covering a Mesozoic greywacke basement (Davey et al., 1995; Hocking et al., 2010). Active volcanism occurred on Whale Island during Pleistocene time, whereas White Island is an active volcano hosting a hydrothermal system that may actively form a high-sulfidation Cu-Au mineralization (Hedenquist et al., 1993; Hedenquist and Lowenstern, 1994; Davey et al., 1995). Hydrothermal venting at Calypso is controlled by active late Quaternary normal faulting subparallel to the NW-trending Whakatane Graben (Hocking et al., 2010; Wright 1990). The Calypso hydrothermal system consists of three major vent sites in water depths of 180–190 m: Calypso N, Calypso SW and Calypso SE (Figure 1B; Stoffers et al., 1999b). During cruises SO135 in 1998 and SO192/2 in 2007 fluid temperatures between 180 and 200°C were detected at the hydrothermal vents (Table 1). Fluid data suggests that CO2 and minor H2S are the primary gas species in the hydrothermal fluids (Stoffers et al., 1999a; b; Schwarz-Schampera et al., 2009). In addition to gas bubbling, diffuse discharge of shimmering water has been observed indicating sub-seafloor fluid-seawater mixing (Schwarz-Schampera et al., 2007; Hocking et al., 2010). The main difference between the northern and southern (SE and SW) vent fields is the occurrence of anhydrite and diffuse venting in the north compared to a focused fluid discharge associated with As- and Hg-mineralization and hydrocarbons in the south (Stoffers et al., 1999b).

FIGURE 1
www.frontiersin.org

FIGURE 1. (A) Location of Calypso Vents in the Bay of Plenty on the continental shelf of the northern island of New Zealand (modified after Wilson et al., 1995) (B) Location of Calypso N, SE, and SW in the Whakatane Graben between White Island and Whale Island (modified after Wright, 1990).

TABLE 1
www.frontiersin.org

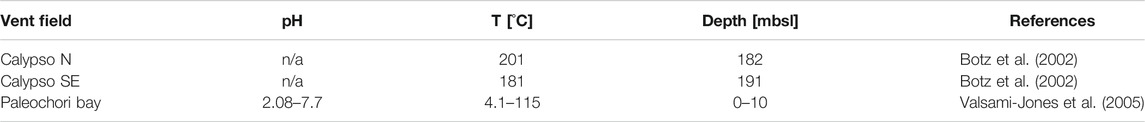

TABLE 1. Overview of fluid parameters from Calypso Vents and Paleochori Bay.

Paleochori Bay

Paleochori Bay is located in the southeastern coast of Milos Island, Greece, which is part of the active Hellenic island arc forming due to the subduction of the African Plate beneath the Aegean microplate (Voudouris et al., 2019). The forearc region consists of 1) the Cretan forearc basin, 2) a backstop region including the Peloponnese peninsula to the west (mainland Greece), Crete to the south and Rhodes to the east, as well as 3) an accretionary complex, the Mediterranean ridge, located between Crete and the Hellenic Trench (Figure 2A; Kopf et al., 2003; Varnavas and Cronan 2005; Price et al., 2013). Milos Island hosts several epithermal deposits associated with geothermal activity (Kilias et al., 2001; Naden et al., 2005; Smith et al., 2018). Shallow submarine hydrothermal venting is concentrated along the southern coastline, where Paleochori Bay is located with its intense hydrothermal activity and As-rich mineralization (Price et al., 2013; Voudouris et al., 2021). Hydrothermal venting is structurally controlled by an active rift, which extends offshore from the subaerial Fyriplaka Volcano (Figure 2B; Fytikas et al., 1986; Varnavas and Cronan 2005; Price et al., 2013). Hydrothermal venting occurs in an area of ∼35 km2 and up to 300 m water depth with fluid temperatures reaching 150°C (Yücel et al., 2013). Different types of fluids were described, including low Cl vapor-rich fluids with a focused discharge through volcaniclastic sediments, brine-rich seeps, and low-pH fluids discharging through rock fissures (Table 1). Intense discharge also raises sandy/pebbly plumes of volcaniclastic sediments that are cemented by pyrite and marcasite to sulphide mounds, which are associated with gas bubbles and the occasional discharge of saline liquids (Valsami-Jones et al., 2005; Voudouris et al., 2021).

FIGURE 2
www.frontiersin.org

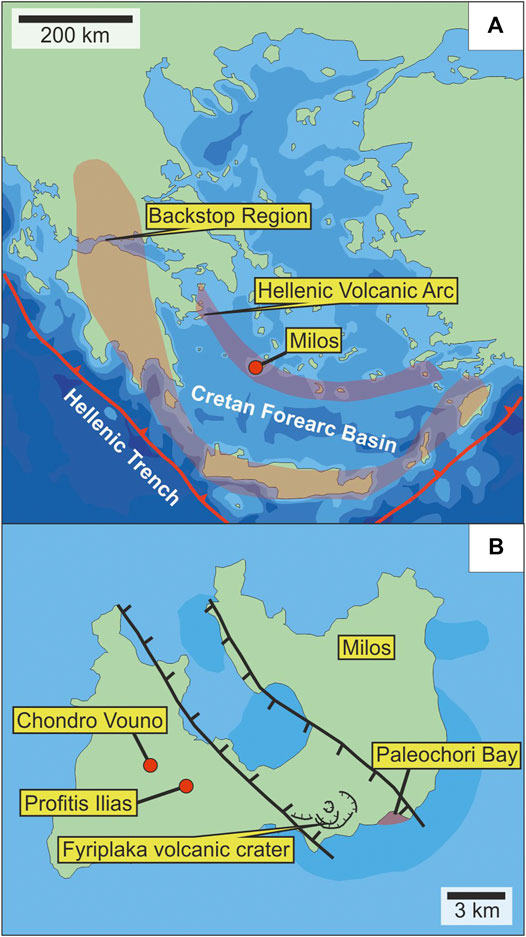

FIGURE 2. (A) Location of Milos Island in the active Hellenic Volcanic Arc (modified after Kopf et al., 2003; Houghton et al., 2019) (B) Milos Island with the neo-tectonic graben structure hosting the hydrothermal vent site of Paleochori Bay. Dark areas indicate fields of hydrothermal activity (modified after Fytikas et al., 1986; Kilias et al., 2001; Houghton et al., 2019).

Methods

Sample Collection, Preparation and Processing

The investigated samples from Calypso Vents were recovered by dredge operations during cruise SO135 from the Calypso N (n = 5), Calypso SE (n = 3) and Calypso SW (n = 6) vent sites. Samples from Paleochori Bay were recovered by scuba diving from sulphide mounds in the direct vicinity of vent sites with a focused fluid discharge (n = 4) at <10 m water depth. Samples of hydrothermal vent fluids were not recovered at Calypso Vents and Paleochori Bay. Polished thin and thick sections (n = 17) were prepared from these samples for the following micro-analytical studies (cf. Micro-Analytical Techniques) and a fraction of the whole rock specimen was crushed and milled for x-ray diffraction analysis (cf. X-Ray Diffraction (XRD)).

X-Ray Diffraction (XRD)

Whole rock samples (n = 9) from Calypso Vents (SO135-110DR, -112DR, -112DR2, -112DR3, -113DR7, -118DR5, -116DR3, -118DR2 and -116DR1; Table 2) were crushed, milled and mixed with isopropanol. The amalgamation was milled for another 10 min using a McCrone micro mill. The outcome material was subsequently centrifugalised for 10 min and dried at 60 °C for at least 24 h. Subsequent XRD analysis of the homogenous whole rock powders (n = 9) was conducted from 2° to 75° 2θ diffraction angle using a Siemens D5000 XRD equipped with a graphite monochromator with Cu Kα radiation at the GeoZentrum Nordbayern. Radiation was set to 40 kV and 35 mA. Samples were analysed for a second time after glycol saturation to improve the clay mineral detection. The XRD patterns were processed by Rietveld refinement using the Profex and BGMN software. Phases that occur in amounts <1 wt% could not be detected by XRD.

TABLE 2
www.frontiersin.org

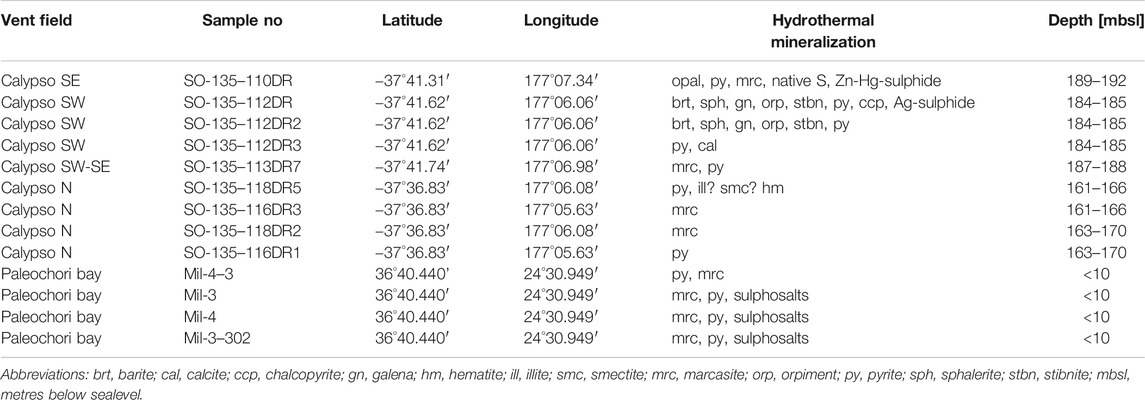

TABLE 2. List of sample localities and mineralogical composition of the hydrothermal mineralization at Calypso Vents and Paleochori Bay.

Micro-Analytical Techniques

The polished thin and thick sections from Calypso (n = 13) and Paleochori Bay (n = 4) were examined by optical microscopy and coated with carbon prior to the micro-analytical study. Unknown mineral phases were identified by energy-dispersive spectrometry (EDS) using a TESCAN Vega\\XMU scanning electron microscope at the GeoZentrum Nordbayern. An acceleration voltage of 20 kV and a probe current of 8–11 nA were applied for EDS analysis. Cobalt was used for beam optimization.

The major and minor element composition of pyrite and marcasite was obtained by electron microprobe analysis using a JEOL JXA-8200 Superprobe at the GeoZentrum Nordbayern (n = 267). Wavelength-dispersive analyses were conducted with a focused beam, an acceleration voltage of 20 kV and a beam current of 20 nA. Count times were set to 20 and 10 s for the peak and background measurements, respectively. The following reference materials were used for the standardization: CuFeS2 (for S, Fe, Cu) and InAs (for As), InSb (for Sb), Co (for Co), Ni (for Ni), ZnS (for Zn), PbS (for Pb). Analyses with a total mass <98 wt%, >101 wt% or with an error >3 at% with respect to the stoichiometric composition were discarded. The Co, Ni, Cu, Zn, Sb and Pb concentrations in pyrite and marcasite determined by electron microprobe were not used for further interpretation, because concentrations were usually <0.1 wt% (Supplementary Table S1), which is close to or below the detection limit but well within the capability range of LA-ICP-MS.

The trace element composition of pyrite and marcasite was determined by LA-ICP-MS using a Teledyne Analyte Excite 193 nm laser coupled with an Agilent 7500c ICP-MS system at the GeoZentrum Nordbayern (n = 157). The plasma power of the ICP-MS system was set to 1300 W. Helium (0.9 L/min) and Ar (0.94 L/min) were used as carrier gases. In addition, Ar was used as plasma (14.9 L/min) and auxiliary gas (0.9 L/min). A single spot ablation pattern with a frequency of 15 or 20 Hz and a fluence of 4.04 J/cm2 was used. A beam diameter of 10–25 µm was applied according to pyrite and marcasite crystal size. Total analysis time was set to 40 s including 20 s of pre-ablation blank analysis. The Po724 B2 SRM (Sulphide Memorial University Newfoundland) (Au) and MASS-1 (USGS) (Co, Ni, Cu, Zn, Ga, Ge, As, Se, Mo, Ag, Cd, In, Sb, Te, Hg, Tl, Pb and Bi) reference materials were used for the external calibration. A stoichiometric value of 53 wt% S was used for the internal standardisation of pyrite and marcasite. Trace element and minimum detection limits were processed by GLITTER (Supplementary Table S2; van Achterbergh et al., 2000). Data quality was monitored by the repeated analysis of the sulphide standards yielding a relative standard deviation (RSD) of <10% for Ga, As, Mo, Cd, In, Sb, Pb and Bi; <15% for Cu, Zn, Ge, Se, Ag, Te, Au, Hg and Tl; <17% for Co and Ni. Quantitative spot analysis was combined with qualitative LA-ICP-MS mapping to visualise trace element distribution patterns in individual crystals or fine-grained pyrite-marcasite assemblages. A square-shaped beam of 5 μm at a scan speed of 3 μm/s and a repetition rate 15 Hz was applied for the mapping. All other operating conditions were identical to the spot analysis. The qualitative trace element maps were processed by the iolite software package developed at the University of Melbourne (https://iolite-software.com).

Geochemical data from natural systems rarely show a normal distribution, and hence the geometric mean and geometric standard deviation (GSD) were used to measure central tendency and dispersion, respectively (Table 3; Reimann and Filzmoser, 2000).

TABLE 3
www.frontiersin.org

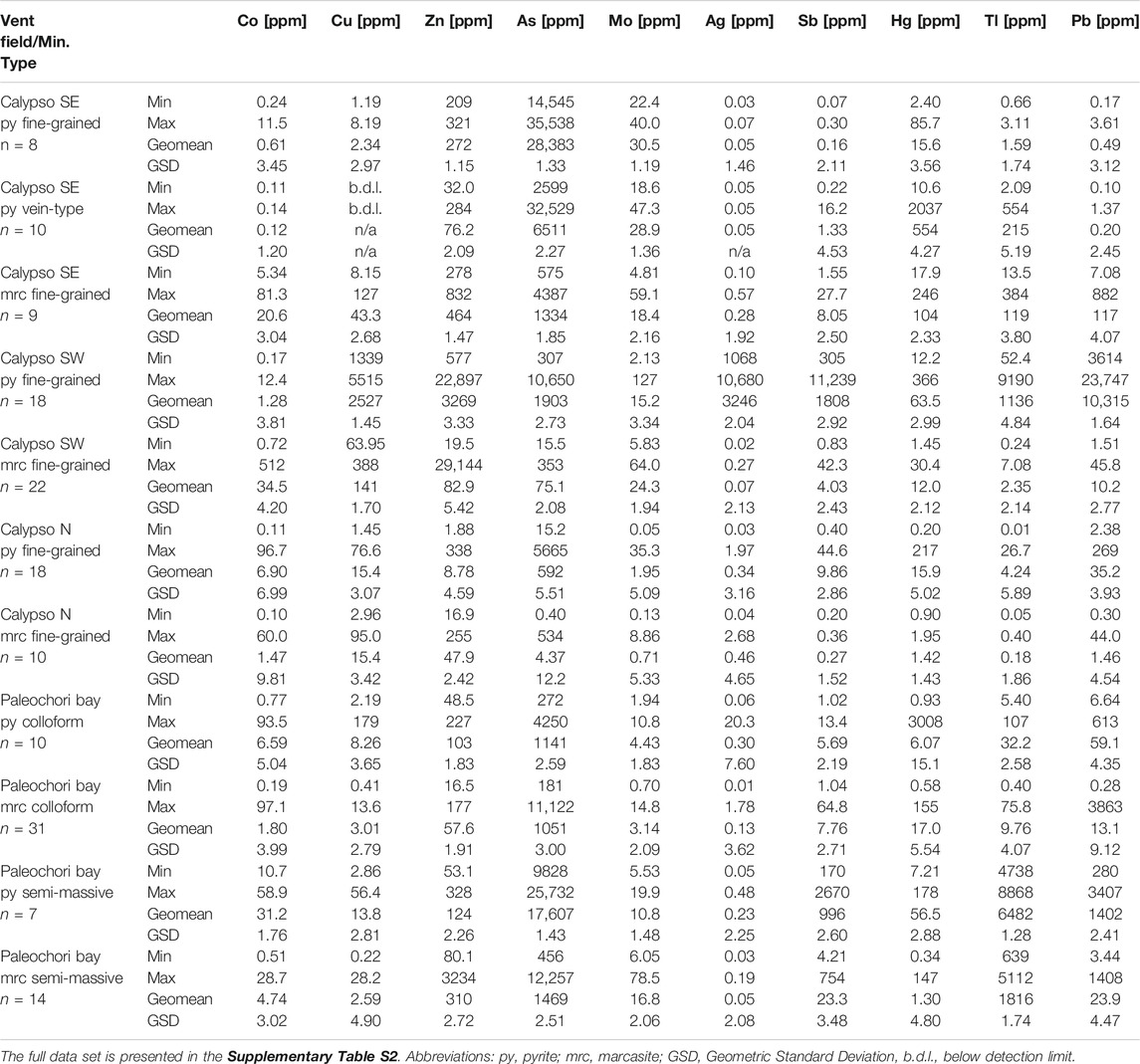

TABLE 3. Compilation of trace element concentrations in pyrite and marcasite from Calypso Vents and Paleochori Bay.

Sulfur Isotope Analysis

Sulfur isotope measurements were performed on native S separates (n = 5) from Calypso Vents (SO135-88DR, -110DR02, -103DR2, -98DR and -103DR1) without further chemical treatment (Supplementary Table S3). About 48–55 μg of S and 300–500 µg of V2O5 were placed into tin capsules. Subsequent isotope analysis was performed using a Carlo Erba elemental analyser coupled with a ThermoFinnigan Delta Plus isotope ratio mass spectrometer (EA-IRMS) at the Westfälische Wilhelms-Universität Münster. Reproducibility as determined through replicate analyses of reference materials was better than ±0.2‰ (1σ) and precision of duplicate measurements was <0.7‰. Values are presented in per mille difference relative to the Vienna-Canyon-Diablo Troilite (V-CDT) standard.

Results

Hydrothermal Mineralogy

Pyrite and marcasite are the dominant sulphides in most samples from Calypso Vents (Table 2), where they are commonly disseminated in the host lithologies as anhedral to subhedral crystals. Locally framboids, veins or coatings of pyrite and/or marcasite around silicate grains or Fe-Ti-oxides were observed (Figure 3A). The hydrothermal mineralization at Calypso SE is characterised by massive opaline silica and a pyrite (-marcasite) vein-related mineralization that occurs between ash layers (Table 2; Figure 3B). Back-scattered electron imaging exhibits concentric/growth zoning in vein-type pyrite, in which the light grey spherical zones contain inclusions of a Zn-Hg sulphide (Figure 3C). In addition, a pumiceous tuff sample was recovered between Calypso SE and SW, which hosts macroscopic fragments of charcoal associated with the pyrite and marcasite mineralization (Supplementary Figure S1B). By contrast, the samples from Calypso SW are mainly composed of barite with minor chalcopyrite and sphalerite that hosts galena inclusions (Figure 3D). Pyrite is locally associated with a Ag-rich sulphide phase, probably an argentite or acanthite polymorph (Ag2S, Figure 3E). Radial orpiment locally surrounds skeletal stibnite in the barite-cemented tuffs of Calypso SW (Figure 3F). The host lithologies of Calypso N are more diverse compared to the pumiceous tuffs at Calypso SE and SW. This includes, in addition to variably altered (lapilli) tuffs, reworked rhyolitic and granitic host rock compositions. X-ray diffraction patterns of the lapilli-tuffs revealed that illite or smectite are present (Table 2). Pyrite and marcasite are the only sulphides identified at Calypso N, which occur as disseminations in the altered host rocks. Additionally, three types of native S can be distinguished at Calypso Vents, including 1) crystalline S that shows a glassy lustre and infills cavities, 2) S crusts cementing the volcaniclastic sediments and 3) mm-sized sulfur globules that are attached to the sample surface (Supplementary Figure S1A).

FIGURE 3
www.frontiersin.org

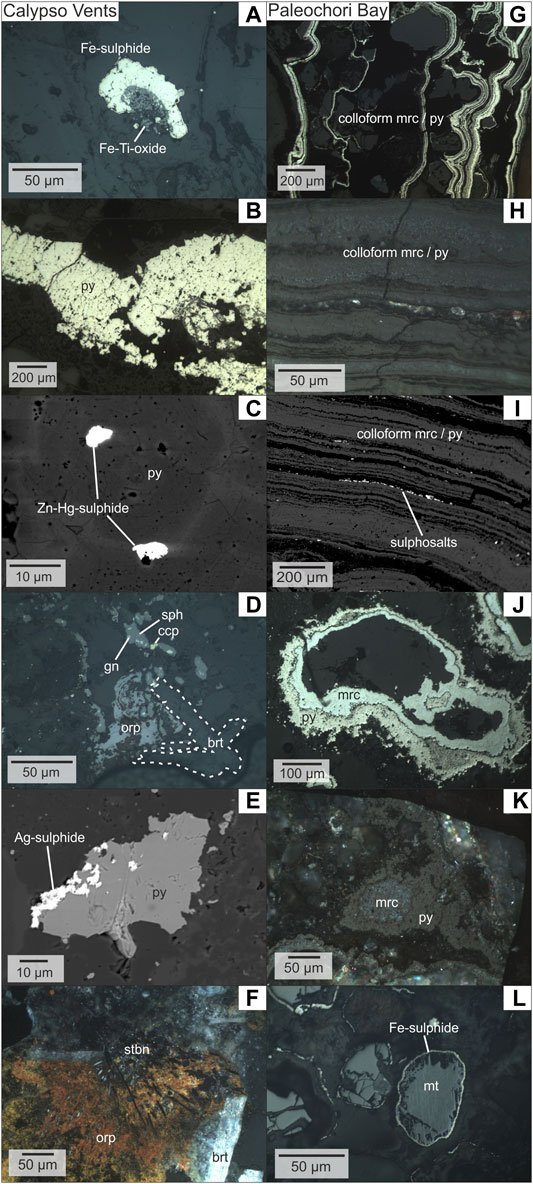

FIGURE 3. Reflected light photomicrographs and electron images of representative samples from Calypso Vents (A–F) and Paleochori Bay (G–L). Calypso Vents (A) Fe-sulphide surrounding Fe-Ti-oxide in ash matrix from Calypso SW (112DR3) (B) vein-type pyrite from Calypso SE (C) inclusions of Hg-Zn sulphide in an As-rich concentric zone in vein-type pyrite from Calypso SE (110DR) (D) assemblage of sphalerite, chalcopyrite, galena and orpiment in barite-cemented tuff from Calypso SW (112DR) (E) pyrite surrounded by Ag-sulphide (argentite or acanthite) from Calypso SW (112DR) (F) skeletal stibnite surrounded by orpiment in barite-cemented tuff from Calypso SW (112DR). Paleochori Bay (G) colloform mineralization of alternating pyrite-marcasite in silicate matrix (Mil3-302) (H) colloform pyrite-marcasite alternation with amorphous silica layers in crossed polarised light (Mil4) (I) back-scattered electron image of colloform pyrite-marcasite with Cu, Zn, Ag, Sb and Pb bearing sulphosalts in amorphous silica layers (Mil3-302) (J) pyrite and marcasite surrounding detrital grains in the volcaniclastic sediments (Mil4-3) (K) pyrite surrounding marcasite in crossed polarized light (Mil4-3) (L) magnetite replacement by Fe-sulphide (Mil4).

The hydrothermal mineralization at Paleochori Bay primarily consists of pyrite and marcasite. Most samples show several generations of pyrite and marcasite in alternating colloform bands that are interrupted by layers of amorphous silica (Figures 3G,H) and sub-microscopic complex Cu, Zn, Ag, Sb and Pb bearing sulphosalts (cf. Mineral Chemistry) that were identified by backscattered electron imaging and EDS (Figure 3I). Locally, marcasite is attached to silicate pebbles in the volcaniclastic material and is surrounded by pyrite (Figures 3J,K), which has an irregular and more porous texture in this assemblage compared to marcasite (Figures 3J,K). Host rock-related magnetite typically shows dissolution textures and coatings of Fe-sulphide (Figure 3L).

Mineral Chemistry

Arsenic concentrations in pyrite and marcasite range from 0.4 ppm to 3.5 wt% (Table 3). Vein-type pyrite from Calypso SE shows the highest As contents reaching 3.5 wt%, together with elevated Hg (up to 0.2 wt%) and low Cu, Pb, and Sb (Table 3; Figures 4A–E). Pyrite in barite-cemented tuffs from Calypso SW displays moderate As (up to 1.1 wt%) and high Pb (up to 2.3 wt%), Sb (up to 1.1 wt%), Zn (up to 2.2 wt%), Ag (up to 1.0 wt%) and Tl (up to 0.9 wt%) contents (Table 3; Figures 4A–E). Arsenic concentrations in pyrite from Calypso N and Paleochori Bay reach 0.1 and 1.9 wt%, respectively, and show comparable As/Co. ratios and Sb, Ag, Cu, Hg and Pb contents, but distinct Zn and Tl concentrations (Table 3; Figures 4A–E).

FIGURE 4
www.frontiersin.org

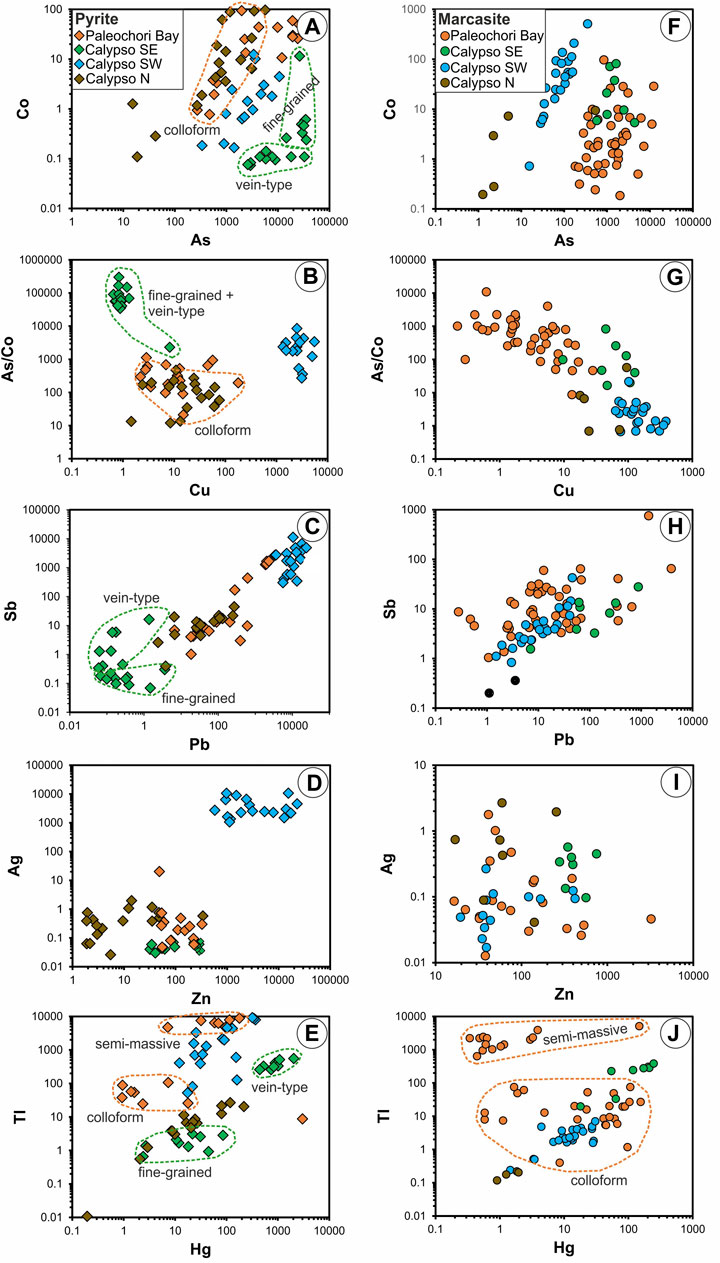

FIGURE 4. Trace element variation diagrams of pyrite (A–E) and marcasite (F–J) from Calypso Vents and Paleochori Bay. Note the distinct composition of pyrite and marcasite with respect to mineral texture and the host vent system.

Pyrite and marcasite from Calypso Vents can be distinguished based on their trace element composition. Lead, for example, tends to be enriched in pyrite compared to marcasite from the same vent site (e.g., Calypso N and SW, Figures 4C,H). Antimony is enriched in pyrite relative to marcasite at Calypso SW and N, whereas at Calypso SE, pyrite is depleted in Sb compared to marcasite (Figures 4C,H). Copper is enriched in pyrite from Calypso SW, but depleted at Calypso SE relative to marcasite from the same vent site. By contrast, pyrite and marcasite from Paleochori Bay generally show a comparable composition (Figure 4), and can therefore not be distinguished by their trace element contents. Trace element concentrations also vary with respect to pyrite texture (Table 3; Figure 4E). For example, As, Sb, Hg (and Tl) are enriched, whereas Co is depleted in vein-type pyrite compared to fine-grained disseminated pyrite from Calypso SE. Semi-massive pyrite and marcasite from Paleochori Bay exhibit higher Tl concentrations than its colloform-textured counterpart (Figures 4E,J).

Laser ablation ICP-MS mapping reveals a concentric zoning pattern in vein-type pyrite from Calypso SE, showing a distinct enrichment of Mo, Sb, Hg and Tl in As-rich zones (Figure 5), together with an inclusion-related occurrence of Hg (and Zn) (Figures 3C,5E; Supplementary Figure S2). Trace element maps of colloform pyrite-marcasite from Paleochori Bay display a more complex element distribution, without clear covariations with As (Figure 6). Antimony is particularly concentrated in complex Sb, Zn, Cu, Ag and Pb bearing sulphosalts that occur between the pyrite-marcasite layers (Figure 6, Supplementary Figure S3).

FIGURE 5
www.frontiersin.org

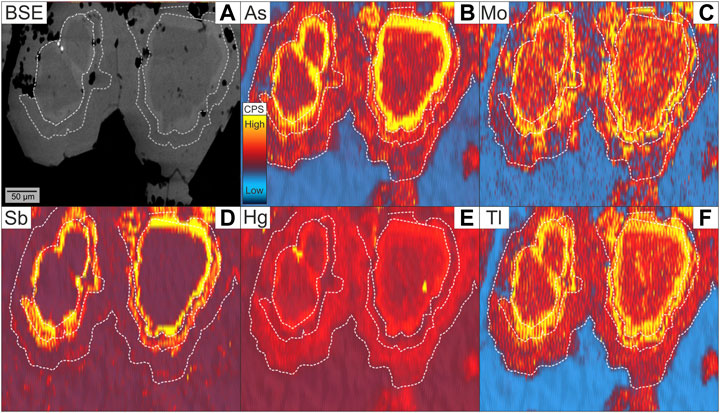

FIGURE 5. Backscattered electron image (A) and trace element maps by LA-ICP-MS (B–F) of vein-type pyrite from Calypso SE. Note the Hg-rich inclusions (E) in the As-rich zones of pyrite. The white dashed lines represent the crystal margin or separate different zones with distinct trace element composition.

FIGURE 6
www.frontiersin.org

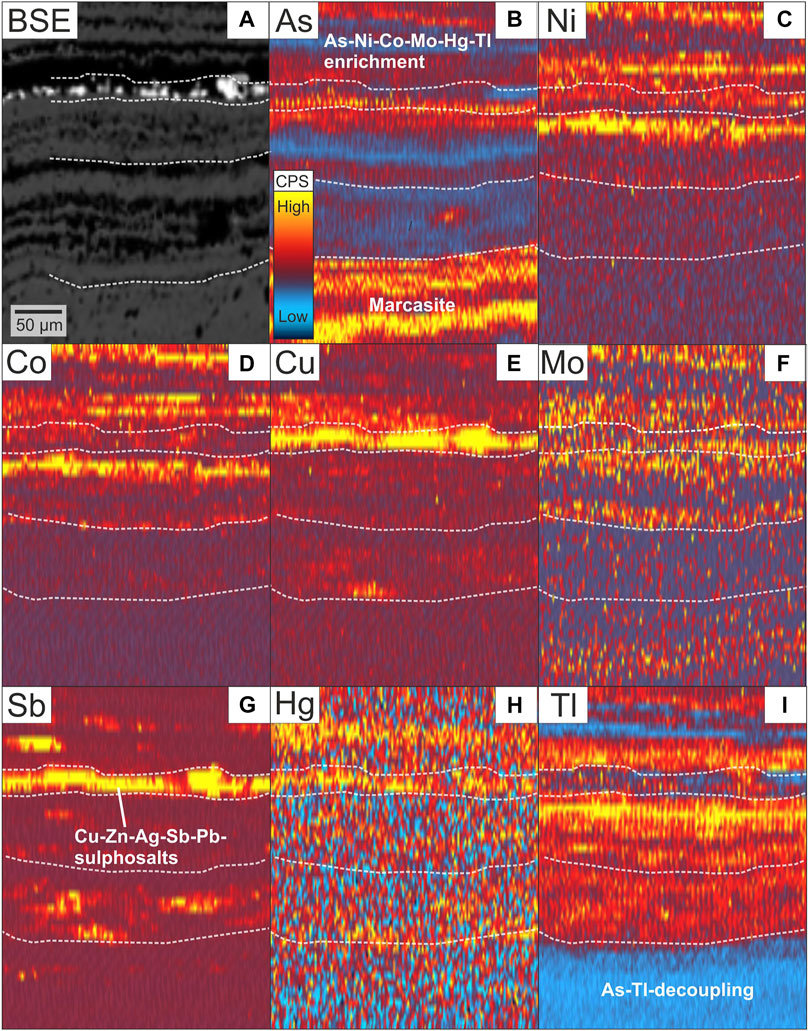

FIGURE 6. Backscattered electron image (A) and trace element maps by LA-ICP-MS (B–I) of colloform pyrite-marcasite from Paleochori Bay. Sulphosalts hosted by amorphous silica layers (Figure 3I) show an enrichment of Cu, Zn, Ag, Sb and Pb. Note the coupling (As, Ni, Co, Mo, Hg, Tl) and decoupling (As, Tl) of elements between different layers in the colloform pyrite-marcasite assemblage, as highlighted by the white dashed lines.

The Shapiro-Wilk-Test show a log-normal distribution for some elements in pyrite and marcasite (Co, Ni, Ge, Cd, Au; p > 0.05). A normal distribution was only detected for Se and Te in pyrite (p = 0.156 and p = 0.235), which is probably related to the small number of analyses (n < 11) above the detection limit (Supplementary Table S4). Therefore, the non-parametric Spearman correlation test was applied. Yielded coefficients (ρ-values) for all bivariate combination and corresponding p-values are provided in Supplementary Table S4.

Sulfur Isotopes

The δ34S compositions between the different types of native S (cf. Hydrothermal Mineralogy) are highly variable at Calypso Vents, as reflected by negative δ34S values in S globules (−7.6 to −9.1‰) compared to a positive δ34S signature in the S crusts (5.7–6.7‰, Table 4) and in crystalline S (0.7–3.4‰, Table 4). This compositional range in δ34S is comparable to pyrite and native S from other sediment-covered island arc-related vent sites like Paleochori Bay (−4.4 to −10.8‰; Houghton et al., 2019), Punta Mita (−10.7–4.9‰; Alfonso et al., 2003) and Kueishantao (0.2–2.4‰; Yu et al., 2019). The δ34S composition of pyrite from the sediment-covered Palinuro volcanic complex (Tyrrhenian Sea) overlaps with Calypso Vents and Paleochori Bay, but extends towards extremely low δ34S values (−32.8 to −1.1‰; Table 4).

TABLE 4
www.frontiersin.org

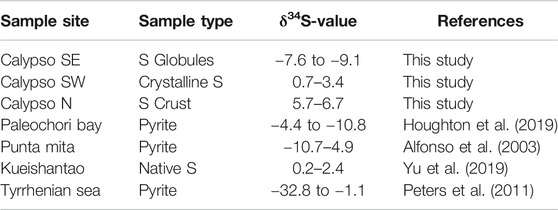

TABLE 4. Comparison of δ34S data from this study and other shallow marine vent sites.

Discussion

Precipitation and Alteration Processes

The occurrence of both pyrite and marcasite at Calypso Vents and Paleochori Bay (Figure 3) suggests significant fluid temperature and/or pH variations. Marcasite is only stable at pH < 5 and temperatures <240°C (Murowchick and Barnes, 1986), whereas the precipitation of pyrite is not restricted to these fluid conditions, as indicated by a formation at high temperature (up to 400°C) or neutral to alkaline pH (>7) in submarine and subaerial hydrothermal systems (Berkenbosch et al., 2012; Wohlgemuth-Ueberwasser et al., 2015; Keith et al., 2016a, 2020; Meng et al., 2020). Elements like Co and Cu typically precipitate together with their host minerals at fluid temperatures between 300 and 350°C, whereas the solubility of Tl and Pb is not temperature sensitive >220°C (Seyfried and Ding, 1995; Metz and Trefry, 2000). Thus, we expect a Tl and Pb enrichment in marcasite relative to pyrite as a result of the lower formation temperature of the former (<240°C). However, Tl and Pb are not consistently enriched in marcasite compared to pyrite from the same vent site (Figure 4), rather excluding a temperature-controlled incorporation. Similarly, colloform pyrite-marcasite, as observed at Paleochori Bay (Figure 3I), typically forms by quenching of the discharging fluids with ambient seawater, and therefore represent a low temperature precipitation texture (Berkenbosch et al., 2012; Revan et al., 2014; Grant et al., 2018). However, we do not see a Tl enrichment or Co and Cu depletion in colloform compared to vein-type and semi-massive pyrite-marcasite that commonly form at higher fluid temperatures and more stable precipitation conditions with little fluid seawater-mixing (Figure 4; de Ronde et al., 2003; Melekestseva et al., 2014; Wohlgemuth-Ueberwasser et al., 2015; Keith et al., 2016a). This indicates that fluid temperature can likely not explain the trace element variations in pyrite and marcasite and rather suggests that the different crystal structures of cubic pyrite and orthorhombic marcasite may primarily control the trace element distribution at Calypso Vents and Paleochori Bay (cf. Fluid Boiling and Metal Deposition). The low fluid temperatures at Calypso Vents (<200°C) and Paleochori Bay (<115 °C; Table 1) also suggest a low Co and Cu solubility in the hydrothermal fluids (e.g., Seyfried and Ding, 1995; Metz and Trefry, 2000), indicating that most of the Co and Cu possibly precipitated in the subsurface and never reached the seafloor, which may explain the Cu-poor seafloor mineralization in these systems (Table 2). Alternatively, Co and Cu may not have been mobilised in significant amounts from the surrounding host rocks due to the low fluid temperatures <200°C (Table 1; Metz and Trefry, 2000).

Colloform pyrite-marcasite textures are also known from deeper hydrothermal systems (>200 mbsl) in arc and back-arc environments (de Ronde, et al., 2003; Berkenbosch et al., 2012; Wohlgemuth-Ueberwasser et al., 2015; Keith et al., 2016a). However, the silicate and heavy mineral (sulphosalt) layers between colloform pyrite-marcasite at Paleochori Bay are uncommon in these deeper systems, suggesting distinct hydrodynamic precipitation conditions. Hydrothermal vent systems in very shallow water depths (<10 mbsl), such as Paleochori Bay (Tables 1,2), are affected by wave action, and therefore by seasonal variations in wind and wave intensity preventing the formation of continuous Fe-sulphide layers due to constant hydrodynamic reworking (Pichler et al., 1999; Yücel et al., 2013). We propose that due to increased wave action, for example during storm events, mixing at the fluid-seawater interface is deeper in the sediment cover (>10 cm; Yücel et al., 2013) supressing the formation of sulphides at the seafloor. Instead, detrital material including heavy minerals (e.g. sulphosalts) are deposited (Figure 3G), which were possibly derived from the nearby onshore epithermal mineralizations on Milos island (Kilias et al., 2001; Naden et al., 2005). At decreasing wave action, the seawater-fluid interface moves upward towards the seafloor leading to the formation of colloform pyrite-marcasite upon mixing of the discharging fluid with ambient seawater (Figure 3).

Cinnabar (HgS) has been described at Paleochori Bay (Voudouris et al., 2021) and a similar Hg-rich mineralization has also been observed at Calypso SE (Figure 3C; Stoffers et al., 1999a), which is associated with charcoal fragments hosted by the volcaniclastic sediments (Supplementary Figure S1B). This may imply that the Hg precipitation is related to organic matter, as suggested by Prol-Ledesma et al., (2002) for the Punta Mita vent system, Mexico. Beyond this, Hg is supposed to be enriched in shallow marine hydrothermal systems due to the occurrence of boiling and its precipitation from vapor-rich fluids according to the following equation (1) by Varekamp and Buseck (1984).

Hg(g)0+H2S(g) HgS(S)+ H2      (1)

Fluid boiling has been suggested for Calypso Vents (Schwarz-Schampera et al., 2007; Hocking et al., 2010) and Paleochori Bay (Valsami-Jones et al., 2005; Wu et al., 2016), and the presence of oil, bitumen and charcoal at Calypso SE (Supplementary Figure S1B; Stoffers et al., 1999b; Botz et al., 2002) probably promotes the Hg mobility, and therefore leads to an oversaturation of Hg in the boiled fluids indicated by Hg droplets (Varekamp and Buseck 1984) that may subsequently be incorporated in the precipitating sulphides like pyrite (Figure 3C).

Coatings of Fe-sulphide around magnetite grains, as observed at Calypso Vents and Paleochori Bay (Figures 3A,L), are the result of magnetite sulfidation by an H2S-rich acidic fluid in the presence of seawater oxygen according to the following Eq. (2) by Qian et al., (2010):

Fe3O4+ 6H2S(aq)+ O2(aq) 3FeS2+ 6H2O      (2)

This combined leaching and replacement process of detrital magnetite was also described at other shallow marine hydrothermal vents, such as Lihir, Papua New Guinea (Pichler et al., 1999) and Punta Mita, Mexico (Prol-Ledesma et al., 2002). The presence of alunite-jarosite at Paleochori Bay suggests the occurrence of oxidised low pH (<3) fluids likely reflecting a boiling-related vapor-dominated origin (Valsami-Jones et al., 2005; Price et al., 2013; Voudouris et al., 2021; Wu et al., 2016). Marcasite is only stable at low pH (<5) conditions (Murowchick and Barnes, 1986), and hence we propose that the pyrite-marcasite alternations, as observed at Paleochori Bay (Figure 3) may be the result of the periodic discharge of lower pH vapor-dominated fluids (cf. Pichler et al., 1999), causing the precipitation of marcasite instead of pyrite. However, acid alteration such as kaolinite or alunite is lacking at Calypso Vents (Marumo and Hattori 1999; Simmons and Brown 2000), where an alteration assemblage consisting of smectite, illite and opaline silica rather suggests neutral pH conditions (Table 2; Hocking et al., 2010). Hence, if an acidic alteration assemblage was present at Calypso Vents, then it was likely overprinted by a near neutral seawater-dominated fluid leading to the observed smectite-illite alteration (de Ronde et al., 2019).

Fluid Boiling and Metal Deposition

Significant variations in vent fluid chlorinity (43–2000 mM Cl) relative to seawater (∼560 mM Cl) together with venting of vapor-rich fluids at Calypso Vents and Paleochori Bay indicate that boiling is a common process (Valsami-Jones et al., 2005; Schwarz-Schampera et al., 2007; Hocking et al., 2010; Price et al., 2013). Trace element partitioning typically occurs between the low-Cl vapor (e.g., As, Mo, Sb, Hg, Tl) and high-Cl liquid phase (e.g., Co, Zn, Pb; Xiong 2007; Pokrovksi et al., 2013; Brugger et al., 2016; Román et al., 2019; Keith et al., 2020), which has recently been proposed to be preserved by trace element variations (e.g. concentric zoning) in epithermal pyrite (Tardani et al., 2017; Román et al., 2019; Keith et al., 2020).

Trace element mapping of vein-type pyrite from Calypso SE reveals such concentric zoning patterns with a coupled enrichment of volatile elements like As, Mo, Sb, Hg and Tl (Figure 5). By contrast, concentrations of trace elements that usually form Cl-complexes in hydrothermal fluids (e.g., Co, Zn, Ag, Cd, Pb) are near or below the minimum detection limit (<0.01 ppm, Supplementary Figure S2), indicating that the mineralising seafloor fluids may have been vapor-dominated and of low chlorinity. This is supported by generally low Co and Pb contents in pyrite from Calypso SE (Figure 4), as well as a Co depletion and an Sb, Hg and Tl enrichment in vein-type compared to the fine-grained host-rock related pyrite at this vent site (Table 3; Figure 4). The distinct fractionation behaviour of As and Co between the vapor and liquid phase, respectively (Pokrovksi et al., 2013; Brugger et al., 2016; Tardani et al., 2017), suggests that the high As/Co ratios (up to 300,000) in pyrite from Calypso SE are caused by a precipitation from a vapor-rich fluid (Figure 4B, 8B). By contrast, the lowest As/Co ratios in pyrite were observed at Calypso N and Paleochori Bay indicating a smaller vapor proportion in the mineralising fluids (Figure 4B, Figure 8B). Hence, the As/Co ratio in pyrite may represent a suitable tool to distinguish vapor- and liquid-dominated fluids (cf. Tardani et al., 2017; Román et al., 2019). Pyrite in the barite-cemented tuffs from Calypso SW shows high Zn, Ag and Pb contents (Figure 4), which suggests, together with the presence of sphalerite, argentite and galena (Table 2) that the corresponding hydrothermal fluids were enriched in Zn, Ag, Ba and Pb compared to the other vent sites. These elements typically concentrate in the liquid phase during vapor loss by boiling (Suzuki et al., 2008; Pokrovksi et al., 2013; Brugger et al., 2016), which may indicate a precipitation from an upwelling (high-Cl) liquid-dominated fluid with only a minor vapor proportion that formed by sub-seafloor boiling (Figure 8B).

In contrast to vein-type pyrite from Calypso SE, which is likely related to a focused fluid flow, the colloform Fe-sulphide alternations from Paleochori Bay rather formed under conditions of higher porewater/seawater influence (Figure 8B), and therefore do not preserve a pristine precipitation signature from a boiling hydrothermal fluid that lacks a seawater overprint (Valsami-Jones et al., 2005; Price et al., 2013). Price et al. (2013) also suggested that mixing of phase separated fluids with seawater at Paleochori Bay is a common process. Beyond this, Price et al. (2013) observed an As-Cl-rich fluid at Paleochori Bay carrying both vapor- (Sb and Tl) and liquid-related (Ag, Zn and Pb) elements, which they refer to sub-surface re-mixing of phase separated fluids. A similar process may be observed at Calypso SW and preserved by high concentrations of Sb (up to 1.1 wt%) and Tl (up to 0.9 wt%) together liquid-related elements like Zn, Ag and Pb in pyrite (Figure 4). In addition, crystal structures may also play an important role in the incorporation of trace elements into pyrite and marcasite (Deditius and Reich, 2016; Keith et al., 2018a). Marcasite is a polymorph of pyrite and isostructural with arsenopyrite, which leads to a higher capacity of the orthorhombic marcasite lattice to host As compared to cubic pyrite (Simon et al., 1999; Reich and Becker, 2006). This may explain the enrichment of As in the marcasite compared to the pyrite layers at Paleochori Bay (Figure 6B). Hence, we propose that a combination of mixing between phase separated fluids and porewater/seawater together with a crystallographic control on the trace element incorporation into pyrite and marcasite (cf. Precipitation and Alteration Processes) likely caused the complex trace element distribution at Paleochori Bay.

Gold contents in pyrite and marcasite from Calypso Vents and Paleochori Bay are very low (<0.6 ppm), which may be explained by the precipitation of Au in sub-seafloor boiling zones (Figure 8B). For example, the precipitation of Au in epithermal systems is typically related to boiling zones, where H2S partitions into the vapor phase causing a destabilisation of the (Au(HS)2) complex initiating Au deposition (Drummond and Ohmoto, 1985; Cooke and McPhail 2001; Simmons et al., 2005; Keith et al., 2020). The vicinity of Calypso Vents and Paleochori Bay to Au-rich epithermal systems, such as White Island or the Taupo Volcanic zone, New Zealand (Hedenquist et al., 1993; Simmons and Brown, 2000) and Profitis Ilias or Chondro Vouno, Milos (Figure 8A; Naden et al., 2005; Alfieris et al., 2013), respectively, provides evidence that the hydrothermal fluids were Au-bearing before they intersected the boiling curve during fluid ascent, indicating that most of the Au likely precipitated in the sub-seafloor environment and never reached the seafloor. We conclude that precipitation processes at shallow marine hydrothermal systems (<200 mbsl) are controlled by fluid boiling leading to the formation of phase separated vapor- and liquid-rich fluids that mix with seawater/porewater at or near the seafloor (Figure 8B).

Geochemical Fingerprints in Pyrite for Water Depth and Tectonic Setting

The chemical composition of vent fluids varies between island arc, back-arc and mid-ocean ridge hydrothermal systems, which is based on 1) variable contributions of magmatic volatiles, 2) leaching of magmatic host rocks from ultramafic to felsic composition and 3) differences in fluid temperature, water depth and salinity, affecting processes like phase separation (Reeves et al., 2011; Monecke et al., 2014; Kleint et al., 2015; Seewald et al., 2015; Humphris and Klein, 2017; Schmidt et al., 2017). The trace element composition of pyrite is sensitive to changes in fluid composition (Wohlgemuth-Ueberwasser et al., 2015; Keith et al., 2016a; Monecke et al., 2016; Fuchs et al., 2019; Román et al., 2019; Keith et al., 2020), and may therefore preserve a geochemical signature reflecting the tectonic and geodynamic setting of the host hydrothermal system.

Pyrite from shallow island arc-related hydrothermal vents (<200 mbsl) is characterised by a Co and Cu depletion along with an As, Sb and Tl enrichment compared to deeper spreading-related hydrothermal systems (>2000 mbsl, Figure 7). The higher Sb/Cu (>0.1; Figure 7B) and As/Co. (>100; Figure 7C) ratios in pyrite from shallow arc compared to deeper spreading-related hydrothermal systems (As/Co < 100; Sb/Cu < 0.1) suggest a decreasing vapor proportion in the hydrothermal fluids with increasing water depth, which may be related to stronger boiling effects and vapor-liquid separation at lower temperature-pressure conditions (Drummond and Ohmoto, 1985; Breuer and Pichler, 2013; Monecke et al., 2014; Keith et al., 2020). This is confirmed by the As/Co ratio in pyrite from the Cerro Pabellón Geothermal System, Chile (Román et al., 2019), which formed under non-boiling (As/Co<10) to vigorously boiling conditions (As/Co > 100; Figure 7D). Pyrite data from deeper island arc-related hydrothermal systems (>200 mbsl), such as Volcano 19 (548–992 mbsl) and Brothers volcano (1576–1745 mbsl) from the Tonga-Kermadec arc (Keith et al., 2016a), show As/Co ratios indicating boiling and non-boiling conditions. For example, pyrite from Volcano 19 exhibits As/Co ratios ranging from 1500 to 110,000 (Figure 7C), indicating that boiling is an important hydrothermal process, which is confirmed by fluid temperatures (245–265°C) on the seawater boiling curve, visual evidence by clear fluids with “flames” of water vapor at the seafloor, and associated sulphide dendrite formation (Stoffers et al., 2006; Keith et al., 2016a). By contrast, As/Co ratios in pyrite from the Brothers NW caldera vent system (1576–1745 mbsl) vary from 0.05 to 1100, and therefore suggest boiling (As/Co > 100) and non-boiling conditions (As/Co < 10; Figure 7C). Hence, we conclude that As/Tl, As/Sb and As/Co ratios in pyrite vary systematically between shallow island arc volcanoes (<200 mbsl) and deeper seafloor spreading-related hydrothermal systems (>2000 mbsl), but may not be used as a discrimination tool between shallow (<200 mbsl) and deep (>200 mbsl) island arc-related hydrothermal systems (Figure 7C).

FIGURE 7
www.frontiersin.org

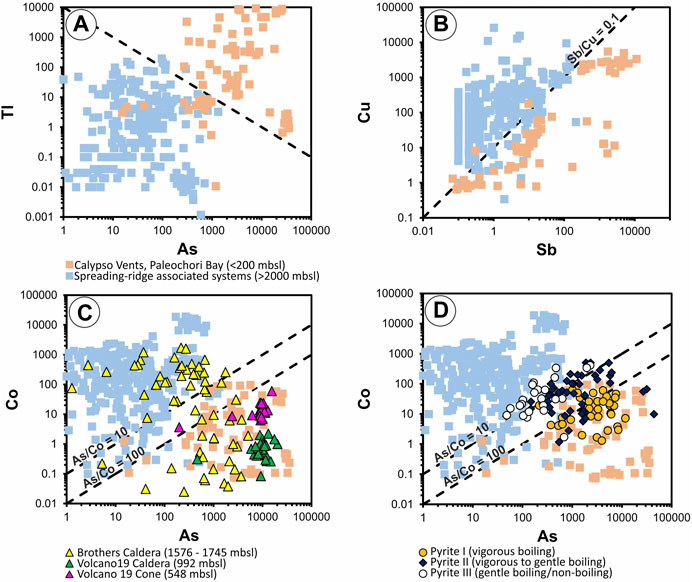

FIGURE 7. Variation diagrams (A–D) comparing the trace element composition of pyrite from Calypso Vents and Paleochori Bay (<200 mbsl) with deep mid-ocean ridge-related hydrothermal sytems (>2000 mbsl). Pyrite from shallow arc-related vents (<200 mbsl) is characterised by significantly higher As, Sb, Tl and lower Cu, Co concentrations (A–C), as well as higher ratios of Sb/Cu (>0.1) and As/Co (>10–100) than its deeper mid-ocean ridge-related counterparts (C,D). Note that pyrite from the deeper arc-related hydrothermal systems of Brothers volcano and Volcano 19 (>200 mbsl; Keith et al., 2016a) overlaps with the mid-ocean ridge data indicating that the As/Co ratio in pyrite should not be suitable to distinguish shallower (>200 mbsl) and deeper (>200 mbsl) arc-related hydrothermal systems (D) Shallow arc-related pyrite (<200 mbsl) shows similar As/Co (>10–100) ratios as pyrite from boiling zones in the Cerro Pabellón Geothermal System, Chile (Román et al., 2019), indicating that fluid boiling is a key processes controlling the As/Co distribution in shallow marine hydrothermal pyrite (<200 mbsl; see text for details). Note that the dashed line in the As-Tl diagram (A) is not a linear function with a constant slope in linear scale, and hence it cannot statically be defined by a ratio. Pyrite data from mid-ocean ridge hydrothermal systems after: Wang et al., 2017 (∼3000 m); Wang et al., 2018 (∼2450 m); Grant et al., 2018 (>3500 m); Meng et al., 2020 (∼2900 m).

Sulfur Origin and Sulfidation State

Sulfur crusts and crystalline S from Calypso N and SW, respectively, show δ34S values from 0.7 to 6.7‰ (Table 4), which reflect a S contribution by igneous host rock leaching (δ34S ∼0‰) and thermochemical seawater sulphate reduction (δ34S ∼21‰; Shanks, 2001; Ono et al., 2007; Keith et al., 2016b; Martin et al., 2020). In contrast, S globules from Calypso SE and hydrothermal pyrite from Paleochori Bay (Houghton et al., 2019) exhibit negative δ34S values ranging from −7.6 to −9.1‰ (Table 4) and −4.4 to −10.8‰, respectively. These values overlap with hydrothermal pyrite hosted by volcaniclastic sediments at the Palinuro volcanic complex (Tyrrhenian Sea), which exhibit highly negative δ34S values ranging from −32.8 to −1.1‰ and multiple S isotope analyses (δ34S and Δ33S) indicate that microbial sulphate reduction caused the negative δ34S signature (Peters et al., 2011; Petersen et al., 2014).

In addition to microbial sulphate reduction at lower fluid temperatures (<150°C), the disproportionation of magmatically derived SO2 commonly also results in negative δ34S values in hydrothermal precipitates (Herzig et al., 1998; Kusakabe et al., 2000; Kim et al., 2004; de Ronde et al., 2011; Martin et al., 2020). Hence, native S globules (S0 in Eq. (3)) and pyrite (H2S in Eq. (4)) with negative δ34S values at Calypso SE and Paleochori Bay, respectively, could also be related to the influx of magmatic fluids followed by the hydration and disproportionation of SO2 according to the following (Eqs. 3,4) by Kusakabe et al., (2000):

3SO2+2H22HSO4+S0+2H+      (3)
4SO2+4H2O3HSO4+H2S+ 3H+      (4)

Hedenquist et al., (1993) also proposed that the disproportionation of magmatically derived SO2 resulted in native S deposition in the active epithermal system of White Island, some 10 km north of Calypso Vents (Figure 1B and Figure 8A). Mineralogical evidence like orpiment, realgar and native S (Table 2) as well as the occurrence of hydrothermal fluids with pH values of ∼2 at Paleochori Bay (Valsami-Jones et al., 2005) may also point towards an intermediate to high-sulfidation regime indicating a magmatic fluid contribution (Einaudi et al., 2005).

FIGURE 8
www.frontiersin.org

FIGURE 8. Schematic hydrothermal model for Calypso Vents and Paleochori Bay, and their relation to nearby subaerial island arc epithermal systems, such as White Island (New Zealand) and Milos Island (Greece) (A) The mineralization at Calypso Vents and Paleochori Bay is mainly based on a seawater derived fluid phase, which underwent phase separation during its ascent to the seafloor. The underlying magmatic system mainly acts as a heat source that drives the seawater circulation; a direct contribution of metal- and metalloid-bearing fluids seems to be unlikely (modified after Hedenquist and Lowenstern, 1994) (B) Boiling in the sub-seafloor leads to the formation of vapor- and liquid-dominated fluids that either reach the seafloor, as observed at Calypso SE and SW, respectively, or mix with porewater/seawater in the volcaniclastic sediments at shallow depth, as proposed for Calypso N and Paleochori Bay. This leads to a texturally diverse and chemically distinct pyrite-marcasite paragenesis (see text for details).

Alternatively, intermediate to high-sulfidation conditions could be due to the condensation of boiling-induced low-density vapors that are characterised by high H2S to base metal ratios (Drummond and Ohmoto, 1985; Marumo and Hattori, 1999; Kusakabe et al., 2000). Vapor-dominated fluids in shallow low-pressure systems cannot carry large amounts of metals due to their low density (Pokrovski et al., 2013), and hence metal precipitation from these fluids leads to an excess in reduced sulfur causing native S deposition through oxygenation at the fluid-seawater/porewater interface (Kusakabe et al., 2000). This typically leads to an acidic and oxidised (SO42  rich) alteration assemblage, which is reflected by the occurrence of alunite-jarosite at Paleochori Bay (Voudouris et al., 2021). We believe that a boiling-induced steam-heated environment is more likely at Paleochori Bay, since there are no examples for high-sulfidation epithermal systems on Milos Island. However, there is no evidence for acid alteration at Calypso Vents and the preserved alteration assemblage of smectite, illite and opaline silica is thought to rather reflect near neutral pH conditions (Hocking et al., 2010). This is consistent with a low-sulfidation environment, where magmatic fluids play a minor role (Figure 8A; Hedenquist and Lowenstern, 1994; Einaudi et al., 2005). If an acidic alteration assemblage was present at Calypso Vents, then it was likely overprinted by a seawater-dominated fluid leading to the observed smectite-illite alteration.

Hence, the negative δ34S composition of native S and hydrothermal pyrite from Calypso SE (-7.6 to -9.1‰; Table 4) and Paleochori Bay (-4.4 to -10.8‰; Houghton et al., 2019) together with the observed alteration assemblage provide evidence for both SO2 disproportionation and microbial sulphate reduction. Multiple S isotopes would allow to distinguish these two processes, which is part of future research (Peters et al., 2011; McDermott et al., 2015). However, irrespective of the S source, which cannot be fully resolved by the methods applied to this study, there is evidence that Calypso Vents and Paleochori Bay represent submarine extensions to the epithermal/geothermal systems of the Taupo Volcanic zone or White Island (New Zealand) and Milos Island (Greece), respectively (Figure 7A).

Summary and Conclusions

Low temperature (<200°C) island arc-related vent sites that are associated with volcaniclastic sediments at shallow water depth (<200 mbsl) are characterised by an epithermal-style mineralization that is chemically and mineralogically distinct compared to deeper arc/back arc (>200 mbsl) and mid-ocean ridge-related environments (>2000 mbsl). For example, hydrothermal pyrite and marcasite from these shallow systems (<200 mbsl) show an As, Sb and Tl enrichment and a Co and Cu depletion compared to their deeper spreading-related counterparts (>2000 mbsl). Fluid boiling, as indicated by low-Cl vapor- and high-Cl liquid-dominated fluids, is a common process in shallow marine hydrothermal systems, like Calypso Vents and Paleochori Bay, causing trace element fractionation between the vapor (e.g., As, Sb, Tl) and liquid (e.g., Co, Zn, Ag, Pb) phase. Hence, pyrite that forms from vapor-rich fluids typically shows high As/Co ratios and enrichments in As, Sb and Tl (e.g. Calypso SE) compared to pyrite that precipitates form liquid-dominated fluids (e.g. Calypso SW). Condensation of such vapor-rich fluids into seawater/porewater in a steam-heated environment results in an acidic alteration assemblage, which is preserved at Paleochori Bay (alunite-jarosite), whereas the illite-smectite alteration at Calypso Vents likely reflects an overprint by a near neutral pH fluid, possibly seawater. The δ34S composition of native S varieties from Calypso Vents, together with hydrothermal pyrite from Paleochori Bay suggest that S was primarily leached from the host rocks and derived from seawater by thermochemical and microbial sulphate reduction. Clear evidence for a magmatic fluid contribution is lacking, however, without multiple S isotope data it remains enigmatic, whether the negative δ34S values in native S and pyrite from Calypso SE and Paleochori Bay, respectively, are due to microbial sulphate reduction, SO2 disproportionation or both. We propose a hydrothermal model, where fluid boiling, host rock leaching and seawater/porewater mixing together with microbial sulphate reduction and/or SO2 disproportionation are crucial processes causing the shallow marine epithermal-style mineralization at Calypso Vents and Paleochori Bay.

Data Availability Statement

The original contributions presented in the study are included in the article/Supplementary Material, further inquiries can be directed to the corresponding author.

Author Contributions

MN prepared the samples for analysis and wrote the manuscript. MKe did the microprobe analyses and participated in writing and scientific discussion. KH designed the project and participated in writing and scientific discussion. RK did the LA-ICP-MS analyses and participated in writing and scientific discussion. Panagiotis Voudouris participated in microscopic work and in writing and scientific discussion. US provided geologic data on the Calypso vents area and participated in scientific discussion. HS did the S isotope analyses and participated in writing and scientific discussion. MKa provided data on the Milos hydrothermal vents and participated in writing and scientific discussion. AM provided data on the Milos hydrothermal vents and participated in writing and scientific discussion.

Funding

We thank the German Bundesministerium für Bildung und Forschung (BMBF) for funding of the project 03G0135A.

Conflict of Interest

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

The reviewer (AM) declared a past collaboration with one of the authors (MK) to the handling editor.

Acknowledgments

The authors would like to thank the associate editor JH and two reviewers ZY and AM for their comments that improved the quality of the manuscript. We thank Helene Brätz and Thomas Günther for their assistance during the LA-ICP-MS and EPMA study, respectively. We acknowledge the help of Stefan Krumm during the XRD study as well as Eva Valsami-Jones for taking samples at Paleochori Bay.

Supplementary Material

The Supplementary Material for this article can be found online at: https://www.frontiersin.org/articles/10.3389/feart.2021.641654/full#supplementary-material.

Supplementary Figure S1. (A) Sulphur globules attached to tuff sample from Calypso SE (SO-135-110DR). (B) Thin section scan from tuff sample (SO-135-113DR7) from an area between Calypso SE and SW contains pumiceous fragments and charcoal embedded in layers of ash sediments.

Supplementary Figure S2. Qualitative trace element maps of all investigated elements from zones and inclusions in vein-type pyrite from Calypso SE (SO-135-110DR). Cobalt, Ni, Ga, Ge, Se, Cd, In and Te display concentrations below detection limit.

Supplementary Figure S3. Qualitative trace element maps of all investigated elements from colloform pyrite and marcasite alternation with Cu-Zn-Ag-Sb-Bi-In-Pb-bearing sulphosalt grains in sulphide mounds from Paleochori Bay. Gallium, Ge, Se, Cd and Te display concentrations below detection limit.

Abbreviations

brt, barite; ccp, chalcopyrite; gn, galena; mt, magnetite; mrc, marcasite; orp, orpiment; py, pyrite; sph, sphalerite; stbn, stibnite, mbsl = metres below sealevel.
