Introduction
Earthquake precursors are elusive, and this elusiveness has hampered earthquake prediction (Donald, 1988; Cicerone et al., 2009; Gherardi et al., 2017). The high uncertainty and low predictability of earthquakes during forecasting make earthquakes one of the worst natural disasters, which may lead to the instant loss of lives and properties (Gupta, 2001; Wen et al., 2008). The anomalously high concentration of helium, hydrogen, carbon dioxide and radon in hot spring bubbling gas have been widely studied in seismically active faults in recent years, especially in Japan, China, Italy and United States, in hunt of changes that might be premonitory of for earthquake prediction (King, 1986; Sugisaki and Sugiura, 1986; Nagamine, 1994; Cicerone et al., 2009; Babuška et al., 2016; Weinlich et al., 2016; Fischer et al., 2017; Huang et al., 2017). Temporal abnormal variations of gas (He, H2, CO2, Rn, CH4) concentration have been observed with durations of a few hours to several days before and after a lot of large earthquakes at some gas monitoring stations at the epicentral distances of up to several hundreds of kilometers, which are usually related to the chemical and physical changes occurring in the active faults as enhanced/reduced water–rock interaction, crustal stress/strain, permeability structure, etc. before and after earthquakes (Sugisaki et al., 1983, 1996; Cicerone et al., 2009; Umeda et al., 2013; Weinlich et al., 2016). The large change of gas geochemical anomalies as regards shape, duration, delay/anticipation time and parameters-association with respect to foreshocks, main-shock and aftershocks are considered to be highly site specific (King, 1986; Sugisaki et al., 1996).
Noble gas and their isotopes are very good natural tracers for exploring crust-mantle interaction in different geologic background because they are chemically inert and thus their isotopic signature is conservative with respect to the source of gas/fluid in crustal water-rock interactions (Sano and Wakita., 1985; Hilton, 1996). The helium isotopes can provide clear evidence for the existence of mantle-derived fluids in the crust, 3He is retained in the Earth’s interior and essentially primordial, whereas 4He is mainly produced in the crust by the decay of U and Th (Hilton, 1996; Hilton, 2007). The isotopic signatures of He showed some correlations with seismic activities (Sano and Marty, 1995; Kissin, 2007).
Hydrogen could play a very important role in mechanisms of process taking place in both the shallow and deep reservoirs (Zgonnik, 2020). Hydrogen in hot spring bubbling gas in active faults may be used in monitoring of earthquakes (Wakita et al., 1980; Sato et al., 1986). The increase of H2 concentration may be correlated with 11 M ≥ 5 earthquakes at some sites in the San Andreas Fault between July 1982 and November 1983 (Sato et al., 1986). The premonitory increases of the H2 concentration in the bubbling gas of hot spring are geochemical signals of the earthquake nucleation process of stress-corrosion mechanism. In other words, aseismic slips before earthquakes might have enhanced H2 production in pre-existing active fault planes by mechanochemical reaction of newly formed surface from fractured rock surface with water (Ito et al., 1999).
The aim of this research was to 1) monitor the variations of gas and isotope composition at the Luojishan hot spring before, during and after seismic events, and 2) characterize the short-term seismic precursor anomalies of hydrogen concentration, 3) distinguish between the anomalies of hydrogen concentration induced by natural earthquake from the anomalies induced by anthropogenically-induced earthquakes.
Geological Setting
A huge left-lateral strike-slip active fault system in the eastern boundary of the Sichuan-Yunnan rhombus block in southwestern China contains four major faults named Anninghe Fault (ANHF), Zemuhe Fault (ZMHF), Xianshuihe Fault (XSHF), and Xiaojiang Fault (XJF), where the strongest seismicity in continental China occurs (Wen et al., 2008; Zhang, 2013). The ZMHF strikes NNW–SSE and extends for about 120 km, which intersects the N–S-trending ANHF and XJF at an acute angle (Figure 1). The strain energy were released by the form of repeated large earthquakes in the ZMHF, which are caused by the southeastwards motion of the Tibetan Plateau (Ren et al., 2010).
FIGURE 1. Location of the Luojishan station (LJSS) (A) Topographic map of the east Tibetan Plateau. (B) Geological map of the Luojishan station and around are shown in (A). Abbreviations: LMSF, Longmenshan Fault; ANHF, Anninghe Fault; XSHF, Xianshuihe Fault; ZMHF, Zemuhe Fault; XJF, Xiaojiang Fault.
Quaternary alluvial deposits are composed mainly of fine sand, sandy gravel, silt, and clay, and are widely distributed in the Luojishan hot spring. Cenozoic strata (Late Tertiary to Early Quaternary) consist mainly of interbedded sandstones and mudstones with thin layers of coal. The basement rock along the ZMHF consists mainly of metamorphic rocks including Pre-Cambrian rhyolite and granite, and Permian basalt and Triassic granite (He and Oguchi, 2008; Ren et al., 2010).
Historical earthquake records show there are three strong earthquakes over the last millennium in the ZMHF: the 814AD M 7.0 earthquake, and the 1536 M 7.5 earthquakes, and 1850 M7.5 Xichang earthquake (Wen et al., 2008). The historical seismicity indicates that the ZMHF is still active and the probability of a strong earthquake in the future is high (Wen et al., 2008; Ren et al., 2010).
Method
Hot Spring Gas Sampling
Gas samples were nine times collected in Luojishan hot spring, using cylindroid bottles (500 ml) made of soda-lime glass from April 25, 2010 to April 19, 2019 (Zhou et al., 2017). The bubbling gas samples were immediately sent to the Key Laboratory of Petroleum Resources Research, Northwest Institute of Eco-Environment and Resources. The measurement of all samples was finished in 30 days.
The temperatures of Luojishan hot spring water were measured with a thermometer having an accuracy of 0.1°C. The composition of gas samples from Luojishan hot spring were analyzed with a Agilent Macro 3000 gas chromatography (Zhou et al., 2015; Zhou et al., 2020). Helium and Neon isotopes in the gas samples were measured using the Noblesse noble gas mass spectrometer. 3He/4He (R) > 1 × 10−7, with a precision of ±10%, 1 × 10−8< 3He/4He (R) < 1 × 10−7, with a precision of ±15% (Cao et al., 2018). The measurements were normalized to standard atmospheric value. Carbon dioxide isotopic compositions in the bubbling gas samples were analyzed by the stable isotope ratio mass spectrometer (Thermo-Fisher Scientific Delta Plus XP) and the GC-IRMS analytical system gas chromatography (Agilent 6890) (Li et al., 2014). The values of δ13C had a precision of ±0.5‰, and are reported relative to PDB in per mill （Li et al., 2014）.
Hydrogen Concentration of Hot Spring Gas
The continuous hydrogen monitoring was conducted in the Luojishan station at the middle of the XSHF-XJF system (Figure 2), which could monitor more earthquakes. The monitor environment is very stable. There is no industrial activity and mining around the monitor station. The depth of the hot spring pool is 1 m. The bubbling gas was collected by a funnel submerged at a depth of 1 m underwater (Figure 2). The bubbling gas was accumulated by a polytetrafluoroethylene (PTFE) pipe (length, 2m×Øouter diameter,8cm×Øinner diameter, 6 cm). The humidity in the collected gas was reduced by an electric cooler in the unit. The hydrogen concentration is hourly monitored by the ATG-6118H automatic analyzer from 0.01 to 1000 ppm with precision of ±5%, which was calibrated and maintained by the instrument manufacturing company (Wen et al., 2018; NOA certification, 2019). All of the gas pipeline was well sealed, which wasn’t affected by the air temperature, air humidity and rainfall. The data obtained by this system are sent to the laboratory located at Beijing via 5G mobile phone signal once an hour.

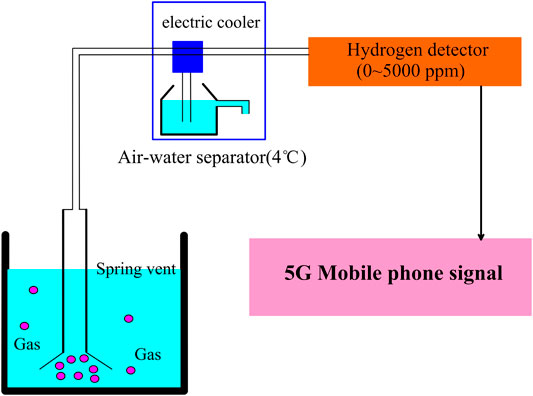

FIGURE 2. Schematic diagram of H2 concentration monitoring station.
Results
Chemical Composition of the Hot Spring Bubbling Gas
Gas collected at the Luojishan hot spring from the bubbling pools was characterized from April 25, 2010 to April 19, 2019 in detail (isotope ratios of CO2, He and Ne and gas composition) (Table 1). The temperatures of Luojishan hot spring water ranged from 43°C to 44.8°C. The N2 concentrations of hot spring gas samples were ≥80 vol%. Gas had relatively low concentrations of H2 (≤2 ppm) and low to the detection limit of Macro 3000 gas chromatography. The gas samples had very higher concentrations of He (up to 1810 ppm). The concentration range of Ar in the bubbling gas was from 0.93 to 1.26%. The concentration of O2 in the majority of bubbling gas samples was lower than 5%. Methane concentrations were lower than 1%.

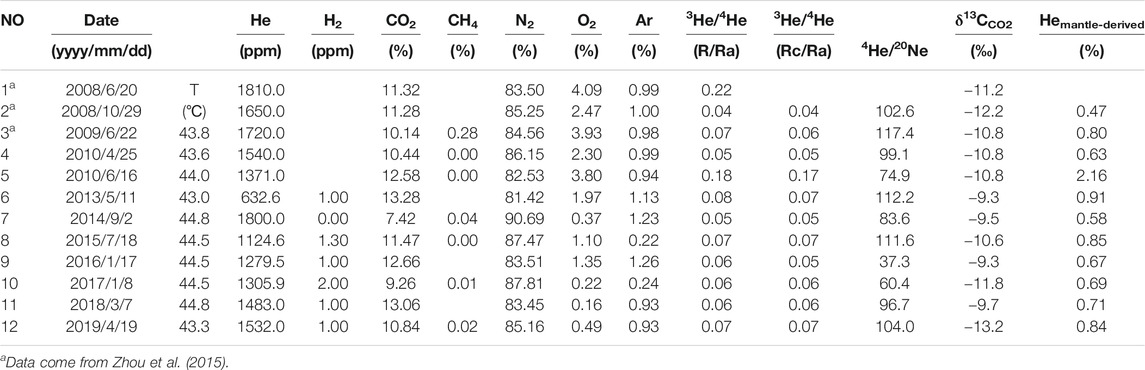

TABLE 1. Gas and isotopic compositions of the Luojishan hot spring.
He and Ne Isotopic Ratios
The 3He/4He ratios of the bubbling gas samples ranged from 0.04 to 0.22 Ra and were independent of the concentration of helium in each gas sample. Figure 3 shows the relationships between the measured 3He/4He (R/Ra) and 4He/20Ne ratios. The 4He/20Ne and 3He/4He ratios suggest that all samples were from a mixing region with three end members: crustal-derived helium, mantle-derived helium and atmospheric helium dissolved in water. 4He/20Ne ratios ranged from 37.3 to 117.4, above the atmospheric background (4He/20Ne = 0.318, Ozima and Podosek, 1983). The 4He/20Ne ratios indicated that the gas samples had minimal atmospheric contamination (Figure 3). The Rc/Ra values are the corrected 3He/4He ratios (R/Ra) for air contamination (Jenkins, 1982; Sano and Wakita, 1985). The Rc/Ra values ranged from 0.04 to 0.17 (Table 1) in the bubbling gas of Luojishan hot spring.
FIGURE 3. Diagram of 4He/20Ne vs. 3He/4He (R/Ra) ratios. Mixing lines between the upper mantle and atmosphere，and the crust and atmosphere were calculated using the end members:upper mantle (4He/20Ne = 100,000, 3He/4He = 12 × 10–6) (Graham 2002), air (4He/20Ne = 0.318, 3He/4He = 1.4 × 10–6) (Ozima and Podosek, 1983), continental crust (4He/20Ne = 100,000, 3He/4He = 0.02 × 10–6) (Ballentine et al., 2005).
H2 Concentration in Hot Spring Gas
There were 2813 observed values of H2 concentration from 26 February to June 22, 2020 (Figure 4). The H2 concentration ranged from 0.01 to 2.91 ppm (Figure 4), with average H2 concentration, 0.13 ppm. The anomalous threshold was 0.2 ppm (Figure 5), which was determined by the Q-Q plot, which is a method of determining threshold values between background and anomalous geochemical data, based on partitioning a cumulative probability plot of the data (Sinclair, 1991).

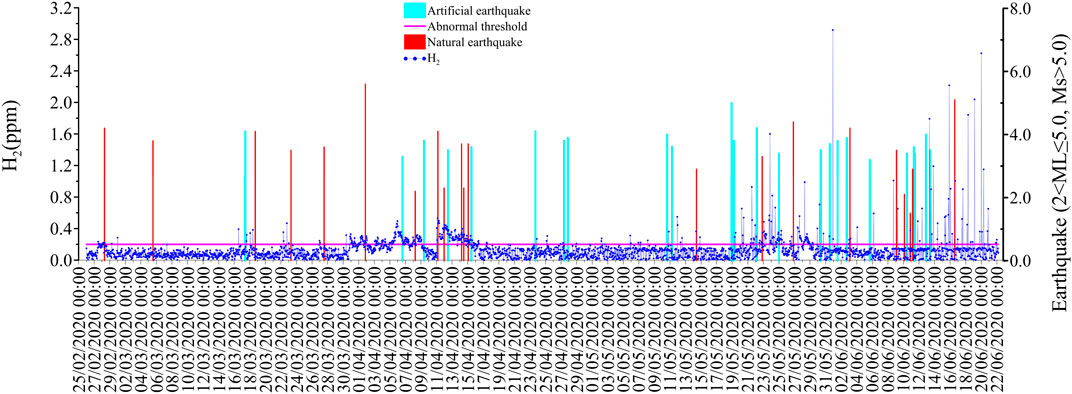

FIGURE 4. Temporal variations of H2 concentration in bubbling gas.

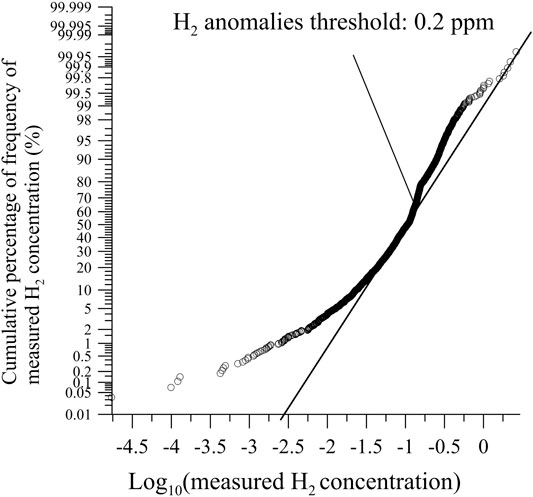

FIGURE 5. Q–Q plot of H2 concentration.
Discussion
Origin of He, CO2, and H2
He
The mixing proportion of mantle-derived He and crustal-derived He was estimated by using the Sano and Wakita (1985) equation’s system (Figure 3). The proportion of mantle-derivd He varies from 0.47 to 2.16% at the Luojishan hot spring (Table 1). The radiogenic crustal-derived He was dominant in most of the bubbling gas samples in the Luojishan hot spring.
The majority of bubbling gas samples from the Luojishan hot spring have significantly lower 3He/4He signatures with 3He/4He < 0.1 Ra (mantle-derived He < 1%), (Figure 3, Table 1), indicative of crustal-derived 4He production, with no resolvable mantle-derived contribution. The bubbling gas of Luojishan hot springs also have the highest concentrations of 4He (Table 1), up to two orders of magnitude (1810 ppm) greater than the Longtougou hot springs (∼5 ppm) in the Kangding city (Zhou et al., 2015).
CO2
The end-member compositions for mantle carbon (M), sedimentary organic carbon (S) and lime stones (L) are δ13CCO2 = –30, –6.5, and 0‰; and 3He/4He (R/Ra) = 0.02 and 8, respectively (Sano and Marty 1995). The trajectories for binary mixing between M and S, M and L, and L and S are shown in the diagram.
Combination of helium and carbon isotopes can provide more information of the carbon sources (Hilton, 1996). The main sources of carbon include the marine limestones, upper-mantle degassing, and the oxidation of organic carbon from sedimentary rocks. These main carbon sources have distinct δ13C end-members, whereby upper-mantle degassing ranges between −9 and −4‰, sedimentary organic matter has δ13C close to −30‰ and marine limestone has δ13C close to 0‰ (Sano and Marty, 1995). Figure 6 shows the analytical results of Luojishan hot spring gas. It is then clear that all Luojishan hot spring gas are plotted within the two mixing lines.This feature strongly suggests that CO2 in Luojishan hot spring gases is released from three different sources: crustal metamorphic, mantle and organic components.

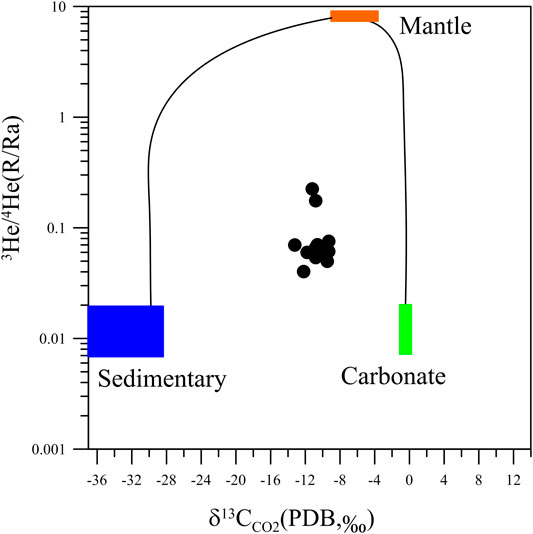

FIGURE 6. Diagram of 3He/4He (R/Ra) vs. δ13CCO2(PDB,‰) ratios.
H2
The origins of the hydrogen are most likely attributed to: (A) hydrogen generation from water-rock reactions. The abiotic H2 is generated by the reaction of water with ultrabasic rocks or serpentinization under near-surface conditions and migration from the deep reservoirs (Lollar et al., 2014; Parnell and Blamey, 2017; Irfan et al., 2019; Wang et al., 2019; Wang et al., 2020), (B) the interaction of water with freshly exposed rock surfaces (Hirose et al., 2011), (C) mixing with the considerable amount of microbial H2 from the biological activity and decomposition of organic matter (Prinzhofer et al., 2019; Myagkiy et al., 2020).
Temporal Variations of 3He/4He and δ13C Values
The δ13CCO2 values evidently increased from 2008 to 2016 in the Luojishan hot spring, whereas afterward, they showed an opposite trend from 2016 to 2019. These indicated that the proportion of CO2 derived from limestone increased in the bubbling gas of Luojishan hot springs, which were related with the enhanced degassing of the triggering of the Wenchuan Ms 8.0 earthquake, Yushu Ms 7.0 earthquake and Lushan Ms 7.0 earthquake (Figure 7). The clear decrease of the δ13CCO2 values measured from 2016 to 2019 would imply decrease of CO2 derived from limestone and the relative increase of CO2 from sedimentary organic, which is back to background level before Wenchuan Ms 8.0 earthquake. Due to the higher content of helium in the Luojishan hot spring gas, the 3He/4He ratios drop from 0.22 Ra down to 0.07 Ra from June 20, 2008 to June 22, 2009 at the Luojishan hot spring was observed after the Wenchuan Ms 8.0 earthquake due to the release of crustal-derived components. The 3He/4He ratios increased on June 16, 2010 after Yushu Ms 7.0 earthquake (April 14, 2010) in Luojishan hot spring, but He, CO2 concentration and δ13CCO2 isotope changed weakly. This is attributable to distance of epicenter 800 km. Yushu Ms 7.0 earthquake could trigger limitedly crustal-derived 4He and CO2, and δ13CCO2 isotope. The mantle-derived He was sensitive to Yushu Ms 7.0 earthquake. The 3He/4He ratios weakly increased after Lushan Ms 7.0 earthquake. The mantle-derived helium in the bubbling gas of hots springs was estimated that up to 62% in the Kangding region in June 2008 after Wenchuan Ms 8.0 earthquake. Over time, the proportion of the mantle-derived fluid contribution to the bubbling gas gradually decreased, but the crustal-derived gas components: CO2 and CH4 derived from organic matter and radiogenic He increased (Zhou et al., 2015). The Longtougou and Luojishan hot spring are in same strain field (XSHF, ANHF, ZMHF, XJF), which is a huge left-lateral strike-slip active fault system. A maximum shear strain rate of 40–60 nanostrain/yr is found along the XSHF-XJF system, which delineates the north and east boundaries of the crustal materials undergoing large-scale clockwise rotation around the eastern Himalaya syntaxis (Wang and Shen, 2020). The earthquake may play a very important role in He degassing in bubbling gas of hot spring from the active faults (Sano et al., 1998).
FIGURE 7. Temporal variations of CO2 concentration (A), He concentration (B), δ13CCO2 (‰,PDB) values (C),3He/4He (R/Ra) (D) values in the spring gas samples.
Temporal Variations of Hydrogen Concentration
Natural Earthquake Induced Precursor Anomalies
There were obvious short-term (5–60 h) seismic precursor anomalies of H2 concentration of the Luojishan hot spring gas before some natural earthquakes from 26 February to June 21, 2020 (Figures 8, 9, Table 2). When the stress increase up to sub-instability stress state of the faults in the XSHF-XJF system, earthquakes were occurred (Ma, 2016). The concentration of hydrogen in bubbling gas is sensitive to increase of stress in the XSHF-XJF system, which could enhance the opening of microfractures under the Luojishan hot spring. According to the variation characteristics of the stress and strain, the anomalies of H2 concentration have different characteristics. It exhibits a persistent stress increase most probably caused by a persistent contribution of the different depths and gas caused by the strain release before the natural seismic events (Cicerone et al., 2009; Crampin et al., 2015). Anomalous precursory (anomalous threshold was 0.2 ppm) changes in the diffuse emission of H2 in hot spring have been observed before some of the micro-seismicity of the April 11, 2020 Puger earthquakes with distance of epicenter, 6.3 km. A significant increase (up to 0.32 ppm) in H2 concentration was detected 60 h before a Shiqu Ms 5.6 earthquake on April 1, 2020, 717 km away from the Liojishan station. The anomalies of H2 concentration are just one or two points of data before earthquake, which could be induced by pulsed stress increases in the XSHF-XJF system. In addition, pre- and post-seismic variations of H2 concentration have also been observed related to the occurrence of a seismic swarm beneath ZMHF (Figures 8, 9, Table 2).

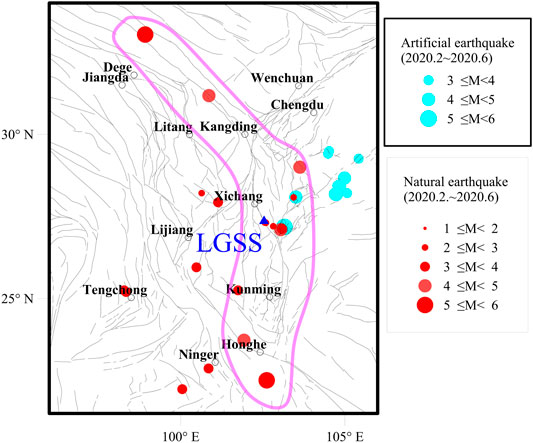

FIGURE 8. Location of natural and artificial earthquake during the period of monitoring.

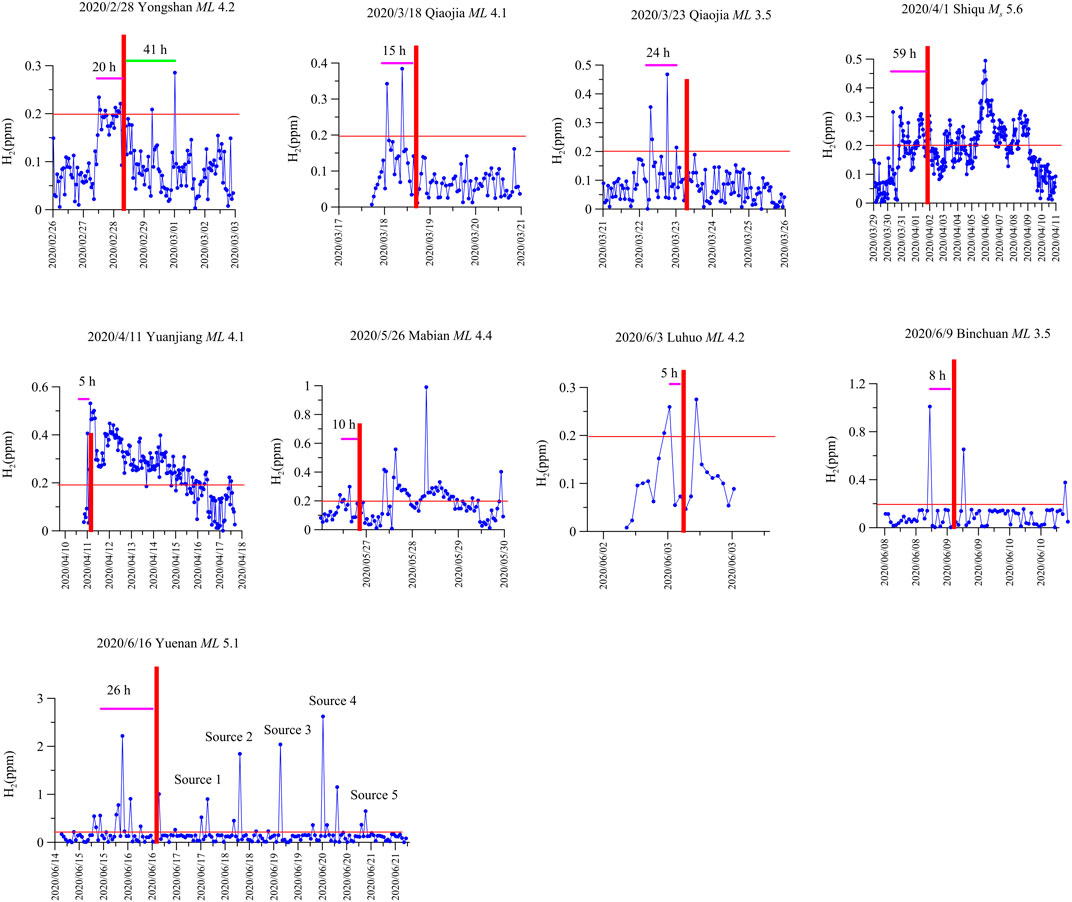

FIGURE 9. Precursor anomalies induced by natural earthquake.
TABLE 2. Seismic data is related to natural and artificial earthquakes recorded during the course of monitoring.
It is suggested that observed preseismic precursor of H2 concentration are geochemical signals of the earthquake preparation process due to stress-corrosion (Ito et al., 1999). Dynamic disturbances of frictional contacts in the fault planes by seismic waves may also account for co-and post-seismic increases in H2 (Kita et al., 1982). Seismicity may induce permeability enhancement of fault fractures (Hirose et al., 2011). The Luojishan gas monitoring system is sensitive enough to quantify emission during periods of intense seismic activities. According to characteristic of short term precursors of H2 concentration in Luojishan hot spring from February 23, 2020 to March 31, 2020, a day before the Shiqu Ms 5.6 earthquake on April 1, 2020 and Vietnam ML5.1 earthquake on June 16, 2020, forecasting informations (in the coming 24 h, in the eastern Tibetan Plateau, around Ms 5.0) were suggested to department of forcasting, institute of earthquake forcasting, China Earthquake administration. There were obvious persistent precursor anomalies of H2 concentration of the Luojishan hot spring gas before the Shiqu Ms 5.6 earthquake and Vietnam ML5.1 earthquake. The mechanism of precursor anomalies may be persistent stress increase before the natural seismic events in the XSHF-XJF system.
Hydrologic responses to earthquakes depend on earthquake magnitudes and distances from epicenters (Wang and Manga, 2010; Cox et al., 2015). Therefore it is difficult to identify short-term seismic precursory anomaly systematically by some criterias on the basis of several earthquakes (M > 5.0). After hundreds of natural earthquake (M > 5.0) were collected and analyzed, the formula about precursor anomalies and earthquake magnitude, epicentral distance may be summarized and some criterias may be provided.
Artificial Earthquake Trigger Anomalies
The earthquakes may trigger anomalies over great (>300 km) distances from the epicenter, but a robust relationship between post-seismic anomalies and seismic activity remains elusive. The relationship between a hot spring response and dynamic stresses propagated by surface waves, were demonstrated by changes in H2 emissions measured by the gas monitoring station. The positive hot spring gas responses with the spike-like anomalies are identified if the post-earthquake H2 mass was larger than the anomalies threshold of H2 concentration. Micro-seismicity induced by injection in shale gas exploration in Changning (Liu et al., 2020) occurred repeatedly during the monitoring period. Qiaojia Ms 5.0 earthquake on May 18, 2020 was induced by Xiluodu reservoir filling (Liao et al., 2020). Artificial earthquakes (ML ≥ 3.0) triggered geochemical post-seismic anomalies were repeatedly observed (Figure 10, Table 2). The minimum artificial earthquakes, which may triggered geochemical post-seismic anomalies, can be estimated by a lot of seismic data in future.

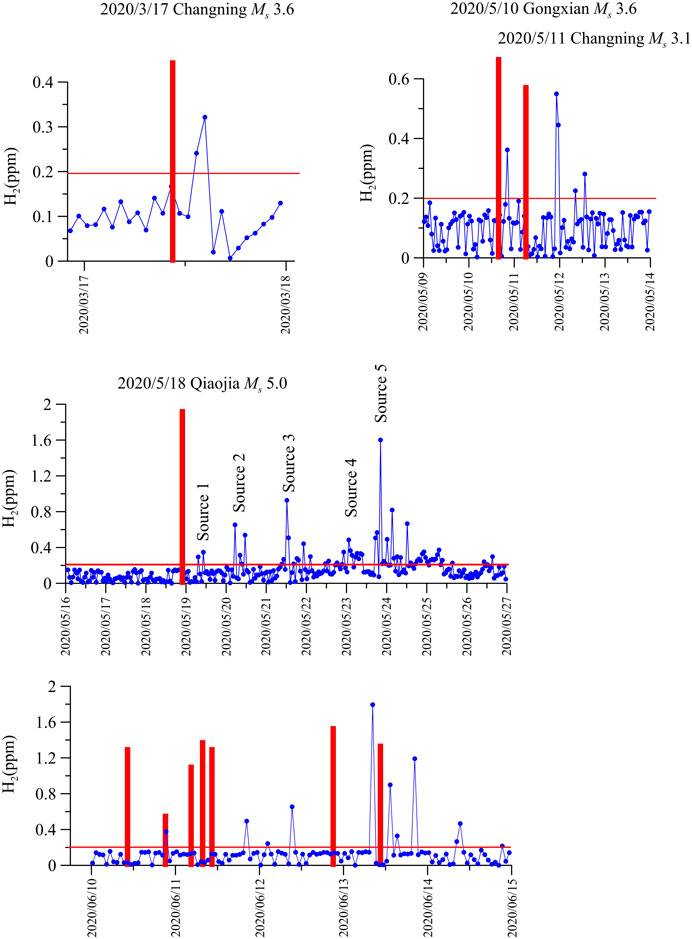

FIGURE 10. Precursor anomalies induced by artificial earthquakes.
Modeling of Migration of H2 in Hot Spring Gas in the Zemuhe Fault
The positive post-earthquake H2 anomalies responses with the five spike-like anomalies were observed from 18 to 25 May after Qiaojia Ms 5.0 earthquake on May 18, 2020 (Figure 9). This phenomenon were repeatedly observed after Vietnam ML 5.1 earthquake on June 16, 2020 (Figure 10). A model is developed to explain the observations of the changed mixing ratio among five hydrogen sources systems (Figure 11) as a result of a pressure disturbance triggered by seismic waves passing the Luojishan monitoring station. This model requires the existence of i) a mixed gas system with a high H2 concentration contrast among the five sources with different depth in fault, ii) Five confined, stress sensitive fractures where five fluid components circulate along macro-fractures and where the gas components enter the ZMHF by diffusion through micro-fractures, iii) Five free bubbling gas phase in the fractures, and iv) a chance for free gas bubbles to rise toward the earth’s surface before being trapped under an impermeable cover, which collects gas. The passing seismic waves may enhance the local pore pressure. Increased pressure changes in the mixing ratio in favor of the gas components which circulates through the macro-fractures (Kissin, 2007). Five hydrogen sources systems were simultaneously triggered by seismic waves. Hydrogen of five sources entered simultaneously into the main fracture of ZMHF. Since the depth of five hydrogen sources were different, the time of arrival of Hydrogen of five sources were diferent. The model provides a plausible physical and chemical explanations for the anomalies triggered by earthquake. There are a lot of free parameters in the model which are poorly resolved. Because helium isotope ratios (R/Ra) of the gas samples was 0.07 Ra on April 19, 2019, the ZMHF was a conduit for dominant crustal-derived fluid. The depth of Moho surface is ∼40 km (Teng et al., 2014). The H2 coming from fifth source migrated upward monitoring station during five days. The ascending velocity of H2 is difficultly estimated. The depth of the fifth source of H2 is shallower than 40 km.

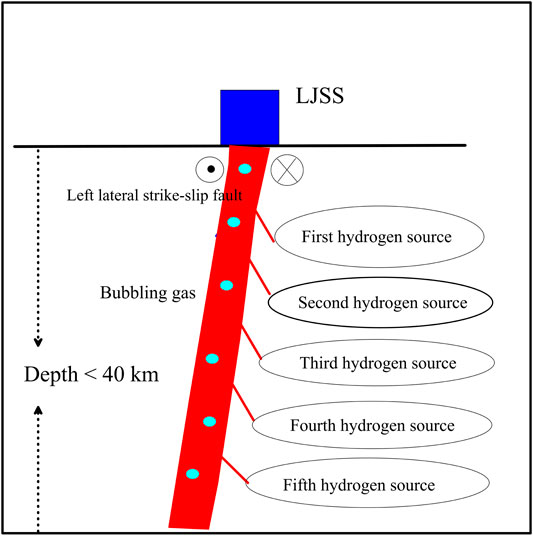

FIGURE 11. Schematic diagram of hydrogen sources in Luojishan hot spring bubbling gas.
Conclusion
1) Helium isotope ratios in Luojishan hot springs gas varied from 0.05 to 0.18 Ra, with mantle-derived He up to 2.2% in the Luojishan hot spring indicated the radiogenic crustal-derived He was dominant in most of the bubbling gas samples in the Luojishan hot spring. N2 concentrations were ≥80 vol% and O2 contents were lower than 5% in the majority of hot spring gas samples.
2) The time series of hydrogen concentration display a complex temporal pattern reflecting a wide range of different physical processes. There were clear short-term (5–60 h) seismic precursor anomalies of hydrogen concentration related with the epicentral distance and magnitude of earthquake before natural earthquake, with post-seismic response. The artificial earthquake only induced the post-seismic responses.
3) Monitoring the hydrogen concentrations with automatic gas stations may be promising tool for unraveling earthquake mechanisms and for predicting earthquakes. More parameters (He, CO2, water temperature) may be monitored in the future studies to get a better insight into the possible relationships between earthquakes and gas geochemistry.
Data Availability Statement
The raw data supporting the conclusions of this article will be made available by the authors, without undue reservation.
Author Contributions
All authors have made a substantial, direct, and intellectual contribution to the work and approved it for publication.
Funding
This research was supported by National Key Research and Development Project (2017YFC1500501) and, the National Natural Science Foundation of China (41673106), The Special Fund of the Institute of Earthquake Forecasting, China Earthquake Administration (2017IES010205, 2016IES010304, 2018IEF010104, 2020IEF0604, 2020IEF0703).
Conflict of Interest
The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
Acknowledgments
The authors are grateful to Prof. Fang Du and Prof. Hong Fu for her assistance with field work.
