Geological Carbon Sequestration by Reactive Infiltration Instability

  • 1Department of Earth Sciences, Royal Holloway, University of London, Egham, United Kingdom
  • 2State Key Laboratory of Isotope Geochemistry, Guangzhou Institute of Geochemistry, Chinese Academy of Sciences, Guangzhou, China
  • 3AAAS Science and Technology Policy Fellow, Advanced Scientific Computing and Research, US Department of Energy, Germantown, MD, United States
  • 4British Geological Survey, Keyworth, United Kingdom

We study carbon capture and sequestration (CCS) over time scales of 2000 years by implementing a numerical model of reactive infiltration instability caused by reactive porous flow. Our model focuses on the mineralization of CO2 dissolved in the pore water—the geological carbon sequestration phase of a CCS operation—starting 10–100 years after the injection of CO2 in the subsurface. We test the influence of three parameters: porosity, mass fraction of the Ca-rich feldspar mineral anorthite in the solid, and the chemical reaction rate, on the mode of fluid flow and efficiency of CaCO3 precipitation during geological carbon sequestration. We demonstrate that the mode of porous flow switches from propagation of a planar front at low porosities to propagation of channels at porosities exceeding 10%. The channels develop earlier for more porous aquifers. Both high anorthite mass fraction in the solid phase and high reaction rates aid greater amounts of carbonate precipitation, with the reaction rate exerting the stronger influence of the two. Our calculations indicate that an aquifer with dimensions 500 m × 2 km × 2 km can sequester over 350 Mt solid CaCO3 after 2000 years. To precipitate 50 Mt CaCO3 after 2000 years in this aquifer, we suggest selecting a target aquifer with more than 10 wt% of reactive minerals. We recommend that the aquifer porosity, abundance of reactive aluminosilicate minerals such as anorthite, and reaction rates are taken into consideration while selecting future CCS sites.

1. Introduction

Carbon capture and permanent sequestration in the subsurface is becoming an important mechanism in carbon neutralization (Hosa et al., 2011; Odenberger et al., 2013; Celia, 2017). Current anthropogenic CO2 emissions (42 Gt/yr, Le Quéré et al., 2018; Friedlingstein et al., 2019) are three orders of magnitude higher than the current combined global CCS injection rate (35–40 Mt/yr, Celia, 2017). Recognizing the importance of CCS in mitigating global carbon emissions, a number of different incentives are offered. For example, the 2018 US Bipartisan Budget Act (26 U.S.C. § 45Q) provided a tax credit of $20 per ton of CO2 sequestered permanently. To encourage CCS using existing infrastructure, a number of locations—Sleipner site in the Norwegian North Sea (1 Mt/yr, Hosa et al., 2011), Kimberlina site in the western US (0.25 Mt over 4 years, Doughty, 2010), and Goldeneye reservoir in the North Sea (10 Mt CO2 over 10 years, Spence et al., 2014)—are either targeted for future operations or are being used as permanent CO2 storage sites. Hosa et al. (2011) provided an overview of the storage capacity, reservoir characteristics, and injection rates of 20 active CCS sites over the world. This article identifies a number of controls on the efficiency of CCS in potential future sites and testing facilities. Kingdon et al. (2019) provided details of such planned experimental facilities at the United Kingdom Geoenergy Observatory Cheshire Energy Research Facility Site, which will be used for in-situ testing of these controls.

Carbon capture and storage can broadly be envisioned as a two-step process (Bachu, 2000; Friedmann, 2007; Jiang, 2011; Aminu et al., 2017). During the early phase, supercritical CO2 is injected into the subsurface (Doughty, 2010; Bacci et al., 2011; Emami-Meybodi et al., 2015). Following subsurface injection, the supercritical CO2 remains a separate, migrating phase before slowly reacting with the connate water in the saline aquifer. This slow phase of reaction with saline groundwater leads to the formation of carbonic acid by the reaction.

H2O+CO2H2CO3HCO3+H+(1)

We assume that the target aquifer has minimal buffering capacity, which leads to lower pH values. Therefore, given the time frame of the model used in this paper, H2CO3 will be dominant over bicarbonate species. Once the solution of CO2 is completed, the process of geological carbon sequestration (GCS), or mineralization of carbon, ensues. During this phase, dense, carbonic acid-rich groundwater descends into the porous host formation, reacting with the aluminosilicate and silicate minerals to form solid carbon deposits in the form of carbonate minerals, which takes place over time scales of 1,000 years. In this article, we focus on the mechanisms involved in this stage.

The process of carbonate mineralization by assimilation of dissolved H2CO3 takes place through a combination of density-driven porous flow, chemical reaction, and diffusion. The combination of these processes leads to a mechanism known as the reactive infiltration instability (RII) (Chadam et al., 1986), which has been associated with subsurface cavern or “wormhole” formation (Hinch and Bhatt, 1990; Szymczak and Ladd, 2013; Szymczak and Ladd, 2011) and chemical reaction between magmatic melts and mantle rocks (Aharonov et al., 1995; Spiegelman et al., 2001; Takei and Hier-Majumder, 2009; Sun et al., 2020a). An important manifestation of RII is the propagation of the reactive fluids into the aquifer through transient “channels” or “fingers”, which merge and interact with each other during the penetration of the reactive fluid into the saline aquifer (Riaz et al., 2006; Soltanian et al., 2016). Laboratory experiments on reactive porous flow of basaltic melt into olivine (Pec et al., 2015) and dense brine injection into a porous medium also support this observation (Kneafsey and Pruess, 2010; Vosper et al., 2014).

In addition to the flow regime, the physical and chemical characteristics of the saline aquifer or subsurface reservoir also exert an influence on the efficiency of GCS. Previous models of porous flow and laboratory experiments studied the efficiency of mass transfer as a function of two important dimensionless numbers: the Damköhler number (Da), representing the ratio between the rates of reaction and advection, and the Péclet number (Pe), representing the ratio between rates of advection and diffusion (Chadam et al., 1986; Riaz et al., 2006; Ghesmat et al., 2011; Szymczak and Ladd, 2013). These studies, however, ignored the crucial role of parameters such as the lithology and porosity of the aquifer on the efficiency of GCS. These parameters can be potentially important in identifying CCS sites and quantifying the amount of long term carbon sequestration in currently active sites. They can also vary significantly across different sites. For example, Hosa et al. (2011) showed that currently active sites of CCS can be characterized by a low porosity of 3% and a permeability of 0.1 mD (MRCSP R.E. Burger project, Ohio, USA) to a high porosity of 37% and a permeability of 5 D (Sleipner site, Norwegian N. Sea). The role of porosity and permeability variations is generally incorporated into models of supercritical CO2 injection over periods of time spanning over a few years (Class et al., 2009; Doughty, 2010; Soltanian et al., 2016). Systematic analyses of the efficiency of GCS as a function of porosity, formation lithology, and fundamental dimensionless numbers still remain scarce.

In this work, we bridge this gap by studying the influence of formation porosity and the mineral composition on the efficiency of GCS in a porous saline aquifer. Our model begins after the supercritical CO2 has been injected into the aquifer and has reacted with the brine in the pore space to create a dense, H2CO3 rich pore fluid. In our numerical simulations, this dense pore fluid sinks into the unaffected formation by reactive porous flow. To model the deposition of solid carbonate resulting from the reaction between the H2CO3 rich fluid and the solid matrix, we carry out a series of 2D finite element simulations using a massively parallel open source software MuPoPP 1.2 (Hier-Majumder, 2020) running on the Oracle cloud computing platform. In these simulations, we vary the dimensionless Damköhler (Da) and Péclet (Pe) numbers, aquifer porosity, and the initial concentration of the Ca bearing Da feldspar mineral phase anorthite (An) in the aquifer. As we demonstrate, these parameters influence (a) the mode of fluid transport by a transition from propagation of a planar front to channelized flow and (b) the amount of carbonate deposited in the solid phase after 2000 years of fluid flow.

2. Model

2.1. Governing Equations and Boundary Conditions

We model the porous flow of a reactive, H2CO3 rich fluid as a reactive infiltration instability problem. As discussed above, this model focuses on the long term GCS process and begins after the supercritical CO2 has been pumped into the subsurface and equilibrated with the groundwater to create a dense, H2CO3 rich pore fluid. The density of the pore fluid, ρ, depends on the concentration of the dissolved H2CO3 in the pore water, c0, and is related to the concentration by ρ=ρ0(1+γc0), where ρ0 is the density of H2CO3 free water, and γ is a dimensionless constant. Driven by the concentration dependent density, pore fluid from the aquifer percolates through the porous medium reacting with the aluminosilicate minerals to precipitate CaCO3. In our model, we use the chemical reaction between anorthite (An CaAl2Si2O8) in the solid with H2CO3 in the pore fluid, leading to the precipitation of CaCO3 and kaolinite (KaAl2Si2O5(OH)4), given by the reaction.

CaAl2Si2O8(s)+H2O(l)+H2CO3(l)CaCO3(s)+Al2Si2O5(OH)4(s)(2)

While a number of chemical reactions can take place between H2CO3 and subsurface minerals, the most common set of reactions involves aluminosilicates in the rock (Ghesmat et al., 2011; Zhang and Song, 2014). In this article, we focus on the influence on GCS driven by this chemical reaction between the solid and the pore fluid. We discuss the assumptions made in our model in detail in Section 2.2.

We provide the full set of dimensional equations, nondimensionalization schemes, and details of the numerical methods in the Supplementary Material. For brevity, here we present the final, dimensionless equations. In this set‐up, the velocity, u, of the pore fluid is governed by Darcy flow,

ϕu=k[p+(1+γc0)z^](3)

where ϕ is the constant porosity of the rock, k=(ϕ/ϕ0)3 is the permeability, ϕ0=0.1 is a reference porosity, p is the fluid pressure, and z^ is a unit vector in the vertically upward direction (Sun et al., 2020a). The last term arises from the concentration dependent density of the fluid, where we set γ=1. In addition to Darcy flow, the continuity equation requires that the velocity is nondivergent.

u=0(4)

The rate of transport of dissolved H2CO3 in the pore fluid is controlled by advection via porous flow, chemical diffusion, and chemical reaction,

c0t+uc0=1Pe2c0X0Dac0c1ϕ(5)

where X0 is the stoichiometric mass fraction of H2CO3 in Eq. (2), and the dimensionless quantities Pe and Da are defined below in Eq. 8. We consider a second order chemical reaction driven by the rate of the forward reaction (Ghesmat et al., 2011). As a result, the rate of consumption and production of reactants and products depend on the concentrations of H2CO3 in the pore fluid, c0, and mass fraction of anorthite in the system, c1, as evidenced by the second term on the right hand side.

Finally, the rate of consumption of anorthite in the rock and the rate of production of CaCO3 are given by the two equations

c1t=X1Dac0c11ϕ(6)
c2t=X2Dac0c11ϕ(7)

where X1 and X2 are the mass fractions of anorthite and CaCO3 in the chemical reaction (Eq. 2), and c2 is the mass fraction of CaCO3 produced by GCS.

The dimensionless quantities are defined by the relations

Pe=u0HD,Da=Γ0Hu0(8)

where u0 is a characteristic fluid velocity, H is the height of the domain (thickness of the aquifer), D is the chemical diffusivity, and Γ0 is a characteristic rate of chemical reaction. In this work, we chose to carry out a number of simulations over a range of plausible values of these dimensionless quantities, which allows us to quantify the influence of not only the dimensionless numbers, but also the aquifer characteristics on the efficiency of GCS. We discuss the rationale behind selecting these ranges in the following subsection.

We solved the five governing Eq. 37 for the five unknowns—u, p, c0, c1, and c2—subject to a set of Dirichlet and Neumann boundary conditions (BCs) and initial conditions (ICs). These BCs and ICs are illustrated in the schematic diagram in Figure 1. On the top boundary, Ωt, we assume a Dirichlet boundary condition, namely a uniformed constant downward velocity w0z^. On the vertical boundaries, Ωv, the fluid velocity and concentrations are defined to be periodic. On the top and bottom boundaries, a Neumann boundary condition is applied on ΩN.

u=w0z^onΩt(9)
u,c0=periodiconΩv(10)
c0n^=0onΩN(11)

In addition, we impose the initial conditions,

c0(x,z,0)=0,c1(x,z,0)=[An],c2(x,z,0)=0(12)

where [An] is a constant value of initial anorthite mass fraction in the aquifer. In order to explore the influence of aquifer composition on the efficiency of the GCS, we carried out a number of simulations with different values of [An].

FIGURE 1
www.frontiersin.org

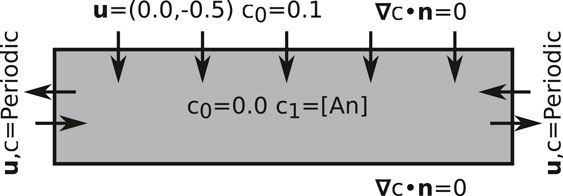

FIGURE 1. A schematic diagram outlining the domain of the numerical model with the boundary conditions.

The unknown c2(x,z,t) gives the concentration of CaCO3 at each point within the domain at a given time. It is useful to also have an estimate for the mass of CaCO3 that can be sequestered by the process. To calculate the cumulative CaCO3 mass M over time, we use the definition of production rate of CaCO3 in Eq. 7. Using the right hand side of the equations from the known quantities at each time step and integrating, we get

M(t)=ρsstHL2(1ϕ)0tΩc2tdt=ρsstHL20tΩX2Dac0c1dt(13)

where M(t) is the transient mass of CaCO3 deposited over the time period 0t within the domain Ω (the aquifer), of height H and depth L. Since our simulations are 2D, we assume that the length of the domain in the third dimension is also L. Finally, the density of sandstone in the aquifer is given by ρsst. The dimensional values of these constants are listed in Table 1.

TABLE 1
www.frontiersin.org

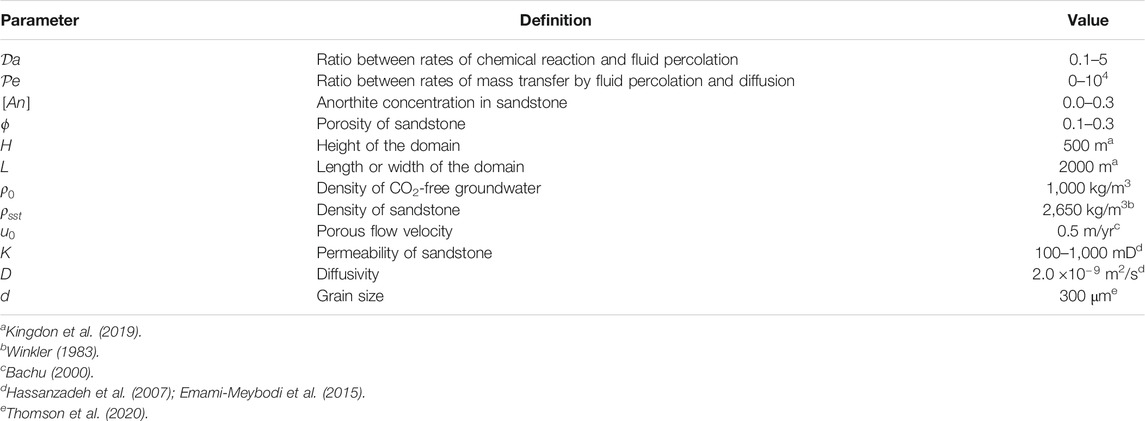

TABLE 1. Nondimensional numbers and dimensional constants used in this article. See Section 2.3 for more detailed description.

2.2. Model Assumptions

In this model, we focus on the influence of three parameters: aquifer porosity, initial abundance of Anorthite in the aquifer, and the chemical reaction rate on the structure of the fluid percolation and the amount of solid carbonate precipitation. To address the complex, nonlinear interplay among these factors, we made a few assumptions in our model.

First, we only consider the chemical reaction given in Eq. 2 and test the outputs of our models over a range of Da, a method followed by previous numerical studies (Aharonov et al., 1995; Ghesmat et al., 2011). In addition to the reaction between H2CO3 rich fluid and anorthite, reactions between the fluid and CaCO3 and, although much slower, reactions between the fluid and quartz are possible (Espinoza et al., 2011). By ignoring these possible reactions, especially the dissolution of CaCO3, we assume that the pH level of the pore fluid is buffered such that the fluid is saturated with CaCO3. While we do not explicitly include such buffering reactions in our model, Snæbjörnsdóttir et al. (2017) reported that samples of injected fluid reached CaCO3 saturation within months of injection at the CarbFix site in Iceland. Given the substantially longer timescale of our simulations, this observation of Snæbjörnsdóttir et al. (2017) suggests that our assumption of CaCO3 buffering in the pore fluid is likely reasonable.

Second, we ignore the influence of calcite precipitates on reducing the porosity and permeability of the aquifer. Within the timescale of our simulations, this effect is likely to play an insignificant role. As we show in Figure 6, the highest concentration of precipitated CaCO3 in our simulations is less than 0.5%. Recent microtomographic studies on permeability reduction by cementation show that porosity and permeability reduction by precipitates is negligible for cement volume fractions less than 3–5% (Thomson et al., 2019; Thomson et al., 2020). The assumption of constant porosity, therefore, is reasonable for the range of time considered in these simulations. With these caveats, we next discuss the range of parameters explored in this work.

2.3. Parameter Ranges

In this study, we focus on the influence of a number of factors on the modes and efficiency of GCS by reactive infiltration instability. These parameters are highlighted on Table 1. As discussed below, it is often difficult to assign a particular value of a characteristic dimensionless number such as Da and Pe. In addition, aquifer features such as porosity and the anorthite content can vary between sites. It is, therefore, useful to have the information on the influence of these factors on the efficiency of GCS, which can be used for selection and planning of sites such as those associated with the UKGEOS initiative. In this section, we discuss the range of values of these parameters discussed in literature and the rationale behind the ranges selected in this study.

Despite a number of reports on the second order reaction rate for dissolution of silicate and aluminosilicate minerals (Oelkers and Schott, 1995; Palandri and Kharaka, 2004; Espinoza et al., 2011), direct estimates of Da from experimental measurements remain scarce. Here, we present a range of most likely natural values of Da relevant to the CCS problem. Following previous works on reactive infiltration instability (Steefel and Lasaga, 1994; Aharonov et al., 1995), we notice that the rate of mass fraction Γ0 can be expressed as a function of dissolution rate, R, specific surface area A, and the density of anorthite ρ=2750 kg/m3, as

Γ0=MAnRAρ(14)

where MAn=0.28 kg/mol is the mass of anorthite per mole. Using the dissolution rate of anorthite from Espinoza et al. (2011), we calculate a lower and an upper limit of R=4.3×1012 and R=1.3×1010 mol/m2/s, respectively. Following the argument outlined by Steefel and Lasaga (1994), we take the specific surface area as the area of contact between the pore fluid and grains per unit volume. We use the microstructural model of Hier-Majumder and Abbott (2010) to obtain this specific surface area (unit of m2/m3). Next, we combine the value of A with reaction rate R in Eq. 14, yielding values of Γ0 ranging between 1.0×1011 and 3.1×1010 s1. Using the values of characteristic velocities and length scales listed in Table 1, these lead to values of Da ranging between 0.3 and 9.7. We ran the simulations for a more conservative range of Da ranging between 0.1 and 5. It is possible that the value of Da is higher than our estimates, in this case the mass of deposited CaCO3 will be higher than the amount reported here.

For the range of Pe, we used a range of values between 0, completely diffusion dominated transport, to 104, convection dominated transport (Chadam et al., 1986; Hinch and Bhatt, 1990). Of these two regimes of flow, the latter, convection dominated mode is more dominant in natural reactive infiltration instability problems (Chadam et al., 1986; Hinch and Bhatt, 1990; Riaz et al., 2006; Ghesmat et al., 2011; Soltanian et al., 2016). Consequently, we show the results from a run of Pe=500 in this article. Using the definition of Pe from Eq. 8 and using the values of the dimensional constants in the table, we get Pe=3963. Thus, the results shown here depict a more conservative estimate of the flow rate than natural conditions. Finally, we use a range of values of aquifer porosity and anorthite concentration in the solid, as shown in Table 1.

3. Result

Our simulations identify the modes of penetration of dense H2CO3 rich fluid into the porous aquifer as a function of various parameters controlling the process. Some of these factors, such as porosity and aquifer composition, are potentially critical in GCS site selection. In Figures 2–4 we show sets of three snapshots of the concentration map of H2CO3 dissolved in the pore water (c0(x,z,t)). To isolate the effect of one controlling parameter in each figure, we kept the other three constant and show the concentration map for four different values of the controlling parameter. A number of previous studies on reactive infiltration instability focused on the role of Pe and Da (Aharonov et al., 1995; Riaz et al., 2006; Ghesmat et al., 2011; Szymczak and Ladd, 2013; Sun et al., 2020a), as we show here, the aquifer properties such as porosity and composition exert equally important controls on the mode and efficiency of GCS by reactive infiltration instablity. The source code for the simulation, MuPoPP1.2.0 (Multiphase Porous flow and Physical Properties) is publicly available (Hier‐Majumder et al., 2020). Simulation data is also available for download through the Royal Holloway Figshare repository (Sun et al., 2020b).

FIGURE 2
www.frontiersin.org

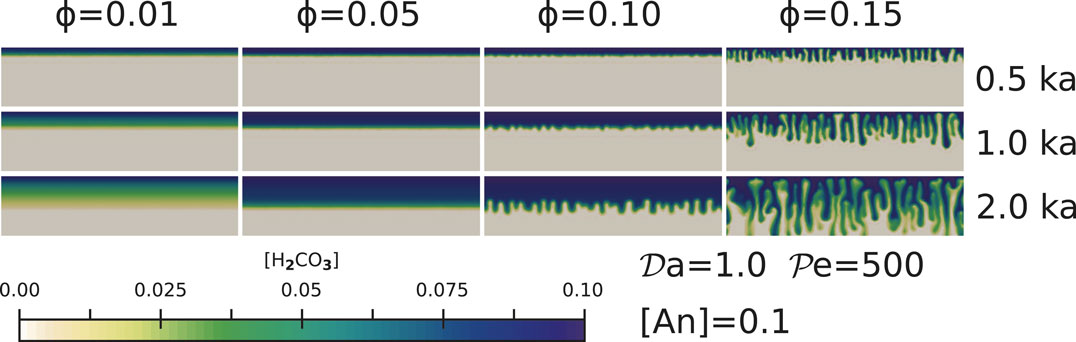

FIGURE 2. The effect of porosity on pore fluid percolation for simulations with Da=1.0, Pe=500, and [An] = 0.1. The time corresponding to each snapshot is annotated to the right of the panels, while the values of porosity, ϕ, are shown at the top of each block of panels. The colormap depicts the concentration of H2CO3 in the solid c0(x,z,t). The snapshots show that the porosity of sandstone controls the distribution form and the internal structure of H2CO3 rich domain.

FIGURE 3
www.frontiersin.org

FIGURE 3. The effect of Anorthite concentrations for simulations with Da=5.0, Pe=500, and ϕ=0.1. Each of the four columns is marked by a different initial anorthite content in the solid, annotated at the top. The values of dimensional time at each step are annotated on the right. The snapshots show that a higher mass fraction of anorthite in sandstone weakens the propagation of H2CO3.

FIGURE 4
www.frontiersin.org

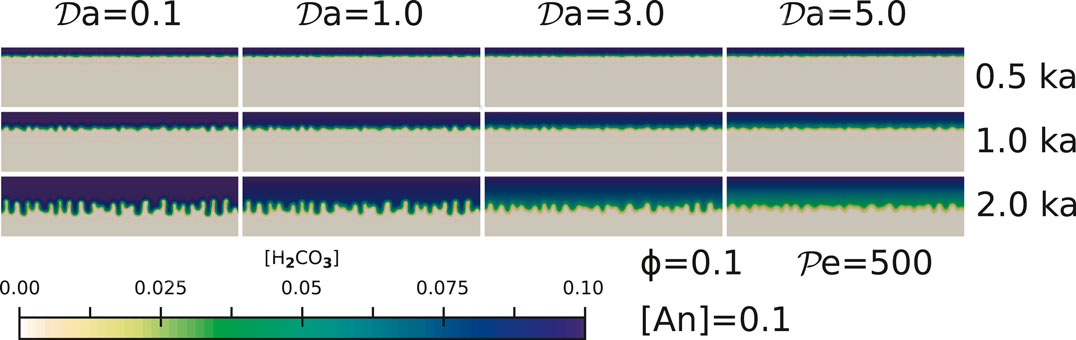

FIGURE 4. The effect of reaction rates for simulations with ϕ=0.1, Pe=500, and [An]=0.1, and α=108. The snapshots show that efficient reactions (higher Da) will constrain the propagation of dissolved CO2, namely H2CO3 in groundwater.

3.1. The Effect of Porosity

Rock porosity exerts a strong influence on the mode of invasion of H2CO3 rich pore fluid into the aquifer, by controlling the shape of the reaction front. As outlined in Figure 2, for small values of porosity (ϕ=0.01or0.05), the H2CO3 rich pore fluid descends slowly, as a planar front. In contrast, simulations with higher values of porosity (ϕ=0.10or0.15) depict the propagation of H2CO3 rich fluid as growing channels, characteristic of reactive infiltration instability. We also notice that the channels for ϕ=0.15 begin forming earlier, grow faster, and are characterized by the thinnest top boundary layer for all four sets of simulations reported here. The rate of infiltration of the H2CO3 rich fluid into the aquifer is also much faster with the presence of channels. The snapshots in Figure 2 illustrate that while the H2CO3 rich channels penetrate the aquifer (500 m) by 2000 years for ϕ=0.15, the planar interface traverses only half of the aquifer after the same time for ϕ=0.01. We also notice that for ϕ=0.15, the onset of channelization is marked by a large number of small wavelength channels, which later merge into fewer, larger wavelength channels. This behavior of reactive infiltration instability arises from the fundamentally nonlinear nature of the process and interaction between channels (Aharonov et al., 1995; Riaz et al., 2006) and indicates that—at least within the parameter space explored in this work—GCS is dominated by processes far from equilibrium. Vosper et al. (2014) tested the formation of channels in a nonreactive Hele-Shaw cell experiment containing close packed glass beads. The porosity of close-packed systems, typically exceeding 25% (Wimert and Hier-Majumder, 2012), is much higher than the range tested here. Qualitatively, their observation of channel growth and low spacing between the channels are similar to the trend we report at higher porosities.

While previous studies of reaction infiltration instability noticed the formation of channels (Hinch and Bhatt, 1990; Aharonov et al., 1995; Ghesmat et al., 2011; Sun et al., 2020a) and evolution of the channels (Riaz et al., 2006; Soltanian et al., 2016), none of these studies reported the transition of the flow from a slow planar front to a highly nonliner channeling instability with an increase in the porosity of the aquifer. The transition of the flow model from a planar front to channels indicates that GCS models need to incorporate the nonlinear effects arising from reactive infiltration instability. The spatial distribution of fluid flow rate is apparently heterogeneous, especially with the formation of channels. Therefore, if we use a parameterized, one-dimensional fluid flow rate when calculating CaCO3 precipitation, the efficiency of the GCS can be significantly under or over estimated.

3.2. The Effect of Anorthite Concentration and Reaction Rate

The extent of reaction between H2CO3 rich pore fluid and the aquifer matrix depends on both the availability of reactants (in this case, An) and the rate of chemical reactions. These two factors, while controlled by two different parameters, have a similar effect on the channel propagation.

A higher anorthite concentration [An] in the solid leads to more rapid consumption of the dissolved H2CO3 in the pore fluid, as observed in the series of simulations with increasing anorthite content in Figure 3. With an increasing consumption of the H2CO3 in the pore fluid, formation of the channeling instabilities at the reaction front are more subdued, as evidenced during each time step of the comparative snapshots. We observe the strongest channel formation after 2 ka in the simulations with [An] = 0.01. In contrast, the simulations with [An] = 0.15 (15 wt% anorthite in the initial solid composition) display weak channels containing lower concentrations of the dissolved H2CO3 as evidenced by the colormap. While these channels penetrate into the aquifer, the dissolved H2CO3 in the channels are quickly consumed by the high concentration of anorthite in the surrounding, unreacted rock. As a result, the amount of CaCO3 precipitation is much higher in these cases, an issue we discuss in Section 4.1.

High reaction rates, represented by high values of Da, also reduce the concentration and the propagation rate of H2CO3 rich pore fluid. The images in Figure 4 display that in the simulations with higher Da, the concentration of H2CO3 in the channels is lower compared to simulations with a lower Da. Similar to high initial anorthite abundance, a high reaction rate also aids rapid consumption of the acidic pore fluid and CaCO3 precipitation. Although arising from two separate mechanisms, the influence of initial anorthite abundance in the solid and the rate of chemical reaction both exert a similar kind of control on the propagation of channels during GCS.

4. Discussion

The results presented in Section 3 demonstrate the influence of the control parameters on the structure of the RII. In this section, we summarize the influence of porosity, initial abundance of anorthite, and the rate of reaction on the mass of CaCO3 precipitated during GCS. For an aquifer with a given porosity, the reaction rate exerts a stronger influence than the initial anorthite concentration, while an increase in any of the three parameters leads to an increase in the amount of carbonate mineralization. Based on the structure of the porous flow and magnitude of carbonate mineralization, we present our recommendations for selecting future sites of CCS.

4.1. Capacity of Deep Saline Aquifers as GCS Sites

An important outcome of numerical modeling of GCS is an estimate for the amount of carbon permanently sequestered in solid mineral phases. The formulation in Eq. 13 provides the dimensional form of this time-dependent mass. As discussed earlier, we integrate the CaCO3 deposition rate over a volume of 500 m thick and 2 km wide aquifer over 2000 years. The resultant values of permanently sequestered CaCO3 mass are strongly dependent on the parameters studied in this work, as illustrated by the plots in Figures 5A,B.

FIGURE 5
www.frontiersin.org

FIGURE 5. Mass of precipitated CaCO3 after 2000 years as a function of (A) anorthite mass fraction in sandstone [An] or (B) porosity ϕ.

Aquifer properties characterized by initial anorthite mass fraction and porosity strongly influence the sequestered CaCO3 mass. The plot in Figure 5A shows that this mass increases with the initial mass fraction of anorthite in the solid. Moreover, the trend of the growth is greatly modulated by the value of the Da, with a more strongly nonlinear trend evident at higher values of Da. Of the four cases shown in Figure 5A, the flattest curve corresponding to Da=0.1 shows that the CaCO3 mass varies approximately between 1 and 15 Mt, while for a value of Da=5, the same increase in An concentration in the solid leads to a nonlinear increase of mass from 30 to 390 Mt. The comparison between these two influencing factors—chemical reactivity (Da) and abundance of reactant [An]—demonstrates that the chemical reactivity exerts a stronger influence on the amount of carbon permanently sequestered in minerals.

Porosity of the aquifer exerts a similar, but slightly more moderate influence on the mass of precipitated CaCO3. The plot in Figure 5B demonstrates this influence for values of Da exceeding 0.1. For Da=1, the mass increases from 35 to 60 Mt by increasing the porosity from 0.01 to 0.2. For a value of Da=5, this effect is more pronounced, as the mass increases from 65 to 260 Mt for the same increase in aquifer porosity. Porosity influences the flow by controlling the magnitude of permeability. A more porous aquifer permits faster transport of H2CO3 rich fluid, which, subject to the reaction rate, can increase the precipitation of CaCO3.

The cumulative mass fraction of CaCO3 sequestered by GCS varies with time. The plot in Figure 6 shows the evolution of the volume-averaged CaCO3 mass fraction with time for four different aquifers. The top curves, shaded in gray, correspond to an aquifer containing 20% anorthite in the bulk, and the upper and lower limits are fixed by porosity values of 15 and 5% respectively. The bottom set of curves correspond to an aquifer containing 10% anorthite in the bulk. While following the conclusions drawn from the previous results, this plot also outlines that the process of GCS starts to produce appreciable CaCO3 deposition at least after 500 years, but gains pace with time. This increase in rate is related to the penetration of the channels to the bottom of the aquifer and reacting with a larger amount of unreacted anorthite.

FIGURE 6
www.frontiersin.org

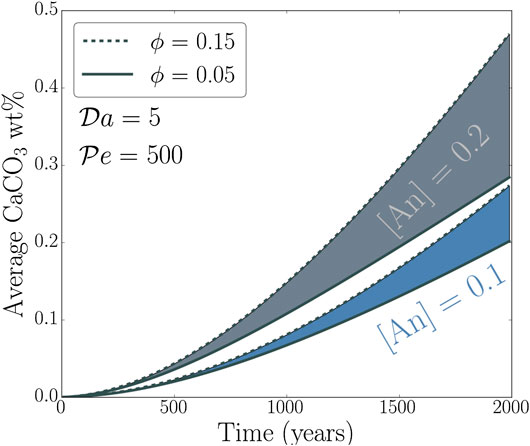

FIGURE 6. Volume averaged concentration of precipitated CaCO3 in the aquifer as a function of time with different anorthite fractions and porosities.

4.2. Geological Criteria for Future CCS Site Selection

As discussed by Hosa et al. (2011) and Celia (2017), current CCS sites contain rocks with a wide range of porosity values. To meet the challenge of carbon neutralization, and increase the current global injection rate of 40 Mt/yr (Celia, 2017), more CCS sites need to be identified. In identifying these sites, a number of factors such as the existence of a cap rock, cost of CO2 transport to the site, and public perception need to be weighed against the geological criteria. Keeping these mitigating factors in mind, we use the results from our study to suggest parameter ranges that can ensure efficient GCS by CaCO3 precipitation.

The amount of immobilized CO2, namely precipitated CaCO3, is influenced by initial anorthite amount and the reaction rate, as shown in Figure 5A. For a moderate reaction rate (Da=1), in order to sequester at least 50 Mt CaCO3 after 2000 years, we suggest choosing an aquifer with more than 10 wt% of reactive minerals, such as anorthite. However, when the reaction rate is high (Da=35), an amount of 5 wt% anorthite in the target formation is sufficient to sequester 50 Mt CaCO3 after 2000 years.

We observe that in deep saline aquifers containing >10% porosity, the mode of fluid propagation shows the transition from a planar front to channels. Our simulations indicate that the channels are faster and more efficient in transferring H2CO3 rich pore fluid into the aquifer, and as the curves in Figure 6 demonstrate, channels also lead to larger amounts of CaCO3 precipitation. Thus, to ensure GCS by channel formation, we recommend selection of future sites containing >10% porosity. Additionally, CaCO3 precipitation increases with an increase in anorthite concentration in the solid. Comparison of experimentally determined reaction rates indicates that anorthite or anorthite-rich members of the feldspar solid solution group are more reactive than the albite end member (Palandri and Kharaka, 2004). If the composition of the aquifer rock is known, we recommend selecting an aquifer containing anorthite or other reactive aluminosilicate minerals (Oelkers and Schott, 1995; Espinoza et al., 2011) over one containing primarily unreactive quartz.

5. Conclusion

Our simulations demonstrate the presence of two distinct regimes of porous flow: planar front propagation at porosities less than 10% and channel formation at higher porosities. When comparing percolation rates into the aquifer, H2CO3 rich pore fluids percolate faster along channels than planar reaction fronts. The amount of CaCO3 precipitation by GCS increases with both an increase in the Da andgrows with an increase in the reaction rate or the initial anorthite concentration of the aquifer. Of these two, the former exerts a stronger influence on the mass of CaCO3 deposited after 2000 years. Under the most reactive conditions considered in this study, up to 390 Mt CaCO3 is sequestered in the aquifer over a period of 2000 years. Also in order to sequester at least 50 Mt CaCO3 after 2000 years, the amount of reactive minerals should exceed 10 wt%. While an increase in porosity also leads to an increase in the amount of CaCO3 deposition, the effect of the reaction rateDa is stronger than the influence of porosity on the cumulative mass of CaCO3. Based on the results of the numerical models, we suggest the selection of future GCS sites containing >10% porosity and characterized by the presence of anorthite or similarly reactive aluminosilicate minerals in the solid.

Data Availability Statement

The datasets generated for this study are available on request to the corresponding author. The source code for the simulation, MuPoPP1.2.0 (Multiphase Porous flow and Physical Properties) is publicly available (Hier‐Majumder et al., 2020). Simulation data is also available for download through the Royal Holloway Figshare repository (Sun et al., 2020b).

Author Contributions

YS, RP, and SH-M developed the source code. YS carried out the simulations. AK provided information about the parameters around the planned UKGEOS observatory. All authors contributed toward writing the manuscript.

Funding

The computational resources for this work was provided by a computational grant from Oracle Research. RP was funded by the NERC London Doctoral Training Partnership, grant number NE/L002485/1 and matching case funding grant from the BGS.

Conflict of Interest

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

Acknowledgments

The authors wish to thank Frank Lehane (RHUL) for his support. Anirban Basu (RHUL) and Andy Kilpatrick (BGS) provided insightful suggestions on the manuscript. This manuscript was published with the permission of the Executive Director of the British Geological Survey (UKRI).

Supplementary Material

The Supplementary Material for this article can be found online at: https://www.frontiersin.org/articles/10.3389/feart.2020.533588/full#supplementary-material
