ORIGINAL RESEARCH article

Front. Earth Sci., 12 November 2020
Sec. Cryospheric Sciences
This article is part of the Research Topic Impure Snow and Ice in Remote Areas: Arctic, Antarctica and High Mountains View all 11 articles

Records of Inorganic Ions and Dust Particles in Snow at Yushugou Glacier No. 6 in the Desert Belt of Northwestern China

Feng Liu,Feng Liu1,2Zhongqin Li,,
Zhongqin Li3,4,5*Jianan HaoJianan Hao6Xi ZhouXi Zhou6Fanglong WangFanglong Wang4Hui Zhang,Hui Zhang2,4Panpan WangPanpan Wang3Xin ZhangXin Zhang4Mengyuan SongMengyuan Song4Taotao ChenTaotao Chen3
  • 1Institute of International Rivers and Eco-security, Yunnan University, Kunming, Yunnan, China
  • 2Yunnan Key Laboratory of International Rivers and Transboundary Eco-security, Kunming, China
  • 3College of Geography and Environmental Sciences, Northwest Normal University, Lanzhou, China
  • 4State Key Laboratory of Cryospheric Science, Northwest Institute of Eco-Environment and Resources, Chinese Academy of Sciences, Lanzhou, China
  • 5College of Sciences, Shihezi University, Xinjiang, China
  • 6College of Earth and Environmental Sciences, Lanzhou University, Lanzhou, China

Chemical ions and dust particles deposited in snow can be used as indicators of climatic and environmental processes. Understanding their sources, energy transfer, and evolutionary mechanisms is extremely important in tracking regional climate and environmental changes. We collected snow samples from three pits at different altitudes and from the surface of Yushugou Glacier No. 6, Tian Shan Mountains, China, in the summers of 2017 and 2018. Sea-salt tracing, correlation analysis, and factor analysis were used to determine the characteristics and sources of the major ions and mineral dust particles in the snow. We found obvious seasonal variations, with high concentrations of dust particles and major ions deposited during the dust period, and relatively low concentrations deposited during the non-dust period. The concentrations peaked within two distinct dust layers in the snow pits. There was a significant correlation between the peak values and the dust layer. The ionic concentrations were ranked from highest to lowest as Ca2+ > SO42− > Cl > Na+ > NO3 > NH4+ > Mg2+ > K+. Therefore, SO42− was the dominate anion and Ca2+ was the dominate cation. The major ions in the snow at Yushugou Glacier No. 6 are mainly derived from terrestrial mineral dust but also include limited inputs from human activities and sea salt.

Introduction

The cryosphere is a part of the Earth’s surface where temperatures are continuously below the freezing point of water. It can be divided into continental, marine, and aerial components, consisting of glaciers, ice sheets, frozen ground, snow, sea ice, etc. (Qin et al., 2017). It is well known that the cryosphere is very sensitive to climate change and is therefore considered a barometer of it (Qin et al., 2006; Koven et al., 2013; Kraaijenbrink et al., 2017). Snow and ice in alpine glaciers contain a record of the chemistry of the atmosphere (Fuhrer et al., 1996; Olivier et al., 2006). Chemical studies on ice and snow in alpine glaciers are important because snow and glaciers can provide crucial information about climatic and environmental change as they are sites where atmospheric chemical components are deposited; for example, chemical ions, aerosol dust particles, trace metals, δ18O, greenhouse gases, and black carbon (Ming et al., 2009; Massling et al., 2015; Sugimoto et al., 2015; Du et al., 2016; Van der A. et al., 2017). Identification of the origins and seasonal changes of the chemical components in snow may provide information about changes in the atmosphere, lithosphere, hydrosphere, and cryosphere (Prospero et al., 2002). Generally, chemical ions and dust particles deposited in snow reflect the influences of both atmospheric circulation patterns and the regional environment (Eichler et al., 2001; Li et al., 2007; Ming et al., 2009). Taking the Tibetan Plateau as an example, under the influence of a southwest monsoon climate and northwest drought climate, distinct regional climate patterns are formed. Similarly, differences in the geographical environment are also reflected in the snow and ice on the Tibetan Plateau (Liu et al., 2010; Wu et al., 2011). For example, the amount of dust particles in snow tends to decrease from north to south.

There has been comprehensive research on dust particles, their chemical compositions, and related topics in the snow and ice of the Tian Shan Mountains. Wu and Yao (2005) used HYSPLIT back-trajectory modeling to suggest that westerly winds, the arctic air mass, and local prevailing winds are the main ways that dust is brought to the eastern Tian Shan Mountains. Wang et al. (2013) studied the distribution and environmental significance of nitrate and ammonium in snow on glaciers in the Tian Shan Mountains. They proposed that the spatial distribution of nitrogen-containing ions is influenced by long-distance pollution and atmospheric dust, local anthropogenic outputs such as industry and agriculture, as well as the sampling conditions. You et al. (2019) studied the relationship between ion leaching and meteorological elements on Urumqi Glacier No. 1, finding that the ionic concentration in snow cover decreased with increases in temperature, while precipitation had a relatively weak influence. In addition, some scholars have achieved useful results by studying other glaciers in the Tian Shan Mountains, such as Bogda Glacier (Zhang and Edwards, 2011), Haxilegen Glacier No. 51 (Dong et al., 2011), and Miaoergou Glacier in Hami Prefecture (Chen et al., 2015). These achievements have laid a foundation for the study of snow and ice chemistry in the western alpine mountains of China.

Dust particles are also an important indicator of atmospheric changes associated with changes in temperature, precipitation, and atmospheric circulation (Dong et al., 2011). Central Asia is a major dust source region of the Northern Hemisphere (Dong et al., 2013), from which large amounts of dust are transported to North China, Japan, Korea, the North Pacific, North America, and even the Arctic Greenland ice sheet by atmospheric circulation such as westerly winds (Dong et al., 2014; Wang et al., 2014). The dust concentrations observed in ice or snow result from a combination of interrelated mechanisms, ranging from dust mobilization in source areas by uplift and long-range transport, to deposition onto ice sheets (Ruth et al., 2003; Niu et al., 2017). Long-range transport of contaminants via atmospheric circulation is an important pathway for the accumulation of environmental pollutants in remote regions (Jackson, 1997; Fitzgerald et al., 1998; Niu et al., 2017).

The study area was located in the center of an arid region surrounded by many deserts, such as the Gulbantonggu Desert, Kumtag Desert, and other desertified regions, where dust storms are the main atmospheric phenomenon. Regional differences in the distribution of the geographical environment and atmospheric circulation system determine regional differences in the chemical composition of snow and ice. Dust particles in snow and ice can change the albedo of glaciers, thus affecting their energy balance, accelerating melting and, ultimately, affecting regional water cycles. Therefore, research into the characteristics of dust deposition and its seasonal changes in glacierized regions has become an urgent scientific mission. So far, there has been little in-depth study of the dust layer formation process and variations in particles in the snow of Yushugou Glacier No. 6. Furthermore, the connections between dust storm activity and the deposition mechanisms of particles and ions in snow remain unclear. Therefore, it is necessary to conduct research on particles and ions in snow and ice in Yushugou Glacier No. 6 and compare the results with existing research on other glacierized regions in Tian Shan. This will have two main benefits. 1) It has important theoretical significance for improving models of atmospheric dust circulation and deposition in arid regions of northwest China. 2) It will have extremely important practical significance for exploring regional climate change, water resource dynamics, and ecology construction. This study analyses the chemical characteristics of and seasonal variations in dust particles and major ions in snow collected from Yushugou Glacier No. 6 in the eastern Tian Shan Mountains in the summers of 2017 and 2018. Furthermore, backward trajectory analysis is employed to examine the air mass transport processes relevant to this glacier.

Materials and Methods

Study Area and Sampling Strategy

The eastern Tian Shan Mountains lie in the center of arid and semi-arid areas in northwest China. They are surrounded by many deserts, which are source areas for dust activity in central Asia. Yushugou Glacier No. 6 (43°03′N, 94°57′E) is located on the southern slope of Harrick Mountain at the end of eastern Tian Shan (Figure 1). It is a typical alpine glacier with an area of 4.06 km2 (Wang et al., 2017). According to meteorological data from Yushugou Station, the annual maximum temperature in Yushugou Basin is 34.2°C and the annual minimum temperature is −25.8°C, with an average annual temperature of 5.9°C (Ming et al., 2009). Affected by westerly winds, the precipitation in this area is mainly concentrated in summer (79.6% of annual precipitation). From October to March, precipitation is rare (14.5% of annual precipitation) and mainly falls as snow (Luo et al., 1999).

FIGURE 1
www.frontiersin.org

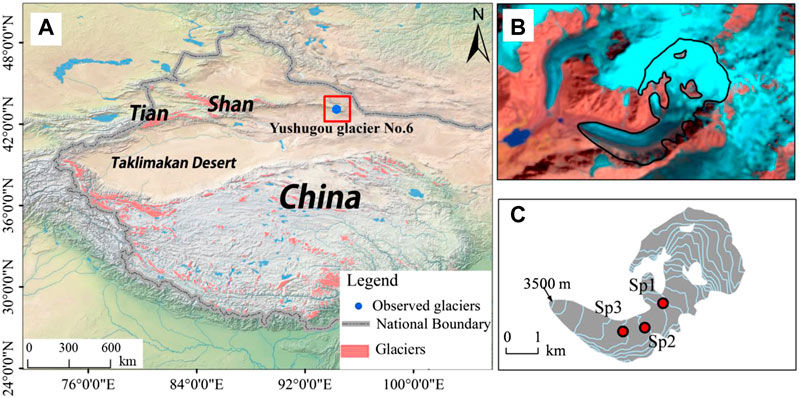

FIGURE 1. Regional setting of Yushugou Glacier No. 6: (A) location in China; (B) satellite image with the glacier outlined; (C) topographic map of the glacier and the sampling sites in 2017 and in 2018, contour interval = 100 m.

Three snow pits were excavated at different altitudes in Yushugou Glacier No. 6. Samples were collected from Snow pit 1 (Sp-1) in August 2017, Snow pit 2 (Sp-2) in August 2018, and Snow pit 3 (Sp-3) in early June 2018. The sampling depths were Sp-1 = 1.2 m, Sp-2 = 1.2 m, and Sp-3 = 1.0 m. A total of 102 snow samples were obtained from the three snow pits. Additionally, 42 surface snow samples were taken at altitudes of 3,800–4,500 m in August 2018. The sampling process was carried out in strict accordance with snow and ice sampling procedures (Wake et al., 1994; Niu et al., 2013). The selection of snow pit sampling points is very important. We selected relatively flat, shaded surfaces receiving low sunshine, as such conditions benefit the preservation of snow records (Wang et al., 2017). Sample collection was carried out in strict accordance with purification and pollution prevention requirements. Before sampling, all sample bottles, sampling tools, processing equipment, work clothes, and other equipment were cleaned with deionized water. Polyethylene gloves and face masks were used to avoid contamination of samples. Operators wore cleanroom clothes and the sampling tubes were inserted and removed manually. The sampling tubes had been previously acid-washed (0.05% HNO3) and individually checked by inductively coupled plasma mass spectrometry (ICP-MS) to ensure there was no significant contamination. Immediately after sample collection, the tubes were sealed inside polypropylene bags and stored at −18°C until analysis. In addition, records were made of the weather conditions, snow pit depth, sampling interval, snow layer characteristics (e.g., dust layer, snow grain size, and hardness), etc. (Qin et al., 1999; Zhang et al., 2007; Wang et al., 2008).

Sample Transportation and Instrument Analysis

Alpine glaciers are mostly distributed in inaccessible mountainous areas. Care must be taken to ensure the integrity of snow samples, particularly in relation to maintaining a constant temperature. Samples were transported in an incubator containing ice cubes. The temperature in the incubator was checked every 4 h and ice cubes were added as necessary to avoid temperature increases. Transport of samples from the field to the laboratory freezer usually took 1–3 days. All samples were analyzed at the State Key Laboratory of Cryospheric Science. Particle analysis was performed using an optical particle detector (Accusizer 780 A) equipped with a 120-orifice by the single-particle optical sensing (SPOS) method (Zhu et al., 2006; Li et al., 2010). Measurements were performed under class 100 conditions on sample aliquots diluted with a pre-filtered NaCl solution to obtain a 2% vol. electrolyte concentration. The range of measurable diameters was 0.57–400 μm. Routine analysis of filtered deionized water blanks showed background counts to be, on average, 10 times lower than those in samples. Background counts were subtracted from the sample data. All samples were analyzed in triplicate in random order. Results were then averaged for individual samples, yielding an estimated error in particle concentration of ≤10% (Steffensen, 1997; Li et al., 2010). The concentrations of cations (Ca2+, Mg2+, Na+, K+, and NH4+) were detected by an ion chromatograph (Dionex-600) and the concentrations of anions (SO42−, NO3, and Cl) were detected by a similar machine (Dionex-300) with a measurement accuracy of 10−9 g ml−1 and a measurement error of <5%.

Research Methods

Factor analysis is a multivariate statistical method. A mathematical model of factor analysis is established on the basis of mass conservation. The basic idea is as follows: According to the analysis of the loading of each factor on each variable, the main factor is determined and the source of the load ion is judged according to its chemical properties (Blifford and Meeker, 1967). The study area was located downwind of the Central Asian sand and dust area, which is strongly affected by westerly winds. Therefore, this study used sea-salt tracer methods to explore the sources of ions. The core of this method is the selection of sea-salt tracer ions (Church et al., 1982; Keene et al., 1986). The determination principle is as follows:

(1) If the equivalent ratios of Mg2+/Cl and Na+/Cl concentrations are greater than those of standard seawater (Na+/Cl = 0.859, Mg2+/Cl = 0.195), then Cl can be used as the sea-salt tracing ion.

(2) If the equivalent ratios of Na+/Mg2+ and Cl/Mg2+ concentrations are greater than those of standard seawater (Na+/Mg2+ = 4.403, Cl/Mg2+ = 5.126), then Mg2+ can be used as the sea-salt tracing ion.

(3) If the equivalent ratios of Cl/Na+ and Mg2+/Na+ concentrations are greater than those of standard seawater (Cl/Na+ = 1.165, Mg2+/Na+ = 0.227), then Na+ can be used as the sea-salt tracing ion.

After selecting a sea-salt tracer ion, we use the formula:

NNNA=CAR·CM,(1)

where NNNA is the non-marine source part of A, CA represents the measured concentration of A, M is the sea salt tracer ion, CM represents the measured concentration of M, and R is the ratio of A to M in standard sea salt.

In addition, the HYSPLIT back-trajectory model was used to simulate the trajectories of air masses reaching Yushugou Glacier No. 6. This model has been widely used in source analyses of aerosols, dust particles, and ions (Mukai and Suzuki, 1996; Lammel et al., 2003; Ming et al., 2009). The analysis is based on the HYSPLIT 4.8 model, which includes the vertical motion pattern of the atmosphere. The backward transport trajectory of the atmospheric air mass at the glacier sampling sites was analyzed and calculated within 3 days.

Results and Discussion

Characteristics of Ions and Dust Particles

Table 1 shows the pH, EC (electrical conductivity), dust, and concentration values for the major ions found in Yushugou Glacier snow pits and surface snow, as well as their composition characteristics. The ranking of ionic concentrations was, from high to low, Ca2+ > SO42− > Cl > Na+ > NO3 > NH4+ > Mg2+ > K+, in which SO42− and Ca2+ were the main anions and cations, respectively. Dibb et al. (2007) found that the main cations and anions in snow on the Greenland Ice Sheet were NH4+ and NO3. This is quite different from our result, reflecting regional differences in the chemical ions deposited in snow. Alkaline Ca2+ in glacial snow is an indicator of Asian dust, and its concentration usually has a good correlation with the concentration of mineral dust in snow. In particular, the concentrations of SO42− and Ca2+ in glacial snow in the Asian dust source area are higher than those in marine glaciers and polar regions. The average concentrations of ions in the snow pits were higher than those in the surface snow. Similarly, the conductivity of the snow pits was higher than that of the surface snow. This is most probably because the surface snow contains the recent snowfall in the glacier area, while the snow in pits represents the accumulation of snow and atmospheric chemicals over a long period of time (Niu et al., 2013).

TABLE 1
www.frontiersin.org

TABLE 1. Properties of dust, pH, EC, and main ionic concentrations in snow pits and surface snow at Yushugou Glacier No. 6.

The concentrations of ions and dust particles in different snow pits also differed. According to Table 1 and Figure 2, the elevations of the three snow pits were different. Sp-1 was highest (4,200 m) and its concentrations of ions and dust particles were the lowest. Sp-2 was at the middle elevation (4,000 m) and its concentrations were moderate. Sp-3 had the lowest elevation (3,900 m) and the highest concentrations of ions and dust particles. This phenomenon shows an obvious altitude-related effect. Generally, the ions and dust particles in snow pits are deposited by a combination of precipitation and dry deposition. According to the analysis, the concentrations of dust particles and ions from the Earth’s surface and ions carried by vapor from the Atlantic and central Asian lakes will gradually decrease with increasing elevation of the glaciers. On the one hand, this may be related to the altitude that vapor transport can reach. Liu used TRMM precipitation data to calculate that the maximum precipitation on the south slope of Harrick Mountain occurred at elevations of 3,500–3,900 m (Liu et al., 2011). When vapor moves from Sp-3 (3,900 m) to Sp-1 (4,200 m), as the altitude increases, precipitation first increases and then decreases. On the other hand, dust and ions carried by the atmosphere are also affected by elevation as they fall to the surface of the glacier as dry deposition. Numerous studies have shown that the higher the altitude, the lower the concentration of dust particles. For instance, the concentration of dust particles in snow pits in Rongbuk Glacier in the Everest Mountains (6,000 m) is significantly lower than that of eastern Tian Shan (4,000 m), while the concentration of dust particles on glaciers of Tian Shan is much lower than that of Tateyama Mountain (2,100 m) in central Japan (Osada et al., 2004; Wu and Yao, 2005; Dong et al., 2009).

FIGURE 2
www.frontiersin.org

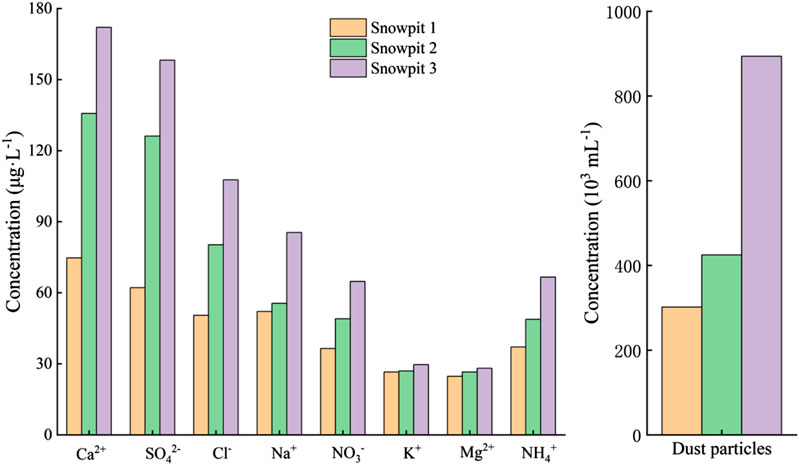

FIGURE 2. Concentrations of ions and dust particles in snow pits at the study area.

In addition, at different depths in the snow pits, the concentrations of dust particles and ions also showed obvious variation. The influencing factors may include the water vapor source for the glacier area, sand and dust activity, and meltwater leaching of the snow layer (Wake et al., 1994). Taking Sp-3 as an example (Figure 3), the concentration of dust particles and ions increased significantly from depths of 40–60 cm in the snow pit where it peaked. There was also an upward trend from 80 to 100 cm. Analysis suggests that this phenomenon must be closely related to the distribution of the dust layer in the snow pits. During sampling in Sp-3, we found a thick fouling layer between 40 and 60 cm. There was also a dust layer at the bottom of Sp-3 that extended to the ice surface, which reflected the occurrence of atmospheric dust activity events. The annual period of sand and dust presence is from March to April each year in the Tian Shan Mountains, Xinjiang, with the frequency of sandstorms being highest in April (Li et al., 2014). Therefore, we suppose that the formation time of the dust layer at 80–100 cm depth in Sp-3 is likely to be the spring of 2017, while the 40- to 60-cm dust layer may well have formed in the spring of 2018. After the dust layer formed in spring 2017, the peak melting period occurred (July–August), and the concentrations of dust particles and ions in the snow layer were greatly depleted due to leaching. Because pit Sp-3 was excavated in early June 2018, the temperature had warmed, and the dust particles and ions in the upper layer (40–60 cm) were subject to some leaching, although the leaching effect was far less than that in the lower layer (80–100 cm). Although leaching of ions from the upper layer may also be a potential cause of the increased ion concentration in the lower layer, the contents of dust particles and ions in the upper layer (40–60 cm) were still higher than in the lower layer (80–100 cm). At the same time, we also analyzed the vertical gradient in dust particle concentration in pit Sp-3, which showed a trend of rising–falling–rising between 0 and 100 cm. Therefore, the vertical gradient in dust particles needs to be described in two stages: 1) from 0 to 40 cm, the concentration increased by 0.32 ml−1 × 104 ml−1 for every 10–cm increase in depth, reaching a peak at 40–60 cm. 2) From 60 to 80 cm, the concentration increased by 0.15 ml−1 × 104 ml−1 for every 10 cm, reaching a peak at 80–100 cm.

FIGURE 3
www.frontiersin.org

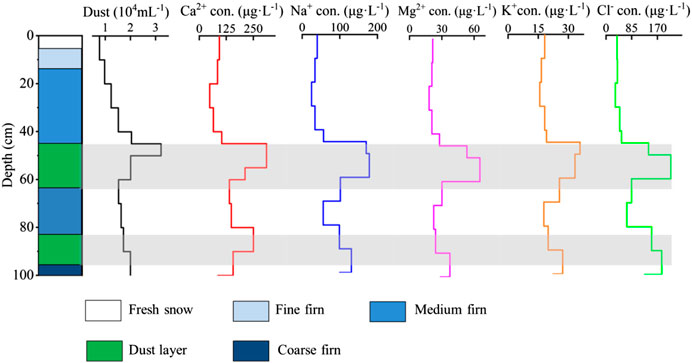

FIGURE 3. Variations in dust and ions with depth in Snow pit 3.

In addition, we conducted a regression analysis on dust particle and major ion concentrations (Figure 4). Dust concentration was linearly related to the concentrations of Ca2+, Na+, K+, Mg2+, SO42−, and Cl ions, most strongly for Ca2+ (R2 = 0.70). Previous research has found that the concentrations of Ca2+, Mg2+ and SO42− in snow pits in Urumqi Glacier No. 1 (Tian Shan Mountains) vary seasonally and in relation to dust activity (Li et al., 2010). In this study, the concentrations of dust particles and major ions in pit Sp-3 peaked in the dust layer, and the dust particle concentrations were highly correlated with those of Ca2+, Mg2+ and SO42− (Figure 4). It also can be seen that the Na+ and dust particles varied in very similar ways in Sp-3. According to analyses of the environment surrounding the Tian Shan Mountains (Olivier, 2003; Wu and Yao, 2005; Zhang and Edwards, 2011), it was concluded that most Na+ in the snow comes from a sand-dust source area of inland Central Asia that is rich in salt mines. In addition, Ca2+ is a tracer of mineral particles from the deserts and loess regions of the Asian continent and an indicator of dust from the Asian source region (Kazuo et al., 2004). In addition, the concentrations and sizes of particles are greater in the dust layer and lesser in the non-dust layer. Meanwhile, the settling of particles in the dust layer brings many chemical components to the land surface and atmosphere, which makes the ionic concentration in the snow layer appear to be very high. The significant correlation between the high concentrations of dust particles and main ions. Therefore, seasonal variation in the regional atmospheric environment is the main reason why the concentrations of chemical ions and dust particles in snow at Glacier No. 6 vary with depth.

FIGURE 4
www.frontiersin.org

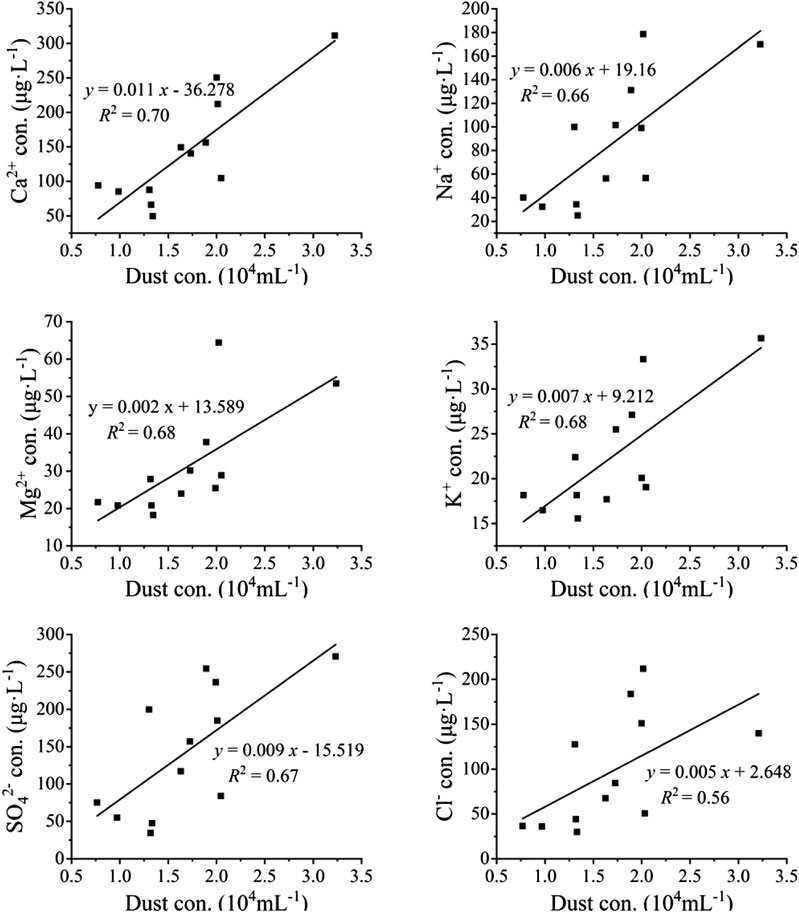

FIGURE 4. Relationships between concentrations of dust and each of the major ions in snow, with linear models fitted.

Seasonal Variation of Dust Particles

The study area is located in the center of the arid and semi-arid regions of northwest China and the source area for Central Asian dust activity. Sandstorm activity is an important feature of the atmospheric environment in this area. Due to the geographical location, the ions and dust particles in high-altitude snow and ice differ significantly between the springtime dust period and the non-dust period. The mean diameter of dust particles in the dust layer always reflects the dust mass concentration, because greater mean diameters are associated with more coarse particles and a greater dust mass concentration. Figure 5 shows the variation in dust diameter along the longitudinal section of the Sp-3. It can be seen that the dust diameter differs significantly with depth; that is, the mean diameter is high in the dust layer and low in the non-dust layer. This variation indicates that the Yushugou Glacier area is significantly affected by the dust activity of Central Asia.

FIGURE 5
www.frontiersin.org

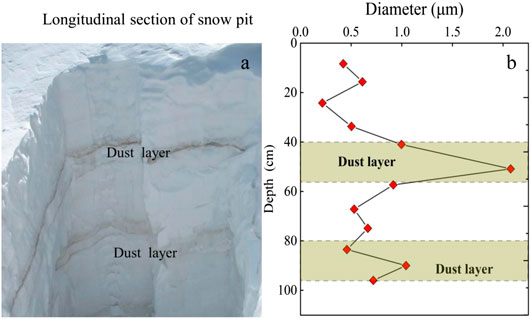

FIGURE 5. Image of snow pit (A) and variation in dust diameter with depth (B).

Figure 6 shows that the mass–size distribution of dust particles in the snow can be approximated by a single model in the non-dust period and a multi-structure model in the dust period. The single distribution model reflects a single source, while the multi-structure distribution model indicates a complex source. Dust particle size distributions are not only related to the transporting winds but also the material sources. In snow samples collected in the non-dust period, dust particle sizes were concentrated in the range of 0.6–40.7 µm (mean = 10.8 µm); when the size is 9.5 µm, the particle mass tends to be the greatest (Figure 6A). It is concluded that particles in snow samples from the non-dust period are fine particles transported by westerly winds with long-distance transport. Some studies have proven that in the process of atmospheric dust transport, longer distances result in better particle size separation, causing lower particle concentration and deposition flux in snow and ice (Zdanowicz et al., 1998). For example, it takes a long time for dust to travel from the source to the North Pole, which causes atmospheric aerosol particle concentrations to drop to fairly low levels (Wake et al., 1994; Wei et al., 2005). The multi-structure distribution model refers to the samples taken during the dust period (Snow samples collected from dust layers; Figure 6B, in which particle diameters range from 0.3 to 72.6 μm). When the diameter is 10 and 40 μm, the concentration of dust particles reaches a peak. The results show that particles from the dust period samples were mainly coarse mineral dust (18.7–72.6 μm), which is mainly controlled by dust activity. The study area has high wind speeds during the dust period, which can bring a large number of dust particles. For example, the Taklimakan Desert and the Mongolian Desert near the Tian Shan Mountains provide material for the coarse particles found in snow and ice (Dong et al., 2009; Zhang and Edwards, 2011; Chen et al., 2015). In addition, there was a small amount of fine dust (0.3–18.7 μm), which comes from long-distance dust that is present year-round and is mainly controlled by westerly winds. In general, the snow of Yushugou Glacier No. 6 is significantly affected by Central Asian dust activity, and the particle size distributions of insoluble particles differ significantly between the dust and non-dust periods.

FIGURE 6
www.frontiersin.org

FIGURE 6. Mass–size distributions of dust in snow at Yushugou Glacier No. 6 during the (A) non-dust and (B) dust periods.

Source Analysis of Major Ions in Snow Pits

We used factor analysis to analyze the source of the major ions. The results show that the chemical composition of glacier No. 6 can be divided into three groups: group 1 (Cl, Na+, and K+), group 2 (NH4+, NO3, and SO42−), and group 3 (Ca2+, Mg2+, and dust; Table 2).

TABLE 2
www.frontiersin.org

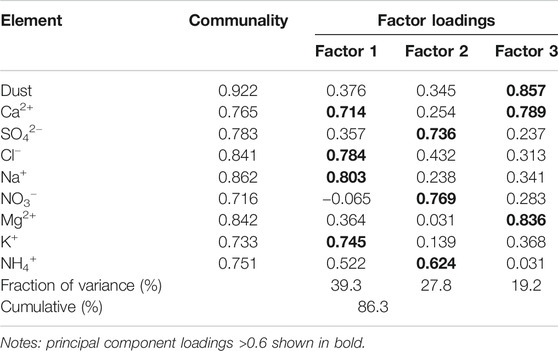

TABLE 2. Factor loading matrix for ions in snow pits at Yushugou Glacier No. 6.

Factor 1 loadings are the highest in Cl, Na+, and K+, which have good correlations with each other (Table 3). In the northwestern Tian Shan Mountains, there are large salt lakes (Alar Lake, Aibi Lake, Isek Lake, etc.) with high salt contents, and surrounding salt mineral resources are abundant. Under dry, high-temperature climatic conditions, salt lakes evaporate and salt particles rich in Na+, Cl, and K+ are carried to glacier areas by westerly winds. There are conflicting opinions on the sources of Na+ and Cl in the typical glacier snow cover at the Tian Shan Mountains. One study suggests that the Na+ and Cl ions are mainly derived from terrestrial dust and evaporation of surrounding salt lakes (Olivier, 2003). Other studies have found that at least half of the Na+ and Cl originates from sea salt (Dong et al., 2011; Zhang and Edwards, 2011). In this study, the sea salt tracer method was used to calculate the marine sources of Na+ and Cl (41 and 34%). It was concluded that the Na+ and Cl in the snow at Yushugou Glacier No. 6 have not only terrestrial sources (terrestrial dust and salt lake evaporation) but also some sea salt input.

TABLE 3
www.frontiersin.org

TABLE 3. Correlations between ion and dust concentrations in snow pits at Yushugou Glacier No. 6 (Person correlation coefficient).

Factor 2 loadings were highest for NH4+, NO3, and SO42−, which also had good correlations with each other (Table 3). This factor is explained as a component with anthropogenic sources, including burning of fossil fuels and biomass, emissions from livestock and poultry waste, and natural fertilizers. Mineral dust is usually the carrier of such pollutants (Bernabe et al., 2005). Although the area is relatively sparsely populated, glacier No. 6 is only 80 km from Hami Prefecture in the Xinjiang Uygur Autonomous Region, which has more than 600,000 residents. Air pollutants in Hami Prefecture may have been transported to the glacier through low-level regional atmospheric circulation. According to the sea salt calculation formula, non-marine sources accounted for 85 and 89% of the NO3 and NH4+ in the snow cover at No. 6 glacier, respectively. Combined with the coefficient of correlation between NO3 and NH4+ (0.86), it can be inferred that the source of these ions is mainly terrestrial. It is generally believed that atmospheric NO3 and NH4+ are generally caused by the combustion of biological and fossil fuels (secondary reactions of NOX), chemical fertilizers, motor vehicle exhaust, industrial emissions, and other human activities (Van der A. et al., 2017). The study area is located in the eastern Tian Shan Mountains, which is a typical continental climate area. The westerly winds play a leading role in this area. The air mass passes through central Asia and Xinjiang from west to east, carrying NO3, NH4+, and SO42− along the way, and eventually reaches the glacier area. In addition, natural pastures are widely distributed around the Tian Shan Mountains, which have a high livestock load, frequent agricultural and animal husbandry activities in summer and autumn, and high rates of biomass combustion (straw and firewood), decomposition of animal excreta and corpses, and fertilizer use, which all produce NOX and NH3. The ions SO42−, Ca2+, and NO3 were also significantly correlated. Moreover, the non-marine source accounted for 96% of the SO42−, indicating that SO42− in glacial snow is not only derived from input of sand and minerals (such as central Asian dust containing large amounts of CaSO4 and other sulfates) but also from anthropogenic emissions of sulfur pollutants (such as from coal and oil combustion).

Factor 3 loadings were highest in Ca2+ and Mg2+, which were also significantly correlated. Many studies have shown that the main chemical components in Asian dust are Ca2+ and Mg2+, and their concentrations are closely related to the dust concentration. The analysis shows that Ca2+, Mg2+, K+, and particles are transported by atmospheric circulation and, after reaching the glacier area, become attached to the snow layer by dry and wet sedimentation, finally forming a dust layer with obvious seasonal characteristics. This phenomenon is similar to the sandstorm weather process occurring in winter and spring, at which time the major chemical ions were observed to peak in the snow pits at glaciers No. 72 and No. 1 in the Tian Shan Mountains. The study area is mainly influenced by westerly winds and is surrounded by large deserts. As the westerly winds pass through the deserts and Gobi, sand, gravel, and dust particles are transported to the surfaces of glaciers by the airflow. Therefore, the Ca2+, Mg2+, and K+ ions in the snow, which are attached to the dust layer, can be classified as having relatively remote sand and dust sources.

Discussion

Comparison of the Chemical Characteristics of Snow in Different Glacier Regions

To explain the regional characteristics of chemical ion deposition in the snow pits, this study compared and analyzed the ion contents and compositions of glaciers in other regions. Table 4 shows that the concentrations of chemical ions in the snow cover of glaciers in the Tian Shan Mountains and Altai Mountains are generally higher, while those at the East Rongbuk Glacier (6,450 m) and Marine Baishui Glacier No. 1 are lower. This reflects spatial differences in chemical ion deposition in snow. In particular, the concentrations of ions in glacial snow cover within the Asian dust source area are generally higher, while those in the Marine Glaciers are lower. This indicates that land-sourced minerals may have a significant influence on the chemical characteristics of the snow cover. Figure 7 shows the percentages of chemical ions in different glacier regions. The cationic percentage characteristics of Yushugou Glacier No. 6 are extremely similar to those of Urumqi Glacier No. 1 and Belukha Glacier. The percentages of Ca2+, Mg2+, and Na+ + K+ in the snow pits of Yushugou Glacier No. 6 are higher than those of East Rongbuk Glacier and Baishui Glacier No. 1, indicating that land minerals have a great influence on the chemical characteristics of glacier snow. In the anion composition diagram, the percentages of anions in the snow of different glaciers are significantly different. The percentages of SO42− and Cl in the snow of Yushugou Glacier No. 6 are higher than those of other glaciers, while the percentage of NO3 in Yushugou Glacier No. 6 is lower and close to that of Rongbuk Glacier. This reflects the regional differences in the chemical compositions of snow in different glaciers. Overall, the proportions of NH4+ and NO3 in the snow of Yushugou Glacier No. 6 are very low, which indicates that the glacier area is relatively unaffected by regional anthropogenic pollution (such as biomass combustion and fertilization).

TABLE 4
www.frontiersin.org

TABLE 4. Concentrations of major ions (μeq L−1) in snow at various glaciers in China.

FIGURE 7
www.frontiersin.org

FIGURE 7. Proportions of major ions in snow pits at various glaciers. YG6, Yushugou Glacier No. 6; BG, Belukha Glacier; UG1, Urumqi Glacier No. 1; RG, Rongbuk Glacier; BG1, Baishui Glacier No. 1.

Air Mass Transport Path During Dust Events

Figure 8 shows the results of the backward trajectory analysis of air mass transport to the sampling sites at Yushugou Glacier No. 6 during the dust period. According to the observational data of many meteorological stations (Hami Station, Alashan Station, Urumqi Station, etc.), we counted several large-scale sandstorm events from 2017 to 2018 and simulated their air mass transport paths to Yushugou Glacier No. 6. Figure 8A shows the track of the sandstorm air masses on August 30, 2017, in which the upper air mass from the southwest originated in Afghanistan, while the lower air mass from the east originated in Mongolia. In the sandstorm event on December 25, 2017, the long-path air mass originated in Kazakhstan, while the short-path air mass came from the local deserts and Gobi (Figure 8B). Figure 8C shows the dust storm air masses on March 15, 2018. These air masses originated from the Caspian Sea coast and crossed Central Asia from west to east until they reached glacier No. 6. The sandstorm air mass on December 25, 2017, originated from the Taklimakan Desert (Figure 8D). In conclusion, when sandstorms occurred at Yushugou Glacier No. 6, the air masses mainly came from Mongolia, the Tarim Basin, and Central Asia. It is surrounded by the Taklimakan Desert, Gulbantonggu Desert, and Kumtag Desert (Chen et al., 2015), which are important sources of the dust particles, Ca2+ and Mg2+, found in the snow at Yushugou Glacier No. 6.

FIGURE 8
www.frontiersin.org

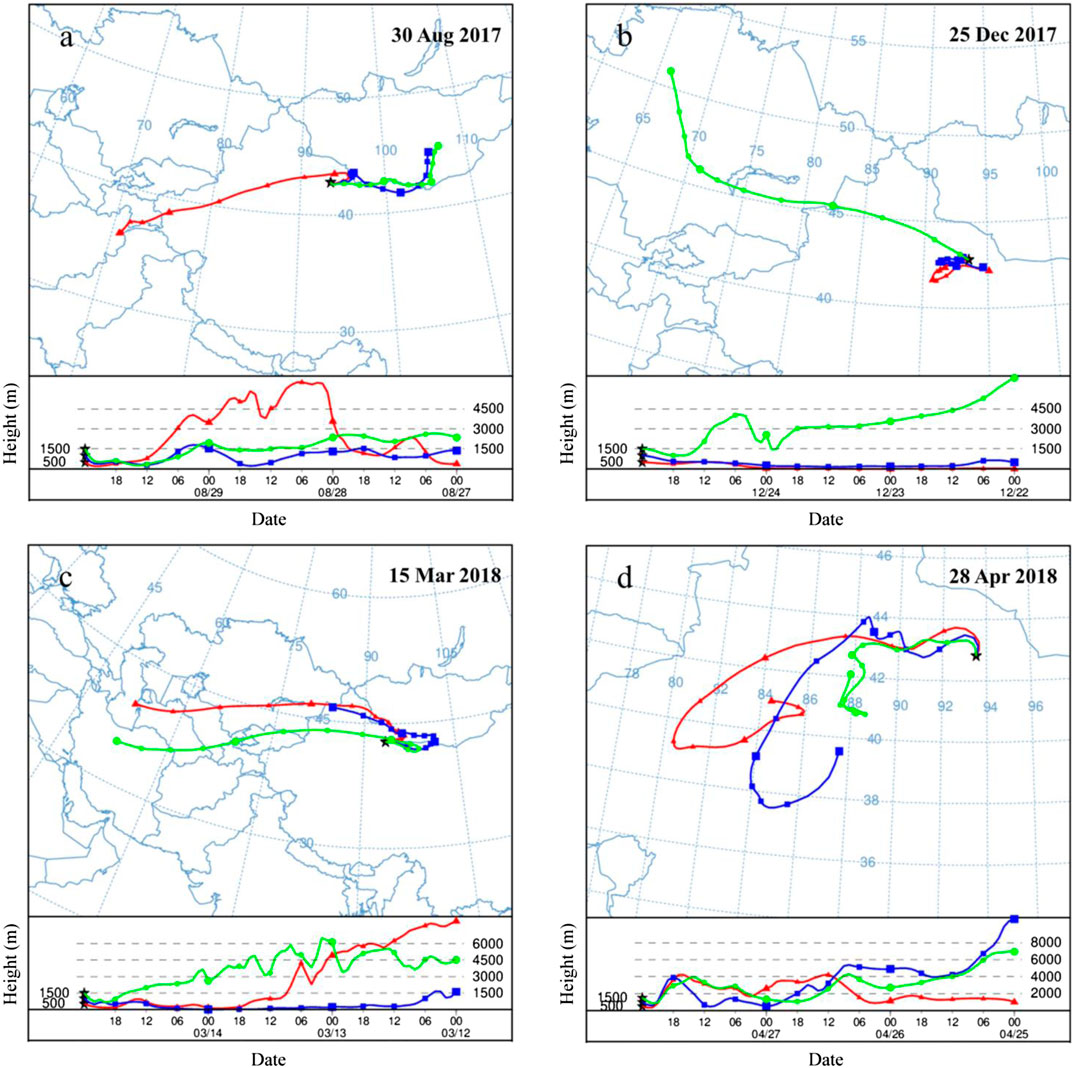

FIGURE 8. Backward trajectory analysis of several large-scale sandstorm air masses that reached Yushugou Glacier No. 6 during the study period (2017 and 2018).

Conclusions

This study analyzed the chemical ion characteristics and environmental significance of snow samples from pits and the surface of Yushugou Glacier No. 6, Tian Shan, based on field sampling, experimental detection, and data processing. We draw the following conclusions.

The ionic concentrations in snow at Yushugou Glacier No. 6 were ranked in order of highest to lowest as Ca2+ > SO42− > Cl > Na+ > NO3 > NH4+ > Mg2+ > K+. Hence, SO42− was the dominate anion and Ca2+ was the dominant cation. The major ionic average concentrations, pHs, and electrical conductivities in snow pits were higher than those in surface snow. This is because surface snow is formed from recent snowfall in the glacier area, while the snow in snow pits represents the accumulation of snowfall and atmospheric chemical deposition over a long period.

The concentrations of particles and ions in the snow had obvious seasonal variations, with high concentrations in spring (dust period) and low concentrations in summer (non-dust period). There was a significant difference in the mass–size distribution of particles in snow between the dust and non-dust periods, which indicates that sandstorm activity in Central Asia has a significant influence on the concentrations of chemical ions and dust particles in the snow at Yushugou Glacier No. 6.

The sources of the ions in the snow at Yushugou Glacier No. 6 were mainly land mineral dust and human activities, with a small influence of marine sources. The Ca2+, Mg2+, and K+ ions in snow pits were generally classified as long-distance land-sourced mineral dust. The Na+ and Cl ions had a terrestrial source with partial sea salt input. The NO3, NH4+, and SO42− ions were mainly sourced from human industrial and agricultural activities (combustion of biological and fossil fuels, industrial emissions). In addition, a small amount of SO42− was sourced from sand and dust minerals.
