Oldupai Gorge is located within the Ngorongoro Conservation Area, a UNESCO World Heritage Site in northern Tanzania along the western margin of the East African Rift System. Oldupai's sedimentary record contains inter-stratified stone tool industries associated with the Earlier, Middle, and Later Stone Age. While diachronic technological change is perceptible, the totality of locally available rocks remained largely unchanged through time. Here, thin section petrography, Scanning Electron Microscopy-Energy Dispersive X-Ray Spectroscopy, and Electron Probe Micro Analysis were employed to characterize source lithologies in the Oldupai region. One of our goals was to determine if outcrops have rock types with unique mineral assemblages amenable for sourcing lithic artifacts. Petrographic analysis of 62 lithologic samples collected in primary and secondary positions reveal discriminatory differences. More precisely, five outcrops have quartzites with unique mineral assemblages, five outcrops have meta-granites with unique mineral assemblages, Engelosin phonolite samples are texturally and mineralogically unique, and magmatic samples recovered in secondary position may be sourced to their volcanic center. Our results demonstrate it is feasible to discriminate source materials using mineralogy, which implies that sourcing lithic artifacts is possible. For proof of concept, we assign the source/s of previously described fuchsitic quartzite artifacts from three archaeological sites at Oldupai to two nearby outcrops. Additional archaeological testing will allow researchers to glean new understandings of hominin behavior and stone procurement in the Oldupai paleobasin.
Introduction
Rocks used for artifact manufacture are alternatively known as lithic raw materials and occur as mineral aggregates of igneous, metamorphic, and sedimentary origin that are non-renewable and spatially exhaustible over a non-geological timeframe (Kyara, 1996). Raw material characterization and sourcing through comparative study of geological specimens and artifacts (Weigand et al., 1977; Shotton and Hendry, 1979) can provide insights into stone selection and procurement strategies (Stout et al., 2005), transportation costs (Kyara, 1999), technological façonnage (Mason and Aigner, 1987), functional suitability (Ebright, 1987), anthropogenic usage (Courtenay et al., 2019), landuse behavior (Tactikos, 2005), population movements (Reimer, 2018), and social networks of trade and exchange (Lebo and Johnson, 2007). By extension, inferences may be drawn on technological, economic, ritual, and political systems in a variety of archaeological contexts (e.g., Renfrew, 1975; Flannery, 1976; Sidrys, 1976).
In this study, we characterize a range of lithologies that were available to hominins at Oldupai Gorge using a combination of thin section petrography, Scanning Electron Microscopy-Energy Dispersive X-Ray Spectroscopy (SEM-EDS), and Electron Probe Micro Analysis (EPMA). One of our goals was to determine the feasibility of sourcing lithic artifacts based on their mineralogy (cf. Soto et al., 2020a). Rock samples were collected in primary and secondary positions from 10 outcrops within the greater Oldupai region. Sixty-two samples including quartzites, meta-granites, feldspars, amphibolites, schists, granofels, phonolites, nephelinites, and basalts were studied using a polarizing microscope. Ten samples were subsequently analyzed using SEM-EDS and EPMA to complement petrographic observations.
We show that several outcrops near Oldupai Gorge have lithologies that can be identified by a unique combination of minerals which implies that sourcing lithic artifacts based on mineralogy is a viable technique. This is evidenced by the similarity of rock specimens from the Naibor Soit Kubwa and Naibor Soit Ndogo outcrops to previously described Oldowan and Acheulean quartzite artifacts from three archaeological sites. Our results not only establish the merit of further archaeological testing scaffolded by additional characterization efforts, but also contribute to the growing body of work which shows that quartzitic outcrops can be differentiated from each other despite their assumed homogeneity on a regional scale (Ebright, 1987; Stross et al., 1988; Pitblado et al., 2008, 2013; Blomme et al., 2012; Veldeman et al., 2012; Cnudde et al., 2013; Dalpra and Pitblado, 2016; Soto et al., 2020a,b). Our study will serve as a referential framework for future researchers to establish new links between the lithoscape and hominin raw material exploitation at Oldupai Gorge.
Oldupai Gorge, Tanzania
Geological Setting
Oldupai Gorge is located on the boundary between the Tanzania Craton to the west and the Mozambique Belt to the east (Figure 1a). The Tanzania Craton is composed of Archean (4.0–2.5 Ga) low to medium grade metamorphic and igneous rocks including greenstones, granite gneisses, and quartzites. The Neoproterozoic Mozambique Belt comprises more deformed rocks dominated by quartzites, schists, and granites. Surface exposures of the Mozambique Belt include the Gol Mountains in north-central Tanzania (Cahen and Snelling, 1966; Cahen et al., 1984; Dawson, 2008; Scoon, 2018), and the metamorphic outcrops to the south near Oldupai Gorge (Figures 1a,b) (Hay, 1976).

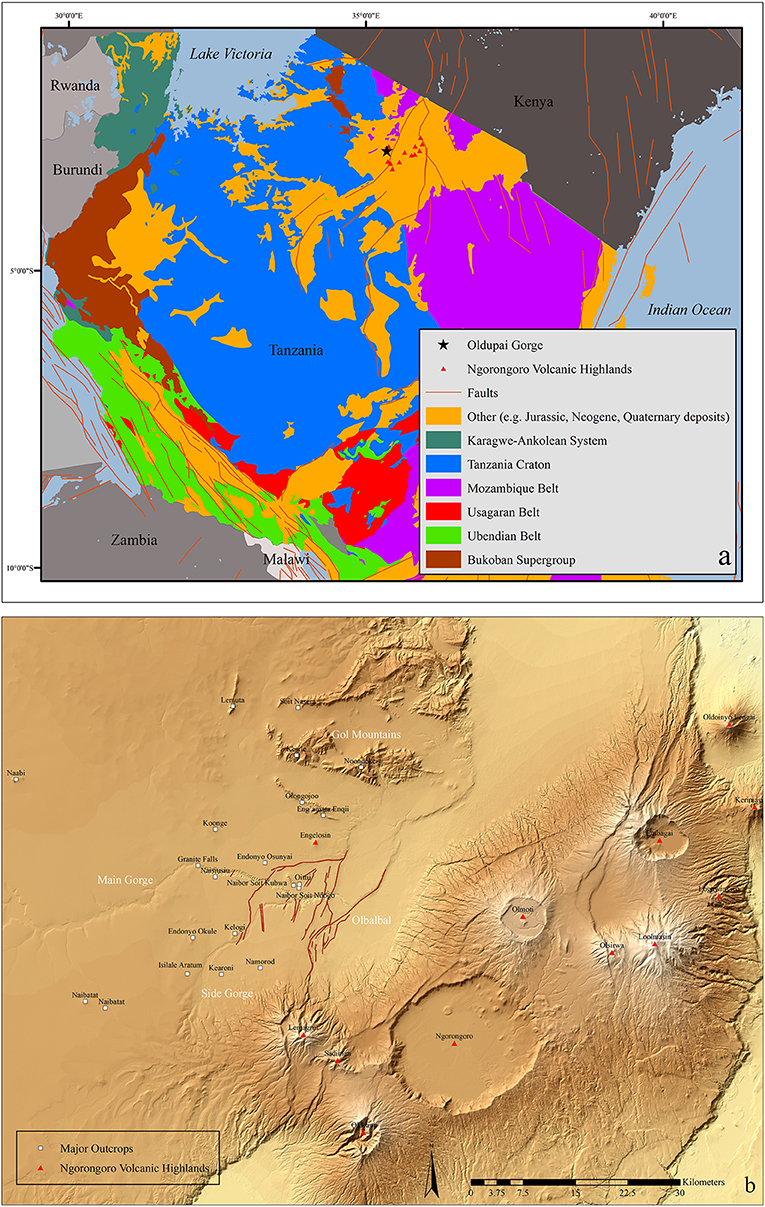

Figure 1. (a) The East African Rift System superimposed over the Tanzania Craton, the Mozambique Belt, and other units. Geospatial data from Fritz et al. (2013) and Macgregor (2015). Refer to Kabete et al. (2012, Figure 5) for a detailed geological map of Tanzania. Refer to Scoon (2018, Figure 2.2) for a simplified stratigraphic column of East Africa. (b) Major geological outcrops in the greater Oldupai Gorge region. Faults after Hay (1976).
Variably overlying the basement rocks of the Tanzania Craton and the Mozambique Belt and obscuring their contacts are volcanic rocks of the Ngorongoro Volcanic Highlands (NVH) associated with the East African Rift System, which is an active intra-continental extension zone (Figures 1a,b). Rifting commenced in the Eocene and resulted in extensive volcanism that is still active today. Oldupai Gorge is situated in the North Tanzania Divergence Zone, to the northwest of the NVH (Figure 1a) and borders the westernmost faults of the Gregory Rift system (Baker et al., 1972; Dawson, 1992). The NVH is a mostly inactive group of volcanoes centered around the Ngorongoro Caldera. The catchment of the Oldupai paleobasin include five volcanic centers of the NVH: (1) Sadiman (4.63–3.5 Ma; 2,870 m.a.s.l.) (foidite, ijolite, nephelinite, phonolite, phonolitic tuff, and tephrite) (Hay, 1976; Mollel and Swisher, 2012; Zaitsev et al., 2012); (2) Engelosin (3–2.7 Ma; 1,648 m.a.s.l.) (phonolite and phonolitic breccia) (Hay, 1976; Mollel and Swisher, 2012); (3) Lemagrut (2.4–2.2 Ma; 3,135 m.a.s.l.) (basalt, benmorite, hawaiite, ignimbrite, and mugearite) (Mollel and Swisher, 2012); (4) Ngorongoro (2.25–2.01 Ma; 1,700–2,380 m.a.s.l.) (agglomerate, basalt, ignimbrite, rhyolite, trachyandesite, trachydacite, and trachyte) (Pickering, 1965; Mollel, 2002; McHenry et al., 2008; Mollel et al., 2008; Mollel and Swisher, 2012); and (5) Olmoti (2.01–1.80 Ma; 3,101 m.a.s.l.) (basalt, ignimbrite, trachyandesite, and trachyte) (Pickering, 1964, 1965; Hay, 1976; Manega, 1993; Mollel, 2002; McHenry et al., 2008; Mollel et al., 2009; Mollel and Swisher, 2012) (Figure 1b).
The Main and Side Gorge cut into the basement rocks of Eastern Serengeti Plains and provide good exposures of the stratigraphy. During the Early Pleistocene, Oldupai was an endorheic, rift-shoulder sedimentary basin that hosted a saline alkaline lake fed by stream networks from the NVH to the west, and characterized by abruptly rising metamorphic inselbergs associated with the Mozambique Belt (Hay, 1976; McHenry et al., 2008). The post-Ngorongoro stratigraphy exposed in the gorge (Oldupai Group) overlies a basal basalt unit in the east and an ignimbrite in the west associated with the final eruption from Ngorongoro (Hay, 1976; McHenry et al., 2008; Deino, 2012). As volcanic activity subsided, sediments were delivered to the basin from alluvial fans composed of pyroclasts to the east and fluvial channels from the west (Hay, 1976; Ashley and Hay, 2002). Deposition occurred in a variety of environments, including fluvial channels, floodplain, and lacustrine settings (Hay, 1976). The Oldupai Group, which attains a maximum thickness of ~100 m, is divided into seven units (Bed I–IV, Masek, Ndutu, and Naisiusiu) (Hay, 1976; Scoon, 2018) which preserve evidence of hominin activities. While variations in drainage patterns and resulting sedimentation altered Oldupai's paleoecology, the paleobasin was occupied by a host of hominin species where they procured raw materials from nearby outcrops to manufacture stone tools for a variety of daily tasks (Leakey, 1971; Mora and de la Torre, 2005; Diez-Martín et al., 2009, 2010; Yravedra et al., 2017).
Lithic Raw Materials
Lithic industries including Earlier Stone Age (ESA), Middle Stone Age, and Later Stone Age assemblages are preserved in Oldupai's sedimentary record spanning from the Early Pleistocene to the Holocene (Leakey, 1971; Leakey et al., 1972; Mabulla, 1990; Leakey and Roe, 1994; Eren et al., 2014). While technological changes and the preferential use of certain rock types are evident (Leakey, 1971; Hay, 1976; Kyara, 1999), local raw material sources remained largely unchanged apart from two key exceptions: (1) chert formed during saline alkaline lake conditions and was subsequently exposed at lowstands (Hay, 1968, 1976; O'Neil and Hay, 1973; Stiles et al., 1974); and (2) conglomerates became available in the paleobasin through changes in regional drainage patterns that transported gravel-sized clasts of igneous origin from the NVH (Hay, 1976). With such a diverse array of exploitable rock types conducive for tool-making (Hay, 1976; Jones, 1994), hominins are believed to have applied some stone selection criteria. Proximity to raw material sources in the paleobasin also appears to have made long-distance transport of exotic rock types infrequent during Oldowan and Acheulean times (Leakey, 1971; Hay, 1976). Collectively, these factors make lithic raw material studies important to better understand the complexities of hominin resource procurement within a raw material-rich paleoecological setting such as Oldupai.
Our ability to understand hominin behavior from a techno-ecological perspective is hindered by two factors. First, it is well-documented that raw material morphometry and mechanical properties, at and beyond Oldupai, affect the classification of artifact assemblages (Leakey, 1971; Kyara, 1999; Archer and Braun, 2010), and the behavioral interpretations gleaned from them such as the technical abilities of their makers (Jones, 1979, 1994). Second, while previous studies on Oldupai's lithic raw materials relied on macroscopic, petrographic, and geochemical techniques, they have not comprehensively characterized quartzitic outcrops (Leakey, 1971; Stiles et al., 1974; Hay, 1976; Stiles, 1991, 1998; Jones, 1994; Leakey and Roe, 1994; Kyara, 1999; Mollel, 2002; Tactikos, 2005; Blumenschine et al., 2008; Santonja et al., 2014; McHenry and de la Torre, 2018). Most recently, Egeland et al. (2019) studied local outcrops using a portable X-Ray Fluorescence spectroscope for chemical characterization and a Schmidt Hammer to determine fracture predictability. Based on statistical analyses, they assign Naibor Soit Kubwa as the likely source for three quartzite lithics from BK East (Bed II) (Egeland et al., 2019). Apart from this most recent study, the lack of characterization studies is unwarranted for several reasons. Most notably, research at Oldupai has been ongoing for over a century (Kent, 1978; Leakey, 1978; Hay, 1990), quartzite artifacts are ubiquitous (Leakey, 1971; Leakey and Roe, 1994), quartzite is of assumed importance based on experimental studies (Diez-Martín et al., 2011; de la Torre et al., 2013; Gurtov and Eren, 2014; Yustos et al., 2015; Byrne et al., 2016), and certain quartzitic outcrops have played a central role in discussions about hominin behavior in the Oldupai paleobasin (Leakey, 1971; Hay, 1976; Tactikos, 2005; Blumenschine et al., 2008). We previously developed a multi-scalar approach to characterize quartzites from different outcrops near Oldupai (Soto et al., 2020a), which integrates macroscopic properties, petrographic features, and chemical compositional data. In this study, we seek to provide detailed petrographic descriptions of lithologies in the Oldupai region and establish the prospects of sourcing stone tools based on petrographic data.
Materials and Methods
Field Sampling
As part of the Stone Tools, Diet, and Sociality project, we sampled outcrops whose locations were determined from previous studies (Leakey, 1965, 1971; Hay, 1973, 1976; O'Neil and Hay, 1973; Stiles et al., 1974; Jones, 1979, 1981, 1994; Stiles, 1991, 1998; Manega, 1993; Kimura, 1997; Kyara, 1999; Hay and Kyser, 2001; Mollel, 2002, 2007; Plummer, 2004; Tactikos, 2005; Blumenschine et al., 2008, 2012; McHenry et al., 2008; Mollel et al., 2008; Berry, 2012; Mollel and Swisher, 2012; Zaitsev et al., 2012; Santonja et al., 2014) and knowledge gleaned from the local Maasai community. Samples were split using a geological hammer, photographed, and GPS coordinates were recorded using a Garmin eTrex 10. Structural and lithostratigraphic characteristics were noted for each outcrop. The samples studied herein covered the macroscopic varieties from most of the major outcrops in the Oldupai region (Table 1; Supplementary Table 1; see Soto et al., 2020a), including Endonyo Osunyai (n = 3) (Supplementary Figure 1), Engelosin (n = 4) (Supplementary Figure 2), the Gol Mountains (n = 10) (Supplementary Figure 3), Granite Falls (n = 4) (Supplementary Figure 4), Kelogi (n = 4) (Supplementary Figure 5), Naibor Soit Kubwa (n = 16) (Supplementary Figure 6), Naibor Soit Ndogo (n = 5) (Supplementary Figure 6), Naisiusiu (n = 8) (Supplementary Figure 7), Oittii (n = 4) (Supplementary Figure 6), and Olbalbal (n = 4) (Supplementary Figure 8).

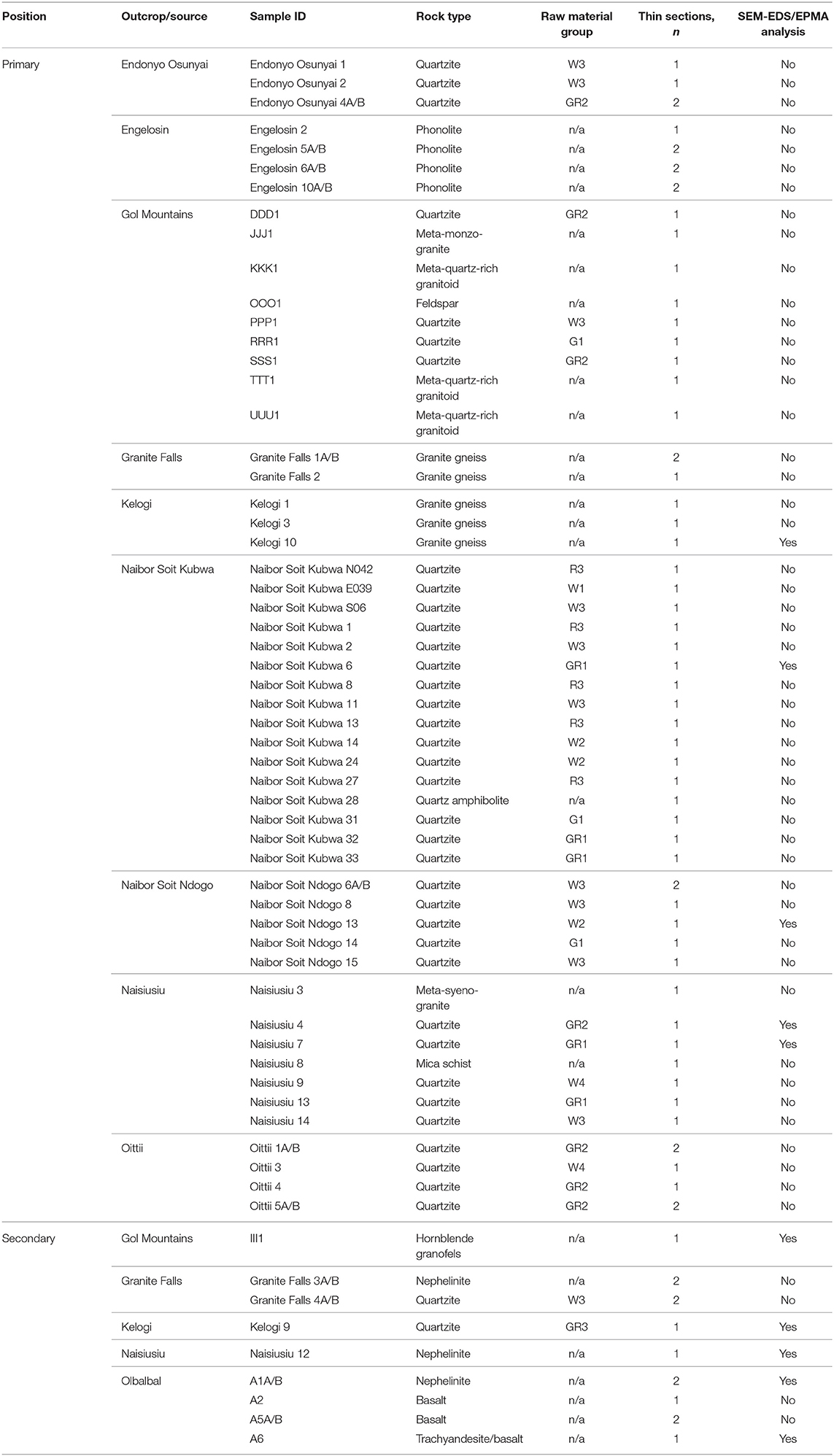

Table 1. Sample position, outcrop/source, ID, rock type, raw material group, number of thin sections per sample, and samples analyzed by SEM-EDS/EPMA.
Macroscopic Description
We conducted a macroscopic description of our samples as part of our multi-scalar characterization of raw materials (Soto et al., 2020a). Recorded criteria included morphology, Munsell color, grain size, texture, gloss, transparency, mineral composition, impurities, post-depositional alterations, and foliation. From our sample population, 38 quartzites were classified into 10 of 13 Raw Material Groups established for the Oldupai region (Tables 1, 4; Supplementary Table 2) (Soto et al., 2020a).
Thin Sectioning and Petrographic Analysis
Ten thin sections analyzed for this study were prepared at the Geoscience Research Laboratory (University of Calgary). The remaining samples were thin sectioned at the Tropical Archaeology Lab (University of Calgary) where these were cut flat (Trim Saw, TS10, Lortone Inc.; IsoMet 4000 Linear Precision Saw), slide-mounted on frosted slides (27 × 46 mm) (Cast N' Vac 1000 Castable Vacuum System), ground to 30–35 μm (PetroThin Thin Sectioning System), and polished (Metaserv 2000 Grinder Polisher).

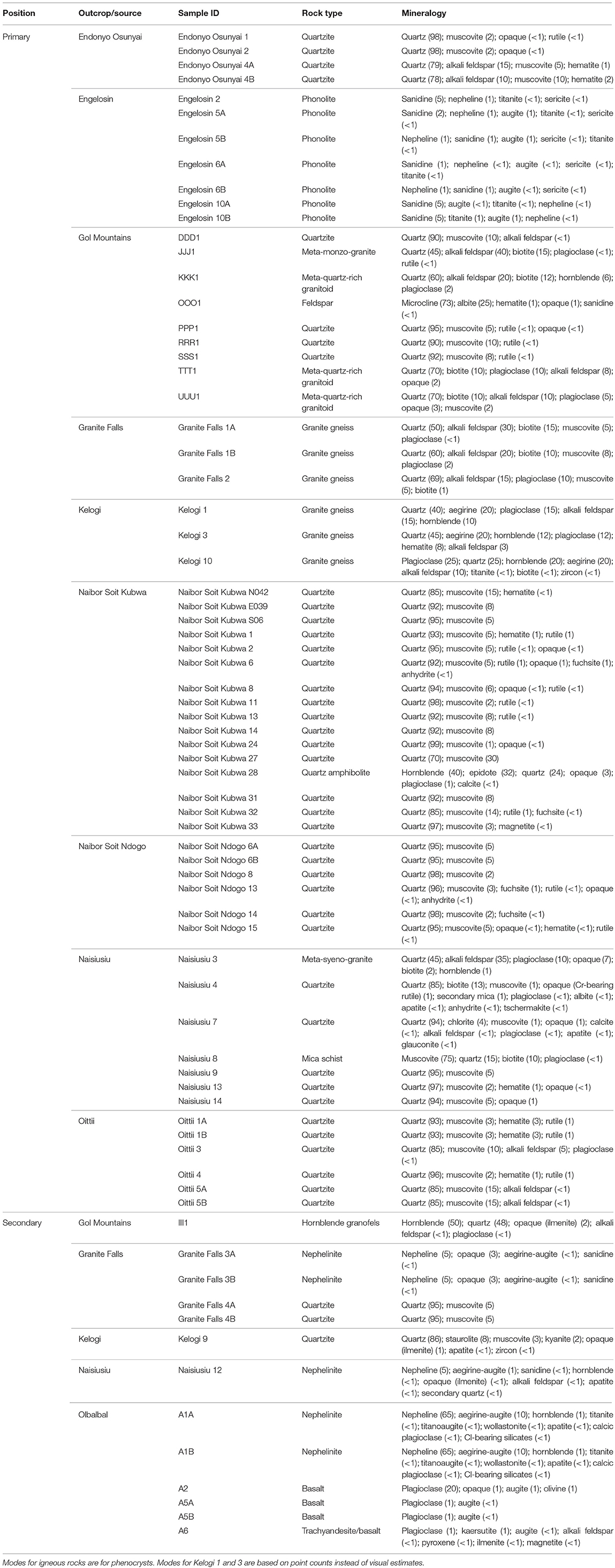

Table 2. Visually estimated modal percentages per sample.
A total of 74 thin sections were analyzed using a Leitz HM-POL petrographic microscope (2.5, 4, 10, 40×) (Table 1). Observation under plane-polarized and cross-polarized light allowed for mineral identification and rock type classification (Streckeisen, 1976; Le Bas and Streckeisen, 1991; Gill, 2010; Bucher and Grapes, 2011). Each rock's modal abundances were visually estimated by comparison with charts (Terry and Chilingar, 1955). Textural characteristics such as crystal habit, morphology, replacement textures, intergrowths, and foliation were noted depending on rock type, and qualitative grain sizes were recorded (Supplementary Material Petrographic Descriptions; Supplementary Table 3). Photomicrographs were taken using a Nikon ECLIPSE 50i POL microscope (2, 4, 10, 40×) equipped with a Moticam 2500 (Motic Images Plus 2.0).
SEM-EDS and EPMA
Ten thin sections (Table 1) were analyzed at the Instrumentation Facility for Analytical Electron Microscopy (University of Calgary) using a FEI Quanta 250 FEG system equipped with a Bruker Quantax EDS for semi-quantitative analysis and backscatter electron (BSE) imaging. Observations and analyses were performed under an acceleration voltage of 15 kV, a pressure of 50 Pa, and a measuring time of 20 s. Spectra obtained from targeted minerals were identified by comparison with those from common rock forming minerals (Severin, 2004).
The 10 thin sections analyzed by SEM-EDS were also studied by EPMA (Table 1) at the University of Calgary Laboratory for Electron Microprobe Analysis, which enabled more accurate characterization of small grains. The laboratory houses a JEOL JXA-8200 electron microprobe with BSE imaging capabilities and a Bruker EDS system for semi-quantitative analysis. Samples were first carbon-coated, and observations and analyses were performed under an acceleration voltage of 15 kV, an emission current of 12 μA, and a measuring time of 20 s.
Results
The following sections, organized alphabetically by outcrop name, provide the geologic context for each outcrop and petrographic descriptions of samples.
Endonyo Osunyai
Geology
Endonyo Osunyai consists of sporadically exposed quartzites and gneisses along a ~100 m long stretch northwest of Naibor Soit Kubwa (Figure 1b). Quartzite is foliated and the foliation planes display a dominantly southerly dip with some exceptions (Figure 2A; Supplementary Figure 9). Gneissic lithologies are exposed along the northwestern part of the exposures where they show meso-scale deformation fabrics including folds (Figure 2B).

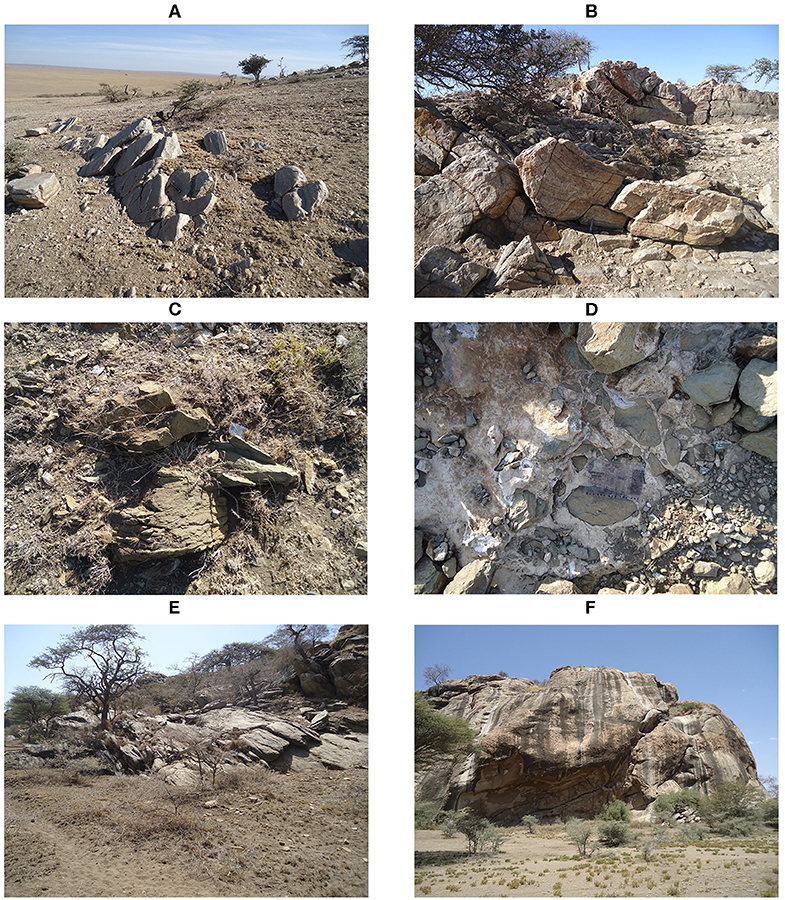

Figure 2. Endonyo Osunyai: (A) Quartzites with foliation planes dipping south; (B) fractured gneiss outcrops showing one asymmetrical fold with harmonic folding; Engelosin: (C) weathered, oxidized, and fractured phonolite; (D) talus accumulations of phonolitic breccia cemented by calcrete; Gol Mountains: (E) west of Kesile, complexly deformed and exfoliated north-south trending granite gneiss outcrop with steeply-dipping foliation planes; (F) view south toward the rockshelter at Soit Nasera, a quartz-feldspathic monolith.
Petrography
Prior studies have identified gneiss and quartzite at Endonyo Osunyai, but no petrographic descriptions are available (Hay, 1976; Kyara, 1999). The quartzite is coarse-grained and accessory minerals include alkali feldspar, muscovite, hematite, and rutile (Figures 3A,B; Supplementary Figure 10) (Table 2) (Supplementary Section 1.1). Quartz crystals predominantly have sutured boundaries as a result of dynamic recrystallization (Stipp et al., 2002). Muscovite crystals have a platy habit, are either interstitial to or occur as inclusions in quartz, and generally show preferred alignment. Muscovite is responsible for weak foliation in samples containing alkali feldspar. No relict sedimentary textures are preserved.
Figure 3. Endonyo Osunyai 2: (A) Lineated muscovite in quartz (PPL 2× horizontal field width 1.1 mm); (B) same as (A), quartz crystals show undulatory extinction and corrugated boundaries (XP); Engelosin 2: (C) flow-aligned microphenocrysts of sanidine (XP 4× horizontal field width 0.55 mm); (D) sub-parallel sanidine microphenocrysts and interstitial sericite with a silky texture (XP 2× horizontal field width 1.1 mm); Gol Mountains (PPP1): (E) randomly oriented muscovite included in and interstitial to quartz (XP 2× horizontal field width 1.1 mm); Gol Mountains (DDD1): (F) sub-parallel muscovite included in and interstitial to quartz (XP 2× horizontal field width 1.1 mm); Kelogi 10: (G) hornblende and aegirine (PPL 4× horizontal field width 0.55 mm); (H) plagioclase, quartz, hornblende, and aegirine (XP 4× horizontal field width 0.55 mm).
Engelosin
Geology
Engelosin is a 150 m-high, weathered and oxidized phonolitic volcanic neck north of Oittii (Figures 1b, 2C; Supplementary Figure 11) (Mollel and Swisher, 2012). Eroded clasts and detritus from this outcrop are believed to have drained into the Oldupai paleobasin in combination with input from other volcanic centers of the NVH (Hay, 1976; Dawson, 2008; Mollel and Swisher, 2012). Volcaniclastic phonolitic breccia, formed by calcrete cementation of talus fragments, blanket the unweathered parts of the volcanic neck (Figure 2D).
Petrography
Engelosin phonolite is green to gray, fine- to medium-grained, and exhibits a variety of porphyritic and vesicular textures. Previous studies show alkali feldspar (anorthoclase and sanidine), augite, nepheline, aegirine, analcime, titanite, and apatite as constituent minerals (Hay, 1976; Kyara, 1999; Mollel and Swisher, 2012). We identified several phenocrysts including sanidine, nepheline, augite, and titanite together with minor amounts of sericite as an alteration product of feldspars (Figures 3C,D; Supplementary Figure 12) (Table 2) (Supplementary Section 1.2). Oxide phases are readily visible under thin section. Based on textural and mineralogical differences among four samples, there is one flow-aligned variety and a second with a felty texture (Table 3).
Table 3. Textural data per magmatic sample.
Gol Mountains
Geology
The Gol Mountains refers to primarily metamorphic inselbergs that transition northwards into a mountain range. These inselbergs begin to outcrop ~4 km north of Engelosin and belong to the Mozambique Belt (Figures 1a,b). These outcrops represent a highly deformed complex that is typical of mobile belts (Figure 2E) (Scoon, 2018). The lithologies include limestones, schists, gneisses, quartzites, and migmatites (Cahen and Snelling, 1966; Cahen et al., 1984), which are occasionally oxidized and capped by calcretes. During the wet season, many inselbergs are drained by streams capable of transporting clasts several kilometers away (Supplementary Figure 13A). The local roads are sometimes bordered by lustrous phyllite which originates from a northern source according to local Maasai knowledge.
One of the most iconic inselbergs of the Gol Mountains is Soit Nasera (Figure 1b) (Scoon, 2018), a 350 m-high quartz-feldspathic monolith that is complexly deformed, faulted, exfoliated, varnished, and contains quartz veins and feldspar (Figure 2F). West and south of Soit Nasera are a variety of other inselbergs and low-lying outcrops composed of meta-granites and quartzites (Figure 1b; Supplementary Figures 13C,E,F). A total of nine samples from the Gol Mountains were analyzed in this study (Supplementary Figure 3) (Table 1; Supplementary Table 1).
Petrography
Previous studies reported quartzite at Olongojoo and near Soit Nasera but no detailed descriptions are available (Hay, 1976; Mehlman, 1977; Blumenschine et al., 2008; Reti, 2013). Accessory minerals present in coarse- and medium-grained quartzites include muscovite, alkali feldspar, and rutile (Table 2) (Supplementary Section 1.3). Quartz crystals exhibit sutured boundaries. Muscovite occurs as variably-sized platy crystals that are either interstitial to or included in quartz, and have either a random distribution or exhibit parallel lineation (Figures 3E,F). Muscovite crystals are responsible for weak foliation in one sample. Two samples show rutile concentrations or heavy mineral accumulations, likely a function of the original sedimentary protolith. Alkali feldspar and rutile are rare, but the overall mineralogy is consistent with a sandstone protolith although no relict sedimentary textures are preserved.
Meta-granites contain quartz, alkali feldspar, biotite, hornblende, plagioclase, rutile, and muscovite (Table 2) (Supplementary Section 1.3). All samples show hypidiomorphic textures. Quartz crystals show weak undulatory extinction and one sample contains granophyric intergrowths with alkali feldspar. Biotite, hornblende, and opaque crystals are responsible for the spotted and weakly foliated textures.
One sample of fine-grained leucocratic feldspar from Soit Nasera contains microcline, albite, hematite, opaque crystals, and sanidine (Table 2) (Supplementary Section 1.3). Similar rock types have been reported near Granite Falls but no petrographic descriptions are available (Hay, 1971, 1976).
One sample of fine-grained homeoblastic granofels contains hornblende, quartz, ilmenite, alkali feldspar, and plagioclase (Table 2) (Supplementary Section 1.3). Quartz crystals are generally euhedral with a granoblastic texture, and minor amounts are slightly deformed. SEM-EDS and EPMA analysis confirmed the presence of hornblende, quartz, and plagioclase, and allowed the identification of opaque crystals seen under thin section as ilmenite (Supplementary Figures 14, 15). This sample was collected in a seasonal stream channel draining Olongojoo (Figure 1b; Supplementary Figure 13A) which suggests that granofelsic rocks are present at this inselberg in addition to quartzite (Hay, 1976; Blumenschine et al., 2008).
Granite Falls
Geology
Granite Falls comprise metamorphosed granitic lithologies that underlie the sedimentary units in the western Oldupai paleobasin (Hay, 1976). The outcrop is partly exfoliated, faulted, and varnished while the joints trend east-west (Figure 4A; Supplementary Figures 16A,B). The Oldupai River flows through Granite Falls during the wet season depositing igneous and metamorphic clasts (Supplementary Figures 16C,D).

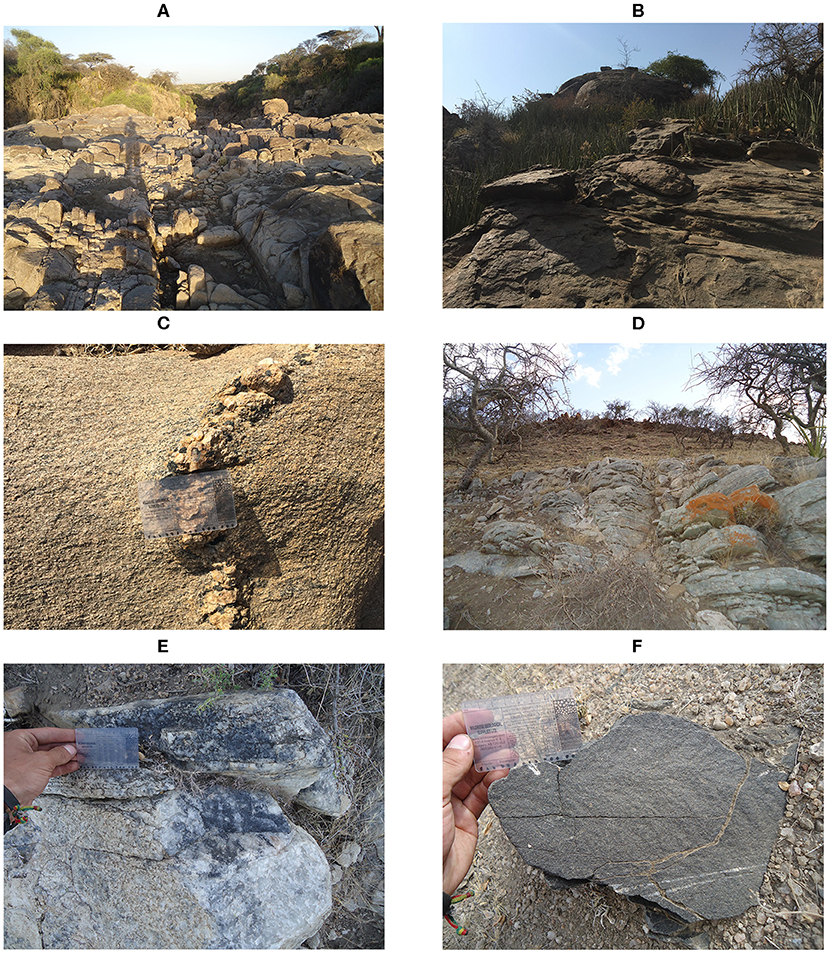

Figure 4. Granite Falls: (A) View east showing jointed granite gneiss forming the riverbed of the seasonal Olduvai River; Kelogi: (B) complexly deformed, weathered, and varnished granite gneiss; (C) close-up of a quartz and mafic vein; Naibor Soit Kubwa: (D) quartzite with foliation planes dipping west overlain by gneiss outcrops; (E) magnetite-rich quartzite on the eastern side of the inselberg; (F) portion of the amphibolite dyke with sub-parallel quartz veins.
Petrography
Hay (1976) reported quartz, microcline, plagioclase, biotite, and muscovite in gneiss rocks from this outcrop. Granite gneiss samples analyzed in this study contain quartz, alkali feldspar, biotite, muscovite, and plagioclase (Table 2) (Supplementary Section 1.4). Some thin sections have granoblastic textures while others are highly deformed. One sample contained deformed quartz with crack-seal structures filled by muscovite microveins. Muscovite predominantly occurs as platy crystals that are either interstitial to or included in other crystals. Biotite is the defining foliation mineral.
One sample of nephelinite recovered from the riverbed (Supplementary Figure 16C) is inequigranular and contains nepheline, aegirine-augite, and sanidine microphenocrysts which are included in a flow-aligned light-brown groundmass (Tables 2, 3) (Supplementary Section 1.4). This sample originates from Sadiman based on mineralogical similarities (Zaitsev et al., 2012).
One sample of quartzite discovered in the riverbed (Supplementary Figure 16D) is weakly foliated with a heteroblastic texture, and has a mineral assemblage of quartz and rare muscovite (Table 2) (Supplementary Section 1.4). Quartz crystals have sutured boundaries. Muscovite crystals are either interstitial to or inclusions in quartz, have a parallel lineation, and are occasionally lozenge-shaped with fragment trails. This sample's source is unknown and does not resemble quartzites from Naisiusiu.
Kelogi
Geology
Kelogi refers to a series of northeast-southwest trending granite gneiss inselbergs west of the Side Gorge (Figure 1b). The outcrops are distributed over ~2 km and are complexly deformed, faulted, exfoliated, varnished, and contain quartz and mafic veins occasionally oriented perpendicular to weak foliation planes (Figures 4B,C; Supplementary Figure 17). Kelogi clasts and detritus contributed to sedimentary infill of the Oldupai paleobasin (Hay, 1976).
Petrography
Previous studies of granite gneiss have reported quartz, orthoclase, albite, aegirine, hornblende, biotite, and garnet (Hay, 1976; Kyara, 1999). Medium- to fine-grained granite gneiss samples analyzed in this study contain quartz, aegirine, plagioclase, hornblende, alkali feldspar, hematite, titanite, biotite, and zircon (Table 2) (Supplementary Section 1.5). Quartz crystals are anhedral and commonly show undulatory extinction. Hornblende and aegirine define foliation resulting in a gneissose texture (Figures 3G,H; Supplementary Figure 18). Zircons were identified under SEM-EDS and EPMA (Supplementary Figures 19, 20).
One quartzite sample in secondary position is fine-grained, and has a mineral assemblage of quartz, staurolite, muscovite, kyanite, ilmenite, zircon, and apatite (Figures 5A,B) (Table 2) (Supplementary Section 1.5). Quartz crystals are anhedral and show undulatory extinction. Muscovite and kyanite crystals are either interstitial to or occur as inclusions in quartz, and have a parallel lineation. SEM-EDS and EPMA analysis allowed the identification of zircon and apatite, and helped identify opaque crystals seen under thin section as ilmenite (Figures 6A,B; Supplementary Figures 21, 22). This sample originates from either Endonyo Okule or Naisiusiu based on mineralogical similarities (see section Quartzites) (Hay, 1976: Table 6).
Figure 5. Kelogi 9: (A) Quartz, staurolite, muscovite, and kyanite (PPL 4× horizontal field width 0.55 mm); (B) similar to (A) note the fine-grained texture (XP 2× horizontal field width 1.1 mm); Naibor Soit Kubwa 33: (C) sub-parallel muscovite crystals included in and interstitial to quartz (XP 2× horizontal field width 1.1 mm); (D) magnetite crystal with dark metallic luster and a dendritic habit (PPL 40× horizontal field width 0.055 mm); Naibor Soit Kubwa 28: (E) foliation defined by hornblende (PPL 2× horizontal field width 1.1 mm); (F) plagioclase crystal with characteristic polysynthetic twinning surrounded by quartz and epidote (XP 10× horizontal field width 0.22 mm); Naibor Soit Ndogo 13 (thin section damaged during preparation): (G) pale green fuchsite crystals and colorless muscovite included in and interstitial to quartz (PPL 2× horizontal field width 1.1 mm); (H) same as (G) note the platy habit of fuchsite and muscovite (XP).

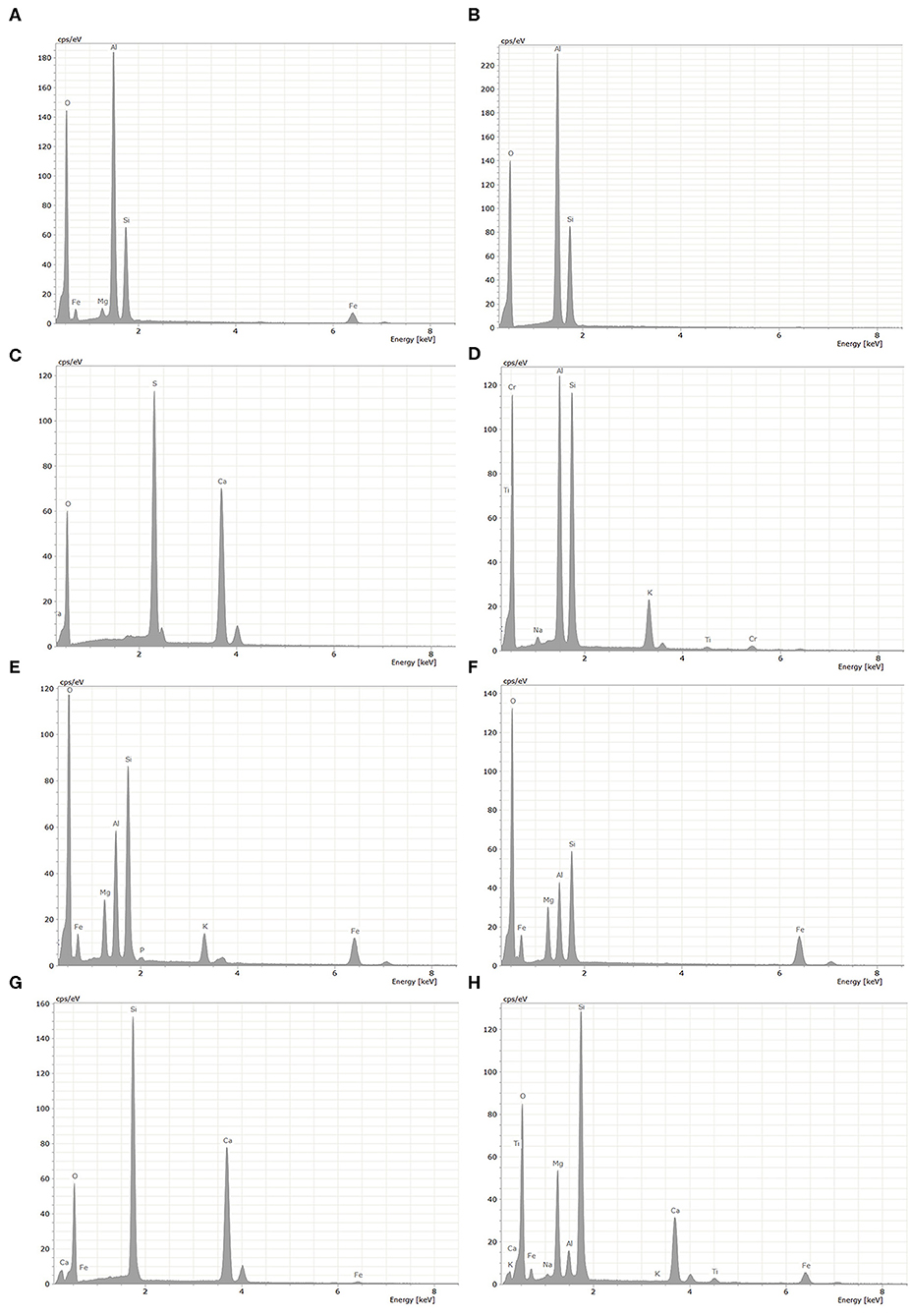

Figure 6. X-ray spectra (EDS) of minerals obtained using EPMA: (A) Staurolite and (B) kyanite in Kelogi 9; (C) anhydrite in Naibor Soit Kubwa 6; (D) fuchsite in Naibor Soit Ndogo 13; (E) biotite in Naisiusiu 4; (F) glauconite in Naisiusiu 7; (G) wollastonite in A1A; (H) kaersutite in A6. Refer to Table 2 and Supplementary Section 1 for additional sample information. Refer to Supplementary Figures 22, 27, 33, 37, 39, 46, 49 for unclipped spectra.
Naibor Soit Kubwa
Geology
Naibor Soit Kubwa is a ~1.8 km-long, northwest-southeast trending quartzitic and gneissic inselberg west of Naibor Soit Ndogo (Figure 1b). Most of the foliation planes dip northwest, west, or southwest (Figures 4D,E; Supplementary Figure 23). The outcrop principally consists of coarse- to medium-grained varieties of white, gray, orange, pink, red, and green quartzites that are occasionally oxidized and capped by calcretes (Supplementary Figure 23). The inselberg's clasts and detritus contributed to sedimentary infill of the Oldupai paleobasin (Hay, 1976). Protruding through the top of the inselberg in the northwestern sector is a prominent amphibolite dyke with sub-parallel quartz veins (Figure 4F; Supplementary Figures 23E,F). The northern and western sides of the outcrop bear sand deposits. The northern deposits are aeolian and originate from nearby barchan (mafic) sand dunes that travel westward according to prevailing winds (Hay, 1976). The western deposits are a combination of mafic sands and felsic erosional by-products from the outcrop.
Petrography
Previous studies have identified gneiss and coarse-grained quartzite with rare muscovite (Hay, 1976; Kyara, 1999; Tactikos, 2005; McHenry and de la Torre, 2018). Accessory minerals present in coarse- to fine-grained quartzites include muscovite and rutile, and rare hematite, fuchsite, magnetite, and anhydrite (Figures 5C,D, 6C; Supplementary Figures 24–27) (Table 2) (Supplementary Section 1.6). Quartz crystals typically display sutured boundaries. Muscovite crystals are either interstitial to or included in quartz, and predominantly show parallel to sub-parallel lineation. Muscovite crystals are responsible for foliated quartzites. Rare occurrences of fuchsite, a chromium-rich variety of muscovite, occur as small crystals that are either interstitial to or included in quartz. Hematite is commonly interstitial to quartz. The mineral assemblages of quartzite are consistent with a sandstone protolith and one sample preserved a relict sedimentary texture (Supplementary Section 1.6). Anhydrite crystals are present which may be of evaporitic origin.
Fine-grained gneissose (defined by hornblende) quartz amphibolite was sampled from a previously unrecorded meta-mafic dyke cross-cutting the quartzite-dominated inselberg (Figure 4F; Supplementary Figures 23E,F). The mineral assemblage of hornblende, epidote, quartz, opaque crystals, plagioclase, and calcite (Figures 5E,F; Supplementary Figure 28) (Table 2) (Supplementary Section 1.6) is typical of a basaltic protolith metamorphosed into amphibolite. Metamorphic processes may have impacted surrounding quartz-rich lithologies which may explain the high proportion of quartz and the presence of foliation-parallel quartz veins (Figure 4F).
Naibor Soit Ndogo
Geology
Naibor Soit Ndogo is a ~1 km-long, northwest-southeast trending quartzitic inselberg east of Naibor Soit Kubwa (Figure 1b). The westernmost quartzites have foliation planes that steeply dip south and southwest while the easternmost foliation planes steeply dip southwest and west (Figure 7A; Supplementary Figure 29). The outcrop principally consists of coarse- to medium-grained varieties of white, orange, pink, and green quartzites that are occasionally oxidized (Figure 7B; Supplementary Figure 29). The easternmost outcrops bear evidence of heat-induced staining (Supplementary Figure 29D).
Figure 7. Naibor Soit Ndogo: (A) View west toward Naibor Soit Kubwa showing quartzite foliation planes steeply dipping south; (B) fuchsite-bearing quartzite on the southern side of the inselberg; Naisiusiu: (C) quartzitic (foreground) and meta-granitic (background) lithologies on the northern side of the outcrop; (D) mica schist overlain by quartzite with foliation planes dipping southeast; Oittii: (E) view west toward Naibor Soit Kubwa showing quartzite foliation planes dipping north; (F) east-west trending steeply dipping mica schist with harmonic folding; Olbalbal: (G) panoramic view northwest toward Oldupai Gorge's First Fault.
Petrography
Previous studies have identified coarse-grained quartzite with a mineral assemblage of quartz and rare muscovite (Leakey, 1965; Hay, 1976; Kyara, 1999; Santonja et al., 2014; Bello-Alonso et al., 2020). Accessory minerals present in coarse-grained quartzites include muscovite, rare fuchsite, rutile, hematite, and anhydrite (Figures 5G,H, 6D; Supplementary Figures 30–33; Table 2; Supplementary Section 1.7). Quartz crystals typically display sutured boundaries. Muscovite occurs as platy crystals that are either interstitial to or included in quartz. Muscovite crystals generally have a parallel to sub-parallel lineation and are responsible for weak foliation in some samples. Muscovite crystals are occasionally lozenge-shaped with fragment trails, and form bookshelf-sliding microstructures. Rare occurrences of fuchsite occur as small crystals that are either included in quartz or interstitial (Figures 5G,H; Supplementary Figure 30). Rutile is a rare accessory mineral and hematite generally occurs interstitial to quartz. The mineral assemblages are suggestive of a sandstone protolith although no relict sedimentary textures are preserved.
Naisiusiu
Geology
Naisiusiu is a low-lying, east-west trending quartzitic, schistose, and meta-granitic outcrop ~3 km southeast of Granite Falls (Figures 1b, 6C,D; Supplementary Figure 34). The quartzite and schists have foliation planes dipping south. The top and northern sides of the outcrop show greater exposure than the southern and eastern sides likely resulting from mining activities (Supplementary Figure 34A). The outcrop principally consists of medium-grained varieties of white, gray, red, and purple quartzites interlayered by mica schist (Figures 7C,D; Supplementary Figures 34E,F) along with meta-granitic bodies with uncertain structural relationships to the former.
Petrography
Previous studies on quartzite have identified quartz, microcline, muscovite, garnet, kyanite, and staurolite (Hay, 1976; Kyara, 1999; Tactikos, 2005; McHenry and de la Torre, 2018). Coarse- to fine-grained quartzites have diverse mineral assemblages, but are mostly dominated by quartz, biotite, muscovite, opaque crystals, hematite, and calcite (Table 2) (Supplementary Section 1.8). Quartz crystals show undulatory extinction. Muscovite crystals have a platy habit, are either interstitial to or inclusions in quartz, and have a parallel to random lineation (Figures 8A,B; Supplementary Figure 35). Some samples show variably-sized quartz grains, quartz overgrowths, and interstitial cement which suggest poorly-sorted sandstone protoliths. Biotite and chlorite are responsible for weak foliation in some samples. SEM-EDS and EPMA allowed the identification of biotite, potassium feldspar, plagioclase, albite, apatite, anhydrite, glauconite, secondary mica, tschermakite, and deeply-colored rutile (Figures 6E,F; Supplementary Figures 36–39).
Figure 8. Naisiusiu 14: (A) Quartz and muscovite (PPL 2× horizontal field width 1.1 mm); (B) same as (A) quartz crystals show undulatory extinction and sutured boundaries (XP); Oittii 1A: (C) large idioblastic rutile crystals (PPL 2× horizontal field width 1.1 mm); (D) same as (C) quartz crystals show undulatory extinction, and muscovite crystals are fragmented and have a random lineation (XP); A6: (E) kaersutite crystals included in a felty groundmass (PPL 4× horizontal field width 0.55 mm); (F) same as (E) note the distinctive red kaersutite crystals (XP).
Previous studies on granite gneiss have identified quartz, microcline, plagioclase, aegirine, hornblende, titanite, and biotite as mineral constituents (Hay, 1976; Kyara, 1999). Here, we identified quartz, alkali feldspar, plagioclase, biotite, and hornblende in one sample of medium- to fine-grained meta-syeno-granite with a hypidiomorphic texture (Table 2). Quartz crystals are anhedral and show undulatory extinction. Opaque crystals are responsible for this rock's spotted texture.
One sample of medium- to fine-grained mica schist contains muscovite, quartz, biotite, and plagioclase (Table 2). The texture is primarily lepidoblastic but partly decussate. Muscovite crystals are responsible for the foliated texture. This rock type can be found overlain by quartzite (Figure 7D; Supplementary Figures 34E,F).
One sample of nephelinite recovered on the surface of the outcrop contains nepheline, aegirine-augite, sanidine, and hornblende microphenocrysts included in a flow-aligned brown-gray groundmass with devitrified glass and minor amounts of oxides (Tables 2, 3). SEM-EDS and EPMA allowed the identification of potassium feldspar, secondary quartz, apatite, and ilmenite (Supplementary Figures 40, 41). This sample originates from Sadiman based on mineralogical similarities (Zaitsev et al., 2012).
Oittii
Geology
Oittii is a low-lying, quartzitic and schistic outcrop north of Naibor Soit Ndogo (Figure 1b). The metamorphosed outcrop contains east-west trending quartzites with foliation planes dipping north, north-south trending steeply-dipping quartzites, and east-west trending steeply-dipping mica schist with harmonic folding (Figures 7E,F; Supplementary Figure 42). The outcrop principally consists of coarse-grained gray quartzites that are highly oxidized, and large numbers of fragmented rocks suggest recent mining activities.
Petrography
Previous studies have identified mica schist and quartzite but no petrographic descriptions are available (Leakey, 1965; Jones, 1994; Kyara, 1999). Accessory minerals present in coarse- to fine-grained quartzites include muscovite, alkali feldspar, hematite, rutile, and plagioclase (Figures 8C,D; Supplementary Figure 43; Table 2; Supplementary Section 1.9). Quartz crystals occasionally have sutured boundaries. Muscovite crystals display a platy habit, are either interstitial to or included in quartz, and show a sub-parallel to random lineation. Rare hematite crystals are generally interstitial to quartz. The mineral assemblages are consistent with a sandstone protolith, but no relict sedimentary textures are preserved.
Olbalbal
Geology
Olbalbal is a fault graben located between Ngorongoro/Olmoti and Oldupai's First Fault (Figures 1b, 7G; Supplementary Figure 44), and was formed between 1.3 and 0.6 Ma as a result of regional tilting and faulting events (Hay, 1976; Foster et al., 1997; Mollel and Swisher, 2012). Olbalbal may be considered as a temporally constrained secondary source of raw materials and is the present-day drainage sump of the Oldupai River and the northwestern NVH. Four magmatic samples recovered in secondary position were analyzed for this study (Table 1).
Petrography
Sample A1 is a nephelinite and contains nepheline phenocrysts and lesser amounts of aegirine-augite, hornblende, and titanite included in a dark-brown groundmass (Table 2) (Supplementary Section 1.10). The phenocrysts and groundmass are weakly aligned. SEM-EDS and EPMA analysis allowed the identification of titanoaugite, wollastonite, apatite, calcic plagioclase, and Cl-bearing silicates (Figure 6G; Supplementary Figures 45, 46). This sample can be sourced to Sadiman and would be categorized as Zaitsev et al.'s (2012) “Rock type II” based on the presence of wollastonite.
The non-diagnostic mineral assemblages for the three remaining samples (A2, A5A/B, and A6) hindered satisfactory classification (Table 2) (Supplementary Section 1.10). In these samples, oxides are common and together with the presence of secondary carbonate crystals are, in part, indicative of seasonal exposure to inundation regimes typical of Olbalbal (Supplementary Figure 44B).
Sample A2 is an inequigranular, flow-aligned, porphyritic basalt with plagioclase (20%), opaque crystals (1%), augite (1%), and olivine (1%) phenocrysts included in a trachytic light-gray plagioclase-rich groundmass. Plagioclase phenocrysts are occasionally zoned and have a glomerophyric texture. Olivine phenocrysts are occasionally altered evidenced by internal cracks filled with opaque material.
Sample A5A/B is a flow-aligned, porphyritic basalt with plagioclase (1%) and augite (<1%) phenocrysts included in a trachytic light-gray plagioclase-rich groundmass. Vesicles are occasionally filled with secondary micritic carbonate crystals that precipitated from seasonal standing water rather than having crystallized from molten-carbonate magma.
Sample A6 was identified as a trachyandesite/basalt from Olmoti based on the presence of kaersutite (Figures 8E,F; Supplementary Figure 47) (Mollel, 2002; Mollel et al., 2009). This sample is vesicular, felty, and contains plagioclase (1%), kaersutite (1%), augite (<1%), alkali feldspar (<1%), pyroxene (<1%), ilmenite (<1%), and magnetite (<1%) microphenocrysts included in a felty light-gray groundmass. SEM-EDS and EPMA analysis confirmed the presence of kaersutite, potassium feldspar, pyroxene, ilmenite, and magnetite (Figure 6H; Supplementary Figures 48, 49).
There are a minimum of four varieties of igneous rocks that can be found at Olbalbal (Tables 2, 3), including phenocryst-rich nephelinite sourced from Sadiman, two basaltic varieties with different amounts of plagioclase, and kaersutite-bearing trachyandesite/basalt sourced from Olmoti.
Inter-Outcrop Comparative Analyses OF Quartzites and Meta-Granites
Quartzites and meta-granites form the most abundant raw materials in the outcrops described in this study. These lithologies show variations in modal mineralogy and texture that may be used to group them into distinct varieties. The following sections describe the quartzite and meta-granite varieties deemed archaeologically relevant for sourcing.
Quartzites
From the 16 quartzite varieties, two co-occur at two outcrops (Tables 2, 4):
(1) Variety 8 from Naibor Soit Ndogo is a coarse-grained fuchsite-bearing quartzite. Similar modal percentages of quartz, muscovite, fuchsite, rutile, and opaque crystals can also be found at Naibor Soit Kubwa in Variety 6. The presence of fuchsite at both outcrops is unique compared to all sampled outcrops in the Oldupai paleobasin, while the presence of magnetite is unique to quartzite from Naibor Soit Kubwa. Samples classified in Variety 6 and 8 fall within our previously established Raw Material Group Green 1 (Soto et al., 2020a).
Six other quartzite varieties uniquely occur at an individual outcrop (Tables 2, 4):
(2) Variety 2 is a coarse-grained alkali feldspar-bearing quartzite from Endonyo Osunyai. The modal percentages of quartz (~80%) and alkali feldspar (10–15%) are unique to this outcrop.
(3) Variety 5 is a coarse- to fine-grained muscovite-rich quartzite from Naibor Soit Kubwa. The modal percentages of quartz (70%) and muscovite (~30%) are unique to this outcrop.
(4) Variety 10 is a medium- to fine-grained quartzite from Naisiusiu. The polymineralic assemblage including biotite, Cr-bearing rutile, albite, and tschermakite are unique to this outcrop.
(5) Variety 11 is a coarse- to fine-grained quartzite from Naisiusiu. The polymineralic assemblage including chlorite, calcite, and glauconite are unique to this outcrop.
(6) Variety 14 is a coarse- to medium-grained alkali feldspar-bearing quartzite from Oittii. The modal percentages of quartz (85%), muscovite (10–15%), and alkali feldspar (~1–5%) are unique on a local scale. Similar modal percentages of quartz, muscovite, and alkali feldspar can also be found in Variety 3 from the Gol Mountains.
(7) Variety 16 is a fine-grained staurolite-kyanite-bearing quartzite that was found in secondary position at Kelogi (Tables 2, 4). The presence of staurolite and kyanite match published descriptions for quartzites from Endonyo Okule and Naisiusiu (Hay, 1976: Table 6) (Supplementary Table 4). Therefore, it may be inferred that this sample was transported in recent times to Kelogi from either Endonyo Okule or Naisiusiu (Figure 1b).

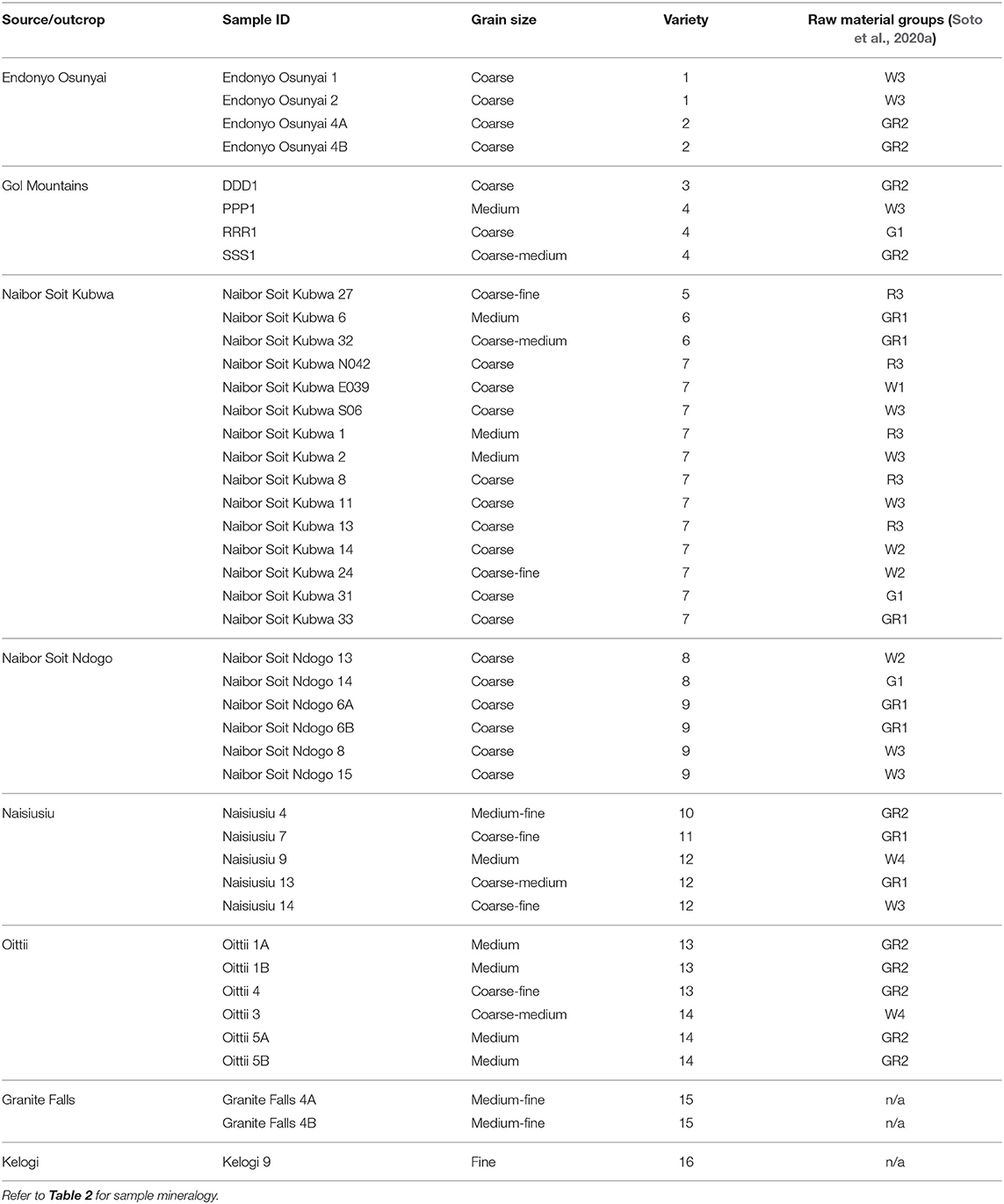

Table 4. Quartzite varieties.
Although quartzitic outcrops adjacent to Oldupai have similar mineral facies (Tables 2, 4), the results of this comparative analysis suggest that five outcrops contain six varieties of quartzites with unique mineral assemblages, and one pair of outcrops share fuchsitic quartzites (Figure 9a). The mineralogically defined petrographic varieties do not overlap with our previously established Raw Material Groups (Table 4) (cf. Soto et al., 2020a), which highlights the importance of systematic and multi-scalar characterization of reference collections to determine the potential source of lithics.
Figure 9. (a) Intra-outcrop quartzite varieties in the Oldupai Gorge region. Refer to Figure 1b for outcrop names. Refer to section Quartzites. and Table 4 for additional details; (b) Intra-outcrop meta-granite varieties in the Oldupai Gorge region. Refer to Figure 1b for outcrop names. Refer to section Meta-Granites and Table 5 for additional details.
Meta-Granites
All seven intra-outcrop varieties are differentiable from one another (Tables 2, 5):
(1) Variety 1 is a medium-grained meta-monzo-granite from the Gol Mountains. The presence of rutile allows for its differentiation from Variety 2 which is from the same outcrop. The modal percentages of quartz (45%), alkali feldspar (40%), and the absence of muscovite and hornblende allow for its differentiation from all other varieties.
(2) Variety 2 is a medium- to fine-grained meta-quartz-rich granitoid from the Gol Mountains. The modal percentage of hornblende (6%) relative to quartz (60%) and alkali feldspar (20%) allow for its differentiation from all other varieties.
(3) Variety 3 is a medium-to fine-grained meta-quartz-rich granitoid from the Gol Mountains. The modal percentages of quartz (70%) and biotite (10%) allow for its differentiation from all other varieties.
(4) Variety 4 is a medium- to fine-grained granite gneiss from Granite Falls. The modal percentages of muscovite (5–8%) allow for its differentiation from all other varieties.
(5) Variety 5 is a medium-grained aegirine-bearing granite gneiss from Kelogi. The modal percentages of aegirine (20%) and plagioclase (12–15%) allow for its differentiation from Variety 6, also from Kelogi, and from all other varieties.
(6) Variety 6 is a medium- to fine-grained granite gneiss from Kelogi. The polyminerallic assemblage including titanite and zircon, and the modal percentages of plagioclase (25%), quartz (25%), and hornblende (20%) allow for its differentiation from all other varieties.
(7) Variety 7 is a meta-syeno-granite from Naisiusiu. The modal percentages of opaque crystals (7%), biotite (2%), and hornblende (1%) allow for its differentiation from all other varieties.

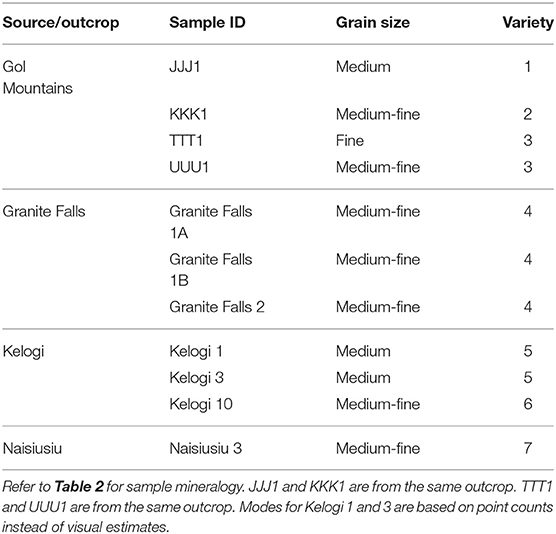

Table 5. Meta-granite varieties.
Despite the fact that meta-granitic outcrops in the greater Oldupai region have similar mineral facies (Tables 2, 5), the results of this comparative analysis reveal that five outcrops contain seven varieties with unique mineral assemblages (Figure 9b).
Archaeological Applications
While not all known metamorphic, igneous, or sedimentary sources/outcrops have been characterized in this study (Figure 1b), inferences may be drawn concerning hominin raw material transport based on available macroscopic descriptions compared with our mineralogical data. Leakey (1994) noted the discovery of a single double-edged heavy-duty scraper on green quartzite from JK W within Bed III's fine-grained ferruginous sands. According to tabulated data for Bed II's HWK EE and EF-HR lithic assemblages, there are three (55.8 g) and two (13.2 g) lithics, respectively, manufactured from green quartzite (McHenry and de la Torre, 2018: Table 5). The green color of these artifacts most likely stem from the presence of fuchsite. Fuchsite is only present in quartzites from Naibor Soit Kubwa and/or Naibor Soit Ndogo (Variety 6/8) (Tables 2, 4) and therefore it may be inferred as the source/s where hominins procured green quartzite (Figure 10). This inference implies that fuchsite-bearing quartzitic outcrops were accessible at the time of hominin site occupation which correlates with basin-wide paleogeographic trends for Bed II and III (Hay, 1976). Furthermore, it may be suggested that both Oldowan (HWK EE) and Acheulean (JK W and EF-HR) tool-making hominins, possibly of different biological taxa (but see de la Torre and Mora, 2014; Domínguez-Rodrigo et al., 2014), exploited the same outcrops at different times for raw materials.
Figure 10. Fuchsitic quartzites are unique to Naibor Soit Kubwa and Naibor Soit Ndogo (see Tables 2, 3). Therefore, it can be inferred that green quartzite artifacts from HWK EE (Oldowan) (McHenry and de la Torre, 2018: Table 5), as well as EF-HR and JK W (Acheulean) (Leakey, 1994; McHenry and de la Torre, 2018: Table 5) were sourced from Naibor Soit Kubwa and/or Naibor Soit Ndogo. Sites after Hay (1976).
The discovery of hornblende granofels lithologies recovered in secondary position south of Olongojoo (Figure 1b; Supplementary Figure 13A) (Table 1) is noteworthy as it implies that there are unmapped and/or buried granofelsic outcrops that may grade into the epidote-amphibolite facies in a similar fashion to Naibor Soit Kubwa (see section Naibor Soit Kubwa) and Isilale Aratum (Hay, 1976). This finding relates to Oldupai's archaeology as gabbroic rocks can metamorphose into hornblendic granofels (Bucher and Grapes, 2011). This may imply that the single “altered but unmetamorphosed” (Hay, 1976, p. 185) gabbro artifact recovered from HWK in Lower Bed II may have been sourced from the Gol Mountains which are geographically closer to HWK than the Tanzania Craton (Figures 1a,b).
Conclusions
In this study, we synthesized existing descriptions with new petrographic data from several outcrops near Oldupai Gorge. By characterizing the range and variability of lithic raw materials that were available to Pleistocene hominins, we have demonstrated that there are unique mineralogical identifiers even among similar lithologies. More specifically, the comparative analyses of quartzites reveal as many as six distinguishable varieties with unique mineral assemblages, and two outcrops share fuchsitic quartzites (Variety 6/8). The identification of these mineralogically defined petrographic varieties (Table 4) through systematic analysis of our reference collection confirms that sourcing quartzite lithics from Oldupai may be best accomplished using a combination of techniques headlined by geochemical and petrographic testing (Soto et al., 2020a,b). For example, one quartzite sample recovered in secondary position at Kelogi has a mineral assemblage characterized by staurolite and kyanite. This sample's unique mineralogy (Figure 1b) matches published data for quartzites from Endonyo Okule and Naisiusiu (Hay, 1976: Table 6). The results of the comparative analysis among meta-granites reveal that five outcrops contain seven unique varieties. Although this study has been primarily focused on characterizing metamorphic lithologies, magmatic samples were also collected in primary positions at Engelosin, and in secondary positions at Granite Falls, Naisiusiu, and Olbalbal (Figure 1b) (Table 1). These samples include phonolite, nephelinite, and basaltic rocks that are all distinguishable from each other based on mineralogy and texture (Tables 2, 3), and those recovered in secondary position may be sourced to their volcanic center by referencing previously published mineralogical data (Supplementary Table 4). Overall, our results suggest the feasibility of sourcing certain varieties of quartzites, meta-granites, phonolites, nephelinites, and occasionally, basalts based on mineralogy. The unique mineralogy that serve to distinguish raw material sources may be reflected in the bulk chemical composition of these samples. Archaeological comparisons to our open-access reference collection can now be undertaken.
Data Availability Statement
All datasets for this study are included in the article and the Supplementary Materials, and these can also be found at the Federated Research Data Repository (https://www.frdr.ca/repo/handle/10.20383/101.0185).
Author's Note
A preprint of this article is available with the Open Science Framework (https://doi.org/10.31219/osf.io/s2vgr).
Author Contributions
JF, MS, RN, PB, SC, PD, SH, and JM contributed to the conception, design, implementation, and funding of this study. JF, MS, JI, MI, FL, PL, AM, RP, and LT carried out field data collection. JF, MS, RN, CD, and RM analyzed the data. JF, MS, RN, PD, and JM wrote the manuscript. All authors revised the manuscript and approved the submitted version.
Funding
This work was supported by the Canadian Social Sciences and Humanities Research Council under its Partnership Grant Program no. 895-2016-1017.
Conflict of Interest
The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
Acknowledgments
JF acknowledges that the datasets analyzed for this study and portions of this manuscript were originally presented in the form of a Master's Thesis at the University of Calgary (Favreau, 2019). These data can be accessed through the Federated Research Data Repository (10.20383/101.0153) and the Open Science Framework (10.31219/osf.io/ap8sh). The Tanzania Commission for Science and Technology authorized this work under permit no. 2018-112-NA-2018-36. The Tanzanian Ministry of Natural Resources and Tourism, through its Antiquities Division, granted permission to carry out this work (14/2017/2018). The Ngorongoro Conservation Area allowed us to enter the conservation area (BE.504/620/01/53). The export license for the materials presented herein was granted by both the Antiquities Division (EA.150/297/01: 5/2018/2019) and the Tanzanian Executive Secretary of the Mining Commission (00001258). The Stone Tools, Diet, and Sociality project recognizes the essential contributions of the Maasai community at Oldupai Gorge who was instrumental to this study. We thank the reviewers and Associate Editor whose feedback enhanced the quality of this manuscript.
Supplementary Material
The Supplementary Material for this article can be found online at: https://www.frontiersin.org/articles/10.3389/feart.2020.00158/full#supplementary-material
