Mg and Li Stable Isotope Ratios of Rocks, Minerals, and Water in an Outlet Glacier of the Greenland Ice Sheet

Hindshaw, Ruth S.; Rickli, Jörg; Leuthold, Julien

doi:10.3389/feart.2019.00316

ORIGINAL RESEARCH article

Front. Earth Sci., 29 November 2019

Sec. Geochemistry

Volume 7 - 2019 | https://doi.org/10.3389/feart.2019.00316

This article is part of the Research Topic Novel Isotope Systems and Biogeochemical Cycling During Cryospheric Weathering in Polar Environments View all 10 articles

Mg and Li Stable Isotope Ratios of Rocks, Minerals, and Water in an Outlet Glacier of the Greenland Ice Sheet

$\nRuth S. Hindshaw$ Ruth S. Hindshaw¹^*

Jörg Rickli²

Julien Leuthold²

¹Department of Earth Sciences, University of Cambridge, Cambridge, United Kingdom
²Department of Earth Sciences, Institute of Geochemistry and Petrology, ETH Zurich, Zurich, Switzerland

Magnesium and lithium stable isotope ratios (δ²⁶Mg and δ⁷Li) have shown promise as tools to elucidate biogeochemical processes both at catchment scales and in deciphering global climate processes. Nevertheless, the controls on riverine Mg and Li isotope ratios are often difficult to determine as a myriad of factors can cause fractionation from bulk rock values such as secondary mineral formation and preferential weathering of isotopically distinct mineral phases. Quantifying the relative contribution from carbonate and silicate minerals to the dissolved load of glacierized catchments is particularly crucial for determining the role of chemical weathering in modulating the carbon cycle over glacial-interglacial periods. In this study we report Mg and Li isotope data for water, river sediment, rock, and mineral separates from the Leverett Glacier catchment, West Greenland. We assess whether the silicate mineral contributions to the dissolved load, previously determined using radiogenic Sr, Ca, Nd, and Hf isotopes, are consistent with dissolved Mg and Li isotope data, or whether a carbonate contribution is required as inferred previously for this region. For δ⁷Li, the average dissolved river water value (+19.2 ± 2.5‰, 2SD) was higher than bedrock, river sediment, and mineral δ⁷Li values, implying a fractionation process. For δ²⁶Mg, the average dissolved river water value (−0.30 ± 0.14‰, 2SD) was within error of bedrock and river sediment and within the range of mineral δ²⁶Mg values (−1.63 to +0.06‰). The river δ²⁶Mg values are consistent with the mixing of Mg derived from the same mineral phases previously identified from radiogenic isotope measurements as controlling the dissolved load chemistry. Glacier fed rivers previously measured in this region had δ²⁶Mg values ~0.80‰ lower than those measured in the Leverett River which could be caused by a larger contribution from garnet (−1.63‰) dissolution compared to Leverett. This study highlights that dissolved Mg and Li isotope ratios in the Leverett River are affected by different processes (mixing and fractionation), and that since variations in silicate mineral δ²⁶Mg values exist, preferential weathering of individual silicate minerals should be considered in addition to carbonate when interpreting dissolved δ²⁶Mg values.

1. Introduction

Chemical weathering in glacierized regions results in water with a chemical composition distinct to that originating from non-glacierized regions (e.g., Tranter, 2003). Glacial erosion produces fine grained sediments that, combined with high discharge conditions during the melt season, leads to the preferential weathering of mineral phases such as calcite, sulfide, and biotite, resulting in elevated Ca and K concentrations (Anderson et al., 1997; Blum and Erel, 1997; Tranter et al., 2002). Glacial runoff can contain elevated concentrations of key nutrients such as iron (Raiswell et al., 2006; Bhatia et al., 2013; Hawkings et al., 2014), phosphorus (Hawkings et al., 2016), and silica (Meire et al., 2016; Hawkings et al., 2017) and therefore has a direct impact on the adjacent fjord environment (Wehrmann et al., 2014; Hopwood et al., 2015) and potentially the wider ocean.

Understanding how glaciation alters chemical fluxes and the underlying chemical weathering reactions is important for understanding how weathering reactions changed during glacial-interglacial cycles (Vance et al., 2009; AMAP, 2017; Hawkings et al., 2017). If calcite and sulfide weathering dominate fluxes in glacial catchments, as concluded from studies of alpine glaciers, then these areas would not contribute to long-term removal of CO₂, and may even be a source (Sharp et al., 1995; Torres et al., 2017). However, recent studies of ice sheets, in particular from outlet glaciers of the Greenland Ice Sheet, indicate that silicate weathering is dominant (Graly et al., 2014; Hindshaw et al., 2014; Andrews and Jacobson, 2018) and therefore large-scale glaciation could contribute to the drawdown of atmospheric CO₂ over geological timescales (Walker et al., 1981; Berner et al., 1983).

A first estimate of the relative contributions of carbonate and silicate weathering to dissolved fluxes can be done by applying an end-member mixing analysis to major ion concentrations, utilizing “ideal” end-members (e.g., Gaillardet et al., 1999). However, this method is particularly problematic in glacierized catchments due to weathering incongruency (net effect of dissolution and precipitation/adsorprtion reactions both with respect to bulk rock and with respect to individual minerals), ion exchange and adsorption reactions which occur in glacial streams characterized by high sediment loads and dilute solute concentrations (e.g., Tranter, 2003). For example, the use of end-member ion ratios such as Ca/Na to calculate the relative proportions of carbonate and silicate weathering could overestimate the carbonate contribution if the preferential release of Ca from individual silicate minerals is not accounted for (Oliva et al., 2004; Hindshaw et al., 2011). Isotope tracers (stable and radiogenic) have been developed in recent decades to refine the apportioning of carbonate and silicate weathering in catchment studies (e.g., Blum et al., 1994; Bullen and Bailey, 2005; Nezat et al., 2010; Sullivan et al., 2016).

Magnesium (Mg) and lithium (Li) isotopes have shown promise at tracing weathering sources and processes (Tomascak et al., 2016; Teng, 2017) and have both been applied to study glacial weathering in the Kangerlussuaq area of West Greenland (Figure 1, Wimpenny et al., 2010, 2011). Magnesium is the 5th most abundant element in the continental crust (MgO = 3.7 wt.%, Wedepohl, 1995) and it is intimately coupled to the carbon cycle through the formation of magnesium carbonates (Berner et al., 1983). Carbonate δ²⁶Mg values (−6 to 0‰) tend to be lower than silicate rocks (−1 to +2‰) potentially enabling the partitioning of carbonate and silicate weathering (Teng, 2017). However, Mg isotopes are also fractionated during secondary clay formation and biological processes (Tomascak et al., 2016). Lithium is a trace element predominantly hosted in silicate rocks (Huh et al., 1998) and as a consequence, Li isotopes have the potential to be a tracer of silicate weathering (e.g., Misra and Froelich, 2012). In natural systems secondary mineral formation and/or adsorption onto particles imparts a large (often >10‰) fractionation and biological processes have minimal impact (e.g., Pistiner and Henderson, 2003; Vigier et al., 2008; Clergue et al., 2015). It is therefore hypothesized that the Li isotopic composition of rivers provides information on the balance between dissolution of primary (silicate) minerals and secondary mineral formation occurring in a catchment (e.g., Dellinger et al., 2015). Waters draining from the Greenland ice sheet were found to have lower δ²⁶Mg values compared to suspended sediment and this was attributed to disseminated carbonate weathering (Wimpenny et al., 2011). The δ⁷Li values were higher than suspended sediment and the authors concluded this was due to adsorption to subglacially formed amorphous iron hydroxides (Wimpenny et al., 2010). Nevertheless, mineral separates to constrain local end-members were not analyzed, which leads to an element of uncertainty in source apportionment.

FIGURE 1

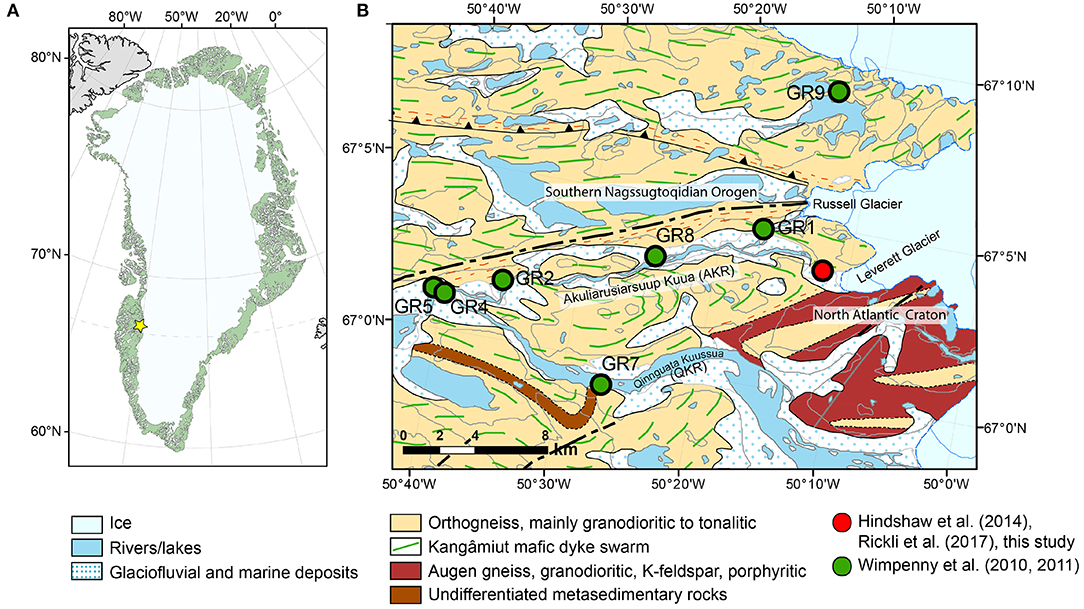

Figure 1. (A) The study site is indicated by a yellow star. (B) Geological map of the Kangerlussuaq area of West Greenland. The location of the time series of water samples from the river draining Leverett Glacier analyzed in this study is marked as a red circle. River sediment and rock samples were also collected at this location. The water samples with a glacier contribution, bedload, suspended sediment, and bedrock samples analyzed by Wimpenny et al. (2010, 2011) are marked as green circles together with their sample names (GR1–GR9). Watson River refers to the river after the confluence of the Qinnguata Kuussua and Akuliarusiarsuup Kuua rivers. Geological basemap from Geological Survey of Denmark and Greenland, and Ministry of Mineral Resources under the Government of Greenland. Datum and projection: WGS84 UTM Zone 24N.

Research on the δ²⁶Mg values of mineral separates has demonstrated variation in δ²⁶Mg values which in some cases overlaps with the δ²⁶Mg range in carbonate rocks (−5.57 to −0.38‰, Teng, 2017), e.g., biotite (−0.40 to +0.44‰, Shen et al., 2009; Liu S.-A. et al., 2010; Ryu et al., 2011), chlorite (−1.82 to +0.40‰, Ryu et al., 2011; Pogge von Strandmann et al., 2015; Chapela Lara et al., 2017), clinopyroxene (−0.62 to +0.43‰, Pogge von Strandmann et al., 2011; Wang et al., 2012, 2014; Hu et al., 2016; Li et al., 2016; Chen et al., 2018; Stracke et al., 2018), and garnet (−1.96 to −0.37‰, Wang et al., 2012, 2014; Pogge von Strandmann et al., 2015; Hu et al., 2016; Li et al., 2016; Stracke et al., 2018). Within single rock samples, resolvable variation has also been observed e.g., 1.5‰ between chlorite and hornblende in granite (Ryu et al., 2011). This silicate mineral source variation in δ²⁶Mg has only recently begun to be acknowledged as a source of variation in river δ²⁶Mg values (Chapela Lara et al., 2017; Kimmig et al., 2018). Given that recent studies of chemical weathering in the Kangerlussuaq area of West Greenland have stressed the role of silicate weathering (Wimpenny et al., 2011; Andrews and Jacobson, 2018), we wanted to test whether silicate mineral variation in δ²⁶Mg values could also account for low δ²⁶Mg values in river samples from this area. There is less data on Li isotope variation between minerals (Teng et al., 2006; Pogge von Strandmann et al., 2011; Penniston-Dorland et al., 2017; Neukampf et al., 2019) but variation has been reported where there is a difference in coordination number (~3‰, Wunder et al., 2007) and in field sites with a history of magmatic differentiation (−8 to +17‰, Marks et al., 2007). Dissolved δ⁷Li values may therefore also be impacted by variations in silicate mineral isotopic compositions, particularly when the geology of the catchment is heterogeneous.

Previous work on water draining the Leverett Glacier, an outlet glacier in the Kangerlussuaq area (Figure 1), used Ca, Sr, Nd, and Hf data of water, rock, and mineral separates to constrain chemical weathering reactions contributing to the dissolved load (Hindshaw et al., 2014; Rickli et al., 2017). Our aim in this study was to analyse mineral separates, bulk rock samples, sediments, and water samples for δ²⁶Mg and δ⁷Li in order to test whether the dissolution of silicate minerals previously identified as controlling the dissolved load composition in this catchment were consistent with dissolved δ²⁶Mg and δ⁷Li values from this region or whether a carbonate contribution to dissolved δ²⁶Mg is indeed required.

2. Field Site

Leverett Glacier is a land-terminating outlet glacier of the Greenland Ice Sheet situated on the west coast of Greenland ~ 25 km east of Kangerlussuaq (Søndre Strømfjord, Figure 1). Together with Russell Glacier to the north these two glaciers form one of three subcatchments of the Watson River with a combined area of 900 km² (Lindbäck et al., 2015). Bartholomew et al. (2011) estimated the hydrological catchment of Leverett Glacier to be 600 km². The largest subcatchment (11,100 km²) is the Ørkendalen subcatchment to the south containing the Qinnguata Kuussua River (QKR). The third subcatchment (Point 660) lies to the north of Russell Glacier and has an area of 40 km². Water draining Point 660 catchment feeds into water draining Russell Glacier. Approximately 19 km upstream from Kangerlussuaq this water merges with the Leverett River to form the Akuliarusiarsuup Kuua River (AKR). Unlike Leverett River, which has a single subglacial portal, the river draining past Russell Glacier has several inputs of water sourced from both non-glacial lakes and sub-glacial sources (Rennermalm et al., 2012). The watershed areas referred to above are the maximum summer extent as the catchment area grows and shrinks each melt-season in line with the expansion and contraction of the subglacial drainage network (Chandler et al., 2013). In addition, there is water piracy where the catchment areas and positions change with subglacial water pressure (Lindbäck et al., 2015). In 2009, the melt season was ~115 days long at Leverett and a peak discharge of 317 m³ s⁻¹ was measured on 16th July (Bartholomew et al., 2011).

Leverett Glacier drains distinct tectonic units of Precambrian age (Figure 1). To the north of Leverett is the Southern Nagssugtoqidian Orogen, which is composed of re-worked epidote amphibolite to amphibolite facies basement tonalitic to granodioritic orthogneiss (Escher, 1971; Van Gool et al., 2002). The orthogneisses were intruded by the 2.04 Ga Kangâmiut mafic dyke swarm (Cadman et al., 2001), now forming amphibolite lenses, with deformation increasing toward the north (Van Gool et al., 2002; Engström and Klint, 2014). To the south of Leverett is the North Atlantic Craton, composed of granulite-facies granodioritic augen orthogneiss and paragneiss locally (Escher et al., 1976; Henriksen et al., 2000). The augen orthogneiss was intruded by late Archaean felsic intrusions (45 km south of the Leverett Glacier) related to the Qôrqut granite (ca. 2.5 Ga, Escher et al., 1976; Nutman et al., 2010). See Brown et al. (1981) for a petrographic description of the Qôrqut granite. The exact boundary between the above-described tectonic units underneath the Greenland ice sheet is unknown.

The area experiences an Arctic climate with a mean annual temperature (2001–2011) of −3.9°C (Hanna et al., 2012). There are strong seasonal variations in temperature: the mean temperatures in winter and summer are −16.1 and +10.3°C, respectively (Hanna et al., 2012). The region receives relatively little precipitation [258 ± 63 mm (2001–2012), (Mernild et al., 2015)] and annual evapotranspiration exceeds annual precipitation (Johansson et al., 2015). In the non-glacierized area, permafrost is continuous with an active layer thickness of 0.1–2.5 m (Van Tatenhove, 1996).

3. Methods

3.1. Water Samples

The Leverett River was sampled twice a day from 5 July to 1 August 2009 at 67°03.755′N, 50°11.874′W. The sampling location was ~1 km downstream from the glacier front (Figure 1). At this location there was no braiding in the river channel and the water was turbulent. Therefore, we assume that the river was well-mixed and samples taken at the edge of the river are representative of bulk river water chemistry. Temperature and pH were measured in situ (Hanna HI 98160 pH meter). Water samples were collected in a bucket previously rinsed with river water and filtered on the day of collection through 0.2 μm nylon filters using a Nalgene filtration unit connected to a hand pump. Filtered samples were stored in pre-cleaned HDPE bottles and acidified to pH 2 with single-distilled concentrated HNO₃. Discharge was measured as described in Bartholomew et al. (2011). In terms of the number of days, the sampling campaign covered 24% of the 2009 melt-season and in terms of water flux it covered 45% of the total of that year.

The hydrology and chemistry of the Leverett River during the 2009 melt-season have previously been reported (Bartholomew et al., 2011; Hindshaw et al., 2014; Rickli et al., 2017) and the main results are summarized here. The hydrology was typical for a glacierized catchment with strong seasonal variation. Before June discharge was <6 m³/s and rapidly increased to a maximum of 317 m³/s on 16 July before decreasing again (Bartholomew et al., 2011). The sampling season was divided into three periods based on changes in hydrochemistry (Hindshaw et al., 2014). Immediately prior to the sampling period there was a spike in discharge linked to the sudden drainage of supraglacial lakes (Figure 2, Bartholomew et al., 2011). This pulse of water coincided with high pH, suspended sediment and ion concentrations. The first period (P1) was defined as the period from the start of measurements to the end of the marked decrease in element (Figure 2) and suspended sediment concentrations. The second period (P2) was characterized by increasing discharge and decreasing ⁸⁷Sr/⁸⁶Sr values. During this period the subglacial drainage system was expanding. The third period (P3) was characterized by decreasing discharge with a diurnal cycle. During P2 and P3 element concentrations were relatively stable (Figure 2). High radiogenic Sr and Ca isotope ratios at the start of the sampling period were interpreted to reflect flushed out water stored over winter with ions derived from chlorite and feldspar weathering. As the melt-season progressed and the subglacial drainage system expanded, the relative contribution of unradiogenic trace minerals such as epidote was inferred to increase as water-rock residence time decreased, resulting in the observed decrease in radiogenic Sr and Ca isotope ratios (Hindshaw et al., 2014). For this study a subset of ten samples were selected for isotope analyses covering all three hydrological periods (Figure 2). Samples were selected to coincide with those already measured for Ca and Sr isotopes. We focussed in particular on P2 where the subglacial drainage system expands and where a decrease in ⁸⁷Sr/⁸⁶Sr from 0.745 to 0.741 was interpreted to represent a change in the relative contribution of different mineral weathering reactions to the dissolved load (Hindshaw et al., 2014).

FIGURE 2

Figure 2. Time series. From top to bottom: Mg concentration, δ²⁶Mg, Li concentration, δ⁷Li and discharge. White circles are samples analyzed for this study and black circles are time series data from Hindshaw et al. (2014). The blue band marks the fourth outburst event of 2009 which coincided with the drainage of a supraglacial lake (Bartholomew et al., 2011). The green lines mark indicate divisions between three hydrological periods (P1, P2, and P3) identified by Hindshaw et al. (2014) based on changes in hydrochemistry. P1 is influenced by the outburst event, P2 is the rising limb of the hydrograph, and P3 the falling limb.

Wimpenny et al. (2010, 2011) collected their glacial samples between 11 and 14 July 2006 but discharge data was not reported. Discharge data from the Watson River at Kangerlussuaq shows that during this period discharge was increasing and comparable to the form of the hydrograph in 2009 for the same time period (van As et al., 2017). Both years had similar total water flux: 5.4 ± 2.9 km³ in 2006 and 4.9 ± 0.9 km³ in 2009, and peak flux: 1,690 ± 1,190 m³ s⁻¹ in 2006 and 1,430 ± 210 m³ s⁻¹ in 2009 (van As et al., 2017). Therefore, these samples were likely collected when discharge conditions resembled those of P2 and we can assume that the hydrological conditions during the two studies are comparable.

3.2. Rock, Sediment, and Mineral Separates

Four rock samples representing the dominant rocks types on the north side of Leverett Glacier (Southern Nagssugtoqidian Orogen, Figure 1) were collected and described in Hindshaw et al. (2014) and Rickli et al. (2017). These rock samples were two orthogneisses and two amphibolites and were located within 1 km of where the water samples were taken. In addition, two bulk samples of river sediment were analyzed. These samples were analyzed in this study for Mg and Li isotopes.

A sample of augen gneiss from the North Atlantic Craton (Figure 1) collected 20 km southwest of Leverett (50.338066 W, 66.894928 N) by the Geological Survey of Denmark and Greenland (GEUS) was analyzed in Rickli et al. (2017) where this sample was referred to as “Archaean granite.” Rickli et al. (2017) concluded, based on Nd isotope data, that the contribution of gneiss from the North Atlantic Craton to the dissolved load of Leverett River was negligible and therefore this rock was not analyzed for Li and Mg isotopes (see further discussion in section 5.3).

Rock samples were washed, weathered surfaces removed with a diamond saw and crushed using a jaw crusher. A portion of each rock sample and all of the other solid samples were ground to a fine powder using a rotary disc mill with an agate grinding set for further analysis. The remainder of the rock samples were ground to <1,000 μm and mineral separates were obtained from the <425 μm fraction using heavy liquids, magnetic separation and hand-picking.

Two river sediments (Sed1 and Sed2, Table 1) were collected from the riverbank, and can therefore be considered comparable to the bedload samples reported in Wimpenny et al. (2010, 2011).

TABLE 1

Table 1. Magnesium and lithium concentrations and isotope ratios of rocks, mineral separates, and river sediment samples.

Mineral abundances were obtained by point counting on thin section (rock samples) and EPOXY mounts (sediments) microphotographs combined with scanning electron microscope (SEM) back-scattered images (Hitachi S-3500N microscope equipped with Thermo Noran energy dispersive spectrometer at the University of Bristol) and element maps.

The primary rock forming minerals in the orthogneiss samples (Ro2 and Ro4) are K-feldspar (24–43 wt.%), plagioclase (21–49 wt.%), and quartz (22–27 wt.%). These rocks also contain chlorite (2–7 wt.%) and minor (<3 wt.%) epidote, titanite, zircon, hornblende, and apatite (Rickli et al., 2017). In both orthogneisses, chlorite and epidote replaced biotite during green schist metamorphism. The garnet amphibolite rock sample Ro1 is primarily composed of hornblende (71 wt.%), plagioclase (11 wt.%), and quartz (8 wt.%) together with lesser amounts of garnet (5 wt.%), titanite (3 wt.%), and magnetite (2 wt.%) (Rickli et al., 2017). Amphibolite Ro3 contains hornblende (47 wt.%), clinopyroxene (24 wt.%), plagioclase (15 wt.%), and scapolite (10 wt.%) and trace minerals are epidote (3 wt.%) and titanite (<1 wt.%) (Rickli et al., 2017). Although the alteration of plagioclase to Ca-rich carbonate was observed in the orthogneiss samples (Ro2 and Ro4, Hindshaw et al., 2014) through saussuritization, the presence of Mg-bearing carbonate minerals was not detected in SEM chemical maps of the Leverett catchment rocks and sediments. For this study minerals with high Mg concentration were selected for analysis: garnet, hornblende, clinopyroxene, and chlorite.

The mineralogy of sediment samples reflected a mixture of gneiss and amphibolite and contained plagioclase (39–44%), quartz (33–37%), K-feldspar (7–16%), hornblende (7–11%), garnet (2–4%), clinopyroxene (<3%), and minor (<2%) apatite, biotite, chlorite, epidote, ilmenite, orthopyroxene, magnetite, titanite, and zircon (Rickli et al., 2017).

Approximately 0.2 g of each rock powder or sediment sample and 0.02 g of each mineral were digested in a mixture of concentrated, single-distilled HNO₃, HCl, and HF. The solution was repeatedly dried down and redissolved until clear and was finally redissolved in 2% HNO₃ for cation analysis.

3.3. Concentration Analysis

Magnesium concentrations in water, rock, and mineral separate samples were measured by inductively-coupled plasma optical emission spectrometry (ICP-OES, Vista-MPX, Varian Inc., USA at ETH Zurich) as described and reported in Hindshaw et al. (2014). The Mg concentration of the water standard SLRS-4 (National Research Council Canada) was 1,686 ± 40 μg L⁻¹ (2SD, n = 7) compared to a recommended value of 1,600 μg L⁻¹ (Yeghicheyan et al., 2007). Magnesium concentrations of minerals in rocks were additionally determined using a Cameca SX100 electron microprobe analyser (EMPA) at University of Bristol and a JEOL JXA-8200 EPMA at ETH Zurich, with a 15 kV accelerating voltage and a beam current of 20 nA. Natural and synthetic silicates and oxides were used as standards and the error on concentration measurements was typically less than 2%. Lithium concentrations were measured by ICP-OES. The Li concentration of the water standard SLRS-4 (National Research Council Canada) was 0.56 ± 0.03 μg L⁻¹ (2SD, n = 6) compared to a recommended value of 0.54 μg L⁻¹ (Yeghicheyan et al., 2007).

3.4. Isotope Analysis

An aliquot of each sample, corresponding to ~ 15 ng Li was dried down in a teflon beaker. The solid residue was re-dissolved in concentrated HNO₃, dried down again and re-dissolved in 0.4 M HCl for column chemistry. The first column contained 1 mL Bio-Rad AG 50W-X12 200-400 mesh resin. In the first column the sample was eluted in 0.4 M HCl and the first 15 of 50 mL containing Li and Na were collected. The Mg cut was then collected in 15 mL 1 M HCl. For rocks and mineral samples, a 0.5 M HF step was inserted prior to the 0.4 M HCl elution step in order to elute Al, Ti, and Zr (Tipper et al., 2008). The Mg cut from the first column pass was passed through the column a second time and Mg was collected in a small volume of 6 M HCl in order to minimize procedural blanks (Tipper et al., 2008). Lithium was purified from the Li-Na cut using a column containing 3 mL Bio-Rad AG 50W-X12 200–400 mesh resin, eluting with 0.2 M HCl (James and Palmer, 2000; Hindshaw et al., 2018). Standards were processed in an identical manner to samples.

Both isotope systems were measured on a Neptune Plus MC-ICP-MS (Thermo, University of Cambridge) using an APEX sample introduction system. Magnesium isotopes were run at 100 ppb and Li at 5 ppb. Magnesium and Li were standard-sample bracketed to DSM3 and L-SVEC (NIST RM 8545), respectively. For each isotope system mono-elemental secondary standards were analyzed: ⁶Li-N and ⁷Li-N for Li, and “Cambridge1” and “Zurich1” for Mg. The values obtained for these standards are reported in Table 2 and are in agreement with previously reported values (Tipper et al., 2006, 2012b; Carignan et al., 2007; Millot et al., 2010; Wimpenny et al., 2014). Seawater (OSIL IAPSO batch P157) was processed identically to the water samples and gave values of δ²⁶Mg = –0.81 ± 0.11 (2SD, n = 5) and δ⁷Li = +31.4 ± 0.4 (2SD, n = 3), in agreement with both our long-term values for this standard (δ²⁶Mg = –0.80 ± 0.11, 2SD, n = 25; δ⁷Li = +30.8 ± 1.1, 2SD, n = 45) and literature values (δ²⁶Mg = –0.83‰, Teng et al., 2015; δ⁷Li = +30.8‰, Rosner et al., 2007). The synthetic water standard CCS2 (Tipper et al., 2008) and USGS granite G-2 were measured for Mg isotopes giving values of −2.70 ± 0.14 (2SD, n = 13) and −0.05 ± 0.13 (2SD, n = 5) compared to the respective literature values of −2.71 ± 0.07‰ (Tipper et al., 2008) and −0.15 ± 0.07‰ (Teng et al., 2015). Lithium isotope measurements of USGS granite G-2 were +0.9 ± 1.0‰ (2SD, n = 6) compared to literature values of +0.1 ± 1.8‰ (Barnes et al., 2012), +0.1 ± 0.8‰ (Phan et al., 2016), and +0.3 ± 1.9‰ (Liu X.-M. et al., 2010). The long-term 2SD values from measurements of seawater standards (δ⁷Li = ±1.1‰, δ²⁶Mg = ±0.11‰) are used as a measure of the overall uncertainty of the analytical procedure and is indicated on all figures.

TABLE 2

Table 2. Major cation (Hindshaw et al., 2014) and isotopic composition of Leverett River water samples in 2009.

4. Results

4.1. Rock and Mineral Separates

The range in isotope values of the four bulk rock samples is δ²⁶Mg = –0.20 to +0.09‰ and δ⁷Li = +5.0 to +8.3‰ (Table 1). The isotopic compositions of the amphibolite samples (Ro1 and Ro3) overlap with those of the orthogneiss samples (Ro2 and Ro4) for δ⁷Li and δ²⁶Mg. For Li, the range in bulk rock δ⁷Li values agrees with the range measured by Wimpenny et al. (2010) for rocks from the Southern Nagssugtoqidian Orogen in the Kangerlussuaq region (+5.8 to +10.4‰, Figure 1, 3).

FIGURE 3

Figure 3. Range of magnesium (A) and lithium (B) isotope values measured in the rocks, mineral separates, and river water of the Leverett Glacier catchment. Mineral abbreviations are: Grt, garnet; Hbl, hornblende; Chl, chlorite; Cpx, clinopyroxene. The fraction of the element contained in each mineral (Table 1) is indicated by the size of the square. Also shown are data from Wimpenny et al. (2010, 2011) which were collected in the same region, but not the same outlet glacier (Figure 1). The vertical dotted lines depict the normal mantle value for Mg (–0.25‰, Teng et al., 2010) and the upper mantle value for Li (+4‰, Teng et al., 2004). The dash-dot lines indicate average upper continental crust values for Mg (–0.22‰, Li et al., 2010) and Li (+0.6‰, Sauzéat et al., 2015).

The river sediment sample Sed1 has a δ⁷Li value of +4.9‰ (Table 1) which is at the lower end of the range measured in bulk rock samples from this study and bedload samples (+4.8 to +6.9‰) measured by Wimpenny et al. (2010) (Figure 3). For Mg, the δ²⁶Mg values of the river sediment samples (–0.33 and –0.48‰, Table 1) are in the same range as bedload samples reported in Wimpenny et al. (2011) (–0.43 to –0.53‰), but are lower than the rock samples from this study (Figure 3). Based on the major element composition and plagioclase chemistry of the river sediment samples, it was determined that of the two observed orthogneiss varieties (pink and gray), gray orthogneisses like Ro4 have a dominant contribution to the sediment load (Hindshaw et al., 2014). This conclusion is supported by the fact that for both Li and Mg, rock Ro4 is closest in isotope composition to the river sediment (Figure 3). The lower δ²⁶Mg value of the river sediment samples compared to Ro4 is likely due to the contribution of garnet (2–4%, Rickli et al., 2017) which is not present in Ro4 and is derived from the amphibolite rocks.

The measured Mg concentrations in the minerals obtained by ICP-OES agree well with the analysis of those same minerals by microprobe (Table 1). Two exceptions are K-feldspar in Ro2, where the Mg concentration obtained by ICP-OES is over ten times greater than the microprobe measurement and chlorite in Ro4, where the Mg concentration obtained by ICP-OES is half the microprobe measurement. We note that the isotope and concentration values reported by ICP-OES are unlikely to reflect the pure mineral phase as they will also include a contribution from inclusions and/or trace amounts of other minerals not removed during hand-picking. Both discrepancies are likely caused by the alteration of K-feldspar to chlorite (Garrels and Howard, 1957) making it difficult to separate these minerals during hand-picking. Based on a mass balance calculation, nearly all the Mg and Li in Ro1 is contained in hornblende (>96%) whereas in Ro3 both clinopyroxene and hornblende host these elements (Table 1). In the orthogneiss samples the largest fraction of Mg and Li in Ro4 is in chlorite (96 and 66%, respectively) and chlorite is also the primary host of Mg in Ro2 (86%). Lithium in Ro2 is mainly contained in K-feldspar (including any potential inclusions) (64%, Table 1) and the remaining Li is in chlorite (36%, Table 1).

The mineral separates display a large range in δ²⁶Mg from –1.63‰ in garnet (Ro1) to +0.06‰ in hornblende (Ro3, Table 1). The range in δ²⁶Mg is comparable to that found within mineral separates from a granodiorite from Boulder Creek, USA (1.53‰, Ryu et al., 2011). Taking all the mineral separates together, hornblende has higher δ²⁶Mg values compared to chlorite (Figure 3), consistent with mineral separate data reported by Ryu et al. (2011) but in contrast to Chapela Lara et al. (2017) who observed that chlorite had higher δ²⁶Mg values than both pyroxene (by ~0.2‰) and amphibole (by ~0.5‰), though they note that the amphiboles were heavily altered. Garnet had lower δ²⁶Mg values compared to clinopyroxene (Figure 3), consistent with previous studies (Wang et al., 2012, 2014; Hu et al., 2016; Li et al., 2016). A large inter-mineral range is also observed in δ⁷Li values from +3.2‰ in chlorite (Ro4) to +12.1‰ in hornblende (Ro3, Table 1). As for Mg isotopes, hornblende mineral separates have higher δ⁷Li values compared to chlorite mineral separates (Figure 3), in agreement with Marks et al. (2007).

4.2. Hydrochemistry

Similar to Ca and Sr concentrations, Mg and Li concentrations are highest at the start of the sampling period (Mg 0.6 mg/L and Li 1.3 μg/L) and rapidly decrease over a period of 4 days (Figure 2, Hindshaw et al., 2014). After the initial decrease, concentrations are stable (Mg ~0.2 mg/L and Li ~0.6 μg/L) with a diurnal cycle (Table 2). The stable isotope values of the water samples range from δ²⁶Mg = –0.15 to –0.38‰ and δ⁷Li = +17.8 to +21.5‰ and no obvious temporal trend is observed in either Li or Mg isotope values despite the aforementioned changes in concentrations and subglacial drainage conditions (Figure 2, Table 2). Despite the proximity of Leverett Glacier to the sampling locations in Wimpenny et al. (2010, 2011) (Figure 1), the Li and Mg isotope values for the water samples in this study are distinct, having lower δ⁷Li and higher δ²⁶Mg values (Figure 3).

5. Discussion

5.1. Inter-mineral Isotope Variation

The range in δ²⁶Mg and δ⁷Li between all the mineral separates measured in the four rock samples is 1.69 and 8.8‰ respectively. Inter-mineral variations in isotope values have been attributed to equilibrium fractionation (Schauble, 2004, 2011; Wunder et al., 2007; Liu et al., 2018). Coordination number is the first order control: heavy isotopes are preferentially incorporated into sites with a low coordination number (CN) (Oi et al., 1989). Excluding garnet (see later), there is a statistically significant correlation between the δ²⁶Mg and δ⁷Li values of the measured minerals and bulk rock samples (R² = 0.67, p < 0.01, Figure 4). This trend is consistent with the similar chemical radii of the two elements such that Li can readily substitute for Mg and both elements will therefore likely experience similar bonding environments in a given mineral.

FIGURE 4

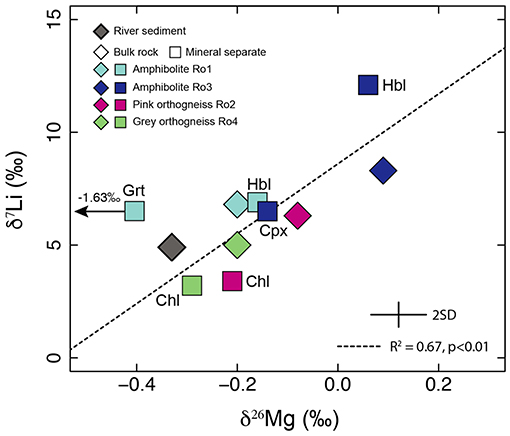

Figure 4. Excluding garnet, where Li and Mg may be held in sites with different coordination numbers, a positive relationship is observed between the δ²⁶Mg and δ⁷Li values of the rocks (diamonds) and mineral separates (squares). Mineral abbreviations are: Grt, garnet; Hbl, hornblende; Chl, chlorite; Cpx, clinopyroxene.

Based on equilibrium fractionation models at a range of temperatures relevant to weathering and igneous processes (273–2,000 K), the δ²⁶Mg and δ⁷Li values of garnet (CN = 8) are predicted to be lower (Schauble, 2011; Huang et al., 2013) compared to hornblende (CN = 6/5, Wunder et al., 2007) and for Mg isotopes this is what we observe (Figure 3). In contrast, the δ⁷Li value of garnet is not markedly lower than the other minerals as would be predicted if Li was in the dodecahedral site (e.g., Yang et al., 2009). Studies of lithium-rich synthetic garnets have demonstrated that Li can be contained in sites with CNs of 4 and 6 (Mazza, 1988; O'Callaghan et al., 2008; Cussen, 2010; Rettenwander et al., 2016). If this were true for natural garnets then the Li CN may be less than 8 accounting for the δ⁷Li value that is indistinguishable from the hornblende separate in the same rock (Ro1, Figure 4). The low δ²⁶Mg value of garnet, 1.34‰ lower than the δ²⁶Mg values for the other minerals (Figure 3), is consistent with data from clinopyroxene-garnet pairs where garnet always has lower δ²⁶Mg values compared to clinopyroxene (Huang et al., 2013; Stracke et al., 2018). The magnitude of the difference increases as metamorphism temperature decreases (Huang et al., 2013; Stracke et al., 2018). Therefore, the relatively large difference between garnet and clinopyroxene observed in this study is consistent with the relatively low temperatures of amphibolite facies metamorphism experienced by rocks of the Southern Nagssugtoqidian Orogen (Henriksen et al., 2000).

5.2. Assessment of External Inputs to the Dissolved Load

As the river emanates directly from the mouth of the glacier we consider vegetation (which in the wider field setting is sparse) to have negligible impact on biogeochemical processes at this field site and no vegetation samples were analyzed. In addition to water derived from subglacial weathering reactions, solutes could be derived from surficial inputs such as dust deposition and meteorological precipitation. It neither rained nor snowed during the duration of the sampling campaign. However, information on atmospheric deposition could be gained from supraglacial streams which are assumed to be the water source most likely to be influenced by atmospheric deposition (melting snow/ice and dust). Five supraglacial streams were sampled in Hindshaw et al. (2014) and were combined for analysis. The Mg concentration was <0.05 μmol L⁻¹ and the Li concentration was below the detection limit. The low concentration of Li and Mg in supraglacial streams implies that precipitation and dust are unlikely to affect subglacial river concentrations and isotope ratios. The effect of meteorological precipitation on Mg and Li isotope ratios can further be assessed by assuming that all Cl in the river is derived from seawater and correcting the isotope ratios according to the following equation:

\begin{array}{l} δ X^{*} = \frac{δ X_{r} \cdot X_{r} - ({(X / C l)}_{s w} \cdot C l_{r}) \cdot δ X_{s w}}{X_{r} - {(X / C l)}_{s w} \cdot C l_{r}} & (1) \end{array}

where subscripts r and sw stand for “river” and “seawater,” respectively and X is either Mg or Li. The corrected ratios are within experimental uncertainty of the uncorrected ratios (<0.04‰ and <0.05‰ difference for δ²⁶Mg and δ⁷Li , respectively). The negligible impact of meteorological precipitation is in agreement with Ca and Sr isotope data for this region (Hindshaw et al., 2014; Andrews and Jacobson, 2018). We therefore assume that the dominant solute source to the river is subglacial weathering reactions and as a result data was not corrected for additional precipitation inputs, consistent with Wimpenny et al. (2010, 2011).

5.3. Mineral Source Control on River Water Isotope Ratios

The Mg and Li stable isotope ratios of the dissolved load can reflect mixing between distinct solute sources and/or fractionation processes. We will examine each of these in turn.

Mixing between Mg derived from isotopically distinct silicate mineral sources has been observed in a variety of catchments (Chapela Lara et al., 2017; Kimmig et al., 2018). For Mg, the δ²⁶Mg isotope ratios of the Leverett River water samples are intermediate between the garnet (–1.63‰) and hornblende (+0.06‰). The δ²⁶Mg values measured in the river could therefore reflect mixing between different mineral sources. Previous work utilizing Ca and Sr isotope ratios concluded that for these elements, the primary mineral sources contributing to the dissolved load were minerals from orthogneiss Ro4: feldspar, chlorite, and epidote (Hindshaw et al., 2014). In addition, the weathering of garnet, titanite, hornblende, and apatite from Ro4 and other rocks was invoked to explain the radiogenic Hf and Nd isotope compositions in river water (Rickli et al., 2017).

In orthogneiss Ro4, Mg is primarily hosted in chlorite and the δ²⁶Mg value of this mineral separate (–0.29‰) is identical within error of the average river water (–0.30 ± 0.14‰, 2SD). However, the weathering of chlorite only is inconsistent with the ⁸⁷Sr/⁸⁶Sr river water data which indicate mixing with unradiogenic feldspar and epidote (Hindshaw et al., 2014). We have not measured the δ²⁶Mg values of feldspar and epidote from Ro4. We can estimate the δ²⁶Mg value of a combined feldspar-epidote fraction based on mass balance, but since the bulk rock δ²⁶Mg value (–0.20 ± 0.11‰) is within analytical uncertainty of the chlorite separate (–0.29 ± 0.11‰, Table 1), this calculation is poorly constrained. However, based on the observation that inter-mineral variation between minerals is minor when Mg is octahedrally coordinated (~0.06‰, Liu S.-A. et al., 2010), we infer that the Mg isotope composition of a combined epidote-feldspar fraction is close to that of chlorite and we assume the bulk rock value of –0.20‰ for this fraction. A mixing line in δ²⁶Mg vs. ⁸⁷Sr/⁸⁶Sr space between chlorite and “feldspar-epidote” passes through the river water sample points (Figure 5). Therefore, similar to radiogenic Sr and Ca (Hindshaw et al., 2014), the dissolved δ²⁶Mg values would be consistent with the dissolution of this group of minerals. However, we emphasize that the fraction of Mg hosted in plagioclase and epidote is low (4%, Table 1), and therefore these two minerals are expected to have a minor contribution to dissolved Mg. Further contributions from hornblende to the Mg budget in the river are likely based on the high fraction of Mg hosted in this mineral in the amphibolite rock samples (Table 1), high abundances of hornblende in catchment sediments (up to 9.5 vol.%, Rickli et al., 2017) and dissolved riverine Hf and Nd isotope compositions (Rickli et al., 2017). A contribution from hornblende would also be consistent with dissolved δ²⁶Mg and ⁸⁷Sr/⁸⁶Sr values since the range of δ²⁶Mg and ⁸⁷Sr/⁸⁶Sr values measured in hornblende separates encompasses those measured in the dissolved load (Figure 5).

FIGURE 5

Figure 5. δ²⁶Mg vs. ⁸⁷Sr/⁸⁶Sr. Previous work demonstrated the dominance of orthogneiss Ro4, in particular chlorite, feldspar, and epidote, to the dissolved and sediment load of the Leverett River (Hindshaw et al., 2014; Rickli et al., 2017). The mixing line between chlorite and feldspar/epidote in Ro4 is shown. The point where this line has the same ⁸⁷Sr/⁸⁶Sr value as the average of the river water samples (0.742435, Hindshaw et al., 2014) is defined as “Ro4-Leverett.” The garnet end-member is defined in Table 1. Two carbonate end-members are defined based on acetic acid leaches of a felsic (carbF) and a mafic (carbM) rock from Akuliarusiarsuup Kuua River (AKR) (Andrews and Jacobson, 2018) and a δ²⁶Mg carbonate value of –3.2‰ (Wimpenny et al., 2011). Mixing lines between Ro4-Leverett and carbonate (dashed lines) and Ro4-Leverett and garnet (solid line) are shown and assume congruent dissolution of each end-member. The numbers indicate the mass fraction of the garnet or carbonate end-member. Mineral abbreviations: Hbl, Hornblende; Chl, Chlorite; Cpx, Clinopyroxene; Grt, Garnet; Feld/Ep, K-feldspar, plagioclase, epidote mixture.

Minerals derived from augen gneiss (Figure 1) could also contribute to dissolved Mg and Li in the Leverett River. Mg- and Li-rich minerals in the augen gneiss sample analyzed by Rickli et al. (2017) are biotite and hornblende (both 3 wt.%). Biotite was inferred to contribute to the dissolved load chemistry of the Russell Glacier river (Andrews and Jacobson, 2018; Auqué et al., 2019) and is found in river sediments from the Leverett catchment (<1.4 wt.%, Rickli et al., 2017). Mineral separates of the augen gneiss were not obtained and given the spread of δ⁷Li and δ²⁶Mg in minerals from different rock samples is quite large (Figure 4), it is difficult to predict what the δ⁷Li and δ²⁶Mg values of the Mg- and Li- rich augen gneiss minerals would be. Therefore, an accurate assessment of their contribution to the dissolved Mg and Li load in Leverett must await further data. We note though that Andrews and Jacobson (2018) concluded, based on ⁸⁷Sr/⁸⁶Sr and major element data, that the waters draining Point 660 catchment [where Auqué et al. (2019) collected their samples] drained a distinctly different lithology to Leverett, with a greater proportion of K-feldspar and/or biotite weathering compared to plagioclase weathering. Therefore, the contribution of biotite weathering to the dissolved load of Leverett River is expected to be lower compared to Russell.

The δ²⁶Mg values of river water samples previously measured in this region (Figure 1) were also explained as arising from a mixture of different mineral sources (Wimpenny et al., 2011). In the following discussion this sample set will be referred to as “Wimpenny's samples.” In their study the authors suggested that low δ²⁶Mg values were arising from the presence of finely disseminated secondary carbonate in the catchment rocks. The presence of carbonate was not directly confirmed but was supported by elevated Ca/Na (up to 3.9 mol/mol) and Ca/Mg (up to 3.5 mol/mol) ratios in those water samples compared to a pure silicate end-member (Ca/Na = 0.5; Ca/Mg = 1.3, Wimpenny et al., 2011). Further, calcite has recently been detected in a glacier borehole sample from the AKR catchment (Figure 1, Harper et al., 2016) and the presence of disseminated calcite was inferred from element ratios of the fine fraction of till samples from north of Russell Glacier (Auqué et al., 2019). The estimated contribution of carbonate weathering to dissolved Mg was 2–7% (Wimpenny et al., 2011) and this estimate is consistent with other studies conducted in this region (Graly et al., 2014; Yde et al., 2014; Andrews and Jacobson, 2018).

We observe that the δ²⁶Mg values of Leverett River are ~0.82‰ higher compared to Wimpenny's samples. This offset could be due to a difference in the contribution of carbonate weathering to dissolved Mg. In the Leverett River samples the molar Ca/Na ratios in river water (0.59 to 0.98, Table 2) are lower than those reported by Wimpenny et al. (2011) (1.07–3.88). This together with the lack of Mg-carbonate phases detected in the Leverett catchment rock and sediment samples could suggest that the contribution of carbonate weathering is lower in Leverett compared to the surrounding region. Since carbonate has low δ²⁶Mg values (–5.57 to –0.38‰, Teng, 2017) compared to the silicate rocks in this study (–0.20 to +0.09‰, Table 1), a smaller carbonate contribution in Leverett compared to Wimpenny's samples would result in higher dissolved δ²⁶Mg values, as observed.

In addition to carbonate, garnet also has lower δ²⁶Mg values compared to bulk silicate rocks and all the water samples (Figure 3, Table 1). The weathering rate of garnet (almandine) is predicted to be about two orders of magnitude faster than epidote and chlorite at the pH of the river waters (Palandri and Kharaka, 2004, and references therein) and therefore it is plausible that the dissolution of this mineral could impact on the dissolved load Mg isotopic composition. The higher Ca/Na ratios in Wimpenny's samples could similarly be explained by increased weathering from silicate minerals with high Ca/Na ratios, such as garnet (Ca/Na molar ratio = 300), which are more abundant in the amphibolites compared to the orthogneisses (Table 1). Spatial differences in the relative contribution of garnet weathering may therefore also account for the difference in δ²⁶Mg values between the two datasets.

In order to test these two hypothesis (garnet and carbonate) we utilize ⁸⁷Sr/⁸⁶Sr ratios to assess if mixing between the proposed mineral sources fits the ⁸⁷Sr/⁸⁶Sr and δ²⁶Mg isotope data from the water samples (Figure 5). Wimpenny et al. (2011) did not analyse their samples for ⁸⁷Sr/⁸⁶Sr ratios, however data from similar sample sites along the AKR are available for 2014 and 2015 (Andrews and Jacobson, 2018). Compared to 2009, annual total and peak discharge were higher in 2014 and lower in 2015 (van As et al., 2017). No statistically significant change in ⁸⁷Sr/⁸⁶Sr ratios was observed during either melt season or between 2014 and 2015 at each site despite variations in discharge. Therefore, for the three sites common to both studies [GR1, GR2, GR8 in Wimpenny et al. (2011) and E, B, D in Andrews and Jacobson (2018)], we use the site-specific average ⁸⁷Sr/⁸⁶Sr value from 2014 and 2015. We assume that dissolved ⁸⁷Sr/⁸⁶Sr in Wimpenny's samples is controlled by the same reactions as inferred for Leverett, where minerals from orthogneiss Ro4 (chlorite, feldspar and epidote) appear to control the dissolved load composition. This assumption is supported by the overlapping range in ⁸⁷Sr/⁸⁶Sr ratios of AKR (0.7395–0.7462, sites E, B, D, Andrews and Jacobson, 2018) and Leverett water samples (0.7406–0.7455, Figure 5, Hindshaw et al., 2014).

We define one end-member (Ro4-Leverett) as the point where the feldspar/epidote—chlorite mixing line is at the average Leverett River ⁸⁷Sr/⁸⁶Sr ratio (0.742435, Hindshaw et al., 2014). We then assess the impact of mixing between Ro4-Leverett and solute sources with low δ²⁶Mg values: carbonate and garnet. There are no direct measurements of carbonate from this region, however Andrews and Jacobson (2018) performed an acetic acid leach of two rock samples (R05F and R05M) from the AKR catchment targeting carbonate. One sample was from a felsic rock (carbF, [Mg] = 141 mg/kg, [Sr] = 3.1 mg/kg, ⁸⁷Sr/⁸⁶Sr = 0.71558) and the other from a mafic rock (carbM, [Mg] = 107 mg/kg, [Sr] = 0.7 mg/kg, ⁸⁷Sr/⁸⁶Sr = 0.72240). No δ²⁶Mg values exist for these samples and we therefore apply the same δ²⁶Mg value (–3.2‰) that (Wimpenny et al., 2011) assumed for carbonate. The mixing lines indicate that additional weathering of either carbonate or garnet could account for the lower δ²⁶Mg values observed in Wimpenny's samples compared to Leverett (Figure 5). For mixing between Ro4-Leverett and carbonate, the dissolved δ²⁶Mg values would require that carbonate weathering dominates in the AKR catchment (~95 wt.% of the weathering substrate, Figure 5), which contradicts previous conclusions (Wimpenny et al., 2011; Andrews and Jacobson, 2018). In terms of garnet weathering, Rickli et al. (2017) estimated that, based on Nd and Hf isotopes, the contribution of garnet in Leverett was 2%. The δ²⁶Mg values measured in Leverett correspond to 0–6% garnet contribution, which is broadly consistent with the proposed mixing model for Nd and Hd isotope data. For Wimpenny's samples, the garnet mass fraction is ~0.55 (Figure 5). Compared to Leverett, suspended sediments in AKR, QKR, and Watson River collected by Wimpenny et al. (2010) had higher Hf isotopic compositions (εHf = –38.12 ± 1.2, 1SD) compared to Leverett (εHf = –45.2 ± 1.2, 1SD) which was interpreted to reflect a combination of more garnet and less zircon in those suspended sediments (Rickli et al., 2017). Assuming that the suspended sediments provide a measure of the average lithology drained, the Hf isotope data would support the hypothesis that the lower δ²⁶Mg values in Wimpenny's samples could, at least in part, be caused by increased garnet weathering. However, the inferred difference in garnet abundance was estimated to be <1 wt.% and therefore unlikely to result in such a large difference in garnet contribution to the dissolved load as implied by the mixing proportions from Figure 5.

In summary, we cannot conclusively identify the origin of the offset between δ²⁶Mg values in Wimpenny's samples and Leverett River. Both increased garnet and carbonate weathering compared to Leverett may play a role, but neither on its own is consistent with constraints from mineral abundances and other geochemical data. However, there may be differences in lithology between Leverett and the other catchments (Figure 1), invalidating the assumption that the dissolution of orthogneiss Ro4 is the primary solute source to the dissolved load in Wimpenny's samples. Further data from bulk rock and mineral separate samples from the area where Wimpenny et al. (2011) collected their samples would be required to provide additional constraints on plausible weathering sources.

5.4. Fractionation Control on River Water Isotope Ratios

The δ⁷Li values of Leverett River water samples cannot be reconciled with mixing between isotopically distinct mineral end-members (Figure 6). A fractionation process must therefore control river δ⁷Li values and could also impact on δ²⁶Mg values.

FIGURE 6

Figure 6. (A) Mixing between the minerals of Ro4 (feldspar, epidote, and chlorite) cannot explain the δ⁷Li values of water. Hornblende, the mineral with the highest δ⁷Li values, also cannot account for the water δ⁷Li values, even if it dominated the dissolved Li budget. Therefore, although some variation may be attributable to mineral source heterogeneity a fractionation process must also be occurring. Mineral abbreviations: Hbl, Hornblende; Chl, Chlorite; Cpx, Clinopyroxene; Grt, Garnet; Feld/Ep, K-feldspar, plagioclase, epidote mixture. Note that a change in the relative proportion of garnet weathering will have a negligible effect on δ⁷Li ratios. (B) The water samples measured in this study have lower δ⁷Li and Mg/Li values compared to Wimpenny et al. (2010). The lower Mg/Li values would be consistent either with a lower relative loss of Li compared to Mg or with a decreased contribution from garnet weathering (Mg/Li garnet = 2.1, Figure 5B). The solid line is the regression through Leverett River samples.

The difference in the magnitude of fractionation (Δ⁷Li_water−sed) between the samples measured by Wimpenny et al. (2010) (~20.4‰) and this study (~14.3‰) could be due to a difference in lithology or the relative amount of Li lost from solution due to processes such as secondary mineral formation and adsorption. In the first scenario, the Δ⁷Li_water−sed value would be constant but if the starting rock composition for Wimpenny's samples had a higher δ⁷Li value compared to Leverett then the δ⁷Li of the water samples would be correspondingly higher. There is only a minor difference in the δ⁷Li values of the amphibolite (+6.8 to +8.3‰) and orthogneiss samples (+5.0 to +6.3‰, Figure 3). Similarly the range in rock δ⁷Li values from this study (+5.0 to +8.3‰) overlaps with the range reported by Wimpenny et al. (2010) (+5.8 to +10.4‰). Theoretically, a hornblende with a high δ⁷Li value such as that measured in Ro3 (+12.1‰) could dominate the dissolved load of the Wimpenny et al. (2010) samples, but that would be inconsistent with the Mg, Ca, and Sr isotope data (Figure 5, Hindshaw et al., 2014). As such it is unlikely that differences in the Li isotopic composition of the source rocks and minerals can account for the ~6‰ difference in the δ⁷Li values of the two sets of river water samples.

It is therefore more likely that the degree of fractionation between the two sample sets differs. Fractionation of Li isotopes is attributed to two main processes: adsorption and secondary mineral formation (Huh et al., 2001; Pistiner and Henderson, 2003; Vigier et al., 2008). Both of these processes lead to an enrichment of ⁷Li in the fluid. In high latitude environments adsorption rather than clay mineral formation likely controls dissolved Li isotopic compositions (Millot et al., 2010; Wimpenny et al., 2010). Evidence for the role of adsorption in glacierized catchments comes from the low δ⁷Li values measured in a leach targeting Fe-oxyhydroxide phases in sediments from West Greenland (Wimpenny et al., 2010). Ilmenite (FeTiO₃) and magnetite (Fe₃O₄) are present in the Leverett River sediments and Phreeqc calculations indicate that water samples from the region are over-saturated in amorphous and crystalline iron oxide phases (Wimpenny et al., 2010; Hindshaw et al., 2014). Adsorption of metal cations (e.g., Li) onto these phases could therefore occur, particularly as adsorption is favored at basic pH due to a more negative surface charge compared to at neutral pH (Stumm and Morgan, 1996). Although Wimpenny et al. (2010) and Auqué et al. (2019) considered the formation of secondary clay minerals unlikely, smectite has been detected in sediments retrieved from glacier boreholes in this region (Graly et al., 2016). Smectite may originate from overridden soils (Yde et al., 2014; Carrivick et al., 2018) and adsorption onto the clay surface could also induce isotope fractionation (Pistiner and Henderson, 2003; Chan and Hein, 2007). Mineralogical and isotopic analysis of the clay-sized fraction of river sediment would be required to assess the role of clay minerals on dissolved δ²⁶Mg and δ⁷Li.

The Mg/Li ratio is commonly used to assess the relative loss of Li in water samples (Dellinger et al., 2015). The Mg/Li mass ratios of the Wimpenny et al. (2010) samples are higher (0.6) compared to Leverett (0.3) potentially indicating increased loss of Li (Figure 6B). However, the Mg/Li ratio is also dependent on the relative proportion of garnet (Mg/Li = 2.1) weathering in these samples. The difference in lithology inferred from δ²⁶Mg values (Figure 5) implies that a common initial ion ratio cannot be assumed for all the water samples in this region and that the Mg/Li ratio is not a reliable measure of relative Li loss. Nevertheless, if we assume a single lithological source in the Leverett catchment, higher Mg/Li ratios are associated with higher δ⁷Li values (Figure 6B), consistent with fractionation accompanying removal of Li from solution. We therefore consider it likely that the trend observed between δ⁷Li and Mg/Li in the Leverett samples (Figure 6B) arises due to increased loss of Li. By extension, the higher δ⁷Li values observed in the Wimpenny et al. (2010) samples are most likely due to greater fractionation (greater proportion of Li lost) rather than source differences.

If Li isotope fractionation in this region is caused by adsorption, as proposed by Wimpenny et al. (2010), then the difference in mineralogy of suspended sediments may impact the identity and availability of adsorption sites. Suspended sediments measured by Wimpenny et al. (2010) had Fe (3.68–5.07 wt.%) and Li (21.5–35.4 mg/kg) concentrations higher than those measured in Leverett (Fe = 3.46–3.92 wt.%; Li = 4.9–8.3 mg/kg, n = 6). The lower Fe and Li concentrations in Leverett suspended sediment may indicate fewer Fe oxides and a lower proportion of Li adsorbed, resulting in reduced fractionation compared to Wimpenny's samples.

The inferred fractionation of Li as a result of adsorption could imply that Mg isotopes are affected by the same process. Coupled Mg and Li isotope behavior has been observed in the Mackenzie River basin linked to secondary fractionation processes involving clay minerals (Tipper et al., 2012a). However, the range of dissolved δ²⁶Mg values in Leverett (–0.38 to –0.15‰) overlaps with those of the river sediments (–0.33 to –0.48, Table 1) suggesting negligible process-related fractionation. Rather, the Mg isotope data in Leverett can be adequately explained by mixing between different mineral sources (Figure 5). Although the Mg isotope data in Wimpenny's samples is not fully compatible with mixing between mineral sources inferred for Leverett (section 5.3) we consider it unlikely that fractionation of Mg would occur in one catchment and not the other.

The samples collected downstream of the confluence of rivers draining Russell and Leverett glaciers would be expected to represent a mixture of water draining those glaciers. Transects of water samples from AKR show an increase in dissolved ⁸⁷Sr/⁸⁶Sr ratios downstream of the confluence with Leverett River (average increase = 0.006678, Andrews and Jacobson, 2018). This increase was attributed to the mixing of two end-members draining areas with different geology. We would therefore also expect the δ⁷Li and δ²⁶Mg values downstream of the confluence (GR2 and GR8) to reflect a mixture between Leverett (δ²⁶Mg = –0.29‰, δ⁷Li = +19.2‰) and GR1 (δ²⁶Mg = –1.04‰, δ⁷Li = +25.4‰) (Figure 1). Yet, this is not what is observed. Rather the downstream δ²⁶Mg and δ⁷Li values are within error of GR1 (Wimpenny et al., 2010, 2011). We do not have a good explanation for why the mixing signal for dissolved Li and Mg isotope values is absent. One source of uncertainty is that we are comparing water samples collected in different years (2006 and 2009) and the subglacial drainage pathways may not be identical from year to year (Lindbäck et al., 2015), potentially resulting in inter-annual variations in the dominant lithology being weathered for each glacier sub-catchment. For example, one year could have a higher proportion of solutes derived from mafic dykes compared to another year. Simultaneous measurements of water chemistry from both glaciers in the same melt-season would be needed to test this hypothesis.

6. Conclusions

Lithium and magnesium stable isotope ratios measured in a time series of water samples from Leverett Glacier display no systematic temporal variation and are affected by different processes. The Li isotope values of water samples are higher than bedrock, river sediment, and mineral separate measurements, implying a fractionation processes. A previous study concluded that dissolved lithium isotope values in this region were controlled by adsorption onto iron oxyhydroxide minerals (Wimpenny et al., 2010) and the same process is likely occurring in this catchment. In contrast, the δ²⁶Mg values of the dissolved load are within error of bedrock and river sediment measurements and would be consistent with the mixing of Mg derived from minerals contained in orthogneiss (chlorite, feldspar, and epidote), previously identified by radiogenic Ca and Sr measurements as being key sources to the dissolved load (Hindshaw et al., 2014). In addition there are likely contributions from garnet and hornblende. A previous study in this region (Qinnguata Kuussua (QKR) and Akuliarusiarsuup Kuua (AKR) rivers, Wimpenny et al., 2011), reported dissolved δ²⁶Mg values ~0.80‰ lower than those we measured in Leverett and concluded that there was a carbonate (δ²⁶Mg = –1 to –5‰) contribution to Mg in the dissolved load. However, garnet also has low δ²⁶Mg value (–1.63‰), and could also contribute to dissolved Mg in these samples. Mixing calculations between a “Leverett” end-member and either carbonate or garnet suggest that whilst the weathering of both minerals could account for the difference in δ²⁶Mg values between the two data sets, the inferred mixing proportions are incompatible with other geochemical data. It is likely that the mineral data from Leverett does not capture all mineral sources for the AQR and QKR catchments due to small differences in lithology.

In the context of the carbon cycle it is crucial to determine whether Mg (and Ca) derive from carbonate or silicate weathering. This study highlights that certain silicate minerals can have δ²⁶Mg values in the same range as carbonate minerals, emphasizing that source rock mineral characterization is an essential step in the interpretation of dissolved stable isotope ratios.

Data Availability Statement

All datasets generated for this study are included in the manuscript or are available in the referenced companion manuscripts.

Author Contributions

RH designed the project and conducted the fieldwork together with JR. JL collected element and abundance data on mineral separates and RH analyzed samples for Li and Mg isotope ratios. All authors contributed to the interpretation of the results and the writing of the article.

Funding

This work was funded by a SNF fellowship (127764) and Marie-Curie Fellowship (Project No. 253117) to JR and an ETH Research Grant (no. 04/06-3) and NERC Standard Grant (NE/M001865/1) to RH. JL acknowledges support from a Swiss National Science Foundation (SNSF) Ambizione grant.

Conflict of Interest

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
