Factors Controlling Magnetism of Reddish Brown Soil Profiles from Calcarenites in Southern Spain: Dust Input or In-situ Pedogenesis?

Liu, Qingsong; Zhang, Chunxia; Torrent, José; Barrón, Vidal; Hu, Pengxiang; Jiang, Zhaoxia; Duan, Zongqi

doi:10.3389/feart.2016.00051

ORIGINAL RESEARCH article

Front. Earth Sci., 10 May 2016

Sec. Geomagnetism and Paleomagnetism

Volume 4 - 2016 | https://doi.org/10.3389/feart.2016.00051

This article is part of the Research Topic Rock and Environmental Magnetism: New Techniques and Applications View all 11 articles

Factors Controlling Magnetism of Reddish Brown Soil Profiles from Calcarenites in Southern Spain: Dust Input or In-situ Pedogenesis?

$\r\nQingsong Liu,*$ Qingsong Liu^1,2^*

Chunxia Zhang³

José Torrent⁴

Vidal Barrón⁴

Pengxiang Hu⁵

Zhaoxia Jiang^1,2

Zongqi Duan^1,2

¹State Key Laboratory of Lithospheric Evolution, Institute of Geology and Geophysics, Chinese Academy of Sciences, Beijing, China
²Laboratory for Marine Geology, Qingdao National Oceanography Laboratory for Science and Technology, Qingdao, China
³Key Laboratory of Cenozoic Geology and Environment, Institute of Geology and Geophysics, Chinese Academy of Sciences, Beijing, China
⁴Departamento de Agronomía, Universidad de Córdoba, Córdoba, Spain
⁵Research School of Earth Sciences, Australian National University, Canberra, Australia

Under aerobic conditions, the A and B horizons of soils are magnetically enhanced due to neoformation of ferrimagnets through pedogenesis. This study systematically investigated soils developed on calcarenites of Neogene age in southern Spain to determine the dominant factors controlling the soil magnetism. Geochemical and clay mineral analyses indicate that aeolian dust significantly contribute to the A and B horizon material of the Spanish soil. Nevertheless, the magnetic enhancement of soils can be simply attributed to the pedogenically produced ferrimagnets in-situ. Therefore, the magnetism of Spanish soils is still linked to paleoclimatic variations regardless of the complexities of aeolian inputs from the Northwestern Africa.

Introduction

Soil properties are strongly influenced by five factors: parent material, climate, relief, organisms, and time (Jenny, 1994). Generally, soil A and B horizons formed under aerobic conditions are magnetically enhanced due to the neoformation of ultra fine-grained (<100 nm, usually spanning the superparamagnetic, SP, and single domain, SD) ferrimagnets (magnetite and/or maghemite), and thus most often, a positive correlation is found between soil magnetism and some climatic factors (e.g., rainfall and temperature; Mullins, 1977; Maher, 1986, 1998).

However, how magnetic iron oxides respond to pedogenesis is still a matter of debate. So far, several mechanisms have been proposed to interpret magnetic enhancement for (paleo) soils, such as the biotic (Lovley et al., 1987; Fassbinder et al., 1990) or fermentation mechanism (Le Borgne, 1955; Mullins, 1977). Later, studies showed that neoformation of pedogenic ferrimagnetic minerals are mainly controlled by a series of abiotic reactions (Maher and Taylor, 1988; Dearing et al., 1996; Torrent et al., 2006). More recently, Boyle et al. (2010) established a chemical kinetic model which further confirmed that abiotic reactions should account for most production of ferrimagnetic minerals. However, the exact pathway has not been fully articulated.

One pathway suggested that maghemite was not formed directly, but through oxidation of magnetite (Dearing et al., 1996; Maher, 1998). By integrating different conceptual models with existing experimental and field data, Boyle et al. (2010) suggested a comprehensive mechanism that hydrous ferric oxide could either transform directly to hematite and goethite or magnetite which is later oxidized to maghemite. Yang et al. (2013) observed ferrimagnetic inclusions which have been pedogenically formed by weathering of coarse-grained Fe-bearing silicate minerals and thus suggested that the magnetic enhancement in Chinese loess/paleosols is mainly contributed by the >0.5 μm sediment fraction.

Alternatively, the ferrihydrite → maghemite-like phase → hematite pathway was proposed (Barrón and Torrent, 2002; Barrón et al., 2003; Cabello et al., 2009) on the basis of experiments in which ferrihydrite doped with some ligands (e.g., phosphate or citrate) was aged at different temperatures. Recently, Michel et al. (2010) revealed that this maghemite-like phase is ordered ferrihydrite with strong magnetism, which can be further evolved into maghemite with grain growing from SP to SD size before its transformation into hematite (Liu et al., 2008; Michel et al., 2010; Barrón et al., 2012). This model was also supported by the linear relationship between concentration of hematite and pedogenic maghemite (Torrent et al., 2006, 2007, 2010a,b). Hu et al. (2013) adopted a novel approach by integrating rock magnetism, dynamic dissolution, and diffuse reflectance spectroscopy techniques on classic Chinese loess. Their results indicated that pedogenic maghemite was initially produced, gradually grew in grain size and eventually formed SD hematite, which produces the first direct piece of evidence for natural records on the ferrihydrite → maghemite-like phase → hematite pathway. Nevertheless, there is still lacking of natural evidence to directly link the natural observations to Barrón et al. (2003) model because of the complexity of natural environment and effects of magnetic minerals present in the soils parent materials (Hu et al., 2013).

Early studies on soils developed on calcarenites of Neogene age in southern Spain suggested that these soils could be ideal media to test the pedogenic pathway because the father materials are hematite-free and relatively homogeneous, allowing thus the establishment of simple chemical and mineralogical balances (Torrent and Cabedo, 1986; Torrent et al., 2010a). In contrast, other studies claimed that as the world's largest dust source, the Sahara-Sahel corridor in North Africa generates vast amounts of dust annually, which can be transported over long distances west-northwards to the Canary Island (Lázaro et al., 2008), the North Atlantic (Carlson and Prospero, 1972; Prospero and Carlson, 1972; Chester et al., 1979), the South American continent (Swap et al., 1992), and northward into the eastern Mediterranean (Yaalon and Ganor, 1979; Ganor and Mamane, 1982; Ganor, 1991), the western Mediterranean (Chester et al., 1984; Loye-Pilot et al., 1986; Loye-Pilot and Morelli, 1988; Bergametti et al., 1989a,b; Larrasoaña et al., 2015), southern Europe (Prodi and Fea, 1979), and mainland Europe (Prospero et al., 1981; Karyampudi et al., 1999; Zhang and Pennington, 2004; Moreno et al., 2005). The distance between Spain and the central Sahara is <2000 km, and thus should be an important region to deposit the Sahara dust. Previous studies have shown that aeolian dust originated from Northern Africa (mainly including the north and west Sahara, and Sahel region) contributes significantly to Mediterranean soils (Yaalon et al., 1966; Yaalon and Dan, 1967; Yaalon and Ganor, 1973; Macleod, 1980; Driese et al., 2003; Erel and Torrent, 2010), but contributions of aeolian material to the magnetic enhancement of Spanish soils are unknown.

This study will revisit the Spanish soil to determine major factors affecting the soil magnetism. Specifically, we will systematically conduct both magnetic and non-magnetic experiments to establish the correlation between iron oxides and geochemical elements and clay minerals.

Sampling and Methods

Sampling

This study area is located in the Guadalquivir Basin, an ENE–WSW-elongated depression filled with Neogene sediments in Southern Spain. The soil profile studied in this work is a typical reddish brown (rubified, Munsell hues 5YR or redder) soil, which is located in the vicinity of La Rambla (RB), Province of Córdoba (Figure 1). In this area, the mean annual temperature, and annual rainfall are about 17°C and 600 mm, respectively, and the soils parent materials are Tortonian calcareous sandstones [IGME IGME (Instituto Geológico y Minero de España), 1971] with sand occurring mostly in the 0.02−0.2 mm size fraction. The clay fraction represent <5% of the rock and is mainly composed of smectite with rather small proportions of kaolinite, illite, and goethite (Torrent and Cabedo, 1986; Torrent et al., 2010a). The reddish brown soil is classified as Chromic or Calcic Luvisols Calcic (Torrent and Cabedo, 1986). Calcic horizons are present at various depths of the soil profiles. Five representative samples (H1, H2, H3, H4, H5) were collected covering A, B, and C horizons. The major properties of these samples are summarized in Table 1.

FIGURE 1

Figure 1. Generalized maps showing the Sahara-Sahel Dust corridor (revised from Google Earth) (A), soil site locations (B), and the main geological unit of the study area. Red arrows in (A) indicate the dust transport pathways from Larrasoaña et al. (2015) for western Africa and Avila et al. (1997) for the eastern Africa, respectively. Gray arrows indicate the main routes of dust outbreaks toward Mediterranean and continental Europe (Guerzoni et al., 1997) (B,C) are revised from Erel and Torrent (2010). The shaded area in (A) indicates the Sahel region (data from https://en.wikipedia.org/wiki/Sahel). RB and MO indicate site locations respectively in the vicinity of La Rambla and Montilla, Province of Córdoba, southern Spain (Torrent and Cabedo, 1986).

TABLE 1

Table 1. Summary of properties for the studied soils and for relevant material from Sahara-Sahel and Southern China.

Magnetic Methods

The mass-specific magnetic susceptibility (χ) was measured using a multi-function Kappabridge (MFK-FA) with operating frequencies of 976 and 15616 Hz in a magnetic field of 200 Am⁻¹. To quantify the magnetically viscous particles near the SP and SD threshold (~20−25 nm for magnetite and maghemite; Liu et al., 2012), χ_FD was calculated (χ_FD = χ_LF– χ_HF, where χ_LF and χ_HF are the susceptibility measured in 976 and 15616 Hz, respectively). In addition, χ_FD% is defined as χ_FD/χ_LF%. Alternatively, χ_FD% can be estimated by linearly fitting to the linear trend from the plot of χ_FD vs. χ_LF.

Anhysteretic remanent magnetization (ARM) was imparted with an alternating field (AF) of 100 mT and a superimposed bias DC field of 0.05 mT during the whole experiment. The isothermal remanent magnetization (IRM) was acquired in a forward field of 1 T using a Model 660 IRM Impulse Remanent Magnetizer (2G Enterprises, USA), after which reverse fields of 100 and 300 mT were applied. The corresponding forward and backfield IRMs are referred to as IRM_1T, IRM_−100mT, and IRM_−300mT, respectively. The hard fraction of IRM was then calculated as HIRM_300mT = (IRM_1T + IRM_−300mT)/2 (Bloemendal et al., 1992). Similarly, HIRM_100mT is defined as HIRM_100mT = (IRM_1T + IRM_−100mT)/2. HIRM_300mT has been traditionally used as a proxy for high coercivity minerals with remanence coercivity larger than 300 mT, such as hematite and goethite (Thompson and Oldfield, 1986). However, in natural samples, hematite and goethite are often Aluminum (Al) substituted, which reduces the remanence coercivities of Al-hematite and goethite to lower values (Liu et al., 2007; Jiang et al., 2012, 2014a,b). More recently, Hu et al. (2013) put forward that the nano-sized hematites of pedogenic origins have remanence coercivity value of about 130 mT. Thus, contributions of pedogenic hematite can be estimated by HIRM_100mT – HIRM_300mT.

Theoretically, HIRM is the remanent magnetization acquired by particles with coercivities of remanence larger than the reverse field (RF) but smaller than the forward field (FF). Thus, a more general definition is HIRM_{(FF, RF)} = (IRM_FF + IRM_RF)/2. Correspondingly, HIRM_{(FF1, RF1)} – HIRM_{(FF1, RF2)} = HIRM_{(−RF2, RF1)} when RF1 > RF2, which is the difference between two HIRMs measured with the same forward field but with different reverse fields and represents the remanence acquired by particles with coercivities of remanence bounded by the two reverse fields. Similarly, HIRM_{(FF1, RF1)} – HIRM_{(FF2, RF1)} = HIRM_{(FF1, −FF2)} when FF1 > FF2. This definition gives HIRM wider applicability when particles have a more complex coercivity distribution.

Saturation magnetization (M_s), saturation remanent magnetization (M_rs), coercivity (B_c), and remanent coercivity (B_cr) were measured using a Princeton Measurements Corporation vibrating sample magnetometer (Micromag VSM 3900) after correcting for the paramagnetic contribution. In addition, high resolution First-order reversal curve (FORC) diagrams were measured with Micromag VSM 3900. For each sample, 514 FORCs were measured with a field step of 0.4 mT; data were processed using the algorithm of Heslop and Roberts (2012) with a smoothing factor of 5.

The temperature dependence of SIRM was measured in the range of 20–300 K to investigate the magnetic minerals of samples. Firstly, samples were cooled to 20 K at a zero field, then SIRM_20K were imparted in a 5 T field, after the switch-off of field, SIRM_20K was measured from 20 to 300 K using a Quantum Design magnetic properties measurement system (MPMS XL-5, with sensitivity of 5.0 × 10⁻¹⁰ Am²). Since haematite in natural samples is almost saturated at 2.5 T field, for this study, HIRM is redefined as (SIRM_5T+IRM_−2.5T)/2. To avoid the disturbance of the Verwey transition of magnetite (~120 K), the temperature dependence of HIRM were measured from 150 to 400 K to investigate the information of exist goethite (Jiang et al., 2014a). First, samples were cooled from the room temperature to 150 K in a zero field, and then SIRM_5T was imparted with 5 T field. After the magnetic field was switched off, SIRM_5T was measured from 150 to 400 K. The curve is defined as SIRM_5T (T). After that, samples were cooled to 150 K in a zero field again, and then IRM_−2.5T was obtained in a 2.5 T backward field, and was thermally demagnetized from 150 to 400 K. The corresponding curve is termed as IRM_−2.5T (T). The temperature dependence of HIRM (HIRM(T)) is calculated by [SIRM_5T(T) + IRM_−2.5T(T)]/2. The Low temperature dependence of susceptibility curves were also measured at two frequencies (1, 10, and 100 Hz) from 10 to 300 K using MPMS. For the low temperature measurements, χ_FD is defined as χ_1Hz− χ_10Hz and χ_1Hz− χ_100Hz. The applied alternative field was set to be 0.4 mT.

DRS Measurements

The Diffuse Reflectance spectra (DRS) were recorded by a Cary 5000 UV-VIS-IR spectrophotometer (Varian Inc., Palo Alto, CA) equipped with an integrating sphere accommodating a PMT/PbS detector at a scan rate of 30 nm per minute from 300-2600 nm in 0.5 nm steps. Then the reflectance values were transformed into the Kubelka-Munk (K-M) remission function and the bands of the second derivative of the K-M function spectrum at ~425 and 535 nm were used to quantitatively estimate the relative mass concentration of goethite and hematite respectively, as described by Torrent and Barrón (2008).

Geochemical Analyses

Trace element compositions were determined using an inductively coupled plasma mass spectrometer (ICP-MS, ElEMENT, Finnigan MAT) at IGGCAS. The samples were digested in HNO₃ and HF (1:1) under high temperature and pressure. Measurement of two certified reference materials (GSR-1 granite and GSR-3 basalt) indicates that analytical uncertainties for all trace elements in this study are <3%. In this study, REE concentrations were normalized to post-Archean Australian shale (PAAS, indicated by a subscript “P”) (Taylor and McLennan, 1985), which has proved to be more effective when comparing REE patterns (Zhang and Pennington, 2004; Ferrat et al., 2011).

XRD Analyses and Clay Minerals

Bulk mineralogy was analyzed on bulk samples that were ground to <45μm. Clay and bulk mineralogy were analyzed by X-ray diffraction (XRD) using a PANAlytical diffractometer fitted with CuKα-radiation at 40 KV and 40 mA.

Clay minerals were identified on oriented slides of clay-sized (<2 μm) particles. The oriented slides were obtained following the methods described in detail by Zhang and Guo (2014). Three XRD runs were performed, following air-drying (AD), ethylene-glycol (eg) solvation, and glycerol (G) solvation. Bulk samples were scanned at a speed of 1°/min from 15 to 60° 2θ. All samples were identified based on the following peaks: quartz, 4.26 and 3.34 Å, calcite, 3.03 Å, rutile, 3.25 Å, pyrope, 2.58 Å, perryite, 2.01 Å, anhydrite, 3.49 Å, orthoclase, 3.32 Å, dolomite, 2.91 Å, allophane, 3.30 Å, diaspore, 3.98 Å. In the case of the coarse fractions, mineral abundances were determined using peak heights. Due to the intensity of the diffraction pattern (generally expressed as peak height or peak area) of a mineral in a mixture is proportional to its concentration, the relative proportions (semi-quantitatively expressed as vol%) of the identified minerals can be roughly determined using their peak intensities by measuring the heights of the main reflections with MacDiff software (Petschick, 2000). The detection limit for quartz is 1%, for calcite is 3%, and for other minerals around 5%.

Results

Major properties of the studied Spanish soil samples are summarized in Table 1. The Ck horizon (Sample H1) has rather low magnetic properties. Its χ and M_s are only ~1 × 10⁻⁸ m³kg⁻¹ and 1 × 10⁻³ Am²kg⁻¹, respectively. From the C horizon to A horizon, all magnetic properties of samples are magnetically enhanced except for the sample H4 with relatively reduced magnetic properties. This pattern is similar to the one observed for other reddish brown soil profiles of the area (Torrent et al., 2010a).

Low-temperature thermal demagnetization of SIRM_20K curves for the studied samples are shown in Figure 2. With increasing temperature, SIRM_20K gradually decreases due to unblocking of nano-sized magnetic particles from SD state to SP state. A detectable kink at ~120 K (Verwey transition) for the sample H1 indicates the presence of magnetite, which is absent for the other samples.

FIGURE 2

Figure 2. Low temperature thermal demagnetization of SIRM curves acquired at 20 K (SIRM_{20 K}) for the studied samples, (A) H1, (B) H2, (C) H3, (D) H4, and (E) H5.

Low-temperature thermal demagnetization of HIRM curves (Figure 3) indicates a major drop in intensity below 250 K. For sample H1, HIRM can be further partially unblocked at ~380 K, which indicates the presence of relatively stoichiometric goethite. But for samples H3–H5, the second intensity unblocking occurred at relatively reduced temperature (~350 K), which suggests that goethite in these samples is more Al-substituted. The residual HIRM at 400 K is believed to be carried by hematite. These results are consistent with the presence of both hematite and goethite in similar reddish soils of the area (Torrent and Cabedo, 1986; Torrent et al., 2010a).

FIGURE 3

Figure 3. Low temperature thermal demagnetization of HIRM curves for the studied samples, (A) H1, (B) H2, (C) H3, (D) H4, and (E) H5, where blue solid circle and red line represent HIRM curves and their first derivative curves, respectively. The shaded area indicates the blocking temperature of goethite.

Low-temperature dependent χ_fd curves (χ_fd−T, Figure 4) are sensitive to the grain size distribution of SP particles. With increasing temperature, χ_fd gradually increases and peaks at ~300−350 K. This indicates that the dominant grain size of nano-sized ferrimagnetic particles in these samples is located at the SP/SD threshold (~20−25 nm for magnetite and maghemite), which is consistent with the results from Chinese paleosols (Liu et al., 2005).

FIGURE 4

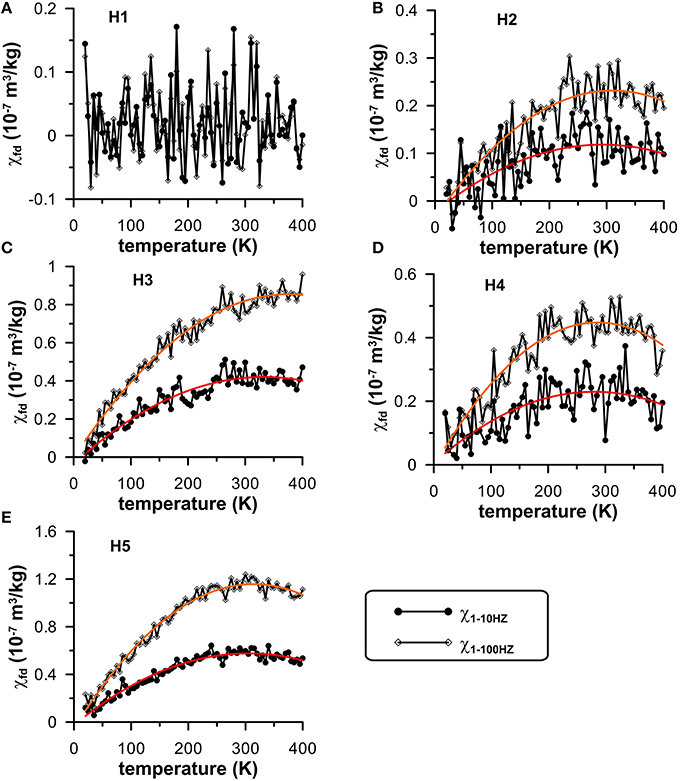

Figure 4. Low temperature dependence of χ_fd curves for the studied samples, (A) H1, (B) H2, (C) H3, (D) H4, and (E) H5, where solid circles and open diamonds represent χ_fd determined from χ_1Hz − χ_10Hz and χ_1Hz − χ_100Hz, respectively, while red and orange lines indicate the corresponding fitting curves.

FORC diagrams can be used to indicate both the remanence coercivity distribution and the magnetic interaction field. Clearly, the narrow distribution along the vertical axis indicates rather weakly magnetic interaction (Figure 5). The wide spread of the FORC intensity indicates that magnetic minerals in samples have wide distribution of remanent coercivity.

FIGURE 5

Figure 5. FORC diagrams for the studied samples.

Identification of clay minerals was made mainly according to the position of the (001) series of basal reflection on the three XRD diagrams. Compared with the air-dried curve (AD), the eg/G curves have a new peak at 16.2/18.0 Å and the 14.1 Å peak disappear in eg and G (Figures 6A–E); the higher-order reflections (002 and 003) of smectite are present in G curve; this implies the occurrence of smectite. Illite can be defined as a clay-size material that exhibits a rational series of reflections with a d001 spacing of about 10 Å that does not change in ethylene glycol or glycerol saturation (Figures 6A–E). Due to the absent of 14.1 Å peak in eg and G, 7 Å, and 3.57 Å peaks in all curves are recognized as kaolinite (Figures 6A–E). Based on the above identifications, the clay minerals in the samples are smectite, illite, and kaolinite. Semi-quantitative estimates of peak area of the basal reflections for the main clay mineral groups of smectite (17 Å), illite (10 Å), and kaolinite (7 Å) were carried out on the glycolated curve using the MacDiff software (Petschick, 2000) with the weighting factors introduced by Biscaye (1965).

FIGURE 6

Figure 6. XRD spectra for the studied samples. (A–E) XRD diagrams for H1–H5 to identify their clay minerals. Three XRD runs were performed following air-drying (AD), ethylene-glycol (eg), and glycerol (G) solvation. (F) XRD diagrams used for the quantification of clay minerals in samples H1–H5.

For clay minerals, the parent samples (H1 and H2) are dominated by smectite (>80%) with trace amount of kaolinite (<2%). The illite content is <15% (Table 1). For the B and C horizons (H3–H5), the smectite content gradually decrease down to <50%. As shown in Figure 6F and Table 1, the quartz content also changes largely from H1 to H5. For the parent material, the quartz content is about 30% and then sharply increase up to >80% for the A and B horizons. Orthoclase is present only in the A horizon.

Correlations among magnetic and non-magnetic parameters are summarized in Figure 7. The parent material H1 and H2 has the highest smectite content (>90%). With increasing degree of pedogenesis, smectite content decreases, and illite and kaolinite contents increase (Figure 7A). χ is positively correlated with χ_fd and ARM (R² = 0.99), which indicates that the enhancement of bulk χ is caused by the neoformation of nano-sized particles (Figures 7B,C). HIRM (>300 mT) and HIRM (>100 mT) are carried by hematites with different coercivity distributions. The linear correlation between these two parameters strongly indicates that hematites in these samples have rather stable properties (Figure 7D; Liu et al., 2012). HIRM (100 mT, 300 mT) has been demonstrated to be strongly related to hematites of pedogenic origin (Hu et al., 2013).

FIGURE 7

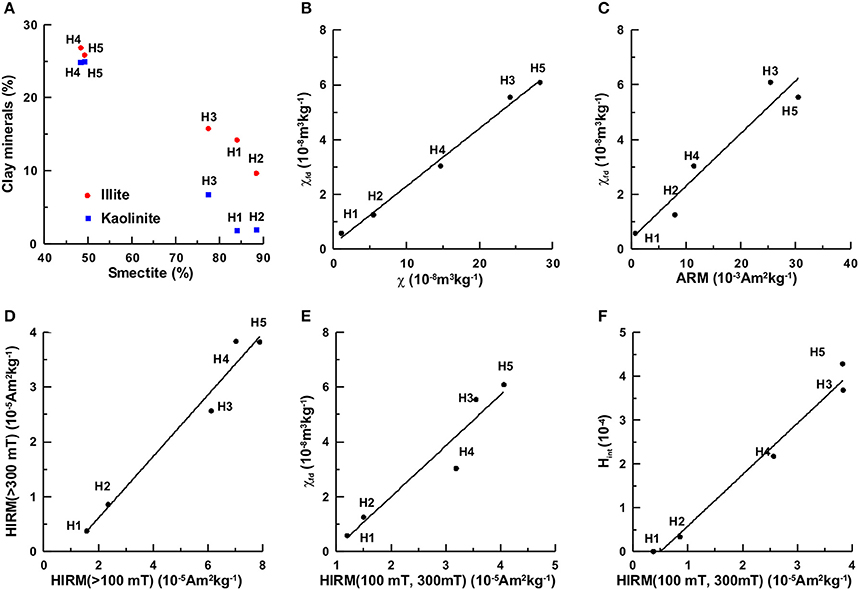

Figure 7. Plots of illite (Kaolinite) vs. Smectite (A), χ_fd vs. χ (B), χ_fd vs. ARM (C), HIRM (>300 mT) vs. HIRM (>100 mT) (D), χ_fd vs. HIRM (100 mT, 300 mT) (E), and H_int vs. HIRM (100 mT, 300 mT) (F).

Discussion and Conclusions

On the basis of the concentration of incompatible elements (REE, Nb, Ta, Zr, Hf; Figure 8) and the corresponding ratios (Zr/Hf, Nb/Ta, Eu/Eu*, and Nb/La; Table 2), samples H3, H4, and H5 clearly have an origin different from samples H1 and H2. The dust source for the Spanish soil can be confined by the wind transportation route. On the basis of the main routes of dust outbreaks toward Mediterranean and continental Europe, the dominant dust material deposited in Spain are originated from the northwest Africa (Guerzoni et al., 1997). Avila et al. (1997) systematically investigated the mineralogical composition of Africa dust over the northeastern Spain. Using the back trajectory analyses, they identified three dust sources in northwest Africa: Western Sahara, Morocan Atlas, and central Algeria.

FIGURE 8

Figure 8. PAAS-normalized REE patterns in samples.

TABLE 2

Table 2. Trace (ppm) element analyses.

The dust source for the Spanish soil can be further determined by the geochemical analyses. Kaolinite is the low-latitude clay mineral, and its concentration gradually increases from high latitude region toward the equator (Griffin et al., 1968; Chester et al., 1972; Caquineau et al., 1998). The sudden increases of the Kaolinite concentration for samples H4 and H5 indicates that material for these two samples originated from places with latitudes lower than that of the studied site. Illite is formed under a wide variety of geological conditions, but becomes dominant at higher latitude when contributions of kaolinite become weak (Griffin et al., 1968; Chester et al., 1972; Caquineau et al., 1998). Caquineau et al. (1998) systematically investigated the clay ratios for samples from the Sahara desert and the Sahel. Their results showed that I/K ratio were the highest (~2.0) for dust from the north and east Sahara. In contrast, the I/K ratio approaches to ~0.1 for samples from the Sahel. Samples from the south and central Sahara have a I/K ratio of ~1.0. In our soil, I/K is >1.0 throughout the profile, which certainly excludes the Sahel as the major dust source. Then Sahara will be the most possible sources for the Aeolian dust to the studied region.

Magnetic properties of the Sahara dust have been well-determined by Lyons et al. (2010). They observed that concentration-dependent magnetic proxies (χ, ARM, SIRM) of the Sahara dust gradually increase toward the equator. This significant north-to-south gradients in magnetic mineral concentrations is compatible with a progressive wetter climate across the Sahara/Sahel transect from north to south. This strongly indicate that the formation of magnetic minerals through pedogenesis is strongly controlled by local climate, typically annual amount of precipitation. Although, Sahel dust has enhanced concentration-dependent magnetic properties because of the stronger degree of pedogenesis, they do not significantly contribute to the magnetism of Spanish soils. Concentration-dependent of magnetic properties of Sahara dusts, especially from the northern Sahara are rather low because of the low mean annual precipitation (<200 mm/yr), and are comparable to these of the bed rock samples from the Spanish soil profile. This strongly indicates that the initial inputs of magnetic minerals in the Sahara dust do not account for the largely magnetic enhancement for samples from the A+B horizons.

Previous studies have shown that rain events in Spain sporadically contain a reddish residual (know as red rains; Avila et al., 1997). Therefore, hematite could be inherited from the Sahara dust. Nevertheless, we believe that hematite content of Sahara origin in the studied soil is rather limited since the frequency of red rains is too sporadic. This can be further attested by our new rock magnetic studies. Hematite formed in different environment should have different magnetic properties between the different degrees of Al-substitutions. However, our data shows that magnetic properties for hematite in the studied samples are rather consistent, which indicates a simple origin. The linear correlation between hematite and the nano-sized maghemite for the studied samples strongly indicate that these hematites are dominantly of pedogenic origin.

Therefore, the only mechanism for the largely enhancement of concentration-dependent of magnetic properties of the A and B horizons are due to the in-situ formation of pedogenic ferrimagnets. This can be strongly supported by the linear correlation between χ_fd and χ for the studied soils (Figure 9). This phenomenon has been observed for soils from Argentina and the Chinese Loess Plateau (Liu et al., 2012). The positive correlation between HIRM (100, 300 mT; indicator of pedogenic hematite) and χ_fd (indicator of pedogenic maghemite) further indicates that both nano-sized hematite and mahemite are produced through the same pedogenic processes (Figure 7E). Figure 7F shows the correlation between DRS band intensity H_int for hematite and HIRM (100, 300 mT). The positive correlation between these two proxies strongly indicates that variations in HIRM (100, 300 mT) are due to changes in hematite concentration rather than its coercivity.

FIGURE 9

Figure 9. Plots of χ_fd vs. χ for the studied samples (red dots) and for the modern soil samples from Luochuan (gray and blue dots, data from Liu et al., 2012).

The X-axis intercept is a good indicator for the magnetic properties of parent material without pedogenic alterations (χ_fd = 0; Liu et al., 2012). Therefore, it is clear that the X-axis intercept for the Luochuan samples are much larger than that of the Spanish soil. This strongly indicates that the parent material of the Spanish soil is basically free of ferrimagnetic minerals because the linear trend almost runs through the original point and thus contributes little to the soil magnetic enhancement.

In summary, the material of the A and B horizons for the studied Spanish soil appears to be mainly inherited from the Northwestern Africa. However, the magnetic enhancement with limited contributions from the aeolian inputs. This indicates that the magnetism of the Spanish soils still bears significant paleoclimatic signals although the origin of material is complicated.

Author Contributions

QL, JT, VB designed the study and collected samples. CZ, PH, ZJ, and ZD conducted experiments. QL, JT, and ZJ wrote the paper. All authors contributed to data interpretation and provided significant input to the final manuscript

Conflict of Interest Statement

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

Acknowledgments

This study was supported by the Natural Science Foundation of China (No. 41374073 and 41430962). This work was jointly supported by the National Program on Global Change and Air-Sea Interaction (No. GASI-04-01-02), and Chinese Continental Shelf Deep Drilling Program (GZH201100202). ZJ further acknowledges support from the China Postdoctoral Science Foundation.
