Assessing the utility of trace and rare earth elements as biosignatures in microbial iron oxyhydroxides

Microbial iron oxyhydroxides are common deposits in natural waters, recent sediments, and mine drainage systems. Along with these minerals, trace and rare earth elements (TREE) are being accumulated within the mineralizing microbial mats. TREE patterns are widely used to characterize minerals and rocks, and to elucidate their evolution and origin. However, whether and which characteristic TREE signatures distinguish between a biological and an abiological origin of iron minerals is still not well-understood. Here we report on long-term flow reactor studies performed in the Tunnel of Äspö (Äspö Hard Rock Laboratory, Sweden). The development of microbial mats dominated by iron-oxidizing bacteria (FeOB), namely Mariprofundus sp. and Gallionella sp were investigated. The feeder fluids of the flow reactors were tapped at 183 and 290 m below sea-level from two brackish, but chemically different aquifers within the surrounding, ~1.8 Ga old, granodioritic rocks. The experiments investigated the accumulation and fractionation of TREE under controlled conditions of the subsurface continental biosphere, and enabled us to assess potential biosignatures evolving within the microbial iron oxyhydroxides. After 2 and 9 months, concentrations of Be, Y, Zn, Zr, Hf, W, Th, Pb, and U in the microbial mats were 10³- to 10⁵-fold higher than in the feeder fluids whereas the rare earth elements and Y (REE+Y) contents were 10⁴- and 10⁶-fold enriched. Except for a hydrothermally induced Eu anomaly, the normalized REE+Y patterns of the microbial iron oxyhydroxides were very similar to published REE+Y distributions of Archaean Banded Iron Formations (BIFs). The microbial iron oxyhydroxides from the flow reactors were compared to iron oxyhydroxides that were artificially precipitated from the same feeder fluid. Remarkably, these abiotic and inorganic iron oxyhydroxides show the same REE+Y distribution patterns. Our results indicate that the REE+Y mirror closely the water chemistry, but they do not allow to distinguish microbially mediated from inorganic iron precipitates. Likewise, all TREE studied showed an overall similar fractionation behavior in biogenic, abiotic, and inorganic iron oxyhydroxides. Exceptions are Ni and Tl, which were only accumulated in the microbial iron oxyhydroxides and may point to a potential utility of these elements as microbial biosignatures.

Introduction

The structure, properties and formation of iron oxyhydroxides have attracted the attention of many researchers during the last decades, due to their ubiquitous occurrence in natural settings and anthropogenic biotopes, as well as their properties as an efficient sorbent for (heavy) metals, with a resulting potential for technical applications (Stumm and Morgan, 1996; Ferris et al., 2000; Cornell and Schwertmann, 2003; Katsoyiannis and Zouboulis, 2006; Michel et al., 2007; Cao et al., 2012; Chi Fru et al., 2012; Savchenko et al., 2013).

In natural environments, iron oxyhydroxide precipitates typically originate from the chemically or biologically controlled oxidation of Fe²⁺ to Fe³⁺, where the oxidation rate strongly depends on the redox conditions and the pH of the aqueous solution (e.g., Fortin et al., 1997; Morgan and Lahav, 2007).

Microbial precipitation of iron oxyhydroxides can be specified as ‘biologically induced mineralization’ (Frankel and Bazylinski, 2003). Three modes of biologically induced mineralization occur: (i) Extracellular mineral nucleation and growth are processes from which the microorganisms gain energy by direct redox conversion of specific ions like iron. (ii) Indirect mineral precipitation takes place due to gradual changes in the chemical equilibrium of the surrounding solution which may also be supported by the release of metabolic products from the microbial community (Thompson and Ferris, 1990; Fortin and Beveridge, 1997; Fortin et al., 1997; Southam, 2000). (iii) Passive mineralization is induced by non-living organic matter such as cell debris or extracellular polymeric substances (EPS). Thereby, exposed negatively charged surfaces act as adsorption and nucleation sites for metal cations (Urrutia and Beveridge, 1993; Anderson and Pedersen, 2003; Ercole et al., 2007; Chan et al., 2009).

While these biologically induced mineralization pathways can be well-specified in theory, they are often difficult to recognize and distinguish in natural samples (Ionescu et al., 2015b). Nevertheless, such biogenic processes may produce minerals different from their inorganically formed varieties in shape, size, crystallinity, isotopic, and trace element composition (Konhauser, 1997; Ferris et al., 1999, 2000; Weiner and Dove, 2003; Bazylinski et al., 2007; Haferburg and Kothe, 2007; Takahashi et al., 2007). In studies of contemporary mineral deposits such biosignatures may be specified and utilized for the identification of related biological processes in geological samples throughout the Earth history. Massive deposition of banded iron formations (BIFs), for instance, occurred at 2.7–2.4 Ga, after molecular oxygen started to be available due to the increasing photosynthetic activity of cyanobacteria (Anbar et al., 2007). The mechanisms of BIF formation are widely discussed and hypotheses involving abiotic and biotic processes have been proposed (e.g., Morris and Horwitz, 1983; Bau and Möller, 1993; Krapez et al., 2003; Kappler et al., 2005; Lewy, 2012). In the “biological” scenarios, a central role has been assigned to iron oxidizing bacteria (FeOB) living under both anoxic and oxic conditions, (Konhauser et al., 2002). Therefore, studying modern microbial iron oxyhydroxides and the bacteria involved in iron oxidation are crucial for a better understanding of BIF deposition (Konhauser et al., 2002; Kappler et al., 2005).

Here we report on a flow reactor experiment investigating the development of iron-oxidizing microbial mats in the Äspö Hard Rock Laboratory (HRL). The Äspö HRL, operated by the Swedish Nuclear Fuel and Waste Management Company (SKB), is a tunnel system drilled beneath the island of Äspö in south-eastern Sweden, ca. 400 km south of Stockholm (Figures 1A,B) and serves as a testing site for the long-term storage of nuclear waste. It offers a unique window into a subterranean terrestrial biosphere (e.g., Pedersen and Ekendahl, 1990; Pedersen, 1997, 2012; Ionescu et al., 2015a). The host rock of the Äspö site is part of the Precambrian Transscandinavian Igneous Belt and consists of ~1.8 Ga old granitic to quartz-monzodioritic rocks (Wahlgren et al., 2006).

FIGURE 1

Figure 1. (A) Location of the Äspö Hard Rock Laboratory (HRL); (B) 3D sketch of the HRL tunnel system beneath the island of Äspö; arrows indicate the location of the flow reactor experiments at (C) site 1327B (183 m bsl) and (D) site 2156B (290 m bsl). (E) Sketch of a flow reactor immediately after installation, (F) with microbial mats after 2 months, and (G) with microbial mats after 9 months. (H) Flow reactor used in this study prior to installation; (I) the same flow reactor after opening, showing microbial mat development after 2 months.

We particularly aimed to explore microbial TREE accumulation and fractionation patterns in the microbial mats thriving in the Äspö HRL and their potential use as biosignatures for microbially induced iron precipitation. The growth of microbial consortia in the Äspö HRL strongly depends on the depth, the current velocity, salinity, oxygen content and the chemical composition of the feeder fluids supplied by different aquifers. Microbial mats thriving on tunnel walls and in ponds are often dominated by the FeOB Gallionella sp. and Mariprofundus sp. Gallionella is an auto- and mixotrophic, microaerophilic FeOB using Fe(II) as an electron donor and CO₂ or carbohydrates as carbon source (Hallbeck and Pedersen, 1991; Hallbeck et al., 1993). It lives at circum neutral pH and at temperatures between 5 and 25°C. Directing the iron oxidation to twisted extracellular “stalks” made of extracellular polymeric substances (EPS), at distance from the cells, protects Gallionella ferruginea against oxygen radicals formed during the iron metabolism and consequently against encrustation of the cell surface (Hallbeck and Pedersen, 1991, 1995; Hallberg and Ferris, 2004). The production of the stalks seems to be limited to pH values above 6 (Hallbeck et al., 1993). G. ferruginea was first described by Ehrenberg (1836) who characterized its stalk as a unique morphological trait. However, the morphologies of Mariprofundus ferrooxidans, first described in 2007, and G. ferruginea are largely similar, as both have bean-shaped cells and winded, iron encrusted filamentous stalks (Emerson et al., 2007). M. ferrooxidans is a marine, microaerophilic lithoautotrophic FeOB, which uses Fe(II) or Fe(0) as electron donor and CO₂ as carbon source (Emerson et al., 2007). Studies with G. ferruginea showed that at circum neutral pH the size of the stalks (average 33 μm, maximum 60 μm length) may exceed the size of the cell (1–2 μm) by far (Hallbeck and Pedersen, 1991). Likewise, a stalk length of tens of μm was reported for M. ferrooxidans (Emerson et al., 2007). Both G. ferruginea and M. ferrooxidans are able to cast off, and replace, their old, encrusted stalks. Thus, the amount of iron oxyhydroxide effectively precipitated by these microorganisms may become extremely high as compared to the actual cell biomass. Therefore, these stalk-forming FeOB are considered as particularly relevant for iron ore and -rock forming processes throughout earth history (Konhauser et al., 2002).

Previous studies have shown that the stalk length of G. ferruginea is positively correlated not only with the amount of iron oxyhydroxides precipitated, but also with the co-precipitation of lanthanides, Th and U (Anderson and Pedersen, 2003). Here we demonstrate that microbial mat formation by M. ferrooxidans and G. ferruginea are also accompanied by a massive enrichment of TREE, together with the establishment of distinctive element fractionation patterns. To elucidate whether these traits may help to distinguish microbially induced from inorganically precipitated iron oxyhydroxides, the patterns found in the microbial mats were compared to those obtained by abiotic/inorganic precipitation from the same feeder fluids, and also to TREE distributions reported for ancient BIF deposits.

Materials and Methods

Flow Reactors

A flow reactor experiment was designed to simulate the environmental conditions in fluid conduits within the granodioritic host rock and investigate microbial iron biomineralization and TREE accumulation under monitored conditions. Dark, air-tight flow reactors (total volume 45 l) non-pressurized and with a flow of 0.7 l/min were constructed (Figures 1B–F) and connected to the aquifers in the Äspö HRL in 2006. Only chemically inert materials such as polytetrafluoroethylene (PTFE, Teflon^®), PTFE—fiber glass, fluorinated ethylene propylene (FEP) and special PTFE—foam were used as construction materials to avoid chemical contamination from glass and plastic ware. The flow reactor systems and connection tubing's were thoroughly sterilized with ethanol (70%, overnight) before underground installation to prevent biological contamination from the surrounding environment.

The geochemistry of feeder fluids was studied at the different tunnel levels prior to setup of the flow reactors to select suitable installation sites. According to the results, and considering published data (Ferris et al., 1999; Laaksoharju et al., 1999; SICADA database¹), the flow reactors were connected to aquifers at 183 m (site 1327B) and 290 m below sea level (site 2156B) (Figures 1B–D). The former shows a major influence of recent Baltic Sea water, whereas the latter contains a mixture of recent and ancient Baltic Sea water (retention time of 4–6 years), and glacial melt water (Laaksoharju et al., 1999). The specially designed outlet enabled an operation of the flow reactors without any headspace.

During the experiment the reactors were kept strictly undisturbed, except for sampling of reactor water and microbial mats after 2 and 9 months, respectively. The reactors were regularly controlled for maintenance/tightness, and in- and outflowing waters were routinely sampled and analyzed for physicochemical fluctuations.

Artificial precipitation experiments

As a reference, artificial precipitation experiments were performed using 30l of aquifer water sampled from site 1327B that was split into three aliquots (i–iii), as follows. (i) To study the abiotic precipitation of iron oxyhydroxides, i.e., without any influence of living organisms, a 10l aliquot was treated immediately after sampling with concentrated and distilled HNO₃ (Merck, triple distilled in the GZG geochemistry lab, purity***) to kill the microbial content (final concentration 2% HNO₃). However, tests with other, parallel samples showed that the HNO₃ treatment does not destroy the microbial EPS, which may also contribute to the precipitation of iron oxyhydroxides. (ii) Therefore, to assess the inorganic precipitation of iron oxyhydroxides, without any influence of both, living cells as well as dead biomass, concentrated and distilled HNO₃ and H₂O₂ (Sigma-Aldrich, 35%) was used for the second aliquot to kill the microorganisms and oxidize all organic matter. In aliquots (i) and (ii), iron oxide precipitation was initiated by addition of NH₄OH. (iii) As a biotic (living) control, the third 10l aliquot was closed and kept at the temperature of the sampling site (15°C) for 15 days, thus enabling microbial iron oxidation to proceed.

The iron oxides precipitated from the three aliquots were separated from the aquifer water by centrifugation. The precipitates were washed three times with deionized water to remove the salt content. Afterwards the samples were lyophilized and weighed. A fraction was analyzed for the organic carbon (C_org) content of the precipitates. For TREE analysis the lyophilized precipitates were processed like the microbial mat samples, as described below.

Microbiological Diversity

DNA extraction

Biofilm matter was collected in sterile 50 ml tubes. After centrifugation in the field lab shortly after collection, the samples were frozen at −20°C until further processing. After thawing in the home laboratory, the samples were resuspended (to 50 ml) in an iron dissolution solution (0.35 M acetic acid; 0.2 M sodium citrate; 25 mM sodium dithionite; Thamdrup et al., 1993). The cleaned cells (and remaining iron precipitates) were filtered onto polycarbonate filters and washed with 1X PBS. DNA was extracted using the hot-phenol method as described elsewhere (Ionescu et al., 2012).

454 Pyrosequencing

DNA samples were sent for Roche 454 pyrosequencing at the MrDNA lab (Shallowater, TX, USA). Sequencing of the 16S rRNA gene was done using the 28F and 519R general primers (Lane, 1991). 374,666 sequences were obtained and were processed as described in Ionescu et al. (2012). Shortly, the sequences were checked for quality (length, homopolymers, and ambiguous bases) and aligned against the SILVA reference database. Sequences with poor alignment score were removed while the rest was clustered (per sample) into operational taxonomic units (OTUs) at a similarity value of 98%. Reference sequences of each OTU ware assigned a taxonomy using BLAST against the SILVA ref database (Version 111; Quast et al., 2013). Full OTU mapping of the sample was done by clustering the reference sequences of each OTU at 99% similarity. The sequences were deposited at the European Nucleotide Archive (ENA) under study accession number PRJEB4914 (http://www.ebi.ac.uk/ena/data/view/PRJEB4914).

Chemical Analysis

Oxygen in the feeder fluids was measured using the Winkler method (Hansen, 1999). Conductivity and pH were determined together with anion measurements by titration and ion chromatography. Spectrophotometrical Fe_total/Fe(II) measurements were performed on acidified samples immediately after sampling on-site by the certified SKB chemistry lab. TREE were analyzed using Inductive Coupled Plasma Mass Spectrometry (ICP-MS; Perkin Elmer SCIEX Elan DRCII) and Optical Emission Spectroscopy (ICP-OES; PerkinElmer Optima 3300 DV). For sample conservation and TREE measurements, concentrated HNO₃ (Merck, triple distilled in GZG geochemistry lab, purity***) was added to 50 ml water samples (final concentration 2% HNO₃). After sampling, the microbial mats were frozen, transported in dry ice, and stored at −20°C until analysis. To quantify REE in the mineral precipitates, 4 ml of H₂O₂ (35%) and 2 ml of concentrated, distilled HNO₃ were added to 500 mg of lyophilized sample. The resulting solutions of the mineral precipitates were diluted in 50 ml of deionized water (final concentration 4% HNO₃). These solutions, a reference sample (matrix matched calibration solution) containing all chemicals used, and the water samples were spiked with internal Ge, Rh, In and Re standards and analyzed by ICP-MS and ICP-OES. The data obtained were mean values of triple measurements. The internal reproducibility was better than 2%. External accuracy was checked by measuring and comparing to international standard reference materials (GJA-2, Japanese Andesite). Furthermore, the results were drift corrected by monitoring one calibration point through the course of the run, and also corrected for the major oxygen interferences (BaO, REEO, etc.). For a better comparison between the different sites and ages, the TREE data were normalized on the respective feeder fluids (Figures 5, 6, 8). To enable a comparison with data from other publications the TREE data are normalized on PAAS (Figure 7; Post-Archaean average Australian sedimentary rock; McLennan, 1989).

Carbon (C_tot), total nitrogen (N_tot), and sulfur (S_tot) were analyzed using a CNS Elemental Analyzer (HEKAtech Euro EA). Inorganic carbon (C_inorg) and organic carbon (C_org) were analyzed with a Leco RC 412 multiphase carbon analyzer. Duplicate measurements were performed routinely, and appropriate internal standards were used for the C_inorg (Leco 502-030), C_org (Leco 501-034), and CNS (2,5-Bis(5-tert-butyl-2-benzoxazolyl)thiophene, SA990752; atropine sulfate SA990753; IVA Analysentechnik) analyses.

Scanning Electron Microscopy and Energy Dispersive X-RAY Analysis (SEM-EDX)

For SEM-EDX analysis, samples were fixed in 2% glutardialdehyde immediately after sampling and stored at 4°C. Prior to analysis, the samples were dehydrated in rising ethanol concentration, by rinsing with successive solutions of 15, 30, 50, 70% ethanol (30 min each), followed by 90 and 99 % (60 min each), and 99% ethanol (12 h). After the dehydration series, the samples were mounted on SEM sample holders and sputtered with Au-Pd (7.3 nm for 120 s). Samples were analyzed using a field emission SEM (LEO 1530 Gemini) combined with an INCA X-act EDX (Oxford Instruments).

Results

Feeder Fluid Chemistry

Basic water chemistry data for the feeder fluids are given in Table 1. Replicate analyses (data not shown) revealed that their chemical properties remained virtually stable over 15 months, i.e., over the total duration of the experiments (STD, 2σ, below 10%). The feeder fluids consisted of waters with salinities of 5.8% at site 1327B (183 m bsl), and 7% at site 2156B (290 m bsl). Oxygen measurements revealed stable O₂-concentrations between 0.28 and 0.38 mg/l in the feeder fluids and thus, suboxic conditions. The fluid at the shallower site, being influenced by recent Baltic Sea water, contained higher amounts of sulfate and showed a higher alkalinity than the fluid from the deeper site. At both sites, Fe in the feeder fluids was exclusively present as ferrous iron (Fe²⁺, Table 1). The Fe²⁺ concentration was considerably higher at site 1327B (1.68 mg/l) than at site 2156B (0.59 mg/l).

TABLE 1

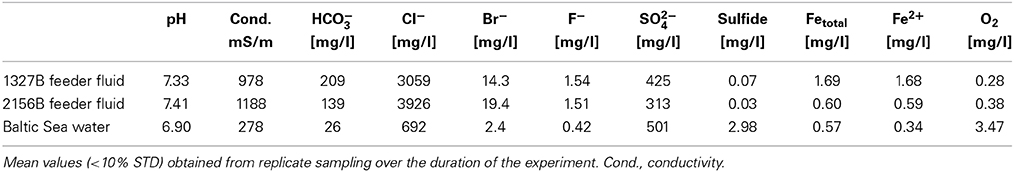

Table 1. Basic chemical parameters of the feeder fluids and Baltic Seawater (for comparison).

Microbial Mat Development

Within 2 months, several cm-thick microbial mats developed in both flow reactors (Figures 1F,I). Macroscopically, the mats consisted of ochrous, fluffy material. Sequencing data revealed that the shallower flow reactor contained Mariprofundus sp. and Gallionella-like organisms as the dominating FeOB, whereas the deeper flow reactor contained Mariprofundus sp. but not G. ferruginea (Figure 2). Other iron oxidizers detected in both reactors were Paracoccus sp., Acidithioacillus sp., Leptothrix sp., Thiobacillus sp., and Sideroxydans sp.

FIGURE 2

Figure 2. Composition of the microbial communities performing iron-oxidation or being involved in the deposition of iron oxyhydroxides in the mats. At site 1327B, main FeOB were Mariprofundus sp. and Gallionellaceae, whereas at site 2156B Mariprofundus sp. dominated and Gallionellaceae were absent.

After 9 months, both flow reactors were almost completely filled with microbial mats which showed a massive abundance of stalks characteristic of Mariprofundus sp. and G. ferruginea (Figure 3A). These stalks showed a delicate filamentous structure with only few mineral precipitates after 2 months (Figure 3B). After 9 months, the flow reactors at both sites still exhibited macroscopically similar microbial mats, but in both cases the FeOB stalks were extensively encrusted with mineral precipitates (Figure 3C). XRD measurements showed two broad humps with maxima between 25 and 70 °2θ, indicating two-line ferrihydrite as dominating mineral form (data not shown). Although microbially formed ferrihydrites are relatively stable mineral phases (Kennedy et al., 2004; Toner et al., 2012), their water content may vary (Schwertmann et al., 1999), and we therefore use the comprehensive term “iron oxyhydroxides” hereafter. Further, SEM/EDX investigations revealed the presence of authigenic gypsum crystals (Figure 3D).

FIGURE 3

Figure 3. (A) SEM micrograph of the 2 months old microbial mat from the flow reactor at site 1327B, showing the twisted EPS-stalks of Gallionella sp. and/or Mariprofundus sp. (B) Detail of young EPS-stalks sampled after 2 months, still showing a pristine filamentous structure; (C) Aged EPS-stalks sampled after 9 months, showing heavy iron oxyhydroxide impregnation; (D) authigenic gypsum crystals in a 9 months old microbial mat.

The organic carbon concentrations of the microbial mats remained fairly constant during the experiment and did not exceed 3.7 %_{dry weight} at site 2156B and 7%_{dry weight} at site 1327B (Table 2). At both sites, the content of nitrogen remained stable at 0.3 %_{dry weight}. Carbon phases analysis indicated that C_inorg (Table 2) was bound as siderite in the young as well as in the aged microbial mats at both sites.

TABLE 2

Table 2. Concentrations (%_{dry weight}) of organic carbon (C_org), inorganic carbon (C_inorg), total nitrogen (N_tot), and total sulfur (S_tot) in the mineralized microbial mats after 2 and 9 months, respectively.

TREE Accumulation and Fractionation within the Microbial Mats

The concentrations of all cations analyzed in the feeder fluids and in the microbial mats are given in Table 3. In both flow reactors, the main element patterns of the microbial mats were always dominated by iron (Figure 4). Other main elements, such as Al, Si, Na, Ca, and Mg showed considerably different relative amounts at both sites after the initial 2 months period (Figures 4A,C). After 9 months, however, Si, Na, Ca, and Mg approached similar abundances (Figures 4B,D). The bivariate plots provided in Figure 5 illustrate the relative element accumulation in the microbial mats normalized on the feeder fluid over 2 and 9 months. Compared to the feeder fluids, the microbial mats showed accumulations of most TREE. In both flow reactors, the REE and the trace elements Be, Y, Zr, Nb, Hf, Pb, Th, and W were 10³–10⁴-fold enriched after 2 months. After 9 months, these elements showed up to 10⁶-fold enrichments (Figure 5). In contrast, Ca, Na, Mg, and K did not accumulate during the first 2 months in the mats though these elements were available at high concentrations in the feeder fluids. The accumulation of these elements in both flow reactors was only observed after 9 months and was most likely related to gypsum precipitation (Figures 3D, 4D, 5).

TABLE 3

Table 3. TREE concentrations of the feeder fluids and in the iron oxidizing microbial mats after 2 and 9 months, respectively.

FIGURE 4

Figure 4. Distribution of the major cations within the mineralized microbial mats after 2 months (A, C) and 9 months (B, D), respectively. Note the convergence of the major element patterns over time, although the mats were fed by chemically differing fluids.

FIGURE 5

Figure 5. Bivariate plots of TREE accumulation of the mineralized microbial mats after 2 and 9 months with respect to the inflowing water, (A) at site 1327B, and (B) at site 2156B. At both sampling intervals and at both sites, highest accumulation rates were observed for REE, Be, Y, Zr, Nb, Hf, Pb, Th, and W, whereas Ca, Na, Mg, and K accumulated only in low amounts, and only in the 9 months old microbial mats. The accumulation of the latter elements is attributed to gypsum precipitation occurring in the aged mats (Figure 3D).

At both sites, REE+Y patterns of the microbial mats plotted against the feeder fluids showed a nearly consistent 10⁴-fold (2 months) and 10⁶-fold (9 months) accumulation of these elements (Figure 6). However, minor anomalies were observed for Eu, Y, Yb and Lu, and the rate of accumulation was somewhat higher at site 2156B compared to site 1327B. The Fe normalized REE values from 1327B showed an increasing REE accumulation with the iron oxyhydroxides during the first 2 months, and a significant drop during the 9 months period. At 2156B the Fe normalized REE uptake with the iron oxyhydroxides was almost negligible, even decreased for some of the REE during the 2 months period. During the 9 months period, however, a considerable accumulation of REE was observed.

FIGURE 6

Figure 6. Plot illustrating the REE+Y fractionation in the microbial iron oxyhydroxides. Nearly uniform REE+Y patterns, except for minor negative Eu and Y anomalies, indicate a largely radius-independent fractionation of REE+Y from the respective feeder fluids.

TREE Accumulation and Fractionation in Artificial Precipitates

The REE+Y patterns resulting from artificial (i.e., inorganic, abiotic, and biotic) mineral precipitation using aquifer water from sites 1327B and 2156B are given in Figure 7. The data reveal a great similarity between these REE+Y-patterns, and with those obtained from the microbial mats and the aquifer waters. Apart from the similarity in REE+Y distributions, however, we observed that the trace elements Ni, Cd and Tl were below detection limit in the inorganic precipitate (Figure 8). Ni and Tl were also missing in the abiotic precipitate. Only Tl was absent from the 15 days biogenic precipitates whereas both Ni and Cd were clearly detected (Figure 8). Molybdenum (Mo) concentrations in the artificial experiments were very low and were in the range of the measurement uncertainty; therefore they will not be discussed further.

FIGURE 7

Figure 7. Comparison of PAAS-normalized (Post-Archaean average Australian sedimentary rock; McLennan, 1989) REE+Y patterns of the microbial iron oxyhydroxides from all flow reactors and the artificial precipitation experiments from the feeder fluid at site 1327B, in comparison to published data for modern seawater and BIFs. Note the similarity between all REE+Y-patterns regardless of a biological contribution.

FIGURE 8

Figure 8. Comparison of the TREE (normalized on the feeder fluid at 1327B) accumulated in the microbial and the artificial iron oxyhydroxides. Note that Ni and Tl are present only in the microbial iron oxyhydroxides including the biotic mineral precipitates (arrows).

Discussion

The microbial mats and the mineral precipitates formed during the flow reactor experiment showed distinct changes in their morphological structure as well as in their elemental composition over time (Figures 3B,C, 4A–D, 5A,B). Interestingly, however, the major chemical traits of both microbial mats converged with time, although both study sites were spatially separated from each other and showed a different composition of their microbial communities. As the feeder fluid compositions did not change considerably during the experiment, these chemical changes may be attributed to processes occurring within the microbial mats. In the following sections, these processes will be interpreted with respect to their biotic or inorganic nature.

After 2 months most of the EPS-stalks still showed a delicate structure of twisted filaments and only few iron oxyhydroxide precipitates outside the stalks, but the TREE and Fe accumulation within these microbial mats already exhibited a 10⁴-fold accumulation normalized on the feeder fluid. It has been proposed that during the iron oxidation process in young G. ferruginea stalks, initial mineralization of hematite (Fe₂O₃) takes place within the filaments, whereas aging stalks increasingly precipitate iron oxyhydroxides outside the filaments (Hallberg and Ferris, 2004). Indeed, studies have shown that Mariprofundus sp. and G. ferruginea are capable of controlling the iron mineralization process through localizing the biotic and abiotic mineral precipitation (Saini and Chan, 2013). The stalk surfaces were observed to be smooth and pristine during the initial stage of formation, but with increasing distance from the cell (i.e., age) they became more and more coated with lepidocrocite (FeOOH) and two-line ferrihydrite (Chan et al., 2011). In our experiments, observations of still pristine stalks, with only minor mineral deposits on their surfaces (Figure 3B), are in good agreement with a controlled iron oxidation process that occurred mainly within the stalks at an early stage of mineralization (Hallberg and Ferris, 2004; Comolli et al., 2011). The presence of hematite, as previously described as an early internal precipitate for Gallionella stalks (Hallberg and Ferris, 2004), was not observed in our study.

Our finding that the accumulation rates of REE, Be, Y, Zr, Nb, Hf, Pb, Th, and W in the microbial mat mineral precipitates were as high as those of Fe (Figures 5A,B) points toward a co-precipitation of these elements due to scavenging by the iron oxyhydroxides. This process is sustained by the strong metal sorption capacity of iron oxyhydroxides, which is widely used in technical applications and remediation activities (Dzombak and Morel, 1990; de Carlo et al., 1998; Bau, 1999; Cornell and Schwertmann, 2003; Michel et al., 2007). Laboratory studies on the properties of inorganic iron oxyhydroxides as metal sorbents have demonstrated their strong accumulation capacities for REE+Y (de Carlo et al., 1998; Bau, 1999). These studies also showed that the sorption of REE+Y onto iron oxyhydroxides increases strongly, up to 10⁴-fold, with increasing pH. Furthermore, metal ions with a higher positive charge tend to show enhanced biosorption, independently of the absolute amount of metals present (Haferburg et al., 2007), which plausibly explains the strong enrichments observed for the three-and four-valent elements Al and Si, REE, Y, Zr, Hf, Pb, Th, and W (Figure 5). Furthermore, Si adsorption to iron oxyhydroxides increases with pH and with higher concentration will lead to surface precipitation of SiO₂ and coating of iron oxyhydroxides (Cornell and Schwertmann, 2003). Si and organic matter may be important factors that influence the precipitation of iron oxyhydroxides (Toner et al., 2012). The significant accumulation of Al especially in the 2 months old microbial mat from 2156B might relate to the presence of iron-reducing and fermentative bacteria in the mats (Ionescu et al., 2015a,b) which are known to selectively mobilize iron oxides and silica under anaerobic conditions. In soils, these processes induce an enrichment of Al in the residual matter which may ultimately lead to the formation of bauxite (Gadd, 2010).

REE+Y are consistently accumulated in the microbial mats (Figure 6), with the patterns of the aquifers being preserved in the iron oxyhydroxides at a 10⁶-fold enrichment. This observation implies that fractionation of REE+Y from the feeder fluids and incorporation in, or sorption to, the iron oxyhydroxides is a radius-independent process, as it has been observed in artificial precipitation experiments (Bau, 1999). Other studies have shown that REE accumulation can be closely correlated to the increasing stalk length of G. ferruginea, whereas the enrichments of actinides like U and Th show a less pronounced correlation (Anderson and Pedersen, 2003). The different behavior of the latter may be explained by their particularly high sorption susceptibility to organic matter (e.g., Lin et al., 2014). Consequently, not only the iron oxyhydroxide precipitates, but also the organic matter of the stalks most likely play a crucial role in TREE precipitation within “young” microbial mats, because the EPS offers large reactive surfaces for metal sorption. According to this scenario, the ongoing incrustation of the stalks of Mariprofundus sp. and Gallionella sp. (Figure 3C) most likely caused a gradual decline of exposed EPS-surfaces, and thus reduced the passive mineralization capacities of the microbial mats. Instead, indirect mineral precipitation became increasingly important in the course of the experiment, and probably accounted for the significantly higher accumulations of Si and the lower valent cations Cs, Sr, Se, Li observed in the aged microbial mats (Figure 4).

The entire water chemistry data of the aquifers were used to calculate saturation indices (SI). SI values calculated for gypsum using PhreeqC range between −0.74 and −0.95, indicating that direct gypsum precipitation from the aquifers is rather unlikely. Hence, the authigenic formation of gypsum observed in the microbial mats (Figure 3D) can only be explained by micro-environments inducing local supersaturation of Ca²⁺ and SO²⁻₄. The 9 months old microbial mats were quite thick and dense (Figure 1G) which hampered the fluid circulation in the reactors and likely gave rise to the formation of micro-environments. The creation of such micro-environments may also be promoted by sulfur oxidizing bacteria (SOB) which oxidize hydrogen sulfide (H₂S) to sulfur intermediates [i.e., elemental sulfur (S°), thiosulfate (S₂O²⁻₃), sulfite (SO²⁻₃)] and eventually, sulfate (SO²⁻₄). Indeed, several SOB genera (Thiothrix, Thiobacillus, Sulfurimonas and Acidithiobacillus) have been identified in the microbial mats (Ionescu et al., 2015a), and their metabolism may plausibly account for a local increase in SO²⁻₄ and concomitant gypsum precipitation. Likewise, sorption of SO²⁻₄ onto iron oxyhydroxides (Dzombak and Morel, 1990; originally described in soils) may be expected to occur in the microbial mats, and may further help to create locally distinct supersaturated micro-environments, thereby inducing gypsum precipitation. The gypsum lattice easily incorporates ions similar to Ca in charge and/or size, like Mg, K, Na, Cs, and Sr (e.g., Lu et al., 2002 and references therein) which may have contributed to the relative enrichment of these elements within the aged microbial mats (Figure 4).

Anoxic micro-environments may also provide an explanation for the observed formation of siderite, as this mineral is only stable under reducing conditions. Although SI values calculated for FeCO₃ ranged between −0.44 and 0.14 for each flow reactor, siderite formation in the microbial mats was observed at both sites and during all time points.

When normalized on PAAS (Post-Archaean average Australian sedimentary rock; McLennan, 1989), the REE+Y plots of the feeder fluids and the microbial iron oxyhydroxides show a slight enrichment of the heavy REE (Gd-Lu+Y) over the light REE (La-Eu) (Figure 6). This pattern is characteristic for REE+Y bound in carbonate complexes, and is often referred to as “hydrogenous” (Takahashi et al., 2002). The phenomenon has been explained by different chemical complex formation of the REE+Y in aqueous solutions, rather than a merely charge- and radius-controlled behavior (CHARAC; Bau, 1996; Takahashi et al., 2002).

When normalized on the feeder fluids, the REE+Y patterns of the microbial iron oxyhydroxides exactly mirror the source, thus displaying a consistent radius-independent fractionation (Figure 6). Interestingly, published REE patterns of Archaean BIFs (Bau and Dulski, 1996; Frei et al., 2008) range well-within the REE+Y patterns of the microbial iron oxyhydroxides formed in our experiment (Figure 7). The only “outlier” is the positive Eu anomaly of BIFs, which is most likely due to hydrothermal influence (Michard and Albarède, 1986; Frei et al., 2008) and is missing in the feeder fluids and in the iron oxyhydroxides from Äspö. However, this coincidence may not be interpreted in terms of a “biosignature,” because artificial precipitation of iron oxyhydroxides (1. inorganic 2. abiotic; 3. biotic, i.e., biological activity allowed for 15 days) from the Äspö feeder fluids resulted in largely the same REE+Y pattern. Likewise, the ~10⁴-fold REE+Y enrichments observed for the iron oxyhydroxides of the young (2-months old) microbial mats are quantitatively similar to the values observed for the artificial precipitates (Figure 7). Therefore, our data indicate that it is not possible to deduce a microbial contribution to the deposition of BIFs from REE+Y patterns. This is in agreement with a recent study on biotic vs. abiotc iron oxidation indicating that the presence of particulate organic matter or previously precipitated iron both accelerate further precipitation (Ionescu et al., 2015b).

Apart from the REE+Y distributions, a comparison of the complete TREE patterns of the artificial precipitates and the microbial iron oxyhydroxides yielded interesting results.

Cd was accumulated in small amounts in the biogenic iron oxyhydroxides and was highest in the abiotic precipitates. It was not detected at all in the inorganic iron oxyhydroxides. Although Cd does not show a preferential sorption to organic matter (Davis, 1984), in our study Cd is positively correlated to the organic matter containing iron oxyhydroxides. Tl was only observed in the microbial iron oxyhydroxides from the flow reactors. A biological function has not been reported so far, but Tl isotope patterns were suggested as a proxy for an increase in organic carbon burial in Paleocene marine Fe–Mn Crusts (Rehkämper et al., 2004; Nielsen et al., 2009).

Ni was only detectable, and accumulated, in microbial iron oxyhydroxides (all samples from 15 days, 2 and 9 months) growth. Ni is known to fulfill a range of biological functions, especially in Ni-metalloenzymes. Prominent examples are CO dehydrogenase, acetyl-CoA synthetase, and methyl-coenzyme M reductase which all play important roles in microbial carbon metabolism (Ermler et al., 1998; Dobbek et al., 2001; Voordouw, 2002; Ragsdale, 2007). The presence of Ni in the biogenic precipitates may thus be inherited from the Ni-content of living microbial cells. Although Ni is constantly accumulated in the microbial iron oxyhydroxides, the molar Ni/Fe ratio decreased by an order of magnitude (from 2.8 × 10⁻⁵ and 8.0 × 10⁻⁶ to 3.0 × 10⁻⁶ and 2.0 × 10⁻⁶) with the aging of the mats at both sites, possibly indicating a lower contribution of microbial cellular matter to the metal content of the late precipitates. It has been proposed, that BIFs mirror the source fluid from which they were precipitated and thus, the elemental composition of the Precambrian Ocean (Konhauser et al., 2009). In our study, however, the decreasing molar Ni/Fe ratios of microbial iron oxyhydroxides are not representative for the constant Ni/Fe supply that was delivered from the feeder fluids.

Conclusions

In a suboxic aquifer system hosted by granodioritic rocks and influenced by Baltic Sea water, the development of iron oxidizing microbial mats was studied to test the potential usage of TREE as biosignatures for a microbial involvement in Fe mineral precipitation. Over the 9 months of the experiment, massive iron-oxidizing microbial mat systems developed whose predominant FeOB were the stalk-forming Mariprofundus sp. and Gallionella sp. The deposition of iron oxyhydroxides in these mat systems was initially controlled by the metabolic activity of Mariprofundus sp. and Gallionella sp. and passive mineralization caused by the high biosorption capacity of newly formed EPS-stalks. Upon aging, ongoing iron oxyhydroxide impregnation caused a gradual decrease of the biosorption capacities of the EPS-stalks. As a result, indirect mineral precipitation became increasingly important over time.

The iron-oxidizing microbial mats proved to be extremely efficient in the accumulation of trace and rare earth elements (TREE), leading to massive (up to 10⁶-fold) enrichments of individual metals in the microbial iron oxyhydroxides. The REE+Y patterns of the resulting microbial iron oxyhydroxides matched quite closely the feeding aquifer, as well as Archaean Banded Iron Formations (BIFs). However, inorganic and abiotic iron oxyhydroxides precipitated artificially from the Äspö feeder fluids showed a very similar REE+Y pattern and roughly the same accumulation rates as the biogenic deposits formed in the flow reactors. These results argue against the usage of REE+Y patterns to deduce a biological contribution of FeOB to the deposition of BIFs. On the other hand, the microbial iron oxyhydroxides showed significant accumulations of the trace elements Ni and Tl which were absent in the artificially precipitated iron oxyhydroxides. These elements should be studied further as potential candidate biosignatures to assess a biological contribution of FeOB to the deposition of BIFs.

Conflict of Interest Statement

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

Acknowledgments

We acknowledge with gratitude the detailed and constructive comments provided by Doug LaRowe and Jakob Zopfi. We are also grateful to Emmeli Johansson, Magnus Kronberg, Teresita Morales and the SKB staff for technical, logistic and analytical support at the Äspö HRL. Volker Karius and Veit-Enno Hoffmann, Erwin Schiffzyk, and Dorothea Hause-Reitner are acknowledged for their assistance with the XRD, ICP-OES, and SEM-EDX measurements, respectively. Andreas Pack helped to improve the data presentation. Our study received financial support from the German Research Foundation (DFG). This is publication No. 75 of the DFG Research Unit FOR 571 “Geobiology of Organo- and Biofilms.”
