Investigating possible shared single nucleotide polymorphisms in isolated oral cleft and non-cleft facial morphology

Introduction: Facial morphogenesis is regulated by several cellular interactions that are mediated by numerous morphogenetic signals. Based on the existing evidence, we hypothesize that oral cleft-associated single nucleotide polymorphisms (SNPs) are involved in the normal range of human face development. Therefore, this study aimed to investigate the association between SNPs in oral cleft-related genes and variations in the normal range of facial morphology.

Method: A sample of healthy Brazilian teenagers (aged between 11 and 18 years old) were screened and collected. Frontal facial digitized photographs from orthodontic records were used to determine phenotypes, while the DNA extracted from saliva samples was used to investigate the candidate SNPs. Five oral cleft-associated SNPs in BMP2 (rs235768), BMP4 (rs17563), WNT3A (rs708111), WNT11 (rs1533767), and RUNX2 (rs1200425) were selected, and allelic discrimination analysis was performed using real-time PCR.

Results: A total of 58 individuals (27 boys and 31 girls) were included. The facial landmarks used for the facial measurements were the trichion (Tr), glabella (G), nassion (N), subnasale (Sn), labrale superior (Ls), labrale inferior (Li), gnathion (Gn), cheilon (Ch), and zygoma (Zg). rs17563 in BMP4 was associated with lip proportion, in which individuals with the homozygous GG genotype had a higher Ch-Ch:Ls-Li proportion than the heterozygous AG genotype (p = 0.034). rs1533767 in WNT11 was associated with G-Sn:Sn-Gn (p = 0.028), N-Gn:Sn-Gn (p = 0.035), and Sn-Gn:Tr-Gn (p = 0.039).

Conclusion: Our study supported the hypothesis that oral cleft-associated SNPs are involved in the normal range of human facial morphology.

1 Introduction

The human face displays high morphological variability. Its appearance is a fascinating trait, and facial variability is important for social interactions. Facial variability also has implications for clinical practice, forensic intelligence identification, personal identity, clinical genetics, and possible counseling. Human faces result from the intrinsic complexity of morphogenesis, in which many genetic and environmental factors are involved. Genetics is clearly one of these factors, and this knowledge is long supported by the evidence on familial similarities, especially for monozygotic twins (1).

Some studies have emerged in the past two decades that aimed to unravel the genes that may play a critical role in defining the size and shape of facial features (2–7). Certain studies explored the connection between oral cleft-related genes and normal-range variations in facial morphology (1–8). These studies have provided some important insights into genes and single nucleotide polymorphisms (SNPs) in facial genetics (1). SNPs are a type of polymorphism involved in a variation of a single base pair at a single position in a DNA sequence. SNPs located in several protein encoding genes have already been associated with non-syndromic (isolated) oral cleft (9–14).

Facial morphogenesis is regulated by several cellular interactions that are mediated by numerous morphogenetic signals, such as bone morphogenetic protein (BMP), wingless (WNT) (15), and Runt-related transcription factor 2 (RUNX2) (16). BMPs are well-known as multi-functional growth factors. BMP signaling is one of the most important pathways regulating craniofacial development. It is involved in the early development of the head and facial patterning (17), in which their components are important factors in the growth of facial processes. Animal models showed that BMP signaling has distinct roles in lip and palate fusion (18), especially BMP2 and BMP4, which are expressed in maxillary and mandibular processes (19). SNPs in BMP2 (11, 12) and BMP4 (10, 11, 13) have been associated with oral clefts in different populations.

Canonical WNT signaling factors play a decisive role in many aspects of craniofacial development, while their dysregulation is involved in facial congenital defects (20). In animal models, WNT3A was involved in malformations of the face (2, 20) due to increased cell proliferation in the mesenchyme and increased expression of BMP2 and BMP4 (21). WNT11 is also important for craniofacial development, especially the palate area (22). In fact, SNPs in WNT3A and WNT11 have been associated with oral cleft in humans (9). RUNX2 is a critical regulator of transcription processes and involved in craniofacial development, in bone and dental formation in particular, and was furthermore connected to cleft palates in mice (23). A study that examined the association between 49 genetic variants in RUNX2 and oral cleft in different populations observed that some SNPs in this gene are associated with oral cleft (24).

The identification of SNPs associated with normal facial morphology is a valuable tool for advancing medical, scientific, and applied fields. This knowledge improves the understanding of the biological processes underlying facial structure, growth, and variation. Understanding the genetic basis of facial morphology may lead to personalized surgical or orthodontic interventions, ensuring better functional and esthetic outcomes. SNP data associated with facial features could enhance forensic reconstruction, allowing for more accurate predictions of an individual's appearance from DNA samples. SNPs linked to facial morphology can offer insights into human evolution, population genetics, and how environmental and genetic factors have shaped human facial diversity. In addition, understanding the role of oral cleft-associated SNPs in normal facial traits is crucial for identifying parents who may be at a higher risk of having a child with an oral cleft. Therefore, in the present study, we selected SNPs previously associated with oral cleft (rs235768, rs17563, rs708111, rs1533767, and rs1200425) to investigate their role in normal facial morphology. Our hypothesis is that oral cleft-associated SNPs are involved in the normal range of human face development.

2 Methods

2.1 Ethical aspects and sample description

The ethical rules for research described in the Helsinki Declaration (1964) were followed throughout the study. All included individuals provided written informed consent, and the study protocol was approved by the Ethics Committee of the School of Dentistry of Ribeirão Preto, University of São Paulo, São Paulo, Brazil (Protocol No. 50765715.3.0000.5419). Children who had parental consent were then asked for assent before they were included in the study. Only children with both informed consent and assent were included in the screening.

This study is part of a larger project regarding the etiological aspects involved in craniofacial development. For this study, frontal facial digitized photographs from the orthodontic records were used to determine the phenotypes, while the DNA samples were used to investigate the candidate SNPs. During the recruiting process, only biologically unrelated healthy teenagers or young adults who sought orthodontic treatment at the School of Dentistry of Ribeirão Preto, University of São Paulo, were included. The exclusion criteria were based on the clinical examination performed by dentists and the self-reported information acquired during the anamnesis. Patients were excluded if they had syndromes, had received or were receiving hormonal treatment, presented with congenital alterations such as cleft lip and/or palate or oligodontia (congenital absence of six or more teeth), had first-degree relatives with cleft lip and/or palate, had undergone previous orthodontic and/or orthopedic treatments, had a history of or required orthognathic surgery, or had facial trauma or endocrinological problems such as growth hormone deficiency, thyroid disorders, and diabetes mellitus. During clinical examination, none of the patients had permanent teeth extracted.

The sample size calculation was based on the frequency of the most common allele, an expected mean difference of 0.3 among genotypes, and a standard deviation of 0.3, with an established alpha level of 5% and a power of 80%.

2.2 Phenotyping

The photographs were taken with the patient positioned under standardized conditions in portrait mode (non-smiling). Briefly, the patient was standing upright with a natural posture. Their hair was pulled back to ensure full visibility of facial features, and glasses, earrings, and any accessories that could obstruct facial landmarks were removed. The camera was positioned at the patient's eye level. The patient faced the camera directly with their head in a natural head position and the Frankfort Horizontal Plane parallel to the floor. The patient should have a relaxed facial expression in a natural rest position for the photograph. All photographs were taken in high resolution with the correct exposure settings.

All frontal facial digitized photographs were available in the orthodontic record and only the images from before the orthodontic treatment were used.

A total of 15 facial landmarks (7 single and 4 paired) were selected for this study. The landmarks were selected based on their reliable identification in all photographs, and being minimally affected by changes due to the patients’ grooming (i.e., eyebrow plucking or hair styling). The facial landmarks used for the facial measurements were the trichion (Tr), glabella (G), nassion (N), subnasale (Sn), labrale superior (Ls), labrale inferior (Li), gnathion (Gn), cheilon (Ch), and zygoma (Zg). The description of the selected landmarks is presented in Table 1 and their locations are depicted in Figure 1. The position of each landmark was recorded as a set of X-Y pixel coordinates and to place the landmarks on the 2D images, Adobe Photoshop Creative Cloud (Adobe Systems Incorporated, San Jose, CA, USA) was used. The edited photographs were imported into the Image J software (NIH, Bethesda, MD, USA) and the distance between any two points in a given plane of space was accomplished by calculating the number of pixels that existed between the two coordinates. The measurements were Tr-G, G-Sn, Sn-Gn, N-Gn, Zg-Zg, Ls-Li, Ch-Ch, Sn-Ls, and Li-Gn. The ratios were calculated for each individual.

Table 1

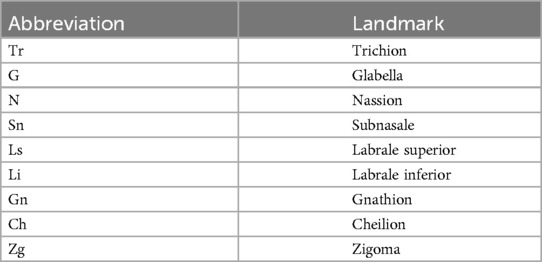

Table 1. Facial landmarks used.

Figure 1

Figure 1. Facial landmarks and linear measurements used in the present study. The figure was adapted from an AI-generated image created using ChatGPT (January 2025, version 4), OpenAI.

2.3 Reliability

To ensure the accuracy and reproducibility of the measurements, both intra- and inter-observer reliability assessments were performed. The intra-class correlation coefficient (ICC) was used to evaluate the reproducibility and compared with that of the senior examiner. For the inter-observer reliability, the senior examiner and the trained examiner analyzed the same set of five randomly selected images under identical conditions. The ICC was used to determine the level of agreement between observers. There were no discrepancies to be resolved and the value for the inter-observer agreement was 0.87. For the intra-observer reliability, a single examiner conducted facial measurements twice on the same set of five randomly selected images (images different from the ones used in the inter-observer reliability stage), with a 2-week interval between assessments to minimize recall bias. The ICC was used to evaluate the consistency of repeated measurements and the value for the intra-observer agreement was 0.92. ICC values were interpreted as follows: <0.50 (poor), 0.50–0.75 (moderate), 0.75–0.90 (good), and >0.90 (excellent) reliability.

2.4 DNA extraction, genotyping, and quality control

DNA was extracted from buccal cells in saliva. For DNA extraction, an established previously published protocol was used (25) and the amount and purity of the DNA were assessed using spectrophotometry (Nanodrop 1000; Thermo Scientific, Wilmington, DE, USA). The DNA was stored until the polymerase chain reaction (PCR) analysis.

The oral cleft-associated SNPs in the candidate genes were selected from published association studies on isolated oral clefts, including a systematic review and meta-analysis. We only selected SNPs that are common in the global population (minor allele frequency > 0.25). A detailed description of the selected SNPs is provided in Table 2.

Table 2

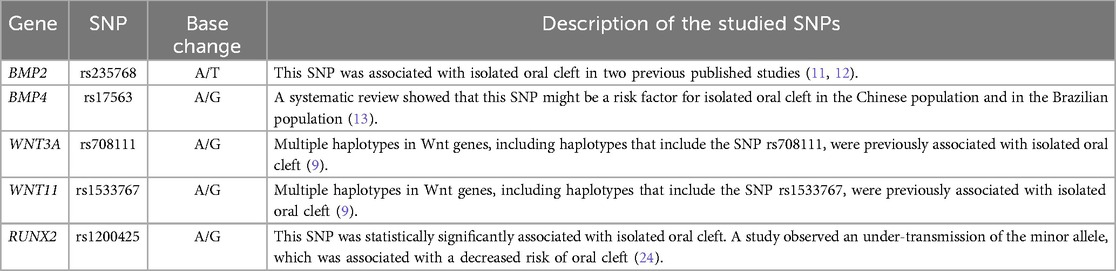

Table 2. Characteristics of the candidate SNPs.

Allelic discrimination analysis was blindly performed using the Taqman™ method for real-time PCR (Step One Plus Real-Time PCR System, Applied Biosystems, Foster City, CA, USA).

Duplicated genotyping of 10% of the total sample was performed and 100% agreement was observed.

2.5 Statistical analysis

Deviations on the Hardy–Weinberg equilibrium (HWE) for each SNP were tested using the Chi-squared test.

The dependent variables were the ratio measurements, and the independent variables were the genotypes. The dimensions presented normal distribution according to the Kolmogorov–Smirnov test. The ratios were compared among the genotypes with a t-test or one-way ANOVA with Tukey’s post-hoc test. Data were analyzed using the GraphPad Prism Version 9.3.1. The established alpha for all analyses was 5%.

3 Results

A total of 58 individuals (27 boys and 31 girls) were included in this study after the screening and exclusion criteria process.

The age of the included individuals ranged from 11 to 18 years old, and the mean age was 13.5 years old (standard deviation = 1.83).

According to the genotypic data presented, we calculated the HWE in each SNP. Chi-square analysis was used to confirm that the genotype distribution of each evaluated SNP’s HWE. The results are as follows: chi-square ^HWE = 10.81 for rs235768, chi-square ^HWE = 2.63 for rs17563, chi-square ^HWE = 2.25 for rs708111, chi-square ^HWE = 0.10 for rs1533767, and chi-square ^HWE = 1.01 for rs1200425.

Table 3 shows the p-values and facial ratio proportion values (mean, standard deviation, minimum, and maximum) distributions according to the genotypes for each studied SNP (rs235768, rs17563, rs708111, rs1533767, and rs1200425).

Table 3

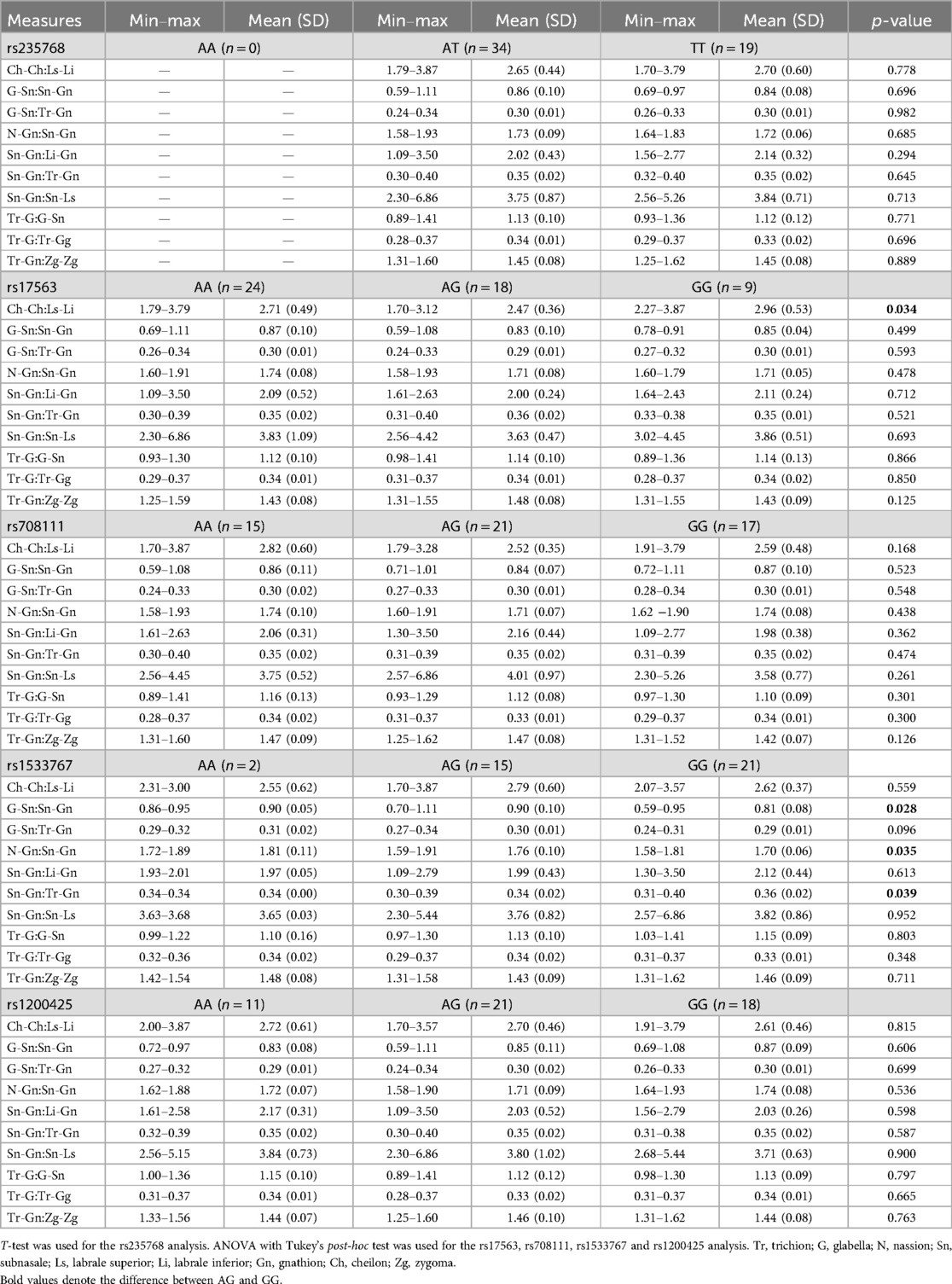

Table 3. Dimension distributions according to the genotypes in the candidate SNPs.

Figure 2 shows the differences in facial morphology with different facial proportions. The different facial proportions represent the influence of the genotypes in BMP4 and WNT11 on the facial phenotypes. As a reference, a face with average proportions is provided in Figure 2A.

Figure 2

Figure 2. Schematics of different face morphologies associated with the genotypes in BMP4 and WNT1. (A) A reference face with average proportions. (B) Face with thicker lips. (C) Face with a change in the mid- to lower facial height ratio, showing a larger lower face height. (D) Face with a changed ratio of lower face height to total face height, showing a larger lower face height. The figure was adapted from an AI-generated image created using ChatGPT (January 2025, version 4), OpenAI.

rs17563 in BMP4 was associated with lip proportion. Individuals with the homozygote GG genotype had a higher Ch-Ch:Ls-Li ratio than the heterozygote AG genotype (p = 0.034) (Table 3). Patients carrying the AG genotype had thicker lips (Figure 2B).

rs1533767 in WNT11 was associated with the mid to lower face height ratio, in which patients carrying the GG genotype had larger lower face height compared to the AG genotype: G-Sn:Sn-Gn (p = 0.028) and N-Gn:Sn-Gn (p = 0.035). The results are shown in Table 3. Patients with the GG genotype are represented in Figure 2C.

rs1533767 in WNT11 was associated with the ratio of the lower face height and the total face height (Sn-Gn:Tr-Gn). Table 3 shows that patients carrying the GG genotype had a larger lower face compared to the AG genotype (p = 0.039). Figure 2D represents patients carrying the GG genotype.

4 Discussion

Only recently have scientists started identifying the specific genes that impact the normal range of human facial morphology. As in the current study, previous studies applied a candidate gene approach to investigate whether genetic variants in genes were related to craniofacial development and therefore involved in one or more metric and non-metric facial traits (26). Gene selection is typically based on prior knowledge of their biological relevance, such as their expression during craniofacial development or being causal for a syndrome with craniofacial alterations resulting from single-gene mutations. SNPs in genes involved with syndromes were previously associated with a variety of facial measurements, for example, genes such as FGFR1 (e.g., Pfeiffer syndrome and Kallmann syndrome) (3), IRF6 (e.g., Van der Woude syndrome) (5), and RUNX2 (e.g., cleidocranial dysplasia syndrome) (4). Some genome-wide association studies (GWASs) have also been performed and suggested some loci and SNPs (2, 6, 7). Other studies selected the candidate genes based on their role in oral cleft formation (1, 8). This is a similar approach used in our study, which selected SNPs in genes previously associated with oral clefts.

One of the most remarkable pieces of evidence that supports the association between oral cleft-related genes and normal face variability is the fact that the faces of unaffected parents of subjects with oral clefts display meaningful shape differences compared with the general population (8, 26). Indencleef et al. (8) conducted an interesting study design in which they studied unaffected parents of patients with non-syndromic oral clefts and control subjects. They found that some loci associated with oral cleft risk are also involved in some facial phenotypes. In our study, none of the included patients reported first-degree relatives with oral clefts.

The SNPs rs235768 (BMP2) and rs17563 (BMP4) were suggested as risk factors for oral cleft in the Iranian population (11). In our study, rs235768 in BMP2 was not associated with the studied facial proportions, however, rs17563 in BMP4 was associated with the Ch-Ch:Ls-Li ratio (lip proportion). A meta-analysis that pooled the results for this SNP supported that rs17563 may be associated with the risk for oral cleft development (13). Interestingly, this SNP was involved in lip proportion, as individuals carrying the GG genotype have a thinner lip, while patients carrying the AG genotype have thicker lips, supporting that this SNP may have an important role in perioral development.

A complex signaling network involving BMPs and WNTs in the facial ectoderm and neural crest mesenchyme is involved in the morphogenesis of the upper jaw (20). WNT signaling interacts with BMP to regulate the patterning and growth of the craniofacial skeleton (27). We observed that the SNP rs1533767 in WNT11 was associated with the following facial proportions: the mid and lower face height ratio (G-Sn:Sn-Gn and N-Gn:Sn-Gn) and the ratio of the lower face height and the total face height of all three facial thirds (Sn-Gn:Tr-Gn). Previously, this SNP was borderline associated with a brachyfacial profile diagnosed using lateral cephalometric analysis to investigate craniofacial patterns (28). Chiquet et al. (9) also found that the SNP rs1533767 was associated with isolated oral cleft.

The current study has some obvious limitations that should be discussed here. The first to be highlighted is the fact that two-dimensional photographs were used in the phenotype evaluation. Although this method is still used in different studies, a facial scan followed by a three-dimensional analysis brings more reliable data. The fact that only a few candidate genes and SNPs were selected is also a limitation. Several SNPs in these genes and in other oral cleft-related genes may play an important role in facial morphology. It is important to mention that candidate gene studies, such as our study, frequently only examine a small number of genes/SNPs that are hypothesized to be relevant based on previous research, as studying a large number of genes requires significant time, funding, and resources. In addition, analyzing several genes/SNPs increases the risk of false-positive findings. A smaller, well-defined set of genes allows for more robust statistical analysis and validation of results. Focusing on fewer SNPs simplifies data analysis and makes it easier to draw meaningful biological conclusions, especially in small samples.

Another important aspect to be mentioned is the sample size. Although a sample size calculation was performed based on the frequency of the common genotype (wild homozygotic), the contribution of genotypes with a low frequency in the phenotypic variation could not be tested. The fact that the study was performed using two-dimensional photographs instead of a three-dimensional photograph should also be mentioned as a limitation of the current study. When studying facial morphology, two-dimensional images have some limitations compared to three-dimensional imaging, including a lack of depth perception, as two-dimensional images capture only height and width, making it difficult to analyze facial depth and curvature. Two-dimensional images also overlap structures and can obscure some important details. In contrast, three-dimensional imaging allows for direct, precise volumetric and angular measurements. Therefore, future studies with a larger cohort sample should be performed to confirm the findings of the present study in a Brazilian population and other populations.

Briefly, the discovery of genes involved in facial morphology has significant clinical relevance, particularly in orthodontics and personalized dental care. Future genetic screening can help predict facial morphology, guiding treatment plans for specific phenotypes before they fully develop. In the long term, discoveries in craniofacial genetics could lead to gene-based therapies.

5 Conclusion

Our study supported the hypothesis that oral cleft-related genes are involved in the normal range of variations in the human face. The SNPs rs17563 in BMP4 and rs1533767 in WNT11 were associated with facial proportion variations. Understanding the genetic basis underlying the normal-range variation of the human face has important implications in clinical studies, developmental biology, counseling, and forensic science. It is important to emphasize that the present genetic study was conducted with a relatively small sample size, which may limit the generalizability and statistical power of the findings. While the results provide valuable insights regarding the genetic background of the normal range of variation of the human face, future studies with larger cohorts are necessary to validate these findings, improve the accuracy of genetic associations, and strengthen the reliability of conclusions drawn from this research. Expanding sample sizes will also help to identify subtle genetic effects and enhance our understanding of the complex interplay between genetics and human face variability.

Data availability statement

The datasets presented in this study can be found in online repositories. The names of the repository/repositories and accession number(s) can be found in the article/Supplementary Material.

Ethics statement

The study involving humans was approved by Ethics Committee of the School of Dentistry of Ribeirão Preto, University of São Paulo. The study was conducted in accordance with the local legislation and institutional requirements. Written informed consent for participation in this study was provided by the participants’ legal guardians/next of kin.

Author contributions

EK: Conceptualization, Data curation, Formal analysis, Investigation, Methodology, Project administration, Resources, Supervision, Writing – original draft. MNM: Data curation, Software, Visualization, Writing – review & editing. BP: Methodology, Writing – review & editing. SB-M: Investigation, Methodology, Writing – original draft. DH: Investigation, Writing – review & editing. RC: Funding acquisition, Project administration, Writing – review & editing. RS: Resources, Visualization, Writing – review & editing. MANM: Resources, Supervision, Writing – review & editing. MO: Conceptualization, Supervision, Writing – review & editing. CK: Funding acquisition, Resources, Validation, Writing – review & editing. BC-L: Conceptualization, Investigation, Supervision, Writing – review & editing.

Funding

The author(s) declare that financial support was received for the research and/or publication of this article. This work was supported by the Open Access Publication Fund of the University of Bonn.

Acknowledgments

The Coordenação de Aperfeiçoamento de Pessoal de Nível Superior, Brazil (CAPES—Finance Code 001) is acknowledged.

Conflict of interest

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

Generative AI statement

The author(s) declare that Generative AI was used in the creation of this manuscript. Authors used ChatGPT (January 2025, version 4), OpenAI to create figures 1 and 2.

Publisher's note

All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.

Supplementary material

The Supplementary Material for this article can be found online at: https://www.frontiersin.org/articles/10.3389/fdmed.2025.1546295/full#supplementary-material
