Skip to main content

ORIGINAL RESEARCH article

Front. Dent. Med
Sec. Dental Materials
Volume 5 - 2024 | doi: 10.3389/fdmed.2024.1501909

Effect of Air-Particle Abrasion and Methacryloyloxydecyl Phosphate Primer on Fracture Load of Thin Zirconia Crowns: An In Vitro Study

Provisionally accepted
Ruwaida Z. Alshali Ruwaida Z. Alshali 1*Mohammed A. Alqahtani Mohammed A. Alqahtani 2Basem A. Alturki Basem A. Alturki 3Loay I. Algizani Loay I. Algizani 4Abdullah O. Batarfi Abdullah O. Batarfi 3Zuhair K. Alshamrani Zuhair K. Alshamrani 1Razan M. Faden Razan M. Faden 3Dalea M. Bukhary Dalea M. Bukhary 1Mosa M. Altassan Mosa M. Altassan 1
  • 1 Faculty of Dentistry, King Abdulaziz University, Jeddah, Makkah, Saudi Arabia
  • 2 College of Medicine, King Saud University, Riyadh, Saudi Arabia
  • 3 Ministry of Health (Saudi Arabia), Riyadh, Riyadh, Saudi Arabia
  • 4 King Abdulaziz University Dental Hospital, Jeddah, Saudi Arabia

The final, formatted version of the article will be published soon.

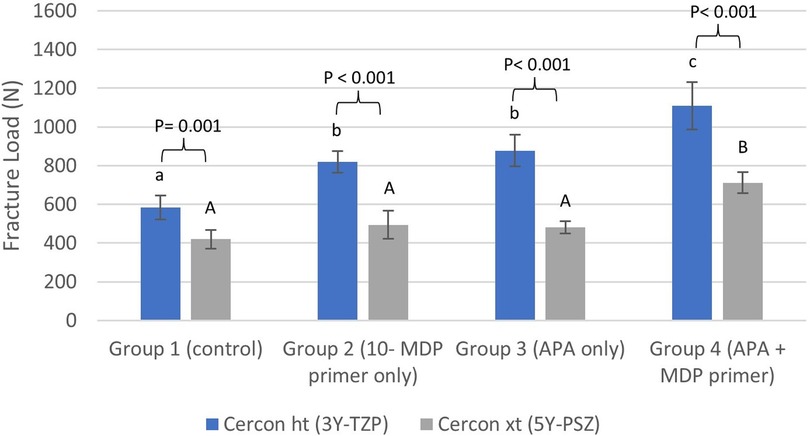

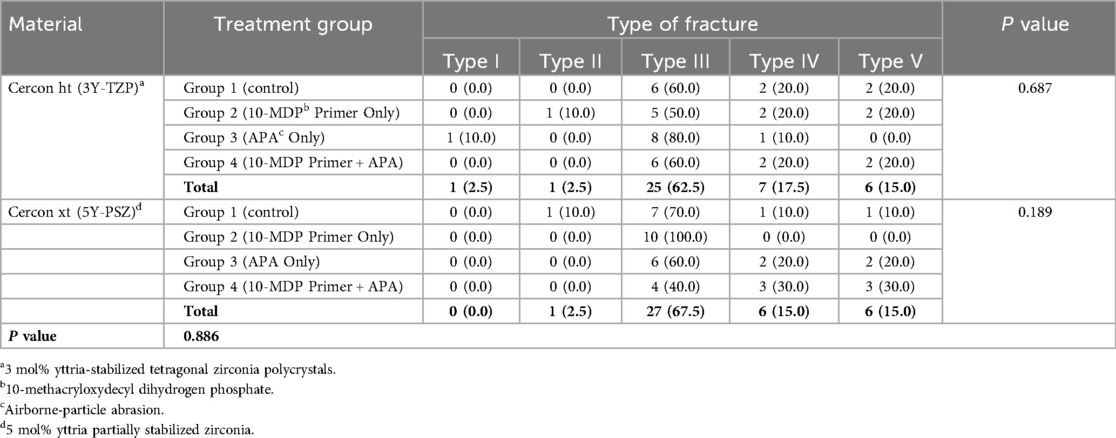

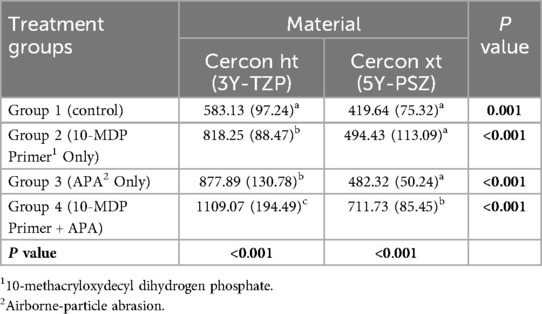

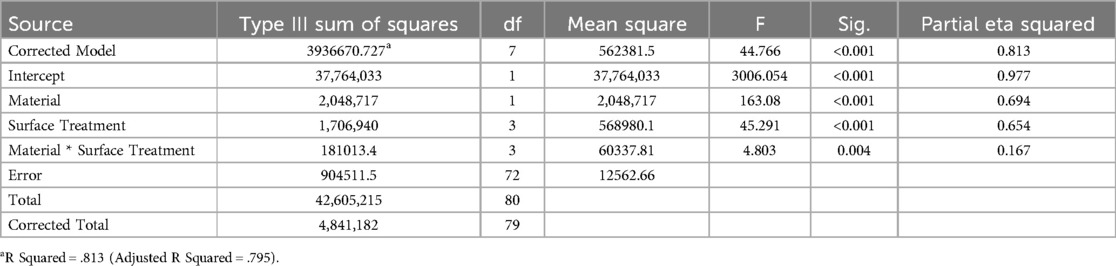

    The study aimed to investigate the effects of airborne-particle abrasion (APA) and 10-methacryloxydecyl dihydrogen phosphate (10-MDP primer) surface treatments on the fracture load of thin zirconia crowns made from 3Y-TZP and 5Y-PSZ zirconia. Eighty full-contour zirconia crowns of 0.5 mm thickness were fabricated from 3Y-TZP and 5Y-PSZ zirconia. Crowns of each material were divided into four groups based on the surface treatment applied to the fitting surface (n=10): Group 1 (control), Group 2 (10-MDP Primer Only), Group 3 (APA Only), and Group 4 (10-MDP Primer + APA). Crowns were cemented using self-adhesive resin cement and subjected to thermocycling. Fracture load tests were performed using a universal testing machine with a hemispherical indenter. Statistical analysis was performed using one-way ANOVA, Tukey's post hoc test, and independent samples T-test (α= 0.05). The fracture load of 3Y-TZP was significantly higher than 5Y-PSZ crowns across all groups (P ≤ 0.001). Group 1 had the lowest fracture load, while Group 4 had the highest for both materials. In 3Y-TZP, the fracture load of Group 2 increased by 40% (P = 0.002) and Group 3 by 50% (P < 0.001) compared to Group 1. Group 4 showed a 90% increase over Group 1 (P < 0.001). For 5Y-PSZ, fracture load of Group 4 increased by 70% compared to Group 1 (p < 0.001). It was concluded that applying a 10-MDP primer or APA significantly increases the fracture load of thin 3Y-TZP zirconia crowns, with the combination of both treatments yielding the highest values. For 5Y-PSZ, a significant increase in fracture load is observed only when both APA and the 10-MDP primer are used together.

    Keywords: Zirconia, Crowns, Fracture, strength, Air abrasion, 3Y-TZP, 5Y-PSZTZP, 10-MDP primer

    Received: 25 Sep 2024; Accepted: 31 Oct 2024.

    Copyright: © 2024 Alshali, Alqahtani, Alturki, Algizani, Batarfi, Alshamrani, Faden, Bukhary and Altassan. This is an open-access article distributed under the terms of the Creative Commons Attribution License (CC BY). The use, distribution or reproduction in other forums is permitted, provided the original author(s) or licensor are credited and that the original publication in this journal is cited, in accordance with accepted academic practice. No use, distribution or reproduction is permitted which does not comply with these terms.

    * Correspondence: Ruwaida Z. Alshali, Faculty of Dentistry, King Abdulaziz University, Jeddah, 21589, Makkah, Saudi Arabia

    Disclaimer: All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article or claim that may be made by its manufacturer is not guaranteed or endorsed by the publisher.
