ORIGINAL RESEARCH article

Front. Comput. Neurosci., 23 August 2017

Coexisting Behaviors of Asymmetric Attractors in Hyperbolic-Type Memristor based Hopfield Neural Network

\r\nBocheng Bao*Bocheng Bao*Hui QianHui QianQuan XuQuan XuMo ChenMo ChenJiang WangJiang WangYajuan YuYajuan Yu
  • School of Information Science and Engineering, Changzhou University, Changzhou, China

A new hyperbolic-type memristor emulator is presented and its frequency-dependent pinched hysteresis loops are analyzed by numerical simulations and confirmed by hardware experiments. Based on the emulator, a novel hyperbolic-type memristor based 3-neuron Hopfield neural network (HNN) is proposed, which is achieved through substituting one coupling-connection weight with a memristive synaptic weight. It is numerically shown that the memristive HNN has a dynamical transition from chaotic, to periodic, and further to stable point behaviors with the variations of the memristor inner parameter, implying the stabilization effect of the hyperbolic-type memristor on the chaotic HNN. Of particular interest, it should be highly stressed that for different memristor inner parameters, different coexisting behaviors of asymmetric attractors are emerged under different initial conditions, leading to the existence of multistable oscillation states in the memristive HNN. Furthermore, by using commercial discrete components, a nonlinear circuit is designed and PSPICE circuit simulations and hardware experiments are performed. The results simulated and captured from the realization circuit are consistent with numerical simulations, which well verify the facticity of coexisting asymmetric attractors' behaviors.

Introduction

The neurons regarded as the fundamental component unit of brain can generate intricate dynamical behaviors (Korn and Faure, 2003; Ma and Tang, 2017) and the constructing Hopfield neural network (HNN) (Hopfield, 1984) is a significant model in artificial neurology. When a nonlinear function is taken for a neuron activation function, the HNN belongs to a nonlinear dynamical system (Hopfield, 1984), resulting in the generations of chaos, hyperchaos, period, and/or quasi-period. In the past few years, numerous results with respect to the complex dynamical behaviors of the HNN have been reported generally (Bersini and Sener, 2002; Li et al., 2005; Yang and Huang, 2006; Yuan et al., 2009; Zheng et al., 2010; Danca and Kuznetsov, 2017). As a whole, it is necessary and pregnant to further investigate complex dynamics in the neural network (Korn and Faure, 2003), particularly the HNN with a memristive synaptic weight (Li et al., 2014).

With the appearance of memristor (Strukov et al., 2008), it gradually generates far-reaching influence in the field of circuit fundamental theory. Since memristor is a nonlinear two-terminal element (Chua, 2012), a large number of research achievements with respect to memristive chaotic circuits have been reached by introducing different memristors into some classical application circuits (Bao et al., 2014, 2015, 2016a,b; Chen et al., 2015; Kengne et al., 2015; Li et al., 2015; Wu et al., 2016; Xu et al., 2016; Zhou et al., 2017). Similarly, memristor can be also applied to the artificial neural network because the characteristic of neuron synapse is similar to the feature of memristor (Chua et al., 2012; Kim et al., 2012; Prezioso et al., 2015; Wang Z. R. et al., 2016), which has been drawn broad researchers' more and more attention in recent years (Wang et al., 2011; Adhikari et al., 2012; Li et al., 2014; Duan et al., 2015; Pham et al., 2016; Wang L. D. et al., 2016; Yang et al., 2017). These researches in physiology and anatomy are more effective to help us understand the dynamical properties of a large network (Korn and Faure, 2003). Hence, it is extremely significant and indispensable to investigate chaotic dynamics of memristive neural networks for studying brain functions as well as artificial neural networks (Guckenheimer and Oliva, 2002; Li et al., 2005; Wang et al., 2017).

By introducing a memristive synaptic weight (Li et al., 2014; Pham et al., 2016) to substitute a resistive synaptic weight, two kinds of memristive neural networks are presented, from which complex dynamical behaviors of self-exited quasi-periodic limit cycle, chaotic attractor, and hyperchaotic attractor as well as hidden hyperchaotic attractor are exhibited by numerical simulations. The circuit realization of the memristive neural network using discrete electronic components is developed in Pham et al. (2016), only PSPICE circuit simulations are performed to confine numerical simulations, however, without hardware experimental fabrications and measurements. In this paper, we present a hyperbolic-type memristor based 3-neuron Hopfield neural network (HNN) on the basis of the reference (Zheng et al., 2010), which can show the stabilization effect of the hyperbolic-type memristor on the chaotic HNN, resulting in a dynamical transition from chaotic, to periodic, and further to stable point behaviors with the variations of the memristor inner parameter. Especially, for different memristor inner parameters, different coexisting behaviors of asymmetric attractors are emerged under different initial conditions, which are availably validated by PSPICE circuit simulations and hardware experiments. It should be highlighted that the new finding of coexisting asymmetric attractors' behaviors in the memristive HNN and the correspondingly hardware experimental verifications have not been previously reported.

The rest of the paper is organized as follows. In Section Hyperbolic-type Memristor Emulator, a hyperbolic-type memristor emulator is proposed and then its frequency-dependent pinched hysteresis loops are exhibited by numerical simulations and hardware experiments. In Section Hyperbolic-type Memristor based HNN, a novel hyperbolic-type memristor based 3-neuron Hopfield neural network (HNN) is constructed and the stability analyses of its equilibrium points are conducted. In Section Coexisting Behaviors of Asymmetric Attractors, coexisting behaviors of asymmetric attractors are investigated by bifurcation diagrams, Lyapunov exponent spectra, and phase portraits, which exhibits the existence of multistable oscillation states in the memristive HNN. In Section PSPICE Circuit Simulations and Hardware Experiments, an implementation circuit is designed, upon which PSPICE circuit simulations and hardware experiments are performed to verify the coexisting behaviors of asymmetric attractors in the hyperbolic-type memristor based HNN. The conclusions are summarized in Section Conclusion.

Hyperbolic-Type Memristor Emulator

A neuron activation function is a monotone differentiable function which is bounded above and below. Therefore, a hyperbolic tangent function is usually utilized as the neuron activation function. For this reason, a new hyperbolic-type memristor emulator is proposed and its constitutive relation is modeled as

              i=W(v0)v=[ab tanh(v0)]vτdv0/dt=f(v0,v)=v0v        (1)

where v and i represent the voltage and current at the input port of the memristor emulator, respectively, v0 is the inner state variable, a and b are two inner positive constants of the memristor emulator, and τ is integral time constant. The nonlinear memductance function W(v0) can be expressed as

W(v0)=ab tanh(v0)       (2)

which implies that the memristor is passive and voltage-controlled. Thus, the proposed emulator can be defined as a non-ideal hyperbolic-type memristor emulator.

With off-the-shelf discrete components, the circuit realization scheme of the hyperbolic-type memristor emulator described by Equation (1) is designed, as shown in Figure 1. The realization circuit shown in Figure 1A consists of an integrator U0 connected two resistors R and a capacitor C, an inverting hyperbolic tangent function circuit unit T0 marked by –tanh with solid box, an analog multiplier M and two resistors Ra and Rb. It is pointed that different from the ideal voltage-controlled memristor reported in Bao et al. (2014, 2015, 2016a,b) and Li et al. (2015), a resistor R is newly added to the integrating capacitor C in parallel to avoid DC voltage integral drift. The hyperbolic tangent function circuit unit shown in Figure 1B is implemented by a dual-transistor pair of T1 and T2, a module of current source I0, and two operational amplifier circuits for controlling gains (Duan and Liao, 2007).

FIGURE 1
www.frontiersin.org

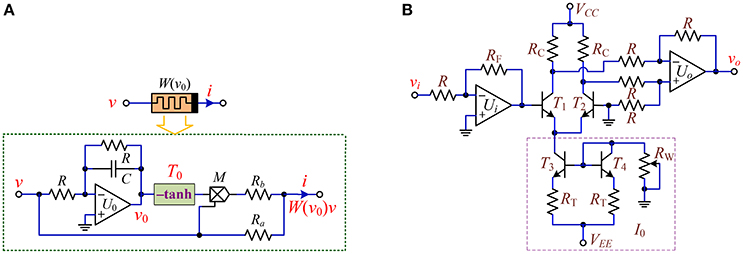

Figure 1. Circuit realization of the hyperbolic-type memristor emulator. (A) Circuit realization scheme; (B) the inverting hyperbolic tangent function unit circuit.

Three operational amplifiers TL082CP and one analog multiplier AD633JNZ with ±15 V DC voltage sources, four crucial bipolar transistors MPS2222, fifteen precision potentiometers, and one monolithic ceramic capacitor are utilized. The linear element parameters in Figure 1 are employed as listed in Table 1. With the element parameters, the output of the hyperbolic tangent function circuit unit is thus obtained as Duan and Liao (2007).

vo= tanh(vi)     (3)

where vi and vo stand for the input voltage and output voltage of the circuit in Figure 1B, respectively.

TABLE 1
www.frontiersin.org

Table 1. Circuit parameters of the memristor emulator for simulations and experiments.

Applying Kirchhoff's circuit laws and the constitutive relations to the circuit in Figure 1A, the mathematical model of the hyperbolic-type memristor emulator can be established as

i=W(v0)v=[1RagRb tanh(v0)]v           dv0dt=f(v0,v)=1RC(v0+v)      (4)

where g is the gain of the multiplier M. Introducing the hyperbolic-type memristor emulator into a dynamical system and scaling the circuit parameters in a dimensionless form, there yields

τ=t/RC,a=R/Ra,b=gR/Rb     (5)

The circuit parameters of the hyperbolic-type memristor emulator are listed in Table 1. Thus, the normalized parameters of the nonlinear memductance function W(v0) are calculated as a = 1 and b = 0.5.

For the sake of verifying the frequency-dependent pinched hysteresis loops of the hyperbolic-type memristor emulator, the circuit parameters given in Table 1 are selected and a sinusoidal voltage source v = Vmsin(2πft) is considered, where Vm and f are the stimulus amplitude and frequency, respectively. When Vm = 4 V is held and f is set to 400 Hz, to 1 kHz, and to 2 kHz, respectively, the vi curves are plotted in Figure 2A1, which exhibits that the hysteresis loop is pinched at the origin and shrinks into a single-valued function at infinite frequency, and its lobe area decreases with the increase of the frequency. While when f = 400 Hz is maintained and Vm is set to 2 V, to 3 V, and to 4 V, respectively, the vi curves are plotted in Figure 2B1, which explains that the pinched hysteresis loop is regardless of the stimulus amplitude. The numerical simulations in Figure 2 demonstrate that the hyperbolic-type memristor emulator can behave three fingerprints for distinguishing memristors (Adhikari et al., 2013).

FIGURE 2
www.frontiersin.org

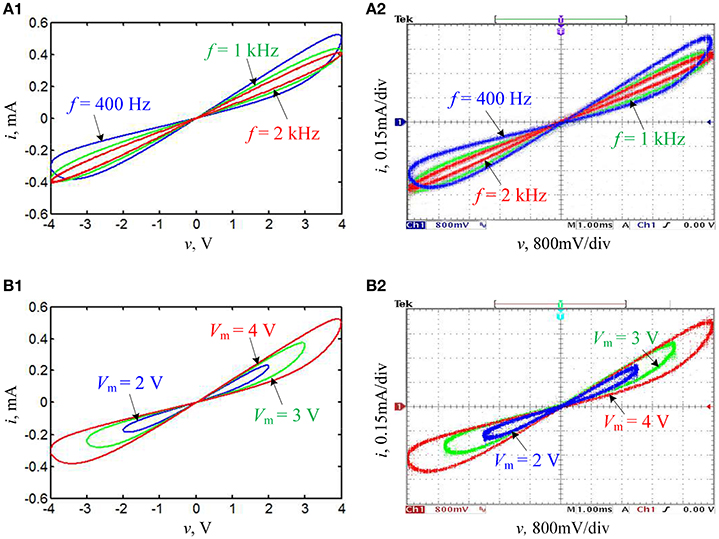

Figure 2. Numerically simulated and experimentally measured pinched hysteresis loops of the hyperbolic-type memristor emulator, where (A1,B1) are numerical simulations and (A2,B2) are experimental measurements. (A) Vm = 4 V with different stimulus frequencies; (B) f = 400 Hz with different stimulus amplitudes.

With the circuit scheme given in Figure 1, a hardware level on breadboards is made to verify the numerical simulations. In hardware experiments, the linear element parameters and the stimulus parameters of the sinusoidal voltage source are the same as those used in numerical simulations. In addition, a function signal generator is used as the applied sinusoidal voltage source and a 4 channel digital oscilloscope is utilized to capture the experimental phase portraits. Consequently, the pinched hysteresis loops for various stimulus frequencies and stimulus amplitudes are captured as shown in Figures 2A2,B2, respectively, which illustrates that the measurement results from the hardware circuit are well consistent to those revealed by numerical simulations.

Hyperbolic-Type Memristor Based HNN

Mathematical Modeling

Hopfield neural network (HNN) can be featured by a set of circuit state equations corresponded to n neurons (Bersini and Sener, 2002). For the i-th neuron, the circuit state equation is expressed as

Cidxidt=xiRi+j = 1nwij tanh(xj)+Ii     (6)

where xi is a state variable standing for the voltage across the capacitor Ci, Ri is a resistor representing the membrane resistance between the inside and outside of the neuron, Ii is a input bias current, tanh(xj) is a neuron activation function indicating the voltage input from the j-th neuron, and W = (wij) is an n × n synaptic weight matrix illustrating the strength of connections between the i-th and j-th neurons.

In the realization circuit of HNN, the synaptic weight wij is generally constructed by a resistor connecting the i-th and j-th neurons. When the connection resistor is replaced by the above hyperbolic-type memristor characterized by Equation (1), a memristor based HNN can be easily proposed.

A hyperbolic-type memristor based HNN with 3 neurons is considered in our next work. The connection topology for the hyperbolic-type memristor based HNN is displayed in Figure 3. Corresponding to this connection topology, the connection matrix considered is of the following form

W=[w11w21w31w12w22w32w13w23w33]=[1.41.271.102.8kW24]     (7)

Define n = 3, Ci = 1, Ri = 1, Ii = 0, and RC = 1. The autonomous ordinary differential equations describing the proposed memristive network can be derived in a dimensionless form as

x˙1=x11.4 tanh(x1)+1.2 tanh(x2)7 tanh(x3)x˙2=x2+1.1 tanh(x1)+2.8 tanh(x3)x˙3=x3+kW tanh(x1)2 tanh(x2)+4 tanh(x3)x˙4=x4+ tanh(x1)      (8)

where W = abtanh(x4) stands for the synaptic weight w13 connecting the first and third neurons and k is a positive constant representing the coupling strength of the hyperbolic-type memristor. Thus, the hyperbolic-type memristor based HNN can be modeled by Equation (8), which is a four-dimensional autonomous nonlinear dynamical system.

FIGURE 3
www.frontiersin.org

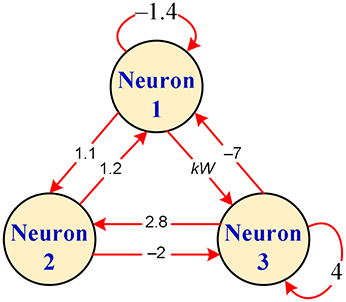

Figure 3. Connection topology for hyperbolic-type memristor based HNN.

With respect to Equation (8), the parameters of a, b, k which are related to the hyperbolic-type memristor W are positive. It can be proved that the orbits of Equation (8) including periodic and chaotic orbits are confined in a bounded region.

Referring to the approach in Nik et al. (2015), Zahedi and Nik (2015), Chen et al. (2017), and Singh and Roy (2017), a Lyapunov function is introduced as

V(x1,x2,x3,x4)=12x12+12x22+12x32+12x42      (9)

The time derivative of Equation (9) is yield as

V˙(x1,x2,x3,x4)=x1x˙1+x2x˙2+x3x˙3+x4x˙4                            =x12x22x32x42+(1.4x1+1.1x2                                 + kWx3+x4) tanh(x1)                            +(1.2x12x3) tanh(x2)+(7x1+2.8x2                                 + 4x3) tanh(x3)       (10)

For convenience, denote

v(x1,x2,x3,x4)=(1.4x1+1.1x2+kWx3+x4) tanh(x1)                           + (1.2x12x3) tanh(x2)+(7x1+2.8x2                                + 4x3) tanh(x3)     (11)

Equation (10) can be then rewritten as

V˙(x1,x2,x3,x4)=2V(x1,x2,x3,x4)+v(x1,x2,x3,x4)      (12)

Forx4R,−1 < tanh(x4) < 1. Therefore,

ab<W=ab tanh(x4)<a+b     (13)

and

|W|M=max{|ab|,|a+b|}      (14)

For any xi (i = 1, 2, 3, 4), one has|tanh(xi)| < 1. Equation (11) can be thereby simplified as

v(x1,x2,x3,x4)|(1.4x1+1.1x2+kWx3+x4) tanh(x1)|                           +|(1.2x12x3) tanh(x2)|                                + |(7x1+2.8x2+4x3) tanh(x3)|                            < |1.4x1+1.1x2+kWx3+x4|+|1.2x12x3|                                 + |7x1+2.8x2+4x3|                            9.6|x1|+3.9|x2|+(kM+6)|x3|+|x4|       (15)

Let D0 > 0 be the sufficiently large region. For all (x1, x2, x3, x4) satisfying V(x1, x2, x3, x4) = D with D > D0, there exists the following condition

v(x1,x2,x3,x4)<9.6|x1|+3.9|x2|+(kM+6)|x3|+|x4|                           <x12+x22+x32+x42=2V(x1,x2,x3,x4)     (16)

where (kM + 6) is a positive constant.

Consequently, on the surface

{(x1,x2,x3,x4)|V(x1,x2,x3,x4)=D}     (17)

with D > D0, there yields

V˙(x1,x2,x3,x4)=2V(x1,x2,x3,x4)+v(x1,x2,x3,x4)<0      (18)

which implies that the set

{(x1,x2,x3,x4)|V(x1,x2,x3,x4)D}       (19)

is a confined region of all solutions of Equation (8), i.e., the memristive system Equation (8) is bounded.

Equilibrium Point and Stability Analysis

Since the memristive system Equation (8) is invariant under the transformation (x1, x2, x3, x4, b) to (–x1, –x2, –x3, –x4, –b), the memristive system Equation (8) is symmetric about the parameter b.

By setting the left-hand side of Equation (8) to zero, the equilibrium points of the hyperbolic-type memristor based Hopfield neural network can be numerically solved and determined as a zero equilibrium point P0 = (0, 0, 0, 0) and two nonzero equilibrium points P1 = (δ1, δ2, δ3, δ4) and P2 = (η1, η2, η3, η4), where the nonzero equilibrium points P1 and P2 can be calculated by solving the following equations

{δ1=y1δ2=z1δ3=atanh(12.8z11.12.8 tanhy1)δ4= tanh y1      (20a)

and

{η1=y2η2=z2η3=atanh(12.8z21.12.8 tanh y2)η4= tanhy2        (20b)

where the values of y1, z1 and y2, z2 are the two intersection points of the two following function curves

h1(y,z)= y1.4 tanh(y)+1.2 tanh(z)                         7 tanh{atanh[514z1128 tanh(y)]}         (21a)
h2(y,z)=atanh[514z1128 tanh(y)]                        + 0.8{ab tanh[ tanh(y)]} tanh(y)                 2 tanh(z)+4 tanh{atanh[514z1128 tanh(y)]}       (21b)

Therefore, the values of y1, z1 and y2, z2 can be determined through graphic analytic method. Taking k = 0.8, a = 1, and b = 0.26 as an example, the two function curves given in Equation (21) can be plotted in Figure 4, from which the solutions are gotten as y1 = 2.1661, z1 = −0.5971, y2 = −1.4755, and z2 = 0.1974. Correspondingly, the two nonzero equilibrium points P1 and P2 can be easily obtained from Equation (20a) and (20b).

FIGURE 4
www.frontiersin.org

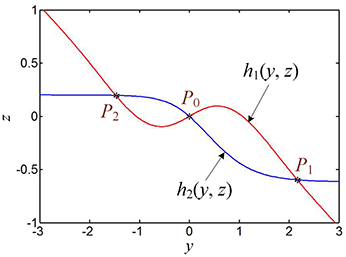

Figure 4. Two function curves and their intersection points, where a = 1 and b = 0.26.

The Jacobian matrix at the equilibrium point P = (x-1,x-2,x-3,x-4) is derived from Equation (8) as

J=[11.4h11.2h27h301.1h112.8h30kW¯h12h21+4h3kbtanh(x¯1)h4h1001]      (22)

where hi=sech2(x-i)(i=1,2,3,4) andW-=a-btanh(x-4).

For the zero equilibrium point P0 = (0, 0, 0, 0), the characteristic polynomial equation is yielded as

P(λ)=det(1λJ)          =(λ+1)[λ3+0.4λ2+(7ka3.52)λ+3.64ka5.2]=0      (23)

which implies the eigenvalues of P0 is only related to the memristor inner parameter a but not associated with the memristor inner parameter b. When a = 1, it is confirmed by Routh-Hurwitz criteria that P0 is stable if k ≥ 1.4286, otherwise it is unstable if k < 1.4286. Taking k = 0.8 and a = 1 as an example, the eigenvalues of P0 is derived as λ1 = 0.7684, λ2, 3 = −0.5842 ± j1.6237, λ4 = −1, implying that the zero equilibrium point is an unstable saddle point.

For the two nonzero equilibrium points P1 = (δ1, δ2, δ3, δ4) and P2 = (η1, η2, η3, η4), however, the corresponding eigenvalues should be solved by using MATLAB numerical simulations. When k = 0.8 and a = 1, for different memristor inner parameter b, two nonzero equilibrium points P1 and P2, their corresponding eigenvalues, and the generating attractor types are shown in Table 2. Therefore, it can be seen that the nonzero equilibrium points P1 and P2 are asymmetric, P1 is a stable node-focus for b ≥ 0.44, and whereas P2 always is an unstable saddle-focus, leading to the emergence of coexisting asymmetric attractors' behaviors. Moreover, the results in Table 2 demonstrate that when the value of the parameter b increases, the dynamical behaviors of the hyperbolic-type memristor based HNN have transitions from unstable chaotic to unstable periodic and then to stable point behaviors, i.e., the dynamical behaviors of the HNN can be stabilized by the hyperbolic-type memristor.

TABLE 2
www.frontiersin.org

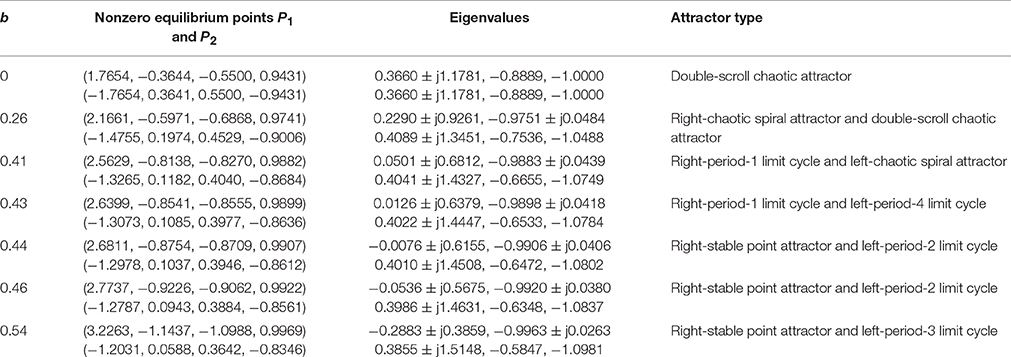

Table 2. Non-zero equilibrium points, the corresponding eigenvalues, and the generating attractor types.

Furthermore, it can be amusingly found from a larger number of numerical simulations that in the region of 0.44 ≤ b < 3.06, P1 is a stable node-focus and P2 is an unstable saddle-focus; but in the region of b ≥ 3.06, P1 disappears and the unique nonzero equilibrium point P2 maintains an unstable saddle-focus.

Coexisting Behaviors of Asymmetric Attractors

The initial conditions of four state variables are selected as (0, 0.1, 0, 0), (0, −0.1, 0, 0), and (1, 0, 0, 0), respectively, and the parameter k is set to 0.8, to 0.95, and to 1, respectively. When the memristor inner parameter b is adjusted in the region of [0, 0.6], the coexisting behaviors of asymmetric attractors in the hyperbolic-type memristor based HNN can be revealed by bifurcation diagrams, Lyapunov exponent spectra, and phase portraits. Note that Wolf's method reported in Wolf et al. (1985) is used to calculate the finite-time Lyapunov exponents, where MATLAB ODE45 algorithm with time-step 0.1 s and time-end 10 ks are utilized.

Case 1 for k = 0.8

When k = 0.8, the bifurcation diagrams of the state variable x1 and the corresponding first two Lyapunov exponents are shown in Figures 5A,B, respectively, from which unstable chaotic, unstable periodic, and stable point behaviors as well as period doubling bifurcation routes, tangent bifurcation routes, and crisis scenarios can be found. When the parameter b is gradually increased in the region of (0, 0.4), the dynamical behaviors of system Equation (8) are basically consistent for different initial conditions and their orbits all start from chaos, enter into a large periodic window with zero largest Lyapunov exponents via reverse period doubling bifurcation routes, then break into chaos via tangent bifurcation routes, further turn into chaos with narrow bands via crisis scenarios, and last degrade into period via reverse period doubling bifurcation routes.

FIGURE 5
www.frontiersin.org

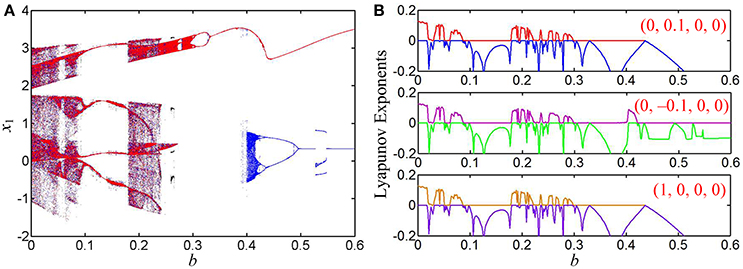

Figure 5. Coexisting behaviors of asymmetric attractors with the increase of b, where k = 0.8 and a = 1. (A) Bifurcation diagrams of the state variable x1, the red, blue, and black orbits corresponding to (0, 0.1, 0, 0), (0, −0.1, 0, 0), and (1, 0, 0, 0), respectively; (B) three kinds of first two Lyapunov exponents under different initial conditions.

It is especially interesting that coexisting behaviors of asymmetric attractors can be also observed, which are mainly emerged in two regions of [0.2595, 0.2640] and [0.4, 0.6] due to the occurrences of the crisis scenarios under the initial conditions of (0, −0.1, 0, 0) and (1, 0, 0, 0). For some determined values of the parameter b, the phase portraits of coexisting asymmetric attractors in the x1x3 plane are depicted in Figure 6, where four different kinds of coexisting asymmetric attractors are exhibited. Based on the above theoretical analyses, it can be known that the generating chaotic attractors and limit cycles in Figure 6 are associated with two unstable saddle-foci and the convergent point attractor in Figure 6D is related to a stable node-focus. Consequently, the hyperbolic-type memristor based HNN is self-excited but not hidden (Danca and Kuznetsov, 2017).

FIGURE 6
www.frontiersin.org

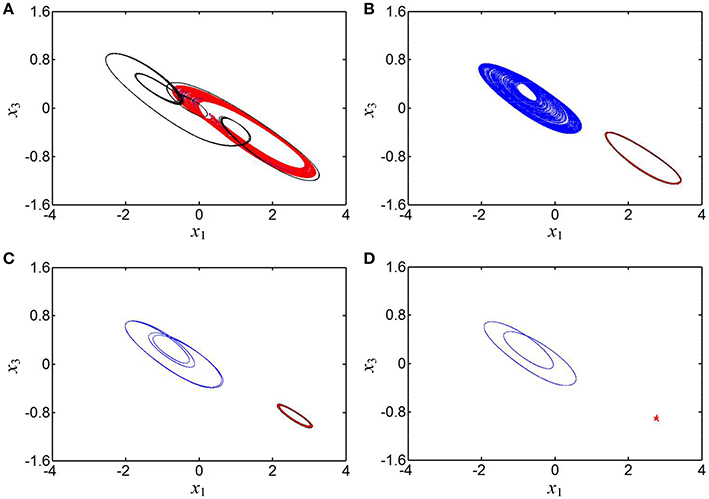

Figure 6. Phase portraits of asymmetrically coexisting attractors with different b in the x1x3 plane. (A) Coexistence of right-chaotic spiral attractor and double-scroll chaotic attractor at b = 0.26; (B) coexistence of right-period-1 limit cycle and left-chaotic spiral attractor at b = 0.41; (C) coexistence of right-period-1 limit cycle and left-period-4 limit cycle at b = 0.43; (D) coexistence of right-stable point attractor (marked with five-pointed star) and left-period-2 limit cycle at b = 0.46.

Case 2 for k = 0.95

When the coupling strength of the hyperbolic-type memristor is chosen as k = 0.95, the bifurcation diagrams of the state variable x1 and the corresponding first two Lyapunov exponents are shown in Figures 7A,B, respectively. Similarly, dynamical behaviors of chaotic attractors, limit cycles, point attractors, bifurcation routes, and crisis scenarios can be found in Figure 7. Differing from the dynamical behaviors in the case 1, the globally coexisting behaviors of asymmetric attractors are existed in this case.

FIGURE 7
www.frontiersin.org

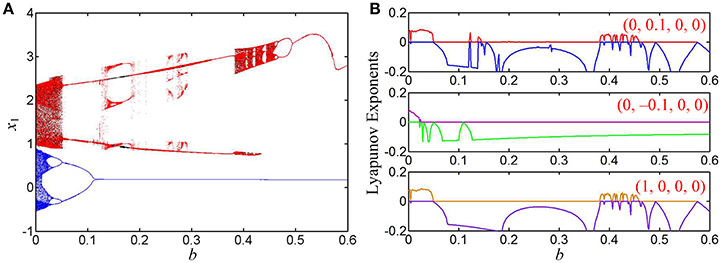

Figure 7. Coexisting behaviors of asymmetric attractors with the increase of b, where k = 0.95 and a = 1. (A) Bifurcation diagrams of the state variable x1, the red, blue, and black orbits corresponding to (0, 0.1, 0, 0), (0, −0.1, 0, 0), and (1, 0, 0, 0), respectively; (B) three kinds of first two Lyapunov exponents under different initial conditions.

Several phase portraits of coexisting asymmetric attractors in the x1x3 plane are plotted in Figure 8. In special, the coexistence of three disconnected attractors at b = 0.14 are displayed in Figure 8C, where for the initial conditions (0, 0.1, 0, 0), a right-chaotic spiral attractor appears in the hyperbolic-type memristor based HNN and four Lyapunov exponents are L1 = 0.0321, L2 = 0, L3 = −0.4098, and L4 = −0.9715, respectively; whereas for the initial conditions (0, −0.1, 0, 0) and (1, 0, 0, 0), a left-period-1 limit cycle and a right-period-2 limit cycle are separately emerged in the system (8), the corresponding Lyapunov exponents are L1 = 0, L2 = −0.1190, L3 = −0.1193, and L4 = −1.0295, respectively, as well as L1 = 0, L2 = −0.1814, L3 = −0.1815, and L4 = −0.9698, respectively.

FIGURE 8
www.frontiersin.org

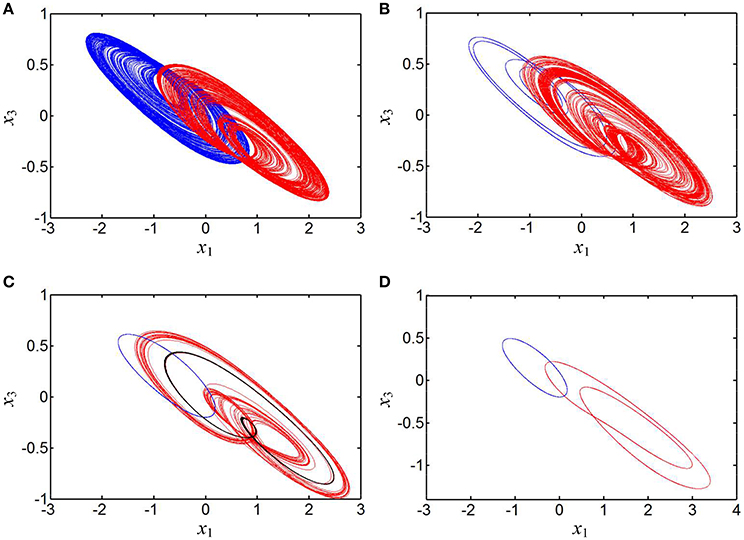

Figure 8. Phase portraits of asymmetrically coexisting attractors with different b in the x1x3 plane. (A) Coexistence of right- and left-chaotic spiral attractors at b = 0.01; (B) coexistence of right-chaotic spiral attractor and left-period-4 limit cycle at b = 0.04; (C) coexistence of right-chaotic spiral attractor, left-period-1 limit cycle, and right-period-2 limit cycle at b = 0.14; (D) coexistence of right-period-2 limit cycle and left-period-1 limit cycle at b = 0.46.

Case 3 for k = 1

When the coupling parameter is changed as k = 1, the bifurcation diagrams of the state variable x1 and the corresponding first two Lyapunov exponents are shown in Figures 9A,B, respectively. However, only for the initial conditions (0, 0.1, 0, 0) and (1, 0, 0, 0), complex dynamical behaviors including limit cycles with different periodicities, right-chaotic spiral attractors with different topologies, right-period-2 limit cycles with transient chaos, and stable point attractors as well as period doubling bifurcation routes, tangent bifurcation routes, and crisis scenarios can be discovered. Like as the dynamical behaviors in the case 2, the globally coexisting behaviors of asymmetric attractors can be also found in this case.

FIGURE 9
www.frontiersin.org

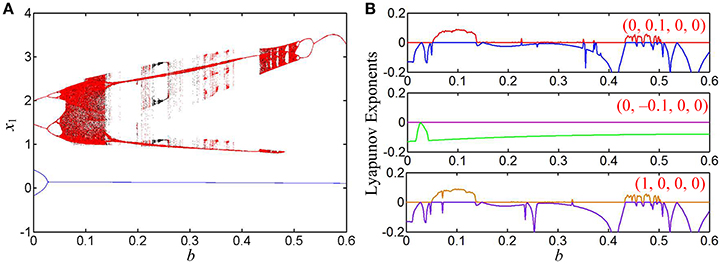

Figure 9. Coexisting behaviors of asymmetric attractors with the increase of b, where k = 1 and a = 1. (A) Bifurcation diagrams of the state variable x1, the red, blue, and black orbits corresponding to (0, 0.1, 0, 0), (0, −0.1, 0, 0), and (1, 0, 0, 0), respectively; (B) three kinds of first two Lyapunov exponents under different initial conditions.

Some phase portraits of coexisting asymmetric attractors in the x1x3 plane are demonstrated, as shown in Figure 10. It should be mentioned that two types of coexisting asymmetric multiple attractors' behaviors are generated, as shown in Figures 10C,D, in which a strikingly coexisting phenomenon of right-period-2 limit cycle with transient chaos, left-period-1 limit cycle, and right-period-2 limit cycle at b = 0.34 is presented in Figure 10D.

FIGURE 10
www.frontiersin.org

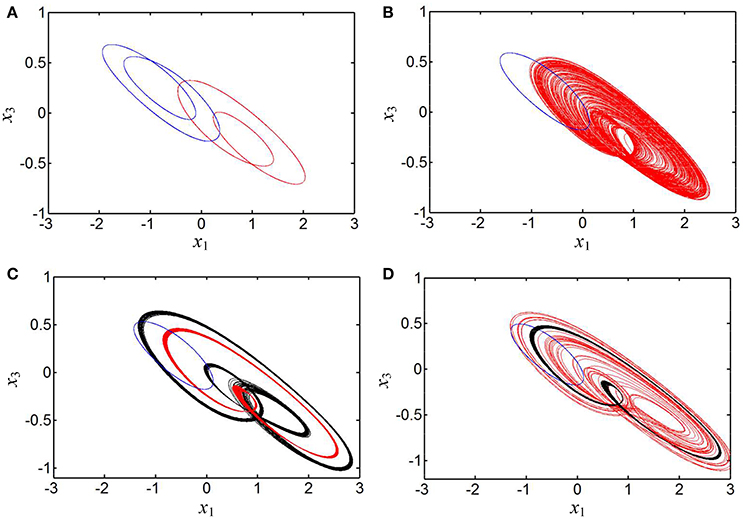

Figure 10. Phase portraits of asymmetrically coexisting attractors with different b in the x1x3 plane. (A) Coexistence of right- and left- period-2 limit cycles at b = 0.01; (B) coexistence of right-chaotic spiral attractor and left-period-1 limit cycle at b = 0.1; (C) coexistence of right-period-2 limit cycle, left-period-1 limit cycle, and right-period-3 limit cycle at b = 0.24; (D) coexistence of right-period-2 limit cycle with transient chaos, left-period-1 limit cycle, and right-period-2 limit cycle at b = 0.34.

Two Remarks

But above all, different kinds of coexisting asymmetric attractors can be easily found in the hyperbolic-type memristor based HNN. It is significant to stress that the coexistence of two and three disconnected attractors revealed in the above three cases are all asymmetric, which are different from the symmetric coexistence of multiple attractors encountered in many nonlinear dynamical systems (Kengne et al., 2015; Bao et al., 2016a; Xu et al., 2016). Therefore, the hyperbolic-type memristor based HNN is a specific nonlinear dynamical system.

Additionally, according to the above three cases, it can be thereby concluded that the coupling strength and inner parameters of the hyperbolic-type memristor have significant effects on the dynamics of the hyperbolic-type memristor based HNN, i.e., the newly introduced hyperbolic-type memristor can cause the HNN initially in chaotic state to be stabilized to the stable state or can be used to generate chaotic signals in the HNN. In other words, the memristor can be regarded as a controller to realize the dynamical control of the HNN.

PSPICE Circuit Simulations and Hardware Experiments

By using commercial discrete components, an experimental circuit can be made to verify the coexisting behaviors of asymmetric attractors in the hyperbolic-type memristor based HNN.

Design and Fabrication of Hardware Circuit

With the mathematical model of Equation (8), the hyperbolic-type memristor based HNN can be physically implemented by some operational amplifiers linked with resistors and/or capacitors (Bao et al., 2017), a nonlinear memristor, and three nonlinear function circuits. The circuit scheme for the memristive HNN is drawn in Figure 11, where the memristor W represents the proposed hyperbolic-type memristor emulator in Figure 1A and the three circuit modules Ta, Tb, and Tc marked by –tanh with solid box are the inverting hyperbolic tangent function circuit units drawn in Figure 1B.

FIGURE 11
www.frontiersin.org

Figure 11. Circuit realization scheme of the hyperbolic-type memristor based HNN.

The desired circuit in Figure 11 has four dynamic elements of three capacitors and a hyperbolic-type memristor W, corresponding to four state variables of v1, v2, v3, and v0, respectively. Therefore, the circuit state equations for Figure 11 are established as

RCdv1dt=v1RR1 tanh(v1)+RR2 tanh(v2)RR3 tanh(v3)RCdv2dt=v2+RR4 tanh(v1)+RR5 tanh(v3)RCdv3dt=v3+(RRagRRb tanh(v0)) tanh(v1)                      RR6 tanh(v2)+RR7 tanh(v3)RCdv0dt=v0+ tanh(v1)      (24)

Assuming that the integrating time constant RC = 1 ms, the resistance and the capacitance can be chosen as R = 10 kΩ and C = 100 nF, respectively. Based on the element values of the weight matrix (7), other resistances are calculated as R1 = R/1.4 = 7.143 kΩ, R2 = R/1.2 = 8.333 kΩ, R3 = R/7 = 1.429 kΩ, R4 = R/1.1 = 9.091 kΩ, R5 = R/2.8 = 3.571 kΩ, R6 = R/2 = 5 kΩ, R7 = R/4 = 2.5 kΩ. It is significant to illuminate that two adjustable parameters of the coupling strength k and the inner parameter b are achieved by adjusting precision potentiometers Ra and Rb of the hyperbolic-type memristor emulator in Figure 1A, whose calculating relations between the resistances and the system parameters can be determined as Ra = R/ka kΩ and Rb = gR/kb kΩ, respectively.

With the circuit schemes displayed in Figures 1, 11, a circuit simulation model plotted by using PSPICE electronic circuit simulator and a hardware experimental circuit fabricated by commercial electronic components are gotten ready for validating the coexisting behaviors of asymmetric attractors in the hyperbolic-type memristor based HNN. The pictures of several circuit breadboards are photographed as depicted in Figure 12, where Figure 12A is the hyperbolic-type memristor emulator, Figure 12B is the three inverting hyperbolic tangent function circuit units, and Figure 12C is main circuit of the hyperbolic-type memristor based HNN. Additionally, the experimentally captured phase portraits are obtained by 4 channel digital oscilloscope.

FIGURE 12
www.frontiersin.org

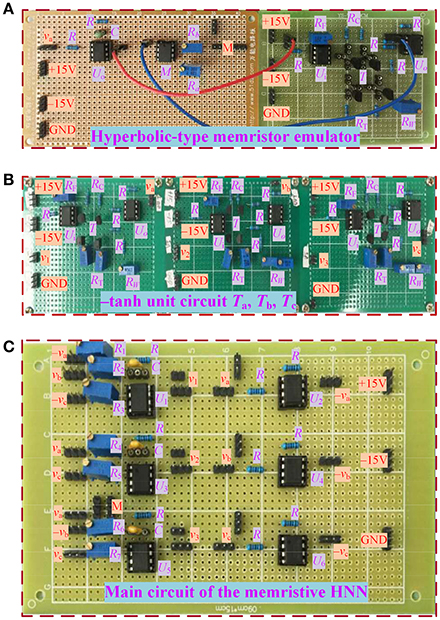

Figure 12. Hardware experimental breadboards using commercial discrete components. (A) Hyperbolic-type memristor emulator; (B) three inverting hyperbolic tangent function circuit units; (C) main circuit of the hyperbolic-type memristor based HNN.

Simulated and Captured Results

Consider k = 0.95 as an example to perform PSPICE circuit simulations and hardware experiments of the memristive HNN. When a = 1, the resistance Ra is fixed as 10.53 kO and only the resistance Rb is adjustable. By adjusting the resistance Rb of the hyperbolic-type memristor emulator, some phase portraits in the v1v3 plane are simulated by PSPICE simulator with time step 10−5 and captured by a 4 channel digital oscilloscope in XY mode, as shown in Figure 13, where the orbits marked with red, blue, and black colors represent those triggered by three different initial values. It should be stressed that, in PSPICE circuit simulations the different initial values are assigned by setting different initial capacitor voltages, whereas during hardware circuit experiments the desired initial values are randomly achieved by the induced voltages of four capacitors through switching on and off the hardware circuit power supplies.

FIGURE 13
www.frontiersin.org

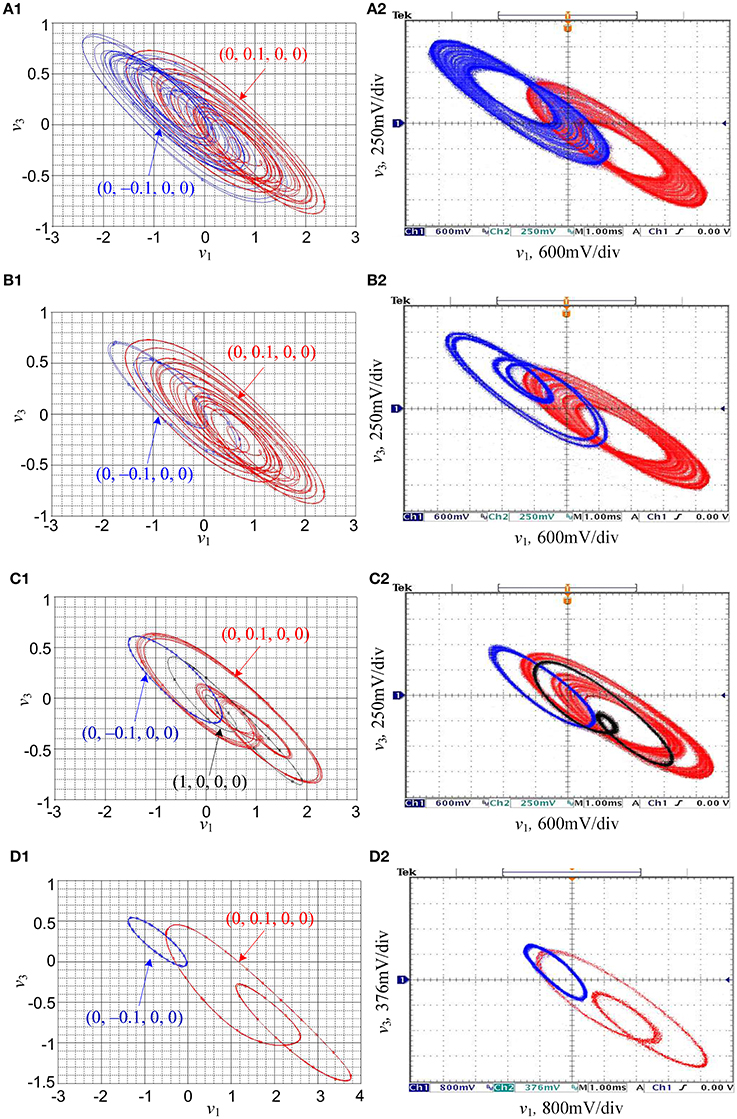

Figure 13. PSPICE simulated and experimentally captured phase portraits of coexisting asymmetric attractors in the v1v3 plane, where (A1,B1,C1,D1) are PSPICE circuit simulations, and (A2,B2,C2,D2) are hardware experimental measurements. (A) Coexistence of right- and left-chaotic spiral attractors; (B) coexistence of right-chaotic spiral attractor and left-period-4 limit cycle; (C) coexistence of right-chaotic spiral attractor, left-period-1 limit cycle, and right-period-2 limit cycle; (D) coexistence of right-period-2 limit cycle and left-period-1 limit cycle.

The simulated and captured results given in Figure 13 are consistent with numerical simulations given in Figure 8, which availably illustrate that the circuit realization form of the hyperbolic-type memristor based HNN can also display coexisting behaviors of asymmetric attractors. However, corresponding to Figures 13A–D, the values of the resistor Rb in PSPICE circuit simulations are 105.82 kΩ, 26.13 kΩ, 7.45 kΩ, and 2.21 kΩ, respectively, while the values of the resistor Rb in hardware circuit experiments are equal to 105.2 kΩ, 25.45 kΩ, 7.2 kΩ, and 2.13 kΩ, respectively. Due to the computational errors in PSPICE simulation (Kuznetsov et al., 2017) and the existence of parasitic parameters in the practical hardware circuit, the differences of the values of the resistor Rb indeed appear in PSPICE circuit simulations and hardware circuit experiments.

Conclusion

In this paper, a new hyperbolic-type memristor emulator is presented and a novel hyperbolic-type memristor based 3-neuron HNN is thereby constructed. Based on the mathematical models and physical realization circuits, the frequency-dependent pinched hysteresis loops of the presented emulator are analyzed by numerical simulations and confirmed by hardware experiments, and coexisting behaviors of asymmetric attractors in the memristive HNN are revealed by numerical simulations and validated by PSPICE circuit simulations and hardware experiments. The research results demonstrate that the hyperbolic-type memristor has the stabilization effect on the chaotic HNN, which can cause the HNN initially in chaotic state to be stabilized to the stable state or can be used to generate chaotic signals in the HNN. Moreover, for different memristor inner parameters, different coexisting behaviors of asymmetric attractors are emerged under different initial conditions, implying the existences of multistable oscillation states in the memristive HNN. In particular, this fantastic phenomenon of the coexisting asymmetric attractors' behaviors has not yet reported in previous literature achievements.

Author Contributions

BB proposed the concept, designed the whole study and make final approval of the article. HQ performed experimental studies and prepared the manuscript. QX performed numerical simulations. MC edited the manuscript. JW constructed the experimental circuit. YY performed theoretical analyses.

Conflict of Interest Statement

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

Acknowledgments

This work was supported by the grants from the National Natural Science Foundations of China under Grant Nos. 61601062, 51607013, 11602035, and 51277017, and the Natural Science Foundations of Jiangsu Province, China under Grant No. BK20160282.
