Tengfei Xu
Dongliang Yuan
Jing Wang- 1Key Laboratory of Marine Science and Numerical Modeling, First Institute of Oceanography, Ministry of Natural Resources, Qingdao, China
- 2Laboratory for Regional Oceanography and Numerical Modeling, Pilot National Laboratory for Marine Science and Technology, Qingdao, China
- 3Shandong Key Laboratory of Marine Science and Numerical Modeling, Qingdao, China
- 4Key Laboratory of Ocean Circulation and Waves, Institute of Oceanology, Chinese Academy of Science, Qingdao, China
Existed studies have suggested a precursory relation between Indian Ocean Dipole (IOD) and El Niño and the Southern Oscillations (ENSO) with 1-year time lag. The underlying mechanisms were attributed to atmospheric bridge and/or oceanic channel processes. In this study, the oceanic channel dynamics in 23 climate models of the Coupled Model Intercomparison Project phase 5 (CMIP5) are assessed by correlation analyses in comparison with observations. The results show that the lag correlations between the IOD and ENSO anomalies associated with oceanic channel are significant, suggesting important role of oceanic channel dynamics in the cross-basin teleconnection in the analyzed CMIP5 models, consistent with observational analyses. In comparison, the correlations associated with atmospheric bridge are highly dispersive among the models and generally inconsistent with the observational analyses, suggesting model deficiencies. In a single climate model, the lag correlations associated with oceanic channel dynamics are consistent among different ensemble experiments, whereas those associated with atmospheric bridge processes are dispersive.
Introduction
The El Niño and the Southern Oscillations (ENSO) are the strongest large-scale ocean-atmosphere interactions on the interannual time scales over the tropical Pacific Ocean (Bjerknes, 1969; Philander, 1990). The Indian Ocean Dipole (IOD) is a zonal dipole mode of sea surface temperature anomalies (SSTA) over the tropical Indian Ocean (Saji et al., 1999; Webster et al., 1999). The Indian Ocean variability is strongly influenced by the Pacific ENSO (e.g., Chowdary and Gnanaseelan, 2007; Du et al., 2009, 2013; Gnanaseelan et al., 2012; Zhang et al., 2021; Mukhopadhyay et al., 2022). Some studies have suggested that IOD is forced by ENSO (Alexander et al., 2002; Hastenrath, 2002; Lau and Nath, 2003; Cai et al., 2005; Stuecker et al., 2017). Some other studies suggest that IOD be an intrinsic mode of interannual variability of the coupled ocean-atmosphere climate system over the tropical Indian Ocean (Saji et al., 1999; Yamagata et al., 2003; Annamalai et al., 2005; Behera et al., 2006; Yang et al., 2015). Existing studies have suggested that IOD can feedback on the tropical Pacific SSTA evolution (e.g., Wu and Kirtman, 2004; Kug and Kang, 2006; Song et al., 2008; Xie et al., 2009; Luo et al., 2010; Nagura and McPhaden, 2014; Kajtar et al., 2015, 2017; Wang, 2019; Duan et al., 2020), the processes of which have been attributed to the atmospheric bridge (Clarke and Van Gorder, 2003; Kug et al., 2006; Izumo et al., 2010; Ohba et al., 2010; Kug and Ham, 2012; Santoso et al., 2012) or/and through the oceanic channel of the Indonesian seas (Yuan et al., 2011, 2013; Zhou et al., 2015; Zhao et al., 2016; Trenberth and Zhang, 2019). Based on numerical experiments by blocking the Indonesian gateway in a coupled climate model, Kajtar et al. (2015) suggest that the atmospheric bridge is a robust element of the Indo-Pacific interactions, albeit the IOD-ENSO relationship is weaker than when the oceanic channel is open. On the other hand, by shutting down the atmospheric bridge, numerical experiments have shown significant influence of both positive and negative IOD events on ENSO, implying the role of the oceanic channel (Yuan et al., 2011; Zhou et al., 2015; Wang et al., 2021).
The importance of the IOD-forced ENSO variability lies in the fact that this class of ENSO can be predicted beyond the spring predictability barrier if IOD is used as a precursor (Izumo et al., 2010, 2014; Yuan et al., 2011, 2013). The mechanism underlying the enhanced predictability has been attributed to the atmospheric bridge by Izumo et al. (2010): a negative IOD leads to enhanced easterly anomalies over the western Pacific Ocean in winter forcing upwelling Kelvin waves propagating eastward. The ensuing advective-reflective ocean-atmosphere coupled process generates anomalous warming in the eastern equatorial Pacific cold tongue in the next winter. Later, the forcing mechanism is updated as forced by the IOD western pole related to the Indian Ocean basin mode after the IOD subsides abruptly in winter (Izumo et al., 2016). In contrast, Yuan et al. (2011) argue that the oceanic channel, i.e., the Indonesian Throughflow (ITF) variability, should play a critical role in propagating the IOD anomalies into the equatorial Pacific Ocean. The oceanic channel dynamics have been corroborated by longer time lags of the IOD-ENSO precursory teleconnection for oceanic than atmospheric anomalies in observations (Yuan et al., 2013). They have shown that the lag correlations between sea surface temperature anomalies (SSTA) or sea surface height anomalies (SSHA) in the southeastern tropical Indian Ocean (STIO) in fall and the oceanic anomalies, i.e., SSTA, SSHA, and subsurface temperature anomalies, in the equatorial Pacific cold tongue 1-year later are all significant, suggesting that the interannual variability of the ITF play an important role in connecting the IOD with ENSO. In comparison, the lag correlations between the surface zonal wind anomalies (SZWA) over the far western equatorial Pacific (WEP) in fall and the SZWA, SSTA, and SSHA in the central and eastern equatorial Pacific in the next fall are all insignificant, suggesting that the IOD-related atmospheric bridge should not be responsible for the enhanced predictability at the 1-year time lag. The oceanic channel dynamics have been shown to be important for the skills of the climate models in simulating ENSO (Xu et al., 2013). The initial condition errors of sea temperature in the Indian Ocean are identified as causal factors of the spring predictability barrier for El Niño, with two types of errors (positive and negative IOD-like patterns) emphasize the mechanism of atmospheric bridge and oceanic channel, respectively (Zhou et al., 2019, 2020, 2021).
Both the IOD (Ashok et al., 2004; Abram et al., 2008; Ummenhofer et al., 2011) and ENSO (Gershunov and Barnett, 1998; Wang and Picaut, 2004; An et al., 2005; Leloup et al., 2007) are subjected to decadal and multi-decadal variability. Meanwhile, the ITF also shows interannual to decadal response to the Indo-Pacific forcing (Tillinger and Gordon, 2010; Li et al., 2018, 2020). Consquently, the IOD-ENSO relationship is subjected to decadal and multi-decadal variability as well (Yuan and Li, 2008; Huang et al., 2010; Xie et al., 2010; Chowdary et al., 2012; Tao et al., 2015; Sang et al., 2019). In terms of the oceanic channel dynamic, it is identified to have positive and negative phases of decadal oscillations. The IOD-ENSO precursory teleconnection in SSTA during the negative phases are suppressed by decadal deepening of the thermocline in the eastern equatorial Pacific (Xu and Yuan, 2014).
The cross-basin coupling between the tropical Indian and Pacific Oceans on the interannual time scale is reproduced well in the climate system models that involved in the phase five of the Coupled Model Intercomparison Project (CMIP5) (Ha et al., 2017). Jourdain et al. (2016) have shown robust relationship between IOD and its following ENSO in the historical simulations of the CMIP5 models, with asymmetry between negative IOD leading El Niño and positive IOD leading La Niña. Yuan et al. (2018) have shown that the IOD-ENSO precursory teleconnection tends to get stronger over the past century in the historical simulations of the CMIP5 models. The oceanic channel dynamics in the CMIP5 models, however, have not been investigated. Therefore, in this study, we will focus on the evaluation of model skills and deficiencies in simulating the oceanic channel and atmospheric bridge processes. The next section describes the observational data and the CMIP5 model experiments. Section Results compares the observed and simulated lag correlations to assess the skills of the CMIP5 coupled climate system models in simulating the oceanic channel and the atmospheric bridge. Discussions and conclusions are summarized in section Conclusions and summary.
Data and method
Observations
The observational SST data used in this study are the Hadley center SST dataset (HadISST; Rayner et al., 2003) with a horizontal resolution of 1° × 1° grid from 1871 to the present. The SSH data are the Version 5.0 of daily gridded absolute dynamic topography products produced by the Segment Sol multi-missions dALTimetrie, d'orbitographie et de localization précise/Data Unification and Altimeter Combination System (SSALTO/DUACS) and distributed by the Archiving, Validation, and Interpretation of Satellite Oceanographic (AVISO), with support from CNES (http://www.aviso.altimetry.fr/duacs/). The dataset is daily, at a resolution of 0.25° × 0.25°, which is available from October 1992 to the present (Ducet et al., 2000). The subsurface temperature data are obtained from the Quality controlled subsurface ocean temperature and salinity profiles and objective analyses (EN) dataset consists of two products: observed subsurface ocean temperature and salinity profiles with data quality information, and objective analysis formed from the profile data with uncertainty estimates (Good et al., 2013). The latest version of the data is EN.4.2.1, with a horizontal resolution of 1° × 1° and 42 vertical levels from 1900 to the present. The surface wind data are from the Twentieth Century Reanalysis V3 (20CRv3), the most recent version of the reanalysis spaning 1836 to the present, with a horizontal resolution of 1° × 1° (Slivinski et al., 2019).
CMIP5 simulations
The model outputs used in the study are the historical simulations based on the experimental design of CMIP5 (Taylor et al., 2012). The historical experiments have considered both anthropogenic and natural forcing, covering the period from the mid-19th century to the present. A total of 23 historical simulations are analyzed in this study (Supplementary Table 1). For simplicity, only one of the ensemble members (named “r1i1p1”) is analyzed for each model. There is only a few CMIP5 model have provided more than 10 ensemble members. In this study, we employ the CNRM-CM5 historical simulation, which includes 10 ensemble experiments, to discuss the dispersion of the IOD-ENSO precursory teleconnection in a single climate system model.
Statistical analysis
The Niño3.4 index is defined as the averaged SSTA in the area of the equatorial central and eastern Pacific (5°S−5°N, 170°-120°W). The Dipole Mode Index (DMI) is calculated as the difference of SSTA between the western (10°S−10°N, 50°-70°E) and southeastern tropical Indian Ocean (10°S−0°, 90°-110°E) (Saji et al., 1999). The WEP wind is represented by the surface wind anomalies averaged over (5°S−5°N, 130°-150°E).
The lag correlation is calculated as the correlation between the anomalies in boreal fall and those in the following winter through fall seasons. The boreal seasons are defined as spring (March to May), summer (June to August), fall (September to November), and winter (December to the following February). The decadal variability of the IOD-ENSO teleconnection in the observed SSTA data is investigated using running mean lag correlations over time windows of 7, 11, 21, and 31 years. The IOD-ENSO teleconnection in the CMIP5 models is investigated using only the 11-year running mean lag correlations for simplicity. The Student's t-test is employed to determine the 95% significance level of the correlations. Throughout this paper, we call the IOD year as Year 0 and the year following it Year +1.
Results
IOD-ENSO precursory teleconnection in CMIP5 models
The IOD-ENSO precursory teleconnection, as represented by the running mean lag correlations between the STIO SSTA in fall and the Niño3.4 SSTA in the next fall, with a running window of 11, years, undergoes obvious decadal variability (Xu and Yuan, 2014). As shown in Figure 1A, the running mean lag correlations after the 1990s are positive, consistent with the analysis of Yuan et al. (2013). Evidently, the correlations in that study represent the IOD-ENSO teleconnection during a decade of positive lag correlations. It can be found that during some of the decades, e.g., the 1871–1900, the running mean lag correlations are negative, suggesting that El Niño events follow positive IOD events and La Niña events follow negative IOD events at the 1-year time lag. Thus, the teleconnection during the negative correlation periods is believed to be different from that during the positive correlation periods. The structure and possible dynamics of the teleconnection during the negative phases of the decadal variability have been analyzed in Xu and Yuan (2014). In this study, we only focus on the positive phases for two reasons. First, the oceanic channel dynamics are less effective during the negative phases. Second, the positive lag correlations are stronger and more persistent than the negative over the past 150 years.
FIGURE 1

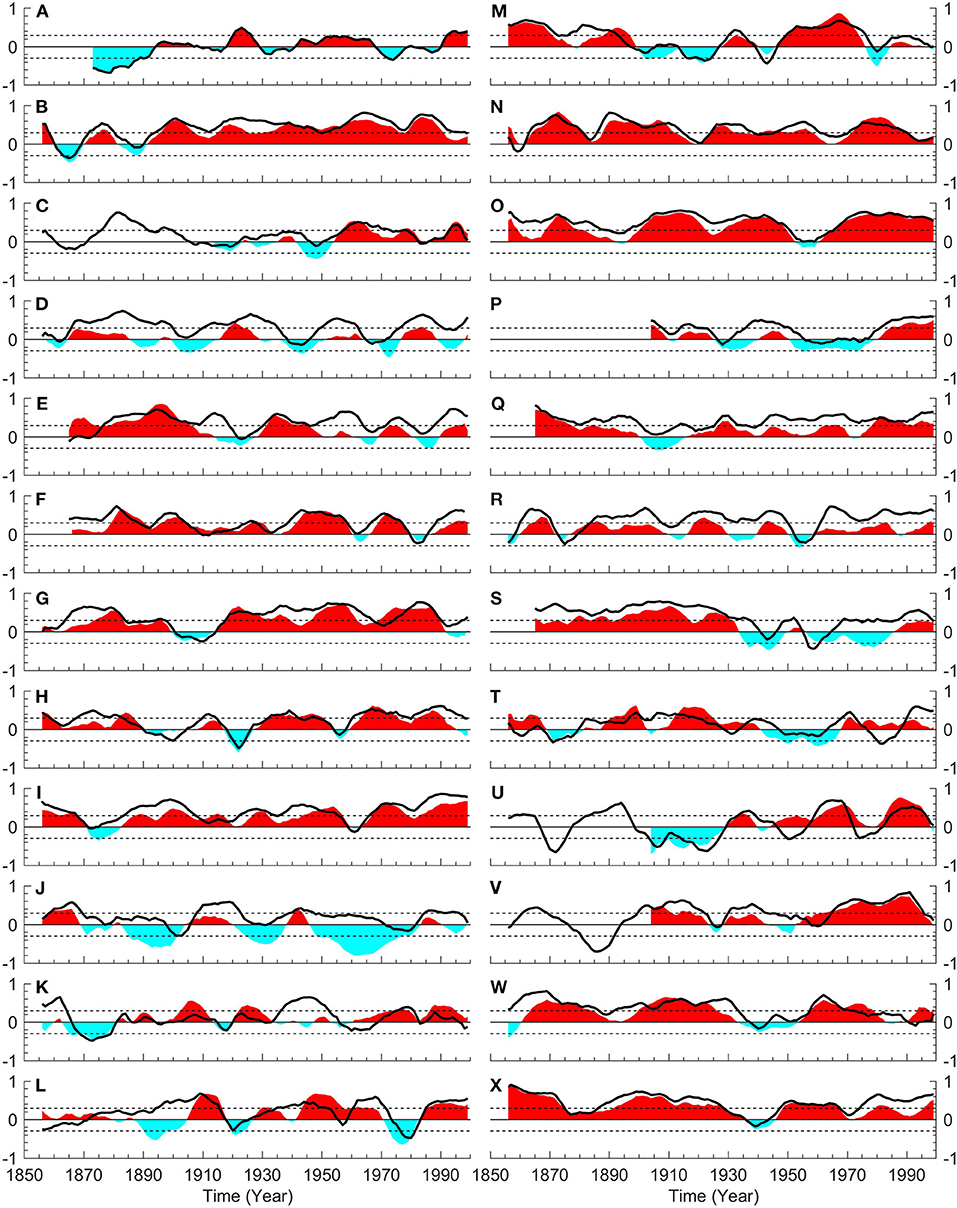

Figure 1. Lag correlation between the STIO SSTA (SSHA) in fall and the SSTA (SSHA) in the Niño3.4 area in the next fall with a running window of 11 years in HadISST and CMIP5 historical simulations, the horizontal axis showing window central date. Shading and curves indicate correlation of SSTA and SSHA, respectively. Index (A–X) refers to different CMIP5 model as listed in Supplementary Table 1.
The CMIP5 model simulations are subject to the inherent oscillations of the coupled climate system models so that their simulated IOD and ENSO generally do not match with the timing in nature (Taylor et al., 2012). As a result, the running mean lag correlations in CMIP5 historical simulations do not necessarily match the phase of the decadal variability in the observed SST data. Nevertheless, all of the running lag correlations of the CMIP5 model simulations have shown the same kind of decadal variability of the IOD-ENSO teleconnection as in the observation (Figure 1). The running mean lag correlations between the STIO SSHA in fall and the Niño3.4 SSHA in the next fall have also shown the same decadal variability associated to that of SSTA lag correlations, but with the positive correlations of SSHA much higher than those of SSTA in the CMIP5 historical simulations, an effect perhaps due to the imperfect correlation between the upwelling anomalies and the SSTA.
The power spectra of the running mean lag correlations indicate one or two significant periods from 15 to 50 years, suggesting that some kinds of decadal-to-multidecadal variability of the IOD-ENSO teleconnection have been simulated successfully by the CMIP5 models (Figure 2). In the following context of this paper, the results of the CMIP5 simulations during the periods when the running mean lag correlations are positive and above one standard deviation are used to represent the positive phases of the decadal variability. The time series of these periods are Z-score standardized and concatenated into a long time series, the lag correlations of which are analyzed and compared with those in the observations to assess the skills of the CMIP5 models in simulating the IOD-ENSO teleconnection and to study the dynamics of the teleconnection.
FIGURE 2

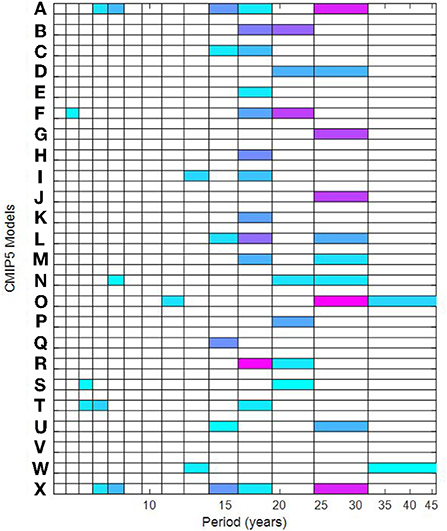

Figure 2. Power spectrum density (PSD) of the 11-year running mean lag correlation between STIO SSTA in fall and Niño3.4 SSTA in the next fall in HadISST and CMIP5 simulations. Only PSD above the 95% significance level are shaded. Index (A–X) refers to different CMIP5 model as listed in Supplementary Table 1.
The phase-locking of the IOD peak to the boreal fall season has been simulated well in the CMIP5 climate models (Zheng et al., 2013; Liu et al., 2014). The cross-model-averaged lag correlations between the STIO SSTA in fall and the tropical Indo-Pacific SSTA in the following winter through fall during the positive phases of the decadal variability of the 23 CMIP5 historical simulations are compared with those in HadISST (Figure 3). The observed lag correlations show significant IOD- and ENSO-type teleconnections, above the 95% significance level, with positive correlations in the eastern tropical Indian and western Pacific Oceans and negative correlations in the eastern equatorial Pacific cold tongue in the winter of Year 0 (Figure 3A). The significant correlations disappear in the equatorial Pacific cold tongue in the spring of Year +1, suggesting that the atmospheric bridge processes giving rise to the IOD- and ENSO-type teleconnections in winter are short lived and have not lasted through the spring season, consistent with the existence of the spring barrier (Figure 3B). The significant lag correlations above the 95% significance level, re-emerge in summer and fall of Year +1 (Figures 3C,D), with a similar pattern of the IOD-ENSO lag teleconnection as in the winter of Year 0, except for an opposite sign. These results are consistent with those of Yuan et al. (2013), suggesting that the use of IOD anomalies as precursors provides potential for improved ENSO predictions beyond the spring predictability barrier during the positive phases of the decadal oscillation. The lag correlations of the SSTA in the CMIP5 historical simulations show similar pattern and evolution in the equatorial Pacific (Figures 3E–H), which are negative in the central-eastern equatorial Pacific in the winter of Year 0 but positive in the summer and fall of Year +1. The lag correlations in the cold tongue in spring are vanishingly small, suggesting the effects of the spring barrier.
FIGURE 3

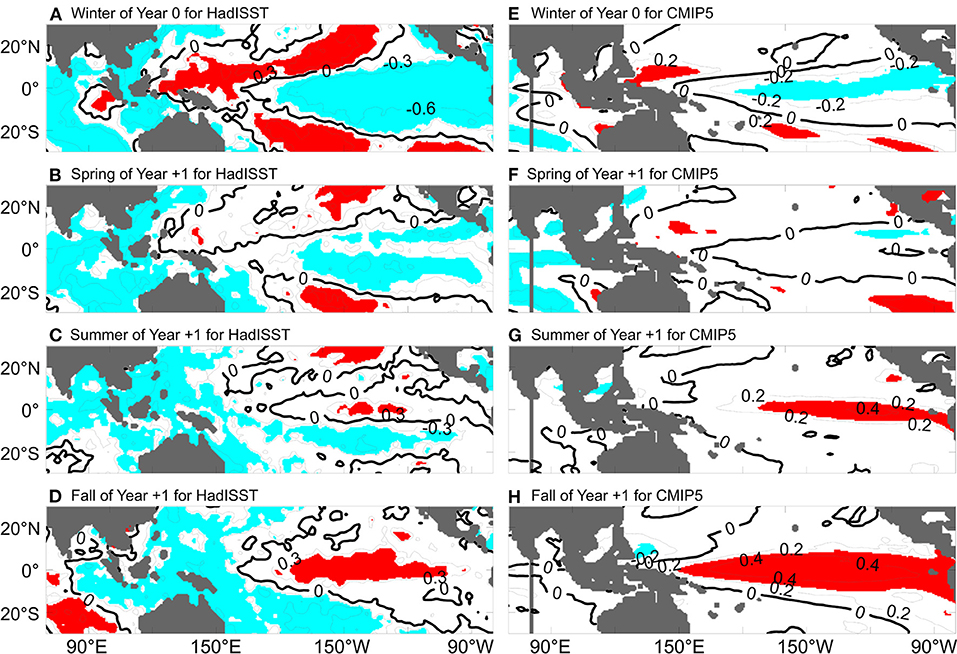

Figure 3. Lag correlations between the STIO SSTA in the fall of Year 0 and the tropical Indo-Pacific SSTA from the winter of Year 0 through the fall of Year +1. (A–D) HadISST; (E–H) cross-model averaged from CMIP5 historical simulations. The red and blue shading indicate the 95% significance level of positive and negative correlations, respectively.
Figure 4 shows the numbers of CMIP5 models with significant positive lag correlations of SSTA between the STIO and the tropical Indo-Pacific Ocean in the following winter through fall seasons. Since the oceanic channel dynamics are associated with the eastward movement of significant positive correlations, the numbers of CMIP5 models for negative lag correlations are not shown here. It shows that around half of the CMIP5 models have simulated the ENSO-type teleconnection and its disappearance in the STIO and the western tropical Pacific (Figures 4A,B). In the CMIP5 historical simulations, more than half have reproduce the re-emergence of significant positive correlations in the central-eastern Pacific Ocean in summer of Year +1 (Figure 4C). Almost all of the CMIP5 historical simulations have produced the significant positive correlations in the central-eastern Pacific Ocean in summer of Year +1. In around 16 (summer of Year +1) and 6 (fall of Year +1) of the CMIP5 models, the lag correlations of the SSTA in the equatorial Pacific cold tongue are still significant, above the 95% significance level, even if the signals associated with Niño3.4 index are regressed out from the cold tongue SSTA, suggesting independence of the IOD-ENSO precursory teleconnection from ENSO in these CMIP5 climate models (Figures 4G,H).
FIGURE 4
Figure 4. Numbers of CMIP5 models with significant positive correlations between the STIO SSTA in fall and the tropical Indo-Pacific Oceans SSTA in (A) winter of Year +0, (B) spring of Year +1, (C) summer of Year +1, and (D) fall of Year +1. (E–H) are same as (A–D), but with the ENSO signal removed.
Lag correlations associated with oceanic channel dynamics
The lag correlations of SSTA are closely related to the so-called oceanic channel dynamic, which are evidenced by the lag correlations of SSHA and subsurface temperature anomalies. The lag correlations between the STIO SSHA in fall and the SSHA in the tropical Indian and Pacific Oceans in the following winter through fall in the altimeter data of 1993–2012 and averaged from the CMIP5 historical simulations are shown in Figure 5. The altimeter SSHA lag correlations in the winter of Year 0 have shown the typical IOD- and ENSO-type teleconnection over the tropical Indo-Pacific Ocean (Figure 5A), which is reminiscent of the SSTA lag correlations. The significant lag correlations of SSHA persist in the western equatorial Pacific Ocean and in the Indonesian Seas in the spring of Year +1, in contrast to the vanishing lag correlations of SSTA in the equatorial Pacific Ocean. A belt of positive significant lag correlations extends to the eastern equatorial Pacific, suggesting the propagation of the equatorial Kelvin waves (Figure 5B), which lead to the significant positive lag correlations in the central and eastern equatorial Pacific cold tongue in the summer and fall of Year +1 (Figures 5C,D). All these characteristics and the dynamics associated with them have been discussed in detail in Yuan et al. (2013). The eastward movement of the significant lag correlations of SSHA from the winter of Year 0 through the fall of Year +1 suggests strongly that the oceanic channel, i.e., the interannual variability of the ITF, play an important role in the IOD forcing on the equatorial Pacific ENSO at the time lag of 1 year. The CMIP5 historical simulations have reproduced weaker average SSHA lag correlations in the cold tongue in the winter of Year 0 (Figure 5E) than in the observational analysis. This difference can be explained by the fact that the simulated ENSO phase-locking with the seasonal cycle ranges from fall to winter in the cold tongue in different models (Bellenger et al., 2014; Ham and Kug, 2014). The eastward movement of significant positive lag correlations of SSHA from the winter of Year 0 to the fall of Year +1 has been simulated successfully by the CMIP5 models on average (Figures 5E–H).
FIGURE 5
Figure 5. Lag correlations between the STIO SSHA in the fall of Year 0 and the tropical Indo-Pacific SSHA from the winter of Year 0 through the fall of Year +1 during positive phases. (A–D) Aviso. (E–H) cross-model averaged from CMIP5 historical simulations. The red and blue shading indicate the 95% significance level of positive and negative correlations, respectively.
The SSHA lag correlations in the fall winter through fall seasons show good consistency in the CMIP5 historical simulations (Figures 6A–D), in good agreement with those in observation (Figure 5). The significant correlations still exist in more than half of the CMIP5 models in the STIO and western equatorial Pacific in the winter of Year 0, and spring of Year +1, and in the central-eastern equatorial Pacific in the summer and fall of Year +1, with the ENSO signal removed (Figures 6E–H). These results suggest that the oceanic channel dynamics, which are responsible for the IOD-ENSO precursory teleconnection, have been included in most of the CMIP5 climate models. It should be noting that few of the CMIP5 models have produced artificially correlations at 1-year time lag for both SSTA and SSHA, suggesting model deficiency (Supplementary Figures A1,A2). For example, the MIROC5 fails to reproduce the significant positive lag correlation of SSTA; the MPI-ESM-LR and MPI-ESM-P fail to reproduce the significant positive lag correlation of SSHA; and the HadGIM2-ES produces highly significant positive correlations of SSHA over the entire tropical Indo-Pacific Ocean.

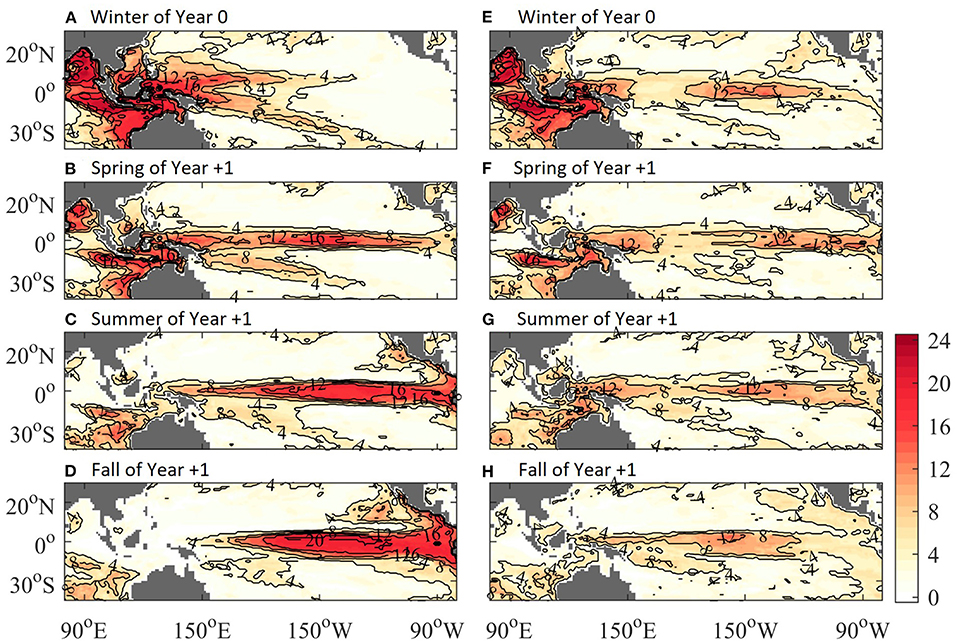

FIGURE 6
Figure 6. Numbers of CMIP5 models with significant positive correlations between the STIO SSHA in fall and the tropical Indo-Pacific Oceans SSHA in (A) winter of Year +0, (B) spring of Year +1, (C) summer of Year +1, and (D) fall of Year +1. (E–H) are same as (A–D), but with the ENSO signal removed.
The lag correlations between the STIO SSTA in fall and the subsurface temperature anomalies in the vertical section along the equatorial Pacific Ocean from the winter of Year 0 through the fall of Year +1 suggest eastward propagation of the IOD anomalies from the Indian Ocean to the equatorial Pacific Ocean through the Indonesian seas in the thermocline (Figures 7A–D). After reaching the equatorial Pacific, the IOD induced signal is amplified by the air-sea coupling over the tropical Pacific, thereby resulting in the persistent significant positive correlations in the cold tongue through summer to fall of Year +1 (Yuan et al., 2011). The lag correlations outcrop in the central and eastern equatorial Pacific in the summer and fall of Year +1 to impact the SSTA in the cold tongue in the observations (Figure 7D). This eastward movement of positive lag correlations, above the 95% significance level in the thermocline of the equatorial Pacific Ocean is reproduced well on average by the historical simulations of CMIP5 climate models (Figures 7E–H). The propagation together with the SSHA lag correlations suggest the importance of the oceanic channel dynamics, i.e., the variability of ITF transport, in the forcing of the oceanic anomalies in the equatorial Pacific Ocean by the Indian Ocean (Yuan et al., 2013).

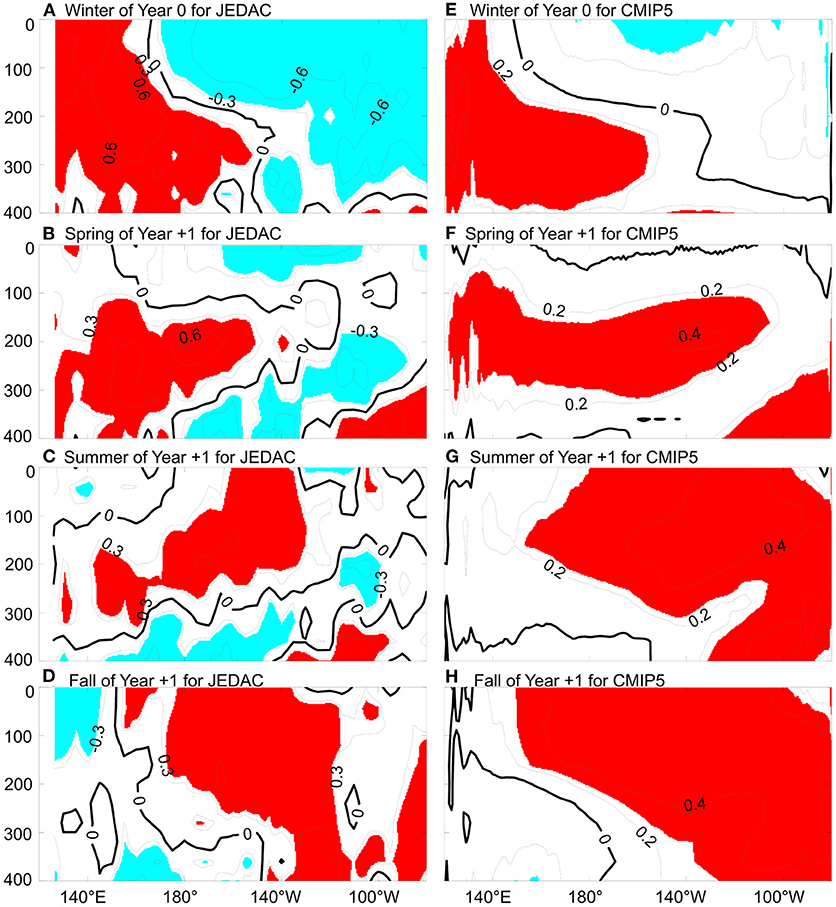

FIGURE 7
Figure 7. Lag correlations between the STIO SSTA in the fall of Year 0 and the subsurface temperature anomalies in the vertical section along the equatorial Pacific from the winter of Year 0 through the fall of Year +1 during positive phases. (A–D) JEDAC. (E–H) cross-model averaged from CMIP5 historical simulations. The red and blue shading indicate the 95% significance level of positive and negative correlations, respectively.
The lag correlations of subsurface temperature anomalies tend to propagate faster in the CMIP5 models than those in the observation, as revealed by the significant correlations reach as far as 120°-150°W in more than 12 of the CMIP5 models in spring of Year +1, and surfaces in the cold tongue in summer of Year +1, roughly lead the observation by 3 months (Figures 8A–C). In addition, the significant lag correlations in fall of Year +1 are of broader and deeper extension in the CMIP5 models (Figure 8D), which may be attributed to deeper thermocline and/or less diffusion in these models (Castaño-Tierno et al., 2018). In more than half of the CMIP5 models, the eastward propagation of significant positive correlations persists in the subsurface temperature anomalies, even if the ENSO signal is removed (Figures 8E–H). Overall, the subsurface lag correlations corroborate with those of SSTA and SSHA, suggesting robust oceanic channel dynamics are included in the CMIP5 climate models.
FIGURE 8

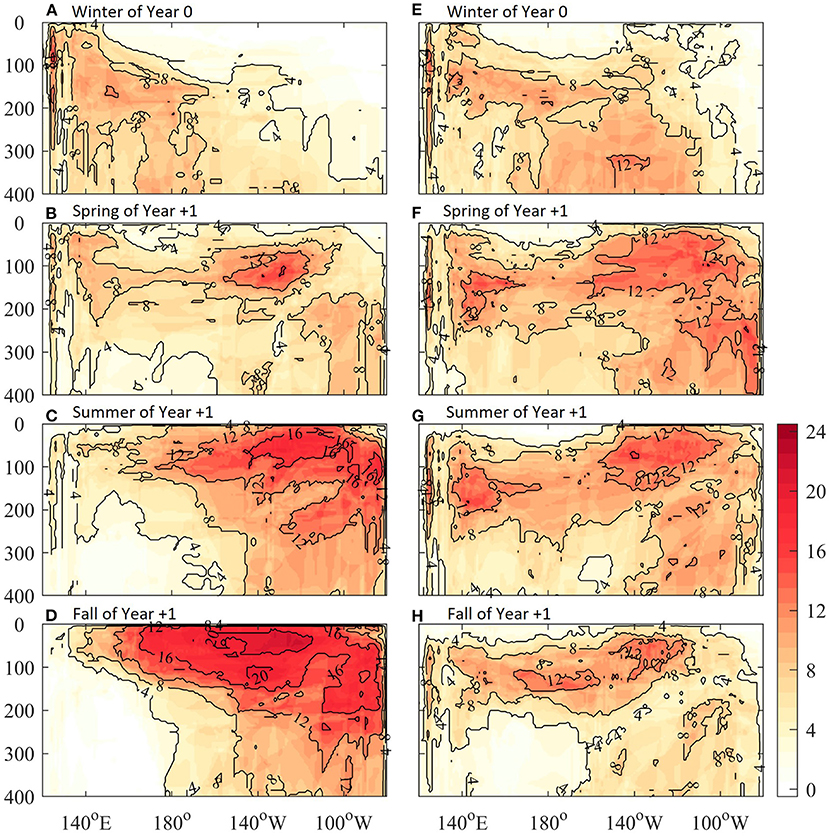

Figure 8. Numbers of CMIP5 models with significant positive correlations between the STIO SSTA in fall and the subsurface temperature anomalies in the vertical section along the equatorial Pacific in (A) winter of Year +0, (B) spring of Year +1, (C) summer of Year +1, and (D) fall of Year +1. (E–H) are same as (A–D), but with the ENSO signal removed.
Lag correlations associated with atmospheric bridge processes
The lag correlations between the surface zonal wind anomalies (SZWA) over the WEP in fall and the tropical Indo-Pacific SZWA, SSTA and SSHA in the next fall have been used to diagnose the atmospheric bridge processes over the tropical Indo-Pacific Ocean (Xu et al., 2013; Yuan et al., 2013). These correlations are calculated in the CMIP5 historical simulations and are shown in Figures 9, 10, respectively. As suggested by Yuan et al. (2013), the atmospheric bridge processes should be short lived, and thus cannot responsible to the IOD-ENSO precursory teleconnection at 1 year time lag, which is evidenced by insignificant correlation of WEP SZWA with SSTA and SSHA in the cold tongue area. In the CMIP5 historical simulations, the atmospheric bridge related lag correlations are much dispersive, showing significant positive correlations in the cold tongue at 1 year time lag in some of the models, whereas significant negative or insignificant correlations in others.

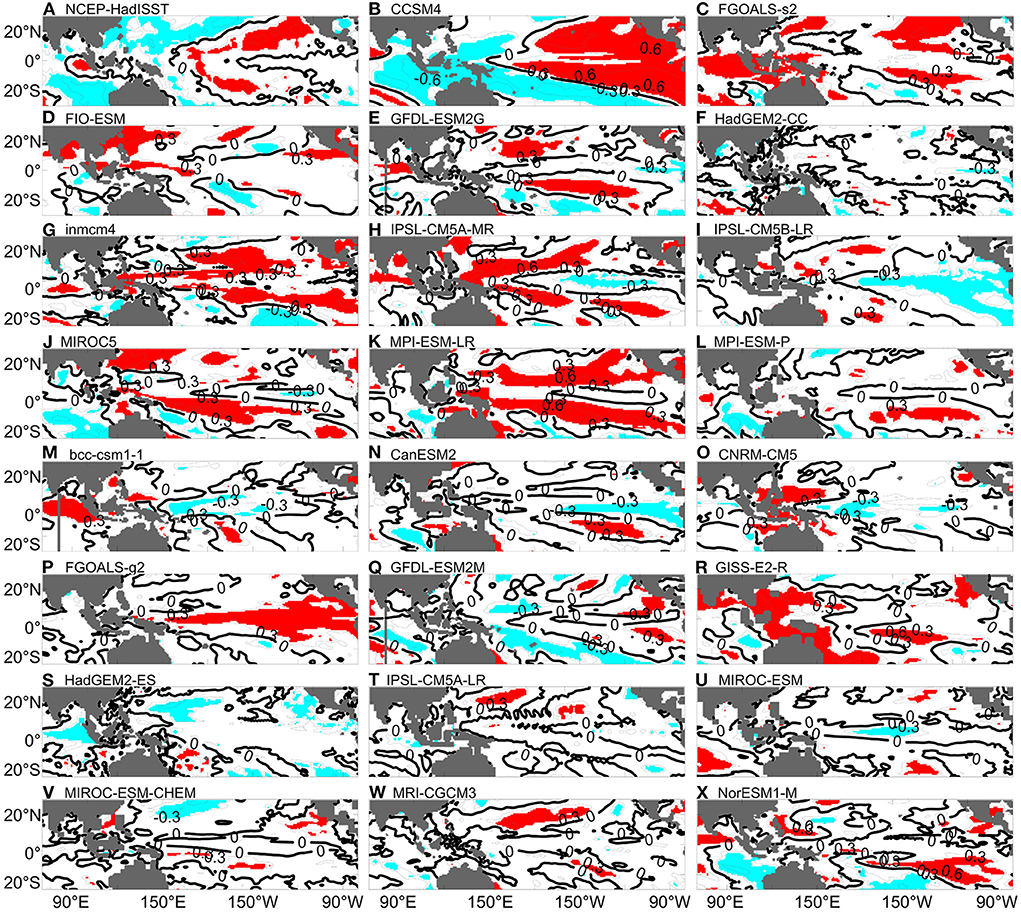

FIGURE 9
Figure 9. Composite lag correlations between the WEP SZWA in the fall of Year 0 and tropical Indo-Pacific SSTA in the fall of Year +1 in NCEP/HadISST and CMIP5 historical simulations during positive phases. The red and blue shading indicate the 95% significance level of positive and negative correlations, respectively. Index (A–X) refers to different CMIP5 model as listed in Supplementary Table 1.
FIGURE 10
Figure 10. Composite lag correlations between the WEP SZWA in the fall of Year 0 and tropical Indo-Pacific SSHA in the fall of Year +1 in NCEP/Aviso and CMIP5 historical simulations during positive phases. The red and blue shading indicate the 95% significance level of positive and negative correlations, respectively. Index (A–X) refers to different CMIP5 model as listed in Supplementary Table 1.
The lag correlations between the WEP SZWA in fall and the tropical Indo-Pacific SSTA in the next fall are very dispersive, with significant positive correlations in CCSM4 and FGOALS-g2 historical simulations but significant negative correlations in CanESM2 and IPSL-CM5B-LR historical simulations in the equatorial Pacific cold tongue (Figure 9). The lag correlations between the WEP SZWA in fall and the tropical Indo-Pacific SSHA have shown similar disparity among the different CMIP5 historical simulations (Figure 10). Sometimes, the lag correlations in Figures 9, 10 are consistent with each other. For example, in the FGOALS-g2 historical simulation, the lag correlations are all significantly positive (Figures 9P, 10P). Sometimes they are significantly different from each other. For instance, in CNRM-CM5, they are significantly negative for the SSTA correlations (Figure 9R) and positive for the SSHA correlations (Figure 10R). All of the above are significantly different from the observational analysis.
In summary, compared with the observational analysis, the lag correlations between the WEP SZWA in fall and the tropical Indo-Pacific SSTA and SSHA in the next fall in most of the CMIP5 historical simulations are unrealistic. The artificial atmospheric bridge processes in these models suggest that the atmospheric bridge is highly variable and difficulty to simulate. They are unlikely playing a dominant role in the Indo-Pacific teleconnection at the time lag beyond a season or so. The comparisons also suggest significant deficiencies in the CMIP5 models, which are harmful to the simulation and prediction of ENSO using these models.
Ensemble dispersion of the IOD-ENSO precursory teleconnection
To illustrate the ensemble dispersion of the IOD-ENSO precursory teleconnection in a single climate system model, we calculate the lag correlations in the 10 ensemble members of the CNRM-CM5 climate model. Figure 11 shows the 11-year running mean lag correlation between the STIO SSTA/SSHA in fall of Year 0 and the Niño3.4 SSTA/SSHA in fall of Year +1. The simulated IOD-ENSO precursory teleconnection shows positive correlations during most of the period from 1850 to 2005 in all of the ensemble members, suggesting consistent stronger oceanic channel dynamics in the CNRM-CM5 climate system model. In eight of the ensemble members, there are one dominant peak above the 95% significance level in the power spectral, with typical period of 15–40 years, except the r3i1pi and r10i1p1, in which show no significant peak and double peak at periods of 15–20 and 25–50 years, respectively.
FIGURE 11

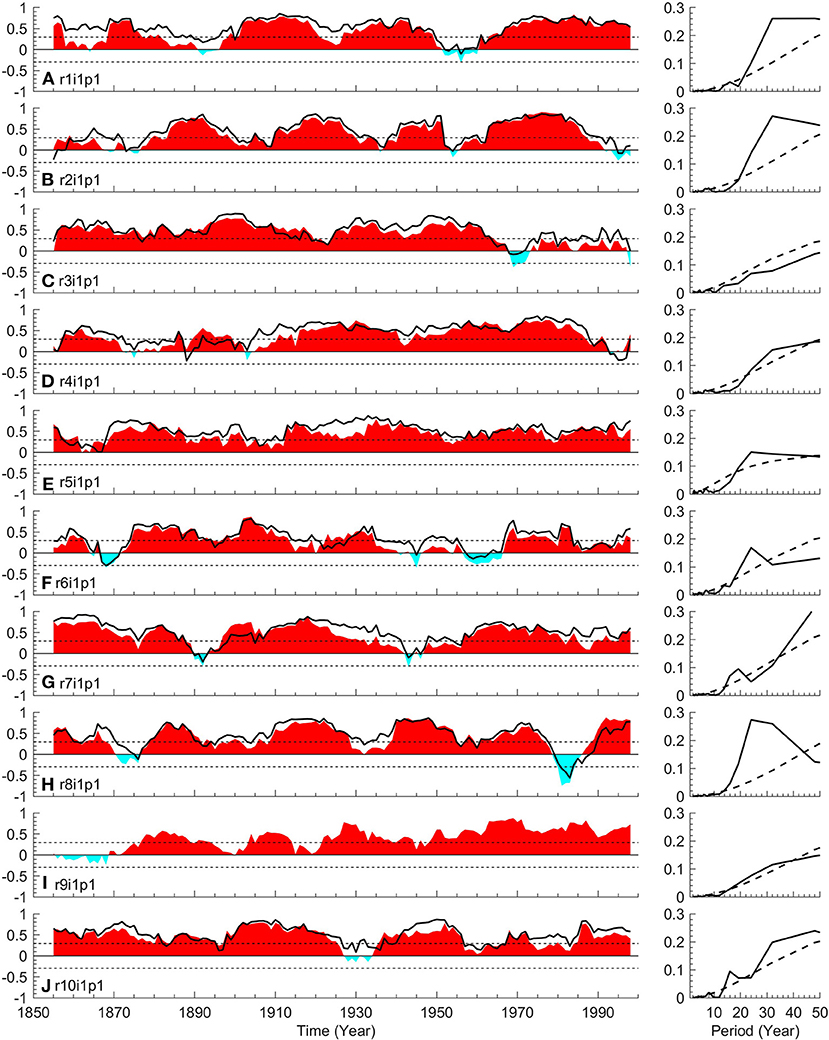

Figure 11. Lag correlation between the STIO SSTA/SSHA in fall and the SSTA/SSHA in the Niño3.4 area in the following fall with a running window of 11 years in different ensemble members in the CNRM-CM5 historical simulations. Shading and curves indicate correlation of SSTA and SSHA, respectively. The horizontal axis shows window central date. (Right panels) show corresponding power spectral of each ensemble members, dashed lines indicate the 95% significance level of the power spectra density.
During the positive phases of the decadal variability, the lag correlations between the STIO SSTA and the Indo-Pacific SSTA show good consistency among the 10 ensemble members, as revealed by the fact that all of them have produced the IOD- and ENSO-type teleconnections in winter of Year 0, and re-emerged in the central-eastern Pacific in summer and fall of Year +1 (Figure 12). The lag correlations of SSHA corroborate with those of SSTA, showing eastward propagation of significant positive correlations from the winter of Year 0 to the fall of Year +1 in all of the 10 ensemble members (Figure 13). These results suggest that the oceanic channel dynamics are consistently robust in the CNRM-CM5 climate models.
FIGURE 12

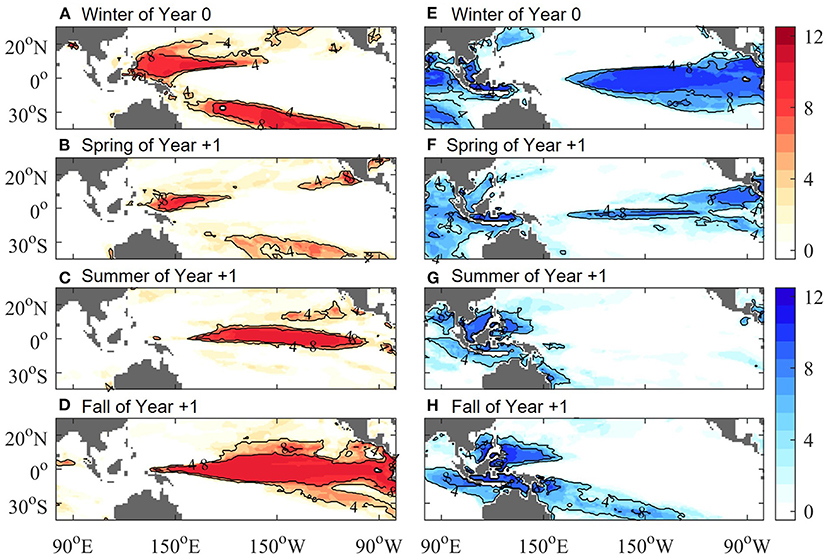

Figure 12. Numbers of ensemble members of the CNRM-CM5 model with significant positive correlations between the STIO SSTA in fall and the tropical Indo-Pacific Oceans SSTA in (A) winter of Year +0, (B) spring of Year +1, (C) summer of Year +1, and (D) fall of Year +1. (E–H) are same as (A–D), but for significant negative correlations.
FIGURE 13

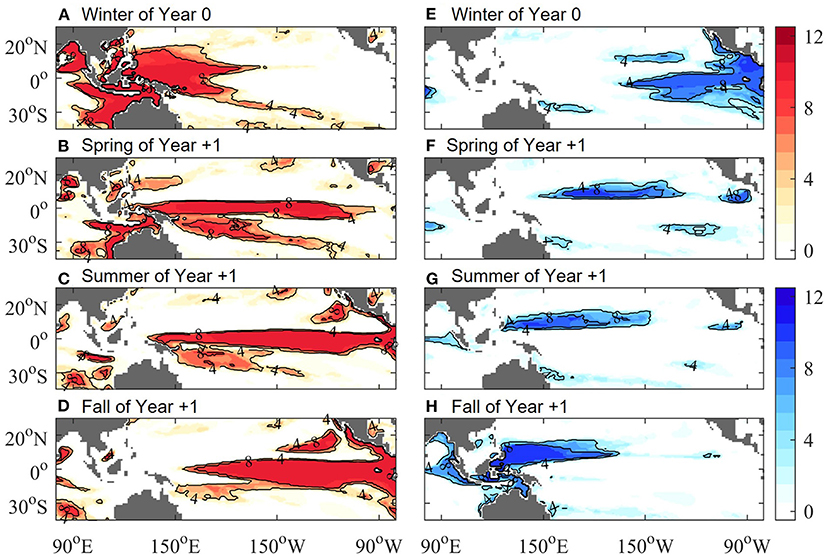

Figure 13. Numbers of ensemble members of the CNRM-CM5 model with significant positive correlations between the STIO SSHA in fall and the tropical Indo-Pacific Oceans SSHA in (A) winter of Year +0, (B) spring of Year +1, (C) summer of Year +1, and (D) fall of Year +1. (E–H) are same as (A–D), but for significant negative correlations.
In contrast, the lag correlation associated with the atmospheric bridge processes are not consistent among the 10 ensemble members in the CNRM-CM5 climate model. The discrepancy occurs in the lag correlation between the WEP SZWA and the Indo-Pacific SSTA at the time lag of 1 year, with six ensemble members producing significant negative correlations span over the entire equatorial Pacific, two ensemble members producing significant negative correlations in limited within 150°-120°W, and two ensemble members without significant correlations (Figure 14). In all of the ensemble members, there are artificially eastward/westward propagation of significant correlations along the equatorial/off-equatorial Pacific (Figure 15). The propagation of the significant correlation between the WEP SZWA and the Indo-Pacific SSHA may attribute to the overestimated atmospheric bridge processes, thereby making the atmospheric signals longer lived in the coupled system, which are contradictory to the observation. The detailed distributions of the lag correlations associated with oceanic channel dynamics and atmospheric bridge processes can be found in the Supplementary Figures 4–8.

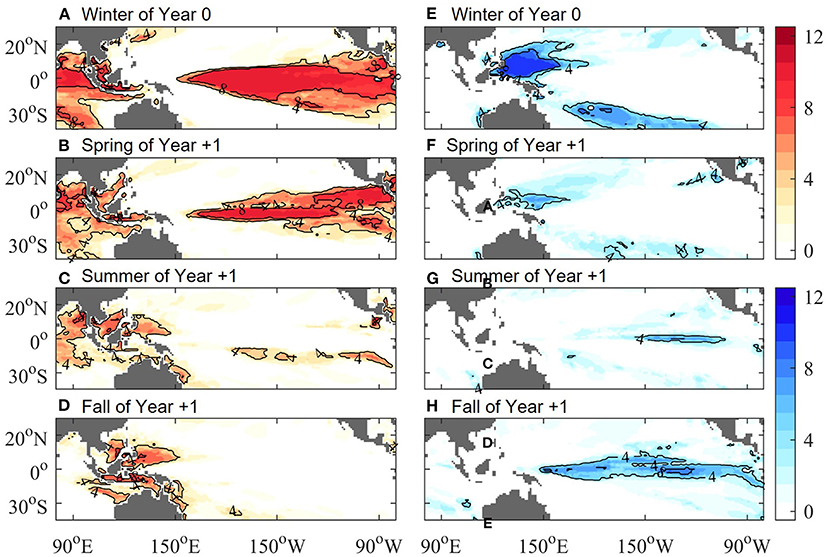

FIGURE 14
Figure 14. Numbers of ensemble members of the CNRM-CM5 model with significant positive correlations between the WEP SZWA in fall and the tropical Indo-Pacific Oceans SSTA in (A) winter of Year +0, (B) spring of Year +1, (C) summer of Year +1, and (D) fall of Year +1. (E–H) are same as (A–D), but for significant negative correlations.
FIGURE 15

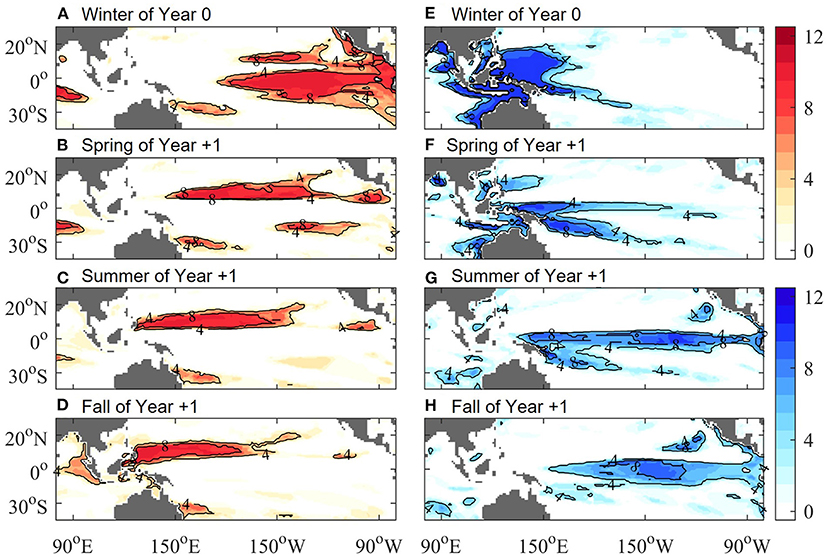

Figure 15. Numbers of ensemble members of the CNRM-CM5 model with significant positive correlations between the WEP SZWA in fall and the tropical Indo-Pacific Oceans SSHA in (A) winter of Year +0, (B) spring of Year +1, (C) summer of Year +1, and (D) fall of Year +1. (E–H) are same as (A–D), but for significant negative correlations.
Conclusions and summary
In this study, the decadal variabilities of the IOD-ENSO teleconnection across the Indo-Pacific Ocean are studied based on running mean lag correlations between the SSTA or SSHA in the STIO in fall and the cold tongue SSTA or SSHA at the 1-year time lag. The analyses have shown decadal variability of the running lag correlations, with positive lag correlations generally of larger values and longer durations and the negative correlations of smaller value and shorter durations. The dynamics of the IOD-ENSO teleconnection during the positive correlation phases of the decadal oscillation are investigated using the historical simulations of the CMIP5 climate system models. The skills of the CMIP5 climate models in simulating the IOD-ENSO teleconnection at the 1-year time lag during the positive phases of the decadal variability are assessed based on the comparisons of the simulated and observed lag correlations.
The lag correlations in the CMIP5 model simulations between the STIO SSTA in fall and the Niño3.4 SSTA in the next fall show similar decadal variability as in the observational analyses, suggesting the ability of the models in simulating the decadal variability of the IOD-ENSO teleconnection in nature. During the positive phases of the decadal variability, the lag correlations between the SSTA in STIO in fall and the SSTA in the equatorial Pacific cold tongue in the next fall show positive correlations, above the 95% significance level, in most of the CMIP5 historical runs, consistent with the observational analysis. The comparisons suggest that the CMIP5 climate models are capable of reproducing the IOD-ENSO teleconnection at the 1-year time lag during the positive phases of the decadal variability. The propagation of sea level anomalies from the STIO to the central and eastern equatorial Pacific in the CMIP5 simulations are evidenced by the eastward movement of the significant positive lag correlations of SSHA between the STIO in fall and the equatorial Pacific in the subsequent seasons in CMIP5 historical simulation on average, suggesting the oceanic channel dynamics at work. The CMIP5 climate models have also simulated successfully the significant positive lag correlations between the STIO SSTA in fall and the subsurface temperature anomalies in the following year moving eastward from the western Pacific to the eastern Pacific cold tongue, providing evidence of the oceanic thermocline processes in connecting IOD with ENSO at the 1-year time lag. In comparison with the observations, the simulated lag correlations in the subsurface are deeper and stronger than in the observations, probably due to a deeper thermocline in the CMIP5 model simulations. The lag correlation analyses of the oceanic anomalies of the tropical Indian and Pacific oceans suggest that most of the CMIP5 climate models have simulated the oceanic channel dynamics of the IOD-ENSO teleconnection successfully during the positive phases of the decadal variability.
In contrast, the lag correlations between the far western equatorial Pacific SZWA in fall and the tropical Indo-Pacific SZWA, SSTA, and SSHA in the following fall are found to be much dispersed among the CMIP5 climate models during the positive phases of the decadal variability. Many CMIP5 models have produced artificial atmospheric bridge processes across the Indo-Pacific Ocean in comparison with observational analyses, suggesting model deficiencies.
In a single climate system model, e.g., the CNRM-CM5, it also exists the consistency and discrepancy of lag correlations associated with oceanic channel dynamics and atmospheric bridge processes, respectively. It is worth mentioning that more analyses by employing other CMIP5 models would better reveal the ensemble dispersion of the IOD-ENSO precursory relationship. Nevertheless, it is sufficient to conclude that there exists discrepancy of simulated atmospheric bridge processes in a single climate system model. Meanwhile, although we have not gone through all ensemble members of all CMIP5 models, the consistency of oceanic channel dynamics is still robust, since all of the analyzed CMIP5 historical simulations have represent appropriate lag correlations that associated with oceanic channel dynamics, in agreement with the observations.
Data availability statement
Publicly available datasets were analyzed in this study. This data can be found here: The HadISST sea surface temperature data are available at https://www.metoffice.gov.uk/hadobs/hadisst/data/download.html. The AVISO sea surface height data are available at http://www.aviso.altimetry.fr/duacs. The Twentieth Century Reanalysis Project version 3 (20CRv3) dataset is provided by the U.S. Department of Energy, Office of Science Biological and Environmental Research (BER), by the National Oceanic and Atmospheric Administration Climate Program Office, and by the NOAA Physical Sciences Laboratory at https://psl.noaa.gov/data/gridded/data.20thC_ReanV3.html. The EN4 quality controlled ocean data (EN.4.2.1) is provided by the Met Office Hadley Centre at https://www.metoffice.gov.uk/hadobs/en4/download-en4-2-1.html. The CMIP5 output data are available at https://esgf-node.llnl.gov/projects/cmip5/.
