Gas sensing performance of Ti3C2Tx MXene heterojunction structures in greenhouse environments: a mini review

With the continuous advancement of smart greenhouse technologies, digital and information-based environmental monitoring has emerged as a focal point of research. The development of high-performance gas sensors is central to achieving this objective. In recent years, MXene materials have been widely applied in the field of gas sensors due to their excellent ion mobility, favorable hydrophilicity, outstanding electronic conductivity, and unique physicochemical properties. Various MXene heterojunction structures have been synthesized for gas detection. This review aims to summarize the current state of research on Ti₃C₂T_x-based gas sensors, explore methods for synthesizing different morphologies of Ti₃C₂T_x heterojunction structures, and evaluate the sensing behaviors of these configurations to fully harness their potential for gas monitoring in greenhouse environments. Additionally, an in-depth analysis of the sensing mechanisms associated with Ti₃C₂T_x heterojunction structures will be provided, offering theoretical support for future investigations. The findings indicate that Ti₃C₂T_x-based nanomaterials demonstrate considerable promise as high-performance sensors for gas detection in greenhouse settings. This innovative research not only provides new insights into the development of gas sensor technologies but also serves as an important foundation for the digitization of environmental monitoring.

1 Introduction

In recent years, greenhouses have become essential facilities for agricultural production; however, their relatively enclosed environments lead to the accumulation of toxic and harmful gases released from improper fertilizer application and insufficient ventilation (Assimakopoulos et al., 2024; Xu et al., 2024). This phenomenon has exacerbated air quality issues within greenhouses. For instance, when ammonia (NH₃) concentration exceeds 5 mg/m³ (approximately 6.579 ppm), crop leaves may exhibit water-soaked spots, ultimately resulting in wilting; at concentrations above 30 mg/m³ (approximately 39.474 ppm), NH₃ binds with hemoglobin, causing symptoms such as chest tightness, cough, and respiratory difficulties, alongside conjunctival congestion and headaches (Hassan et al., 2024; Huang W. et al., 2024; Wang X. et al., 2024). Similarly, when nitrogen dioxide (NO₂) concentration surpasses 5 mg/m³ (approximately 2.433 ppm), water-soaked spots appear on the edges of crop leaves, which quickly fade to a bleached appearance; if concentrations exceed 20 mg/m³ (approximately 9.73 ppm), NO₂ can inhibit enzyme activity in humans, affecting the nervous system and leading to chest tightness and respiratory distress, with long-term exposure potentially resulting in neurosis and chronic respiratory inflammation (Lu D. et al., 2023; Kwon et al., 2024; Zhang et al., 2024a). Furthermore, elevated levels of ethylene (C₂H₄), exceeding 2 mg/m³ (approximately 1.598 ppm), significantly impact the edges of leaves and young shoots, manifesting as chloroplast degradation that leads to yellowing or whitening of the leaves. Although ethylene exhibits low toxicity to humans, prolonged exposure may induce symptoms such as dizziness and lack of concentration; high concentrations can even cause paralysis (Zhang et al., 2020; Walubengo et al., 2022; Kormann et al., 2024). Therefore, the development of high-response and low-detection-limit sensors for real-time monitoring of toxic gases within greenhouse environments at room temperature is of critical significance. Such advancements would not only ensure healthy crop growth but also protect the health of agricultural workers, thereby supporting the progression of smart agriculture. Furthermore, it is essential to recognize that humidity levels within greenhouse settings play a pivotal role in determining sensor performance. Fluctuations in moisture can markedly influence both the sensitivity and stability of gas detection mechanisms, necessitating the design of sensors that can effectively operate under varying humidity conditions. This adaptability is crucial for ensuring accurate and reliable monitoring, as excessive moisture may lead to false readings or degradation of sensor materials. Addressing these challenges will enhance the efficacy of gas sensors in dynamic agricultural environments, ultimately contributing to improved environmental control and optimal crop management practices (Singh et al., 2024; Zhang T. et al., 2024; Zhao H. et al., 2024).

MXenes are a class of two-dimensional (2D) materials that have emerged as popular alternatives to graphene in recent years. Composed of transition metals (Sc, Ti, V, Cr, Zr, Nb, Mo, Hf, and Ta), X (C or N), and surface functional groups T (-O, -OH, and -F), MXenes are represented by the chemical formula M_n+1X_nT_x, where n ranges from 1 to 3 (Li Q. et al., 2021; Xia et al., 2023; Wang Y. et al., 2024). Due to their exceptional ion mobility, favorable hydrophilicity, and outstanding electronic conductivity, MXenes have found extensive applications in sensors, catalysts, lithium-ion batteries, electromagnetic shielding, and supercapacitors (Li et al., 2023; Pang et al., 2023; Chen et al., 2024; Zhang J. et al., 2024). Zhang et al. successfully synthesized accordion-like V₂CT_x MXene materials and combined them with SnS₂ nanosheets, resulting in the development of a highly efficient MXene heterojunction gas sensor (Zhang et al., 2024d). Gas sensing results indicate that the V₂CT_x material composite with SnS₂ nanosheets exhibits an exceptional sensitivity towards NO₂, being 581 times greater than that of intrinsic V₂CT_x materials. Furthermore, at a relative humidity of 51.9%, rapid response and recovery times of 4.8 s and 4.7 s, respectively, are observed, alongside commendable selectivity. Wang et al. successfully incorporated SnS₂ onto Nb₄C₃T_x materials through an in situ growth approach (Wang W. et al., 2024). This composite demonstrates a high response of 1046.6% to 50 ppm triethylamine at room temperature, with a response time of 11 s. Lu et al. designed a MXene/Na₂Ti₃O₇@polyaniline composite, which exhibits a response of 283% to NH₃ at room temperature with 90% humidity and achieves a detection limit of 186% (Lu et al., 2024). Mo₂CT_x nanospheres were synthesized using ultrasonic technology by Wang et al. (Wang B. et al., 2024). Gas sensing tests revealed that this material exhibits a favorable response to 5 ppm of NO₂ at room temperature. Additionally, a sensor composed of Nb₂CT_x nanosheets combined with polyaniline was fabricated, demonstrating high selectivity and sensitivity towards low-concentration NH₃ at room temperature and 87.1% relative humidity (Wang et al., 2021). Collectively, the synthesis of MXene heterojunction structures holds promise for achieving outstanding gas sensing capabilities for toxic gases in greenhouse environments at room temperature, thereby providing robust technical support for the advancement of smart agriculture.

Ti₃C₂T_x is among the most stable and cost-effective MXene materials, with a well-established preparation methodology. Its exceptional thermal stability, high electrical conductivity, and outstanding chemical and physical properties position it as a potential candidate for climate monitoring applications (Chen et al., 2021; Li W. et al., 2021; Qi et al., 2021). A two-dimensional α-Fe₂O₃/Ti₃C₂T_x MXene composite was designed by Zhang et al. (Zhang D. et al., 2024), and gas sensing tests demonstrated that this material exhibits a response of 0.27–100 ppm H₂S at room temperature, with an exceptionally low detection limit. A unique sacrificial technique was employed by Qiu et al. to successfully fabricate Pd/Cu-modified Ti₃C₂T_x materials, which demonstrate a response time of 4 s to 0.5% H₂ at room temperature, with a detection limit of 0.1% H₂ (Qiu et al., 2024). Li et al. successfully fabricated Fe₂O₃/TiO₂/Ti₃C₂T_x MXene composite sensors, which respond to 100 ppm NH₃ at room temperature with response and recovery times of 62 s and 74 s, respectively (Li et al., 2024). Additionally, a Google Scholar investigation into the keyword “nano + Ti₃C₂T_x + gas sensor” revealed a steady increase in the publication count related to this topic from 2020 to 2023, with records showing 9, 22, 59, and 64 publications annually. Although this data may not be entirely precise, an increasing body of literature indicates that gas sensors based on Ti₃C₂T_x are garnering heightened attention. Therefore, summarizing the latest advancements in Ti₃C₂T_x-based gas sensors is crucial for a deeper understanding of their advantages in monitoring toxic gases within greenhouse environments. This will not only provide a foundation for future research but also establish robust theoretical support for the development of smart agriculture.

In this review, several highly cited published studies have been selected to provide a concise overview of typical Ti₃C₂T_x MXene gas sensors. The objective of this research is to summarize and compare the exceptional performance characteristics of these gas sensors. Furthermore, various methods for synthesizing Ti₃C₂T_x MXene-based materials are presented to offer valuable references for related investigations. Finally, a brief exploration of the sensing mechanisms associated with Ti₃C₂T_x MXene gas sensors is conducted. This review not only establishes a foundation for understanding the applications of Ti₃C₂T_x MXenes in the realm of gas sensing but also elucidates potential directions for future research.

2 Recent advances in the gas sensing performance of Ti₃C₂T_x

2.1 Metal atom modification of Ti₃C₂T_x MXene nanomaterials

Nam et al. successfully developed gas sensors based on Au/Pt-modified Ti₃C₂T_x MXene (Nam et al., 2024). The Ti₃C₂T_x MXene material was synthesized through the HF etching of Ti₃AlC₂. The Ti₃C₂T_x MXene materials modified with varying ratios of Au/Pt particles are illustrated in Figures 1A–F. These sensors demonstrated the capability to operate in self-heating mode at room temperature, exhibiting good selectivity towards ammonia when containing 1.92 at% Au or 0.83 at% Pt NPs. Additionally, the Au-Ti₃C₂T_x MXene and Pt-Ti₃C₂T_x MXene sensors demonstrate adaptability to voltages of 5 V and 3 V, respectively, and both have successfully passed rigorous strength tests. These findings indicate that noble metal-modified Ti₃C₂T_x MXene exhibits excellent compatibility for gas detection at room temperature. This research provides novel insights into the development of high-performance gas sensors.

Figure 1

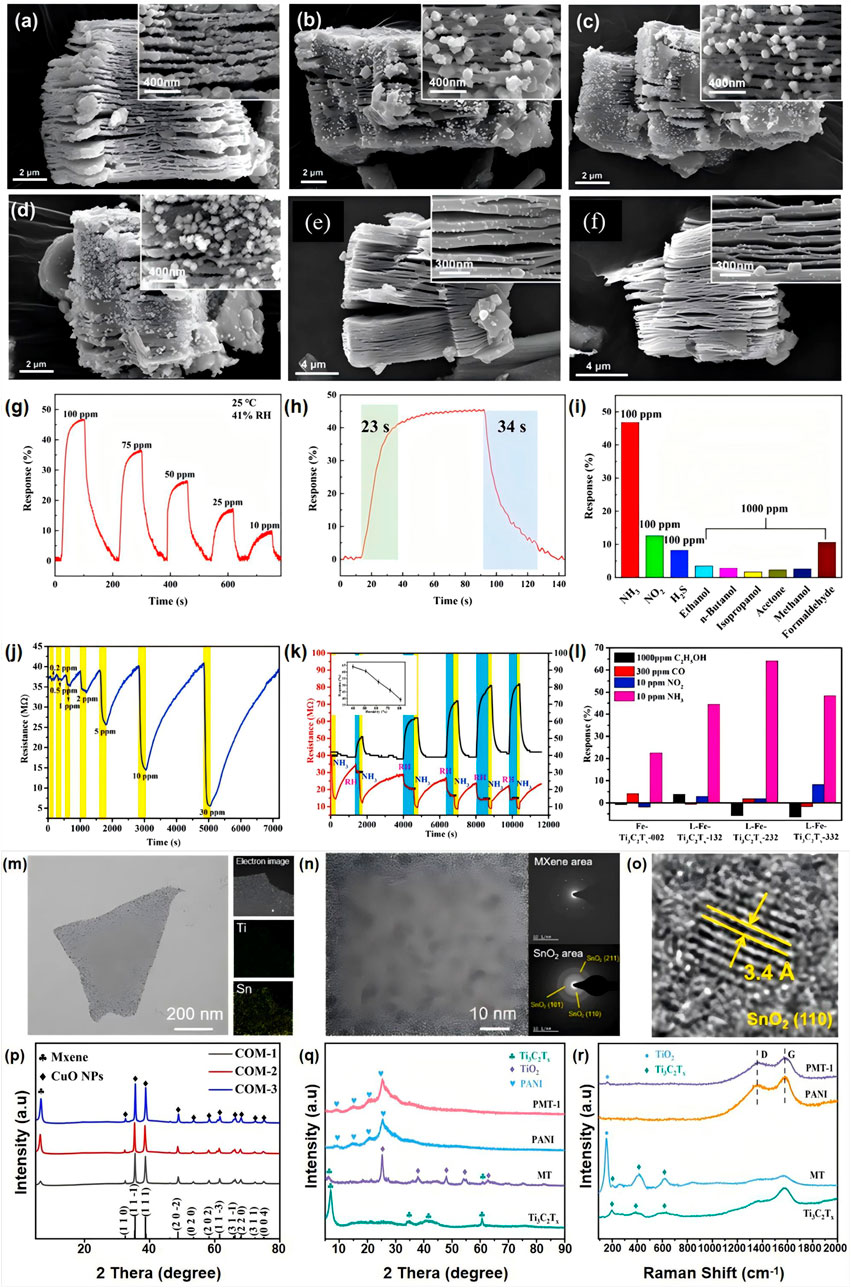

Figure 1. Cross-sectional SEM images of (A) Au (0.29 at%)- Ti₃C₂T_x, (B) Au (1.06 at%)-Ti₃C₂T_x, (C) Au (1.92 at%) -Ti₃C₂T_x, (D) Au (2.48 at%)-Ti₃C₂T_x MXenes, (E) Pt (0.57 at%)- Ti₃C₂T_x, (F) Pt (0.83 at%)-Ti₃C₂T_x, reproduced with permission from (Nam et al., 2024). (G) Dynamic response curve of Pt-Ti₃C₂T_x/TiO₂ sensor at room temperature, (H) Typical response/recovery time of Pt-Ti₃C₂T_x/TiO₂ sensor to 100 ppm NH₃, (I) Selectivity, reproduced with permission from (Zhang et al., 2023). (J) Response-recovery curve of the L-Fe-Ti₃C₂T_x-232 sensor toward 0.2–30 ppm NH₃ at RT, (K) Dynamic response-recovery curve of the L-Fe-Ti₃C₂T_x-232 sensor toward 10 ppm NH₃ at RT along with different RH. The inset displays the plot of the response vs. RH for 10 ppm NH₃, (L) Selectivity of the sensors toward 1000 ppm ethanol, 300 ppm CO, 10 ppm NO₂, and 10 ppm NH₃ gas, reproduced with permission from (Qin et al., 2023). (M) TEM image and elemental mapping analysis of a SnO₂-MXene hybrid nanosheet. (N) Magnified TEM image of SnO₂-MXene hybrid. Insets on the right show Selected Area Electron Diffraction patterns for the exposed MXene area and SnO₂ area. (O) High-Resolution Transmission Electron Microscopy image of SnO₂ nanoparticle, reproduced with permission from (Yang et al., 2024). (P) XRD spectra of COM-1, COM-2, COM-3 (CuO NPs: MXene = 1:1; CuO NPs: MXene = 1:2; CuO NPs: MXene = 1:3), reproduced with permission from (Peng et al., 2024). (Q) XRD Patterns and (R) Raman spectra of Ti₃C₂T_x, MT, PANI and PMT, reproduced with permission from (Xiong et al., 2023).

A method for the preparation of Pt-modified Ti₃C₂T_x/TiO₂ heterojunction sensors using a simple hydrothermal approach was proposed by Zhang et al. (Zhang et al., 2023). Experimental comparative results indicate that the response direction of the Pt-modified Ti₃C₂T_x/TiO₂ system changes significantly, enhancing its NH₃ detection performance at room temperature compared to intrinsic Ti₃C₂T_x materials and Ti₃C₂T_x/TiO₂ heterojunctions. As shown in Figure 1G, the response of the Pt-modified Ti₃C₂T_x/TiO₂ heterojunction sensor to 100 ppm NH₃ at room temperature is 45.5%, which is 13.8 times and 10.8 times greater than that of the intrinsic Ti₃C₂T_x material and the Ti₃C₂T_x/TiO₂ heterojunction, respectively. Furthermore, the Pt-modified Ti₃C₂T_x/TiO₂ heterojunction sensor offers advantages such as low detection limits, high response, rapid response and recovery times, and selectivity, as illustrated in Figures 1H, I. In terms of long-term stability and durability under greenhouse conditions, the Pt-Ti₃C₂T_x/TiO₂ sensor exhibited a slight decrease in response to 100 ppm NH₃ after a duration of 22 days. This research provides new insights into the development of efficient gas sensors, particularly for monitoring harmful gases under ambient conditions.

Qin et al. reported an environmentally friendly and efficient one-step pulsed laser ablation method for synthesizing iron cluster-loaded Ti₃C₂T_x MXene (L-Fe-Ti₃C₂T_x) gas sensing materials (Qin et al., 2023). Subsequently, the research team developed sensors based on L-Fe-Ti₃C₂T_x nanosheets to enable real-time detection of NH₃ at room temperature. As illustrated in Figures 1J–L, the L-Fe-Ti₃C₂T_x-232 sensor exhibited a response of 64.03% under 10 ppm NH₃ conditions and demonstrated significant reproducibility even in high-humidity environments, making it a strong candidate for specific applications such as agricultural monitoring and human health assessment. This exceptional ammonia sensing performance is primarily attributed to the robust adsorption capability conferred by the abundant defect sites on the Ti₃C₂T_x nanosheets, along with the catalytic effects provided by the supported iron clusters. The L-Fe-Ti₃C₂T_x-232 sensor demonstrated commendable long-term stability and durability under greenhouse conditions, maintaining consistent responsiveness to 10 ppm NH₃ over a continuous monitoring period of 44 days. This study introduces a method for modifying Ti₃C₂T_x materials with non-noble metal clusters, thereby further enhancing the sensing performance of Ti₃C₂T_x MXene materials compared to previous research. Such advancements are poised to not only advance gas sensing technology but also open new avenues for practical applications in related fields.

2.2 Metal oxide composite Ti₃C₂T_x MXene nanomaterials

Kale et al. developed a Ti₃C₂T_x material with optimized surface terminating groups (-O and -OH), utilizing 30% HF as an etching agent to enhance the interaction with ammonia molecules, designated as Ti₃C₂T_x-30 (Kale et al., 2024). This material exhibits the advantage of a low work function (3.78 eV) and is embedded in a MoO₃ matrix to achieve both high sensitivity and room temperature operation. The MoO₃ matrix provides stability to Ti₃C₂T_x-30, effectively reducing its risk of oxidation, while Ti₃C₂T_x-30 introduces additional free electrons into the MoO₃ matrix, enabling efficient detection of NH₃ at room temperature. When exposed to 100 ppm ammonia, the sensor response reached 93%, with a response time of approximately 10 s, representing a tenfold improvement over bare MoO₃. The surplus electrons on the Ti₃C₂T_x-30 surface facilitate the generation of species, further enhancing the stability of the MXene surface. In the presence of adsorbed MoO₃, these species actively react with ammonia molecules, leading to significant changes in system resistance. Consequently, by incorporating an optimally proportioned Ti₃C₂T_x, a significant breakthrough has been achieved for metal oxides in realizing high gas sensitivity at room temperature.

Yang et al. introduced a novel sensor by integrating SnO₂ quantum dot (QD) nanoparticles with Ti₃C₂T_x MXene, achieving a composite material that exhibits enhanced sensing capabilities (Yang et al., 2024). The successful fabrication of this composite was thoroughly characterized through transmission electron microscopy (TEM) imaging and elemental mapping analysis, as demonstrated in Figures 1M–O. This innovative approach not only highlights the synergistic effects of combining these two materials but also paves the way for advanced gas sensing applications with improved sensitivity and selectivity. The abundant nucleation sites on the MXene surface facilitated the dense deposition of SnO₂ QD nanoparticles with diameters ranging from 2 to 3 nm. Compared to traditional methods, SnO₂-composited Ti₃C₂T_x MXene materials markedly improve the detection performance for NH₃ at room temperature, exhibiting a response that is 100 times greater than that of intrinsic Ti₃C₂T_x MXene materials. These findings provide new insights into the development of gas sensors and signify the potential applications of MXene-based materials in environmental monitoring.

Peng et al. successfully synthesized transition metal oxide-derived copper oxide (CuO) nanoparticles (NPs) through a hydrothermal method combined with stirring aging techniques (Peng et al., 2024). The resultant CuO NPs exhibited octahedral growth on the surface of Ti₃C₂T_x MXene nanosheets. The successful fabrication of this composite material was substantiated by X-ray diffraction (XRD) analysis, which revealed distinct crystallographic peaks corresponding to the synthesized phases, as illustrated in Figure 1P. This innovative approach signifies a notable advancement in the integration of metal oxides with MXene substrates, paving the way for enhanced functionalities in various applications. The resulting binary heterostructure, CuO NPs/Ti₃C₂T_x MXene, retains the unique structure of the metal-organic framework (MOF), featuring abundant heterojunction interfaces. Ti₃C₂T_x MXene materials compounded with CuO nanoparticles exhibit the unique structure of metal-organic frameworks (MOFs), and the characteristics associated with MOFs result in a larger specific surface area, abundant active sites, and a more intricate porous structure, thereby significantly enhancing their adsorption performance for NO₂. Under room temperature conditions, the sensor exhibits a sensitive response time of 38.54 s–100 ppm NO₂, with a total response time of 2.84 s. Furthermore, the detection limit for NO₂ is as low as 30 ppb, maintaining good stability over a testing period of 10 weeks. This research positions the composite sensor as a high-sensitivity tool for NO₂ monitoring, showcasing significant potential for applications at room temperature.

Xiong et al. developed a flexible ammonia sensor utilizing a composite material comprising polyaniline (PANI), Ti₃C₂T_x, and TiO₂ through ultrasonic spray pyrolysis and in situ polymerization techniques (Xiong et al., 2023). The successful synthesis of this composite was characterized by X-ray diffraction (XRD) and Raman spectroscopy, as shown in Figures 1Q, R. This innovative methodology not only enhances the sensor’s performance but also exemplifies the potential for integrating advanced materials to facilitate heightened sensitivity and responsiveness in gas detection applications. The synthesized TiO₂ nanoparticles are uniformly adhered to the surface of Ti₃C₂T_x, effectively preventing aggregation in the PMT. Leveraging this characteristic, the enhanced PMT film sensor demonstrates high response (2.30), low detection limit (20 ppb), and high selectivity for 10 ppm NH₃ at room temperature. Currently, considerable attention is being devoted to the incorporation of metal oxides into Ti₃C₂T_x MXene materials to form heterojunction structures. In addition to the aforementioned typical metal oxide-Ti₃C₂T_x heterojunctions, we provide an overview of representative studies on metal oxide-Ti₃C₂T_x heterojunctions for greenhouse gas detection, focusing primarily on NO₂ and NH₃ detection, which are summarized in Table 1.

Table 1

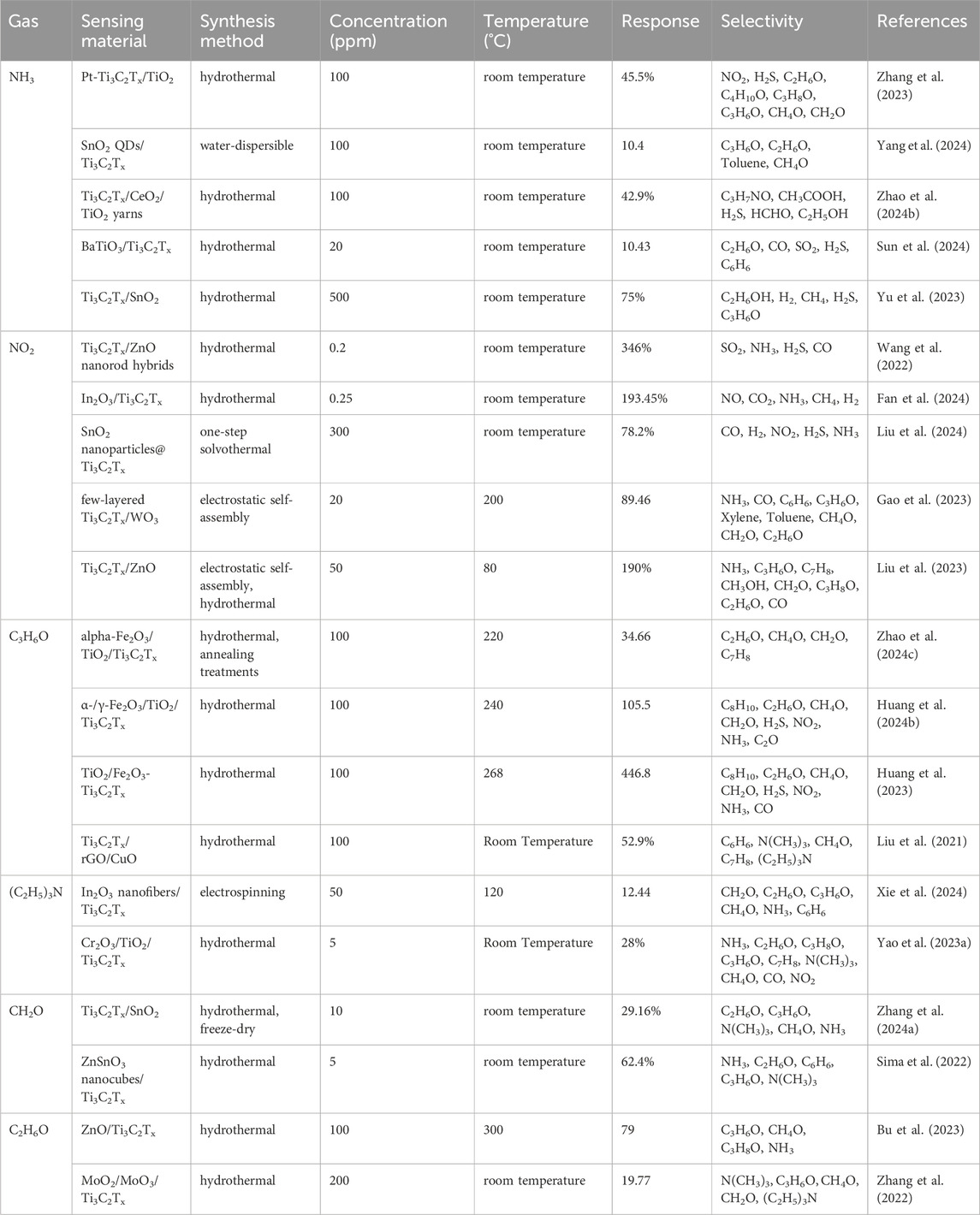

Table 1. Summary of recent researches on Metal oxide composite Ti₃C₂T_x MXene sensors for gas detection.

2.3 Alternative materials composite Ti₃C₂T_x MXene nanomaterials

Kim et al. successfully prepared three-dimensional MoS₂/MXene van der Waals heterostructure aerogels through the physical mixing of two-dimensional MXene and MoS₂, followed by a freeze-drying method (Kim et al., 2023). This low-temperature synthesis approach effectively mitigated the significant oxidation of Ti₃C₂T_x MXene while forming a layered, independent three-dimensional heterostructure composed of high-quality MoS₂ and MXene nanosheets. The catalytic layer of MoS₂ significantly enhanced the functionalization of MXene, improving its sensitivity and long-term stability towards NO₂ gas. Additionally, a resistive sensor based on WS₂/Ti₃C₂T_x MXene multilayer composites was designed by Sardana et al. (Sardana et al., 2023). The optimal concentration ratio of a chemical resistive sensor was explored by combining different concentrations of WS₂ with MXene. Notably, the composite Ti₃C₂T_x MXene sensor containing 25 wt% WS₂ exhibited responses of 29% to 5 ppm NH₃ and 44% to 100 ppb NO₂ at room temperature, along with strong selectivity.

To achieve low detection limits and high sensitivity for NH₃ detection at room temperature, a gas sensor based on a polypyrrole (PPy) coated MXene/MoS₂ nanocomposite has been developed by Lu et al. (Lu L. et al., 2023). This loosely assembled heterogeneous structure of MXene-loaded MoS₂ was synthesized through a one-step hydrothermal technique based on electrostatic self-assembly. The MoS₂ nanosheets uniformly wrapped around the etched MXene surface formed a highly synergistic metal-semiconductor contact, effectively generating a resistive layer capable of capturing electrons produced during NH₃ sensing. PPy was subsequently coated onto the MXene/MoS₂ composite surface via an in situ polymerization process, resulting in a self-supporting structure. The Ti₃C₂T_x MXene/MoS₂/PPy composite material exhibits a high response to 100 ppm NH₃ that is five times greater than that of intrinsic Ti₃C₂T_x MXene materials, while maintaining a response of 2.08 for 10 ppm NH₃ at room temperature. The MXene/MoS₂/PPy nanocomposite sensor also displayed excellent long-term stability, high response and recovery rates, outstanding humidity resistance, and notable selectivity towards NH₃.

A shell-type Ti₃C₂T_x@PDAC (croconaine) composite material was designed by Zhou et al. through a simple in situ polymerization reaction for the detection of NH₃ at room temperature (Zhou et al., 2023). Compared to the original Ti₃C₂T_x, sensors constructed from the Ti₃C₂T_x-PDAC composite exhibited remarkable sensitivity, achieving a response of 2.8% ppm^-1 with an estimated detection limit of 50 ppb. Under room temperature conditions, the Ti₃C₂T_x-PDAC sensor demonstrated commendable stability and durability, maintaining effective responsiveness to both 10 ppm and 500 ppb NH₃ over a period of 45 days. Concurrently, Quan et al. devised a fully flexible paper-based gas sensor that integrated non-metallic Ti₃C₂T_x MXene electrodes with a Ti₃C₂T_x/WS₂ sensing film, forming ohmic contacts and Schottky heterojunctions within a single gas sensing channel (Quan et al., 2023). This Ti₃C₂T_x/WS₂ composite demonstrated high conductivity, effective charge transfer capabilities, and abundant gas-sensing active sites. Under room temperature conditions, this gas sensor achieved a response of 15.2% to 1 ppm NO₂, which is 3.2 times greater than that of an Au fingertip electrode integrated with a Ti₃C₂T_x/WS₂ sensor (4.8%) and 76.0 times greater than that of a MXene electrode integrated with a Ti₃C₂T_x sensor (0.2%). Furthermore, the design operated effectively at a detection limit of 11.0 ppb for NO₂ gas while exhibiting outstanding stability in high-humidity environments.

A film-type sensor based on a hybrid polyaniline (PANI:PSS) was developed by Wen et al. using a unique in situ polymerization technique (Wen et al., 2023). This sensor exhibits high sensitivity for NH₃ detection, yielding a favorable response to 1 ppm NH₃. In terms of long-term stability and durability under greenhouse conditions, the PANI:PSS/Ti₃C₂T_x sensor exhibited a mere 23% decrease in responsiveness to 1 ppm NH₃ after 30 consecutive hours of operation at room temperature. This result underscores the sensor’s commendable stability, highlighting its potential for reliable application in extended environmental monitoring scenarios. Furthermore, it demonstrates notable selectivity, stability, and mechanical properties at room temperature. Additionally, a novel MoS₂/Ti₃C₂T_x heterostructure sensor was designed by Ta et al. using a hydrothermal method (Ta et al., 2022). Compared to traditional heterojunction sensors, the incorporation of two-dimensional metal sulfide MoS₂ with Ti₃C₂T_x MXene significantly enhances the sensing performance, while the compatibility between MoS₂ and Ti₃C₂T_x ensures stable sensing capabilities for NO₂ at room temperature. Building upon the work of Ta’s team, Tian et al. incorporated a TiO₂ system into MoS₂/Ti₃C₂T_x materials to enhance the capacity for electron supply in the sensing material (Tian et al., 2022). Gas sensing tests revealed that, compared to intrinsic Ti₃C₂T_x MXene and MoS₂ materials, the sensing performance of this composite material improved by 1.79 times and 2.75 times, respectively, for 100 ppm NH₃ at room temperature, while also exhibiting a lower detection limit. The Ti₃C₂T_x MXene@TiO₂/MoS₂ sensor demonstrated exceptional responsiveness to 100 ppm NH₃ at room temperature over a continuous monitoring period of 60 days, with a slight decrease in response of only 9.1%. The response value stabilized at approximately 163.3%, indicating the sensor’s robust performance and potential for long-term applications in gas detection. These findings provide new perspectives for the development of gas sensors and illustrate the broad application potential of MXenes and their composites in environmental monitoring.

3 Sensing mechanisms of Ti₃C₂T_x MXene heterojunction structures

Understanding the gas sensing mechanisms is crucial for the development of high-performance sensors based on Ti₃C₂T_x MXene. The adsorbed gases can be primarily classified into oxidative and reductive gases. As shown in previous analyses, Ti₃C₂T_x MXene exhibits exceptional responsiveness to toxic gases such as NO₂ and NH₃ commonly found in greenhouse environments (Jin et al., 2020; Seekaew et al., 2023; Cao et al., 2024). In this study, NO₂ is selected as a representative oxidative gas and NH₃ as a reductive gas for in-depth investigation. Research indicates that Ti₃C₂T_x MXene, due to its high conductivity, large specific surface area, favorable hydrophilicity, and abundant surface functional groups, possesses excellent adsorption capabilities toward NO₂ (Nahirniak and Saruhan, 2022). Furthermore, existing studies have demonstrated that Ti₃C₂T_x MXene materials can also respond favorably to the reductive gas NH₃ (Lee et al., 2017). Consequently, the traditional charge transfer theories associated with metal oxides may not be applicable to the Ti₃C₂T_x MXene materials.

3.1 Sensing mechanisms of Ti₃C₂T_x MXene heterojunction structures for oxidative gases

During the composite process of Ti₃C₂T_x MXene with In₂O₃, it has been observed that when NO₂ is adsorbed at room temperature, oxygen is initially adsorbed on the surface of In₂O₃, where it captures electrons to form superoxide anions ${\mathrm{O}}_2^{-}\left(\text{ads}\right)$, as shown in Equations 1, 2 (Fan et al., 2024). Due to the greater electron affinity of NO₂ compared to that of O₂, electrons on the surface of the sensing material are preferentially attracted to NO₂, resulting in the formation of ${\text{NO}}_2^{-}$. The specific process is illustrated in Equations 3–5. As electrons are continually captured from In₂O₃ and flow towards Ti₃C₂T_x, the Schottky barrier layer at the interface between Ti₃C₂T_x and In₂O₃ gradually expands. Upon expulsion of NO₂ gas from the chamber, the generated ${\text{NO}}_2^{-}$ reacts with ${\mathrm{O}}_2^{-}$, reverting back to NO₂, as illustrated in Equation 6. In parallel, Guo et al. investigated the behavior of Ti₃C₂T_x/CuO sensors when exposed to air (Guo et al., 2023). Research conducted by the team reveals that the sensing mechanism of the Ti₃C₂T_x/CuO sensor involves the initial interaction of oxygen molecules in the air with the sensing layer, leading to the formation of adsorbed ${\mathrm{O}}_2\left(\text{ads}\right)$. Subsequently, the adsorbed oxygen combines with captured electrons to form ${\mathrm{O}}_2^{-}\left(\text{ads}\right)$. As illustrated in Figure 2A, oxygen vacancies within the Ti₃C₂T_x/CuO nanocomposite also facilitate the conversion of O₂ (ads) into ${\mathrm{O}}_2^{-}\left(\text{ads}\right)$. The depletion of electrons results in a continuous increase in hole concentration within CuO. Due to the work function difference between Ti₃C₂T_x (3.9 eV) and CuO (4.7 eV), holes in CuO migrate towards Ti₃C₂T_x while electrons from Ti₃C₂T_x flow into CuO until the Fermi levels reach equilibrium. Throughout this process, the valence band thickens and the hole accumulation layer widens, resulting in an initial observation of reduced resistance in the Ti₃C₂T_x/CuO sensor.

${\mathrm{O}}_2\left(\text{gas}\right)\to {\mathrm{O}}_2\left(\text{ads}\right)(1)$

${\mathrm{O}}_2\left(\text{ads}\right)+{\mathrm{e}}^{-}\to {\mathrm{O}}_2^{-}\left(\text{ads}\right)(2)$

${\text{NO}}_2\left(\text{gas}\right)\to {\text{NO}}_2\left(\text{ads}\right)(3)$

${\text{NO}}_2\left(\text{ads}\right)+{\mathrm{e}}^{-}\to {\text{NO}}_2^{-}\left(\text{ads}\right)(4)$

${\text{NO}}_2\left(\text{ads}\right)+{\mathrm{O}}_2^{-}\left(\text{ads}\right)+2{\mathrm{e}}^{-}\to {\text{NO}}_2^{-}\left(\text{ads}\right)+2{\mathrm{O}}^{-}\left(\text{ads}\right)(5)$

${\text{NO}}_2^{-}\left(\text{ads}\right)+2{\mathrm{O}}^{-}\left(\text{ads}\right)+{\mathrm{e}}^{-}\to {\text{NO}}_2\left(\text{ads}\right)+2{\mathrm{O}}_2^{-}\left(\text{ads}\right)(6)$

Figure 2

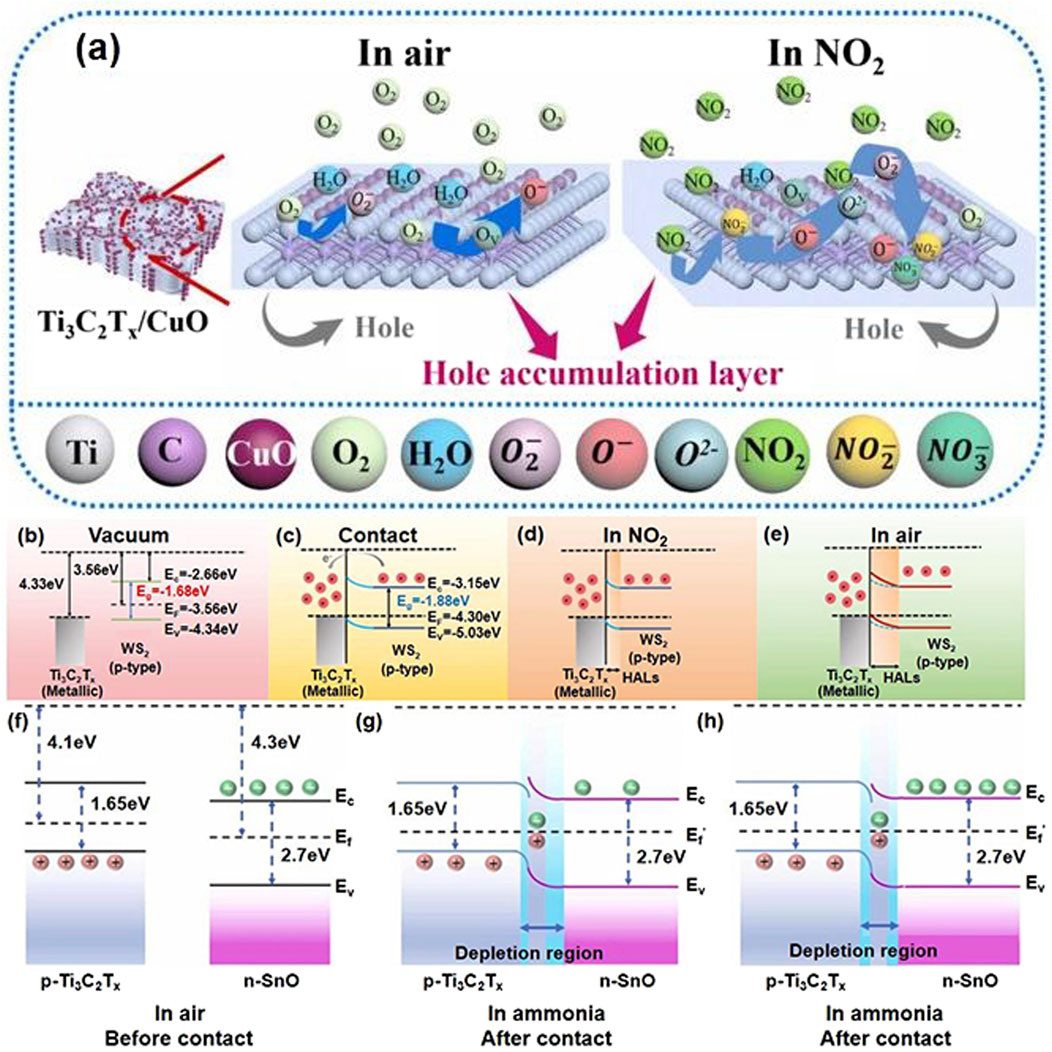

Figure 2. (A) Schematic diagrams of the gas sensing mechanism for Ti₃C₂T_x/CuO sensor towards NO₂ gas at 23°C, reproduced with permission from (Guo et al., 2023). Schematic diagrams of the work function and Fermi level position for metallic Ti₃C₂Tx and p-type WS₂ semiconductor before contact (B), after contact (C), in the air (D), and NO₂ (E) at room temperature, reproduced with permission from (Quan et al., 2023). (F–H) the energy band diagram of Ti₃C₂T_x MXene and SnO before contact, and the p-n junction with a depletion layer at the interface between Ti₃C₂T_x MXene and SnO in air and ammonia, respectively, reproduced with permission from (Yao et al., 2022).

The MoS₂/Ti₃C₂T_x sensor developed by Ta captures O₂ molecules from the air at room temperature, resulting in the formation of superoxide anions as electrons are captured on the sensor surface (Ta et al., 2022). Moreover, the presence of TiO₂ facilitates the acquisition of additional oxygen ions by the sensor. As shown in Equation 7, due to its strong electron affinity and oxidative nature, NO₂ is capable of extracting electrons from the surrounding medium, resulting in electron depletion. The higher electronegativity of NO₂ compared to oxygen facilitates the reaction between NO₂ molecules and oxygen ions, leading to the formation of nitrate ions (${\text{NO}}_3^{-}$). Concurrently, the accumulation of holes promotes a reduction in resistance, inducing p-type semiconductor behavior. Notably, a continuous heterojunction interface forms between vertically oriented MoS₂ and layer-stacked Ti₃C₂T_x MXene, facilitating the accelerated migration of additional electrons. In this context, edges terminated with sulfur (S) and those terminated with molybdenum (Mo) exhibit high d-orbital electron densities, enhancing electronic interactions with NO₂ gas. Furthermore, hydrogen bonding between NO₂ molecules and water molecules under ambient humidity conditions also contributes to the adsorption of NO₂. In their investigation, Quan et al. similarly observed that when Ti₃C₂T_x/WS₂ materials are exposed to ambient air at room temperature, oxygen molecules can capture electrons from the material, resulting in the formation of chemically adsorbed oxide ions (${\mathrm{O}}_2\left(\text{ads}\right)$) on the surface (Quan et al., 2023). This interaction may lead to the establishment of a hole accumulation layer. Upon the introduction of NO₂, which possesses a higher electron affinity (2.30 eV) compared to that of oxygen (0.44 eV), electrons migrate toward the NO₂, facilitating the formation of nitrate ions (${\text{NO}}_3^{-}$). This process not only promotes electron extraction but also contributes to an increase in the hole accumulation layer, ultimately resulting in a reduction in electrical resistance. The detailed reaction mechanism is illustrated in Figures 2B–E.

$2{\text{NO}}_2\left(\text{ads}\right)+{\mathrm{O}}_2^{-}\left(\text{ads}\right)+{\mathrm{e}}^{-}\to 2{\text{NO}}_3^{-}\left(\text{ads}\right)(7)$

3.2 Sensing mechanisms of Ti₃C₂T_x MXene heterojunction structures for reductive gases

It has been noted that in TiO₂/Ti₃C₂T_x MXene composites, TiO₂, as an n-type semiconductor with high electronegativity, may contain intrinsic oxygen vacancies and tends to adsorb oxygen from the atmosphere on its surface (Dogra et al., 2024). The adsorbed oxygen molecules capture electrons at the oxide surface, transforming into superoxide anions (${\mathrm{O}}_2^{-}$), as represented in Equations 8, 9. It is important to acknowledge that competition for oxygen adsorption may occur between the semiconductor oxide and Ti₃C₂T_x within the composite. In any case, the adsorbed oxygen will convert to ${\mathrm{O}}_2^{-}$. As an n-type semiconductor, TiO₂ has a work function of 5.1 eV, while the typical range of the work function for Ti₃C₂T_x lies between 3.9 eV and 4.8 eV, depending on its surface terminating groups. Assuming a work function of 3.9 eV for MXene, electrons will flow from MXene to TiO₂, leading to the formation of a depletion layer at the TiO₂/Ti₃C₂T_x interface. When NH₃ interacts with the sensing surface, it can contribute electrons through two different mechanisms, as illustrated in Equations 10, 11. On one hand, NH₃ molecules may interact with the adsorbed ${\mathrm{O}}_2^{-}$ ions, releasing electrons in the process; on the other hand, gas molecules might also interact with ${\text{OH}}^{-}$ ions, similarly resulting in electron release. The released electrons further compensate for the charge in the depletion layer, causing an increase in the sensor resistance.

${\mathrm{O}}_2\left(\text{gas}\right)\to {\mathrm{O}}_2\left(\text{ads}\right)(8)$

${\mathrm{O}}_2\left(\text{ads}\right)+{\mathrm{e}}^{-}\to {\mathrm{O}}_2^{-}\left(\text{ads}\right)(9)$

$4{\text{NH}}_3+5{\mathrm{O}}_2^{-}\left(\text{ads}\right)\to 4\text{NO}\left(\mathrm{g}\right)+6{\mathrm{H}}_2\mathrm{O}+{\mathrm{e}}^{-}(10)$

${\text{NH}}_3+{\text{OH}}^{-}\to {\text{NH}}_2+{\mathrm{H}}_2\mathrm{O}+{\mathrm{e}}^{-}(11)$

Zhu et al. discovered that at room temperature (below 100 °C), oxygen adsorbed on the surface of SnO₂/Ti₃C₂T_x nanocomposites can ionize into superoxide anions (${\mathrm{O}}_2^{-}$), as shown in Equation 9 (Zhu et al., 2024). The entire reaction process can be described by Equations 12, 13. Yao et al. further investigated the behavior of Ti₃C₂T_x/ZnO when exposed to NH₃(Yao L. et al., 2023). Upon adsorption of NH₃ molecules on the Ti₃C₂T_x/ZnO surface, a reaction occurs with water molecules to form ammonium ions (${\text{NH}}_4^{+}$). Subsequently, the interactions between the adsorbed NH₃ and ${\text{NH}}_4^{+}$ can also be articulated using Equations 12, 13. The electrons released from these reactions flow back to the Ti₃C₂T_x/ZnO material, where they recombine with holes in Ti₃C₂T_x MXene, resulting in a reduction of hole carriers in Ti₃C₂T_x/ZnO and an increase in its resistance. Subsequently, Yao et al. delved into the adsorption mechanism of NH₃ on Ti₃C₂T_x/SnO sensors and discovered that this mechanism aligns with Equations 12, 13 (Yao et al., 2022). The presence of p-n junctions enables the composite material to function as an electron acceptor, receiving electrons from the external environment. This interaction leads to a reduction in resistance during the NH₃ adsorption process for Ti₃C₂T_x MXene/SnO, as depicted in detail in Figures 2F–H. This insightful analysis underscores how the existence of p-n junctions facilitates effective electron transfer within the compound, resulting in enhanced sensitivity to NH₃.

${\text{NH}}_3\left(\text{gas}\right)+{\mathrm{H}}_2\mathrm{O}\to {\text{NH}}_4^{+}+{\text{OH}}^{-}(12)$

${\text{NH}}_4^{+}+{\mathrm{O}}_2^{-}\left(\text{ads}\right)\to \text{NO}+{\mathrm{H}}_2\mathrm{O}+{\mathrm{e}}^{-}(13)$

Ti₃C₂T_x MXene exhibits high conductivity, a large specific surface area, favorable hydrophilicity, and abundant surface terminal groups, enabling effective gas adsorption. However, research on the formation of heterojunctions between Ti₃C₂T_x MXene and transition metal sulfides for the detection of oxidative and reductive gases remains insufficient. Given that Ti₃C₂T_x MXene demonstrates good adsorption capabilities for both types of gases, directly applying traditional p-type semiconductor theory to Ti₃C₂T_x MXene materials may not be entirely appropriate (Kim et al., 2018; Radhakrishnan and Rout, 2023). Therefore, it is essential to consider additional factors in the analysis of resistance changes. On one hand, Ti₃C₂T_x MXene materials do not conform to the conventional definition of semiconductors; their metallic sensing layers may continually hinder the effective transport of charge carriers (Kim et al., 2018). On the other hand, the interlayer spacing of Ti₃C₂T_x MXene could influence its tolerance, representing an intriguing direction for further exploration. Additionally, the surface functional groups of Ti₃C₂T_x MXene materials play a crucial role in the gas sensing mechanism. Hydrophilic groups such as -OH and = O can interact with n-type or p-type semiconductors to enhance the adsorption of gas molecules onto the sensing material. For instance, MXene terminated with oxygen is an ideal candidate for NH₃ sensing due to its semiconductor-like electronic properties (Bhardwaj and Hazra, 2021). Conversely, research by Hu et al. indicates that MXene terminated with sulfur is optimal for nitrogen oxide gas sensors (Hu et al., 2022). This research direction provides a new perspective on the applications of Ti₃C₂T_x MXene in gas sensing and lays the groundwork for the optimization and design of related materials.

4 Conclusion

This review provides a concise overview of the current research landscape surrounding gas sensors based on Ti₃C₂T_x MXene heterojunction structures. Analytical results indicate that Ti₃C₂T_x MXene nanostructures exhibit exceptional gas-sensing performance in greenhouse environments, attributed to their high electrical conductivity, extensive specific surface area, excellent hydrophilicity, and abundant surface terminal groups. The formation of heterojunction structures through composite materials has emerged as an effective strategy for enhancing the performance of Ti₃C₂T_x MXene sensors. The incorporation of metal atom doping, metal oxides, and transition metal sulfides into Ti₃C₂T_x MXene significantly improves the gas-sensing characteristics. Consequently, the development of Ti₃C₂T_x MXene heterojunction-based gas sensors presents immense potential for achieving room-temperature operation, low detection limits, and high responsiveness, particularly for gas monitoring in agricultural greenhouses. However, existing studies predominantly focus on the long-term stability and durability of these sensors under actual greenhouse conditions, mainly concerning ammonia, while investigations regarding common nitrogen oxides and other agricultural waste products remain limited. Moreover, the duration of performance stability testing is often short; thus, future research should extend these analyses to ensure prolonged usability of the sensors within intelligent greenhouse environments. In summary, this review underscores the capabilities of Ti₃C₂T_x MXene heterojunction gas sensors for monitoring toxic gases in greenhouses, highlighting their primary advantage of enabling high-sensitivity detection and rapid recovery of hazardous gases at room temperature. Future endeavors could integrate the methodologies discussed herein with reported approaches facilitating room-temperature, low-power, and highly sensitive sensing techniques, paving the way for the development of online monitoring sensor arrays for toxic gases in intelligent greenhouse systems. Additionally, establishing a quantitative detection model for multi-component mixed gases using artificial intelligence algorithms may enable direct detection of various toxic gas components within agricultural greenhouse settings.

Author contributions

HZ: Conceptualization, Investigation, Writing–original draft. HX: Data curation, Writing–original draft. WZ: Writing–review and editing. ZW: Writing–review and editing. QZ: Writing–review and editing.

Funding

The author(s) declare that financial support was received for the research, authorship, and/or publication of this article. This work has been supported in part by the National Natural Science Foundation of China (Nos 52077177 and 51507144) and the Fundamental Research Funds for the Central Universities (No. XDJK 2019B021).

Conflict of interest

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

The author(s) declared that they were an editorial board member of Frontiers, at the time of submission. This had no impact on the peer review process and the final decision.

Generative AI statement

The author(s) declare that no Generative AI was used in the creation of this manuscript.

Publisher’s note

All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.

References

Assimakopoulos, F., Vassilakis, C., Margaris, D., Kotis, K., and Spiliotopoulos, D. (2024). The implementation of “smart” technologies in the agricultural sector: a review. Information 15 (8), 466. doi:10.3390/info15080466

CrossRef Full Text | Google Scholar

Bhardwaj, R., and Hazra, A. (2021). MXene-based gas sensors. J. Mater. Chem. C 9 (44), 15735–15754. doi:10.1039/d1tc04085e

CrossRef Full Text | Google Scholar

Bu, X., Wu, Q., Yuan, Y., Wu, H., Liu, W., Li, X., et al. (2023). The highly sensitive ethanol sensor based on nanocomposites of ZnO in situ grown on 2D Ti₃C₂T_x nanosheet. Nanotechnology 34 (10), 105707. doi:10.1088/1361-6528/aca8b1

CrossRef Full Text | Google Scholar

Cao, L. C. T., Chen, P. S., Lin, Y. H., Nagao, Y., Boonruang, S., Jong, C.-A., et al. (2024). Ti₃C₂T_x/MoO₃ composite as an ultrasensitive and selective sensing material for a room-temperature nitrogen dioxide sensor. Appl. Surf. Sci. 676, 161025. doi:10.1016/j.apsusc.2024.161025

CrossRef Full Text | Google Scholar

Chen, B., Feng, A., Liu, K., Wu, J., Yu, Y., and Song, L. (2021). High-performance capacitive deionization using 3D porous Ti₃C₂T_x with improved conductivity. J. Electroanal. Chem. 895, 115515. doi:10.1016/j.jelechem.2021.115515

CrossRef Full Text | Google Scholar

Chen, Q., Zhang, Y., Tang, M., Wang, Z., and Zhang, D. (2024). A fast response hydrogen sensor based on the heterojunction of MXene and SnO₂ nanosheets for lithium-ion battery failure detection. Sensors Actuators B-Chemical 405, 135229. doi:10.1016/j.snb.2023.135229

CrossRef Full Text | Google Scholar

Dogra, N., Gasso, S., Sharma, A., Sharma, K. K., and Sharma, S. (2024). TiO₂ decorated MXene nanosheets for high-performance ammonia gas sensing at room-temperature. Surfaces Interfaces 48, 104290. doi:10.1016/j.surfin.2024.104290

CrossRef Full Text | Google Scholar

Fan, C., Yang, J., Mehrez, J.A.-A., Zhang, Y., Quan, W., Wu, J., et al. (2024). Mesoporous and encapsulated In₂O₃/Ti₃C₂T_x Schottky heterojunctions for rapid and ppb-level NO₂ detection at room temperature. Acs Sensors 9 (5), 2372–2382. doi:10.1021/acssensors.3c02466

PubMed Abstract | CrossRef Full Text | Google Scholar

Gao, J., Du, Q., Chen, K., Hou, M., Wang, Z., Yi, J., et al. (2023). Synthesis of few-layered Ti₃C₂T_x/WO₃ nanorods foam composite material for NO₂ gas sensing at low temperature. Ceram. Int. 49 (18), 29962–29970. doi:10.1016/j.ceramint.2023.06.253

CrossRef Full Text | Google Scholar

Guo, F., Feng, C., Zhang, Z., Zhang, L., Xu, C., Zhang, C., et al. (2023). A room-temperature NO₂ sensor based on Ti₃C₂T_x MXene modified with sphere-like CuO. Sensors Actuators B-Chemical 375, 132885. doi:10.1016/j.snb.2022.132885

CrossRef Full Text | Google Scholar

Hassan, M. U., Huang, G., Arif, M. S., Mubarik, M. S., Tang, H., Xu, H., et al. (2024). Can urea-coated fertilizers be an effective means of reducing greenhouse gas emissions and improving crop productivity? J. Environ. Manag. 367, 121927. doi:10.1016/j.jenvman.2024.121927

CrossRef Full Text | Google Scholar

Hu, C., Yu, X., Li, Y., Cheng, J., Li, Q., and Xiao, B. (2022). Bandgap engineering of strained S-terminated MXene and its promising application as NO_x gas sensor. Appl. Surf. Sci. 592, 153296. doi:10.1016/j.apsusc.2022.153296

CrossRef Full Text | Google Scholar

Huang, D., Li, H., Liu, W., Chen, Y., Wang, W., Tan, X., et al. (2023). Coupling interface design of metal oxide heterostructures derived from MXene@MOFs hybrids for high-sensitivity acetone sensor. Sensors Actuators B-Chemical 383, 133594. doi:10.1016/j.snb.2023.133594

CrossRef Full Text | Google Scholar

Huang, D., Li, H., Liu, W., Tan, X., Zhao, M., and Liu, G. (2024b). Engineering metal oxide heterostructures derived from MOFs/MXene hybrids as efficient acetone sensor. J. Alloys Compd. 985, 174114. doi:10.1016/j.jallcom.2024.174114

CrossRef Full Text | Google Scholar

Huang, W., Sun, X., Sun, H., Feng, Y., Gong, X., Ma, Y., et al. (2024a). Effects of biochar and wood vinegar co-application on composting ammonia and nitrous oxide losses and fertility. Bioresour. Technol. 412, 131388. doi:10.1016/j.biortech.2024.131388

PubMed Abstract | CrossRef Full Text | Google Scholar

Jin, L., Wu, C., Wei, K., He, L., Gao, H., Zhang, H., et al. (2020). Polymeric Ti₃C₂T_x MXene composites for room temperature ammonia sensing. Acs Appl. Nano Mater. 3 (12), 12071–12079. doi:10.1021/acsanm.0c02577

CrossRef Full Text | Google Scholar

Kale, S., Sabale, D., Srivastava, R., Londhe, V. P., and Kale, S. N. (2024). A synergistic combination of 2D MXene and MoO₃ nanoparticles for improved gas sensing at room temperature. J. Phys. D-Applied Phys. 57 (32), 325101. doi:10.1088/1361-6463/ad436b

CrossRef Full Text | Google Scholar

Kim, S., Shin, H., Lee, J., Park, C., Ahn, Y., Cho, H.-J., et al. (2023). Three-dimensional MoS₂/MXene heterostructure aerogel for chemical gas sensors with superior sensitivity and stability. Acs Nano 17 (19), 19387–19397. doi:10.1021/acsnano.3c07074

PubMed Abstract | CrossRef Full Text | Google Scholar

Kim, S. J., Koh, H.-J., Ren, C. E., Kwon, O., Maleski, K., Cho, S.-Y., et al. (2018). Metallic Ti₃C₂T_x MXene gas sensors with ultrahigh signal-to-noise ratio. Acs Nano 12 (2), 986–993. doi:10.1021/acsnano.7b07460

PubMed Abstract | CrossRef Full Text | Google Scholar

Kormann, R., Paixao, C. A., Hungria, M., Nogueira, M. A., and da Cruz, S. P. (2024). An innovative prototype to measure carbon dioxide, ethylene, and nitric and nitrous oxides in the soil air. Commun. Soil Sci. Plant Analysis 55 (19), 2909–2922. doi:10.1080/00103624.2024.2378985

CrossRef Full Text | Google Scholar

Kwon, J., Ha, Y., Choi, S., Jung, D. G., An, H. k., Kong, S. H., et al. (2024). Solution-processed NO₂ gas sensor based on poly(3-hexylthiophene)-doped PbS quantum dots operable at room temperature. Sci. Rep. 14 (1), 20600. doi:10.1038/s41598-024-71453-9

PubMed Abstract | CrossRef Full Text | Google Scholar

Lee, E., Mohammadi, A. V., Prorok, B. C., Yoon, Y. S., Beidaghi, M., and Kim, D.-J. (2017). Room temperature gas sensing of two-dimensional titanium carbide (MXene). Acs Appl. Mater. and Interfaces 9 (42), 37184–37190. doi:10.1021/acsami.7b11055

CrossRef Full Text | Google Scholar

Li, Q., Li, Y., and Zeng, W. (2021a). Preparation and application of 2D MXene-based gas sensors: a review. Chemosensors 9 (8), 225. doi:10.3390/chemosensors9080225

CrossRef Full Text | Google Scholar

Li, Q., Xu, M., Jiang, C., Song, S., Li, T., Sun, M., et al. (2023). Highly sensitive graphene-based ammonia sensor enhanced by electrophoretic deposition of MXene. Carbon 202, 561–570. doi:10.1016/j.carbon.2022.11.033

CrossRef Full Text | Google Scholar

Li, S., Yu, L., Zhang, Y., Zhang, C., Cao, L., Nan, N., et al. (2024). Fe₂O₃ nanoplate/TiO₂ nanoparticles supported by 2D Ti₃C₂T_x MXene conductive layers for sensitive detection of NH₃ at room temperature. Sensors Actuators B-Chemical 413, 135890. doi:10.1016/j.snb.2024.135890

CrossRef Full Text | Google Scholar

Li, W., Wang, F., Zhang, Z., and Min, S. (2021b). MAPbI₃ microcrystals integrated with Ti₃C₂T_x MXene nanosheets for efficient visible-light photocatalytic H₂ evolution. Chem. Commun. 57 (63), 7774–7777. doi:10.1039/d1cc02511b

CrossRef Full Text | Google Scholar

Liu, M., Wang, Z., Song, P., Yang, Z., and Wang, Q. (2021). Flexible MXene/rGO/CuO hybrid aerogels for high performance acetone sensing at room temperature. Sensors Actuators B-Chemical 340, 129946. doi:10.1016/j.snb.2021.129946

CrossRef Full Text | Google Scholar

Liu, T., Jia, X., Qiao, L., Yang, J., Wang, S., Li, Y., et al. (2023). Conductometric NO₂ gas sensors achieved by design of Ti₃C₂T_x @ZnO heterostructures for application around 80°C. Sensors Actuators B-Chemical 390, 133908. doi:10.1016/j.snb.2023.133908

CrossRef Full Text | Google Scholar

Liu, X., Zhang, H., Shen, T., and Sun, J. (2024). Flexible resistive NO₂ gas sensor of SnO₂@Ti₃C₂T_x MXene for room temperature application. Ceram. Int. 50 (1), 2459–2466. doi:10.1016/j.ceramint.2023.11.032

CrossRef Full Text | Google Scholar

Lu, D., Huang, L., Zhang, J., Zhang, Y., Feng, W., Zeng, W., et al. (2023a). Rh- and Ru-modified InSe monolayers for detection of NH₃, NO₂, and SO₂ in agricultural greenhouse: a dft study. Acs Appl. Nano Mater. 6 (15), 14447–14458. doi:10.1021/acsanm.3c02470

CrossRef Full Text | Google Scholar

Lu, L., Liu, M., Sui, Q., Zhang, C., Zou, Y., Xu, F., et al. (2023b). MXene/MoS₂ nanosheet/polypyrrole for high-sensitivity detection of ammonia gas at room temperature. Mater. Today Commun. 35, 106239. doi:10.1016/j.mtcomm.2023.106239

CrossRef Full Text | Google Scholar

Lu, L., Zhang, C., Zou, Y., Xu, F., Sun, L., and Xiang, C. (2024). Room-temperature humidity-resistant highly sensitive ammonia sensor based on a porous MXene/Na₂Ti₃O₇ @polyaniline composite. Sensors Actuators B-Chemical 405, 135323. doi:10.1016/j.snb.2024.135323

CrossRef Full Text | Google Scholar

Nahirniak, S., and Saruhan, B. (2022). MXene heterostructures as perspective materials for gas sensing applications. Sensors 22 (3), 972. doi:10.3390/s22030972

PubMed Abstract | CrossRef Full Text | Google Scholar

Nam, M. S., Kim, J.-Y., Mirzaei, A., Lee, M. H., Kim, H. W., and Kim, S. S. (2024). Au- and Pt-decorated Ti₃C₂T_x MXenes for preparing self-heated and flexible NH₃ gas sensors. Sensors Actuators B-Chemical 403, 135112. doi:10.1016/j.snb.2023.135112

CrossRef Full Text | Google Scholar

Pang, J., Peng, S., Hou, C., Wang, X., Wang, T., Cao, Y., et al. (2023). Applications of MXenes in human-like sensors and actuators. Nano Res. 16 (4), 5767–5795. doi:10.1007/s12274-022-5272-8

CrossRef Full Text | Google Scholar

Peng, H., Yang, J., Lin, C., Qi, L., Li, L., and Shi, K. (2024). Gas-sensitive performance of metal-organic framework-derived CuO NPs/Ti₃C₂T_x MXene heterostructures for efficient NO₂ detection at room temperature. J. Alloys Compd. 980, 173657. doi:10.1016/j.jallcom.2024.173657

CrossRef Full Text | Google Scholar

Qi, Z., Wang, S., Li, Y., Wang, L., Zhao, L., Ge, Q., et al. (2021). Scavenging activity and reaction mechanism of Ti₃C₂T_x MXene as a novel free radical scavenger. Ceram. Int. 47 (12), 16555–16561. doi:10.1016/j.ceramint.2021.02.226

CrossRef Full Text | Google Scholar

Qin, W.-W., Hu, X.-F., Fan, J.-L., Liu, Y.-S., Tan, L.-P., Zhou, M., et al. (2023). One-step laser ablation of Fe clusters supported on Ti₃C₂T_x nanosheets for enhanced NH₃ sensing at room temperature. Ceram. Int. 49 (11), 18353–18362. doi:10.1016/j.ceramint.2023.02.207

CrossRef Full Text | Google Scholar

Qiu, C., Zhang, H., Li, Q., Song, Y., An, F., Wang, H., et al. (2024). Controllable synthesis of 3D PdCu/Ti₃C₂T_x hierarchical nanostructures for chemiresistive room temperature H₂ sensors. Sensors Actuators B-Chemical 417, 136215. doi:10.1016/j.snb.2024.136215

CrossRef Full Text | Google Scholar

Quan, W., Shi, J., Luo, H., Fan, C., Lv, W., Chen, X., et al. (2023). Fully flexible MXene-based gas sensor on paper for highly sensitive room-temperature nitrogen dioxide detection. Acs Sensors 8 (1), 103–113. doi:10.1021/acssensors.2c01748

PubMed Abstract | CrossRef Full Text | Google Scholar

Radhakrishnan, S., and Rout, C. S. (2023). Recent developments in 2D MXene-based materials for next generation room temperature NO₂ gas sensors. Nanoscale Adv. 5 (18), 4649–4669. doi:10.1039/d3na00275f

PubMed Abstract | CrossRef Full Text | Google Scholar

Sardana, S., Debnath, A. K., Aswal, D. K., and Mahajan, A. (2023). WS₂ nanosheets decorated multi-layered MXene based chemiresistive sensor for efficient detection and discrimination of NH₃ and NO₂. Sensors Actuators B-Chemical 394, 134352. doi:10.1016/j.snb.2023.134352

CrossRef Full Text | Google Scholar

Seekaew, Y., Kamlue, S., and Wongchoosuk, C. (2023). Room-temperature ammonia gas sensor based on Ti₃C₂T_x MXene/graphene oxide/CuO/ZnO nanocomposite. Acs Appl. Nano Mater. 6 (10), 9008–9020. doi:10.1021/acsanm.3c01637

CrossRef Full Text | Google Scholar

Sima, Z., Song, P., Ding, Y., Lu, Z., and Wang, Q. (2022). ZnSnO₃ nanocubes/Ti₃C₂T_x MXene composites for enhanced formaldehyde gas sensing properties at room temperature. Appl. Surf. Sci. 598, 153861. doi:10.1016/j.apsusc.2022.153861

CrossRef Full Text | Google Scholar

Singh, N., Sharma, A. K., Sarkar, I., Prabhu, S., and Chadaga, K. (2024). IoT-based greenhouse technologies for enhanced crop production: a comprehensive study of monitoring, control, and communication techniques. Syst. Sci. and Control Eng. 12 (1), 2306825. doi:10.1080/21642583.2024.2306825

CrossRef Full Text | Google Scholar

Sun, G., Wang, C., Jia, J., Zhang, H., Hu, Y., Liu, Y., et al. (2024). High-performance ammonia detection of polymeric BaTiO₃/Ti₃C₂T_x MXene composite-based sensor for gas emission and leakage. J. Electron. Mater. 53 (7), 3426–3437. doi:10.1007/s11664-024-11146-1

CrossRef Full Text | Google Scholar

Ta, Q. T. H., Tri, N. N., and Noh, J.-S. (2022). Improved NO₂ gas sensing performance of 2D MoS₂/Ti₃C₂T_x MXene nanocomposite. Appl. Surf. Sci. 604, 154624. doi:10.1016/j.apsusc.2022.154624

CrossRef Full Text | Google Scholar

Tian, X., Yao, L., Cui, X., Zhao, R., Chen, T., Xiao, X., et al. (2022). A two-dimensional Ti₃C₂T_x MXene@TiO₂/MoS₂ heterostructure with excellent selectivity for the room temperature detection of ammonia. J. Mater. Chem. A 10 (10), 5505–5519. doi:10.1039/d1ta10773a

CrossRef Full Text | Google Scholar

Walubengo, D., Orina, I., Kubo, Y., and Owino, W. (2022). Physico-chemical and postharvest quality characteristics of intra and interspecific grafted tomato fruits. J. Agric. Food Res. 7, 100261. doi:10.1016/j.jafr.2021.100261

CrossRef Full Text | Google Scholar

Wang, B., Gao, X., He, J., Xiao, Y., Liu, Y., Jia, X., et al. (2024d). Room-temperature ppb-level NO₂ sensor based on three-dimensional Mo₂CT_x nano-crumpled spheres. Sensors Actuators B-Chemical 399, 134790. doi:10.1016/j.snb.2023.134790

CrossRef Full Text | Google Scholar

Wang, J., Yang, Y., and Xia, Y. (2022). Mesoporous MXene/ZnO nanorod hybrids of high surface area for UV-activated NO₂ gas sensing in ppb-level. Sensors Actuators B-Chemical 353, 131087. doi:10.1016/j.snb.2021.131087

CrossRef Full Text | Google Scholar

Wang, S., Jiang, Y., Liu, B., Duan, Z., Pan, H., Yuan, Z., et al. (2021). Ultrathin Nb₂CT_x nanosheets-supported polyaniline nanocomposite: enabling ultrasensitive NH₃ detection. Sensors Actuators B-Chemical 343, 130069. doi:10.1016/j.snb.2021.130069

CrossRef Full Text | Google Scholar

Wang, W., Yao, Y., Xin, J., Xie, L., Han, Y., and Zhu, Z. (2024c). Chemiresistive SnS₂/Nb₄C₃T_x gas sensor for detection triethylamine at room temperature. Sensors Actuators B-Chemical 407, 135437. doi:10.1016/j.snb.2024.135437

CrossRef Full Text | Google Scholar

Wang, X., Zhu, H., Shutes, B., Cui, H., Hou, S., and Yan, B. (2024a). Fertilization changes nitrogen and carbon concentrations in saline-alkali paddy soil and their relationship with gas emissions: an analysis from the perspective of functional genes. Environ. Technol. and Innovation 36, 103817. doi:10.1016/j.eti.2024.103817

CrossRef Full Text | Google Scholar

Wang, Y., Wang, Y., Jian, M., Jiang, Q., and Li, X. (2024b). MXene key composites: a new arena for gas sensors. Nano-Micro Lett. 16 (1), 209. doi:10.1007/s40820-024-01430-4

CrossRef Full Text | Google Scholar

Wen, X., Cai, Y., Nie, X., Xiong, J., Wang, Y., Song, H., et al. (2023). PSS-doped PANI nanoparticle/Ti₃C₂T_x composites for conductometric flexible ammonia gas sensors operated at room temperature. Sensors Actuators B-Chemical 374, 132788. doi:10.1016/j.snb.2022.132788

CrossRef Full Text | Google Scholar

Xia, Q., Fan, Y., Li, S., Zhou, A., Shinde, N., and Mane, R. S. (2023). MXene-based chemical gas sensors: recent developments and challenges. Diam. Relat. Mater. 131, 109557. doi:10.1016/j.diamond.2022.109557

PubMed Abstract | CrossRef Full Text | Google Scholar

Xie, Q., Ding, Y., Wang, Q., and Song, P. (2024). Fabrication of 1D/2D In₂O₃ nanofibers/Ti₃C₂T_x MXene composites for high performance detection of trimethylamine at low temperature. Sensors Actuators B-Chemical 405, 135338. doi:10.1016/j.snb.2024.135338

CrossRef Full Text | Google Scholar

Xiong, J., Cai, Y., Nie, X., Wang, Y., Song, H., Sharif, H. M. A., et al. (2023). PANI/3D crumpled Ti₃C₂T_x/TiO₂ nanocomposites for flexible conductometric NH₃ sensors working at room temperature. Sensors Actuators B-Chemical 390, 133987. doi:10.1016/j.snb.2023.133987

CrossRef Full Text | Google Scholar

Xu, D., Ren, R., Zhao, H., and Zhang, S. (2024). Intelligent detection of muskmelon ripeness in greenhouse environment based on YOLO-RFEW. Agronomy-Basel 14 (6), 1091. doi:10.3390/agronomy14061091

CrossRef Full Text | Google Scholar

Yang, E., Park, K. H., Oh, T., and Kim, S. J. (2024). Ultra-dense SnO₂ QDs-decorated MXene nanosheets with high water dispersibility for rapid NH₃ sensing at room temperature. Sensors Actuators B-Chemical 409, 135542. doi:10.1016/j.snb.2024.135542

CrossRef Full Text | Google Scholar

Yao, L., Tian, X., Cui, X., Zhao, R., Chen, T., Xiao, X., et al. (2023b). Low operating temperature and highly selective NH₃ chemiresistive gas sensors based on a novel 2D Ti₃C₂T_x/ZnO composite with p-n heterojunction. Appl. Phys. Rev. 10 (3), 031414. doi:10.1063/5.0138182

CrossRef Full Text | Google Scholar

Yao, L., Tian, X., Cui, X., Zhao, R., Xiao, M., Wang, B., et al. (2022). Two-dimensional Ti₃C₂T_x MXene/SnO nanocomposites: towards enhanced response and selective ammonia vapor sensor at room temperature. Sensors Actuators B-Chemical 358, 131501. doi:10.1016/j.snb.2022.131501

CrossRef Full Text | Google Scholar

Yao, Y., Wang, Z., Han, Y., Xie, L., Zhao, X., Shahrokhian, S., et al. (2023a). Conductometric Cr₂O₃/TiO₂/Ti₃C₂T_x gas sensor for detecting triethylamine at room temperature. Sensors Actuators B-Chemical 381, 133412. doi:10.1016/j.snb.2023.133412

CrossRef Full Text | Google Scholar

Yu, H., Dai, L., Liu, Y., Zhou, Y., Fan, P., Luo, J., et al. (2023). Ti₃C₂T_x MXene-SnO₂ nanocomposite for superior room temperature ammonia gas sensor. J. Alloys Compd. 962, 171170. doi:10.1016/j.jallcom.2023.171170

CrossRef Full Text | Google Scholar

Zhang, D., Jiang, J., Wang, T., Li, F., Yu, H., Dong, X., et al. (2024e). Flexible room temperature gas sensor based on α-Fe₂O₃/Ti₃C₂T_x MXene composites for ppb-level H₂S detection. Sensors Actuators B-Chemical 421, 136543. doi:10.1016/j.snb.2024.136543

CrossRef Full Text | Google Scholar

Zhang, H., Wang, L., Zou, Y., Li, Y., Xuan, J., Wang, X., et al. (2023). Enhanced ammonia sensing response based on Pt-decorated Ti₃C₂T_x/TiO₂ composite at room temperature. Nanotechnology 34 (20), 205501. doi:10.1088/1361-6528/acbbd2

CrossRef Full Text | Google Scholar

Zhang, J., Li, Z., Yang, H., Chen, W., Wang, Z., Zhou, H., et al. (2024c). Application of MXene composites for target gas detection in food safety. Food Chem. 460, 140620. doi:10.1016/j.foodchem.2024.140620

PubMed Abstract | CrossRef Full Text | Google Scholar

Zhang, L., Kuang, Y., Dai, S., Wang, J., Zhao, J., and Song, Y. (2020). Kinetic enhancement of capturing and storing greenhouse gas and volatile organic compound: micro-mechanism and micro-structure of hydrate growth. Chem. Eng. J. 379, 122357. doi:10.1016/j.cej.2019.122357

CrossRef Full Text | Google Scholar

Zhang, S., Song, P., Zheng, Y., Ding, Y., and Wang, Q. (2022). MoO₂/MoO₃/MXene ternary nanocomposites for high-performance ethanol detection at room temperature. J. Alloys Compd. 925, 166663. doi:10.1016/j.jallcom.2022.166663

CrossRef Full Text | Google Scholar

Zhang, T., He, G., Gui, Y., Liu, S., Li, Y., and Cao, L. (2024b). Investigating the adsorption performance of agricultural greenhouses hazardous gases on Rh doped HfX₂ (X=S, Se) monolayers through DFT for potential gas sensor applications. Surfaces Interfaces 52, 104914. doi:10.1016/j.surfin.2024.104914

CrossRef Full Text | Google Scholar

Zhang, Y., Li, Y., Jiang, Y., Duan, Z., Yuan, Z., Liu, B., et al. (2024d). Synergistic effect of charge transfer and interlayer swelling in V₂CT_x/SnS₂ driving ultrafast and highly sensitive NO₂ detection at room temperature. Sensors Actuators B-Chemical 411, 135788. doi:10.1016/j.snb.2024.135788

CrossRef Full Text | Google Scholar

Zhang, Y., Wang, M.-Y., San, X.-G., Shen, Y.-B., Wang, G.-S., Zhang, L., et al. (2024a). Ti₃C₂T_x/SnO₂ P-N heterostructure construction boosts room-temperature detecting formaldehyde. Rare Met. 43 (1), 267–279. doi:10.1007/s12598-023-02456-0

CrossRef Full Text | Google Scholar

Zhao, H., He, X., Shi, Z., and Li, S. (2024a). Adsorption and sensing behavior of Cr-doped WS₂ monolayer for hazardous gases in agricultural greenhouses: a DFT study. Mater. Today Commun. 40, 109405. doi:10.1016/j.mtcomm.2024.109405

CrossRef Full Text | Google Scholar

Zhao, Z., Lv, Z., Chen, Z., Zhou, B., and Shao, Z. (2024c). α-Fe₂O₃/TiO₂/Ti₃C₂T_x nanocomposites for enhanced acetone gas sensors. Sensors 24 (8), 2604. doi:10.3390/s24082604

PubMed Abstract | CrossRef Full Text | Google Scholar

Zhao, Z., Ma, S., Rahmatullah, A. B. M., Chen, Z., Pan, Y., Wu, L., et al. (2024b). Flexible gas-strain dual sensor based on PU-supported Ti₃C₂T_x/CeO₂/TiO₂ yarns. Mater. Sci. Semicond. Process. 181, 108607. doi:10.1016/j.mssp.2024.108607

CrossRef Full Text | Google Scholar

Zhou, J., Shokouh, S. H. H., Cui, L., Jarvinen, T., Pitkanen, O., Lv, Z.-P., et al. (2023). An ultra-sensitive NH₃ gas sensor enabled by an ion-in-conjugated polycroconaine/Ti₃C₂T_x core-shell composite. Nanoscale Horizons 8 (6), 794–802. doi:10.1039/d2nh00591c

PubMed Abstract | CrossRef Full Text | Google Scholar

Zhu, X., Li, J., Chang, X., Gao, W., Chen, X., Niu, S., et al. (2024). Room temperature gas sensors for NH₃ detection based on SnO₂ films and lamellar-structured Ti₃C₂T_x MXene heterojunction nanocomposites. Appl. Surf. Sci. 660, 159976. doi:10.1016/j.apsusc.2024.159976

CrossRef Full Text | Google Scholar
