Novel strategy for depolymerization of avermectin fermentation residue to value-added amino acid product

Chi Ma&#x;Chi Ma1Zhengxin Mao,&#x;Zhengxin Mao1,2Qingfen Liu
Qingfen Liu1*
  • 1CAS Key Laboratory of Green Process and Engineering, Institute of Process Engineering, Chinese Academy of Sciences, Beijing, China
  • 2School of Chemical Engineering, University of Chinese Academy of Sciences, Beijing, China

Avermectin fermentation residue (AFR) is rich in proteins, which can be depolymerized to value-added amino acids for in-plant reuse. The hydrochloric acid (HCl) hydrolysis is performed and investigated under different conditions, including HCl concentration, solid-liquid ratio, temperature, and time. The hydrolysis degree (HD) of 67.7% can be achieved. The empirical correlation of HD is established with a good practicability to control the HD and predict the experimental conditions. Solid-liquid reaction is confirmed to be dominant during the hydrolysis process. There are 17 kinds of amino acids in the hydrolysate, benefiting the reuse. Avermectin is not detected in the hydrolysate and AFR, and the mass of AFR is reduced by 53.8 wt%. This work provides a novel strategy for the environmentally friendly treatment and meanwhile the resource recovery of AFR.

1 Introduction

Avermectin is a 16-membered macrolide antibiotics, which has been recognized as the most produced and used pesticide in the world with remarkable insecticidal, acaricidal and nematicidal activity (Hao et al., 2022; Wang et al., 2023; Xu et al., 2023). Avermectin fermentation residue (AFR) is a byproduct of the fermentation process for producing avermectin, and the annual production of this residue is about 40,000 tons (Cai et al., 2019). AFR mainly consists of mycelial cells, unutilized culture media, microbial metabolites, and residual avermectin (Geng et al., 2023). The residual avermectin presents the potential risks of the spread of antibiotic resistance in organisms (Ding et al., 2019), which seriously threatens the ecosystem and human health (Barra Caracciolo et al., 2011; Huang et al., 2017; Wang et al., 2022). In this context, AFR has been classified as “Hazardous Waste” in China (Hu et al., 2020; Song et al., 2020).

The traditional methods for the treatment of fermentation residues are incineration, safe landfill, and composting (Boukhrissa et al., 2017), but these methods always lead to resource waste and secondary pollution (Han et al., 2014; Christou et al., 2018; Cai et al., 2021). It is imperative to develop an alternative method for the environmentally friendly treatment and meanwhile the resource recovery of AFR. As a biosolid, AFR is rich in organic matter, especially proteins, which are as high as 30–50 wt% (Zhang et al., 2021). Due to the insoluble property, most proteins are difficult to reuse, and the depolymerization process such as acid (Adebiyi et al., 2005; Lopez et al., 2019), alkali (Dabrowska et al., 2022; Solanki et al., 2023), and enzyme hydrolysis (Leni et al., 2020; Pacheco et al., 2023) can be used to release small molecules as nutrient sources (Rezania et al., 2020; Nnaemeka et al., 2021; Chen et al., 2023). Zhang and Zhao. (2017) proposed the hydrolysis of proteins in penicillin fermentation residues to amino acids with sodium hydroxide, achieving an amino acid nitrogen content of 1.8 g/L. Zhang and Liu. (2021) investigated the enzyme hydrolysis of proteins in penicillin fermentation residues to amino acids, and the hydrolysis degree (HD) of proteins was 42.7%.

Some researchers have investigated the depolymerization of proteins in animals and plants with acid medium. Hu et al. (2015) proposed the hydrochloric acid (HCl) hydrolysis of wheat bran proteins to amino acids, showing an HD of 59.2%. Dai et al. (2019) reported the HCl hydrolysis of microalgae proteins for the production of polypeptides, and the maximum HD was 57.0%. Ma et al. (2010) compared the hydrolysis performance of corbicula fluminea proteins between different types of acids. The results showed that HCl was more efficient than citric and lactic acids with a higher HD of 59.3%. Acid medium has the ability to break the peptidoglycan cell walls of AFR and the advantages of low operating cost and high digestibility (Baadhe et al., 2014; Saville et al., 2016; Lin et al., 2022). It is hopeful to apply the acid medium to depolymerize AFR to small molecules for in-plant reuse, avoiding the environmental pollution during the ex-plant treatment. Up to now, there are few reports on the acid hydrolysis of AFR. The hydrolysis performance and mechanism may be different because of the complex composition, which are still unclear.

In this work, a novel strategy for AFR depolymerization with acid medium was proposed, and the HD of proteins in AFR was investigated under different conditions. The correlation of HD was established based on the results of hydrolysis experiments. The dominant reaction was explored through the comparison of the performance between different hydrolysis processes. Moreover, the components in the hydrolysate and avermectin in AFR were analyzed to discuss the feasibility of in-plant reuse.

2 Experimental section

In this work, a strategy for AFR depolymerization with acid medium was proposed, as shown in Figure 1. The feasibility of the depolymerization process was evaluated.

FIGURE 1
www.frontiersin.org

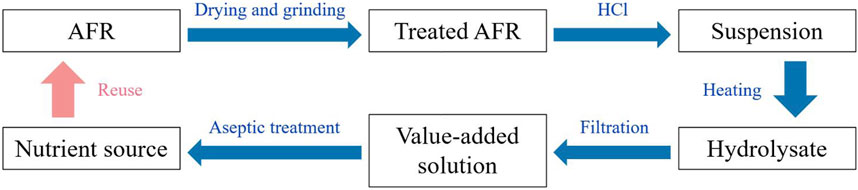

FIGURE 1. Strategy for AFR depolymerization with acid medium.

2.1 Materials and reagents

AFR and avermectin powders were derived from Qilu Pharmaceutical (Inner Mongolia) Co., Ltd., China. HCl, phenol, and sulfuric acid (H2SO4) were purchased from Sinopharm Chemical Reagent Co., Ltd., China. Methanol was purchased from Thermo Fisher Scientific Inc., the United States. All the reagents were analytically pure and used as received.

2.2 Depolymerization of AFR

According to Figure 1, AFR was dried in a drying oven (DHG-9070A, Shanghai Yiheng Scientific Instrument Co., Ltd., China) at 80 °C for 24 h, and then ground to less than 270 μm. HCl was added into deionized water to prepare a solution. A certain mass of treated AFR and a certain volume of HCl solution were introduced into a round bottom flask. The flask was immersed in a water bath (DF-101S, Gongyi Yuhua Instrument Co., Ltd., China) to control the hydrolysis temperature. After the hydrolysis for a period of time, the mixture was naturally cooled to room temperature (25 °C) and allowed to stand for 30 min. The HCl concentration (CHCl) of 1, 2, 4, 6, and 8 mol/L, solid-liquid ratio (mass:volume, RSL) of 1:5, 10, 20, 40, and 80 g/mL, hydrolysis temperature (T) of 40, 60, 80, 90, 100, 110, and 120 °C, and hydrolysis time (t) of 10, 20, 30, 40, 60, 120, 240, and 360 min were chosen for the experiments. Subsequently, the mixture was filtered to achieve solid-liquid separation. The mass of solid and the composition of liquid were measured and recorded, and each experimental condition was repeated for three times. The value-added solution can be aseptically treated for further reuse.

For the investigation of the dominant reaction of hydrolysis process, three experiments were performed under the same HCl concentration, solid-liquid ratio, and hydrolysis temperature. In the first experiment, the hydrolysis time was 120 min, marked as mode #1. The hydrolysis time of the second experiment was set as 30 min. Then the mixture was filtered, and the liquid was continuously hydrolyzed for another 90 min, marked as mode #2. The hydrolysis time of the third experiment and the time for continue hydrolysis of the liquid were set as 60 and 60 min, respectively, marked as mode #3.

2.3 Analytical methods

The protein content in AFR and hydrolysate was determined by a Kjeldahl nitrogen analyzer (K06A, Shanghai Chengsheng Automation Analysis Instrument Co., Ltd., China). The fat content in AFR and hydrolysate was determined by a Soxhlet extractor (BSXT-06, Shanghai Hefan Instrument Co., Ltd., China). The ash content in AFR was characterized by a ceramic fiber muffle furnace (TM-0610P, Beijing Yinganmeicheng Scientific Instrument Co., Ltd., China). The amino acid content in the hydrolysate was analyzed by an automatic amino acid analyzer (L-8900, Hitachi Ltd., Japan).

The avermectin content in the hydrolysate was analyzed by a high performance liquid chromatography (HPLC, 1,260, Agilent Technologies Inc., the United States) with a column (ZORBAX SB-C18, 4.6 mm × 250 mm, 5 μm). The detection wavelength of 245 nm, mobile phase (methanol and water) volume ratio of 85:15, flow rate of 1.0 mL/min, injection volume of 20 μL, column temperature of 25°C ± 0.8°C, and retention time of 25 min were used for the chromatographic conditions. The content of avermectin powders with known concentration was used as a reference. For the analysis of avermectin content in AFR, AFR was extracted with methanol at room temperature for 60 min, and the solid-liquid ratio (mass:volume) was set as 1:20 g/mL. The avermectin content in the extract was analyzed by HPLC. The products of avermectin hydrolysis were identified by a high resolution liquid chromatography-mass spectrometry system (LC-MS, TripleTOF 5,600, AB Sciex Pte. Ltd., the United States).

The soluble saccharide content in the hydrolysate was measured by an ultraviolet-visible spectrophotometer (UH5300, Hitachi Ltd., Japan) at a wavelength of 490 nm. The absorbance (Abs) of samples with known concentration was used as a reference. For the measurement of soluble saccharide content in AFR, AFR was added in deionized water, and then 1 mL phenol with concentration of 5 wt% and 5 mL H2SO4 were added in the liquid, respectively. The mixture was shaken and allowed to stand for 15 min at room temperature and 30°C, respectively. The Abs of the liquid was measured by ultraviolet-visible spectrophotometer.

3 Results and discussion

3.1 Hydrolysis performance of proteins in AFR

3.1.1 Hydrolysis degree

The protein, fat, ash, soluble saccharide, and avermectin contents in AFR are listed in Table 1. It can be seen that the protein content was high as 300.4 mg/g (30.0 wt%). This indicated that AFR was suitable and valuable for reuse to produce small molecules as nutrient sources.

TABLE 1
www.frontiersin.org

TABLE 1. The protein, fat, ash, soluble saccharide, and avermectin contents in AFR.

Figure 2 shows the photographs of AFR before and after HCl hydrolysis. The hydrolysis performance of proteins in AFR was evaluated under different conditions, including CHCl, RSL, T, and t, as shown in Figure 3. Figure 3A shows the effect of CHCl on the HD of proteins. The HD increased first and then tended to equilibrium with the increase of CHCl, ranging from 40.3% to 61.6%. This is because the amount of hydrogen ions increased with the increase of CHCl until 6 mol/L, and the breaking of amide bonds in proteins was intensified. With the continuous increase of CHCl after exceeding 6 mol/L, there are enough hydrogen ions, and the breaking was no longer intensified.

FIGURE 2
www.frontiersin.org

FIGURE 2. Photographs of AFR (A) before and (B) after HCl hydrolysis.

FIGURE 3
www.frontiersin.org

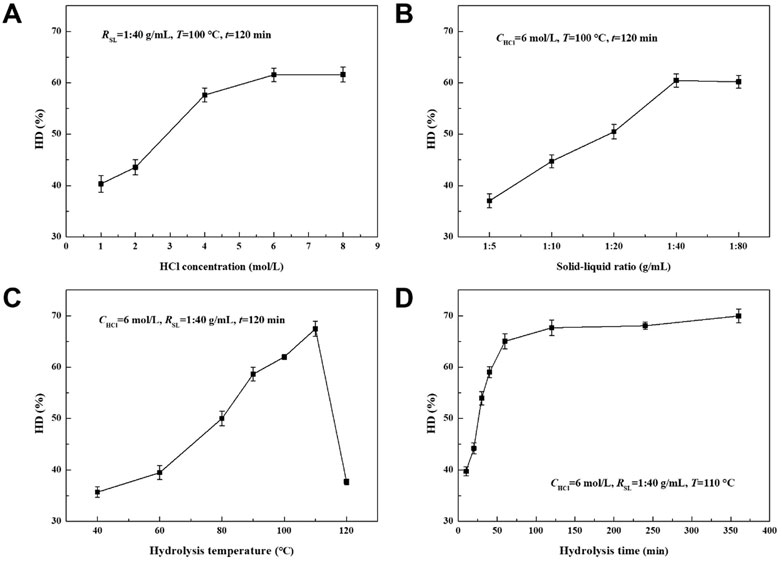

FIGURE 3. Effects of (A) HCl concentration, (B) solid-liquid ratio, (C) hydrolysis temperature, and (D) time on the HD of proteins.

Figure 3B displays the effect of RSL on the HD of proteins. The HD increased first and then tended to equilibrium with the increase of RSL, ranging from 37.0% to 60.4%. When the RSL was low, the contact between hydrogen ions and amide bonds in proteins was inadequate, resulted in a low reaction efficiency. The contact was improved with the increase of RSL until 1:40 g/mL. The contact was adequate and no longer improved when the RSL exceeded 1:40 g/mL.

The effect of T on the HD of proteins is shown in Figure 3C. The HD first increased and then decreased with the increase of T, ranging from 35.7% to 67.5%. The maximum value was obtained at the T of 110°C. When the T was low, the reaction was slow with less energy in the reactants. The reaction was accelerated by increasing the T. However, HCl was evaporated and left the liquid when the T was higher than 110°C, resulted in a significant decrease in HD.

The effect of t on the HD of proteins is shown in Figure 3D. The hydrolysis reaction continued and the HD increased with t until equilibrium at about 120 min, and ranged from 39.7% to 70.0%. It can be seen that the reaction rate gradually decreased with t because of the consumption of reactants. According to the above results, the optimal conditions were obtained as CHCl of 6 mol/L, RSL of 1:40 g/mL, T of 110 °C, and t of 120 min. The HD of proteins of 67.7% can be achieved under these conditions, which was much higher than the HD of proteins in the literature (Ma et al., 2010; Hu et al., 2015; Dai et al., 2019).

3.1.2 Correlation of hydrolysis degree

An empirical correlation of the HD of proteins in AFR, considering CHCl, RSL, T, and t was established to evaluate their contribution. The correlation was fitted based on the results of hydrolysis experiments in Section 3.1.1, as shown below:

HD=0.1405×CHCl+10.40×RSL0.25×T0.74×t0.20R2=0.9703(1)

The predicted values agreed well with the experimental values with the errors of ±15%, as shown in Figure 4. This suggested that the correlation was practical to predict the HD in the range of 1–6 mol/L for CHCl, 1:5 to 1:40 g/mL for RSL, 40°C–110°C for T, and 10–120 min for t. The HD was proportional to the CHCl +1, RSL, T, and t with the power of 0.49, 0.25, 0.66, and 0.19, respectively. This indicated that CHCl, RSL, T, and t all affected the HD. The higher the CHCl, the larger the RSL, the higher the T, the longer the t, and the higher the HD. The reasons were consistent with the analyses of HD in Section 3.1.1. The order of influence on the HD was T > CHCl > RSL > t. By the correlation, the required HD can be controlled and the experimental conditions can be calculated.

FIGURE 4
www.frontiersin.org

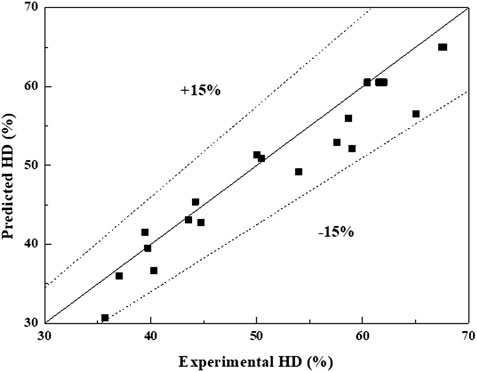

FIGURE 4. Comparison of HD between predicted and experimental values.

Experiment 1 and 2 were chosen to verify the correlation, and the experimental conditions and results are listed in Table 2. The errors between the predicted values and experimental values were 0.2% and 3.1%, respectively. This indicated that the correlation can be used to predict the HD with a high accuracy.

TABLE 2
www.frontiersin.org

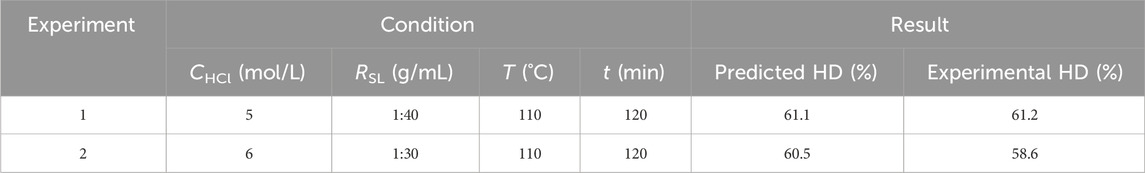

TABLE 2. Experimental conditions and results for the verification of correlation.

3.2 Analysis of amino acids in the hydrolysate

Through HCl hydrolysis of AFR, the proteins were converted into soluble amino acids. The amino acid kinds and contents in the hydrolysate under the optimal conditions were analyzed, as listed in Table 3. There were 17 kinds of amino acids in the hydrolysate, including glutamic acid (Glu), aspartic acid (Asp), alanine (Ala), phenylalanine (Phe), glycine (Gly), leucine (Leu), threonine (Thr), proline (Pro), serine (Ser), arginine (Arg), valine (Val), lysine (Lys), tyrosine (Tyr), isoleucine (Ile), histidine (His), methionine (Met), and cysteine (Cys). The amino acid production variations with t are displayed in Figure 5. The amino acid contents all increased with t until 120 min. The order of amino acid production rate in 10 min was Phe > Val > Cys > Met > Glu > Gly > Ala > Ile > Leu > Thr > Ser > Pro > Lys > Asp > His > Arg > Tyr. The order of production rate in 30 min was Gly > Met > Phe > Ala > Val > Glu > Ser > Cys > Asp > Arg > Pro > His > Leu > Thr > Lys > Ile > Tyr. The order of production rate in 60 min was Met > Tyr > Gly > Ala > Val > Glu > Pro > Asp > Cys > Ser > His > Arg > Leu > Thr > Lys > Ile > Phe. The differences in the production rates at different stages were mainly related to the structures of proteins in AFR. The concentration of different amino acids in the hydrolysate can be controlled by changing t, which was convenient for the selection of different amino acids. The production of value-added amino acids was beneficial to the in-plant reuse of AFR as nutrient sources. Among the amino acids, Thr, Ile, and Val can provide a significant improvement of the fermentation process for producing avermectin (De Rossi et al., 1995; Zhang et al., 1999; Cao et al., 2017).

TABLE 3
www.frontiersin.org

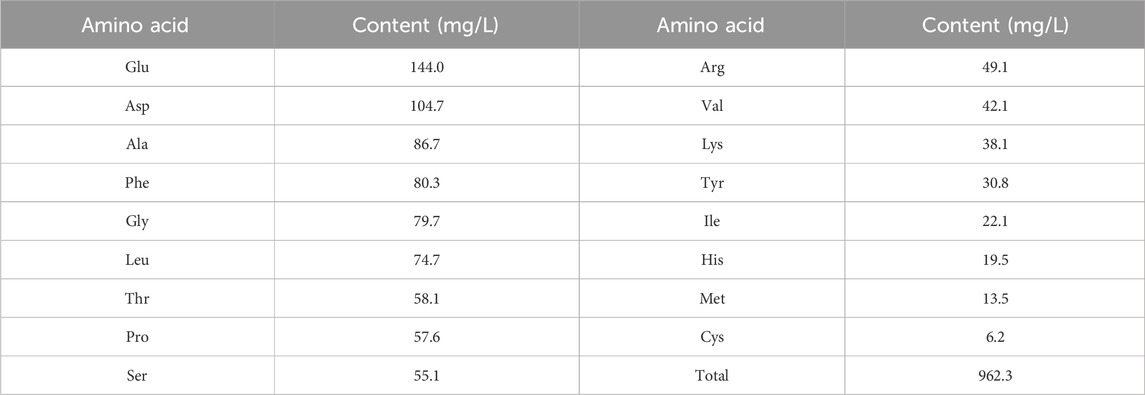

TABLE 3. Amino acid kinds and contents in the hydrolysate.

FIGURE 5
www.frontiersin.org

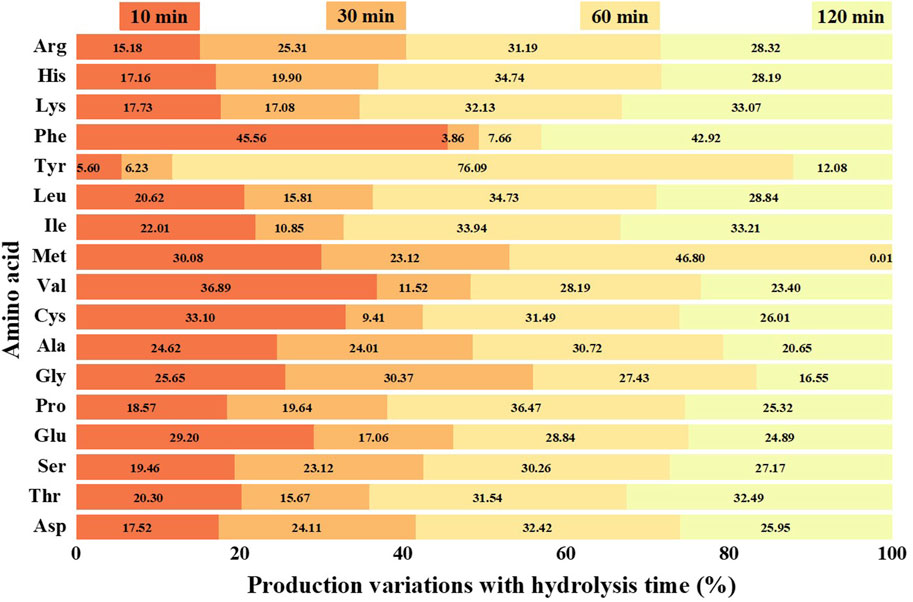

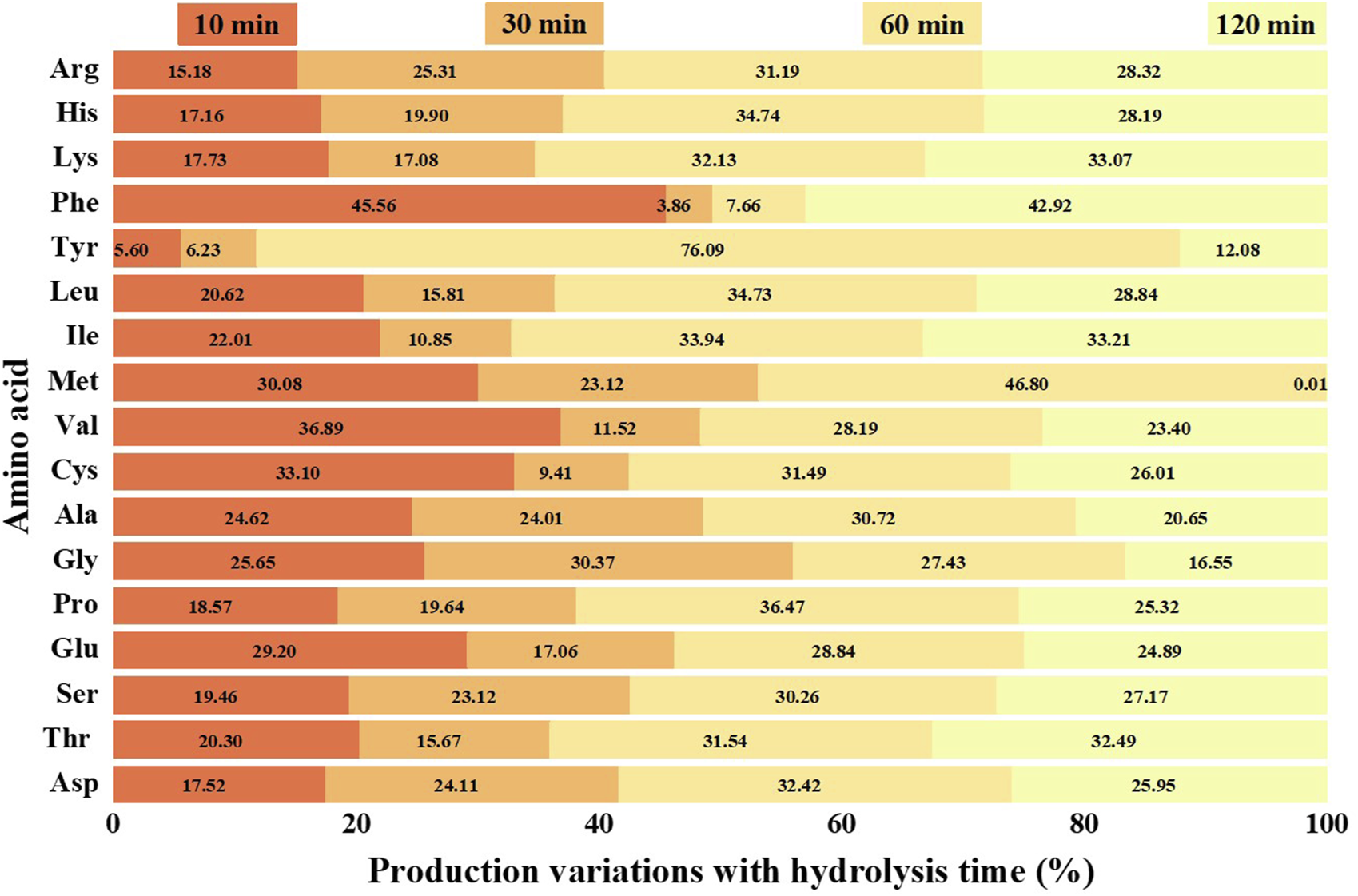

FIGURE 5. Amino acid production variations with hydrolysis time.

3.3 Determination of critical reaction process

As described in Section 2.2, the hydrolysis performance of proteins affected by hydrolysis mode was investigated in this work. The HD of proteins for mode #2 and #3 at 120 min was 58.2% and 65.1%, respectively. According to the results in Figure 3D, the HD at 30 and 60 min was 54.0% and 65.0%, respectively, and the HD for mode #1 was 67.7%. For mode #2, the HD increased by 4.2% from 30 to 120 min, and for mode #3, the HD increased by 0.1% from 60 to 120 min. This indicated that a small number of proteins were dissolved in the liquid with HCl. The hydrolysis of proteins existed in both the solid residue and liquid at 30 min, and mainly existed in the solid residue at 60 min. The HD at 120 min for mode #2 and #3 was both lower than that for mode #1. Therefore, the solid-liquid reaction was dominant during the hydrolysis process. This is mainly because most proteins have the insoluble property, which was consistent with the description in Introduction. The hydrolysis process can be intensified by improving the solid-liquid reaction.

3.4 Analysis of other components in the hydrolysate

After HCl hydrolysis of AFR with the optimal conditions, the soluble saccharide content in the hydrolysate was measured as 1,628.0 mg/L, which was calculated as 65.1 mg/g in AFR. As shown in Table 1, the soluble saccharide content in AFR was 45.1 mg/g. This suggested that some insoluble saccharides were before hydrolysis depolymerized into soluble small molecules, which was beneficial to the in-plant reuse. The fats were not detected in the hydrolysate (<5 mg/g), indicating that the fats were depolymerized into glycerol and fatty acids under acid medium. The reduced mass of AFR after HCl hydrolysis was measured and reached 53.8 wt%. The significant decrease of mass means that the difficulty and cost of AFR treatment are largely reduced with the release of a large number of value-added small molecules.

3.5 Pathway of avermectin depolymerization

As shown in Table 1, the avermectin content in AFR was 0.4 mg/g. After HCl hydrolysis of AFR with the optimal conditions, avermectin was not detected in the hydrolysate and AFR (<0.0006 mg/g), indicating an adequate depolymerization of avermectin. Table 4 presents the data of the products of avermectin depolymerization identified by LC-MS. The chemical formula and corresponding molecular weight (MW) were determined. The pathways of avermectin depolymerization were speculated, as shown in Figure 6. In pathway 1, C13-O and C25-C in avermectin (C48H72O14) were broken to form C14H26O7, C30H40O7, and C4H10. In pathway 2, C13-O, C16-C17, and C1-O were broken to form C14H26O7, C20H28O4, and C14H24O3. C13-O, C16-C17, and C8-C9 were broken to form C14H26O7, C10H18, and C24H34O7 in pathway 3. The depolymerization of avermectin may reduce the pollution risks during AFR treatment (Lv et al., 2021; Zhou et al., 2023). Acid hydrolysis provides the potential for environmentally friendly treatment and in-plant reuse of AFR.

TABLE 4
www.frontiersin.org

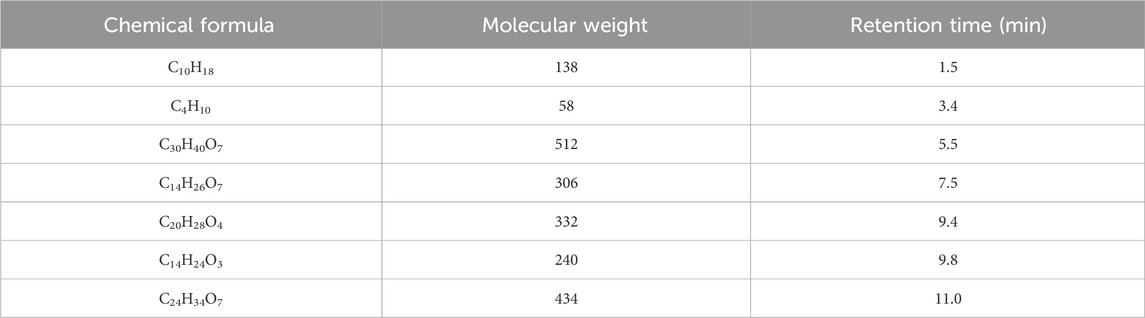

TABLE 4. Data of the products of avermectin depolymerization identified by LC-MS.

FIGURE 6
www.frontiersin.org

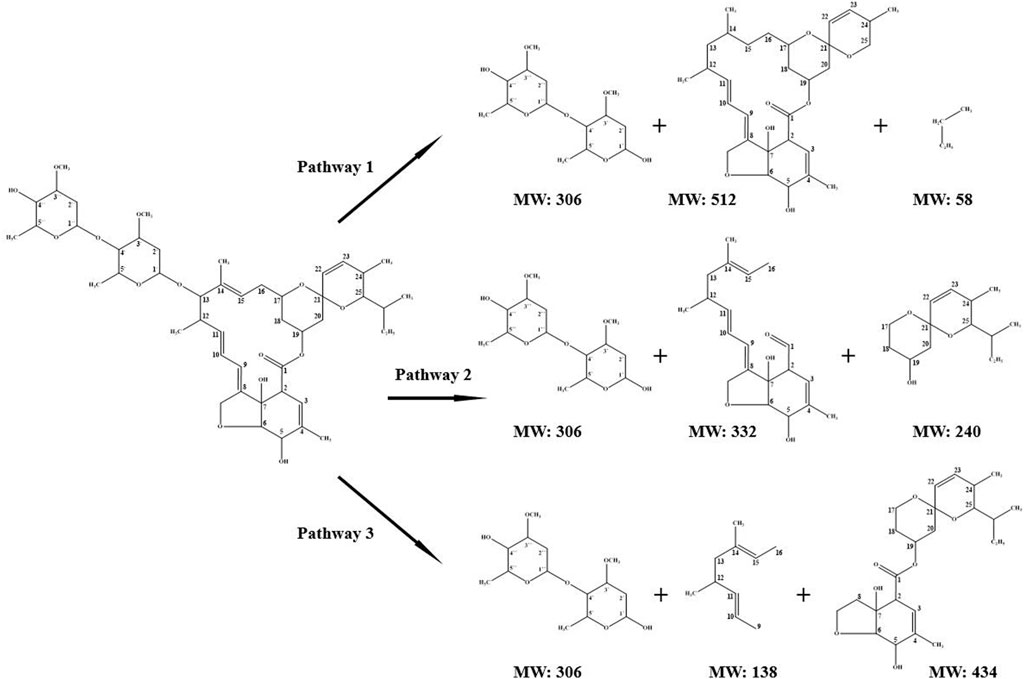

FIGURE 6. Schematic diagram of possible pathways of avermectin depolymerization.

4 Conclusion

In this work, a novel strategy for HCl hydrolysis of AFR was proposed to release value-added small molecules. The conditions were optimized as HCl concentration of 6 mol/L, solid-liquid ratio of 1:40 g/mL, temperature of 110 °C, and time of 120 min, and the HD of proteins can reach 67.7%. The empirical correlation of HD was established, and the predicted HD agreed well with the experimental HD with the errors of ±15%. Proteins were hydrolyzed into 17 kinds of amino acids. The hydrolysis process existed in both the solid residue and liquid, and was dominant in the solid residue. In addition, there were 1,628.0 mg/L of soluble saccharides and undetected fats in the hydrolysate. The reduced mass of AFR after hydrolysis was 53.8 wt% with undetectable avermectin. The HCl hydrolysis was feasible with the advantages of high mass reduction and in-plant reuse of AFR.

Data availability statement

The original contributions presented in the study are included in the article/Supplementary material, further inquiries can be directed to the corresponding author.

Author contributions

CM: Formal Analysis, Methodology, Writing–original draft. ZM: Data curation, Investigation, Writing–review and editing. QL: Project administration, Supervision, Writing–review and editing.

Funding

The author(s) declare financial support was received for the research, authorship, and/or publication of this article. This work was supported by National Key R&D Program of China (No. 2021YFC2101000).

Conflict of interest

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

Publisher’s note

All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.

References

Adebiyi, A. P., Jin, D. H., Ogawa, T., and Muramoto, K. (2005). Acid hydrolysis of protein in a microcapillary tube for the recovery of tryptophan. Biosci. Biotech. Bioch. 69, 255–257. doi:10.1271/bbb.69.255

PubMed Abstract | CrossRef Full Text | Google Scholar

Baadhe, R. R., Potumarthi, R., and Mekala, N. K. (2014). Influence of dilute acid and alkali pretreatment on reducing sugar production from corncobs by crude enzymatic method: a comparative study. Bioresour. Technol. 162, 213–217. doi:10.1016/j.biortech.2014.03.117

PubMed Abstract | CrossRef Full Text | Google Scholar

Barra Caracciolo, A., Grenni, P., Falconi, F., Caputo, M. C., Ancona, V., and Uricchio, V. F. (2011). Pharmaceutical waste disposal: assessment of its effects on bacterial communities in soil and groundwater. Chem. Ecol. 27, 43–51. doi:10.1080/02757540.2010.534082

CrossRef Full Text | Google Scholar

Boukhrissa, A., Ferrag-Siagh, F., Rouidi, L. M., Chemat, S., and Aït-Amar, H. (2017). Study of the degradation in aqueous solution of a refractory organic compound: avermectin type used as pesticide in agriculture. Water Sci. Technol. 76, 1966–1980. doi:10.2166/wst.2017.310

PubMed Abstract | CrossRef Full Text | Google Scholar

Cai, C., Hua, Y., Liu, H. L., and Dai, X. H. (2021). A new approach to recycling cephalosporin fermentation residue into plant biostimulants. J. Hazard. Mater. 413, 125393. doi:10.1016/j.jhazmat.2021.125393

PubMed Abstract | CrossRef Full Text | Google Scholar

Cai, C., Liu, H. L., Dai, X. H., and Whalen, J. K. (2019). Multiple selection of resistance genes in arable soil amended with cephalosporin fermentation residue. Soil Biol. biochem. 136, 107538. doi:10.1016/j.soilbio.2019.107538

CrossRef Full Text | Google Scholar

Cao, P., Hu, D., Zhang, J., Zhang, B. Q., and Gao, Q. (2017). Enhanced avermectin production by rational feeding strategies based on comparative metabolomics. Acta Microbiol. Sin. 57, 281–292. doi:10.13343/j.cnki.wsxb.20160290

PubMed Abstract | CrossRef Full Text | Google Scholar

Chen, D. M., Tang, W. J., Wang, H., Sheng, Y. Q., Tan, X., Shi, Y., et al. (2023). Phosphoric acid pretreatment of poplar to optimize fermentable sugars production based on orthogonal experimental design. Front. Chem. 11, 1119215. doi:10.3389/fchem.2023.1119215

PubMed Abstract | CrossRef Full Text | Google Scholar

Christou, A., Michael, C., Fatta-Kassinos, D., and Fotopoulos, V. (2018). Can the pharmaceutically active compounds released in agroecosystems be considered as emerging plant stressors? Environ. Int. 114, 360–364. doi:10.1016/j.envint.2018.03.003

PubMed Abstract | CrossRef Full Text | Google Scholar

Dabrowska, M., Sommer, A., Sinkiewicz, I., Taraszkiewicz, A., and Staroszczyk, H. (2022). An optimal designed experiment for the alkaline hydrolysis of feather keratin. Environ. Sci. Pollut. Res. 29, 24145–24154. doi:10.1007/s11356-021-17649-2

CrossRef Full Text | Google Scholar

Dai, L. X., Reichert, C. L., Hinrichs, J., and Weiss, J. (2019). Acid hydrolysis behavior of insoluble protein-rich fraction extracted from Chlorella protothecoides. Colloid. Surf. A 569, 129–136. doi:10.1016/j.colsurfa.2019.02.064

CrossRef Full Text | Google Scholar

De Rossi, E., Leva, R., Gusberti, L., Manachini, P. L., and RiccardiI, G. (1995). Cloning, sequencing and expression of the ilvBNC gene cluster from Streptomyces avermitilis. Gene 166, 127–132. doi:10.1016/0378-1119(95)00563-4

PubMed Abstract | CrossRef Full Text | Google Scholar

Ding, W. Y., Zheng, S. D., Qin, Y., Yu, F., Bai, J. W., Cui, W. Q., et al. (2019). Chitosan grafted with β-cyclodextrin: synthesis, characterization, antimicrobial activity, and role as absorbefacient and solubilizer. Front. Chem. 6, 657. doi:10.3389/fchem.2018.00657

PubMed Abstract | CrossRef Full Text | Google Scholar

Geng, J., Wang, G. N., Guo, J., Han, X., Qu, Y. H., Zhou, Y. F., et al. (2023). Preparation and structural analysis of fucomannogalactan and β-1,6-glucan from Grifola frondosa mycelium. Front. Chem. 11, 1227288. doi:10.3389/fchem.2023.1227288

PubMed Abstract | CrossRef Full Text | Google Scholar

Han, H. J., Zheng, S. Y., Ma, W. C., Huang, J. H., Chen, L. Y., Liu, X., et al. (2014). The current situation and treatment and disposal techniques of antibiotic bacterial residues in China. Appl. Mech. Mater. 587-589, 820–823. doi:10.4028/www.scientific.net/AMM.587-589.820

CrossRef Full Text | Google Scholar

Hao, Y., You, Y. T., Chen, Z., Li, J. L., Liu, G., and Wen, Y. (2022). Avermectin B1a production in Streptomyces avermitilis is enhanced by engineering aveC and precursor supply genes. Appl. Microbiol. Biot. 106, 2191–2205. doi:10.1007/s00253-022-11854-w

CrossRef Full Text | Google Scholar

Hu, R., Zhang, M., and Chen, S. H. (2015). Hydrolysis of wheat bran protein by acid and amino acid analysis of hydrolyzate. J. Food Sci. Biotechnol. 34, 90–93.

Google Scholar

Hu, Y. M., Shen, Y. P., and Wang, J. L. (2020). Pretreatment of antibiotic fermentation residues by combined ultrasound and alkali for enhancing biohydrogen production. J. Clean. Prod. 268, 122190. doi:10.1016/j.jclepro.2020.122190

CrossRef Full Text | Google Scholar

Huang, X., Zheng, J. L., Liu, C. X., Liu, L., Liu, Y. H., and Fan, H. Y. (2017). Removal of antibiotics and resistance genes from swine wastewater using vertical flow constructed wetlands: effect of hydraulic flow direction and substrate type. Chem. Eng. J. 308, 692–699. doi:10.1016/j.cej.2016.09.110

CrossRef Full Text | Google Scholar

Leni, G., Soetemans, L., Caligiani, A., Sforza, S., and Bastiaens, L. (2020). Degree of hydrolysis affects the techno-functional properties of lesser mealworm protein hydrolysates. Foods 9, 381. doi:10.3390/foods9040381

PubMed Abstract | CrossRef Full Text | Google Scholar

Lin, T., Wang, Q., Zheng, X., Chang, Y., Cao, H., and Zheng, Y. F. (2022). Investigation of the structural, thermal, and physicochemical properties of nanocelluloses extracted from bamboo shoot processing byproducts. Front. Chem. 10, 922437. doi:10.3389/fchem.2022.922437

PubMed Abstract | CrossRef Full Text | Google Scholar

Lopez, R., Escudero, L., D'Amato, R., Businelli, D., Trabalza-Marinucci, M., Cerutti, S., et al. (2019). Optimisation of microwave-assisted acid hydrolysis for the determination of seleno-amino acids bound to proteins in powdered milk, lyophilized milk and infant formula. J. Food Compos. Anal. 79, 128–133. doi:10.1016/j.jfca.2019.03.016

CrossRef Full Text | Google Scholar

Lv, Y., Zou, L., Li, H. D., Chen, Z. L., Wang, X. L., Sun, Y., et al. (2021). Investigation of non-thermal atmospheric plasma for the degradation of avermectin solution. Plasma Sci. Technol. 23, 055506. doi:10.1088/2058-6272/abe926

CrossRef Full Text | Google Scholar

Ma, Y. Q., Hu, L. Z., and Yu, X. (2010). Study on acid hydrolysis technic of Corbicula fluminea protein. Sci. Technol. Food Ind. 31, 288–290. doi:10.13386/j.issn1002-0306.2010.11.024

CrossRef Full Text | Google Scholar

Nnaemeka, I. C., Samuel, O. E., Maxwell, I. O., Asadu, O. C., and Chinelo, S. O. (2021). Optimization and kinetic studies for enzymatic hydrolysis and fermentation of Colocynthis vulgaris Shrad seeds shell for bioethanol production. J. Bioresour. Bioprod. 6, 51–69. doi:10.1016/j.jobab.2021.02.004

CrossRef Full Text | Google Scholar

Pacheco, A. F. C., de Souza, L. B., Paiva, P. H. C., Lelis, C. A., Vieira, E. N. R., Tribst, A. A. L., et al. (2023). Impact of ultrasound on pumpkin seed protein concentrate hydrolysis: effects on Alcalase, protein, and assisted reaction. Appl. Food Res. 3, 100281. doi:10.1016/j.afres.2023.100281

CrossRef Full Text | Google Scholar

Rezania, S., Oryani, B., Cho, J., Talaiekhozani, A., Sabbagh, F., Hashemi, B., et al. (2020). Different pretreatment technologies of lignocellulosic biomass for bioethanol production: an overview. Energy 199, 117457. doi:10.1016/j.energy.2020.117457

CrossRef Full Text | Google Scholar

Saville, B. A., Griffin, W. M., and MacLean, H. L. (2016). Ethanol production technologies in the US: status and future developments. Glob. Bioethanol 2016, 163–180. doi:10.1016/B978-0-12-803141-4.00007-1

CrossRef Full Text | Google Scholar

Solanki, D., Prakash, S., Hans, N., Nagpal, T., Satheeshkanth, S. S. M., Sahu, J. K., et al. (2023). Subcritical water hydrolysis of chia seed proteins and their functional characteristics. Food Hydrocolloid 143, 108883. doi:10.1016/j.foodhyd.2023.108883

CrossRef Full Text | Google Scholar

Song, S. Q., Jiang, M. Y., Yao, J., Liu, H. L., Dai, X. H., and Wang, G. (2020). Alkaline-thermal pretreatment of spectinomycin mycelial residues: insights on anaerobic biodegradability and the fate of antibiotic resistance genes. Chemosphere 261, 127821. doi:10.1016/j.chemosphere.2020.127821

PubMed Abstract | CrossRef Full Text | Google Scholar

Wang, G., Liu, H. L., Wang, J., Gong, P. C., Cai, C., Dai, X. H., et al. (2022). Pretreatment of spiramycin fermentation residue by thermally activated peroxydisulfate for improving biodegradability: insights into matrix disintegration and antibiotics degradation. Chem. Eng. J. 427, 130973. doi:10.1016/j.cej.2021.130973

CrossRef Full Text | Google Scholar

Wang, K., Liu, H. Y., Sun, W. Y., Guo, J. M., Jiang, Z. H., Xu, S. W., et al. (2023). Eucalyptol alleviates avermectin exposure-induced apoptosis and necroptosis of grass carp hepatocytes by regulating ROS/NLRP3 axis. Aquat. Toxicol. 264, 106739. doi:10.1016/j.aquatox.2023.106739

PubMed Abstract | CrossRef Full Text | Google Scholar

Xu, X. H., Zhou, M. Y., Xie, K. M., Zhang, S., Ji, X. M., Sun, Y., et al. (2023). Mitigation of avermectin exposure-induced brain tissue damage in carp by quercetin. Fish. Physiol. Biochem. 49, 1171–1185. doi:10.1007/s10695-023-01249-7

PubMed Abstract | CrossRef Full Text | Google Scholar

Zhang, M. M., and Zhao, F. Q. (2017). Preparation and application of mixed amino acids from waste penicillin mycelium by microwave hydrolysis. Chem. Ind. Eng. Prog. 36, 2275–2281. doi:10.16085/j.issn.1000-6613.2017.06.044

CrossRef Full Text | Google Scholar

Zhang, Y., Ji, Y. H., and Qian, H. L. (2021). Progress in thermodynamic simulation and system optimization of pyrolysis and gasification of biomass. Green Chem. Eng. 2, 266–283. doi:10.1016/j.gce.2021.06.003

CrossRef Full Text | Google Scholar

Zhang, Y. X., Denoya, C. D., Skinner, D. D., Fedechko, R. W., McArthur, H. A. I., Morgenstern, M. R., et al. (1999). Genes encoding acyl-CoA dehydrogenase (AcdH) homologues from Streptomyces coelicolor and Streptomyces avermitilis provide insights into the metabolism of small branched-chain fatty acids and macrolide antibiotic production the GenBank accession numbers for the sequences described in this paper are AF142581 (Streptomyces coelicolor) and AF143210 (Streptomyces avermitilis). Microbiol.-SGM 145, 2323–2334. doi:10.1099/00221287-145-9-2323

PubMed Abstract | CrossRef Full Text | Google Scholar

Zhang, Z. A., and Liu, Q. F. (2021). Enzymatic hydrolysis of penicillin mycelium protein. Chin. J. Process Eng. 21, 471–478. doi:10.12034/j.issn.1009-606X.220122

CrossRef Full Text | Google Scholar

Zhou, H., Liu, S. X., Zhao, B. F., Wang, J. W., Guan, H. B., Zhu, D., et al. (2023). Analyzing the pyrolysis mechanism of avermectin via experiments and density functional theory. J. Fuel Chem. Technol. 51, 1137–1145. doi:10.1016/S1872-5813(23)60367-6

CrossRef Full Text | Google Scholar

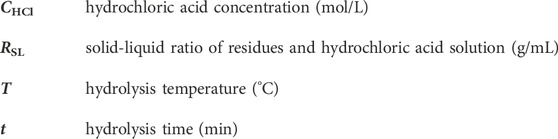

Nomenclature
